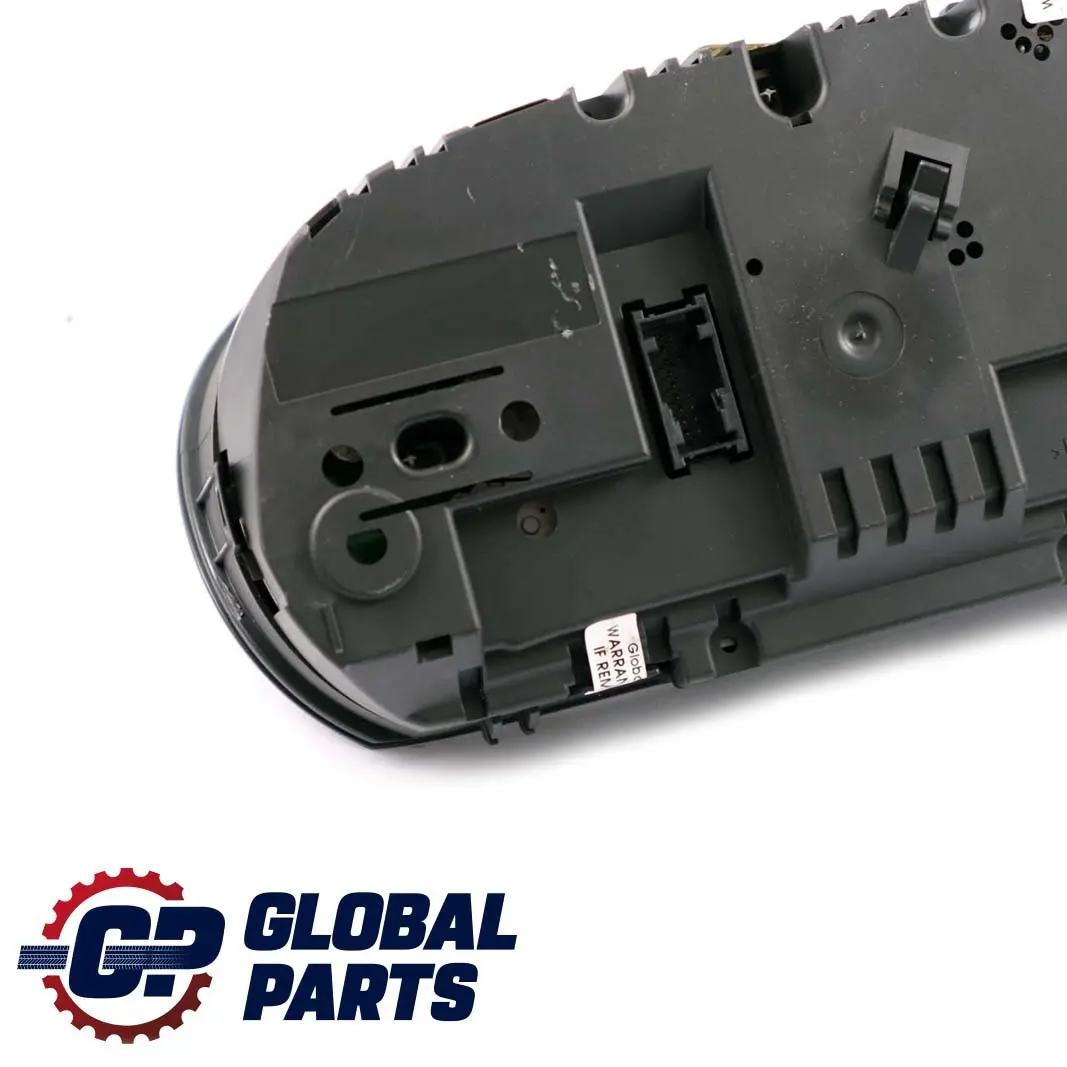

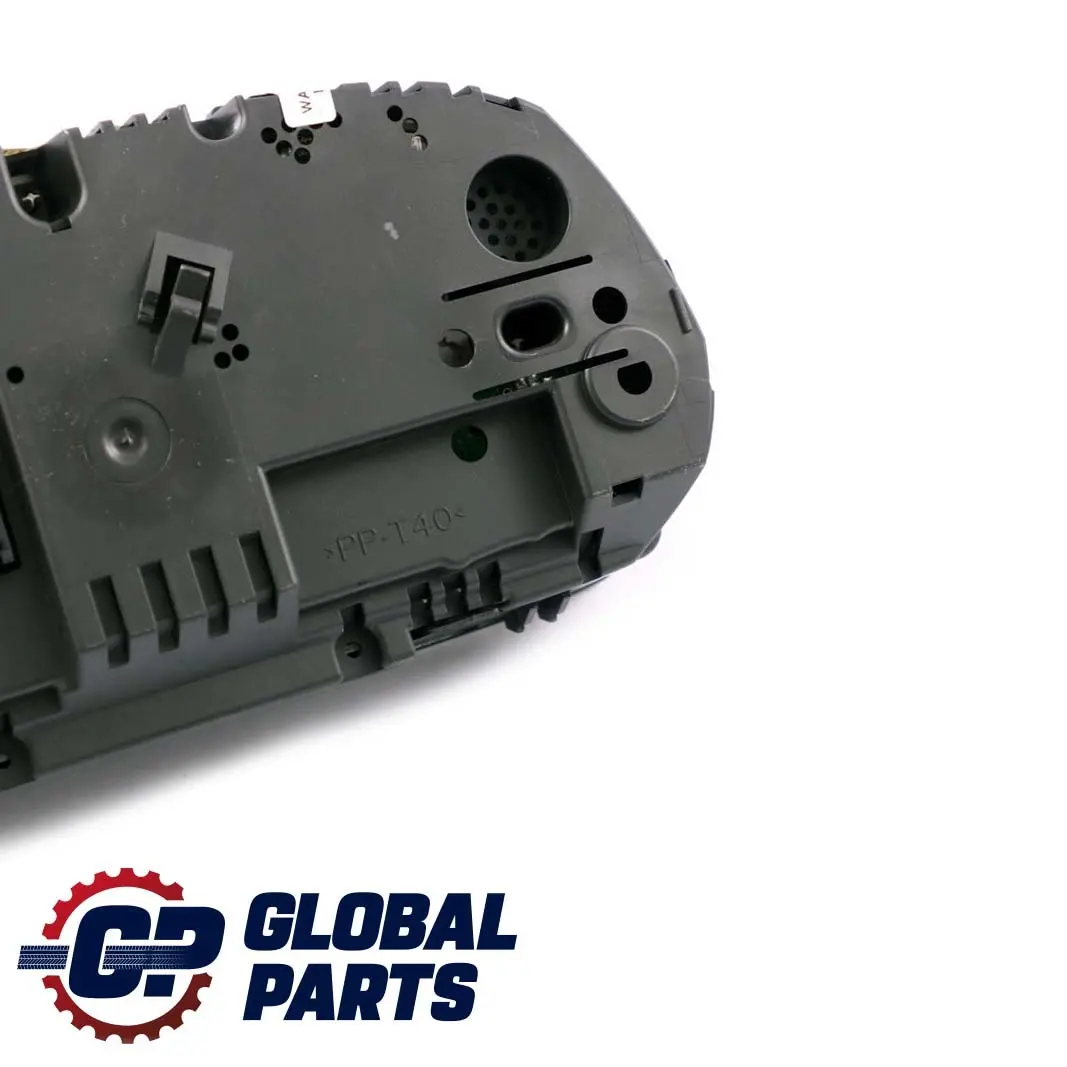

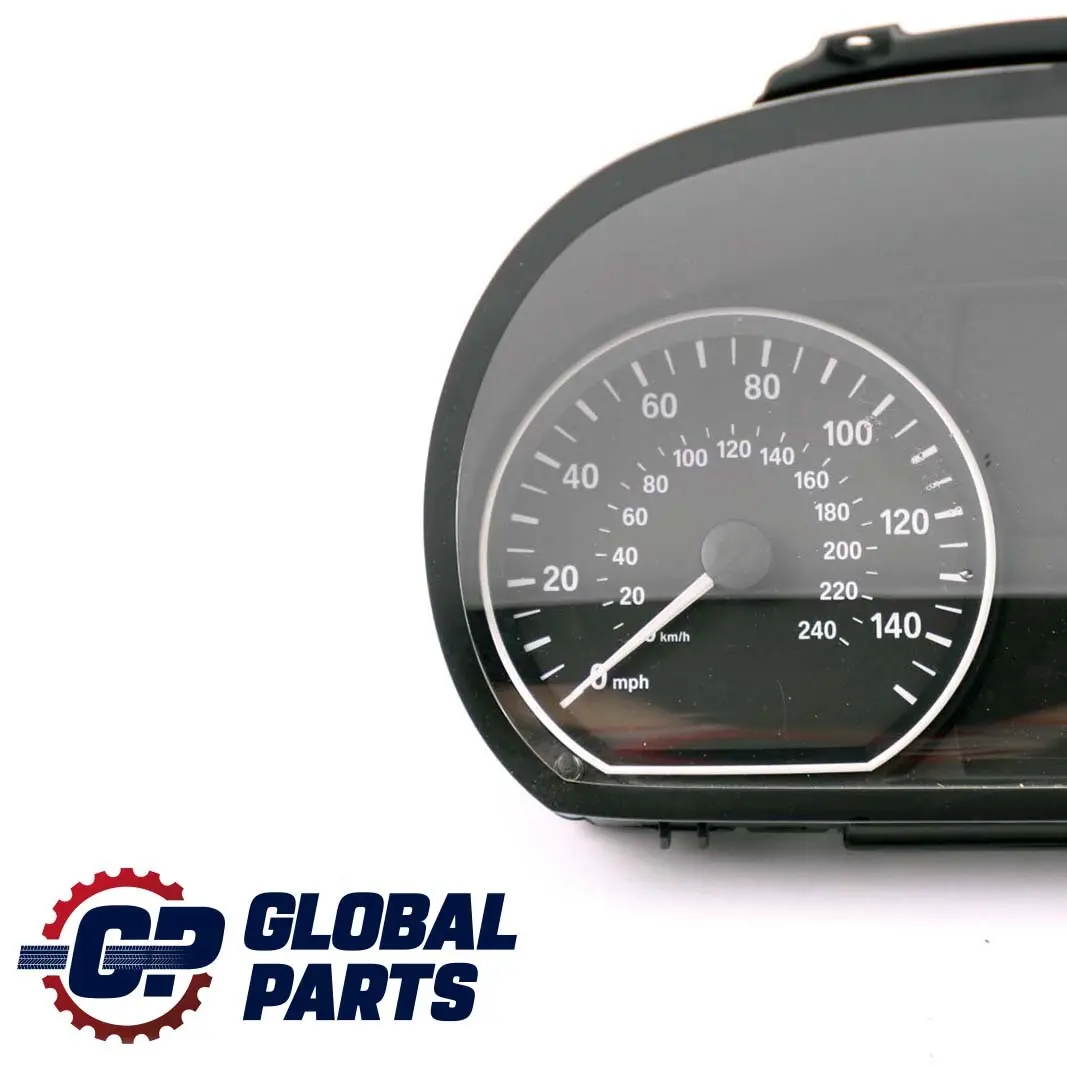

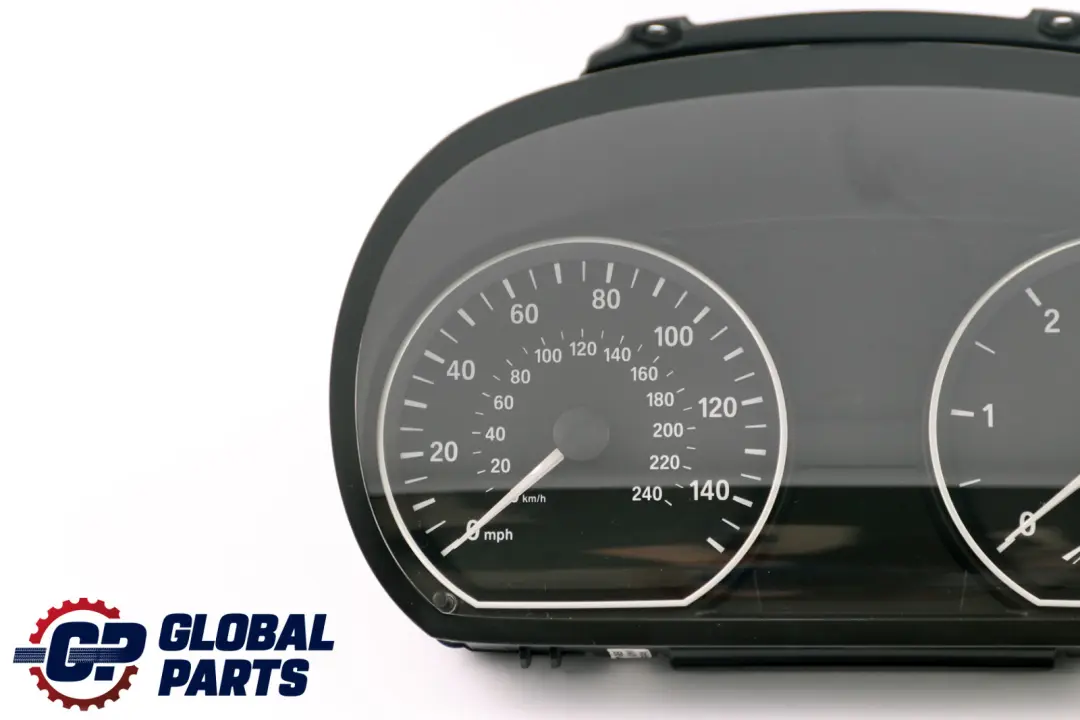

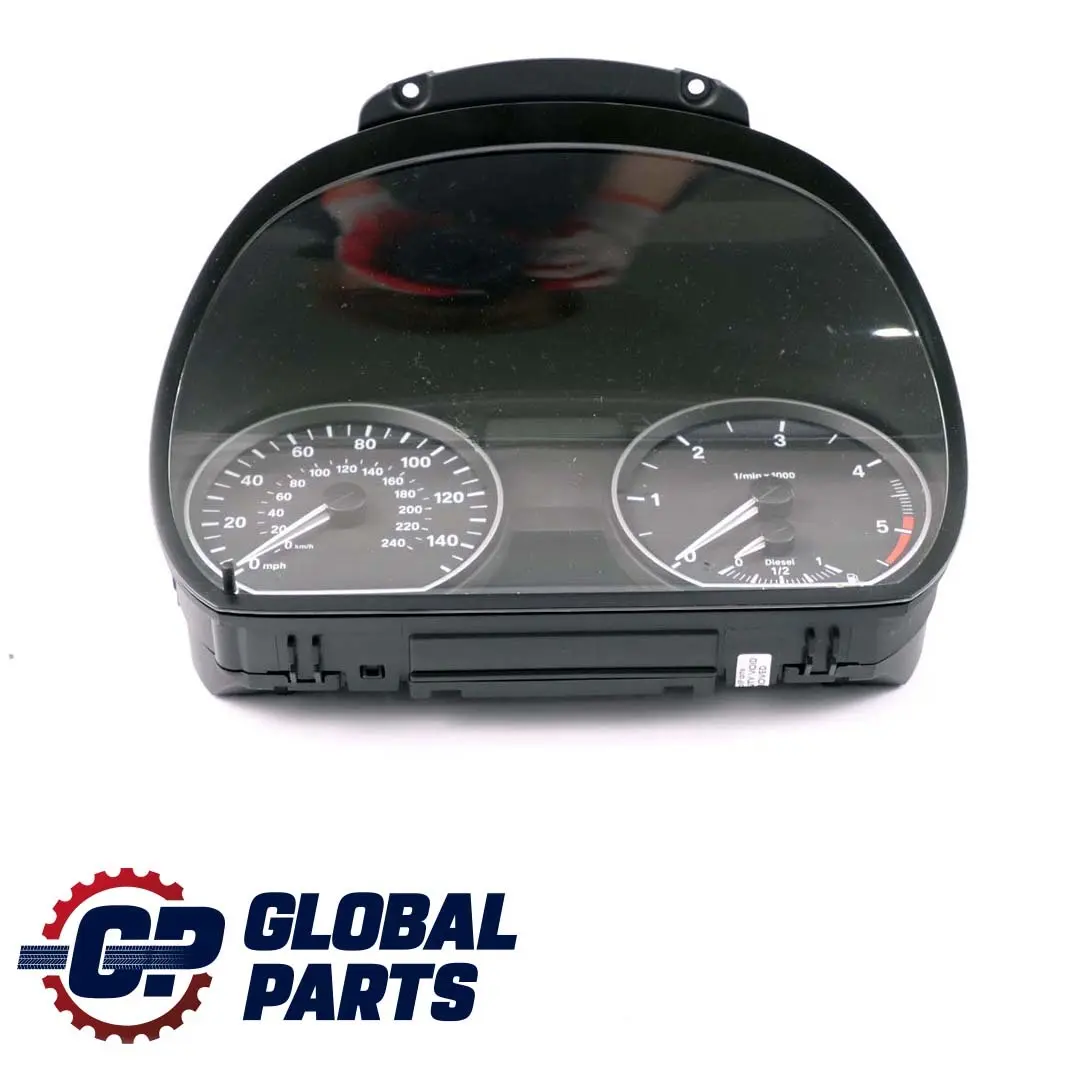

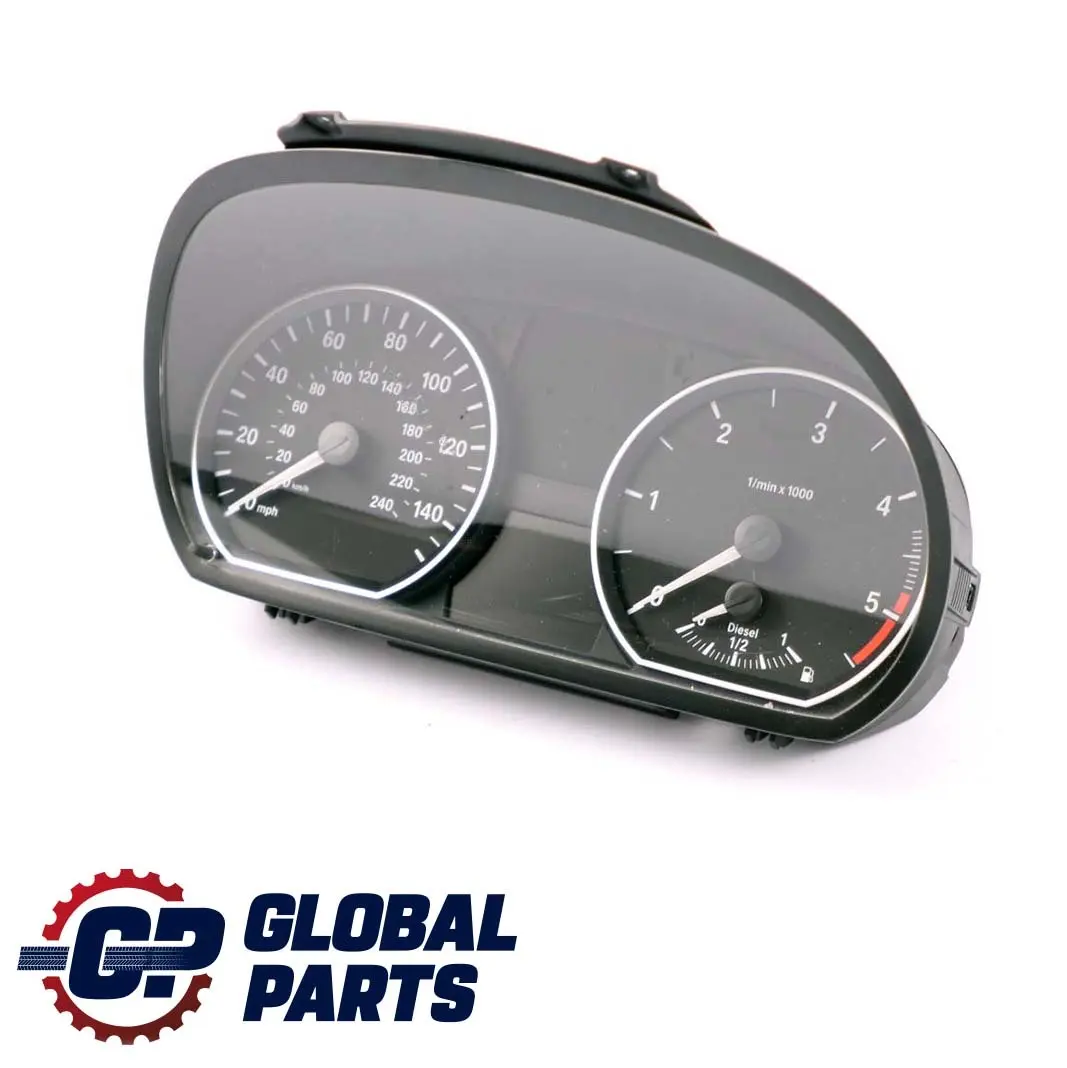

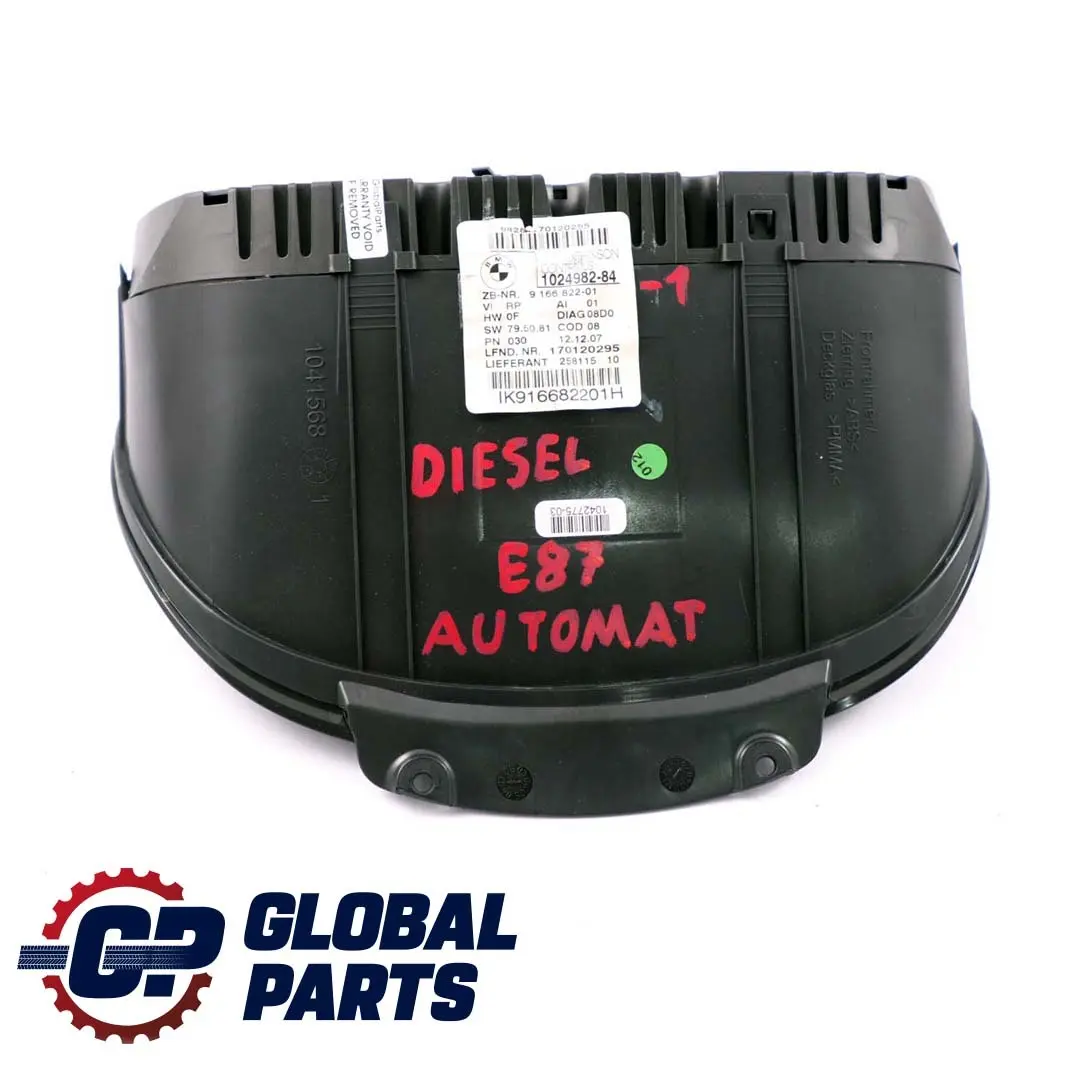

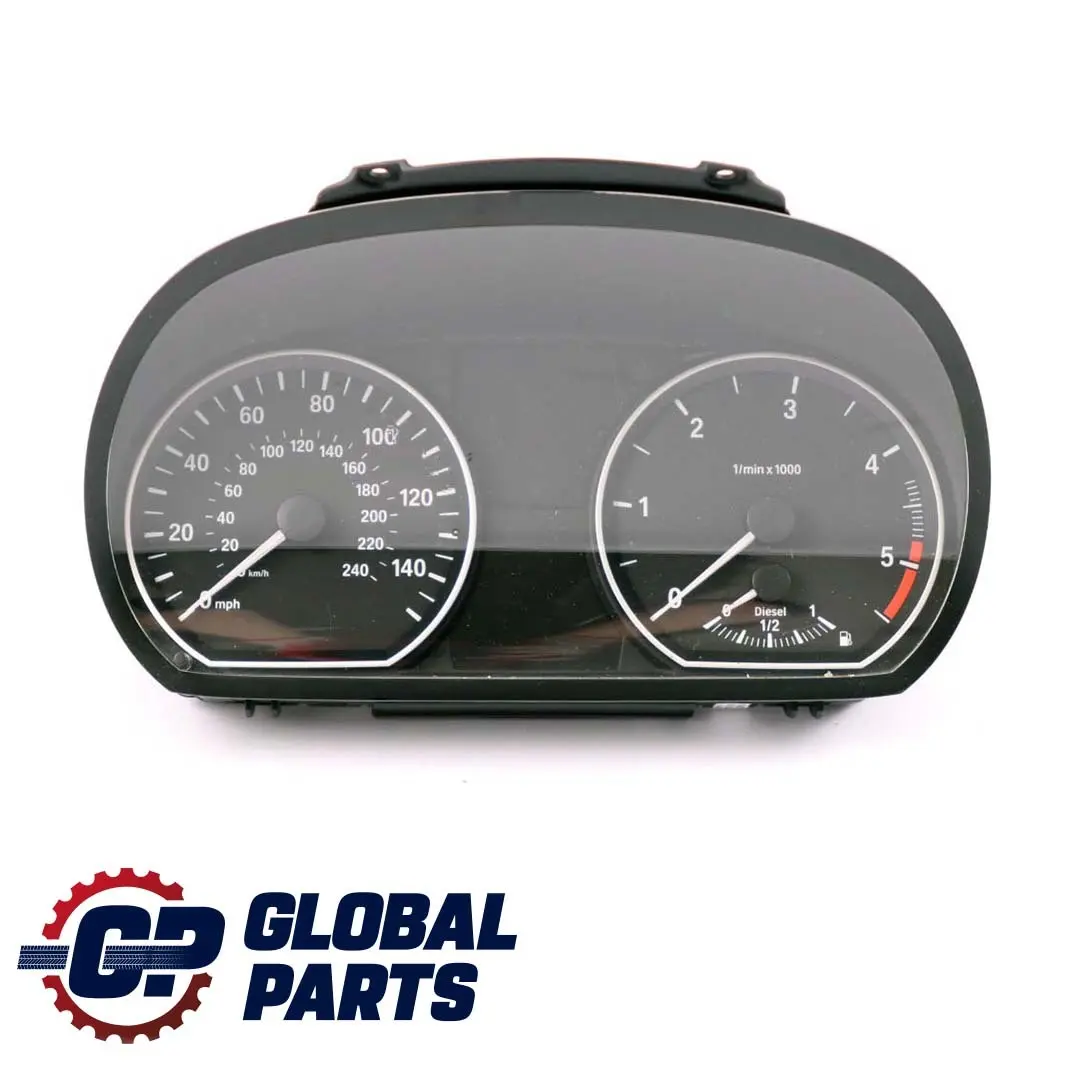

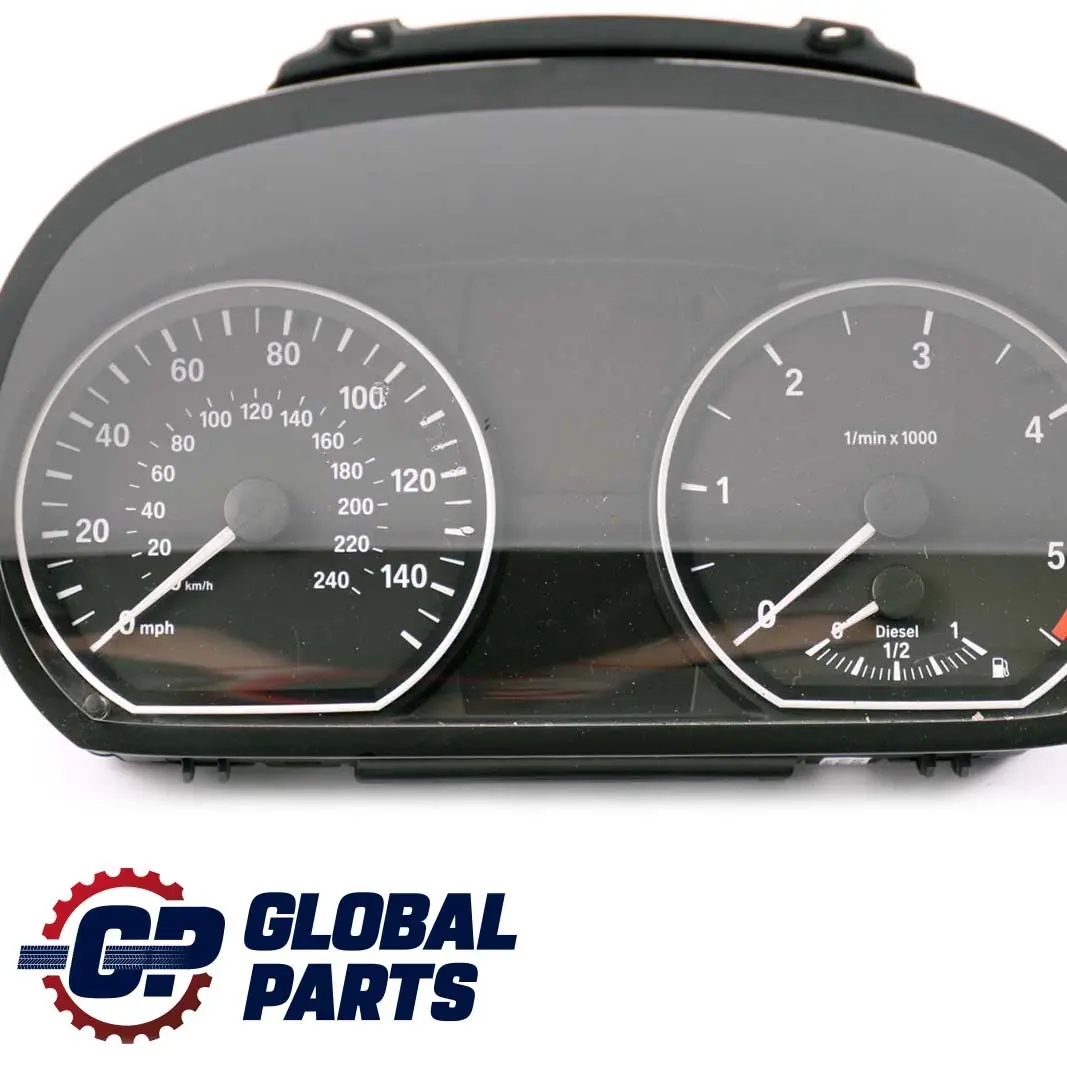

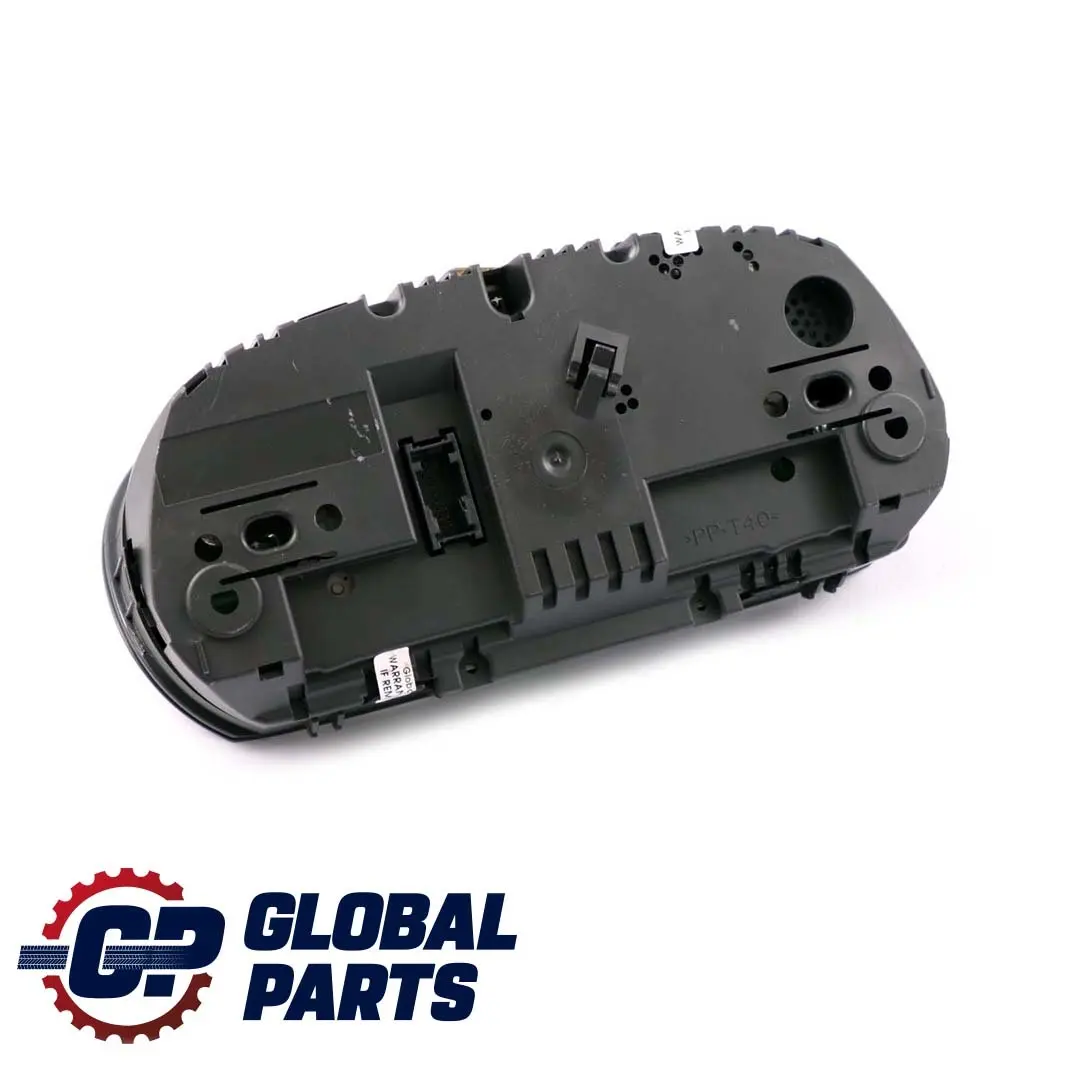

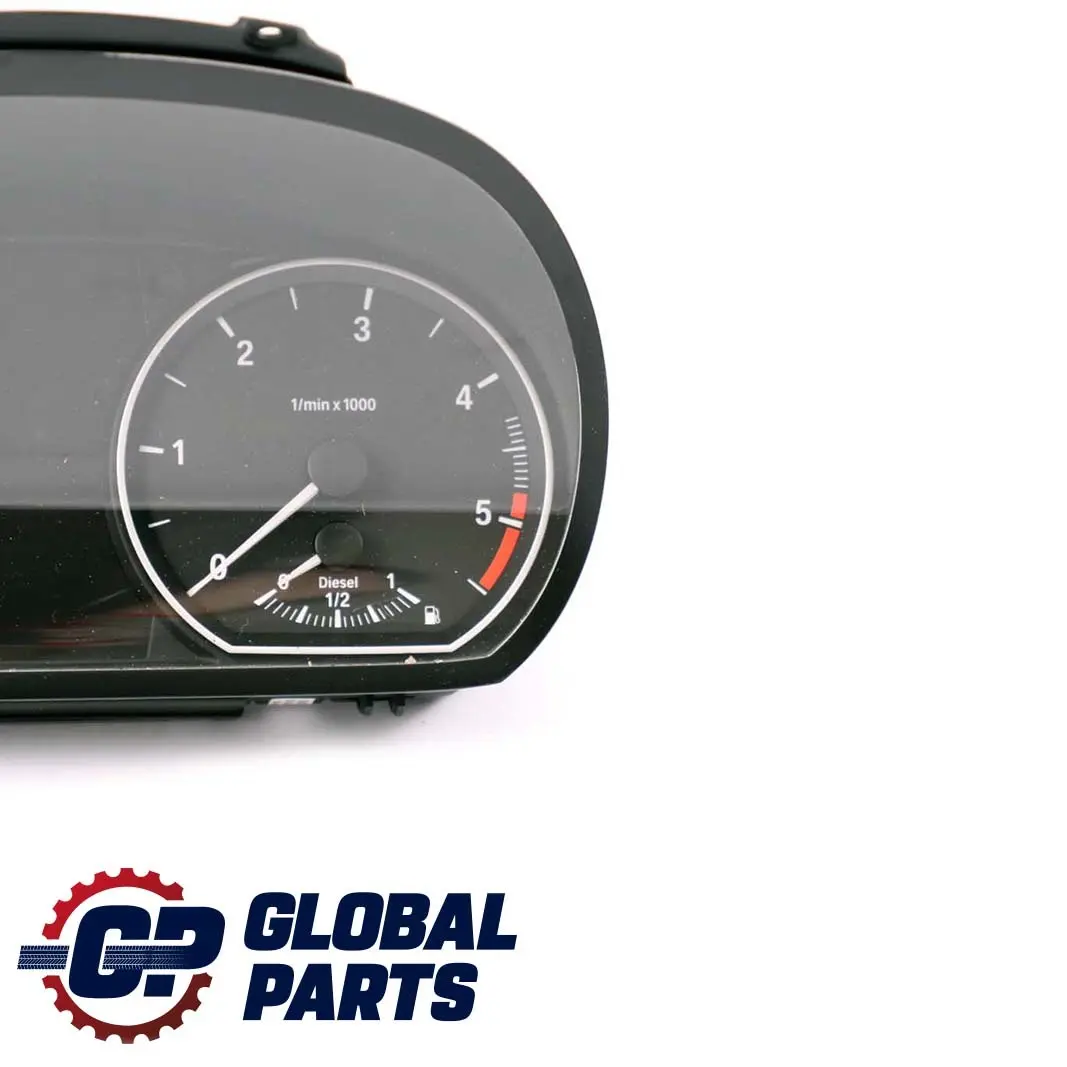

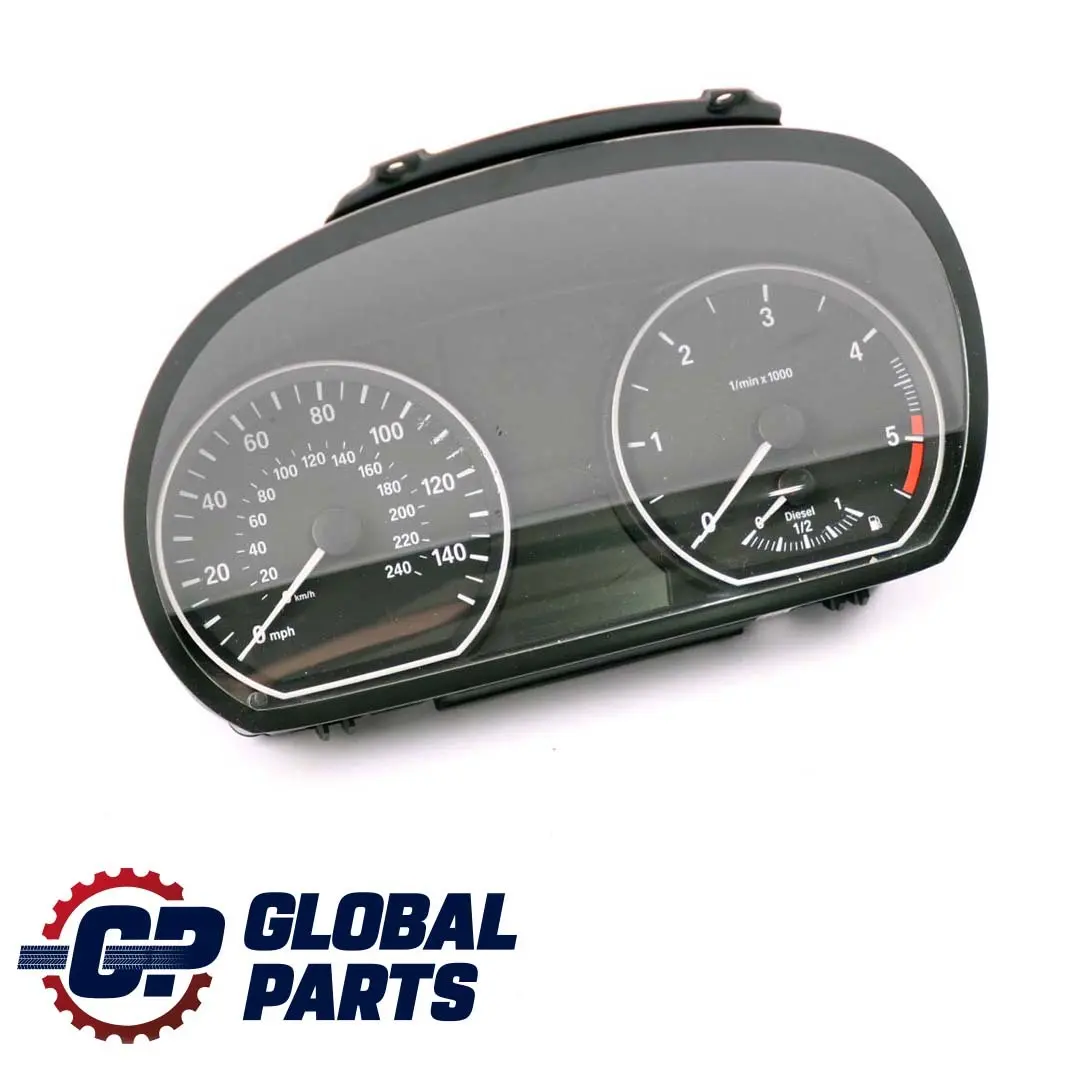

BMW 1 Series E81 E87 Diesel Speedo Clocks Instrument Cluster Automatic 9166822

BMW 1 Series E81 E87 Diesel Speedo Clocks Instrument Cluster Automatic is an original instrument cluster panel designed for models with a diesel engine and an automatic transmission. This component integrates key vehicle operating information, ensuring clear readability of driving parameters and consistency with BMW's factory electronics. Thanks to its OEM design, it is the right choice when replacing a damaged instrument cluster in the 1 Series.

Specifications and technical data

• SKU: rhd-9166822-1
• Mark: BMW (Genuine OE)
• Condition: Used

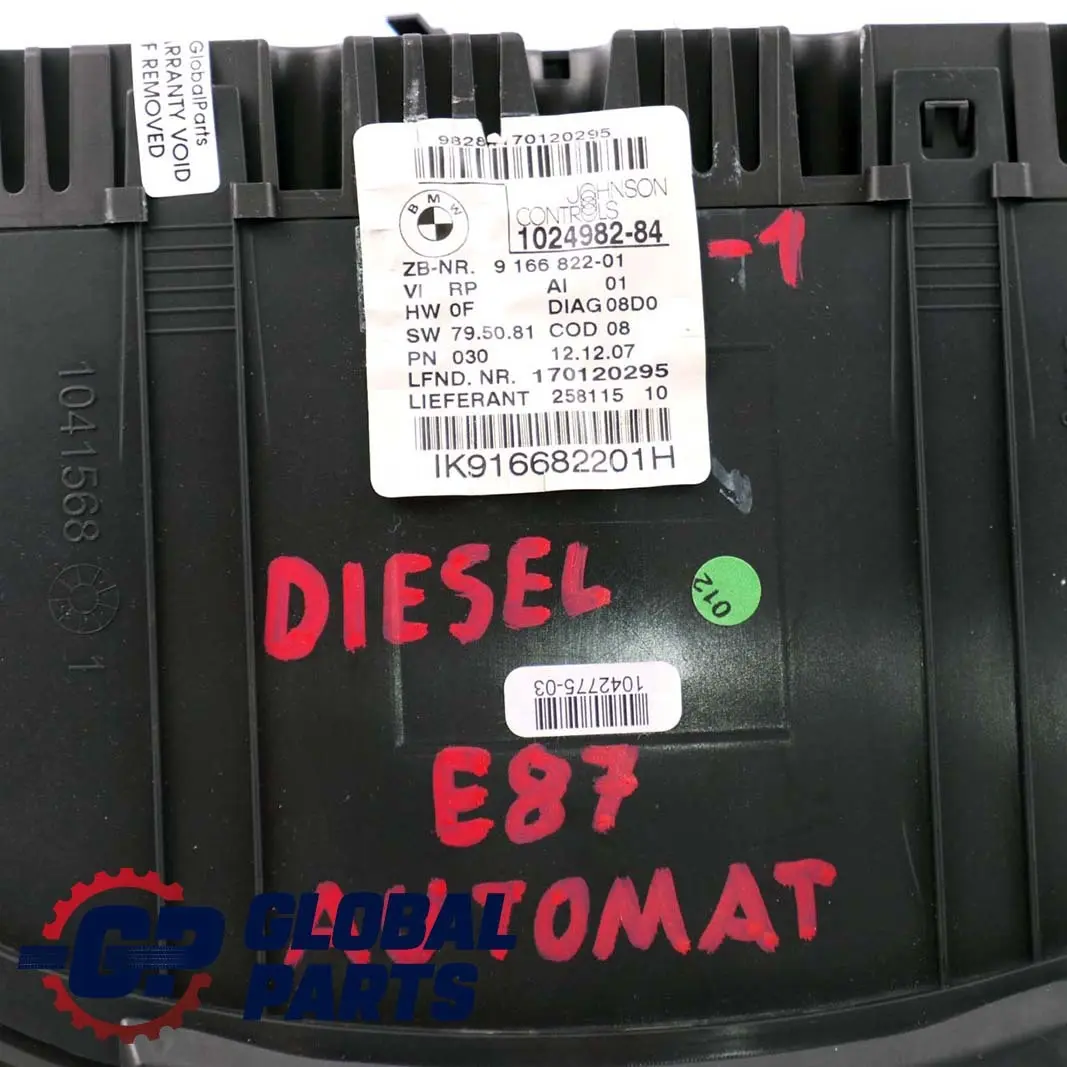

• OEM Part Number: 9166822
• Substitutable numbers: 62109283802, 9283802, 62116951603 62109220950 62109187047, 62116961478 62110390927 62109187331, 6951603 9220950 9187047 6961478 0390927 9187331, 62109166822 62109114094, 62109141476 62116964504 62106983532, 9166822 9114094 9141476 6964504 6983532, 62116953390 621
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented BMW 1 Series E81 E87 Diesel Speedo Clocks Instrument Cluster Automatic has been designed specifically for diesel versions equipped with an automatic transmission. This ensures compatibility with the characteristics of the diesel unit, proper gauge scaling, and integration with the automatic transmission's gear-shifting logic. Using an original instrument cluster minimizes the risk of communication issues within the vehicle's bus and facilitates configuration during installation.

Function in the vehicle's electronic system

The instrument cluster in a BMW serves not only as a display panel but also as a vital module in the car's electronic network. It is responsible for:

• displaying speed, engine RPM, and basic operating parameters of the diesel unit,
• cooperating with comfort and safety systems via warning lights,
• communicating with the automatic transmission module regarding driving modes,
• integrating with other vehicle control units via the data bus.

As a result, using the original panel allows for maintaining consistent operation of the onboard electronics and correct handling of dashboard messages.

Benefits of using an original instrument cluster

Choosing a factory instrument cluster for the BMW 1 Series E81/E87 with a diesel engine and automatic transmission provides a number of practical advantages:

• maintaining the original interior aesthetics and fit for the 1 Series cockpit,
• proper gauge scaling for the specifics of a diesel unit,
• compatibility with factory control units and electrical wiring,
• the ability to utilize existing vehicle functions without additional modifications.

For users who want to restore full dashboard functionality after a failure, this is a technically safe and predictable solution in terms of integration with other systems.

Condition and service application

The offered instrument cluster is a used part, making it an attractive cost-effective alternative for repairing BMW 1 Series vehicles. This type of component is particularly useful in:

• service centers specializing in BMW electronics,
• workshops dealing with the repair of speedometers and instrument clusters,
• projects restoring the functionality of fleet or post-accident vehicles.

Before installation, it is recommended to perform standard diagnostic procedures and configuration in accordance with BMW service practices to fully utilize the communication capabilities of the instrument cluster with other vehicle modules.
