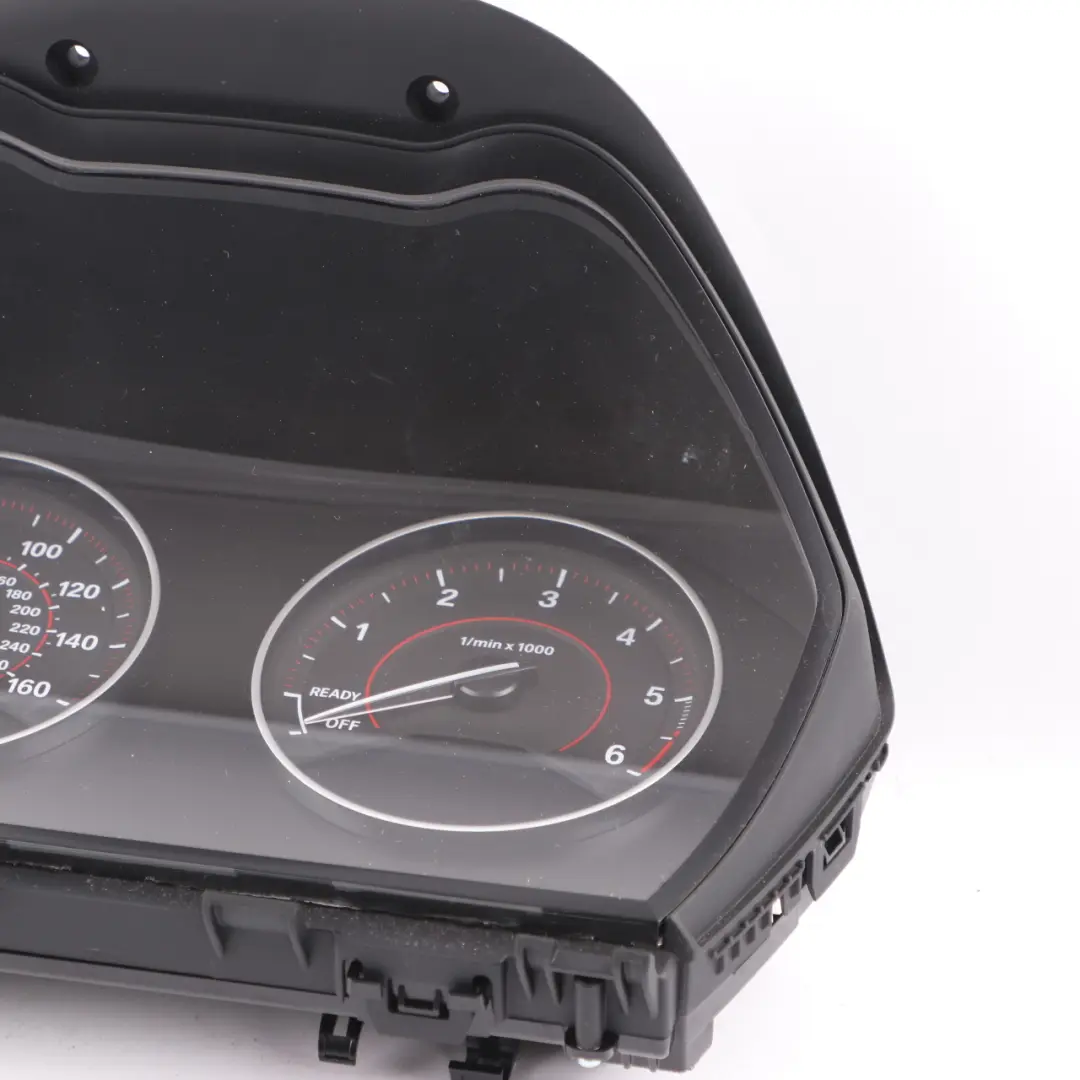

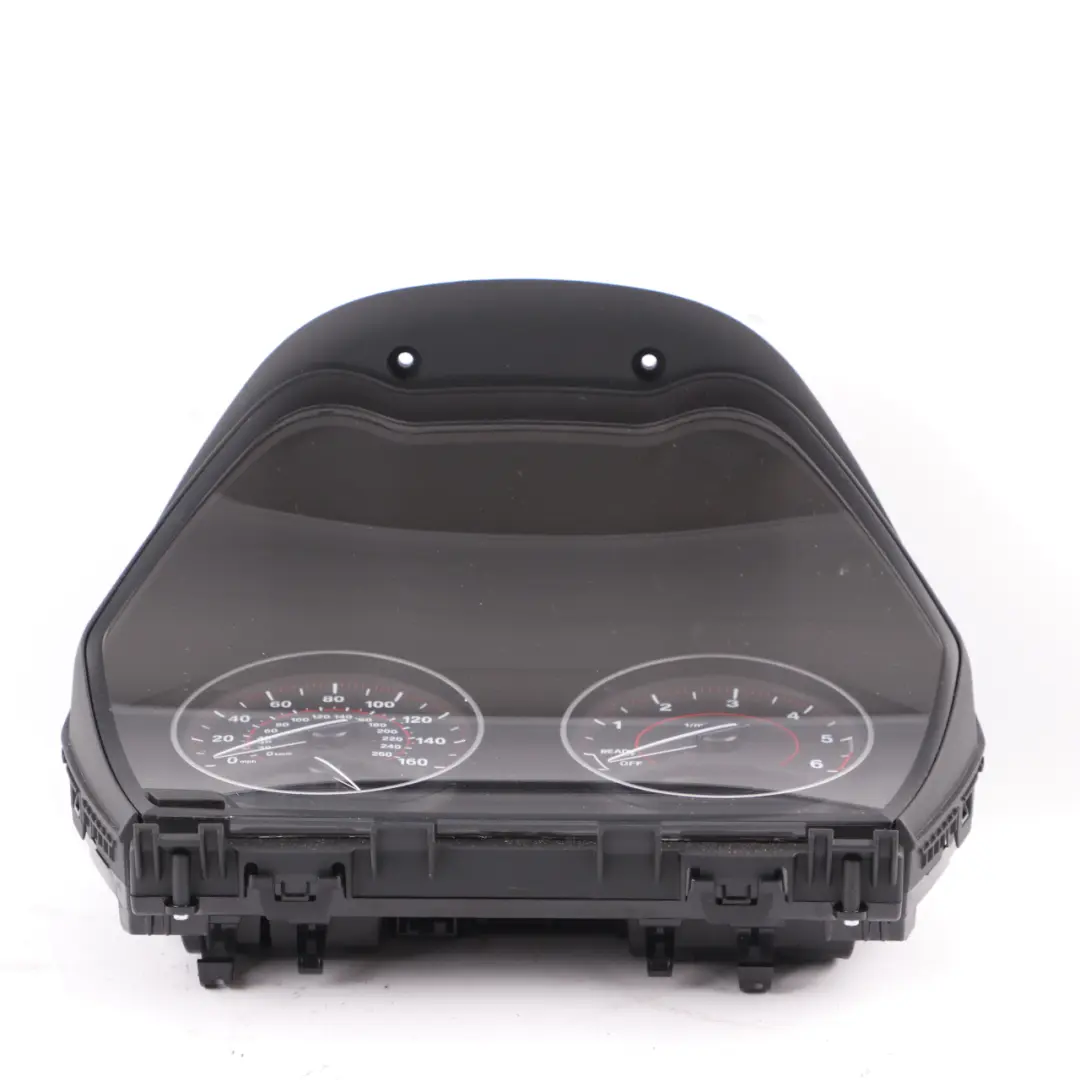

BMW F20 F21 F30 F31 Diesel Instrument Cluster Speedo Clocks Automatic 6847112

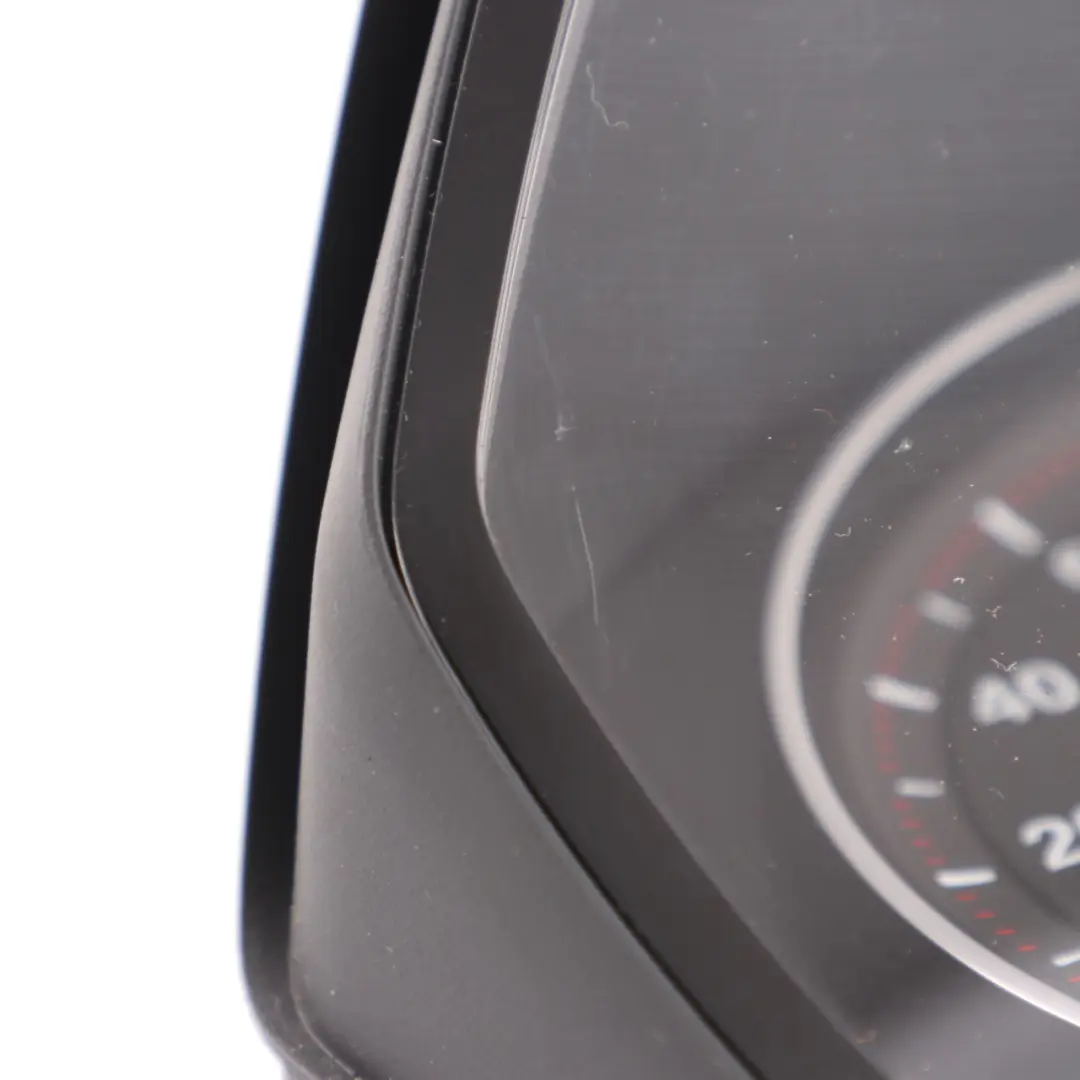

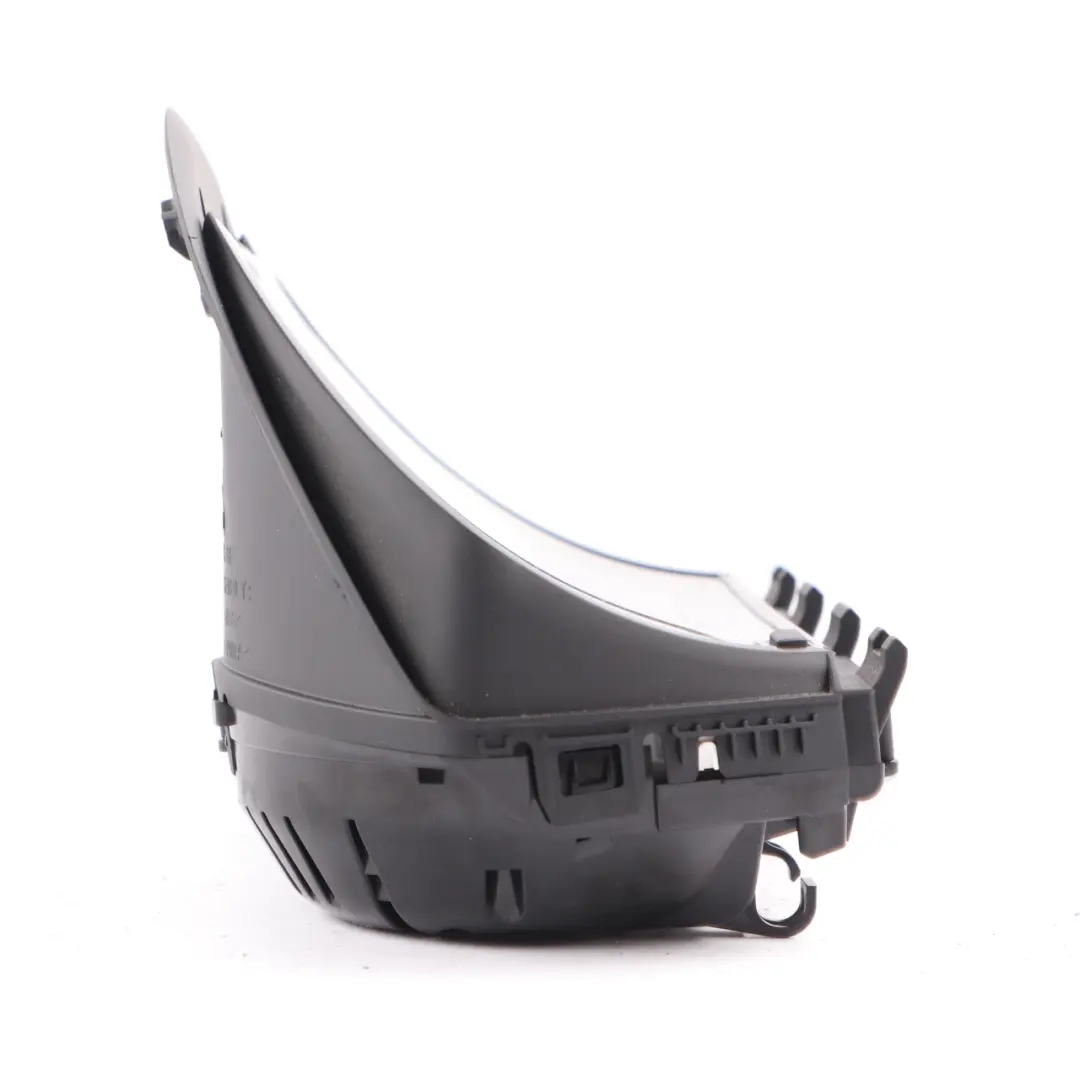

Visual condition of the part

The product shows signs of use visible in the photos.

BMW F20 F21 F30 F31 Diesel Instrument Cluster Speedo Clocks Automatic is an original instrument cluster designed for BMW 1 Series and 3 Series models with a diesel engine and automatic transmission. This item from the Instrument Clusters category ensures clear reading of engine performance parameters and seamless integration with the vehicle's electronics in accordance with the manufacturer's standards. Thanks to its factory design, it is a solution perfectly matched to the electrical system and interior architecture of the BMW.

Specifications and technical data

• SKU: rhd-6847112
• Mark: BMW (Genuine OE)
• Condition: Used

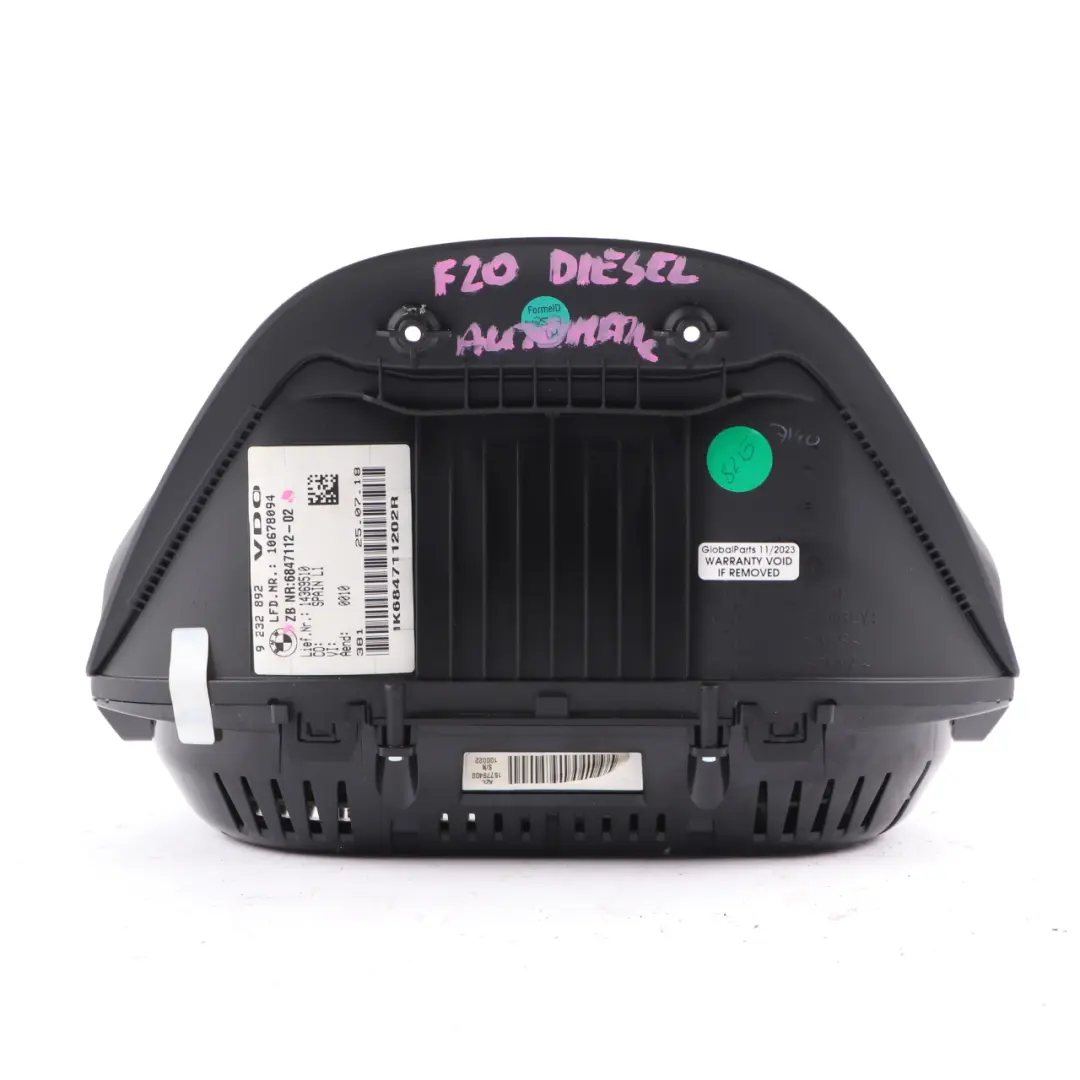

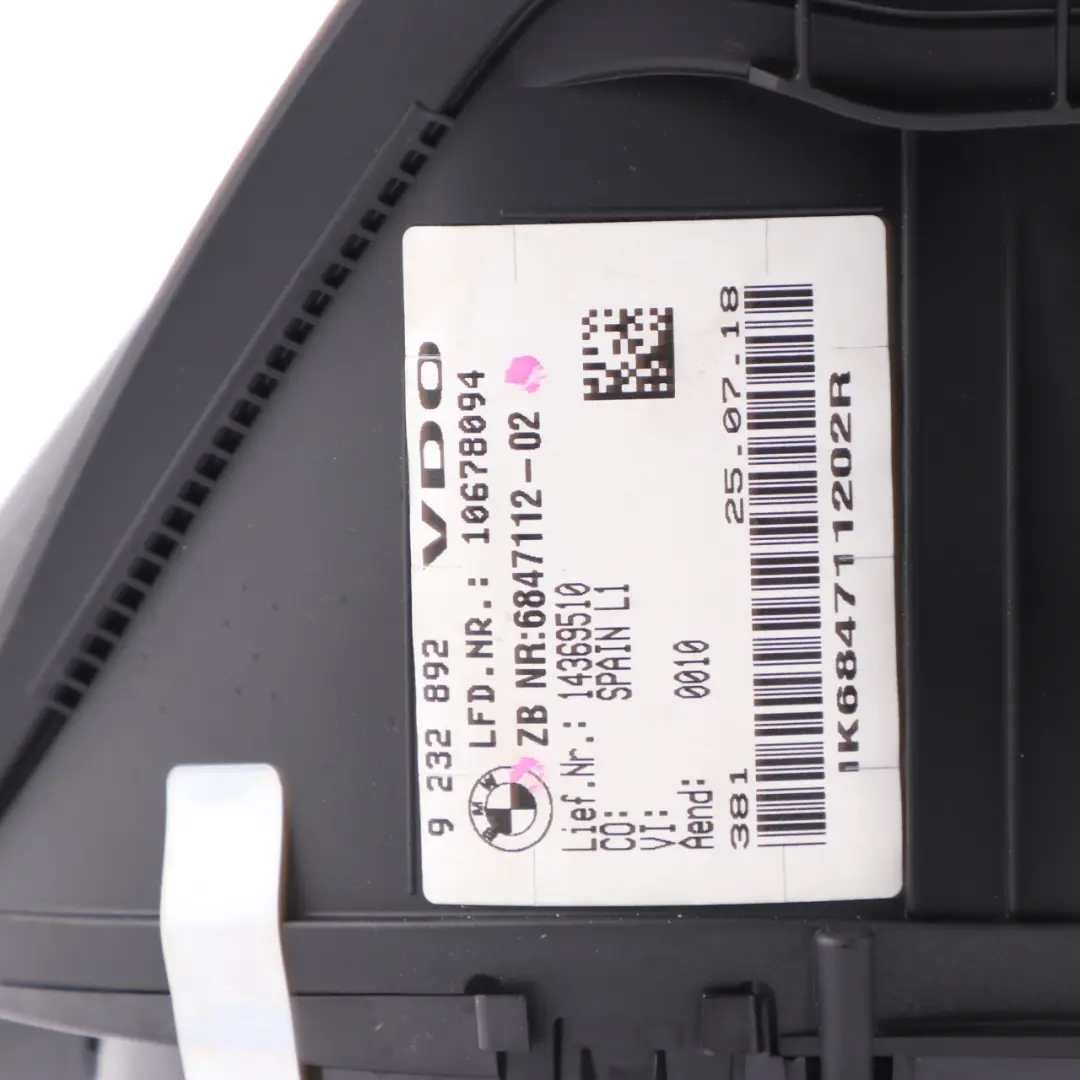

• OEM Part Number: 6847112
• Substitutable numbers: 6847112, 62106847112, 9295825, 62109295825, 9272669, 62109272669, 9272340, 62109272340, 9325171, 62109325171, 6843087, 62106843087, 6834480, 62106834480, 9382082, 62109382082, 9285600, 62109285600, 9279317, 62109279317, 9311380, 62109311380, 6804952
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

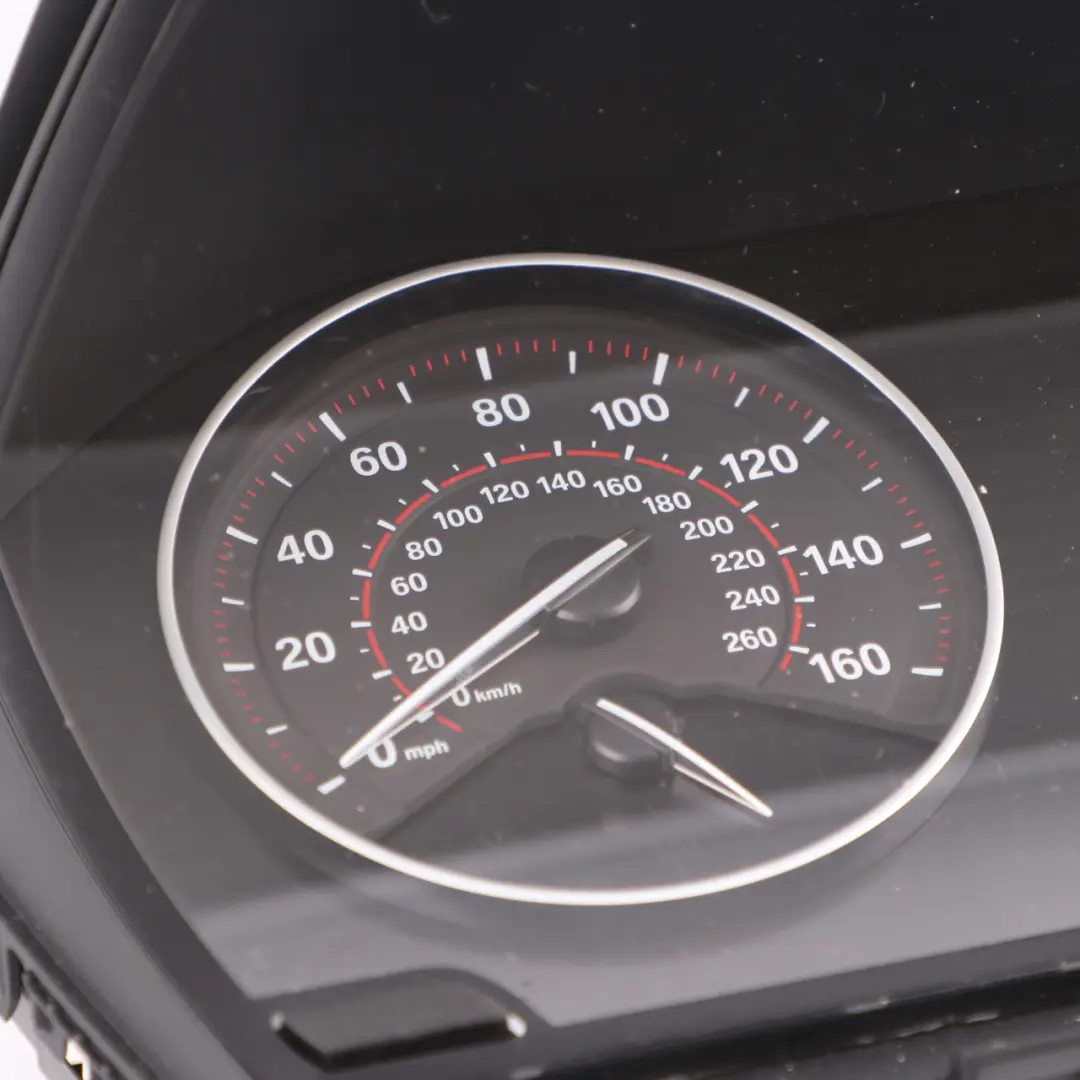

The presented instrument cluster is dedicated to BMW F-series vehicles from the F20/F21 (1 Series) and F30/F31 (3 Series) families equipped with a diesel engine and automatic transmission. The design of the speedometer is prepared to work with factory powertrain control systems, which allows for the correct display of speed, engine RPM, and information related to the operation of the automatic transmission.

By using an original BMW solution, the panel maintains stylistic consistency with the dashboard, and the layout of warning lights and gauges complies with factory safety and ergonomics standards.

Functionality of the instrument cluster

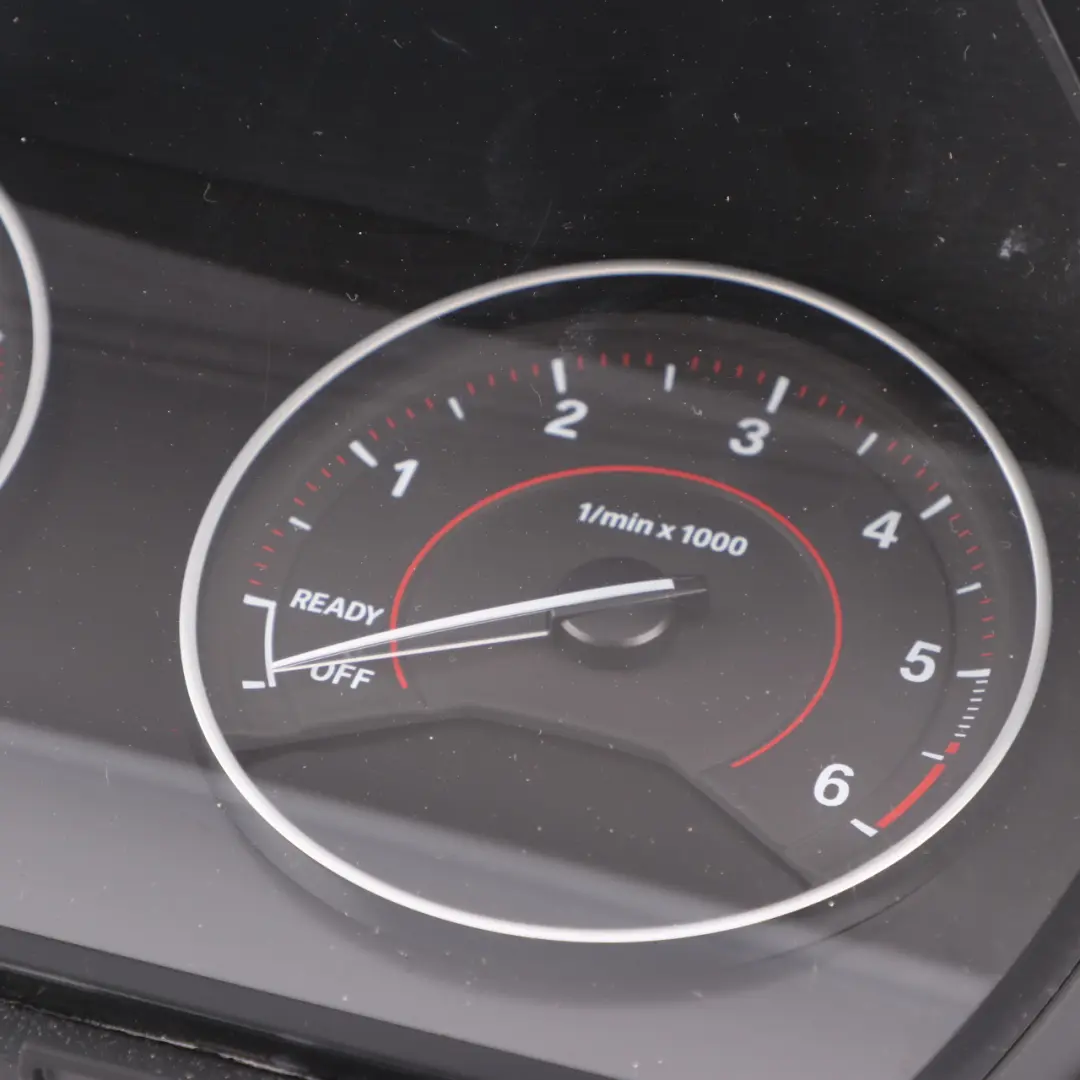

The instrument cluster in this model is optimized for diesel engines, which means an appropriate tachometer scale, tailored warning messages, and the logic of warning lights characteristic of diesel engines. Integration with the automatic transmission allows for the display of information related to the transmission mode, which makes it easier for the driver to control the vehicle in daily operation.

The original BMW design ensures:

• consistency of signals with engine and transmission control modules,
• correct handling of warning and service messages,
• a clear, logical layout of gauges matched to the F-series interior.

Technical characteristics and installation

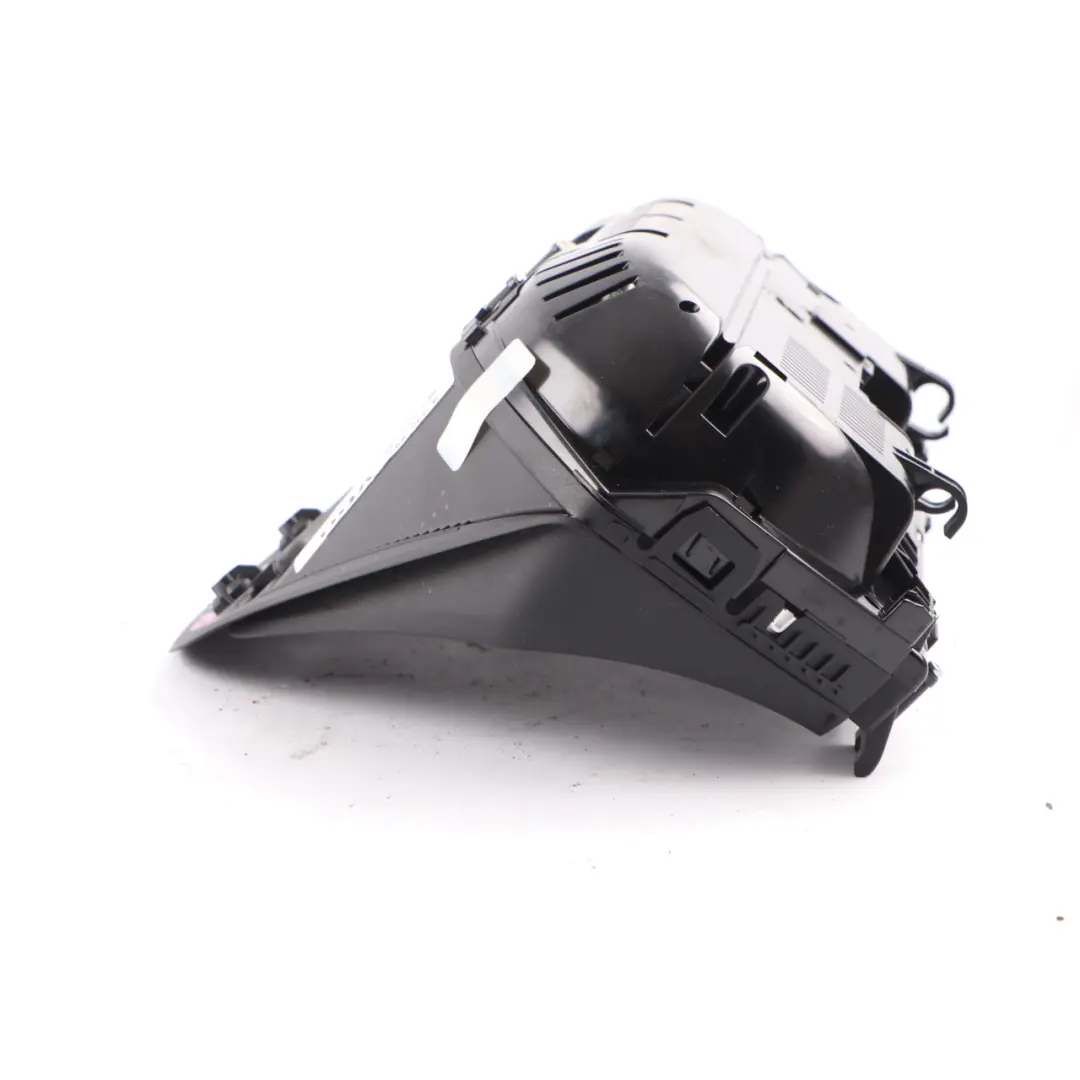

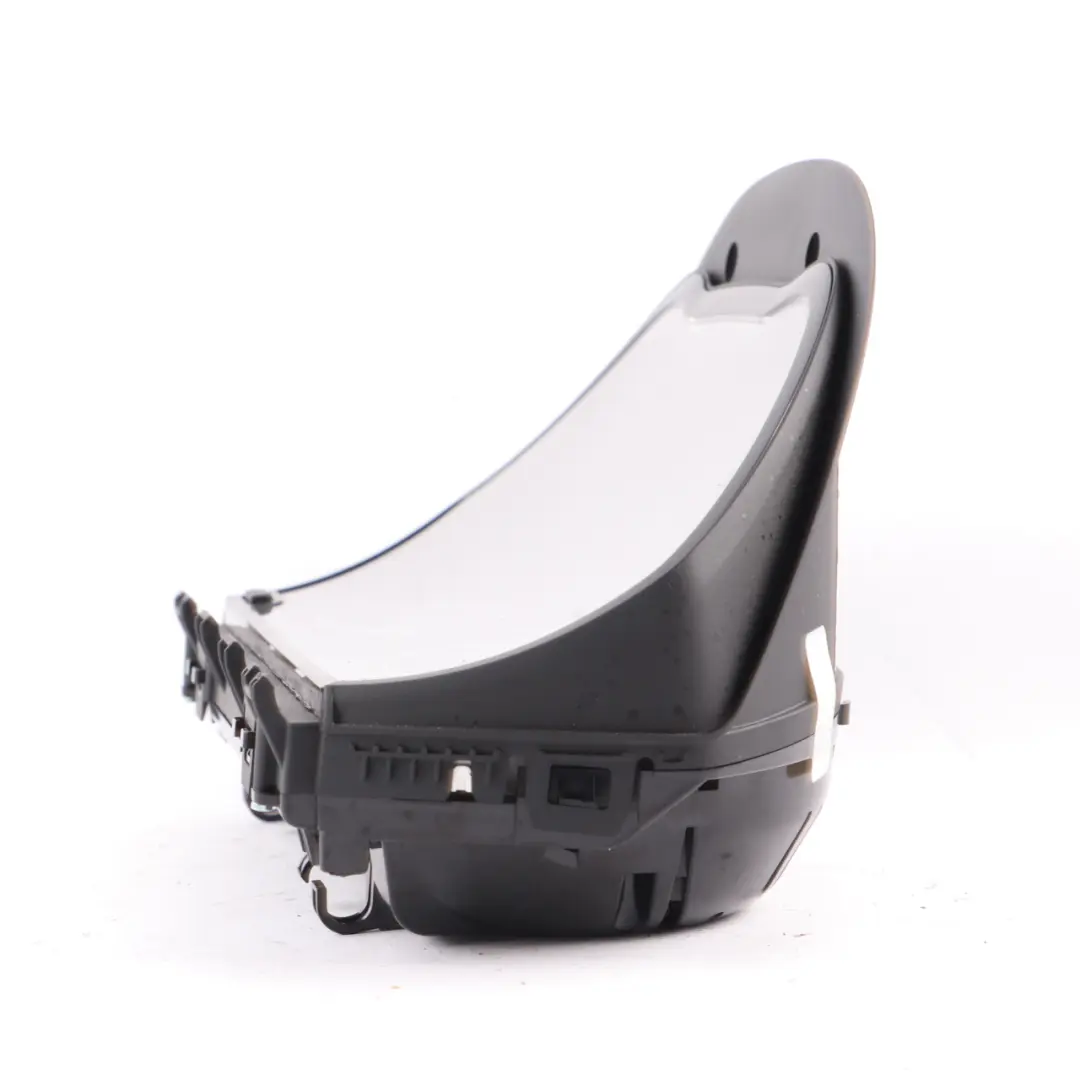

As an item from the Instrument Clusters group, the speedometer is designed for installation in the factory location in the dashboard, using original mounting points. The electrical connectors are prepared to work with the BMW wiring harness, which facilitates integration with vehicle systems while maintaining proper service procedures.

Replacing the instrument cluster in modern BMW models usually requires matching it to the vehicle's electronics (coding, mileage configuration, synchronization with control modules). Using an original panel dedicated to the diesel version with an automatic transmission reduces the risk of incompatibility and facilitates the work of a workshop specializing in the BMW brand.

Condition and benefits of using a used part

The offered panel is a used item, which allows for an economical repair of the instrument system while maintaining factory build quality. Using an original dismantled set is often a beneficial solution in the event of damage to the speedometer electronics, backlight problems, or incorrect operation of the gauges.

Compared to aftermarket replacements, the original BMW instrument cluster ensures predictable behavior within the vehicle network, correct cooperation with comfort modules and powertrain controllers, and aesthetics consistent with the F-series interior design.

Technical support and additional information

When planning repairs of electronic systems in BMW 3 and 5 Series, including speedometers, comfort modules, or controllers, it is worth knowing the best practices for working with dismantled parts. Practical tips on diagnostics and component selection can be found in the article Driving pleasure for years – how to take care of iDrive systems and electronic modules in BMW 3 and 5 Series models, which discusses the use of proven used components in BMW electronics.

If you are planning a comprehensive repair or upgrade of the instrument cluster area in your BMW and need other items from the same group, such as speedometer housings, protective glass, or additional display modules, check the available parts in the BMW Instrument Clusters category.
