Range Rover L322 Instrument Cluster Speedo Clocks Diesel Automatic YAC501220PVA

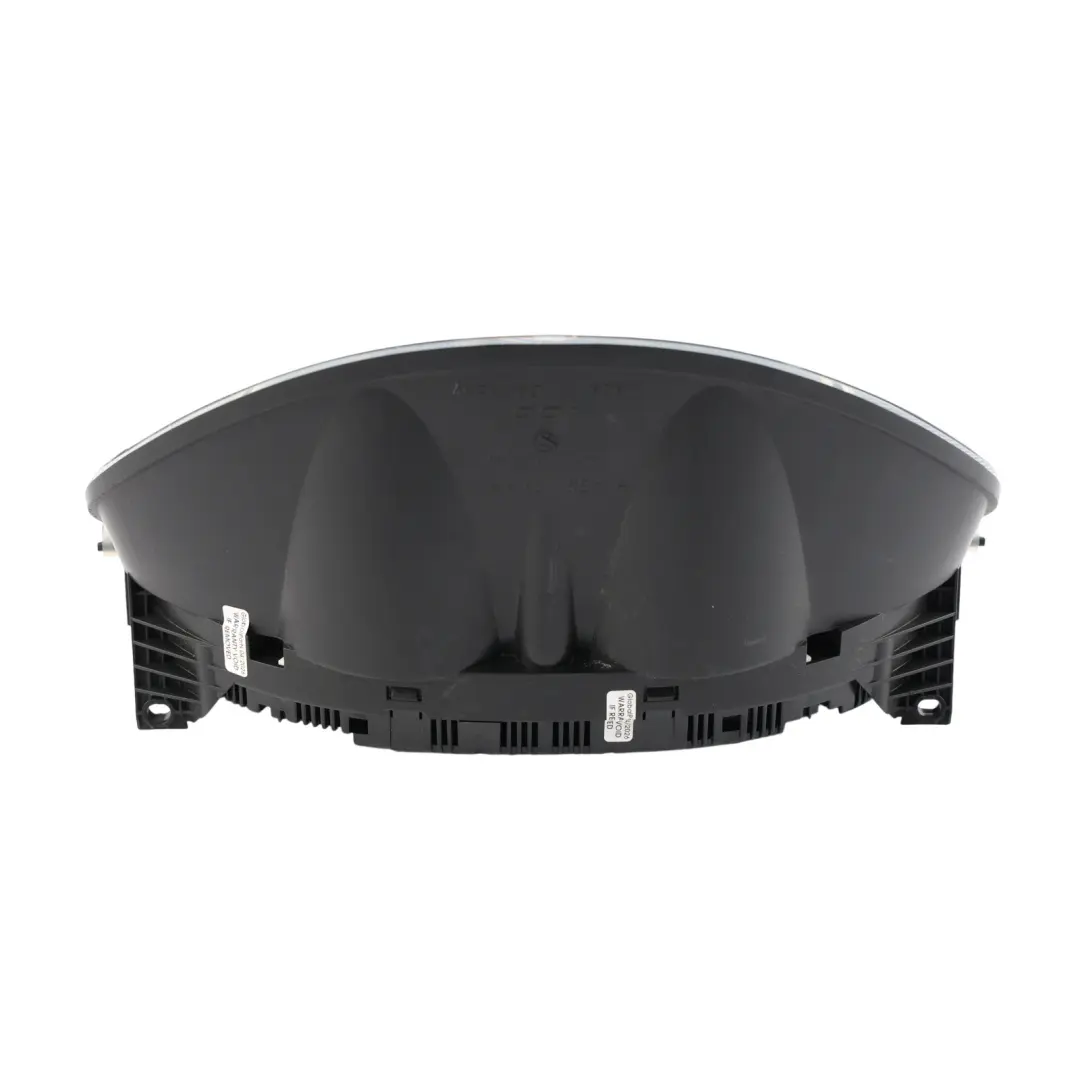

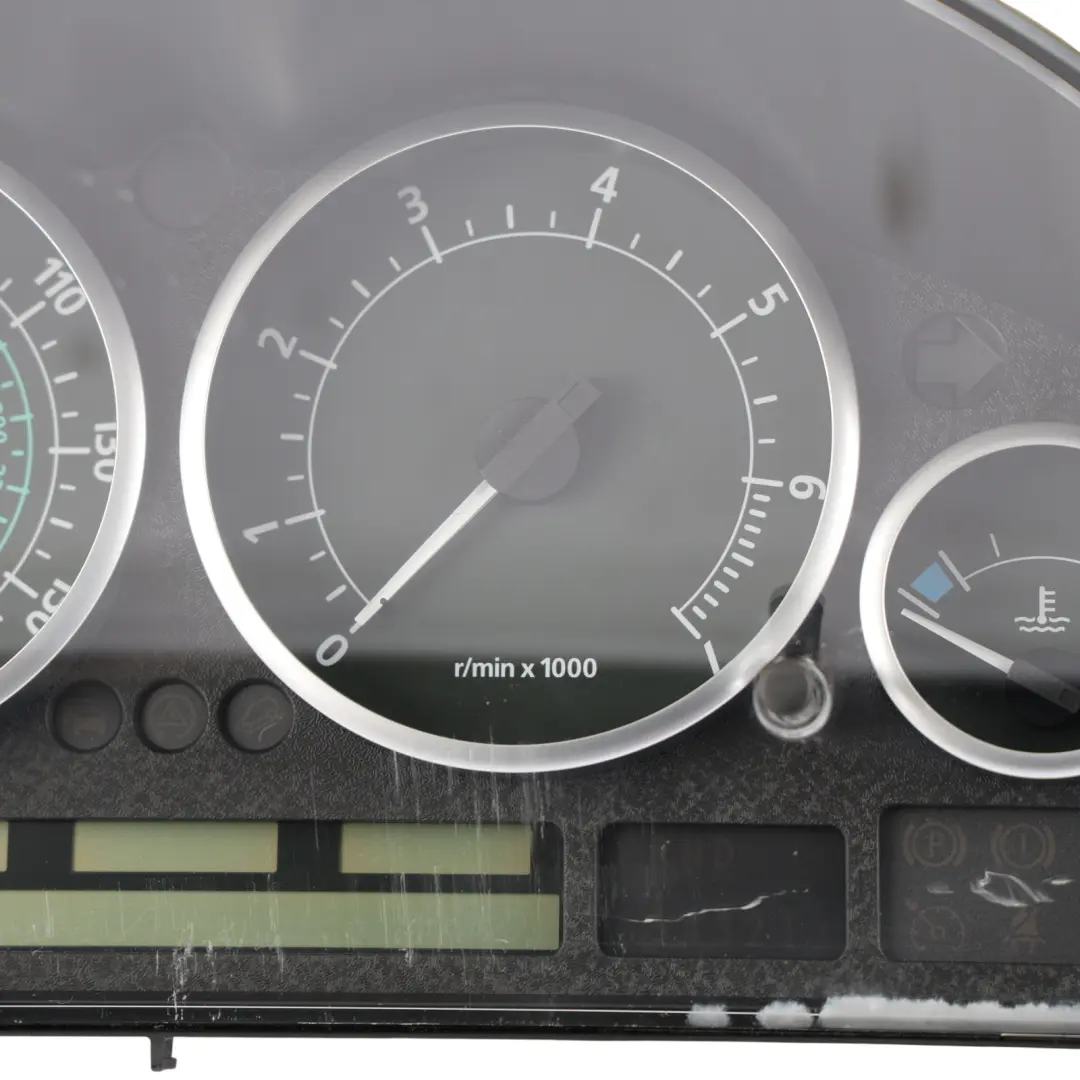

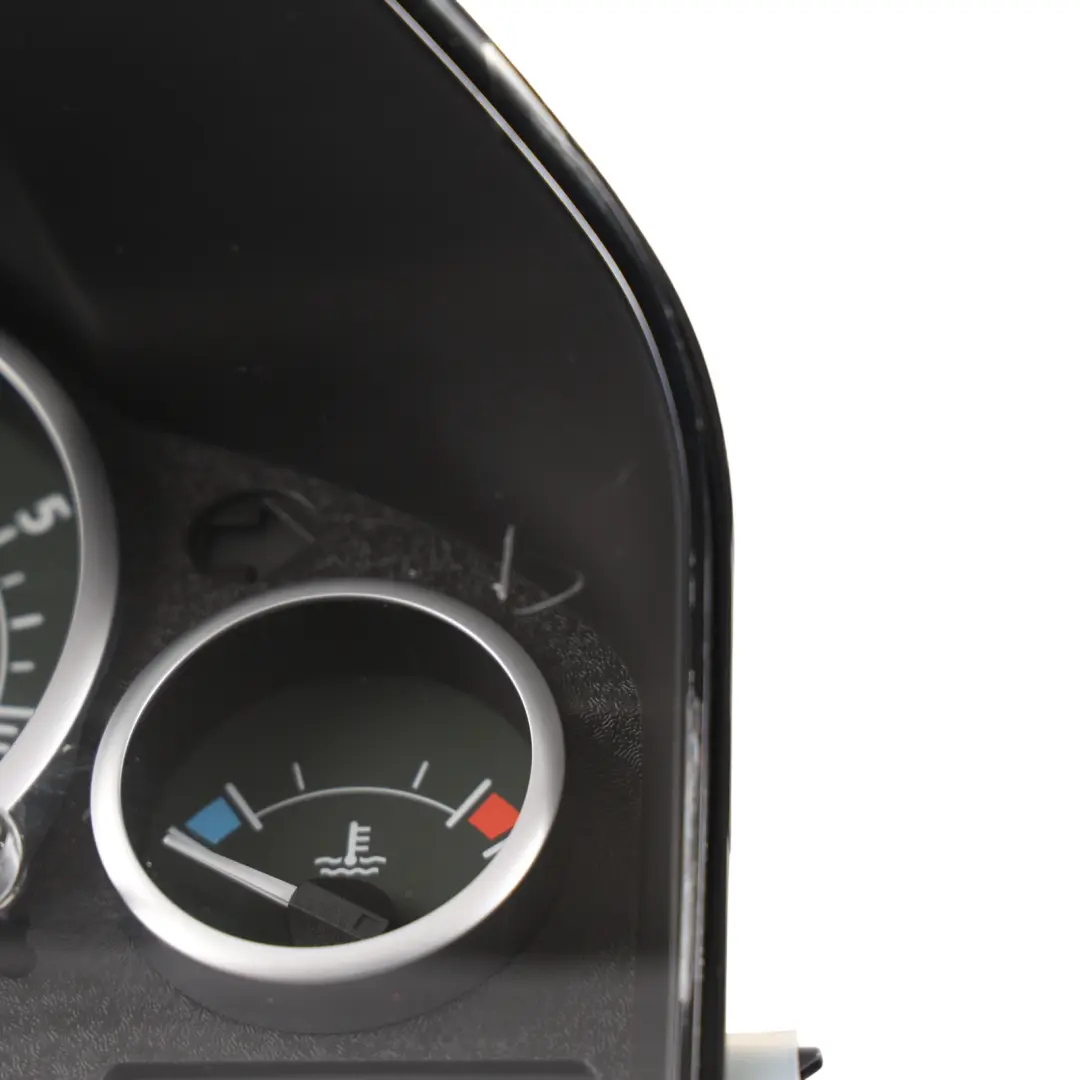

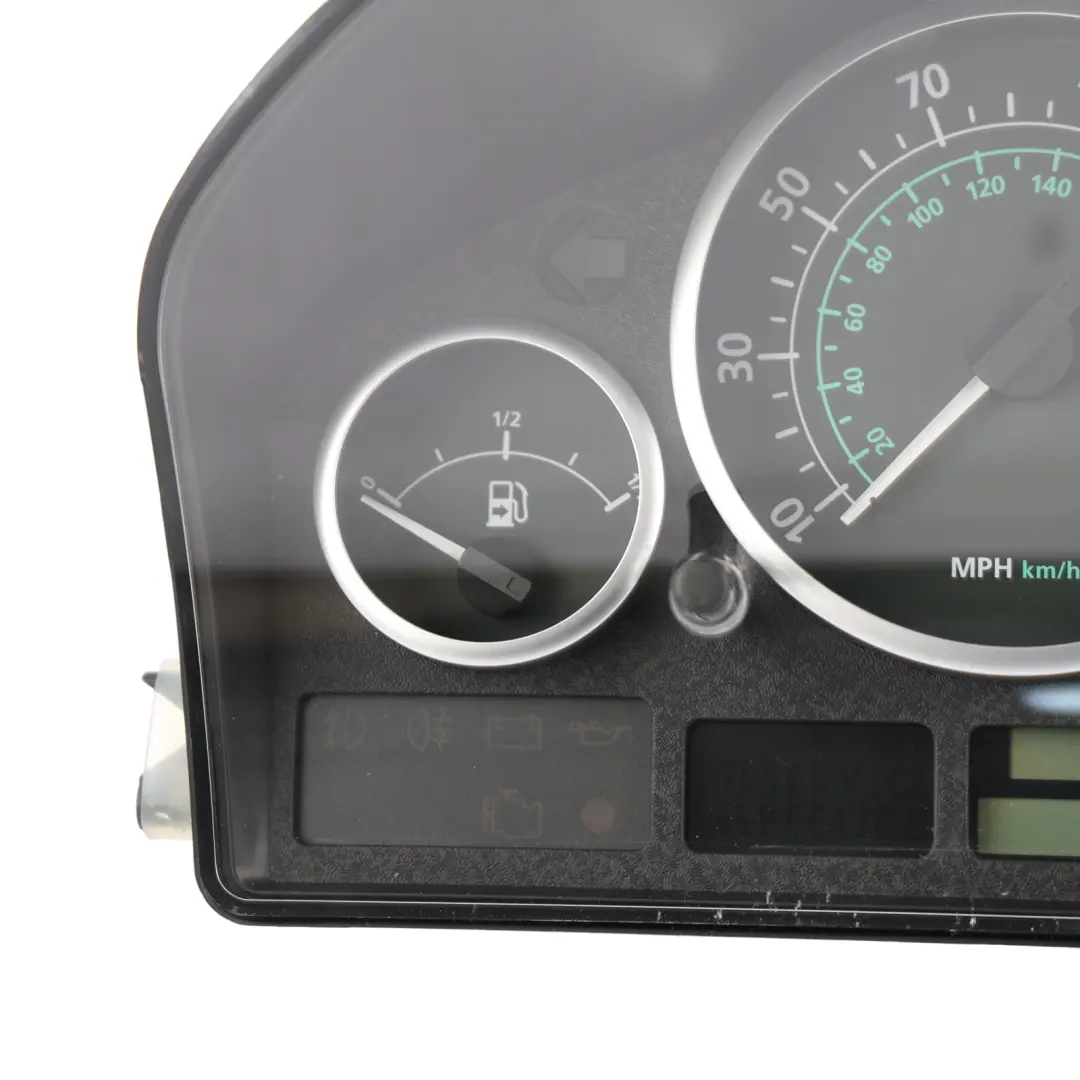

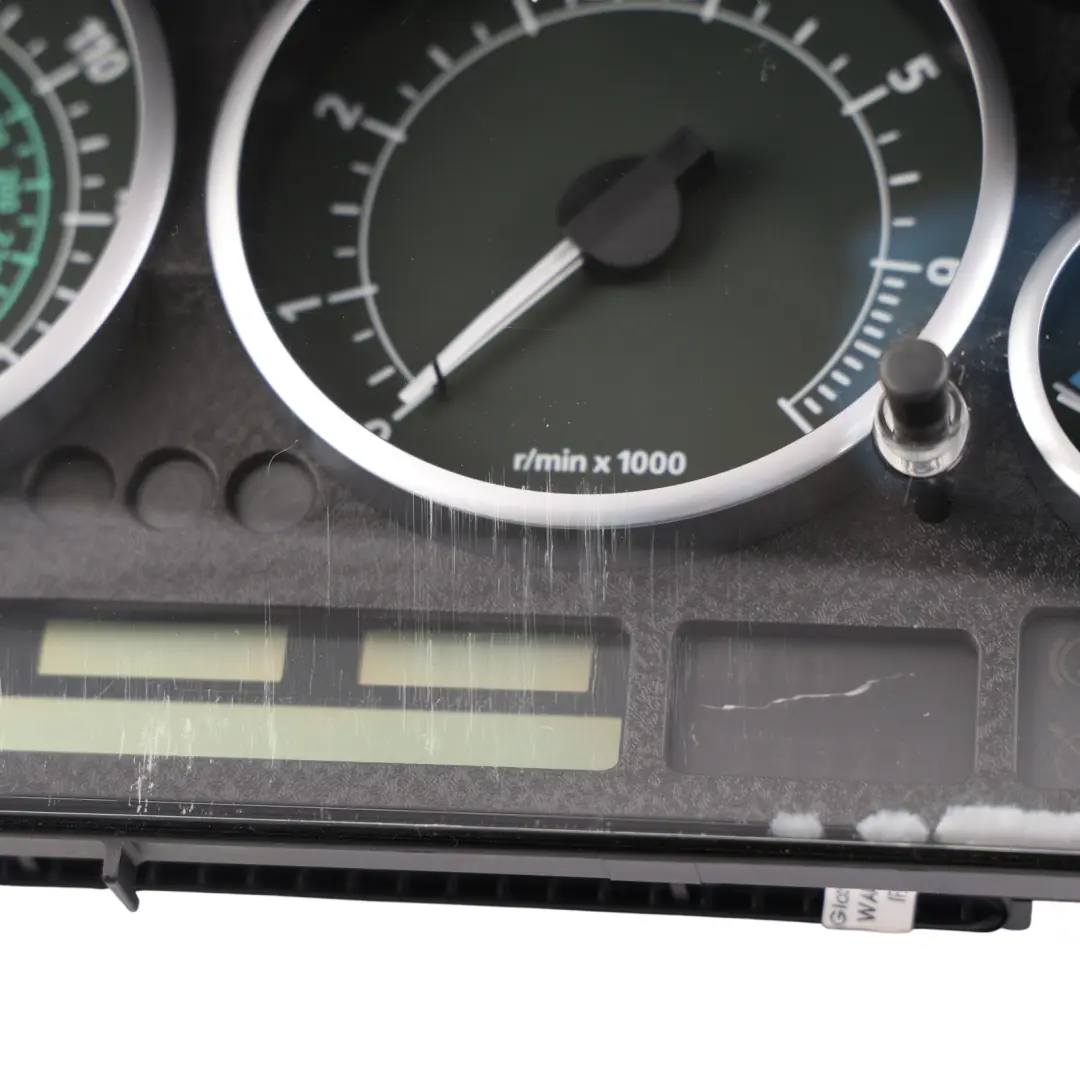

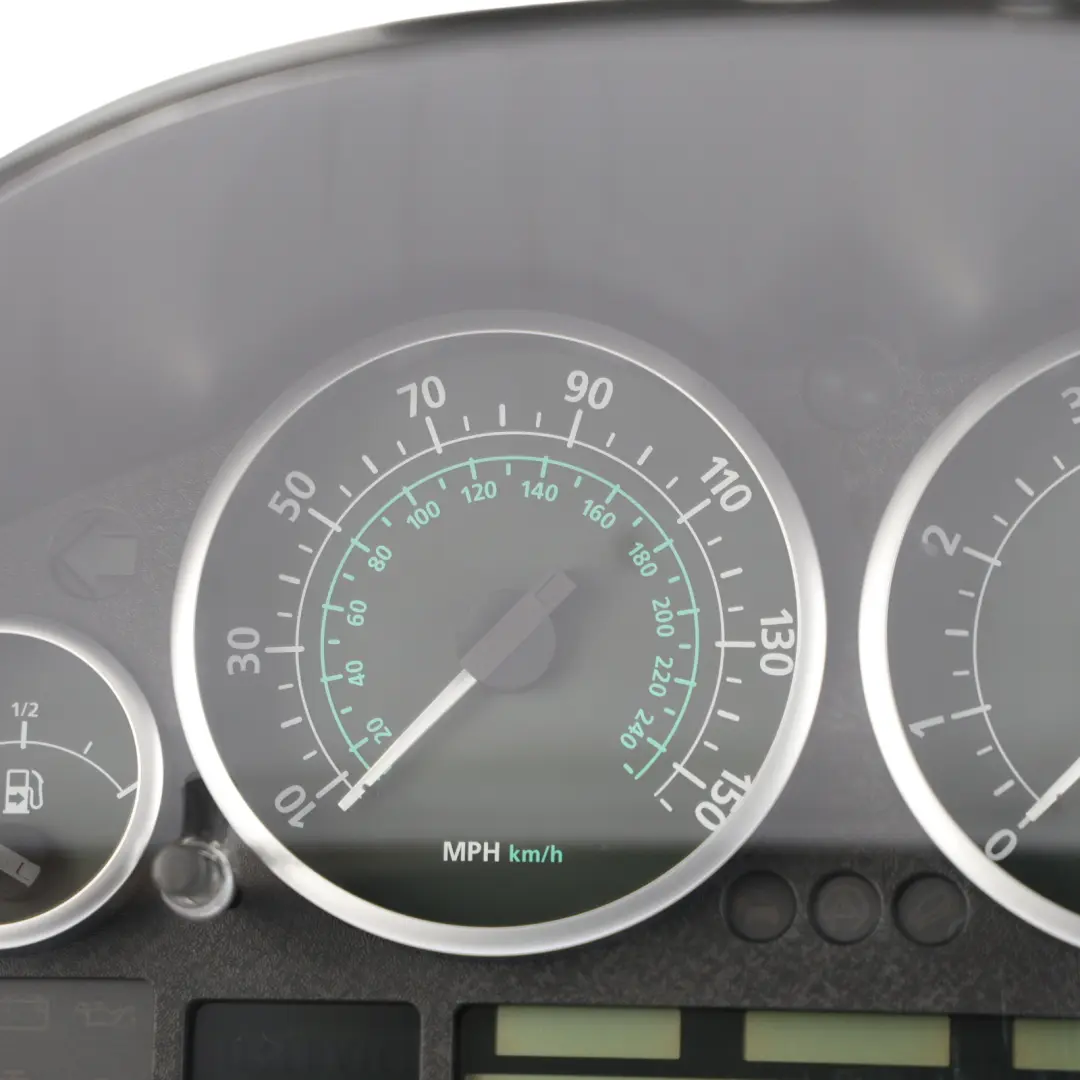

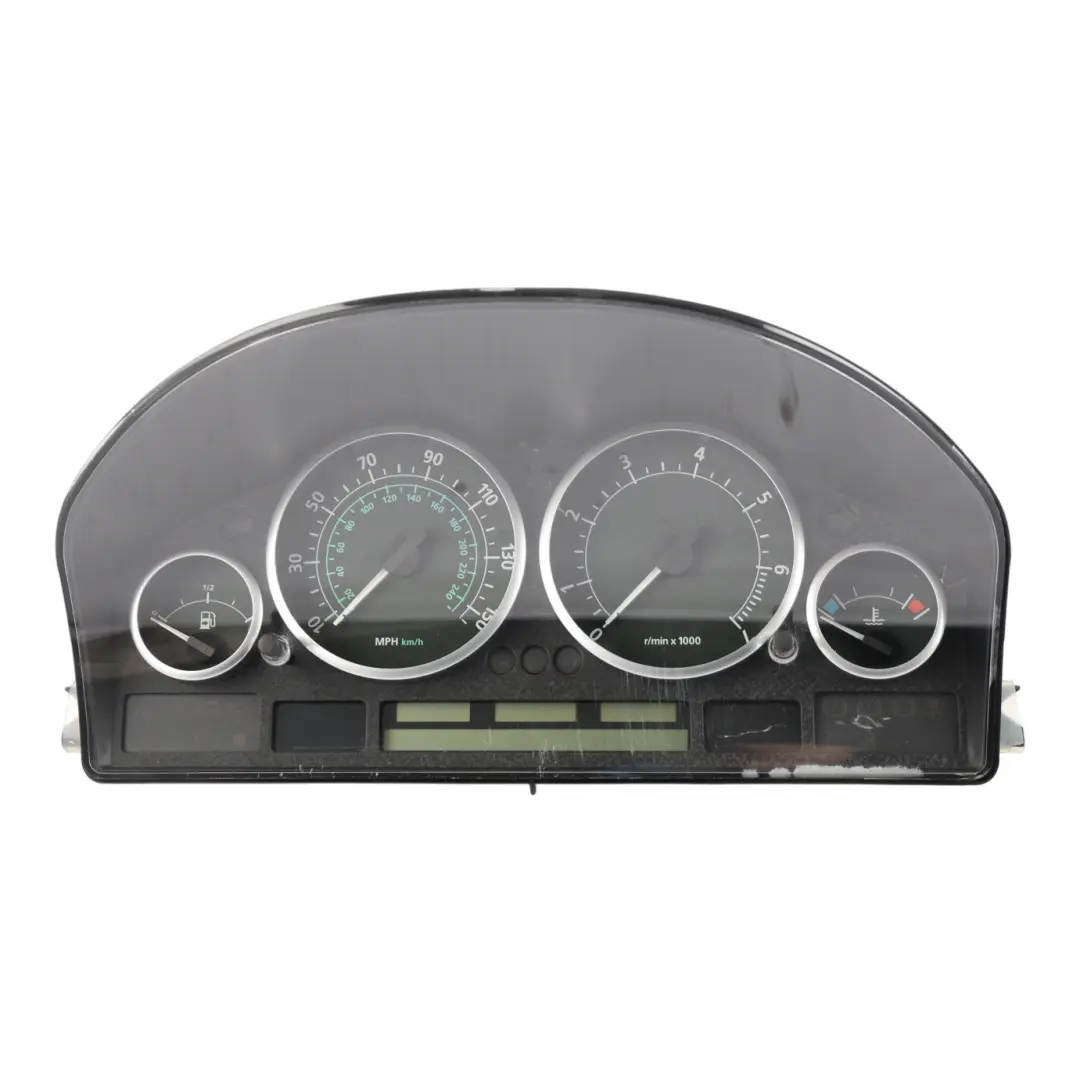

Visual condition of the part

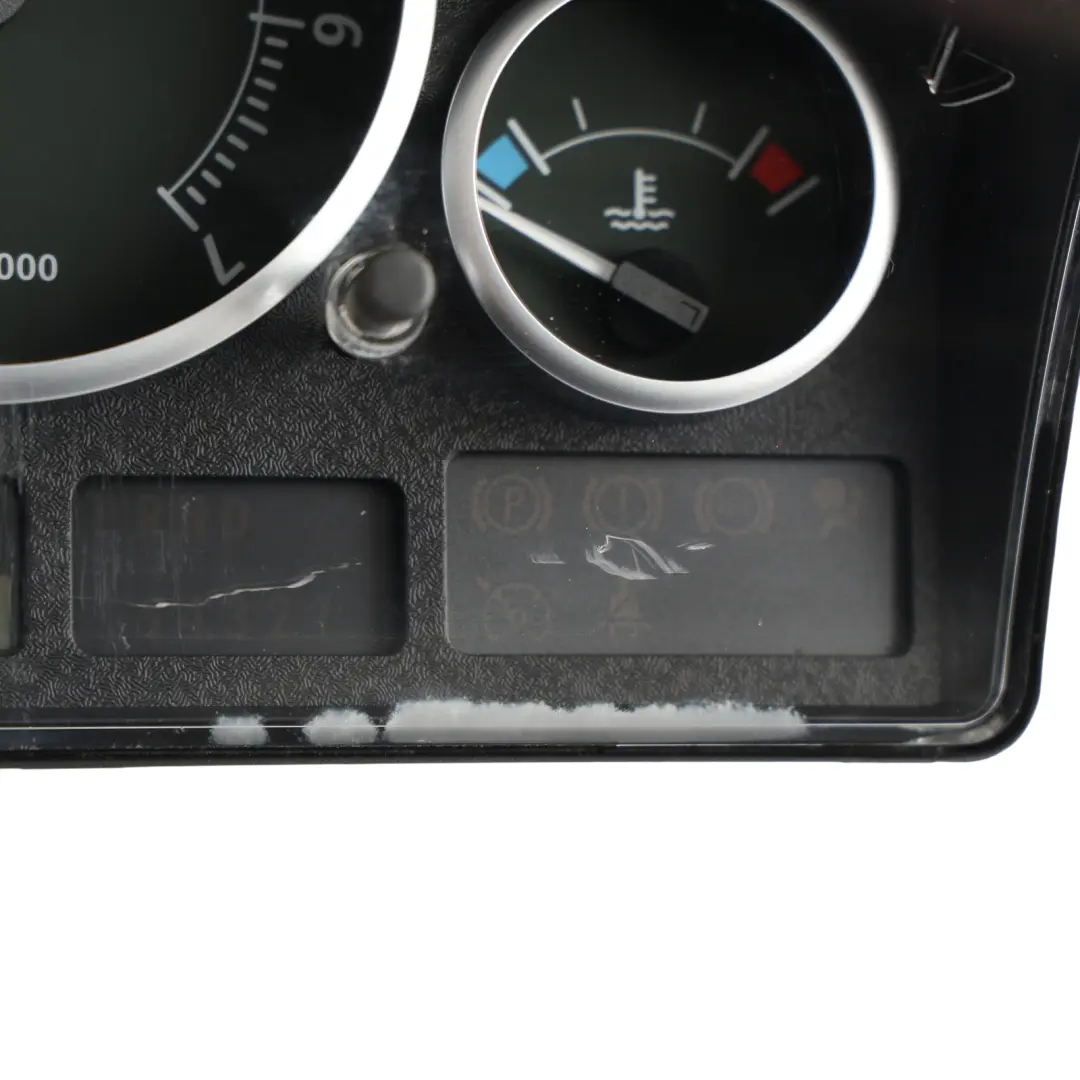

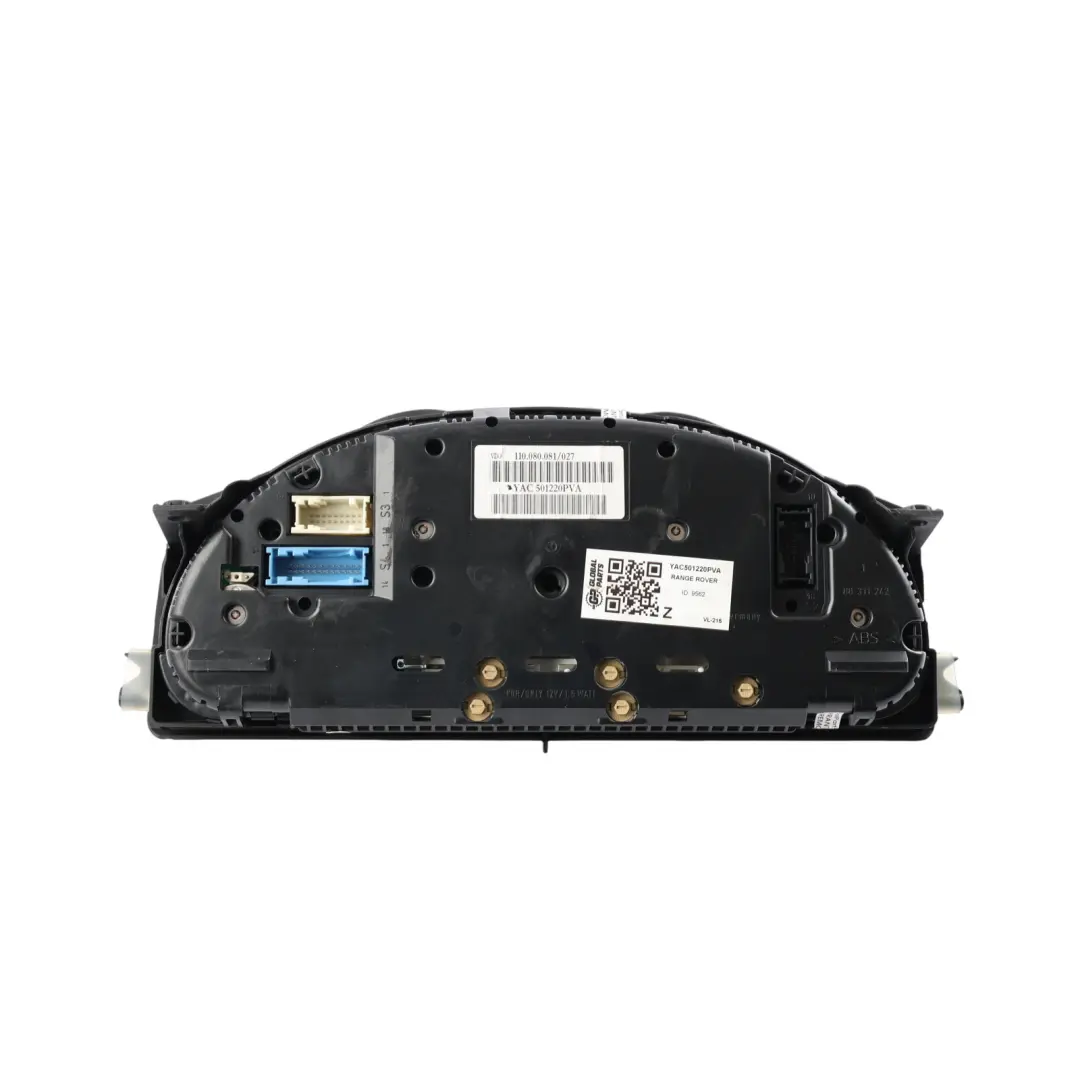

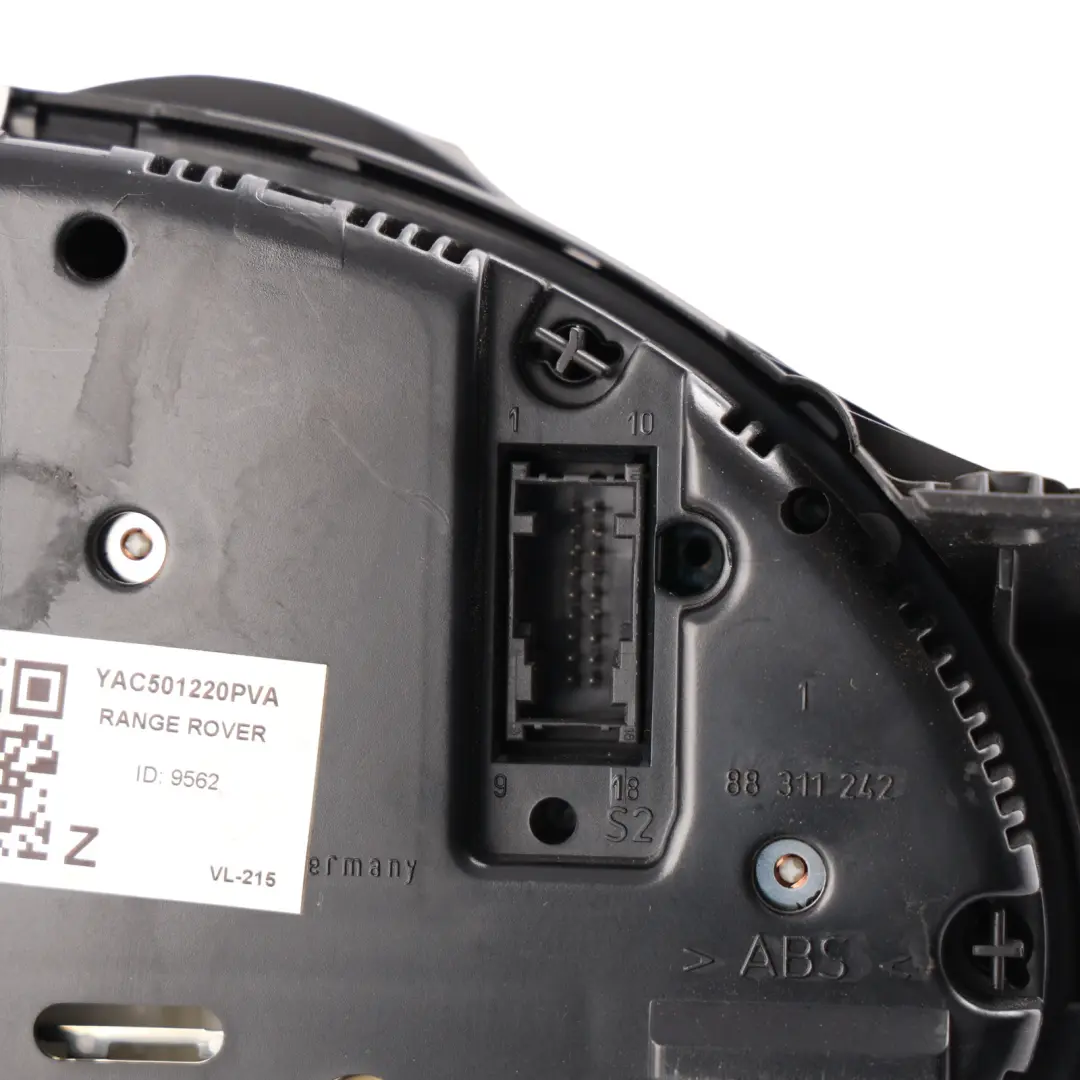

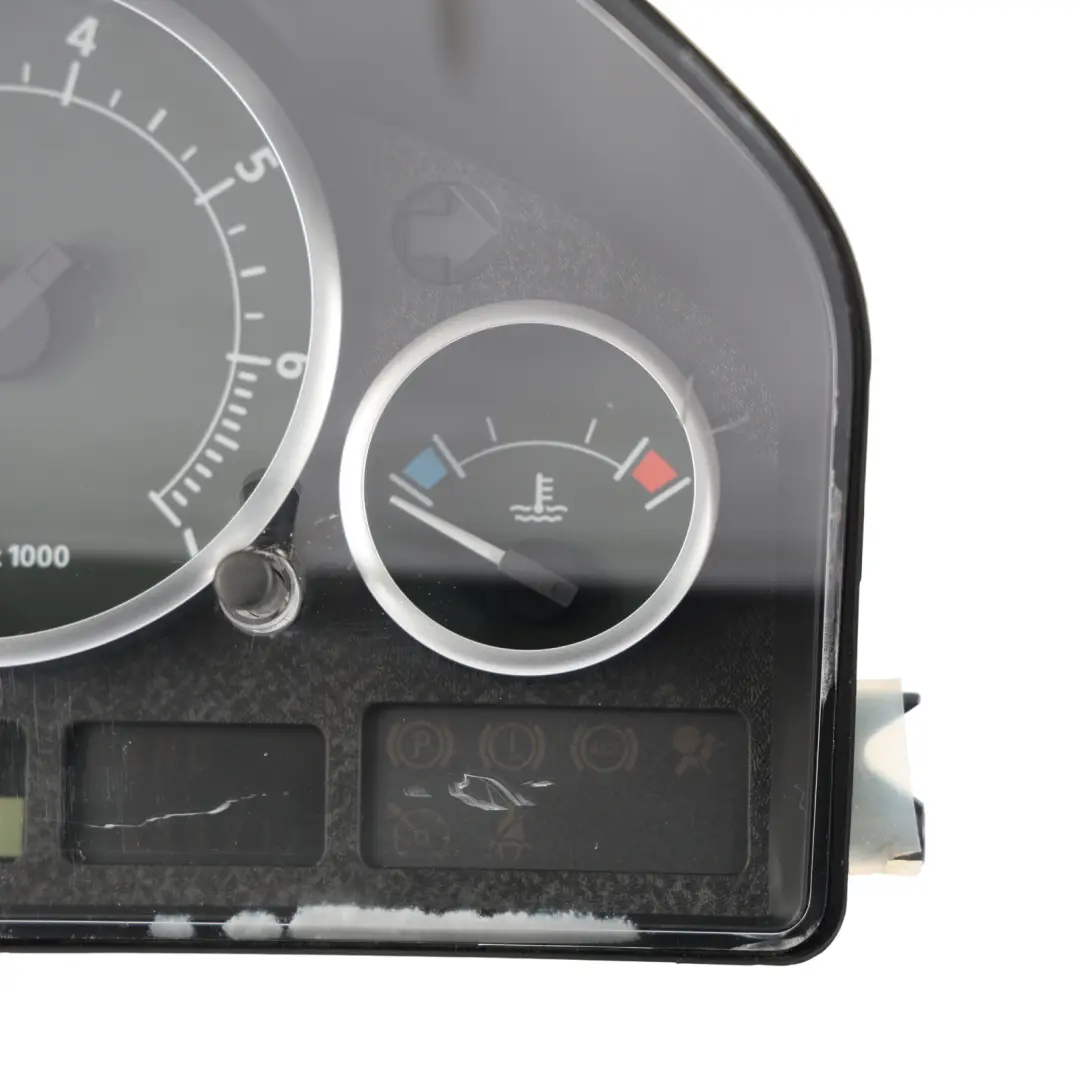

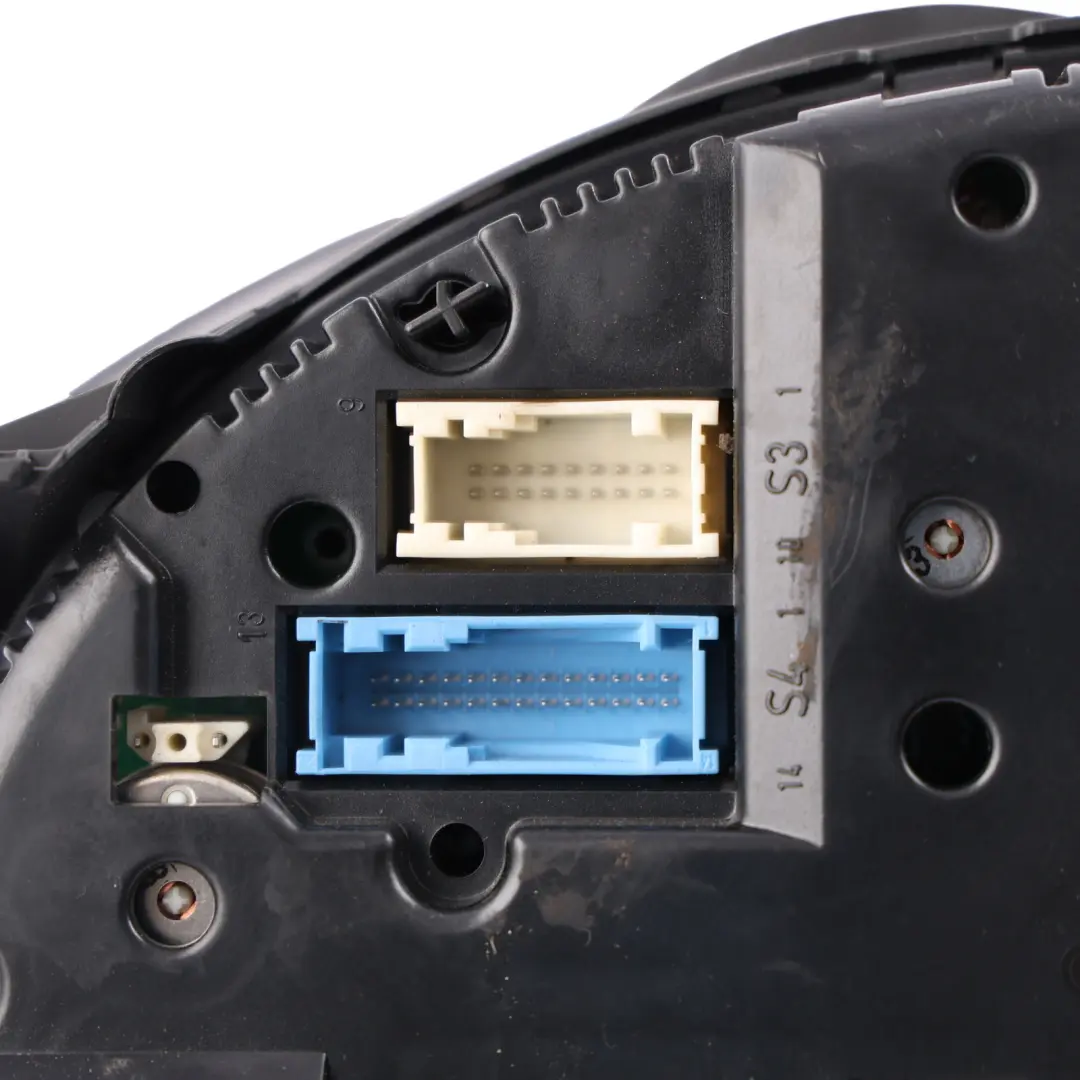

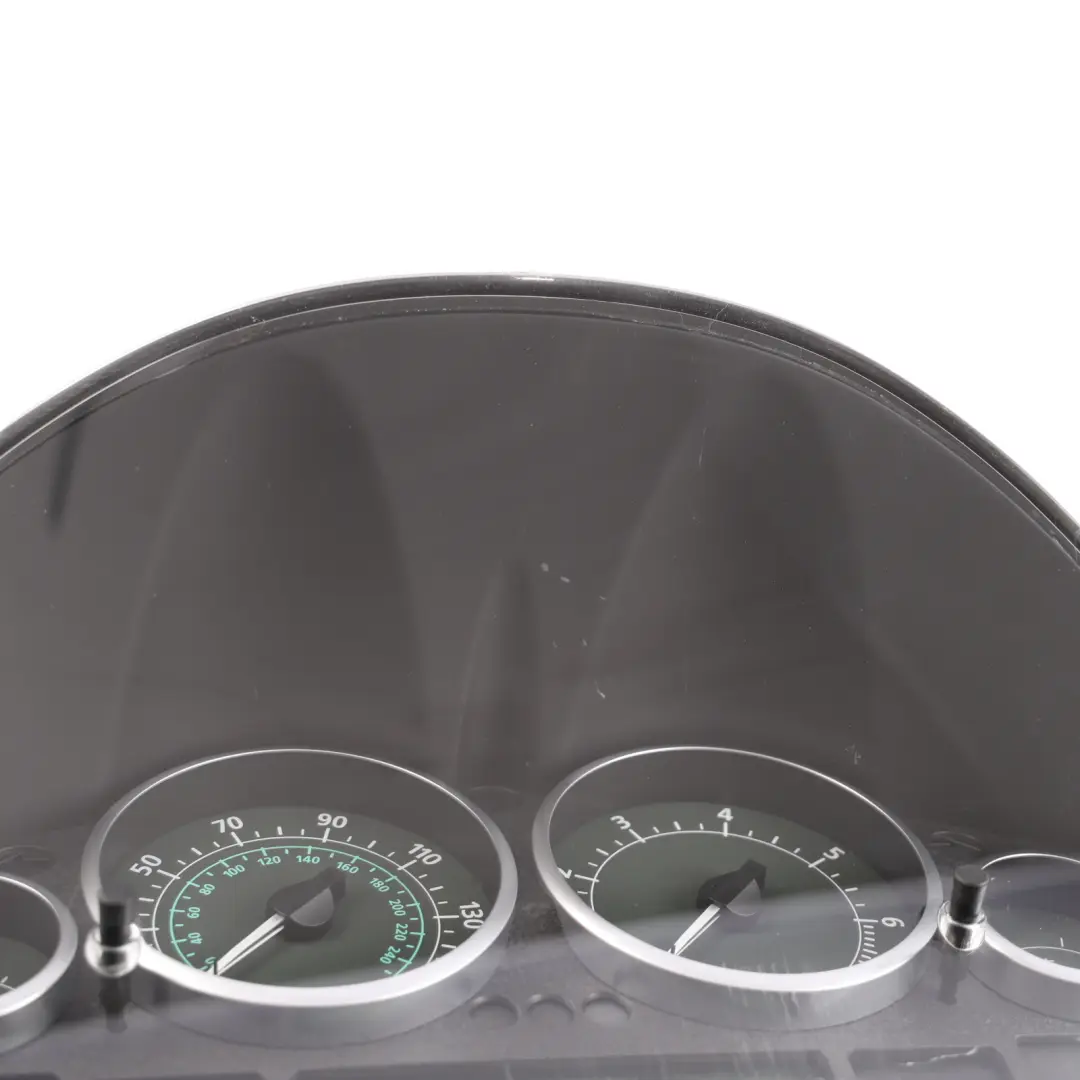

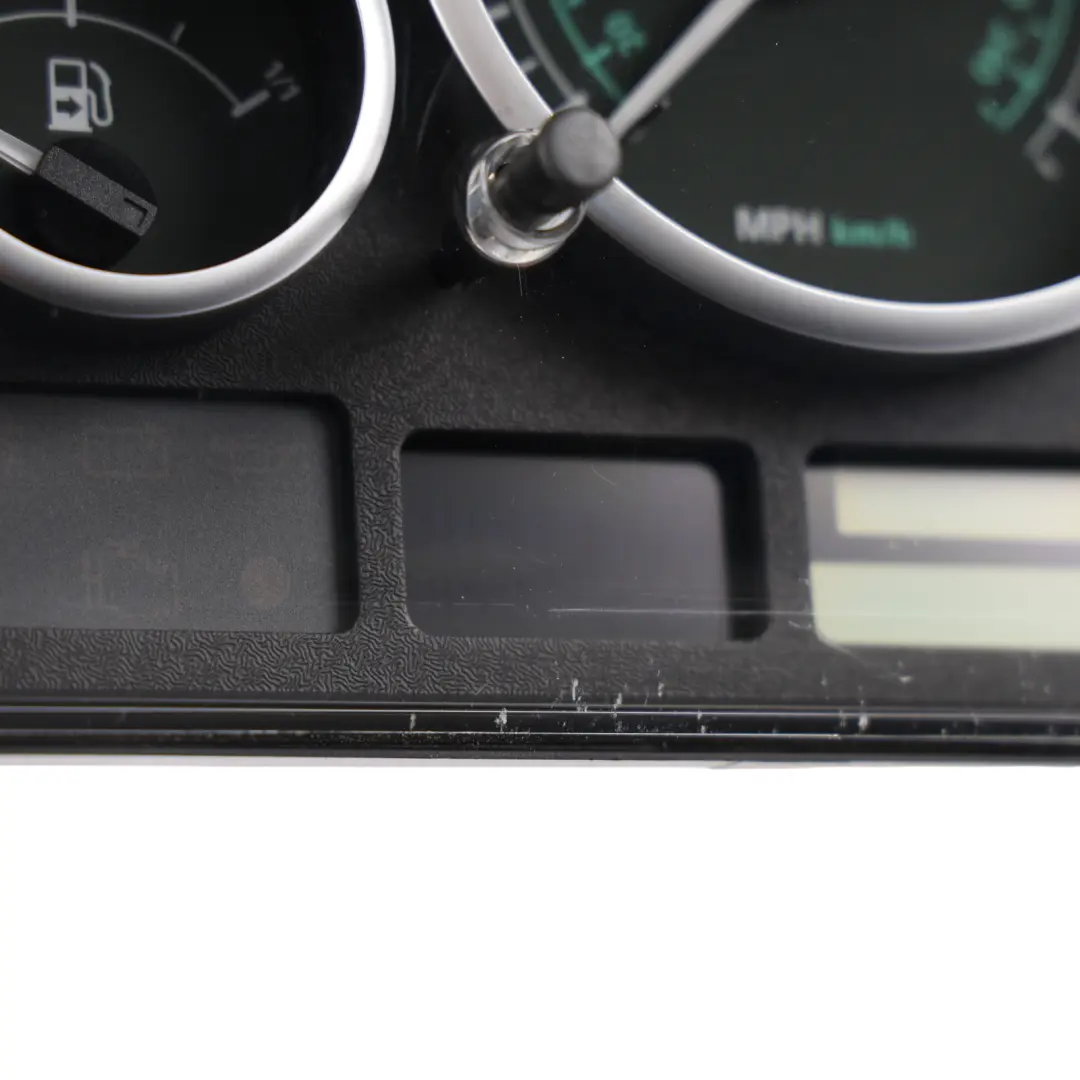

The product shows signs of use visible in the photos.

Range Rover L322 Instrument Cluster Speedo Clocks Diesel Automatic is a precision instrument cluster designed for models with diesel engines and automatic transmissions. This item from the Instrument Clusters category ensures clear reading of speed, RPM, and key vehicle operating parameters, supporting comfortable and safe operation. Thanks to its factory design tailored to the Range Rover L322, the panel provides a functional solution when replacing a damaged instrument cluster.

Specifications and technical data

• SKU: RHD-YAC501220PVA
• Mark: Range Rover
• Condition: Used

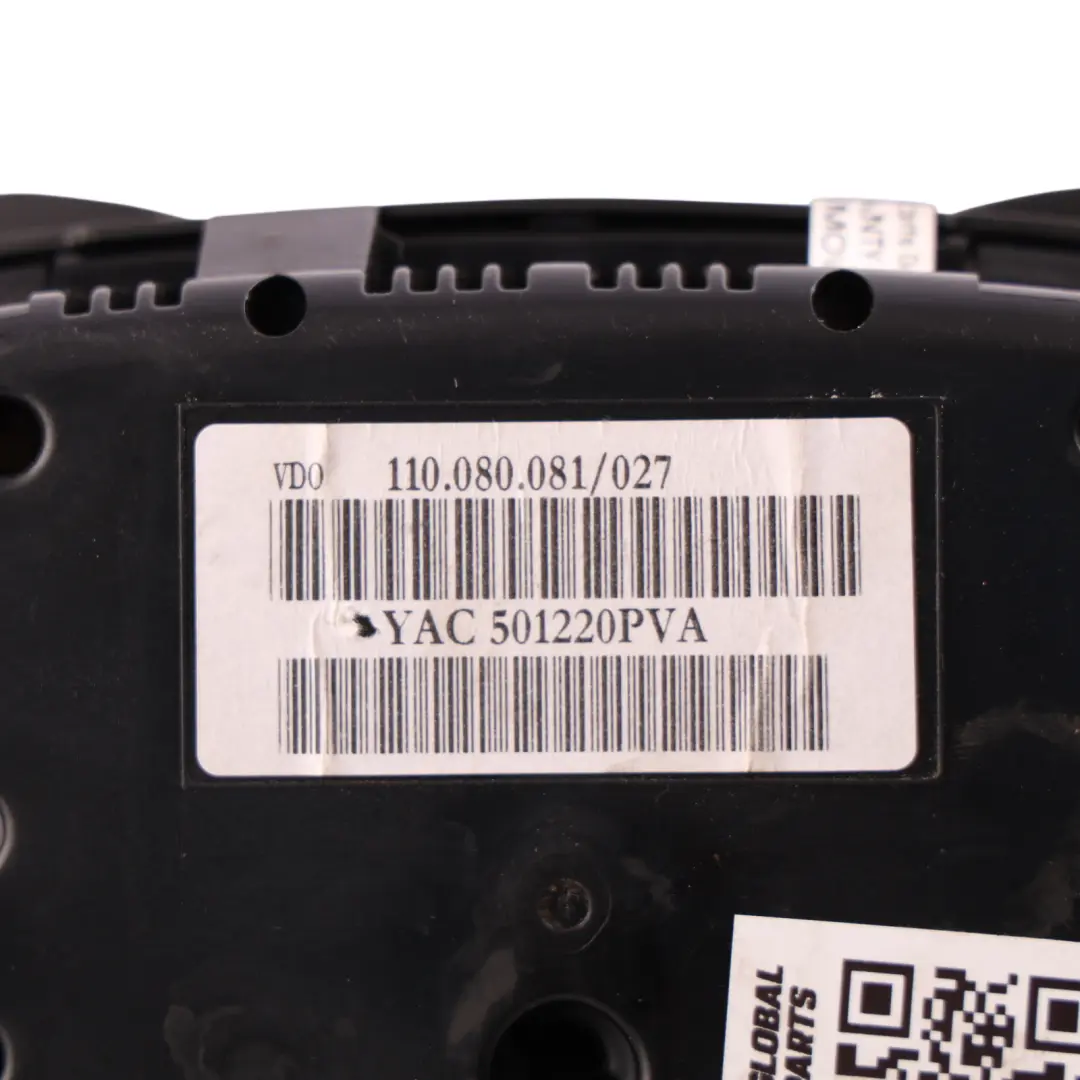

• OEM Part Number: YAC501220PVA
• Substitutable numbers: YAC501220PVA, YAC501230PVA, 5H4210849CA, 5H42-10849-CA
• Fuel type: Diesel
• Gearbox type: Automatic
• Part type: Instrument Cluster
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster has been designed specifically for Range Rover L322 models with a diesel engine and automatic transmission. This ensures compatibility with the electrical system architecture, communication with control modules, and the display logic of parameters characteristic of diesel units and automatic gearboxes.

The speedometer and tachometer panel works with the vehicle's factory sensors, allowing for consistent readings with onboard systems. As a result, replacing a damaged unit with this model allows for the restoration of full cockpit functionality without the need for installation modifications.

Instrument cluster functionality

The instrument cluster in the Range Rover L322 is responsible for presenting key information to the driver in one central module. The panel handles, among other things:

• reading of driving speed and engine RPM,
• automatic transmission operation signaling,
• warning and information lights linked to vehicle systems,
• visual monitoring of basic operating parameters of the diesel unit.

Thanks to its factory design, the cluster maintains an ergonomic layout of gauges and indicators, which facilitates quick information reading while driving. The clear instrument panel supports intuitive vehicle operation, and the consistent graphics and scales are in line with the original Range Rover equipment.

Technical and assembly characteristics

As an item from the Instrument Clusters group, the panel is intended for installation in place of the factory instrument cluster, using original mounting points and connectors. The construction based on manufacturer standards allows for integration with the vehicle's installation without additional mechanical modifications.

The cluster is prepared to work with diesel engine control systems and automatic transmissions, which is crucial for the correct operation of gauges, indicators, and system messages. Factory fitment for the Range Rover L322 platform reduces the risk of compatibility issues and simplifies the service process.

Use in service and restoration

This instrument cluster is suitable both for standard replacement of a damaged panel and during broader service work related to interior electronics. It allows for the restoration of full cockpit functionality in vehicles where the existing instrument cluster has failed, suffered mechanical damage, or is experiencing issues with parameter readings.

In the context of diagnostics and part selection, it is important to pay attention to compatibility with the diesel powertrain and automatic transmission. For users who want to deepen their knowledge on verifying component compatibility using OEM numbers, the following guide may be helpful: Buying parts online without risk – 5 proven ways to verify component compatibility.

Expanding work within Range Rover instrument clusters

If you are planning a comprehensive repair or upgrade of the cockpit area in your Range Rover and need other elements from the same group, such as additional instrument panels, display modules, or alternative gauge configurations, check the available parts in the Range Rover Instrument Clusters category.
