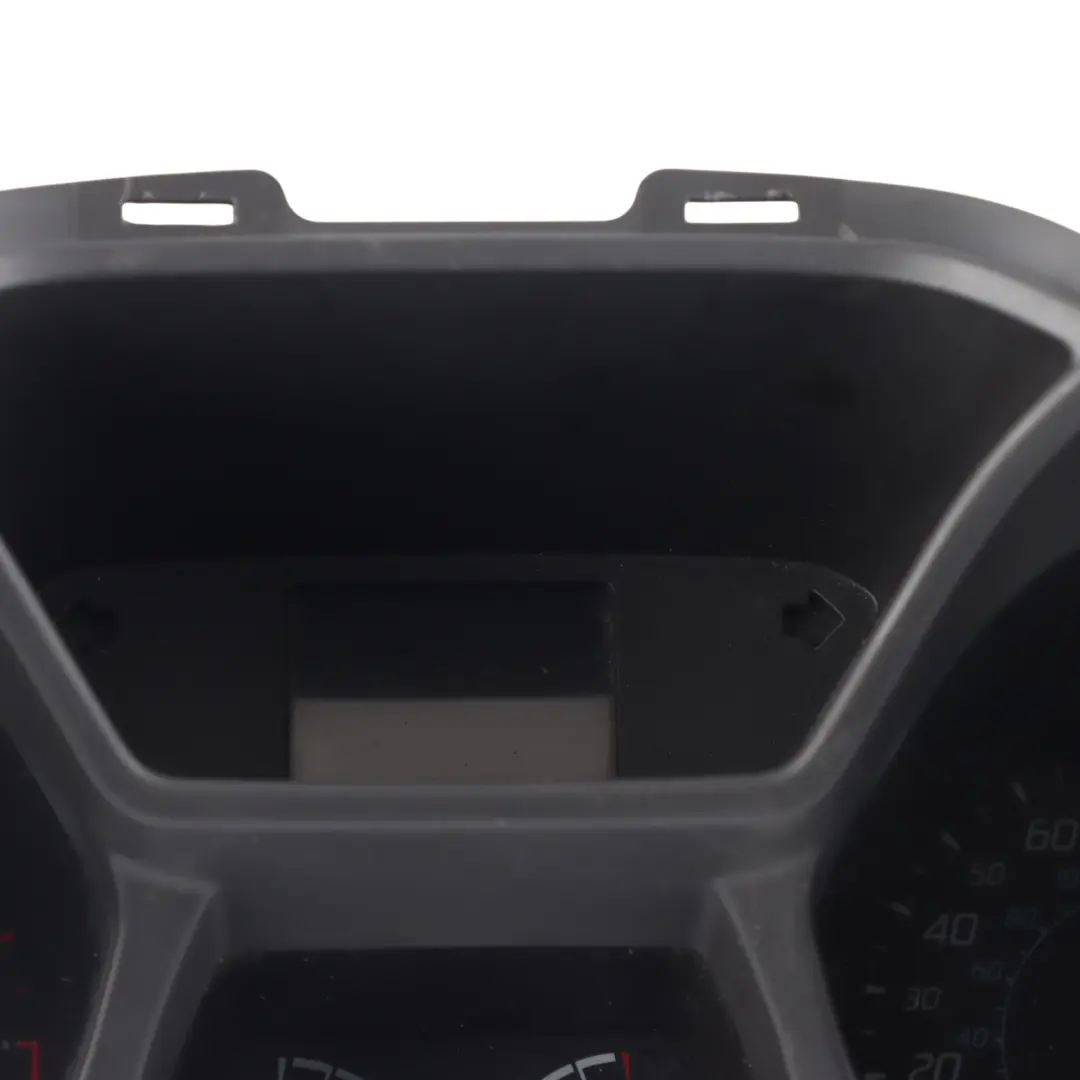

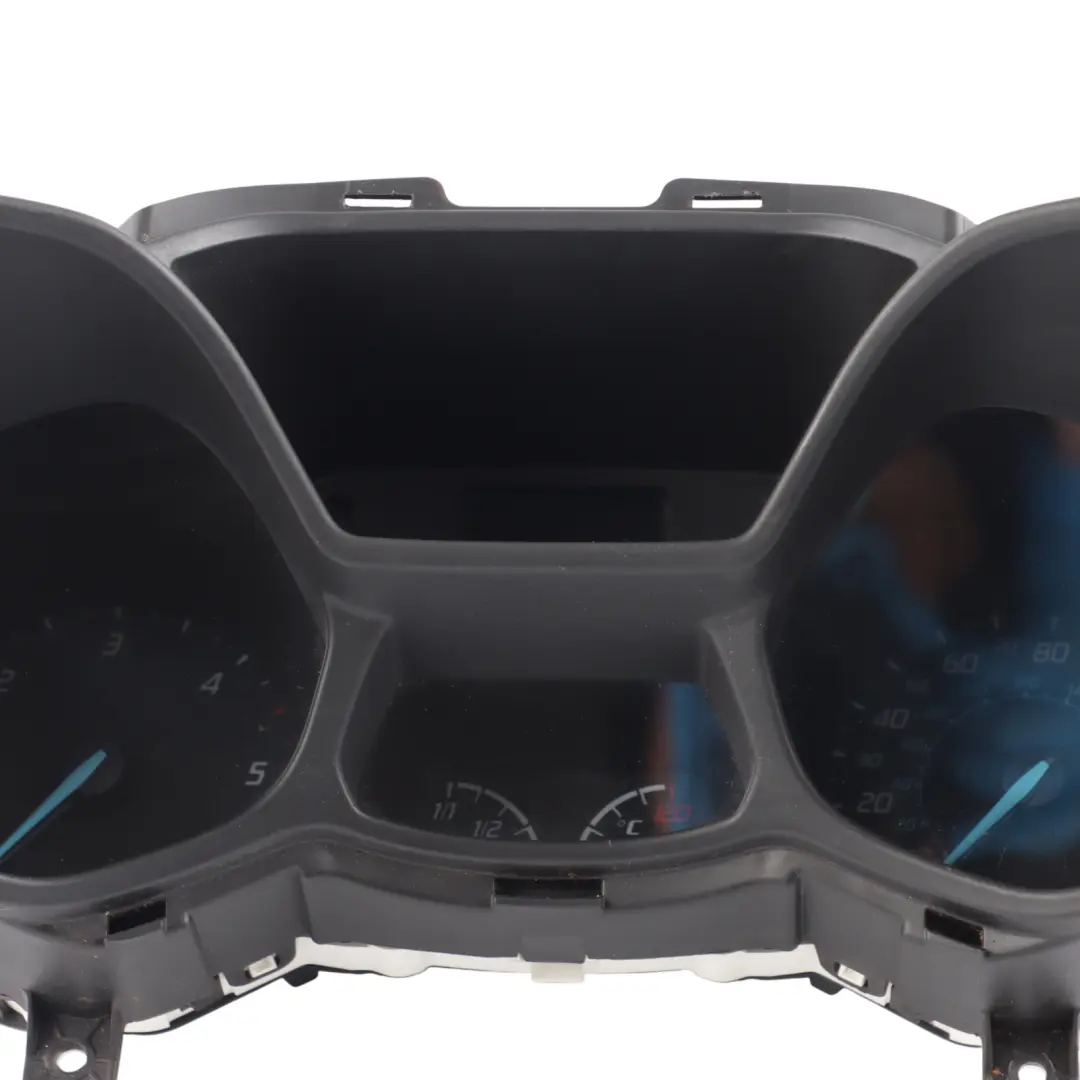

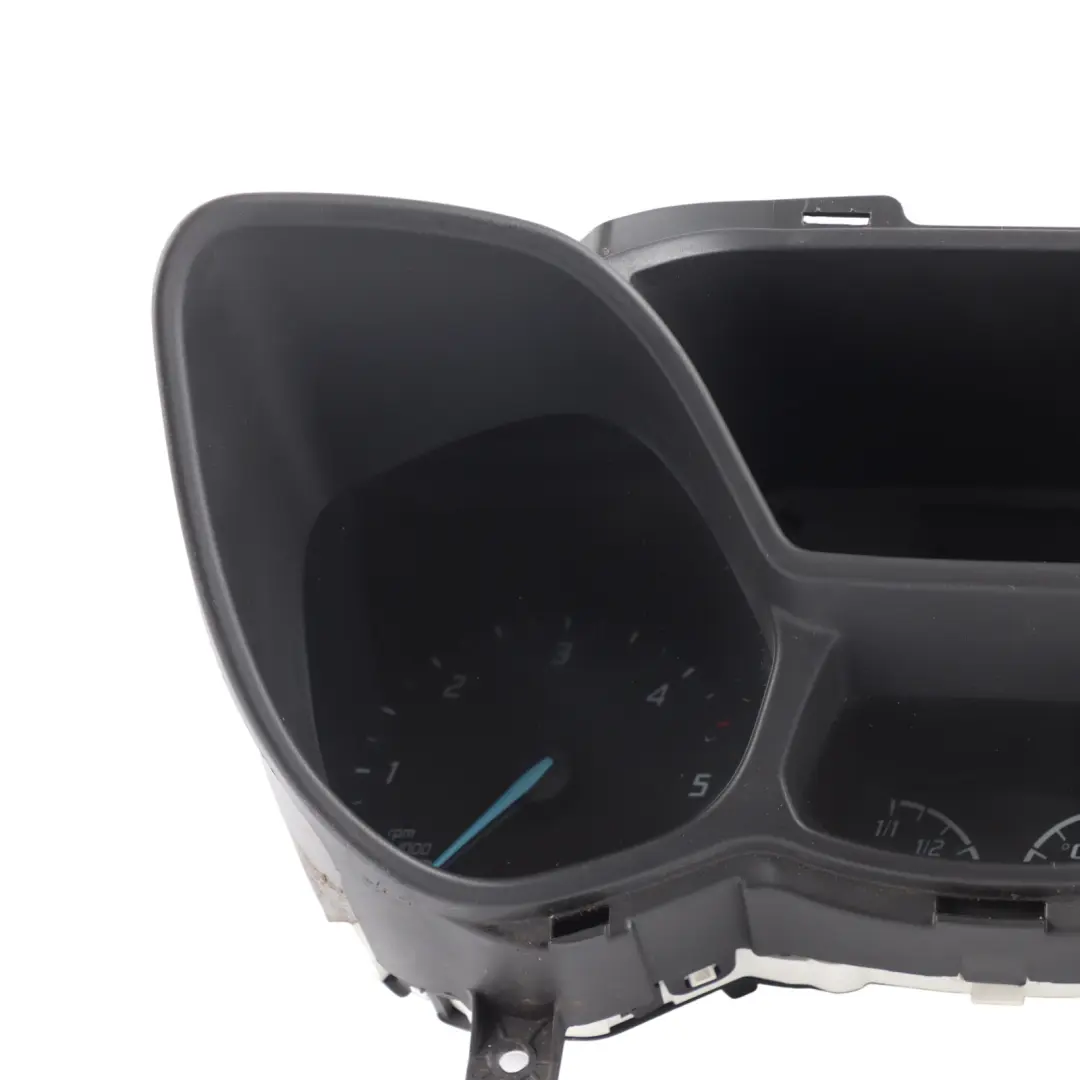

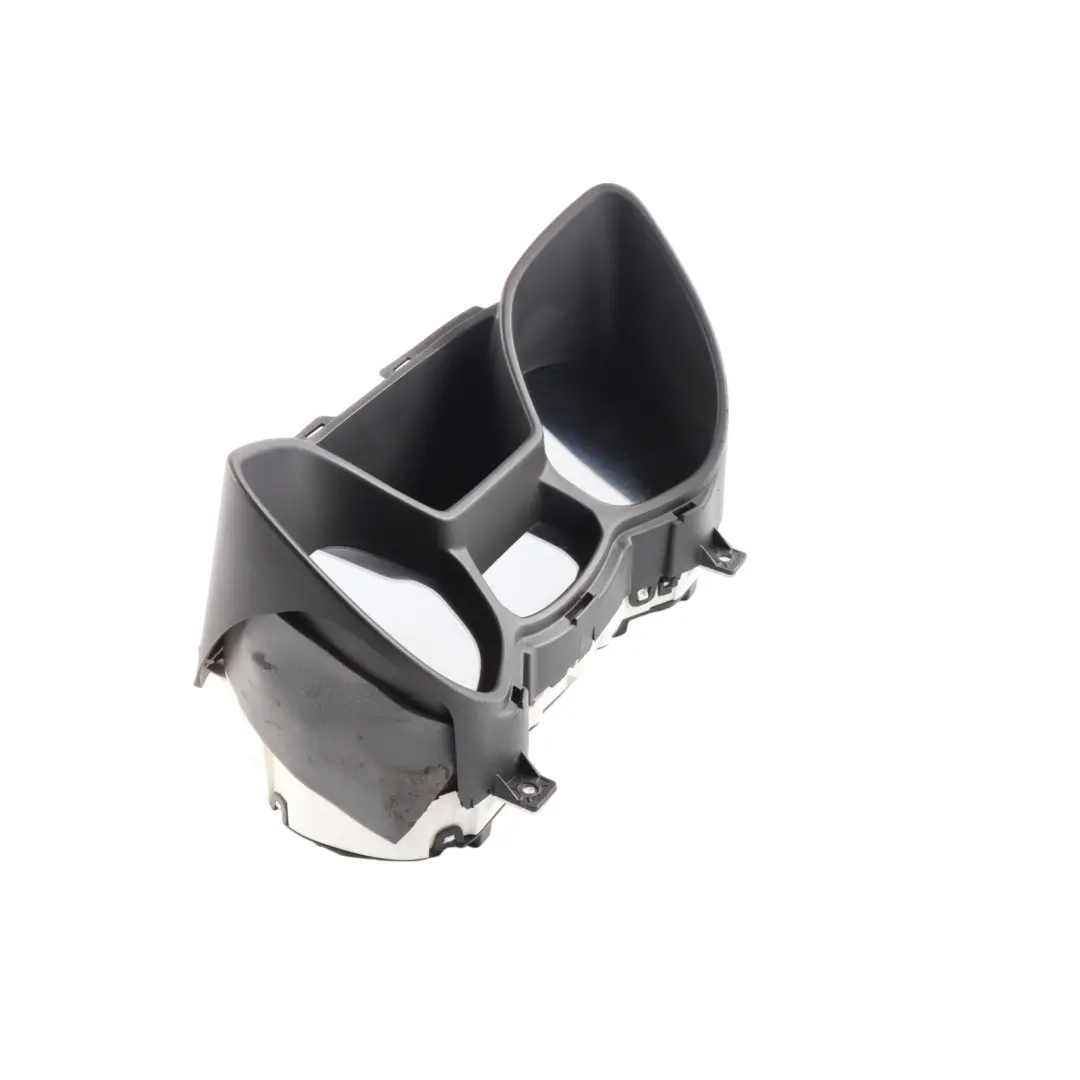

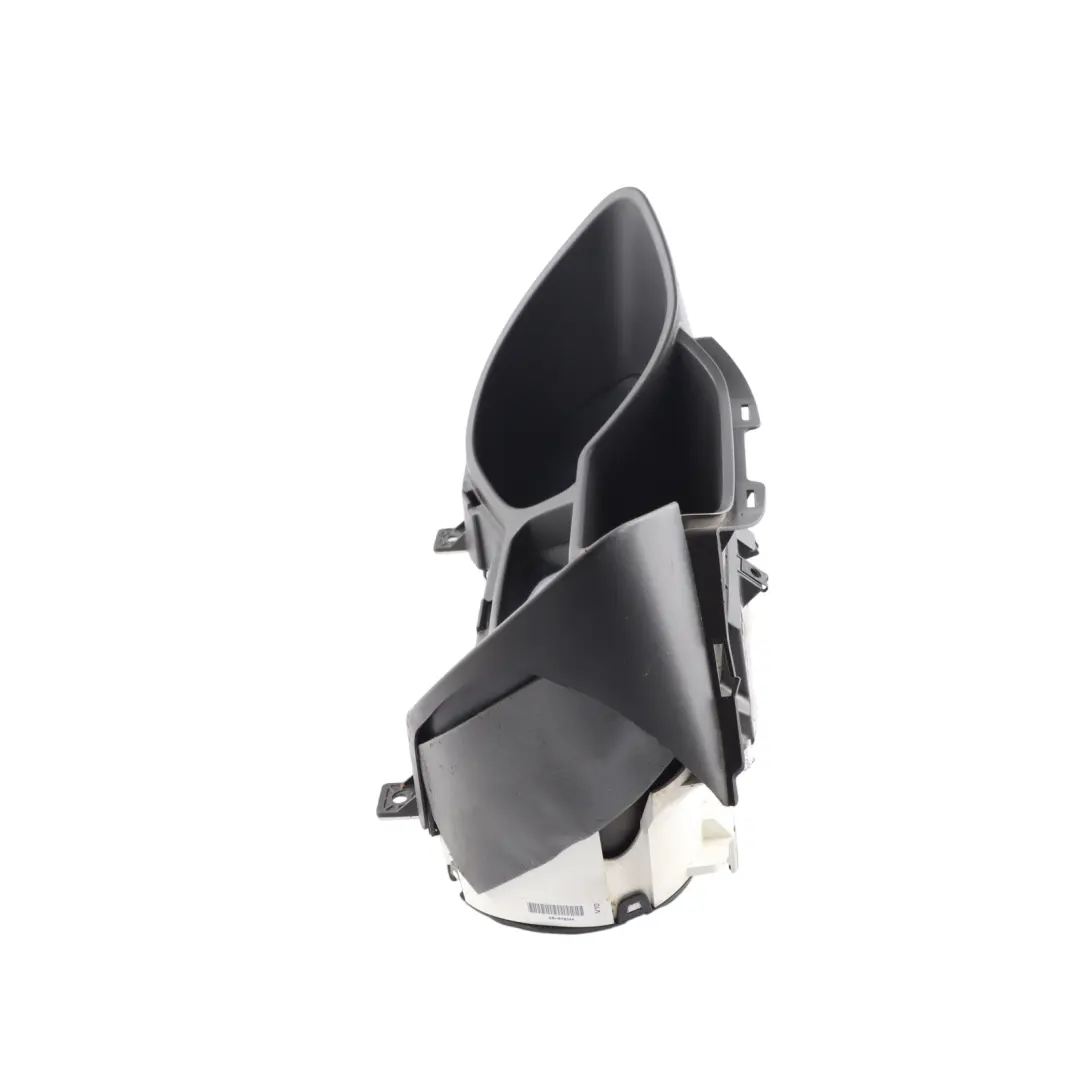

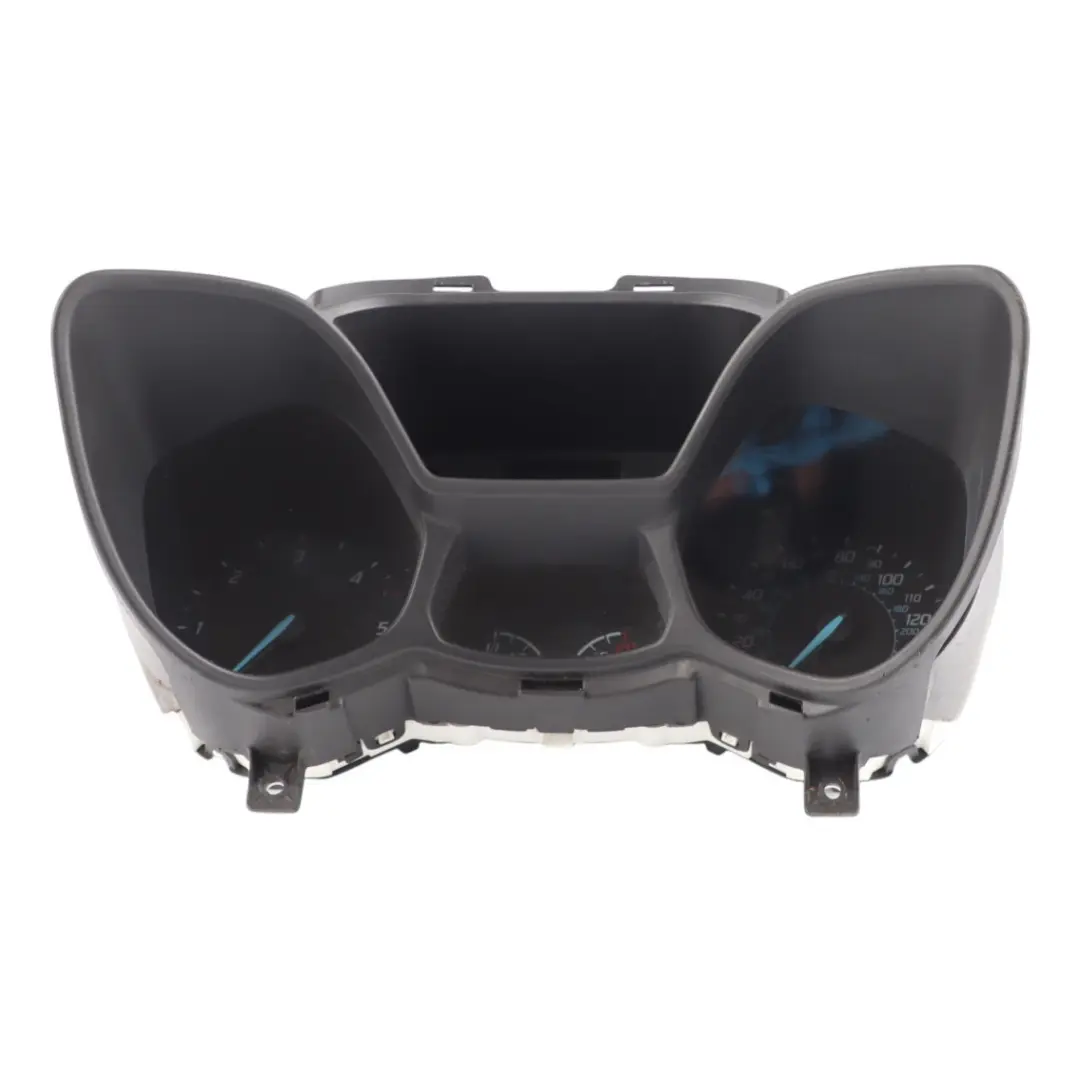

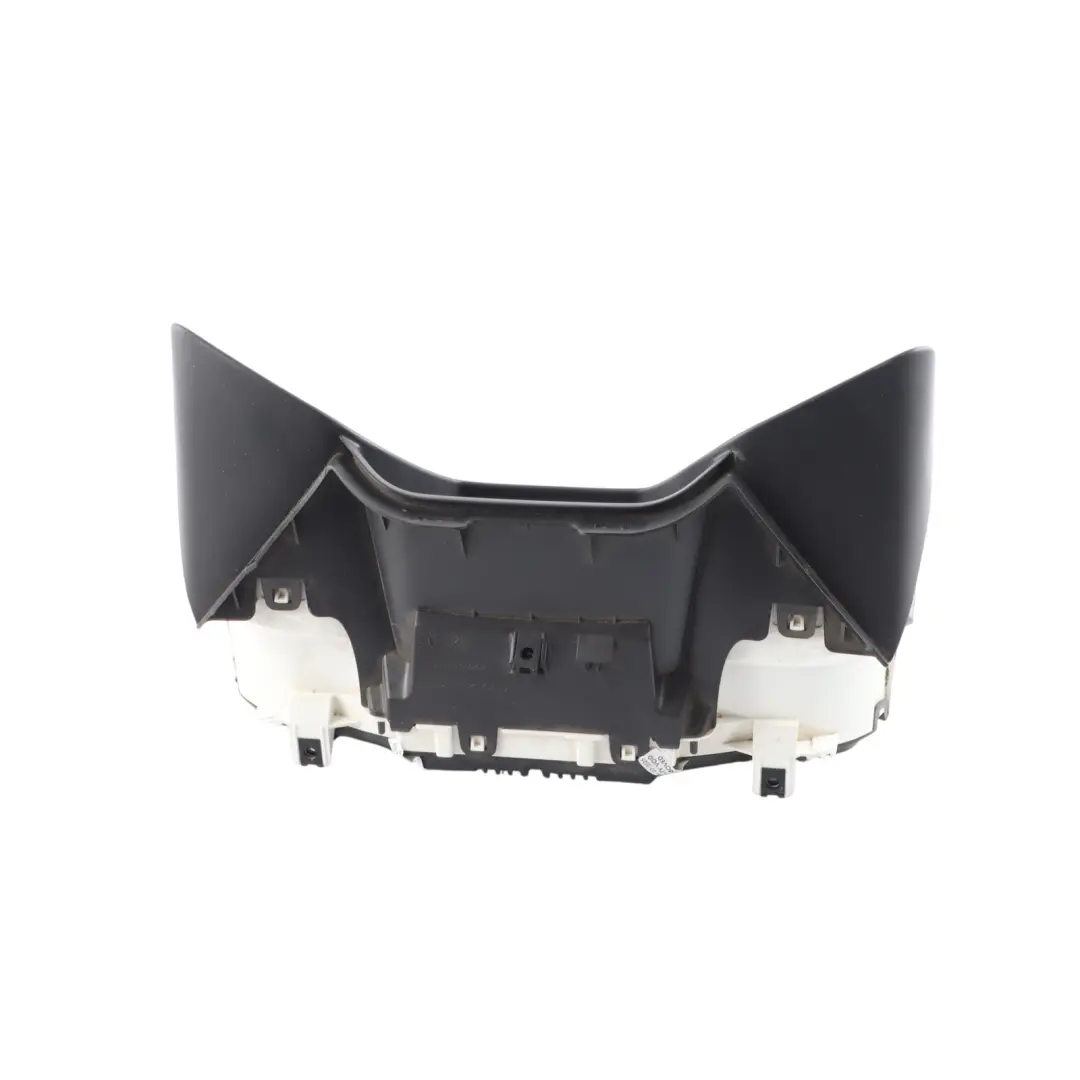

Ford Transit Connect Diesel Instrument Cluster Speedo Clocks Manual FT1T10849HF

Ford Transit Connect Diesel Instrument Cluster Speedo Clocks Manual is a factory-original instrument panel designed for diesel engine versions with a manual transmission. It offers precise readings of speed, RPM, and other vehicle operating parameters, ensuring full compatibility with Ford's original electrical installation and electronics. It is a practical solution for both replacing a damaged unit and for professional instrument cluster repairs.

Specifications and technical data

• SKU: RHD-FT1T10849HF
• Mark: Ford
• Condition: Used

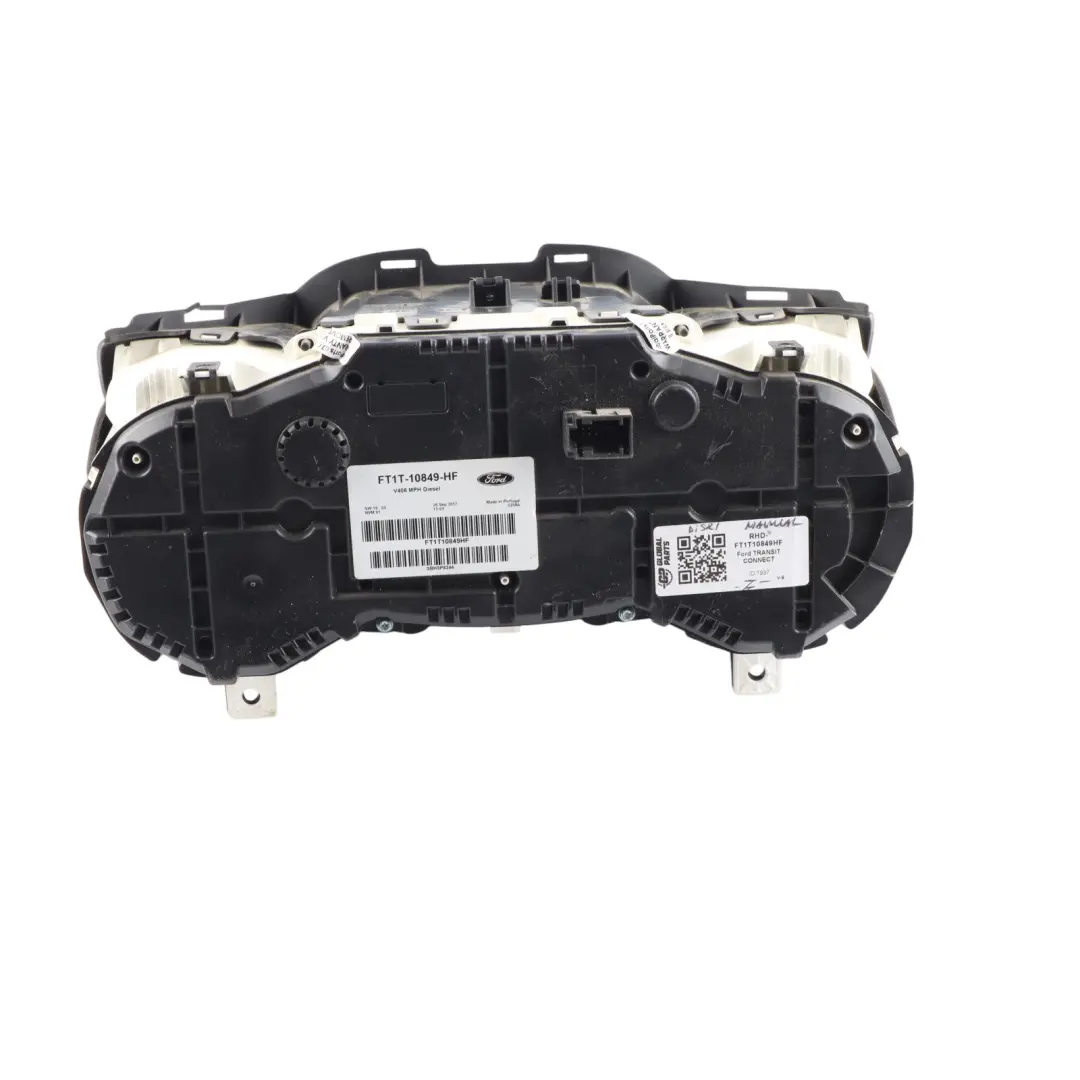

• OEM Part Number: FT1T10849HF
• Substitutable numbers: FT1T10849HF, FT1T-10849-HF
• Fuel type: Diesel
• Gearbox type: Manual
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster has been designed specifically for the Ford Transit Connect with a diesel engine and manual transmission. This means that the indication logic, speedometer and tachometer scales, and warning lights are tailored to the characteristics of the diesel unit and the operation of the mechanically shifted gearbox. As a result, proper cooperation with the vehicle's factory sensors and control modules is maintained.

Construction and function of the instrument cluster

As an item in the Instrument Clusters category, the clock panel is responsible for the central presentation of key information for the driver. One integrated module includes, among others:

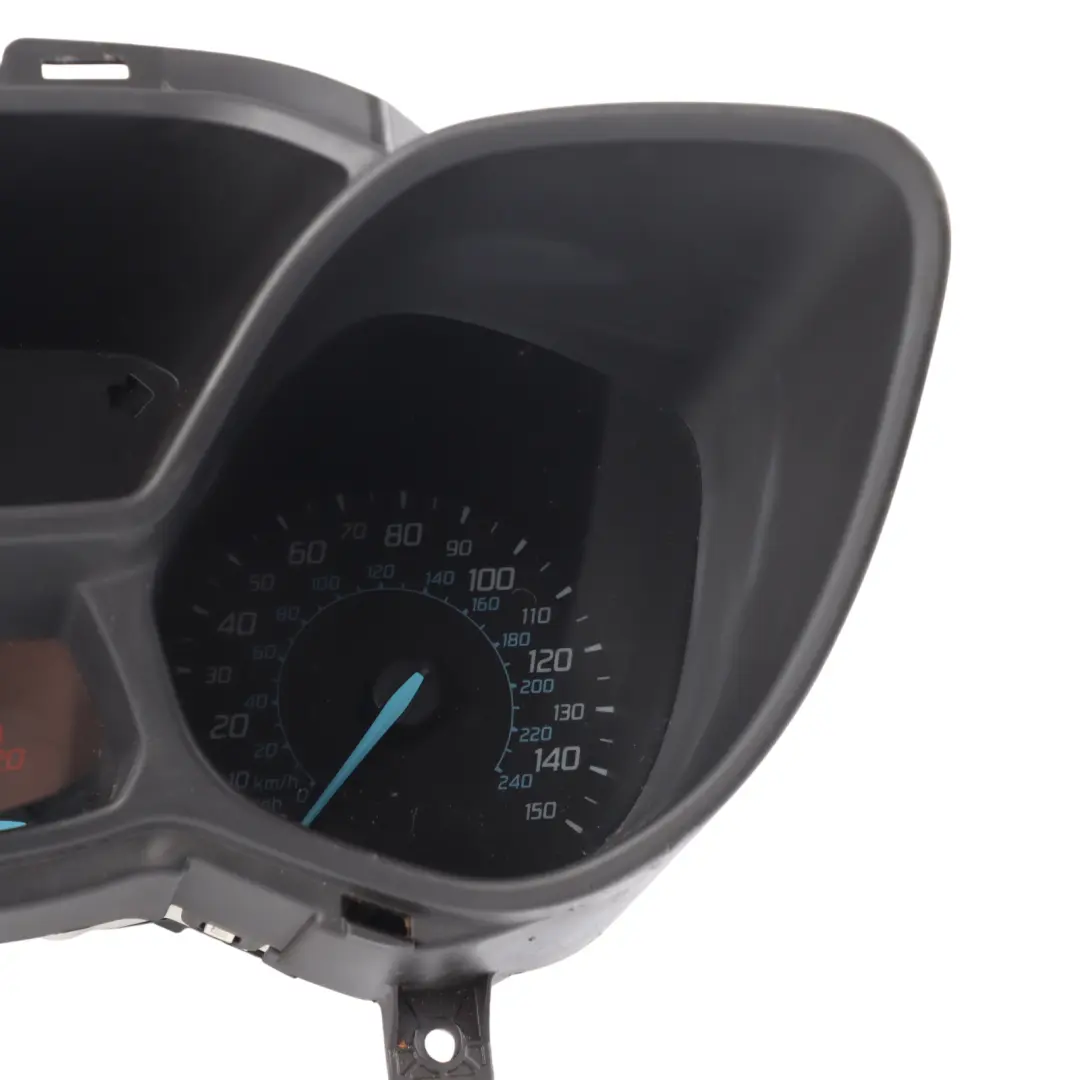

• a speedometer with a clear scale adapted to the characteristics of the Transit Connect,
• a tachometer optimized for diesel engine operation,
• a set of warning and information lights,
• indications of basic vehicle operating parameters.

This solution allows for quick data reading while driving, while maintaining a consistent, factory look of the cockpit. The original Ford design facilitates seamless integration with the electrical harness and other body modules.

Benefits of using an original instrument cluster

Using an original instrument cluster in a Ford Transit Connect brings a number of practical advantages, important for both workshops and individual users:

• preservation of factory functionality and warning light logic,
• visual consistency with the dashboard and other interior elements,
• matching the operating parameters of the diesel engine and manual transmission,
• facilitated diagnostics based on standard Ford service procedures.

Thanks to this, replacing a damaged clock panel does not require compromises in terms of ergonomics or readability, and the vehicle retains its original utility properties.

Condition, installation, and service application

The item comes from the secondary market, which makes it an attractive solution for repairs where a reasonable cost relative to the vehicle's value is important. The instrument cluster is designed for installation in place of the factory panel, using original mounting points and electrical connectors. In practice, this means limiting adaptation work and reducing vehicle downtime at the service center.

This type of solution is particularly useful for:

• repairs following an instrument cluster electronics failure,
• mechanical damage to the clock panel,
• professional refurbishment of a commercial vehicle interior.
