Ford Transit Connect Diesel Instrument Cluster Speedo Meter Manual 9T1T-10849-DE

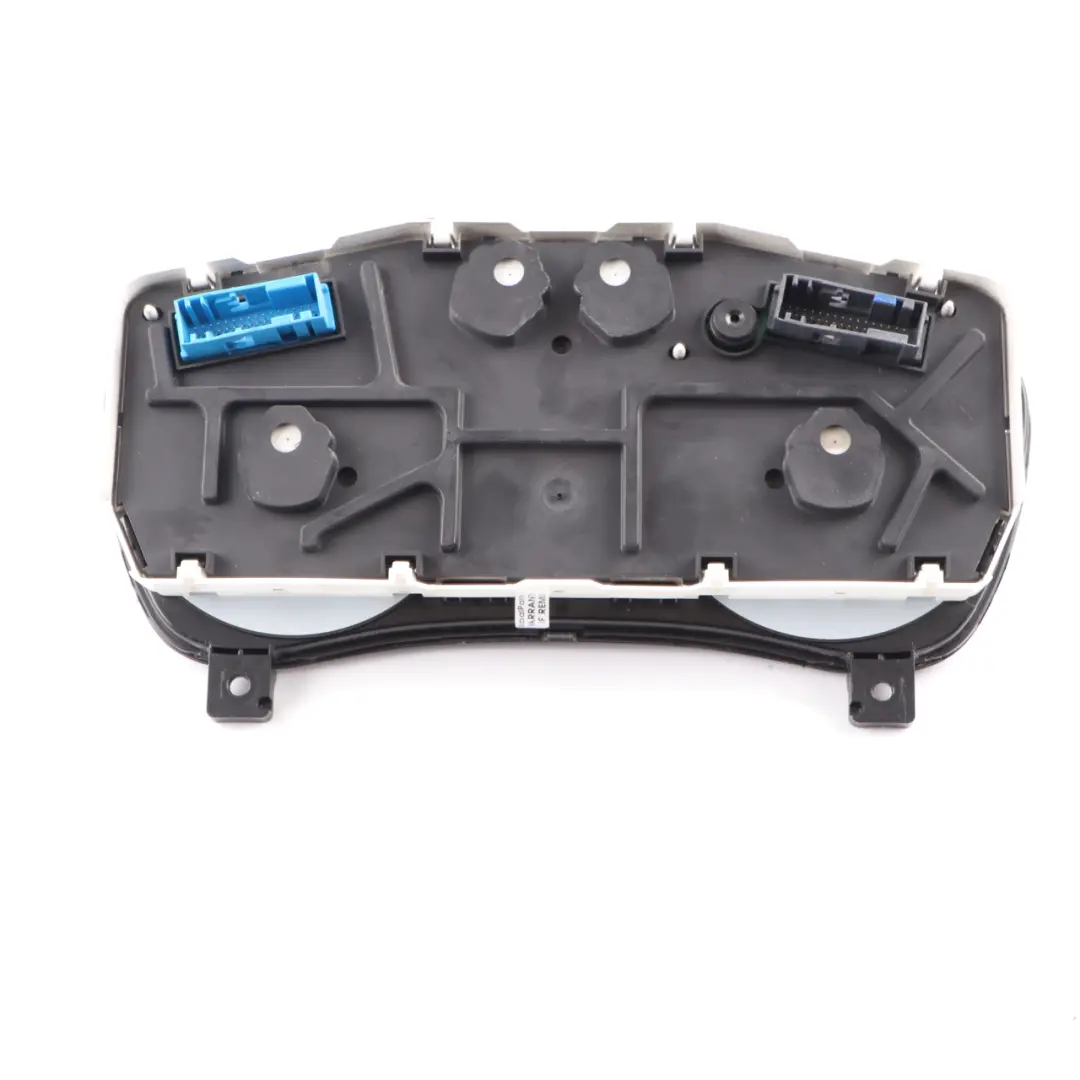

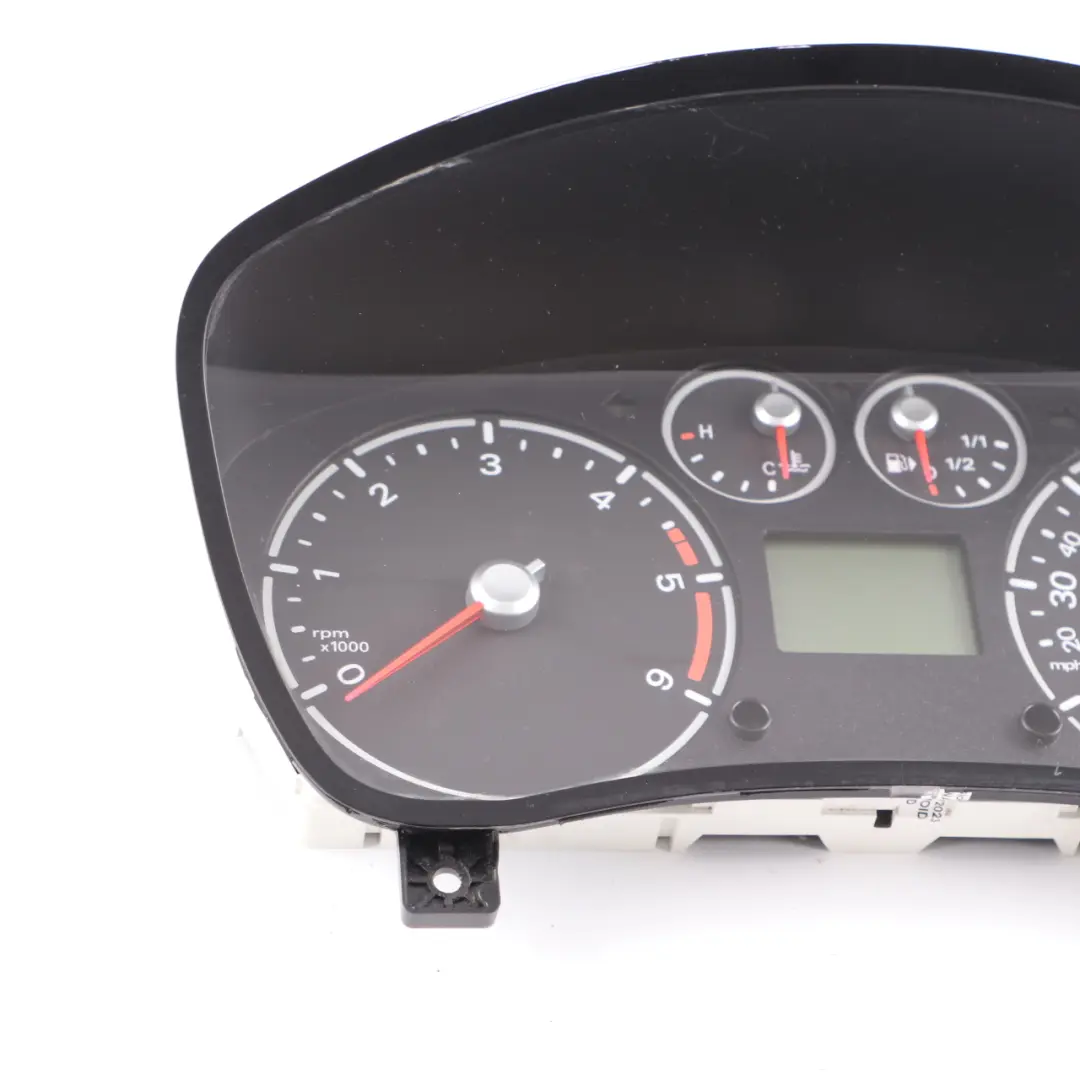

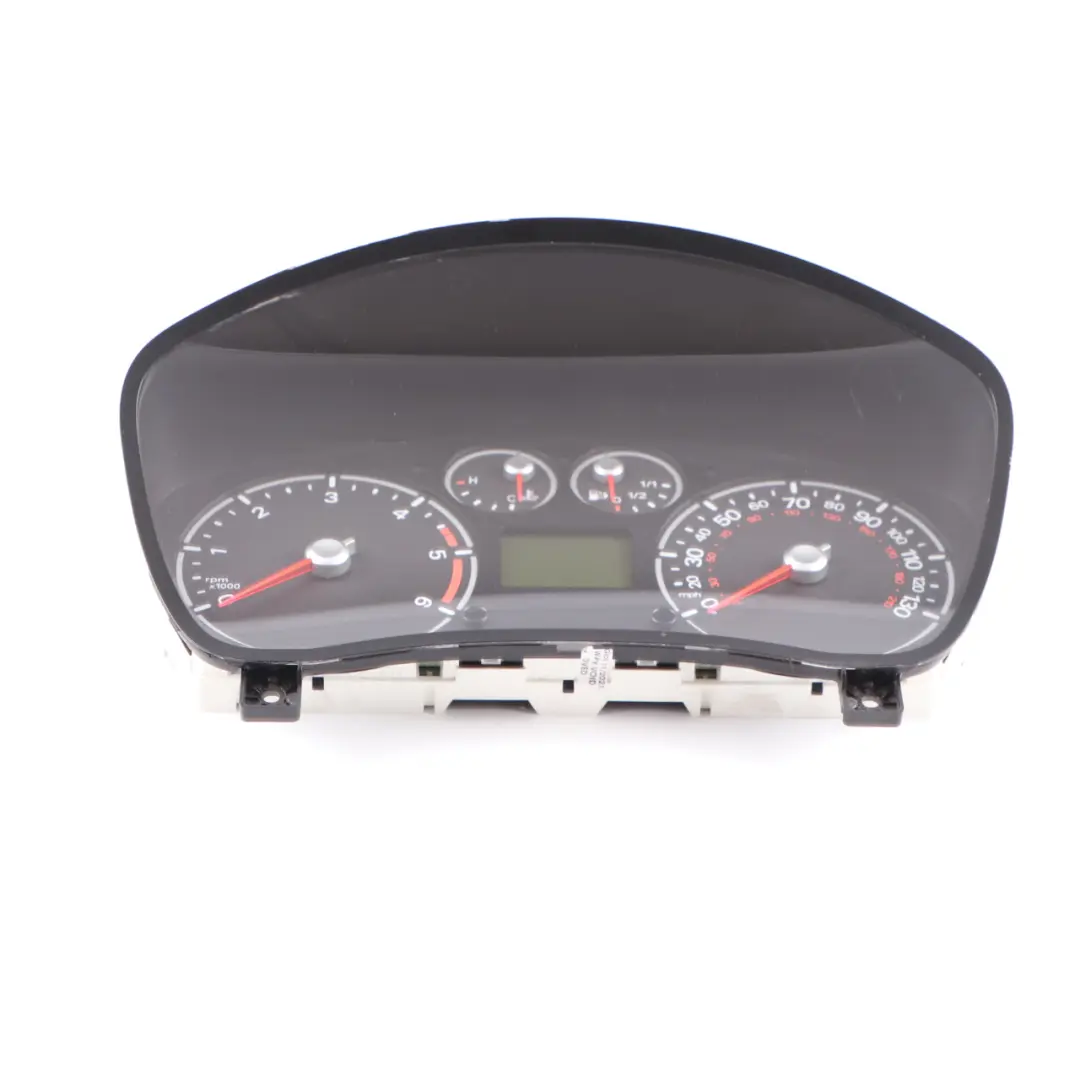

Visual condition of the part

The product shows signs of use visible in the photos.

Ford Transit Connect Diesel Instrument Cluster Speedo Meter Manual is a factory speedometer cluster designed for diesel engine versions with a manual transmission. It offers precise gauge scaling and operating logic tailored to the parameters of the diesel unit, which helps maintain consistent vehicle system performance. This is a practical solution for replacing a damaged cluster or for professional interior wiring repairs.

Specifications and technical data

• SKU: RHD-9T1T10849DE
• Mark: Ford
• Condition: Used

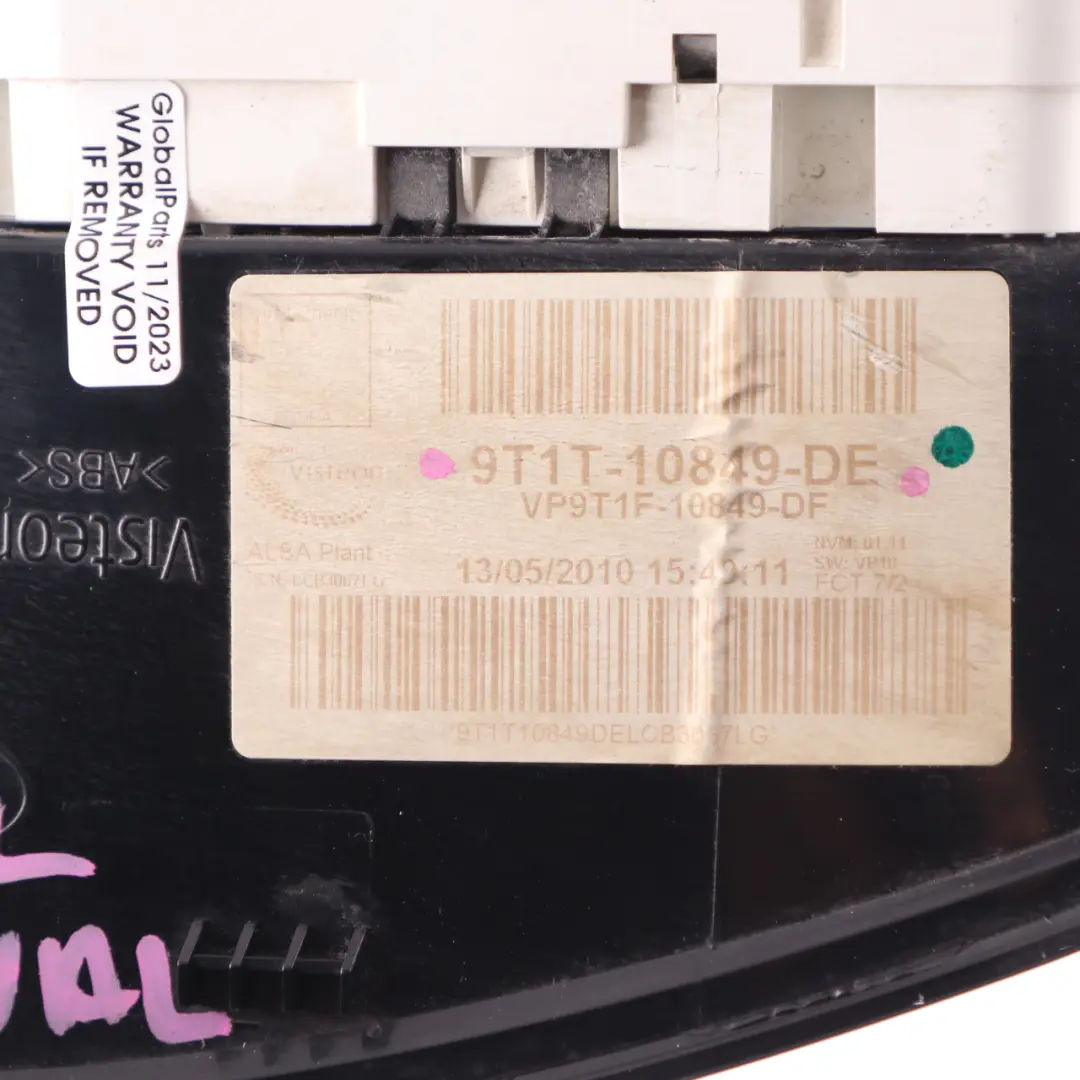

• OEM Part Number: 9T1T10849DE
• Substitutable numbers: 9T1T10849DE, 9T1T-10849-DE
• Fuel type: Diesel
• Gearbox type: Manual
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster has been designed specifically for the Ford Transit Connect model with a diesel engine and manual transmission. This means that the logic for the tachometer, speedometer, and other gauges is adapted to the operating characteristics of the diesel unit and the mechanical clutch and gear control system. As a result, the cluster works with the vehicle's corresponding sensors and modules, which is crucial for maintaining the correct operation of onboard systems.

Construction and function of the instrument cluster

Instrument clusters in the Ford Transit Connect are responsible for displaying basic driving parameters, such as speed, engine RPM, fuel level, and warning light signals. This specific speedometer cluster has been configured for a diesel powertrain, which translates into appropriate display ranges and a clear, functional scale. The design, based on the manufacturer's solutions, ensures compatibility with the factory electrical installation and the dashboard wiring harness.

Thanks to the use of the original Ford architecture, the cluster is ready to work with factory control modules, which facilitates diagnostics, coding, and potential matching using professional service tools. The consistency of the electronics with the rest of the vehicle system reduces the risk of communication errors and dashboard warning light issues.

Application in vehicles with diesel engines and manual transmissions

Transit Connect versions with a diesel unit and manual transmission require a cluster with properly selected input signal maps. This model of the instrument cluster was constructed specifically for such a powertrain, which is important both for the accuracy of the readings and for compatibility with safety and comfort systems. Being dedicated to a specific fuel type and transmission type helps avoid problems typical of randomly selected clusters, such as incorrect RPM readings, error messages, or illuminated warning lights.

In practice, this means that when replacing a damaged instrument cluster in a Transit Connect with a diesel engine and manual transmission, using this model allows for maintaining factory operating parameters and predictable gauge behavior. This is particularly important in commercial vehicles, where the readability and accuracy of the gauges translate into safety and comfort during daily operation.

Benefits of using an original instrument cluster

Choosing a factory speedometer cluster for the Ford Transit Connect offers a number of practical advantages:

• maintaining compatibility with the electrical installation and vehicle network architecture,
• appropriate gauge scaling for the diesel engine and manual transmission,
• easier diagnostics and configuration using Ford service tools,
• consistent appearance and dashboard ergonomics.

Thanks to this solution, it is possible to orderly restore full cockpit functionality after a cluster failure or during post-accident repairs. A properly selected instrument cluster minimizes the risk of additional interference with wiring harnesses or modules, which is significant for both durability and service costs.
