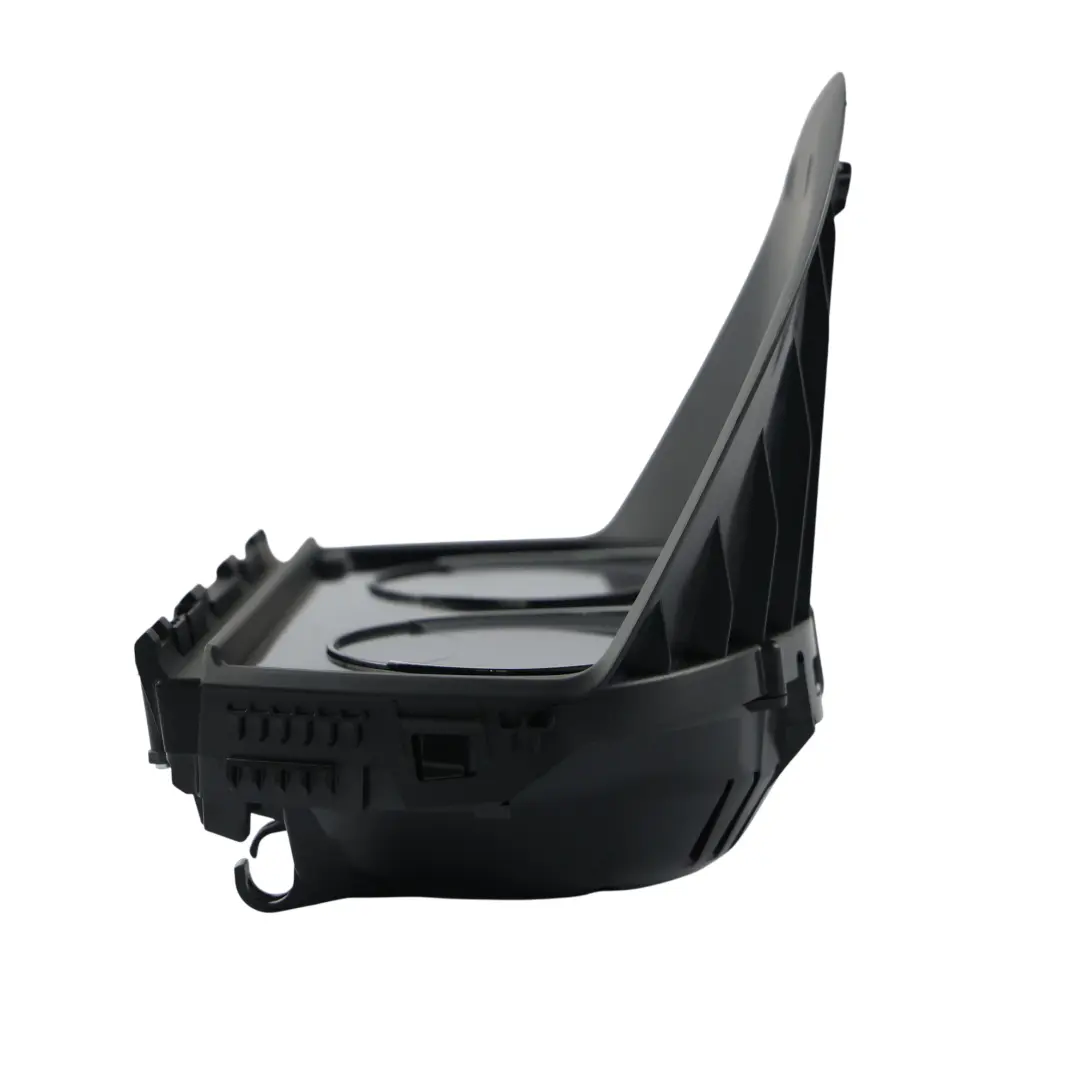

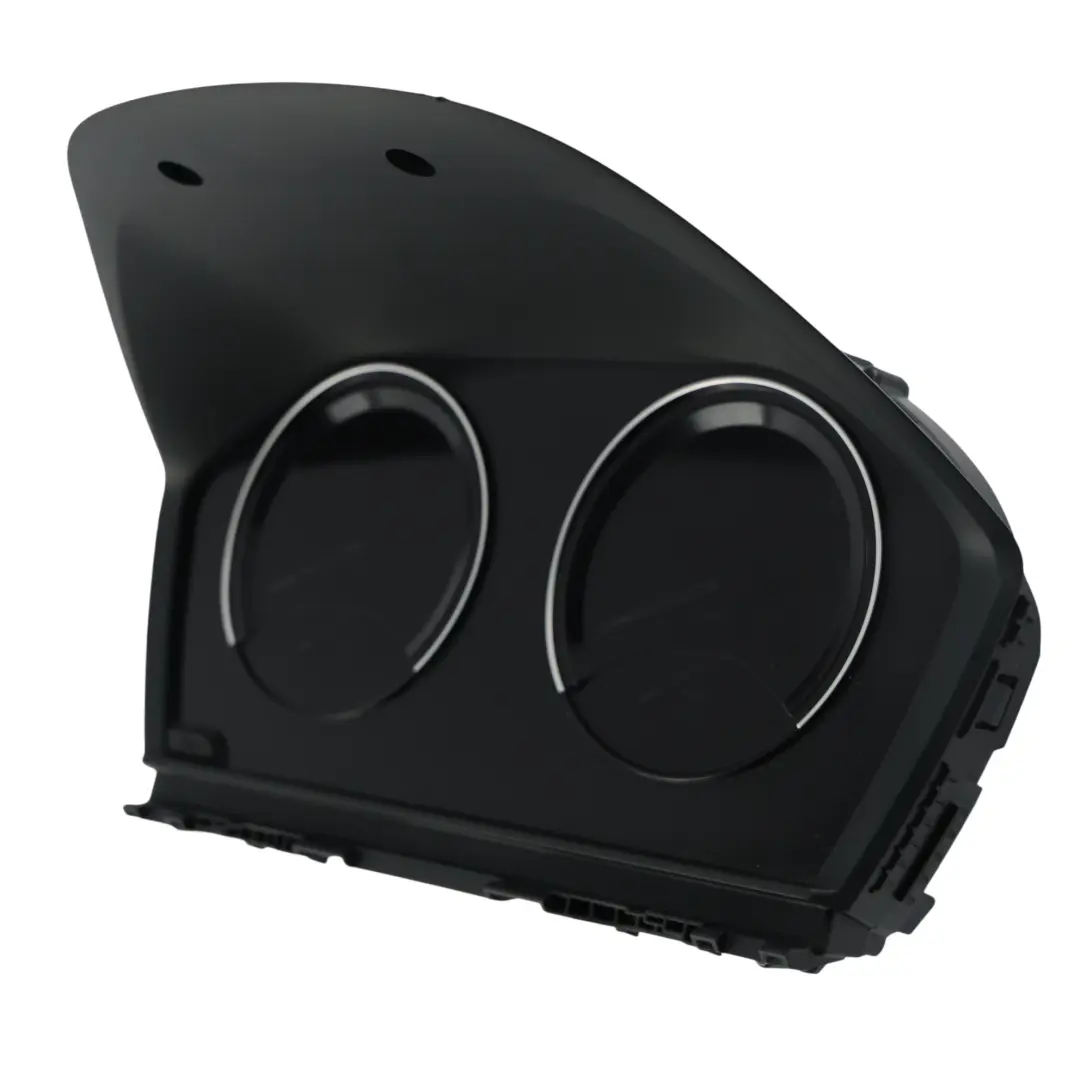

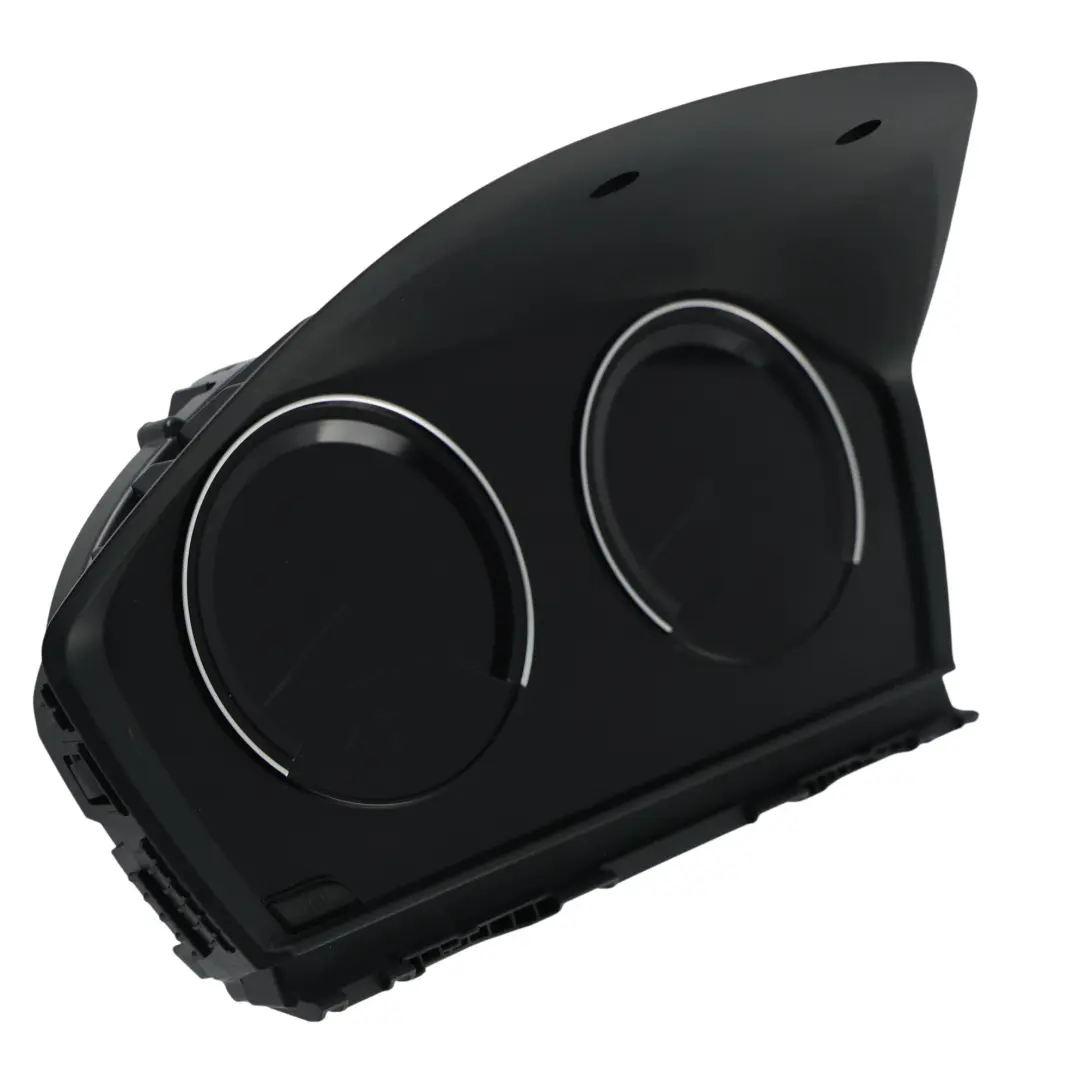

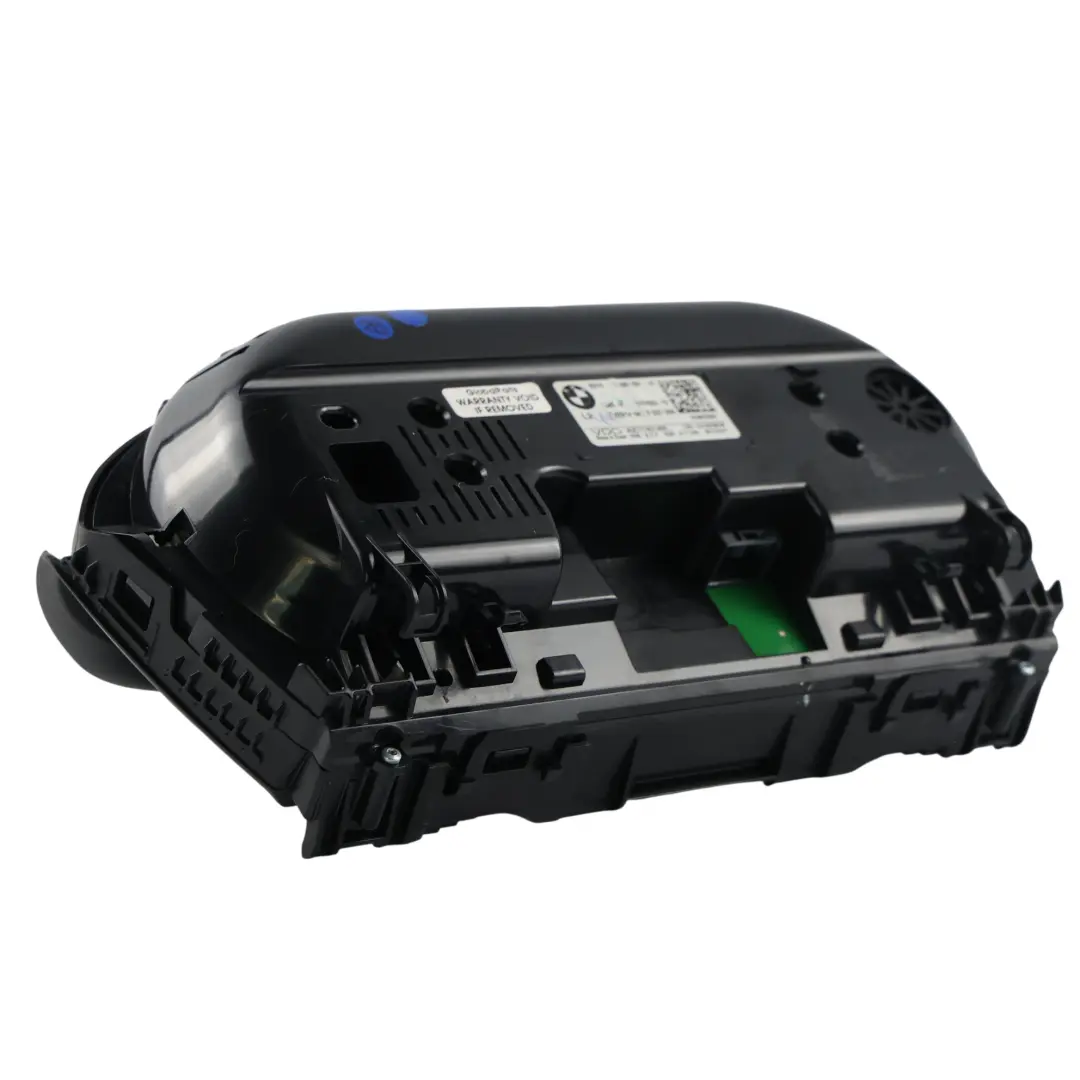

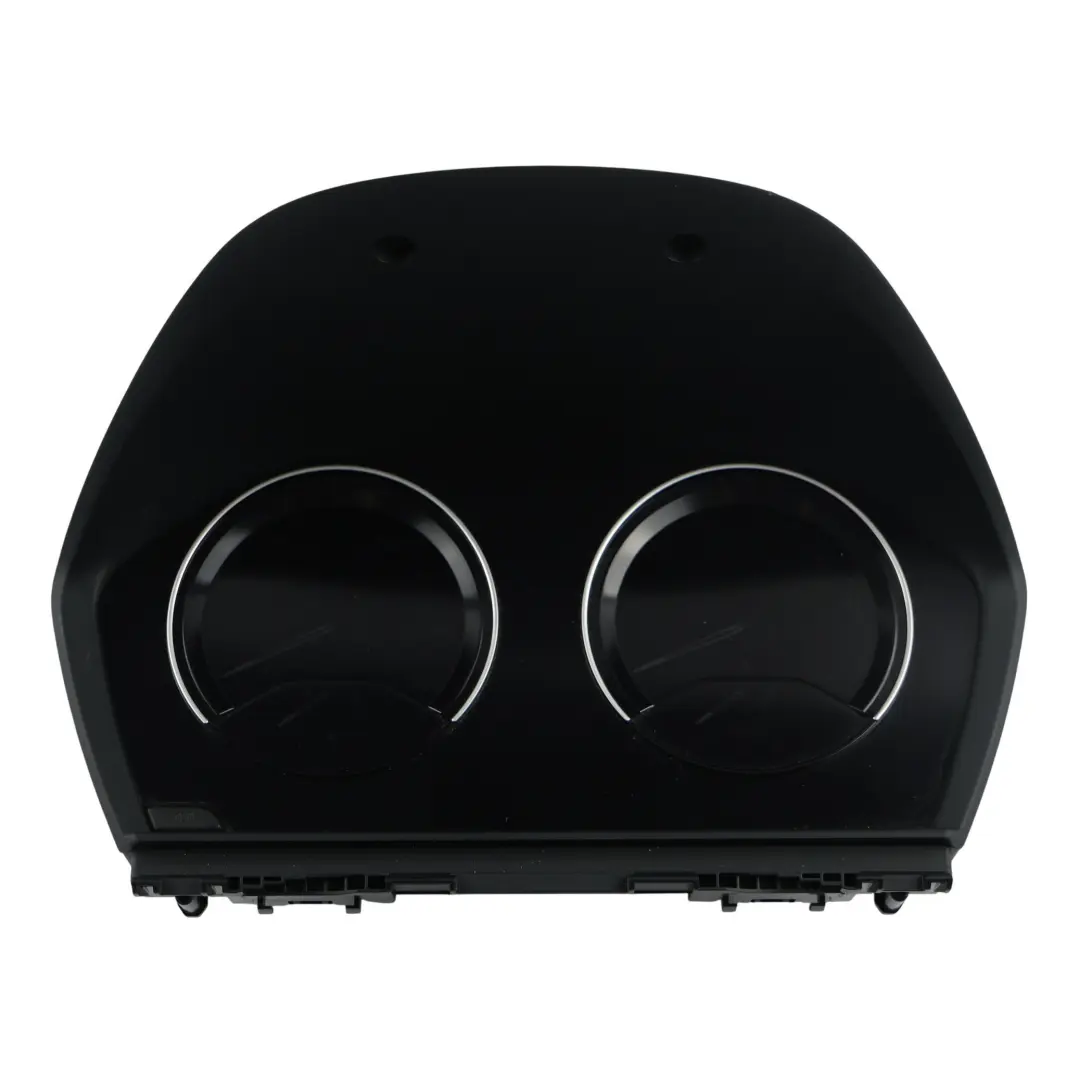

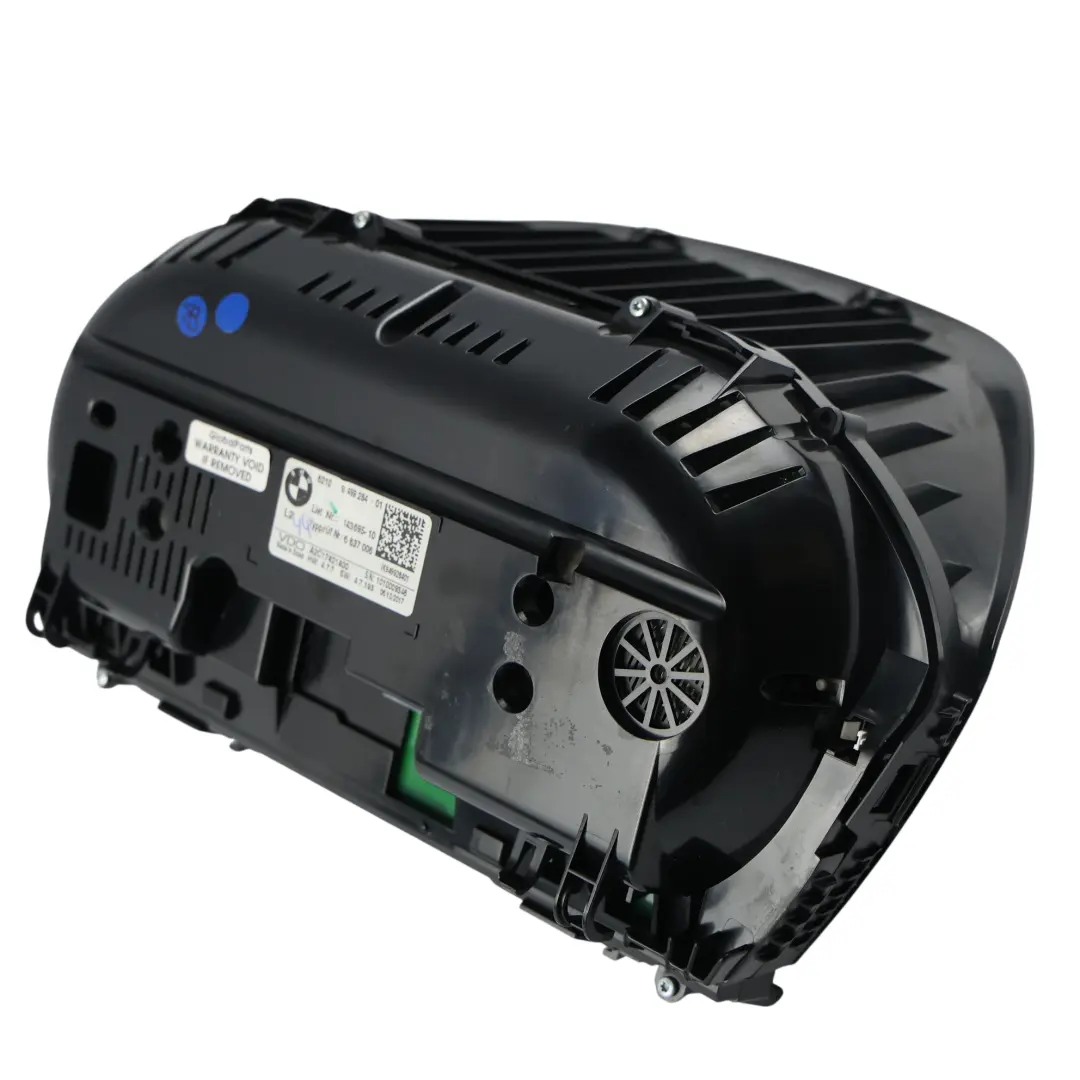

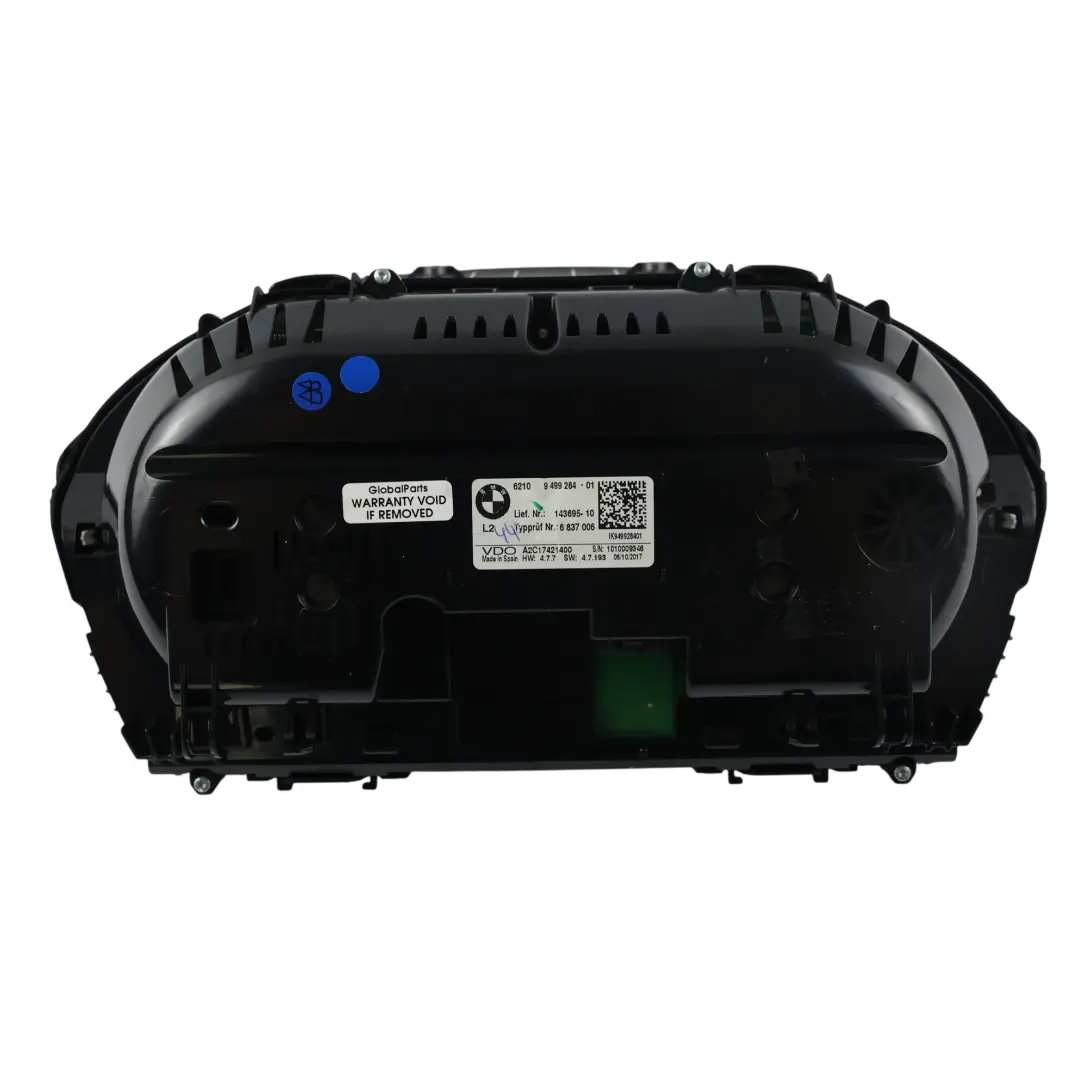

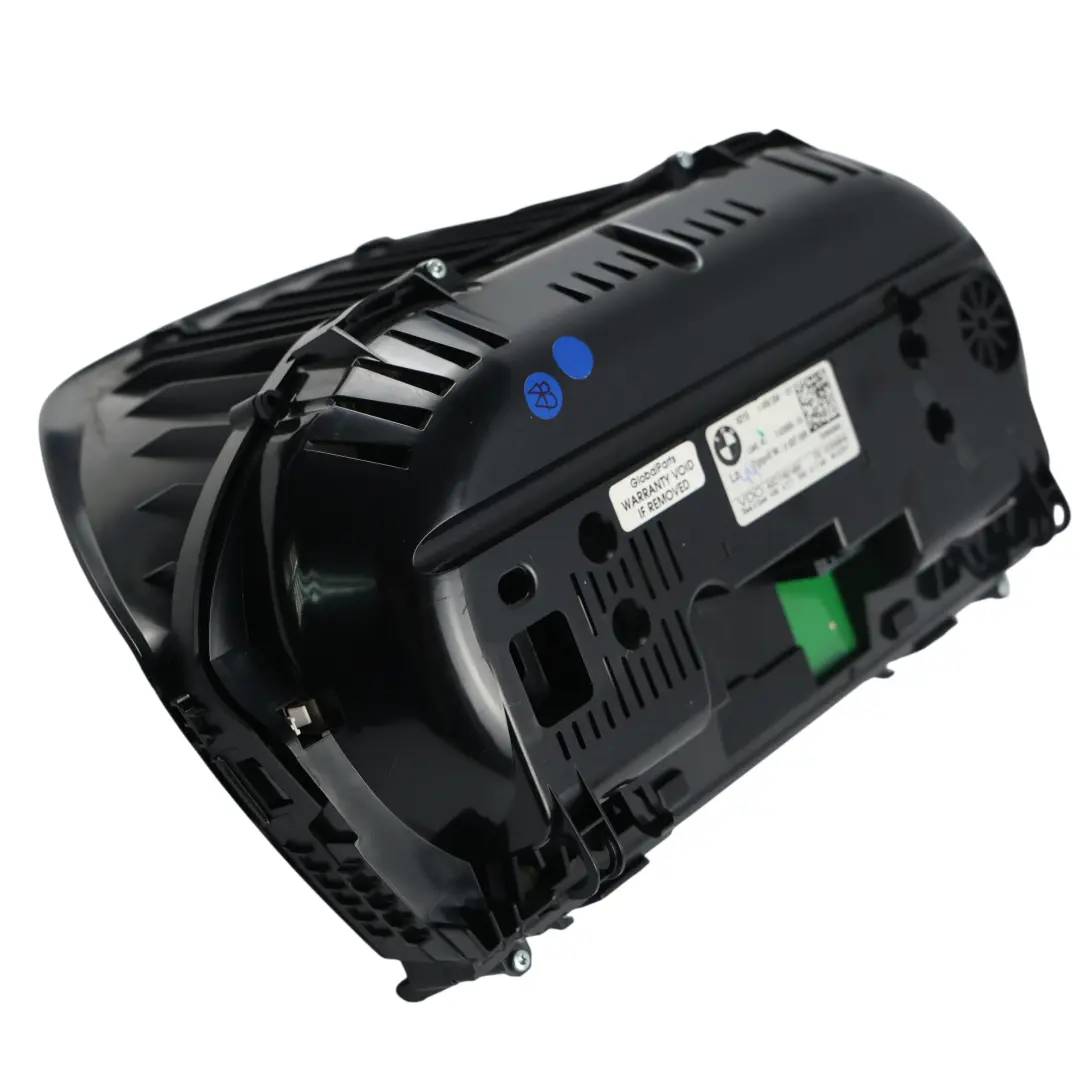

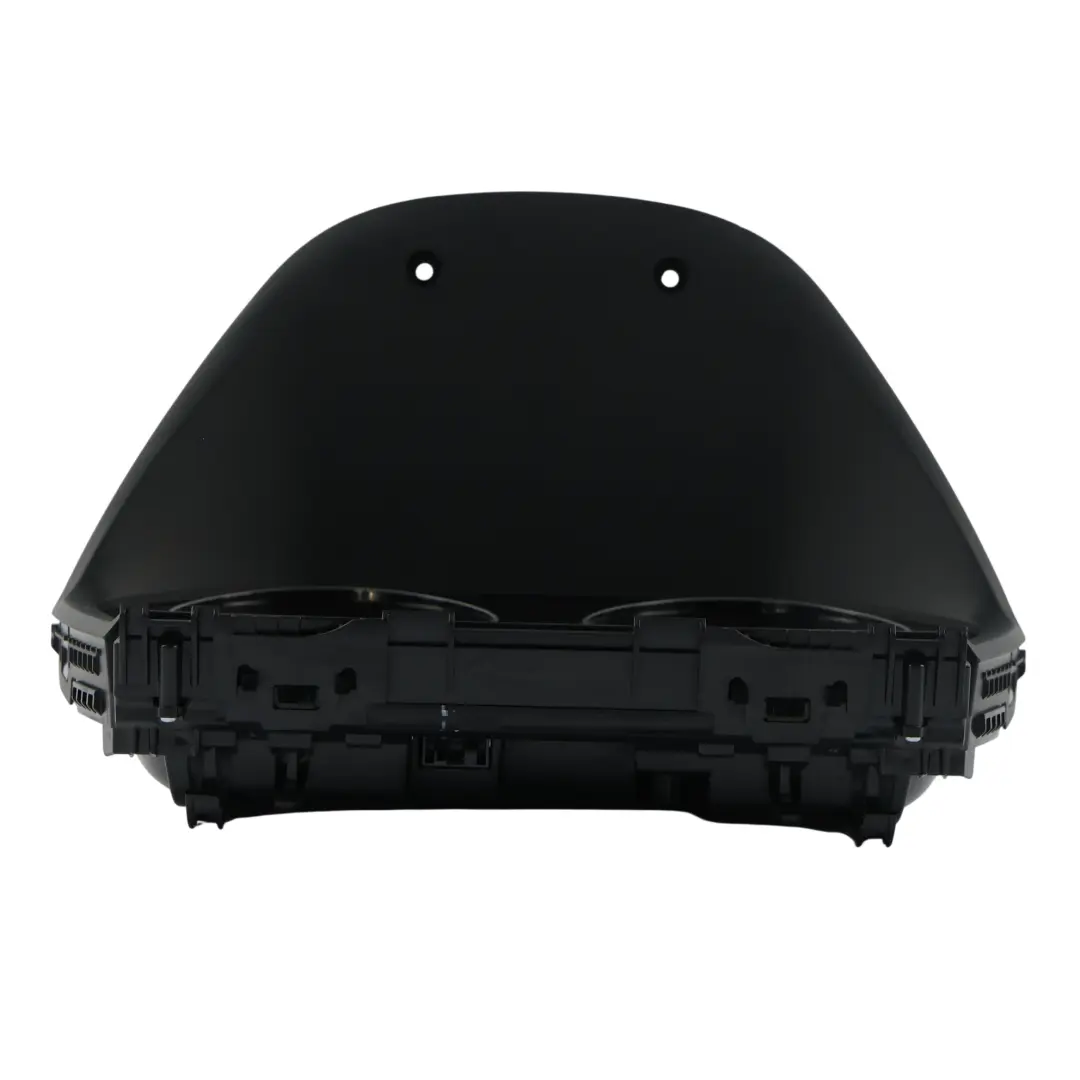

BMW F20 F21 F22 F23 LCI Instrument Cluster Speedo Automatic Petrol 9499284

BMW F20 F21 F22 F23 LCI Instrument Cluster Speedo Automatic Petrol is an original gauge cluster panel designed for LCI (facelift) BMW 1 and 2 Series models. This factory instrument cluster ensures full integration with the vehicle's electrical system, maintaining proper communication with onboard electronics. Due to its specific powertrain configuration, it serves as a functional solution for replacing a damaged speedometer or for professional interior repairs.

Specifications and technical data

• SKU: RHD-9499284
• Mark: BMW (Genuine OE)
• Condition: Used

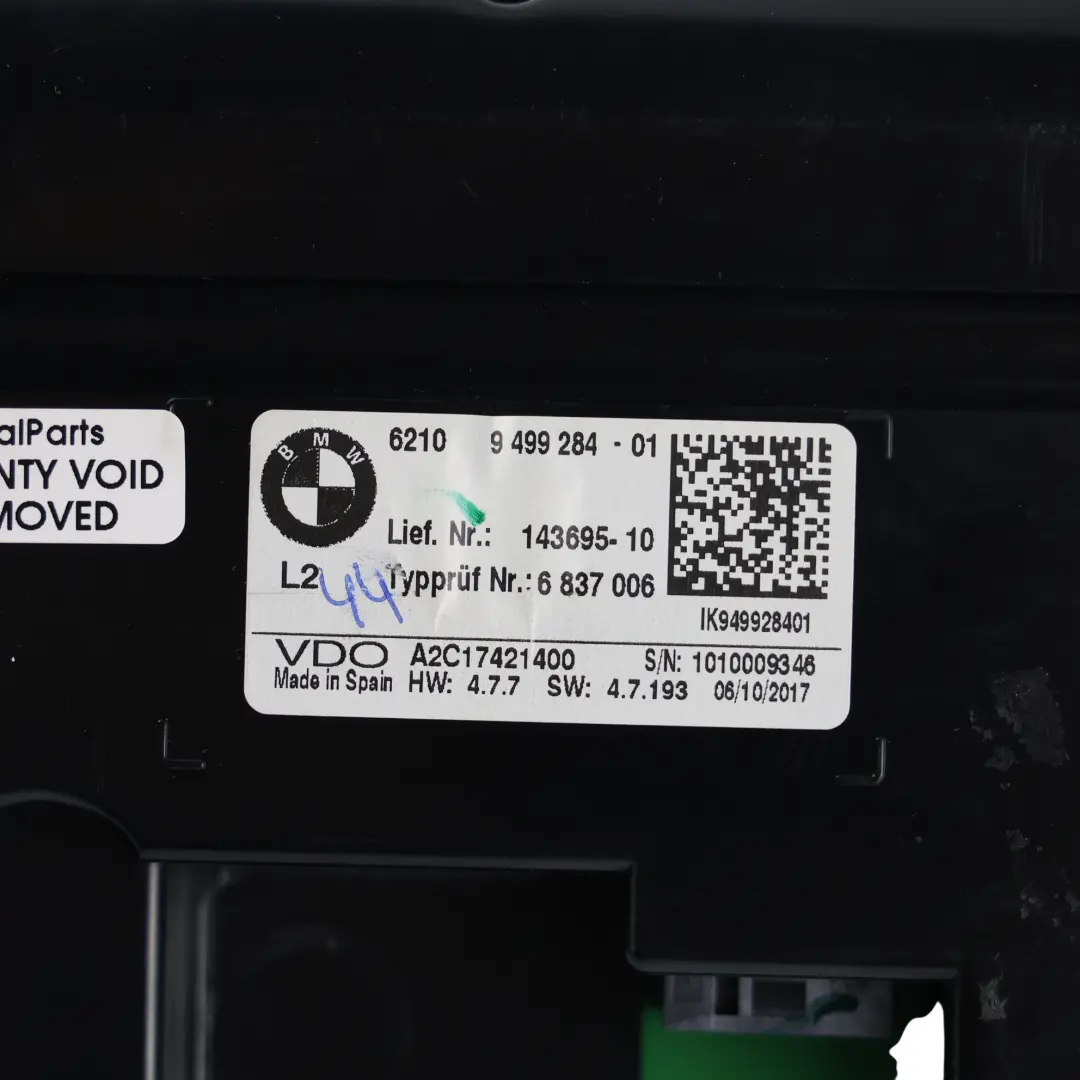

• OEM Part Number: 9499284
• Substitutable numbers: 62109499284, 9499284
• Fuel type: Petrol
• Gearbox type: Automatic
• Part type: Instrument Cluster
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is dedicated to the BMW F-series with F20, F21, F22, and F23 bodies in the LCI version, i.e., after the model update. The design of the speedometer is prepared for use with petrol engines and automatic transmissions, which is crucial for the correct operation of speed, RPM, gear position, and system message displays. As an item from the Instrument Clusters group, the speedometer is designed for specific BMW software and electrical architecture, which facilitates integration with control modules, data buses, and safety systems. As a result, after proper coding, it can operate stably in the target vehicle.

Vehicle function and operating parameters

The instrument cluster is responsible for presenting key information to the driver, such as driving speed, engine performance, automatic transmission status, and onboard system messages. The version intended for petrol engines has scaling and display logic matched to the characteristics of this type of engine, which translates into readability and accuracy of readings. Integration with the automatic transmission allows for the display of the current transmission mode and individual gears, which is important both in daily use and during diagnostics. The consistency of the speedometer electronics with the rest of the vehicle system reduces the risk of communication errors and facilitates configuration in the workshop.

Product characteristics and service application

The offered item comes from the BMW brand and is a used part, making it a practical choice for post-accident repairs, replacing a damaged panel, or restoring vehicle functionality after interior electronics failure. Using an original instrument cluster allows you to maintain a consistent cockpit look and proper fitment with other dashboard elements. In workshop practice, this type of speedometer is used, among other things, for:

• replacing a damaged or faulty gauge panel,
• repairing wiring after collisions,
• restoring interior completeness in modified vehicles. Proper selection of the instrument cluster according to fuel type and transmission is crucial for the correct operation of all functions, so it is worth verifying the compatibility of the vehicle configuration with the offered speedometer before installation.

Installation tips and technical aspects

Installing the instrument cluster in a BMW F-series requires removing dashboard covers and connecting electrical wiring connectors. On the service side, it is usually necessary to perform coding and adaptation procedures so that the speedometer is correctly recognized by the vehicle's controllers and all communication functions work according to the manufacturer's specifications. When working with interior electronics, it is recommended to use professional diagnostic tools and follow safety procedures, including proper power disconnection. This allows the instrument cluster replacement process to run smoothly, without the risk of damaging other modules.
