BMW F10 F11 Instrument Cluster Speedo Clocks Automatic Diesel 640d N57Z 9328817

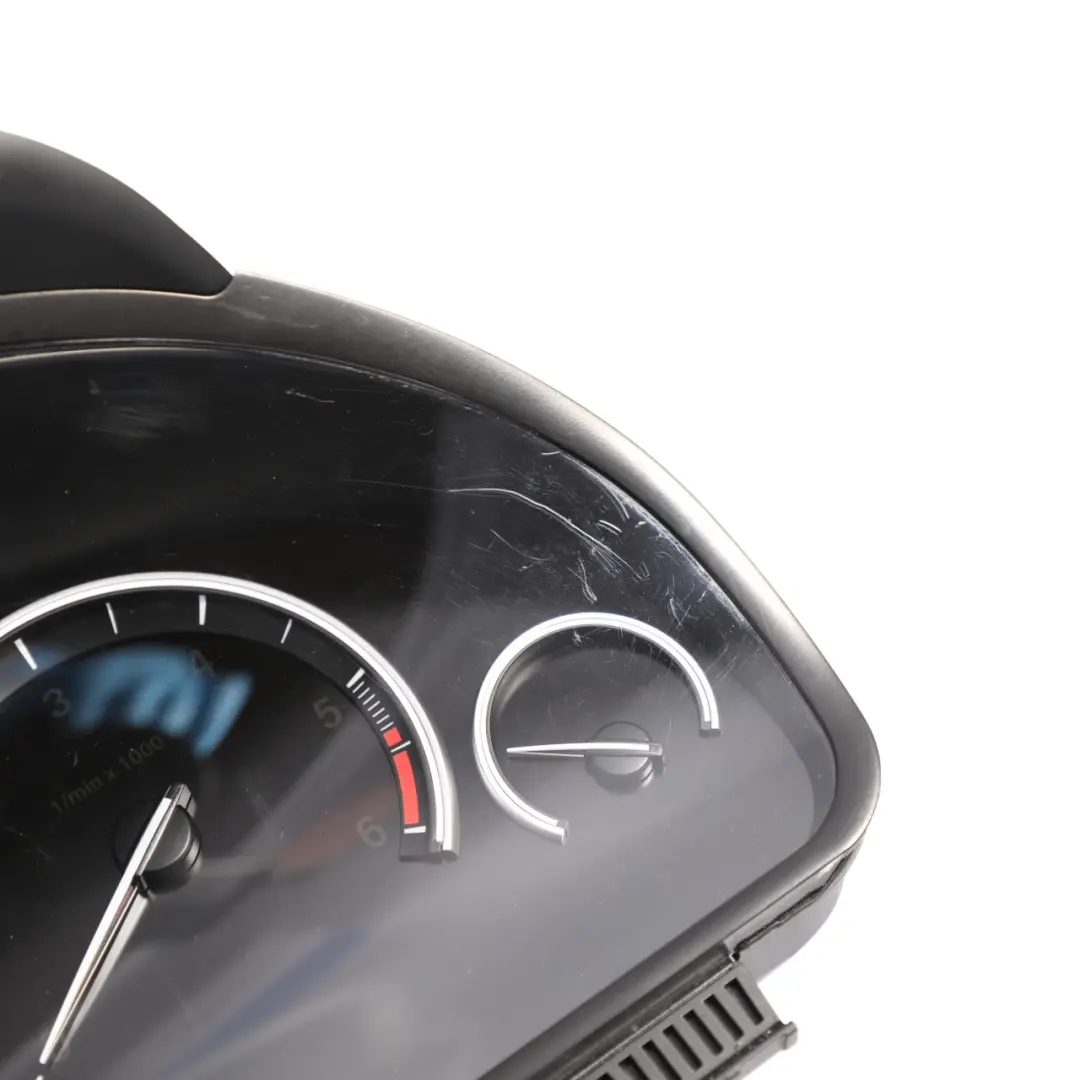

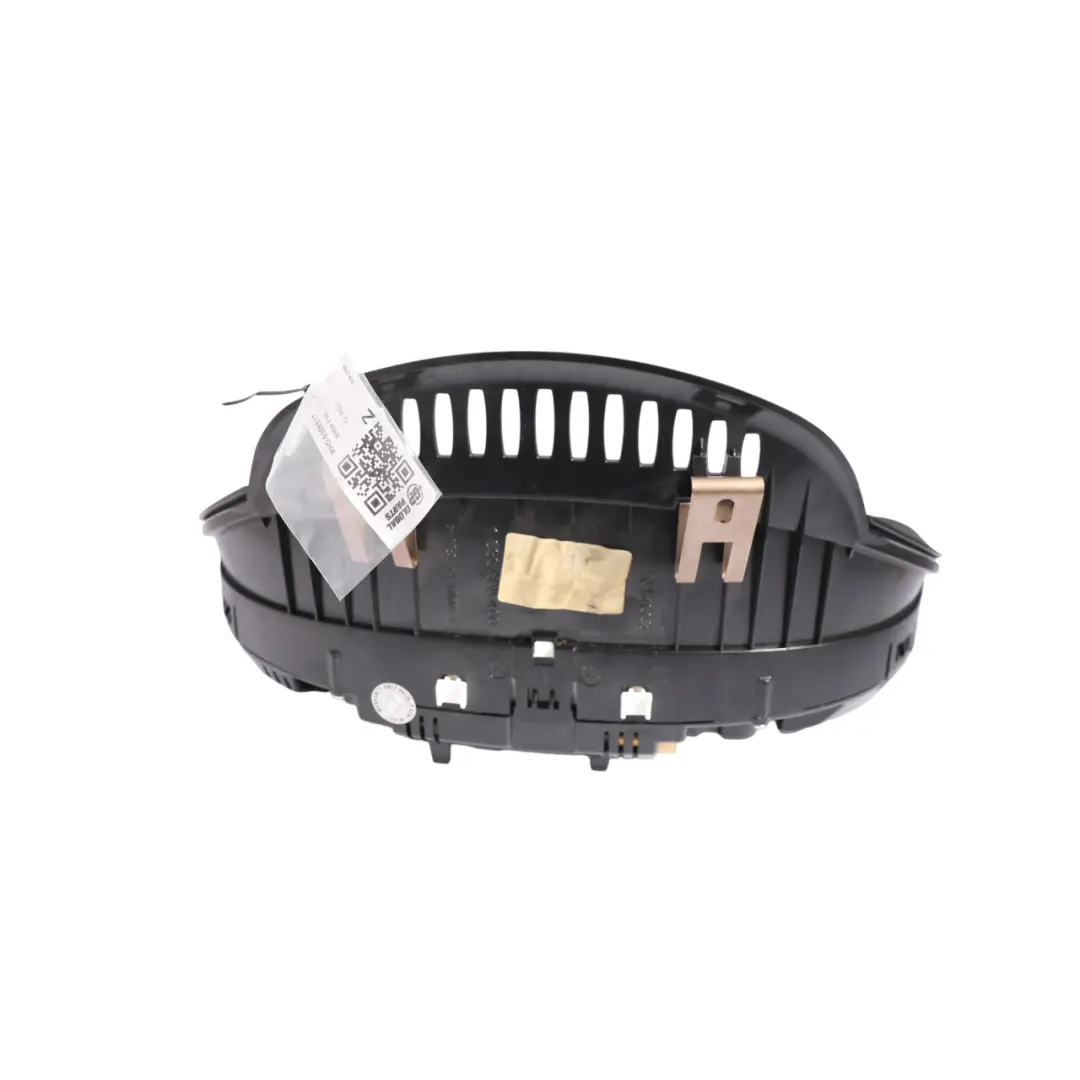

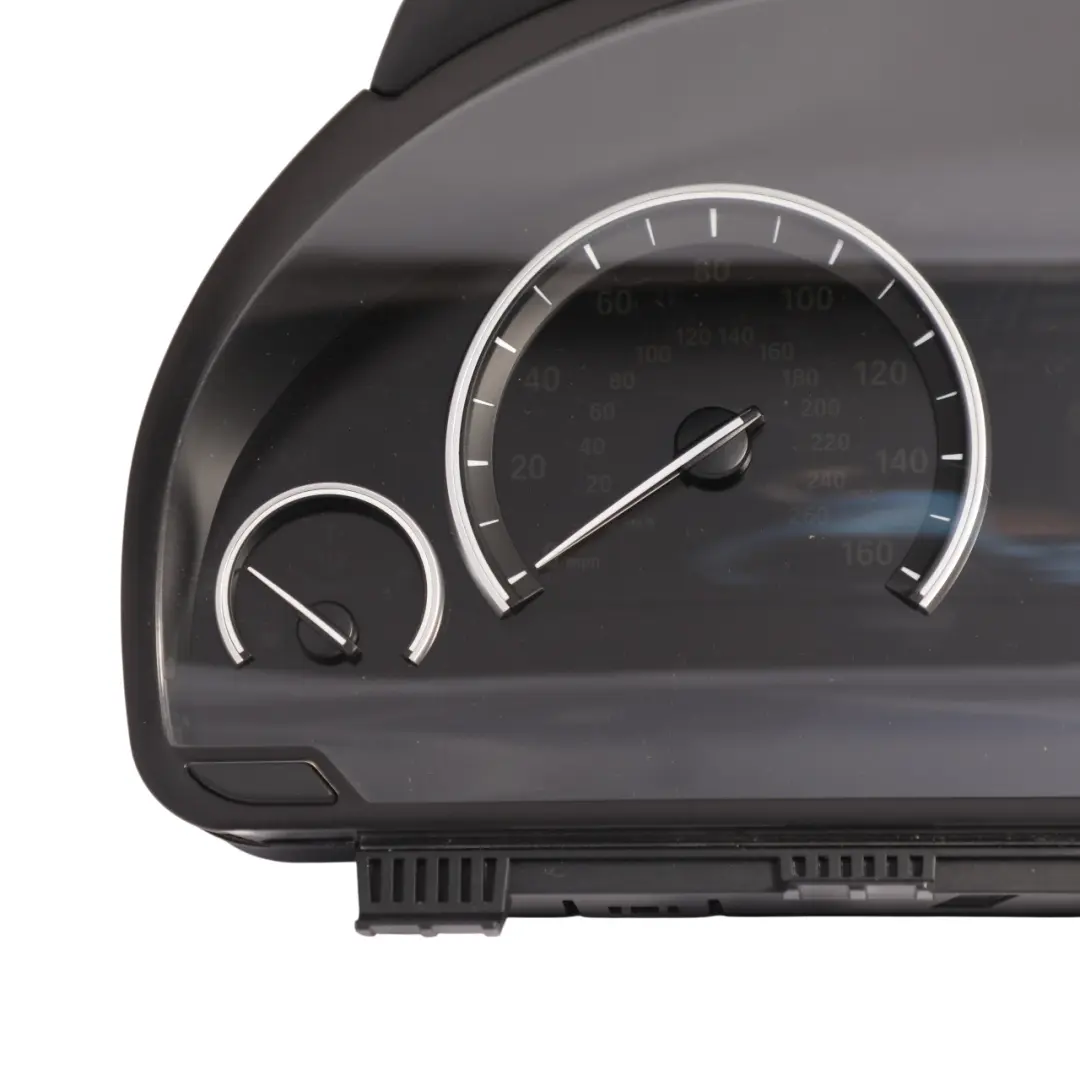

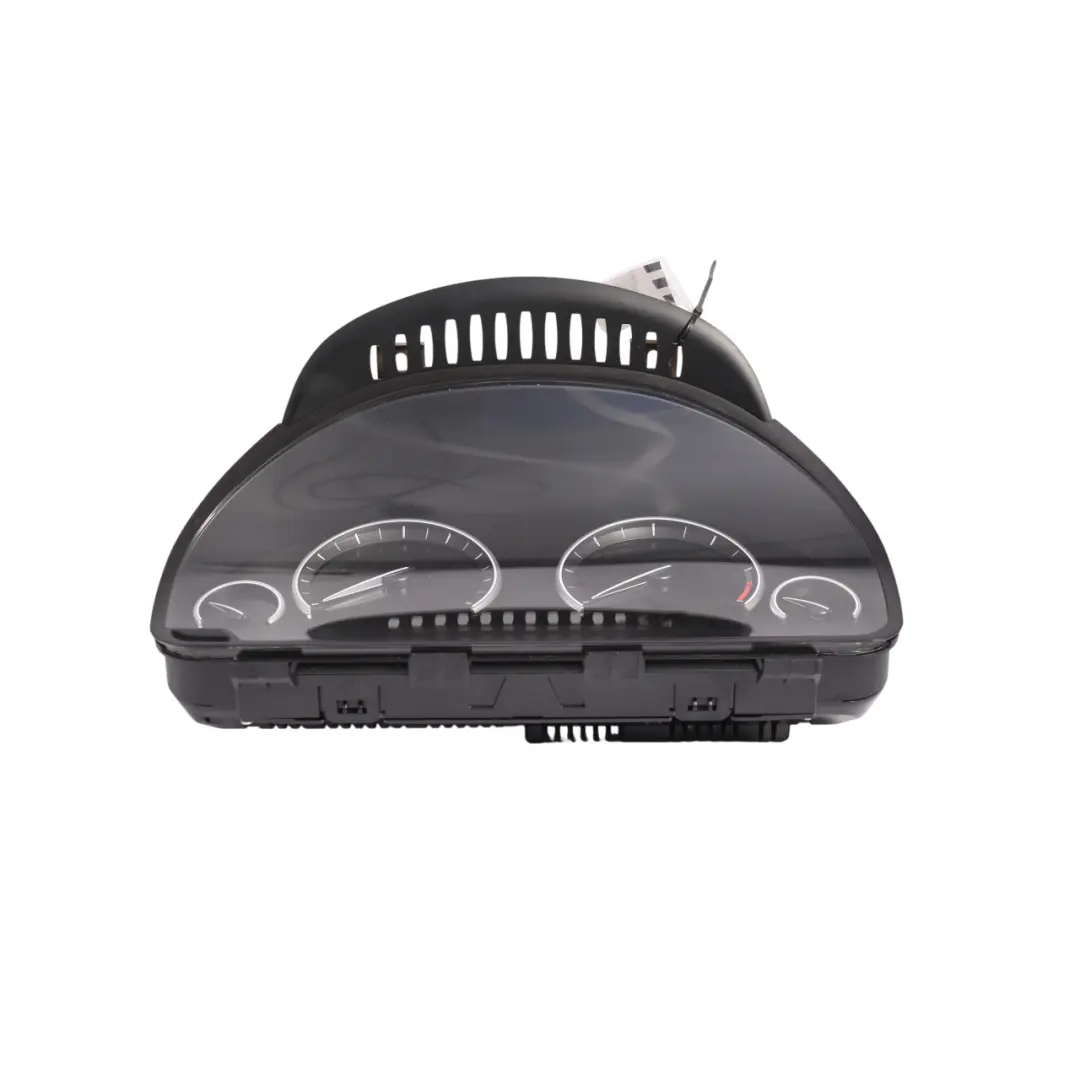

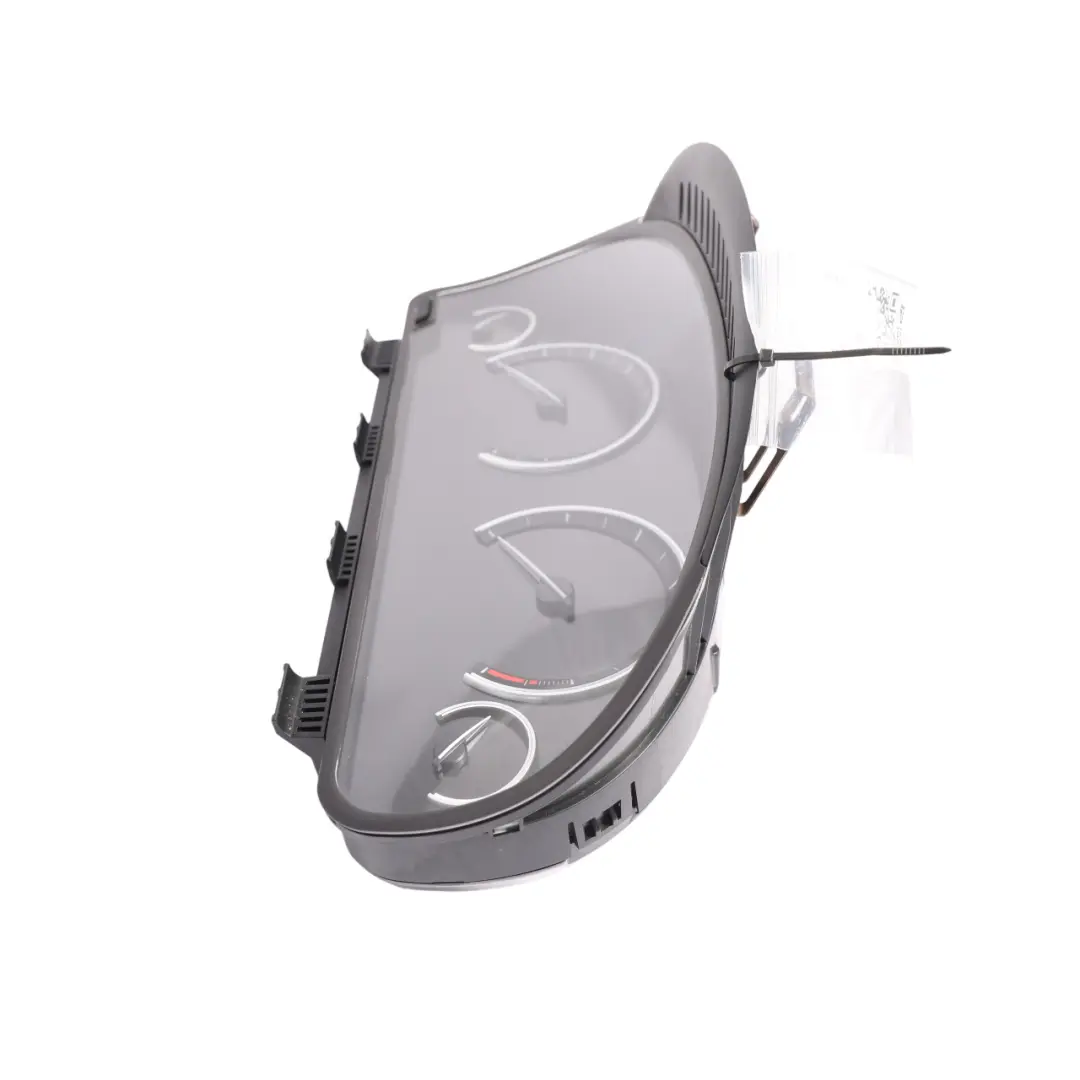

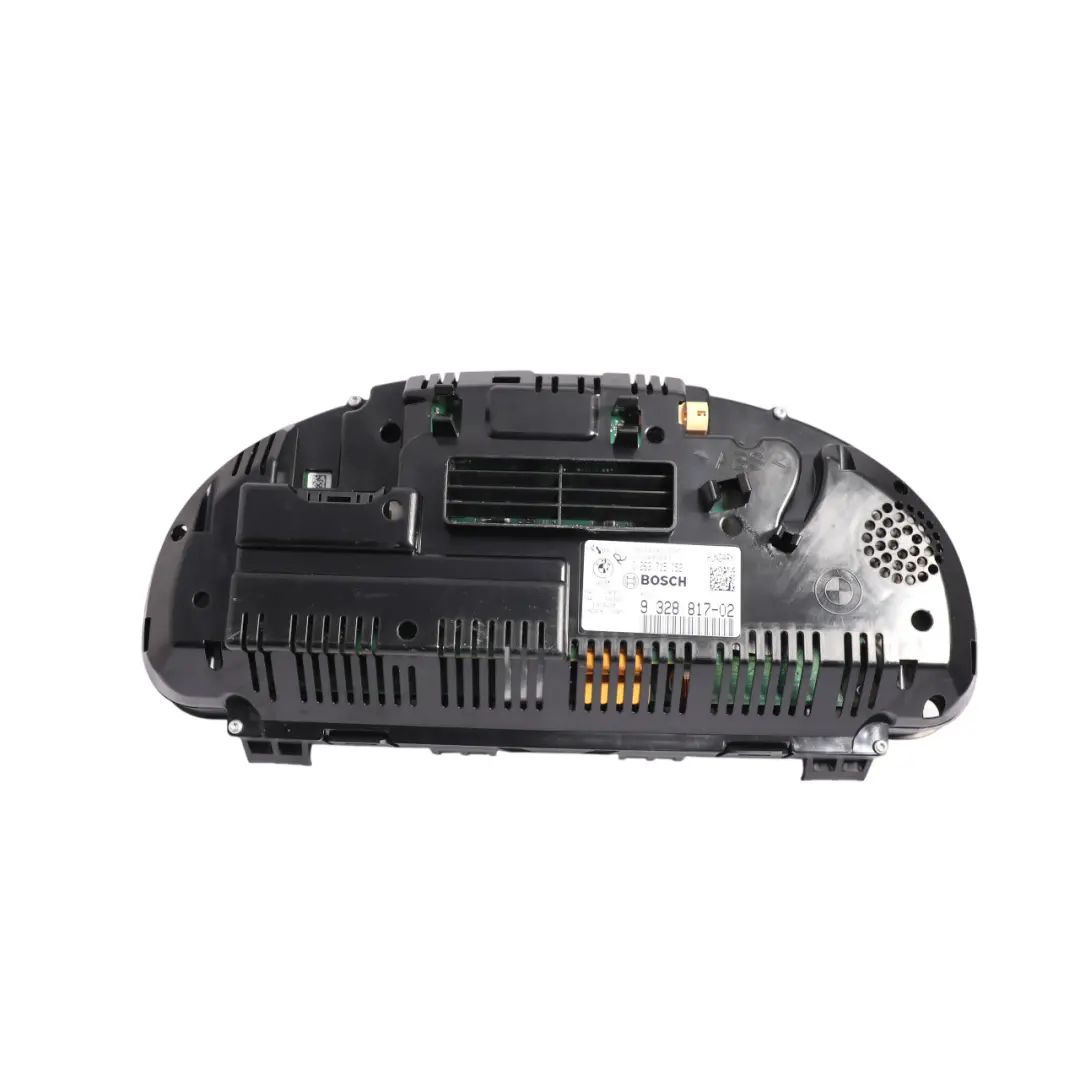

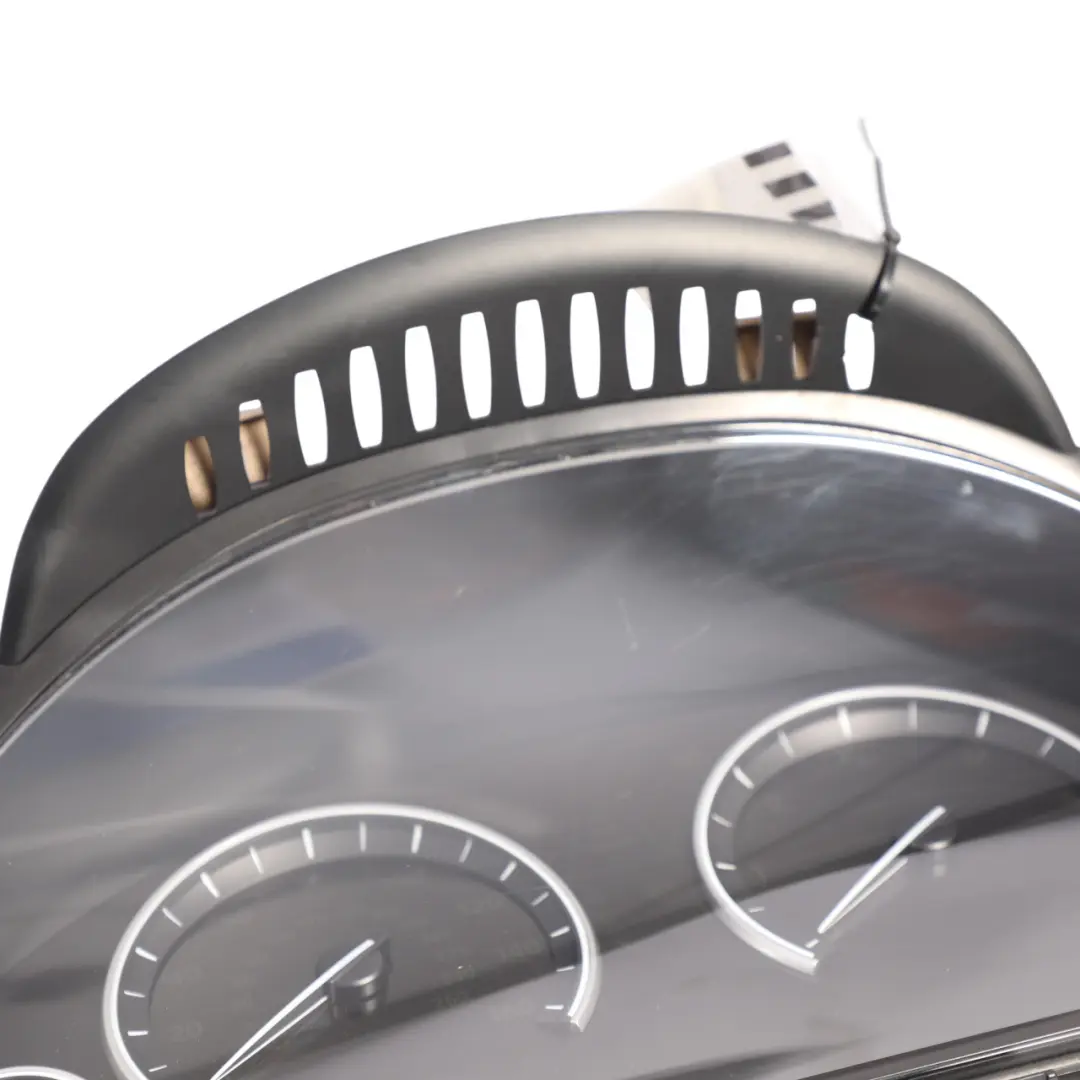

Visual condition of the part

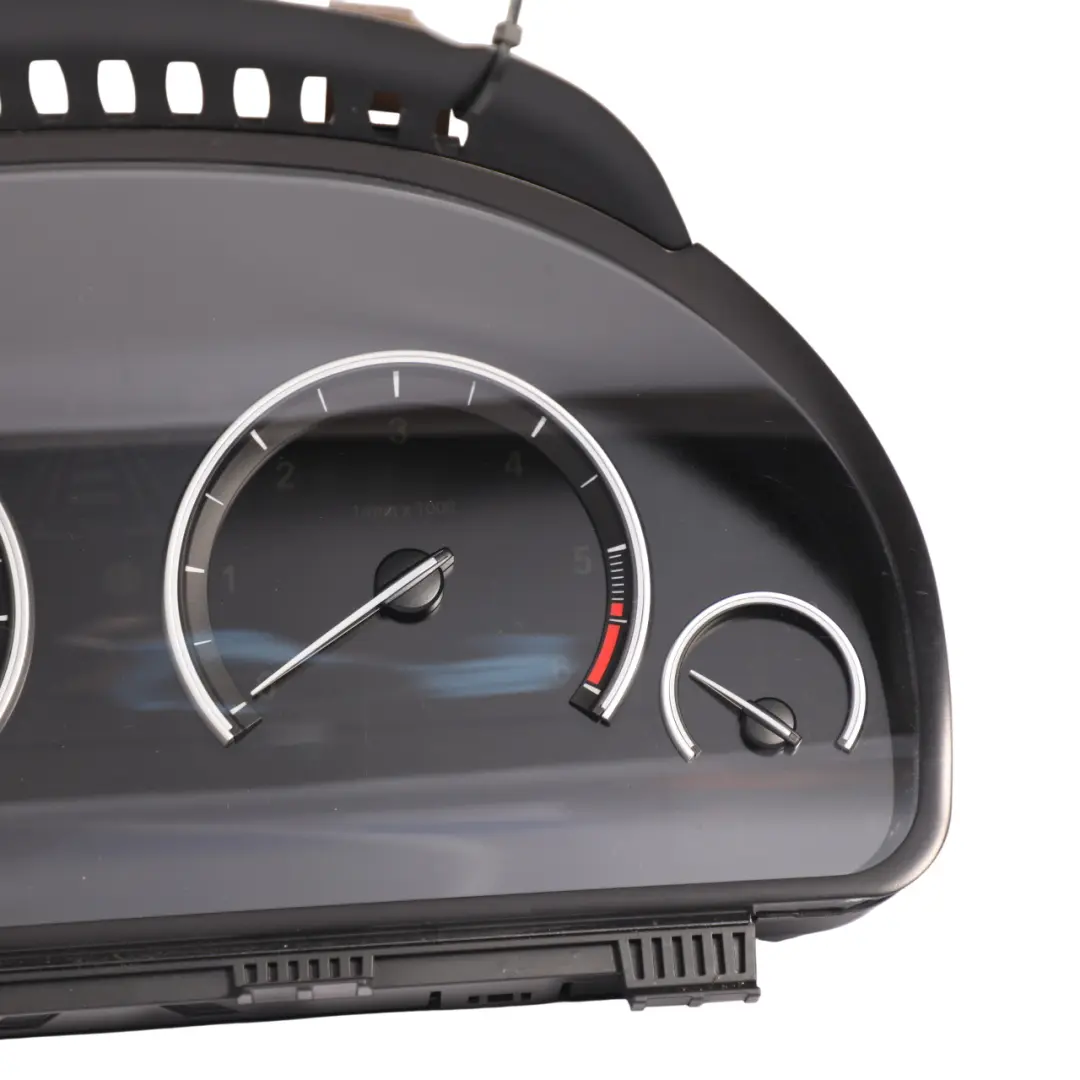

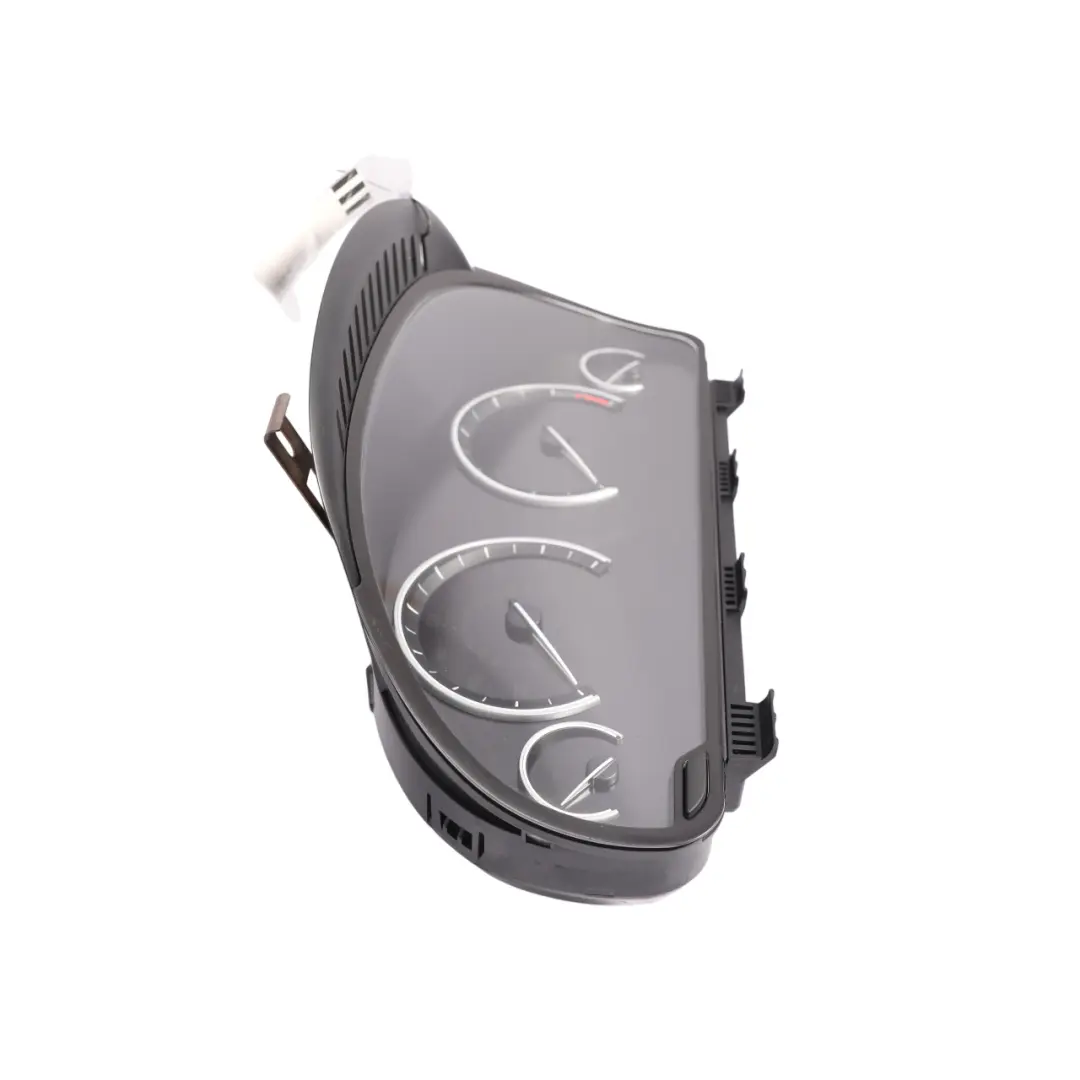

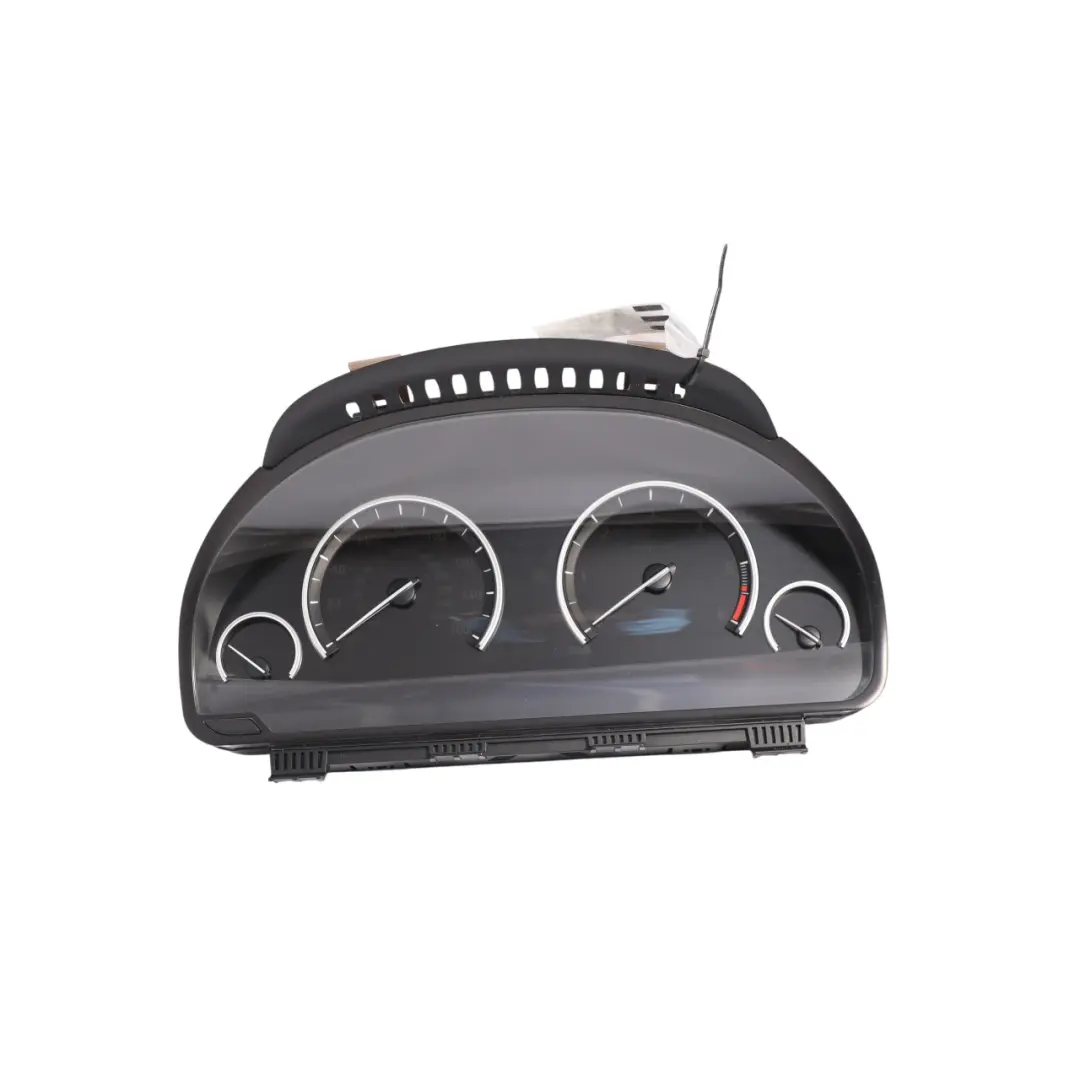

The product shows signs of use visible in the photos.

BMW F10 F11 Instrument Cluster Speedo Clocks Automatic Diesel 640d N57Z is a factory-spec instrument panel designed for precise integration with the vehicle's electronics. This used OEM component ensures consistent operation with onboard systems and provides clear reading of driving parameters, maintaining the original look of the BMW 5 Series interior.

Specifications and technical data

• SKU: RHD-9328817
• Mark: BMW (Genuine OE)
• Condition: Used

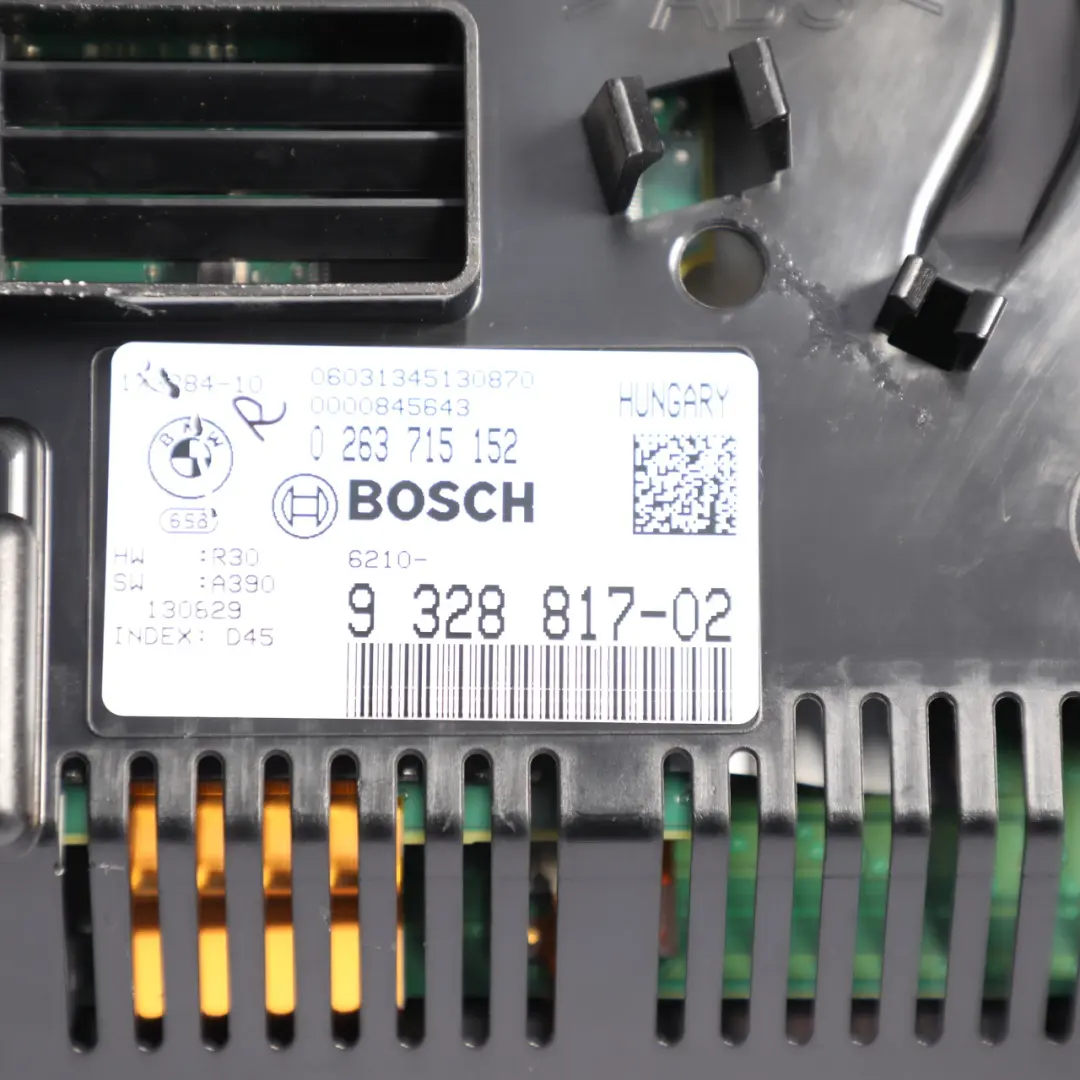

• OEM Part Number: 9328817
• Substitutable numbers: 9328817, 62109328817, 8795226, 62108795226, 6842967, 62106842967, 6821932, 62106821932, 6805245, 62106805245, 9363247, 62109363247, 6802331, 62106802331, 6991340, 62106991340, 6844030, 62106844030, 6831697, 62106831697, 9387583, 62109387583, 9342808, 62109342808
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is dedicated to BMW 5 Series F10 and F11 generation models equipped with the 640d N57Z diesel engine and an automatic transmission. The panel's design is prepared for seamless integration with factory control units, allowing for accurate readings of speed, engine RPM, fuel level, and other operational parameters.

Thanks to the use of an original BMW solution, the instrument cluster integrates with the vehicle's bus system, which facilitates configuration during adaptation in the car and minimizes the risk of communication errors between modules.

Construction and functionality of the instrument cluster

The instrument cluster in this version has been designed for diesel-powered vehicles; therefore, the tachometer scale, warning light logic, and messages are tailored to the characteristics of the N57Z unit. The panel works with the automatic transmission, displaying the appropriate operating modes and gears, which is crucial for providing correct information to the driver.

The layout of the gauges and warning lights is typical for the BMW F10/F11, ensuring intuitive operation and maintaining the ergonomics known from factory equipment. The clear layout of the dials and backlighting promotes user comfort both day and night, while the consistent styling helps maintain a uniform cockpit character.

Application in service and replacement

This instrument panel is ideal for replacing a damaged instrument cluster in a BMW F10/F11 640d N57Z with an automatic transmission, as well as for professional electrical and electronic repairs within the cockpit. A used OEM component is a great choice when you want to maintain original functionality and appearance without the need for aftermarket replacements.

In workshop practice, the ability to match the instrument cluster parameters to a specific vehicle is essential, which is why this type of panel is often used in conjunction with computer diagnostics and coding procedures. Maintaining compliance with BMW factory standards facilitates service work and reduces the time required for configuration.

Benefits of using an original instrument cluster

Choosing an original instrument cluster for the BMW F10/F11 allows you to maintain the consistency of all onboard systems, including functions related to the diesel engine and automatic transmission. This solution is particularly beneficial for users who want to preserve the vehicle's factory characteristics without interfering with the electrical installation beyond the necessary minimum.

By using a panel from the same model family, you reduce the risk of compatibility issues, which translates into stable system operation and predictable vehicle behavior in daily use.
