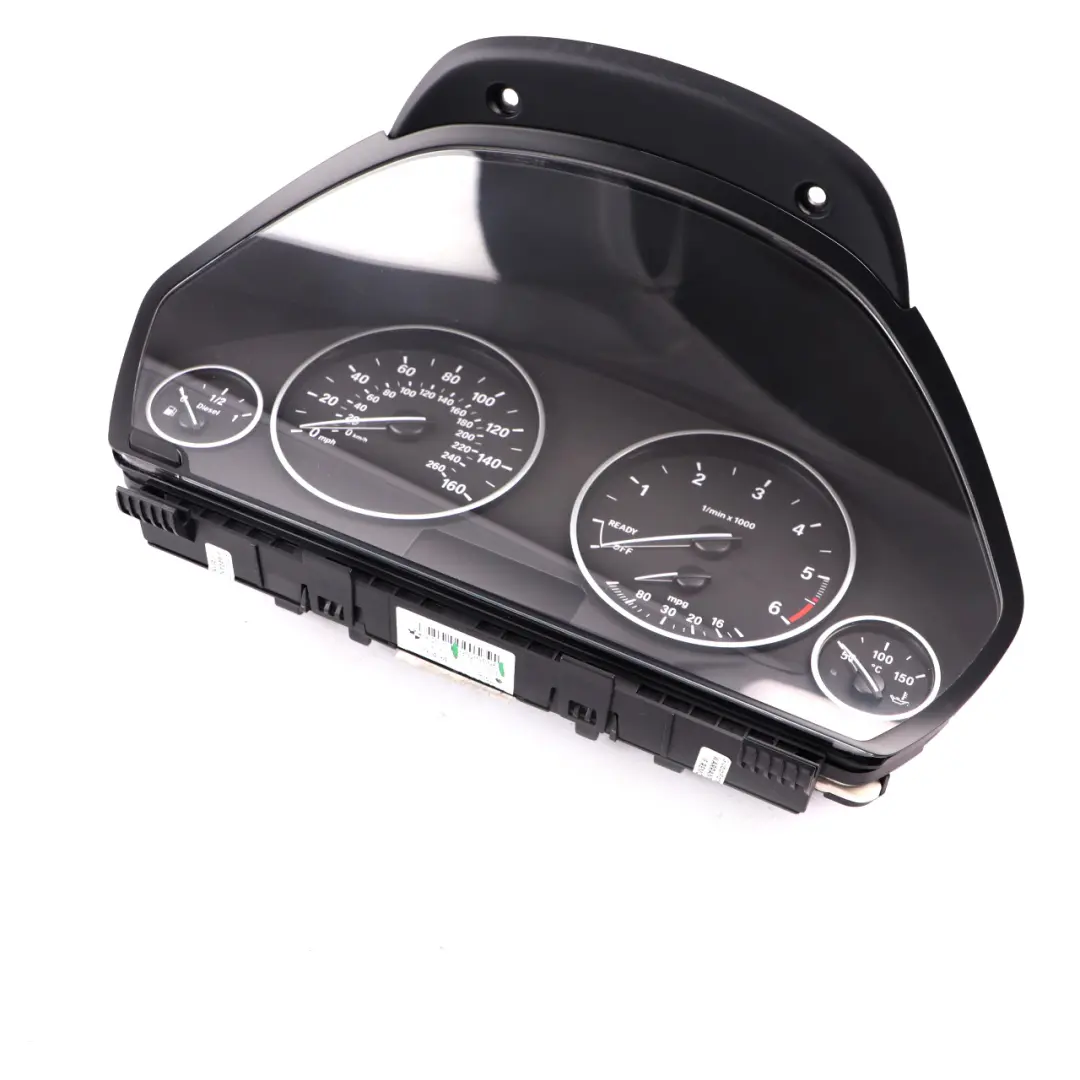

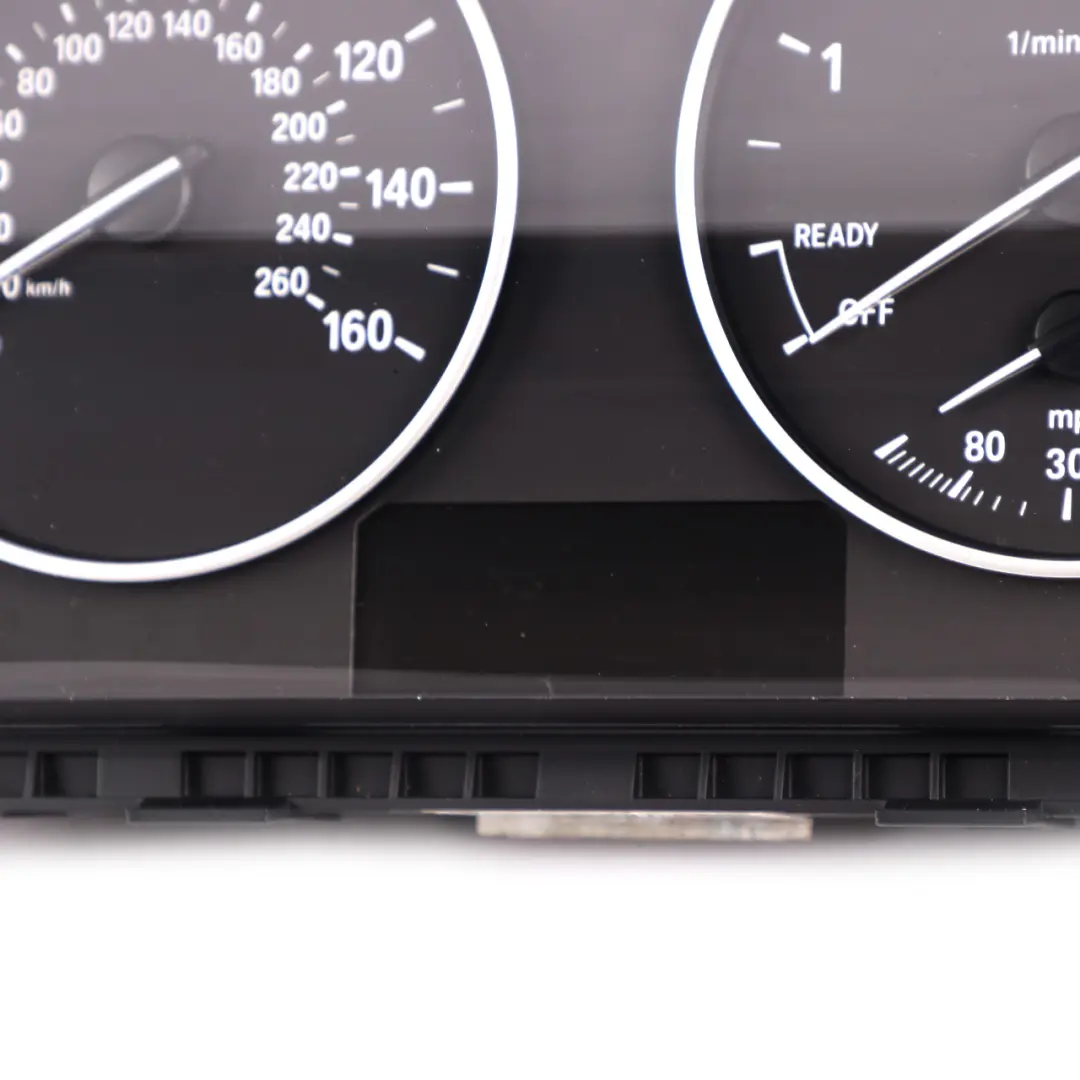

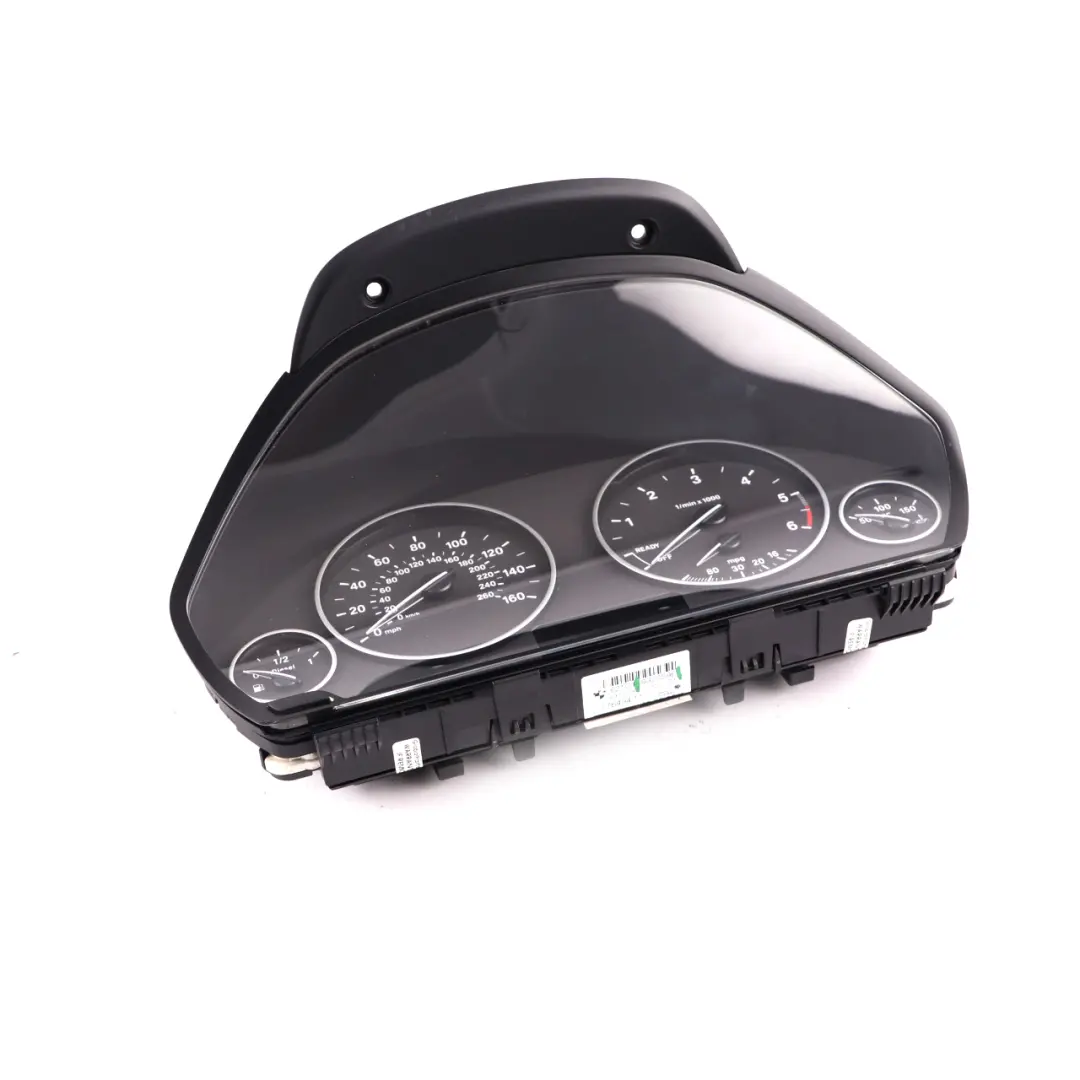

BMW F30 F31 Instrument Cluster Diesel Speedo Clocks Meter Automatic 9325596

Visual condition of the part

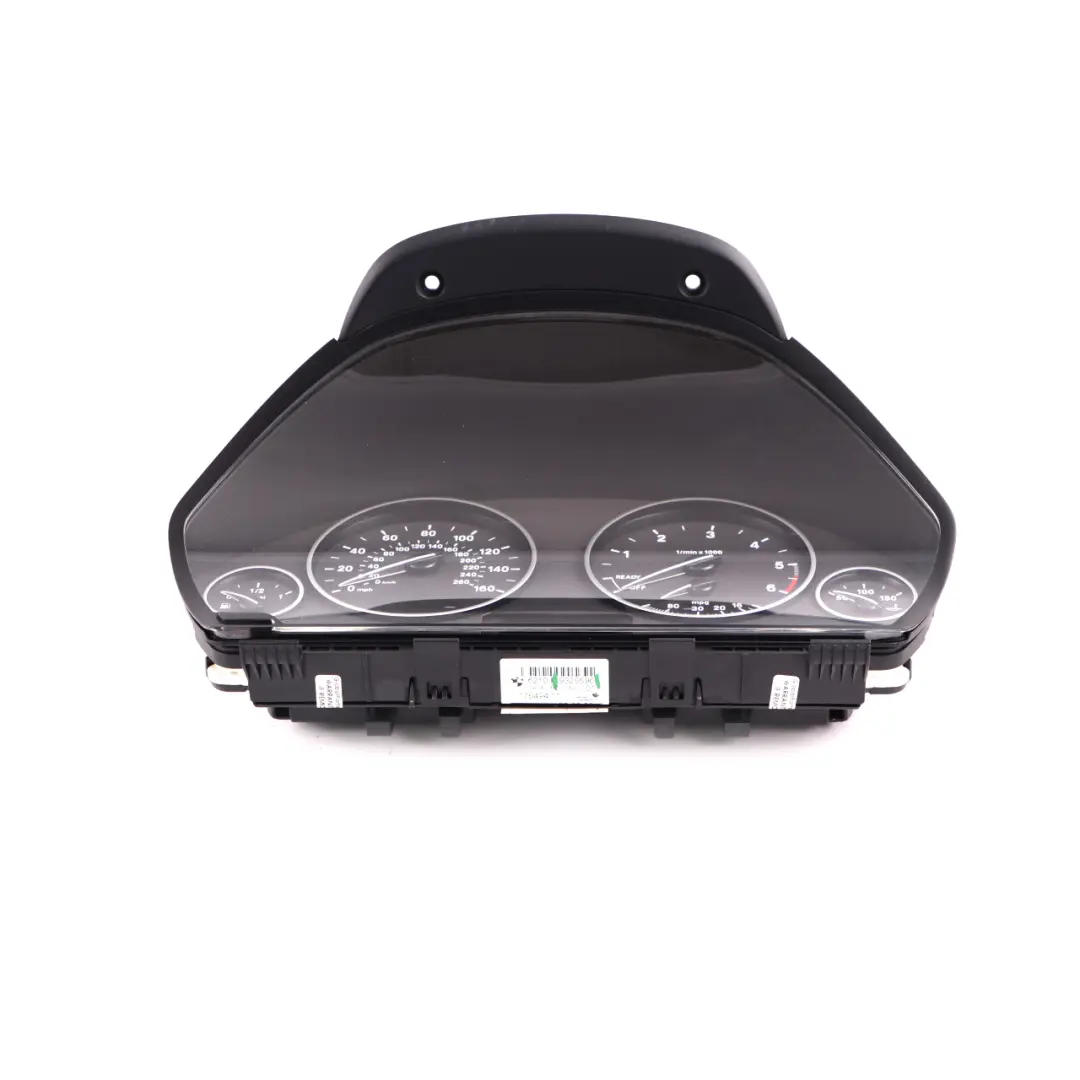

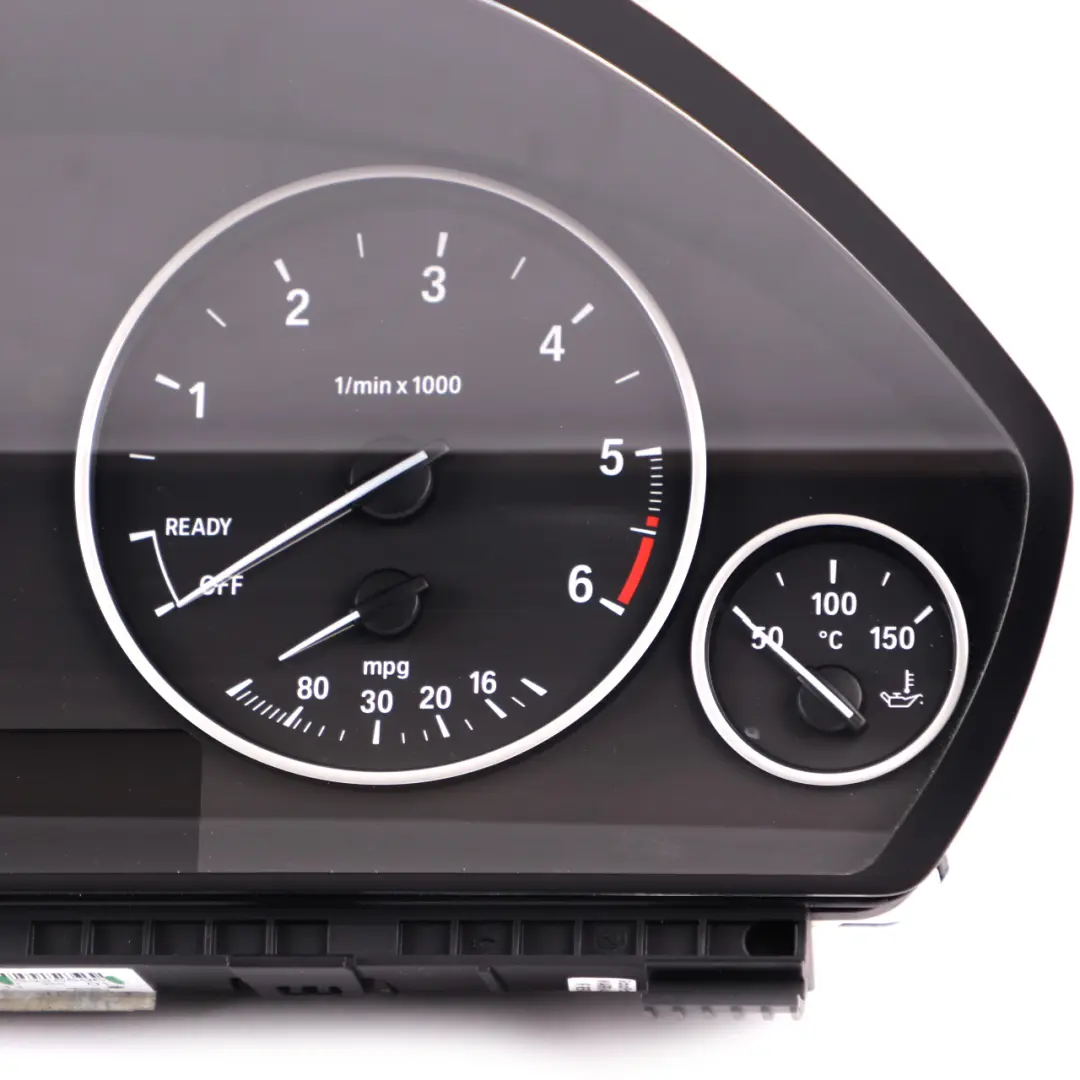

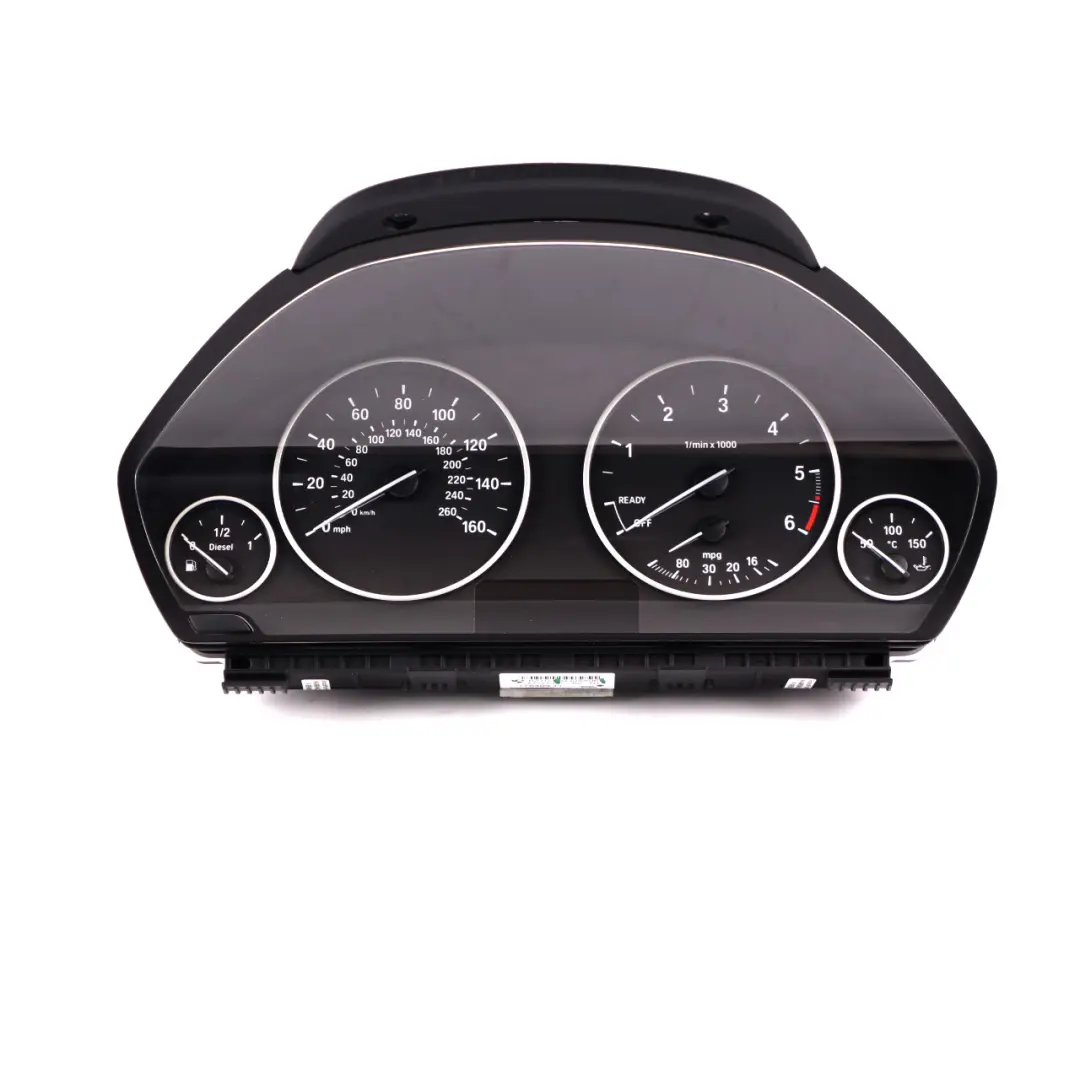

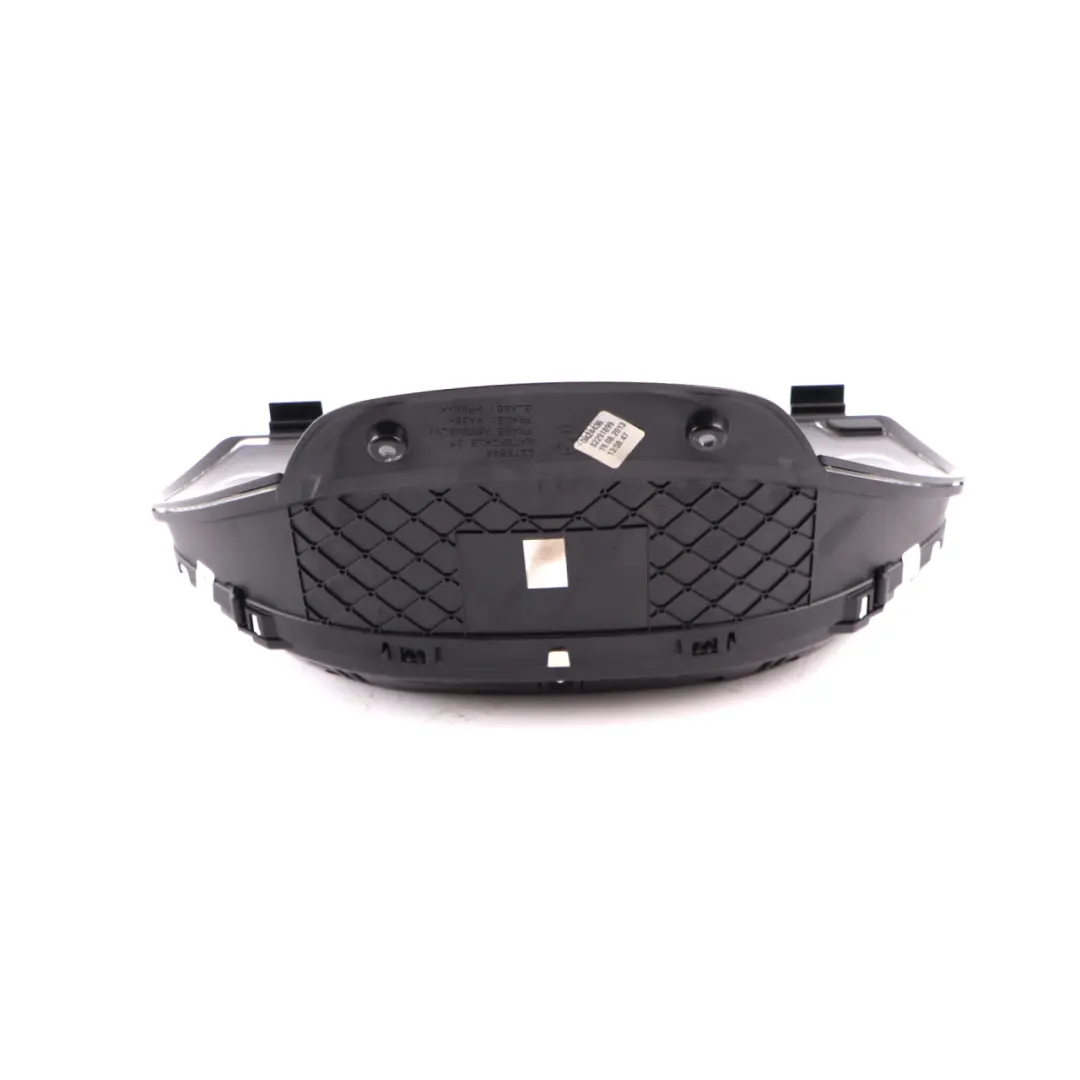

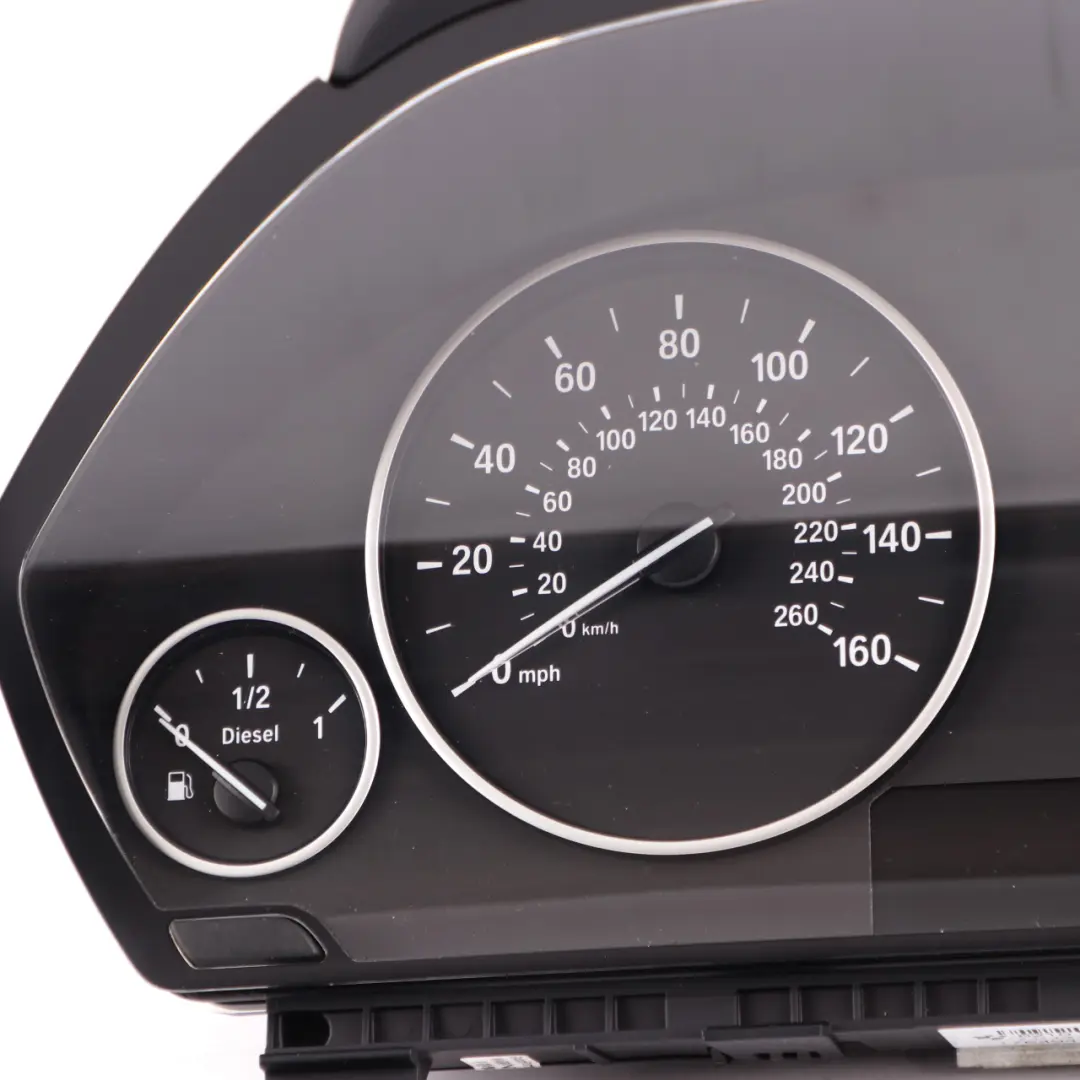

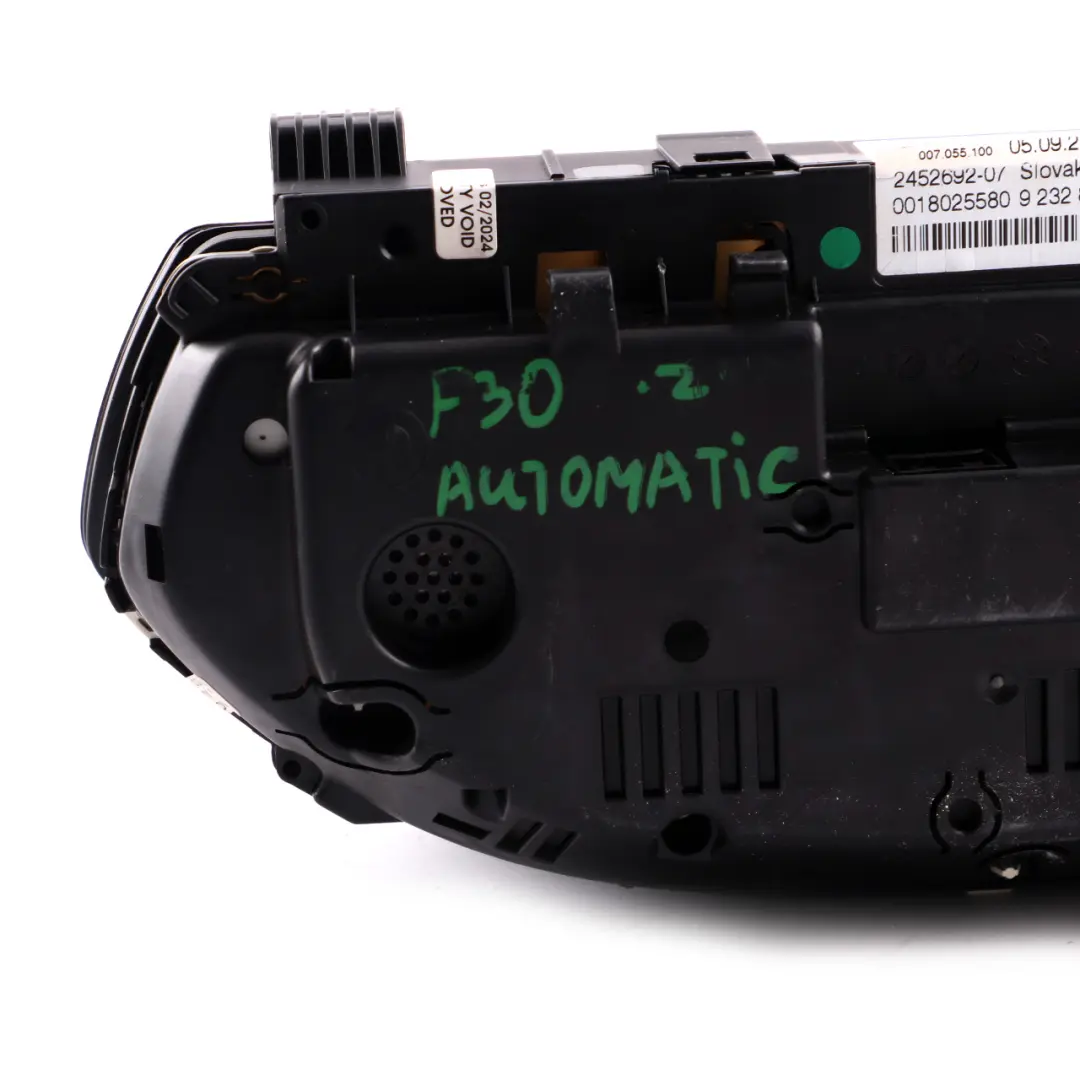

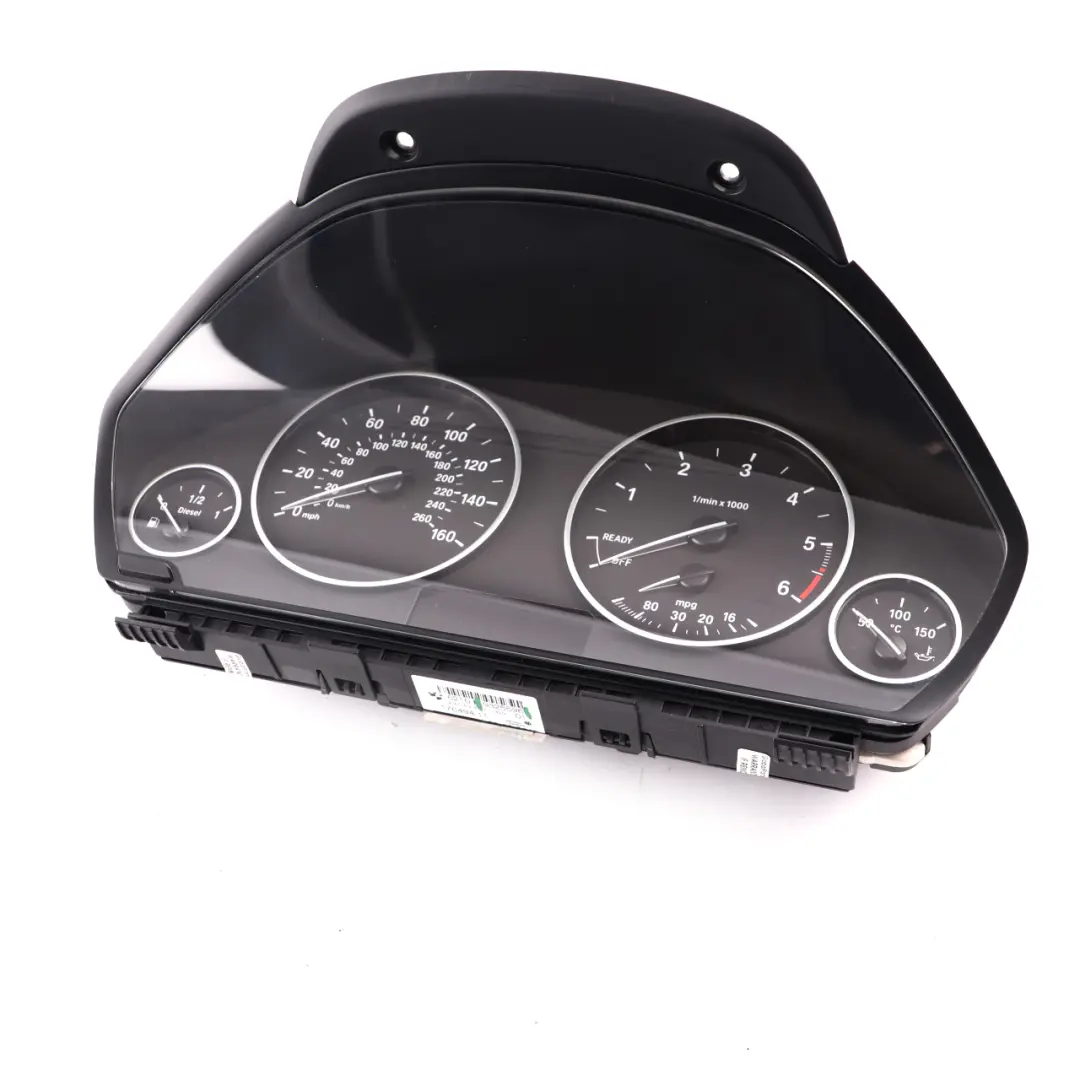

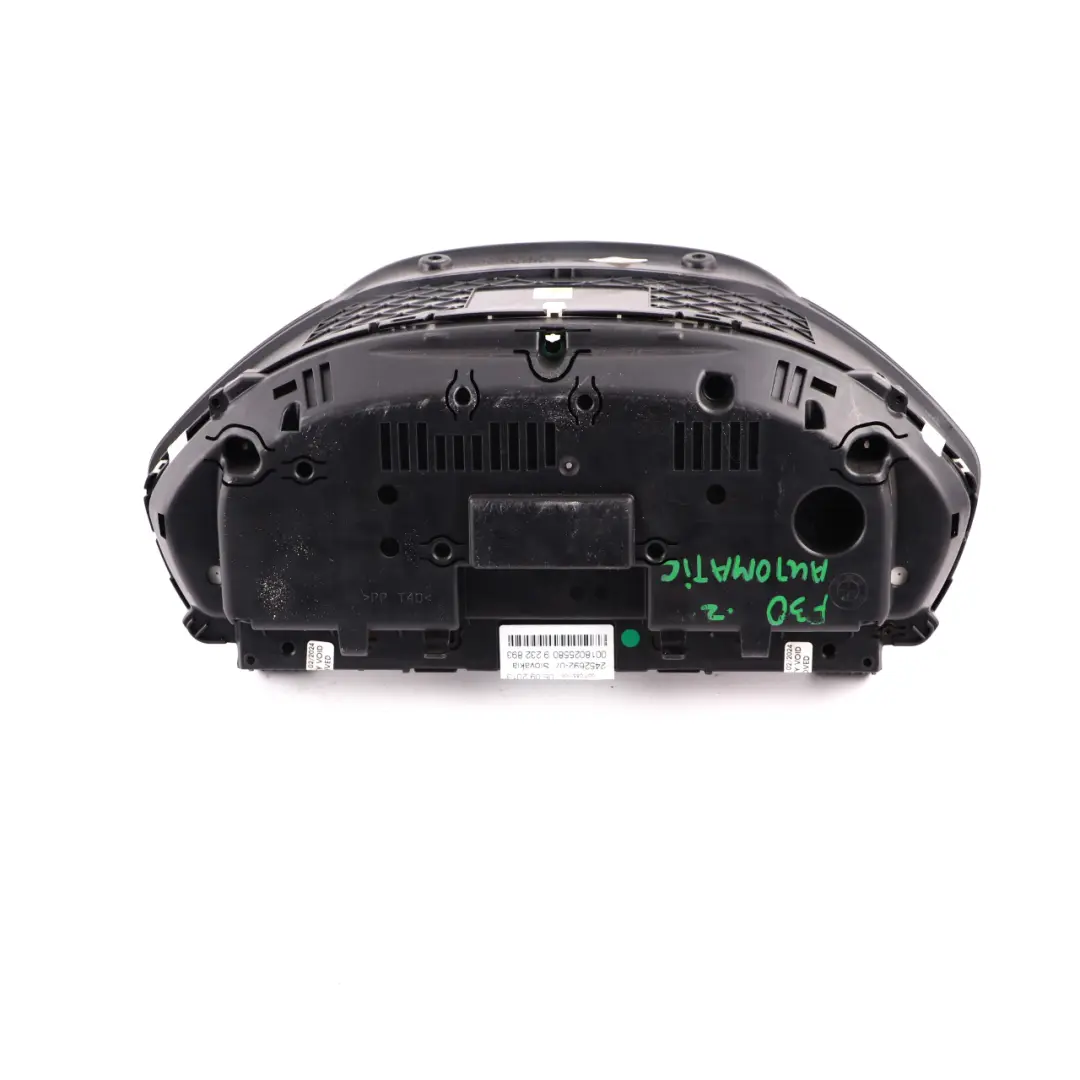

The product shows signs of use visible in the photos.

BMW F30 F31 Instrument Cluster Diesel Speedo Clocks Meter Automatic is a precise, factory-original gauge cluster designed for 3 Series models, ensuring clear reading of driving parameters and full integration with the vehicle's electronics. This original BMW instrument cluster has been designed specifically for diesel engine configurations and automatic transmissions, which promotes stable operation of on-board systems. As a used component, it provides a functional and cost-effective solution for replacing a damaged speedometer or retrofitting the vehicle.

Specifications and technical data

• SKU: RHD-9325596
• Mark: BMW (Genuine OE)
• Condition: Used

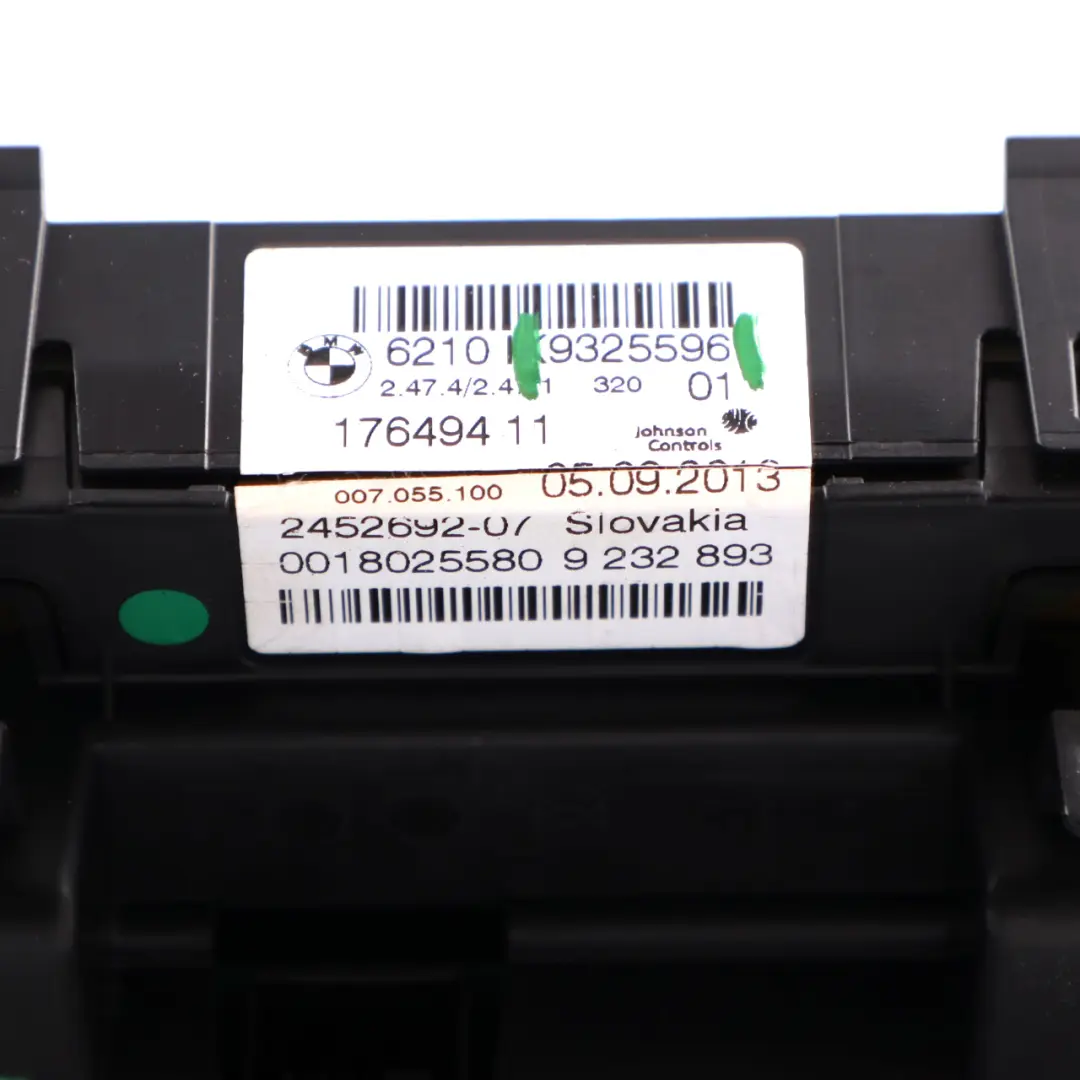

• OEM Part Number: 9325596
• Substitutable numbers: 9325596, 62109325596, 6805213, 62106805213, 9350138, 62109350138, 9277582, 62109277582, 9371035, 62109371035, 9382175, 62109382175, 9372474, 62109372474, 9287481, 62109287481, 9334768, 62109334768, 9365920, 62109365920, 9283315, 62109283315
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented BMW F30 F31 Instrument Cluster Diesel Speedo Clocks Meter Automatic is structurally matched to vehicles with a diesel engine and an automatic transmission. This ensures proper scaling of the speedometer and tachometer, correct logic for displaying transmission operating modes, and proper cooperation with powertrain control modules. As a result, the cluster can be used as a replacement for the factory panel in the event of failure, mechanical damage, or display electronics issues.

Functionality of the instrument cluster

The gauge panel is responsible for the ongoing presentation of key driving parameters, such as speed, engine RPM, warning lights, and information related to the operation of the automatic transmission. The cluster's design is prepared for compatibility with the factory BMW installation, which promotes consistency in communication via the vehicle's bus and ensures the correct operation of warning lights and messages. Integration with on-board electronics minimizes the risk of errors and incompatibilities after installation.

Technical characteristics and installation

As an item in the Instrument Clusters category, the speedometer has been designed to OEM standards, taking into account the requirements for diesel units and automatic transmissions. The housing and connectors are adapted for installation in the dashboard of the BMW 3 Series F30/F31, which facilitates replacement within standard service procedures. In practice, this means the cluster can be used as a direct replacement, provided that appropriate coding and adaptation procedures are performed on the vehicle.

Benefits of using an original BMW speedometer

Using an original BMW instrument cluster allows you to maintain interior stylistic consistency and compliance with the manufacturer's factory standards. Proper fitment to the electrical system limits the need for modifications, and the correct configuration for a diesel engine and automatic transmission promotes stable operation of diagnostic systems. For the user, this means predictable operation of warning lights, accurate readings, and comfortable vehicle operation after replacing the cluster.

Expanding upgrades within instrument clusters

If you are planning a comprehensive repair or upgrade of the cockpit area in your BMW and need other components from the same group, such as additional gauge panels, alternative versions of speedometers, or related display modules, check out the available parts in the BMW Instrument Clusters category.

In the case of broader service work on the electrical system and engine accessories, a practical guide on selecting used components may be helpful – more information can be found in the article When is it worth replacing an alternator with a used one: a practical guide for drivers.
