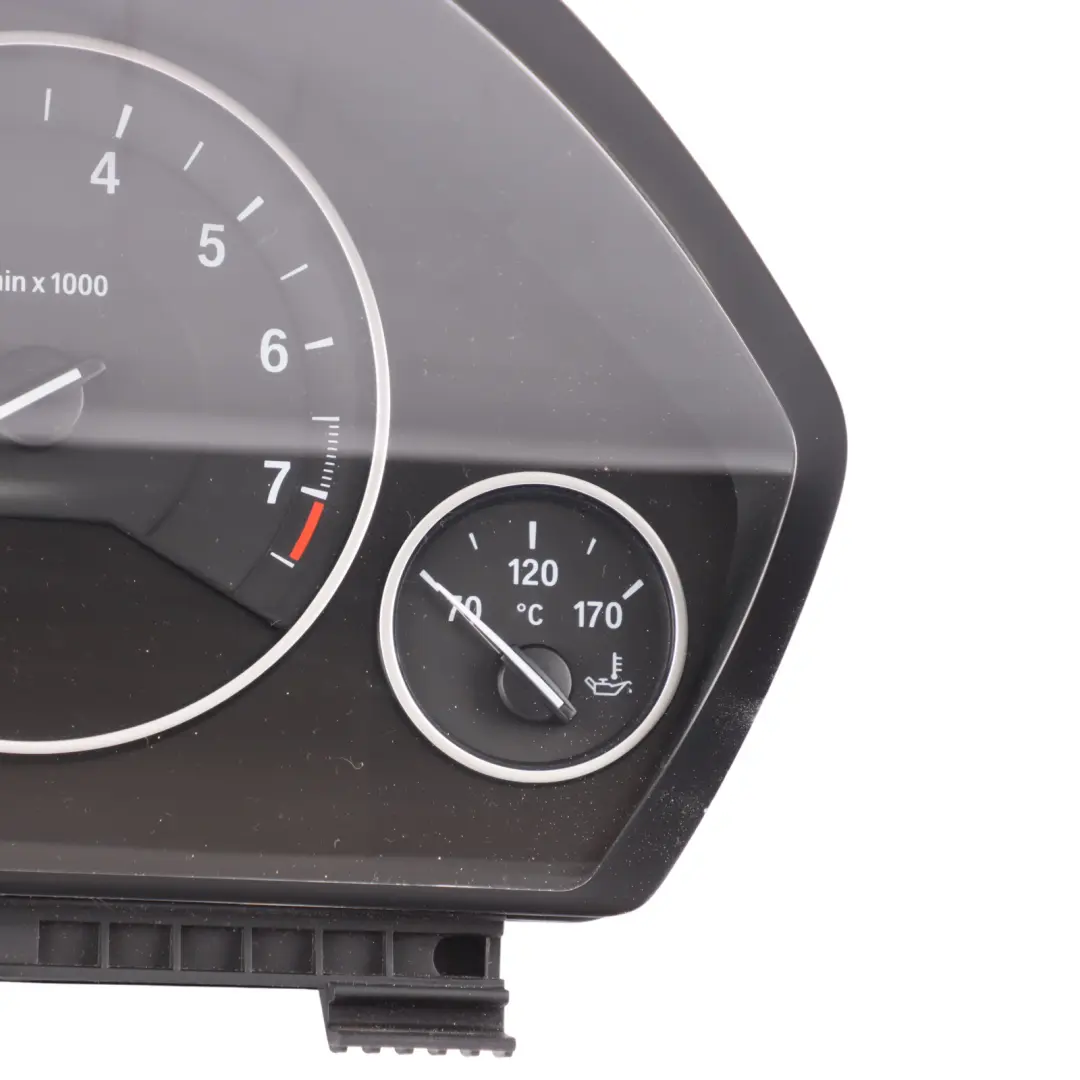

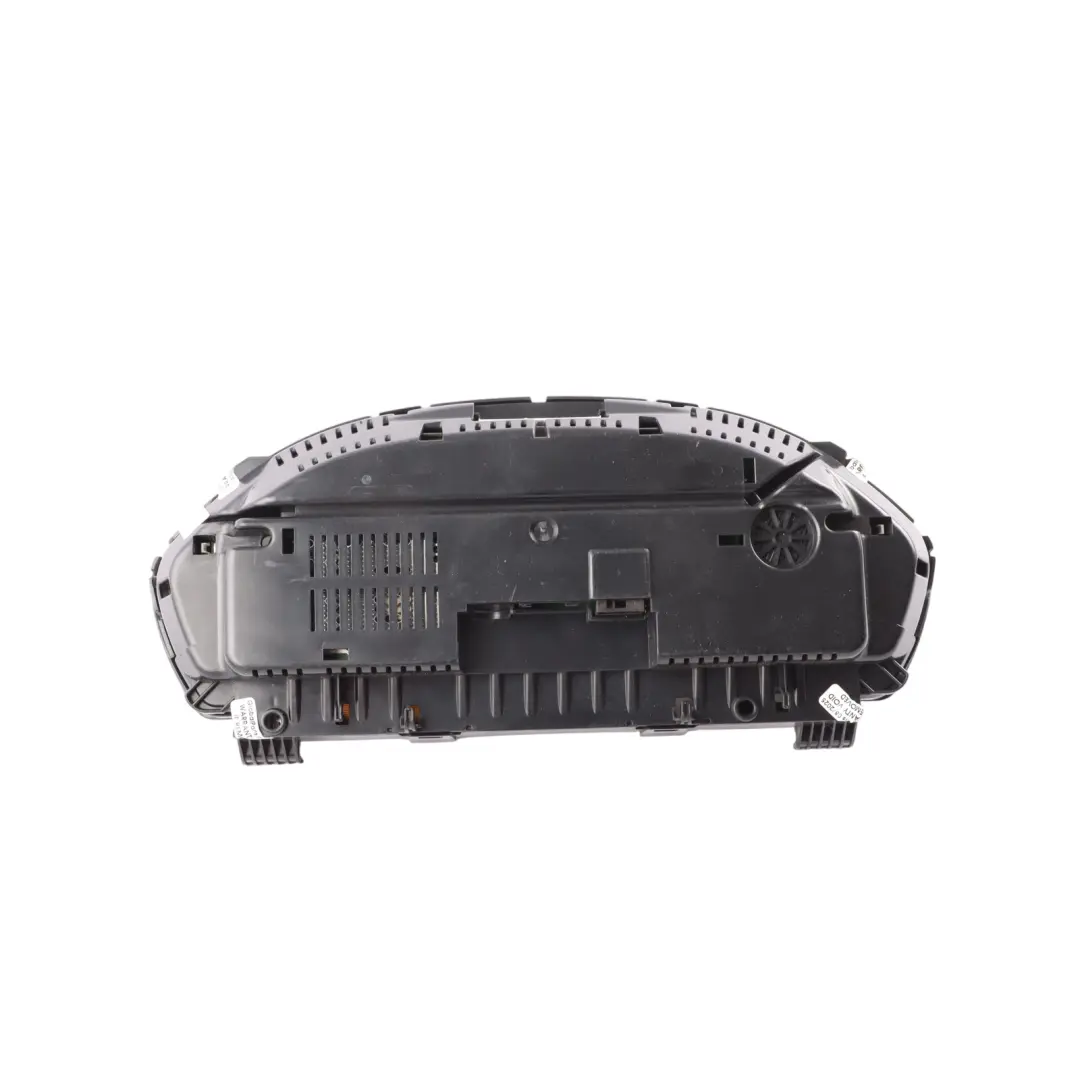

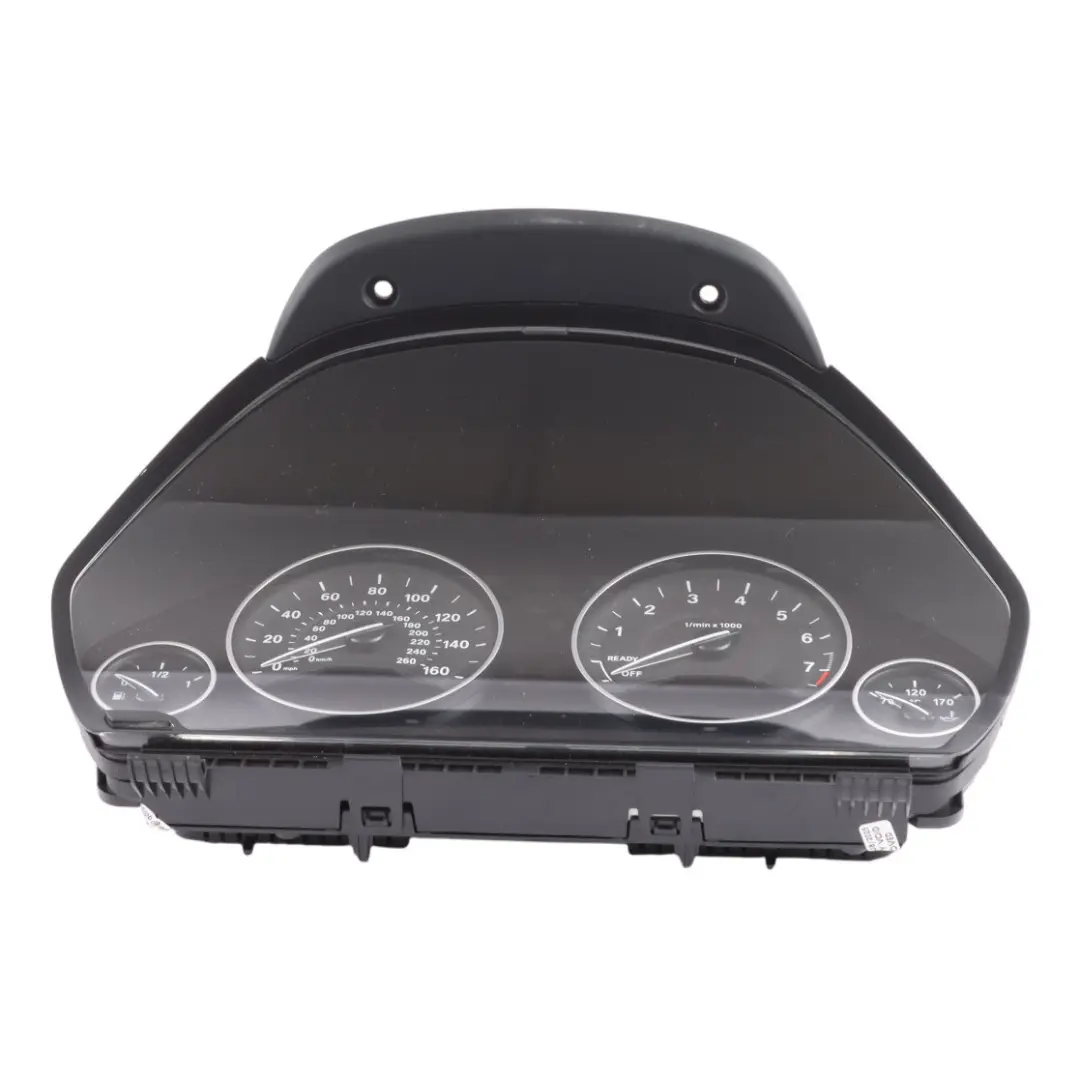

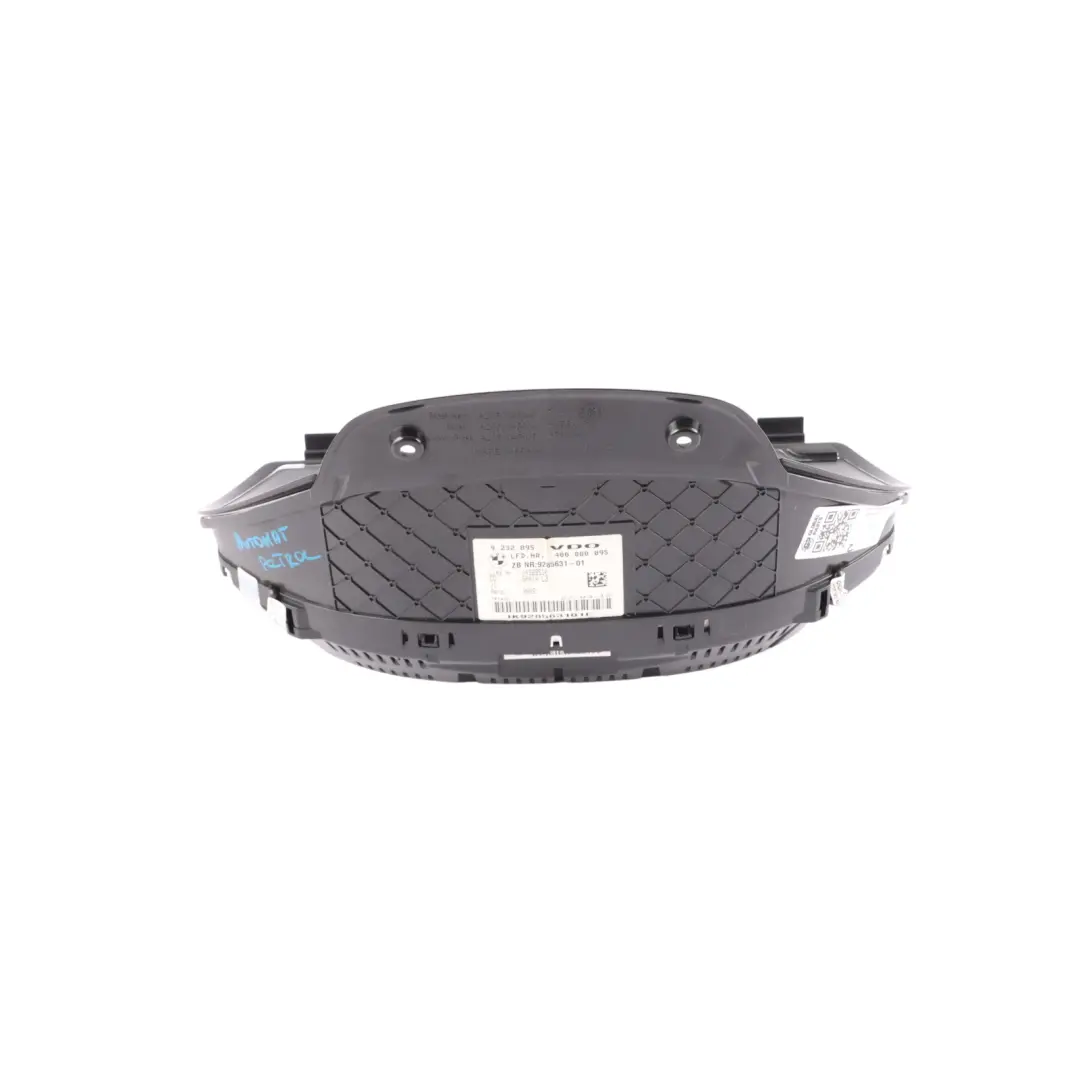

BMW F30 F31 F32 Petrol Instrument Cluster Speedo Clocks Meter Automatic 9232895

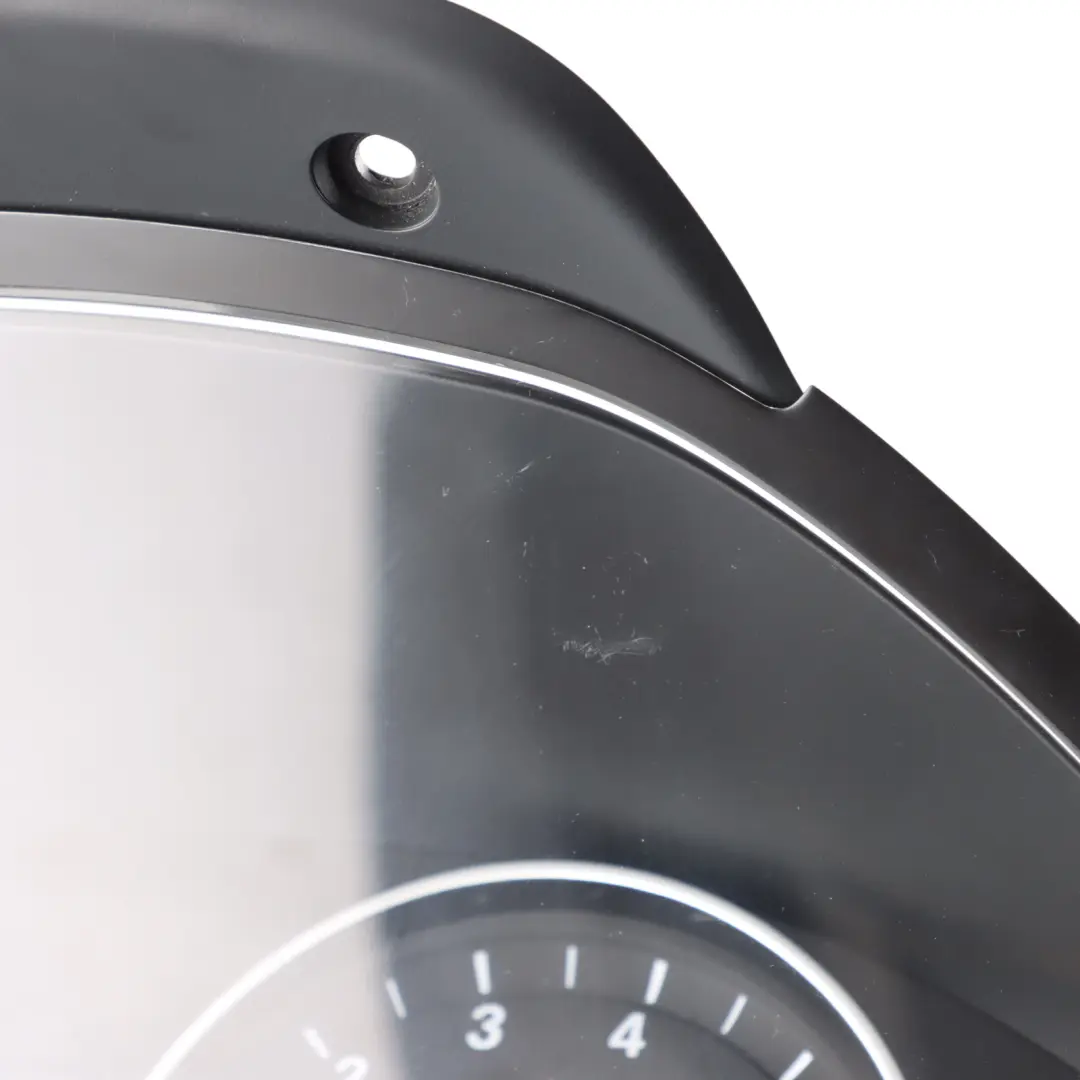

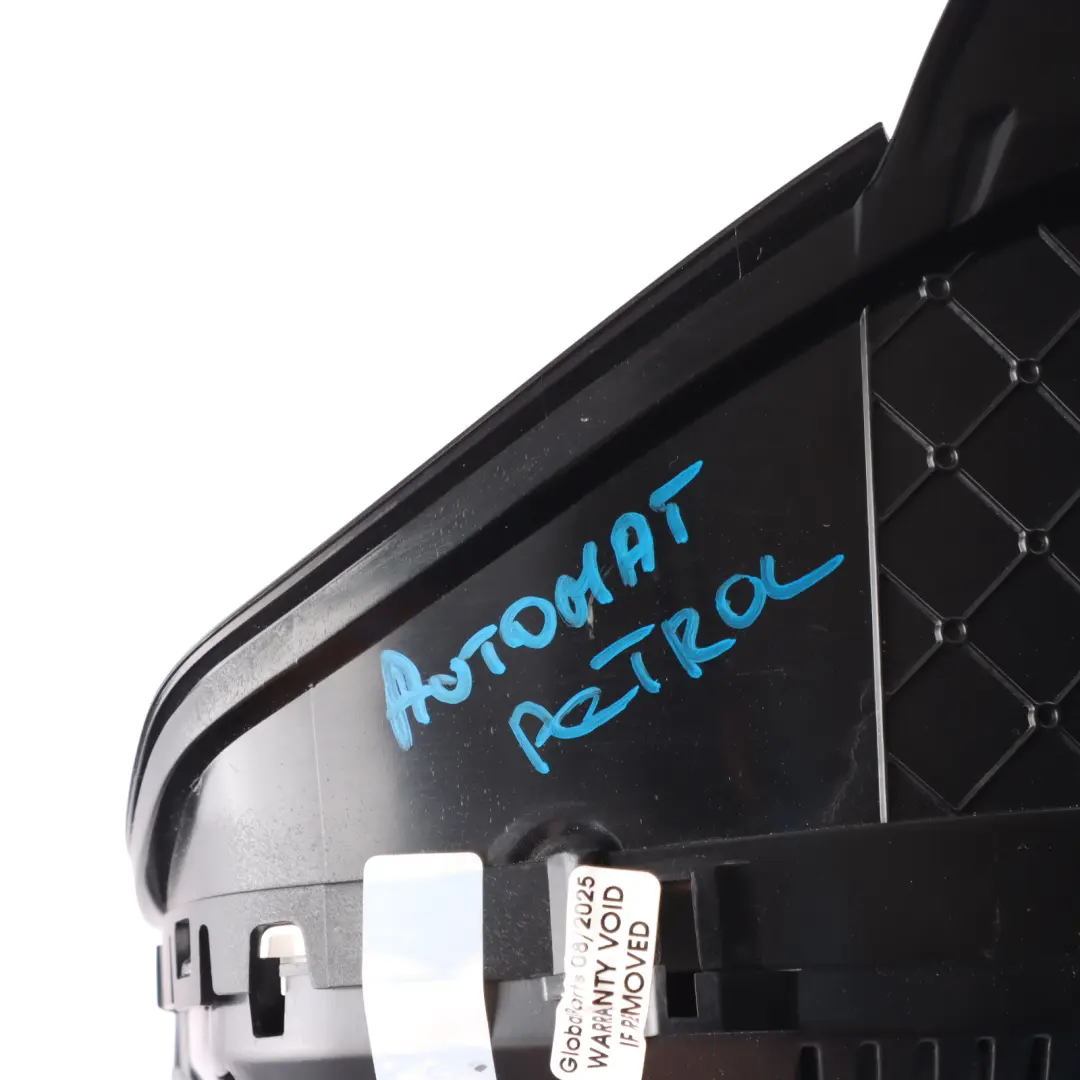

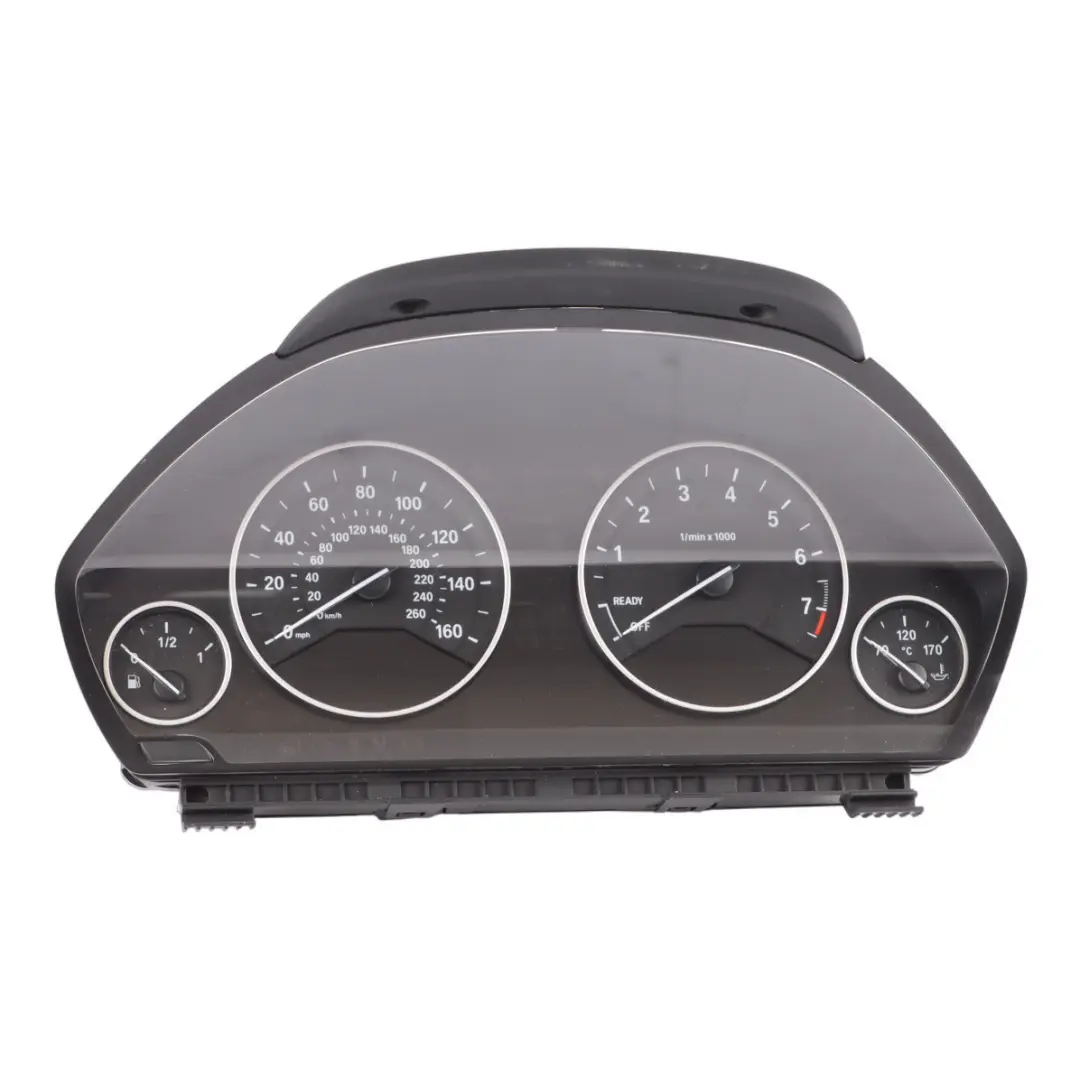

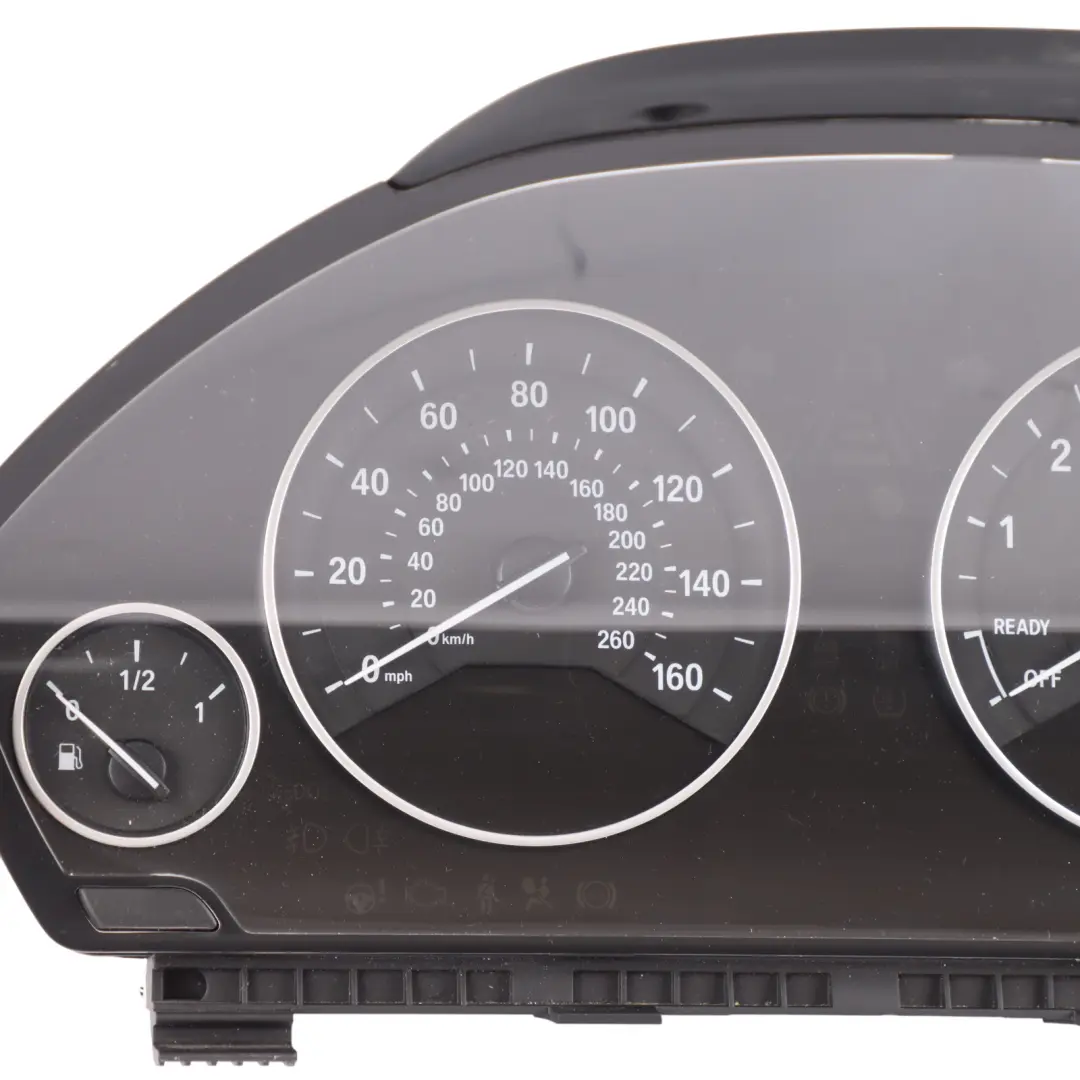

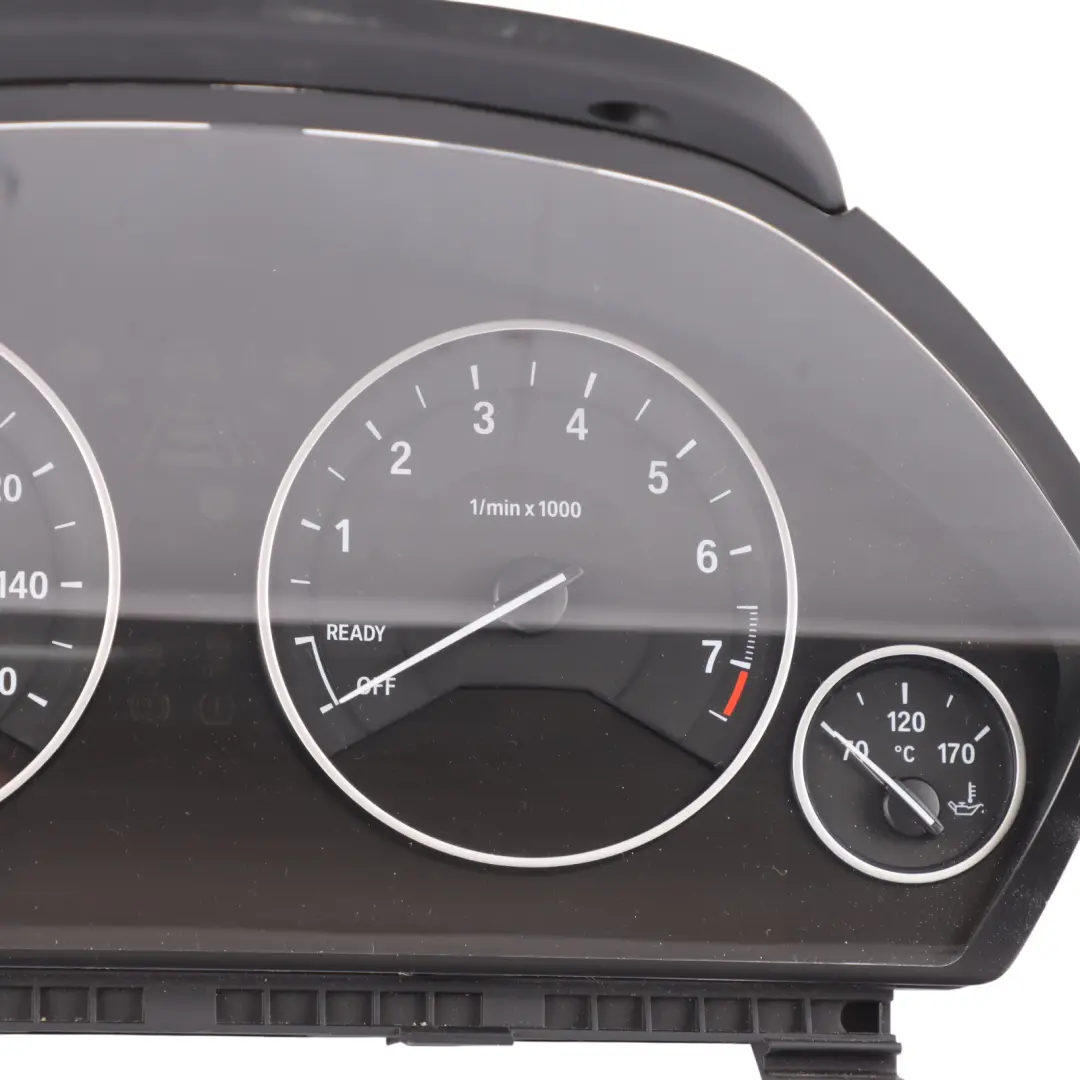

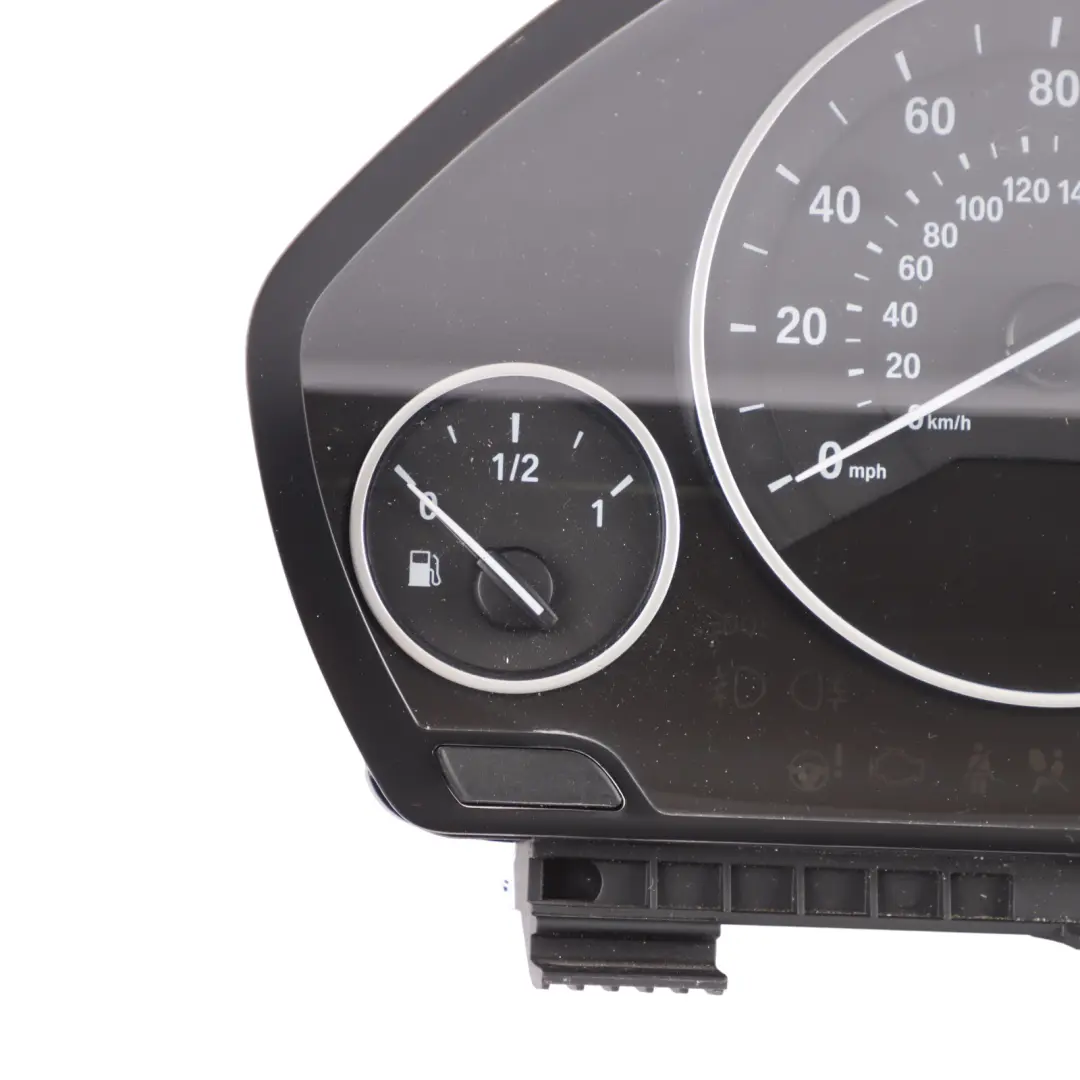

Visual condition of the part

The product shows signs of use visible in the photos.

BMW F30 F31 F32 Petrol Instrument Cluster Speedo Clocks Meter Automatic is an original instrument panel designed for factory installation in the cockpit of 3 and 4 series models. Thanks to its precise fitment to the vehicle's electrical system and compatibility with the car's electronics, it ensures stable operation of speed, RPM, and other driving parameter readings, maintaining consistency with BMW's onboard systems. This is an ideal solution for users who expect a functional and aesthetic restoration of the factory instrument cluster following a failure or interior upgrade.

Specifications and technical data

• SKU: RHD-9285631
• Mark: BMW (Genuine OE)
• Condition: Used

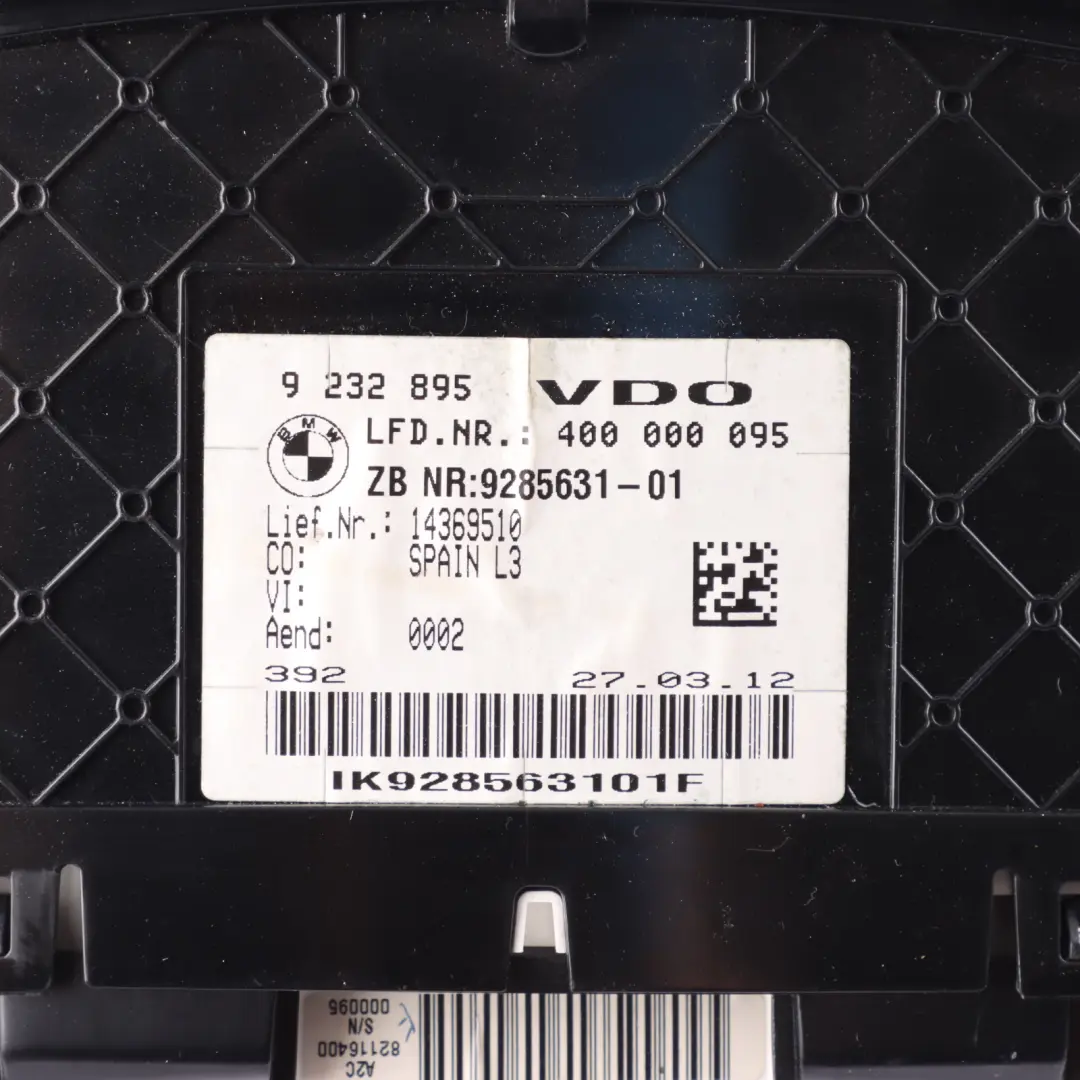

• OEM Part Number: 9285631
• Substitutable numbers: 9285631, 62109285631, 9436291, 62109436291, 9363167, 62109363167, 6834491, 62106834491, 8803194, 62108803194, 6804960, 62106804960, 9325205, 62109325205, 9279320, 62109279320, 9382090, 62109382090, 9379968, 62109379968, 6847231, 62106847231, 6843128, 14369510
• Fuel type: Petrol
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is dedicated to F-series BMW models with a petrol engine and automatic transmission. The panel's design is prepared for seamless integration with the factory electrical installation and communication bus of these generations, allowing for proper interaction with the vehicle's control modules, safety systems, and onboard computer.

By using an original solution from the Instrument Clusters group, it is possible to restore factory functionality without the need for wiring modifications or interference with the dashboard structure.

Construction and function of the instrument cluster

The instrument cluster plays a key role in the daily operation of the vehicle, providing the driver with clear information about speed, engine RPM, fuel level, and other vehicle system parameters. The panel is designed to:

• ensure clear data readability in various lighting conditions,
• work with the automatic transmission, including displaying the current operating mode,
• integrate with warning systems and diagnostic indicators,
• maintain a consistent look with other BMW cockpit elements.

The original panel design promotes ergonomic operation and interior aesthetics, which is particularly important during post-collision repairs or when replacing damaged components.

Benefits of using an original instrument cluster

Using a factory instrument cluster in a BMW F30/F31/F32 brings a number of practical benefits. The most important include:

• Full integration with vehicle electronics – the panel is designed for a specific electrical and software architecture, which limits the risk of communication errors and incorrect readings.
• Visual consistency with the interior – the styling, scale division, and dial graphics are matched to the model line, ensuring the interior retains its factory character.
• Possibility of professional repair after failure – replacing a damaged instrument cluster with an original part facilitates service work and speeds up the diagnostic and coding process.
• Better vehicle resale value due to the preservation of original design solutions.

Condition and service application

The offered panel belongs to the group of used BMW Instrument Clusters, which allows for economical repair while maintaining the manufacturer's original specifications. This type of component is particularly useful in situations where there has been damage to the gauge electronics, interior flooding, or a need for replacement after a collision.

Before installation, it is recommended to perform standard service procedures, such as verifying compatibility with the specific vehicle's equipment, as well as necessary coding and adaptation in diagnostic systems. This allows for stable operation of the instrument cluster and avoids error messages on the dashboard.

Selection by part numbers and technical support

The selection of the appropriate instrument cluster for a BMW should be based on the OEM part number, interchangeable numbers, and vehicle data (model, year, engine type, and transmission). Proper fitment guarantees compatibility with the electrical installation and the correct operation of all panel functions.

For users who want to deepen their knowledge about selecting original BMW parts, procedures for checking compatibility by numbers, and the impact of such solutions on the car's durability, the following article will be helpful: BMW – sports performance and precision. How do original used parts extend the life of a Bavarian icon?

If you are planning a comprehensive repair or upgrade of the cockpit area in your BMW and need other elements from the same group, such as gauge panels, display modules, or additional indicators, check the available parts in the BMW Instrument Clusters category.
