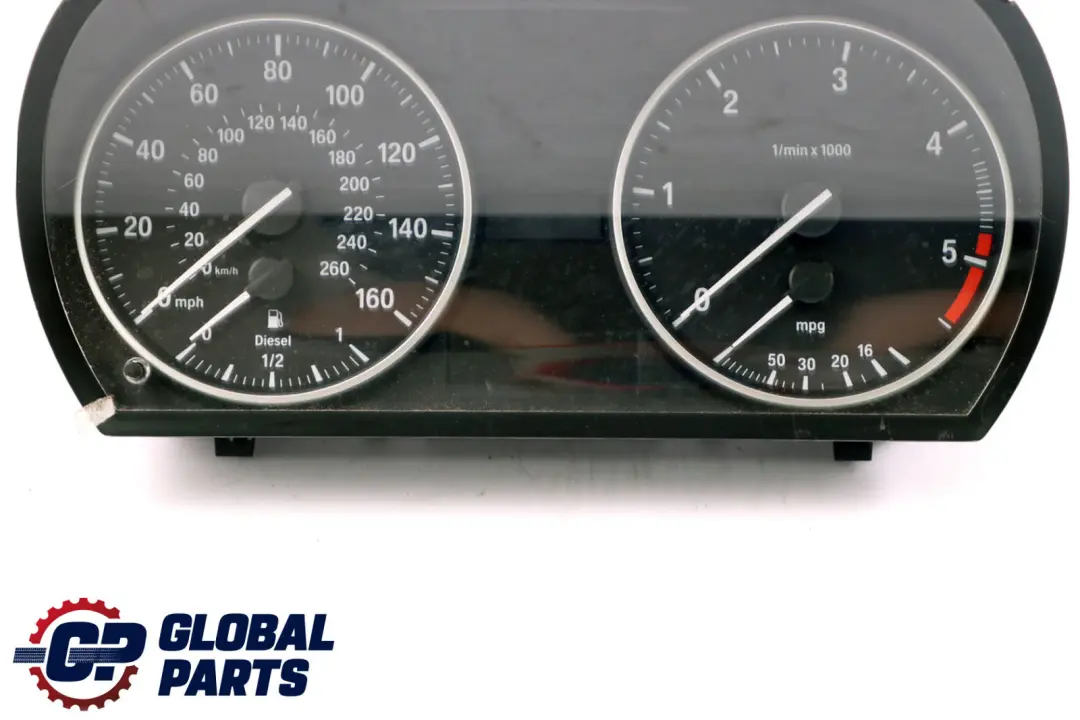

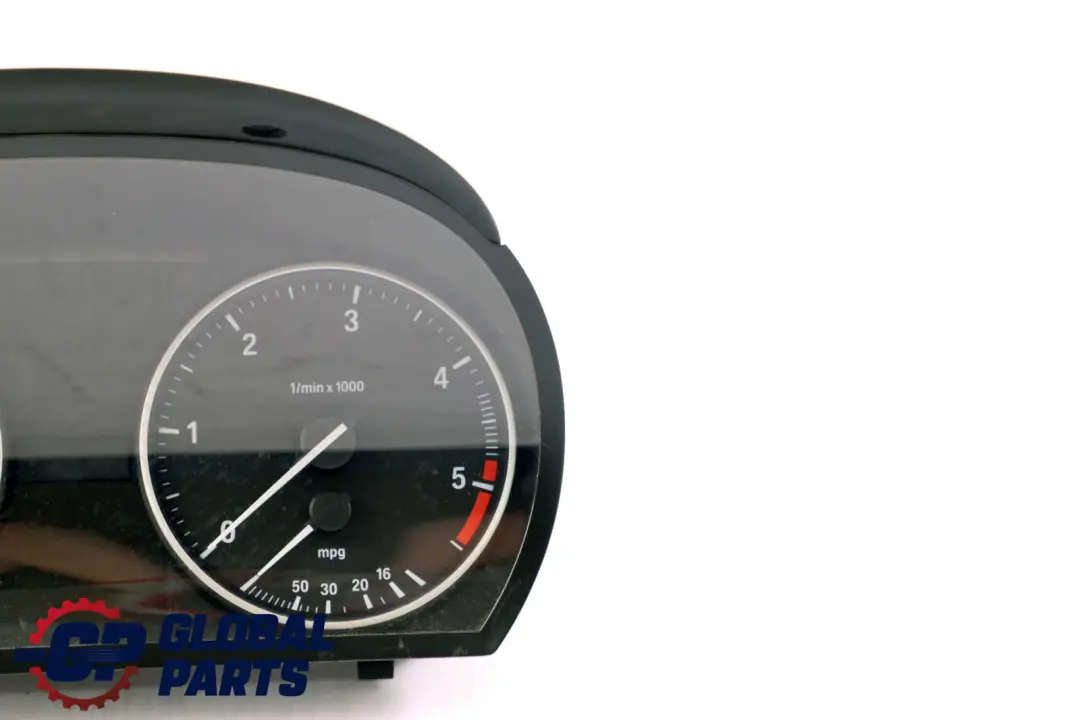

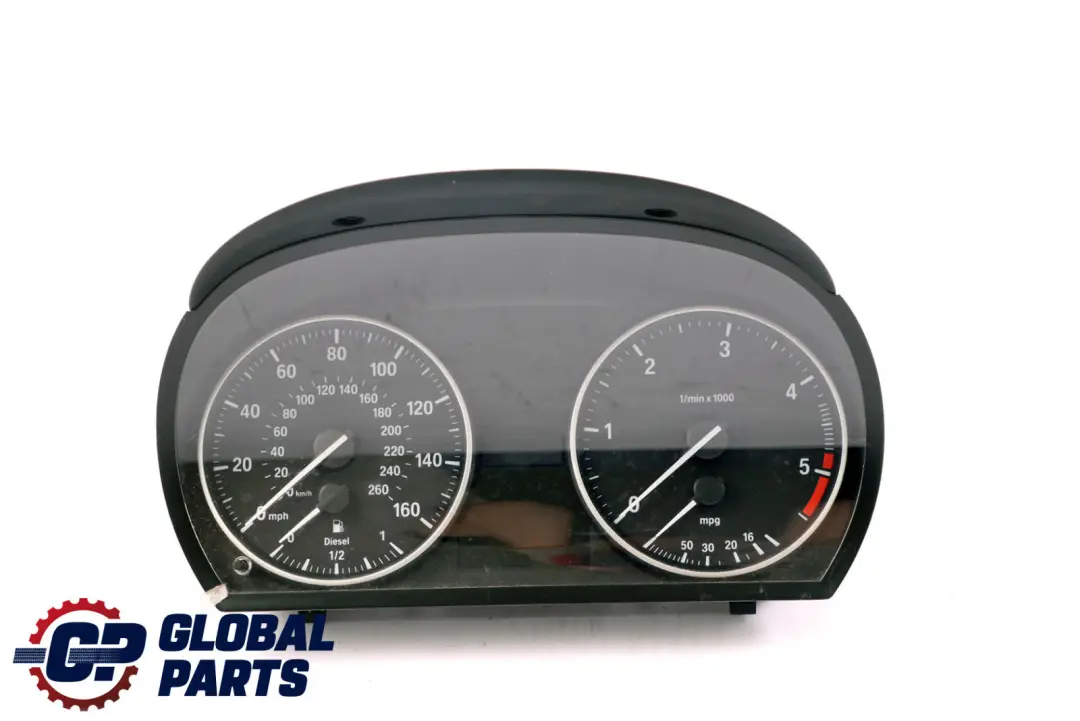

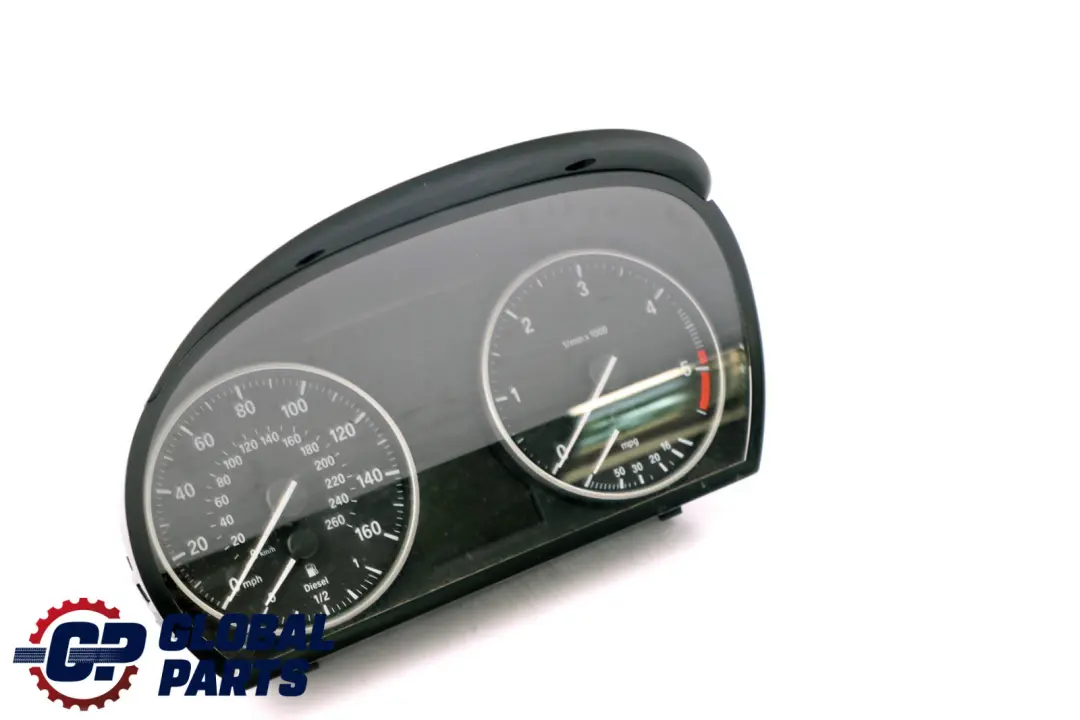

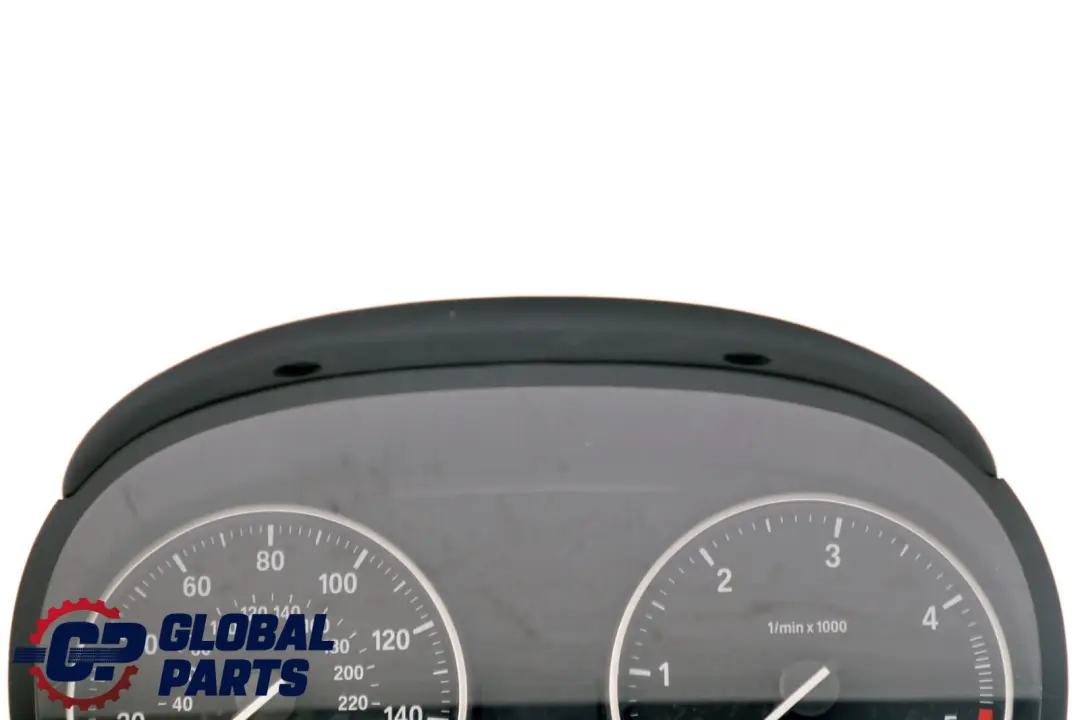

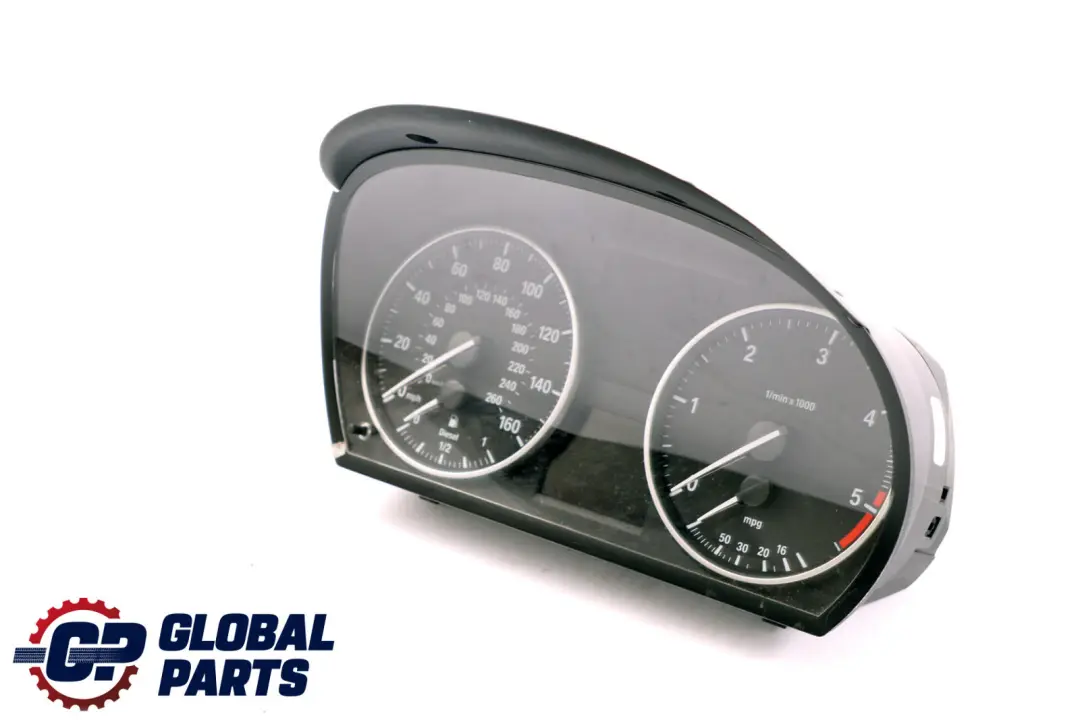

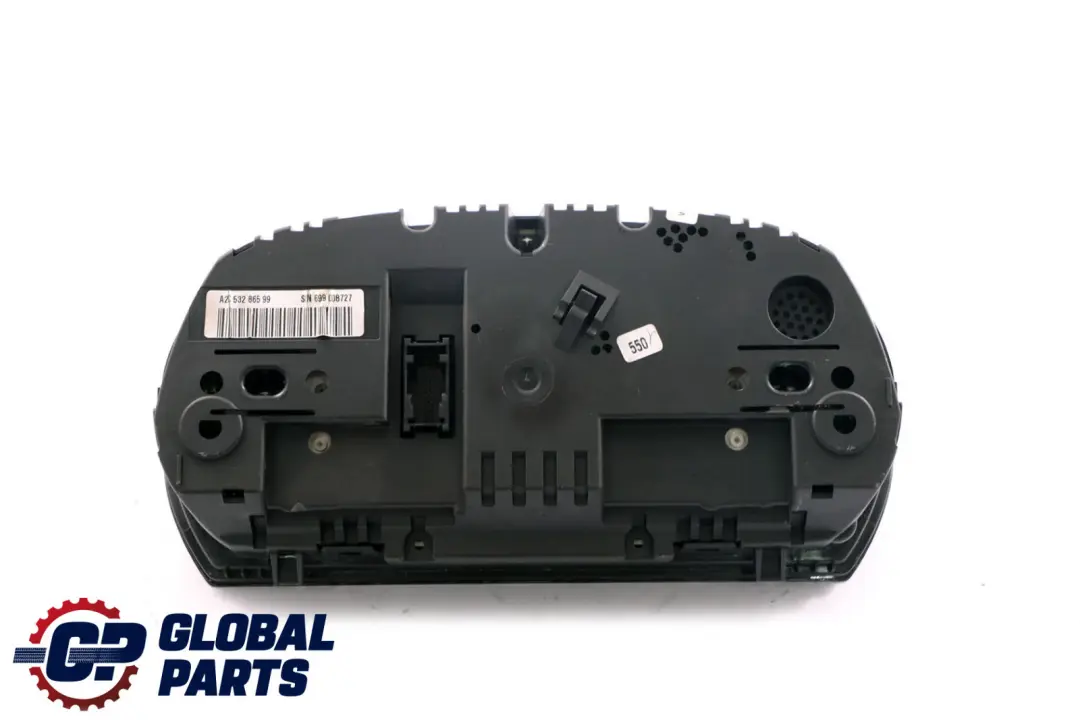

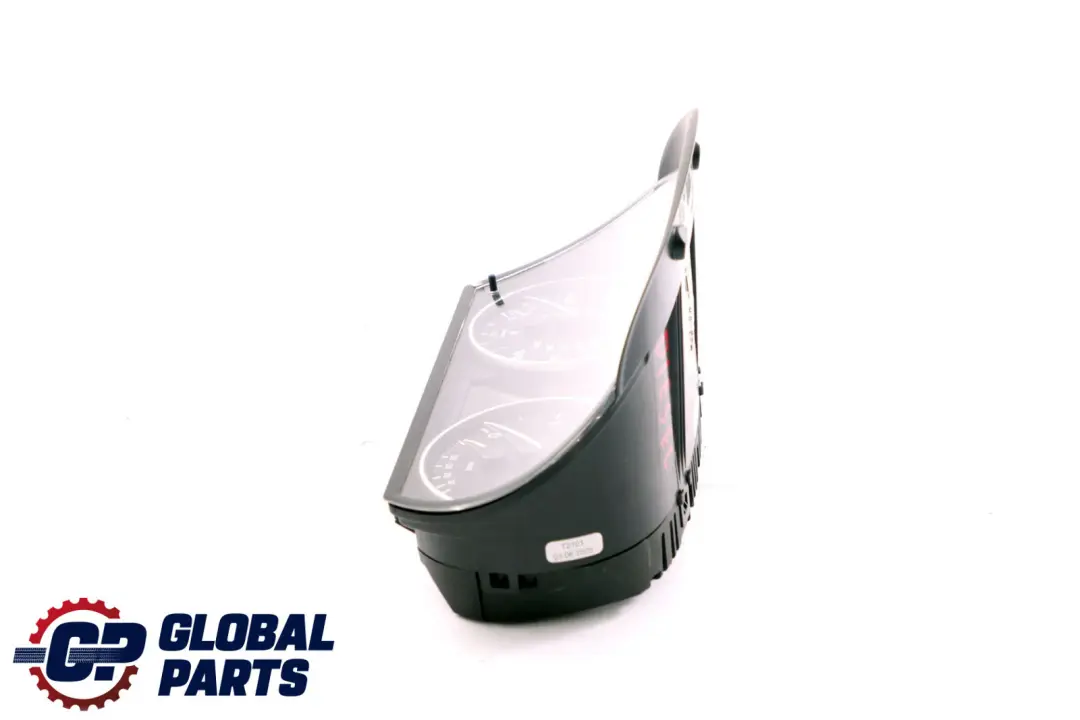

BMW 3 X1 Series E84 E90 E91 Diesel Instrument Cluster Speedo Clocks 9166849

BMW 3 X1 Series E84 E90 E91 Diesel Instrument Cluster Speedo Clocks is an original instrument cluster designed for diesel-powered vehicles, ensuring clear readability of engine performance parameters. Thanks to the factory BMW design, this instrument cluster maintains full consistency with the dashboard and interior styling of the 3 Series and X1 models. This is a solution for users who need a proven, used OEM component instead of replacements with uncertain parameters.

Specifications and technical data

• SKU: 9166849
• Mark: BMW (Genuine OE)
• Condition: Used

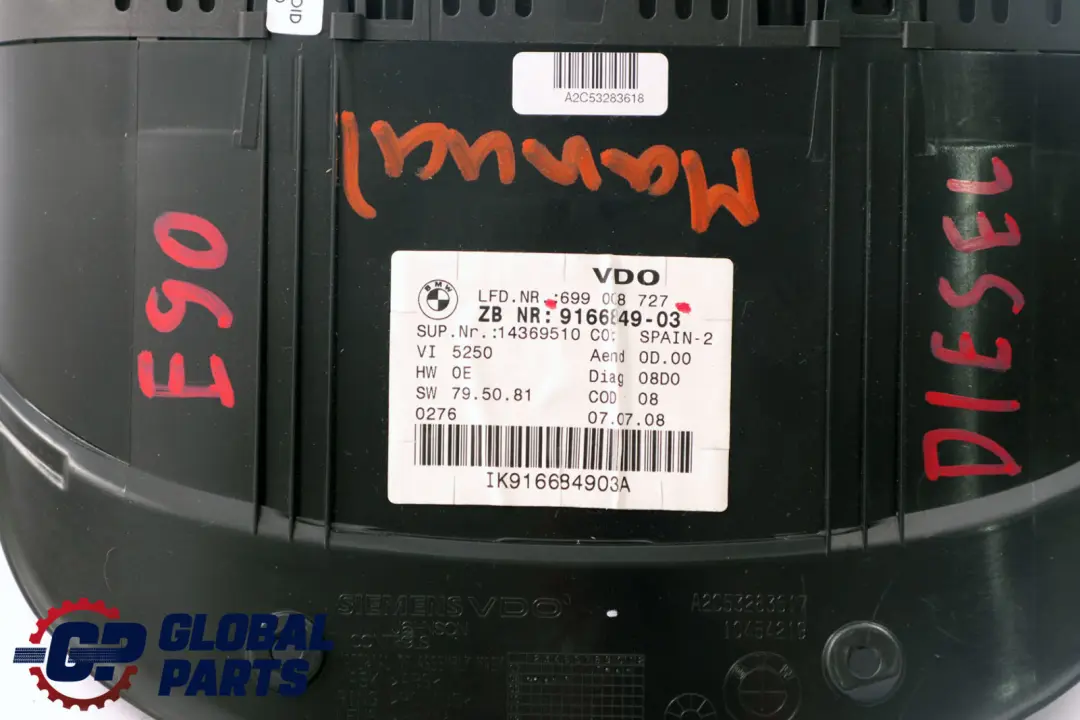

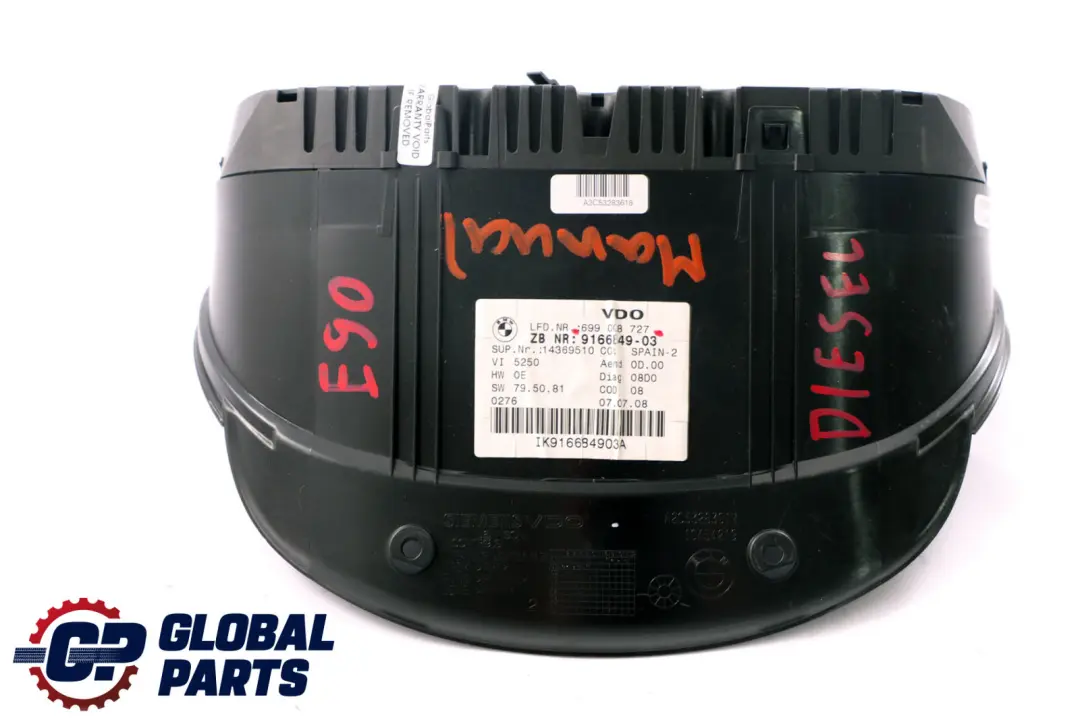

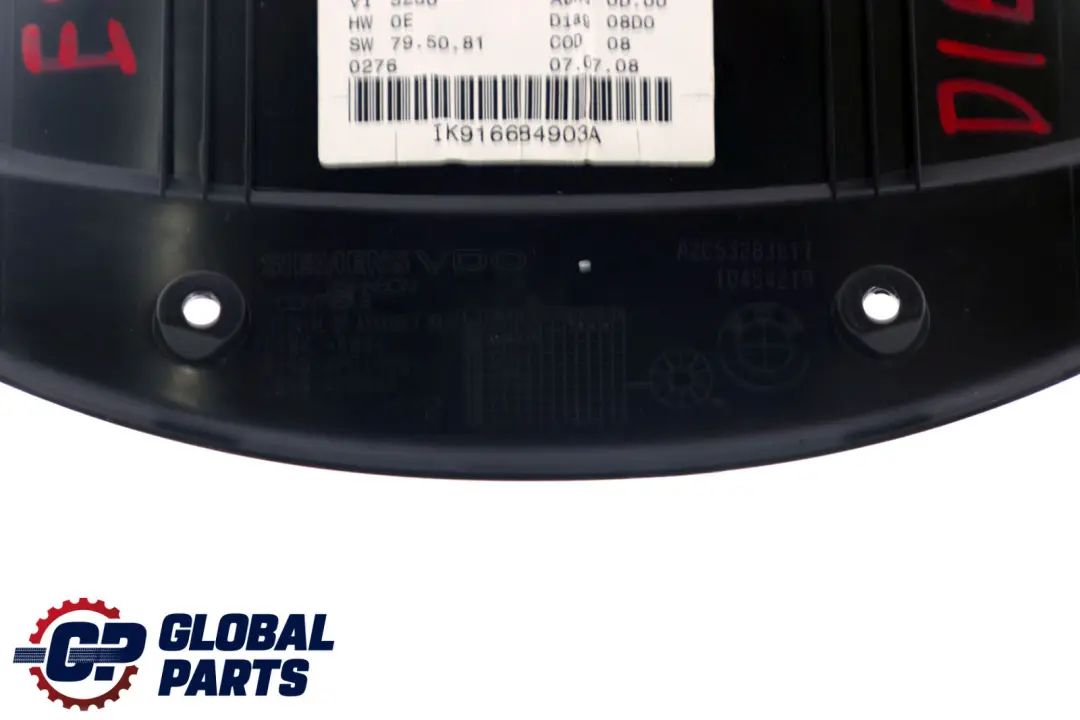

• OEM Part Number: 62109166849
• Substitutable numbers: 62109283816, 9283816, 62109316128, 9316128, 62109242347, 9242347, 62109187345, 9187345, 62109220964, 9220964, 62109187061, 9187061, 62109166849, 9166849, 62109141488, 9141488, 62109122603, 9122603, 62109110206, 9110206
• Fuel type: Diesel
• Category: Instrument Clusters

Purpose and function in the vehicle

The presented instrument cluster is dedicated to selected BMW 3 Series and X1 models with diesel engines, including E84, E90, and E91 body styles. The panel is responsible for displaying key information for the driver, such as driving speed, engine RPM, fuel level, or basic system messages, which has a direct impact on safety and driving comfort.

As an OEM component, the speedometer works with the factory electrical installation and BMW onboard systems, which facilitates integration with the vehicle's existing electronics. A used instrument cluster allows for the restoration of full cockpit functionality after a failure or damage to the existing panel, without the need for a costly replacement with a new component.

Construction and technical specifications

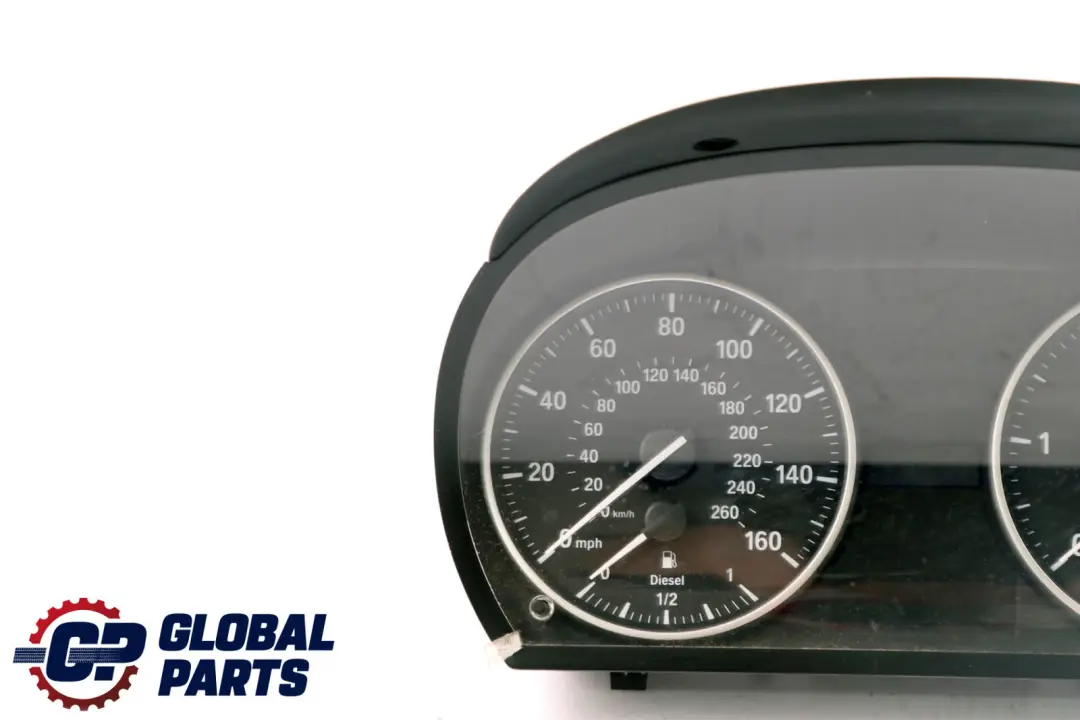

The instrument cluster belongs to the Instrument Clusters category, meaning it is a complete gauge panel mounted in the central part of the dashboard. The construction is optimized for the ergonomics of a BMW driver – the speedometer and tachometer scales are legible, and the layout of warning lights is selected so that the most important signals are easily noticeable while driving.

The version intended for diesel units is adapted to the operating characteristics of a diesel engine, in particular to the RPM range and the way information relevant to this type of drive is presented. Using an original panel allows for maintaining consistency of readings with the software of engine controllers and other comfort modules.

Integration with electronics and compatibility

As a BMW OEM component, the speedometer is designed to work with factory diagnostic systems and vehicle data bus communication. This enables the correct display of service messages, warnings, and information from sensors located throughout the car.

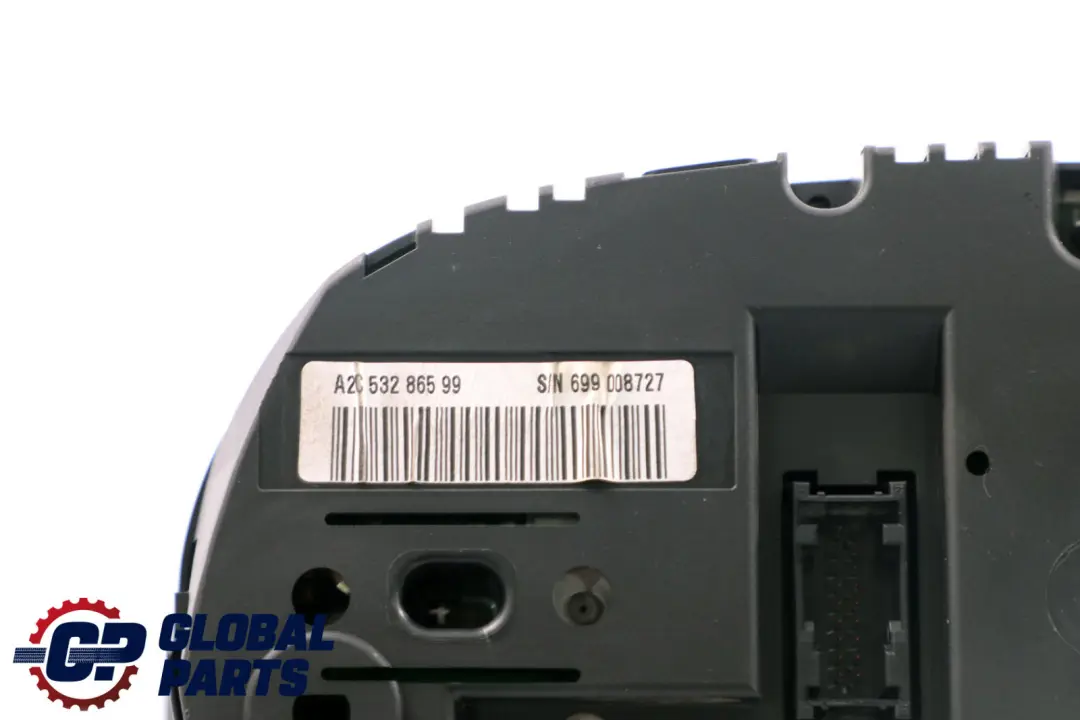

The product has an assigned part number and associated interchangeable numbers, which facilitates the selection of the appropriate variant for a specific vehicle configuration. Before purchasing, it is worth comparing the markings with the currently installed instrument cluster or the car's technical documentation to ensure full hardware and software compatibility.

Condition, application, and benefits of installation

The offered panel is a used item, which allows for an economical repair of the instrument system while maintaining the original BMW build quality. In many cases, installing such an instrument cluster is a beneficial solution for damage to the speedometer electronics, backlight problems, or malfunctioning gauges.

The main advantages of using this product include:

• Original BMW construction – maintaining the factory look and cockpit ergonomics.
• Adaptation to diesel engines – correct range of readings and cooperation with appropriate controllers.
• Ability to use existing mounting points – without the need for dashboard modifications.
• Consistency with diagnostic systems – correct reporting of errors and service messages.

Selection of other elements from this group

If you are planning a comprehensive repair or modernization of the cockpit area in your BMW and need other elements from the same group, such as additional gauge panels, control modules, or speedometer housings, check the available parts in the BMW Instrument Clusters category.

In the case of broader work related to the vehicle, including post-accident repairs, practical tips on selecting used OEM components may also be useful – you will find them in the article Bodywork and exterior – post-accident repairs using dismantled parts, which discusses the approach to car regeneration using proven parts from dismantling.
