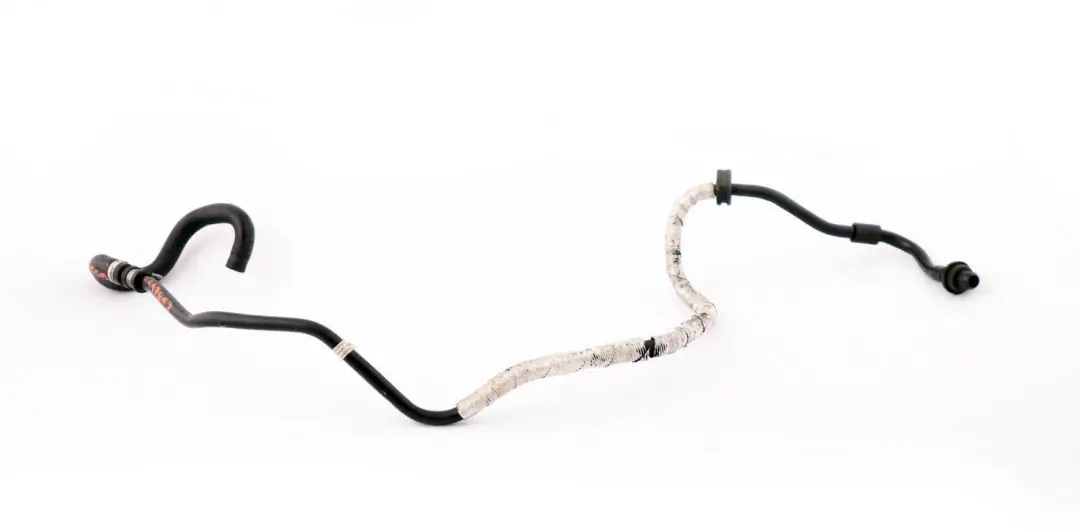

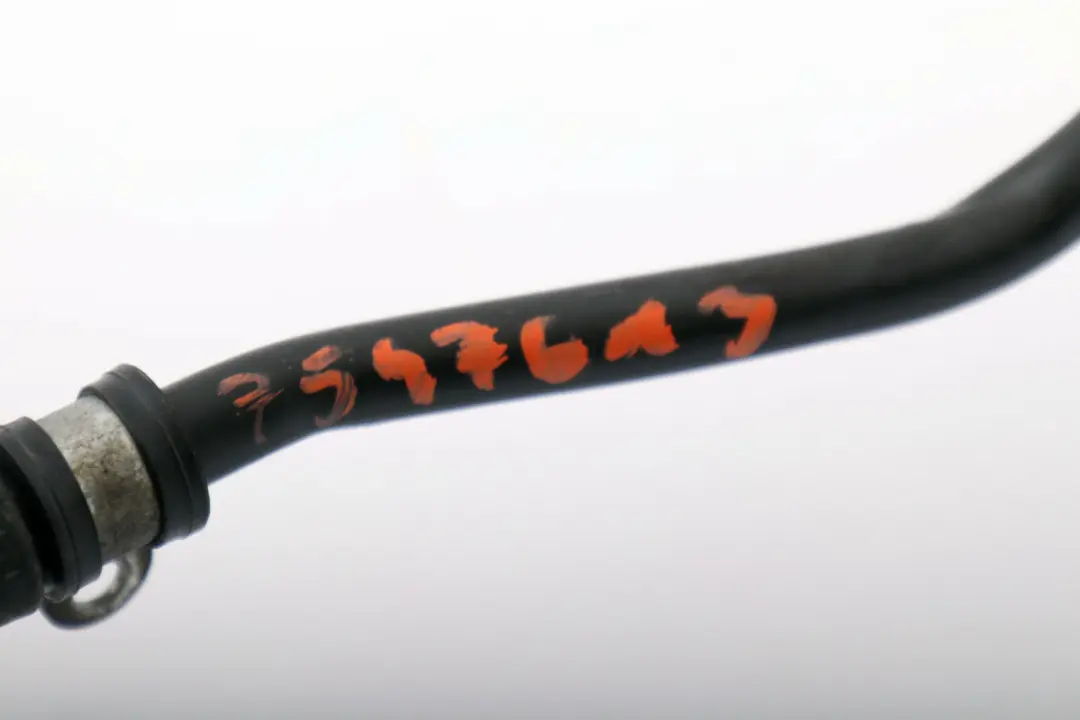

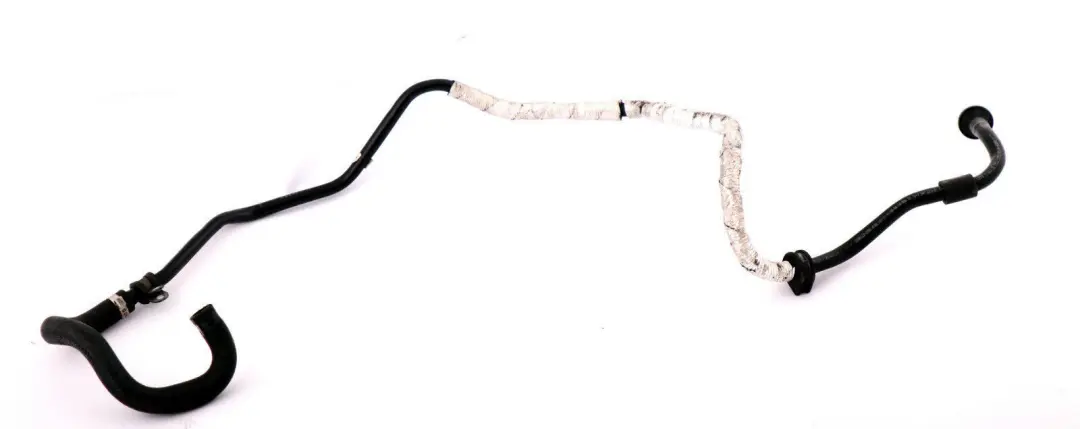

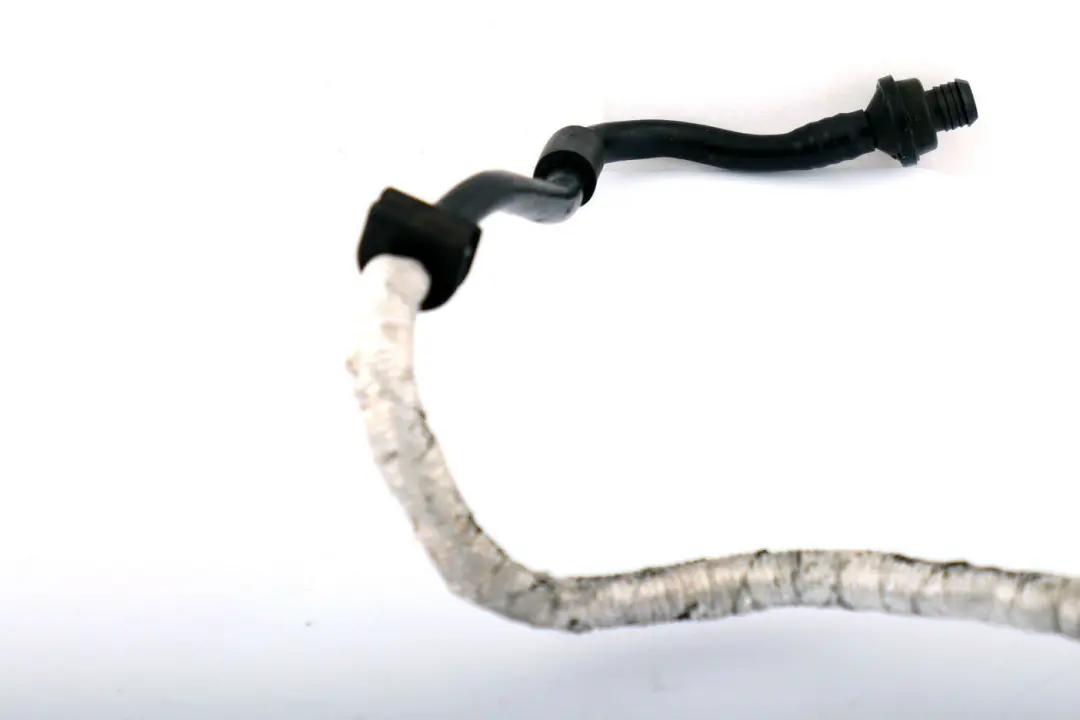

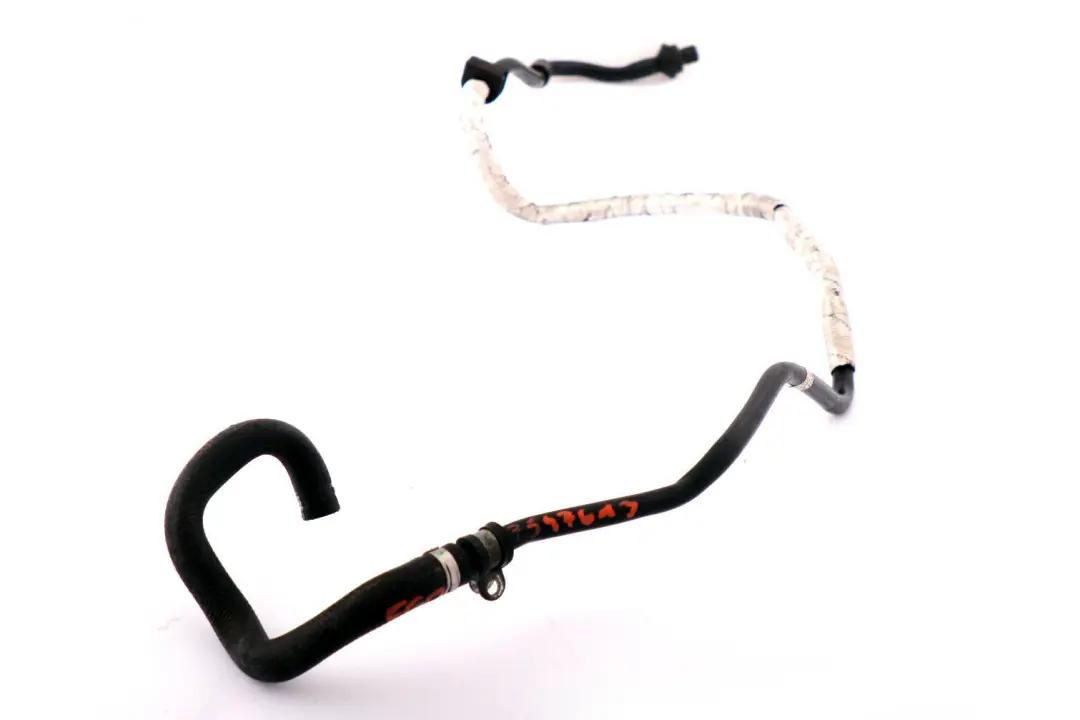

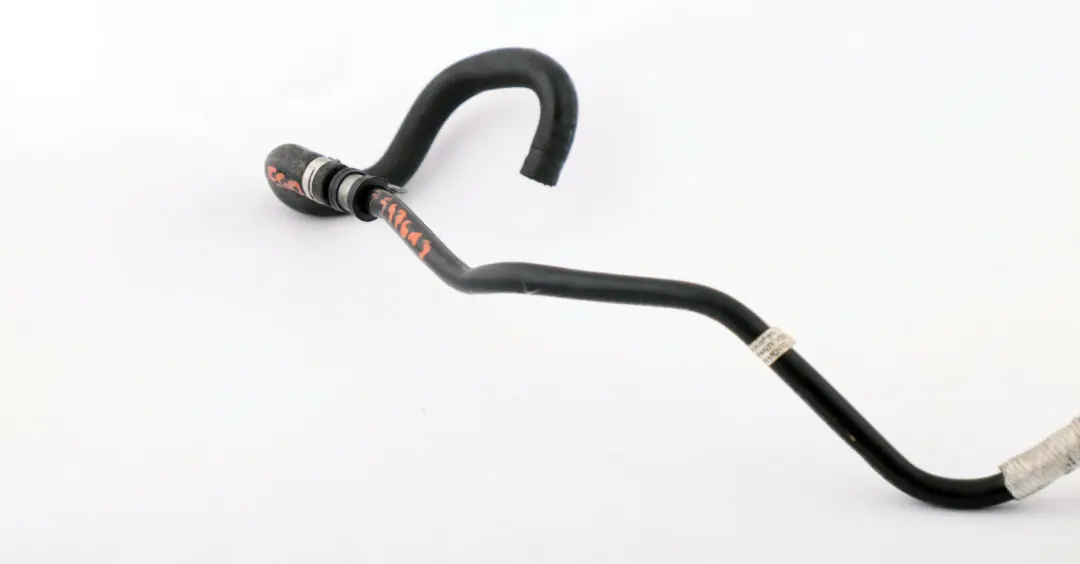

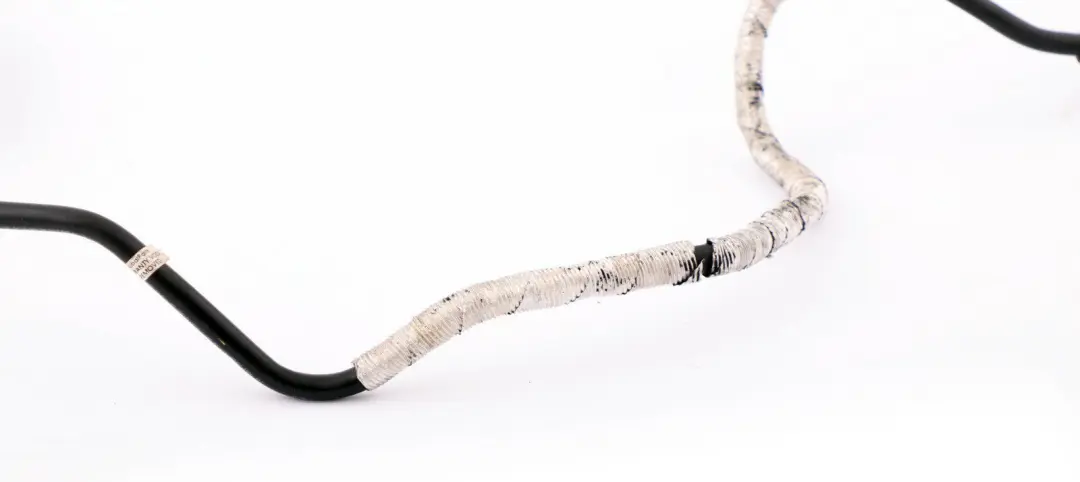

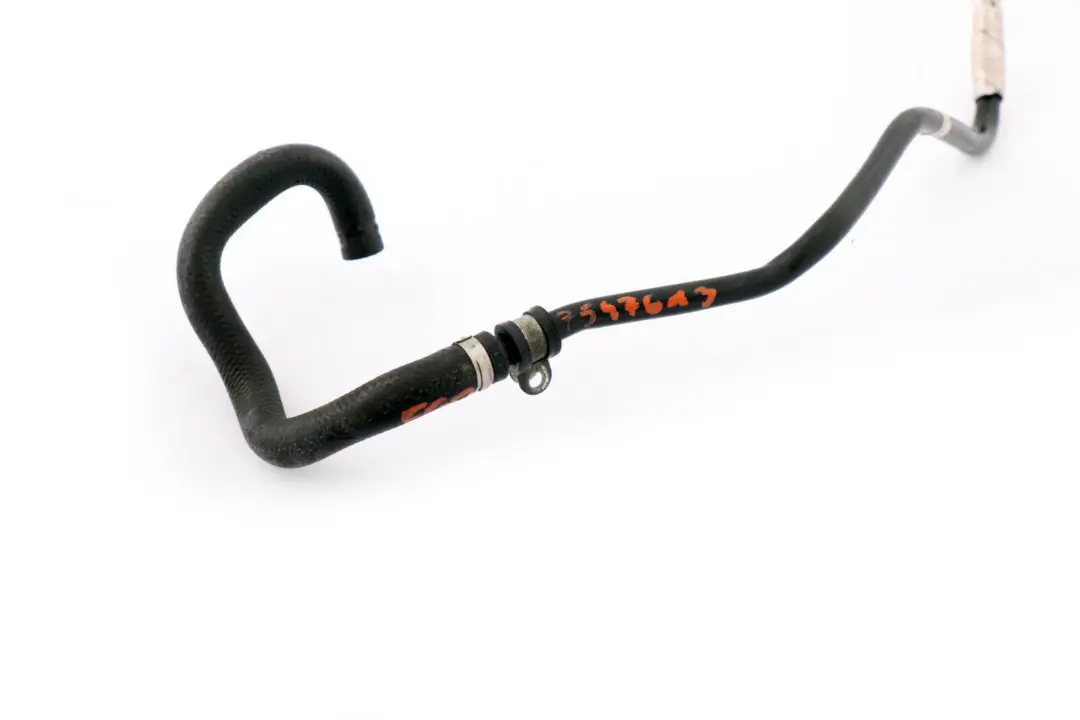

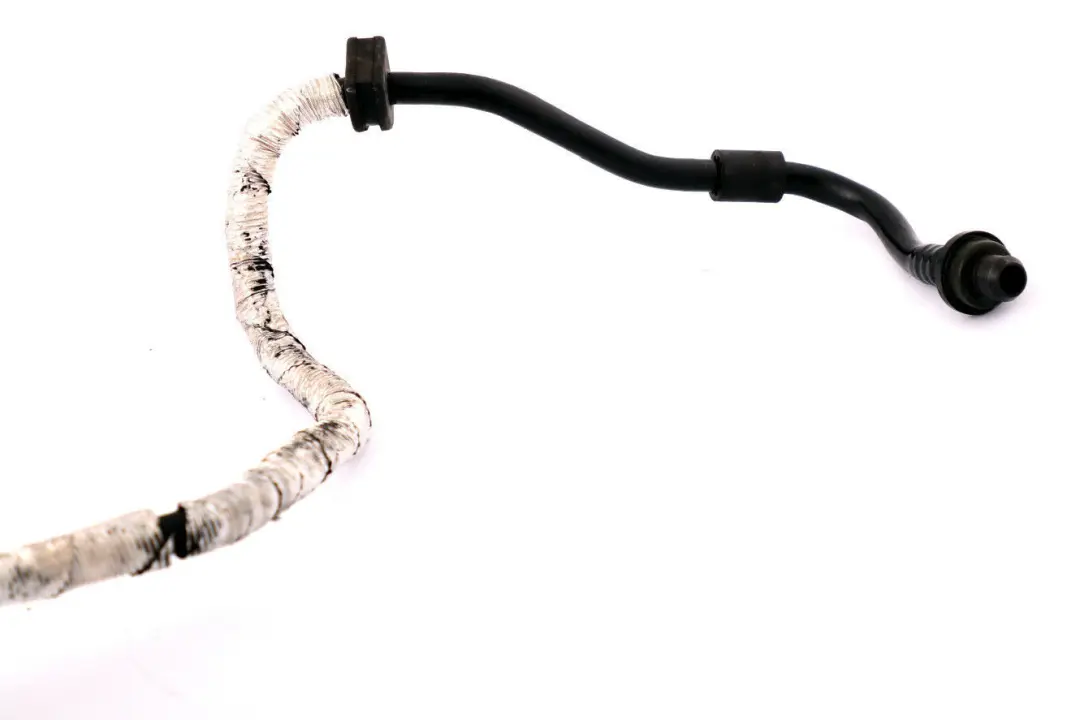

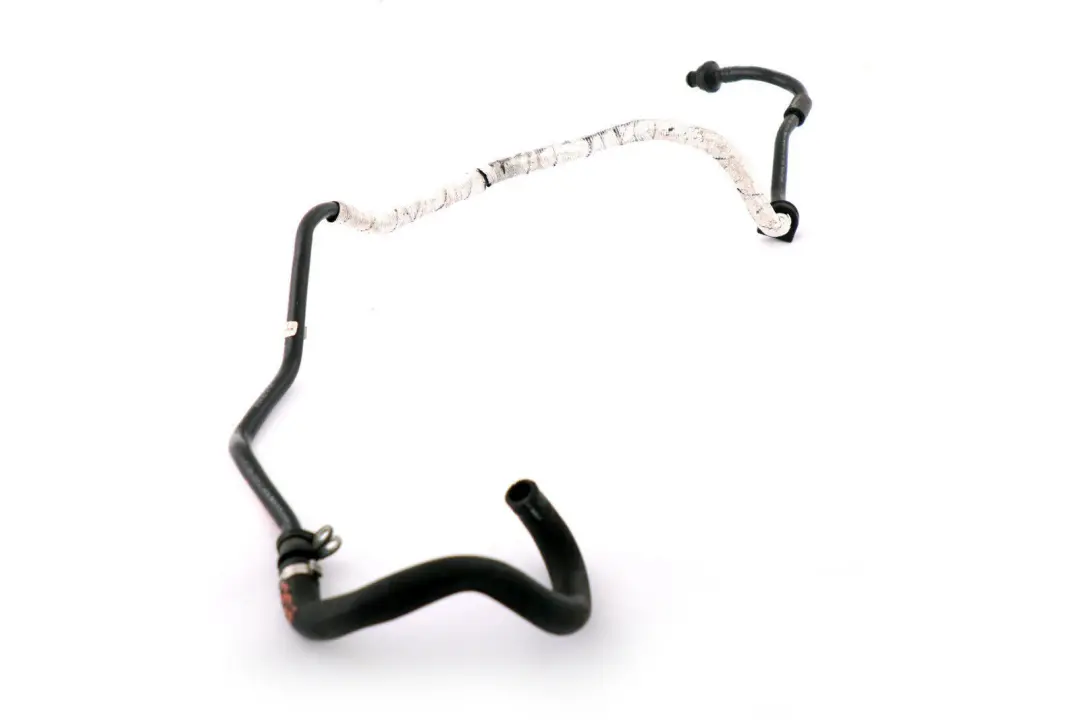

BMW 5 Series E60 E60N E61 LCI M47N2 520d Brake Servo Hose Pipe 7547613

BMW 5 Series E60 E60N E61 LCI M47N2 520d Brake Servo Hose Pipe is an original vacuum system component responsible for stable brake assistance in your BMW. Thanks to its factory-spec geometry and precise fitment for the M47N2 engine version, it ensures correct pressure in the brake servo and predictable brake pedal response. This solution is designed for users who expect consistency with the factory brake system design and want to maintain the original routing of hoses in the engine bay.

Specifications and technical data

• SKU: 7547613
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7547613
• Substitutable numbers: 34337547613, 7547613
• Category: Hoses, Lines & Pipes

Purpose and function in the brake system

The offered brake servo hose is a component of the vacuum system in BMW 5 Series E60, E60N, and E61 LCI models with the M47N2 520d engine. Its task is to safely deliver vacuum from the engine to the brake servo, which translates into lighter pedal operation and stable, repeatable brake performance in daily use.

Thanks to its dedicated shape and factory connectors, the hose allows for maintaining the original installation path in the engine bay, minimizing the risk of rubbing against other components, leaks, or incorrect positioning. This is particularly important in cars with a densely packed engine bay, where every brake system component must be precisely fitted.

Construction and fitment for BMW 5 Series

The hose belongs to the Hoses, pipes and lines group, meaning it was designed as part of the transmission installation in the brake system. The construction is based on a rigid pipe and/or flexible sections, selected for resistance to vacuum and the temperatures present in the M47N2 engine bay.

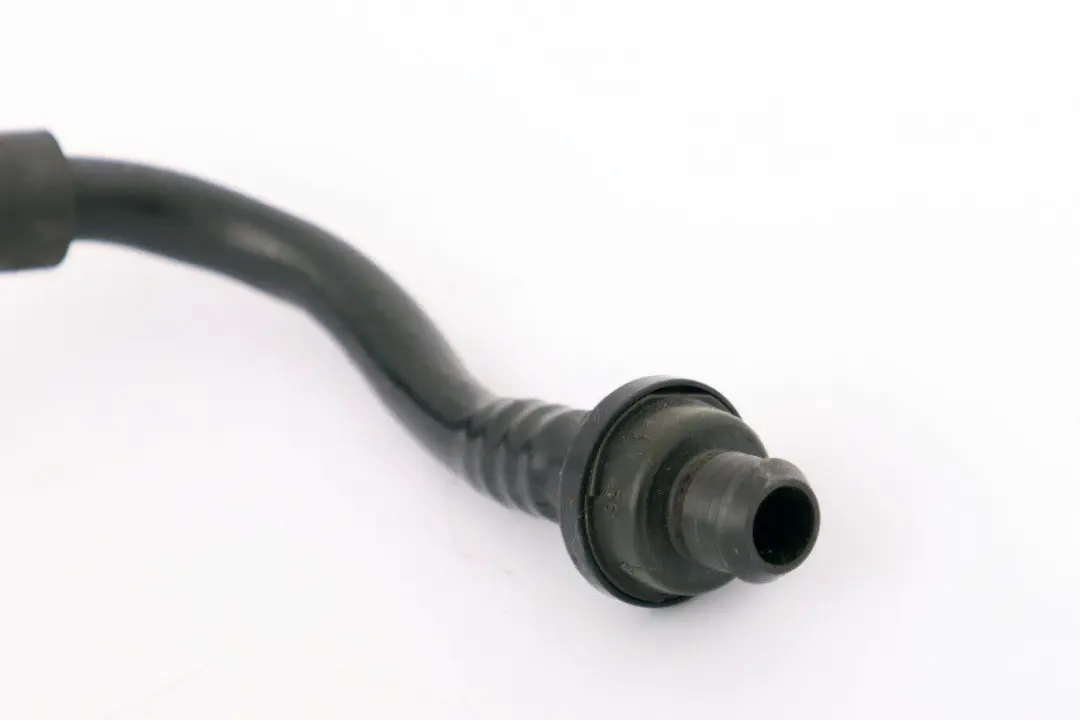

The original connectors and hose ends are adapted to the factory servo ports and vacuum source, which facilitates installation and reduces the need for additional modifications. As a result, this component works well both for standard replacement of a worn hose and for comprehensive brake system maintenance in a BMW 520d.

Benefits of using an original servo hose

Using an original BMW brake servo hose allows you to maintain brake system performance parameters in accordance with the manufacturer's specifications. Key advantages include:

• factory fitment for E60, E60N, and E61 LCI models with the M47N2 520d engine,
• correct hose routing in the engine bay, reducing the risk of mechanical damage,
• maintaining stable brake assistance under typical operating conditions,
• easier diagnostics and service of the brake system thanks to the use of a component compliant with BMW documentation.

For users who want to keep their car in a configuration close to the factory state, choosing an original brake servo hose is a safe and technically consistent solution with the rest of the system.

Component condition and service application

The offered hose comes from the BMW parts group and is intended for reinstallation in vehicles where the existing component has worn out, suffered mechanical damage, or shows signs of leaks. Replacing the brake servo hose is recommended, among other situations, when the driver feels a clear increase in the force required to press the brake pedal or when disturbing noises appear near the servo.

Due to its specific fitment for the M47N2 unit and the 5 Series body, the hose is a practical solution for workshops specializing in the BMW brand and for users servicing their own cars who expect parts compliant with factory technical documentation.
