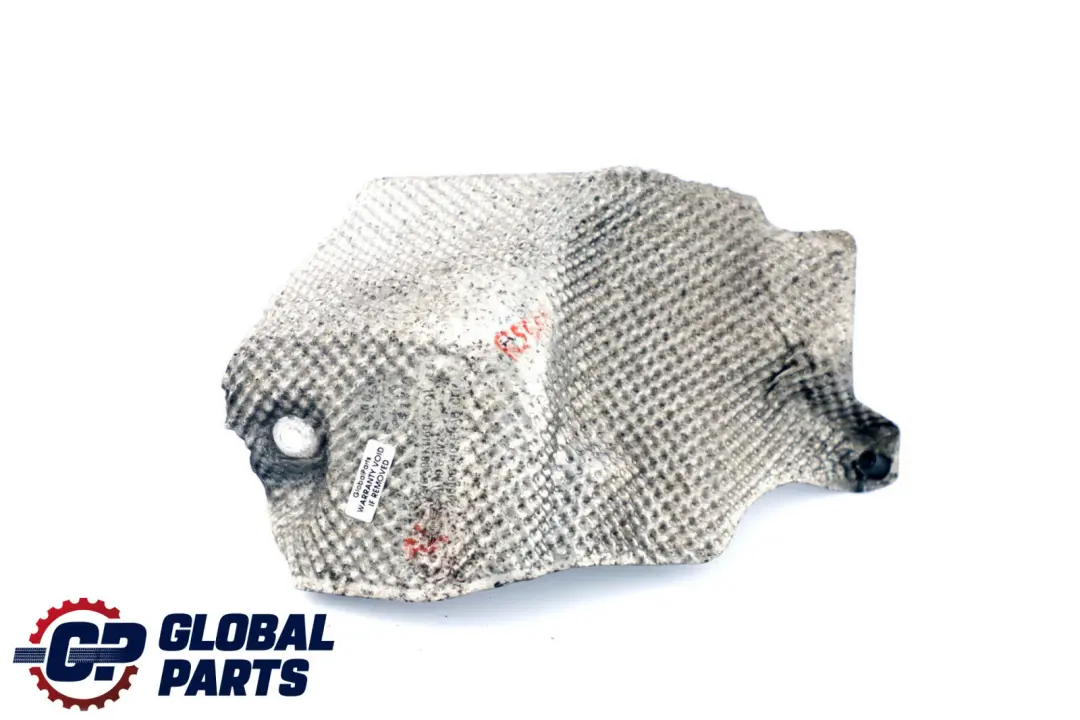

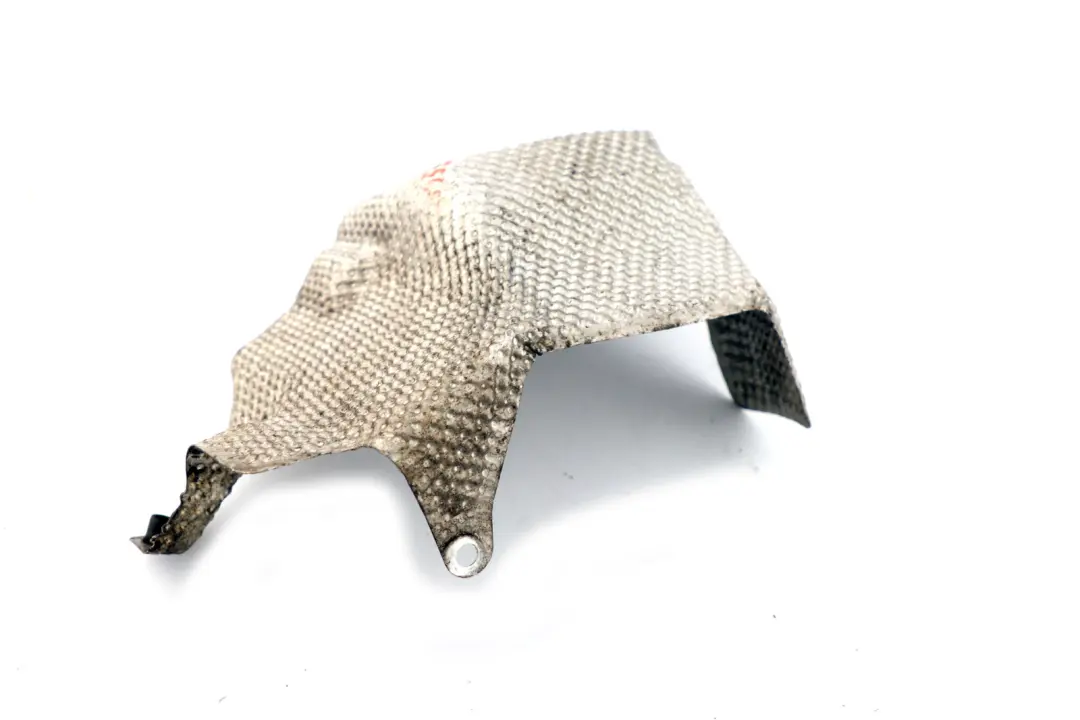

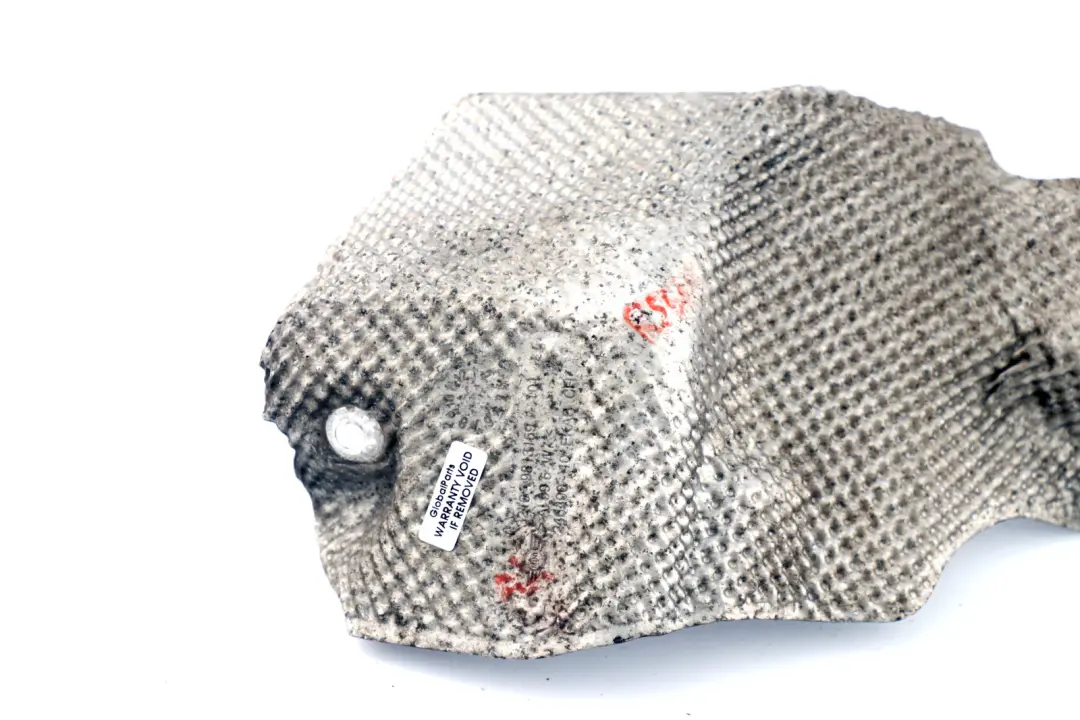

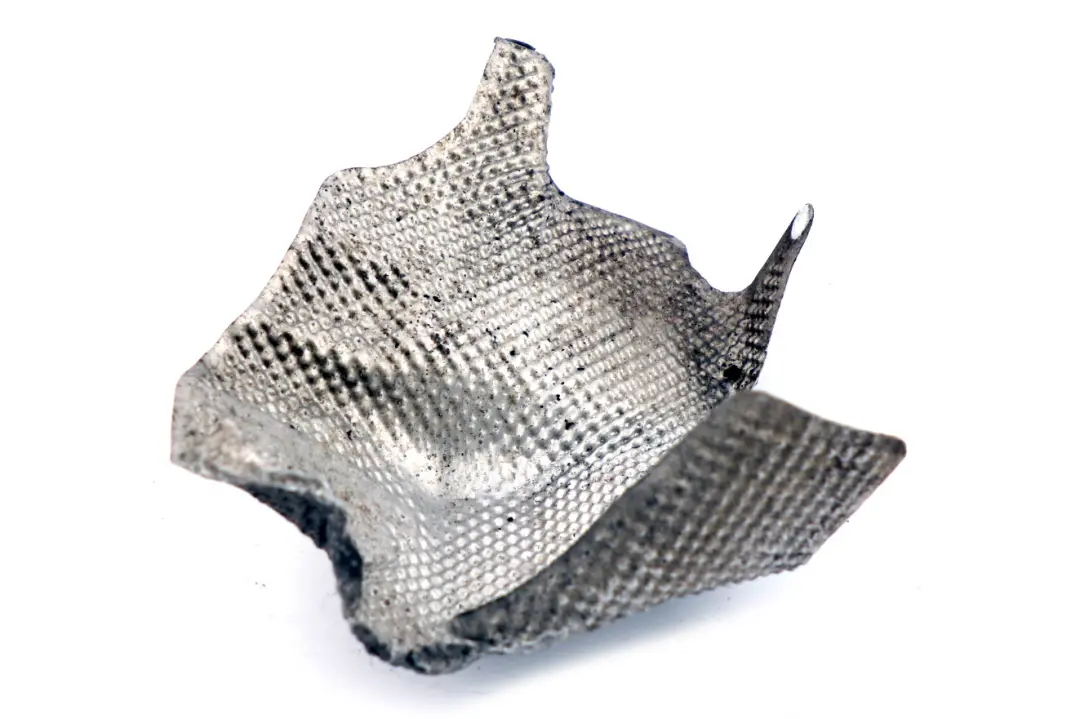

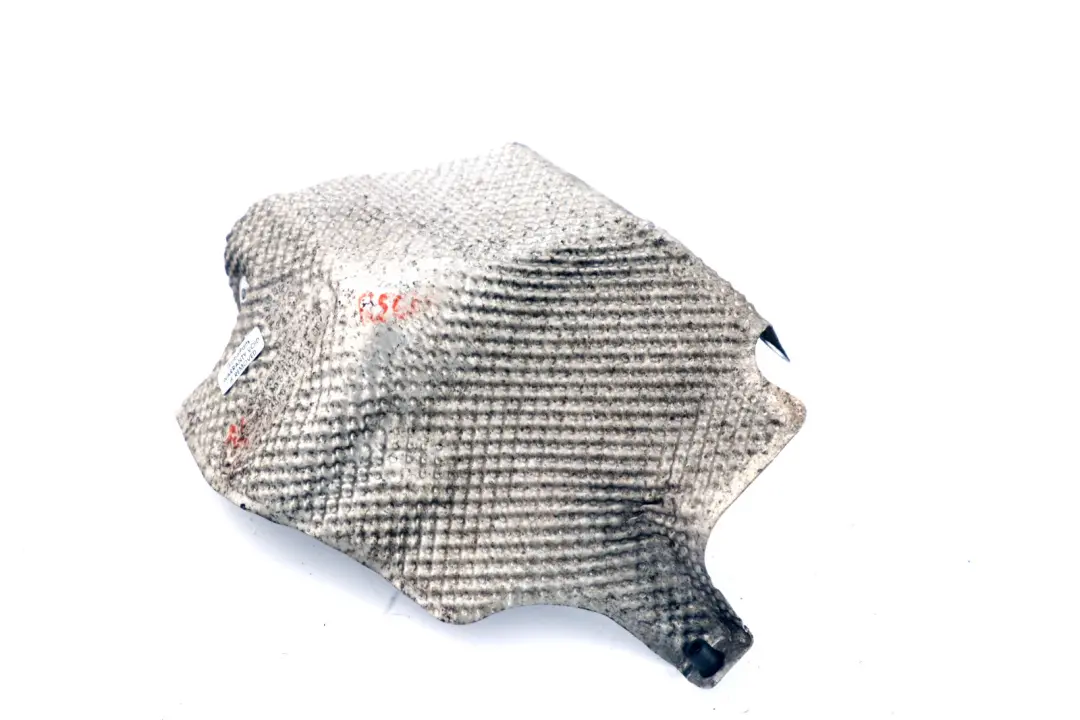

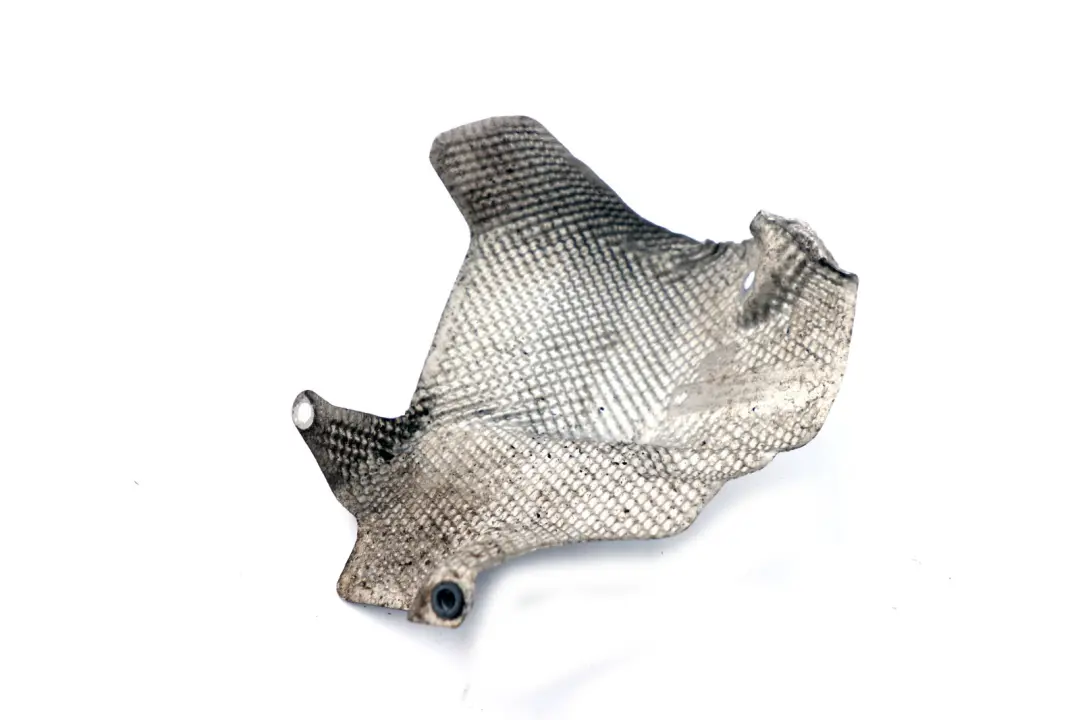

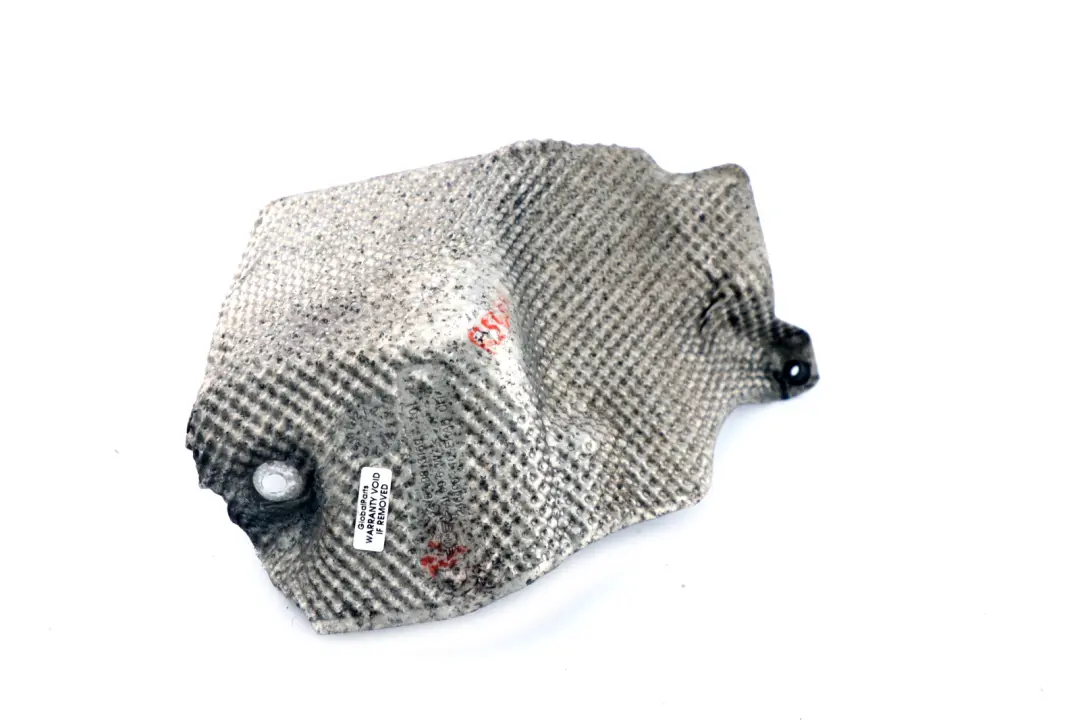

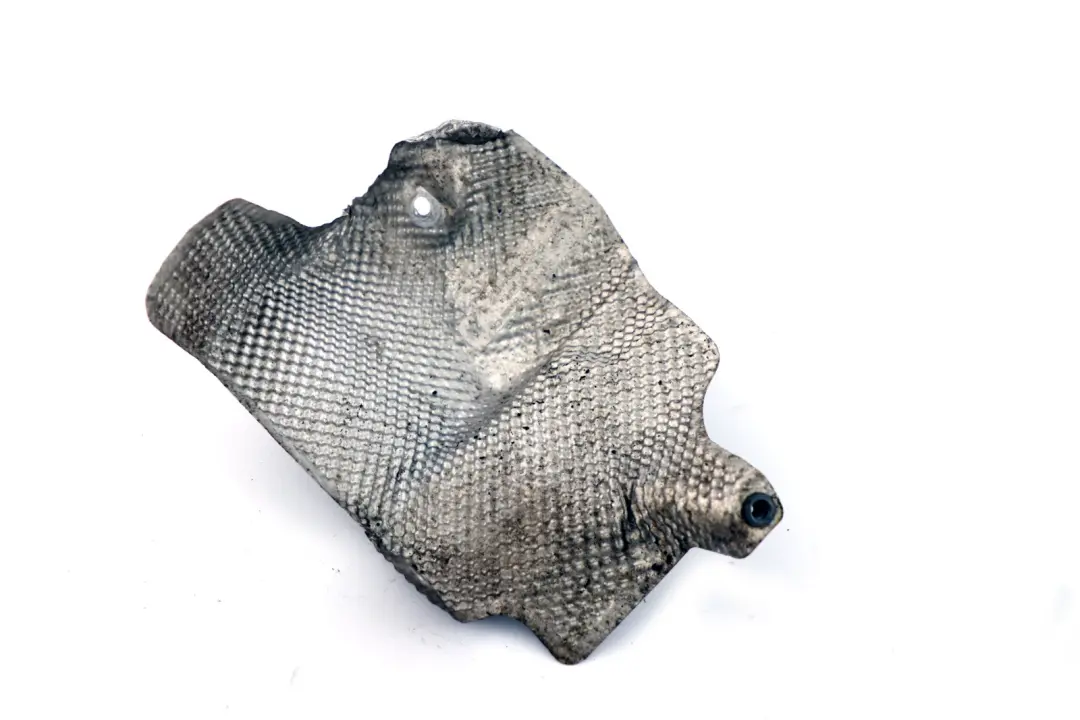

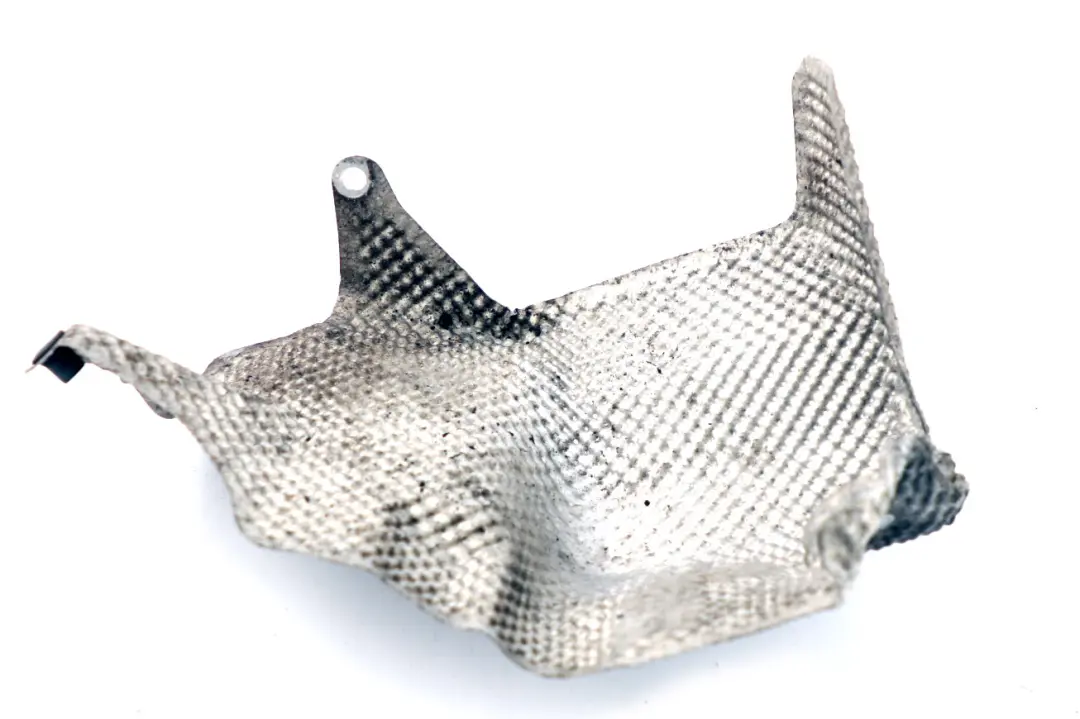

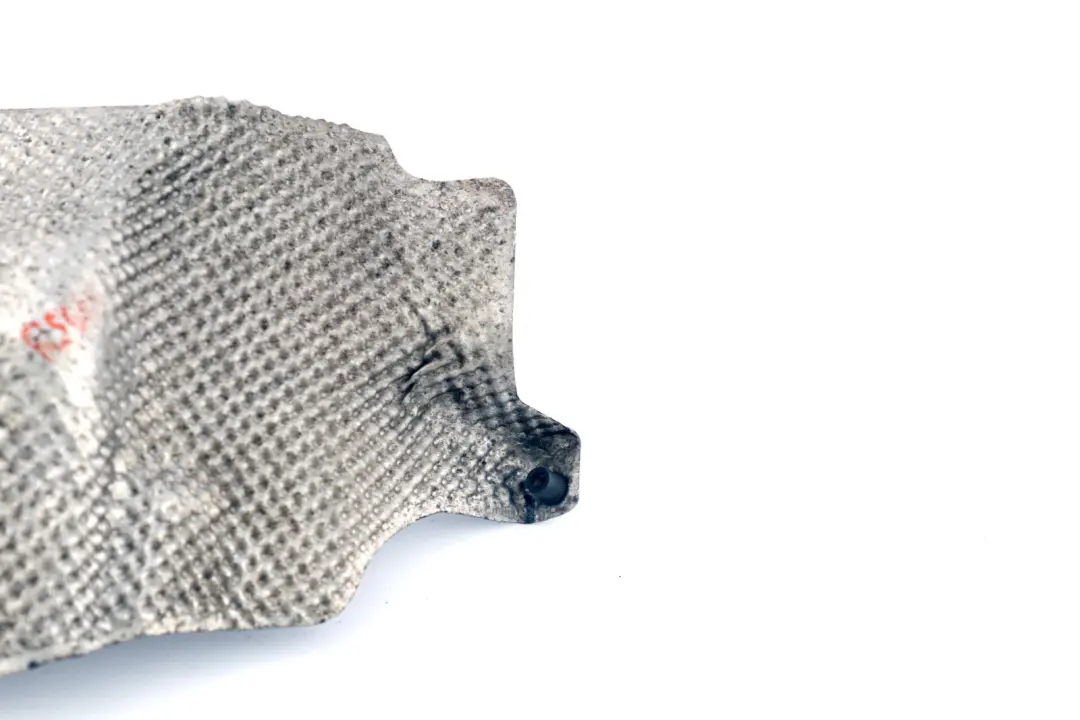

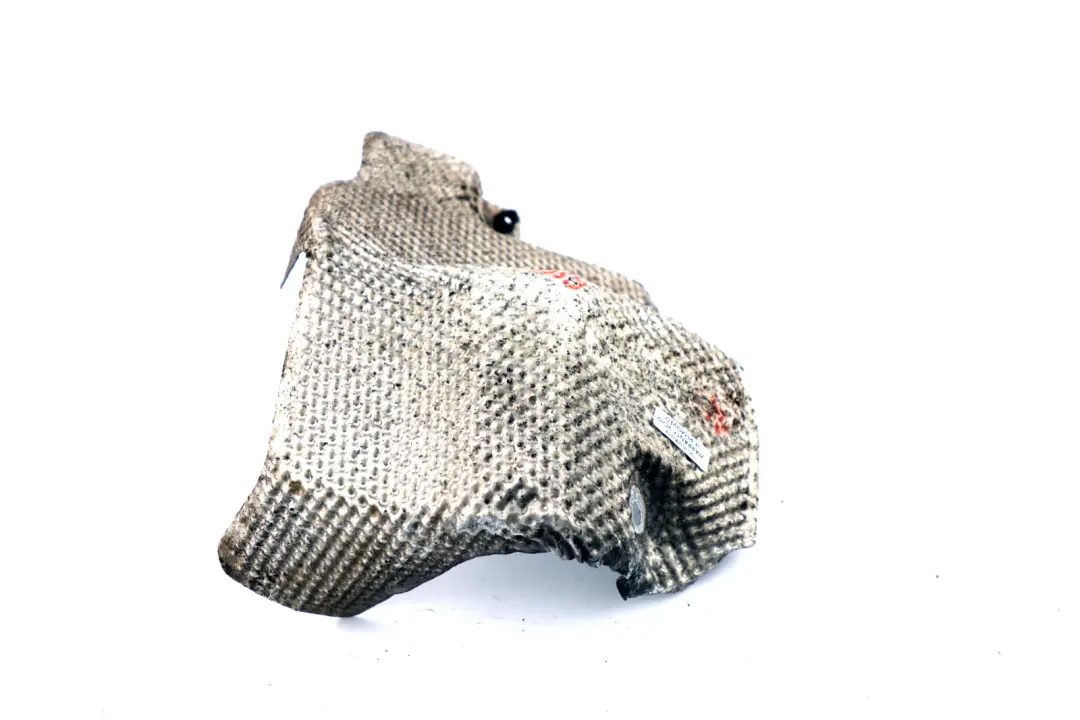

Mini Cooper D R56 LCI R60 N47N Steering Box Heat Shield Resistant Plate 9813159

The Mini Cooper D R56 LCI / R60 Steering Gear Heat Shield is a precisely designed, used protective plate intended for effective thermal shielding of the steering rack in vehicles with the N47N diesel engine. This component belongs to the Heat Shields, Connectors, and Sleeves group, ensuring stable operating conditions for the steering system in close proximity to hot powertrain components.

Specifications and technical data

• SKU: rhd-9813159
• Mark: Mini (Genuine OE)
• Condition: Used

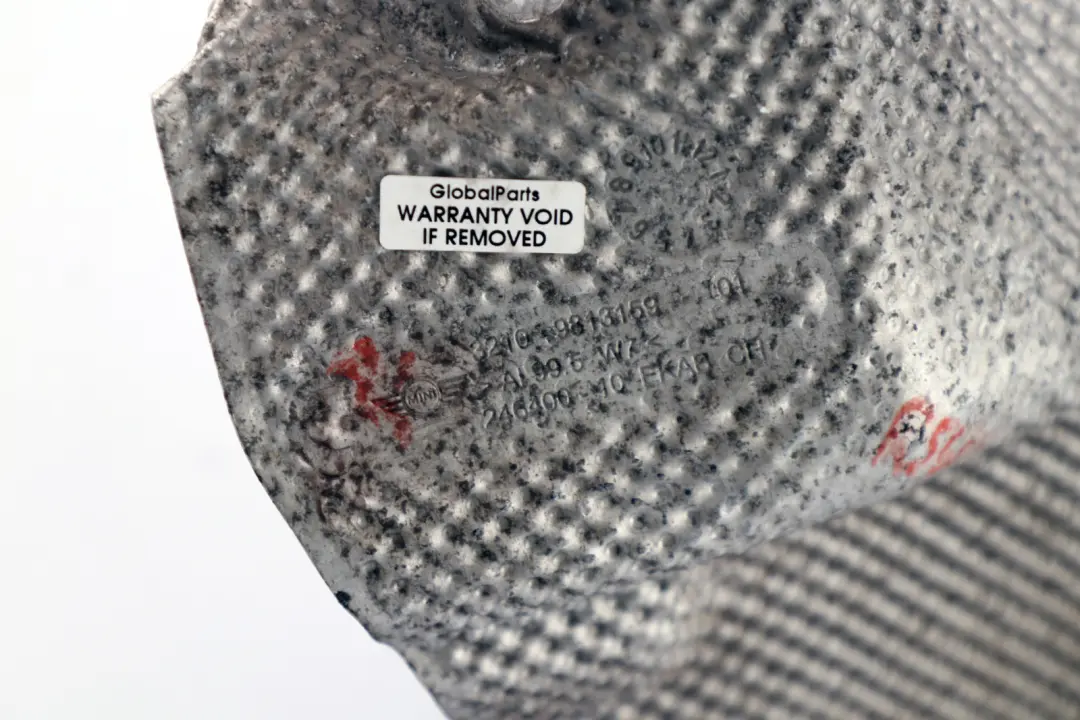

• OEM Part Number: 9813159
• Substitutable numbers: 32109813159, 9813159
• Category: Heat Shields, Wraps & Sleeves

Purpose and Function of the Heat Shield

The presented steering gear heat shield has been specifically developed for Mini Cooper D R56 LCI and R60 models with the N47N engine, where the steering system operates under demanding temperature conditions. The plate acts as a barrier between hot exhaust and drivetrain components and the steering gear, limiting heat transfer to sensitive mechanical components.

Thanks to its appropriately shaped surface and factory mounting points, the shield helps maintain a stable operating temperature for the steering rack, which promotes the preservation of lubricating properties, reduces the risk of overheating seals, and supports long-term, consistent steering system performance in daily use.

Construction, Fit, and Installation

The shield is part of the protective elements installed in the engine bay, designed for specific Mini body styles and powertrains. The shape of the plate is adapted to the geometry of the steering gear and adjacent components, which facilitates its correct positioning and minimizes the risk of collision with other elements.

The solution is intended for installation in factory mounting points, which allows for:

• maintaining the original geometry of the shield's placement relative to the steering gear,
• consistency with other heat shields in the engine bay,
• reduction of vibrations and unwanted resonances during driving.

As a component from the Heat Shields, Connectors, and Sleeves group, the shield works in conjunction with other heat shields, creating a cohesive thermal protection system in the steering and drivetrain area.

Benefits of Using an Original Mini Shield

Using the factory steering gear heat shield in a Mini Cooper D R56 LCI / R60 offers a range of practical operational benefits:

• Enhanced Steering Gear Protection – limiting the direct impact of high temperatures on the steering rack housing and sealing elements.
• More Stable System Operation – supporting consistent steering system performance over the long term.
• Compatibility with Factory Mini Solutions – maintaining the original heat management and airflow concept within the engine bay.
• Installation Consistency – fitting factory brackets and adjacent shields without the need for modifications.

This used part allows for an economical replacement of a missing or damaged shield while preserving the original design and intended purpose as specified by the manufacturer.

Part Selection by Mini Designations

The Mini steering gear heat shield is an original manufacturer component, which simplifies selection based on factory designations. The product description includes both OEM part numbers and interchangeable numbers, allowing for precise verification of compatibility with your specific vehicle configuration.

Before purchasing, it is advisable to compare the shape and mounting method with the currently installed shield or consult with a mechanic to confirm the fit for your specific Mini Cooper D R56 LCI or R60 with the N47N engine. This approach minimizes the risk of error and speeds up the installation process upon part delivery.
