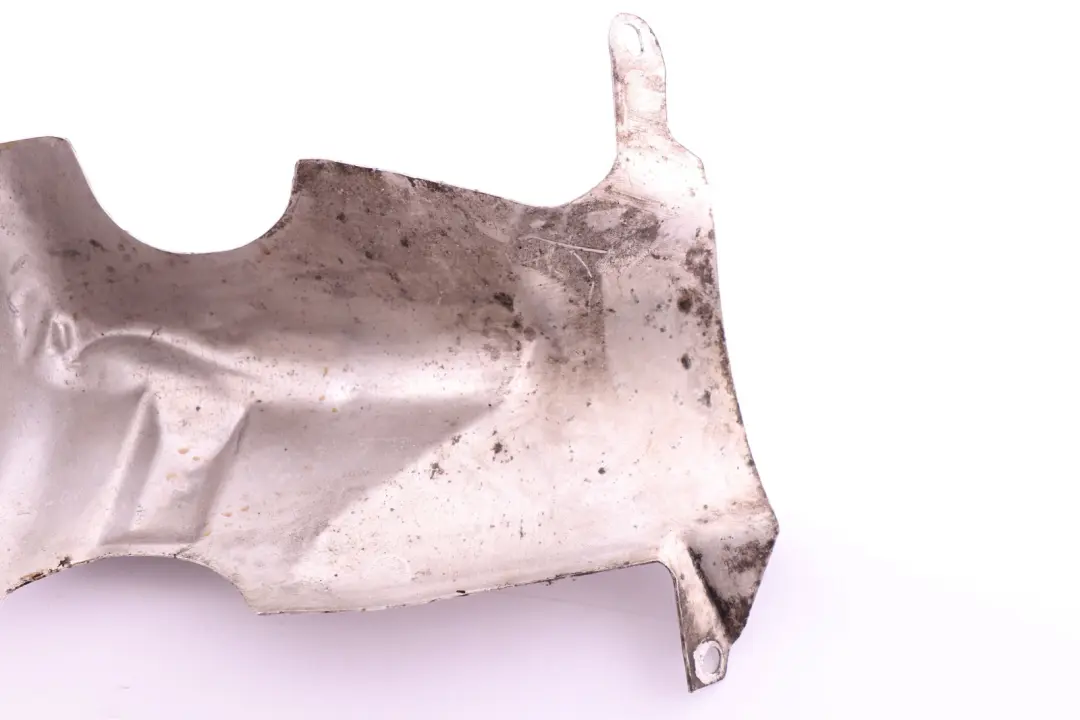

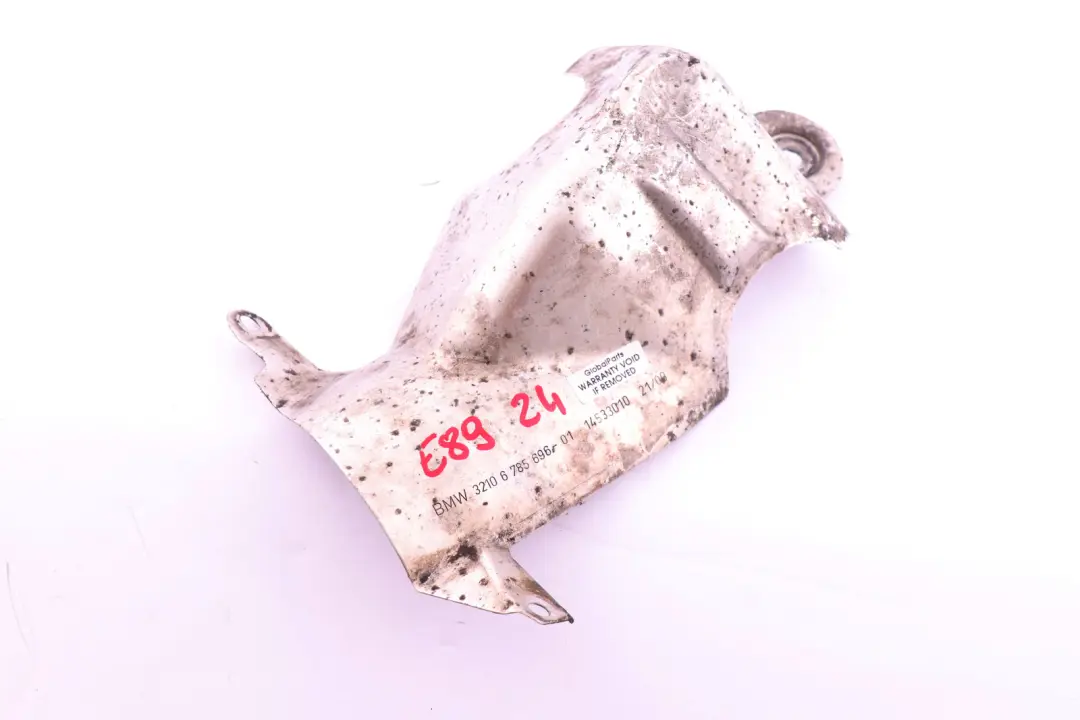

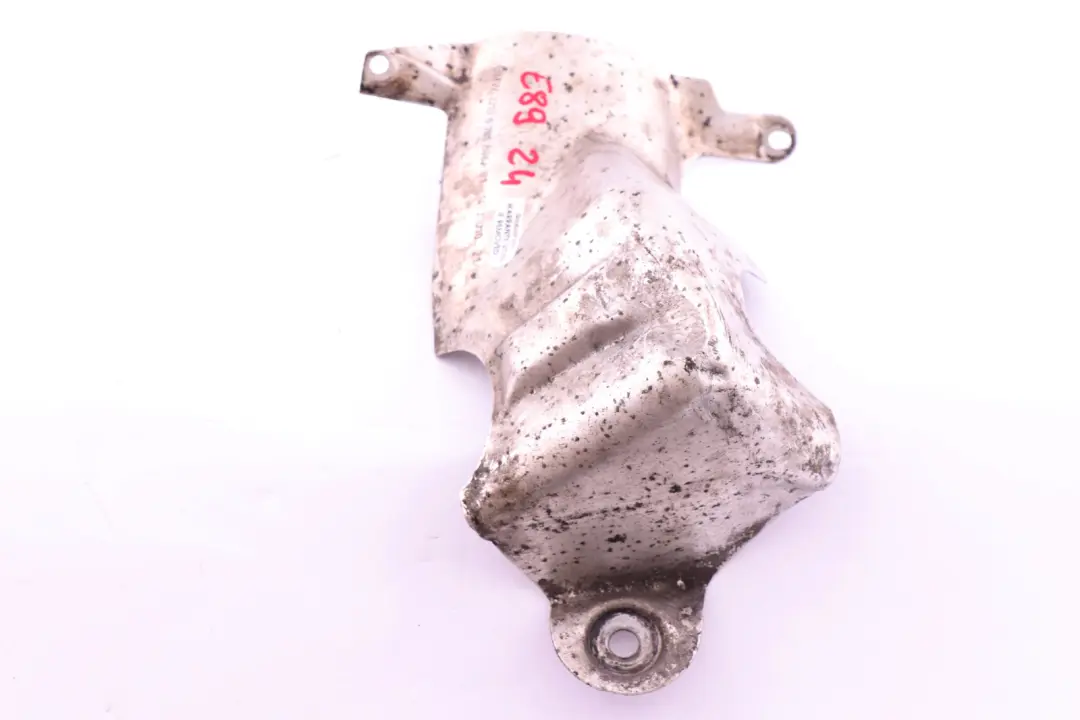

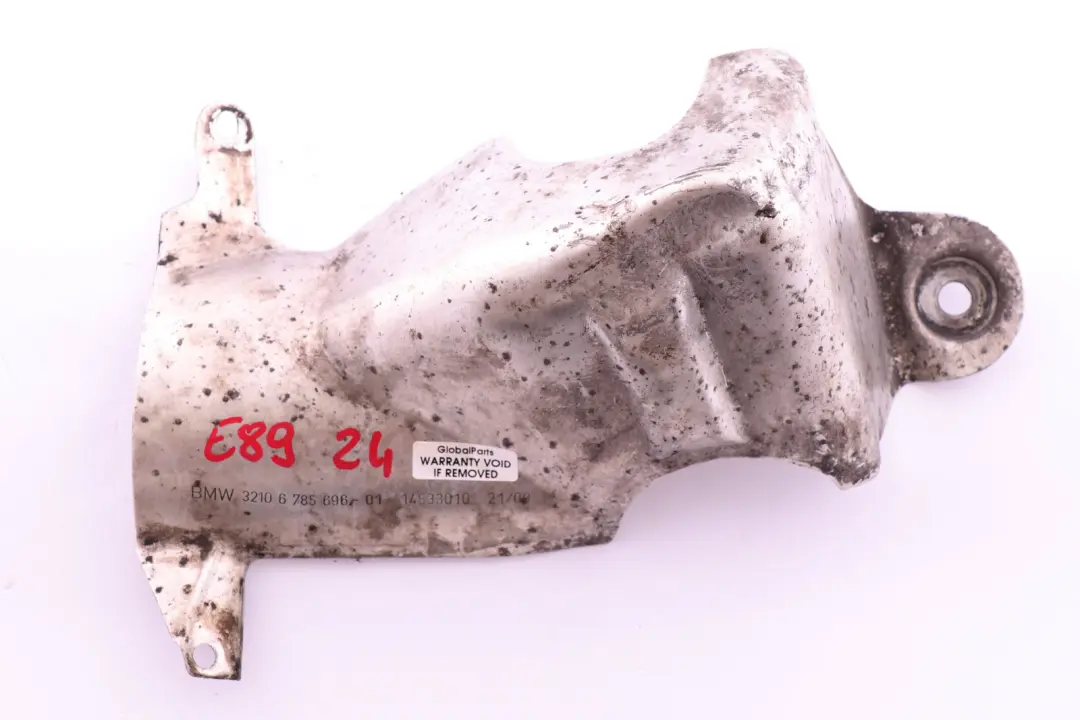

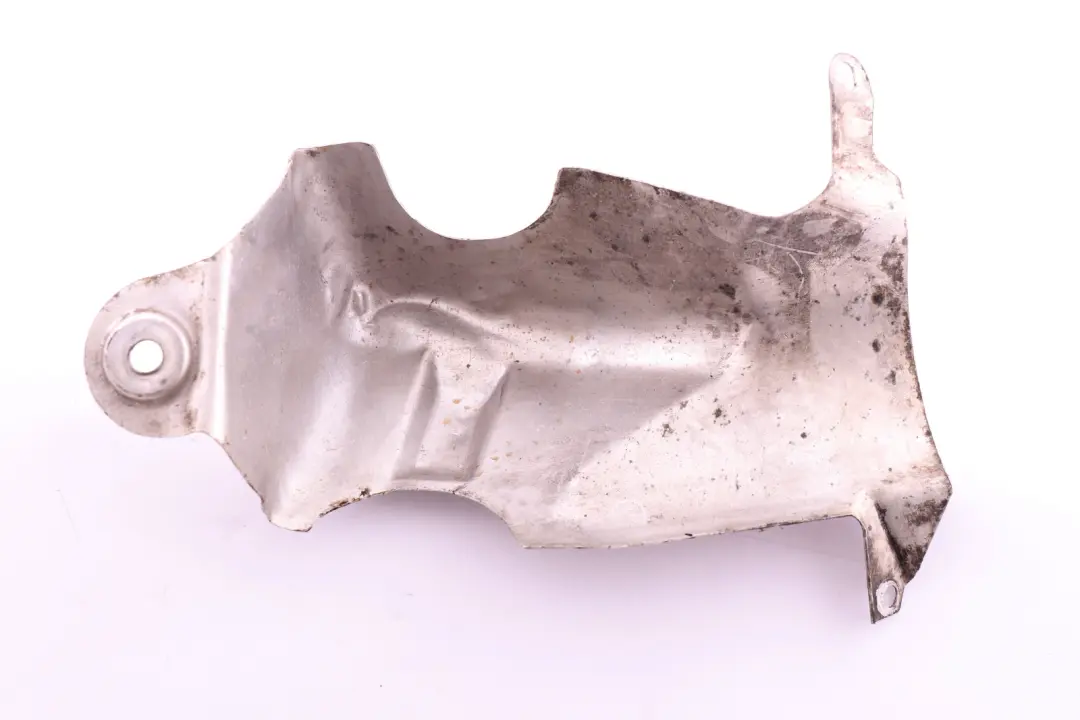

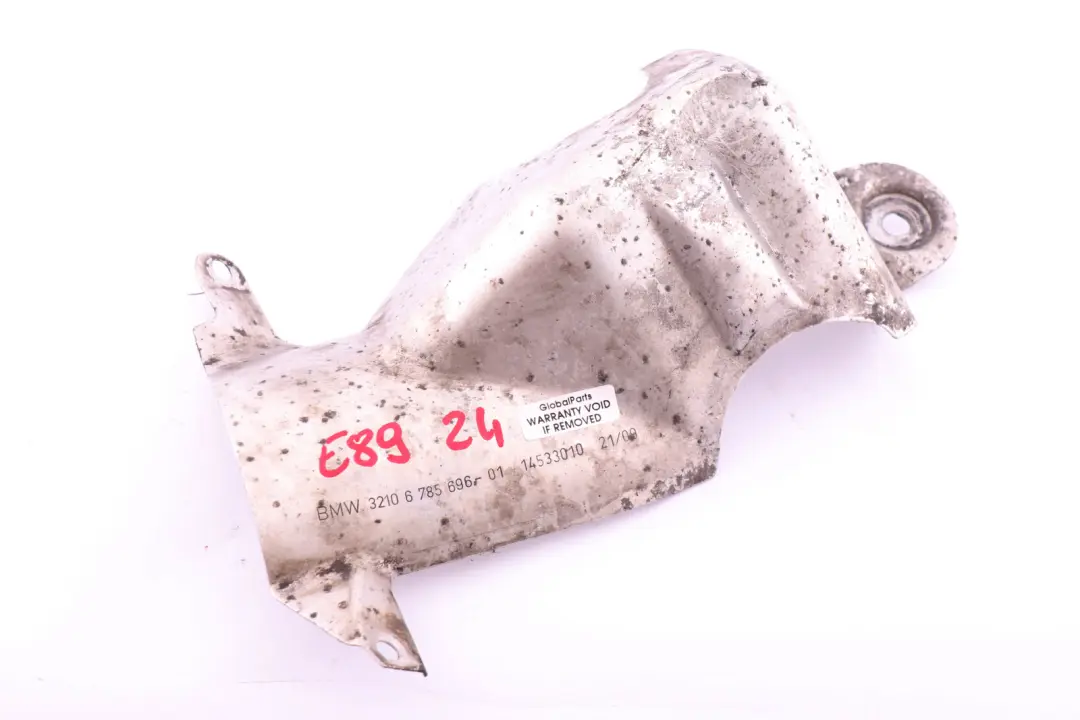

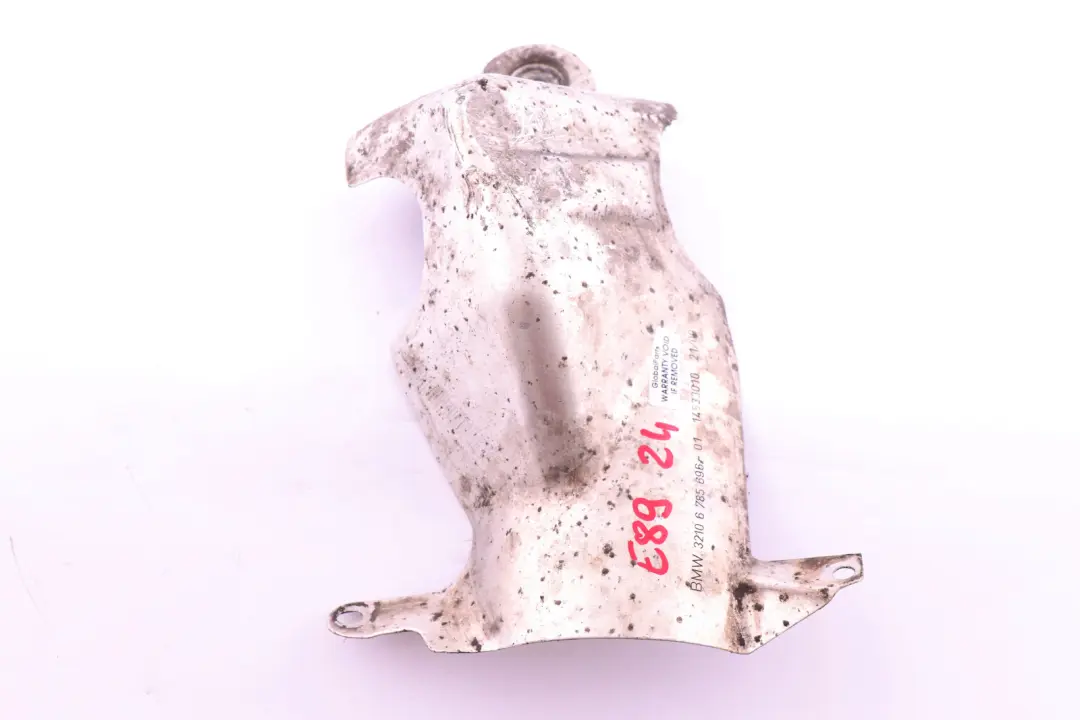

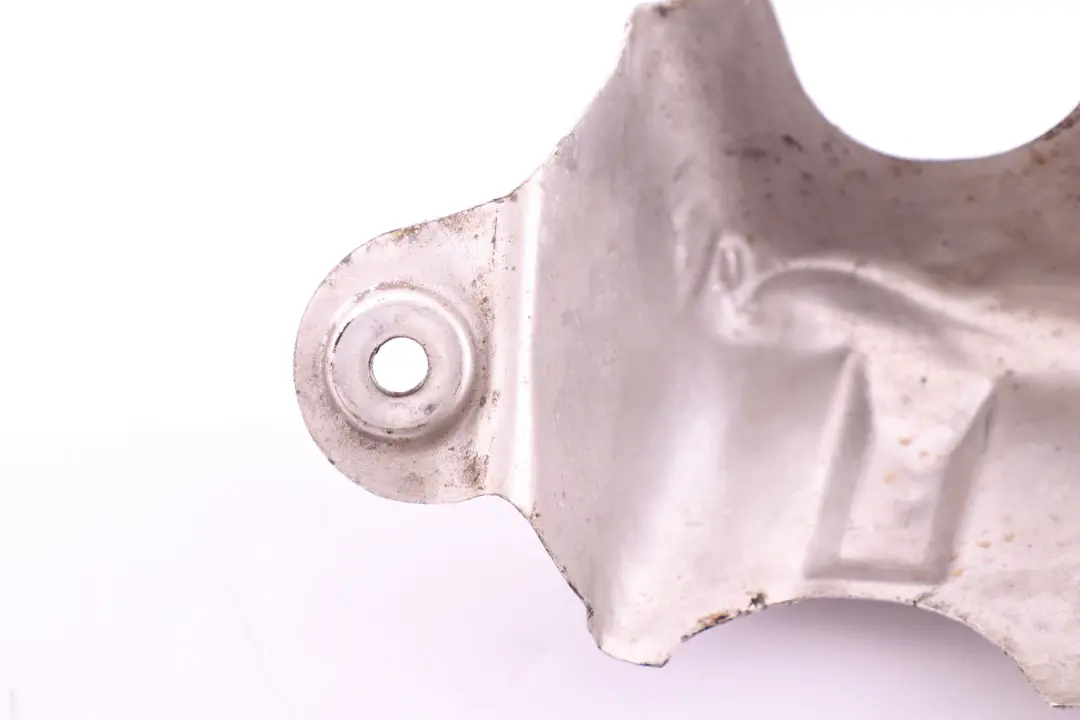

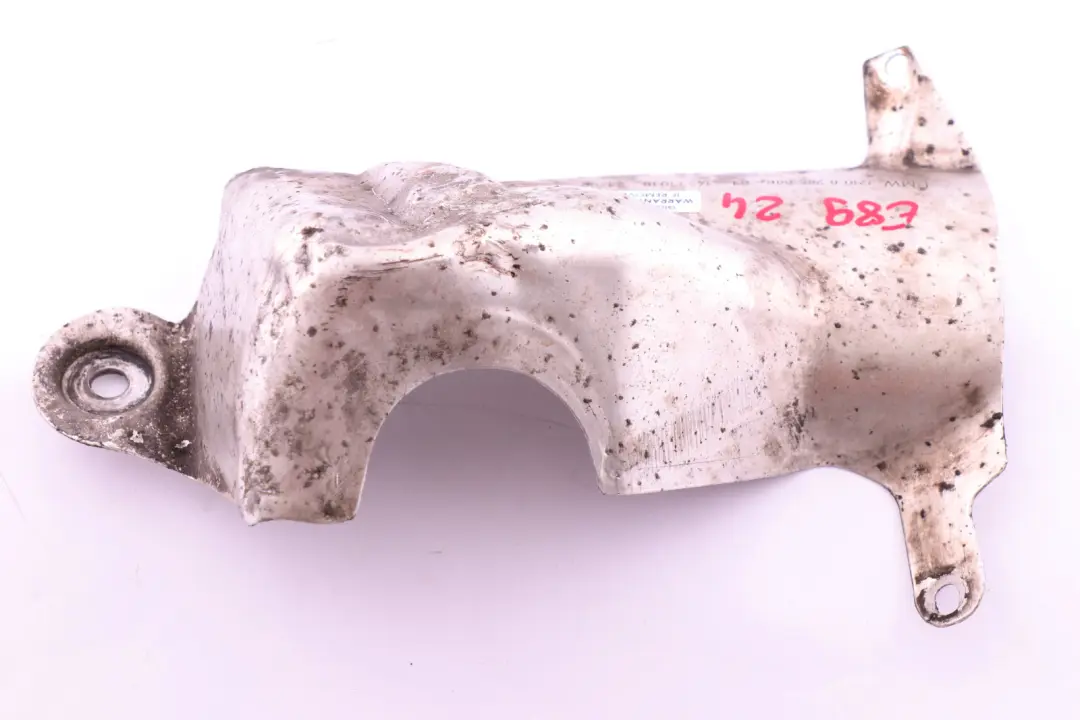

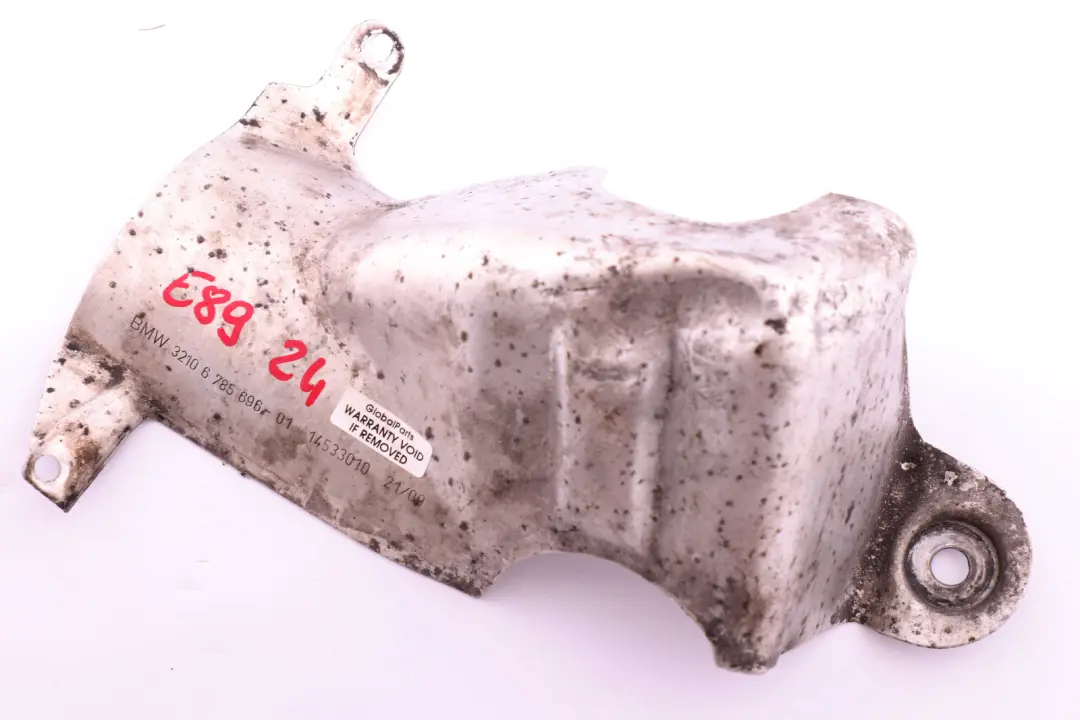

BMW Z4 Series E89 Cabrio Steering Box Heat Shield Resistant Plate 6785696

The BMW Z4 E89 Cabrio Steering Gear Heat Shield is a precisely designed, original protective plate whose task is stable thermal shielding of the steering system components. As part of the Heat Shields, Connectors, and Sleeves group, it ensures temperature control in the critical engine bay area, contributing to longer component lifespan.

Specifications and technical data

• SKU: rhd-6785696
• Mark: Mini (Genuine OE)
• Condition: Used

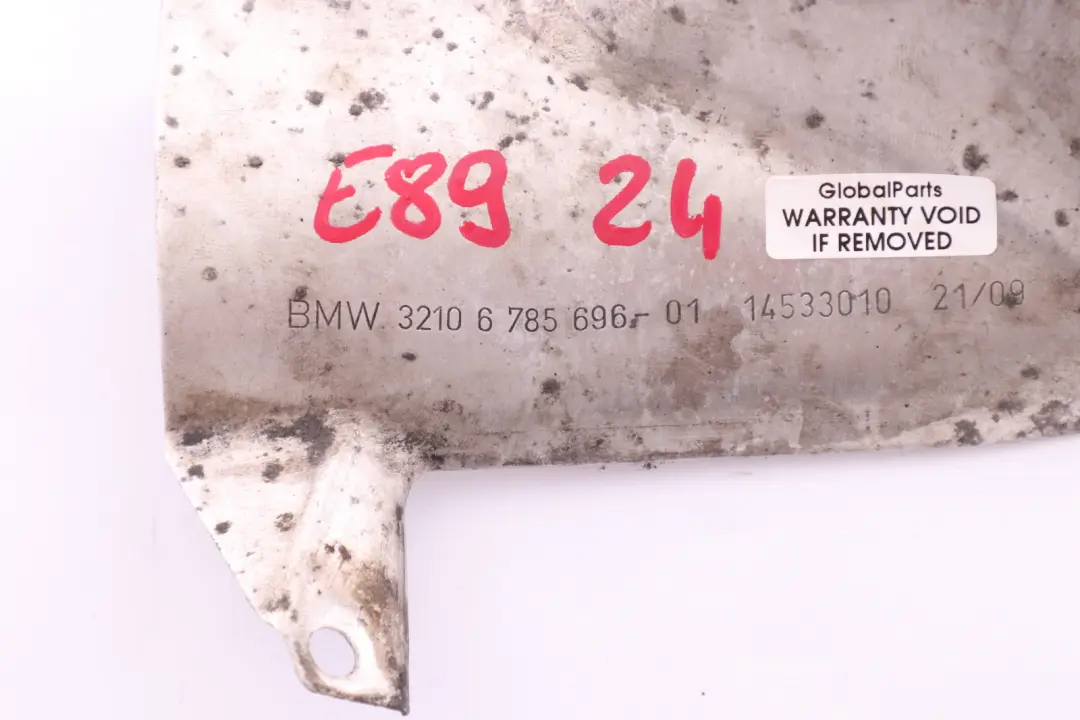

• OEM Part Number: 6785696
• Substitutable numbers: 32106785696, 6785696
• Weight: 150
• Category: Heat Shields, Wraps & Sleeves

Purpose and Function of the Heat Shield

The presented heat shield has been developed to protect the steering gear in the BMW Z4 E89 Cabrio model from the direct impact of high temperatures generated in the engine bay and around the exhaust system. A correctly installed plate limits the heating of mechanical components, which helps maintain stable operating conditions for the steering system.

Thanks to its factory geometry and precise fit for the specific body zone, the shield creates an effective thermal barrier, minimizing the risk of overheating lubricants, seals, and sensitive components near the steering gear.

Construction and Performance Properties

The BMW Z4 E89 Cabrio Steering Gear Heat Shield has a construction adapted for operation in elevated temperatures and in an environment exposed to road debris. The applied shielding material ensures:

• reflection and dissipation of heat away from the steering system,
• resistance to typical thermal loads encountered in the engine bay,
• shape stability under temperature and operating condition changes.

The appropriately shaped plate facilitates correct positioning relative to the steering gear and adjacent components, which helps maintain service clearances and does not interfere with other components.

Benefits of Using an Original Heat Shield

Using a dedicated heat shield in the BMW Z4 E89 Cabrio steering system offers a range of practical operational benefits:

• Enhanced Steering Gear Protection – limiting the impact of high temperatures on the steering gear housing, seals, and moving parts.
• Support for System Durability – more stable operating conditions contribute to maintaining steering system performance parameters over a longer period.
• Factory Fit – no need for modifications, preserving original geometry and mounting points.
• Consistency with Other Shielding Elements in the Engine Bay – easier planning for further service or upgrade work.

Item Condition and Practical Application

The offered heat shield is a used part, allowing for an economical replacement of a worn or damaged component while maintaining the original construction. This solution is particularly beneficial for steering gear repairs, reconstruction of the shielding zone in the engine bay, or work related to the exhaust system near the steering gear.

By retaining its factory shape and mounting points, installation is predictable for the mechanic, and the shield, once installed, restores the original protective function intended by the vehicle manufacturer.

Expansion of the Shielding System and Technical Knowledge

If you are planning a comprehensive repair or upgrade of the engine bay area in your Mini and require other parts from the same group, such as shields, connectors, or sleeves, check the available parts in the Mini Heat Shields, Connectors, and Sleeves category.

When selecting used shielding elements and components for steering system or thermal zone modifications, it is advisable to avoid common purchasing mistakes. Practical tips on selecting parts from the secondary market and planning modifications can be found in the article Buying Used Car Parts • Common Mistakes When Choosing Parts for Tuning, which helps you consciously prepare a service or tuning project.
