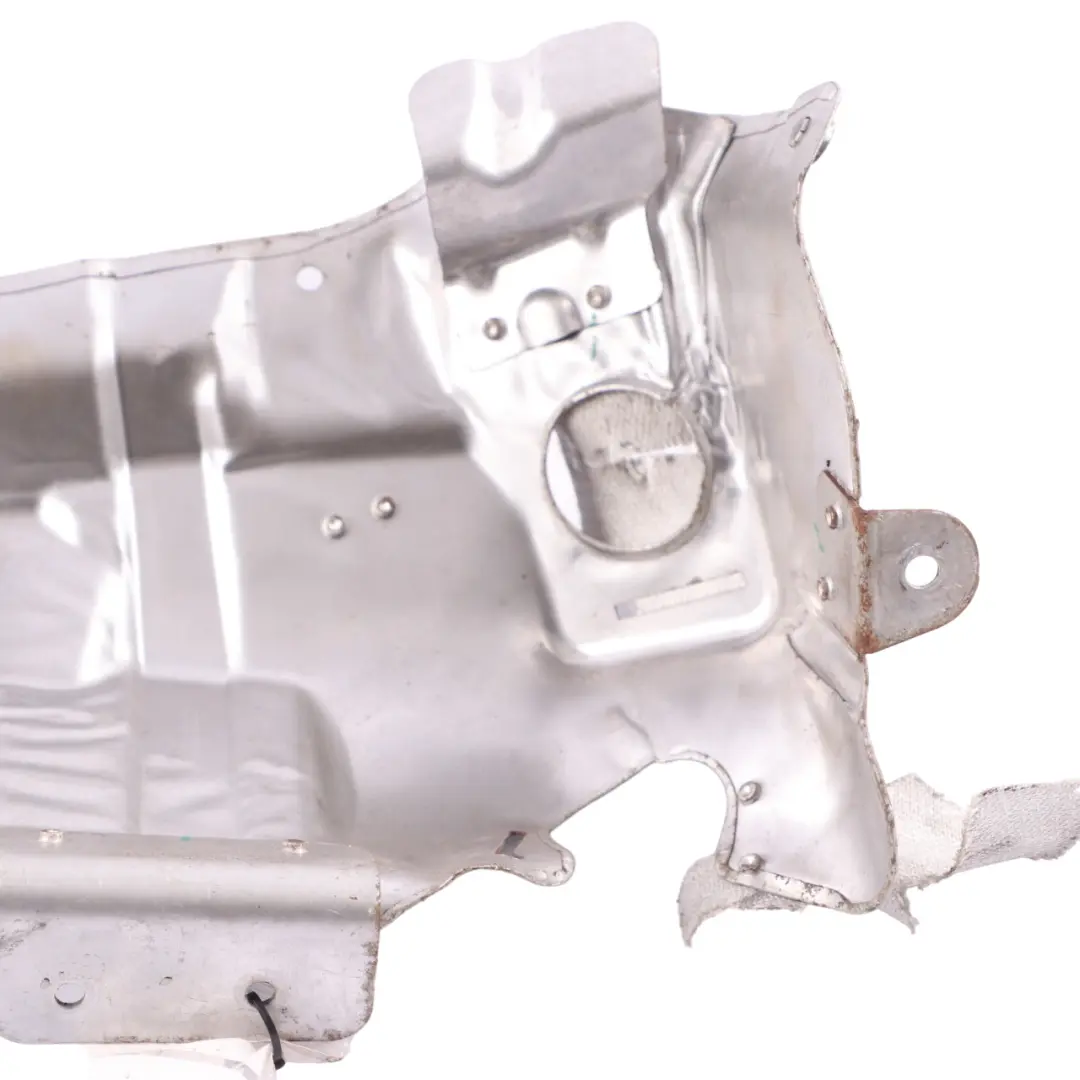

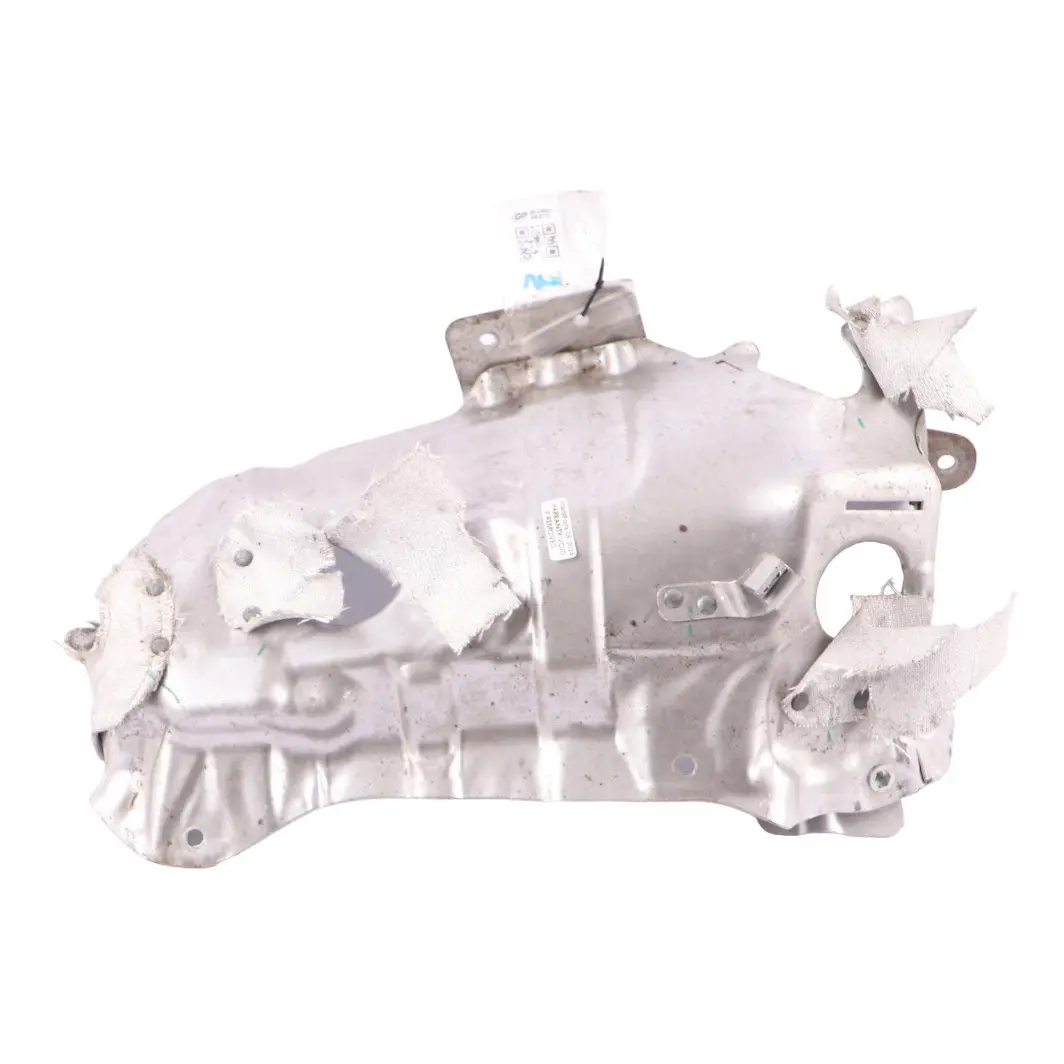

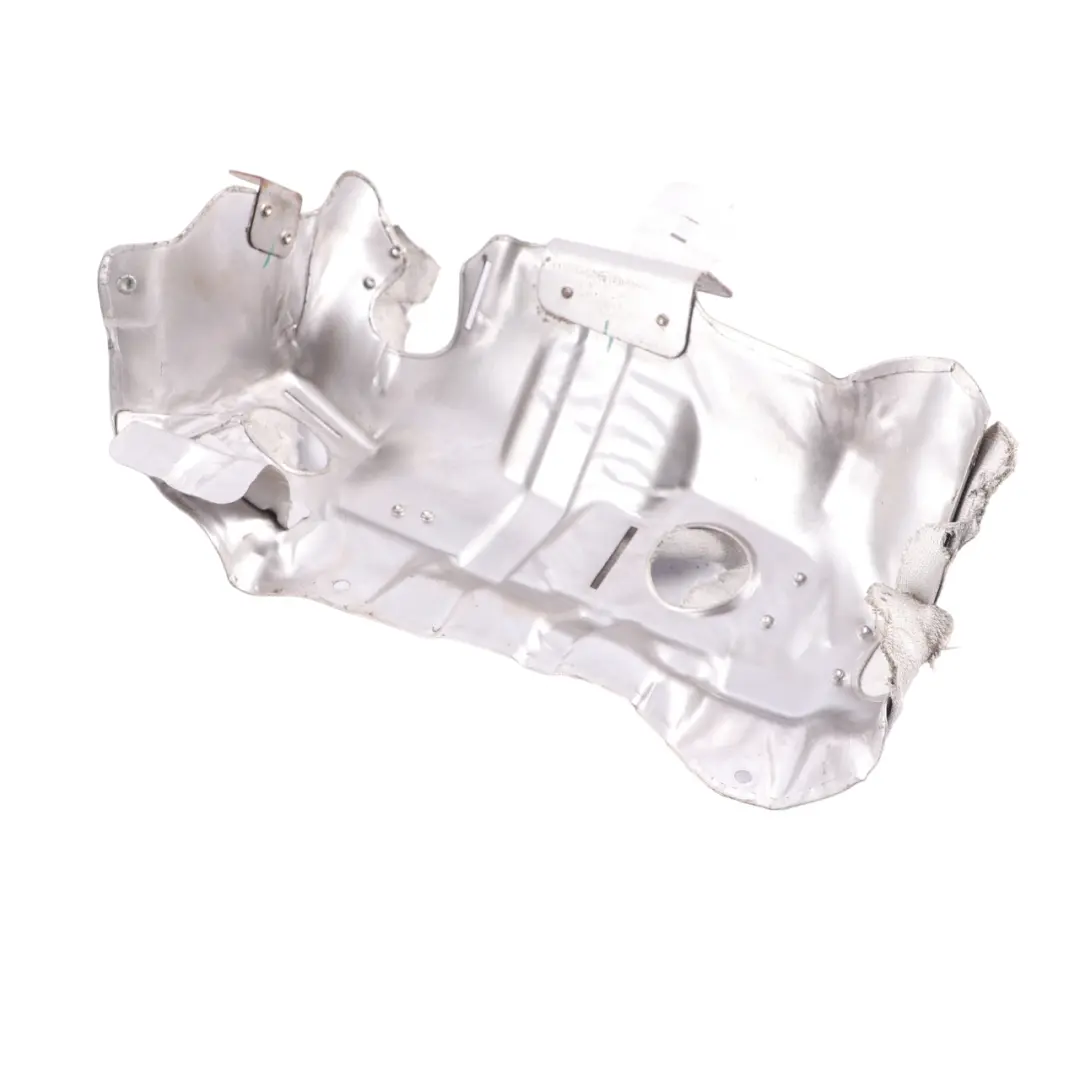

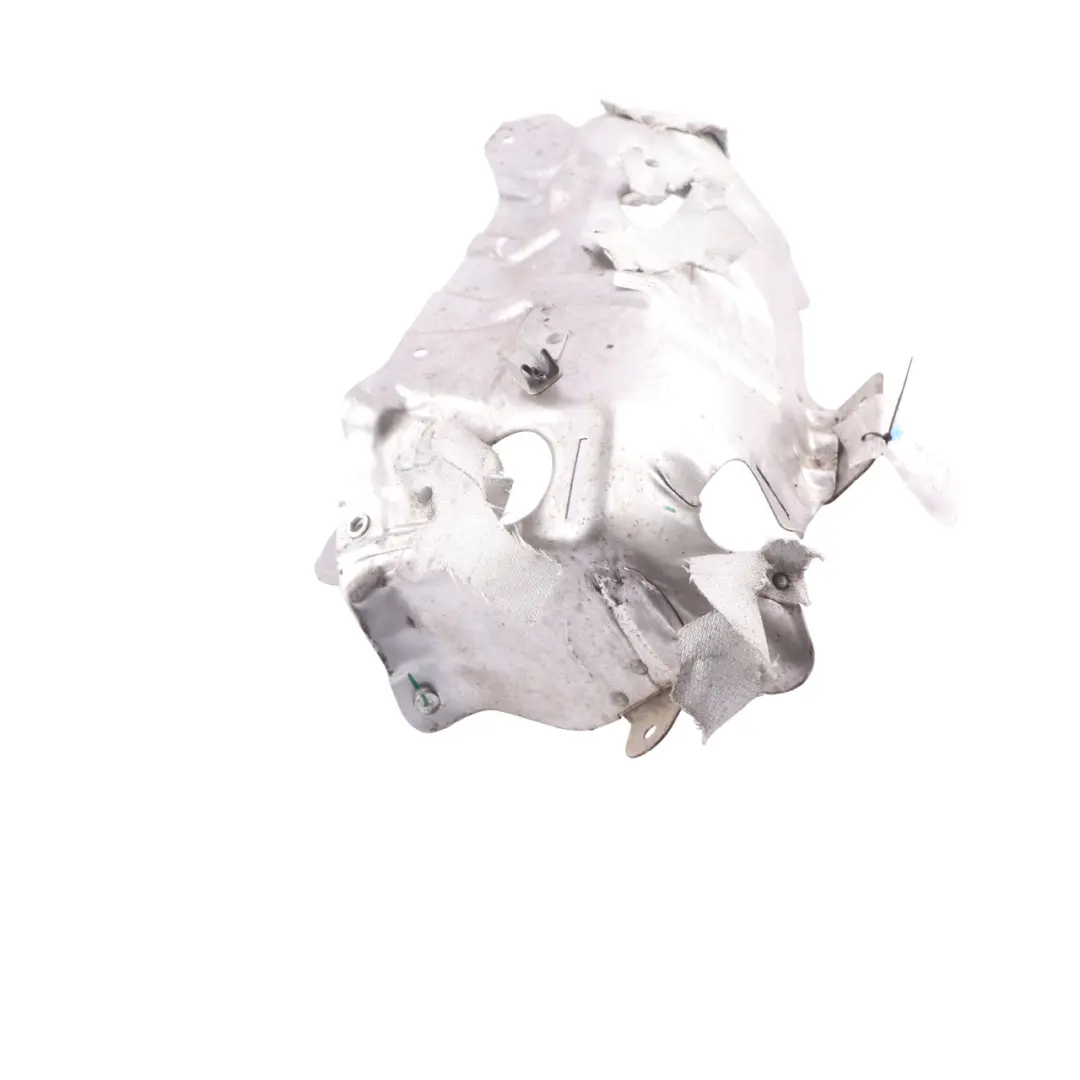

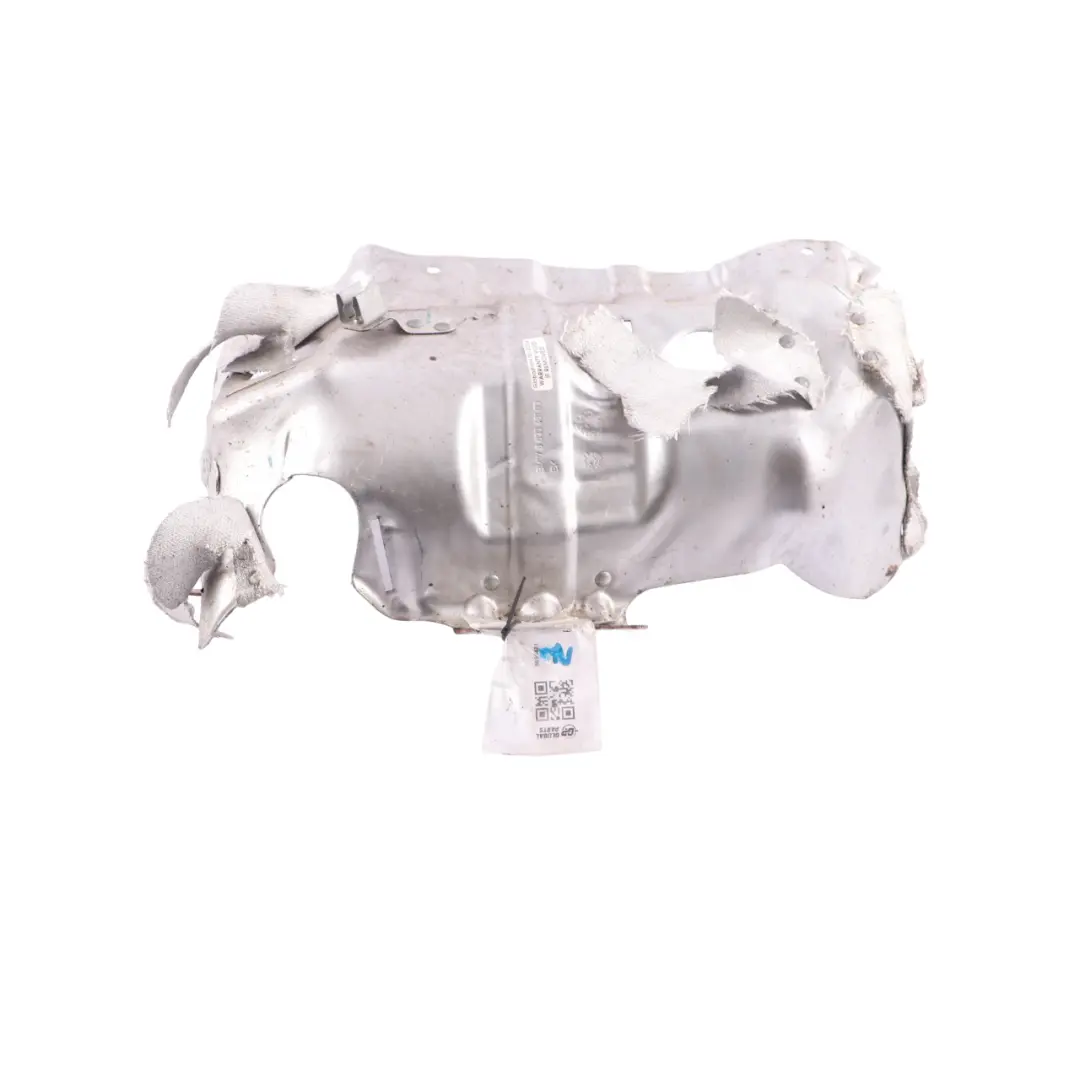

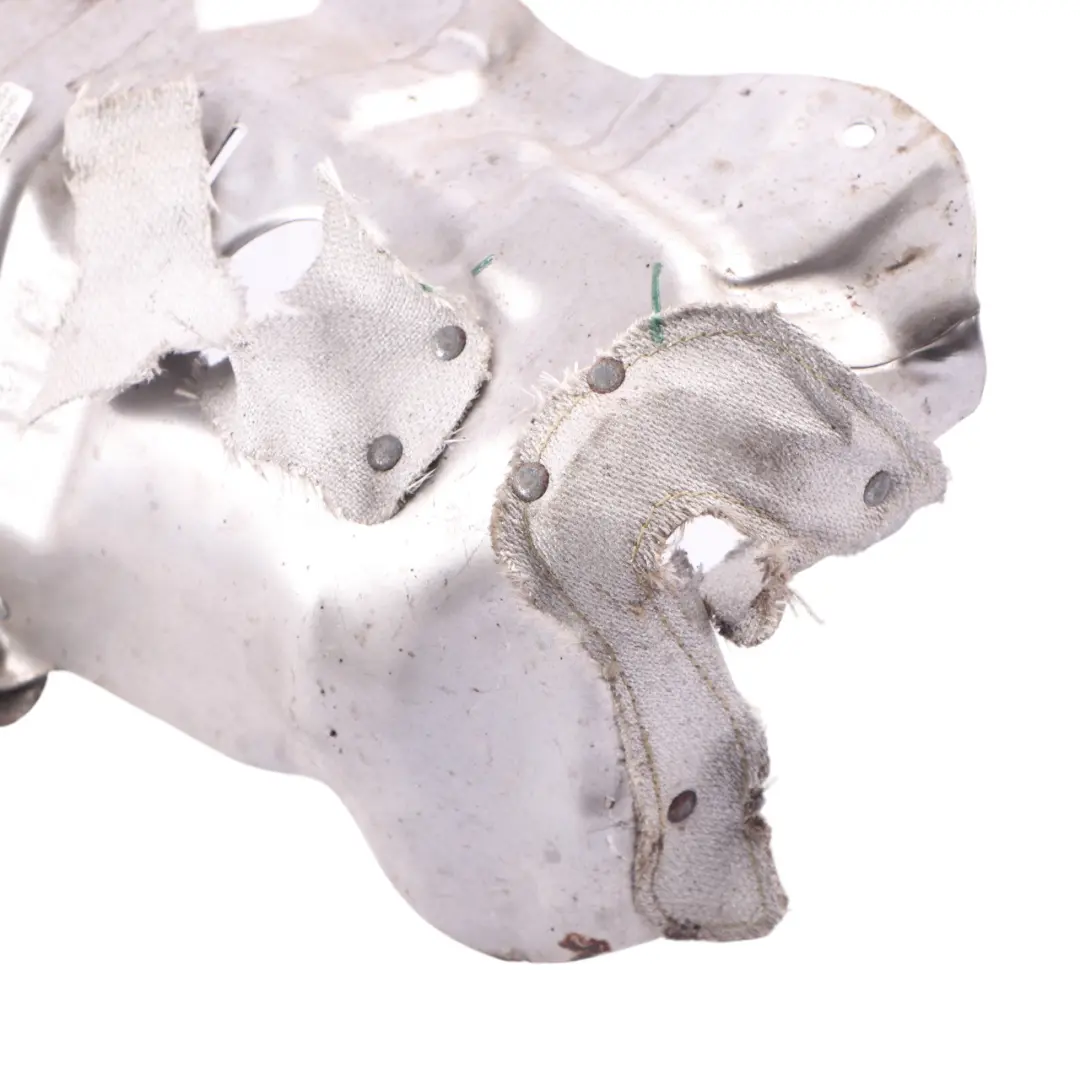

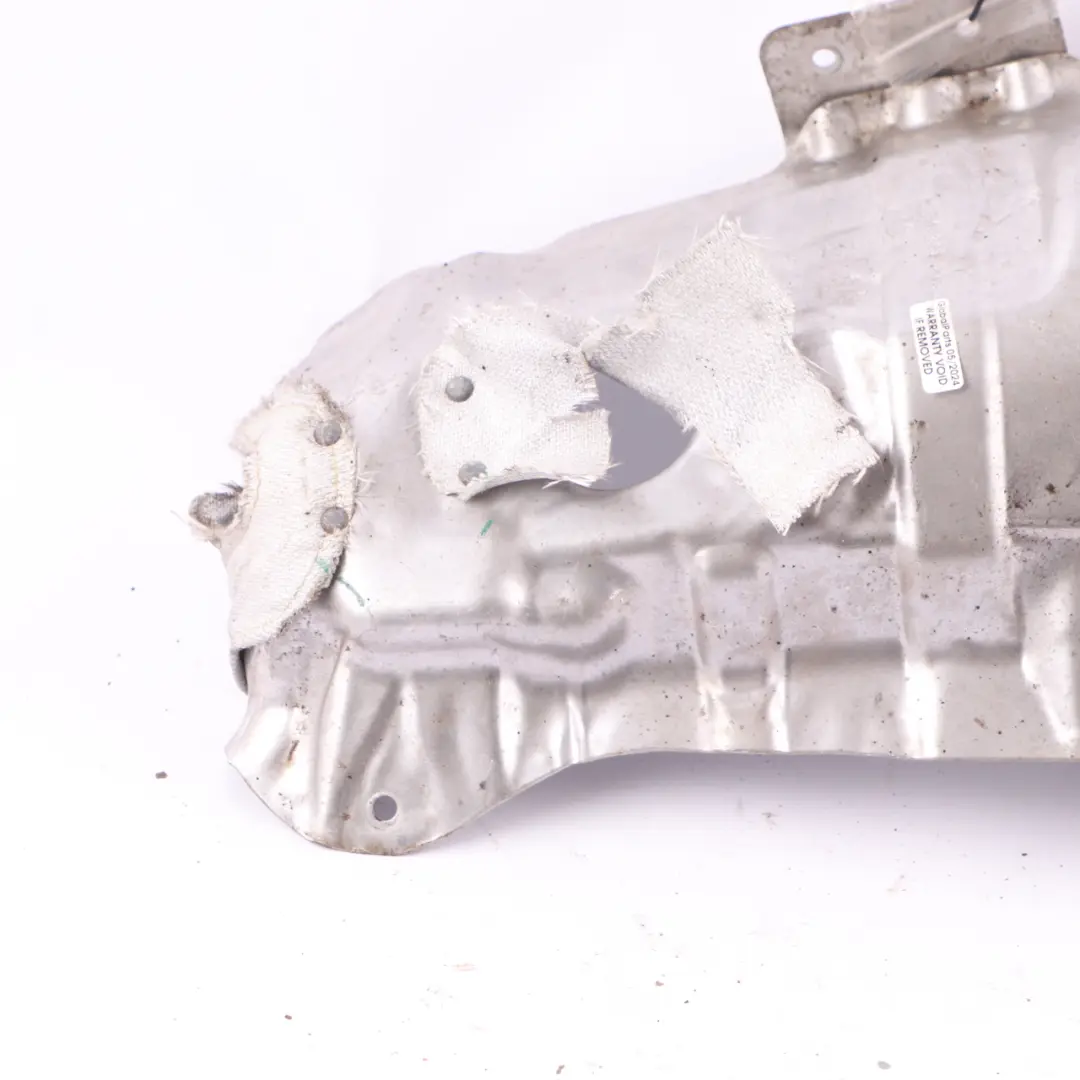

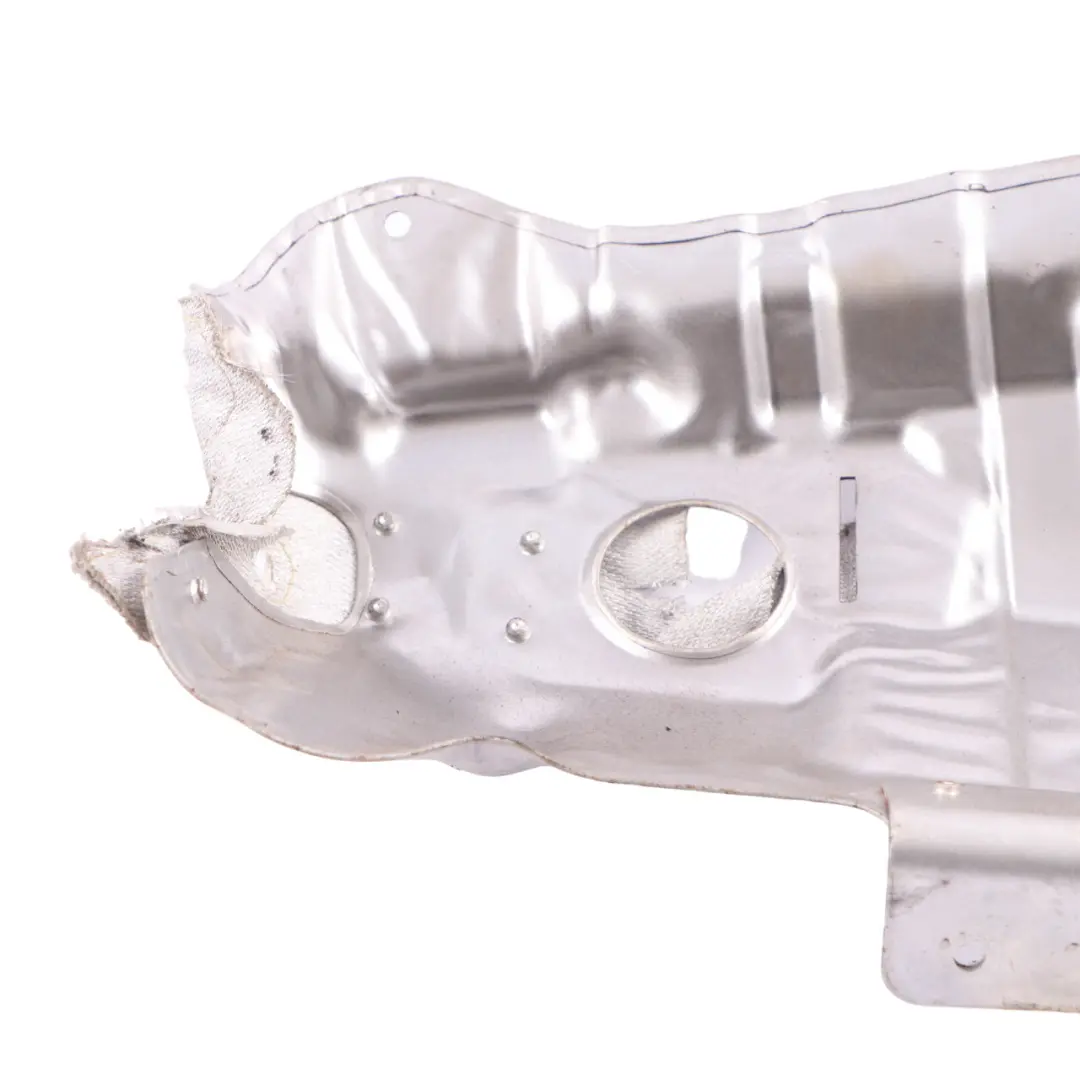

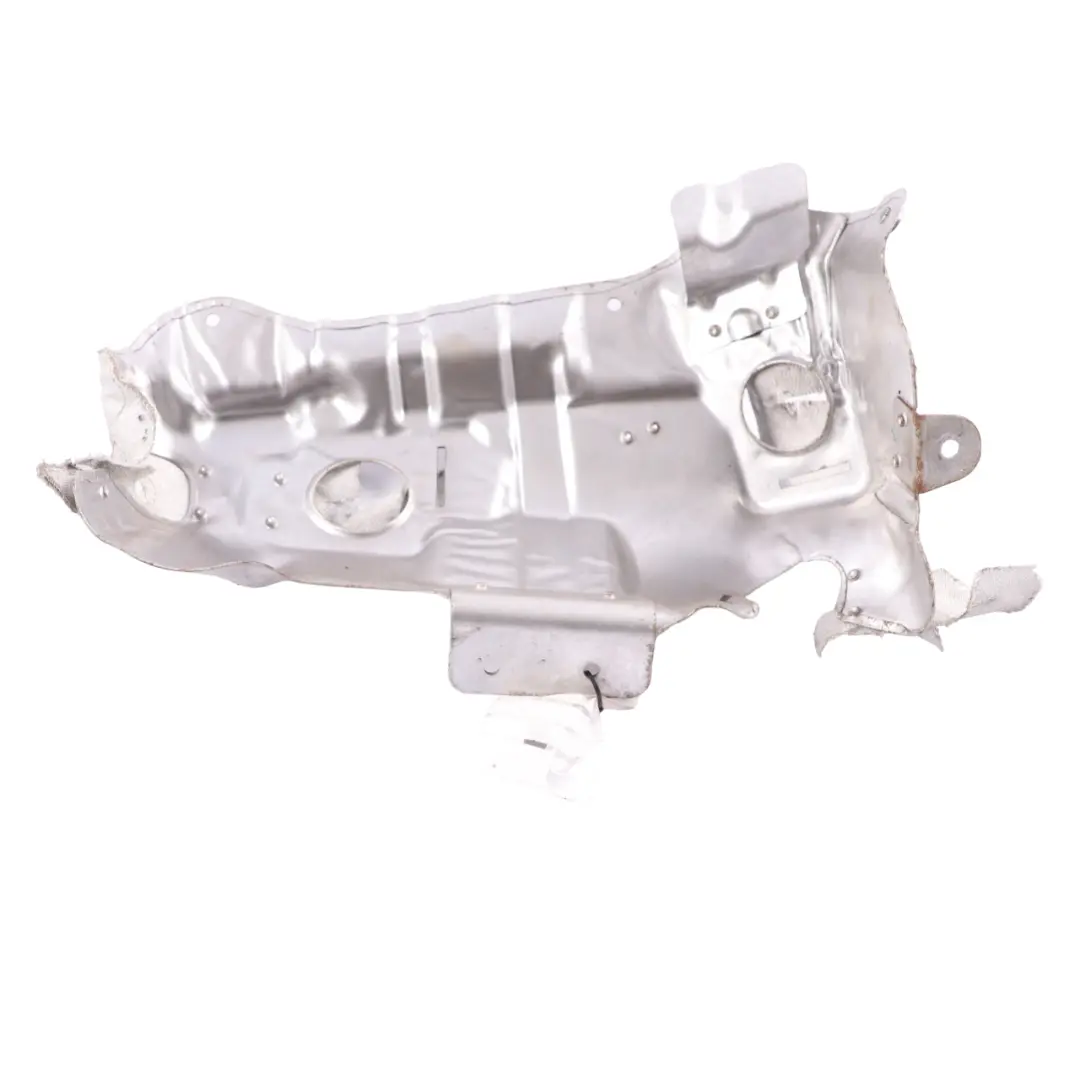

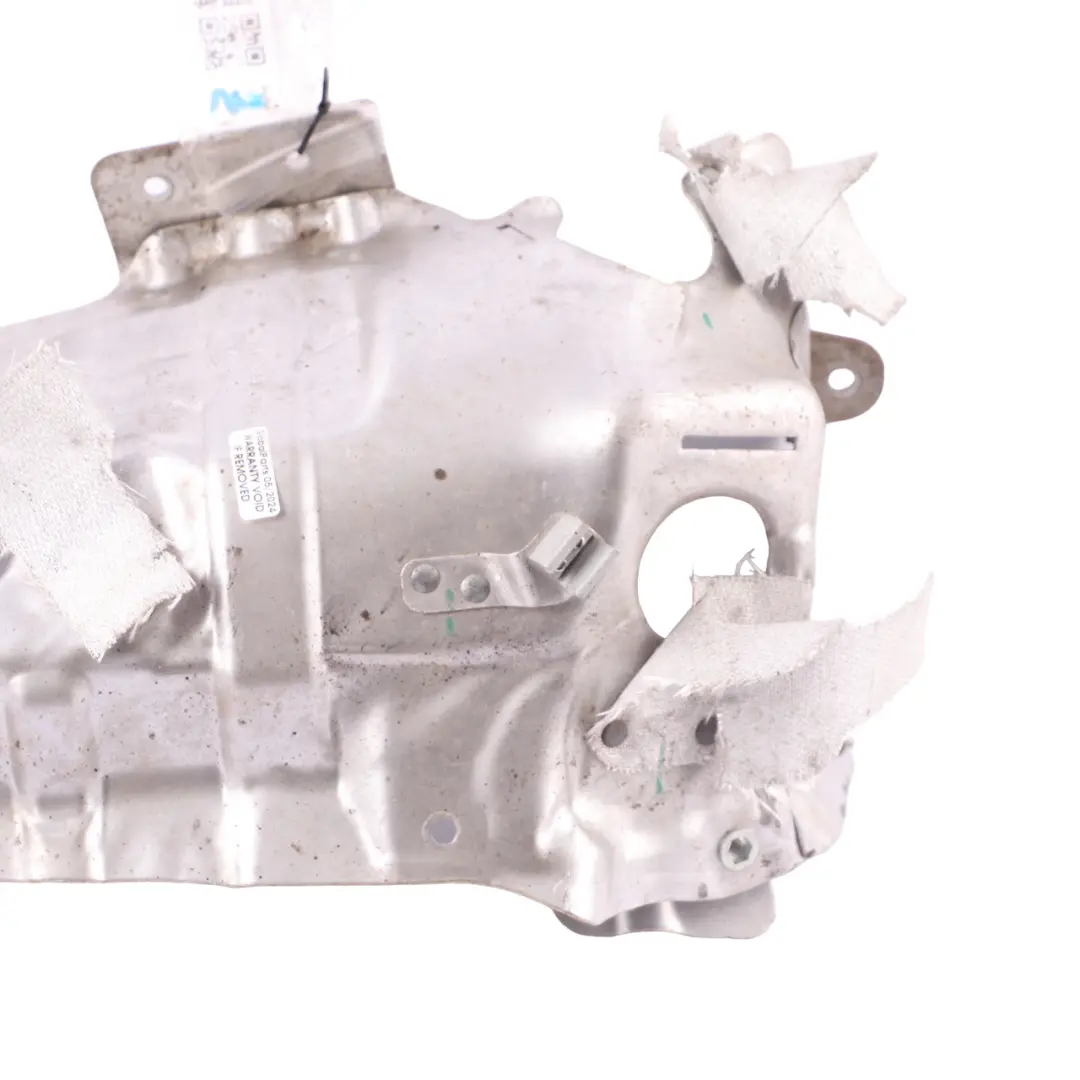

Heat Shield Mini Cooper F60 SE ALL4 Hybrid Petrol B38X Turbocharger Upper Shield

The Mini Cooper F60 SE ALL4 Hybrid Petrol B38 Turbocharger Heat Shield is an original BMW part, designed to protect the turbocharger and adjacent components from excessive heat radiation. This used part from the Heat Shields, Connectors, and Sleeves category allows for a technically correct repair of the boost system without the need for aftermarket replacements with uncertain parameters.

Specifications and technical data

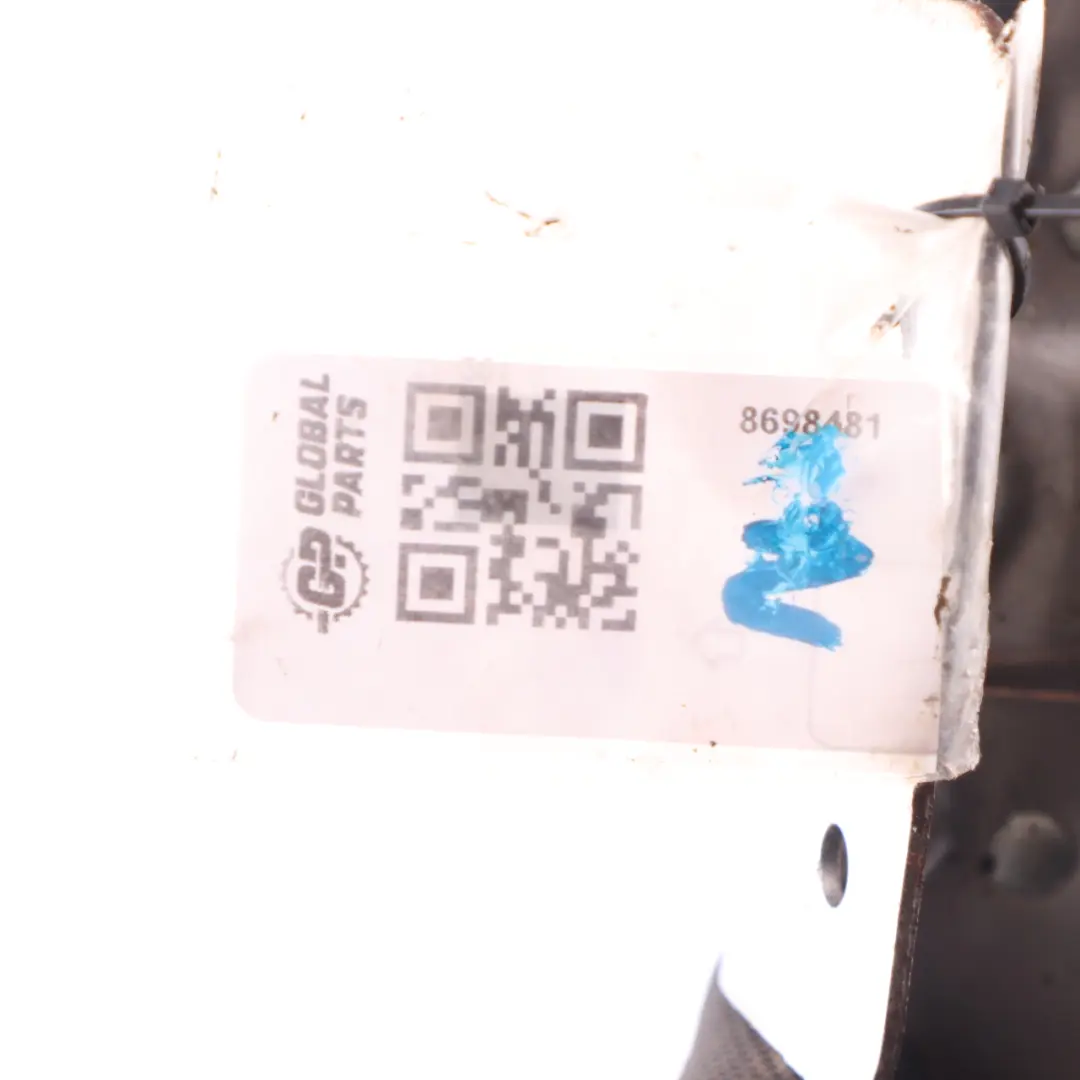

• SKU: 8698481
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8693481
• Substitutable numbers: 8693481, 11658693481
• Fuel type: Petrol
• Category: Heat Shields, Wraps & Sleeves

Purpose and Function in the Boost System

This upper heat shield is dedicated to the B38 petrol engine in the hybrid version of the Mini Cooper F60 SE ALL4, where the turbocharger operates under elevated temperatures and high load. The component's task is to limit heat transfer from the hot side of the turbine to adjacent hoses, electrical harnesses, and body components, which supports stable system operation and reduces the risk of overheating.

Thanks to its precise fit for the specific petrol drivetrain configuration, the shield helps maintain proper operating conditions in the engine bay, which is important for both the turbocharger's durability and the vehicle's user comfort.

Construction, Fitment, and Installation

The original design of the shield was developed by the manufacturer with the specific exhaust and boost system of the Mini Cooper F60 SE ALL4 Hybrid in mind. The shape, mounting points, and edge geometry are adapted to the factory layout of the turbocharger, manifold, and accessories, which facilitates installation and ensures stable positioning of the component after bolting.

Using the factory heat shield reduces the risk of vibrations, unwanted play, and collisions with other components in the engine bay. This is particularly important in hybrid vehicles where the installation space is highly congested, and the petrol system works in conjunction with additional high-current components.

Benefits of Using the Original Heat Shield

Using this shield in the boost system brings a number of practical operational benefits:

• limiting the impact of high temperatures on fuel lines, electrical wiring, and plastic components near the turbine,
• more stable thermal conditions in the engine bay during dynamic driving,
• reducing the risk of localized overheating, which can accelerate the aging of insulation and seals,
• maintaining the factory heat management concept in the exhaust and boost system.

A used, original heat shield is a cost-effective solution that is also compliant with factory design assumptions, contributing to the overall integrity of the powertrain.

Condition, Verification, and Selection by Technical Data

This part is a used OEM element, meaning its original geometry and compatibility with the factory petrol system are preserved. When selecting a shield for a specific Mini Cooper F60 SE ALL4 Hybrid model, it is advisable to use the manufacturer's markings and catalog data to confirm compatibility with the engine version and vehicle year.

If in doubt, it is helpful to compare the shape and mounting points with the currently installed shield or consult a mechanic specializing in the BMW/Mini brand, which helps avoid ordering mistakes.
