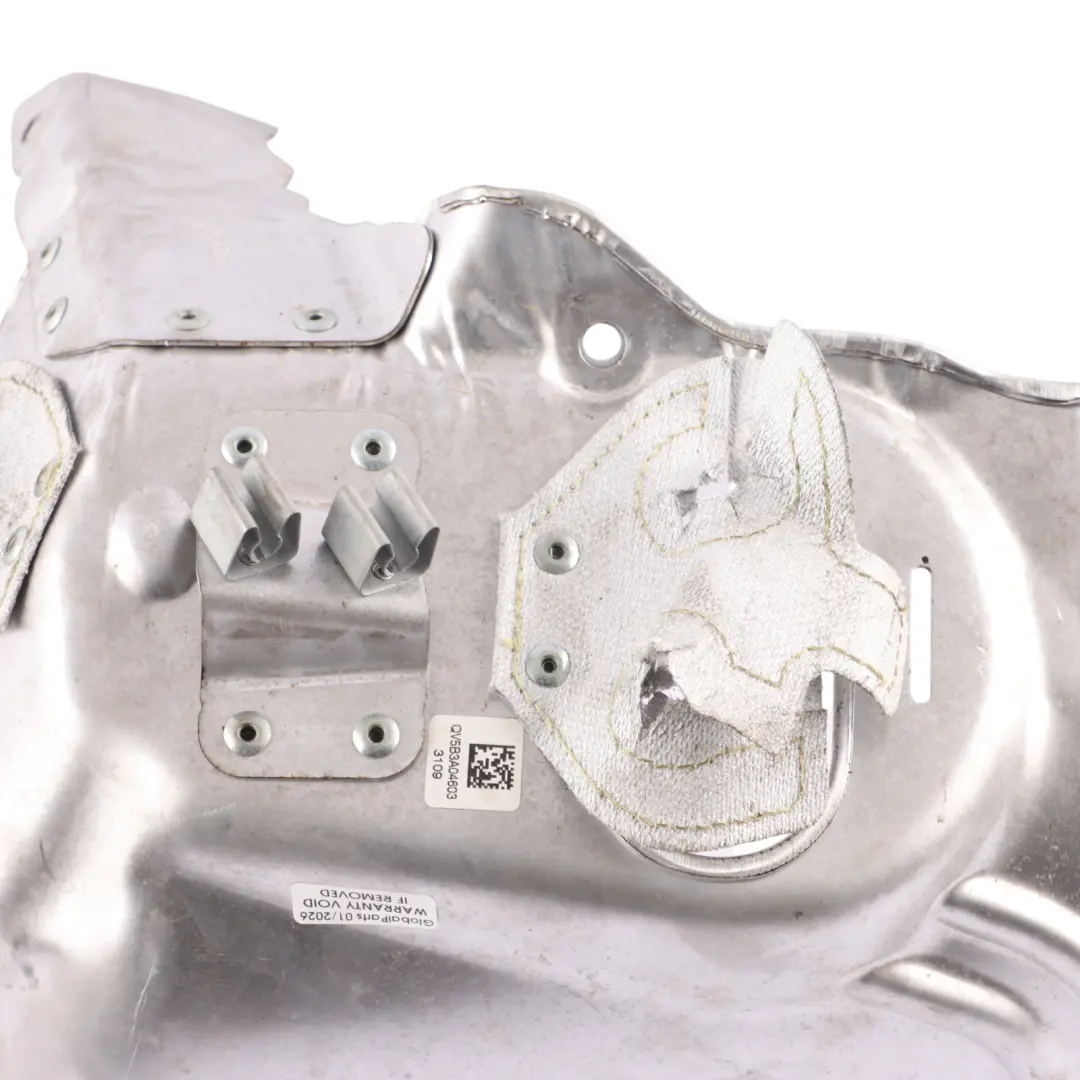

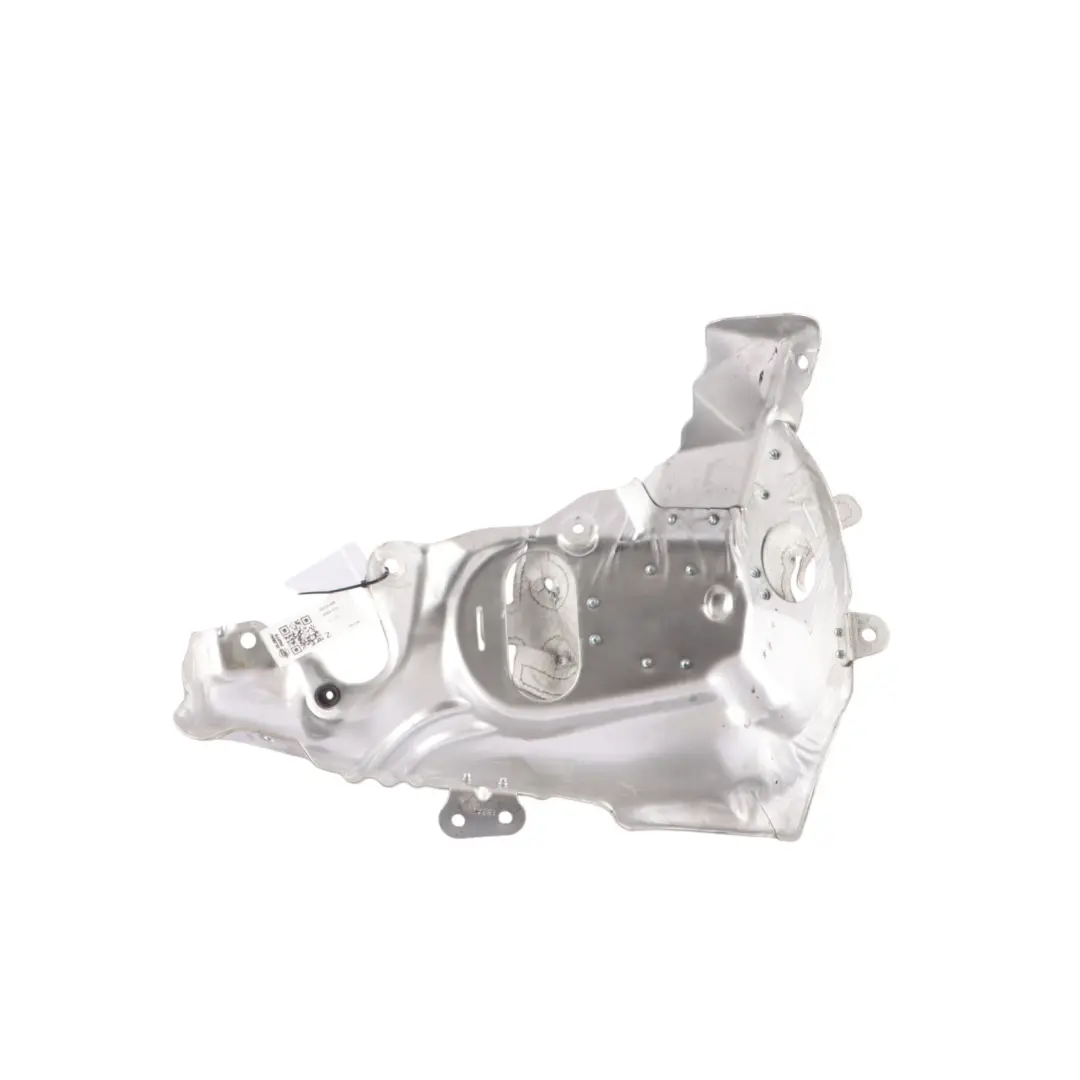

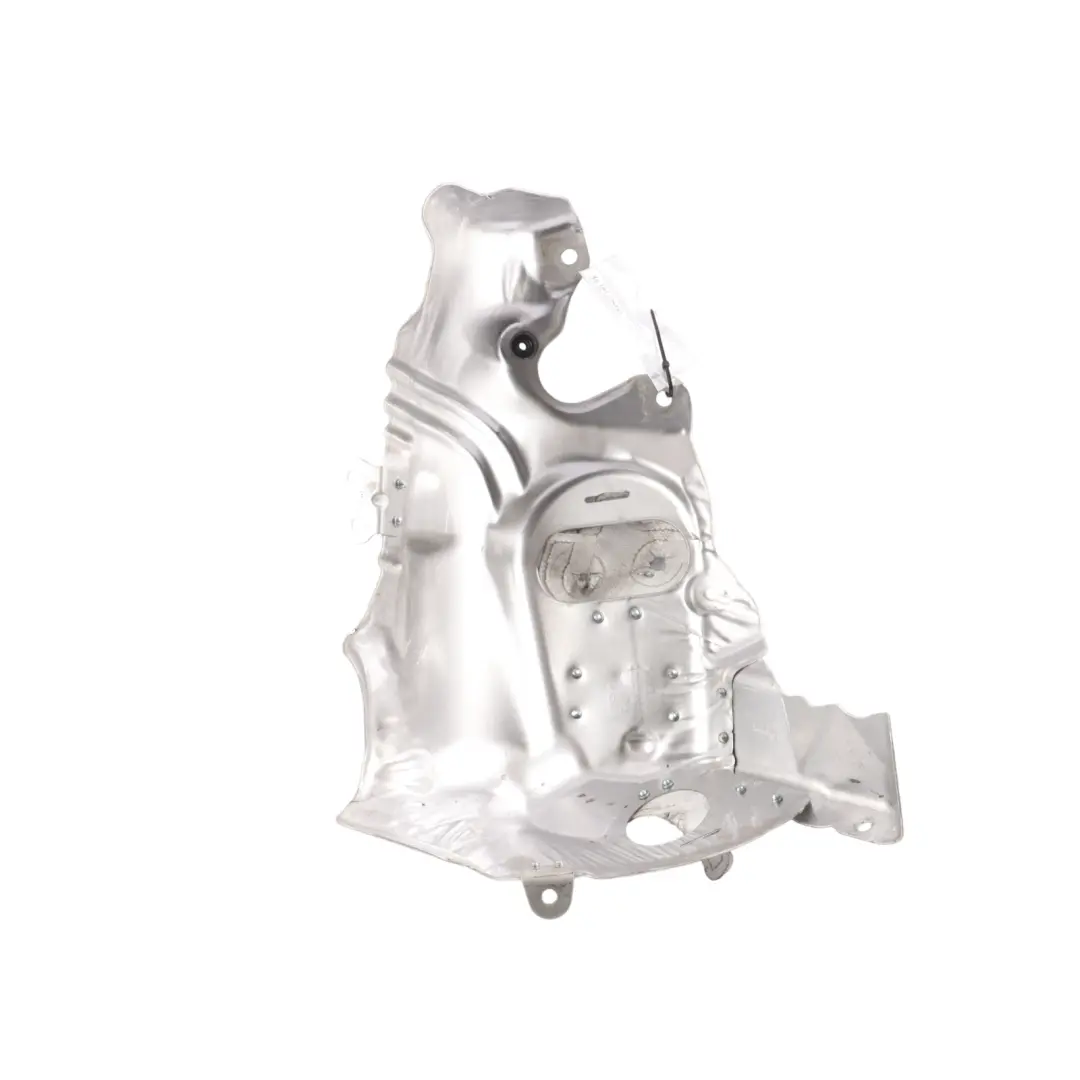

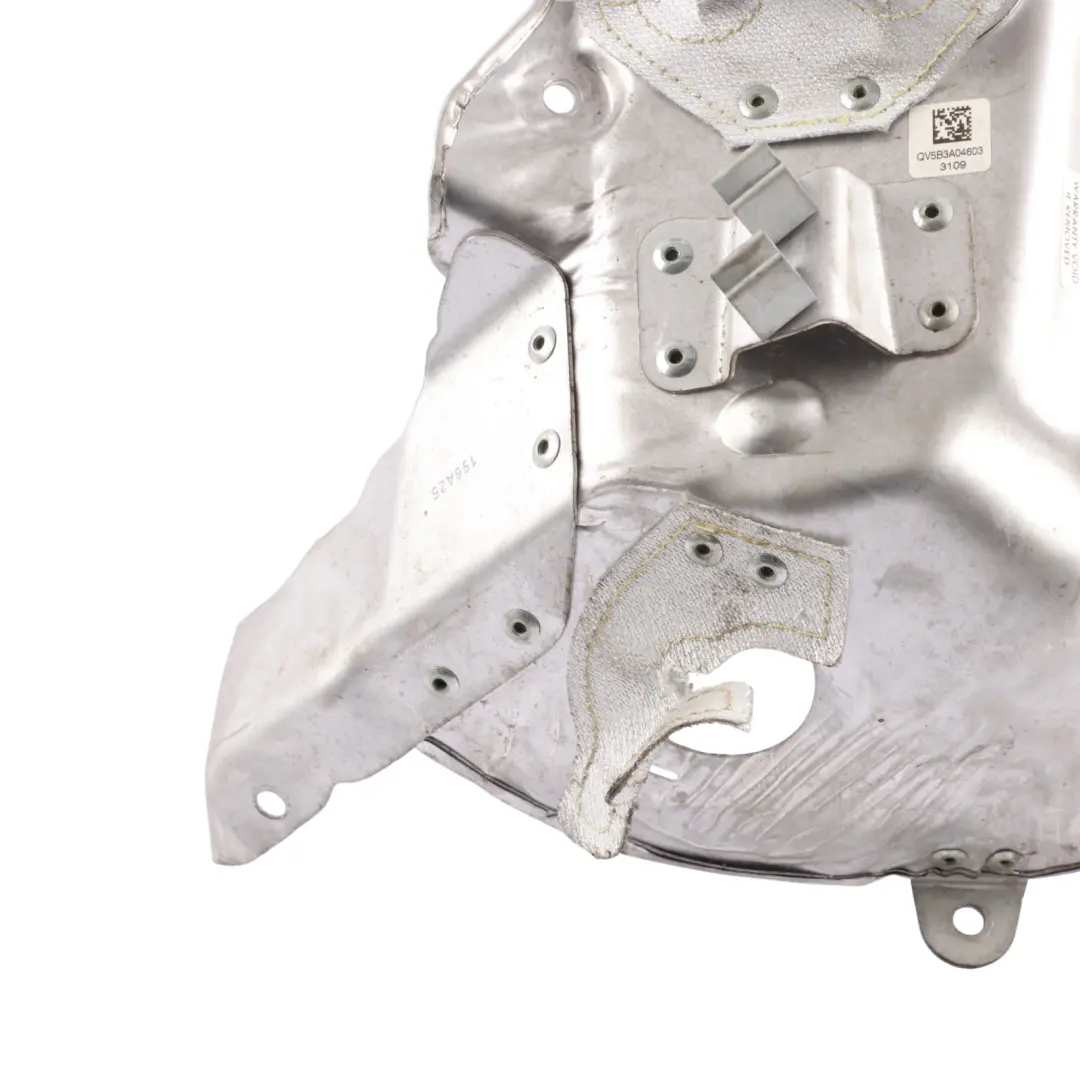

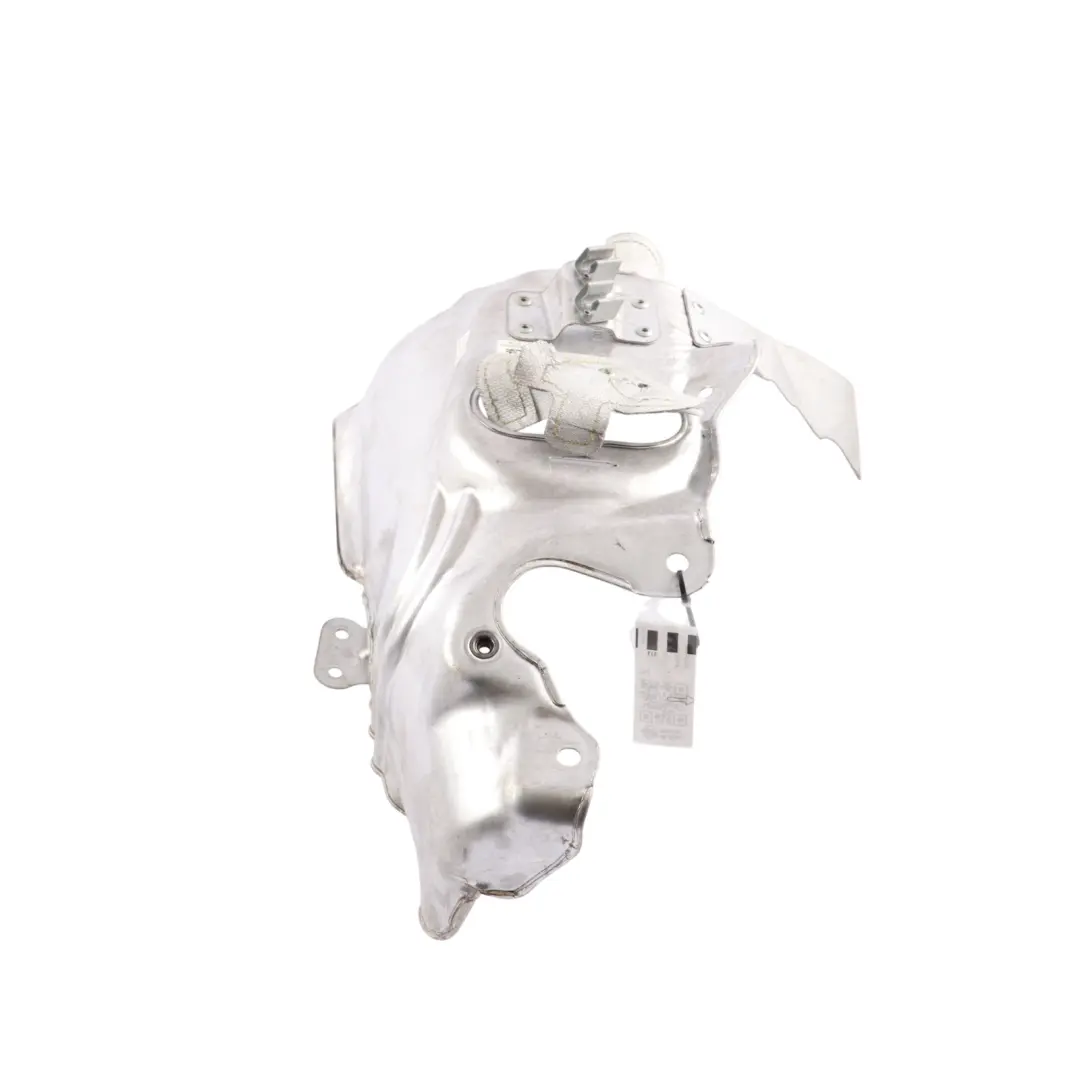

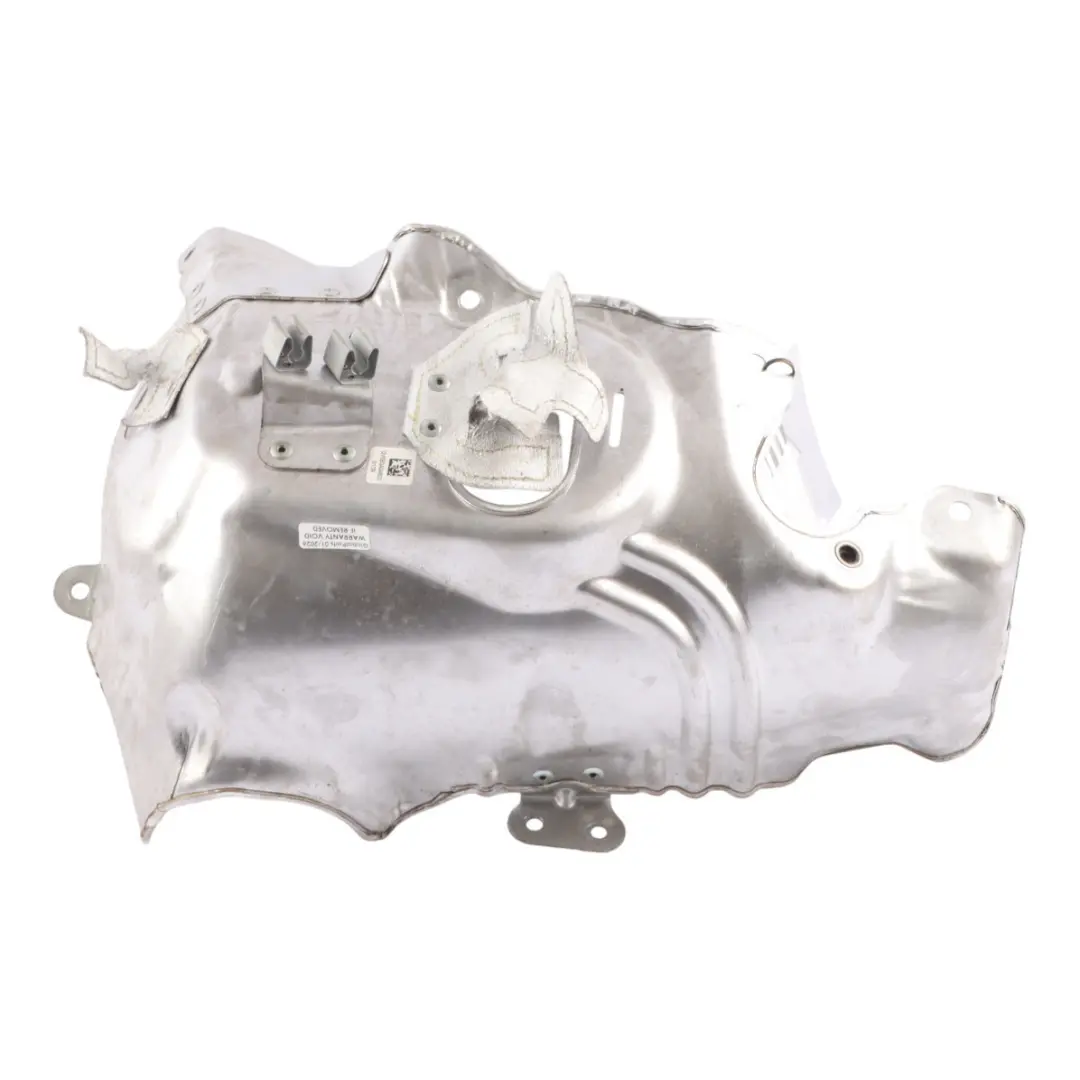

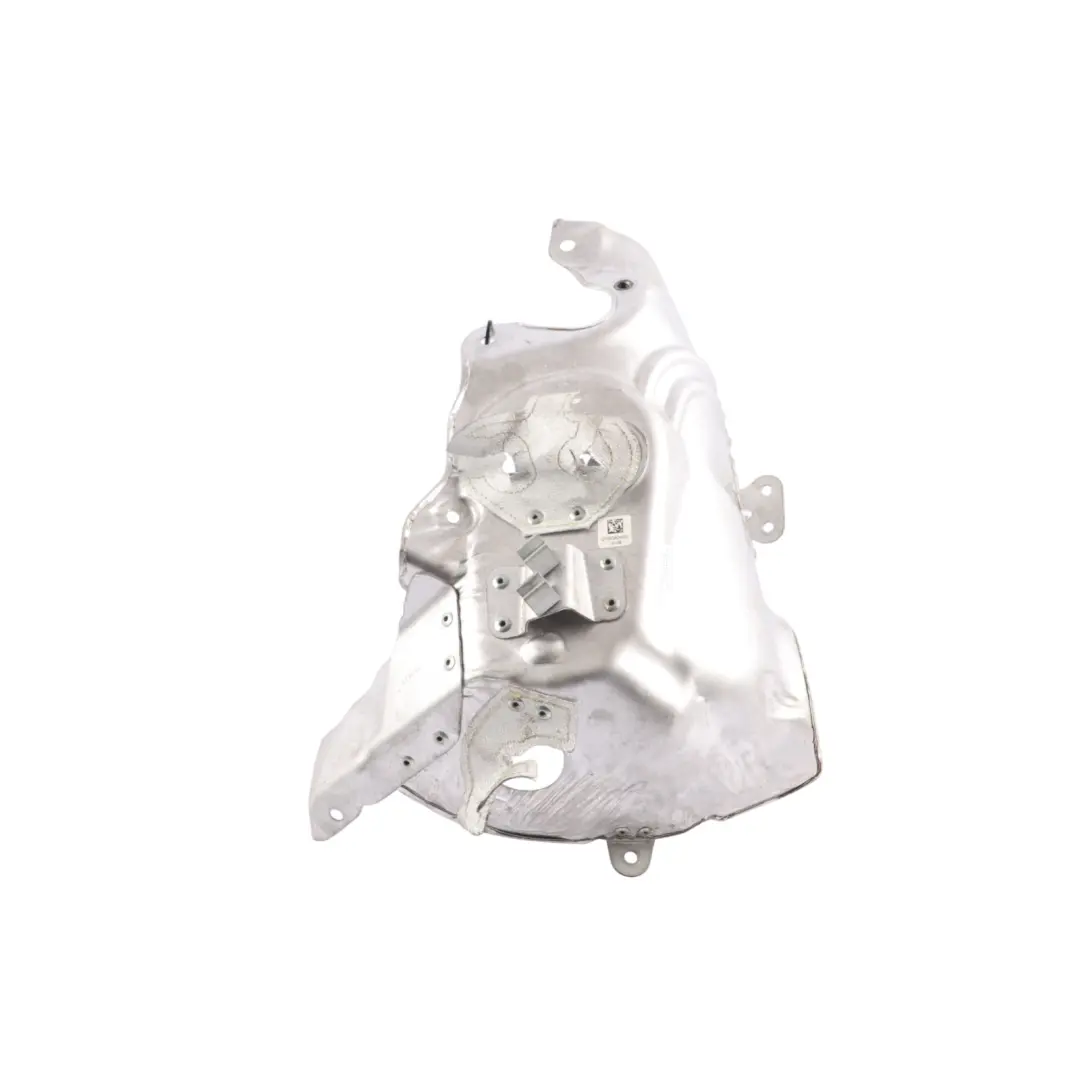

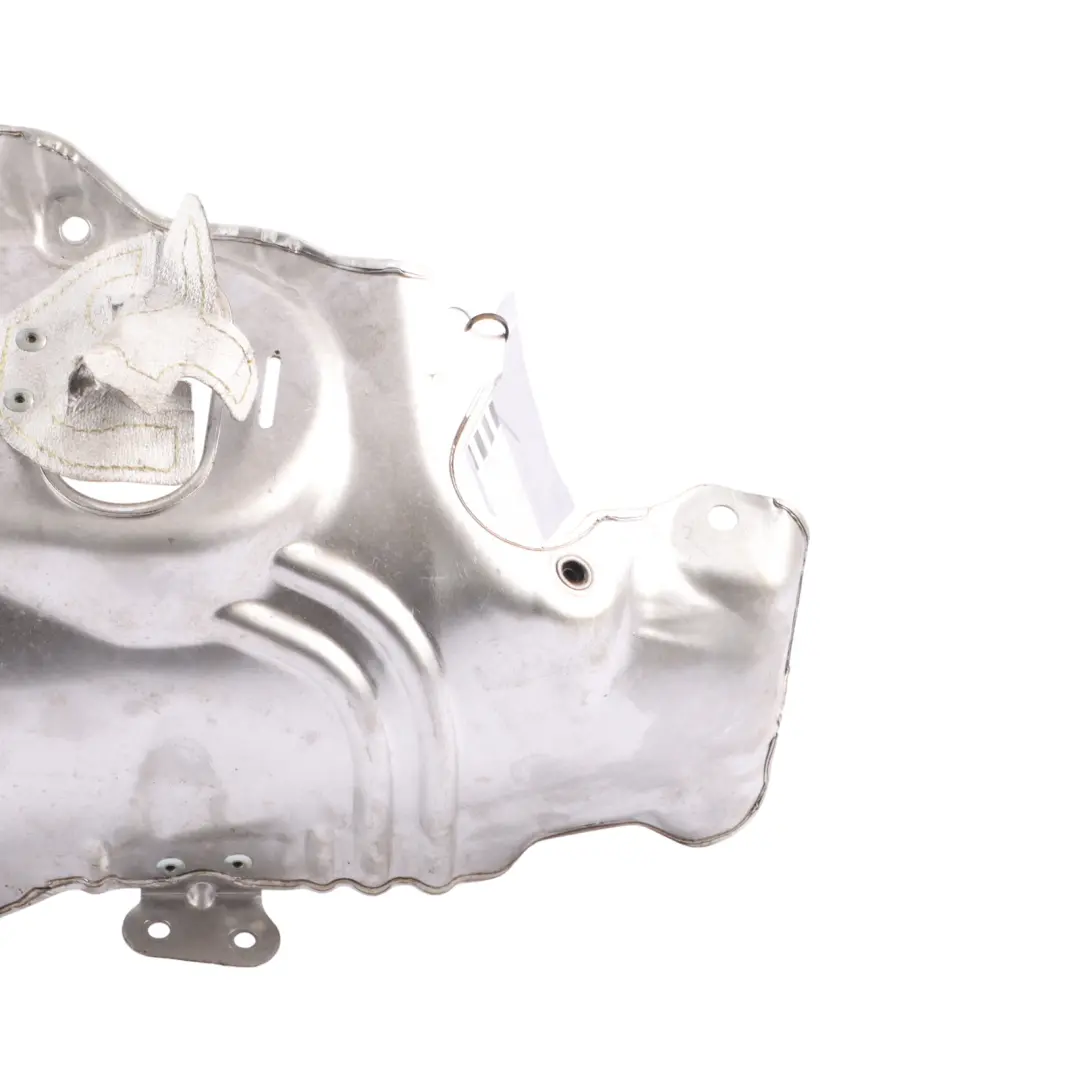

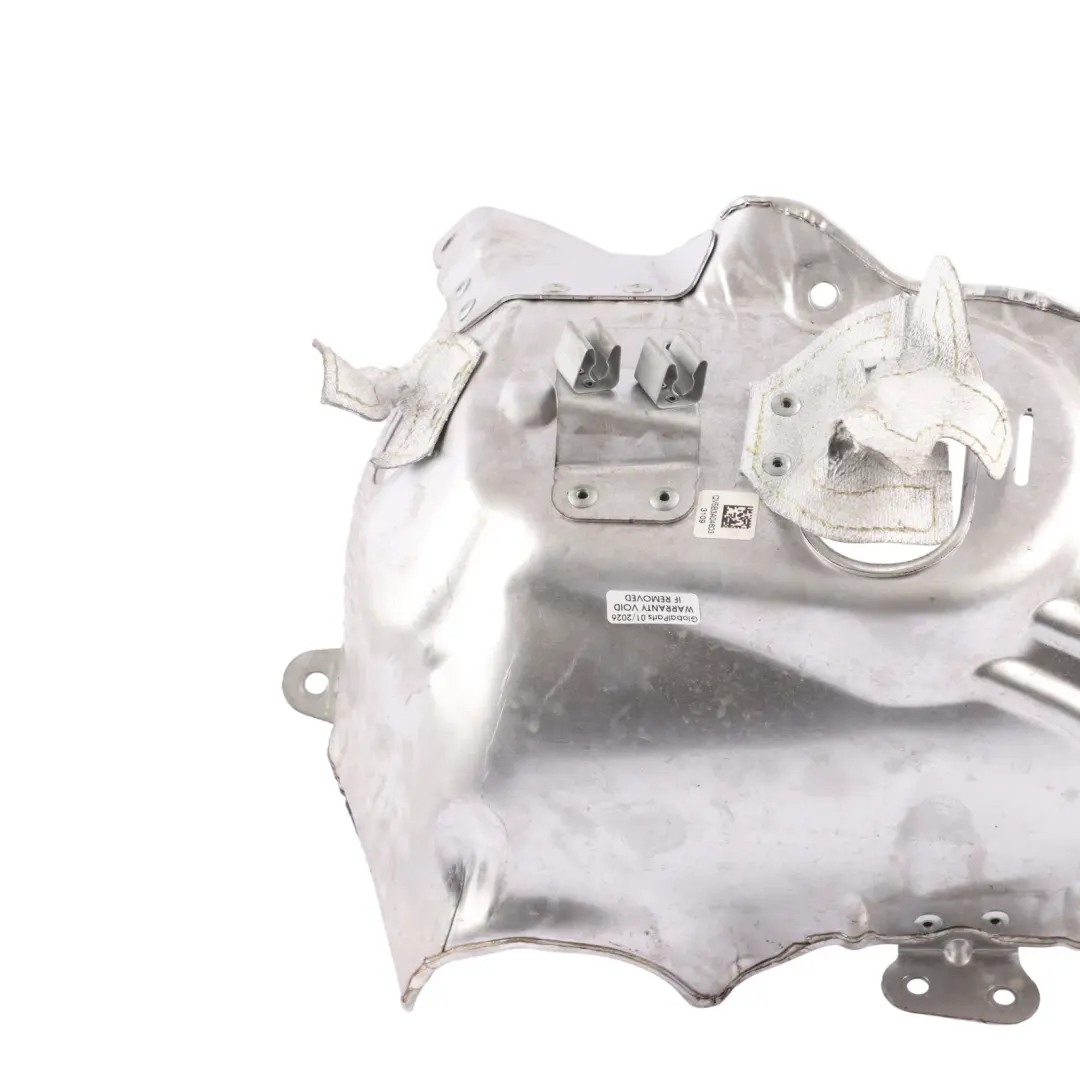

BMW F70 U10 U11 Mini U25 Turbo Charger Heat Shield Insulation Upper B48R 5B3A046

BMW F70 U10 U11 Mini U25 Turbo Charger Heat Shield Insulation Upper B48R is an upper turbocharger heat shield designed for modern BMW and MINI models, engineered for effective thermal insulation within the engine bay. This component, part of the Heat Shields, Connectors, and Sleeves group, helps to limit the transfer of high temperatures from the turbine area to adjacent components, supporting stable turbocharger operation. Thanks to its factory OEM design, it ensures a precise fit for the B48R unit and proper heat flow management around the turbocharger.

Specifications and technical data

• SKU: 5B3A046
• Mark: BMW (Genuine OE)
• Condition: Used

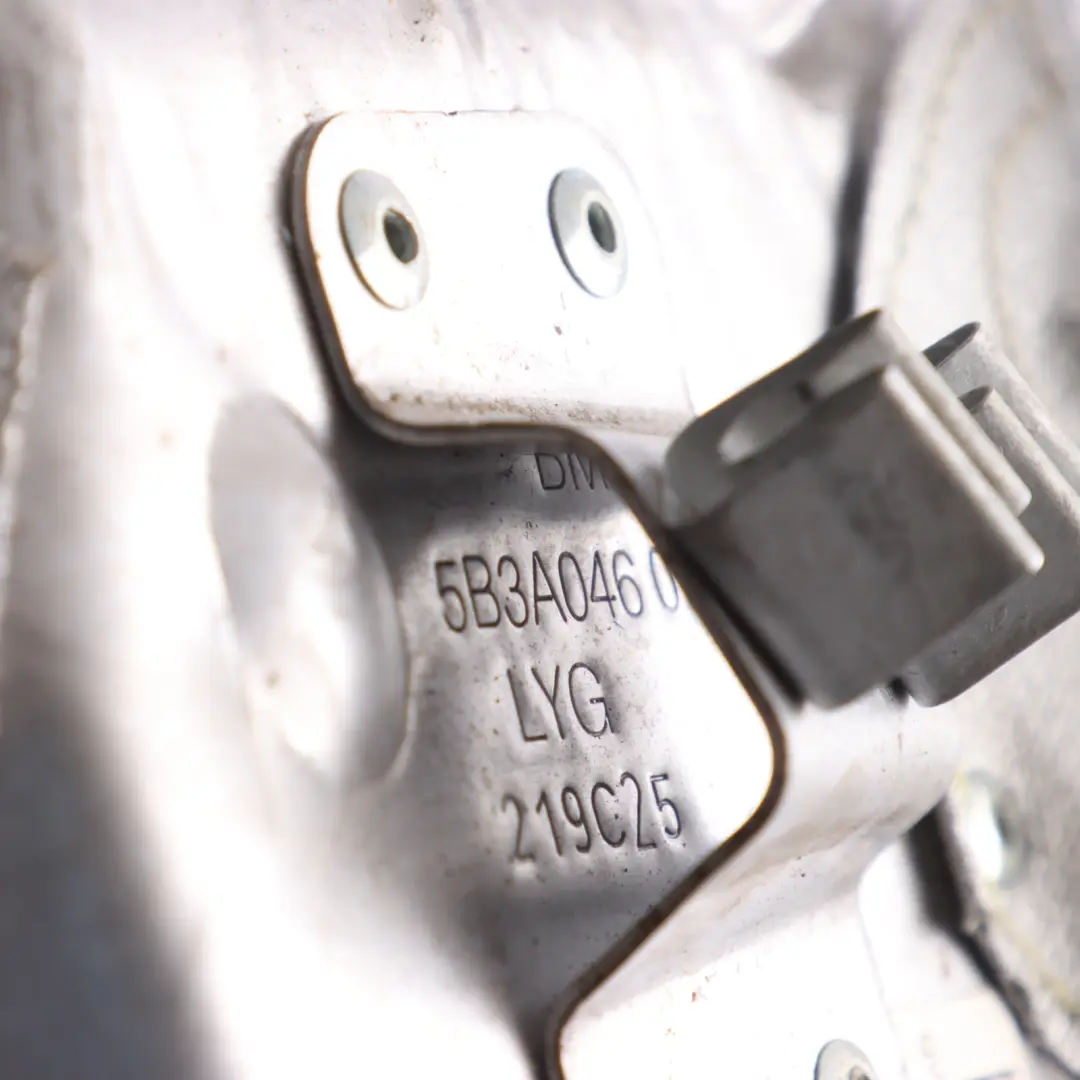

• OEM Part Number: 5B3A046

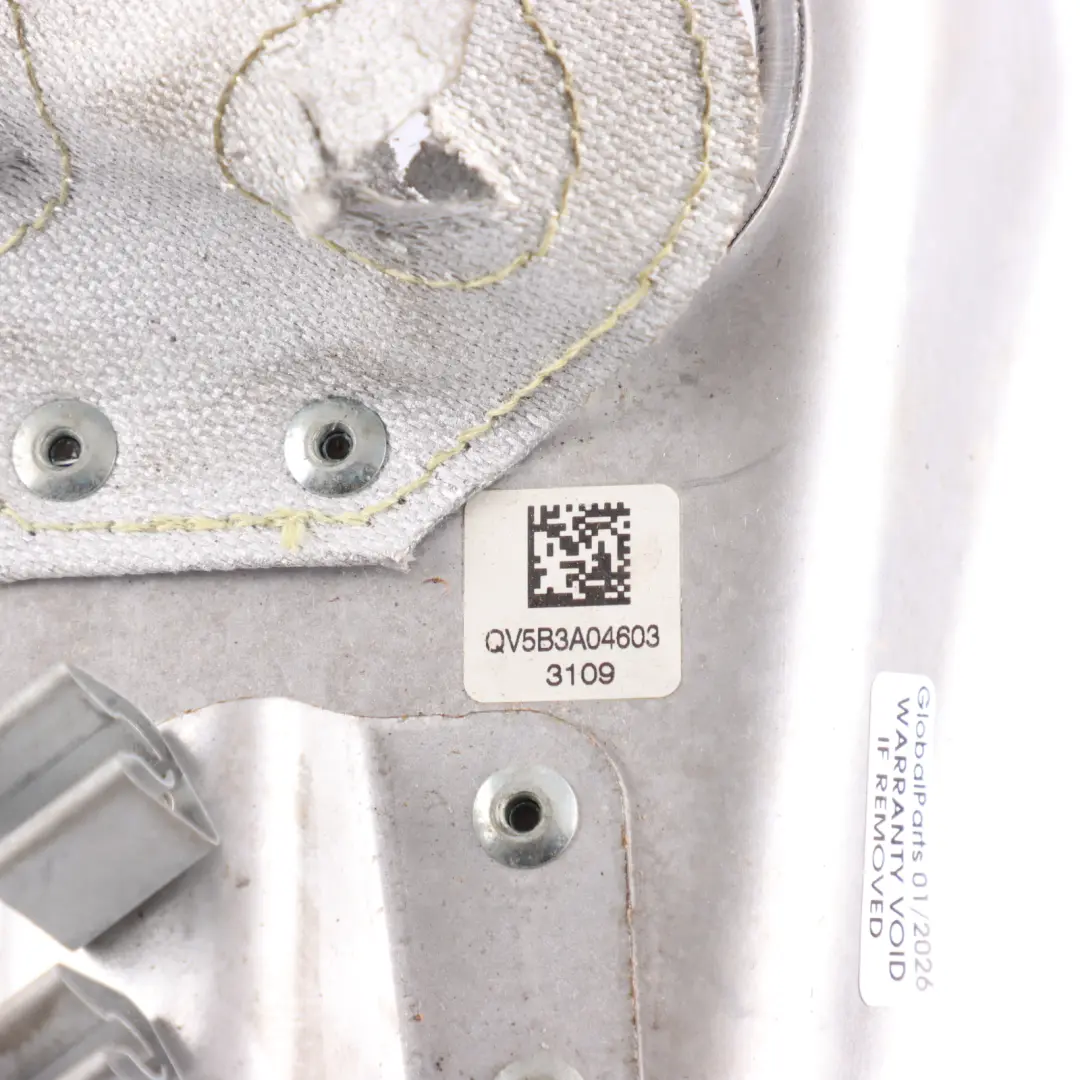

• Substitutable numbers: 5B3A046, 11655B3A046, QV5B3A04603
• Part type: Heat Shield
• Category: Heat Shields, Wraps & Sleeves

Function and Role of the Turbocharger Heat Shield

The upper turbocharger heat shield in the B48R engine plays a crucial role in managing temperatures in the turbocharger system area. It limits heat radiation from the hot side of the turbine, which:

• supports the protection of hoses, connectors, and plastic components located near the turbocharger,
• helps maintain stable engine bay conditions under load,
• reduces the risk of localized overheating in the engine accessory area.

Thanks to its precise shape, tailored to the exhaust system and turbocharger in the B48R unit, the shield creates a cohesive thermal barrier that works in conjunction with other thermal insulation elements.

Construction and Fitment for BMW F70, U10, U11, and MINI U25

The presented heat shield has been specifically designed for the BMW F70, U10, U11, and MINI U25 platforms with the B48R engine, resulting in:

• factory-perfect fit to the geometry of the turbocharger and exhaust manifold,
• manufacturer-intended mounting points, facilitating installation in original locations,
• maintained compatibility with other thermal shield components in the engine bay.

This solution preserves the integrity of the manufacturer's original cooling and thermal insulation concept, which is particularly important in modern turbocharged engines operating under high thermal loads.

Benefits of Using an Original Heat Shield

The use of an original heat shield from the Heat Shields, Connectors, and Sleeves group in the B48R engine offers a range of practical operational benefits:

• maintaining the manufacturer-specified temperature distribution within the engine bay,
• supporting the durability of adjacent exhaust and turbocharger system components,
• limiting the impact of high temperatures on electrical and fuel system components near the turbine.

For BMW and MINI owners, this translates to more predictable engine performance and a reduced risk of damage resulting from prolonged exposure to high temperatures. When replacing a worn or damaged heat shield, installing an OEM-designed part ensures adherence to the manufacturer's original engineering specifications.

Condition of the Part and Service Application

The offered heat shield is a used part, making it an attractive service solution for users seeking a factory component at a more favorable price than a new replacement. This type of part is suitable for both standard replacement of a worn heat shield and for repairs related to the exhaust system or turbocharger in the B48R engine.

Replacement of the upper heat shield is particularly recommended when the existing element shows signs of deformation, cracking, or loss of insulating properties, which can affect thermal conditions in the engine bay.
