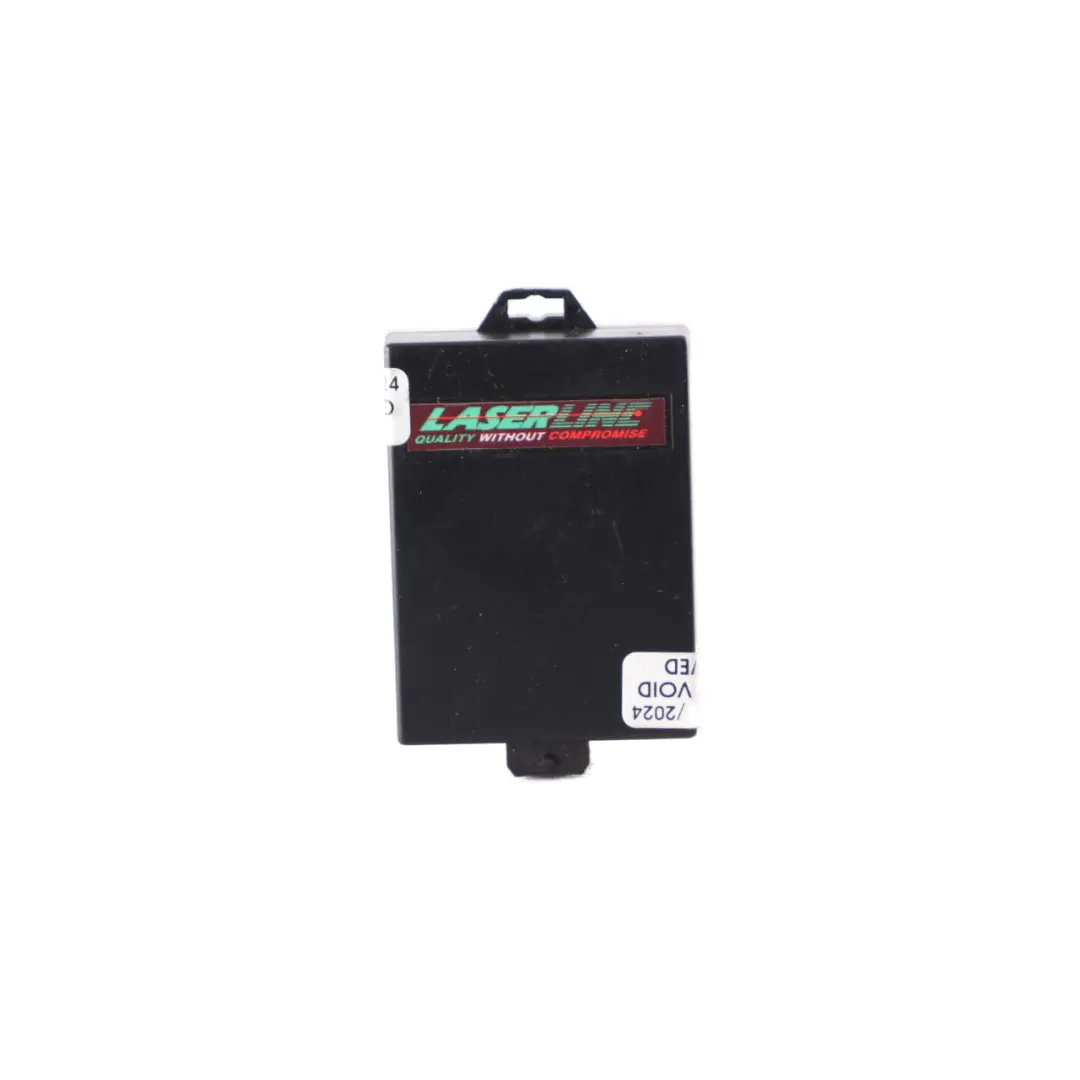

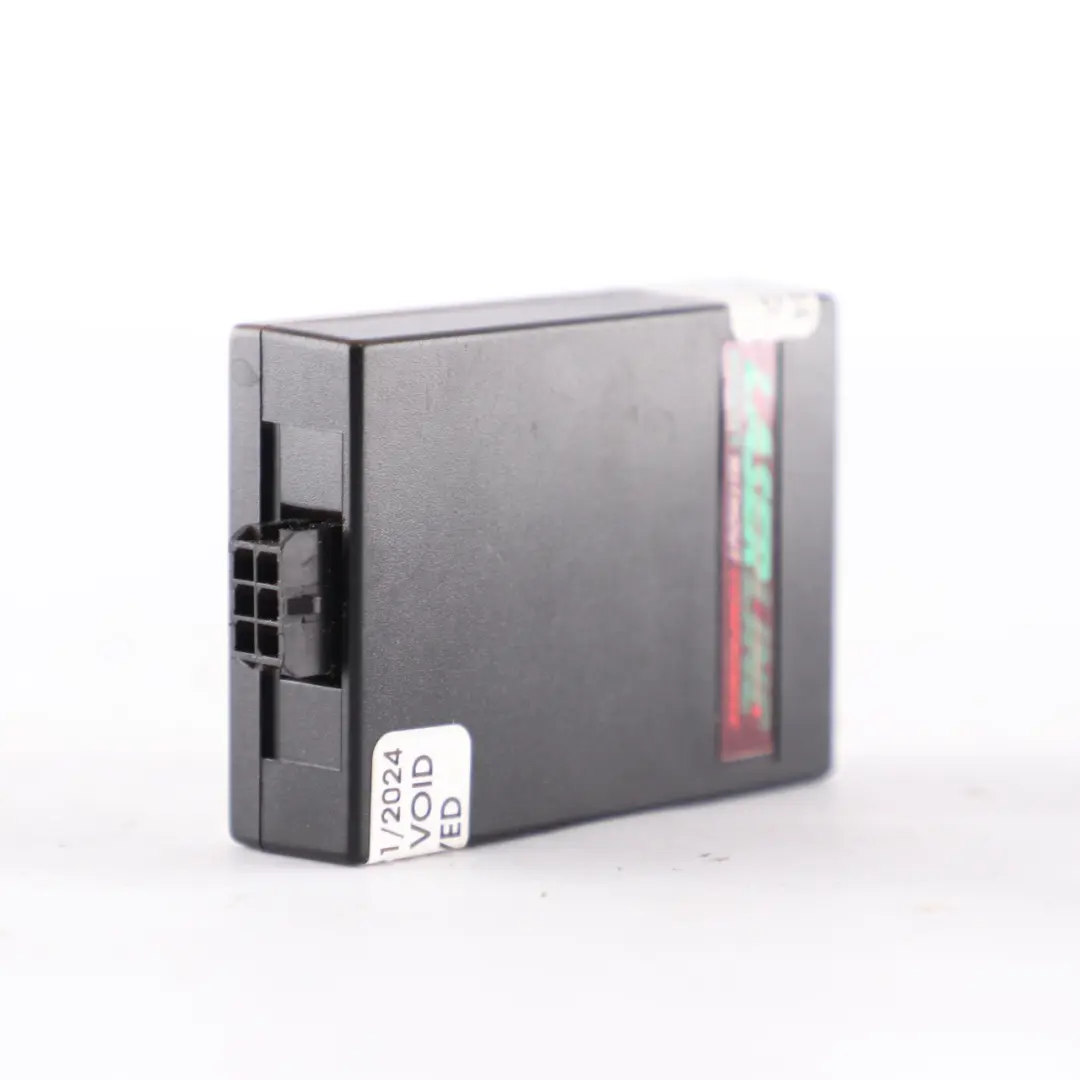

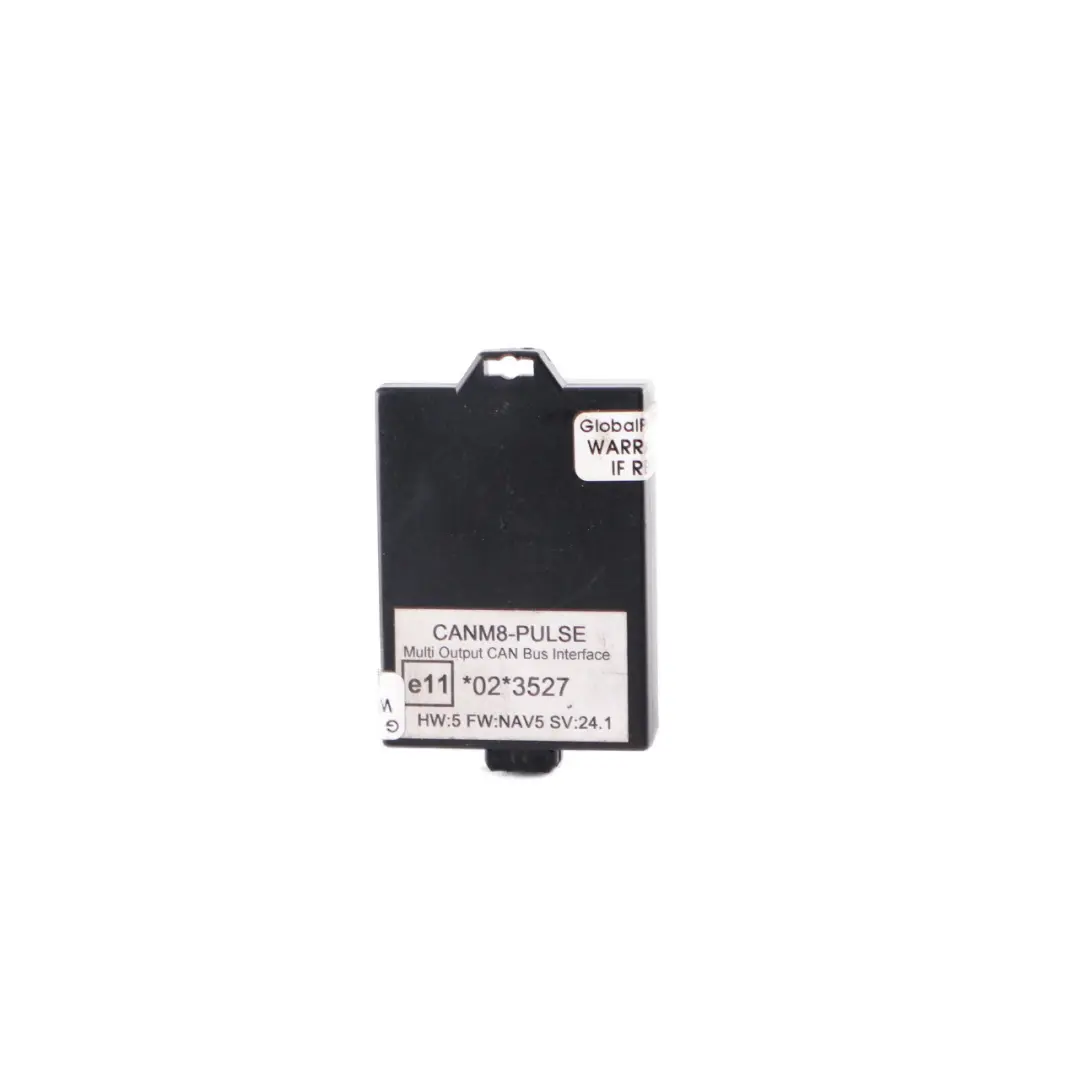

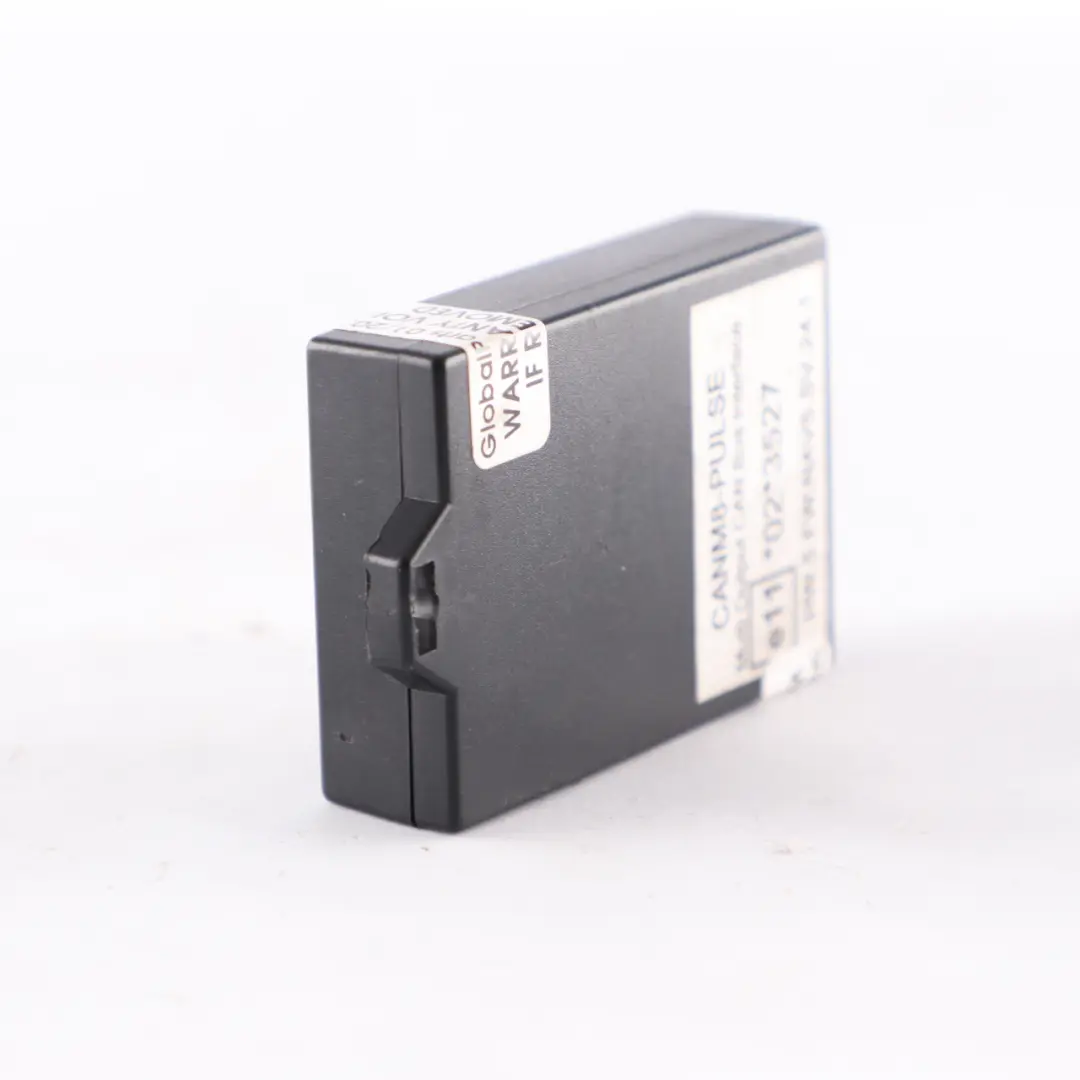

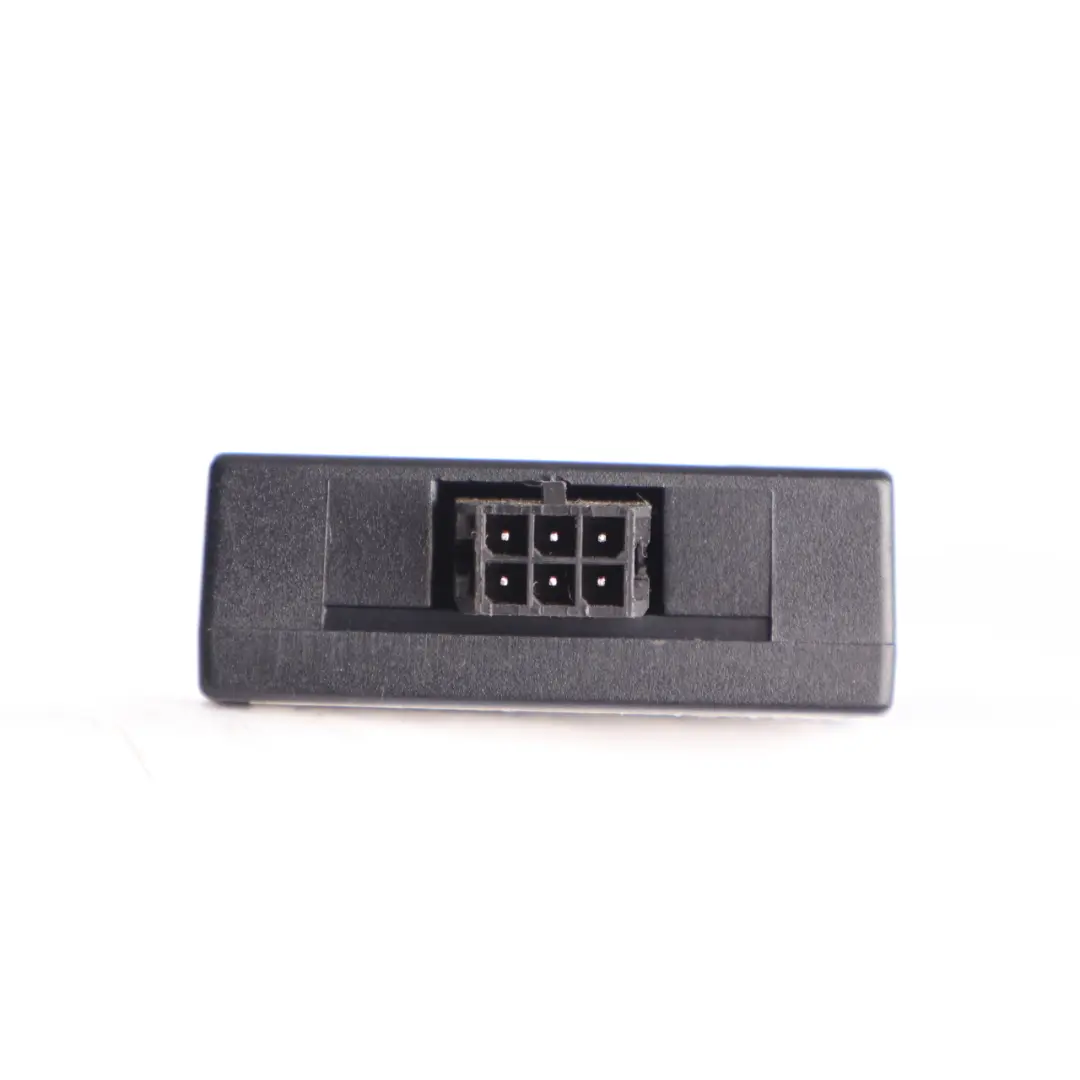

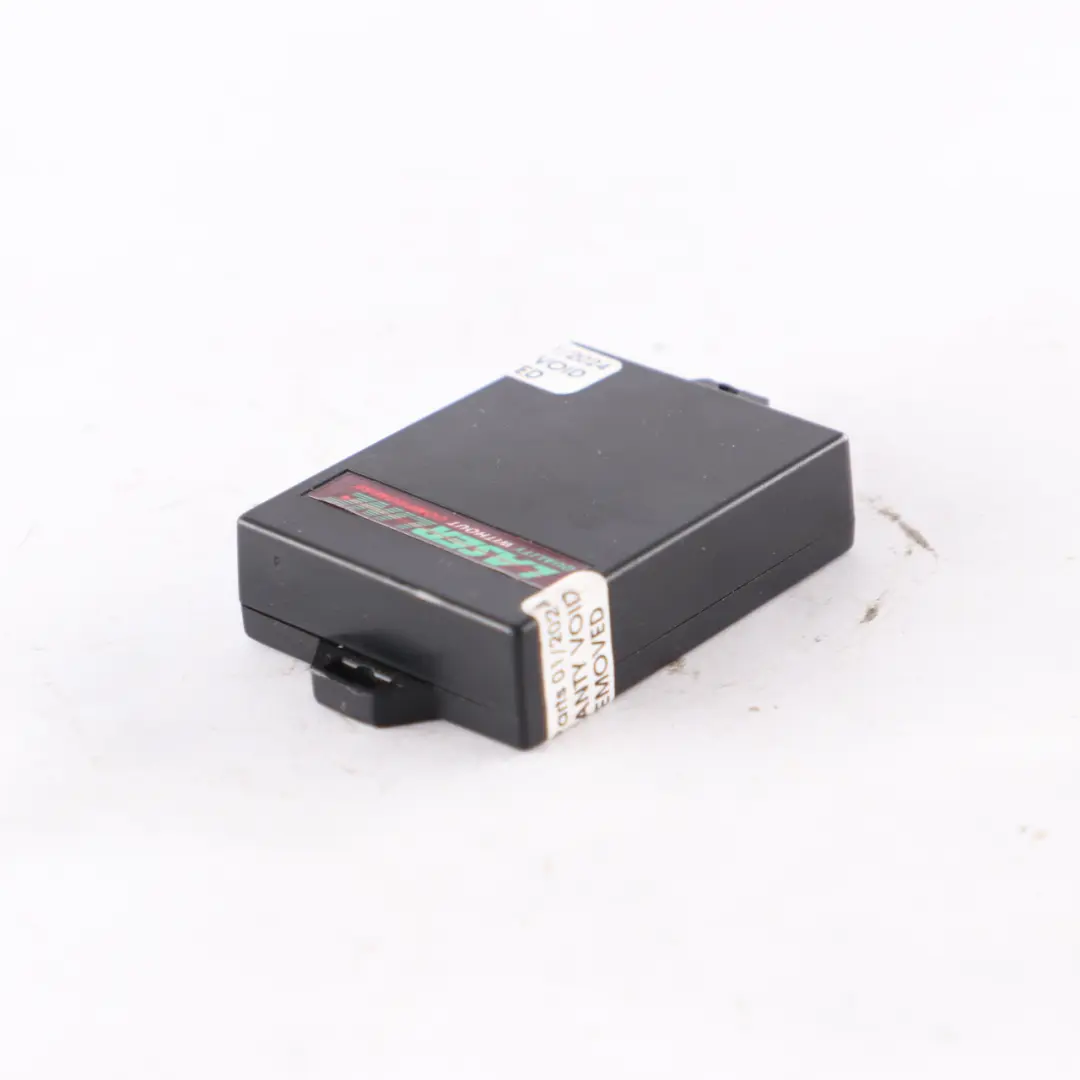

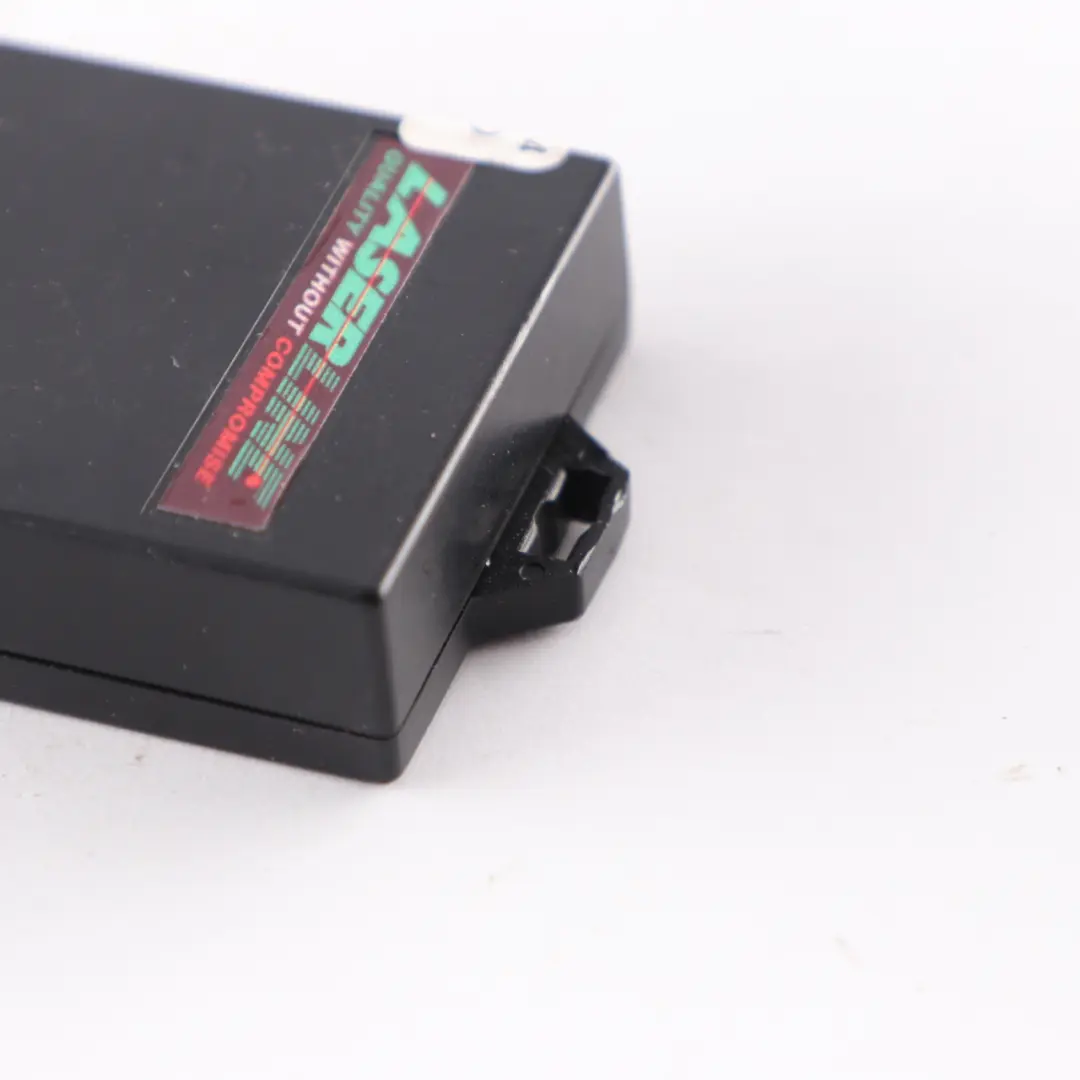

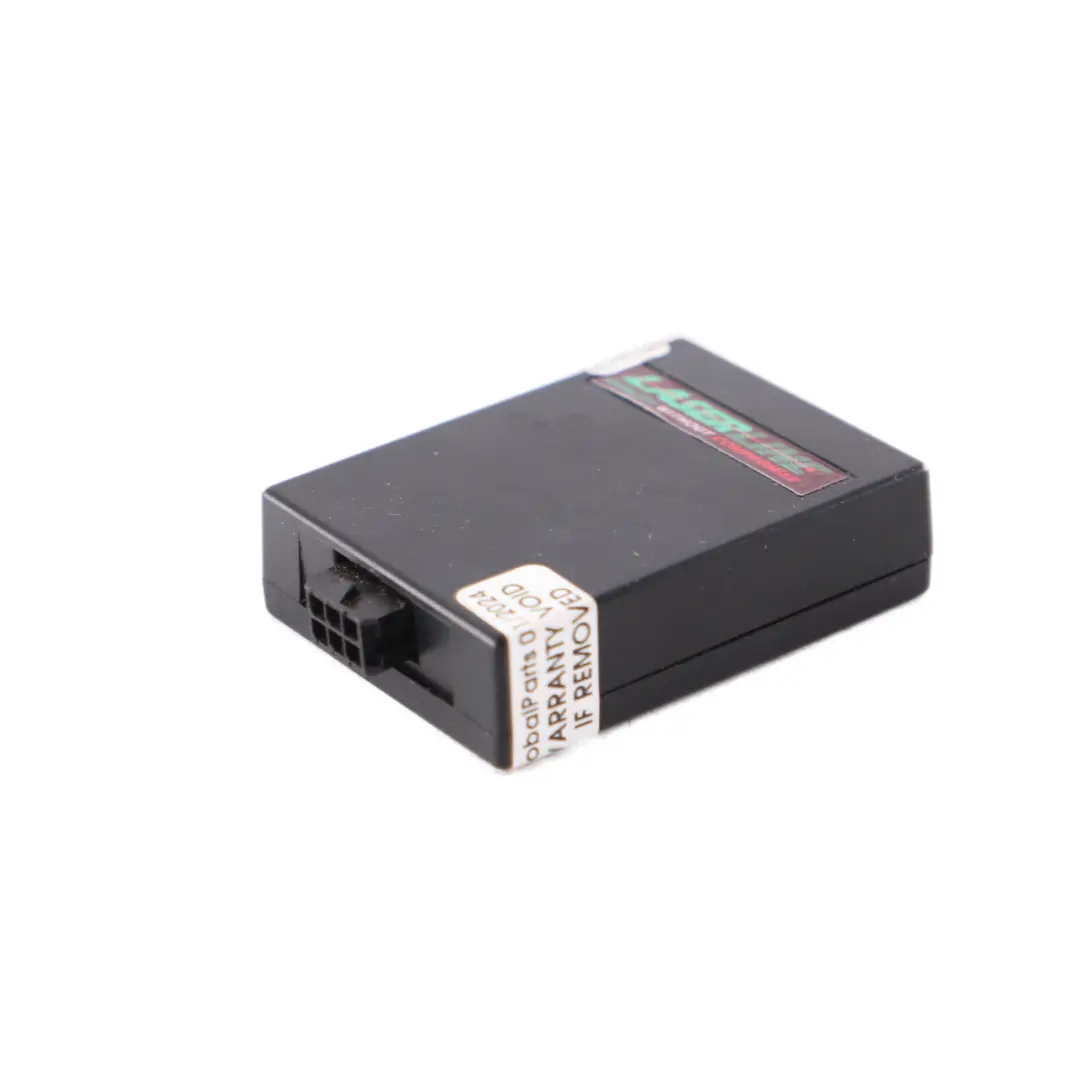

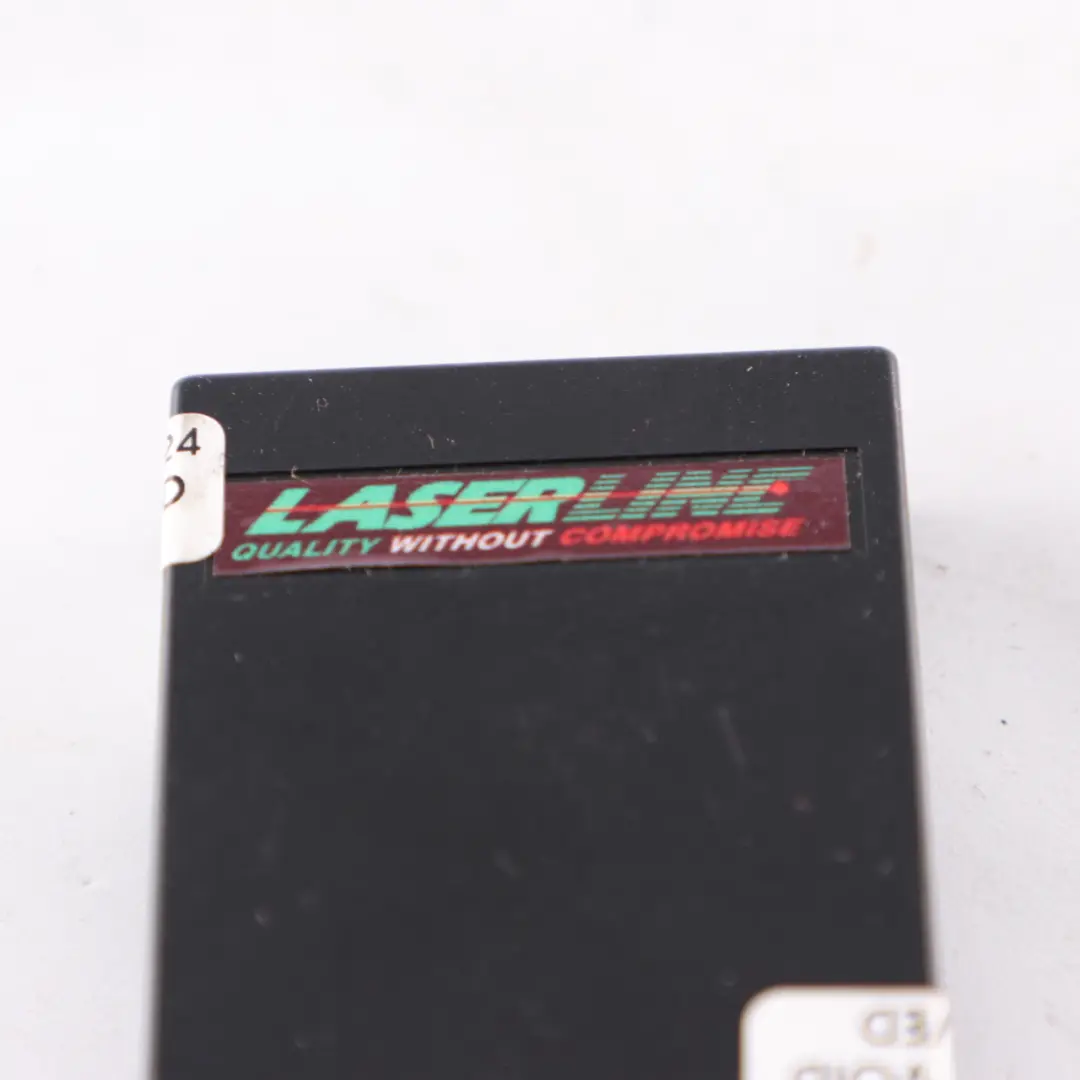

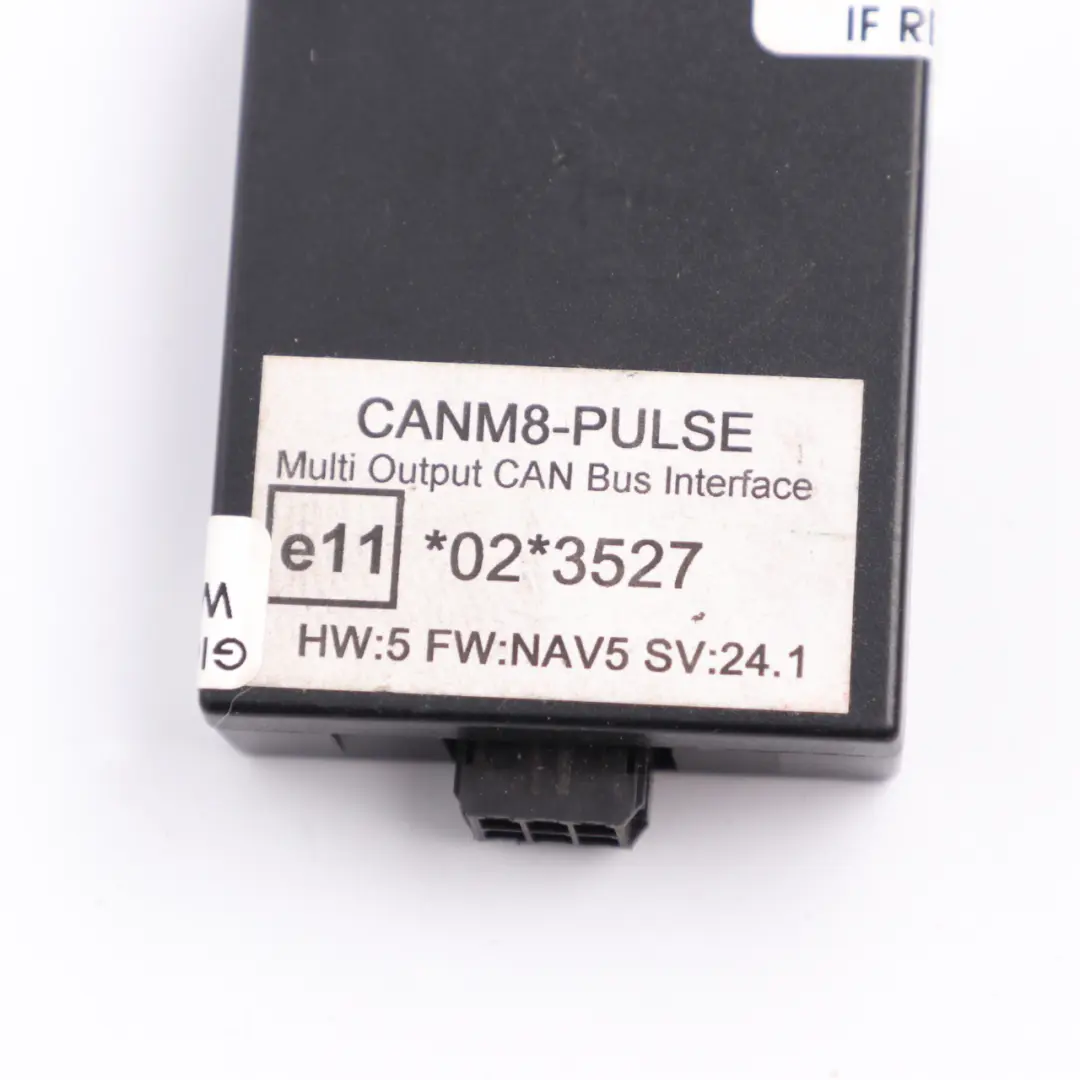

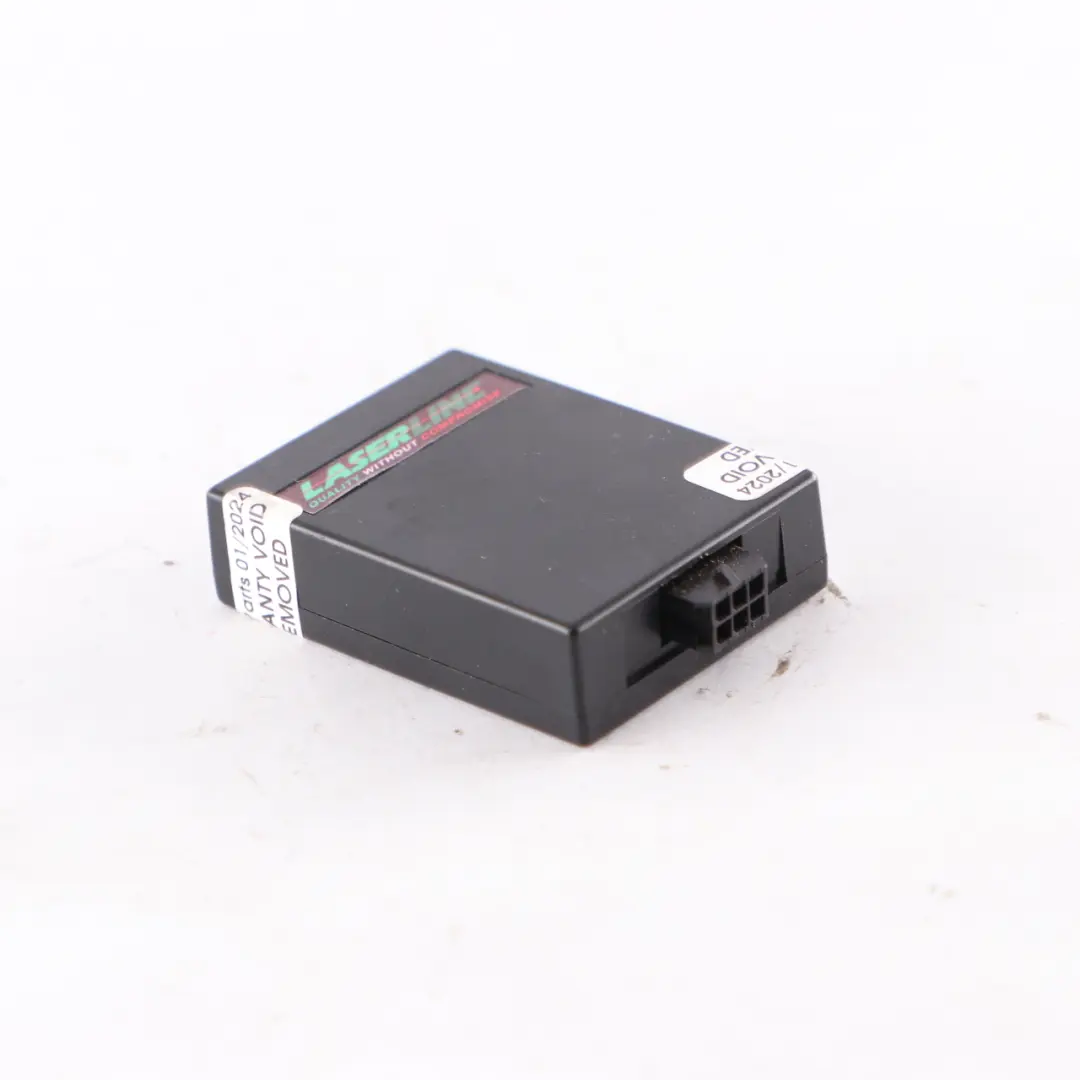

Headlight Lamp Mulit Output CAN Bus Interface Unit Module Laser Line CANM8-PULSE

The Headlight Lamp Multi Output CAN Bus Interface Unit Module Laser Line CANM8-PULSE is a specialized CAN interface module designed for the integration and expansion of Headlight control in modern vehicles. It enables precise signal extraction from the CAN bus, facilitating the installation of additional lamps, lighting systems, or lighting modifications without altering the factory wiring harnesses. This is a practical solution for workshops, installers, and users planning advanced front lighting modifications.

Specifications and technical data

• SKU: CANM8-PULSE
• Mark: Unbranded
• Condition: Used
• OEM Part Number: CANM8-PULSE
• Substitutable numbers: CANM8-PULSE
• Location on the vehicle: Front
• Category: Headlight Assemblies

Module Application in the Headlight System

The presented CAN interface module has been designed for operation in the front section of the vehicle, where the Headlights and associated electrical systems are located. Thanks to its multi-channel signal output, it allows for:

• safe retrieval of information from the CAN bus regarding headlight operation,
• control of additional lamps without overloading factory circuits,
• easier integration of accessory lighting with the existing vehicle system,
• reduction of the need to interfere with the original wiring harness.

This approach significantly simplifies the installation of solutions based on low beam, high beam, daytime running light signals, or other functions related to the front of the vehicle.

Module Construction and Technical Characteristics

The CAN interface module features a construction adapted for use in automotive installations where resistance to interference and signal stability are crucial. Its multi-output architecture allows for the parallel extraction of several control signals, which is particularly useful for complex lighting projects.

The device acts as an intermediary between the CAN bus and additional receivers, ensuring:

• signal separation from the main vehicle installation,
• the ability to configure outputs for specific lighting functions,
• stable operation under typical car operating conditions.

As a result, the module is suitable for both workshop applications and individual lighting upgrade projects.

Purpose, Installation, and Vehicle Integration

The module is intended for installation in the front zone of the vehicle, near the headlight wiring or fuse box, which reduces the length of additional cabling and facilitates wire routing. Integration with the electrical system involves connecting to the CAN bus and appropriately configuring the outputs for the required lighting functions.

In practice, the module can be used for, among other things:

• controlling additional long-range or work lamps,
• expanding cornering light systems,
• adapting lighting in vehicles after body modifications,
• projects requiring the extraction of light signals without interfering with the main control unit.

Due to the nature of the device, installation by individuals experienced in working with CAN systems and automotive lighting is recommended.

Condition, Origin, and Benefits of Choosing a Used Module

The offered module comes from the segment of used electrical components, allowing you to obtain a specialized solution at a more favorable price than new parts. For many retrofit projects and repairs, this is a sensible compromise between functionality and cost, especially when aiming to maintain consistency with the existing vehicle installation.

Choosing such a module is a good solution for workshops that carry out:

• lighting upgrades in fleet vehicles,
• individual customer projects requiring CAN integration,
• repairs and restoration of previously installed additional lighting systems.

This allows for effective restoration or expansion of headlight-related functions while maintaining control over the project budget.
