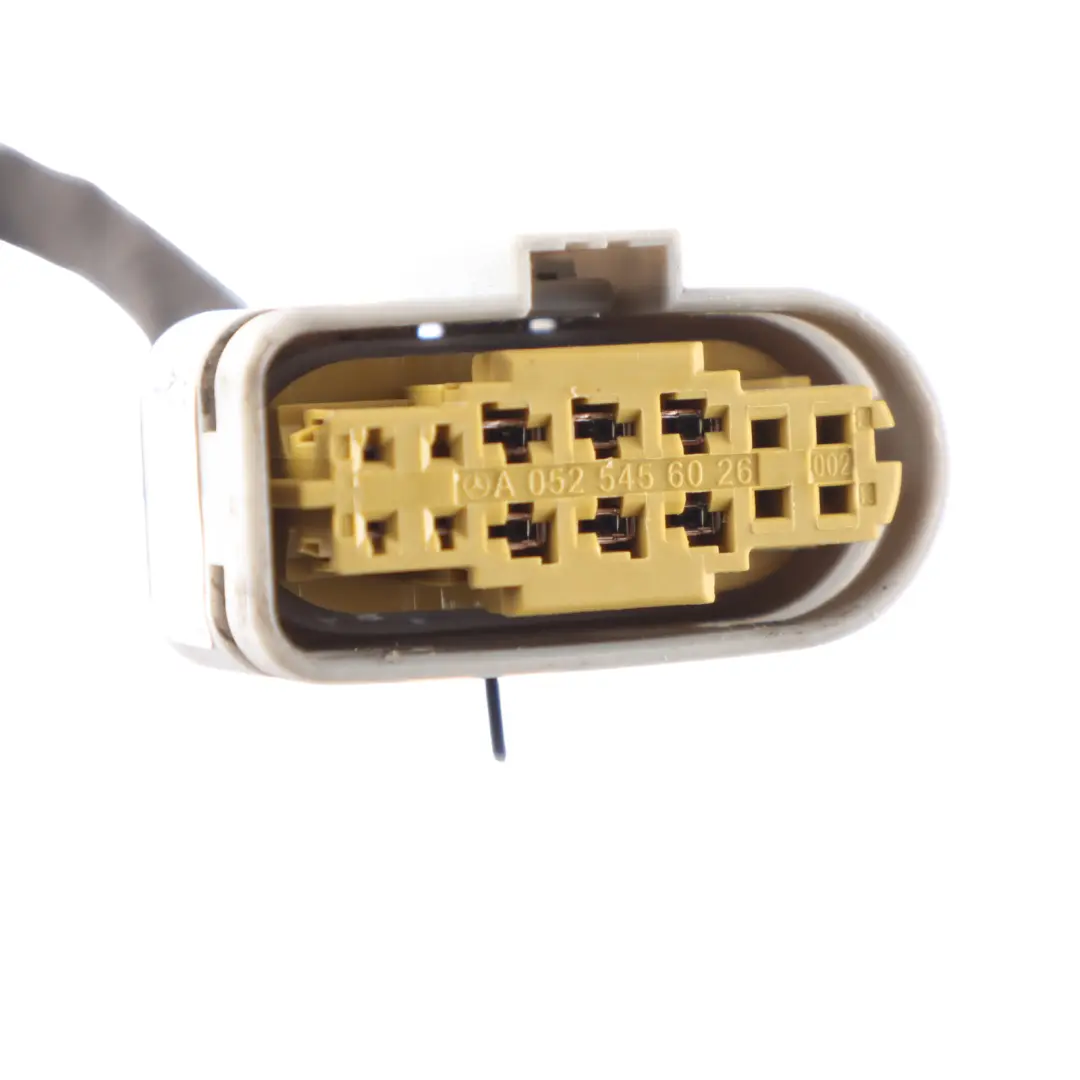

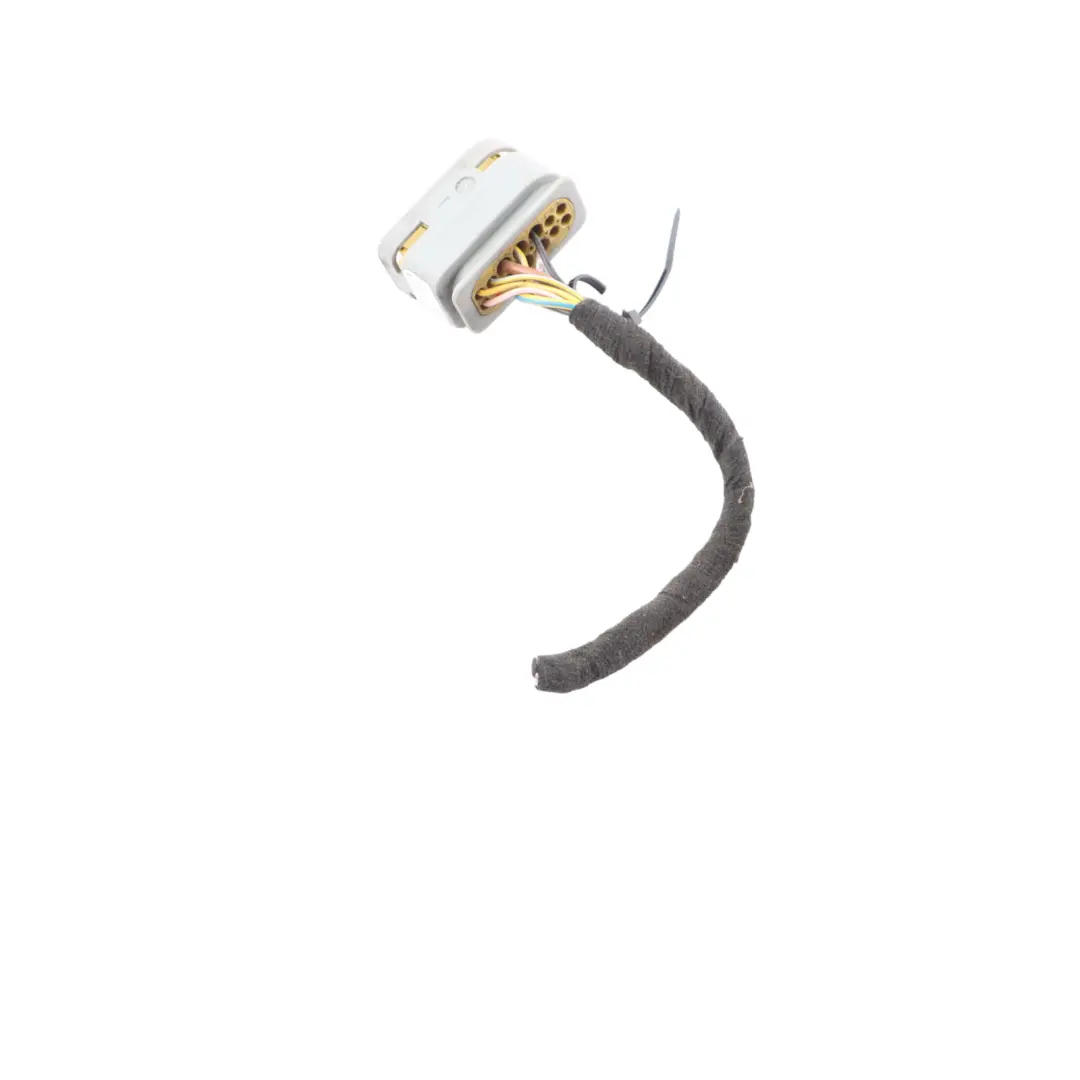

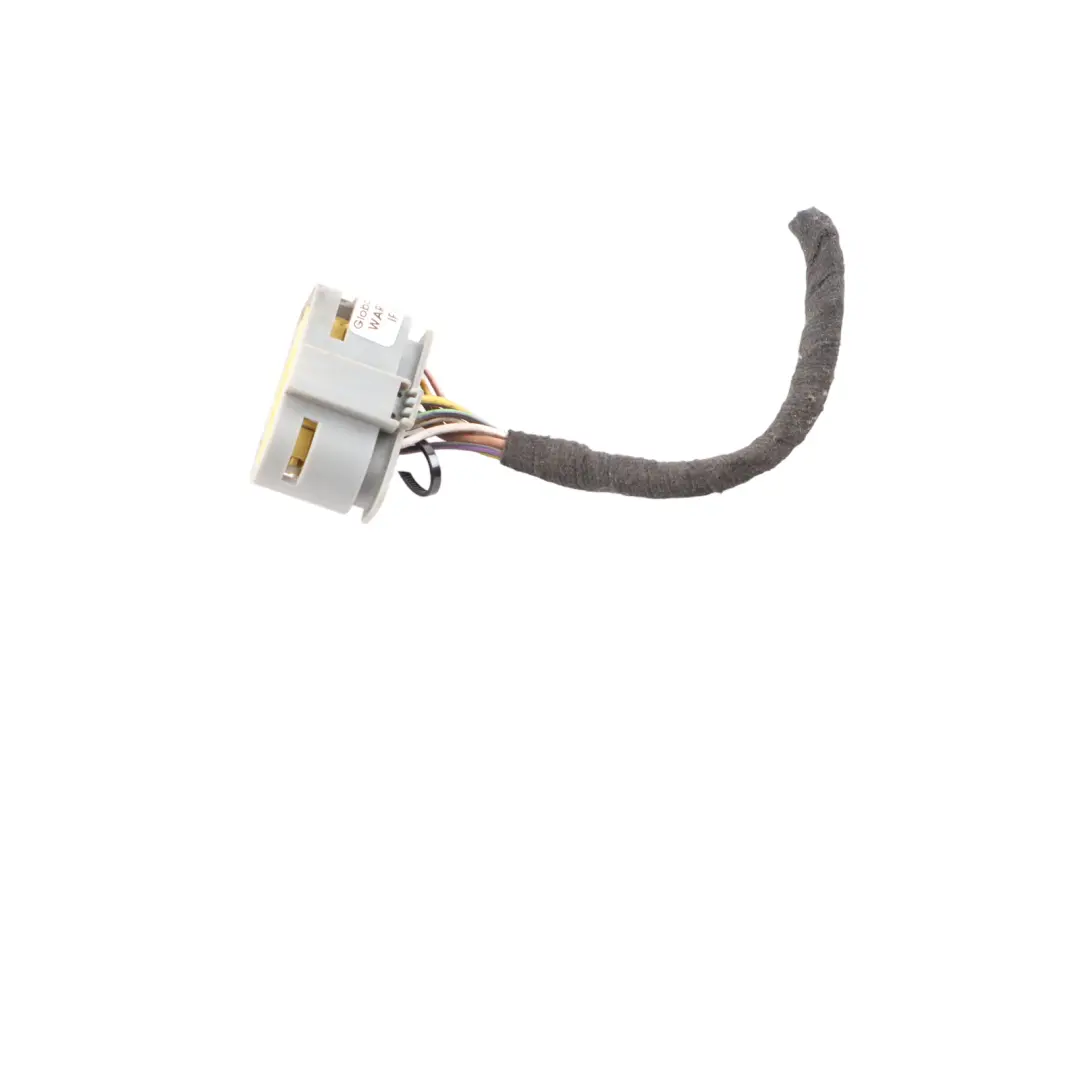

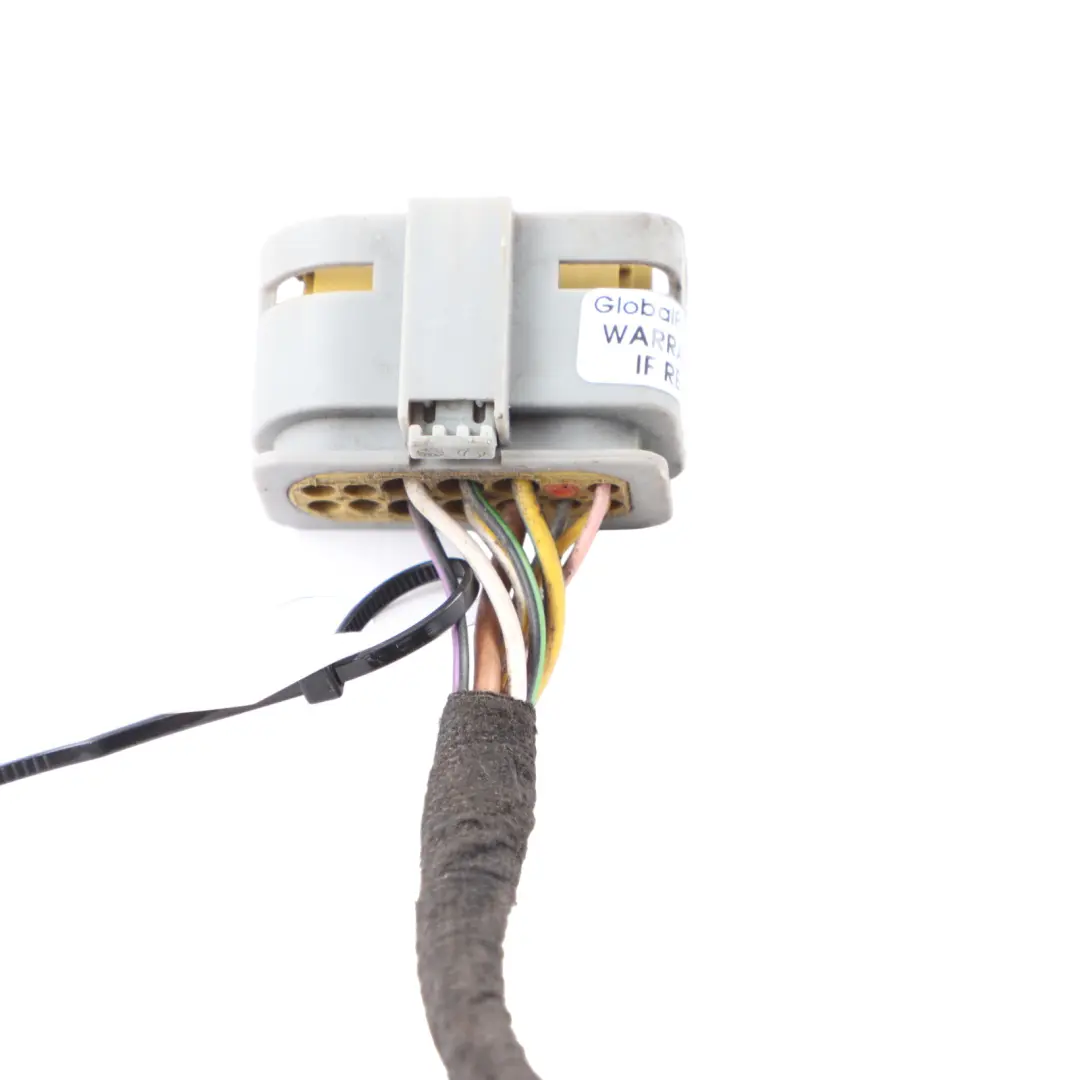

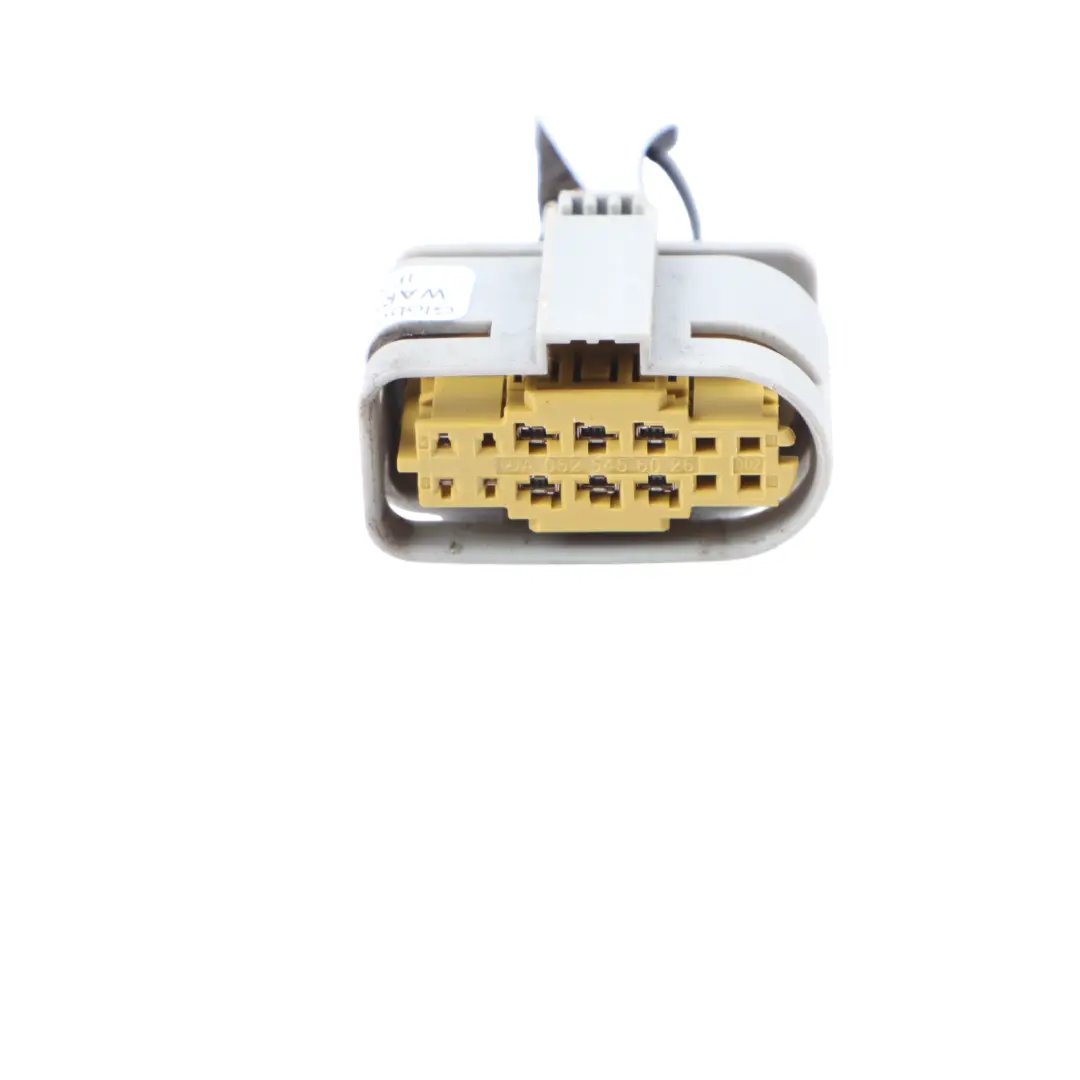

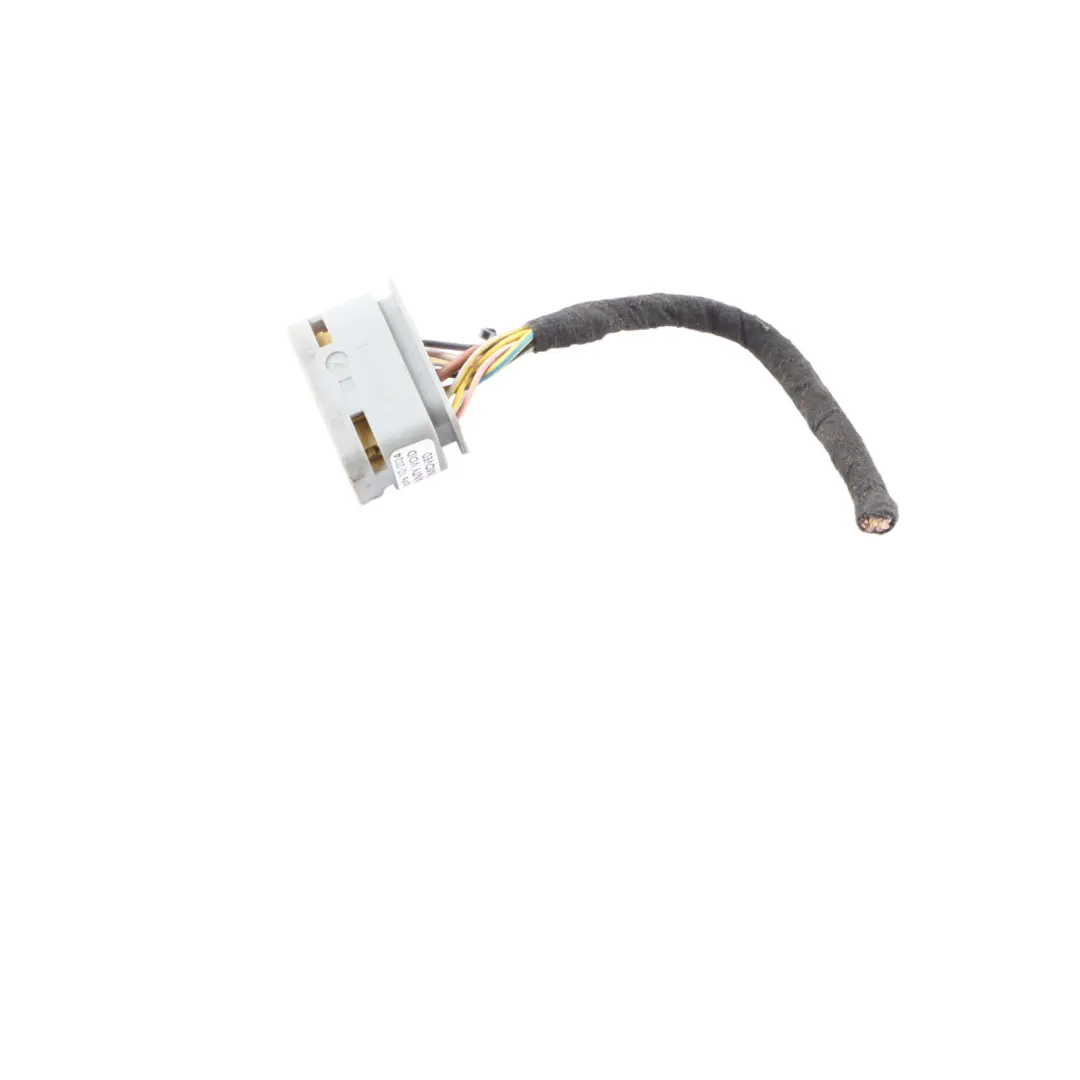

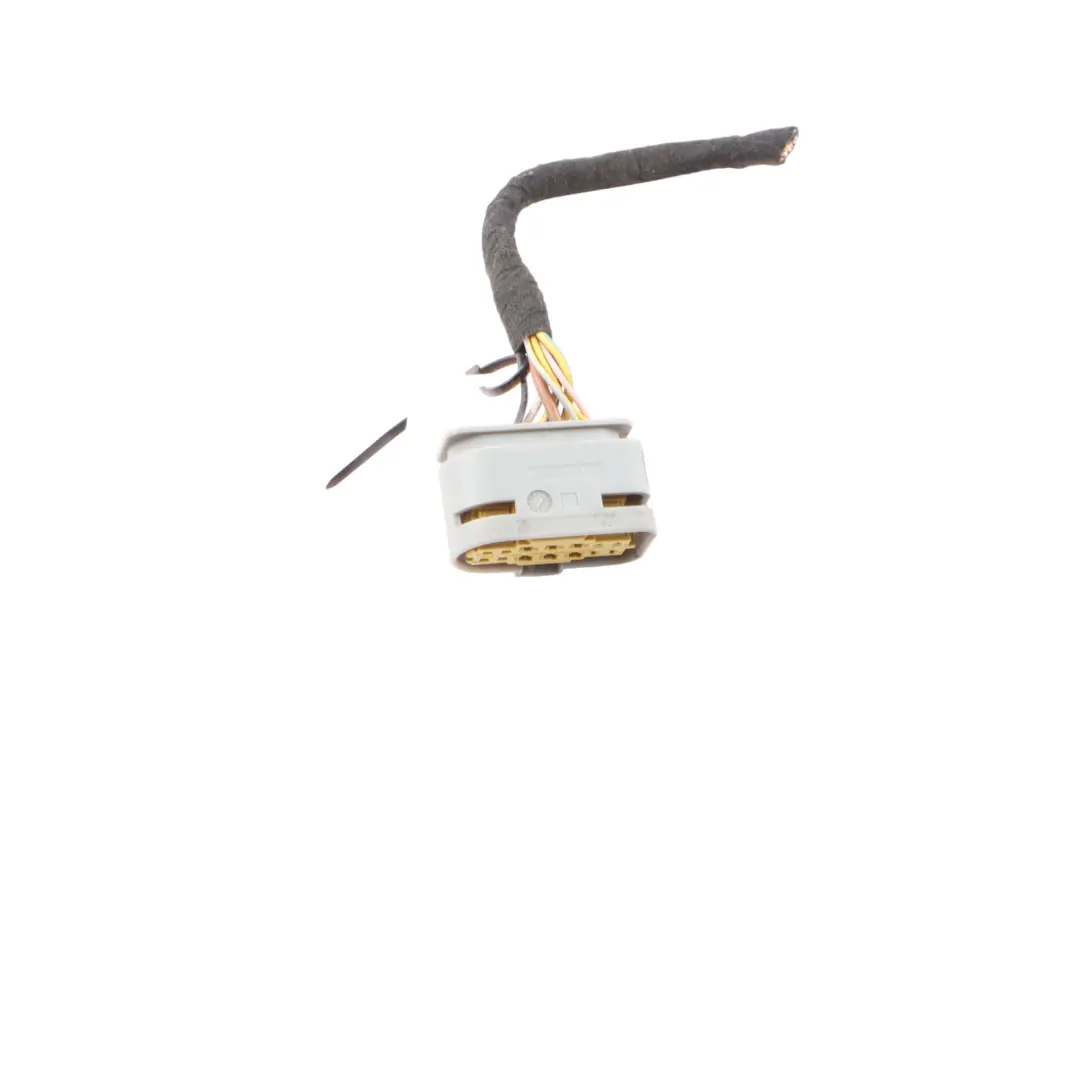

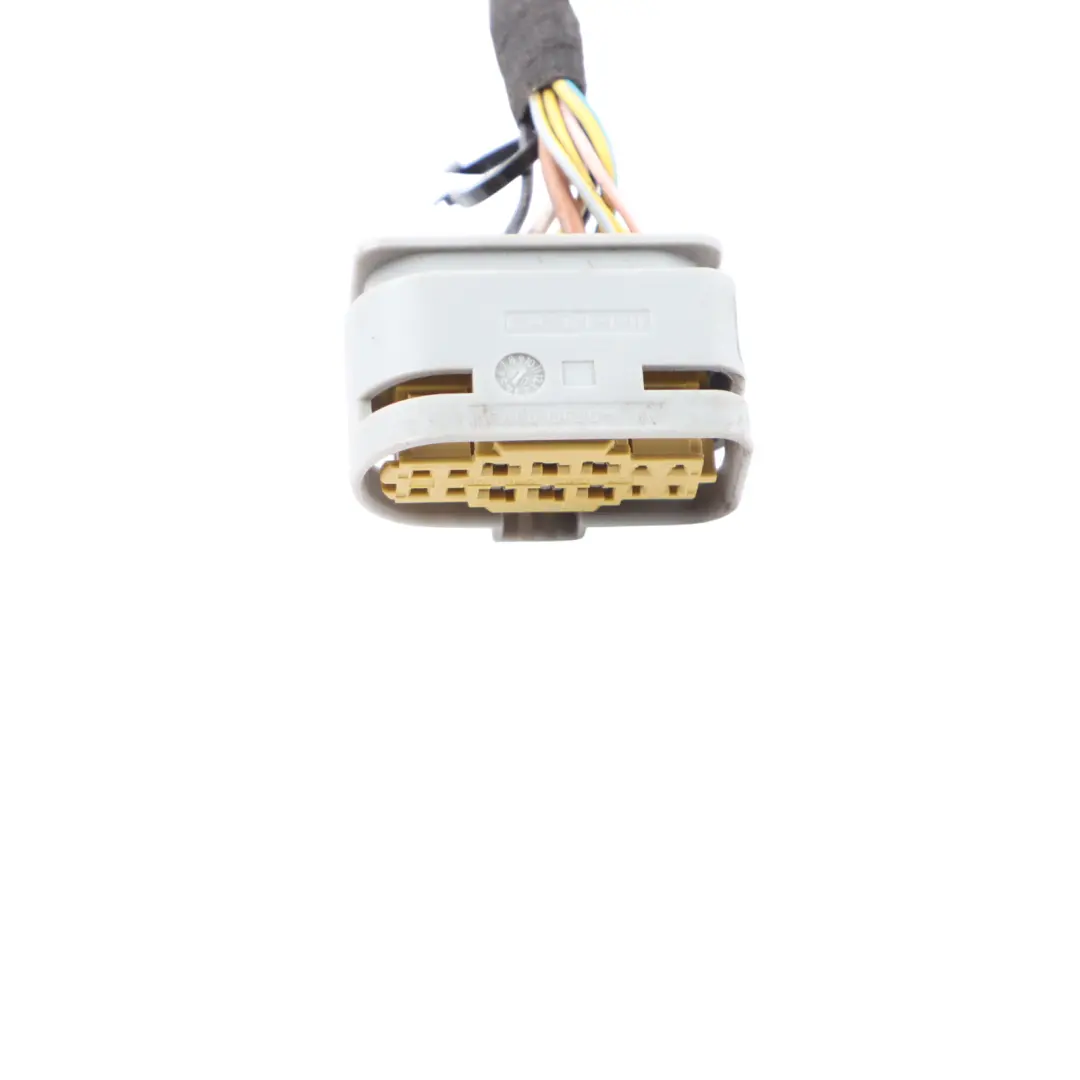

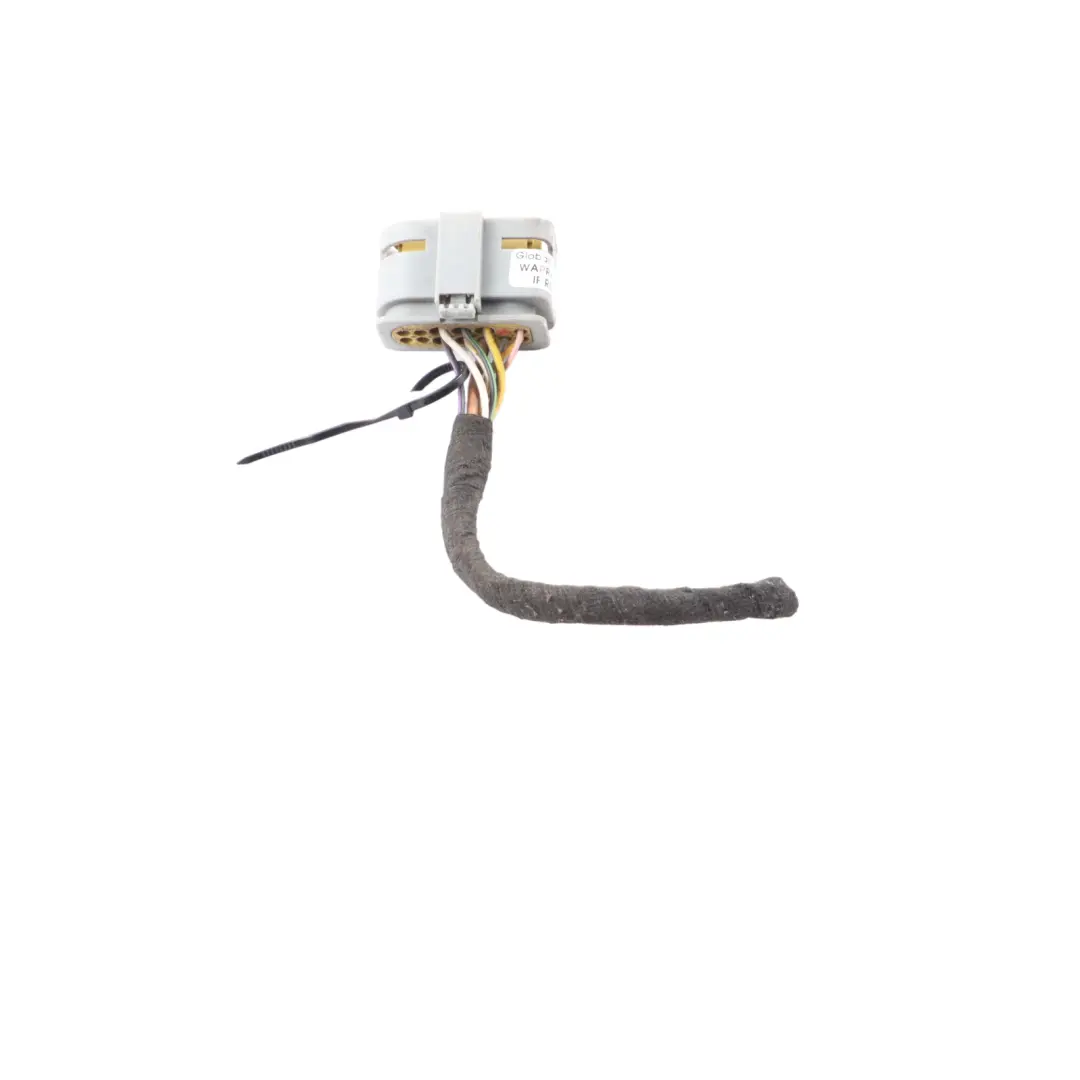

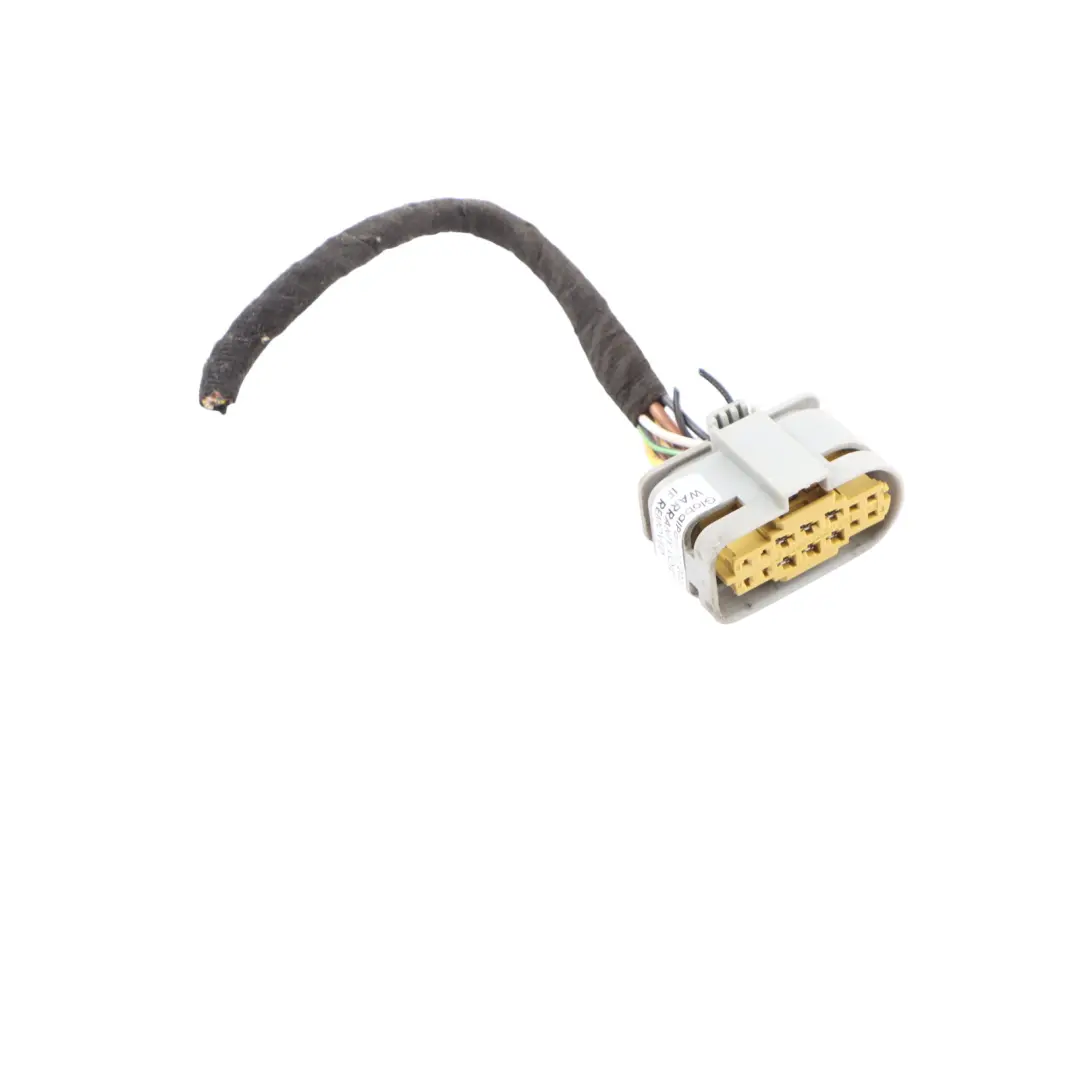

Mercedes W169 Headlight Cable Headlamp Wiring Harness Loom Front A1698206461

Mercedes W169 Headlight Cable Headlamp Wiring Harness Loom Front is an original lighting system component designed for installation in the front part of the vehicle. It provides a stable electrical connection between the headlight and the car's wiring, which translates into the proper operation of low beam, high beam, and position lights. This is a practical service solution for users of A-Class W169 models who need a reliable front lamp cable.

Specifications and technical data

• SKU: A1698206461-2
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1698206461
• Substitutable numbers: A1698206461, A 169 820 64 61
• Location on the vehicle: Front
• Category: Headlight Assemblies

Purpose and function in the lighting system

The presented harness is a component from the Front lights group, responsible for supplying power and control signals to the headlight. Its placement in the front zone of the vehicle allows for a direct connection to the factory lamp connector without the need for any wiring modifications. Thanks to the preservation of the original geometry of the wires and connectors, the installation is carried out in an orderly manner and in accordance with the factory cable routing.

Compatibility and fit for Mercedes W169

The harness has been designed specifically for Mercedes A-Class W169 generation models, which means that its length, connector type, and wiring layout are adapted to the factory headlight and front body panel. Using an original solution allows for maintaining:

• correct positioning of connectors relative to the lamp and bodywork,
• consistency with the factory electrical diagram,
• proper strain relief for wires at critical mounting points.

As a result, the harness is suitable both for replacing a damaged cable and for repairs following a collision in the front area of the vehicle.

Service application and installation benefits

Using an original headlight harness in a Mercedes W169 helps reduce the risk of problems typical of custom-made installations, such as unstable connections, contact overheating, or lighting operation errors. This is particularly important in vehicles equipped with advanced lighting control systems, where the quality of electrical connections affects communication with control modules.

The main advantages of this solution include:

• factory fit for Mercedes installations without the need to modify the harness,
• orderly cable routing in the front zone,
• the ability to restore proper headlight operation after mechanical damage or contact corrosion.

Condition of the component and installation aspects

The offered headlight harness is a used part, which in practice means real cost savings while maintaining the original design and compatibility with the factory electrical system. Before installation, it is recommended to perform a standard check of the condition of the connectors and insulation, and to clean the contacts if necessary to ensure reliable conductivity and reduce voltage drops in the lighting circuit.

The harness is intended for installation in the front part of the vehicle, in the immediate vicinity of the headlight. Installation involves connecting the factory connectors to the lamp and the main vehicle wiring, without the need for interfering with the body structure.

Expanding the Mercedes lighting system

If you are planning a comprehensive repair or upgrade of the front lighting zone in your Mercedes and need other elements from the same group, such as lamps, bulb holders, or additional cables, check the available parts in the Mercedes Front lights category.
