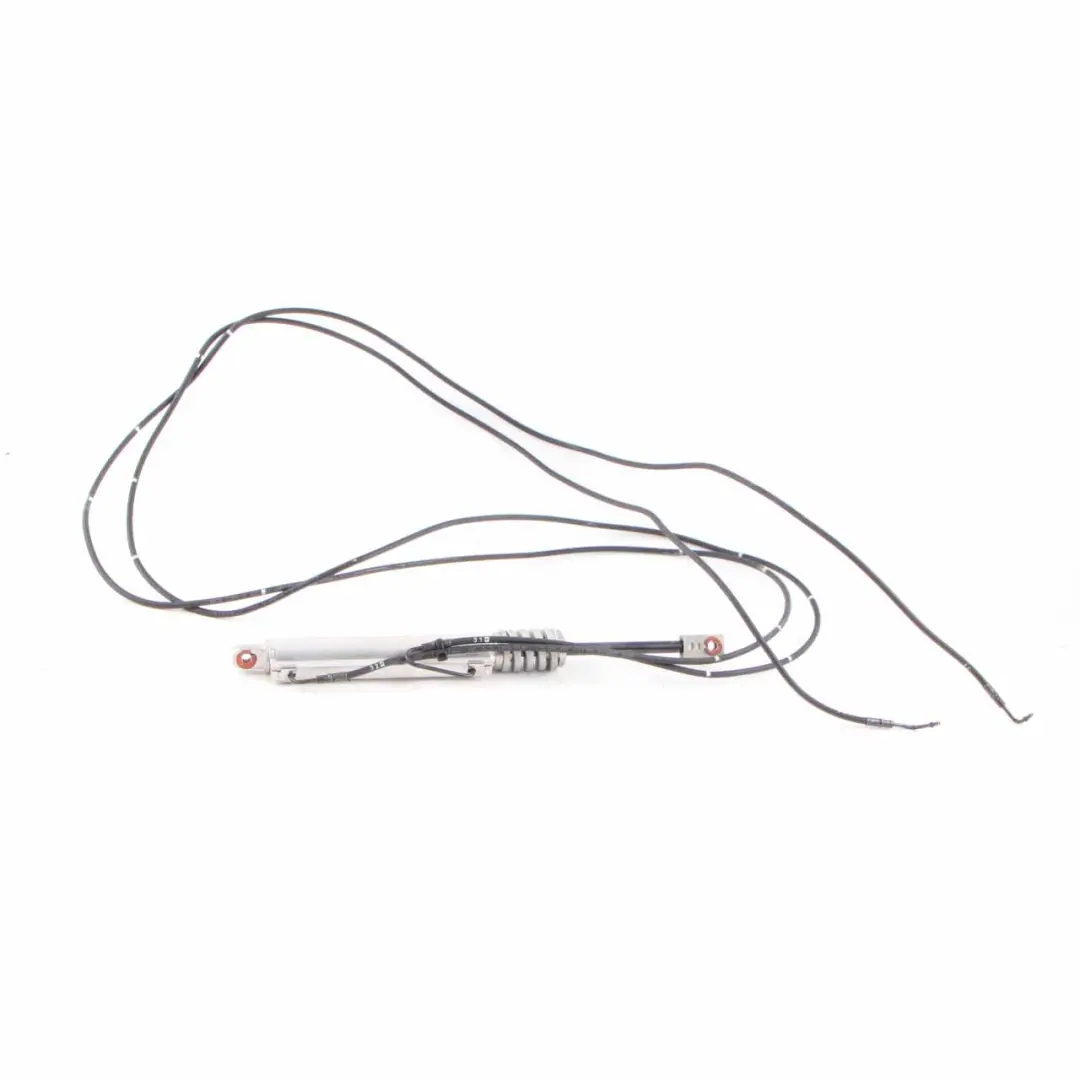

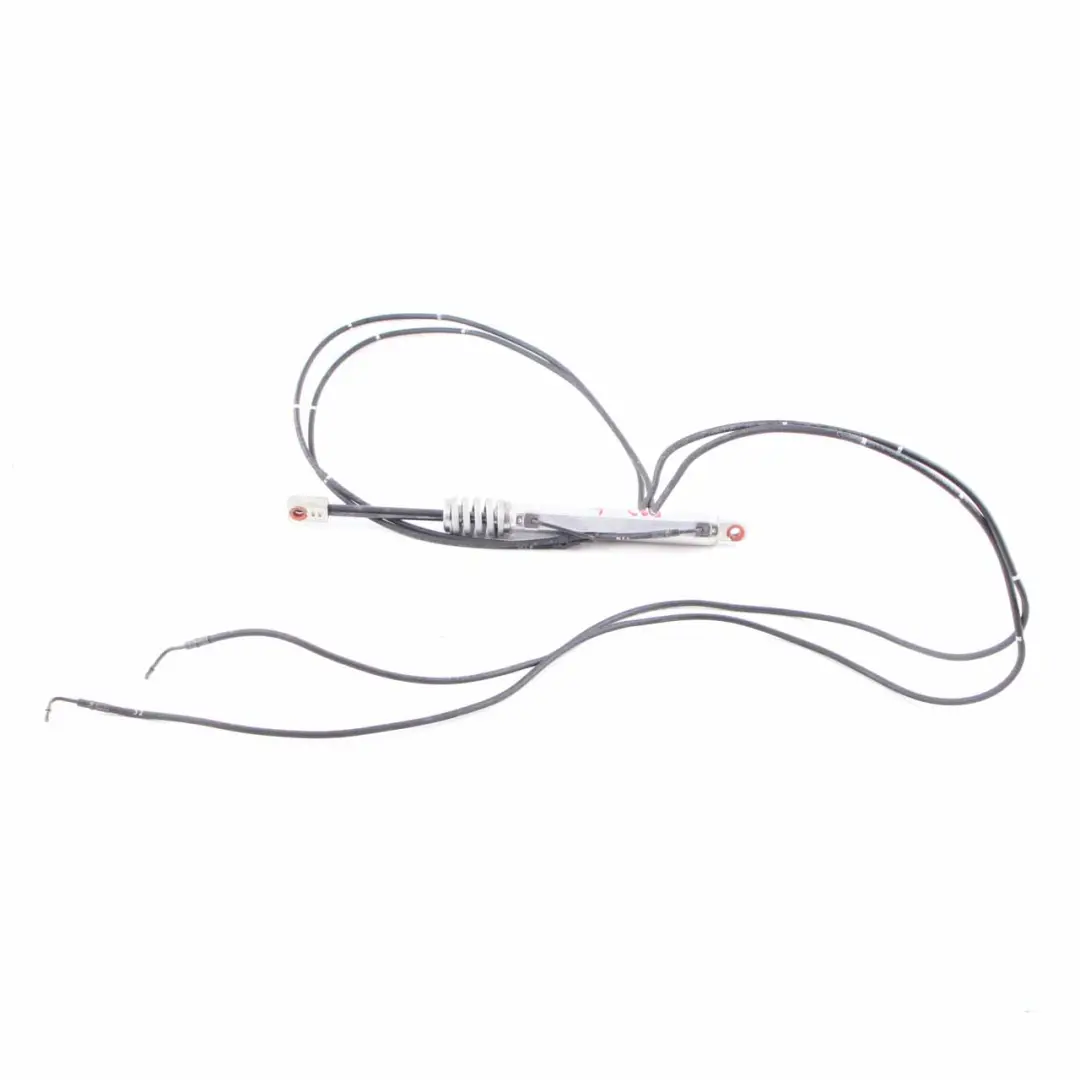

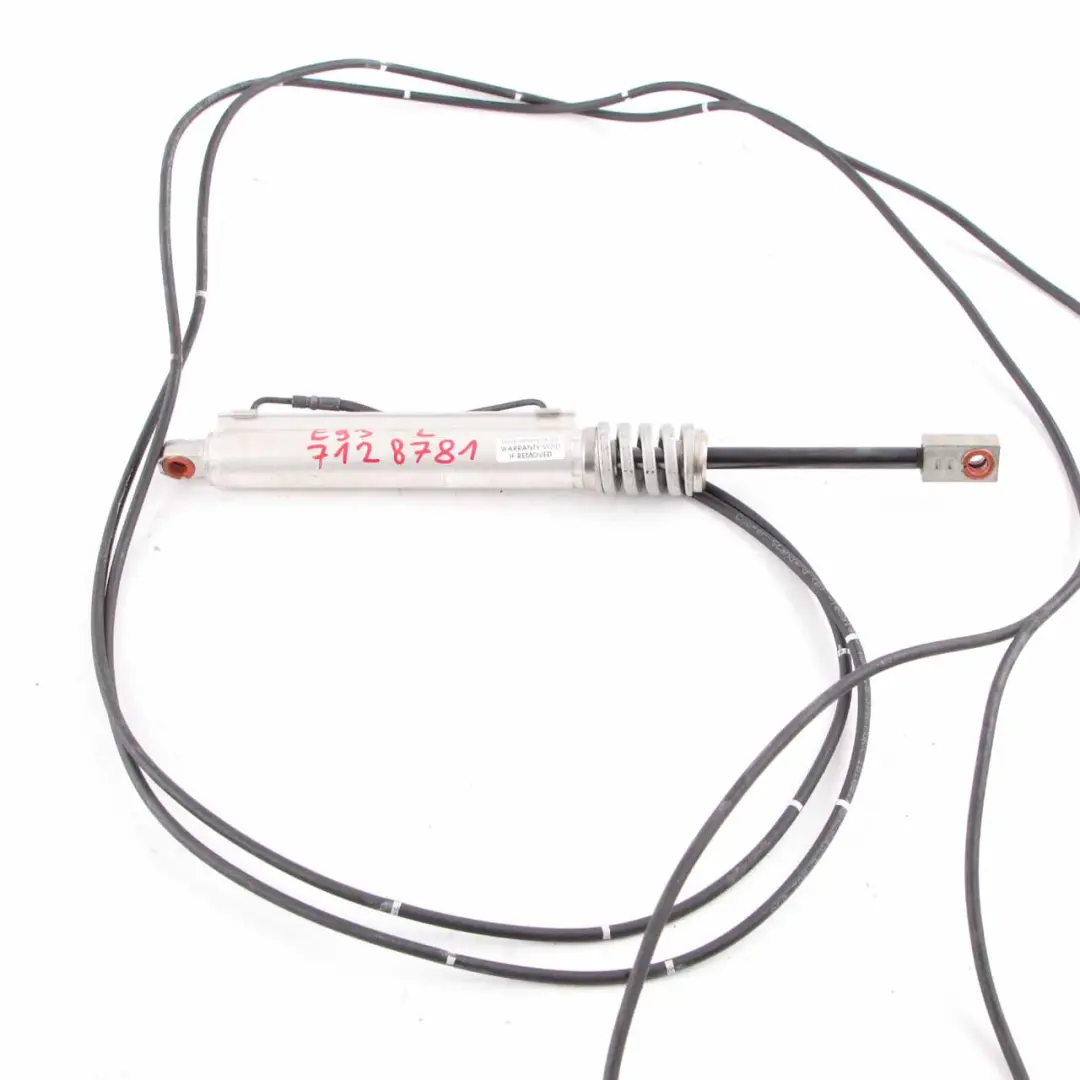

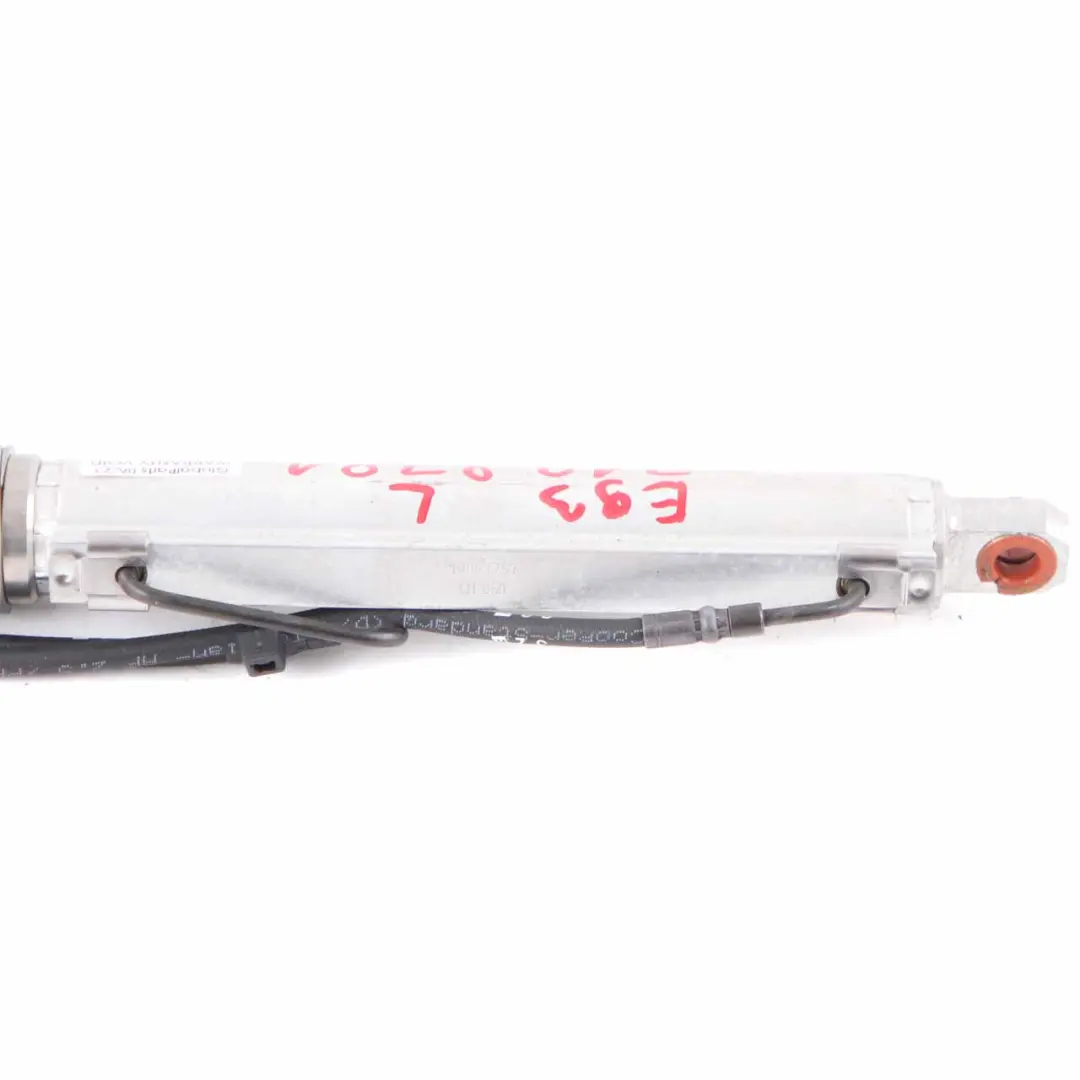

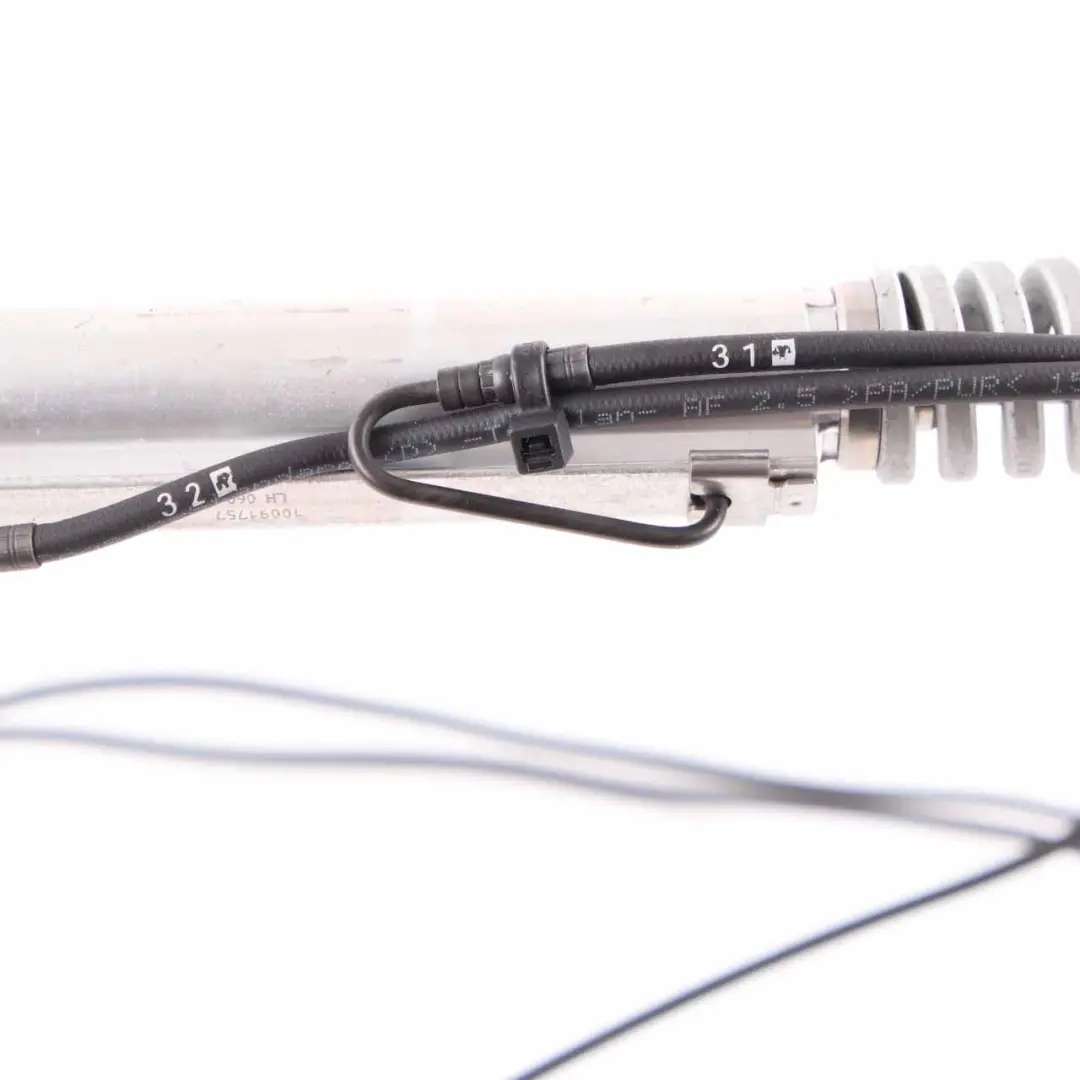

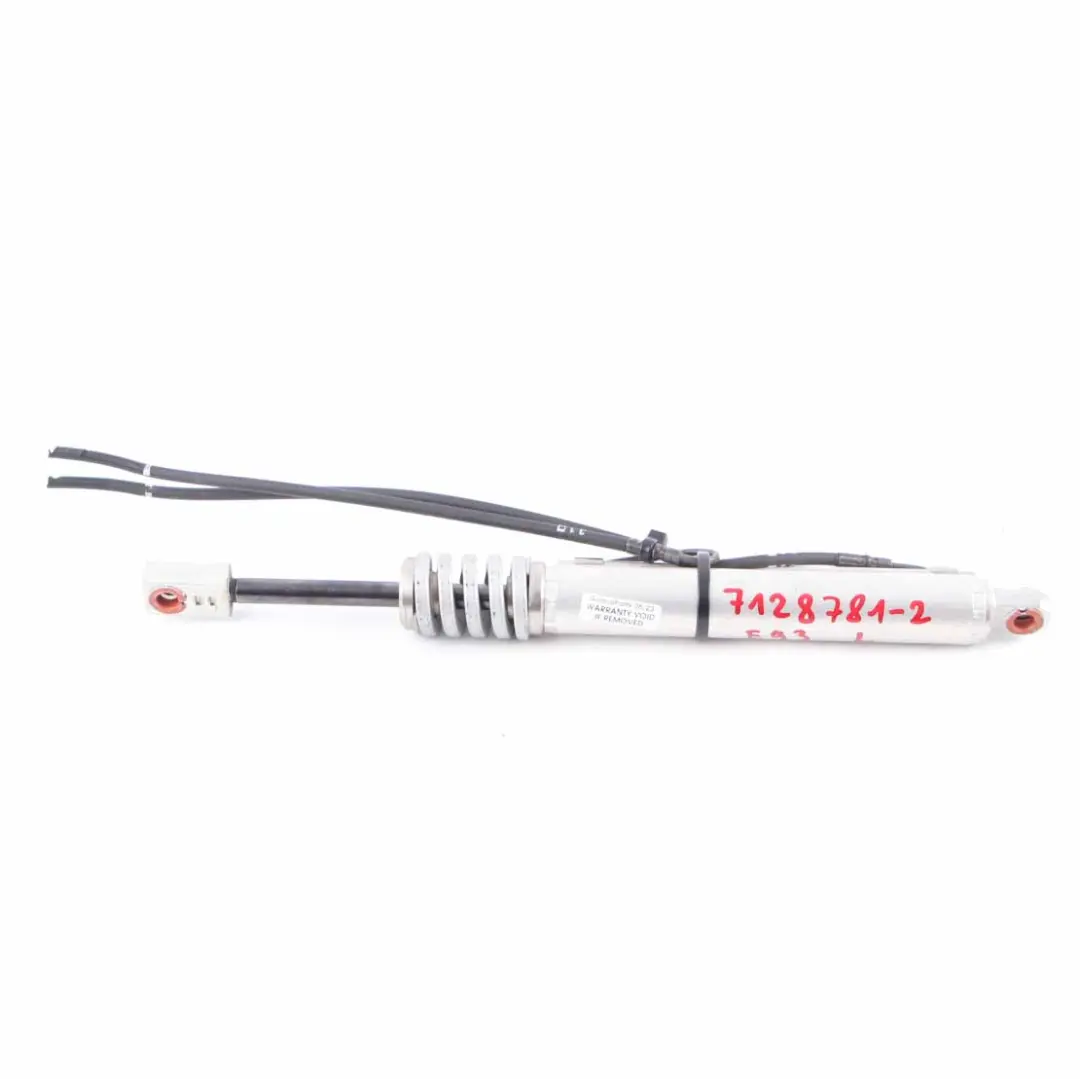

BMW E93 F33 Convertible Folding Hardtop Roof Tray Left N/S Hydraulic Cylinder

BMW E93 F33 Convertible Folding Hardtop Roof Tray Left N/S Hydraulic Cylinder is an original roof system component designed for the precise operation of a convertible roof mechanism. It ensures stable guidance and controlled movement of the roof tray, which translates into safe folding and unfolding of the structure. This solution is dedicated to BMW convertible models where reliable mechanics, correct geometry, and the preservation of factory functionality are essential.

Specifications and technical data

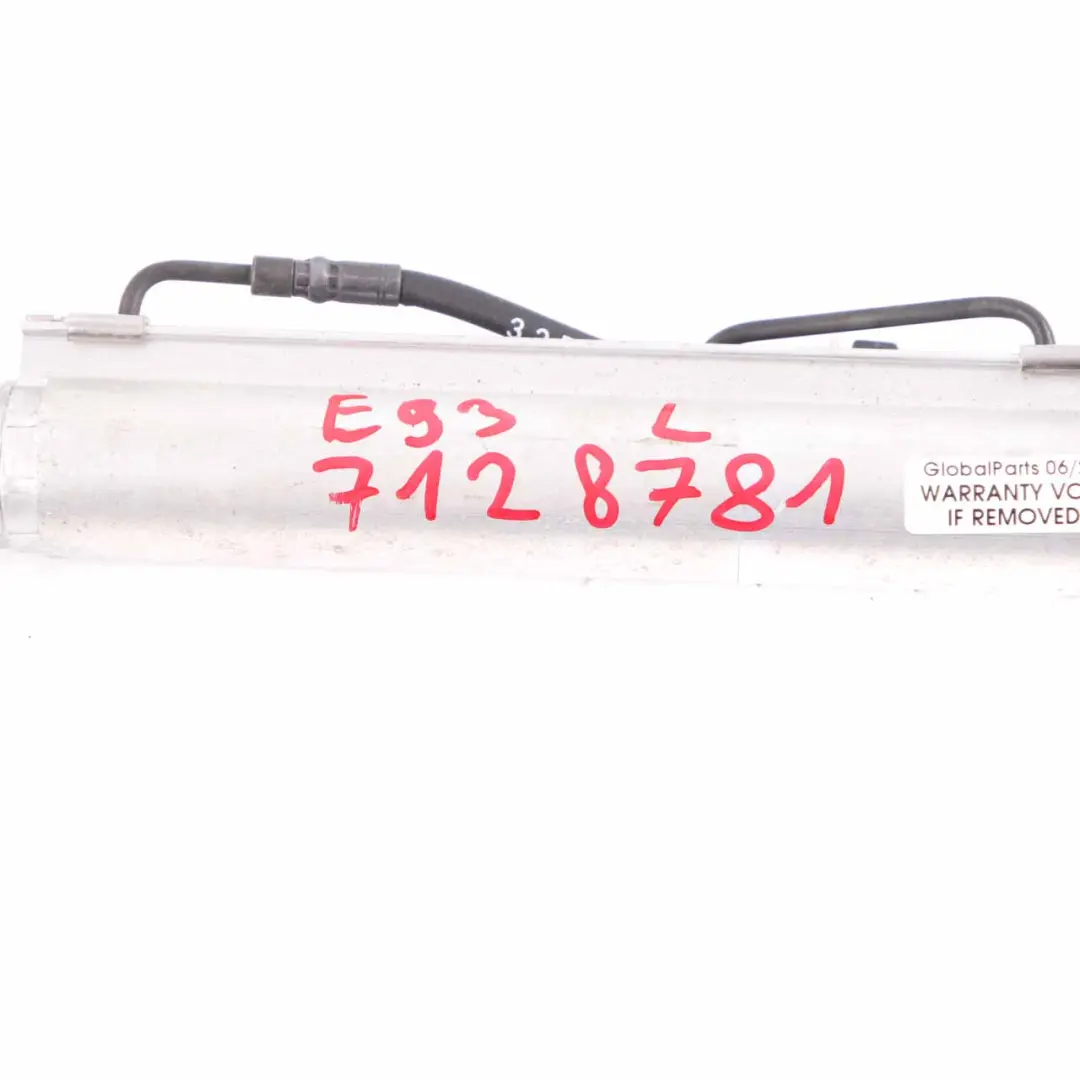

• SKU: 7128781
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7128781
• Substitutable numbers: 7128781, 54377128781
• Location on the vehicle: Left
• Category: Hardtops, Roof Panels & Parts

Purpose and function in the roof system

The presented cylinder is a component of the hydraulic system responsible for the operation of the folding hardtop roof tray in BMW E93 and F33 convertibles. Its task is to control the movement of one of the key roof segments so that the opening and closing process runs smoothly, maintaining the correct sequence and synchronization of individual sub-assemblies.

The placement on the left side of the vehicle allows for proper interaction with other cylinders and guides, creating a cohesive load-bearing and moving system. Thanks to this, the roof folds and unfolds in a predictable manner, without excessive stress on the body structure.

Compatibility and fitment for BMW

The cylinder has been designed specifically for BMW convertibles with a folding hardtop, which means maintaining factory geometry, mounting points, and operating characteristics. Original BMW Group origin facilitates trouble-free installation in place of a worn or damaged component, without the need to modify the hydraulic system or the roof structure.

By using a dedicated component, you can restore the proper operation of the entire roof mechanism, eliminating typical symptoms of wear, such as uneven tray lifting, stopping of the folding sequence, or comfort opening system errors.

Technical characteristics and installation

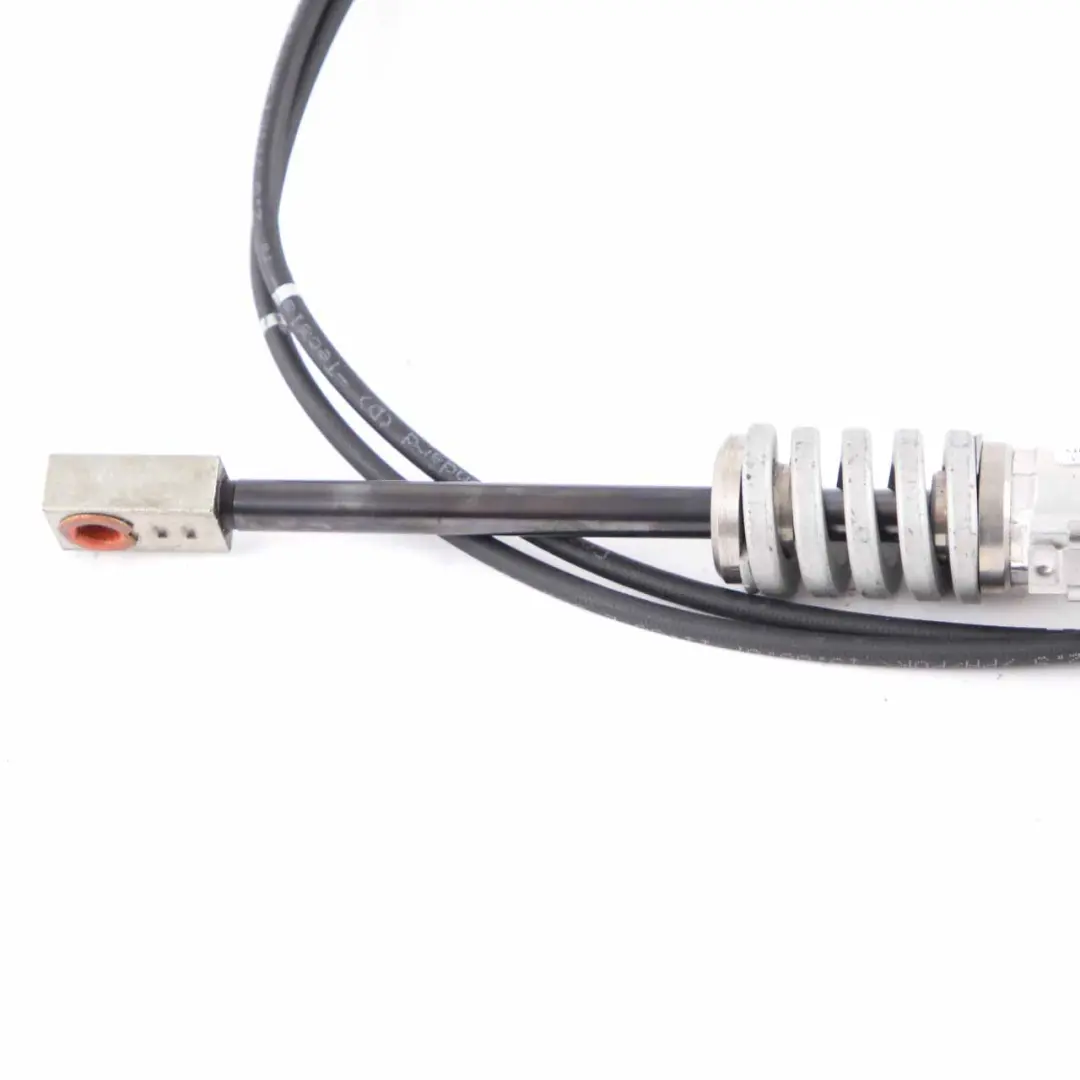

The cylinder operates in a hydraulic system where tightness, pressure resistance, and stable movement characteristics are crucial. The design intended for operation in the convertible roof space takes into account variable loads, vibrations, and temperature changes. Precise piston rod guidance allows for repeatable positioning of the tray, which is important for proper closing and locking of the roof.

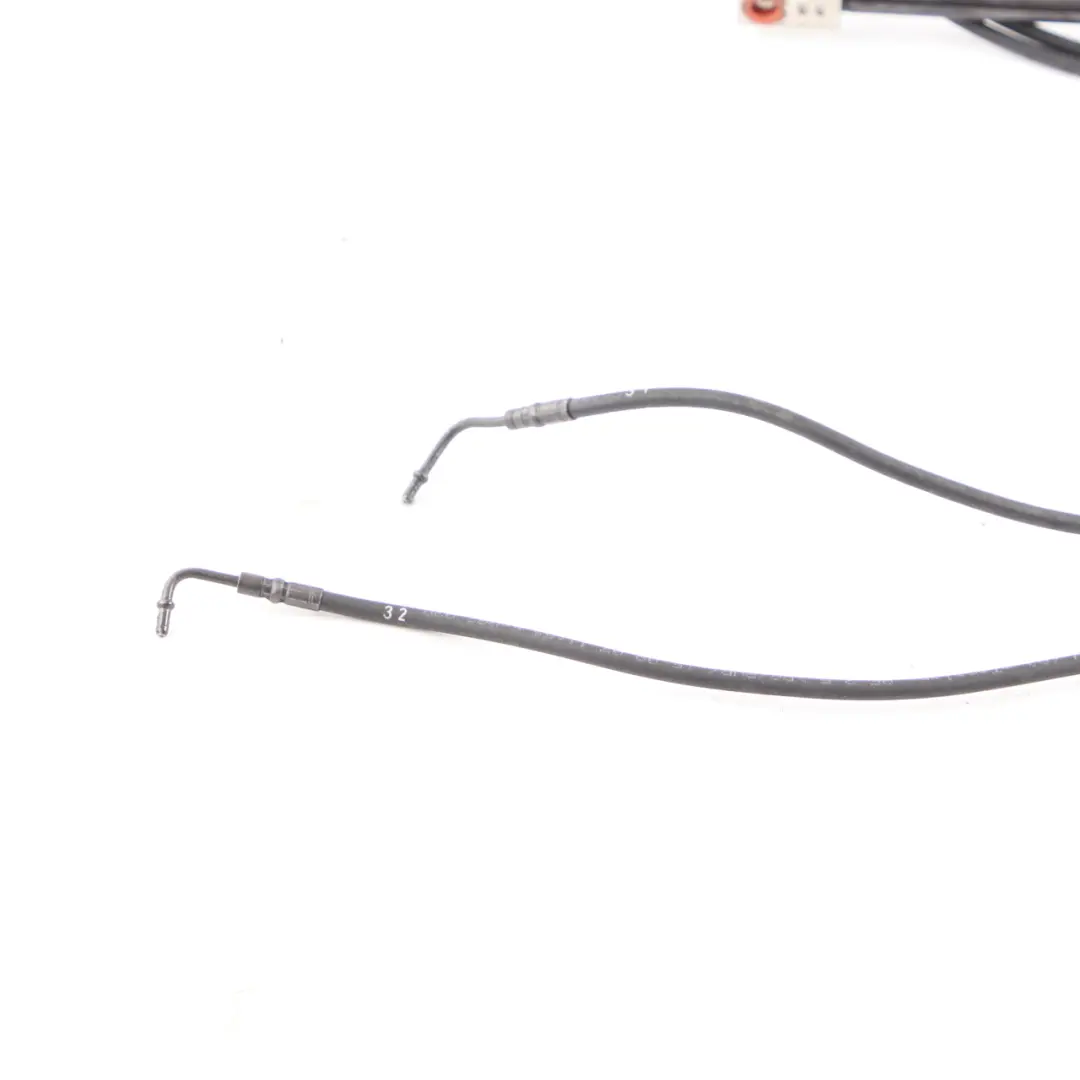

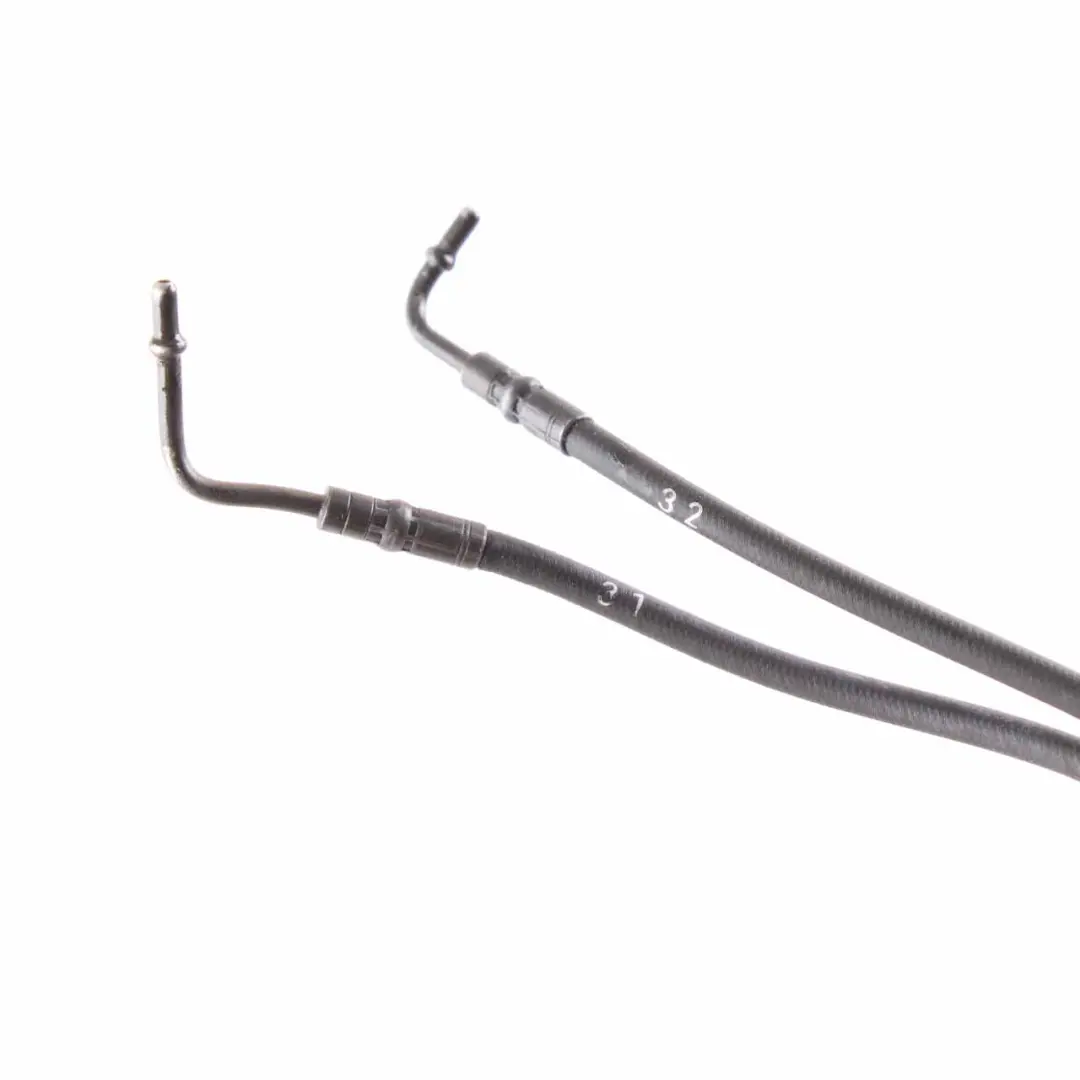

The element is intended for installation on the left side, in accordance with the factory mounting layout. Replacement usually comes down to disconnecting the old cylinder, connecting the hydraulic lines, and bleeding the system according to the BMW service procedure. Using the correct component reduces the risk of leaks and improper mechanism operation.

Condition and use in repairs

The offered cylinder comes from a group of used original BMW parts, which allows for combining cost-effective repair with the preservation of factory specifications. This solution is particularly useful for comprehensive roof mechanism maintenance when it is necessary to replace several sub-assemblies at the same time.

In the case of post-accident repairs or after a roof system failure, the use of an original hydraulic tray cylinder allows for restoring full roof functionality without interfering with the body structure. Consistency with the factory system facilitates diagnostics, calibration, and subsequent vehicle operation.

If you are planning a comprehensive repair or upgrade of the roof area in your BMW and need other elements from the same group, such as cylinders, guides, or modules related to the folding mechanism, check the available parts in the Convertible roofs, cars and BMW parts category.

Operational tips and additional knowledge

When working with a convertible roof system, it is worth paying attention to the condition of the entire hydraulic installation, including lines, connectors, and the level of the working medium. Regular inspection and the proper bleeding procedure after replacing the cylinder reduce the risk of recurring faults. It is also good practice to periodically check the roof operation in its full range to catch any irregularities at an early stage.
