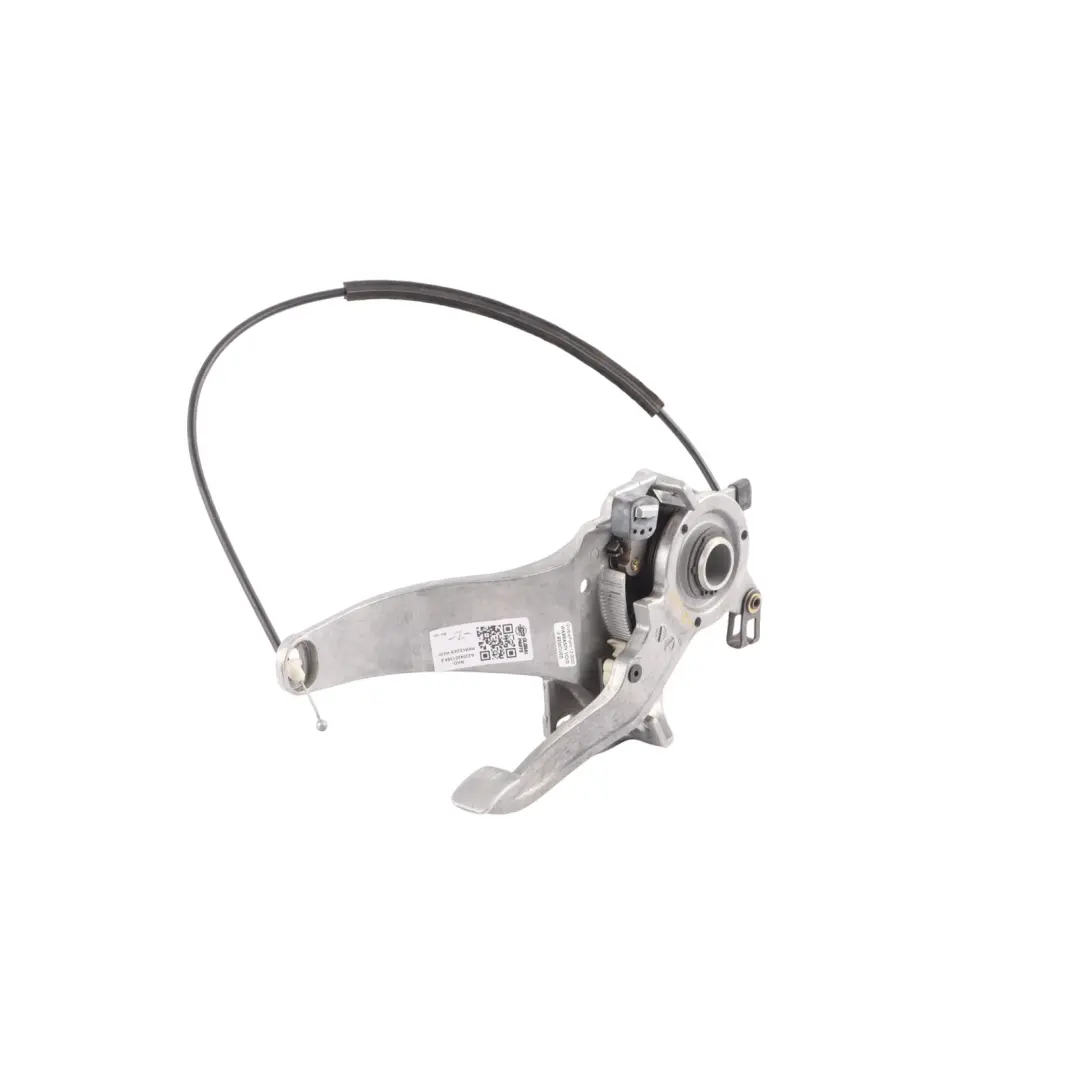

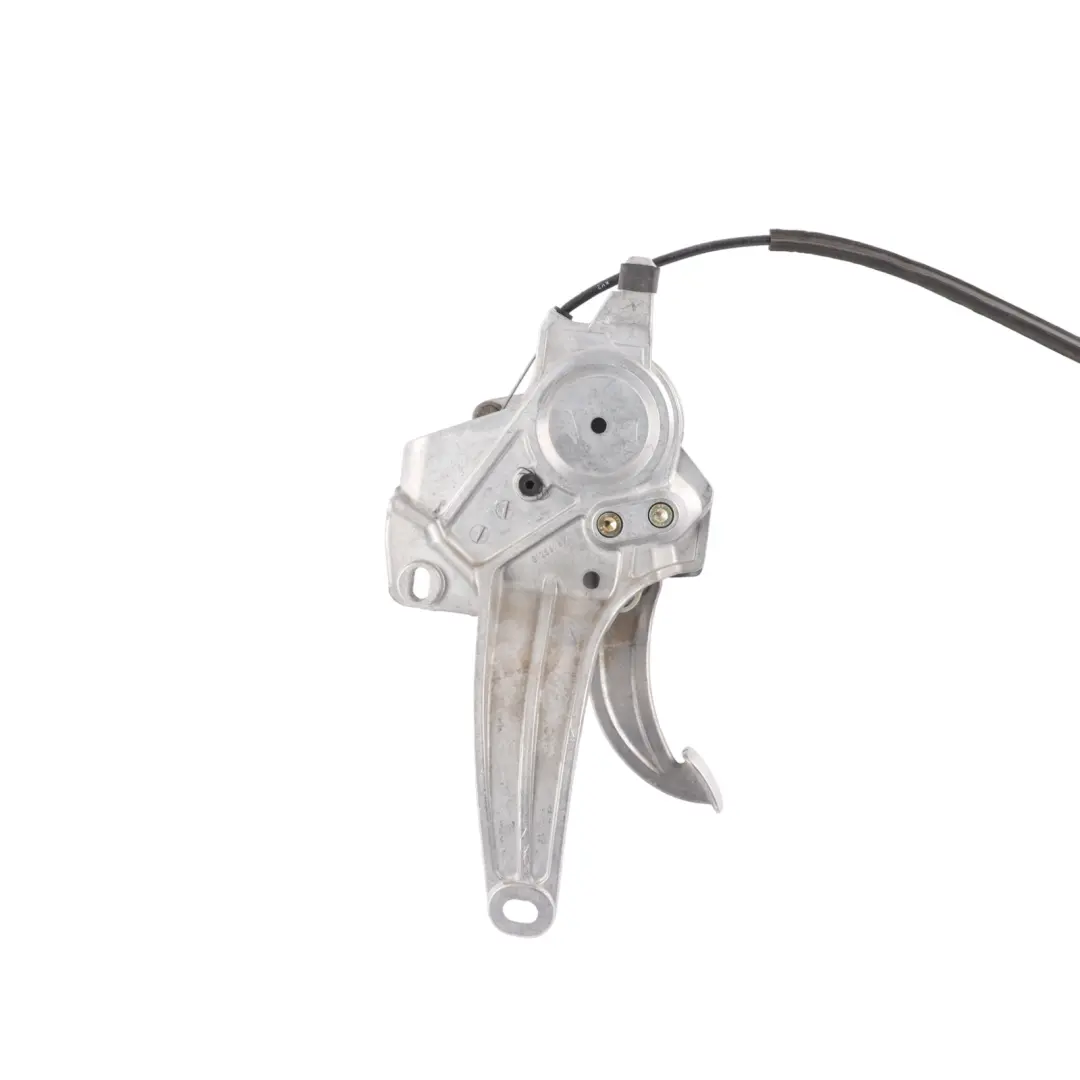

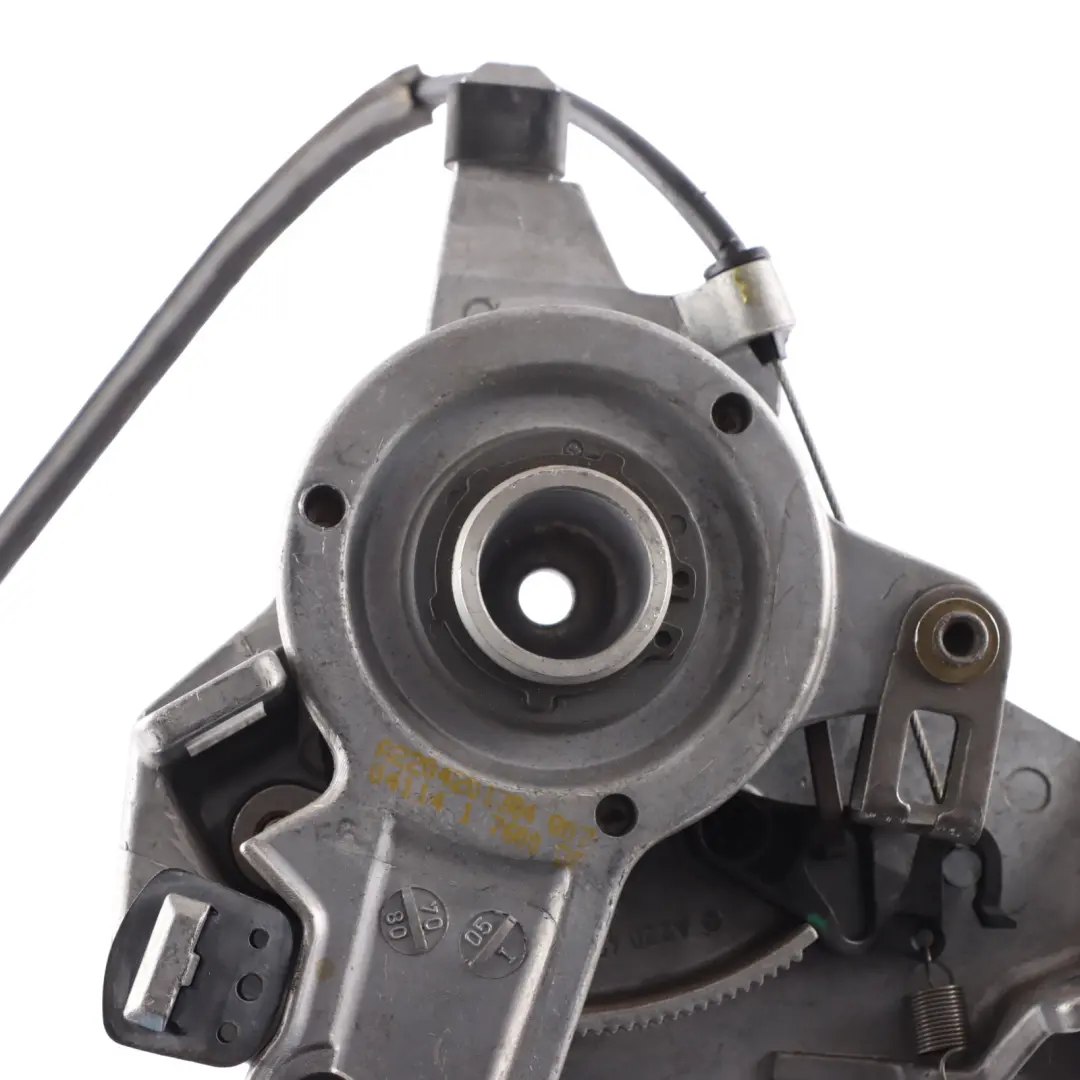

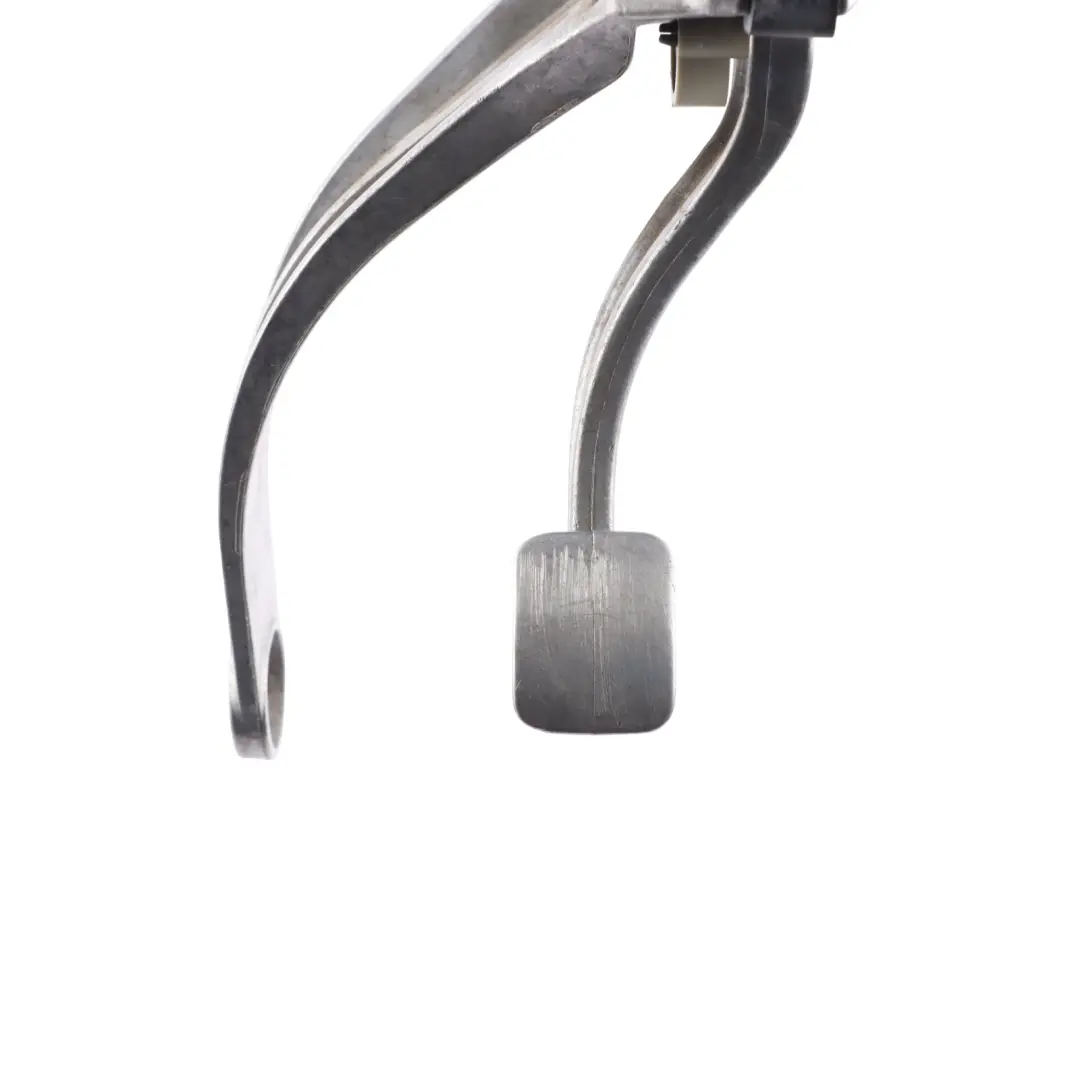

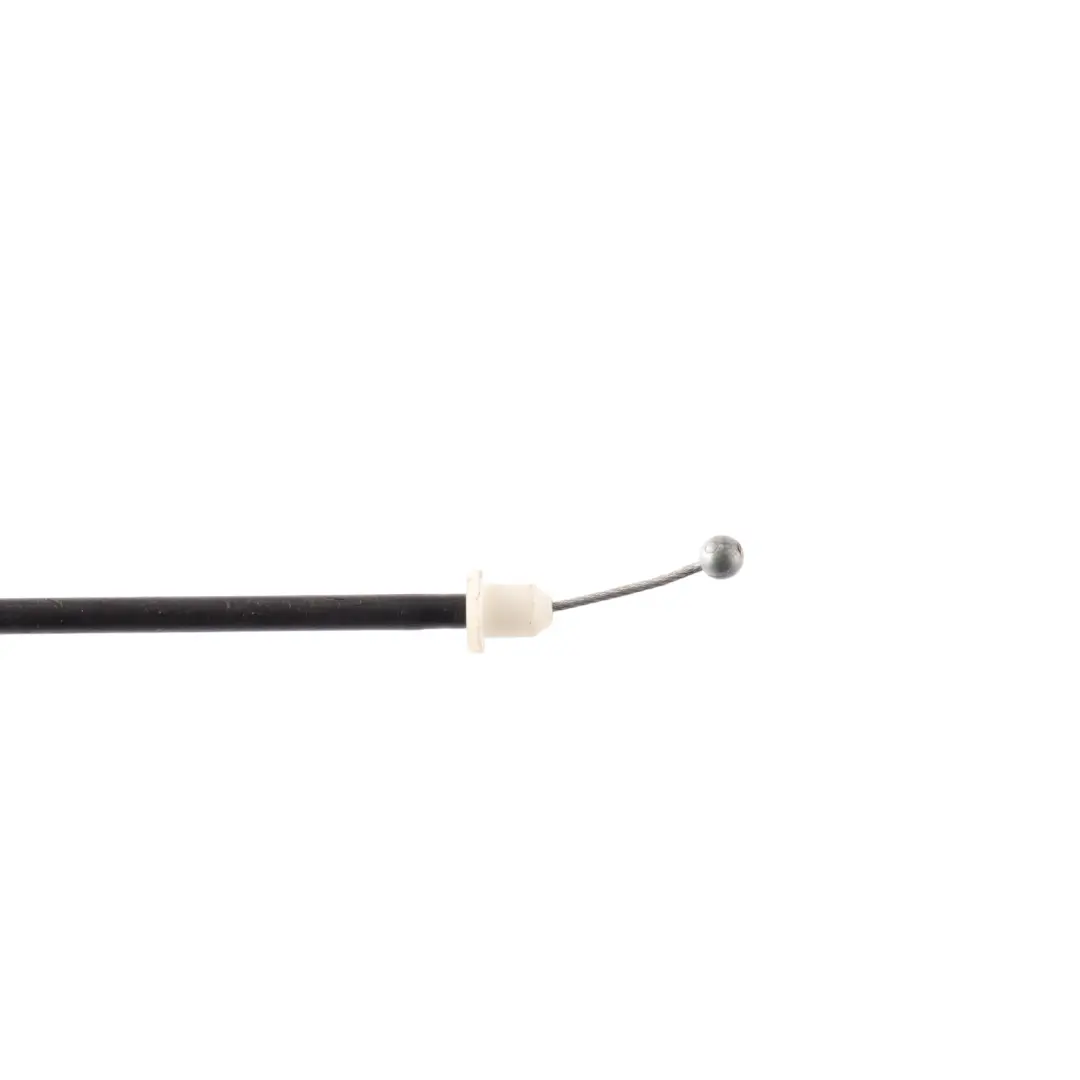

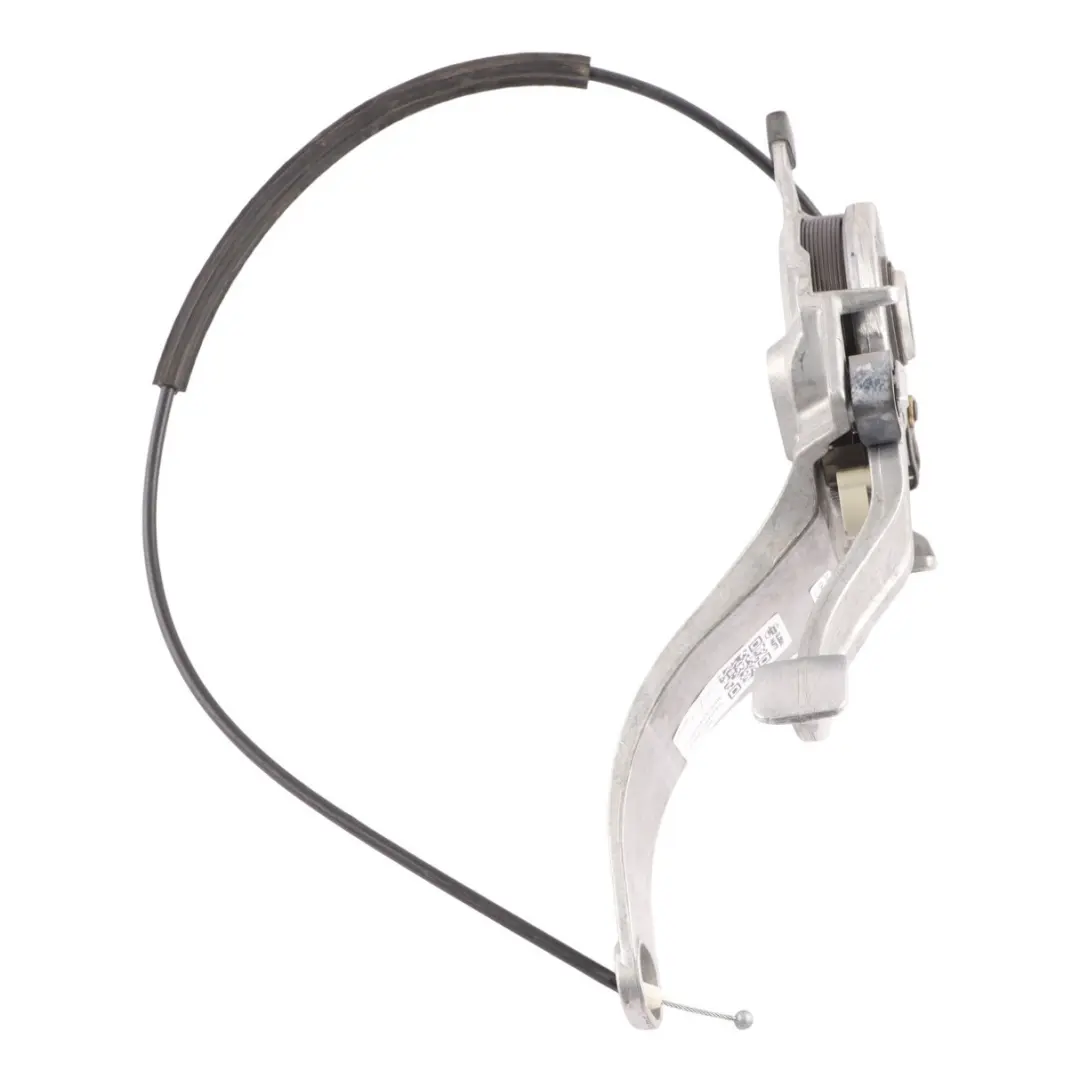

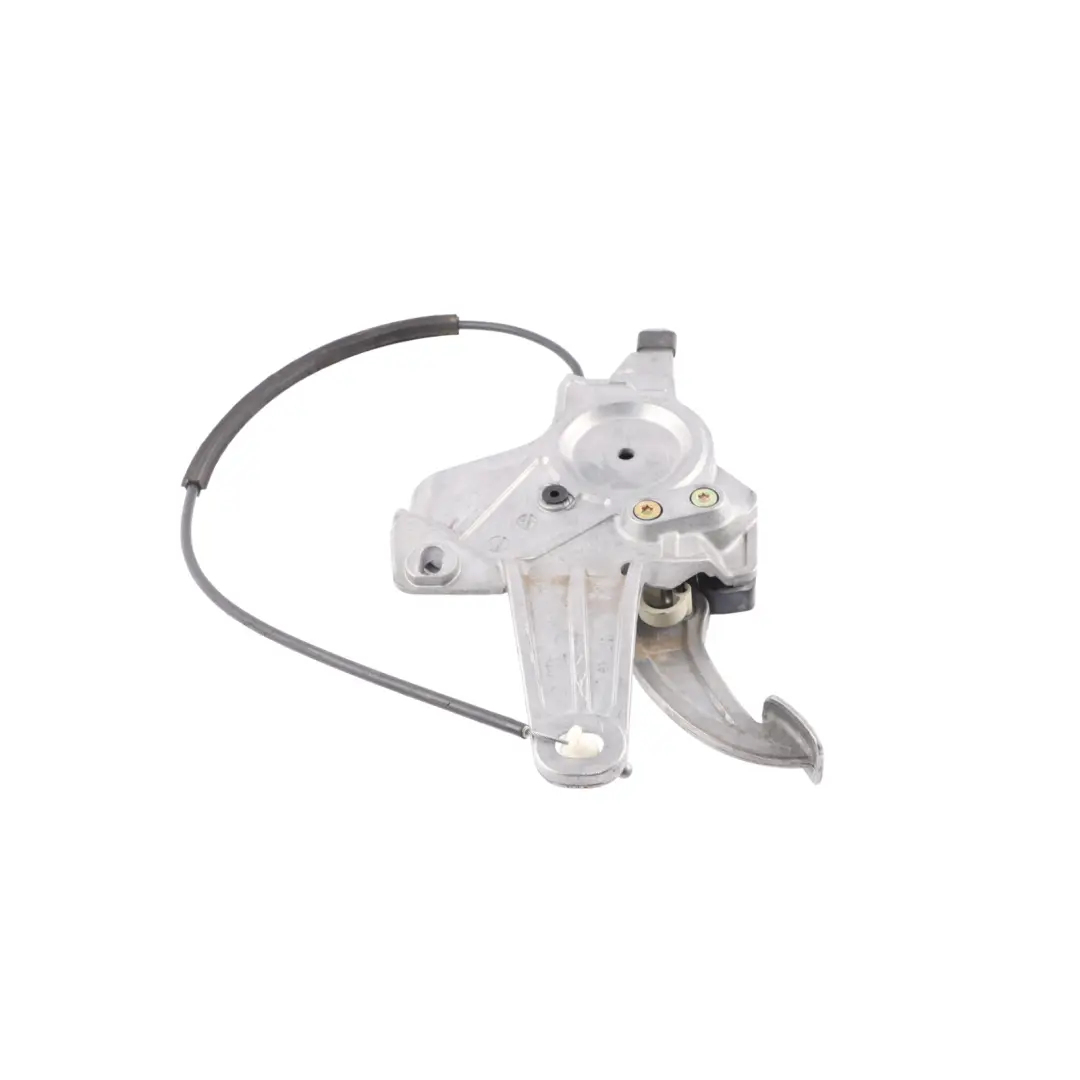

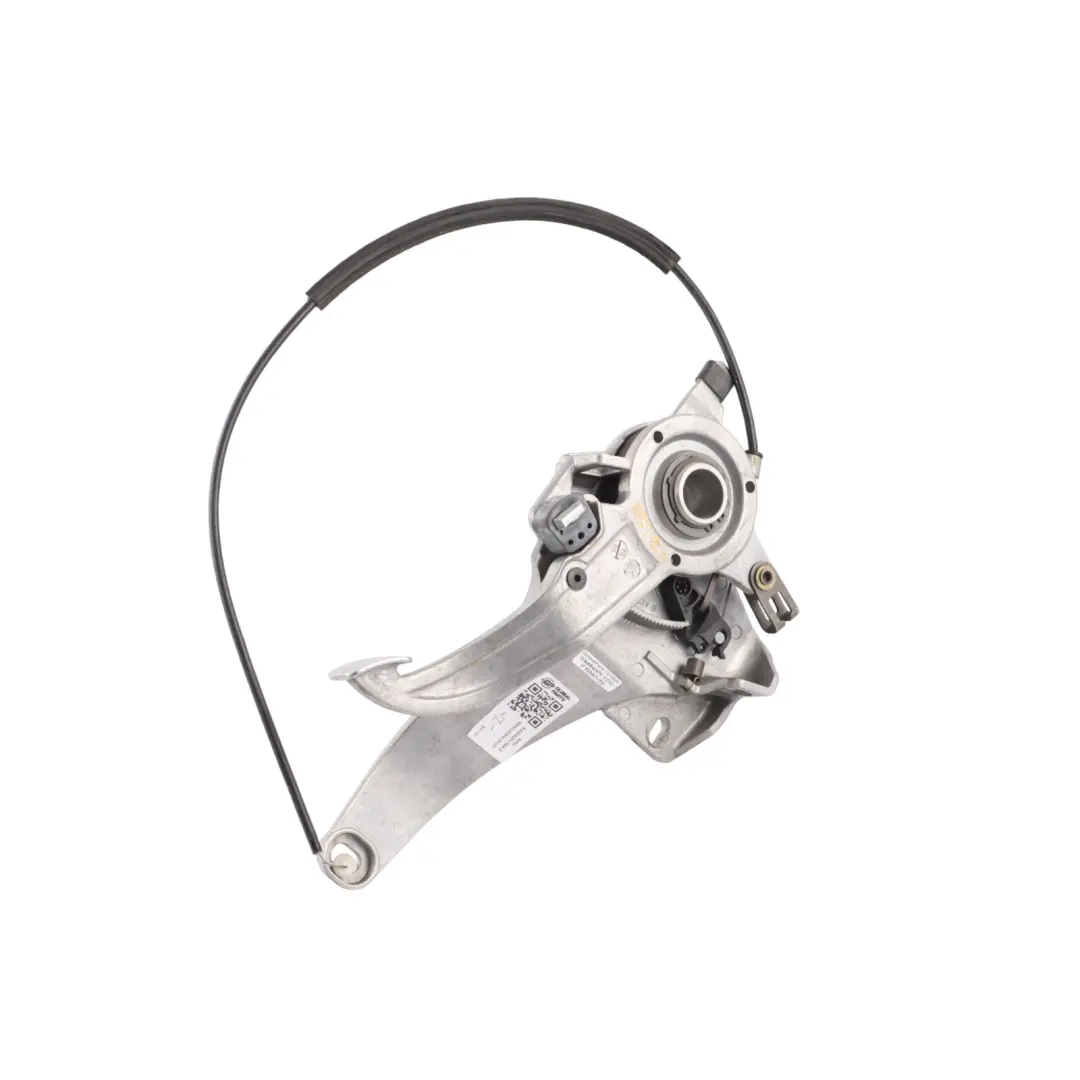

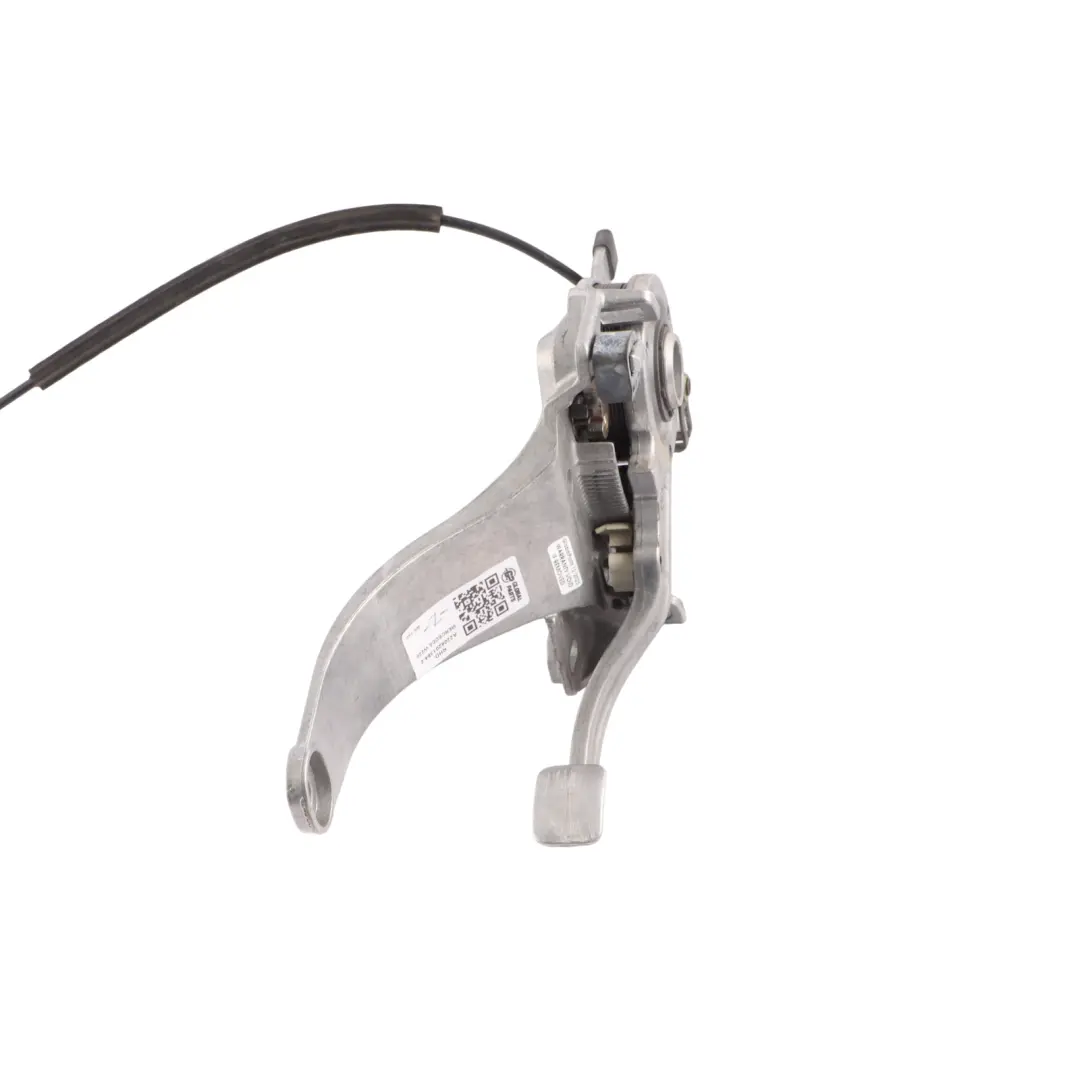

Mercedes CL C215 W220 Lever Hand Brake Pedal Unit Assembly A2204201384

Mercedes CL C215 W220 Lever Hand Brake Pedal Unit Assembly is a factory-original braking system component designed for Mercedes luxury class models. This original parking brake pedal assembly ensures the proper operation of the vehicle's locking mechanism when parked and provides precise force transmission from the pedal to the brake cables.

Specifications and technical data

• SKU: RHD-A2204201384-2
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A2204201384
• Substitutable numbers: A2204201384, A 220 420 13 84, A2204201085, A 220 420 10 85, AS
• Category: Handbrake Levers

Purpose and function in the braking system

The described parking brake pedal assembly is a component from the Hand brake levers category, responsible for the mechanical activation of the parking brake in high-end Mercedes vehicles. The design, based on a foot-operated pedal, allows for convenient and repeatable brake engagement, which translates into stable immobilization of the vehicle while parked, including on inclines.

The factory mounting geometry and mechanism routing ensure proper interaction with the cables and other system components, minimizing the risk of improper tension or uneven parking brake operation.

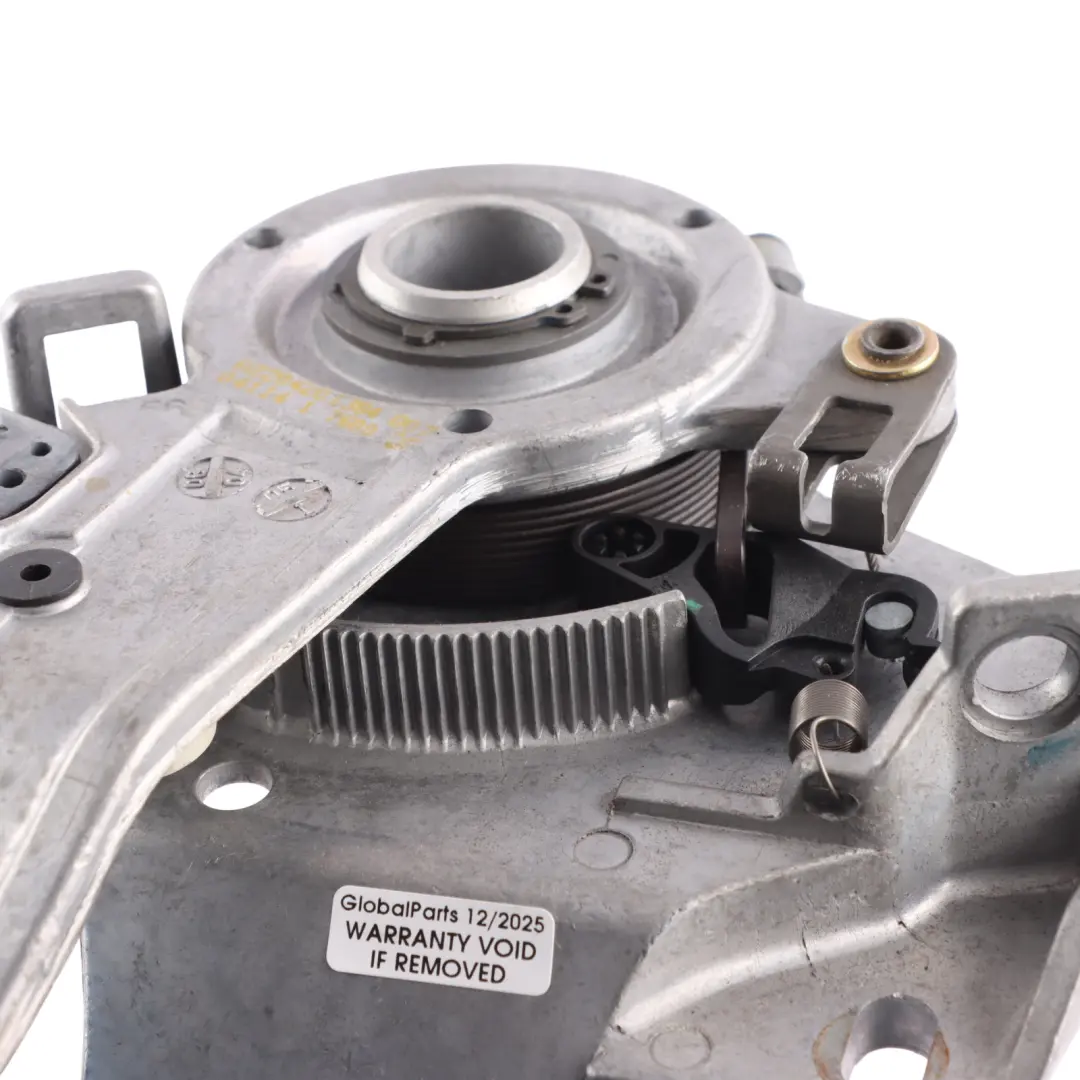

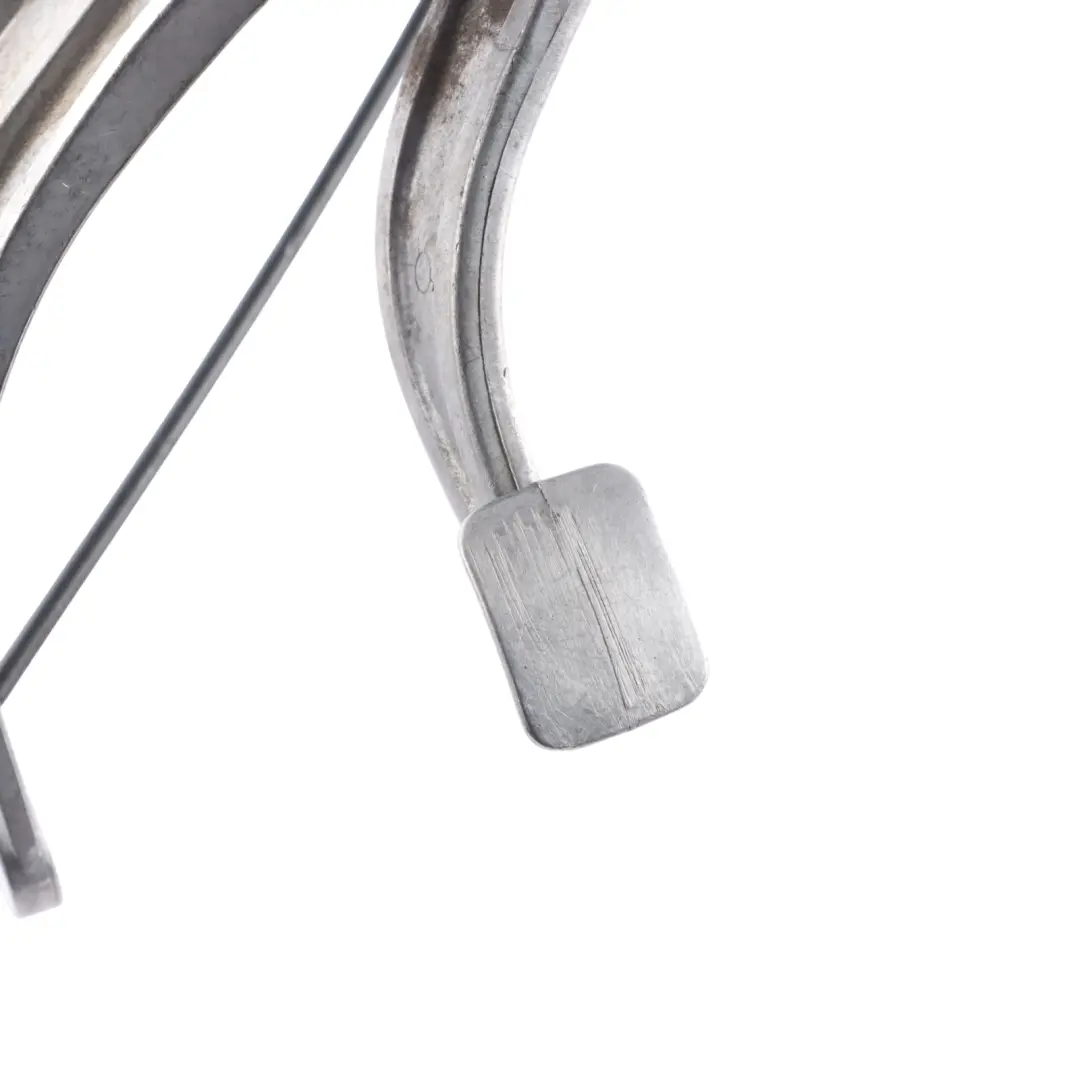

Construction of the parking brake pedal assembly

The assembly is a complete unit mounted in the driver's footwell area, including the pedal mechanism, intermediate levers, and body mounting points. The rigid support structure has been designed to withstand high operational loads without excessive deformation, which is crucial for the repeatability of the brake's performance.

The lever system inside the module is responsible for translating the driver's foot pressure into the movement of the parking brake cable. This provides the user with a clear feel for the engagement point and a characteristic, predictable pedal travel.

Benefits of using an original Mercedes assembly

Using an original parking brake pedal assembly in a Mercedes CL C215 / W220 allows for maintaining the factory performance parameters of the braking system. Precise fitment to the body structure facilitates installation and limits the need for additional modifications, which is important both for service repairs and comprehensive vehicle restoration.

This component, although used, represents a cost-effective solution compared to new parts, while maintaining proper functionality and compatibility with the factory braking system. It is a practical choice for users who want to restore the correct operation of the parking brake without compromising the manufacturer's original specifications.

Condition, installation, and service application

The product comes from disassembly and is offered as a used part, allowing for an economical repair of the parking brake system in luxury Mercedes cars. The pedal assembly is suitable for typical service tasks, such as replacing a worn or damaged mechanism, restoring correct pedal travel, or eliminating issues with incomplete brake engagement.

In workshop practice, installation involves replacing the complete module, which reduces labor time and lowers the risk of assembly errors compared to repairing individual lever components. The complete nature of the assembly promotes the consistency of the entire mechanism and facilitates the diagnosis of potential future faults.
