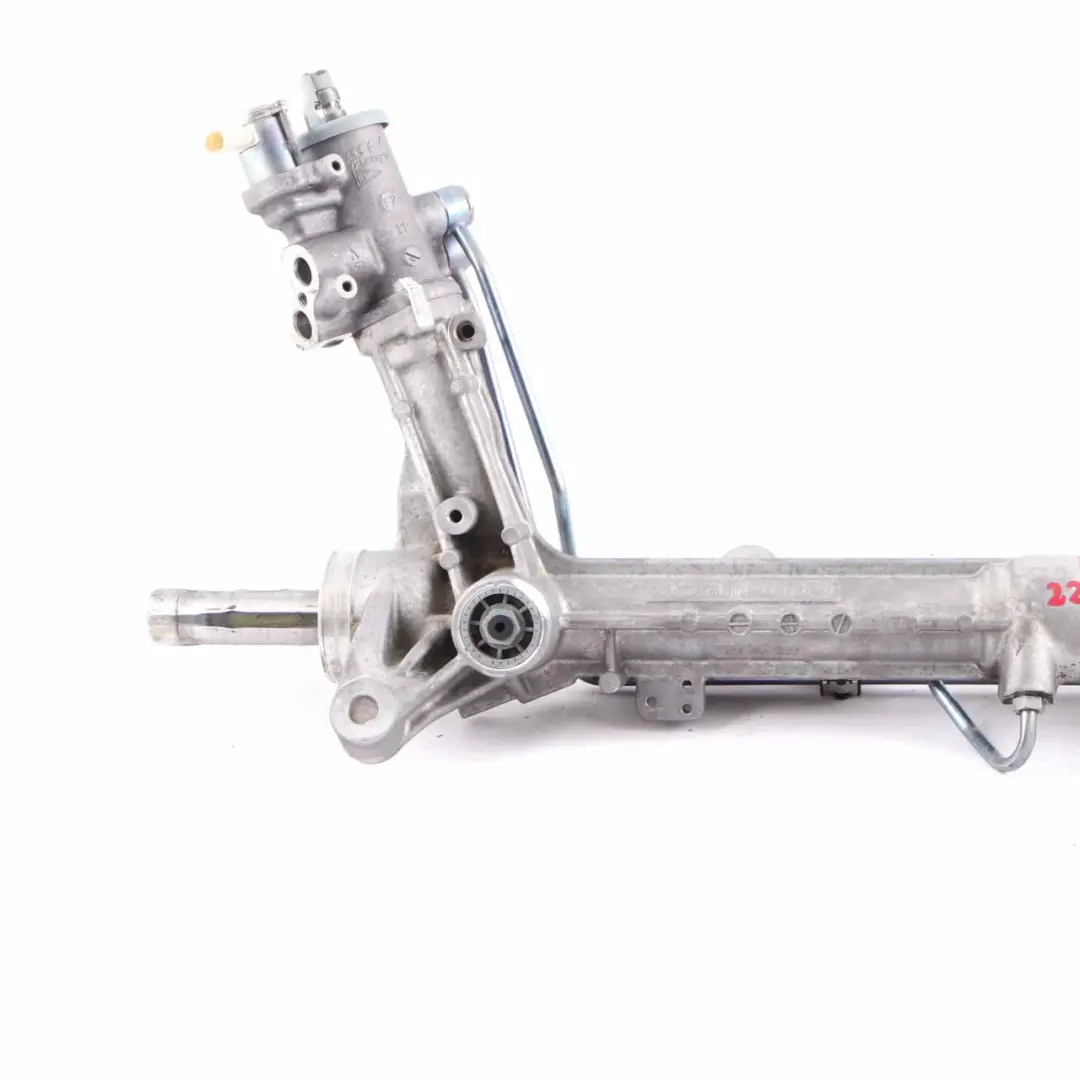

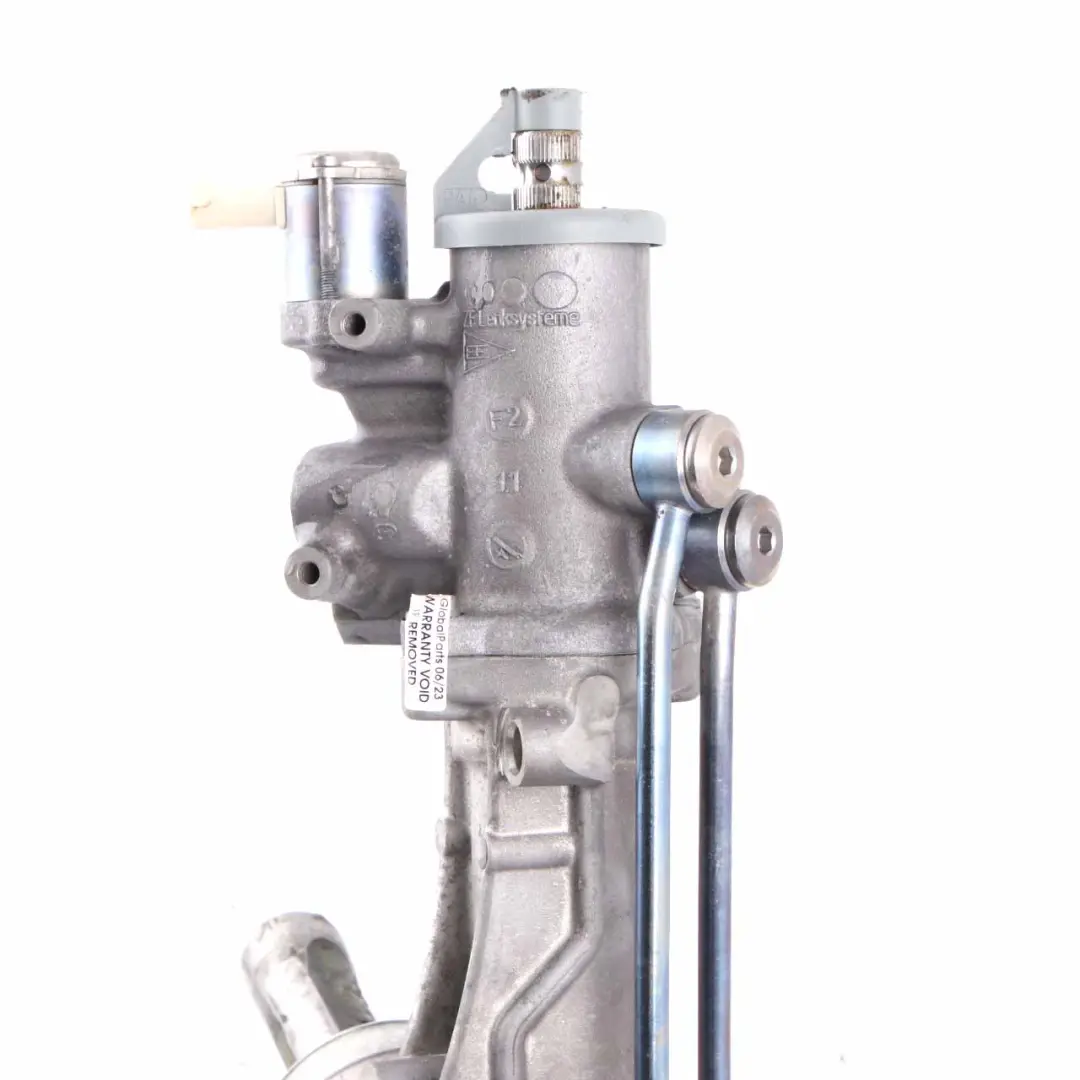

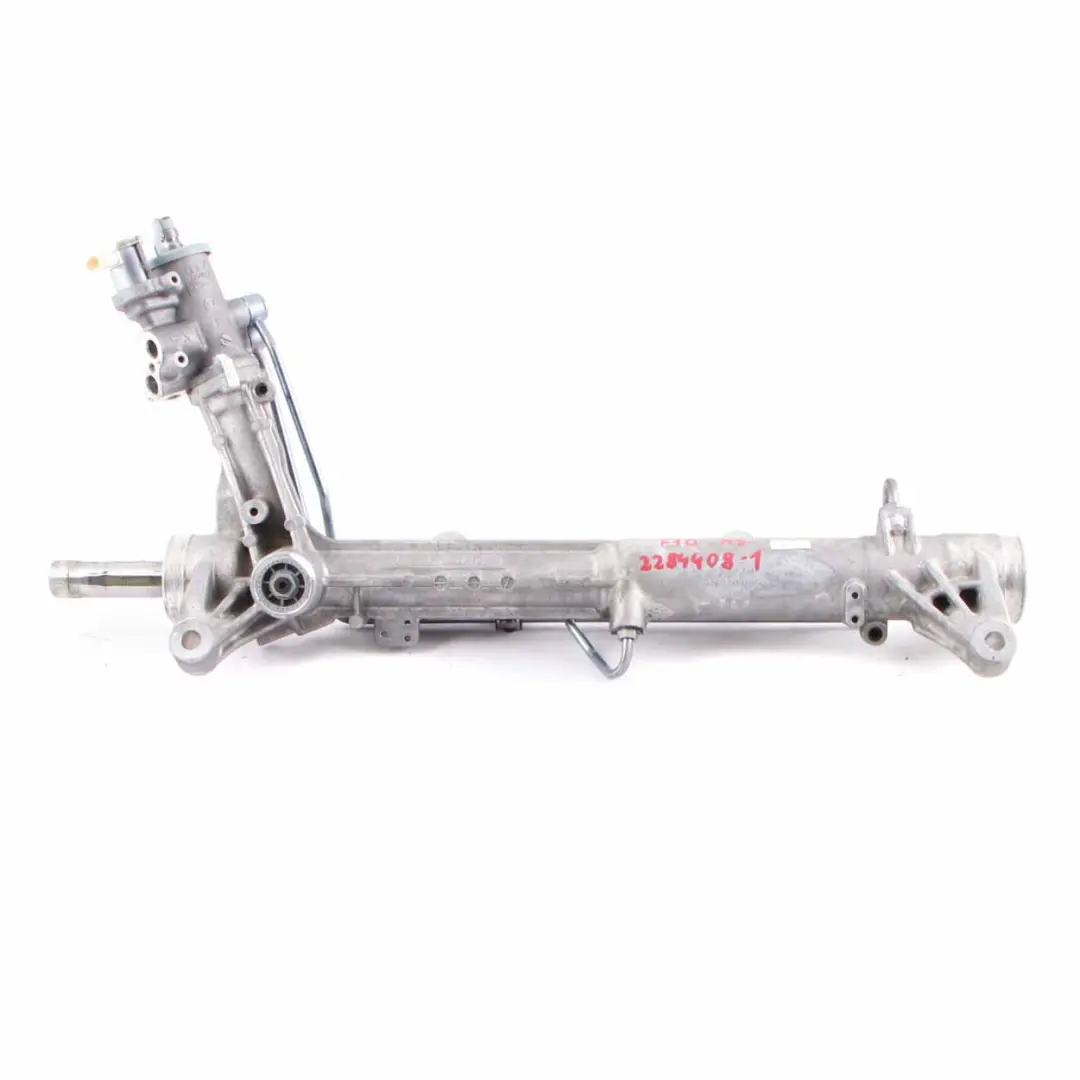

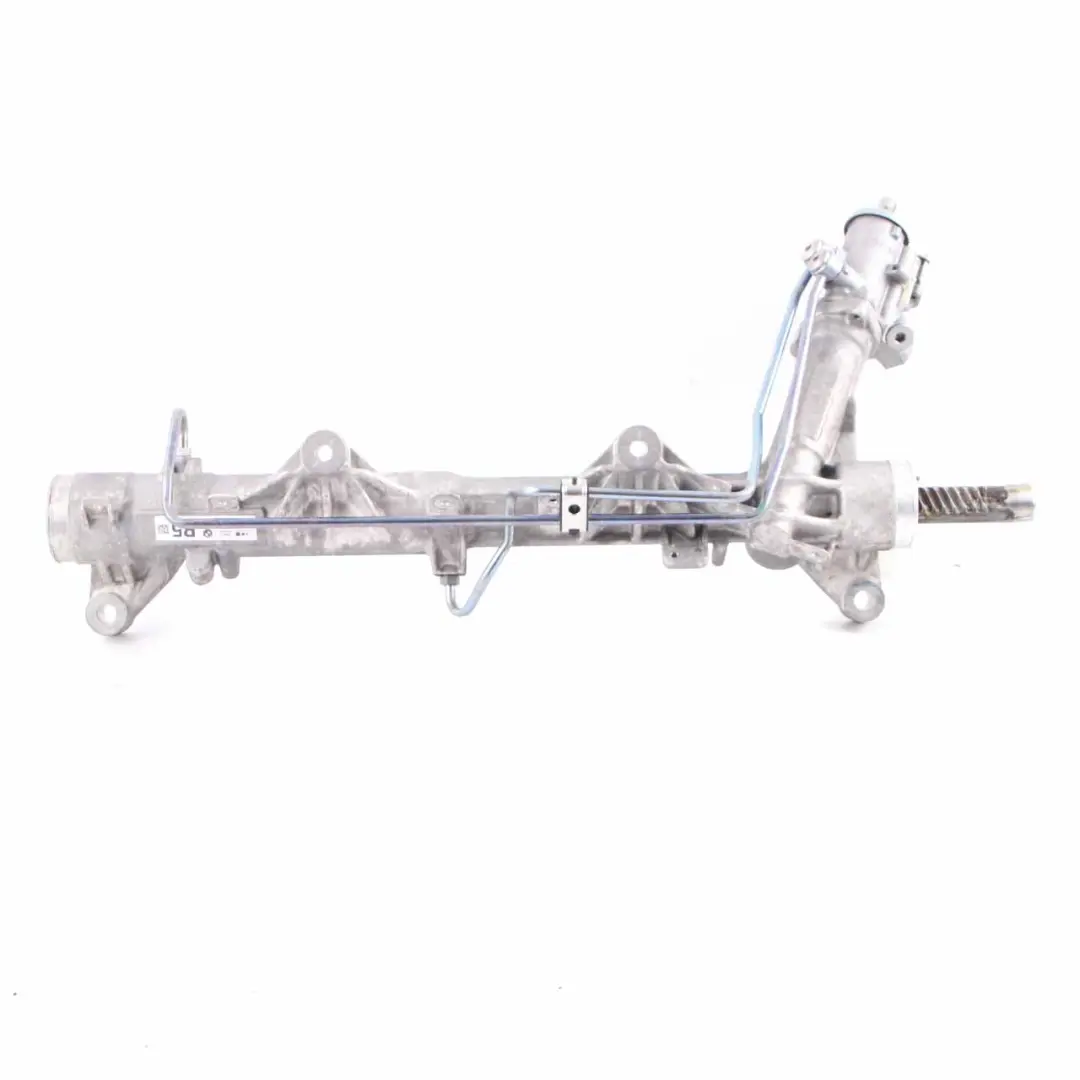

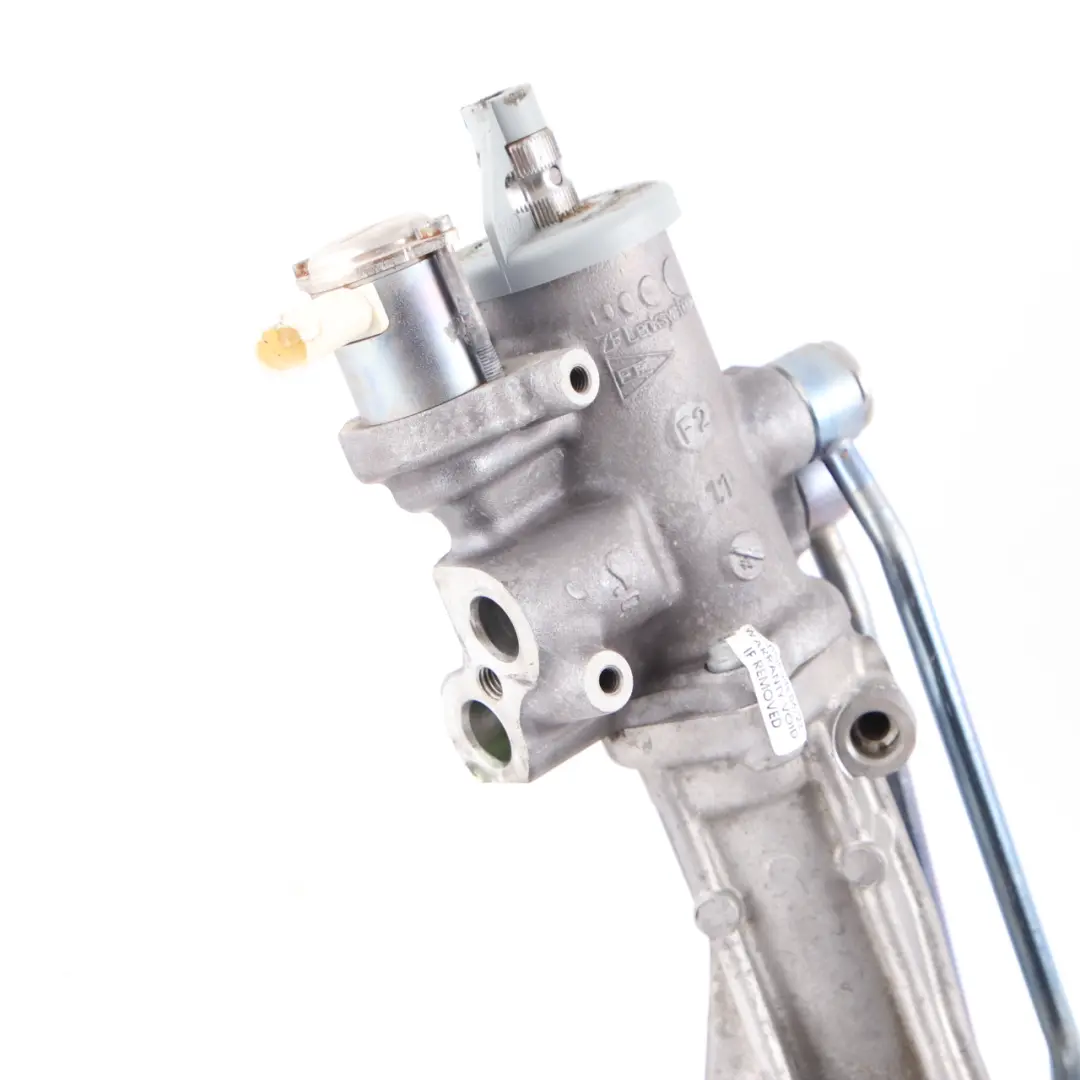

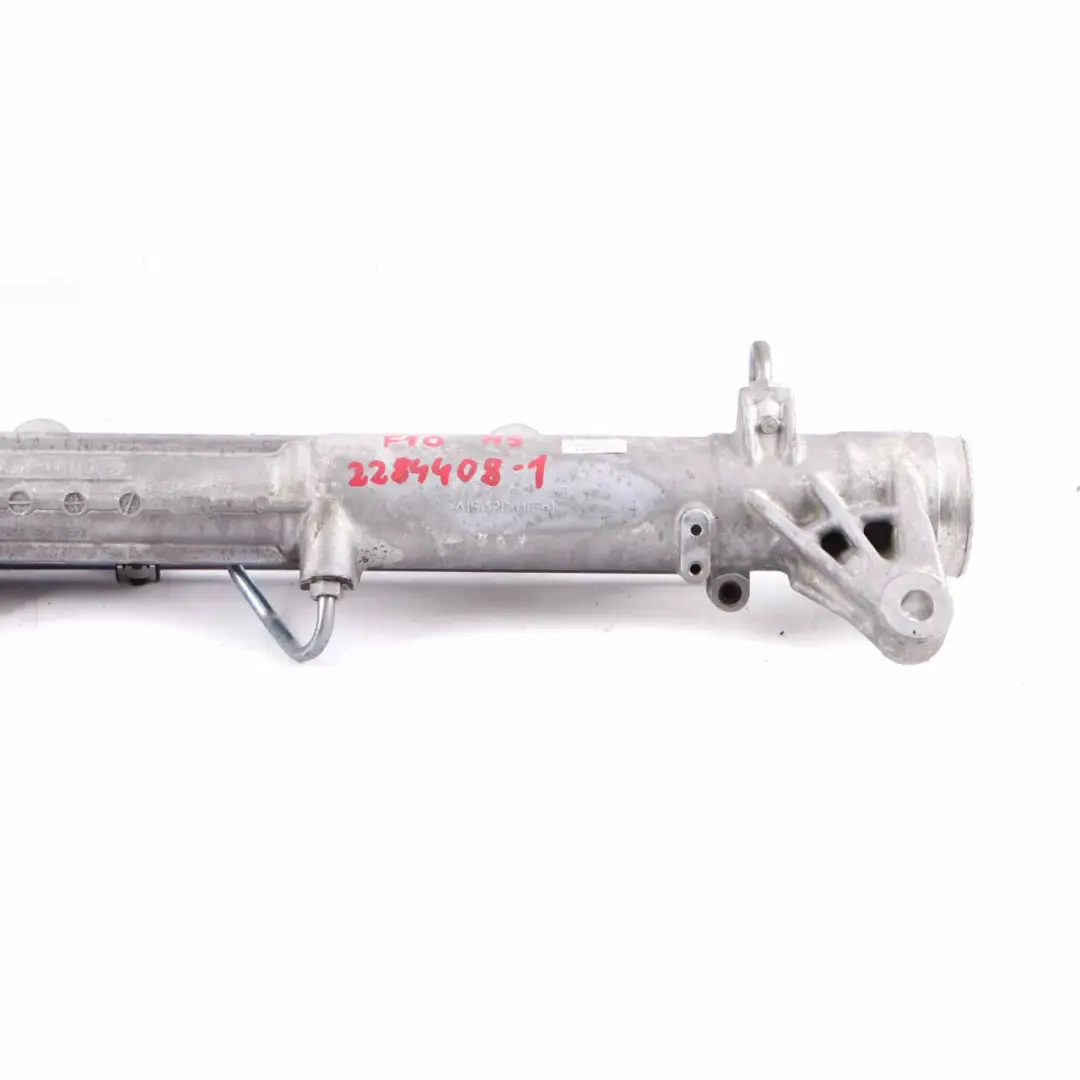

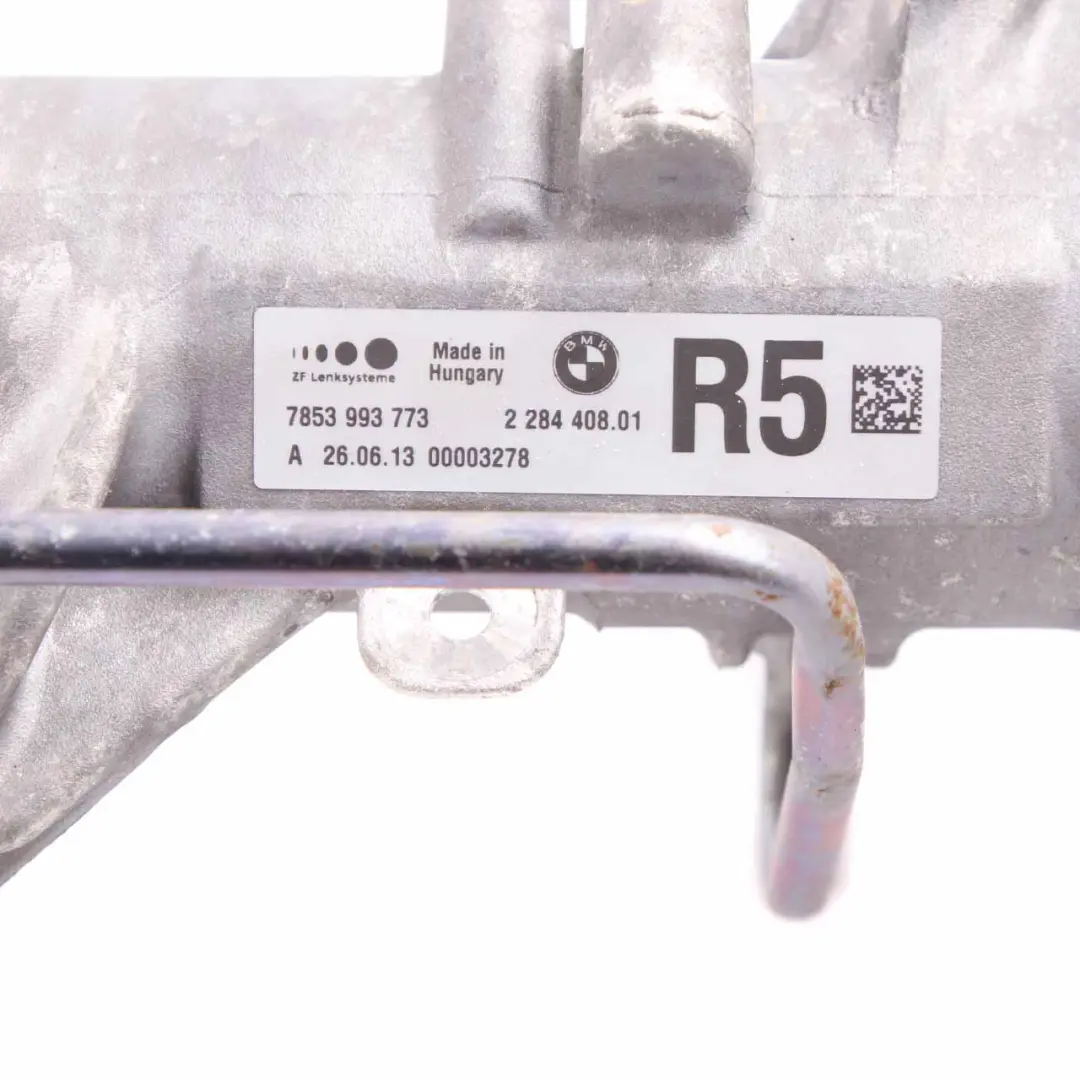

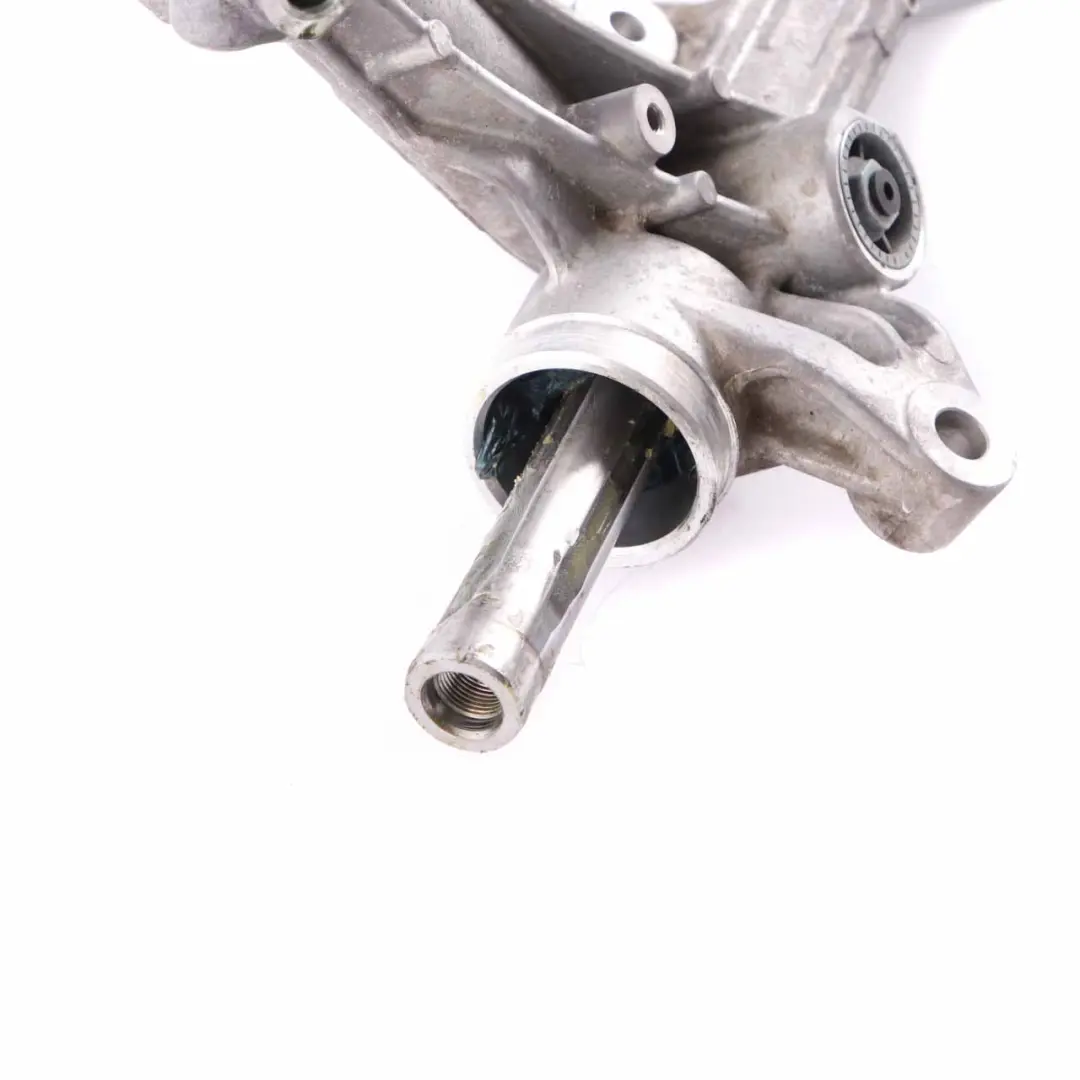

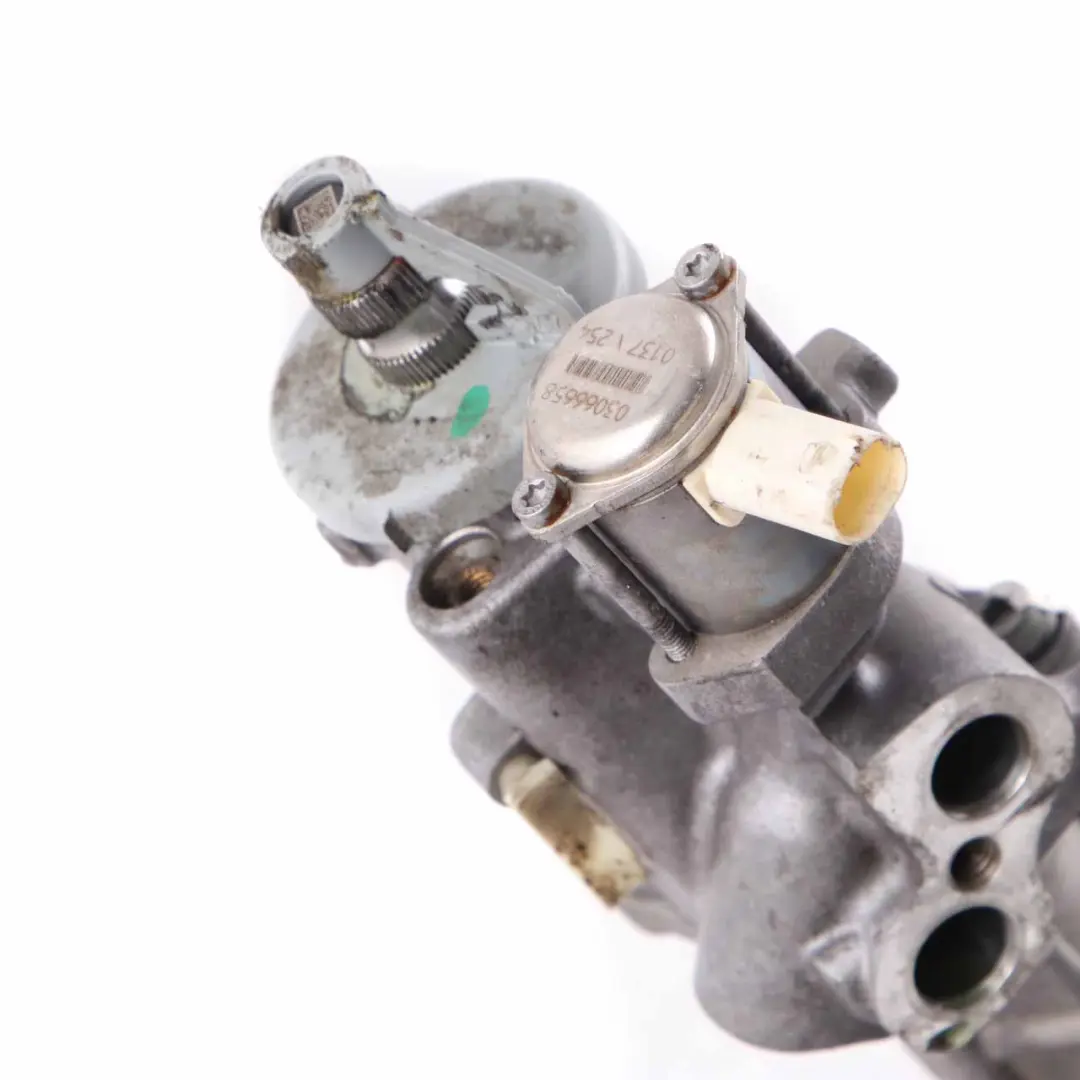

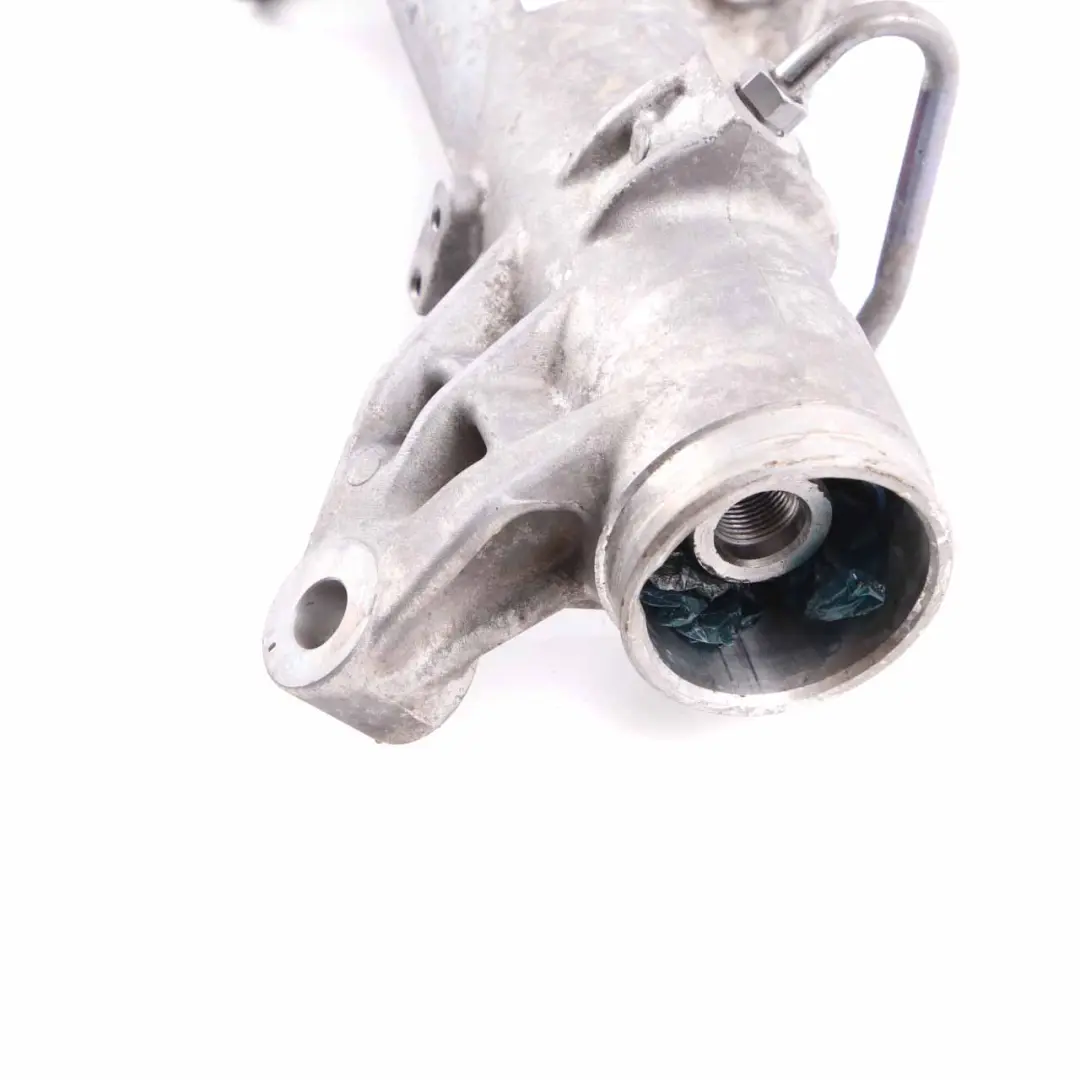

BMW F10 M5 F12 F13 M6 Hydraulic Power Steering Rack Box Gear R5 ZF 2284408

The BMW F10 M5 / F12 F13 M6 Hydraulic Steering Rack is an original steering system component, specifically designed for the sporty M series models. Thanks to precise ZF engineering and adaptation to the factory suspension geometry, it ensures stable handling, predictable steering response, and adequate hydraulic support for demanding driving.

Specifications and technical data

• SKU: rhd-2284408-1
• Mark: BMW (Genuine OE)
• Condition: Used

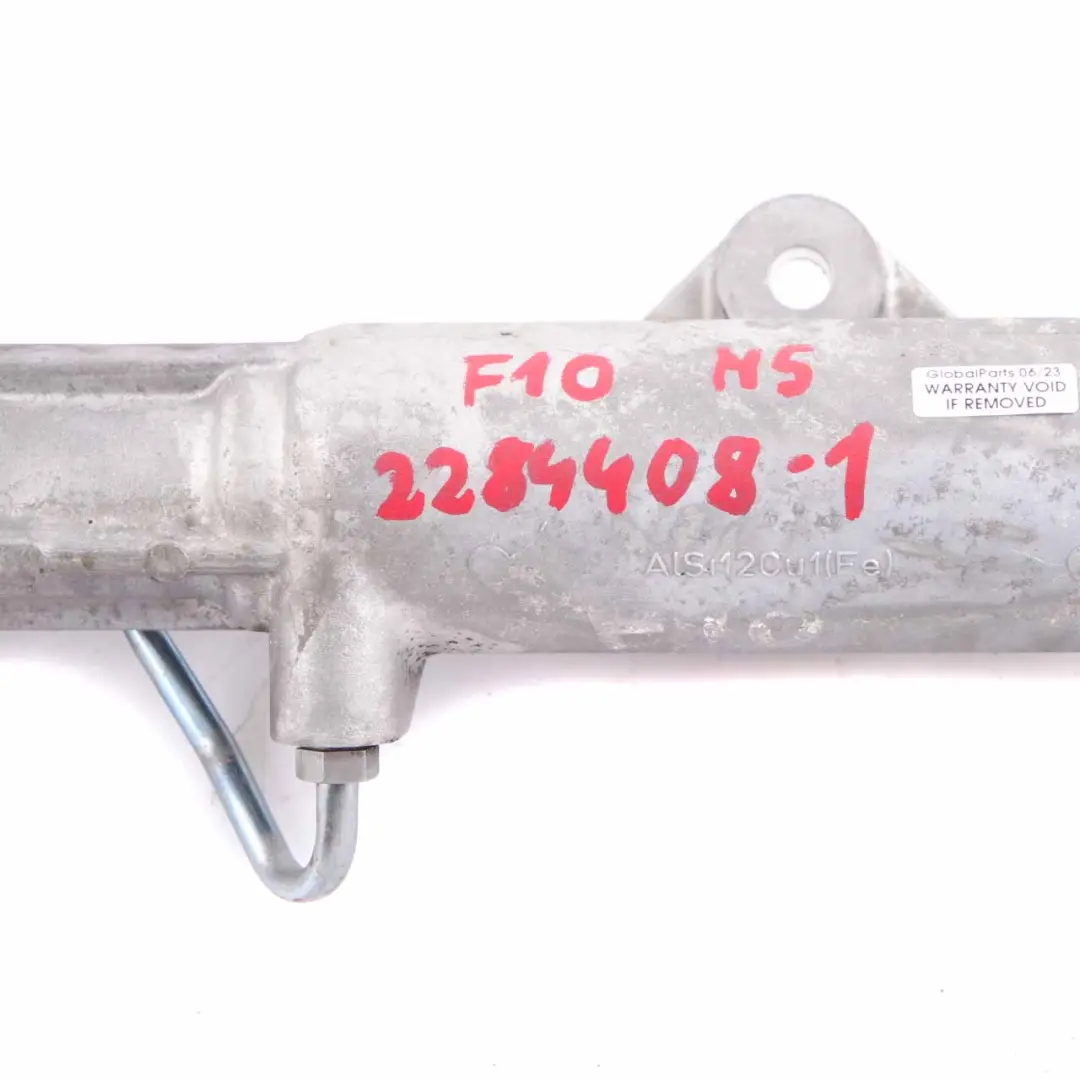

• OEM Part Number: 2284408

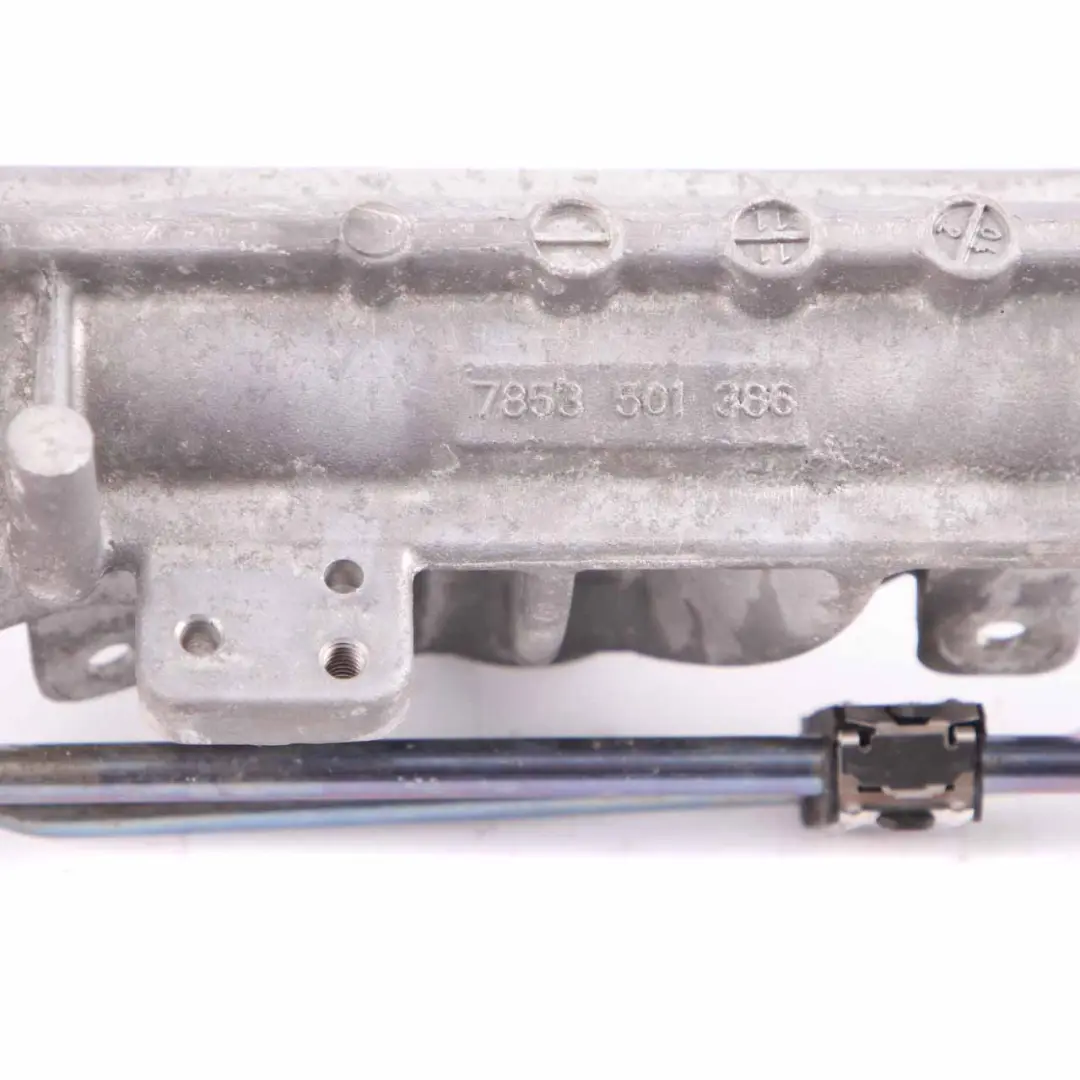

• Substitutable numbers: 2284408, 32102284408, 7853501386, 7853 501 386, 7853993773, 7853 993 773
• Category: Gearboxes, Racks & Pinions

Purpose and Fitment for BMW M5 F10 / M6 F12 F13

This hydraulic steering rack has been developed for the high loads generated by the powerful engines in the BMW M5 F10 and BMW M6 F12/F13. The steering system design in these models requires a component that provides:

• precise translation of steering wheel movement to the wheels,
• stable vehicle behavior at high speeds,
• consistent operation with the factory suspension and power steering systems.

As a result, the steering rack aligns with the character of M cars, maintaining sporty handling characteristics and appropriate system stiffness.

Hydraulic Power Steering System – Operating Characteristics

The hydraulic design of the steering rack provides the driver with natural, clear feedback from the front axle. In practice, this means:

• a distinct feel for front wheel grip,
• smooth, predictable power steering operation throughout the entire steering range,
• appropriate system response during dynamic load changes.

This tuning is particularly important in powerful M versions, where the steering system must work in conjunction with advanced traction and stability systems without compromising the car's sporty character.

Benefits of Using an Original Steering Rack

Replacing a worn component with an original steering rack allows for the restoration of the vehicle's factory handling parameters. Key benefits include:

• compliance with factory mounting points and suspension geometry,
• seamless integration with the existing steering column and accessories,
• appropriate power steering characteristics tailored to M versions.

For the user, this translates to restored predictable, stable handling and reduced unwanted play or uneven steering system operation.

Component Condition and Service Application

This steering rack comes from the Steering Racks and Housings group and is a used part, making it an attractive option for service repairs where maintaining original construction at a reasonable cost is a priority. It can be used for both standard replacement of a worn component and for comprehensive steering system rebuilds in BMW M5 F10 and M6 F12/F13 vehicles.

If you are planning a comprehensive repair or upgrade of the steering system area in your BMW and need other parts from the same group, such as other racks, housings, or mounting elements, check the available parts in the BMW Steering Racks and Housings category.

Additional Information and Steering System Development

When working on the steering system, many users also consider improving the ergonomics of the driver's area. In the context of BMW M5 and M6 models, this may include installing a steering wheel with a sportier profile or a premium version, better suited to the driving style. The guide article Personalization and Ergonomics – When is it Worth Replacing the Steering Wheel with a Premium Model?, which discusses the practical aspects of replacing the steering wheel with a sporty variant or an M package option, can help in making this decision.

In summary, the hydraulic steering rack for BMW F10 M5 and F12/F13 M6 is a solution that allows for the restoration of proper vehicle handling, maintains factory system parameters, and preserves the precise road behavior characteristic of the M series.
