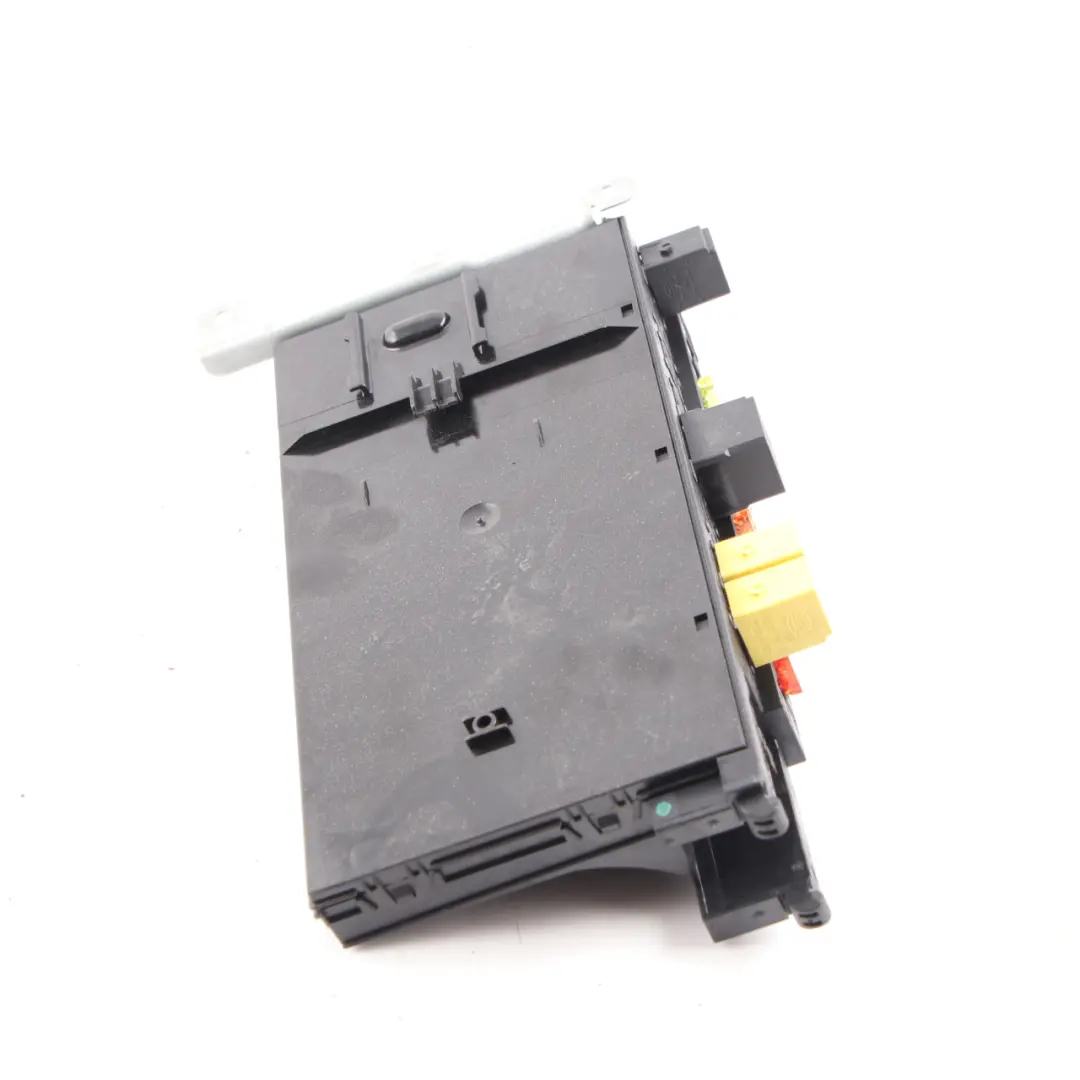

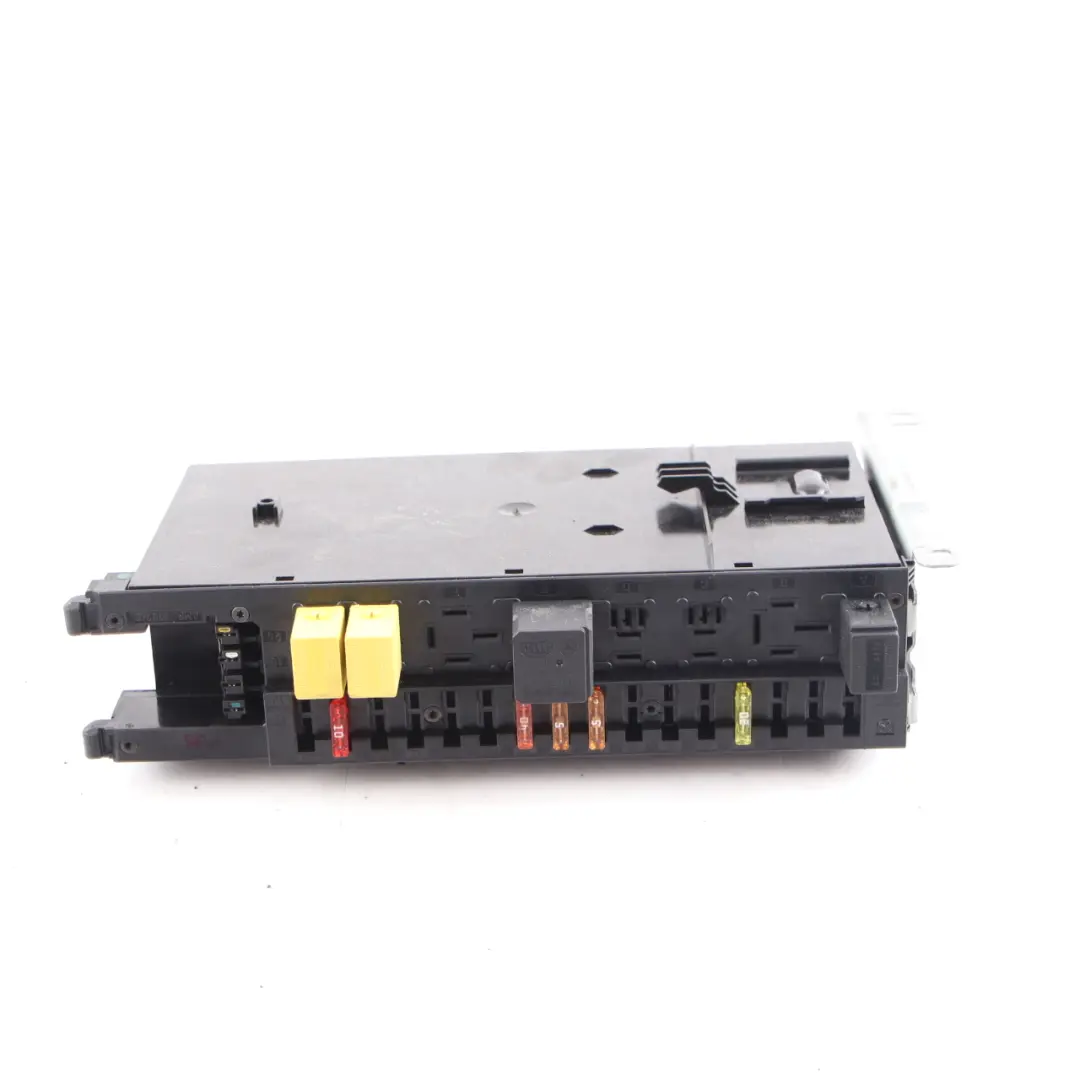

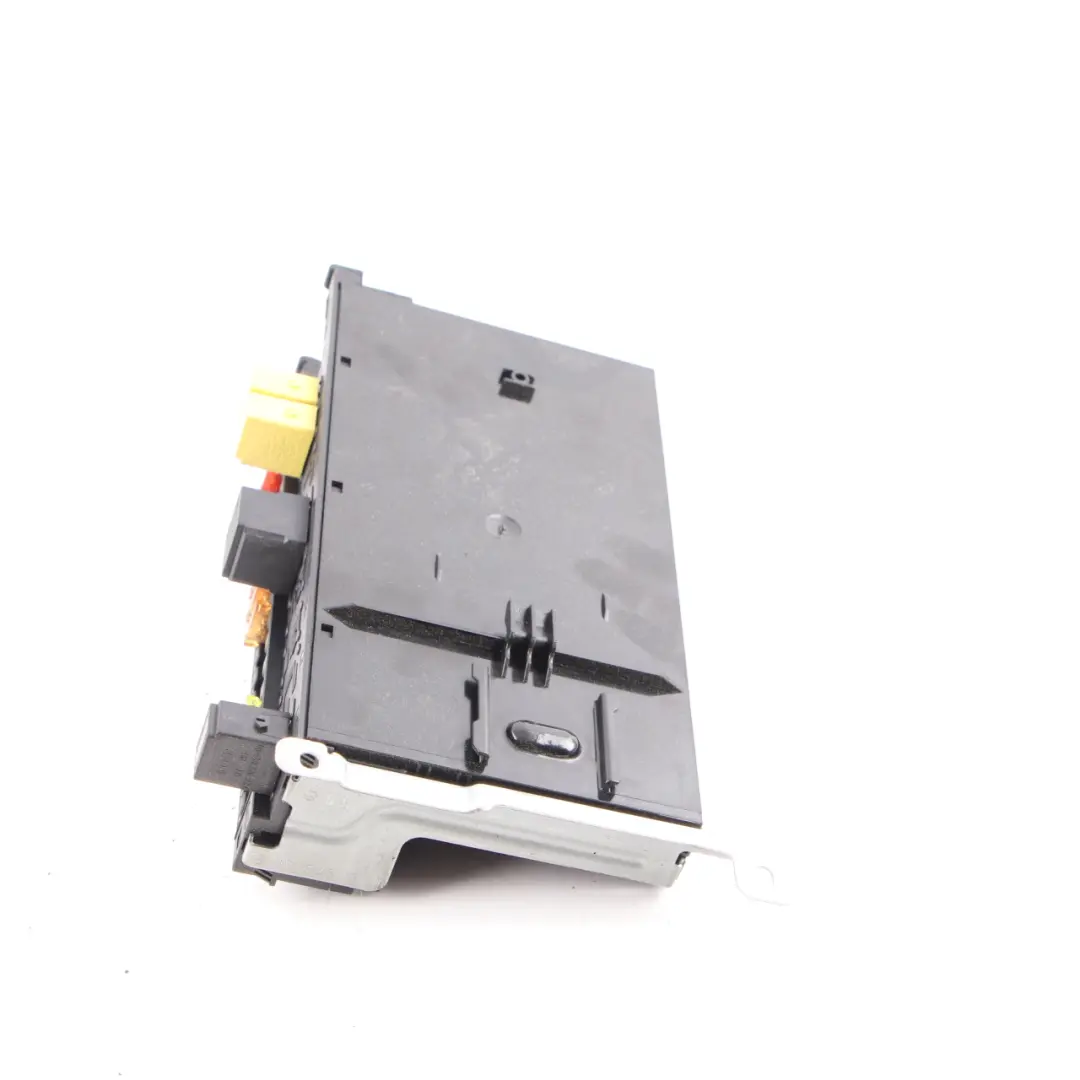

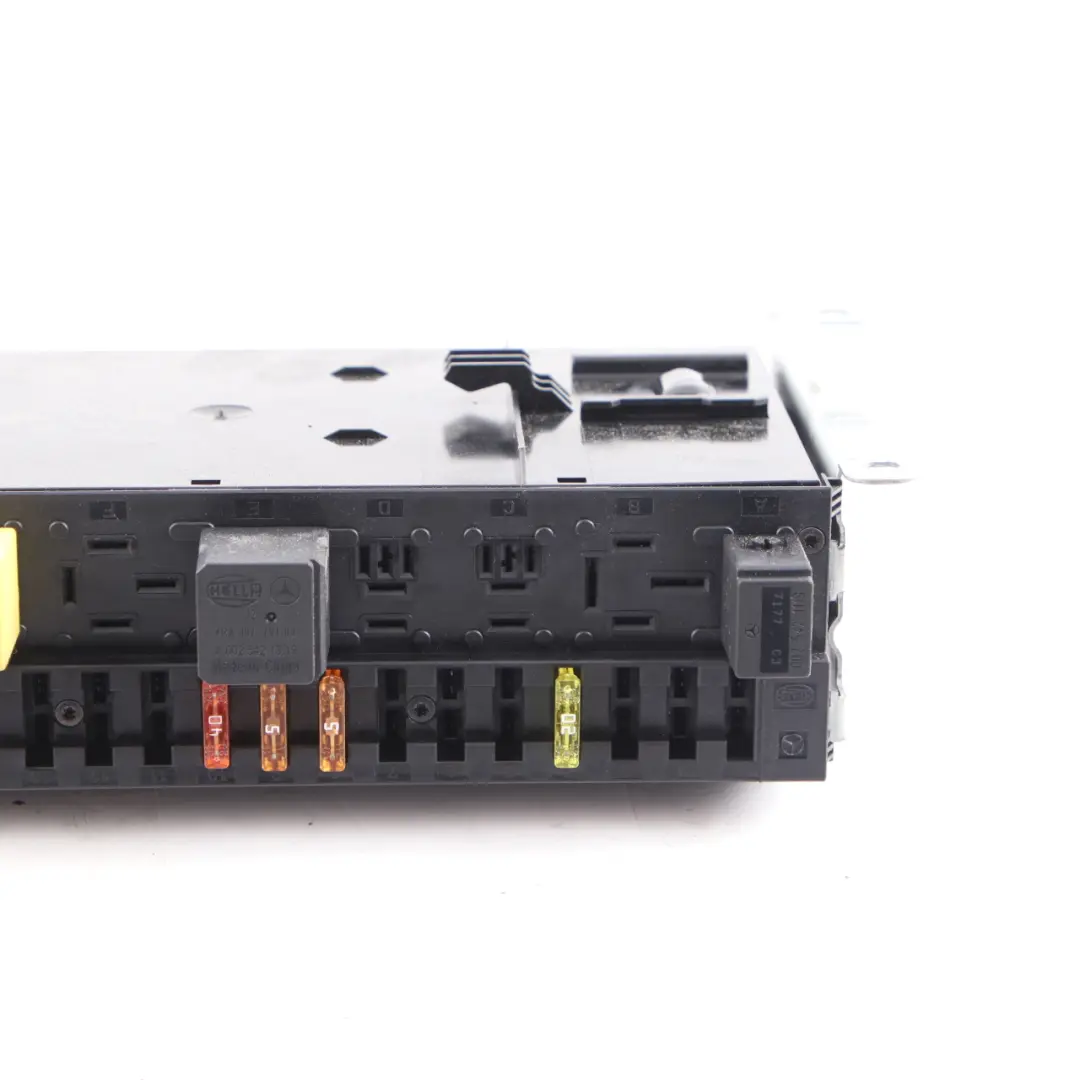

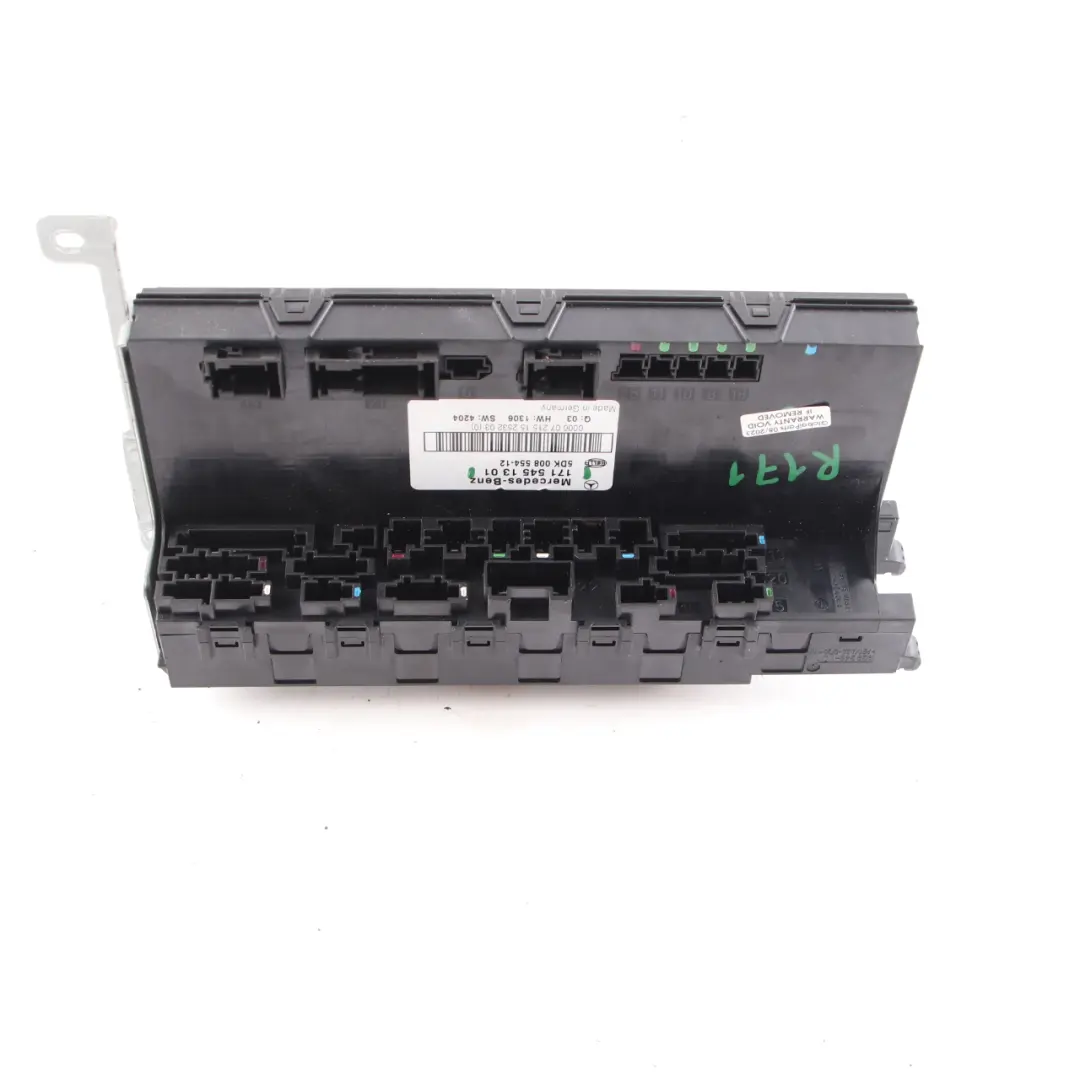

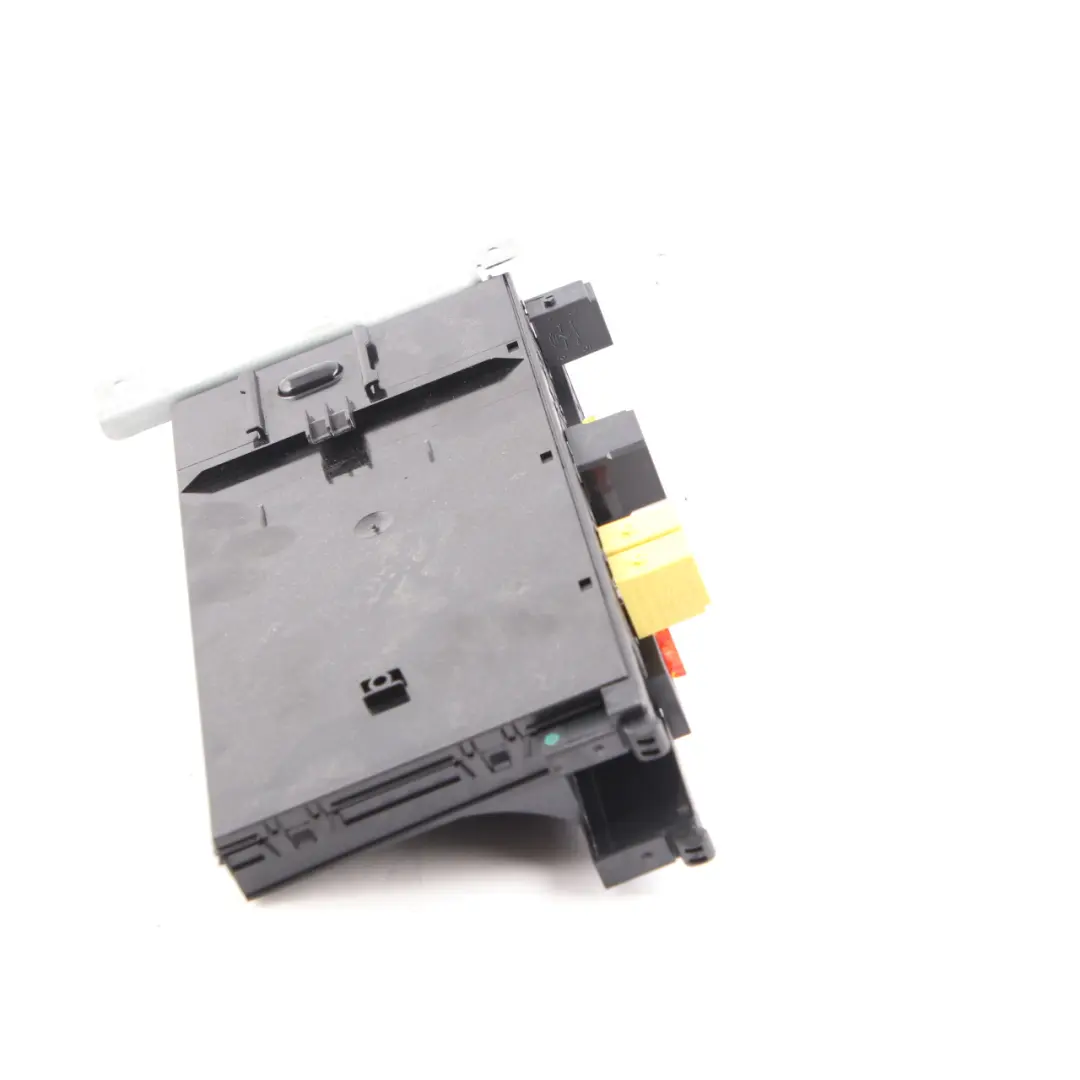

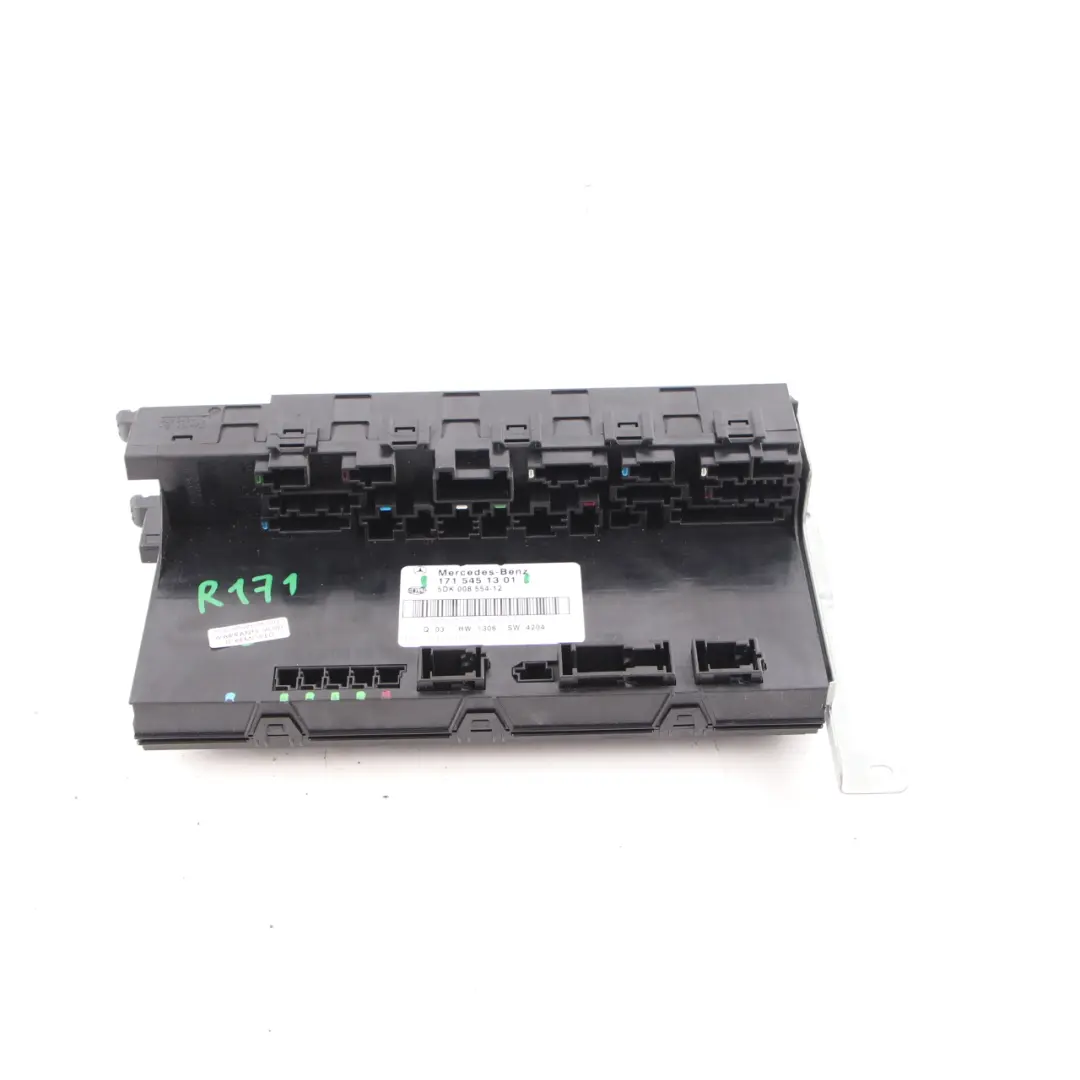

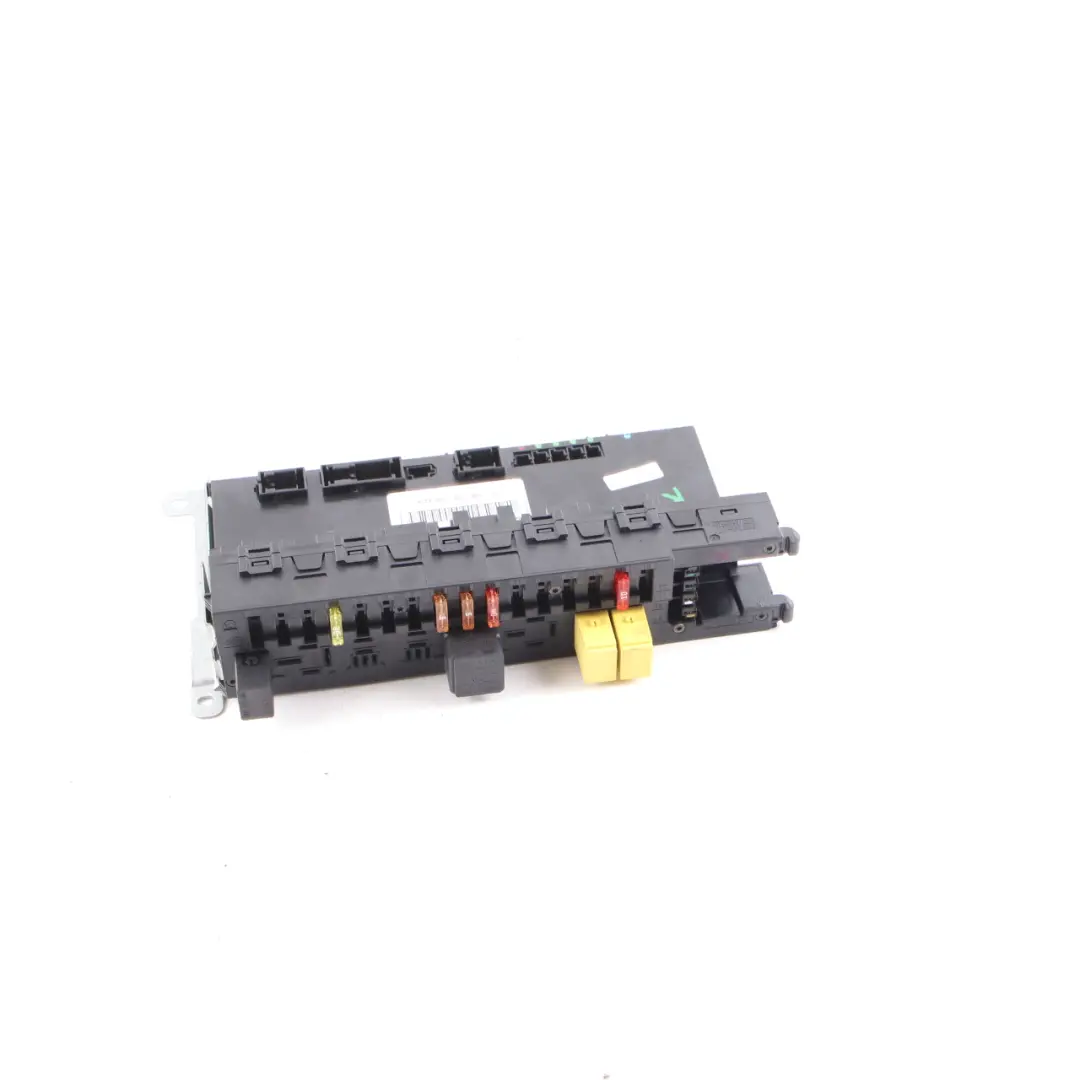

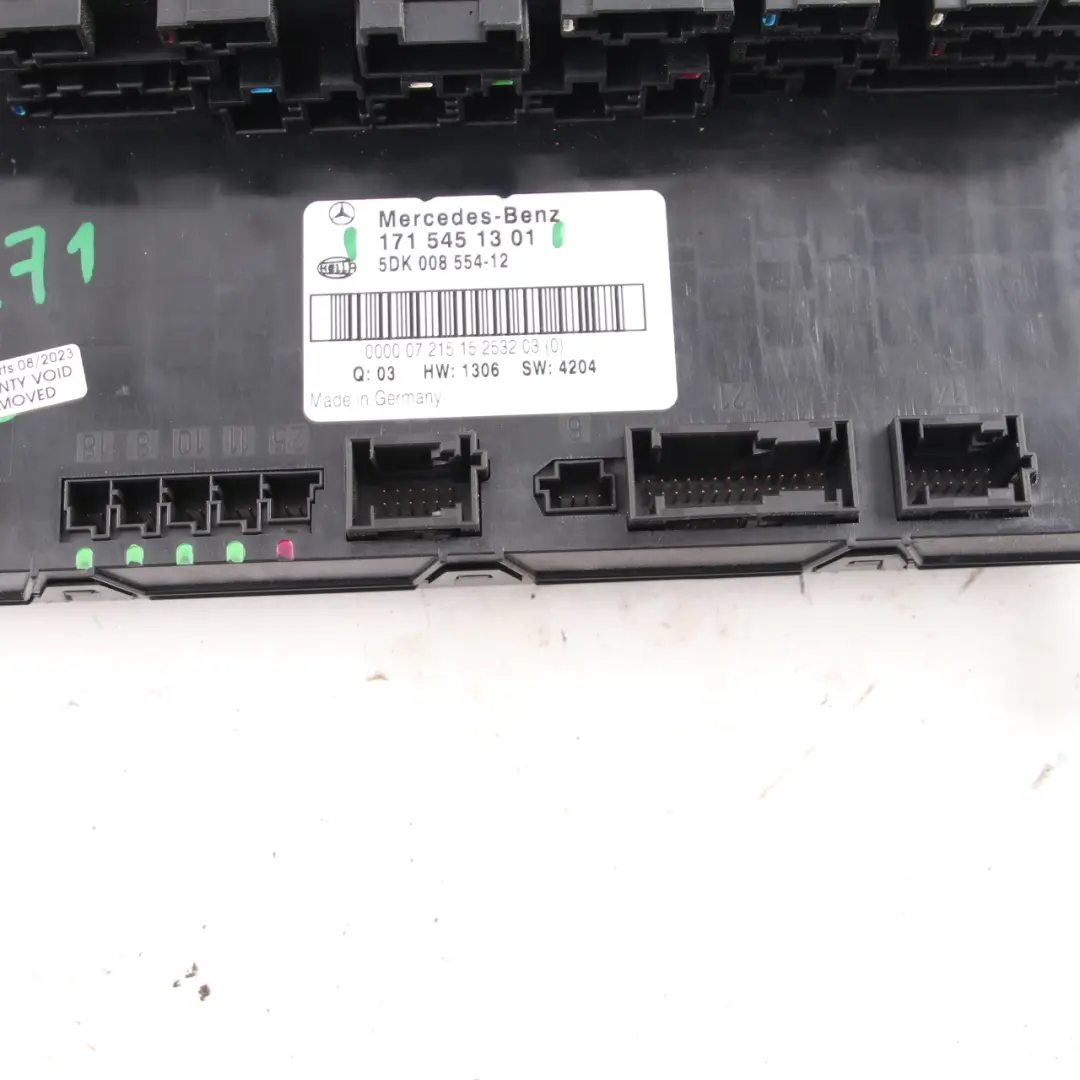

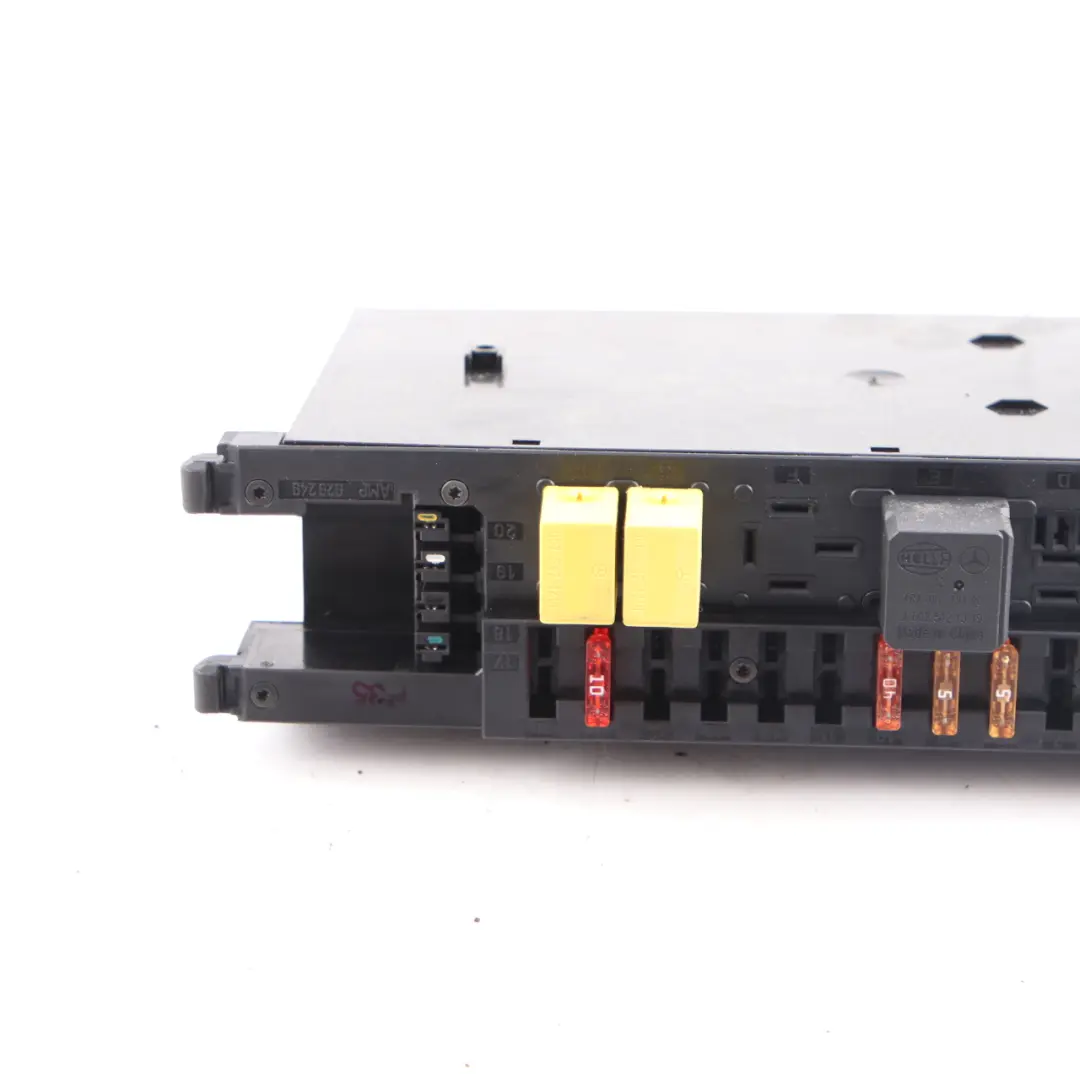

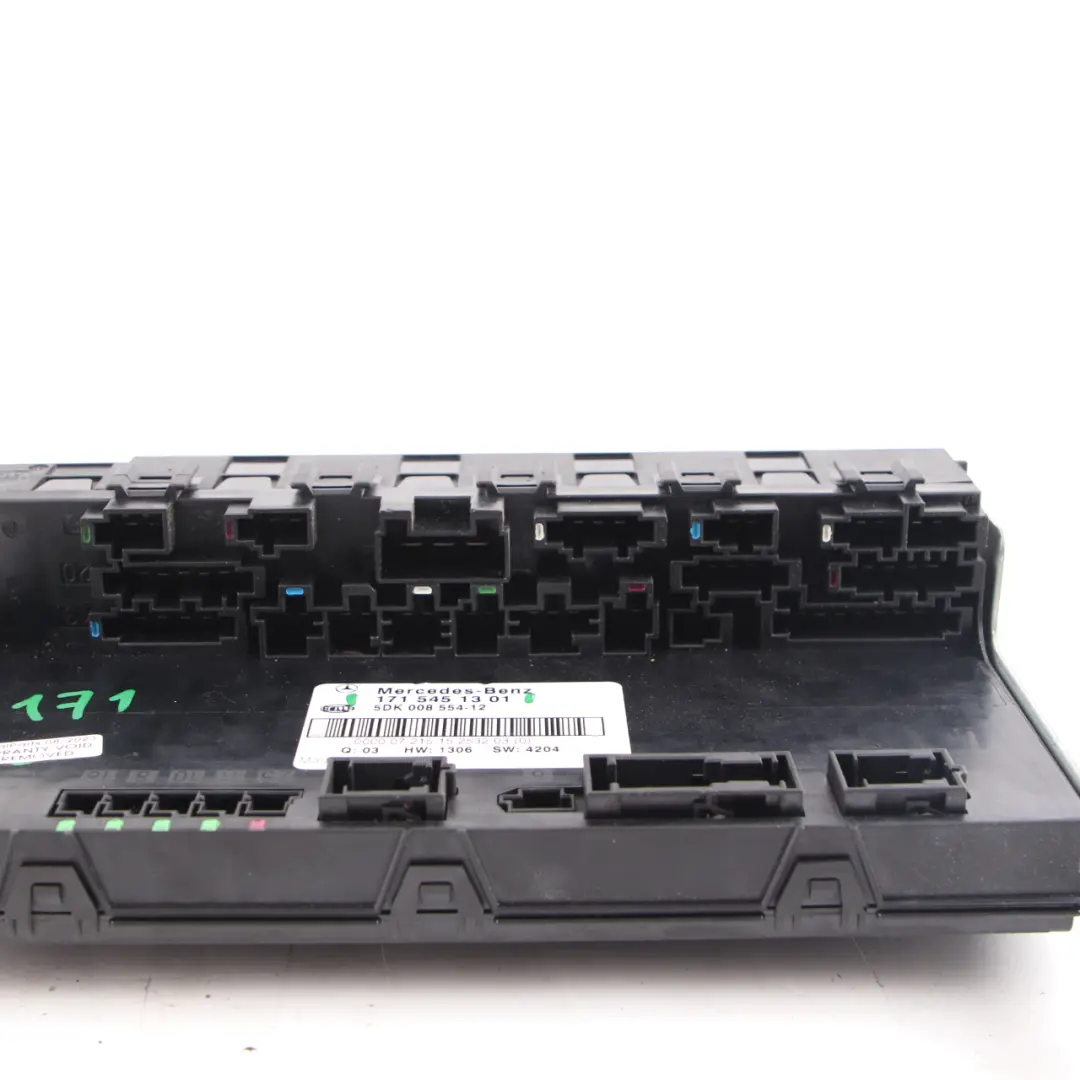

Mercedes R171 Fuse Box Control Unit SAM Module Relay A1715451301

Mercedes R171 Fuse Box Control Unit SAM Module Relay is a key element of the electrical system, responsible for safe power distribution and circuit protection in your roadster. This component from the Fuses and fuse boxes group ensures organized electrical load management and stable operation of many consumers. The used SAM module is a solution that allows for a technically correct repair of the installation while maintaining favorable service costs.

Specifications and technical data

• SKU: A1715451301
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1715451301
• Substitutable numbers: A1715451301, A 171 545 13 01
• Category: Fuses & Fuse Boxes

Function of the SAM module in the Mercedes SLK R171

The SAM module in the SLK R171 model acts as a central fuse box integrated with the electronics controlling selected circuits. It is responsible for:

• power distribution to individual electrical components,
• circuit protection through appropriately selected fuses,
• organized routing of control signals within the vehicle's installation,
• reducing the risk of installation damage during overloads or short circuits.

Thanks to this design, the electrical system is more transparent, and diagnostics and service become simpler and less time-consuming.

Benefits of using an original fuse box

Choosing an original fuse box with a SAM module dedicated to the Mercedes SLK R171 allows you to maintain the factory control logic and proper fuse layout. This translates into:

• proper cooperation with the electrical system without the need for wiring modifications,
• maintaining compliance with service documentation and electrical diagrams,
• easier circuit identification during diagnostics and repairs,
• reducing the risk of installation errors resulting from mismatched replacements.

The used OEM element is a compromise between quality and cost, especially important when repairing vehicles used on a daily basis.

Condition and use in service practice

The presented module comes from the Mercedes brand and is classified as used, which in practice means that it was previously used in a vehicle but is suitable for further use after proper installation. This type of component is often used for:

• troubleshooting issues related to the lack of power to selected circuits,
• repairs after electrical system damage,
• restoring vehicle functionality after a fuse box failure.

By maintaining the original architecture of the electrical system, it is possible to effectively restore the factory operating parameters of comfort and safety systems.

Part identification and fitment

For the correct selection of a fuse box with a SAM module for a specific version of the Mercedes SLK R171, it is crucial to compare the OEM part number and available interchangeable numbers with the vehicle's specification. To do this, it is worth paying attention to:

• compliance of markings with service documentation,
• comparison of connector and fuse socket configurations,
• verification of the module's purpose relative to the model year and equipment version.

Identification information, such as the OEM part number, interchangeable numbers, and SKU, are presented in the technical specification section and facilitate precise matching of the element to a specific vehicle unit.

Expanding the electrical system in a Mercedes

If you are planning a comprehensive repair or upgrade of the electrical installation area in your Mercedes and need other elements from the same group, such as additional boxes, inserts, or protection modules, check the available parts in the Mercedes Fuses and fuse boxes category.
