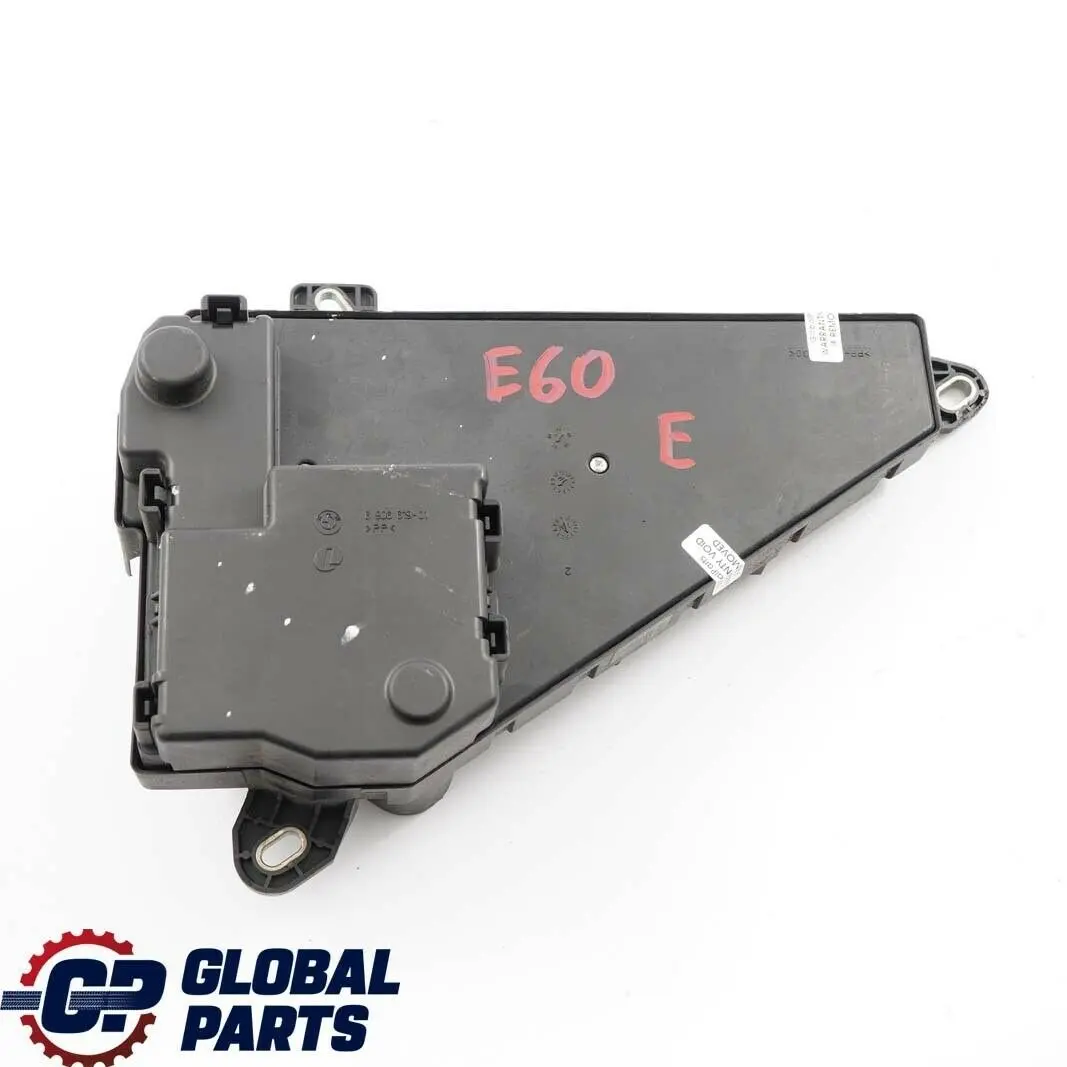

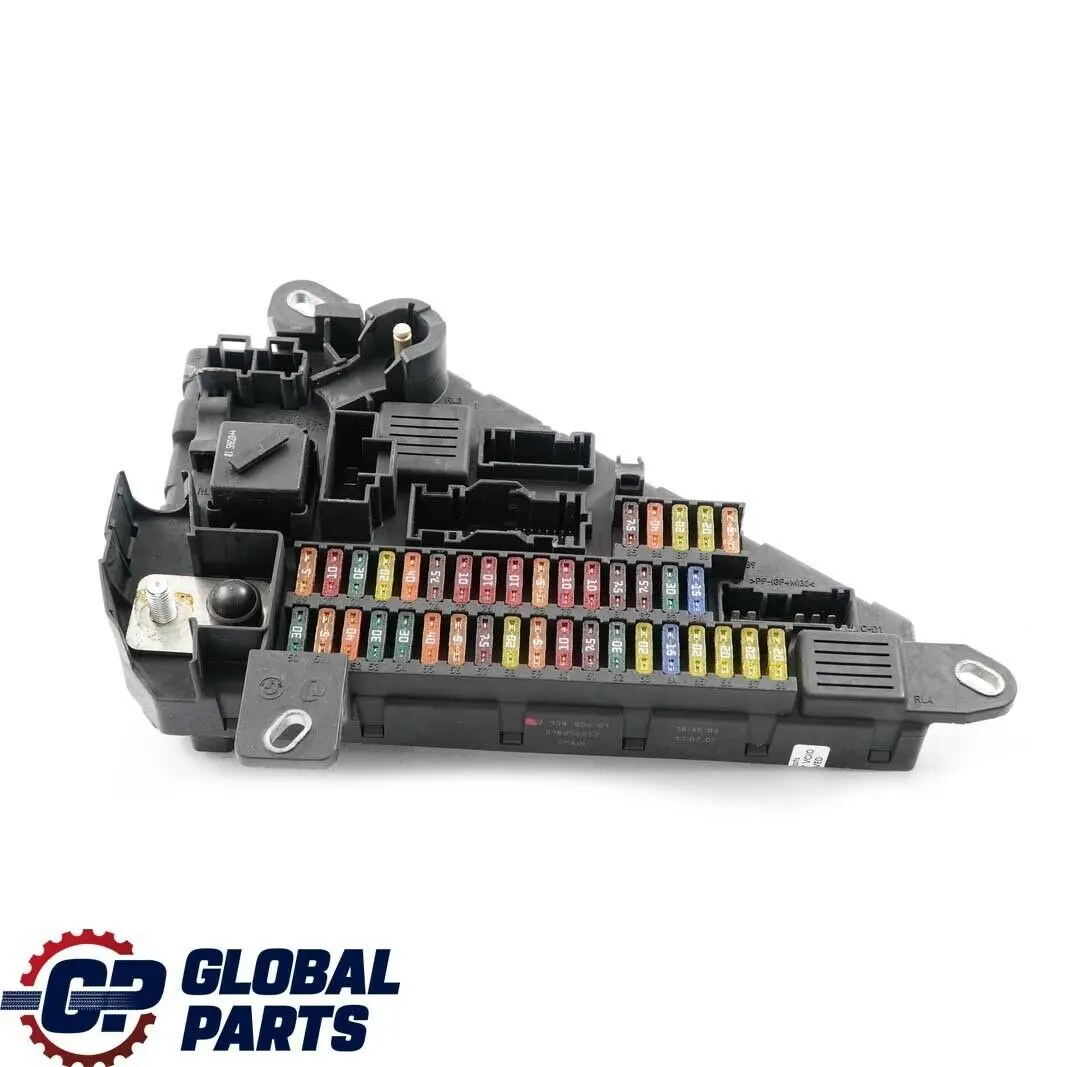

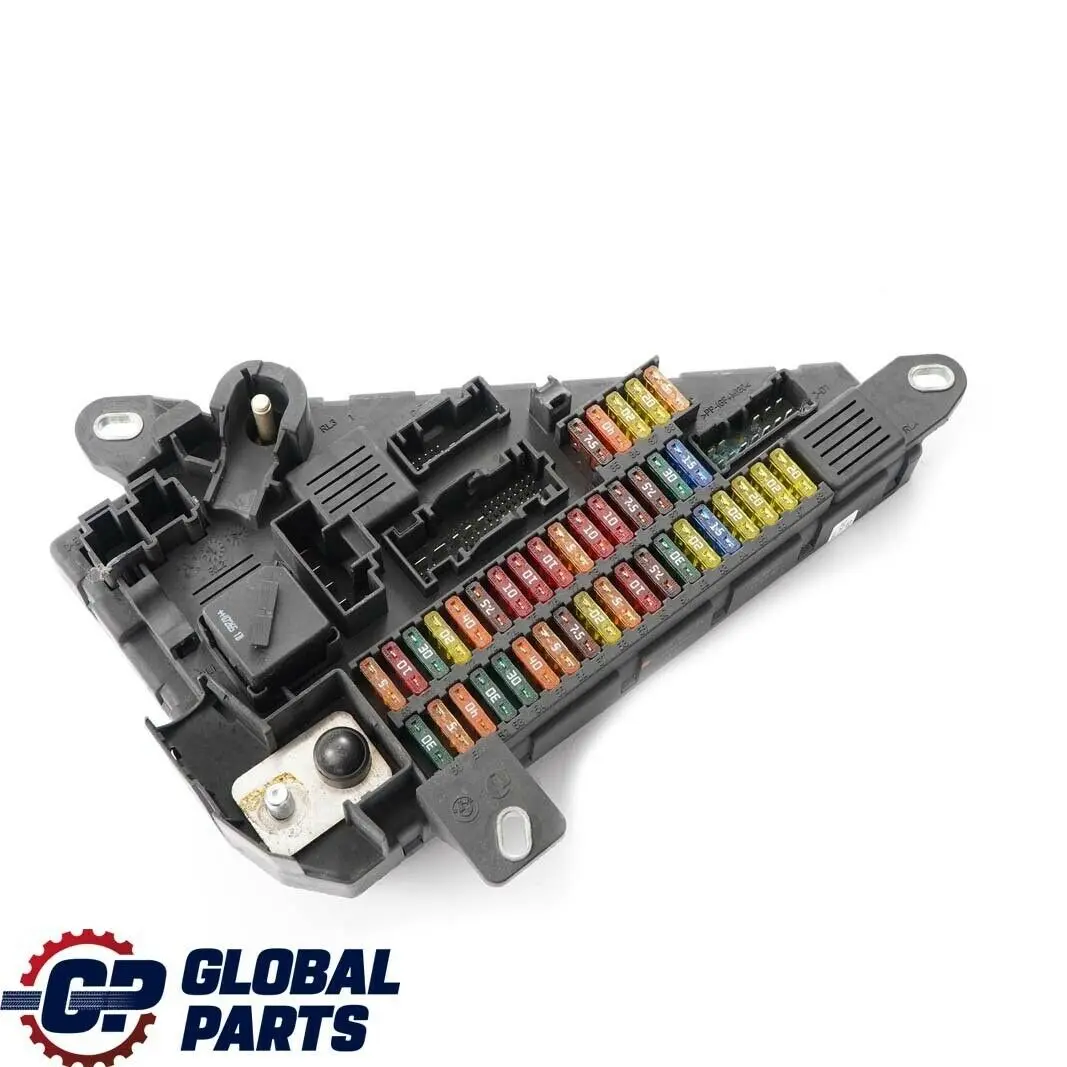

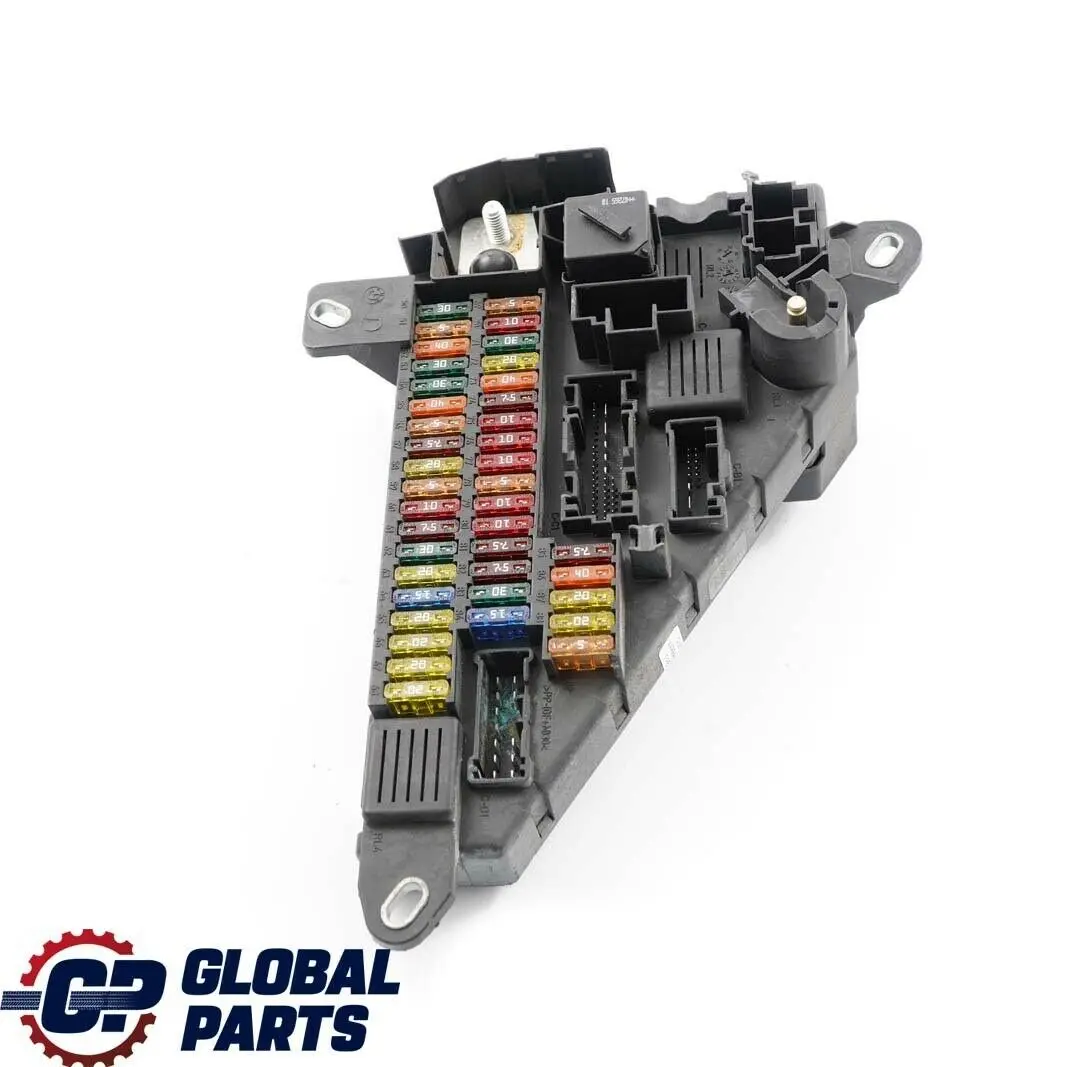

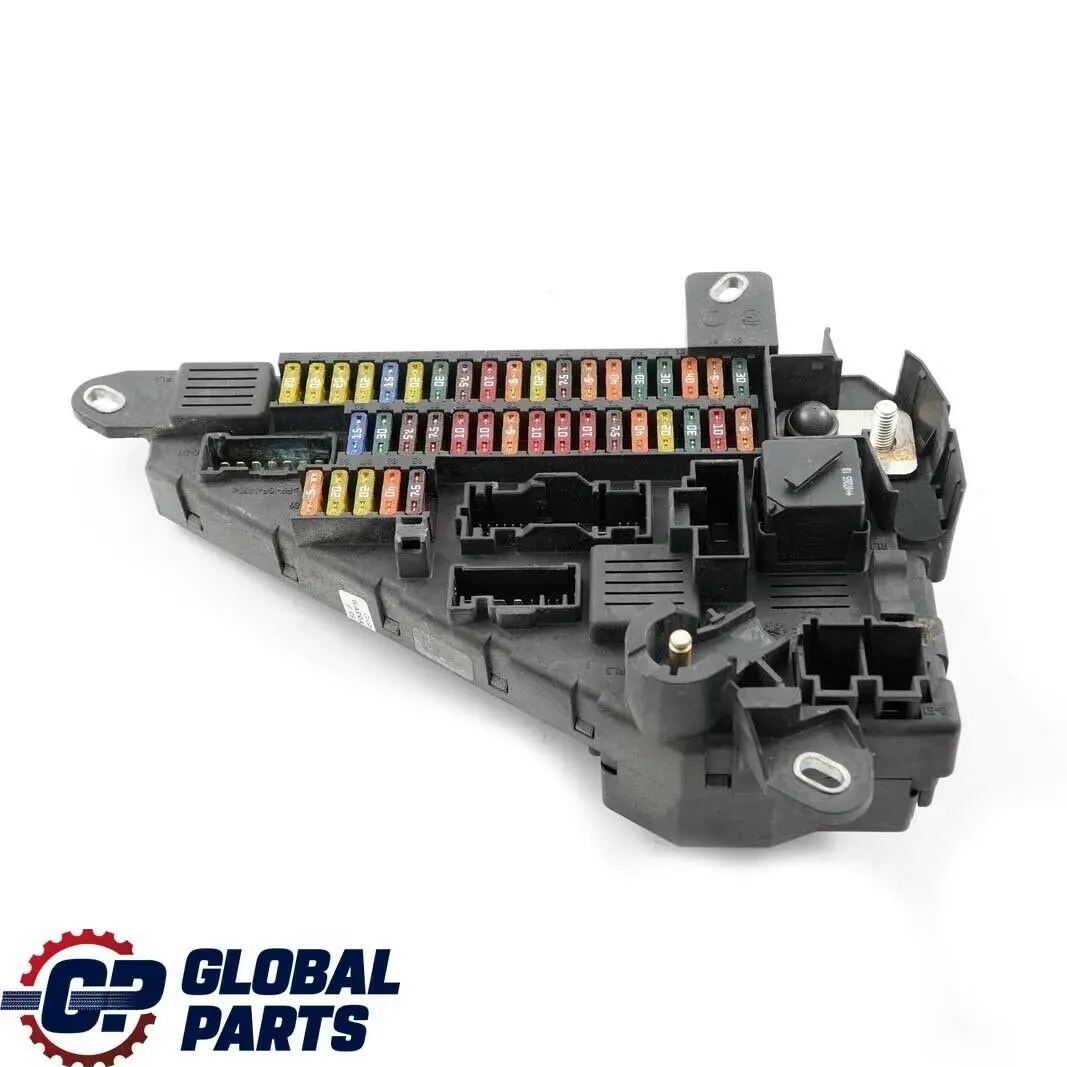

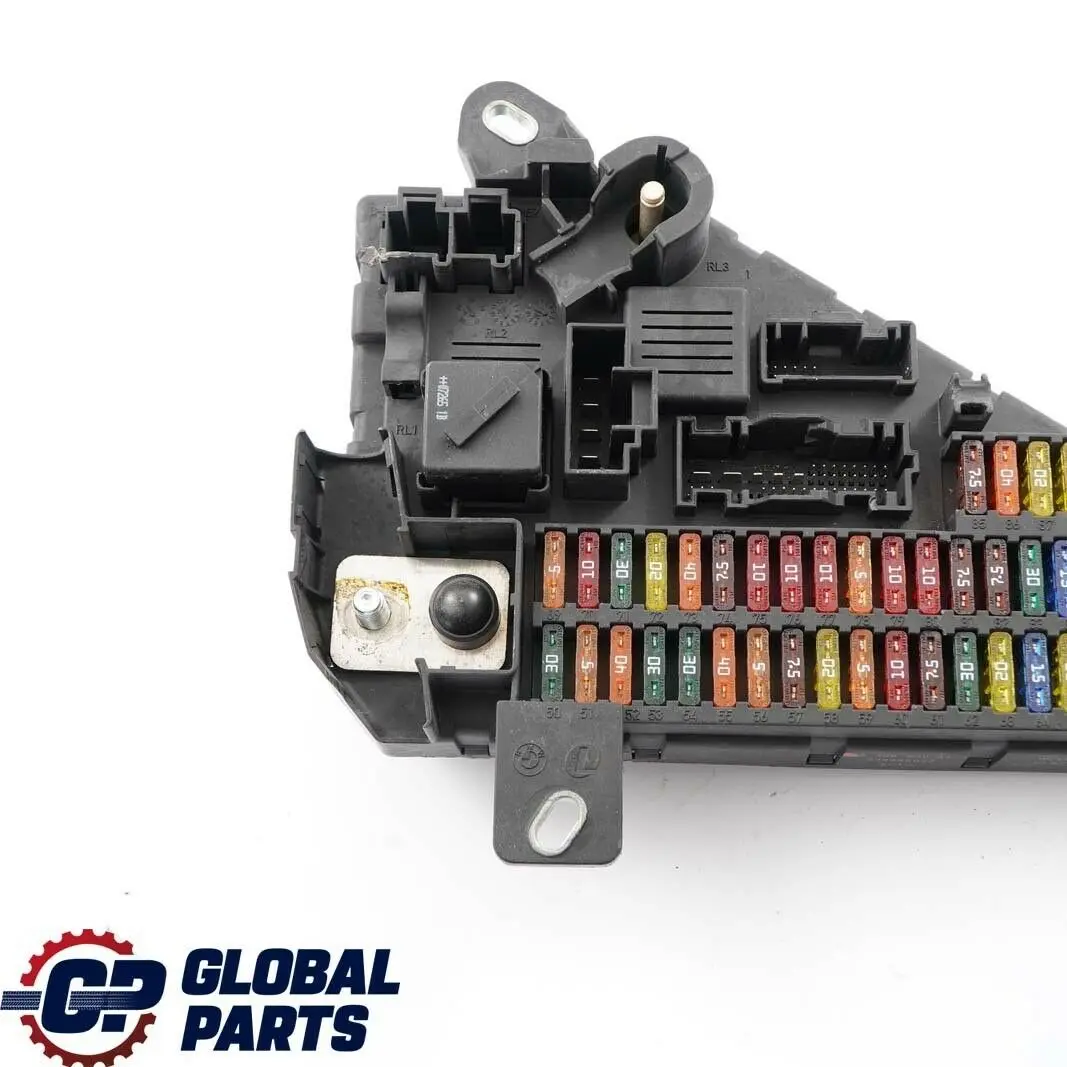

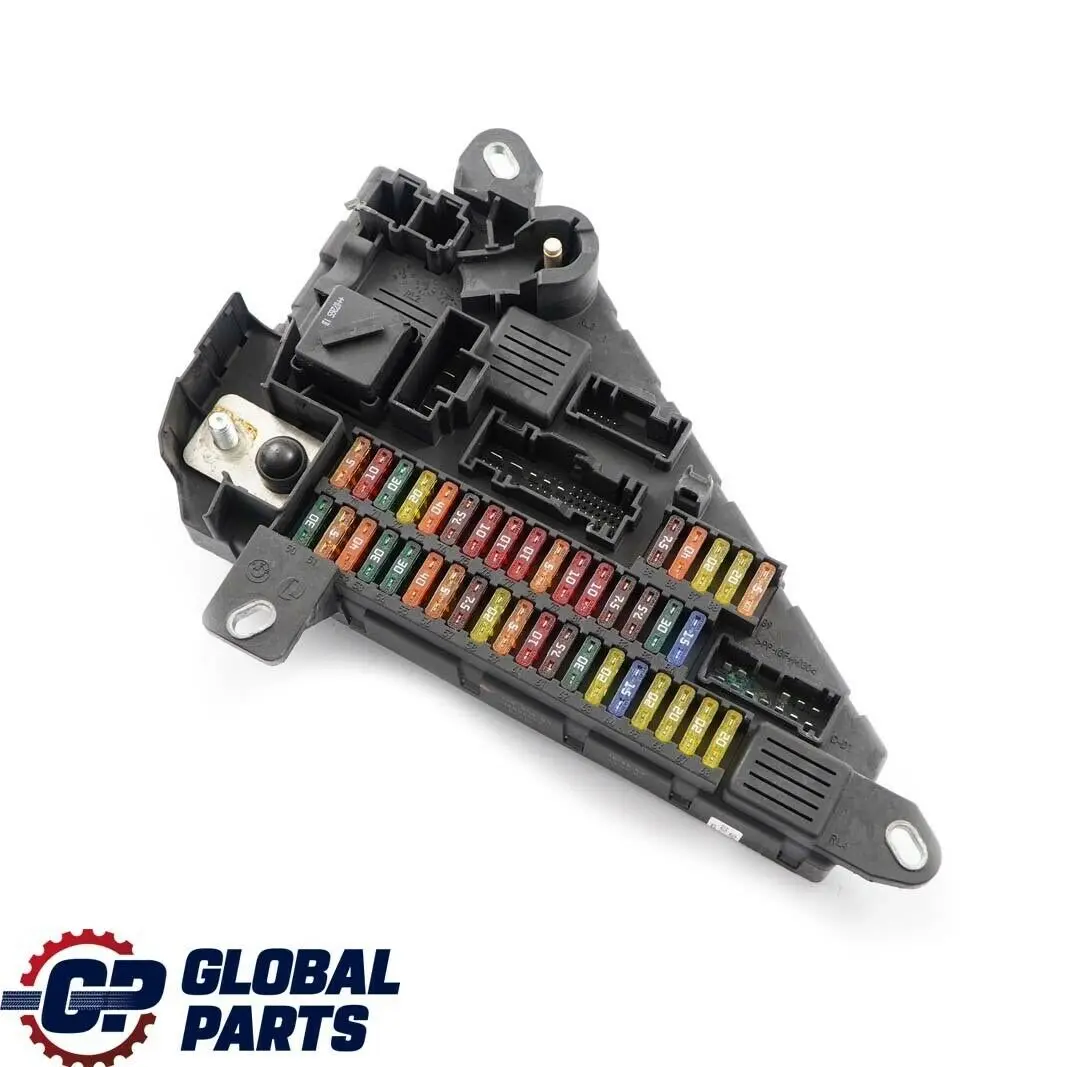

BMW E60 E61 E63 E64 LCi Fuse Box Power Distribution Rear 9138830

The BMW E60 E61 E63 E64 Fuse Box Power Distribution Unit Rear is an original electrical system component from the fuses and fuse boxes category, designed for installation in the rear of the vehicle. It ensures organized power distribution and stable protection of electrical circuits, contributing to the trouble-free operation of the car's key systems. This is a practical solution for users seeking factory fitment and proven design in BMW E60, E61, E63, and E64 series models.

Specifications and technical data

• SKU: 9138830
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9138830
• Substitutable numbers: 61149138830, 9138830
• Location on the vehicle: Rear
• Category: Fuses & Fuse Boxes

Purpose and Function in BMW Electrical System

The rear-mounted fuse box with a power distribution unit is responsible for the logical distribution of power to consumers located in the rear of the body. In typical configurations, this includes lighting circuits, comfort modules, or additional equipment systems. Thanks to its factory design for BMW E60, E61, E63, and E64 series, it maintains proper load distribution across individual power lines and ensures correct integration with the original wiring harness.

Construction and Advantages of the Original BMW Fuse Box

The solution used in this power distribution unit features a compact, modular housing that integrates fuse sockets and power busbars. This design:

• facilitates service and diagnostics of electrical circuits in the rear of the vehicle,
• ensures clear separation of power lines into individual sections,
• reduces the risk of connection overheating due to factory-selected conductor cross-sections,
• maintains proper fitment with brackets and covers in the trunk.

As a result, the fuse box operates stably under typical operating conditions, and access to fuses remains convenient during inspections and potential repairs.

Vehicle Placement and Mounting Fitment

The component is designed for installation in the rear of the body, according to the original BMW electrical system design. Placement in this area allows for shorter power cable lengths to rear-mounted consumers, which reduces voltage drops and improves system stability. The original mounting geometry facilitates installation in the designated location without the need for modifications to the wiring harness or brackets.

Condition, Origin, and Benefits of Choosing a Used Part

The offered BMW fuse box is a used original part obtained from disassembly. Such components are often chosen for electrical system repairs because they:

• provide factory fitment for a specific BMW generation,
• maintain compatibility with the original electrical schematic,
• allow for reduced repair costs compared to new components.

For many users, this represents a sensible compromise between quality and budget, especially for complex electrical systems in premium class models.
