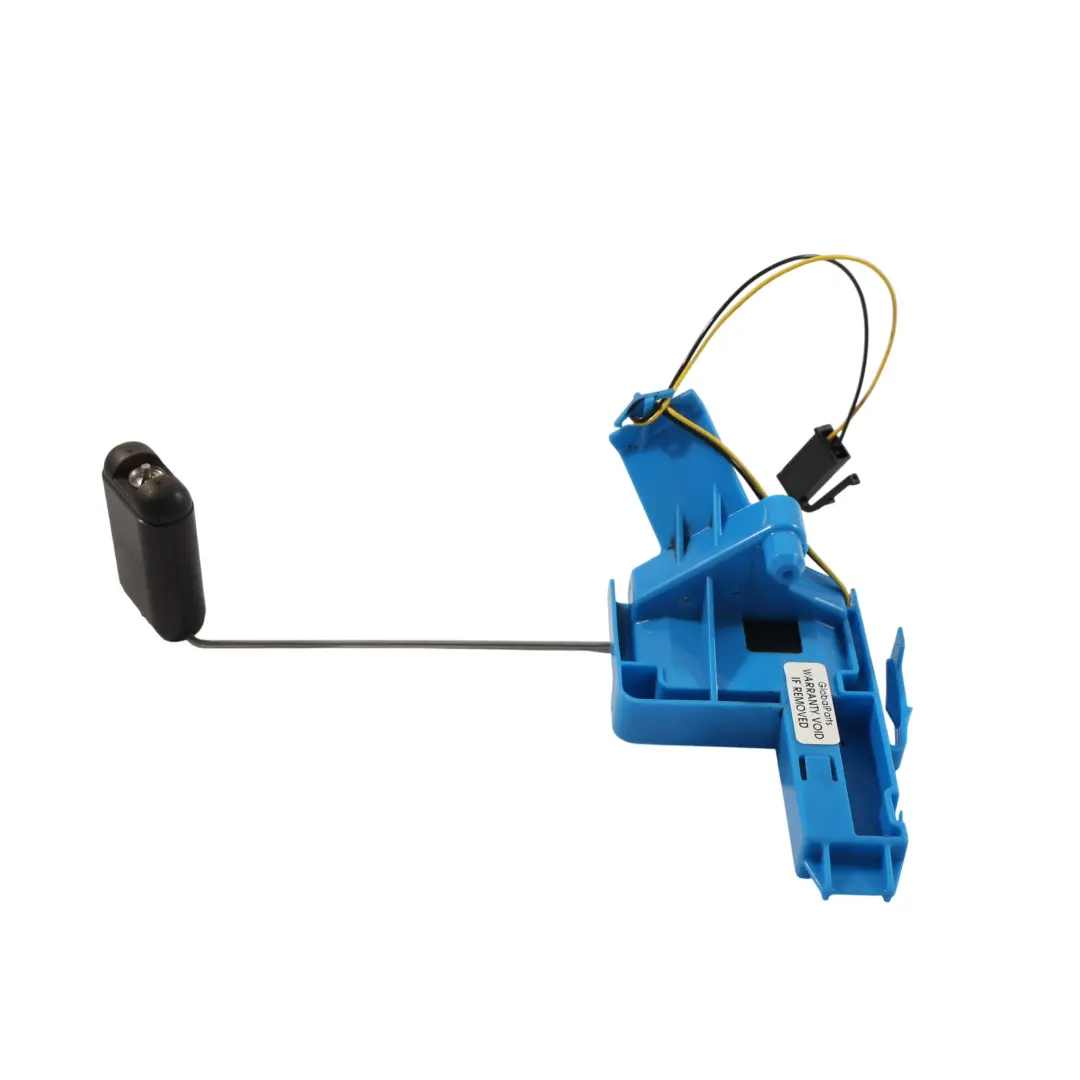

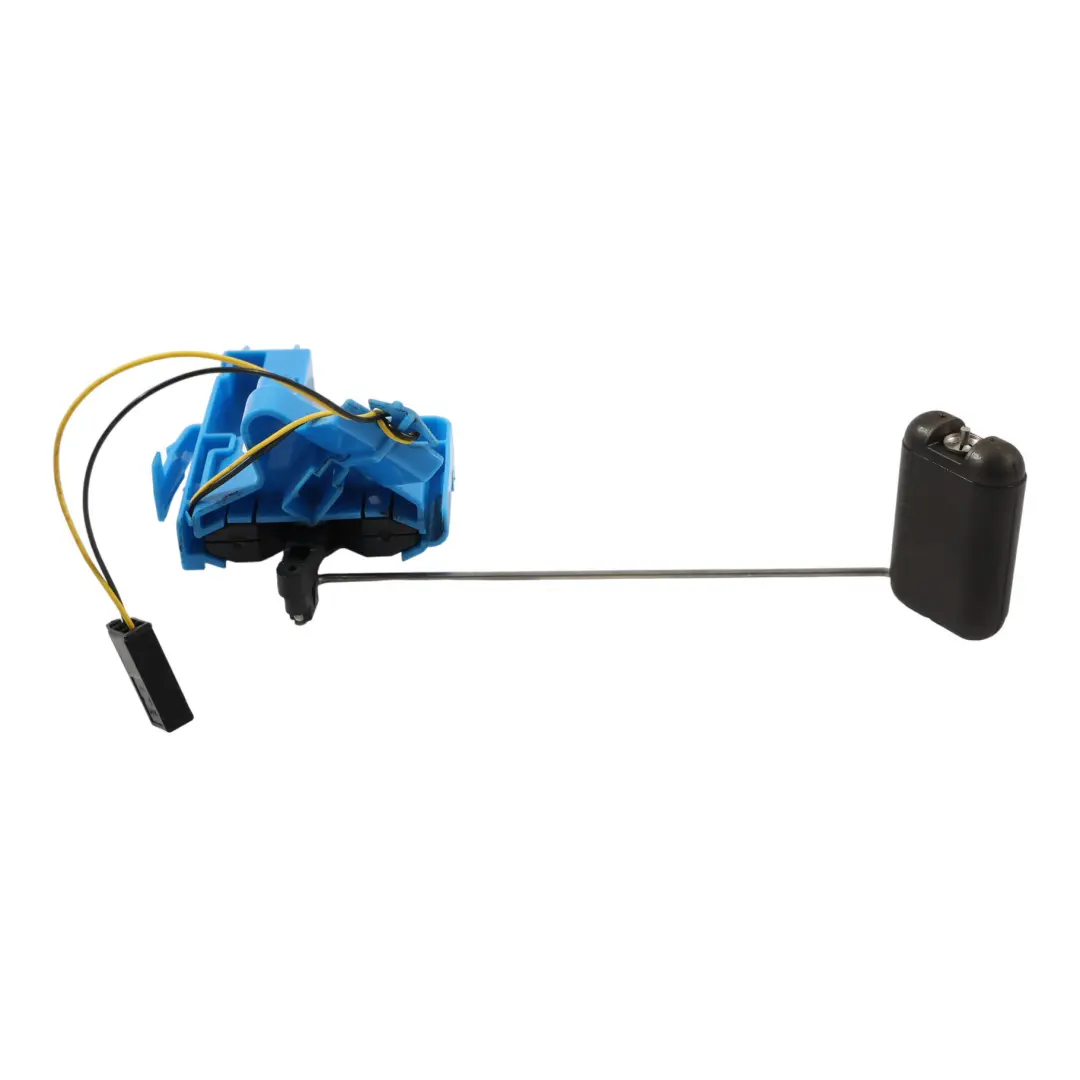

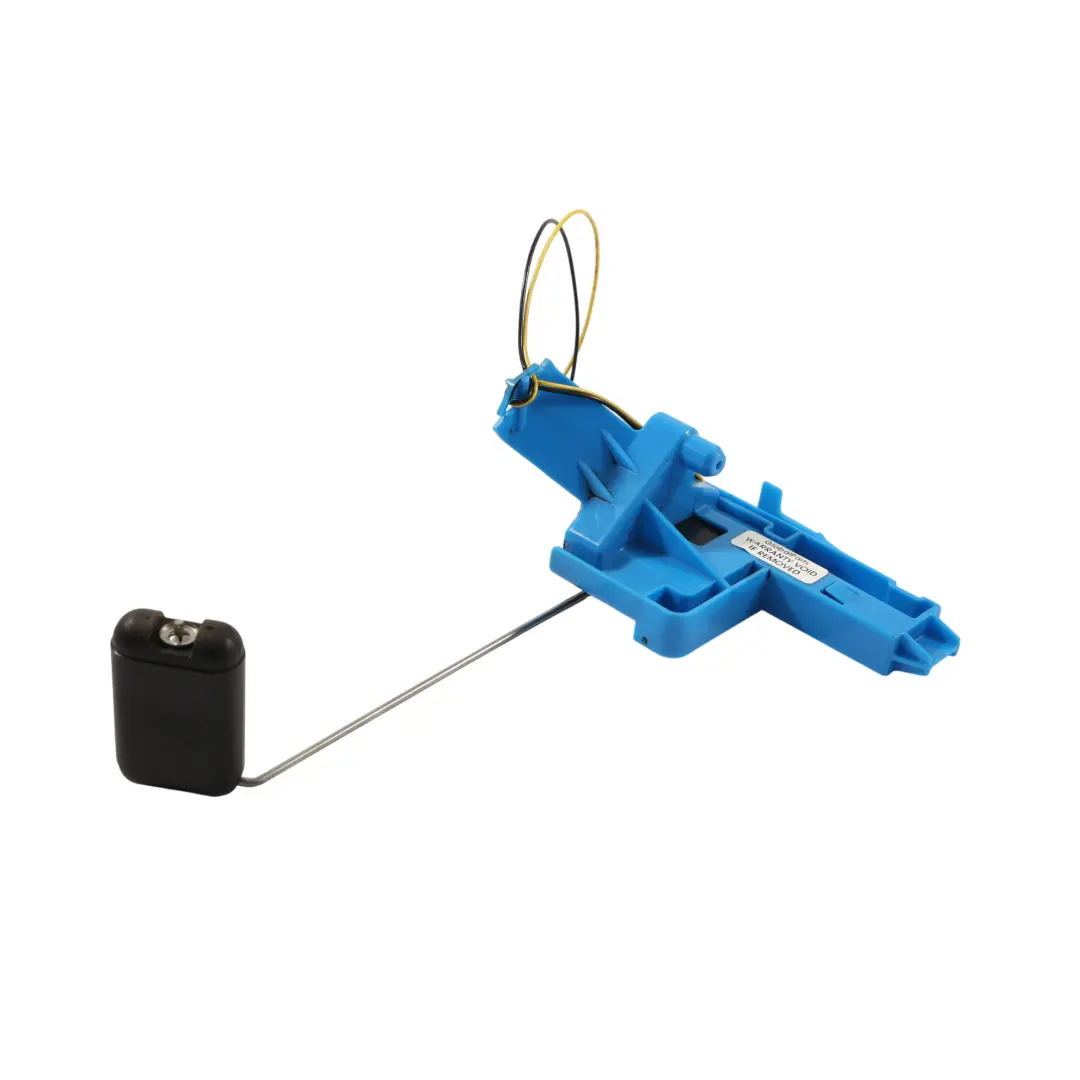

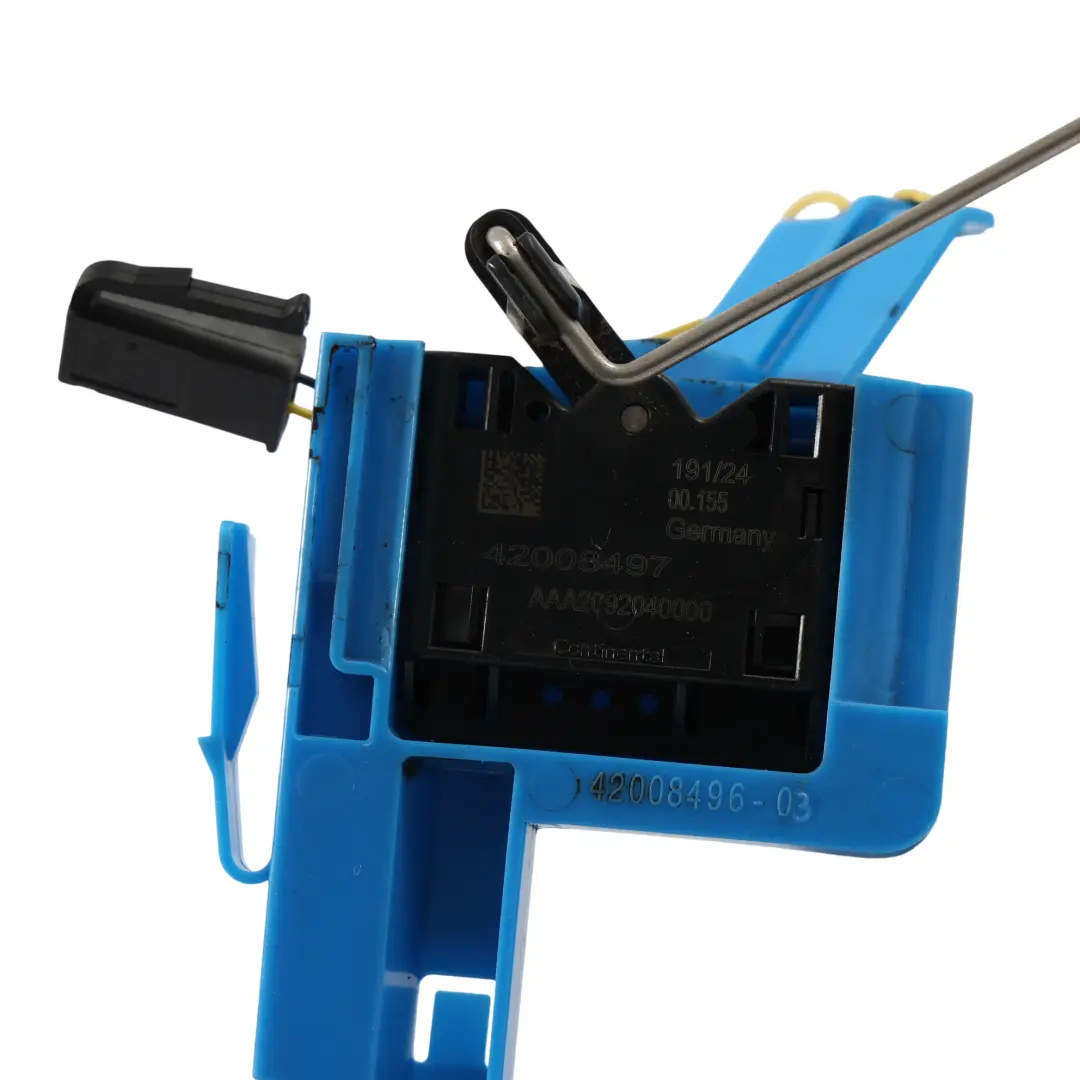

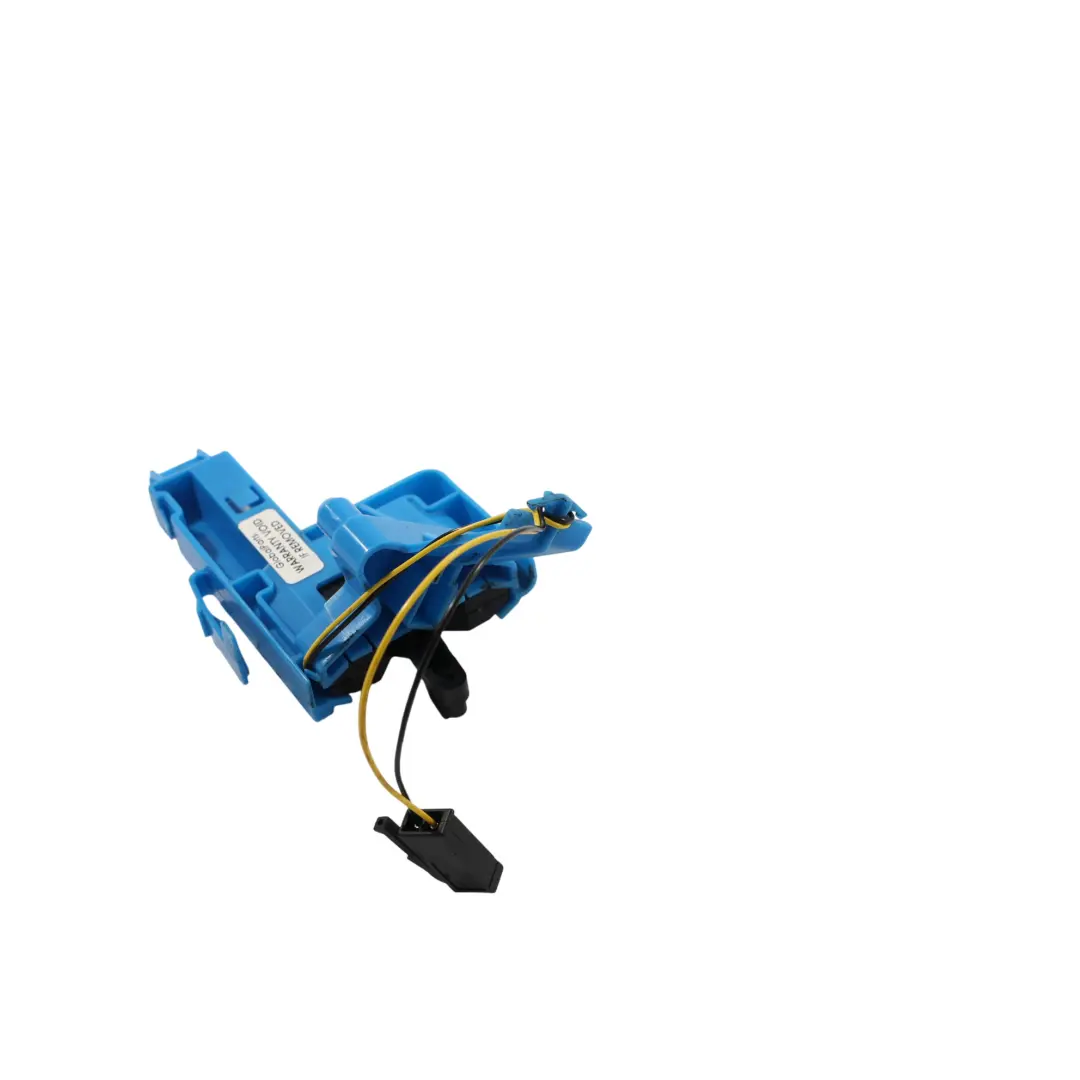

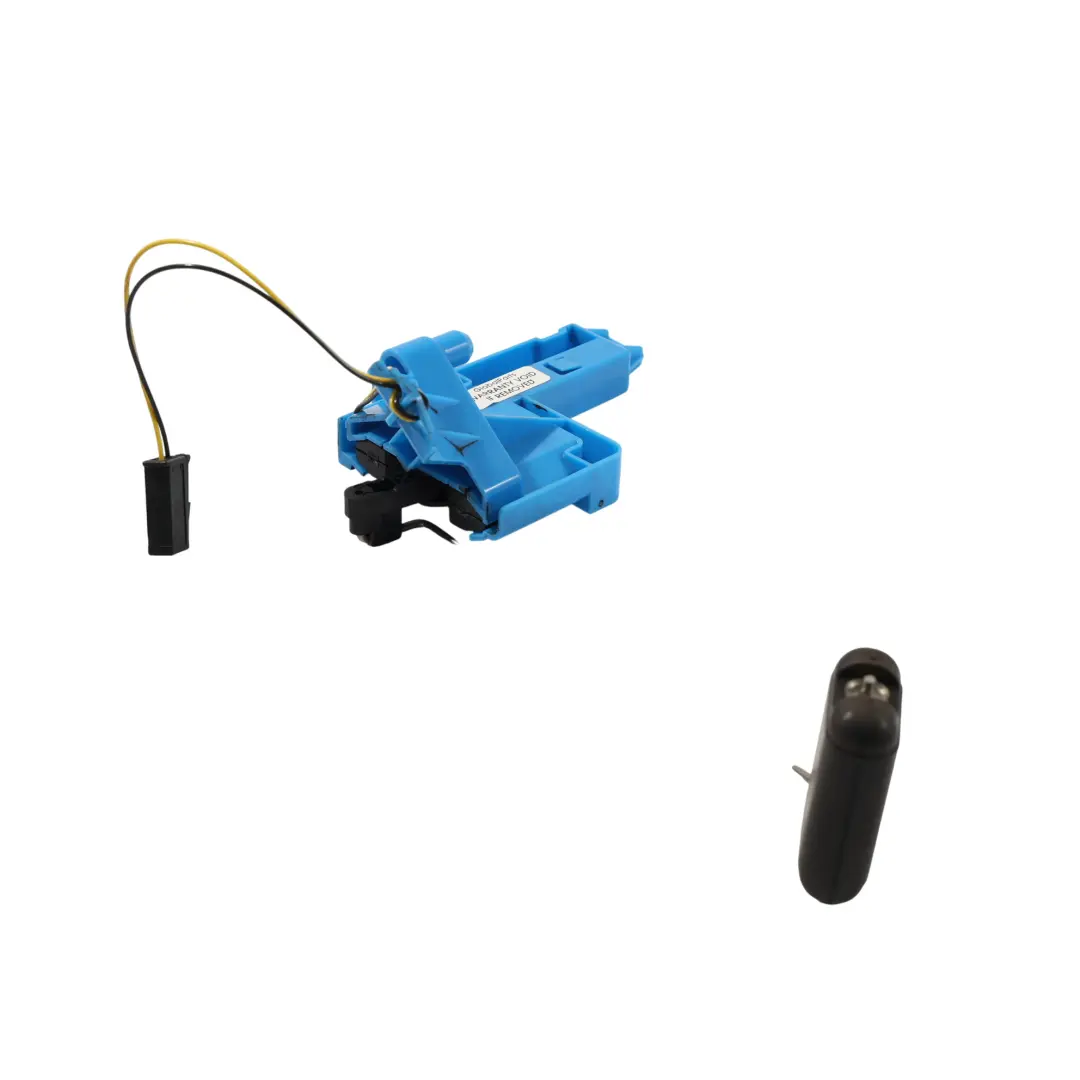

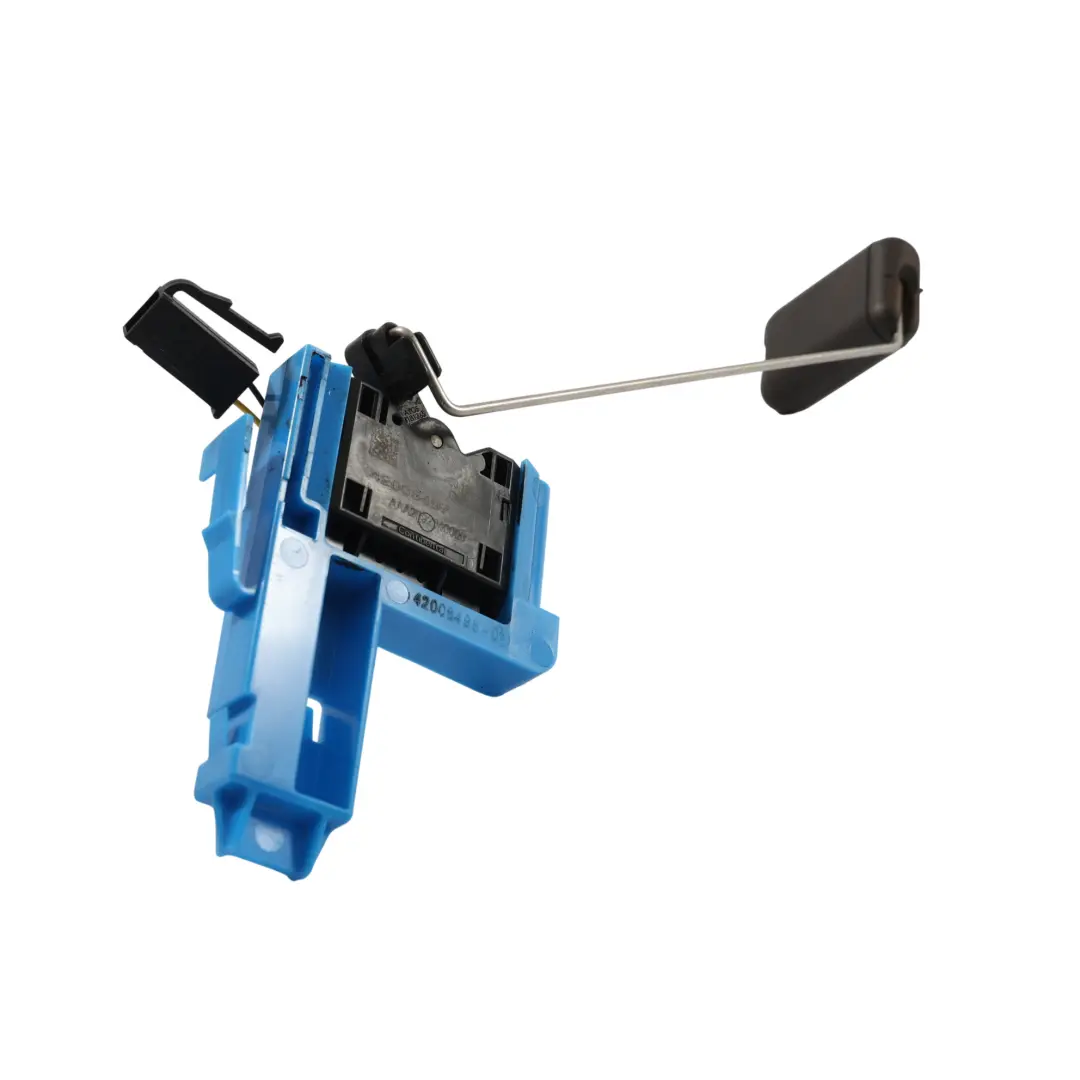

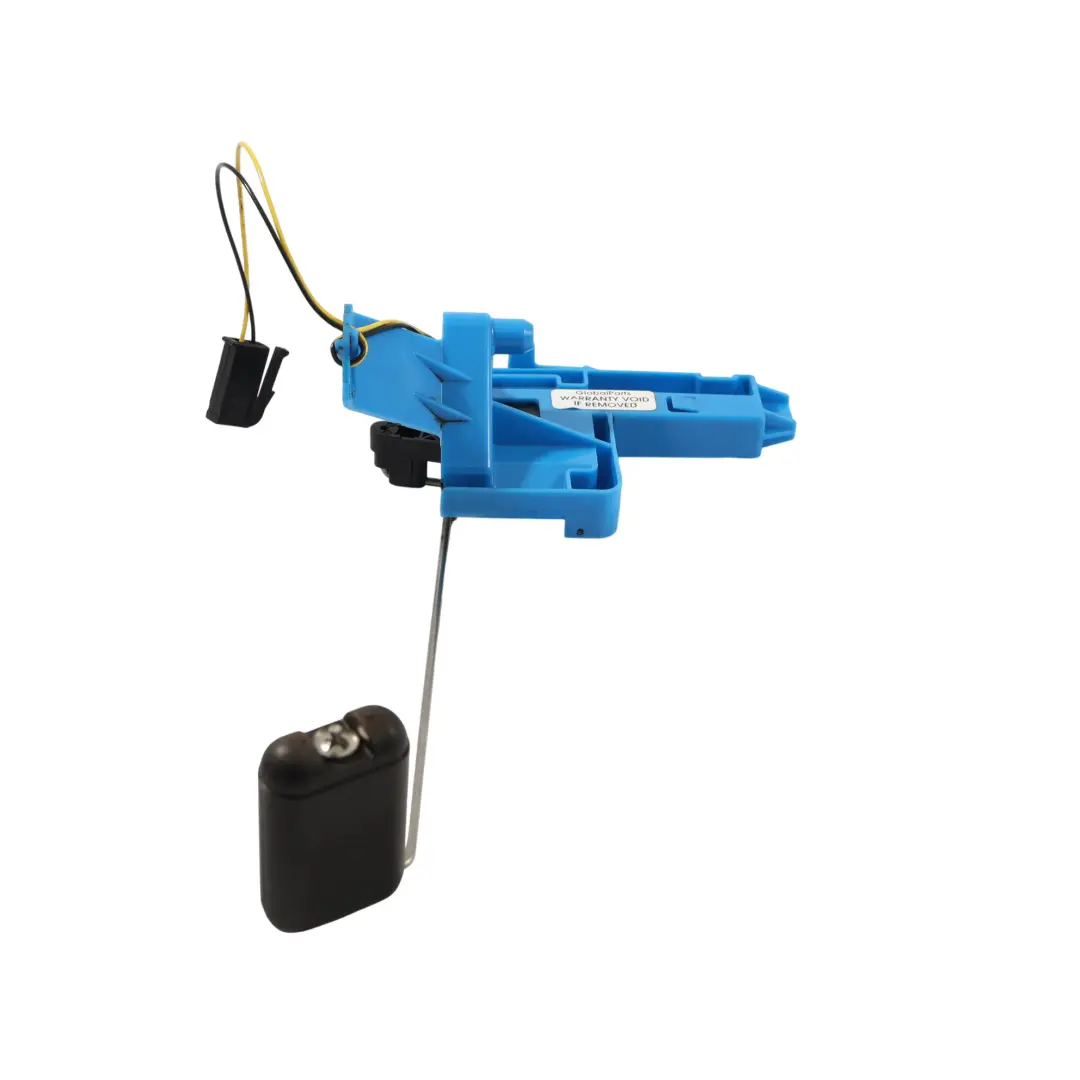

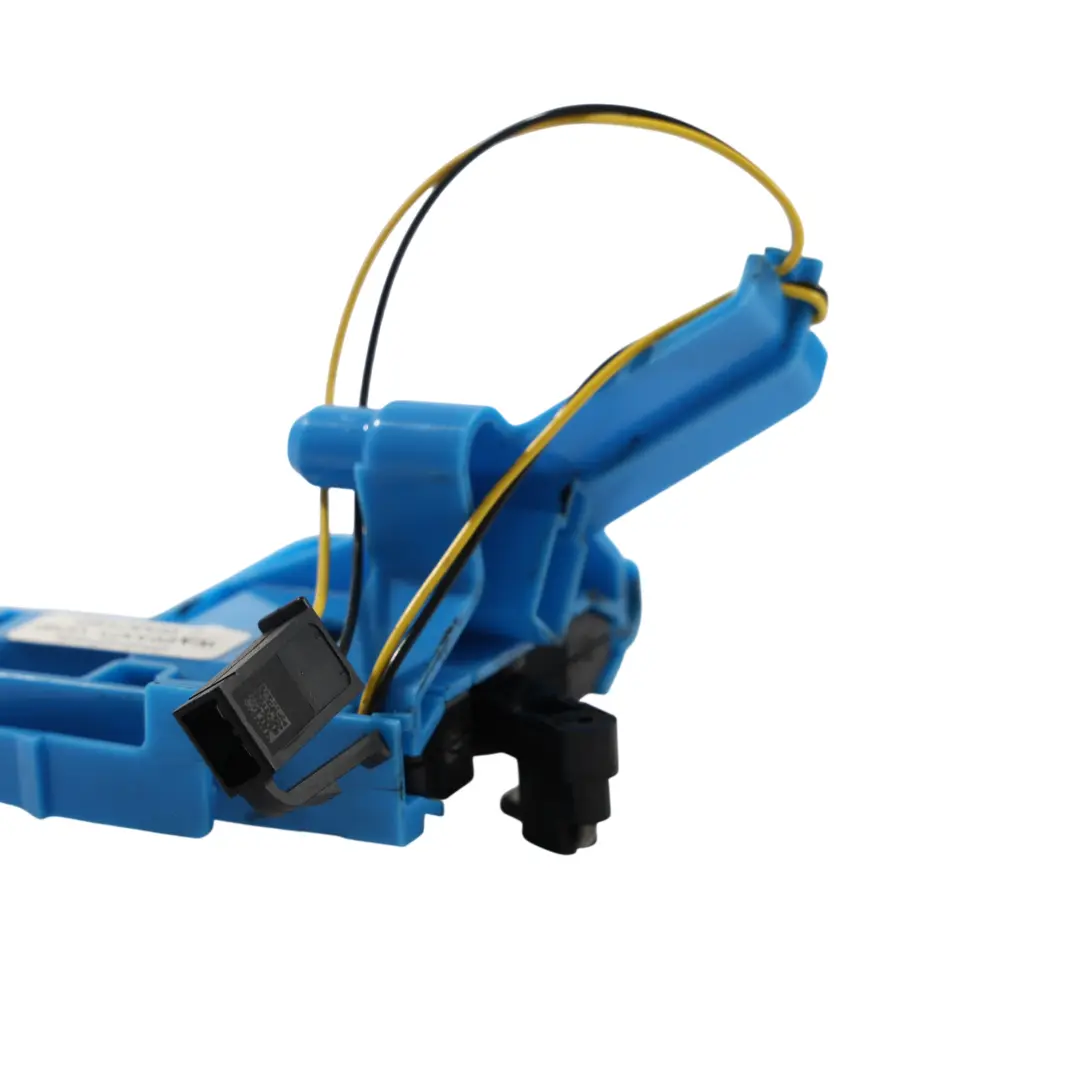

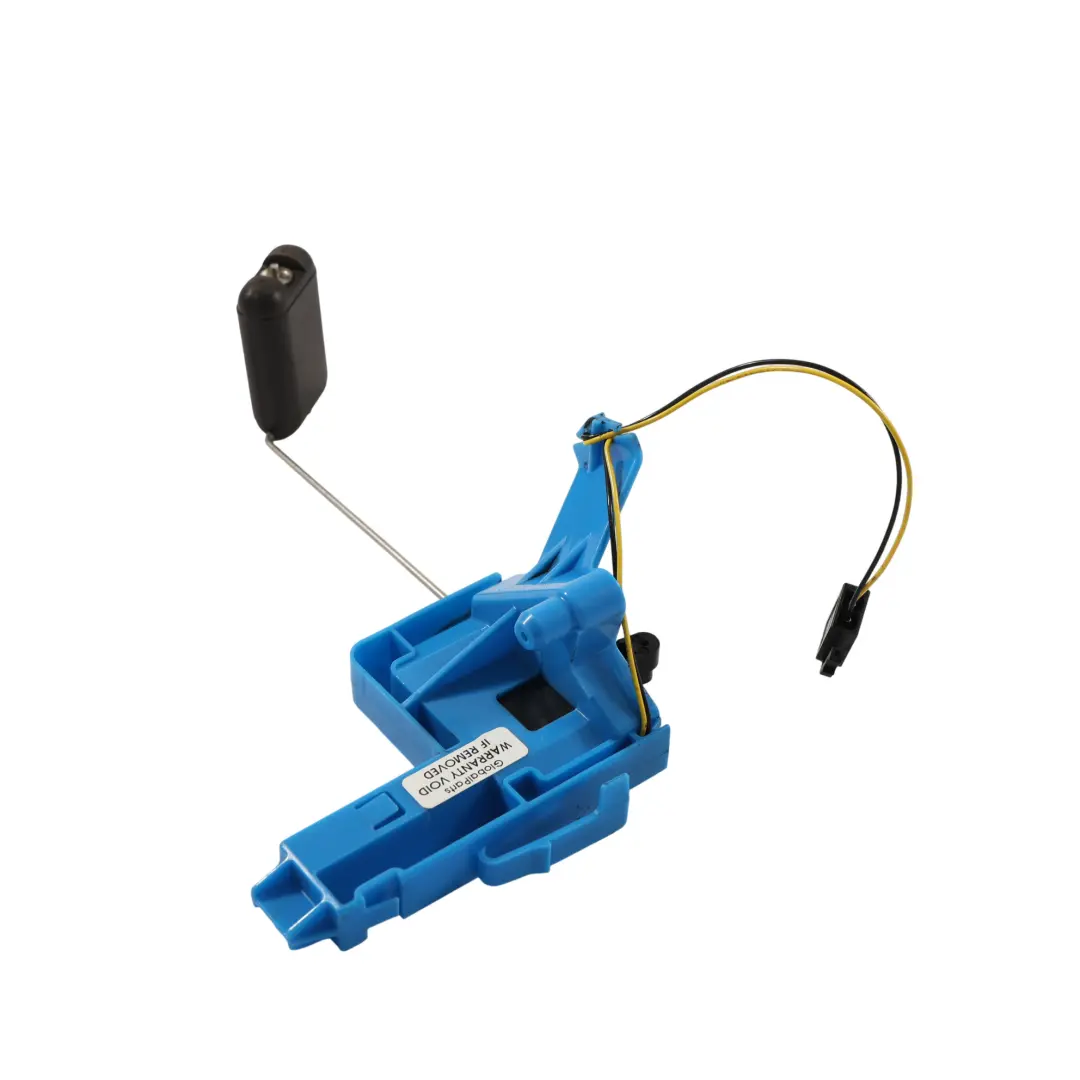

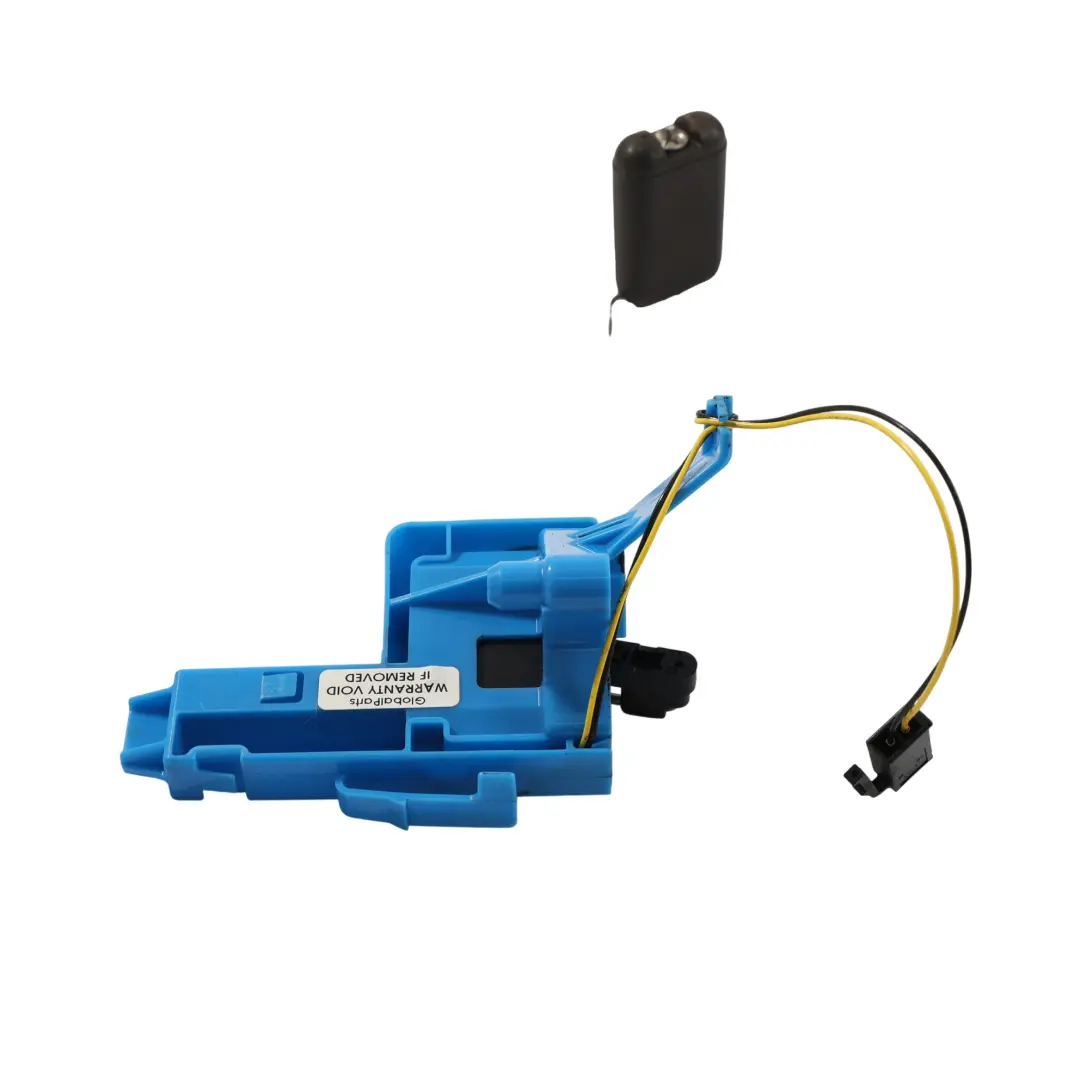

BMW X1 U11 Fuel Tank Reservoir Level Sensor Sender Module 9456086

BMW X1 U11 Fuel Tank Reservoir Level Sensor Sender Module is a precision component from the Fuel pumps and level sensors category, responsible for reliable fuel level readings in the tank. A properly selected sensor ensures stable operation of the dashboard gauge and facilitates fuel system diagnostics. Using an OEM component is a sensible choice for drivers looking for a proven solution at an attractive price.

Specifications and technical data

• SKU: 9456086
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9456086
• Substitutable numbers: 9456086, 16119456086
• Part type: Fuel Sending Unit
• Category: Fuel Pumps & Sending Units

Function and role of the fuel level sensor

The fuel level sensor with a float in the BMW X1 U11 is responsible for converting the float position into an electrical signal, which is then sent to the vehicle's control system. This allows the fuel gauge to display the current tank fill level to the driver, and enables onboard systems to correctly calculate range and fuel consumption.

A functional sensor minimizes the risk of erroneous readings, sudden drops in the gauge level, or incorrect low fuel warnings. This is particularly important in modern designs, where data from the fuel system is utilized by multiple electronic modules.

Construction and fitment for the BMW X1 U11

BMW X1 U11 Fuel Tank Reservoir Level Sensor Sender Module is designed for the specific fuel tank architecture of this model, which translates into the correct operating characteristics of the float and resistor. Properly matching the geometry of the component to the shape of the tank allows for consistent and predictable signal changes across the entire fill range.

Its original BMW group origin ensures compliance with factory assembly standards, wiring harnesses, and operating parameters. As a result, the component integrates with the existing system without the need for installation modifications or mechanical adaptations.

Benefits of using an OEM component

Choosing a used fuel level sensor with a float is a solution that helps reduce repair costs while maintaining compliance with factory specifications. Compared to low-quality aftermarket replacements, an OEM component provides:

• consistency of electrical parameters with BMW controller requirements,
• proper cooperation with the dashboard and onboard systems,
• factory mounting points and connectors, which facilitates installation.

For users considering the purchase of used electronic and measurement components, a guide describing selection by part numbers, compatibility issues, and installation will be useful – details can be found in the article Used automotive electronics – how to safely choose ECU modules and sensors second-hand.

Practical installation and maintenance tips

When replacing the fuel level sensor in the BMW X1 U11, it is worth paying attention to the cleanliness of the tank interior and the condition of the seals at the mounting point. Proper positioning of the float and the absence of contaminants in its operating zone reduces the risk of the mechanism sticking and unstable readings.

It is also recommended to check the condition of the wiring harness and the connector – oxidized contacts can cause signal interference, which is often mistaken for a failure of the sensor itself. Careful installation and proper connection of the plugs are the key to long-term, repeatable operation of the fuel level measurement system.

Expanding the fuel system in your BMW

If you are planning a comprehensive repair or upgrade of the fuel system area in your BMW and need other components from the same group, such as additional level sensors, fuel pump modules, or elements working with the measurement system, check the available parts in the BMW fuel pumps and level sensors category.
