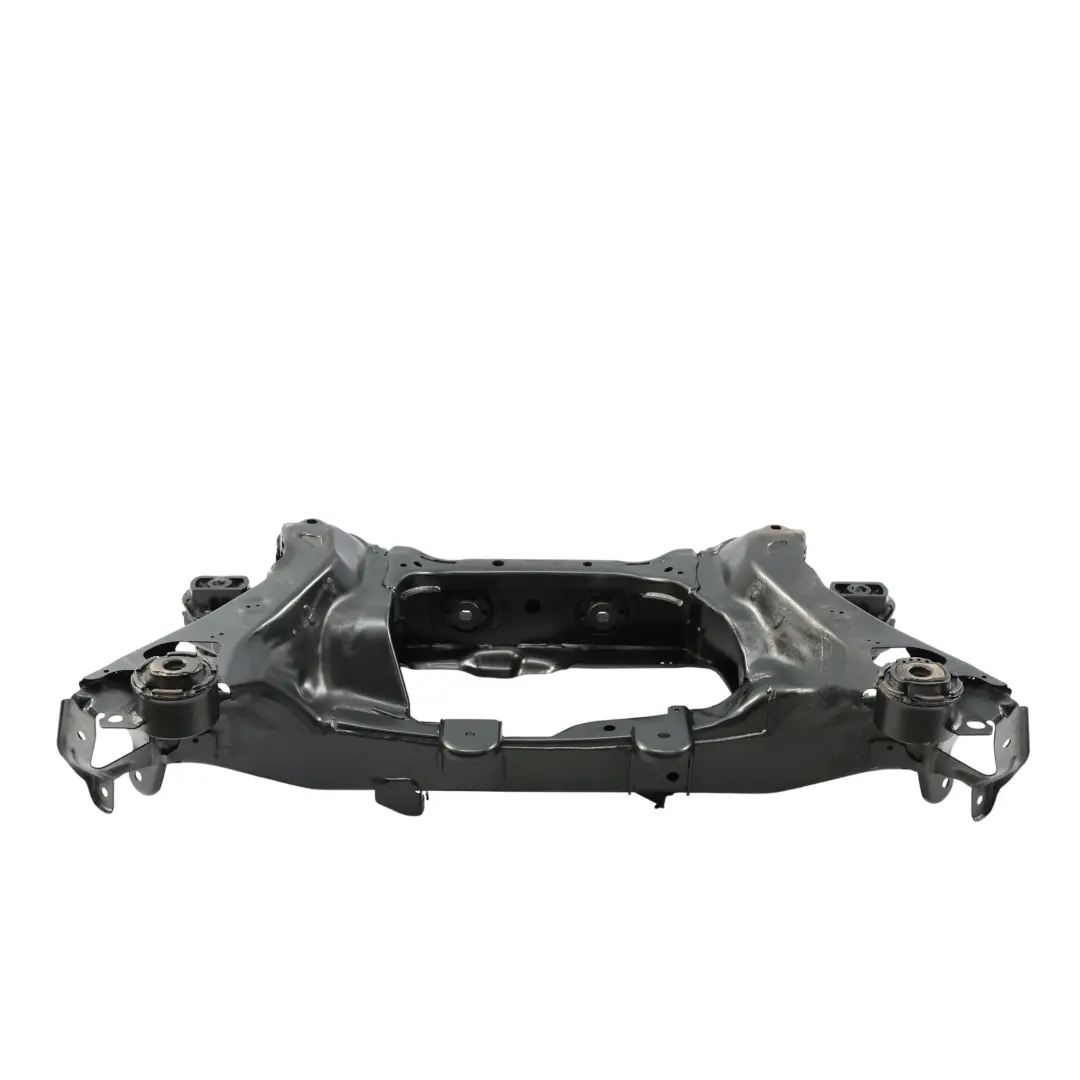

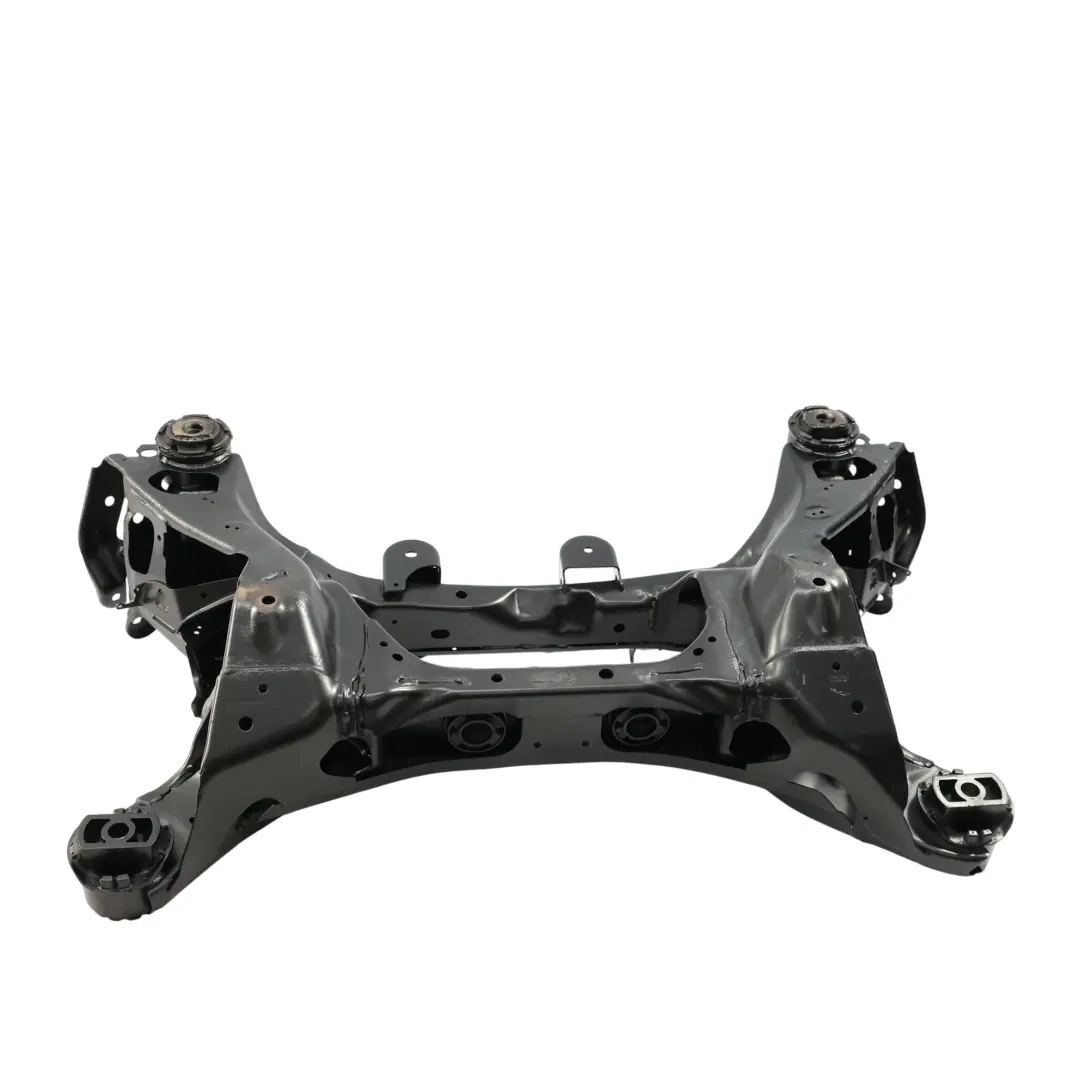

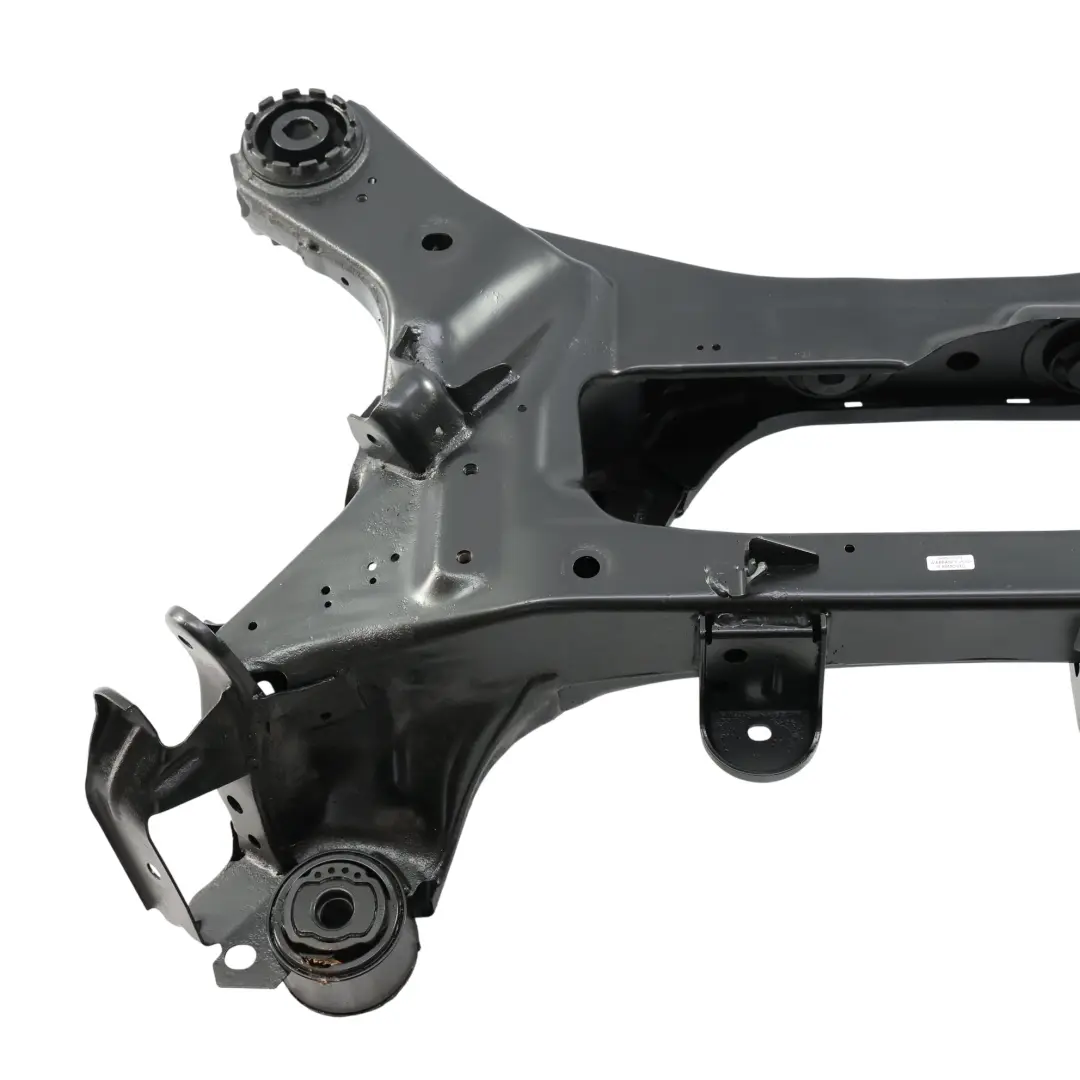

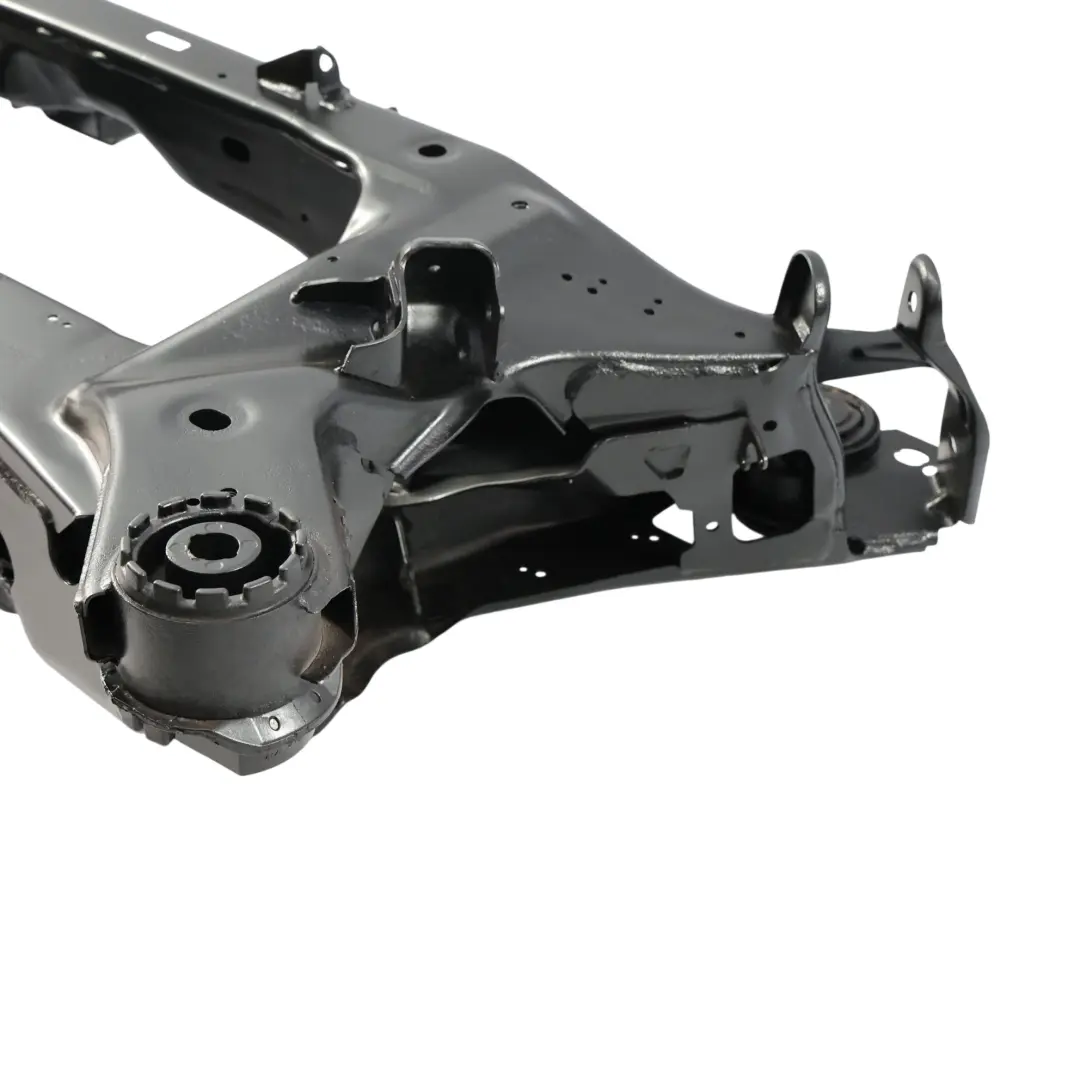

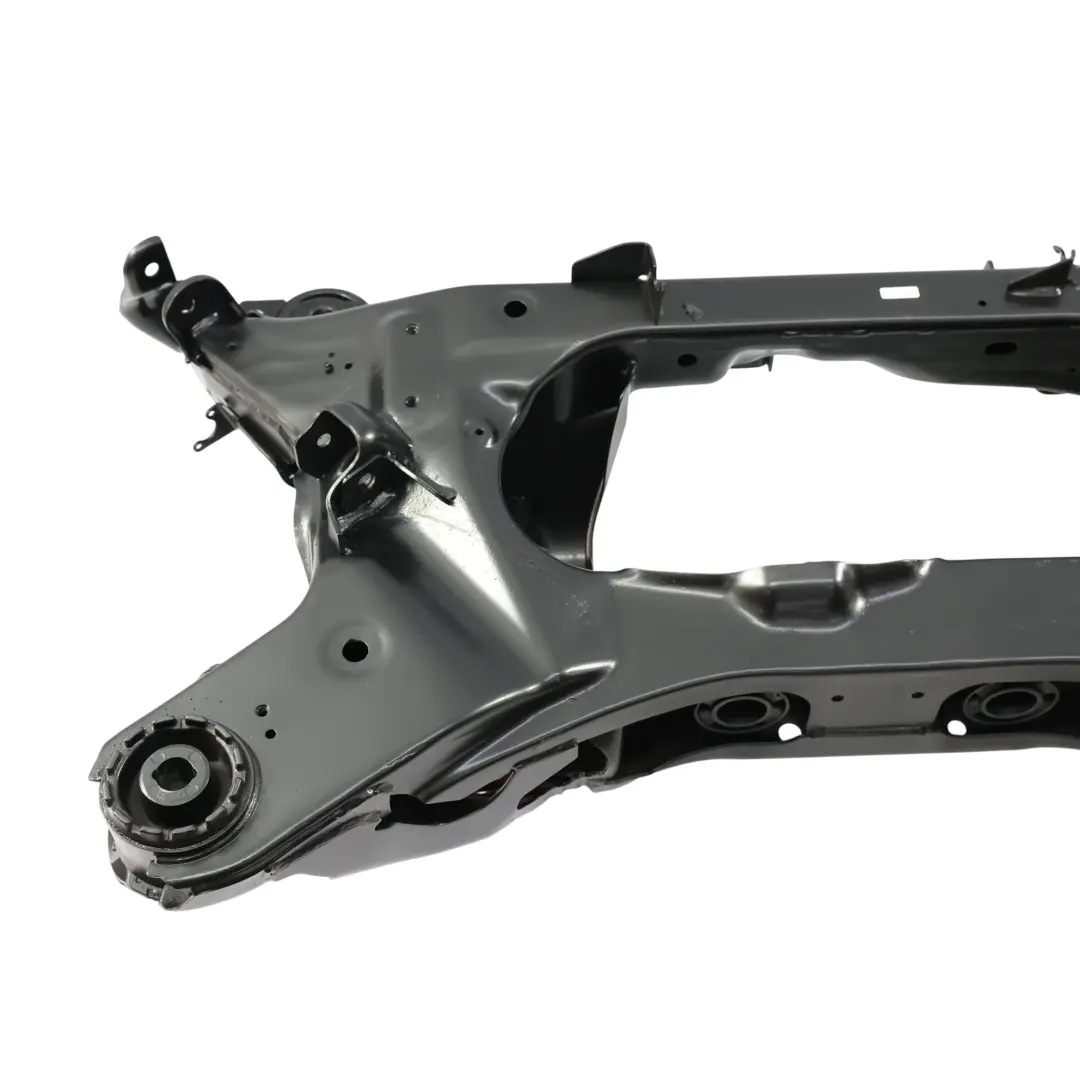

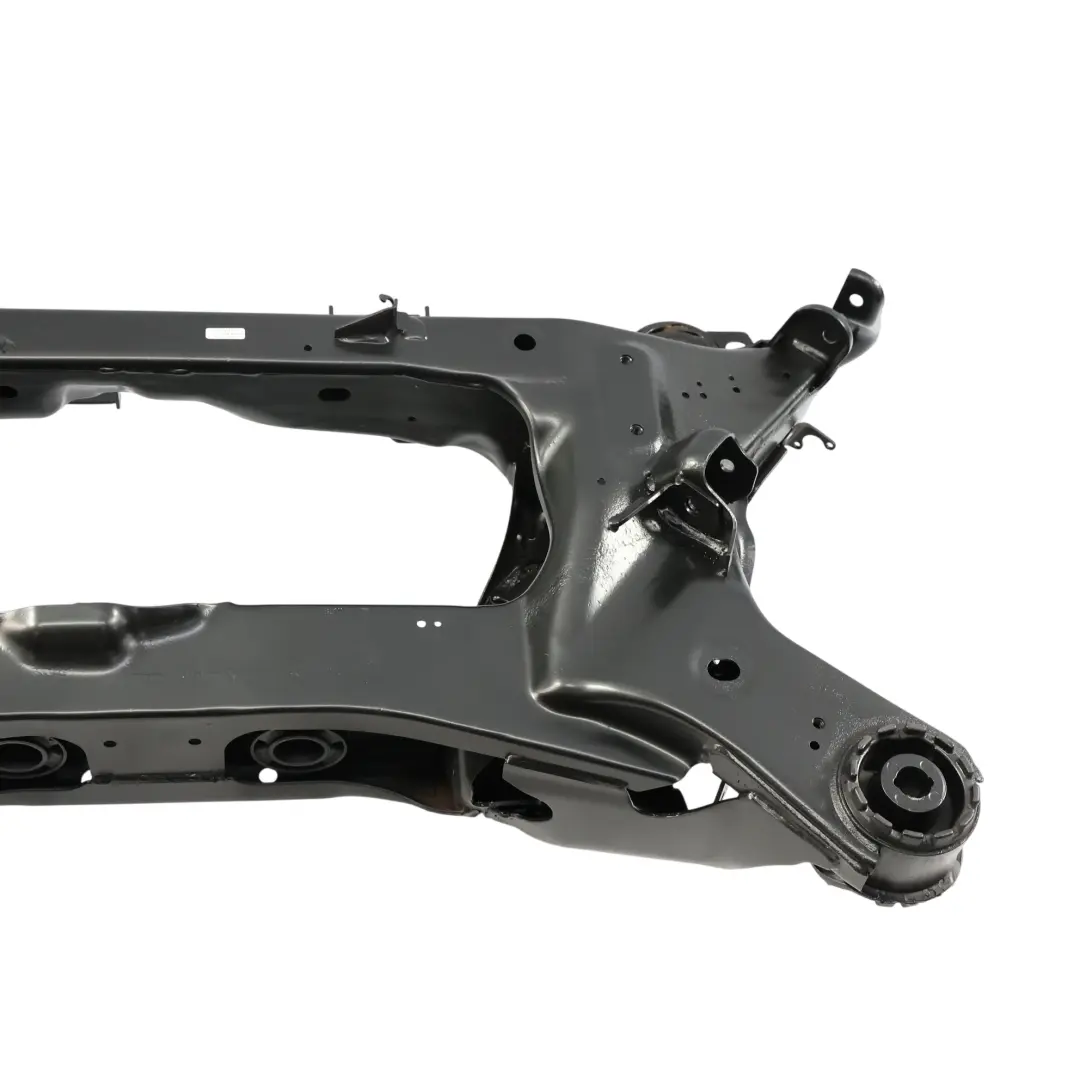

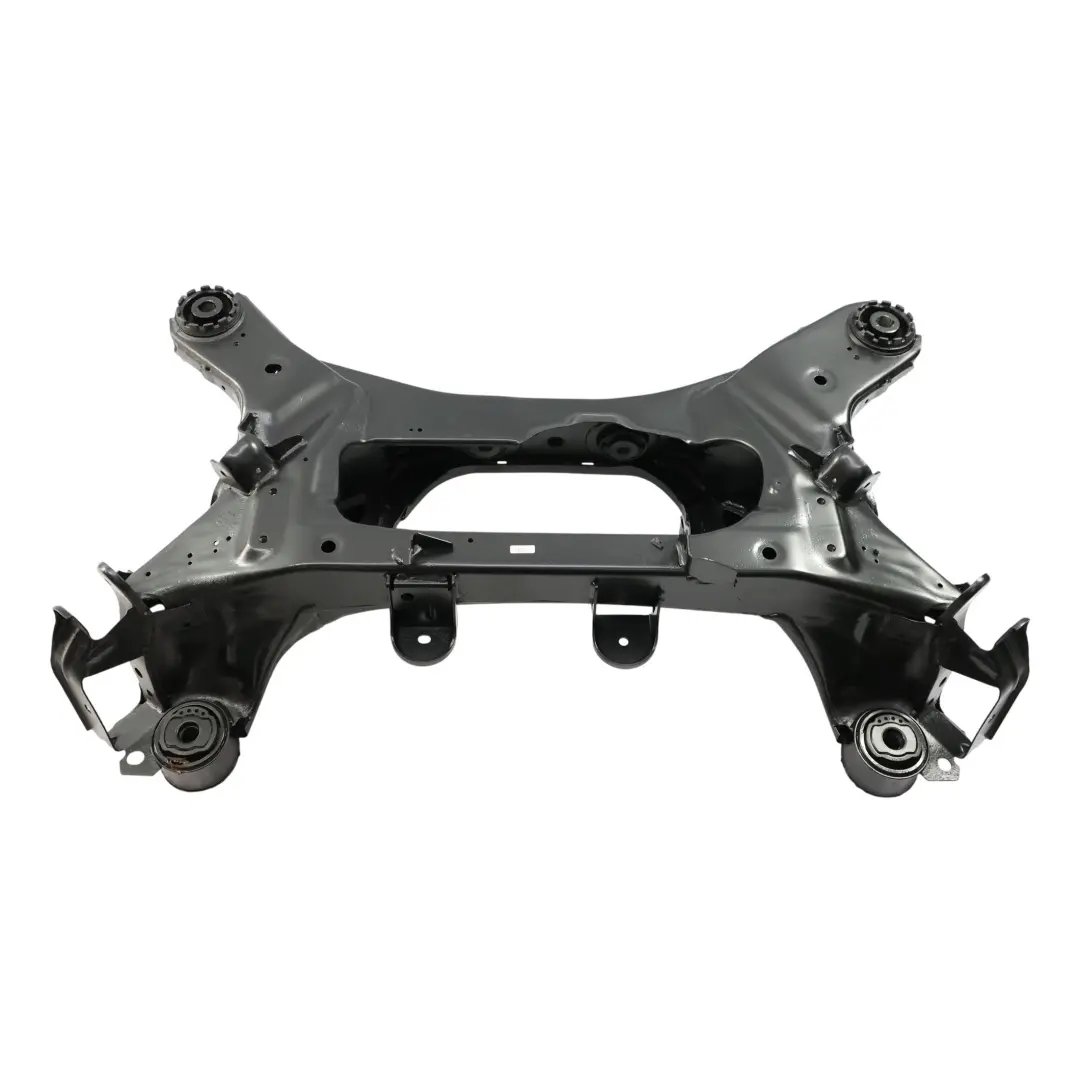

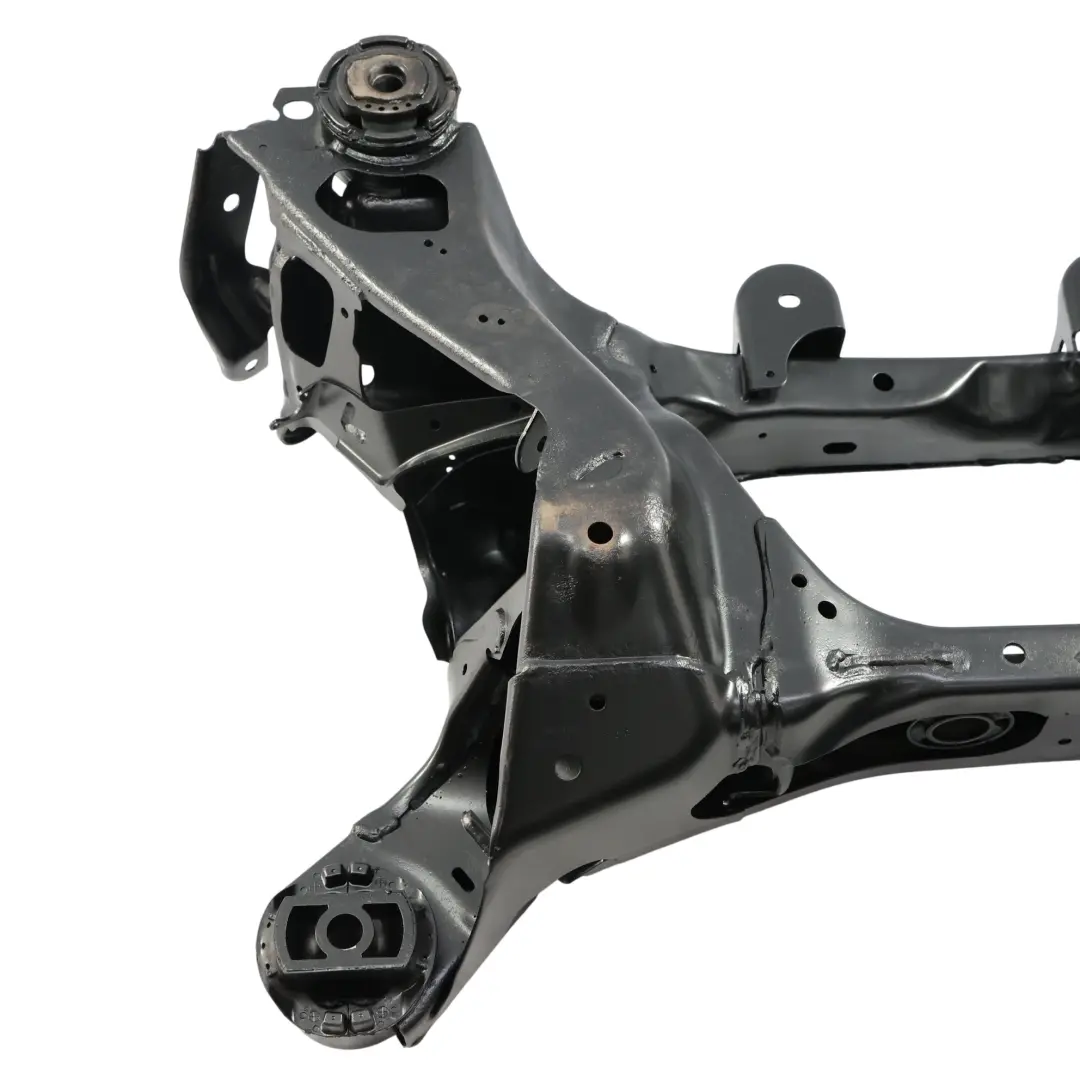

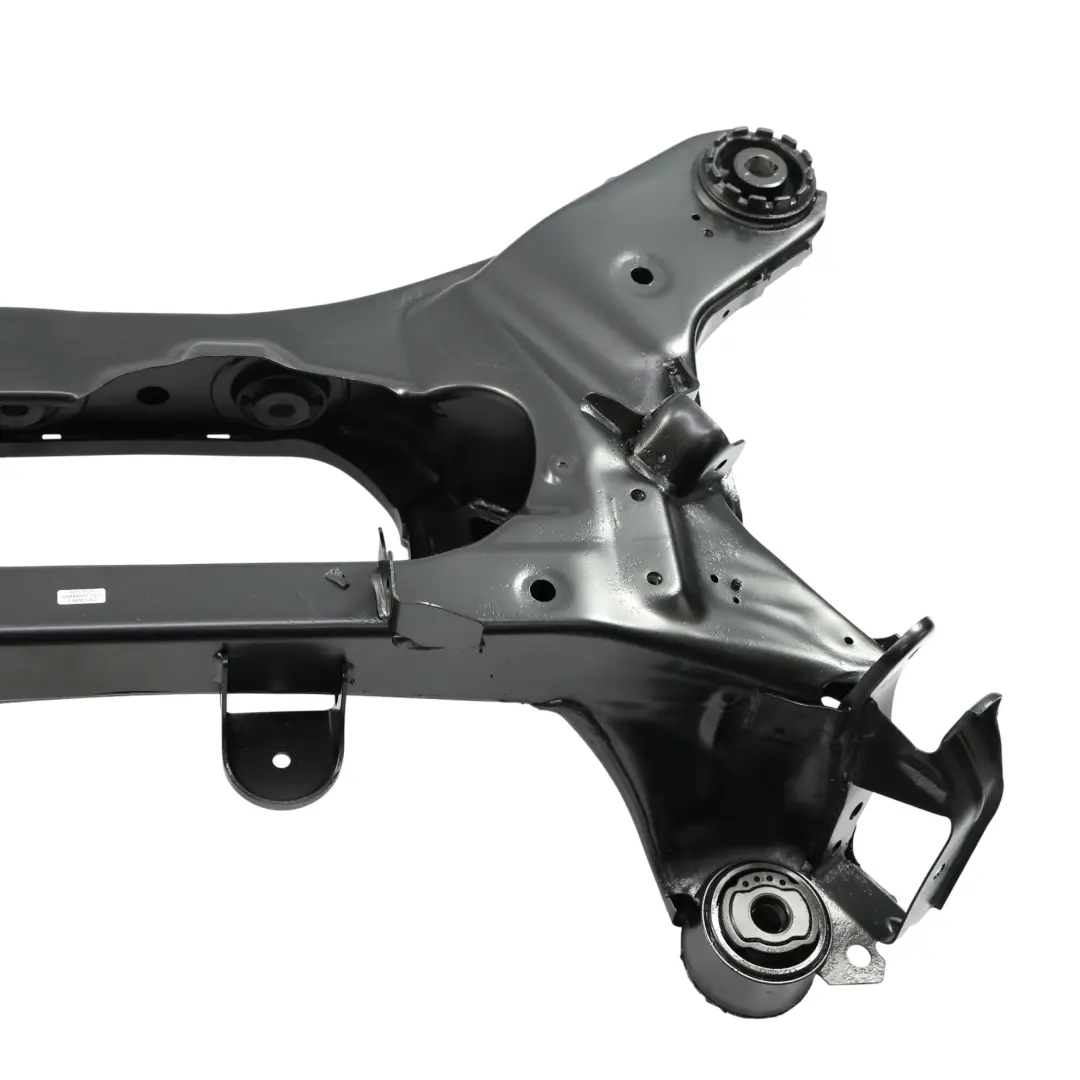

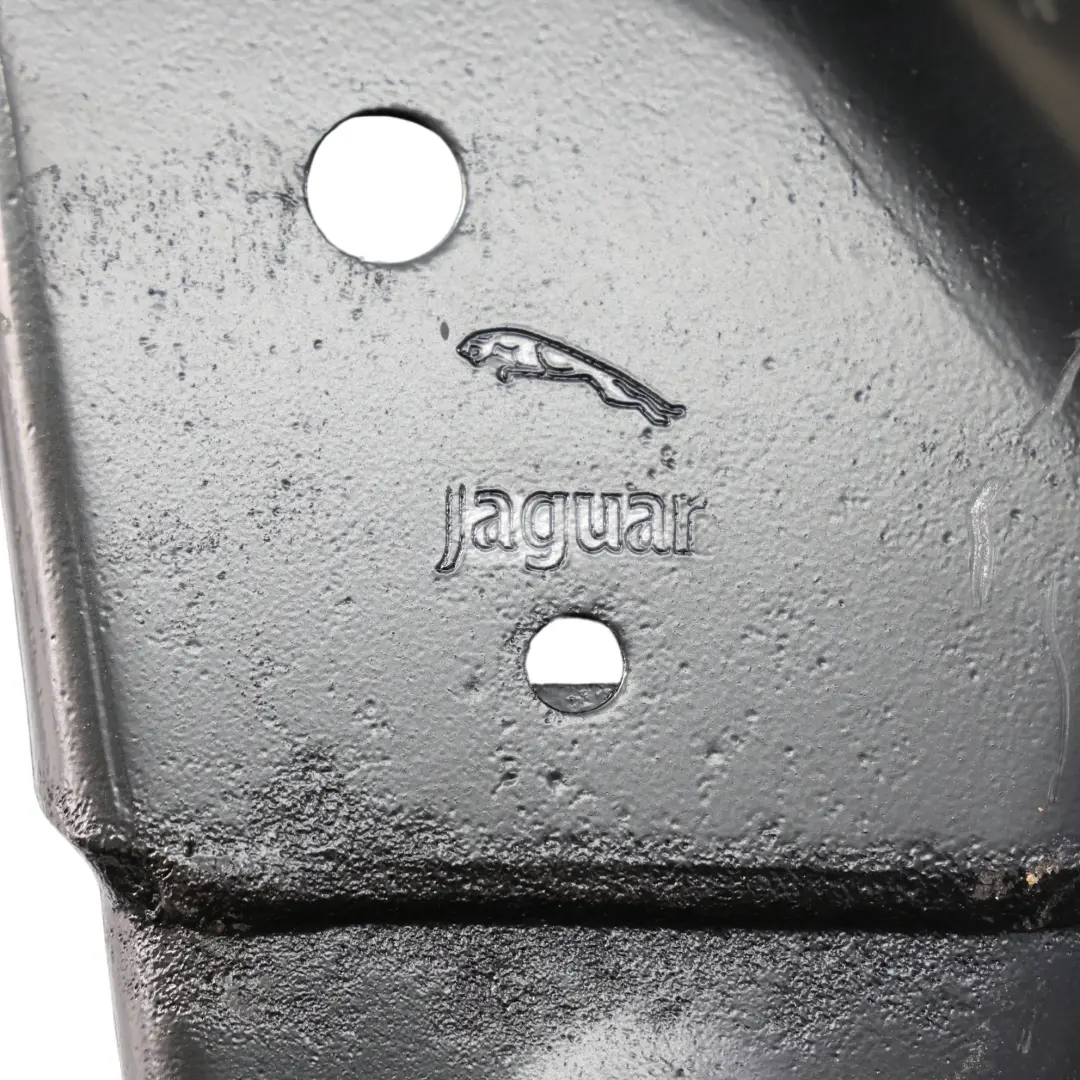

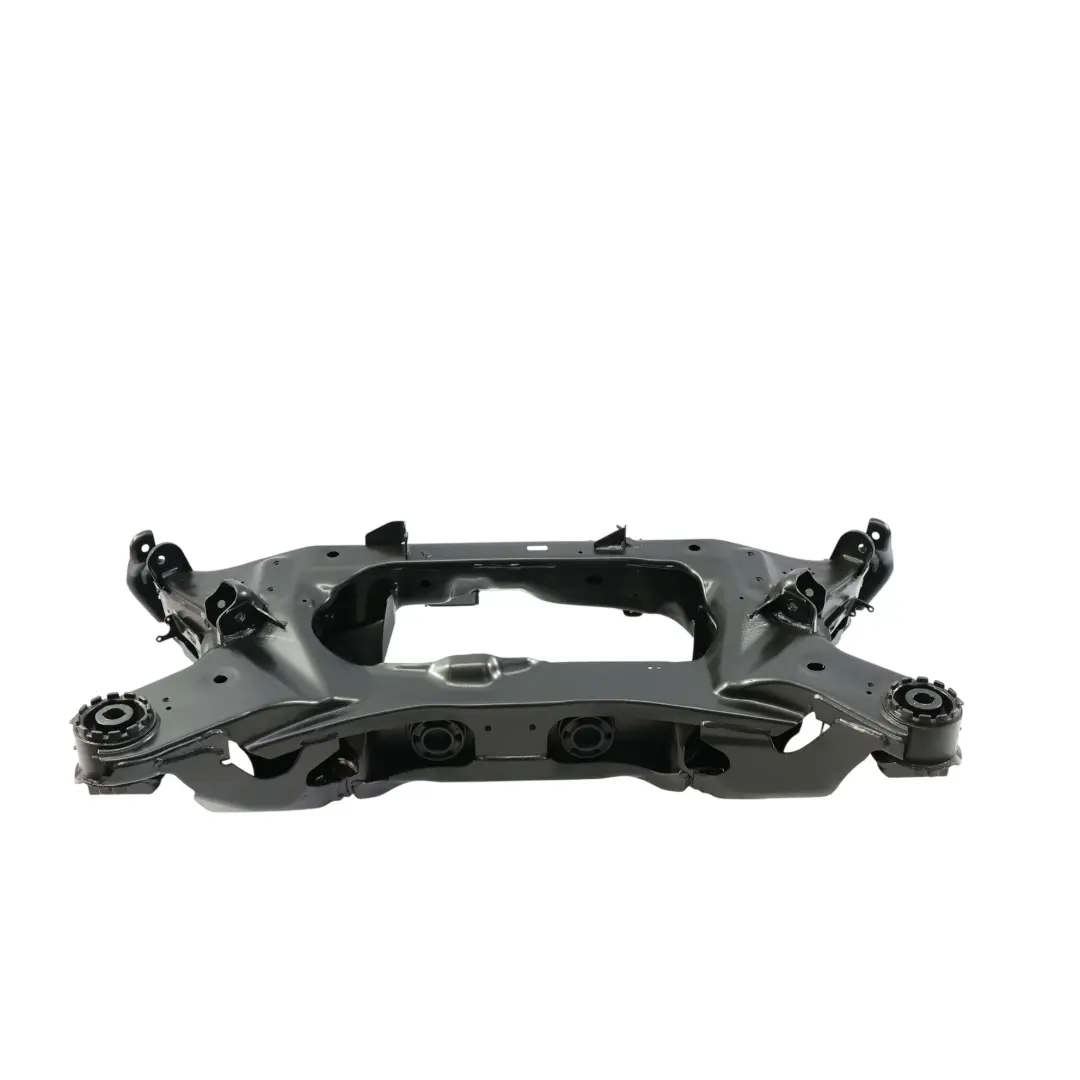

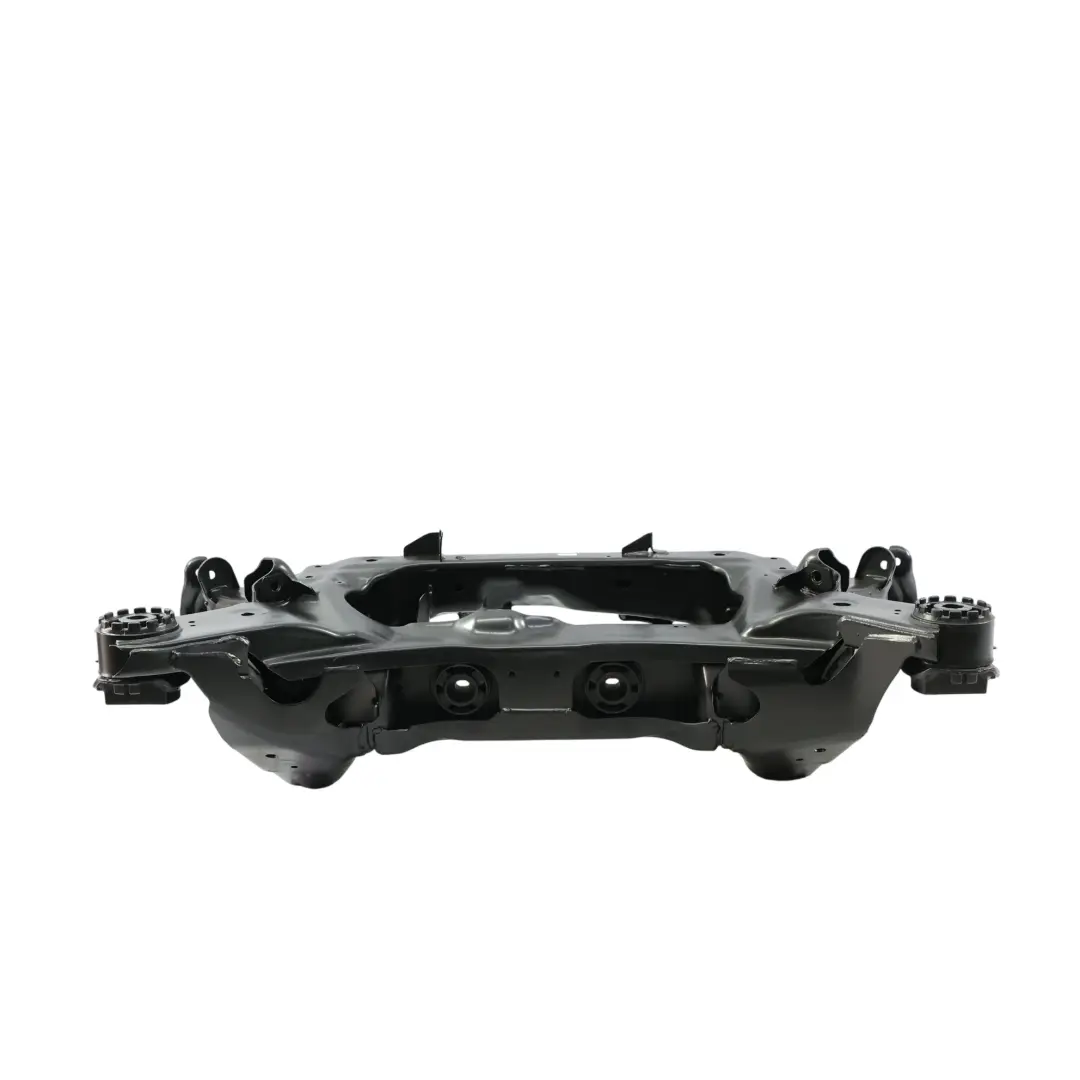

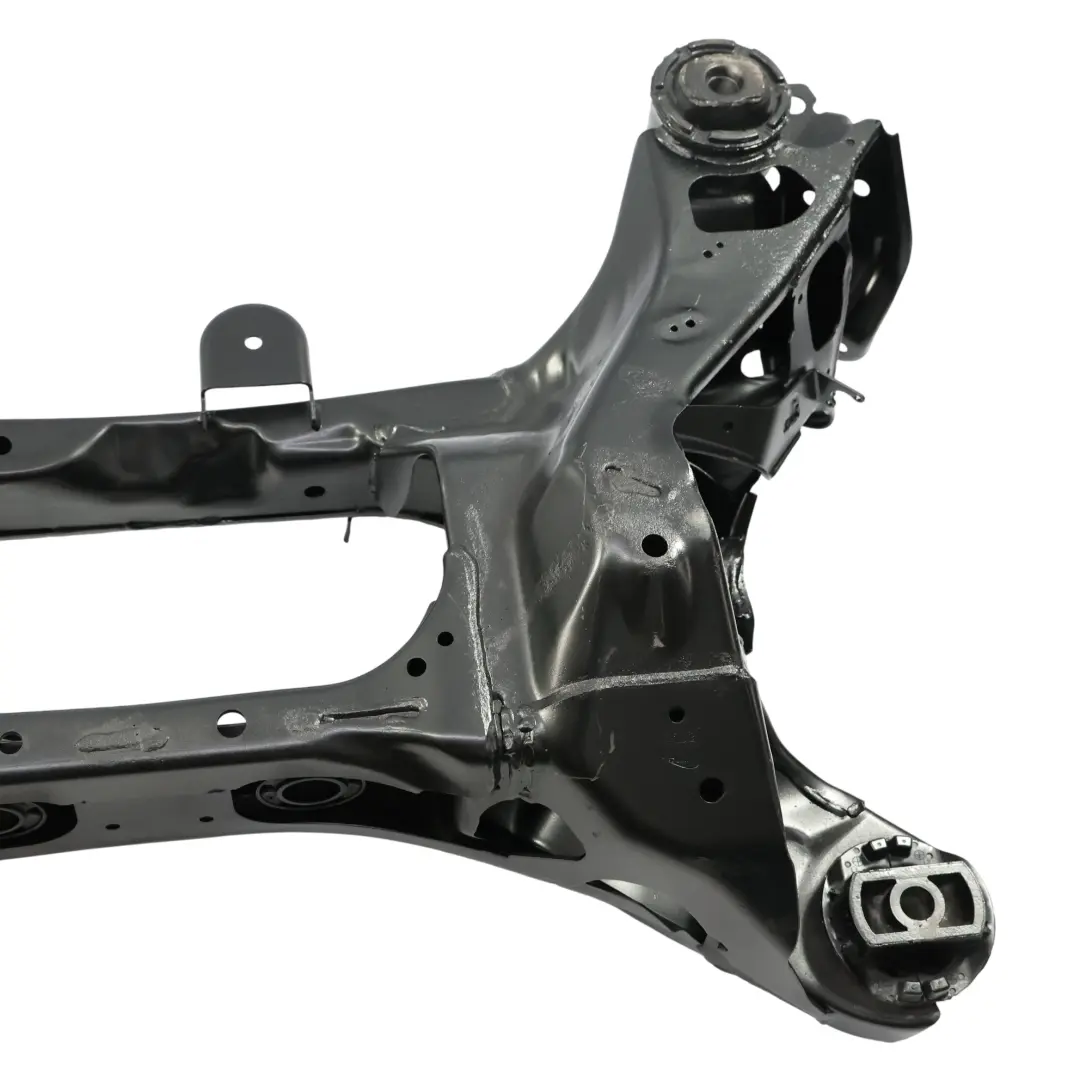

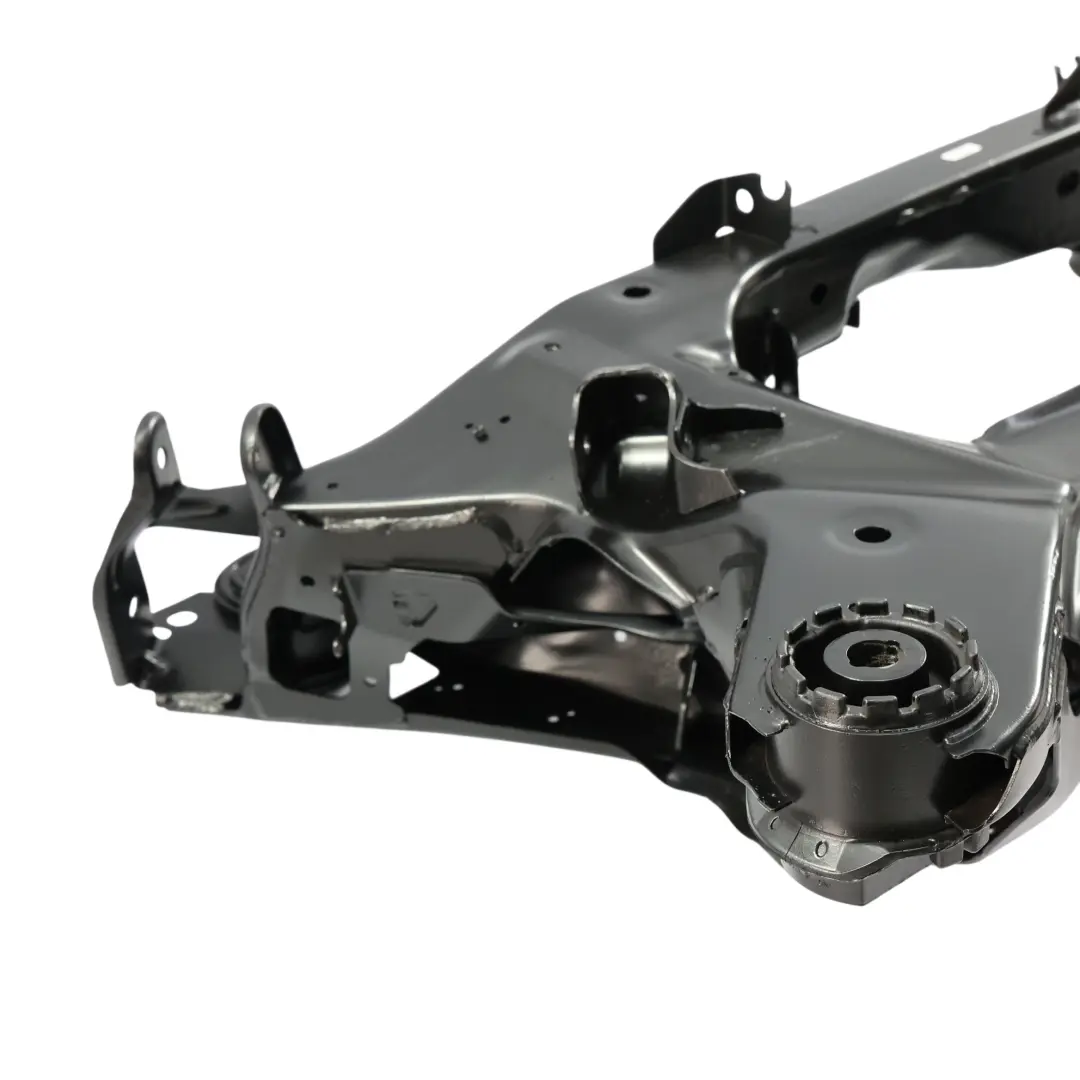

Jaguar XF X250 Rear Subframe Frame Carrier Cradle C2Z12972 CX23-5K091-AB

Jaguar XF X250 Rear Subframe Frame Carrier Cradle is a key structural component of the rear chassis, responsible for the stable mounting of the suspension and precise axle guidance. This component from the Longitudinal body frame parts and brackets group ensures proper suspension geometry and load transfer between the body and the running gear components. Thanks to the factory Jaguar specification, it provides a solid foundation for professional repair or reconstruction of the rear suspension system.

Specifications and technical data

• SKU: C2Z12972
• Mark: Jaguar
• Condition: Used
• OEM Part Number: C2Z12972
• Substitutable numbers: C2Z12972, C2Z13130, CX235K091AB, CX23-5K091-AB, 8W835K091AR, 8W83-5K091-AR, XXX-5K091-XX, XXX5K091XX
• Location on the vehicle: Rear
• Part type: Frame Rail Crossmember
• Category: Frame Rails & Subframes

Purpose and function in the vehicle

The rear suspension cradle in the Jaguar XF X250 model acts as a load-bearing support for suspension elements and rear axle mounting points. As a structural chassis bracket, it is responsible for:

• maintaining the correct spacing and position of control arm mounting points and other suspension components,
• transferring longitudinal and lateral forces acting on the rear part of the body,
• stabilizing suspension performance during acceleration, braking, and driving over uneven surfaces,
• reducing vibrations transmitted from the road to the body. Its location in the rear axle area means that this element has a direct impact on vehicle handling, ride comfort, and even tire wear.

Construction and structural fit

The cradle, also referred to as a subframe or suspension carrier, has been designed specifically for the Jaguar XF X250 platform, maintaining factory mounting points and geometry. This means:

• compatibility with original body mounts and suspension components,
• retention of the structural rigidity intended by the manufacturer,
• possibility of installation without interfering with the vehicle's load-bearing structure. Thanks to this, restoring the factory rear suspension geometry after a collision, corrosion, or severe damage is possible in a predictable manner consistent with the manufacturer's specifications.

Characteristics of the used component

The offered suspension carrier comes from dismantling and is classified as a used part. In practice, this means that:

• it retains the original design and the manufacturer's design parameters,
• it may show signs of wear typical for parts mounted in the chassis,
• it constitutes an economical alternative to a new component while maintaining installation compatibility. Before installation, standard workshop verification and a suspension geometry check are recommended after the work is completed to fully utilize the potential of this element in terms of vehicle handling and stability.

Application in repairs and renovations

The Jaguar XF X250 rear suspension cradle is particularly useful in cases of:

• post-accident repairs of the rear chassis,
• damage resulting from corrosion or structural overload,
• professional vehicle renovations where maintaining original driving characteristics is crucial. By maintaining the factory Jaguar specification, this type of element allows for the restoration of predictable vehicle behavior on the road and proper cooperation of all rear suspension components. If you are planning a comprehensive repair or modernization of the rear chassis load-bearing zone in your Jaguar and need other elements from the same group, such as additional brackets, longitudinal profiles, or structural reinforcements, check the available parts in the Longitudinal body frame parts and brackets Jaguar category.

Support in selecting used components

When choosing a used suspension carrier, it is worth paying attention to structural compatibility, surface condition, and the donor vehicle's service history. Practical tips on which aftermarket components are a reasonable choice can be found in the article: Renovation and repair of German cars: which used parts are worth buying and which are better to avoid?. Additionally, to select the right element even more precisely and avoid installation mistakes, you can use the advice contained in the post No more bad purchases! How to professionally select used car parts.
