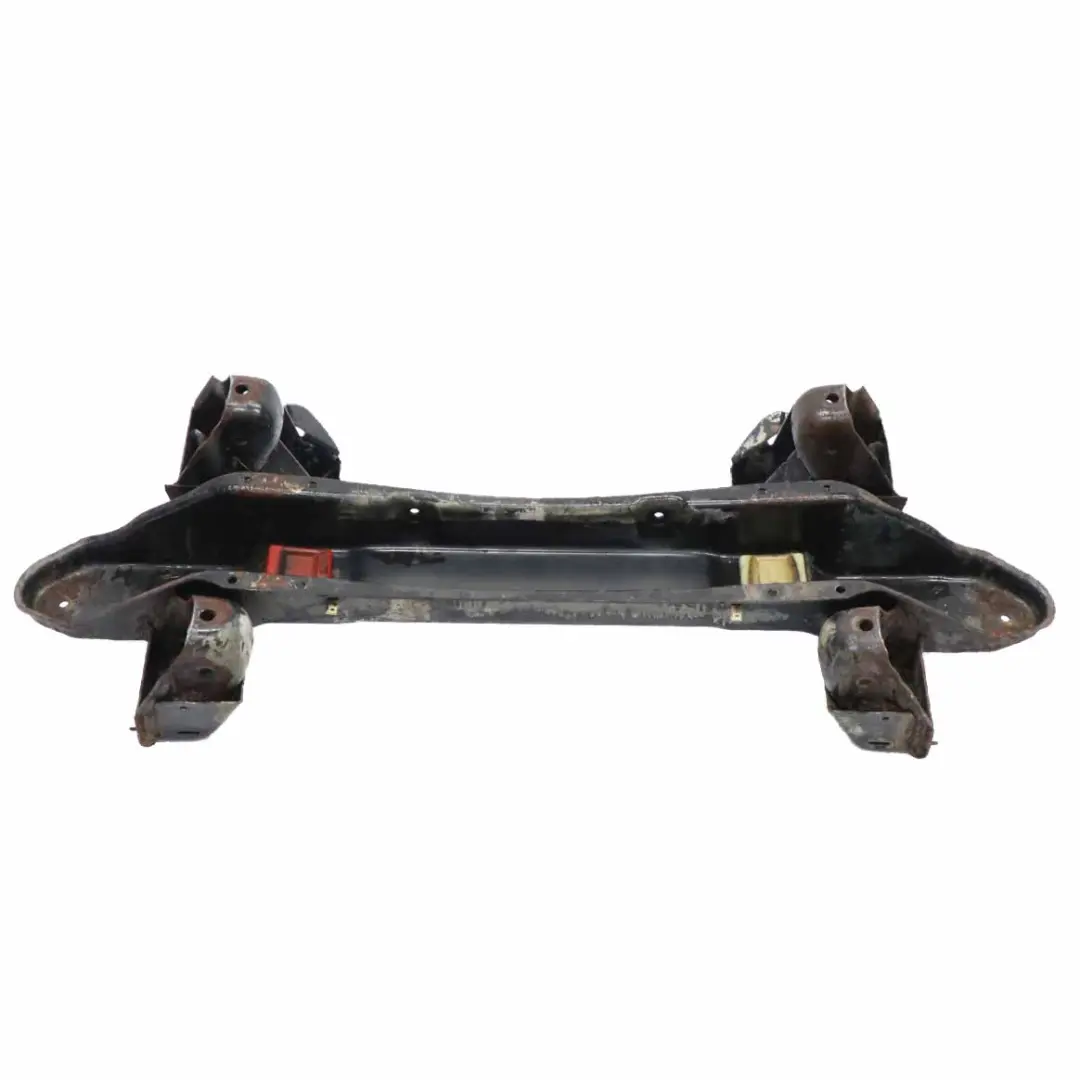

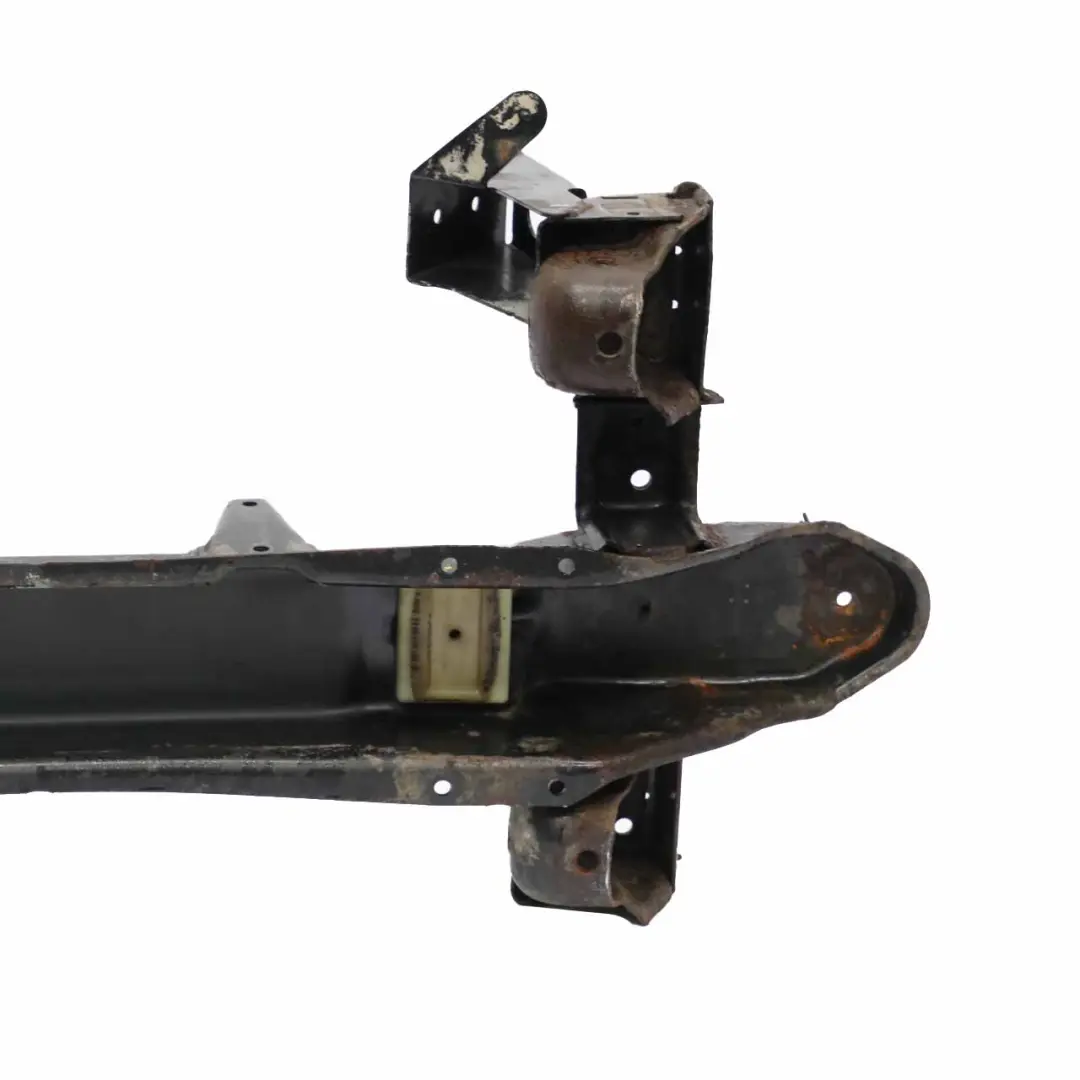

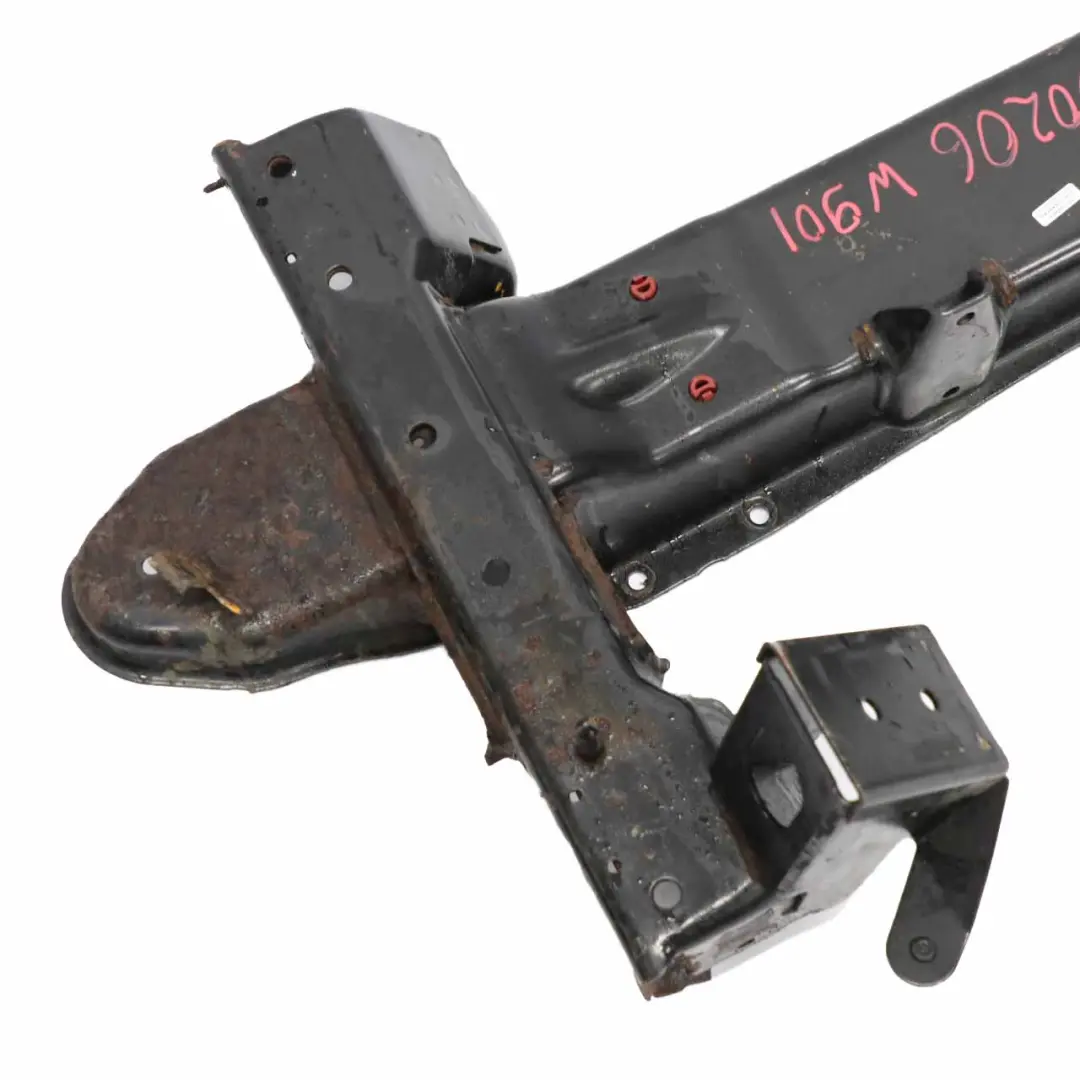

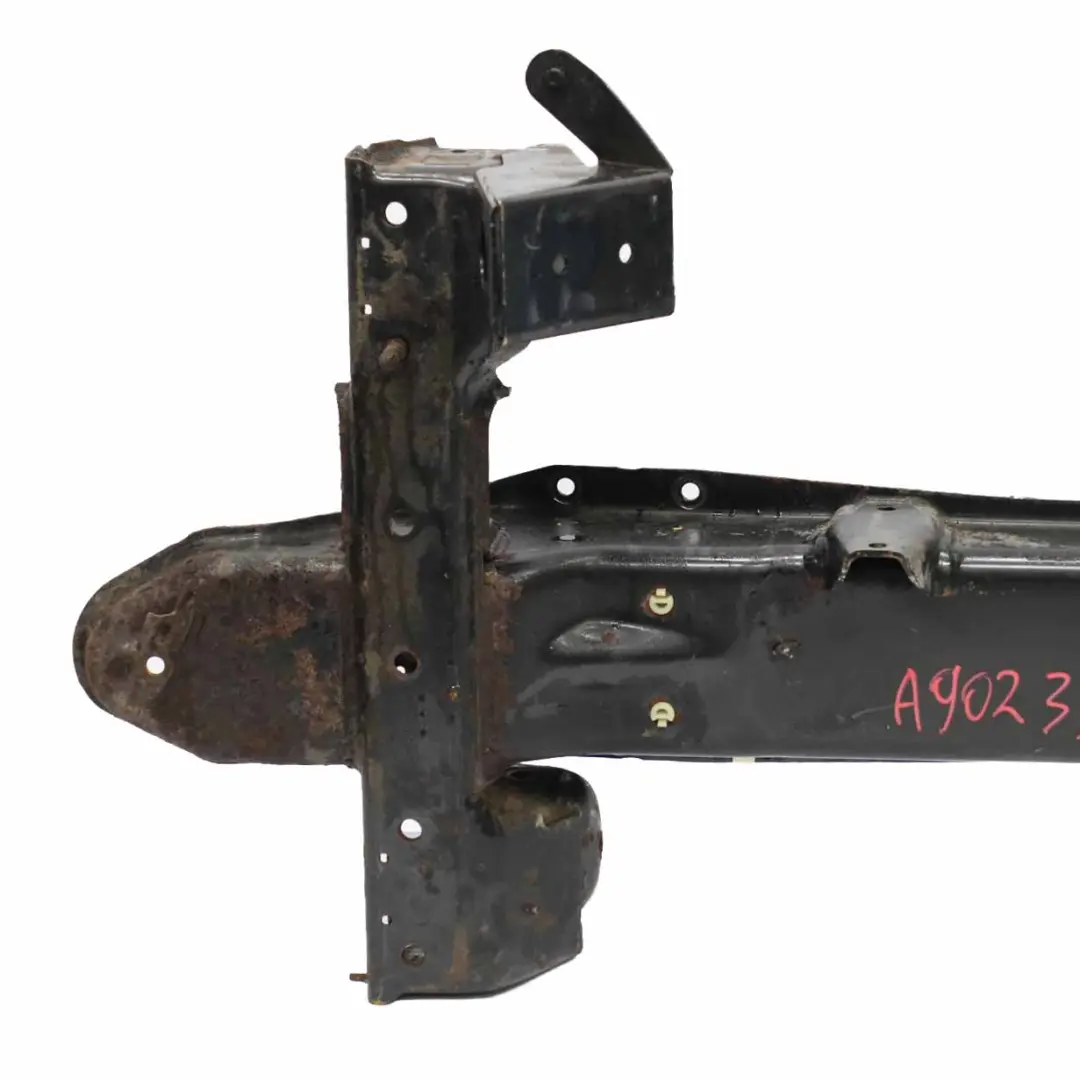

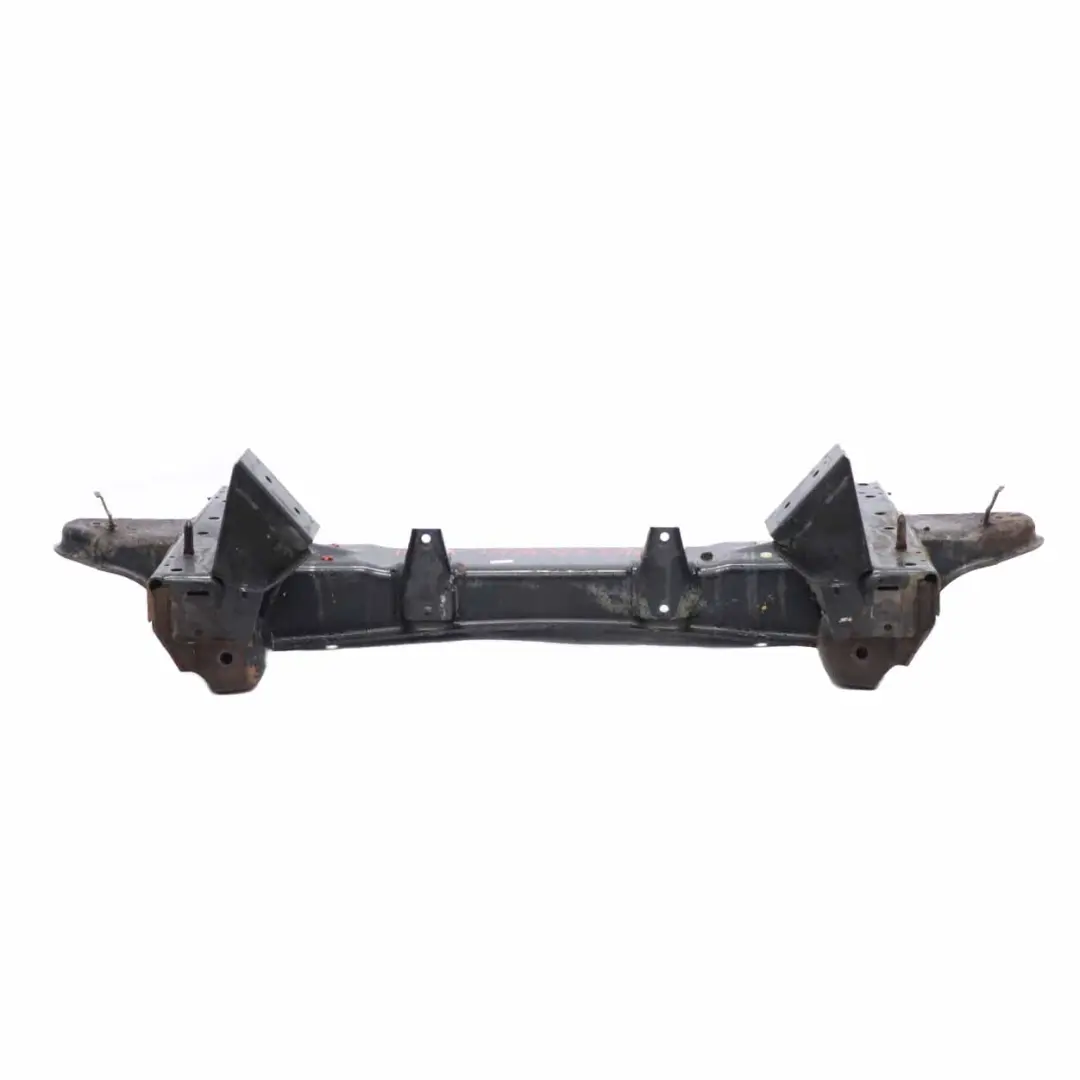

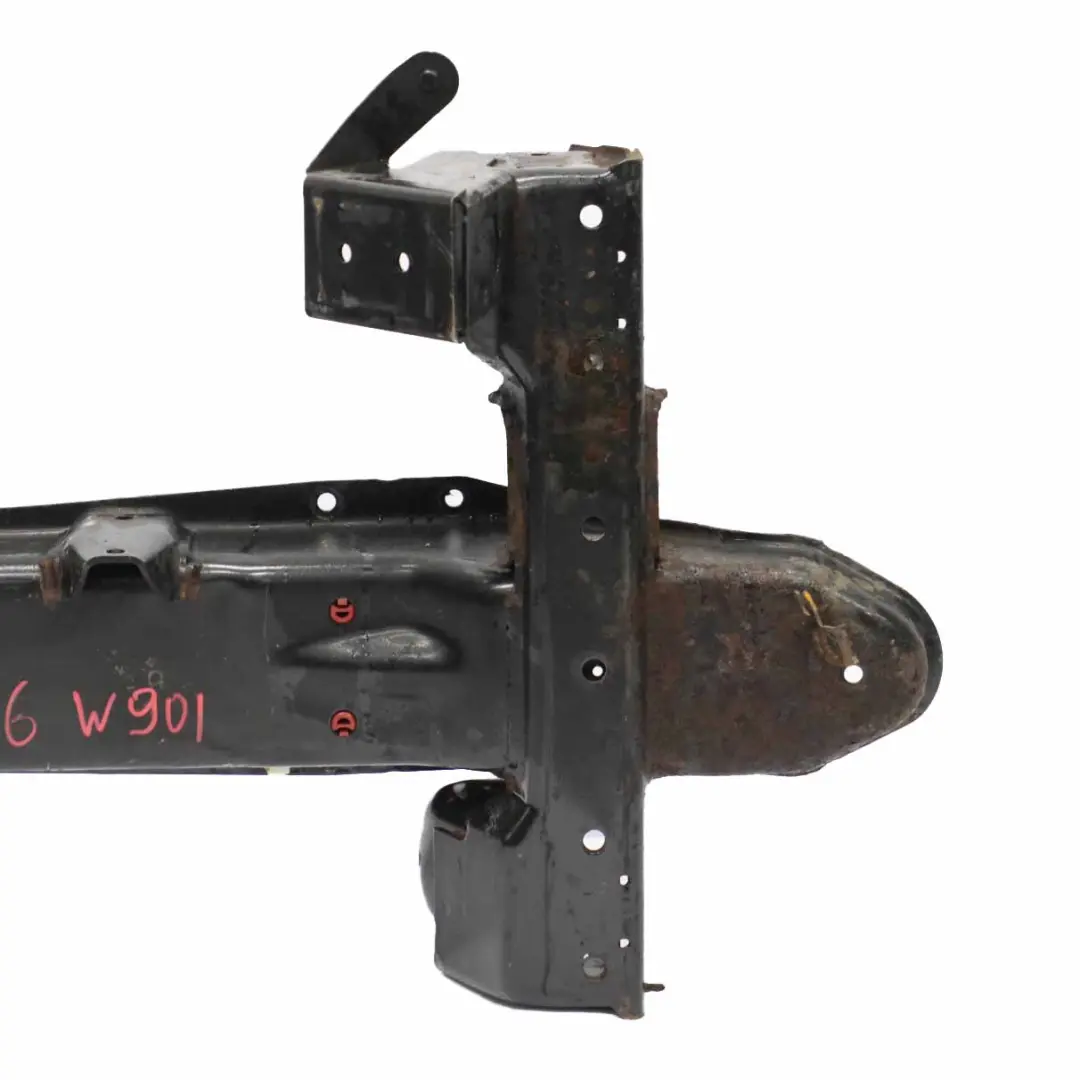

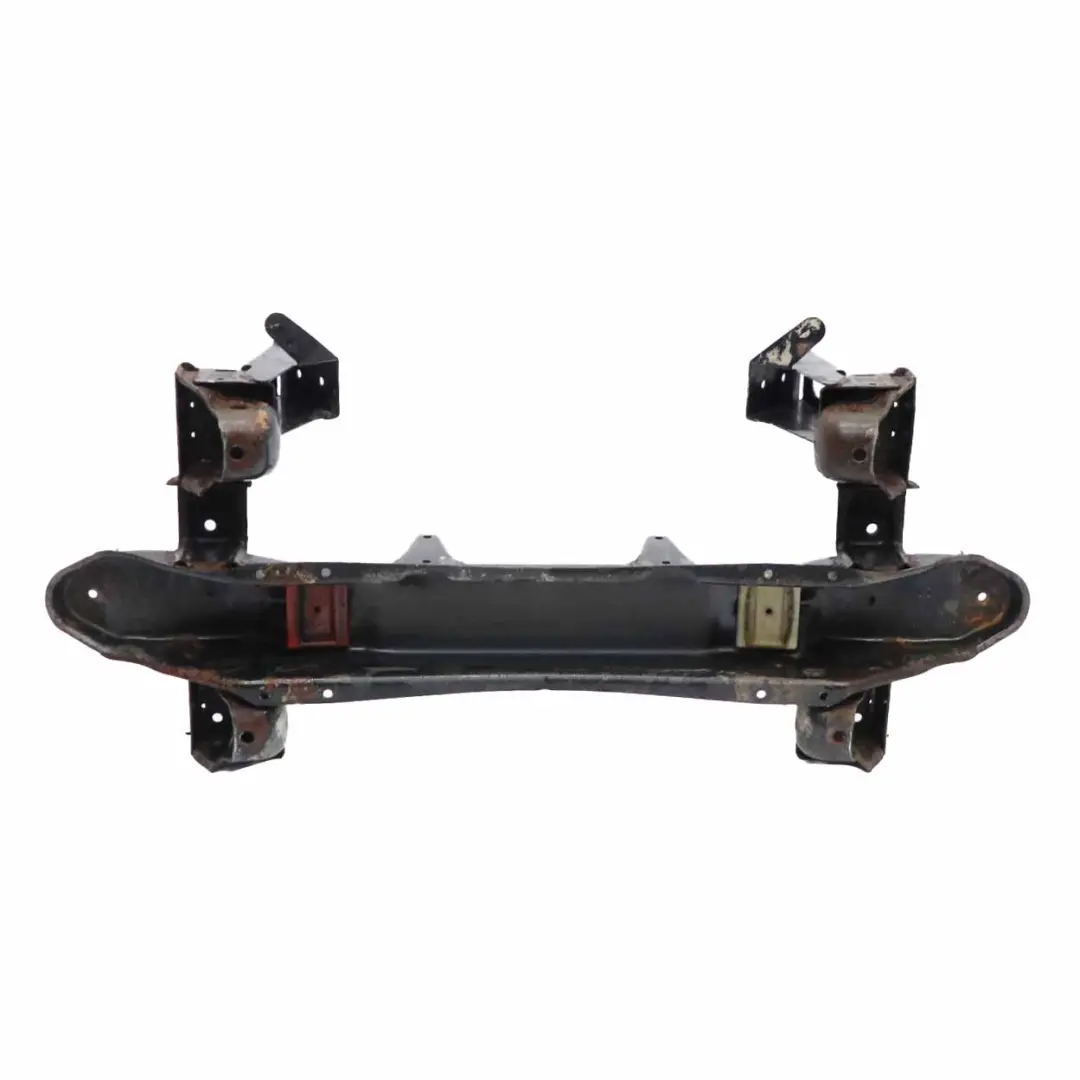

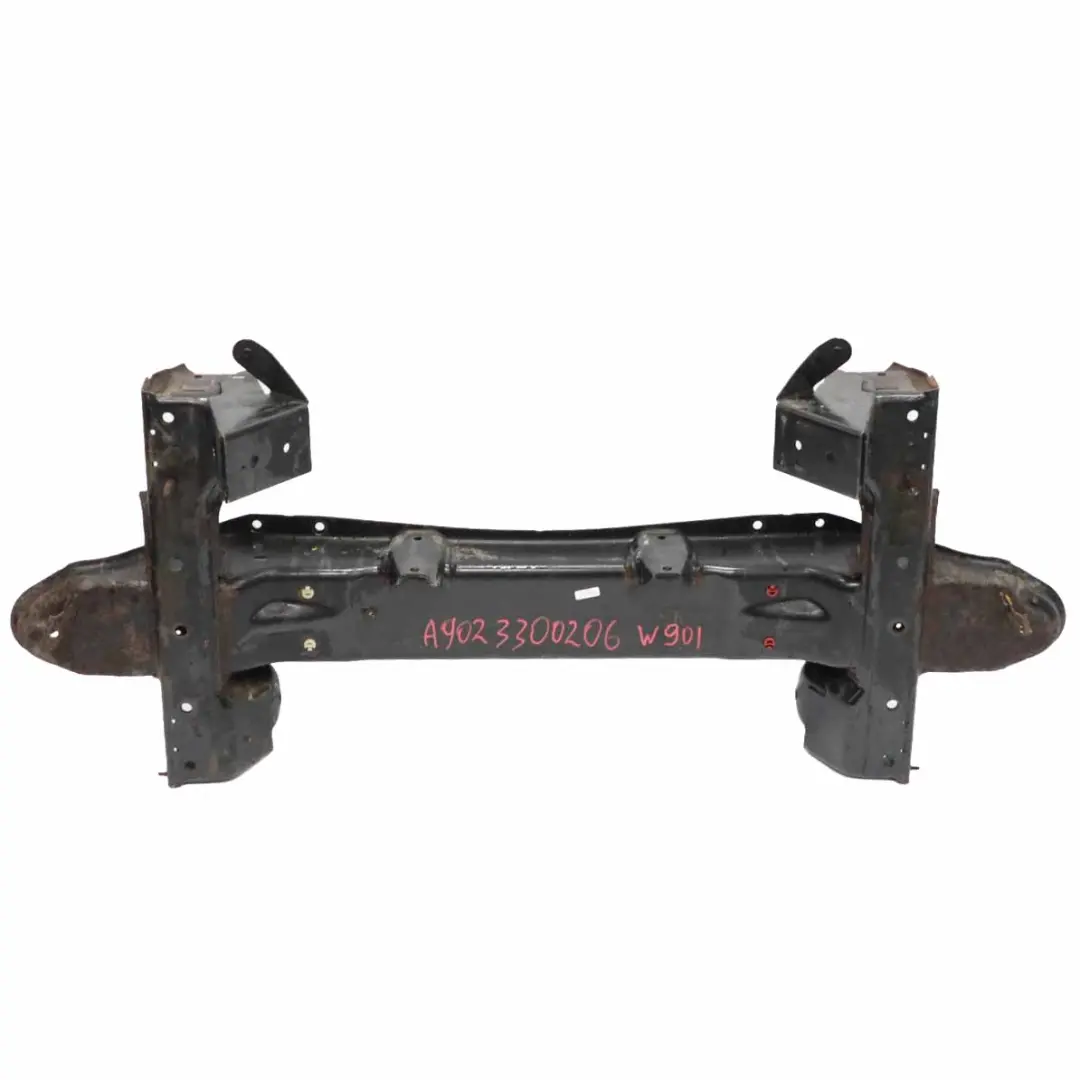

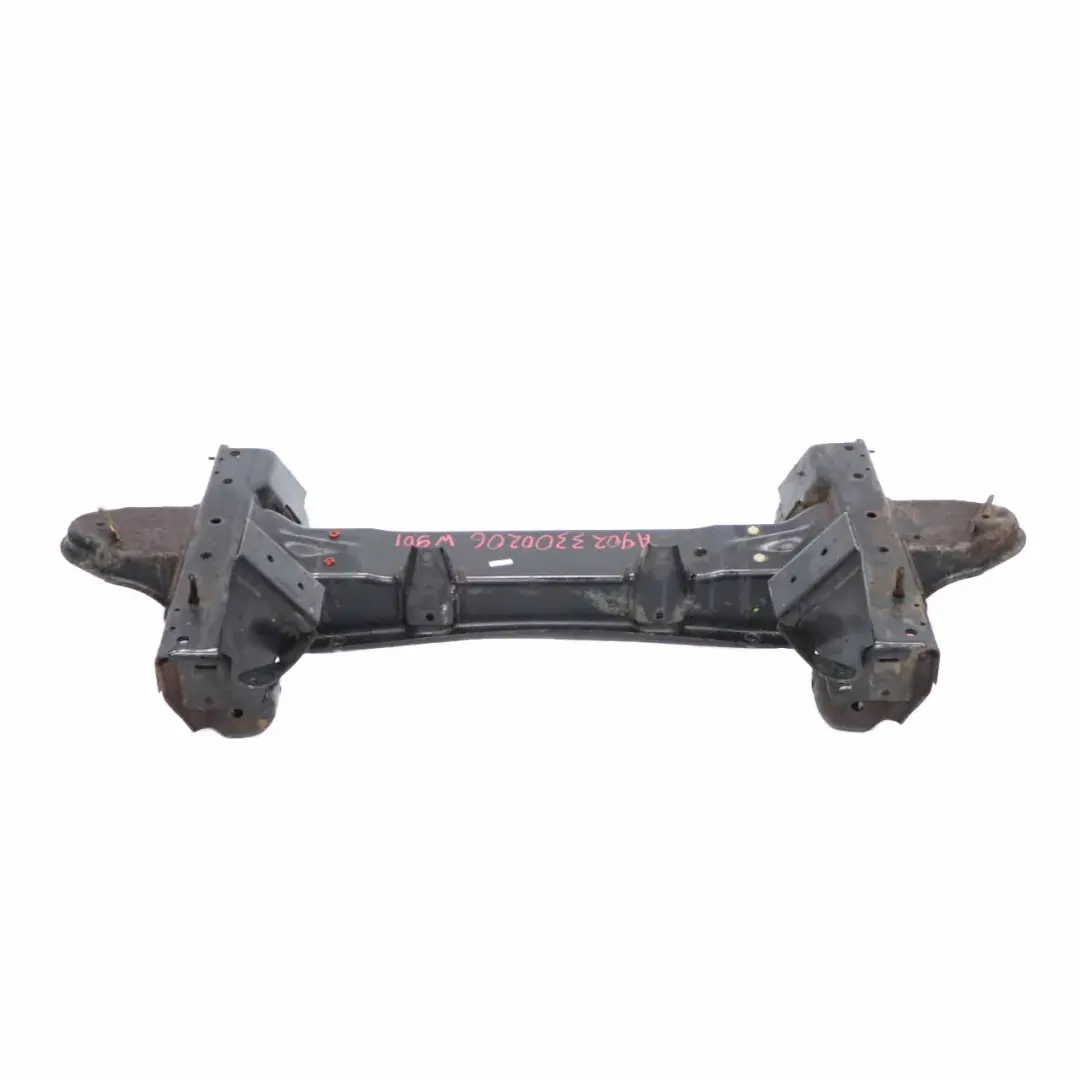

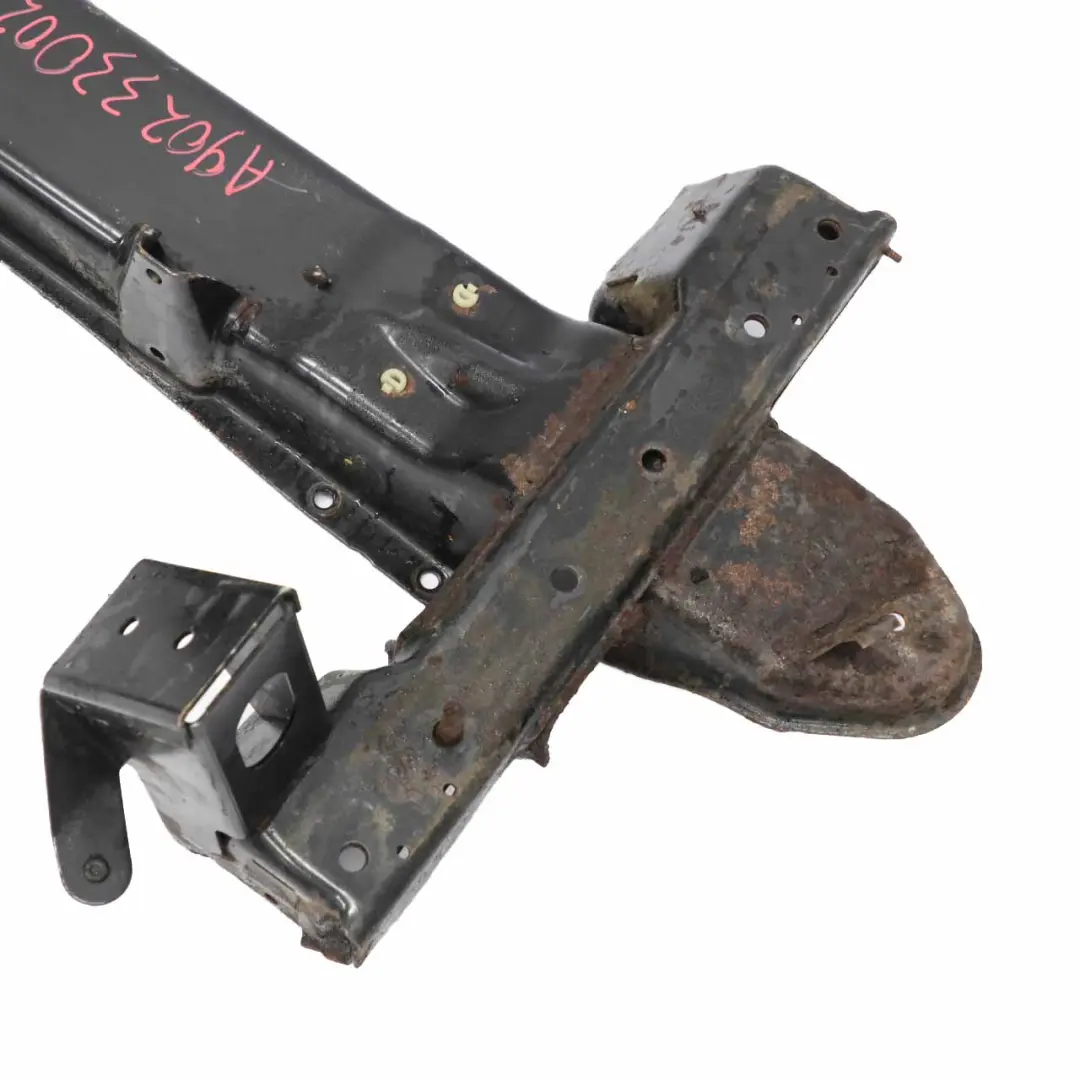

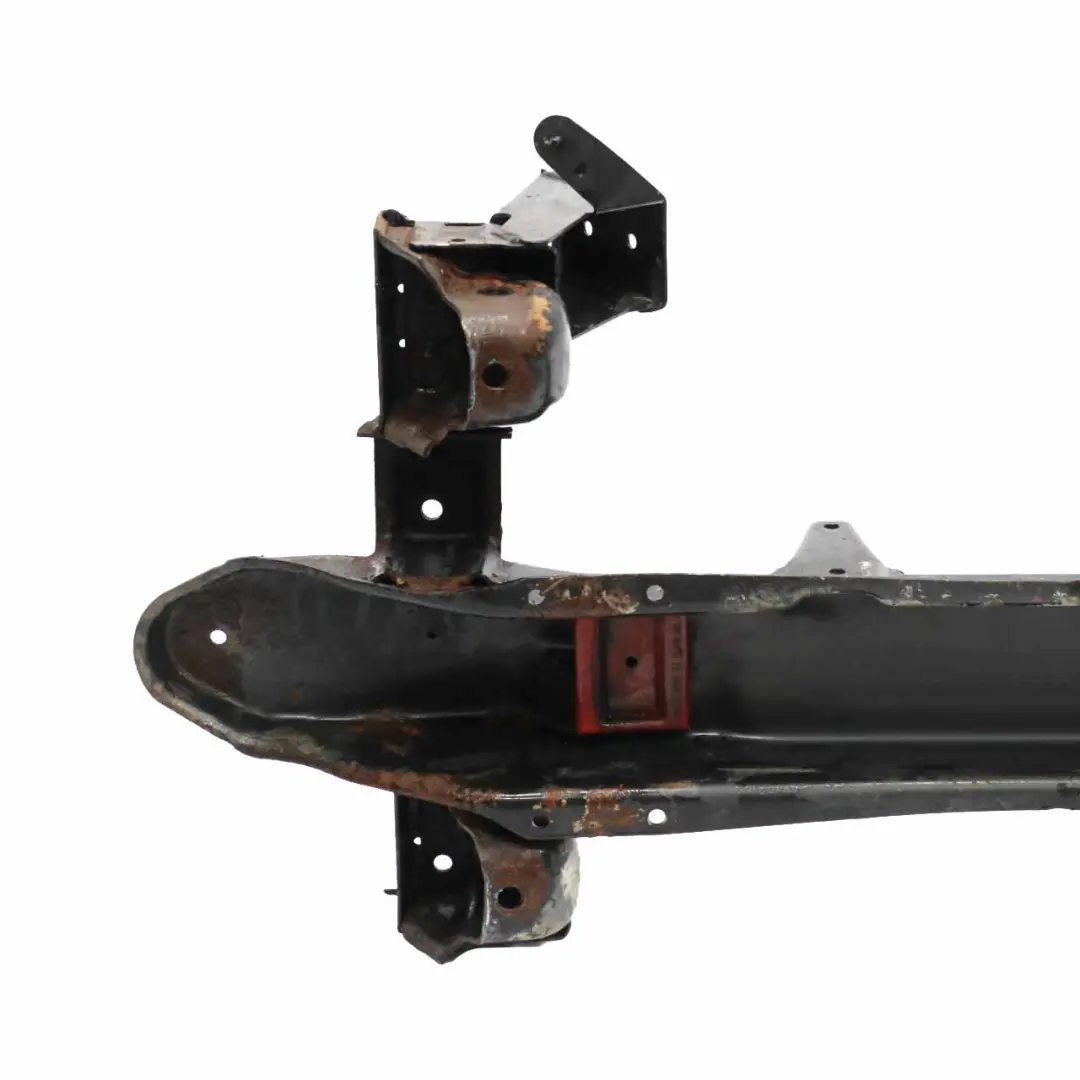

Front Subframe Mercedes W901 W903 Cradle Axle Beam Mounting Engine Carrier

The Mercedes W901 W903 Front Axle Mounting Cradle is a structural component from the group of longitudinal body frame parts and brackets, designed for use in the front of the vehicle. It is responsible for the stable support of the front axle and the correct transfer of loads from the suspension to the body structure, which directly impacts handling and driving safety.

Specifications and technical data

• SKU: A9023300106
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A9023300106

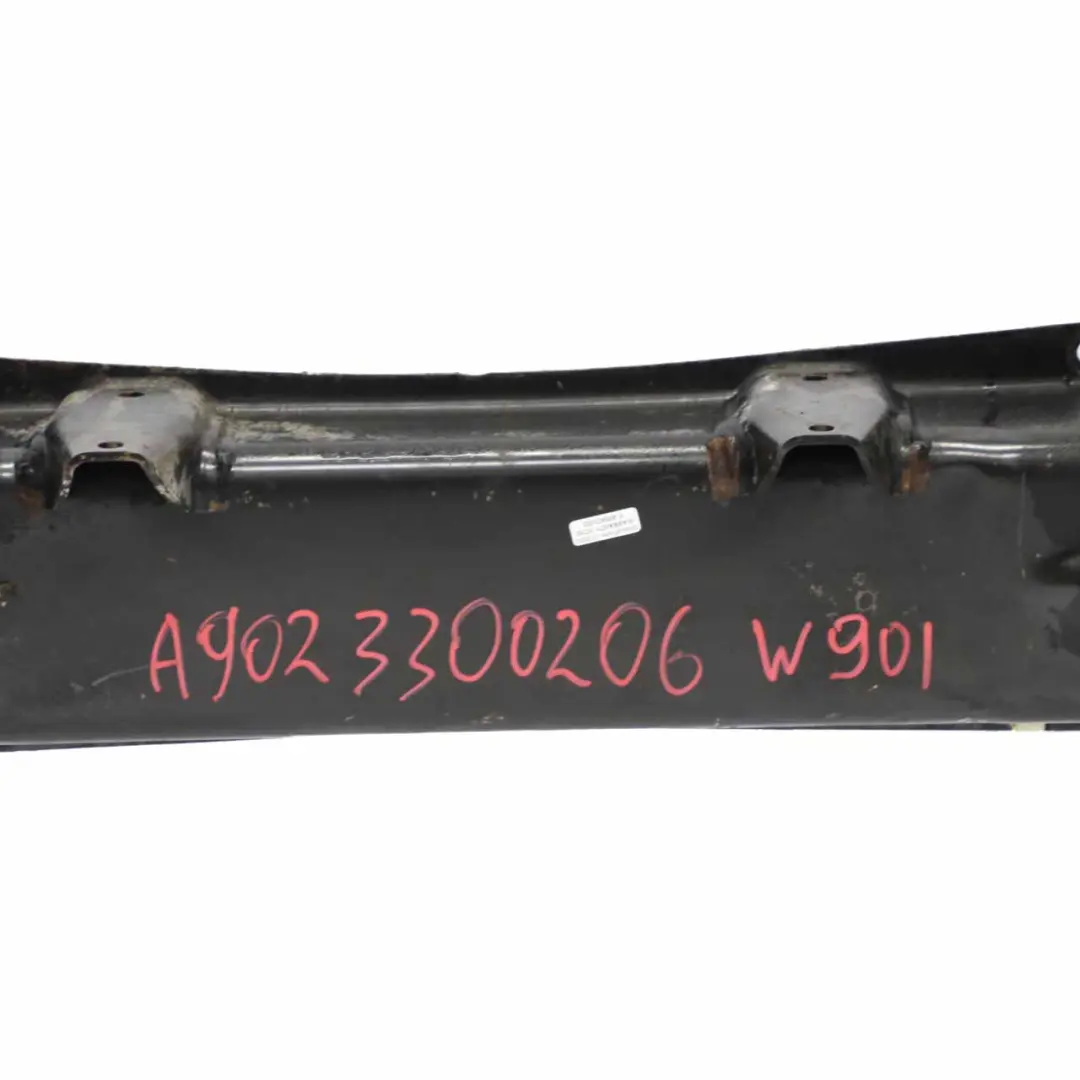

• Substitutable numbers: A9023300106, A 902 330 01 06, A9023300206, A 902 330 02 06
• Location on the vehicle: Front
• Category: Frame Rails & Subframes

Purpose and Function in the Vehicle

The front axle mounting cradle in the W901–W903 series models serves as a load-bearing bracket for suspension components and parts of the steering system. Located in the front area of the vehicle, it stabilizes the front axle geometry and ensures proper force distribution during braking, acceleration, and driving over uneven surfaces.

Thanks to its factory geometry, this type of cradle allows for:

• maintaining predictable vehicle behavior across the full range of loads,
• correct suspension angle settings according to manufacturer specifications,
• stable mounting of front axle components without altering the frame structure.

Construction and Role in Body Structure

As a part of the longitudinal body frame parts and brackets category, the cradle operates in the zone responsible for the rigidity of the vehicle's front end. Its task is to connect the suspension mounting points to the body structure in a way that minimizes deformation and ensures adequate torsional stiffness.

Key advantages of this solution include:

• factory fit for Mercedes W901–W903 series construction,
• maintaining original handling characteristics after repair or replacement,
• possibility of installation in place of a damaged cradle without the need for frame modifications.

Characteristics of a Used Part

The offered cradle is a used part, sourced from vehicle dismantling. This type of component is a good choice for accident repairs and for replacing corroded parts when preserving the original manufacturer's specifications at a reasonable cost is important.

In practice, this means:

• preservation of factory construction and mounting points,
• favorable price-to-quality ratio compared to new aftermarket parts,
• ability to restore the original front body rigidity after mechanical damage.

Application in Body and Suspension Repairs

The front axle mounting cradle is particularly important for repairs after frontal or side collisions in the front axle area, as well as for advanced corrosion of load-bearing elements. Replacing this bracket allows for:

• restoring correct suspension geometry after damage,
• eliminating alignment issues resulting from structural deformation,
• increasing operational safety by replacing weakened load-bearing elements.

If you are planning a comprehensive body repair after an accident and are considering using dismantled parts, it is worth reading the guide: Body and Chassis – Accident Repairs Using Dismantled Parts, which discusses the selection of used OEM parts and repair procedures.

Selecting the Right Cradle and Other Longitudinal Body Frame Parts

When selecting a cradle for the Mercedes W901–W903 series, it is crucial to ensure it matches the specific vehicle version and is compatible with the front axle construction. It is worth paying attention to:

• compatibility with the vehicle platform (W901–W903 series),
• placement in the front area of the vehicle,
• intended use as a load-bearing element in the suspension system.

If you are looking for other longitudinal body frame parts and brackets for this brand, check out our offer for longitudinal body frame parts and brackets Mercedes, where you will find compatible structural elements for various models.

Summary

The Mercedes W901 W903 Front Axle Mounting Cradle is a practical solution for owners and workshops looking to restore the proper functioning of the front axle and the rigidity of the body structure using an original dismantled part. The use of this cradle allows for a technically correct repair, maintaining the factory suspension geometry, and ensuring safe vehicle handling in daily operation.
