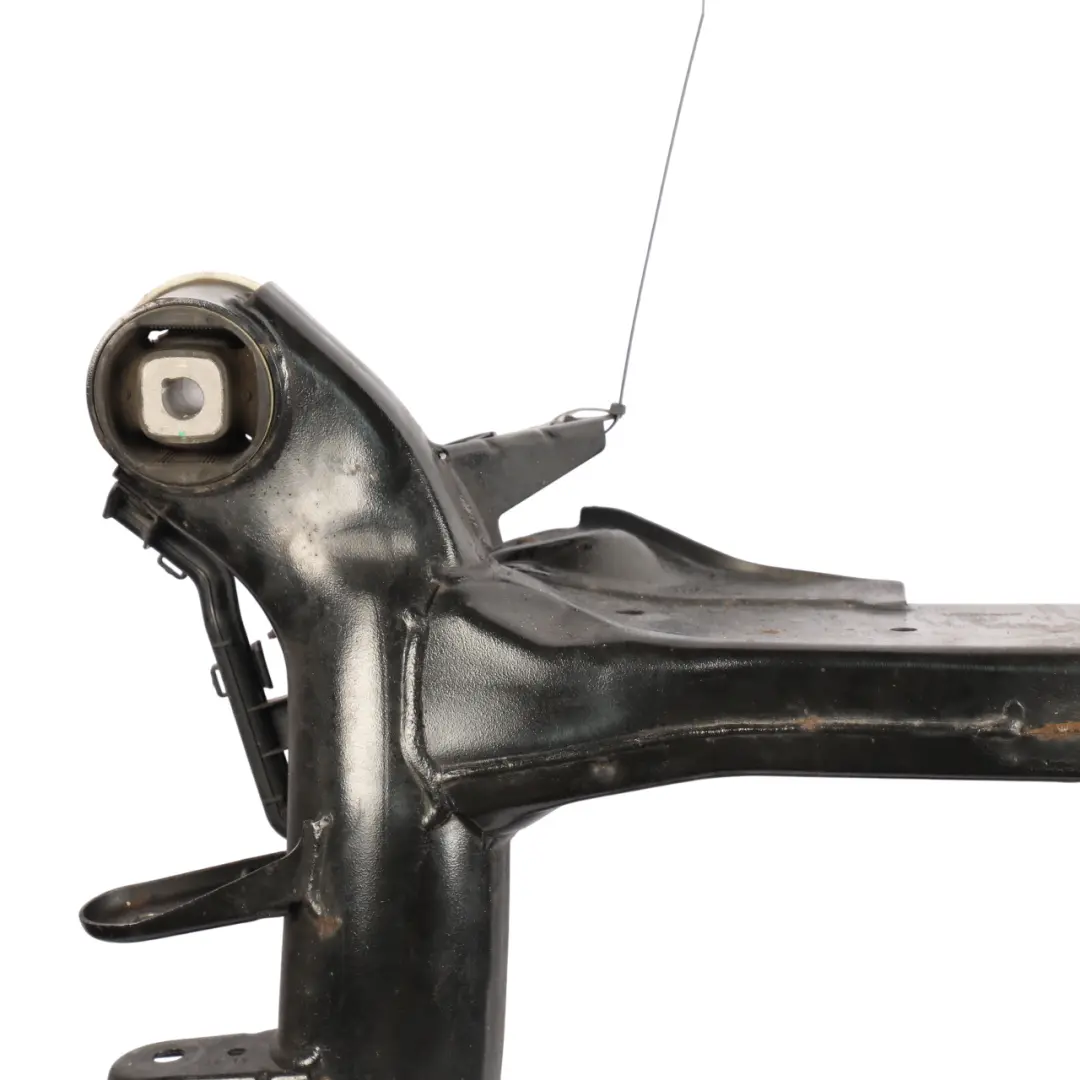

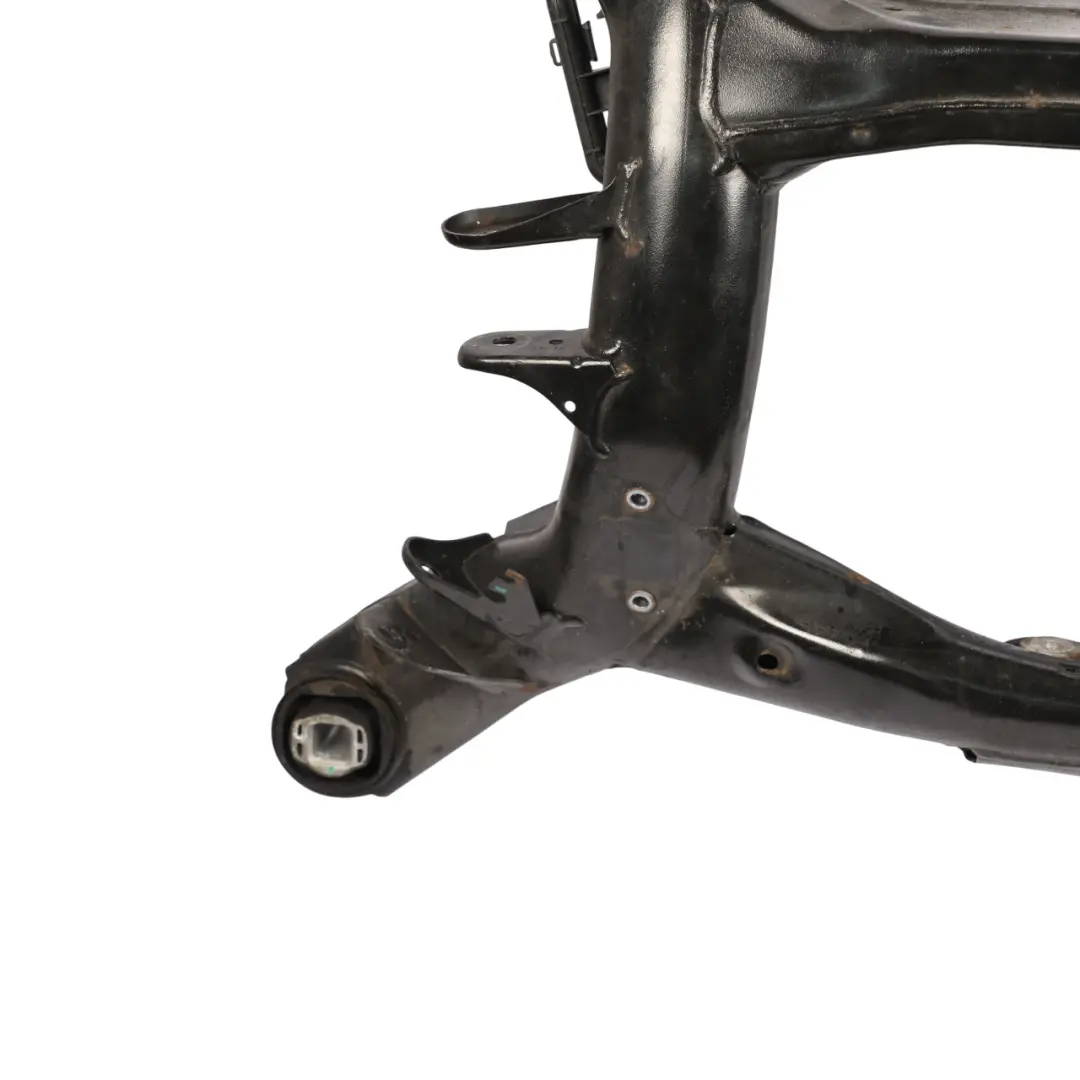

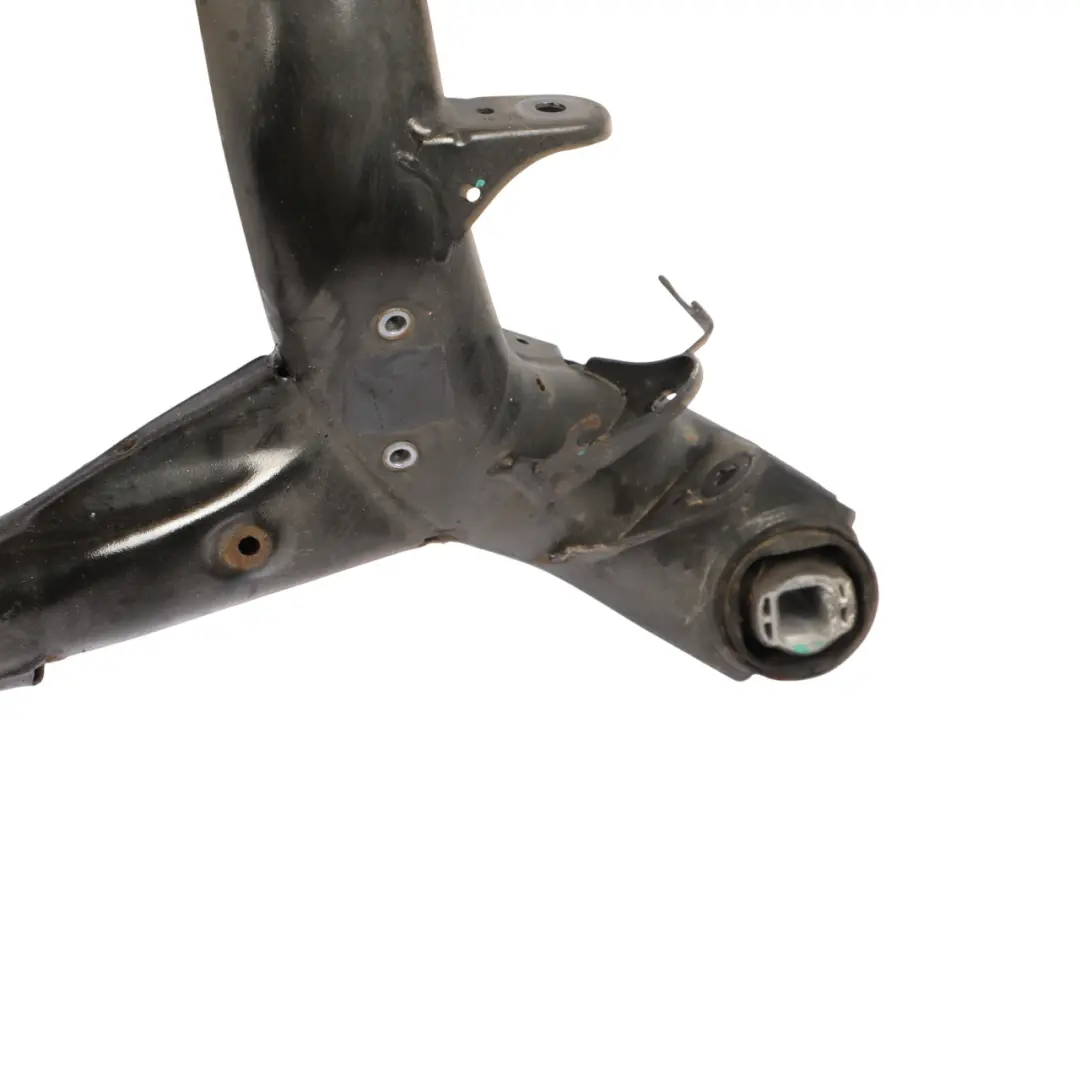

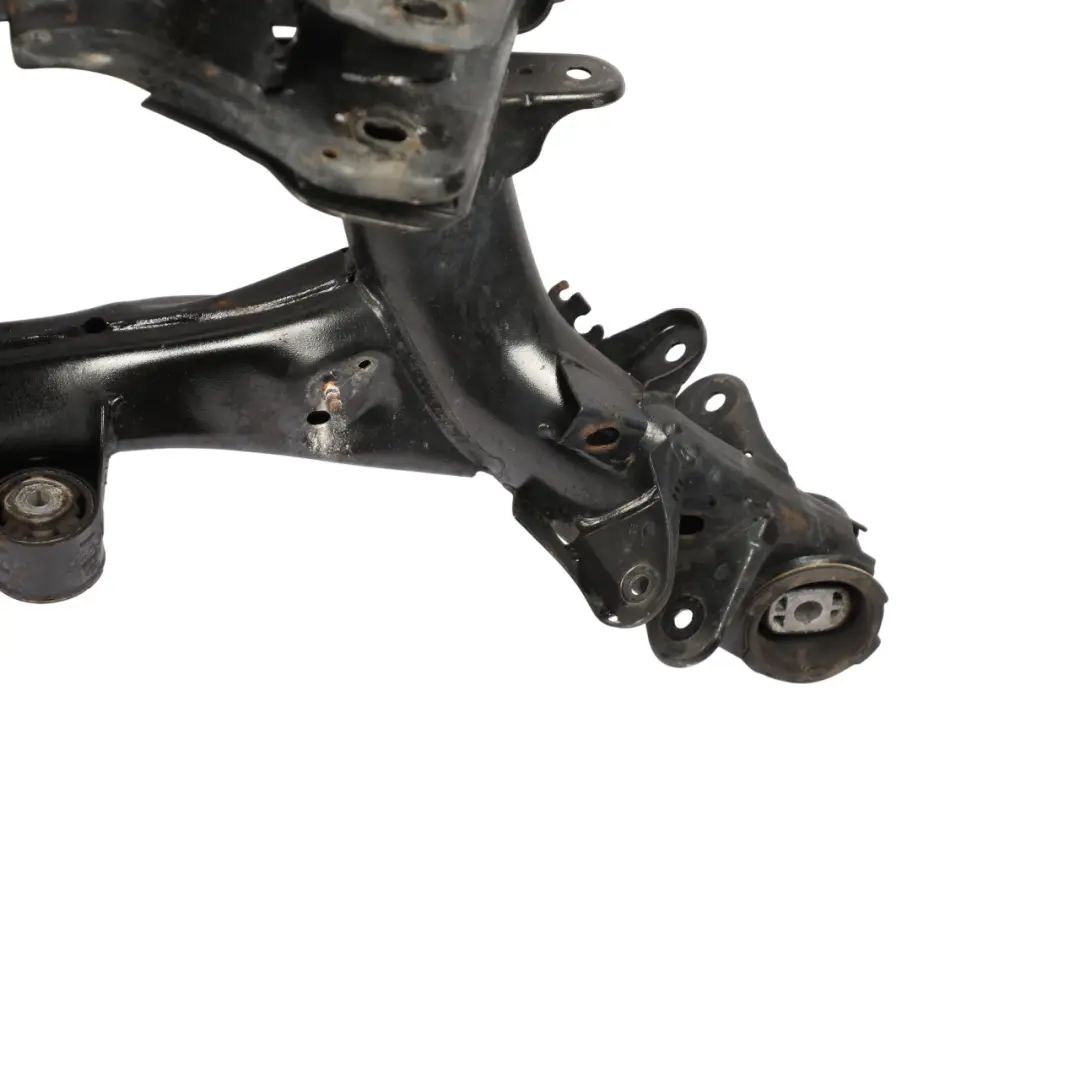

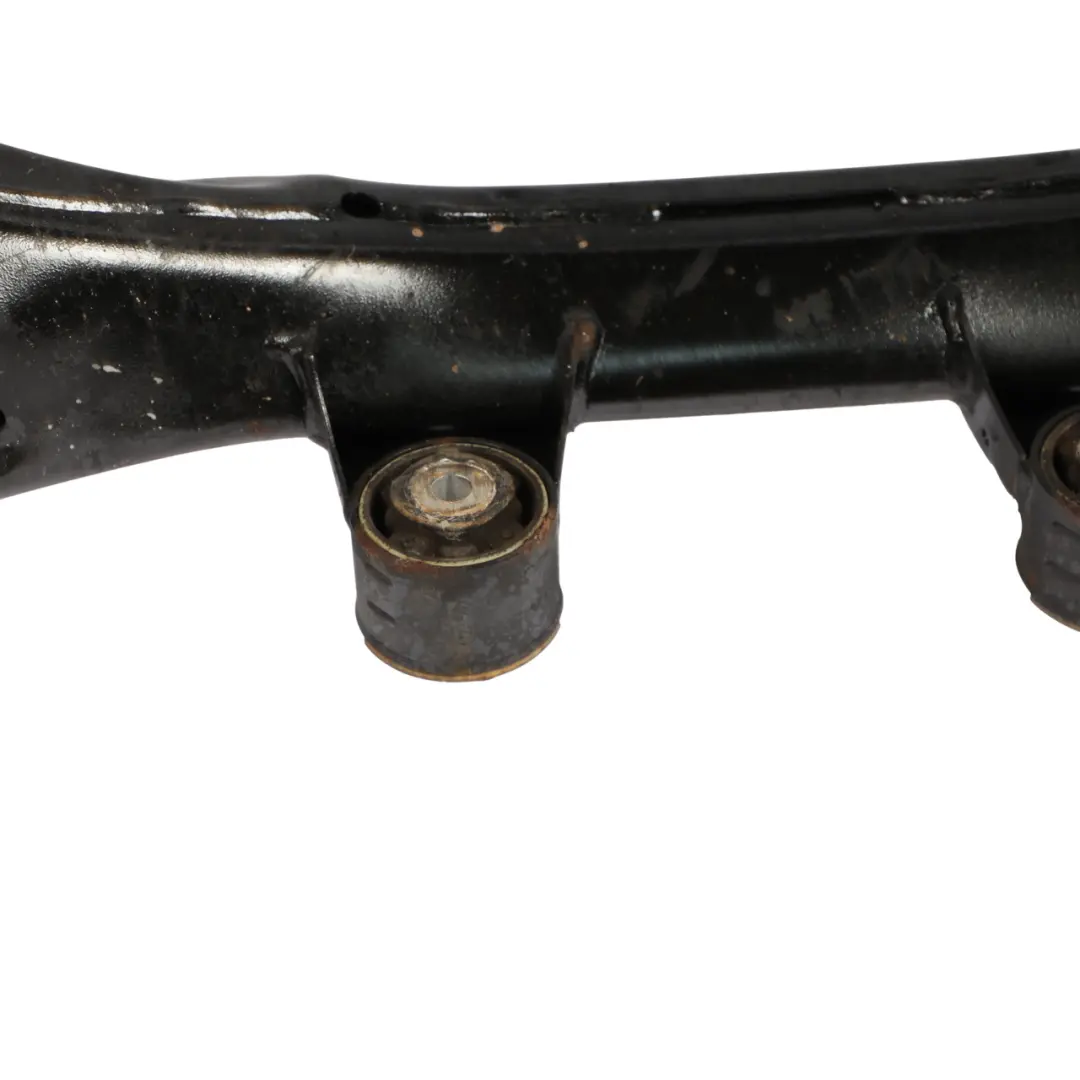

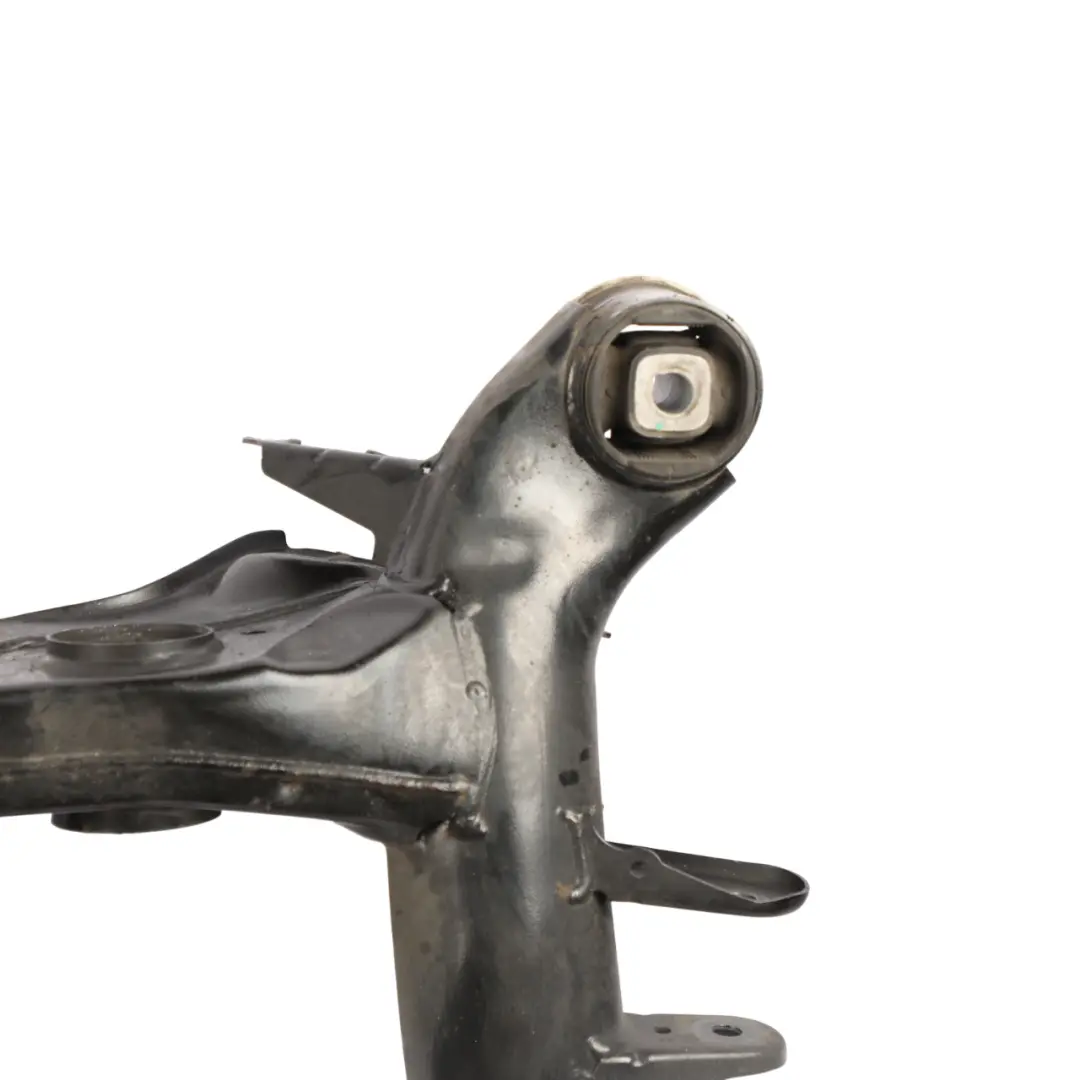

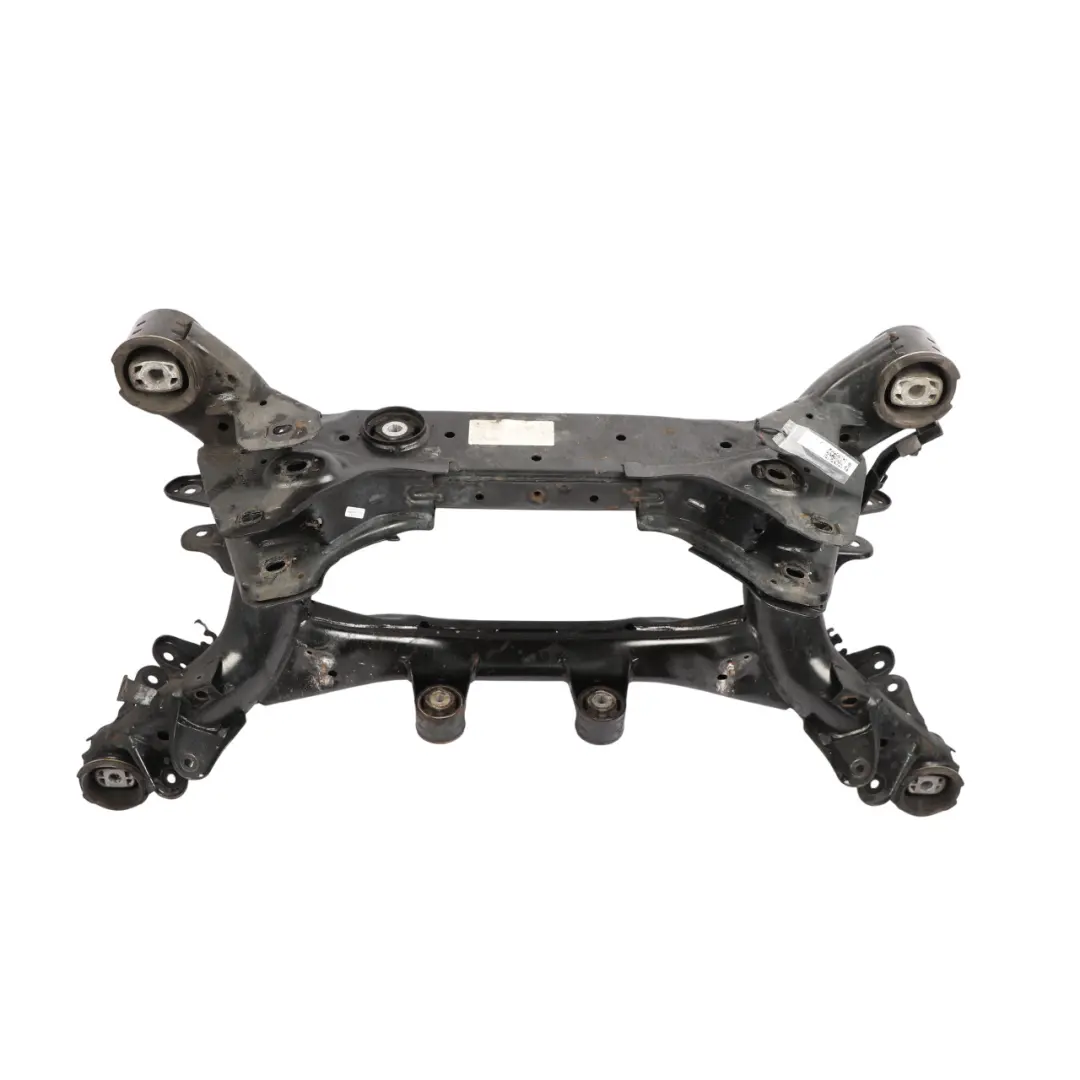

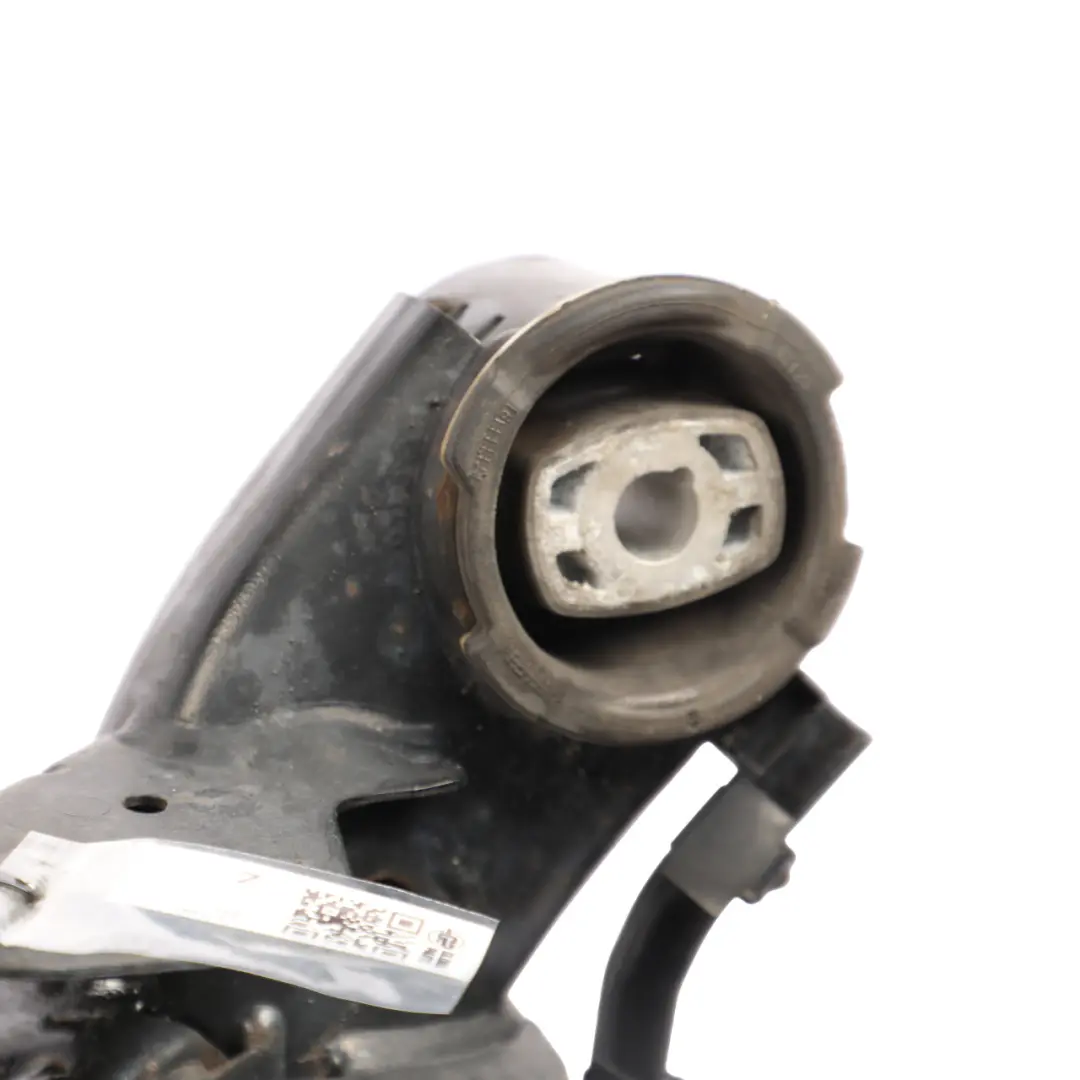

BMW X3 G01 X4 G02 Rear Axle Subframe Cradle xDrive Suspension Carrier 6870991

Visual condition of the part

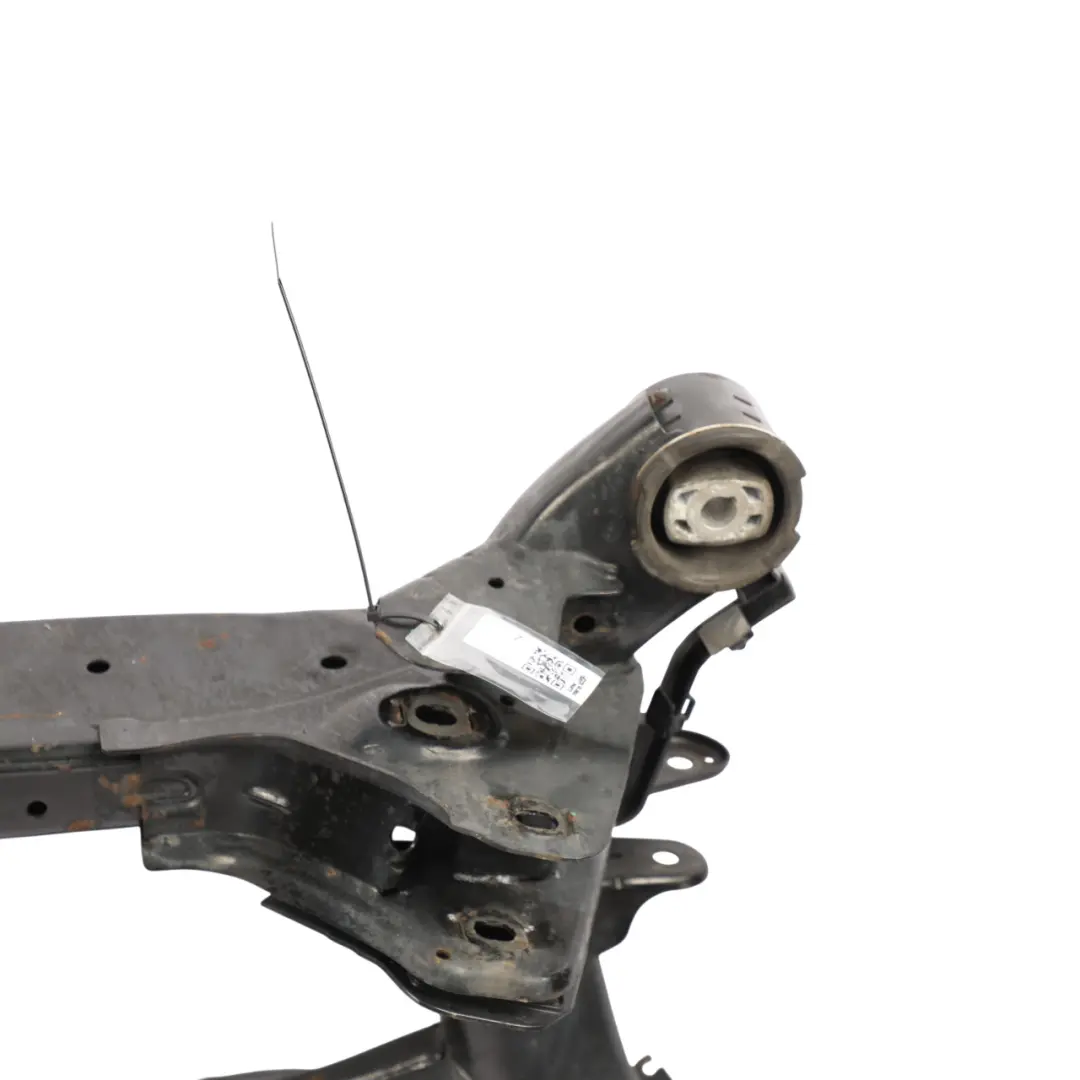

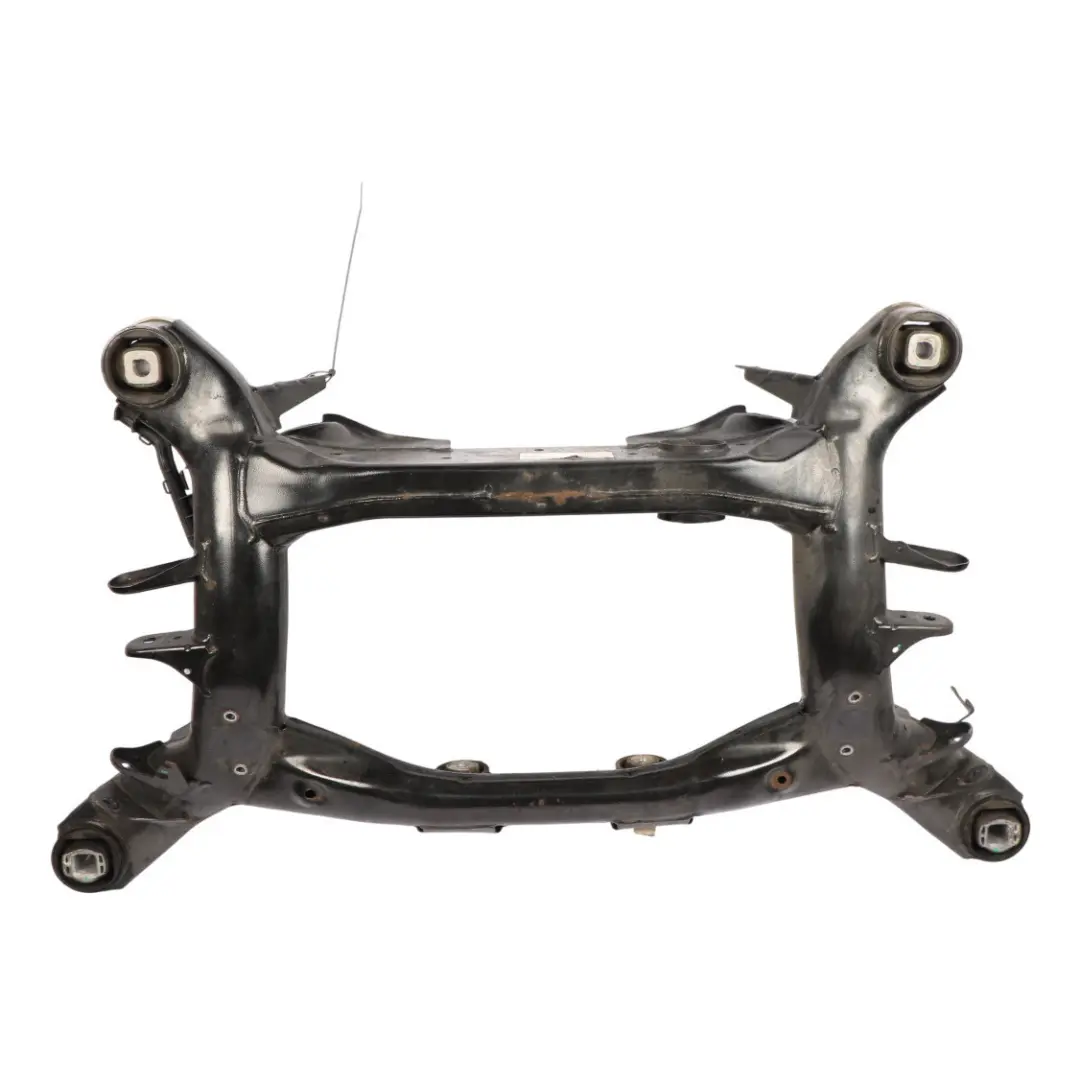

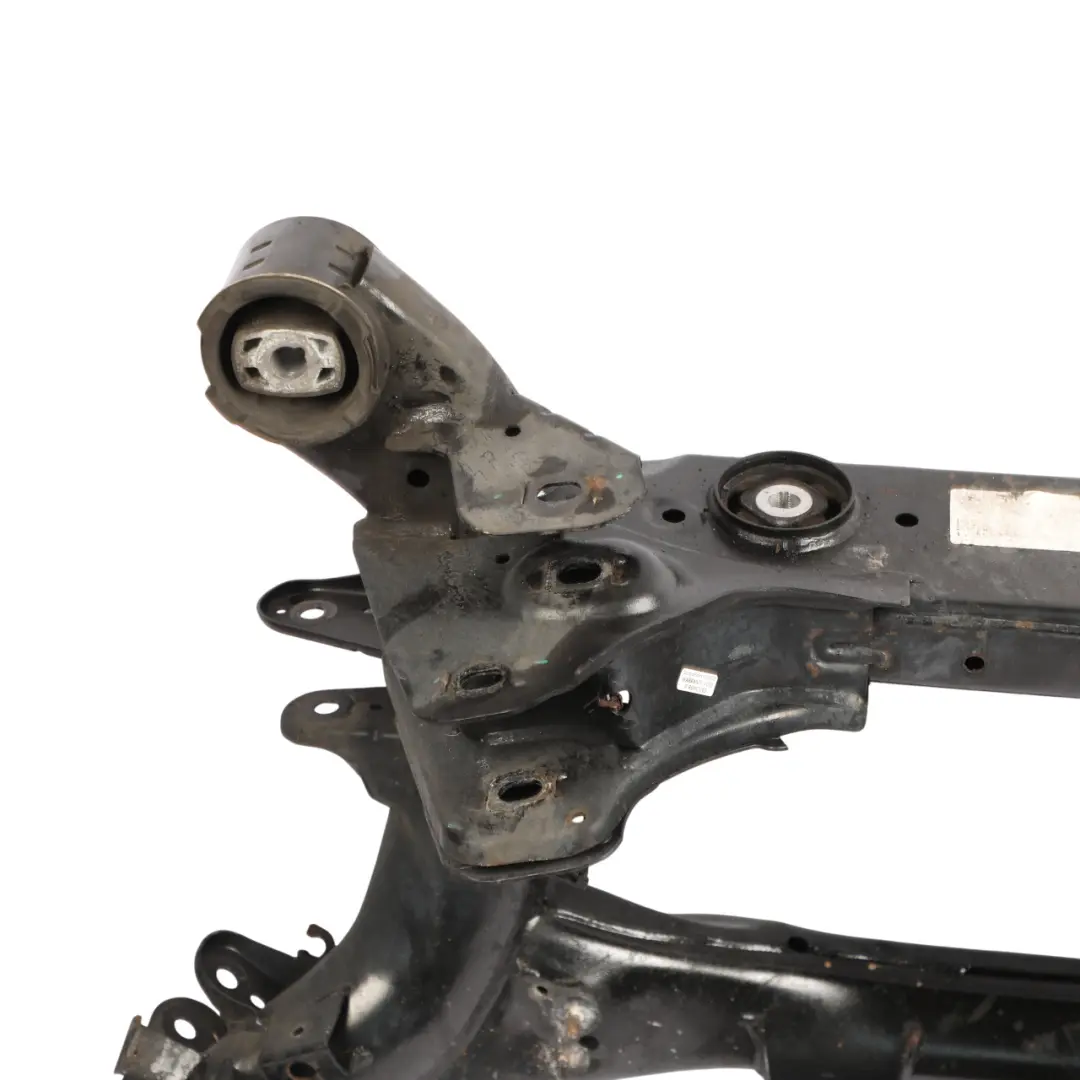

The product shows signs of use visible in the photos.

BMW X3 G01 X4 G02 Rear Axle Subframe Cradle xDrive Suspension Carrier is an original structural component designed for installation in the rear section of the vehicle body. As a part of the Longitudinal body frame parts and brackets group, it is responsible for providing stable support for suspension components and ensuring proper load transfer to the chassis. Using this OEM part allows for maintaining the factory suspension geometry and proper vehicle handling in xDrive mode.

Specifications and technical data

• SKU: 6870991
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6870991
• Substitutable numbers: 6870991, 33306870991, 6887439, 33306887439
• Location on the vehicle: Rear
• Part type: Subframe
• Category: Frame Rails & Subframes

Purpose and function in the vehicle

The described rear axle subframe is a load-bearing structural element to which key suspension and xDrive drivetrain components are attached. Its placement in the rear of the vehicle ensures a rigid connection between control arm mounting points, guide elements, and brackets, which translates into predictable vehicle behavior during acceleration, braking, and cornering.

By maintaining factory mounting points, the subframe allows for precise adjustment of wheel alignment and camber, which is particularly important in all-wheel-drive vehicles. Replacing a damaged or corroded subframe with an original used part helps restore proper suspension operation without interfering with the body structure.

Benefits of using an original subframe

Using an original rear subframe for the BMW X3 G01 / X4 G02 offers a number of practical advantages:

• preservation of factory suspension geometry and mounting points,
• compatibility with the xDrive system and stock suspension components,
• material consistency with the body structure,
• possibility of installation without structural modifications.

For workshops and users, this means efficient installation, a predictable repair outcome, and easier subsequent wheel alignment. Stable rear axle support also contributes to ride comfort, reduction of unwanted vibrations, and even tire wear.

Application in the xDrive system

In xDrive versions, the rear subframe plays a particularly important role as a carrier for components responsible for transferring torque to the rear axle. The appropriate stiffness and fit of the structure limit deformation under load, which promotes driving stability and proper cooperation of electronic systems responsible for traction and stability control.

Replacement with the correct, original part is recommended especially after collisions, intensive use in difficult road conditions, or in the event of confirmed structural deformation, which may hinder proper suspension adjustment.

Condition and preparation for installation

The offered subframe is a used part, which allows for combining original build quality with a more cost-effective repair compared to brand-new parts. Before installation, it is recommended to perform a standard inspection of mounting points and contact surfaces, as well as apply anti-corrosion protection in accordance with the manufacturer's workshop procedures or standard service practices.

After proper installation and tightening of bolts to the recommended torque specifications, a rear axle wheel alignment must be performed to fully utilize the structural potential of the subframe and ensure stable vehicle handling.
