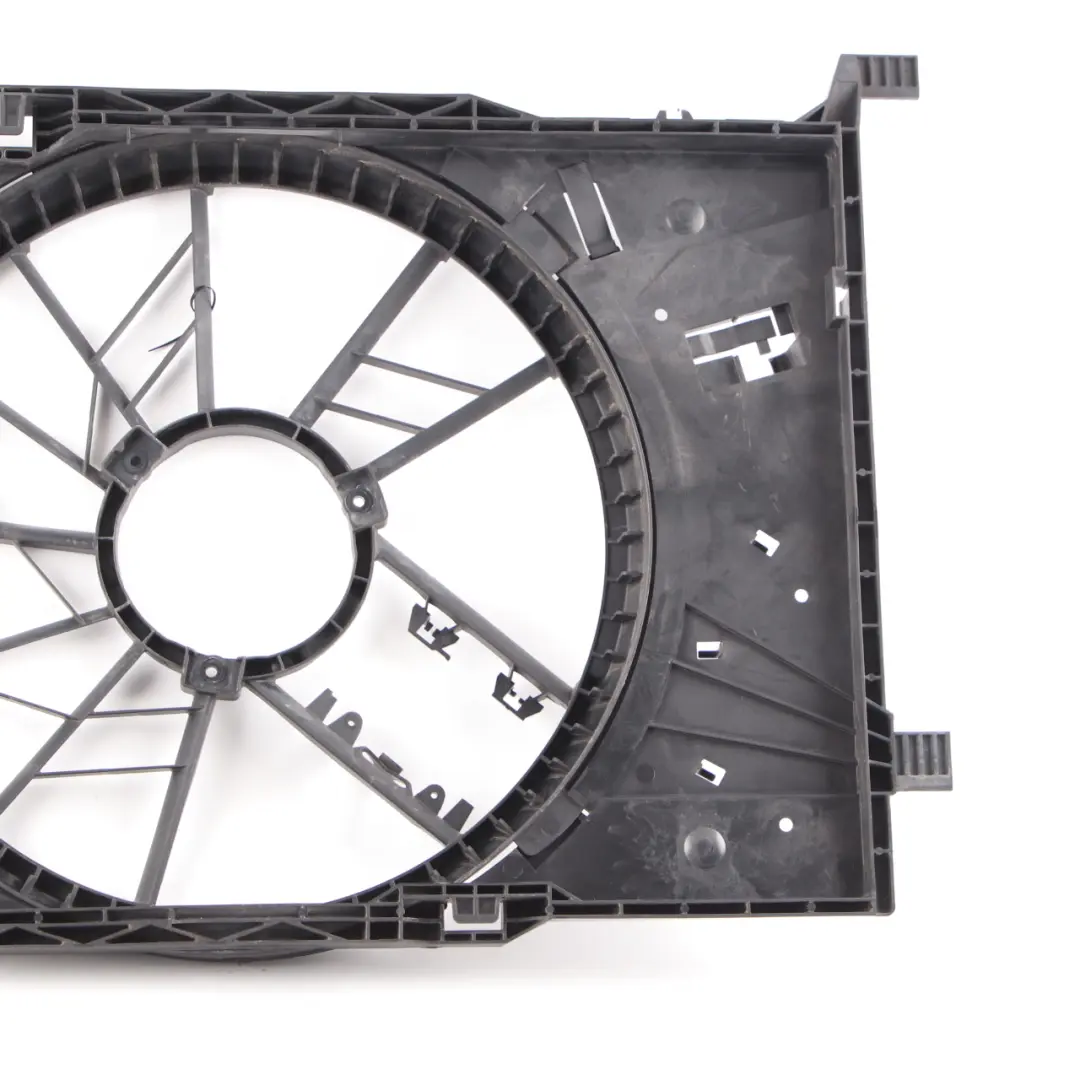

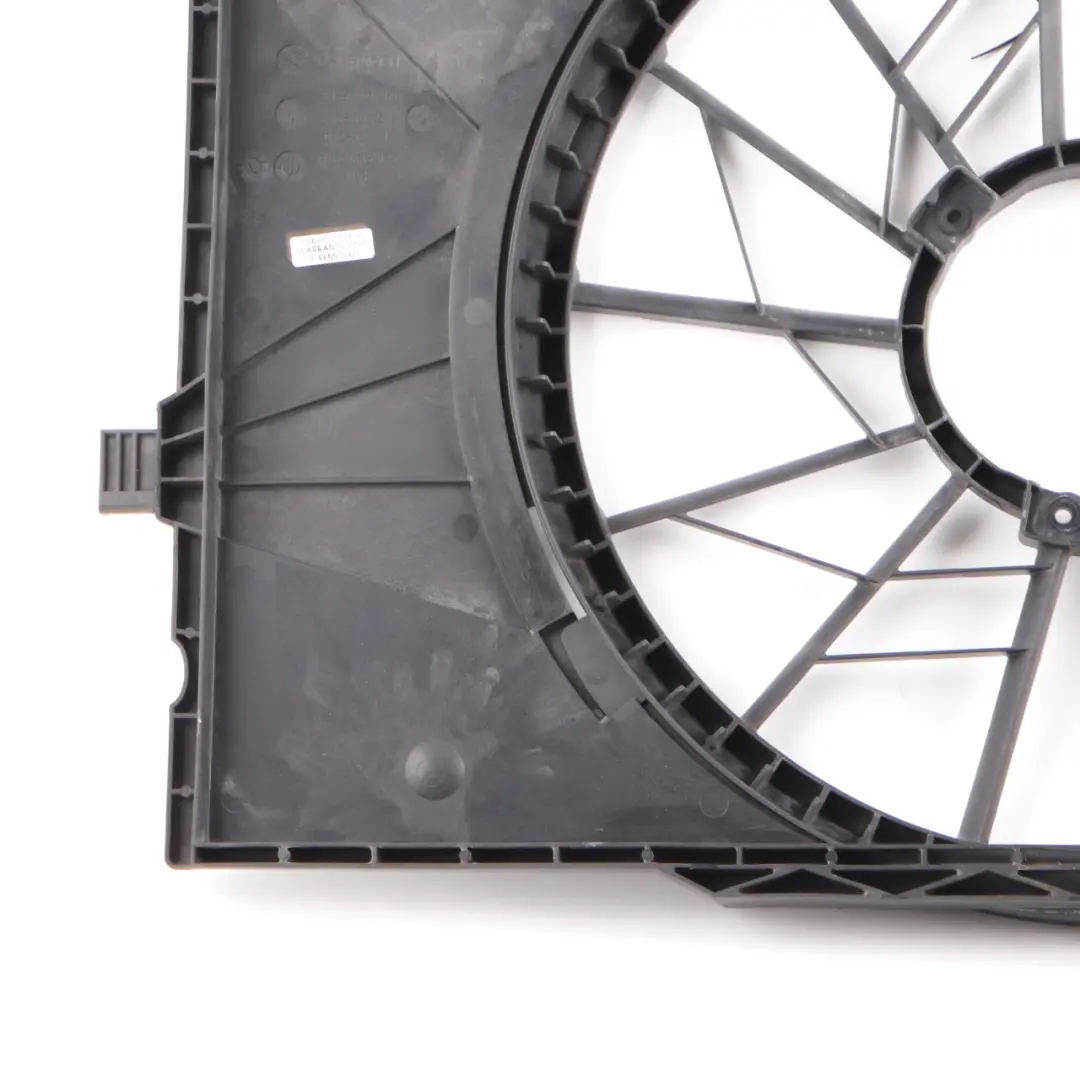

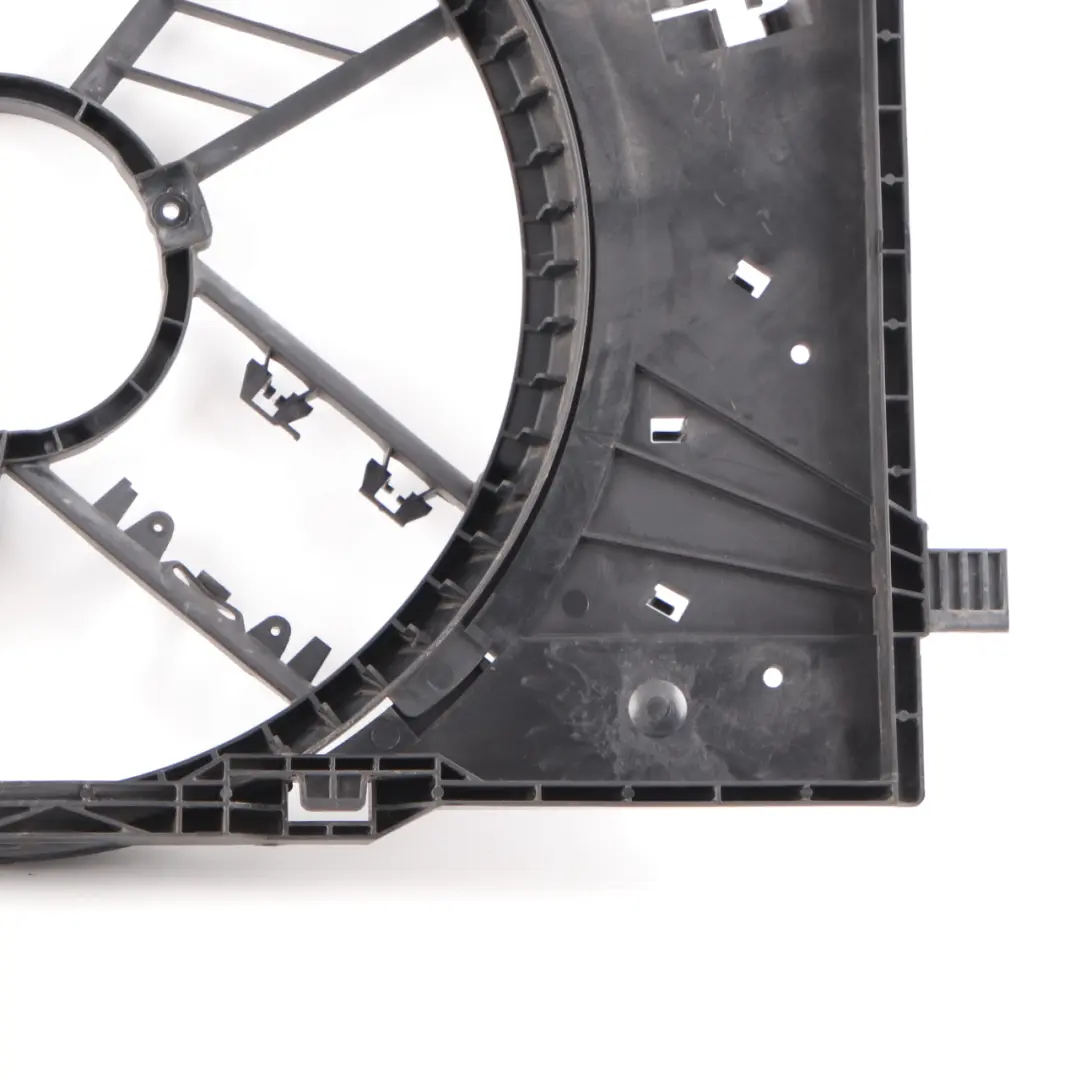

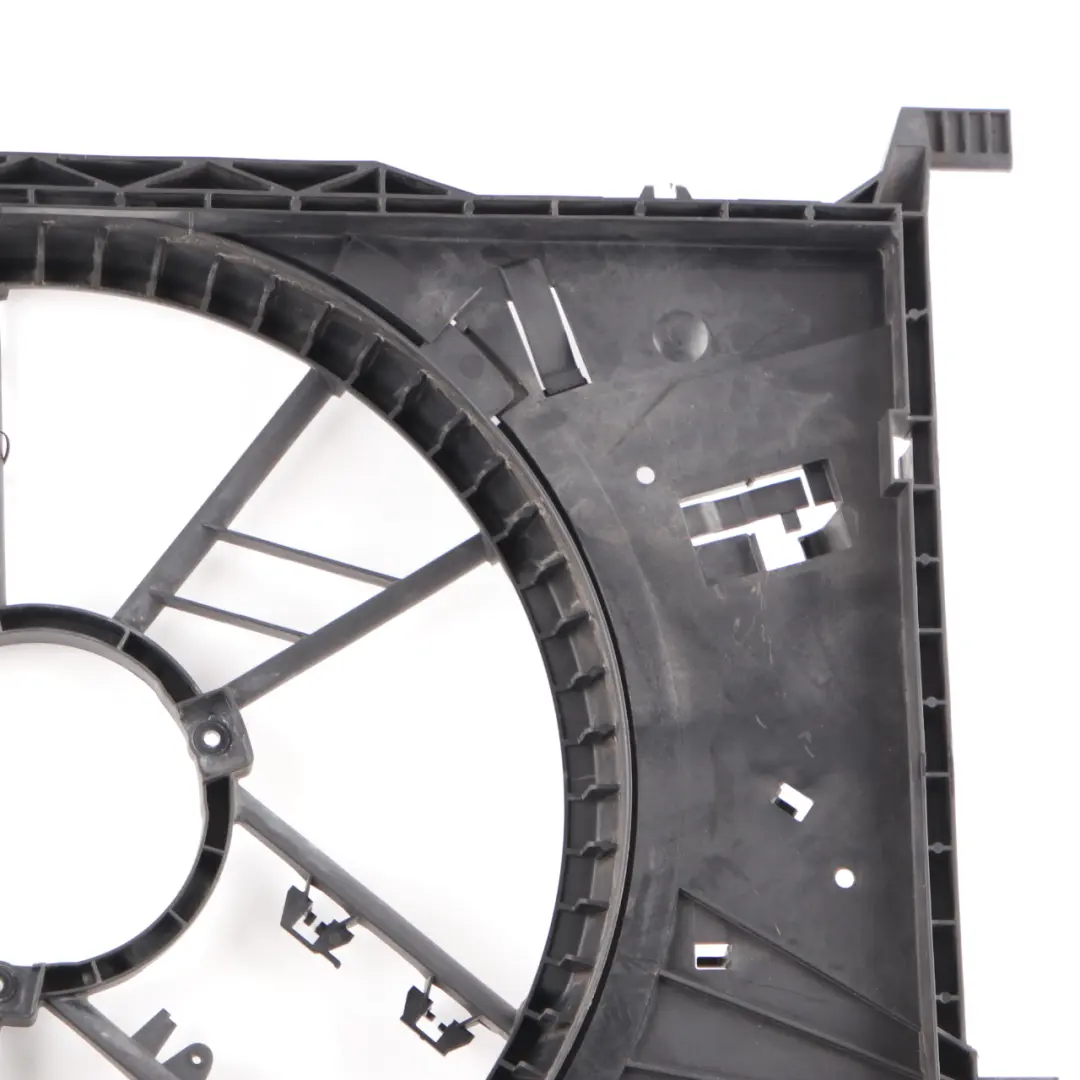

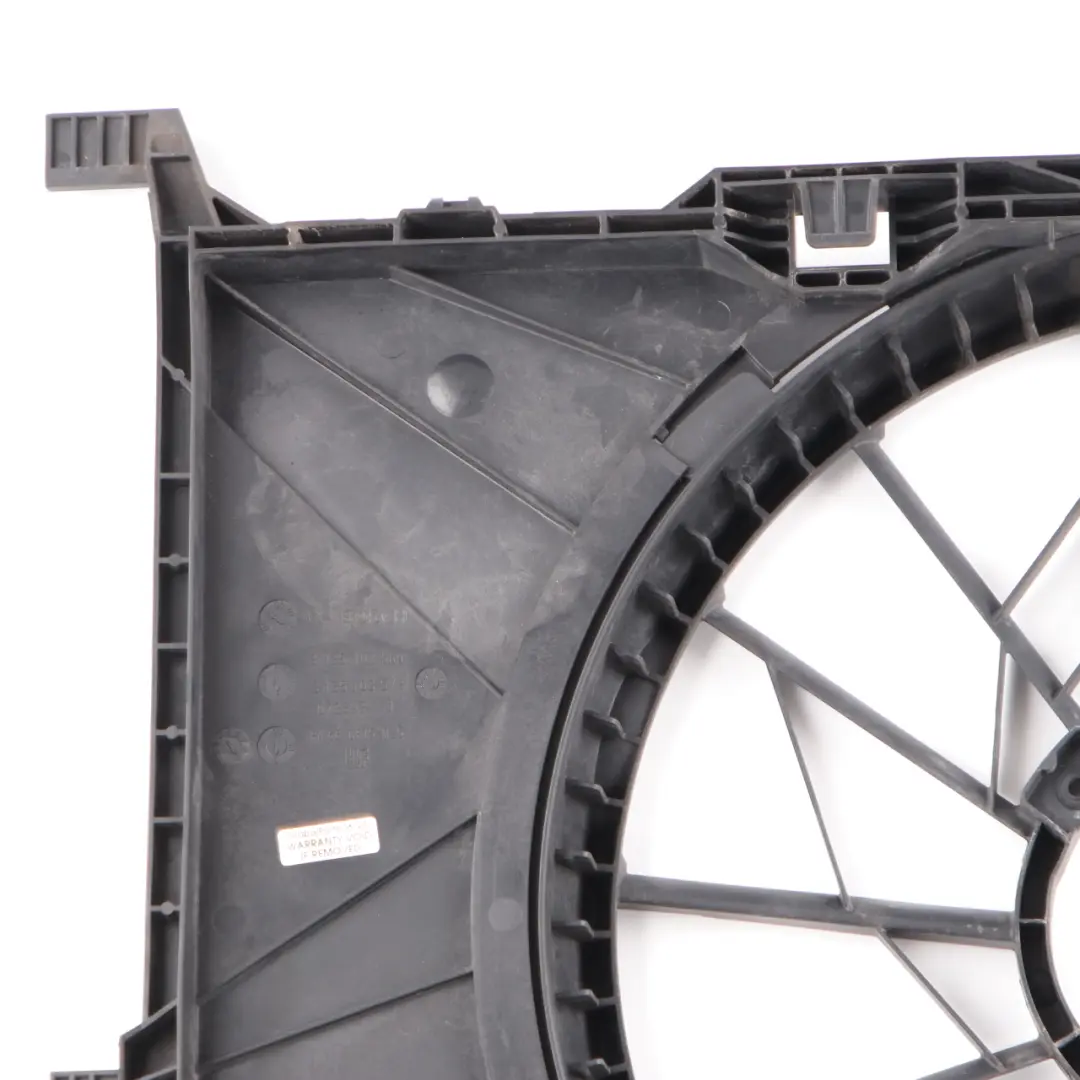

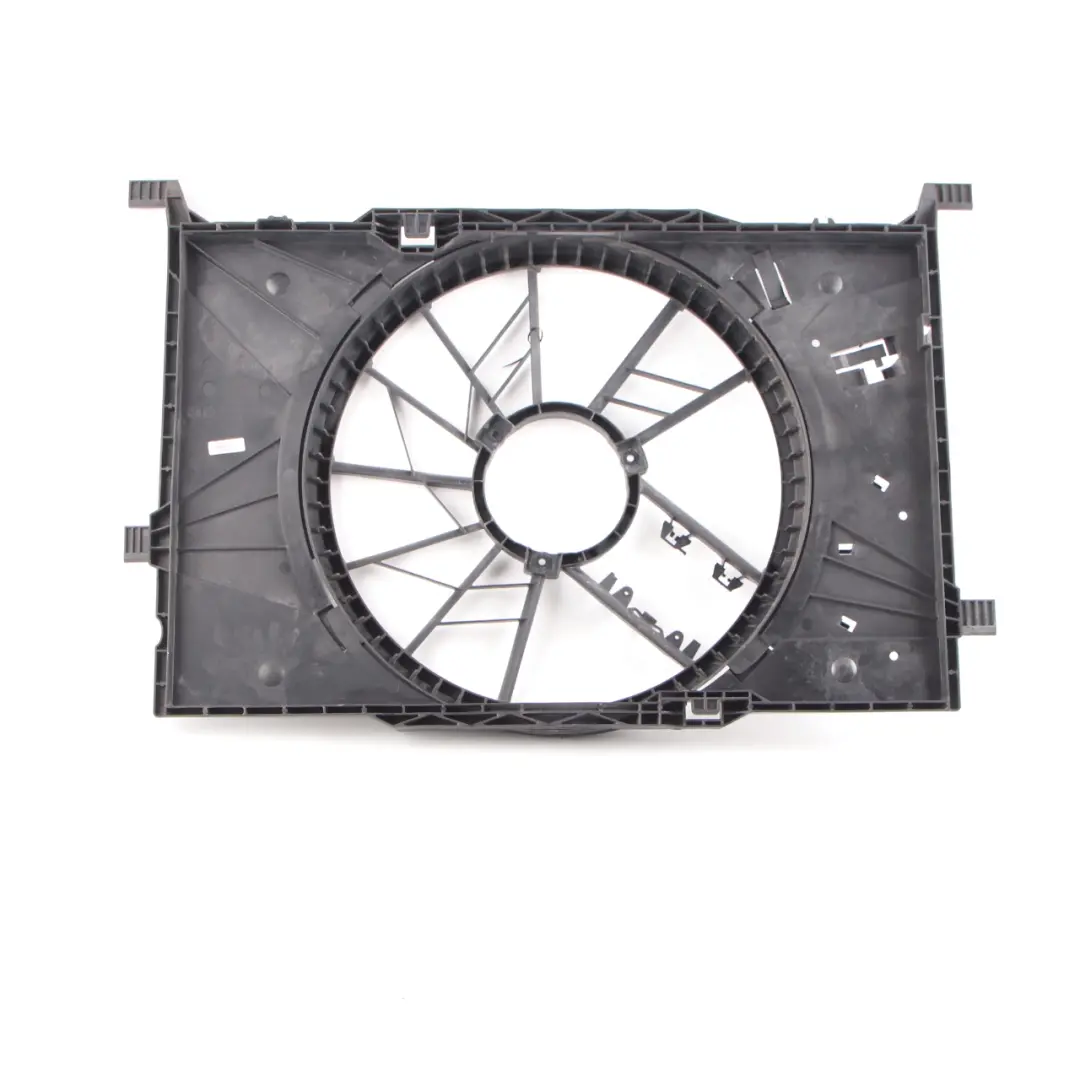

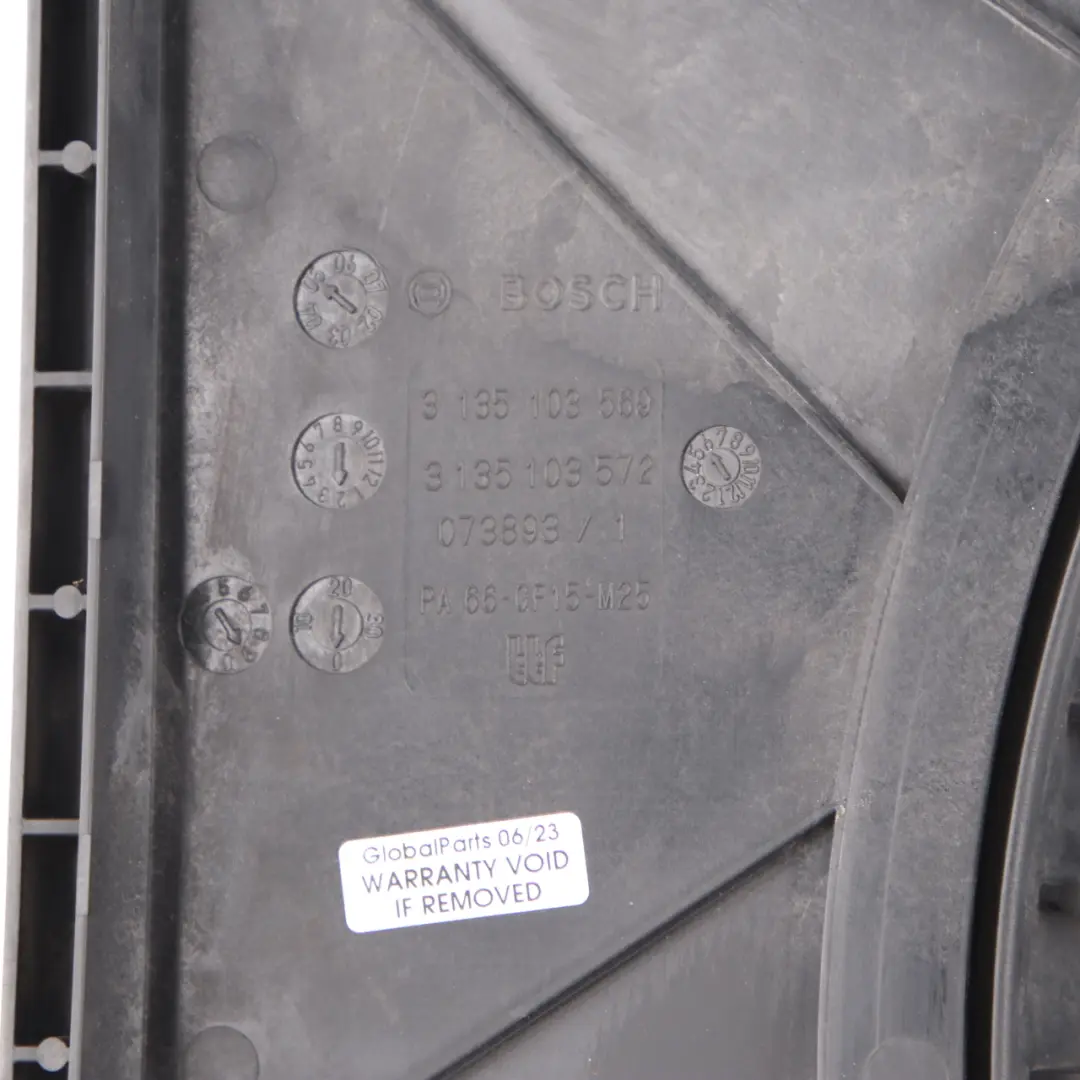

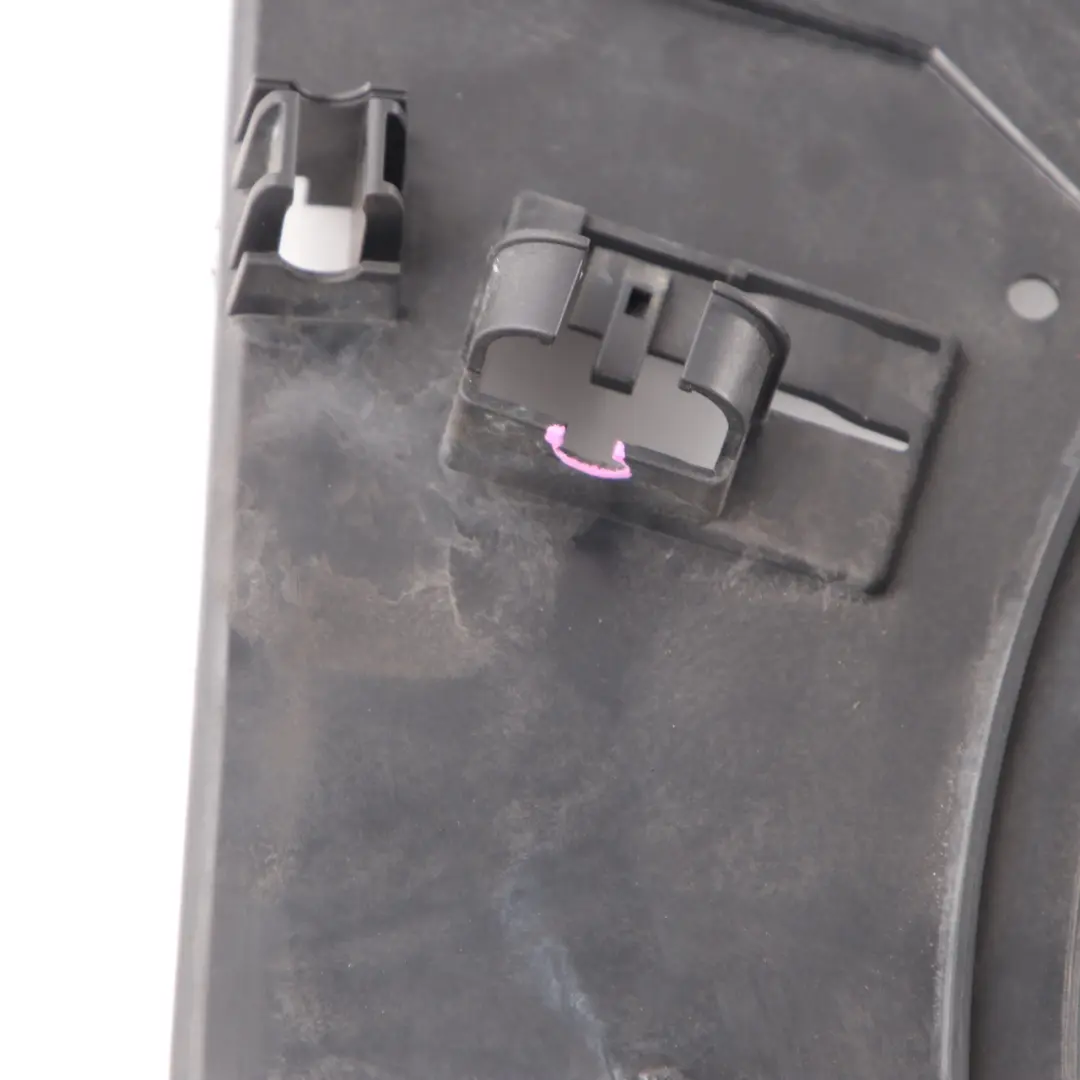

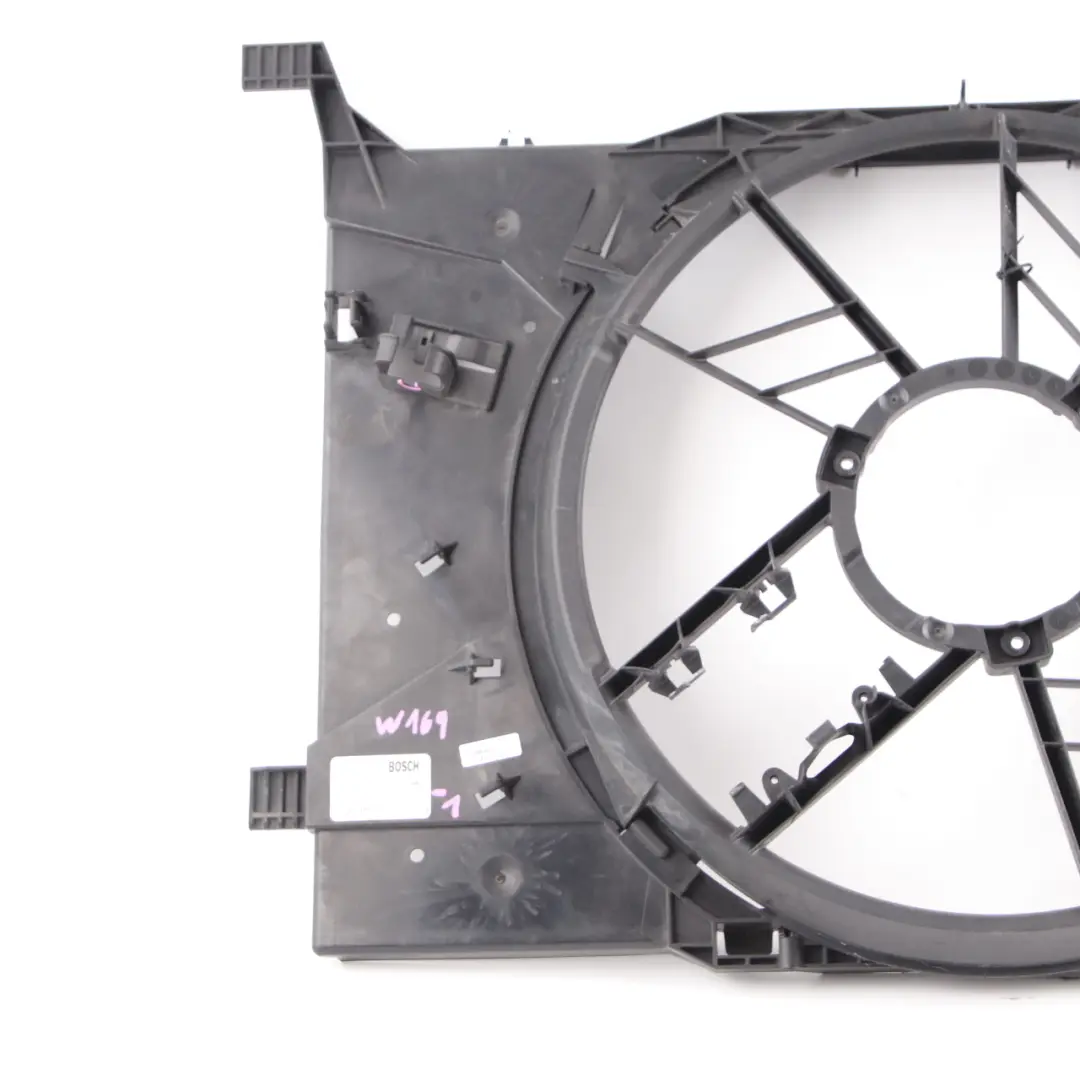

Mercedes W169 W245 Cooling Radiator Petrol Engine Shroud Cover Mount A1695000293

The Mercedes W169/W245 Petrol Engine Radiator Shroud and Mount is a component from the Fans and Fan Housings group, designed to work with the cooling system in petrol-powered vehicles. The design, tailored to a specific Mercedes generation, ensures proper airflow and stable mounting of the radiator at the rear of the fan assembly.

Specifications and technical data

• SKU: A1695000293-1
• Mark: Mercedes (Genuine OE)
• Condition: Used

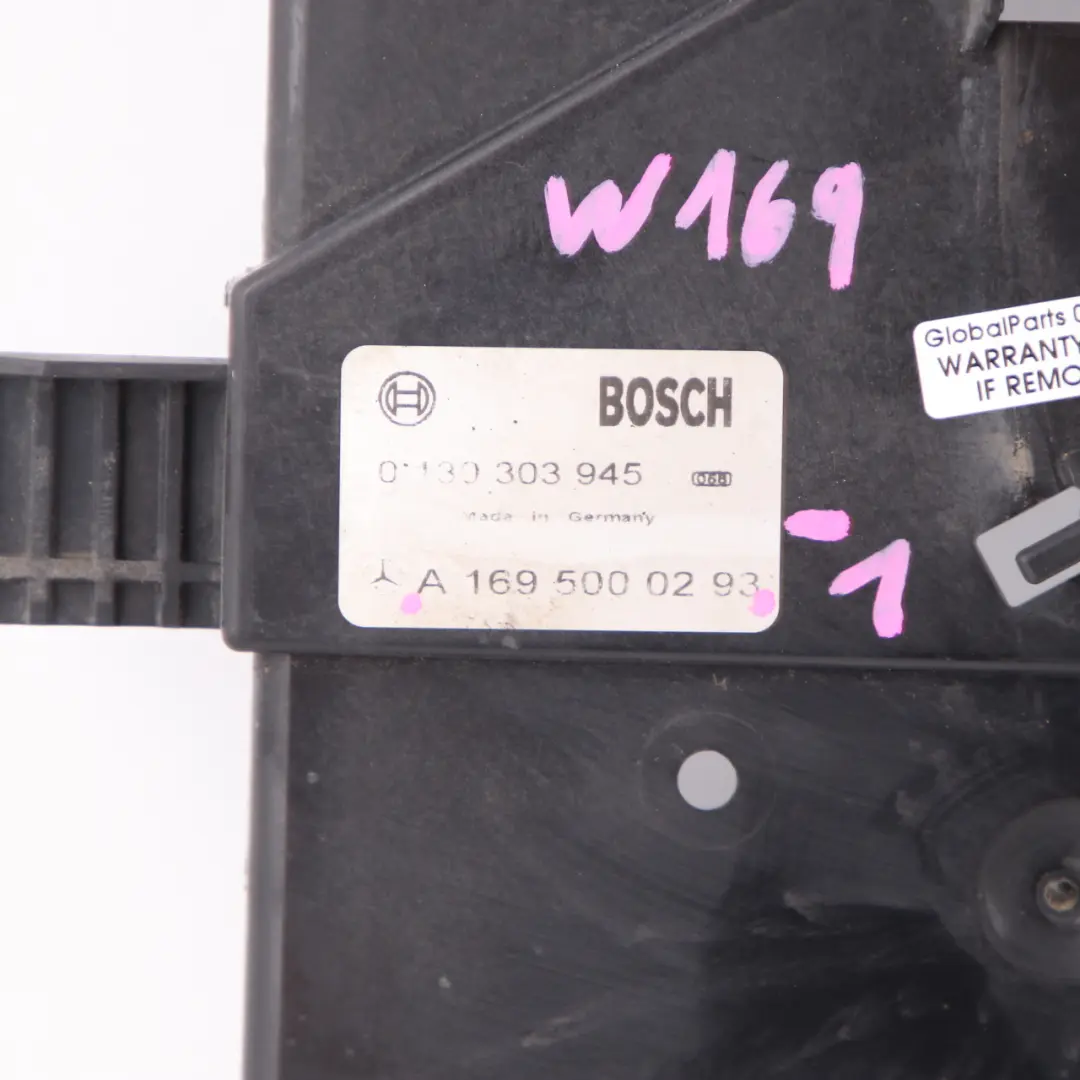

• OEM Part Number: A1695000293
• Substitutable numbers: A1695000193, A 169 500 01 93, A1695000293, A 169 500 02 93, BG
• Location on the vehicle: Rear
• Fuel type: Petrol
• Category: Fan & Shroud Assemblies

Purpose and Function in the Cooling System

The presented radiator shroud and bracket operates in the rear area of the fan assembly, forming part of the airflow channel through the radiator. In petrol-powered vehicles, a correctly selected fan housing reduces flow losses, stabilizes the engine's operating temperature, and supports uniform cooling of the entire engine block.

Thanks to its dedicated fit for the W169 and W245 series, the correct geometry relative to the radiator and fan is maintained, minimizing the risk of vibrations, unwanted play, and leaks in the airflow zone.

Construction and Fit for Mercedes

The shroud is designed by Mercedes as a component that works with the factory cooling system, ensuring a precise fit with other components. The shape of the mounts and the routing of the edges are adapted to the body and radiator frame construction, making installation orderly and predictable.

The element is prepared for use in petrol-powered cars, which is important due to the thermal characteristics of such units. A properly shaped shroud supports efficient heat exchange, which is particularly crucial in urban conditions and during prolonged driving in higher ambient temperatures.

Benefits of Using an Original Radiator Shroud

Using a dedicated radiator shroud and mount in the cooling system offers a range of practical benefits:

• maintaining a stable position of the radiator relative to the fan and other system components,
• more predictable airflow through the radiator core,
• reducing the risk of hoses and adjacent components rubbing against the radiator edges,
• easier diagnostics and servicing of the cooling system due to the preservation of the factory mounting system.

Using a used component of this type allows for economical repair of the cooling system while maintaining original geometry and compatibility with the manufacturer's factory solutions.

Installation Area and Operation

The shroud operates in the rear part of the radiator and fan assembly, in close proximity to the engine. In this area, the component is exposed to elevated temperatures, vibrations, and contaminants, so proper fit and stable mounting significantly impact the durability of the entire cooling system.

When replacing, it is recommended to check the condition of the fan, radiator, and adjacent elements to restore full efficiency and correct geometry of the entire assembly with a single disassembly. This ensures the cooling system operates more predictably, contributing to a longer engine lifespan.
