Ford Transit Cooling Radiator Fan Shroud Cover Frame Panelling 6C11-8146-AG

Visual condition of the part

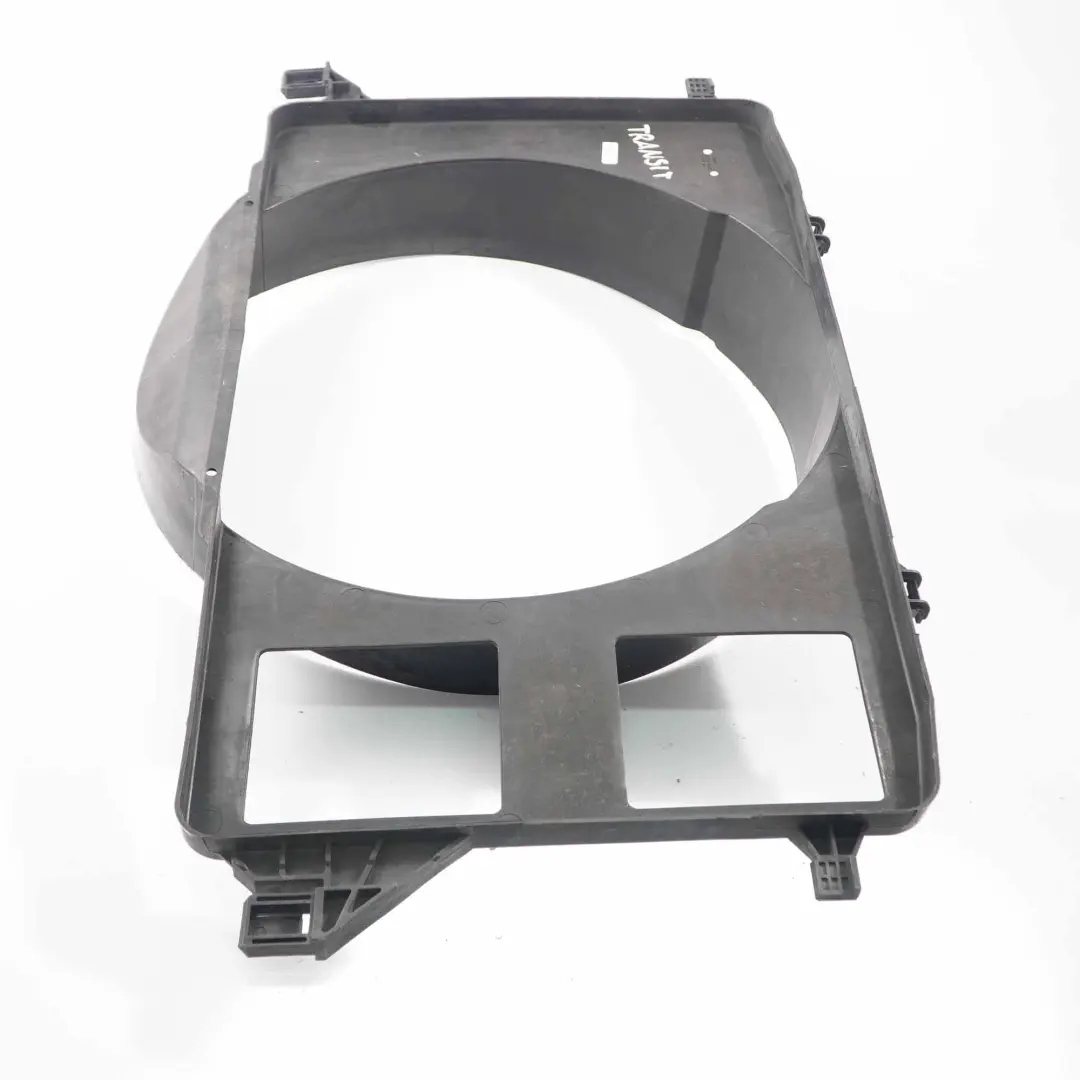

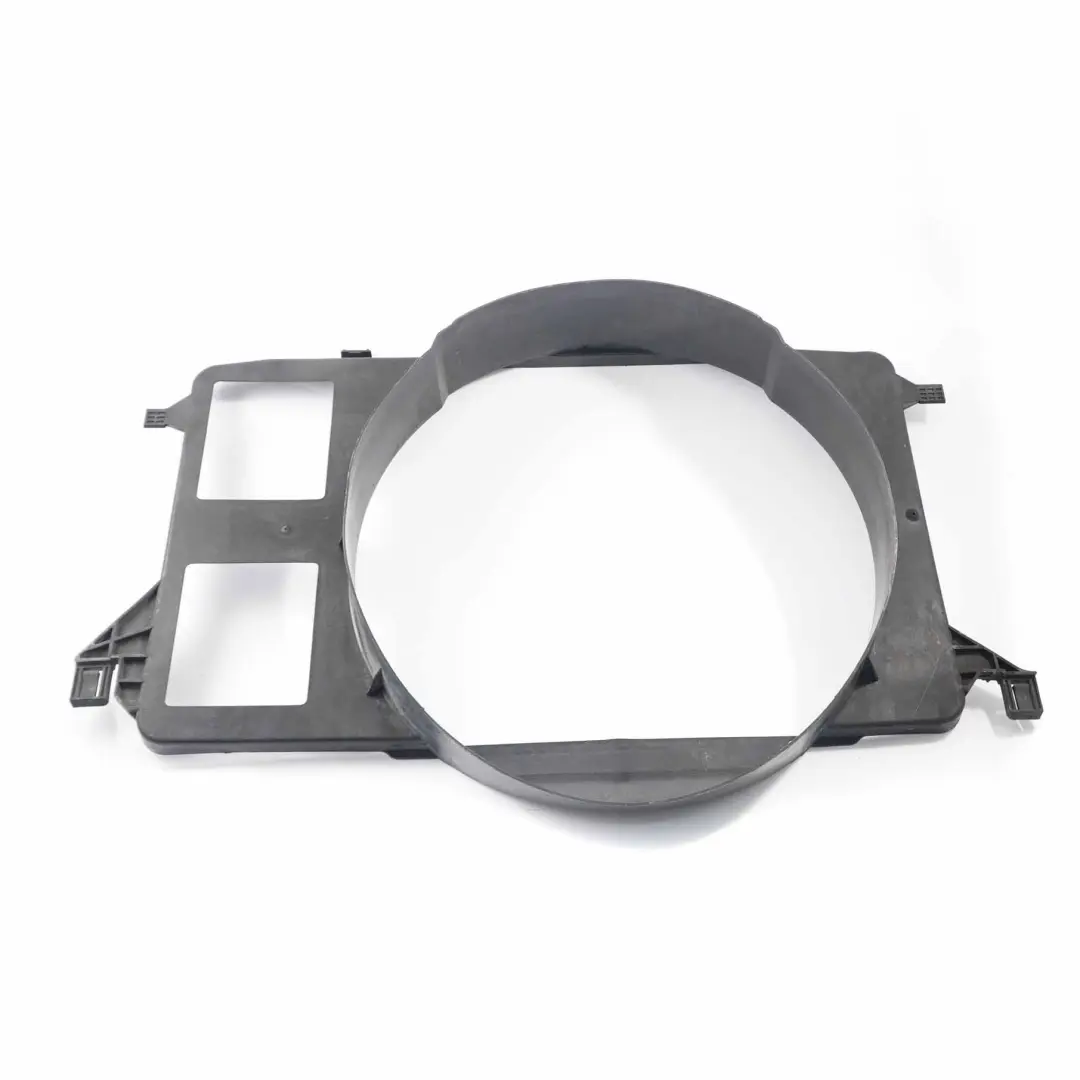

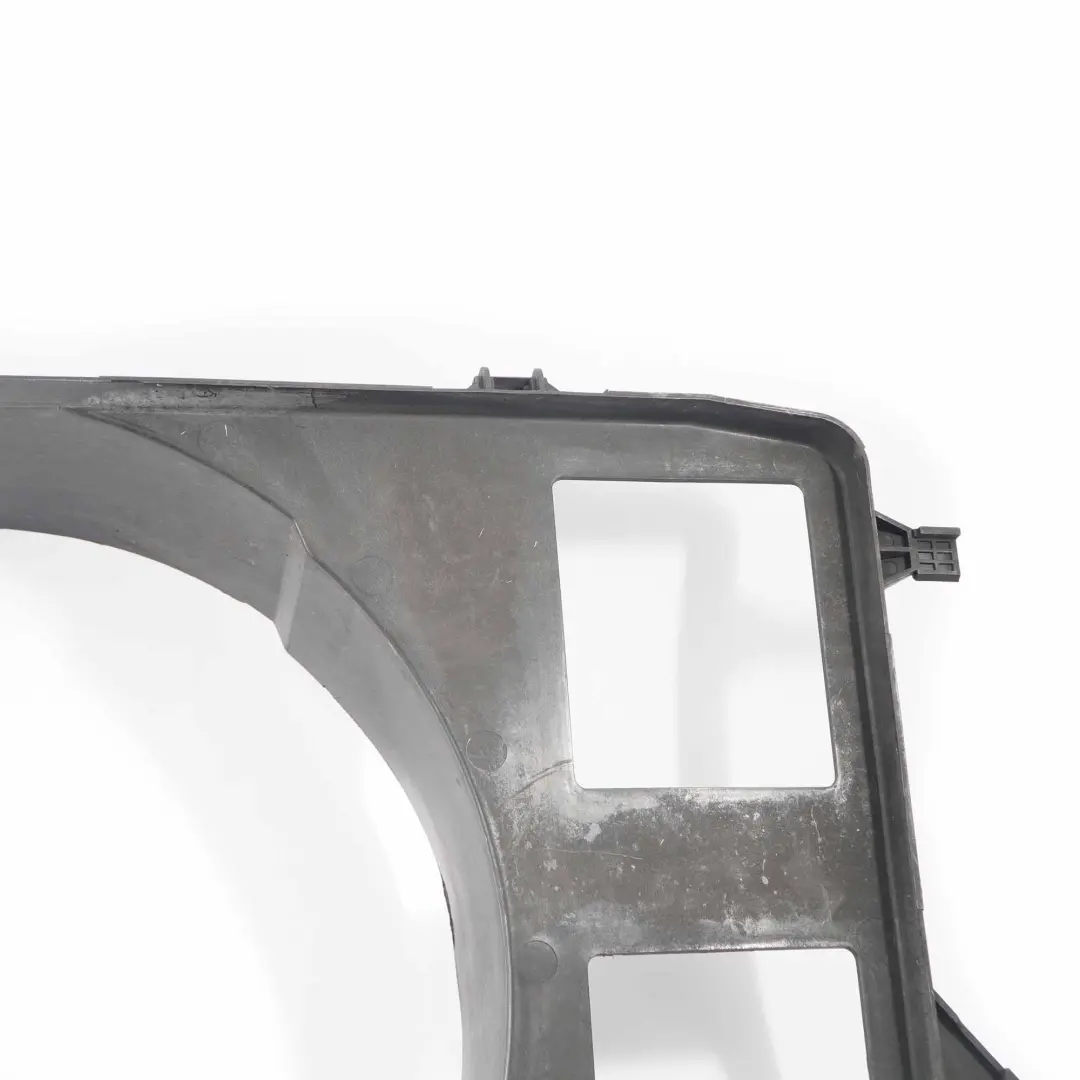

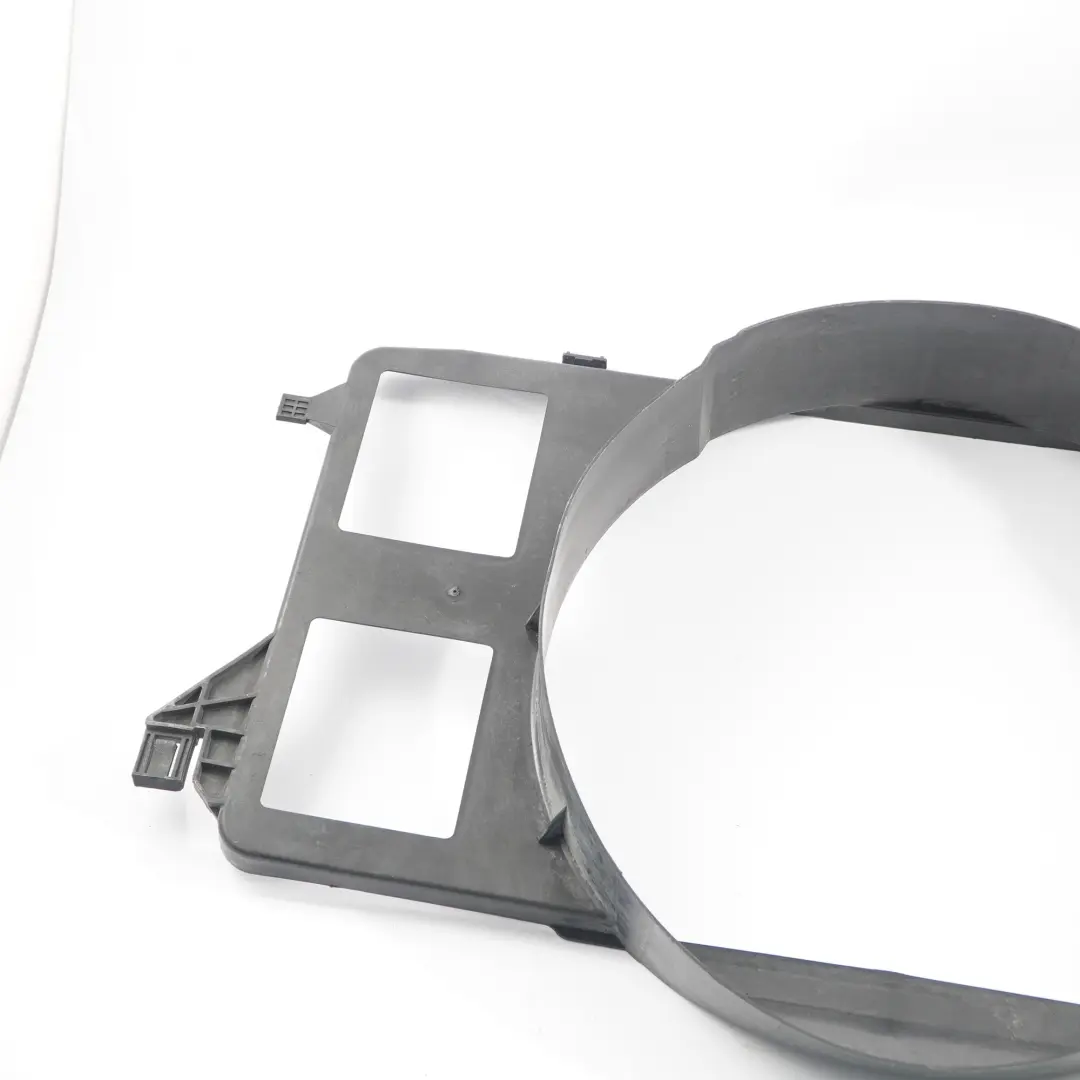

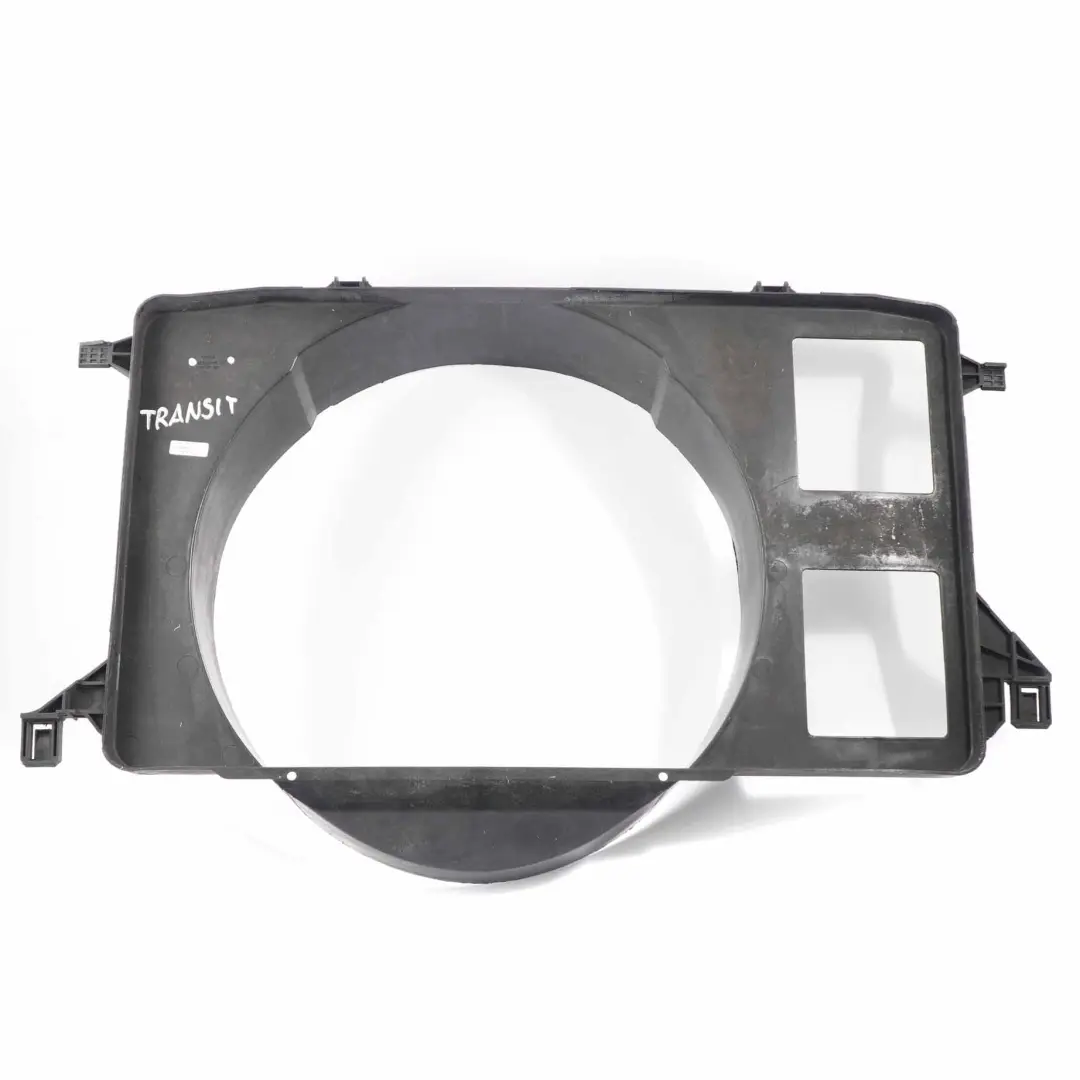

The product shows signs of use visible in the photos.

Ford Transit Cooling Radiator Fan Shroud Cover Frame Panelling is a factory-original component from the Fans and fan shrouds group, designed for efficient airflow guidance through the radiator and stable fan mounting. This used, original shroud ensures the correct positioning of cooling system components, which translates into predictable engine performance under various temperature conditions. The Amethystgrau Metallic - A09 color helps maintain visual consistency in the engine bay for vehicles where aesthetic or service uniformity is important.

Specifications and technical data

• SKU: 6C11-8146-AG
• Mark: Ford
• Condition: Used
• OEM Part Number: 6C11-8146-AG
• Substitutable numbers: 6C11-8146-AG, 6C118146AG, 1573064
• Color: Amethystgrau Metallic - A09
• Category: Fan & Shroud Assemblies

Purpose and function in the cooling system

The radiator fan shroud in the Ford Transit is responsible for precisely directing the airflow through the radiator core and providing stable fan mounting. A correctly selected component from this group reduces flow losses, improves cooling efficiency, and decreases the risk of engine overheating under heavy loads or in city traffic.

Thanks to a design consistent with Ford factory solutions, the shroud works with the stock fan, mounts, and engine bay accessories without the need for modifications or adjustments to mounting hardware.

Construction, color, and fitment

The element is manufactured as a rigid guide frame that creates an airflow channel between the fan and the radiator. This architecture reduces turbulence and allows for stable flow even during prolonged fan operation at higher speeds.

The Amethystgrau Metallic - A09 color is a characteristic shade used in original Ford components, which facilitates visual identification of the part and maintains consistency with other engine bay elements. This is a beneficial solution for both specialized service centers and users who care about the vehicle's aesthetics.

Benefits of using an original shroud

Using a factory radiator fan shroud in a Ford Transit provides a number of practical benefits:

• preservation of the airflow geometry designed by the vehicle manufacturer,
• secure mounting of the fan and radiator, reducing vibration and noise,
• compatibility with stock mounting points on the body,
• easier diagnostics and service due to the preservation of the factory layout.

A used OEM part is a solution that allows you to combine cost control with maintaining cooling system performance parameters in line with the manufacturer's specifications.

Condition, installation, and service application

The shroud comes from a group of used parts, making it an attractive cost-effective alternative for post-accident repairs, replacements after mechanical damage, or comprehensive cooling system maintenance. In workshop practice, such an element is used, among other things, when replacing the radiator, fan, or during the reconstruction of the front part of the engine bay.

Thanks to the preservation of factory geometry and mounting points, installation is predictable for the mechanic – the shroud works with stock brackets, covers, and other cooling system components, which shortens working time and reduces the risk of installation errors.

Cooling system expansion and additional materials

If you are planning a comprehensive repair or modernization of the cooling system area in your Ford and need other elements from the same group, such as additional shrouds, fan frames, or air guide covers, check out the available parts in the Ford fans and fan shrouds category.

To better understand how thermal loads in the summer season affect the efficiency of the radiator and fan, and when it is worth reaching for used components, read the guide Summer heat vs. cooling system: used radiators and fans as a guarantee of savings, which discusses the operation and selection of such parts in a practical way.
