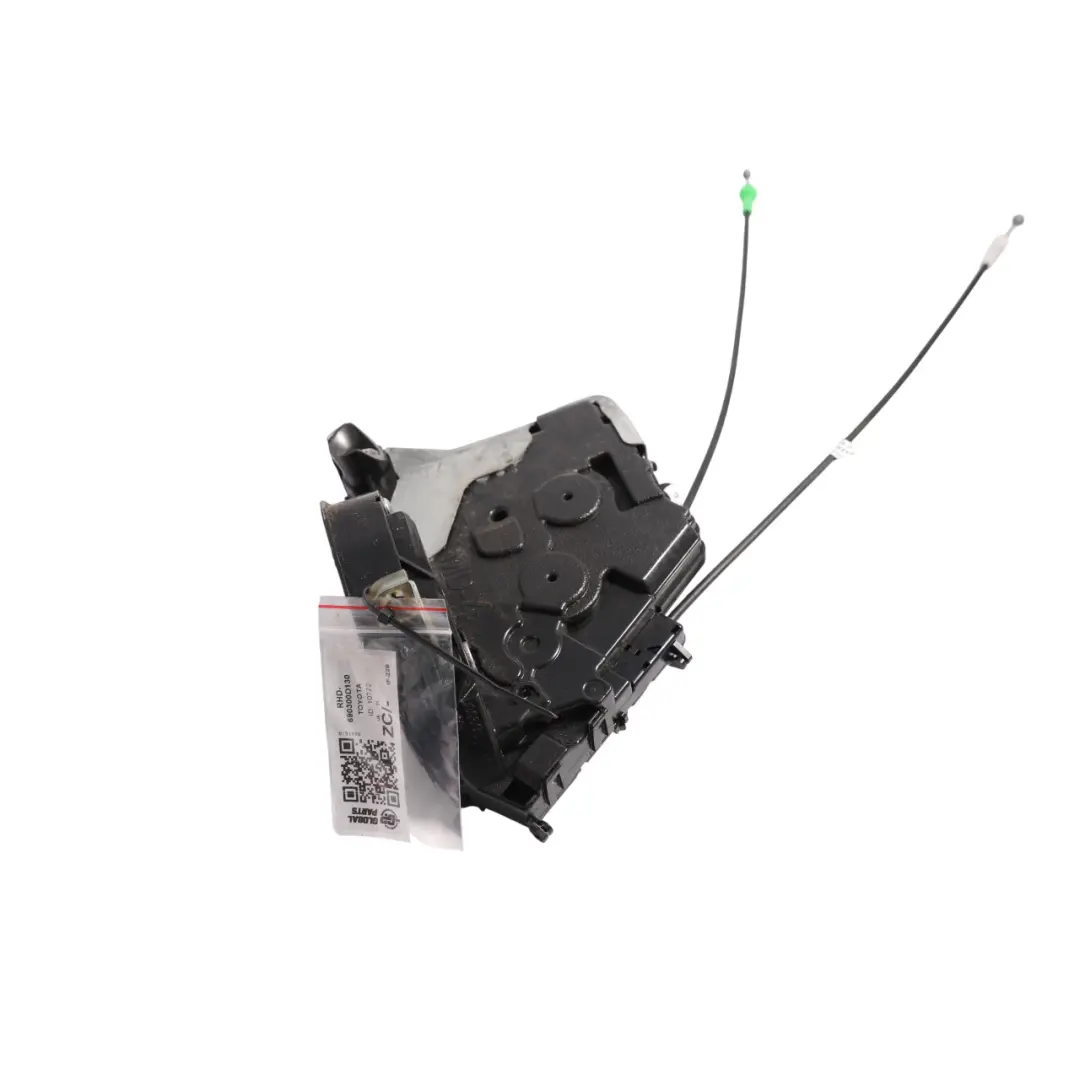

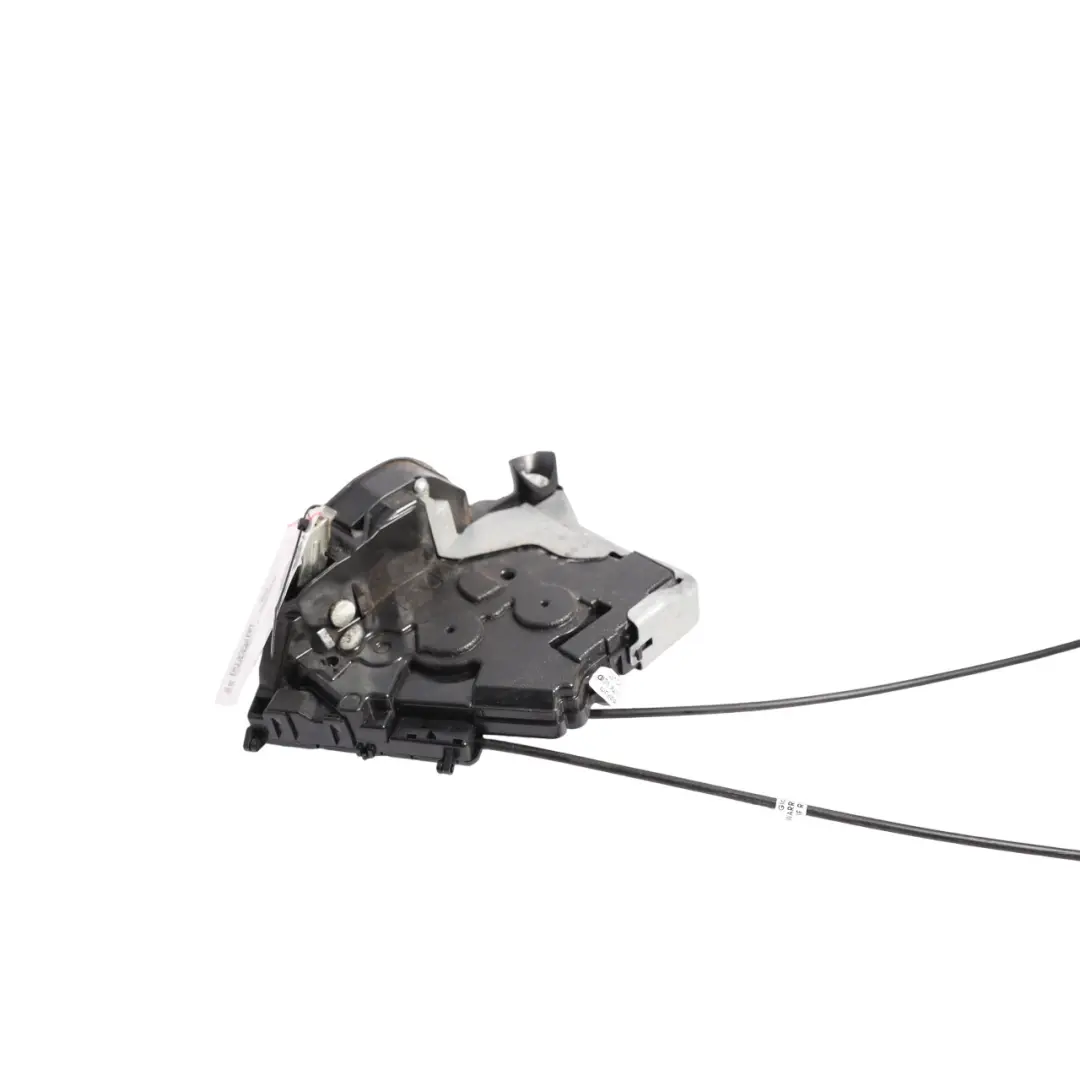

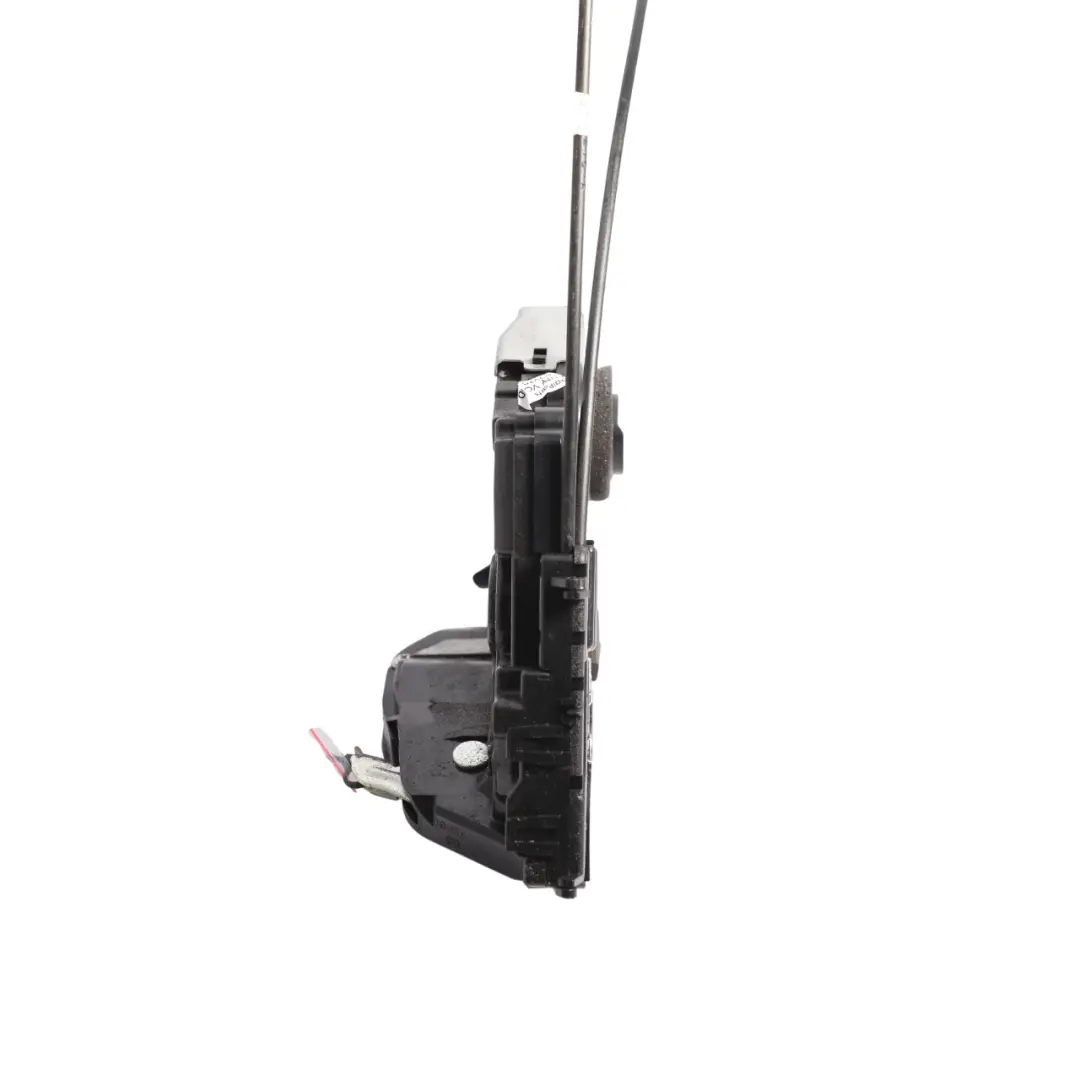

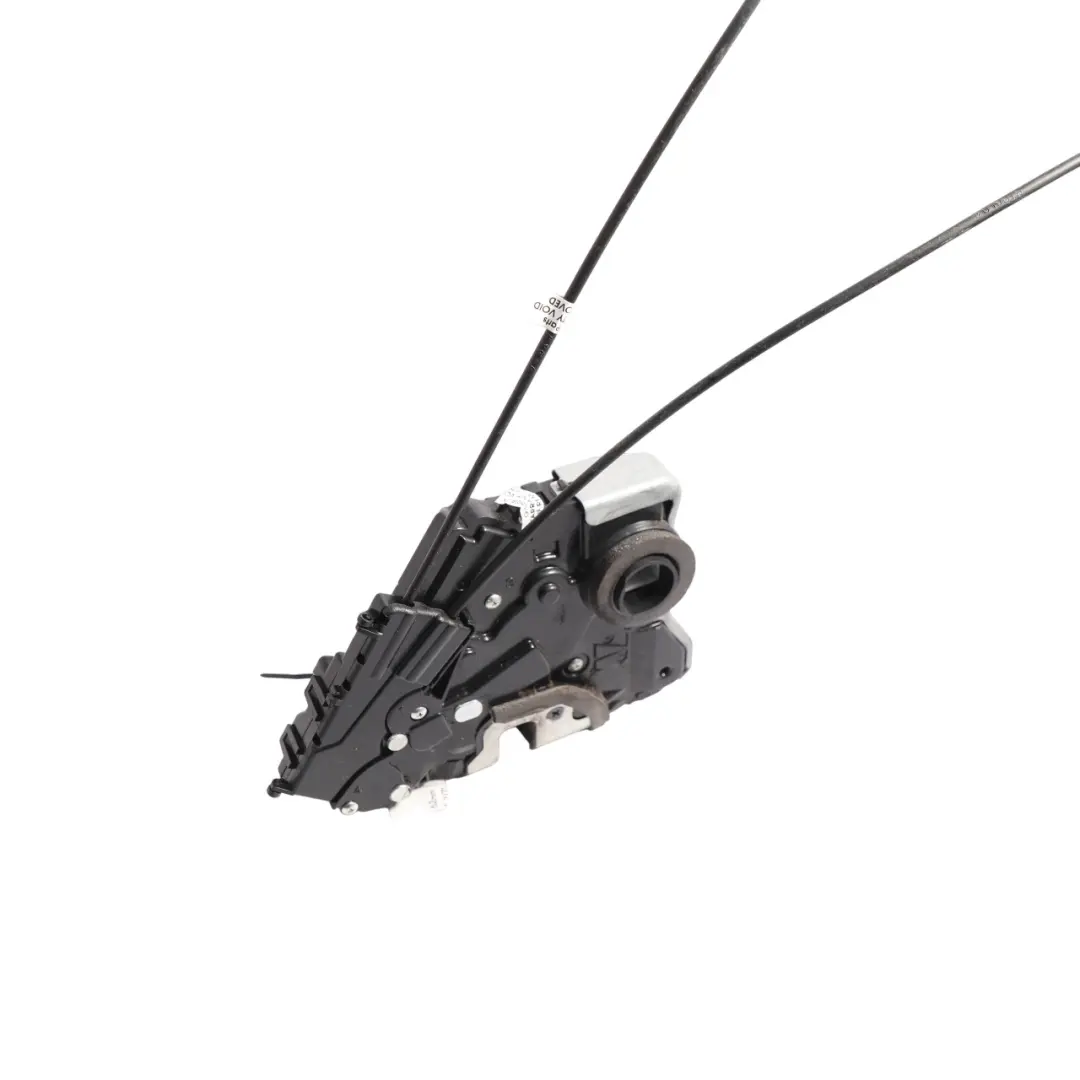

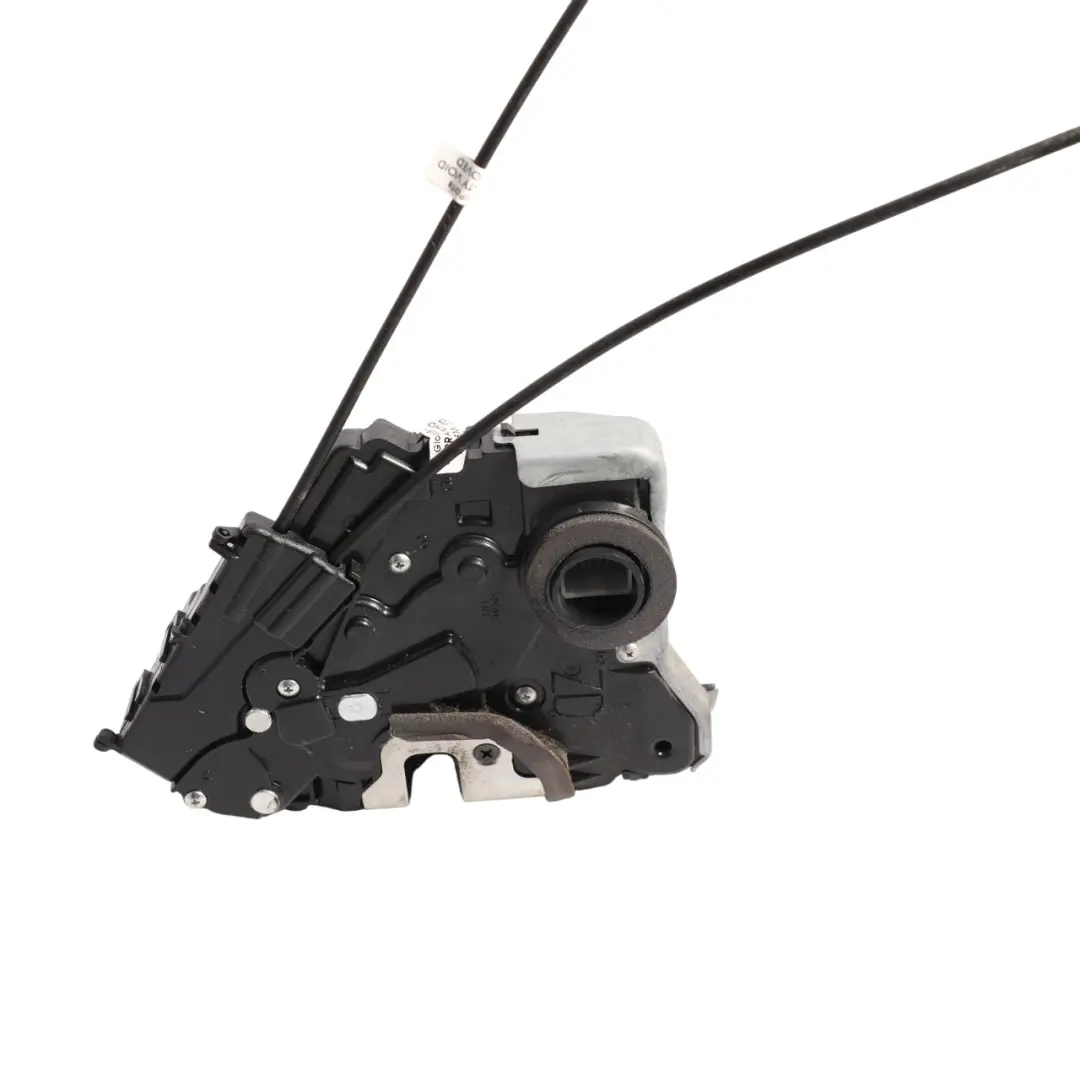

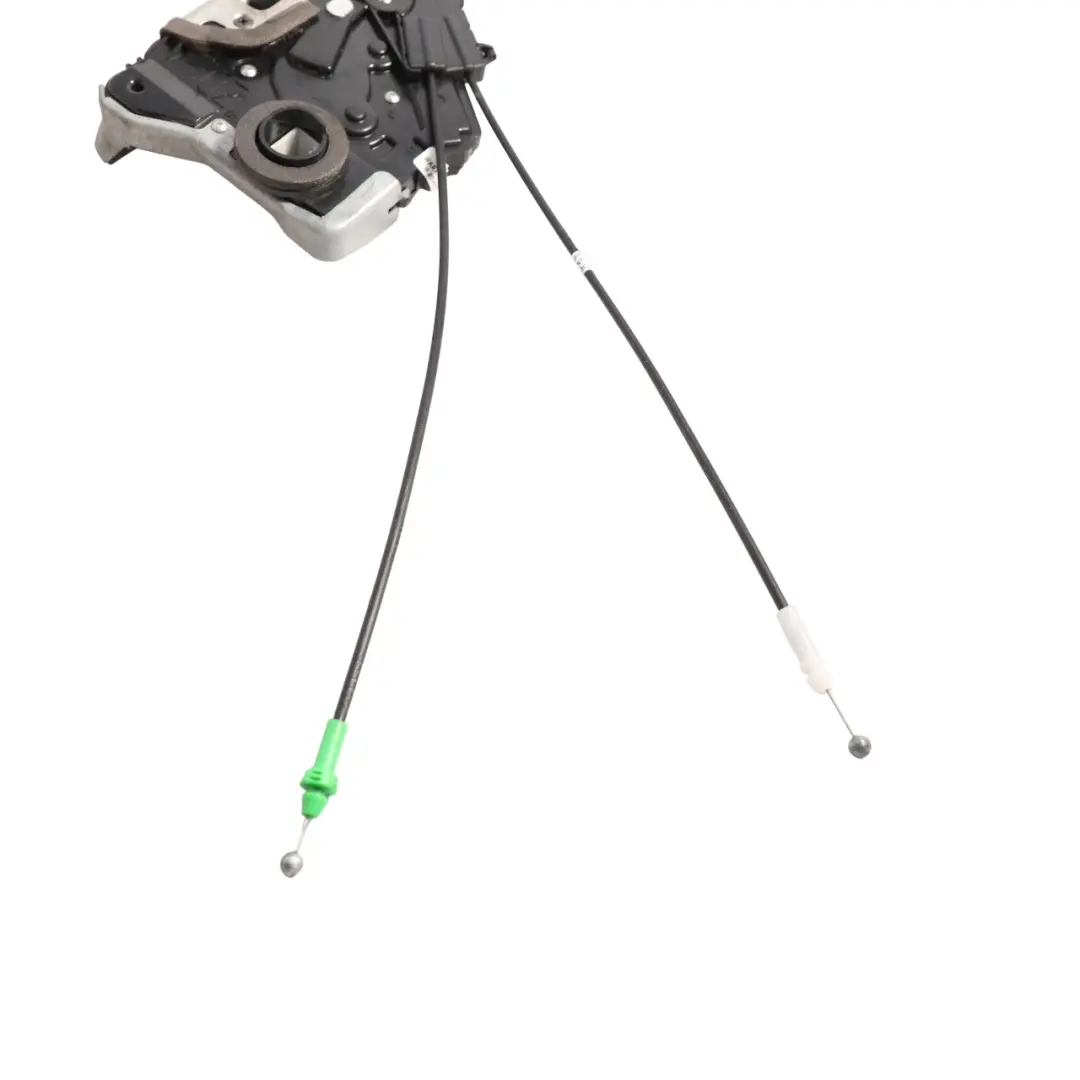

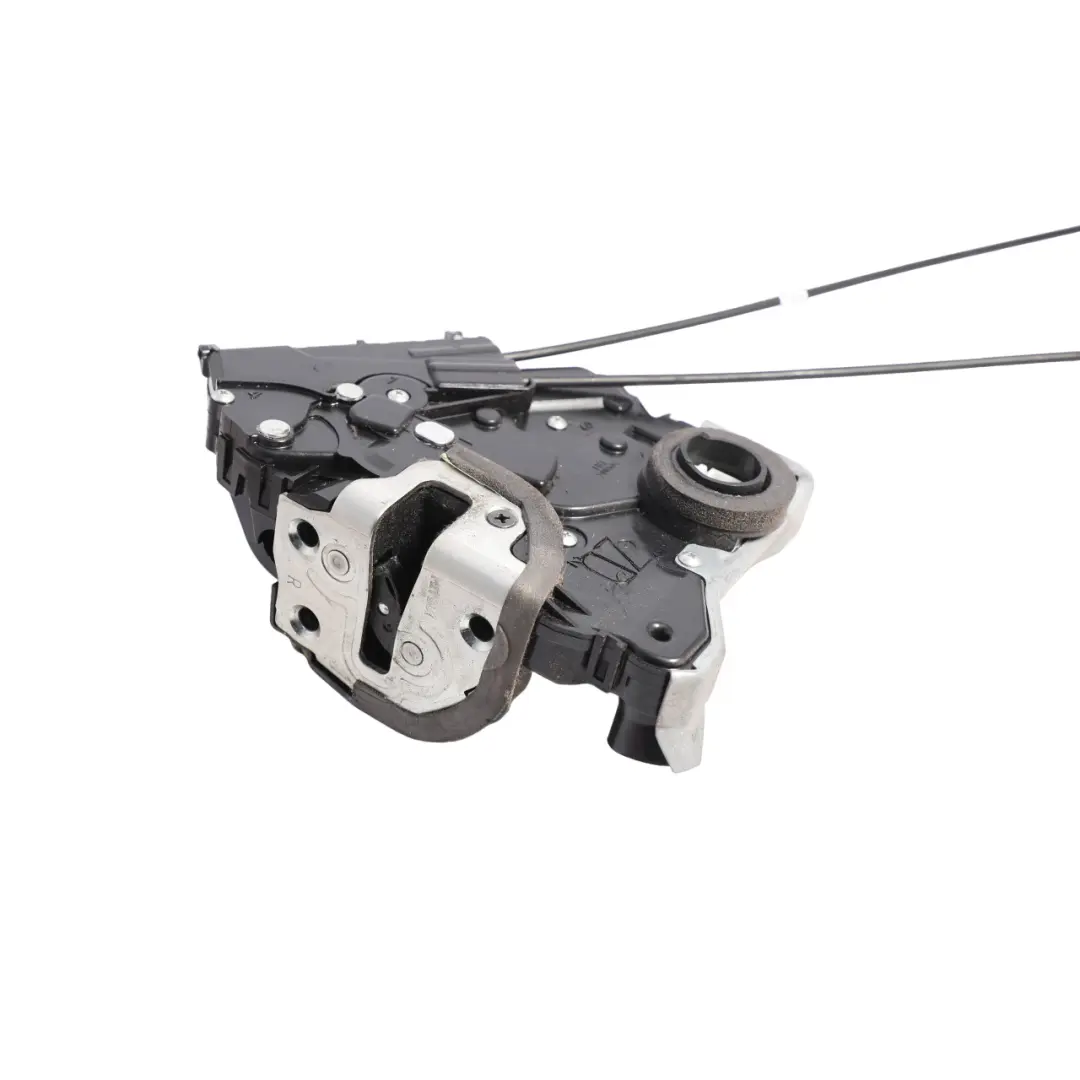

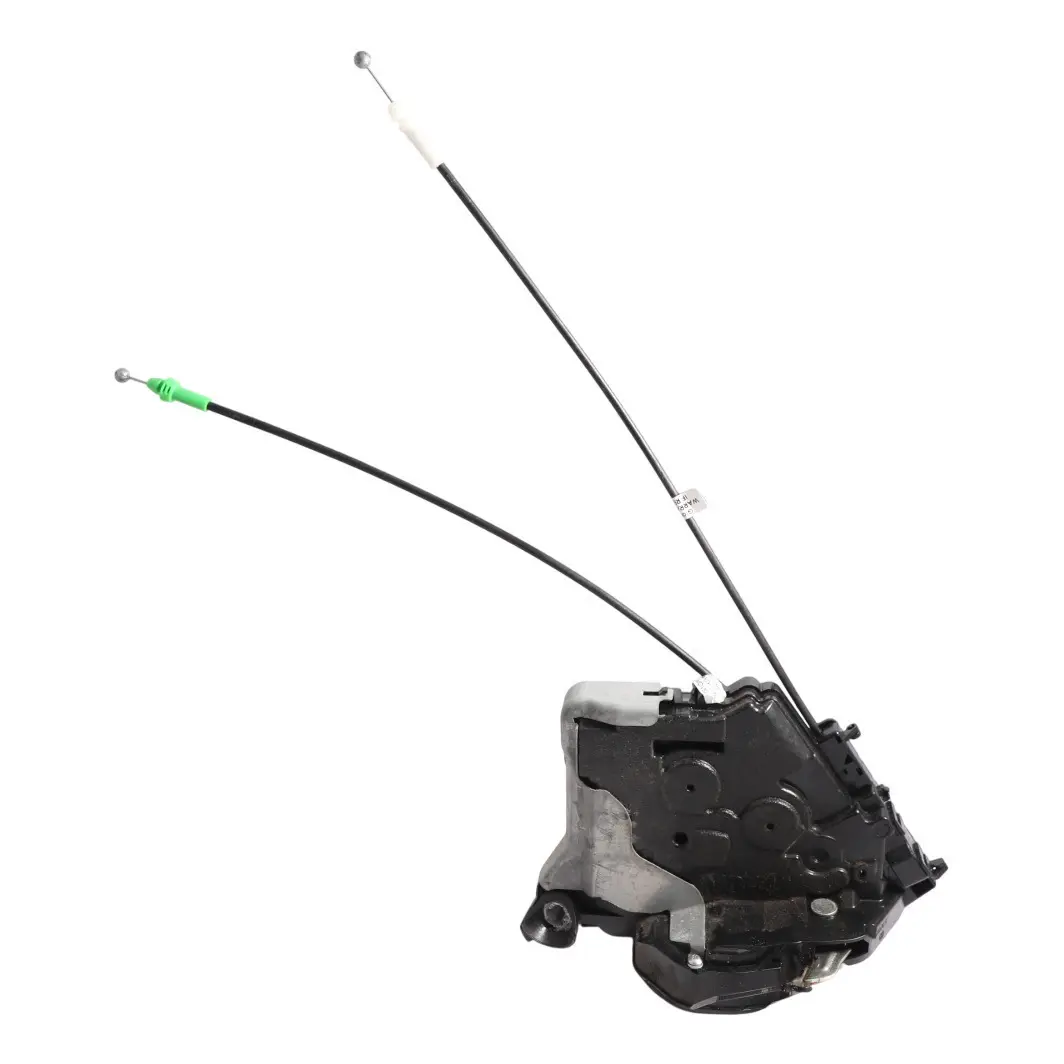

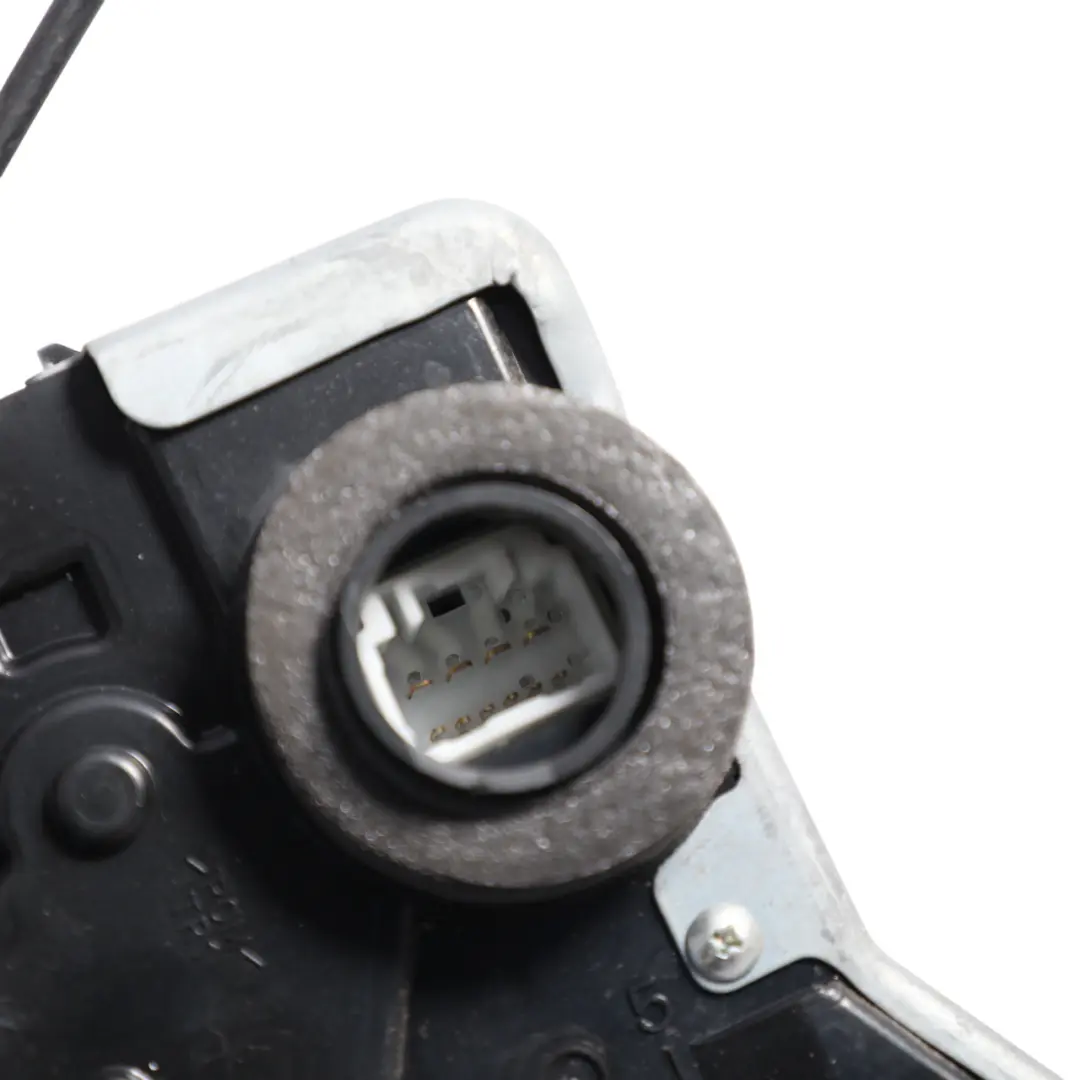

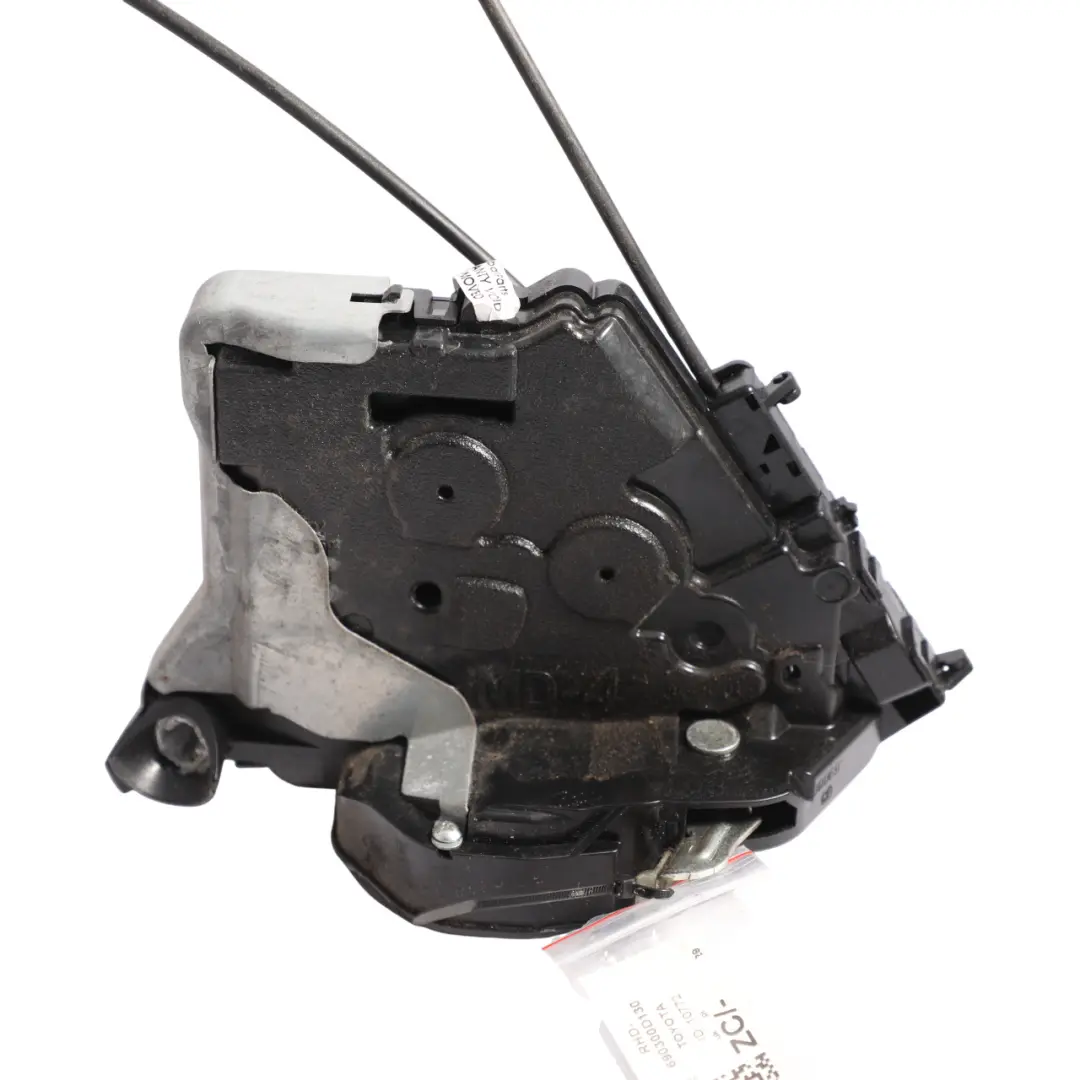

Toyota Yaris Mk2 Door Lock Latch Catch Mechanism Front Right O/S 69030-0D130

Toyota Yaris Mk2 Door Lock Latch Catch Mechanism Front Right O/S is a factory-original locking mechanism designed for installation on the driver's side in right-hand drive models. This component from the Locks and Latches category is responsible for securely closing the door, proper locking, and seamless integration with the vehicle's factory opening and closing system, ensuring stable door operation during daily use.

Specifications and technical data

• SKU: RHD-690300D130
• Mark: Toyota
• Condition: Used
• OEM Part Number: 690300D130
• Substitutable numbers: 690300D130, 69030-0D130
• Location on the vehicle: Front, Right
• Part type: Door Lock
• Category: Exterior Locks & Lock Hardware

Purpose and function in the door system

The presented lock mechanism is dedicated to the front right door of the second-generation Toyota Yaris, mounted on the exterior side of the vehicle. It is responsible for:

• mechanically locking the door wing against the body pillar,
• stably maintaining the door in a closed position while driving,
• proper cooperation with the exterior and interior door handles,

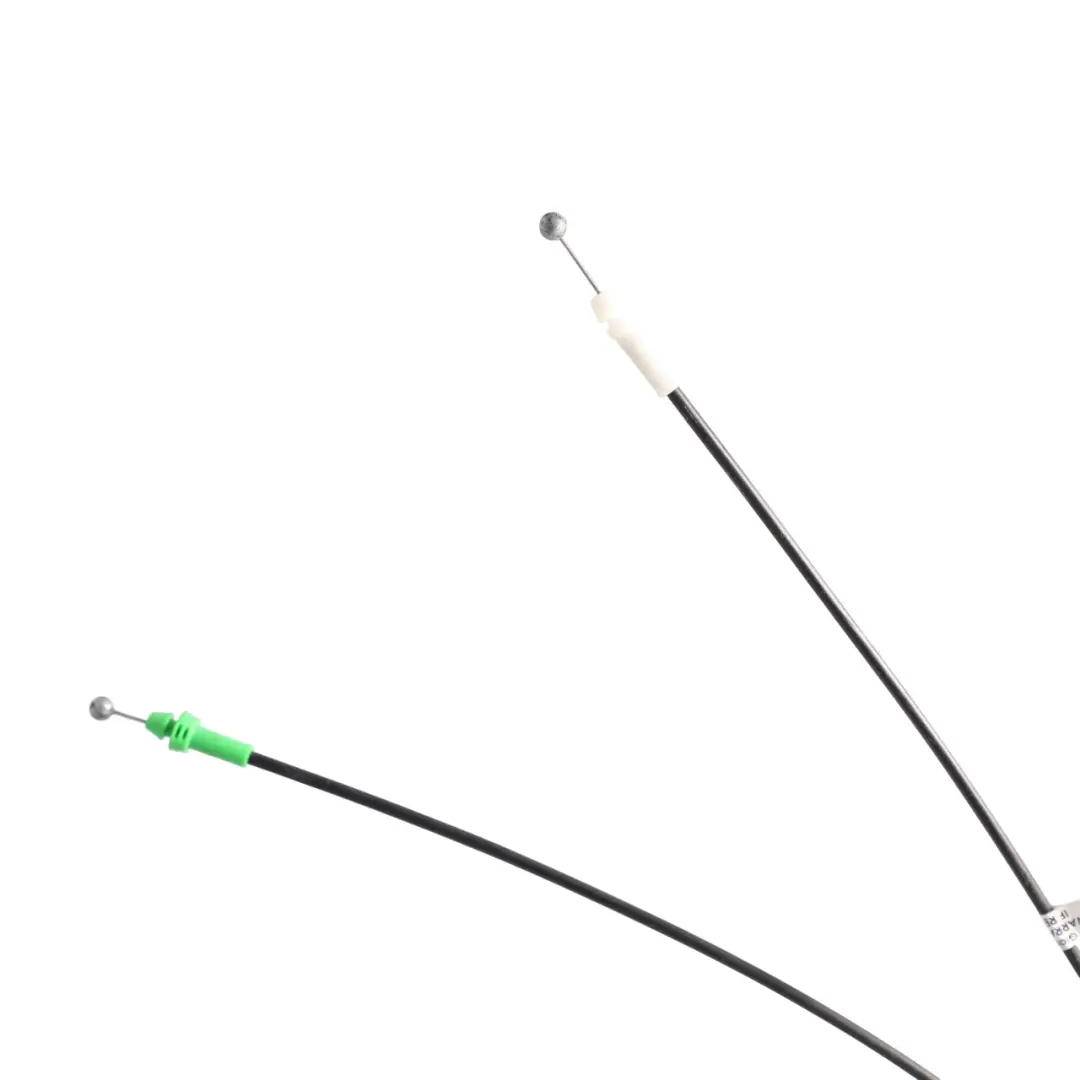

• transferring movement from the control rods and cables to the lock latch. By maintaining the original geometry and mounting points, the lock allows for precise fitting with the door structure, which reduces the risk of play, rattles, and leaks around the seal.

Construction and fitment for Toyota Yaris Mk2

The lock mechanism was designed by the vehicle manufacturer with the specific Yaris Mk2 door construction in mind. This means that:

• the arrangement of mounting holes is consistent with the factory door panel,
• the shape of the housing is adapted to the internal reinforcements,
• the anchor point for the striker on the body pillar corresponds to the original factory position,
• the mechanism works with factory control rods and levers. Such fitment facilitates installation and allows for the preservation of the original door operating parameters, including closing force and locking repeatability.

Characteristics of the used component

The offered lock comes from dismantling and is a used part, which in practice means that it has already been in service in a vehicle but retains the functionality required for further use. This type of part is a good choice in situations where:

• the original lock in the vehicle has suffered mechanical wear or damage,
• an economical door repair is necessary while maintaining the factory design,
• you want to maintain consistency with the original locking system. Choosing a used OEM component allows for reduced repair costs while maintaining compliance with the vehicle's factory design.

Application in service practice

The front right door lock mechanism will prove useful both for typical replacement of a damaged part and for more extensive body and paint work after a collision. It is particularly useful when:

• the door does not close properly or bounces back after closing,
• there are problems with locking from the outside or inside,
• it is necessary to replace the complete mechanism after damage to the door structure. Thanks to the preservation of the original design, it is possible to restore proper door operation without the need for modifications to the installation or panel elements.

Modernization expansion and technical knowledge

If you are planning a comprehensive repair or modernization of the door and lock zone in your youngtimer and want to better understand how to use used parts to refresh your car, check out the article The second life of a youngtimer – how used car parts rejuvenate cars from the 1998–2012 model years, where you will find practical modernization scenarios and tips on selecting components. If you are planning a comprehensive repair or modernization of the door zone in your Toyota and need other elements from the same group, such as locking mechanisms, strikers, or control elements, check out the available parts in the Toyota Locks and Latches category.
