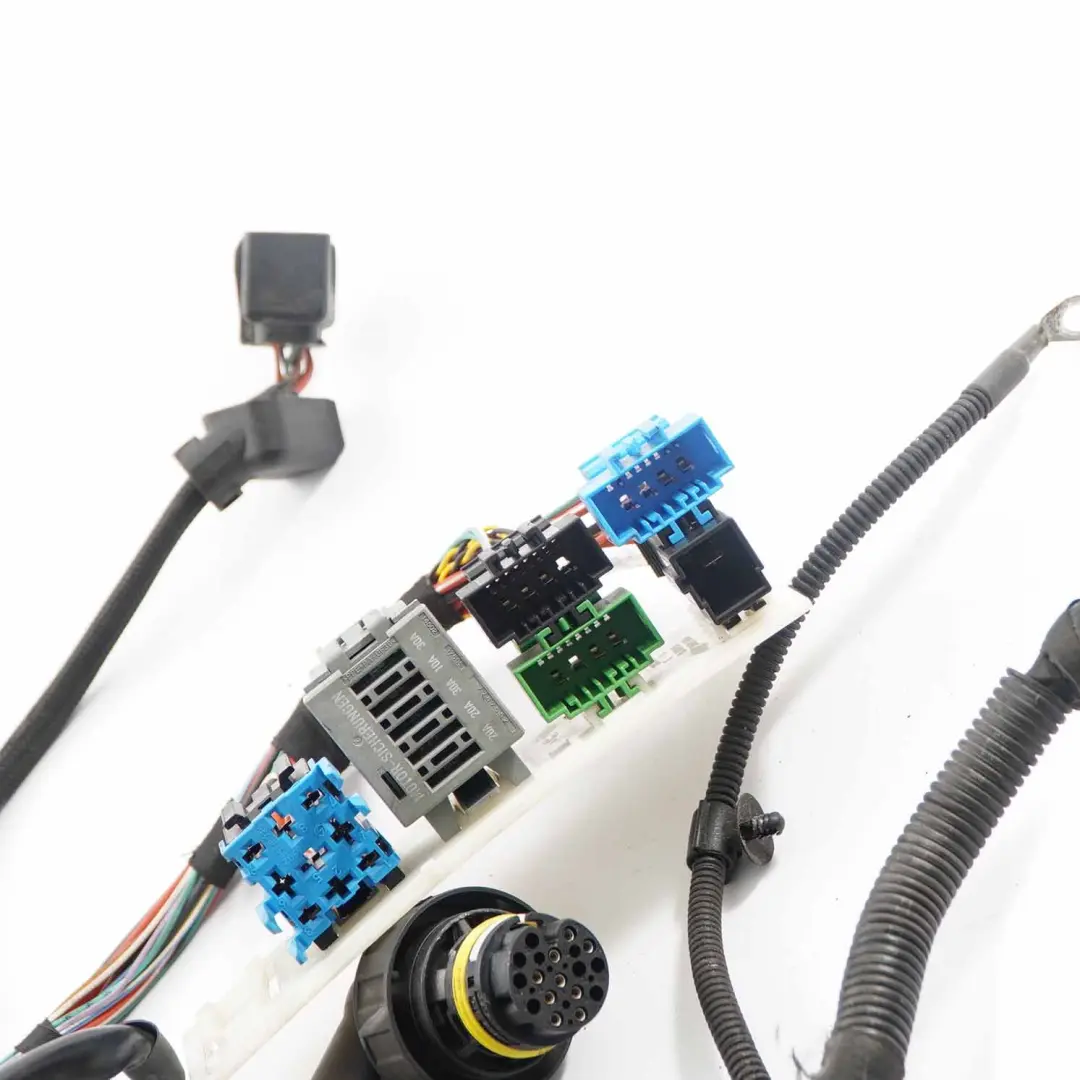

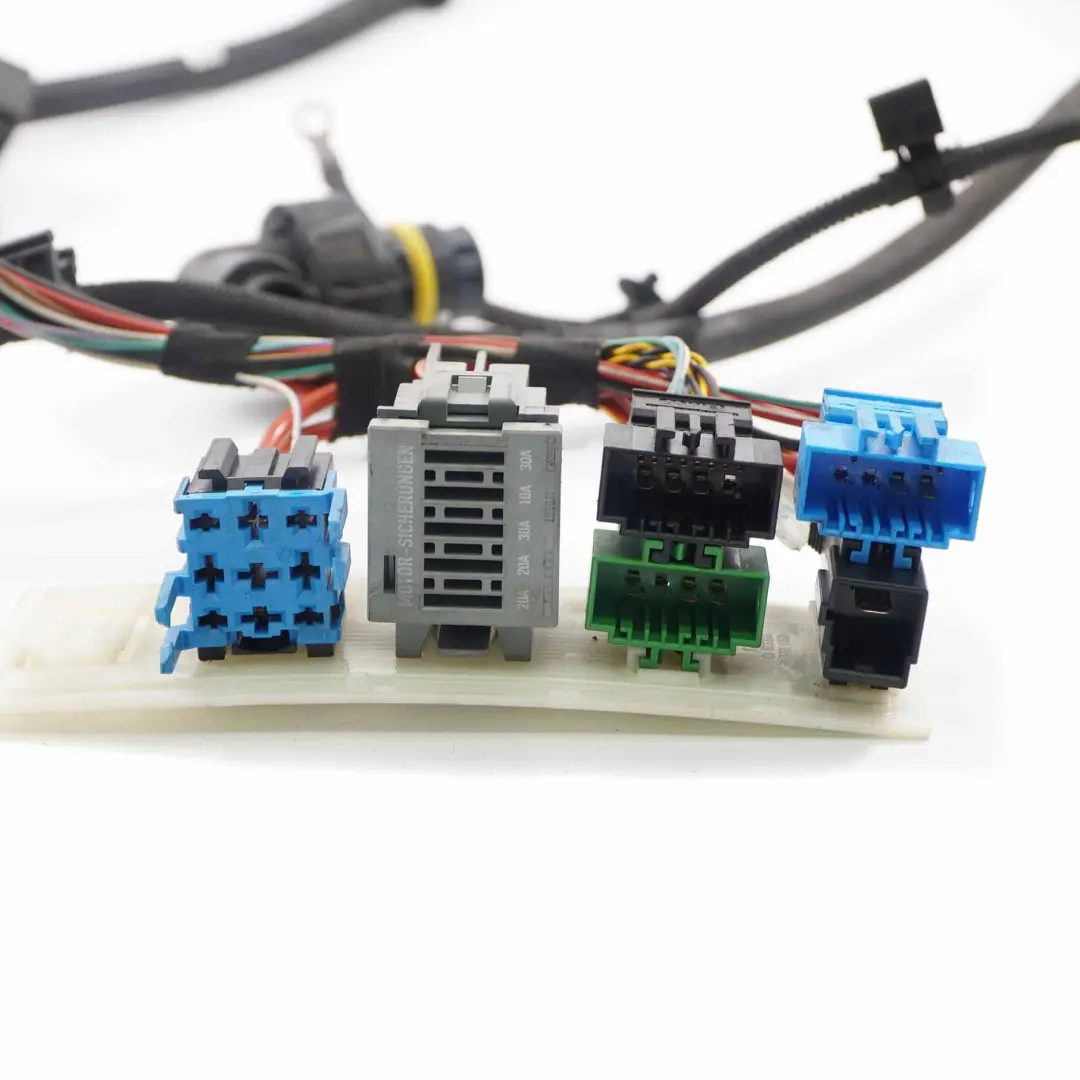

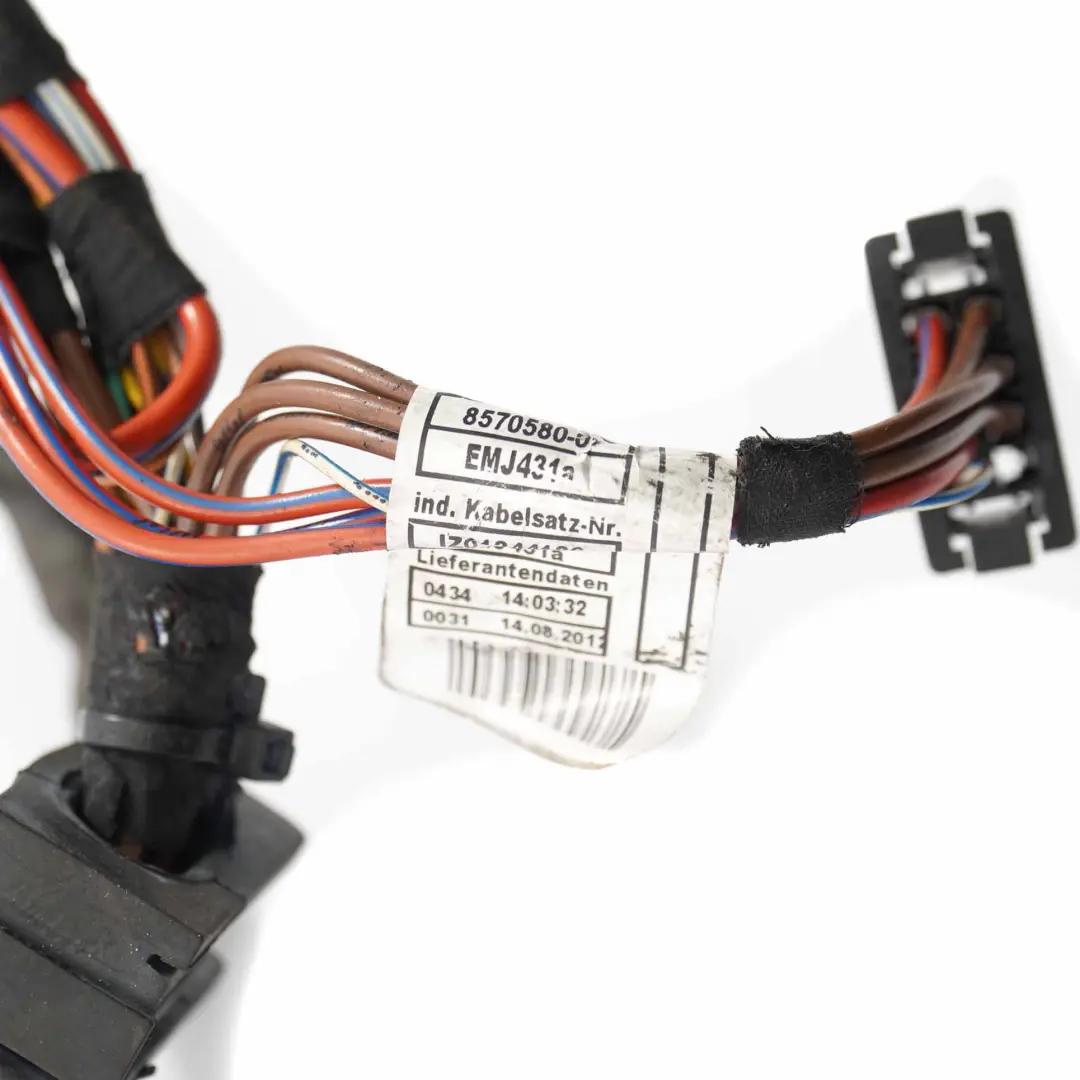

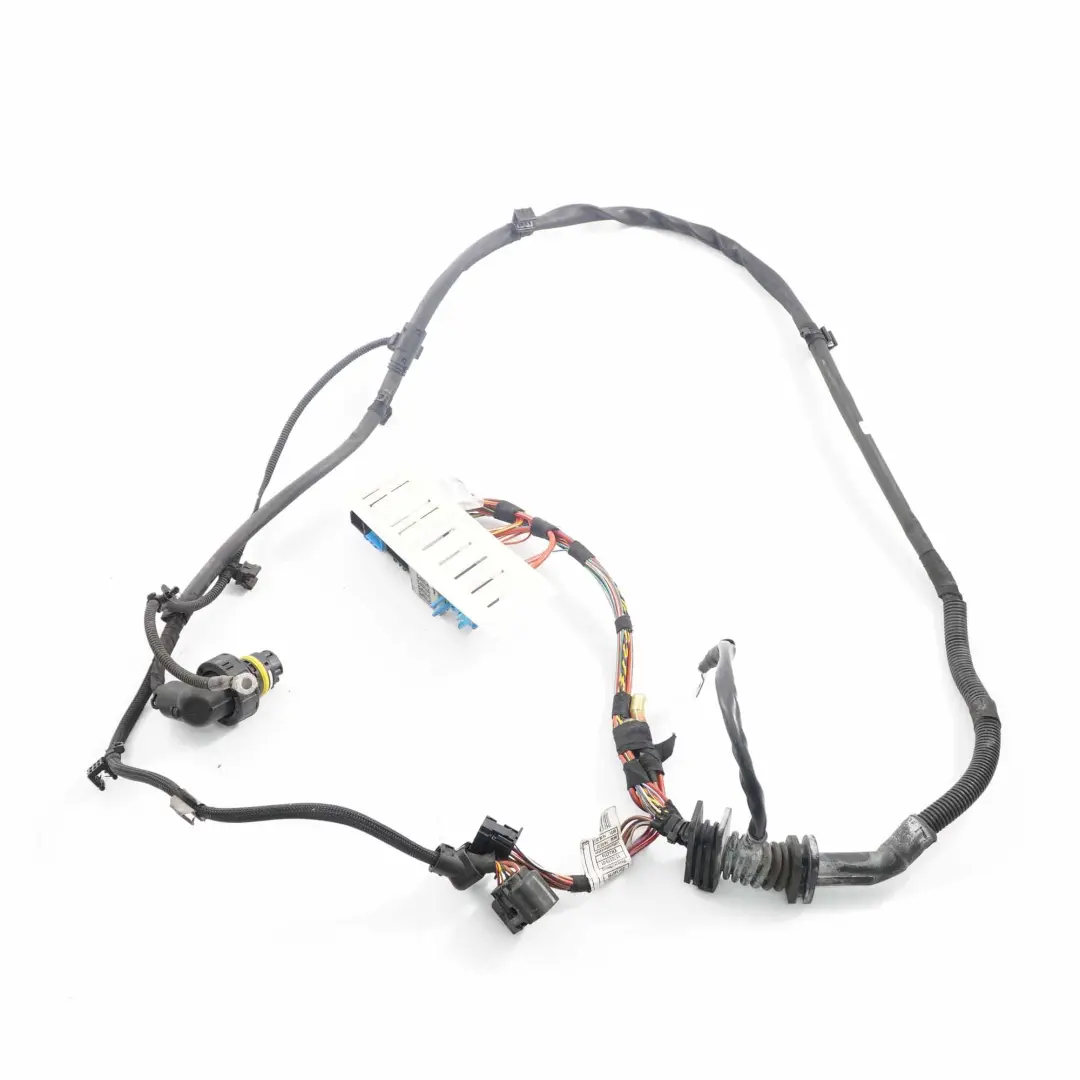

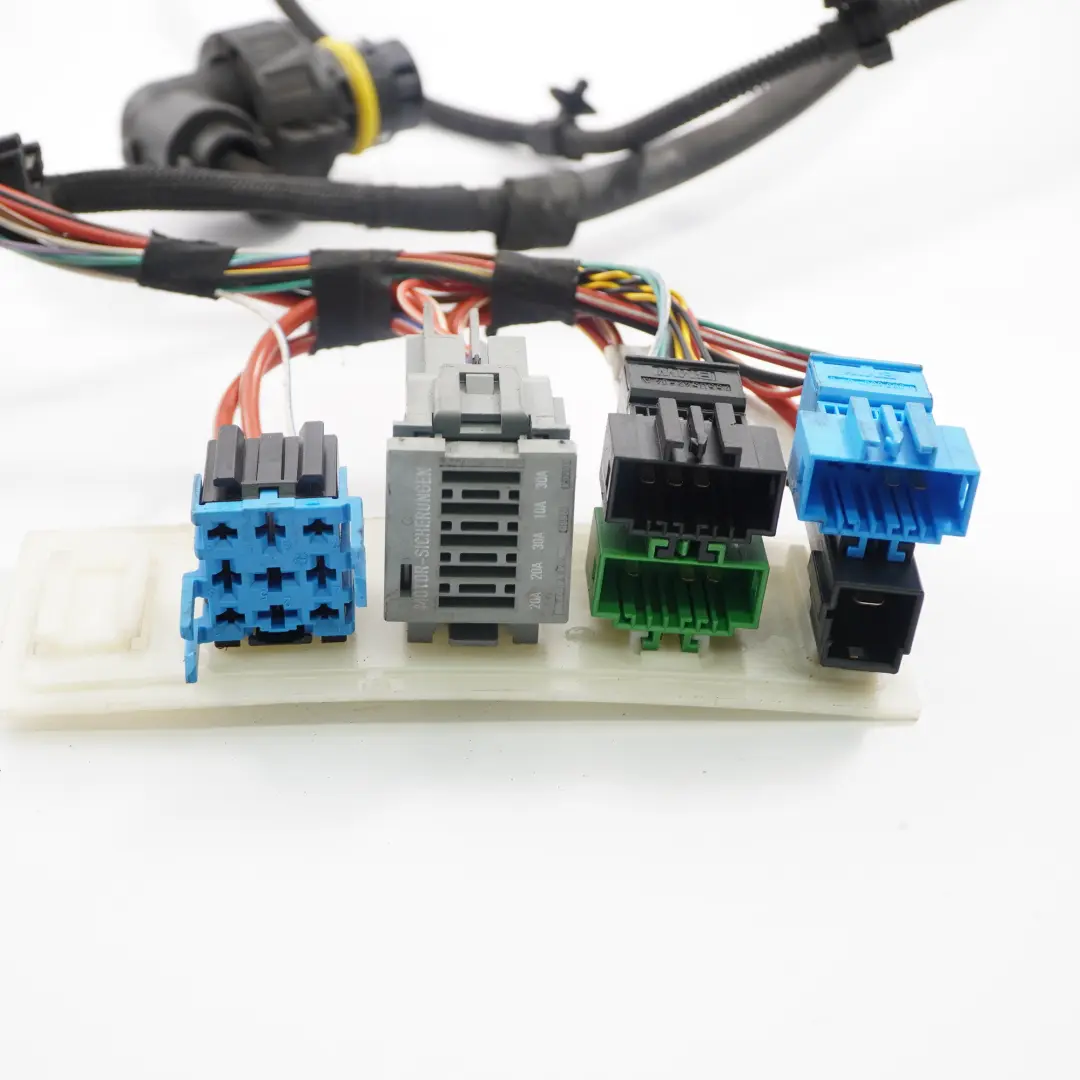

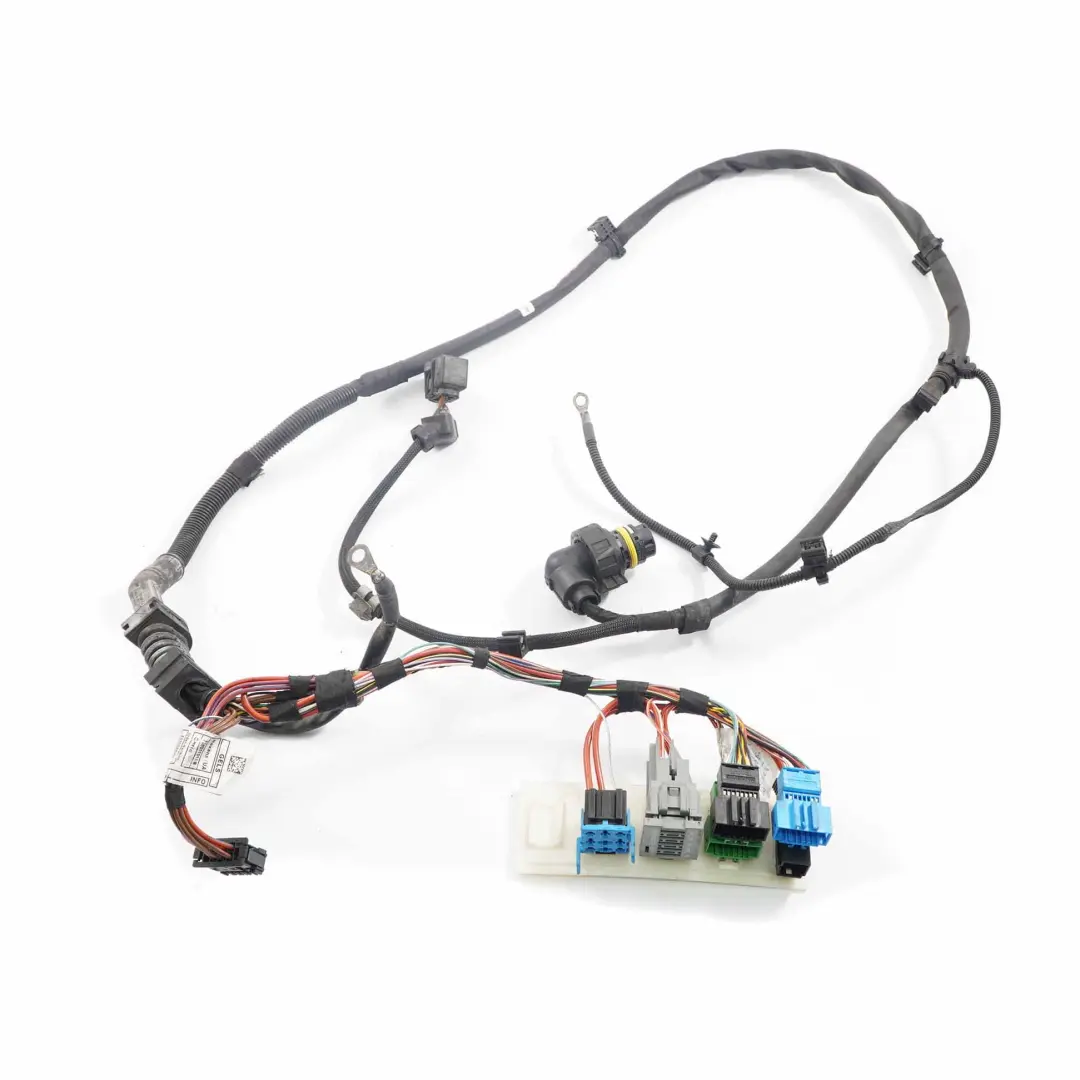

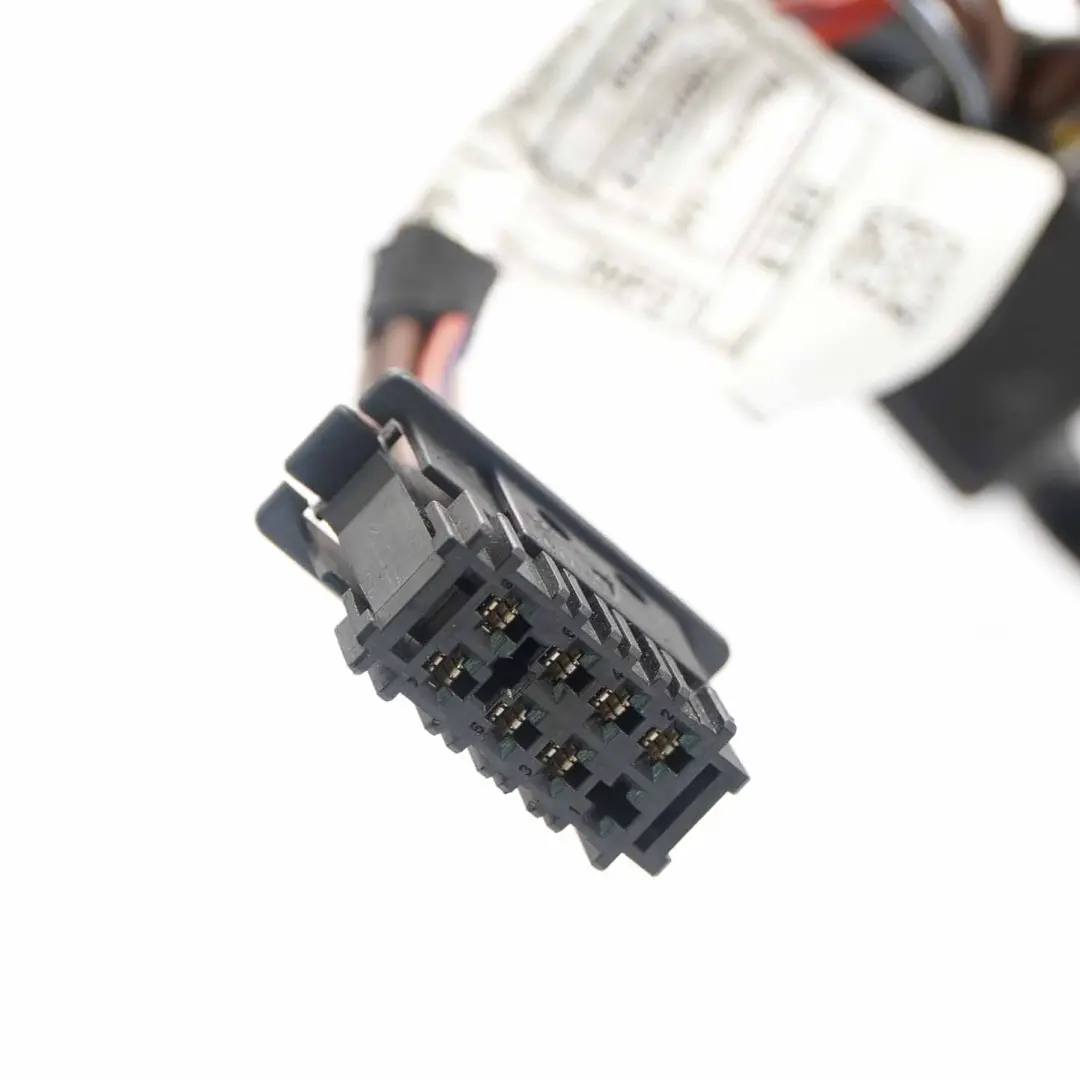

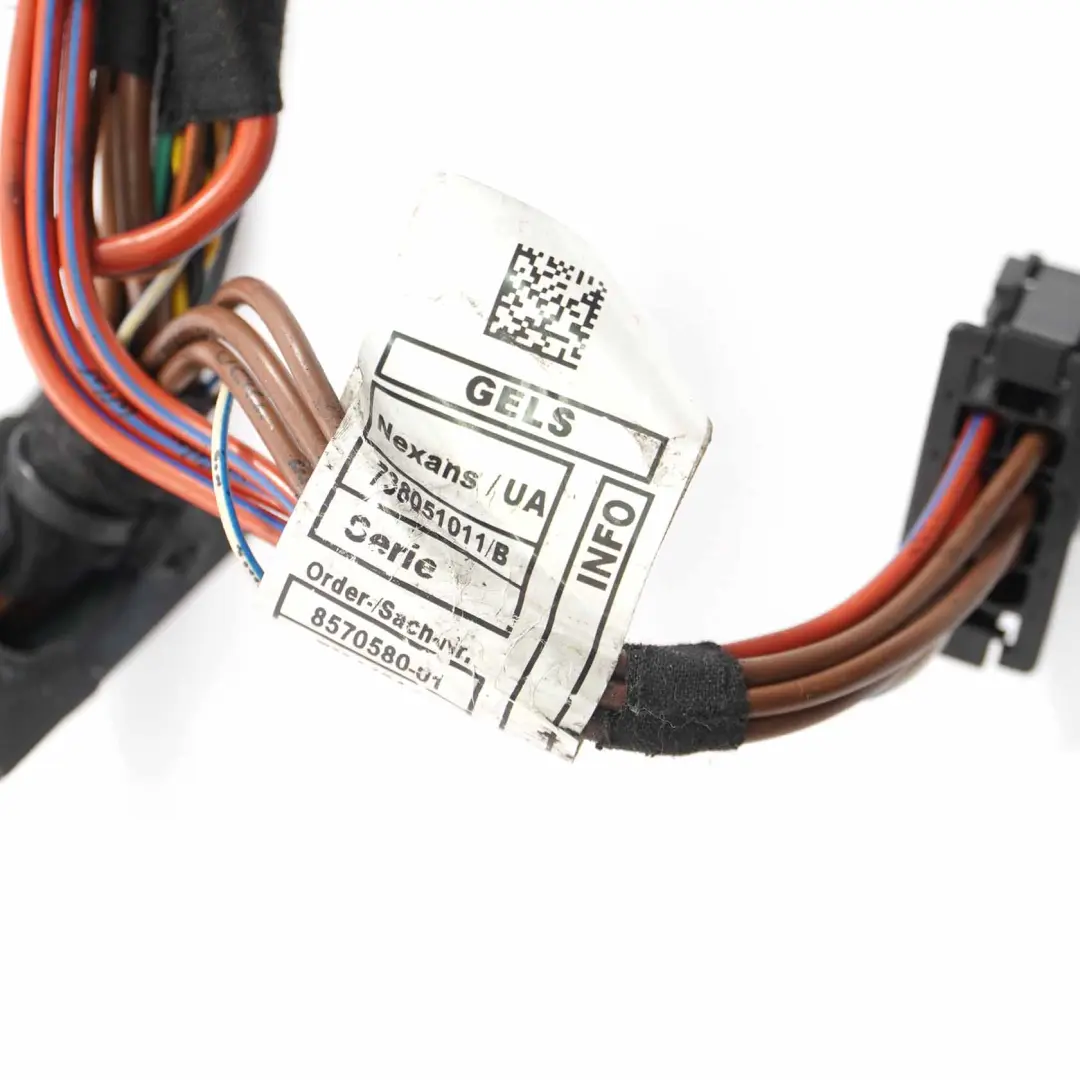

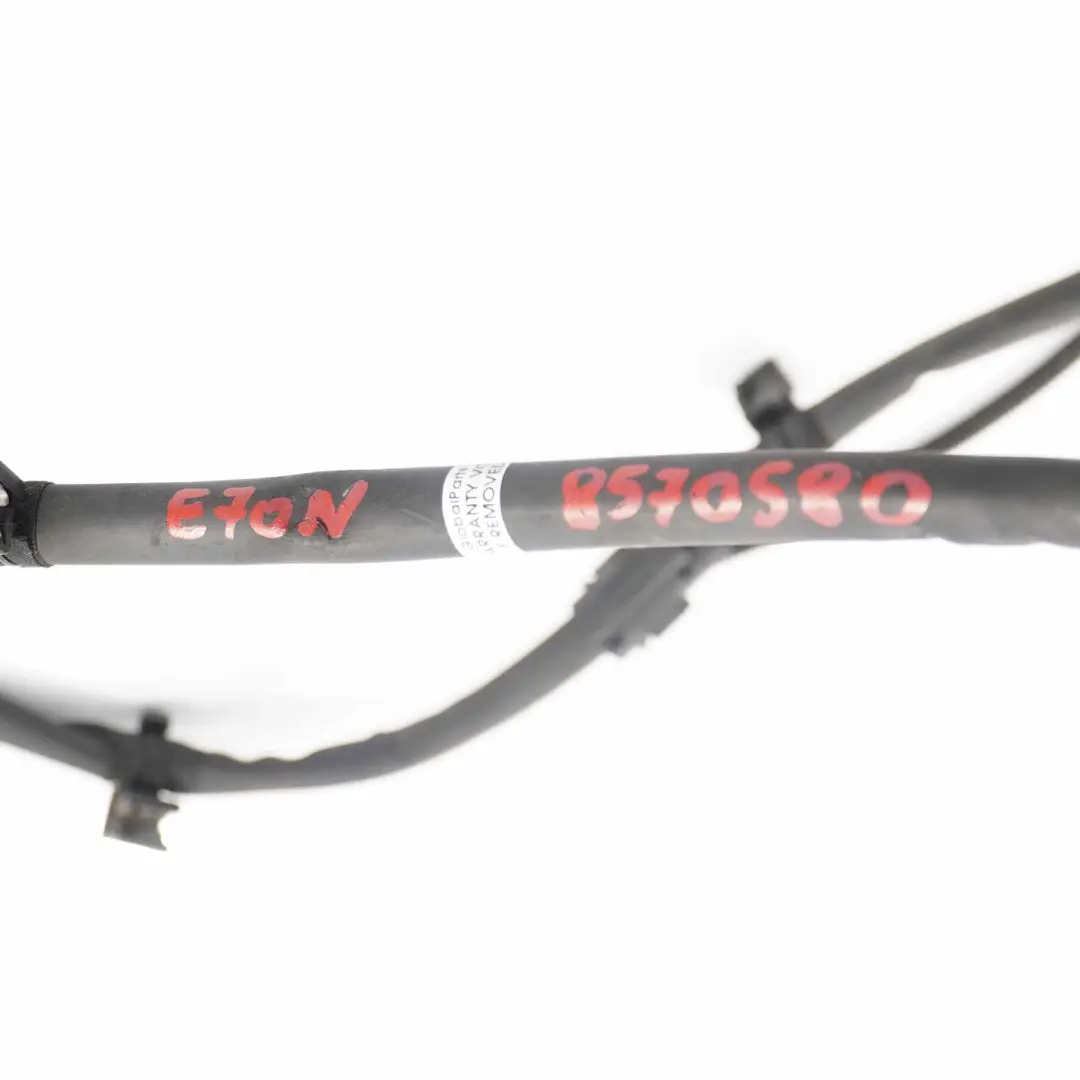

Gearbox Wiring BMW E70 LCI E71 N57 N57S Engine Loom Harness Cables 8570580

BMW E90 335i N54 Engine Wiring Harness 7566525 is a component from the Wires, Harnesses, and Connectors category, designed for the engine system in BMW models with the N54 unit and automatic transmission. It enables proper connection of sensors, actuators, and the gasoline engine control unit, ensuring stable electrical communication within the engine bay. This is a solution for users seeking a proven, original harness for professional repair or replacement.

Specifications and technical data

• SKU: rhd-8570580
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8570580
• Substitutable numbers: 12518570580, 8570580
• Fuel type: Petrol
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the Engine Wiring Harness

The engine wiring harness in BMWs with the N54 unit is responsible for distributing power and control signals between the engine control unit, sensors, and actuators. A correctly selected harness is crucial for:

• stable operation of the gasoline engine across the full range of loads,
• proper cooperation with the automatic transmission,
• maintaining the factory operating parameters of the powertrain,
• limiting errors stored in the control unit's memory.

By preserving the original connection architecture, the BMW E90 335i N54 engine wiring harness ensures compatibility with the vehicle's factory software and configuration.

Construction and Usability Features

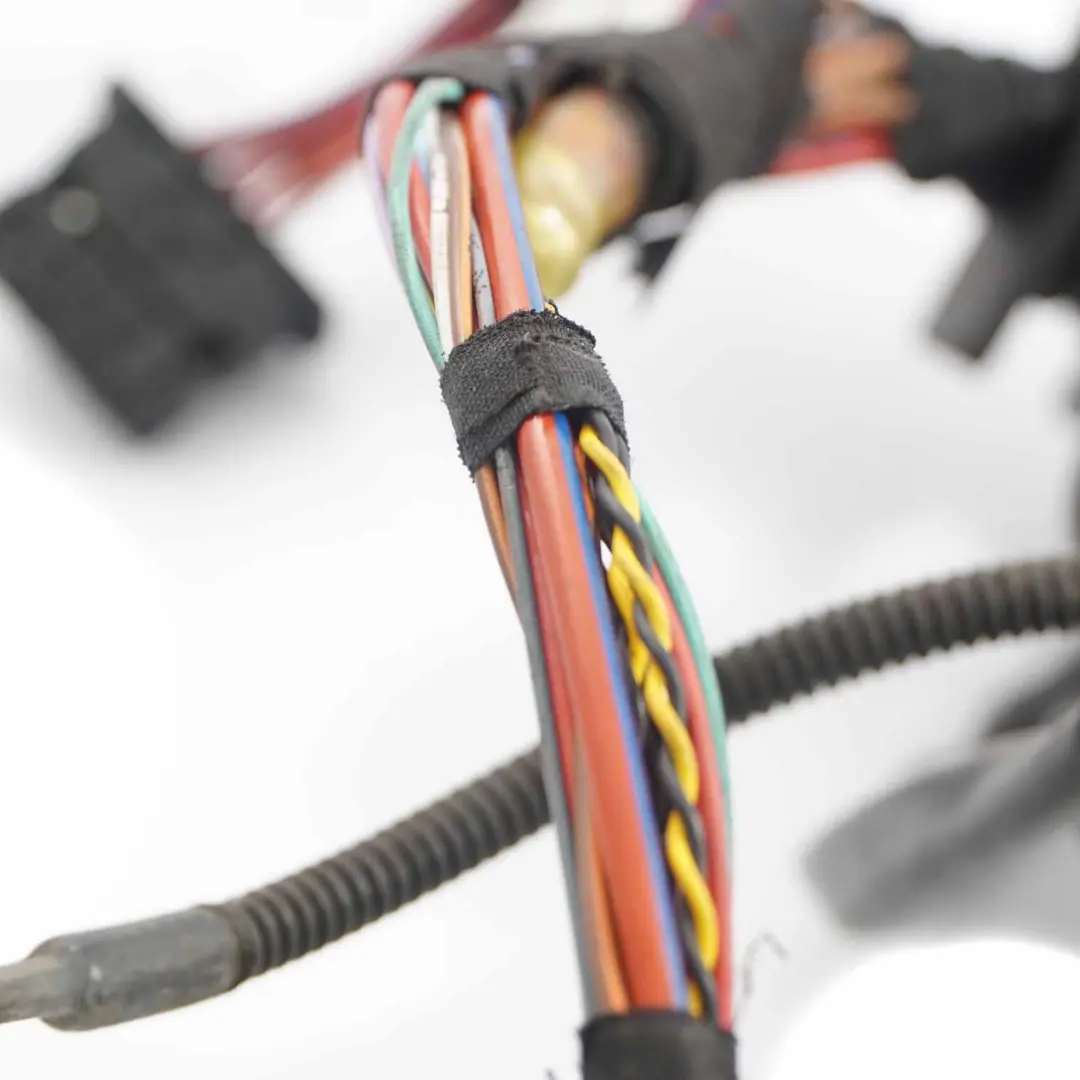

This component belongs to the Wires, Harnesses, and Connectors category, meaning it includes an integrated set of wires and factory connectors matched to the engine's accessories. The harness's construction is designed for:

• proper routing of wires in the engine bay,
• matching the length of sections to individual components,

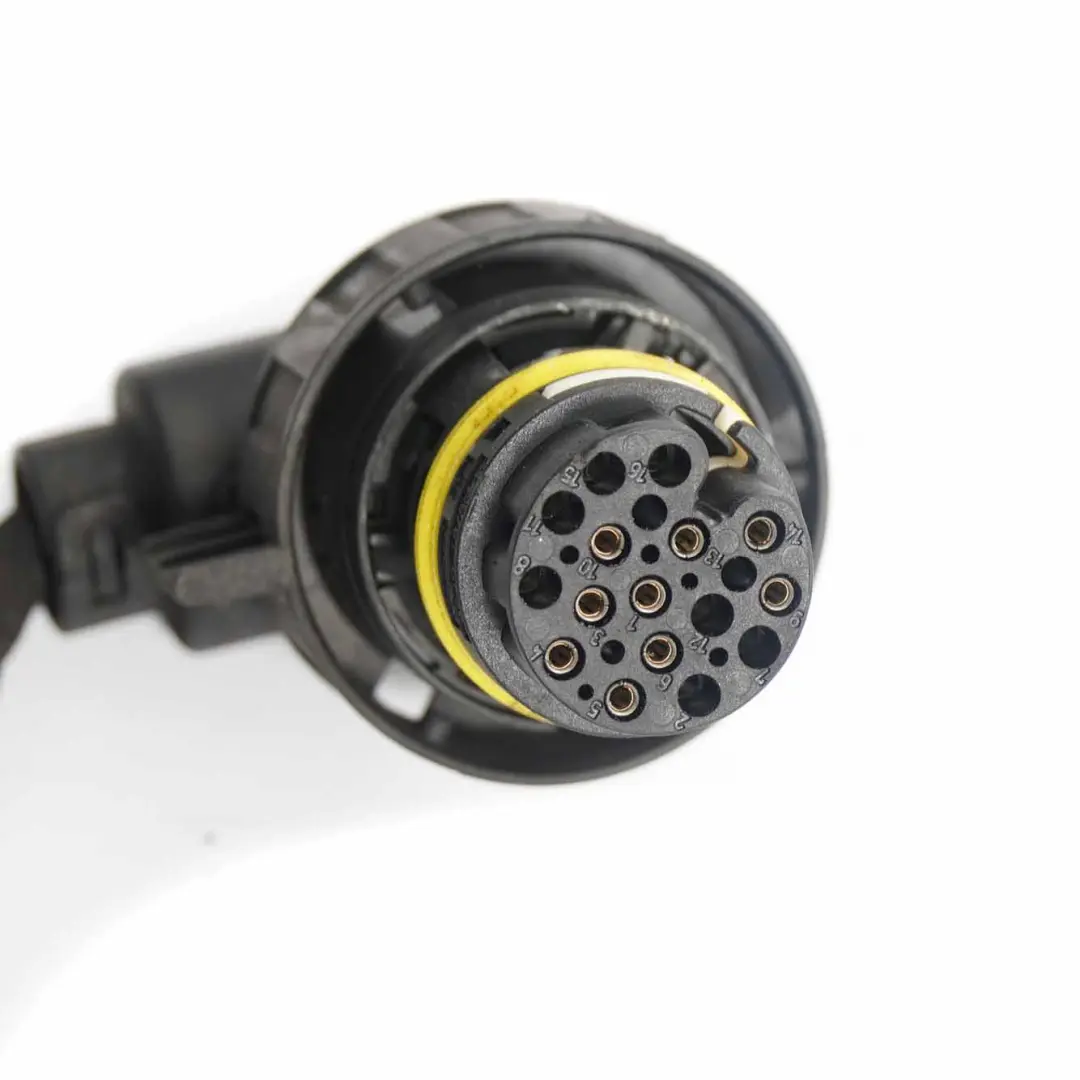

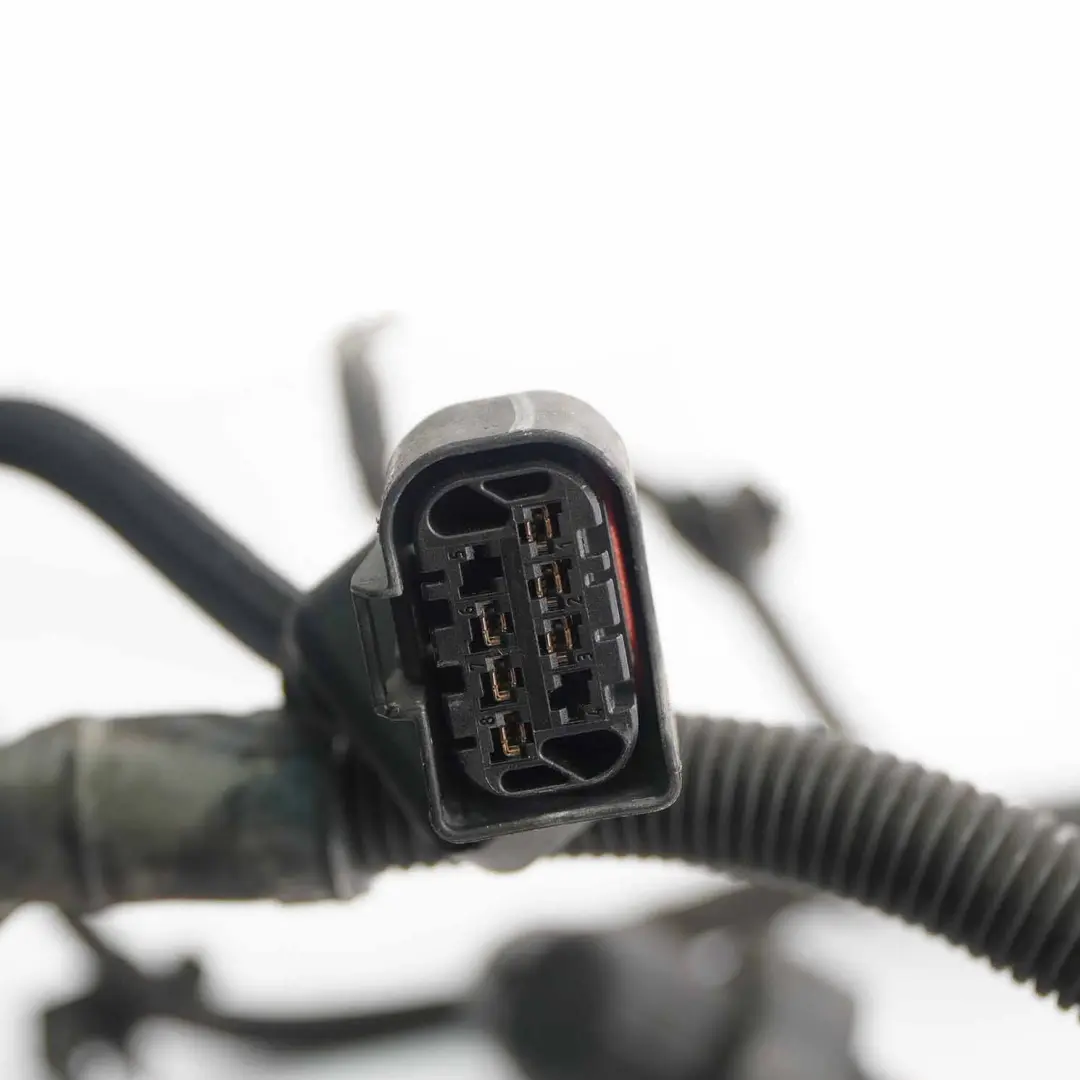

• using connectors compatible with sensors and control modules,
• resistance to typical operating conditions in the engine bay (temperature, vibrations, moisture).

A harness configured in this way facilitates installation and reduces the risk of errors resulting from incorrect connection of individual system components.

Powertrain Compatibility

The presented harness is designed for a gasoline engine working with an automatic transmission, which is important when selecting the correct component for a specific vehicle configuration. Using the right harness:

• supports correct communication between the engine control unit and the modules responsible for gear changes,
• facilitates computer diagnostics due to compliance with the factory wiring diagram,
• reduces the risk of starting problems, jerking, or uneven engine operation.

For BMW drivers who expect consistency with the original vehicle configuration, using a dedicated harness for this engine and transmission version is particularly beneficial.

Condition, Origin, and Service Application

The engine wiring harness comes from the BMW product line and is a used part, making it an attractive cost-effective alternative to new components. This type of component is often chosen by professional workshops and discerning users who:

• seek parts that comply with factory specifications,
• want to restore full functionality to the engine system after mechanical or thermal damage,
• are modernizing or reconstructing the powertrain based on original solutions.

Using an original harness helps limit the need for installation modifications, leading to a more predictable service process and easier quality control of the performed work.

BMW Wires, Harnesses, and Connectors – Selecting the Right Components

If you need other components from the Wires, Harnesses, and Connectors category dedicated to this brand, it's worth checking the available BMW Wires, Harnesses, and Connectors to select components matched to the specific model and engine version. The correct selection of this group of parts directly impacts the reliability of the electrical system and the comfort of further vehicle operation.
