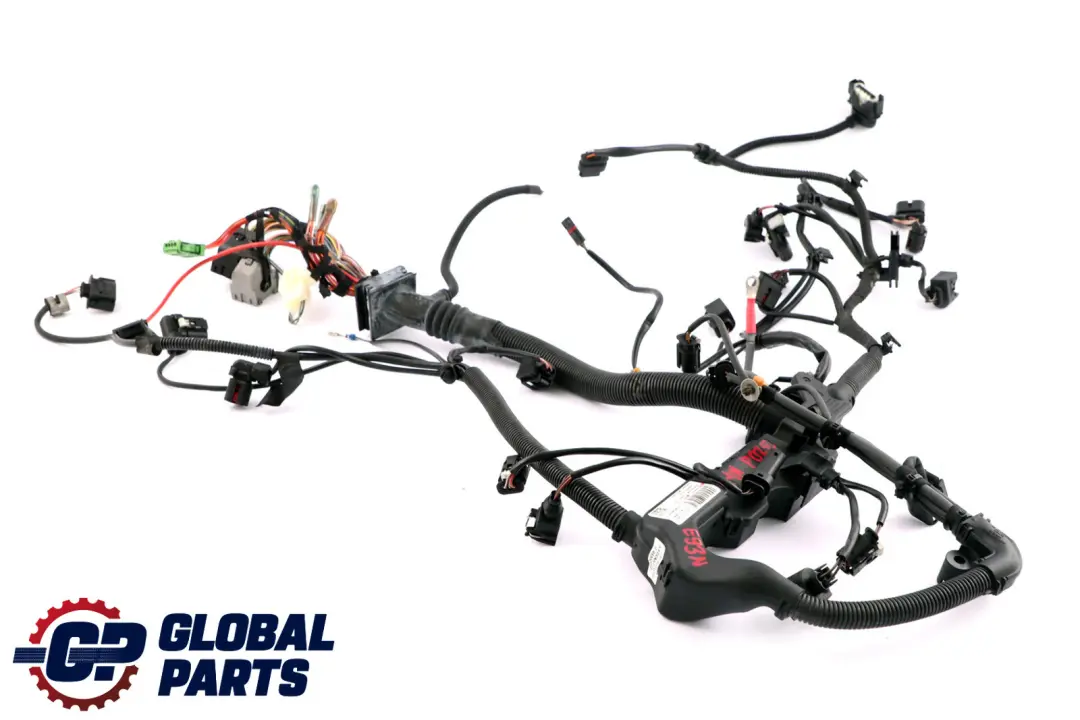

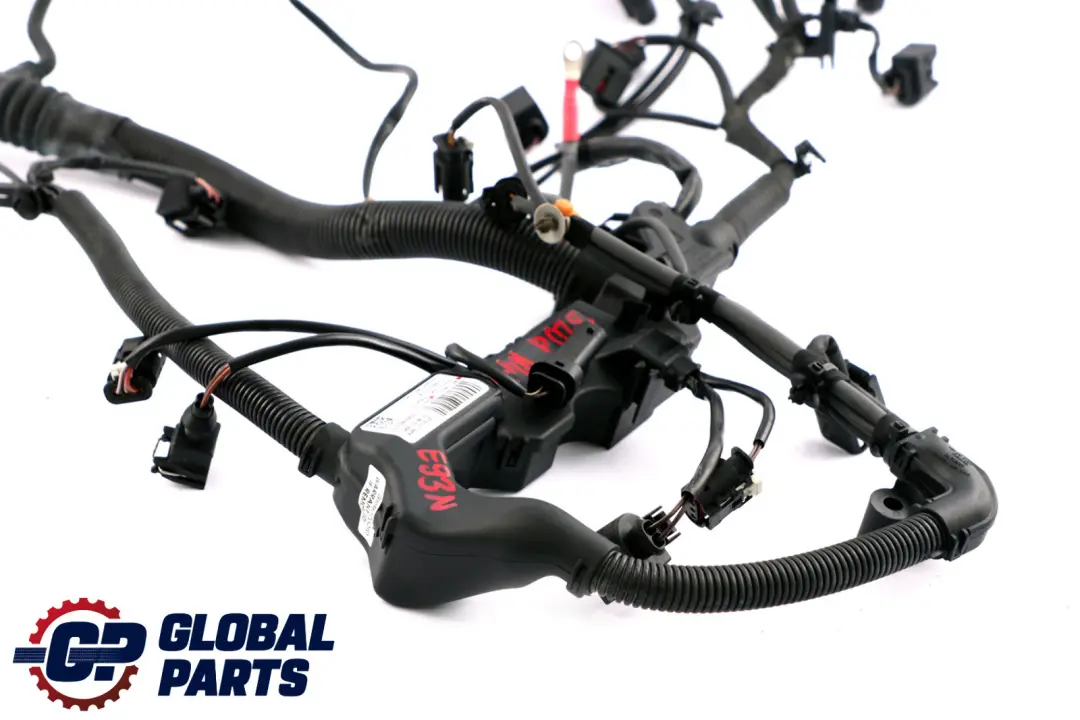

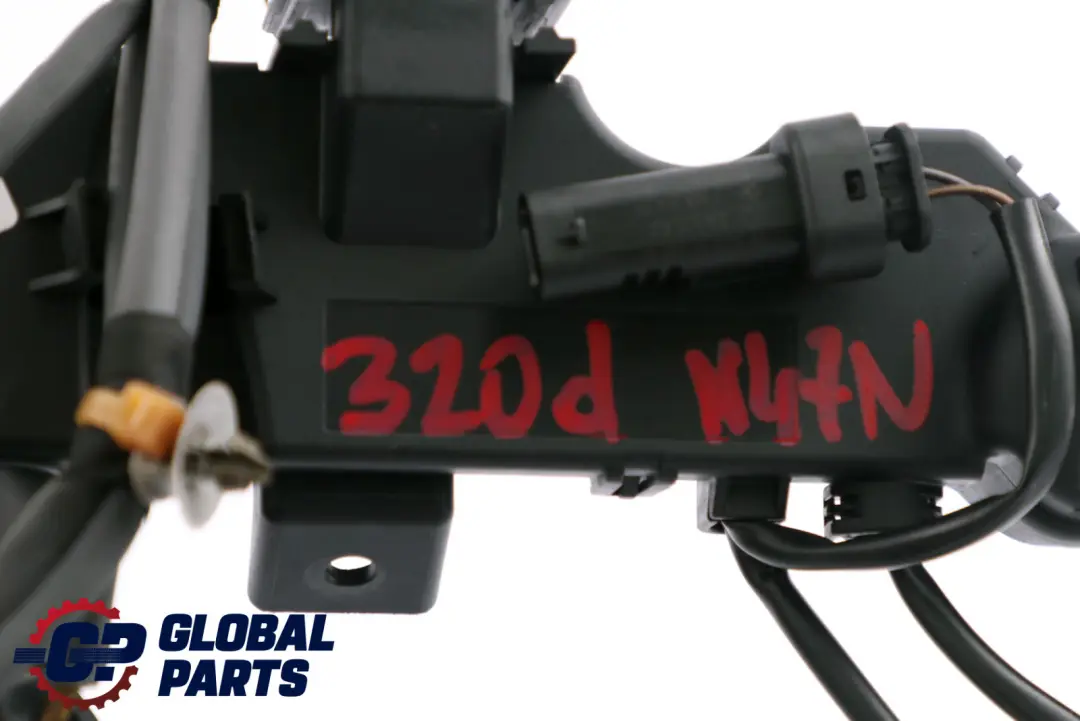

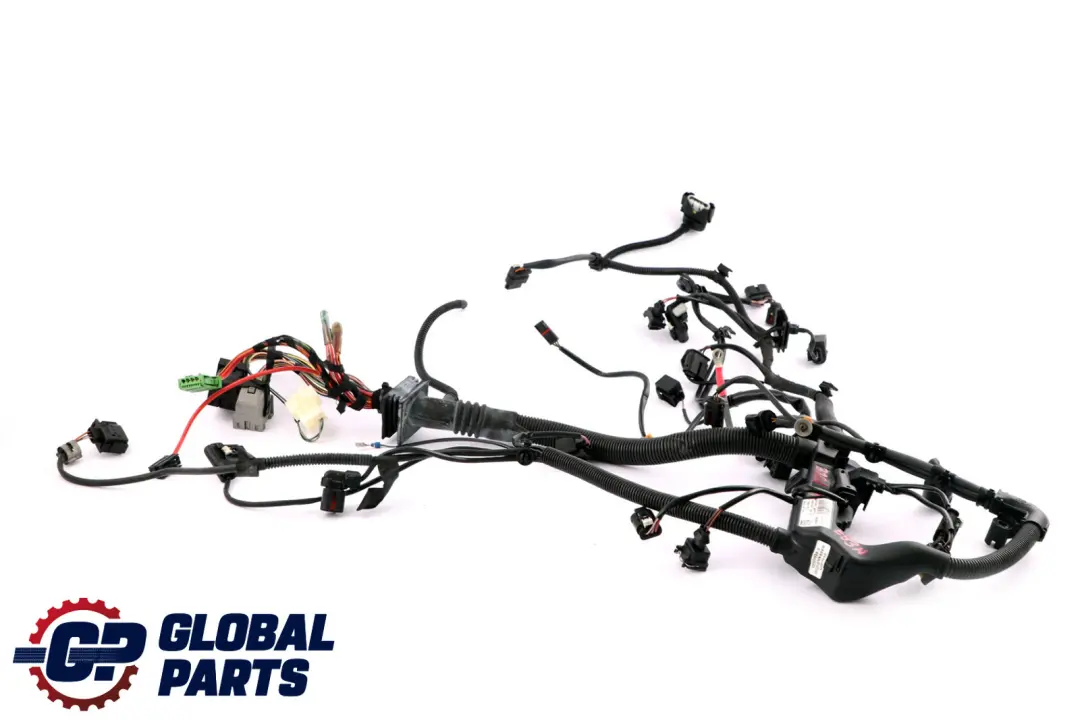

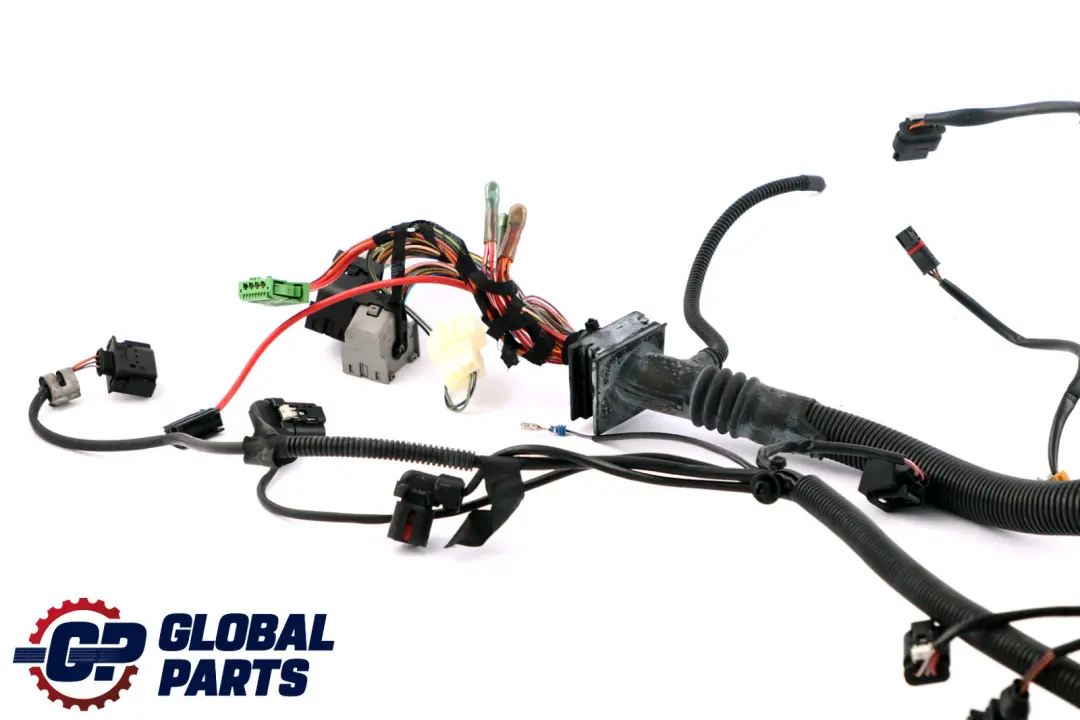

BMW 3 Series E93 LCI 320d N47N Diesel Engine Wiring Loom Harness 8515465

BMW 3 Series E93 LCI 320d N47N Diesel Engine Wiring Loom Harness is an original electrical system component designed for the diesel unit in the facelifted convertible body style. As part of the Cables, wiring harnesses and connectors group, it ensures organized routing of signals and power between sensors, auxiliary equipment, and the engine control unit, which translates into stable operation of the powertrain.

Specifications and technical data

• SKU: rhd-8515465
• Mark: BMW (Genuine OE)
• Condition: Used

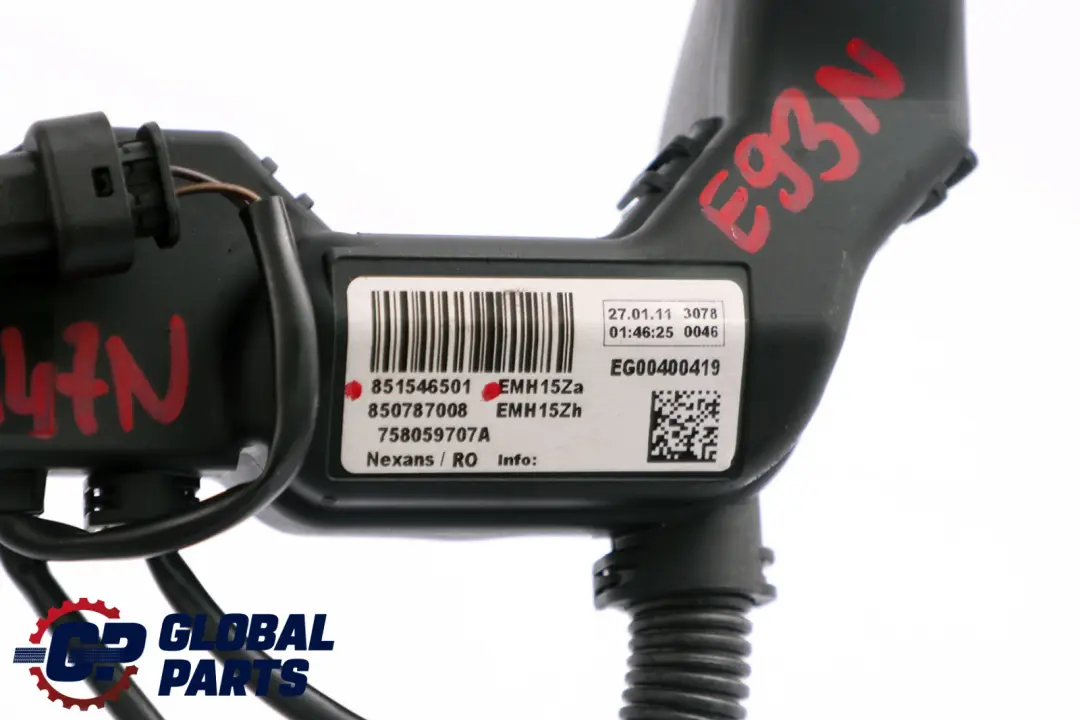

• OEM Part Number: 8515465
• Substitutable numbers: 12518515465, 8515465, AS
• Fuel type: Diesel
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the engine system

The presented wiring harness is a component dedicated to the N47N diesel engine in the BMW 3 Series E93 LCI 320d model. It is responsible for distributing power and control signals to key engine components, such as auxiliary equipment, sensors, and actuators, integrating them with the main engine control unit.

Thanks to its factory fitment for the specific body configuration and powertrain, the harness allows for maintaining the original cable routing, proper mounting points, and the correct cable length reserve in critical areas of the engine bay. This is important for both reliability and future maintenance.

Construction, connectors, and compatibility

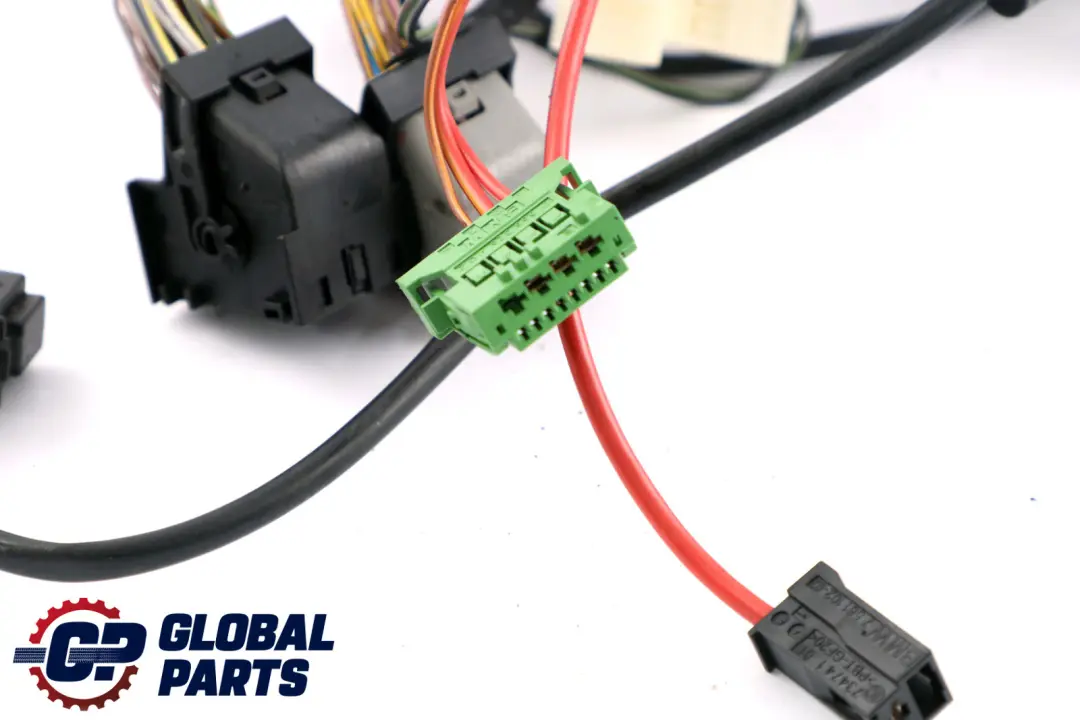

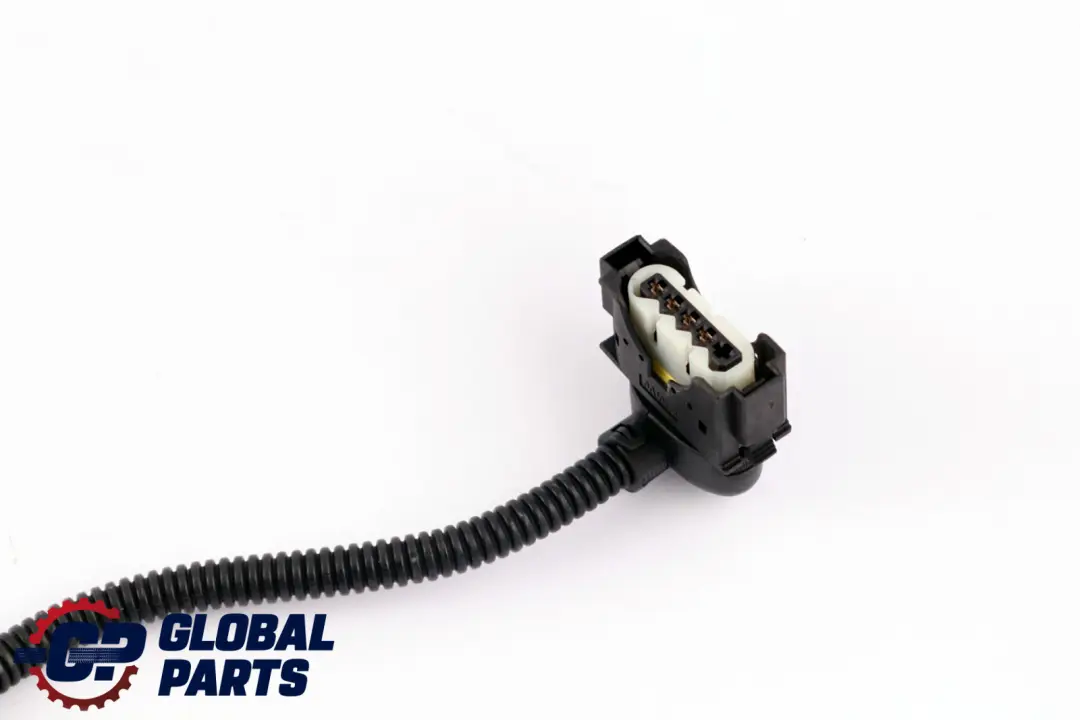

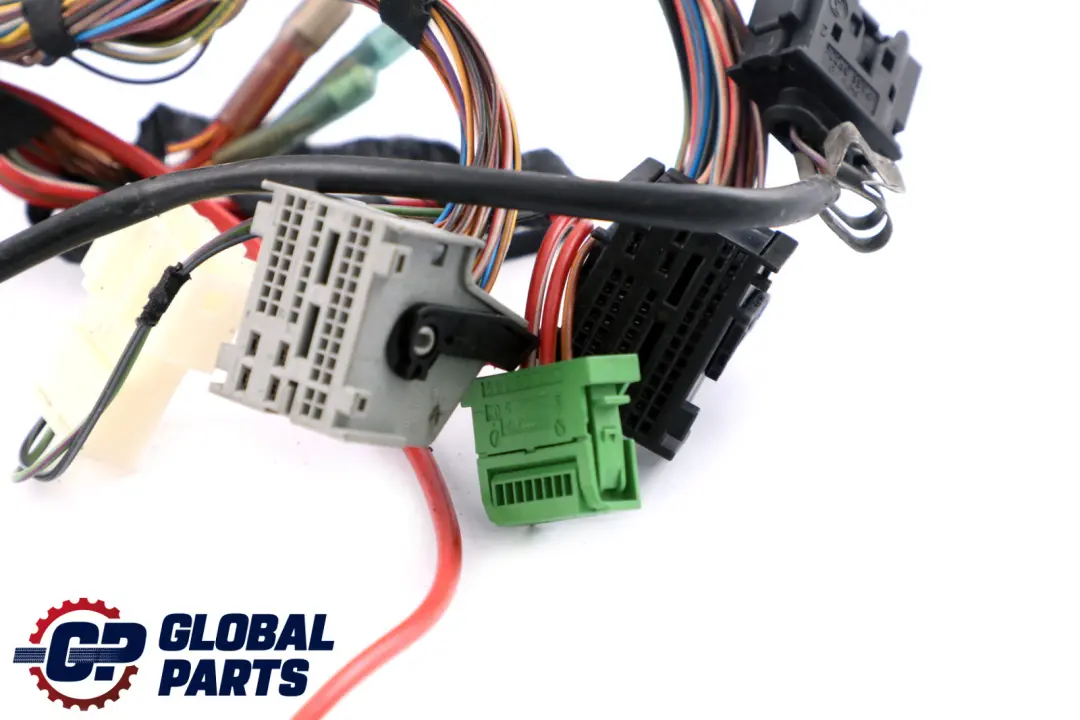

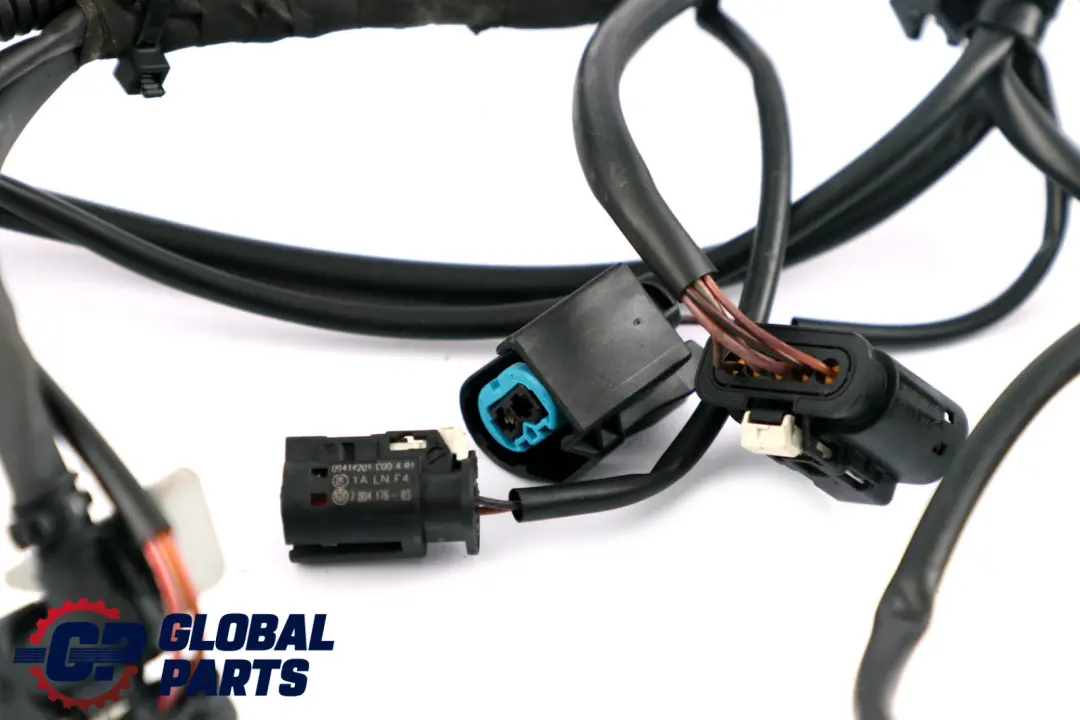

As an element from the Cables, wiring harnesses and connectors group, the BMW 3 Series E93 LCI 320d N47N engine wiring harness has been designed with a set of factory connectors matched to the diesel unit's equipment. It includes multi-pin connectors for the ECU as well as connectors for individual sensors and actuators, which enables installation without the need to modify the wiring.

The original design of the harness ensures:

• a consistent layout of cables in the engine bay,
• preservation of factory mounting and routing points,
• proper shielding and separation of signal and power circuits.

This reduces the risk of electrical interference, insulation abrasion, or excessive cable tension during engine operation.

Condition, origin, and advantages of using BMW parts

The harness comes from an original BMW electrical system and is offered as a used component, which allows for maintaining factory compatibility with the vehicle's installation. Using an original harness instead of aftermarket replacements minimizes the risk of issues with connector compatibility, cable length, or the placement of mounting points.

Key benefits of using this harness include:

• factory fitment for the N47N diesel engine in the E93 LCI 320d,
• preservation of the original electrical system architecture in the engine bay,
• reduction of potential installation errors resulting from cable modifications.

Such a solution is particularly beneficial for repairs following mechanical or thermal damage, or when replacing the powertrain with a unit of the same specification.

Application in diagnostics and diesel system repairs

In the event of communication issues with the ECU, sensor errors, or intermittent operation of diesel engine components, the engine wiring harness is one of the elements worth verifying. Insulation damage, contact corrosion, or cable breaks can lead to difficult-to-diagnose faults.

Replacing the complete harness with an original component allows you to:

• eliminate local cable repairs of uncertain durability,
• restore factory-quality electrical connections,
• facilitate further system diagnostics based on manufacturer data.

This solution is particularly useful in vehicles where numerous wiring repairs or engine equipment modifications have been performed previously.
