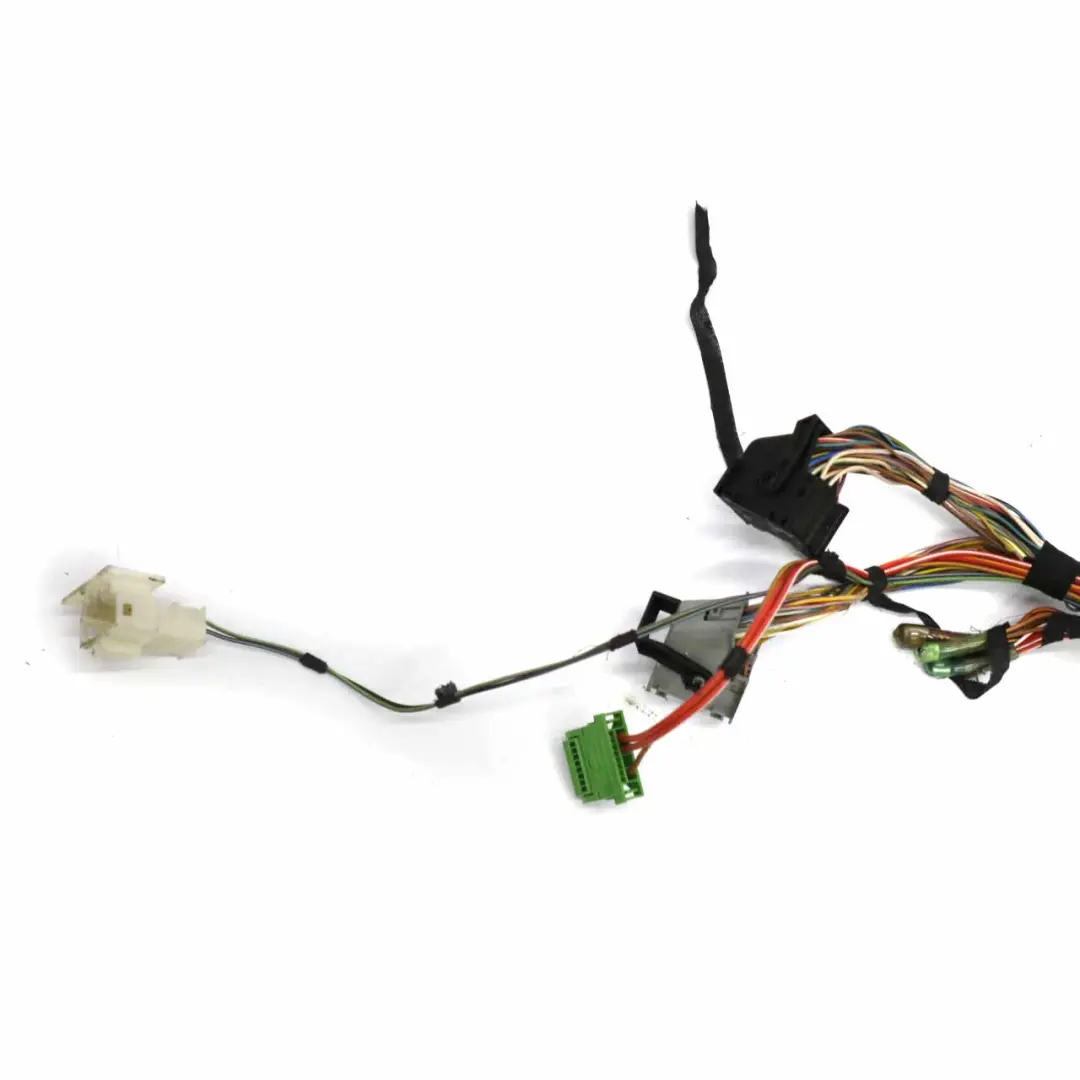

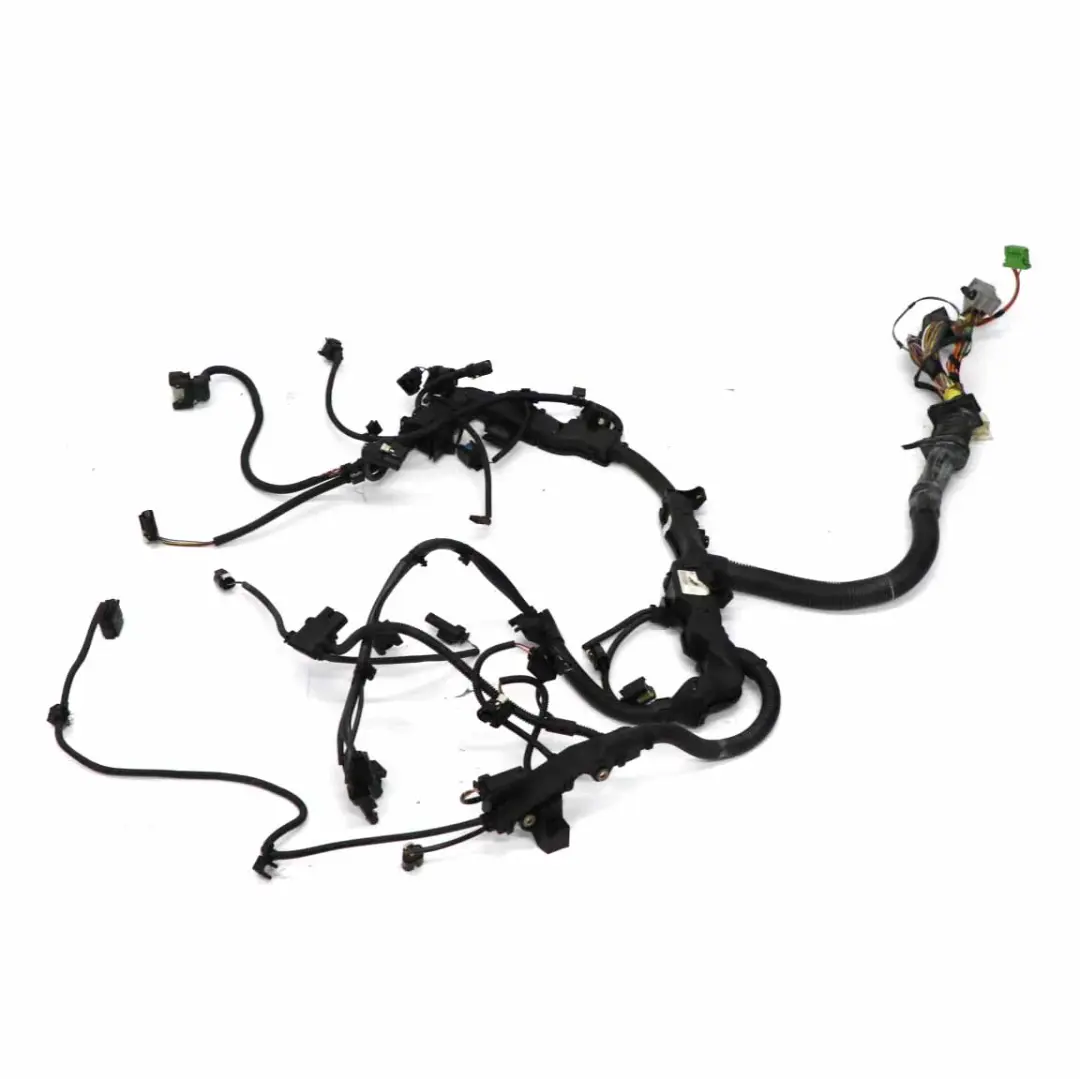

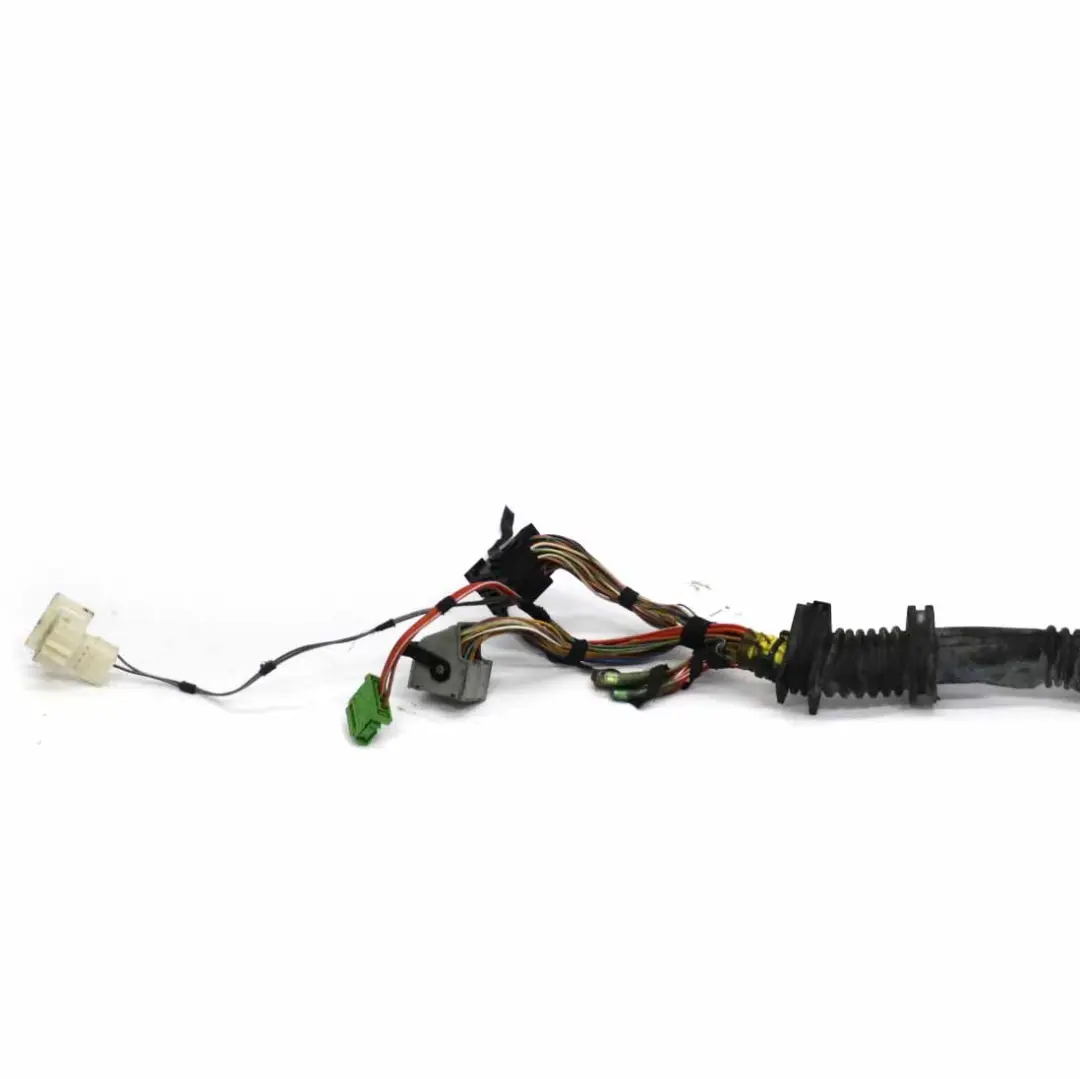

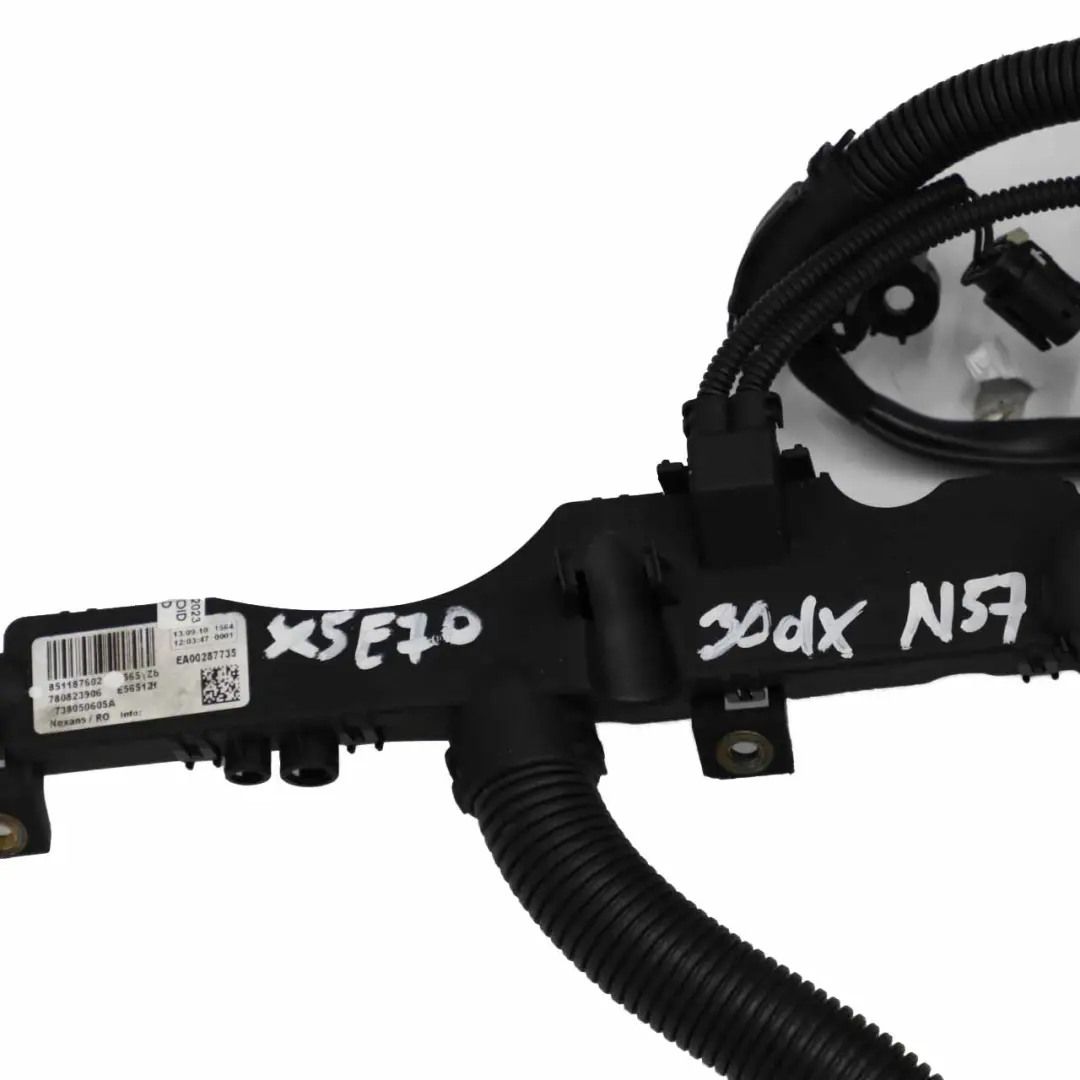

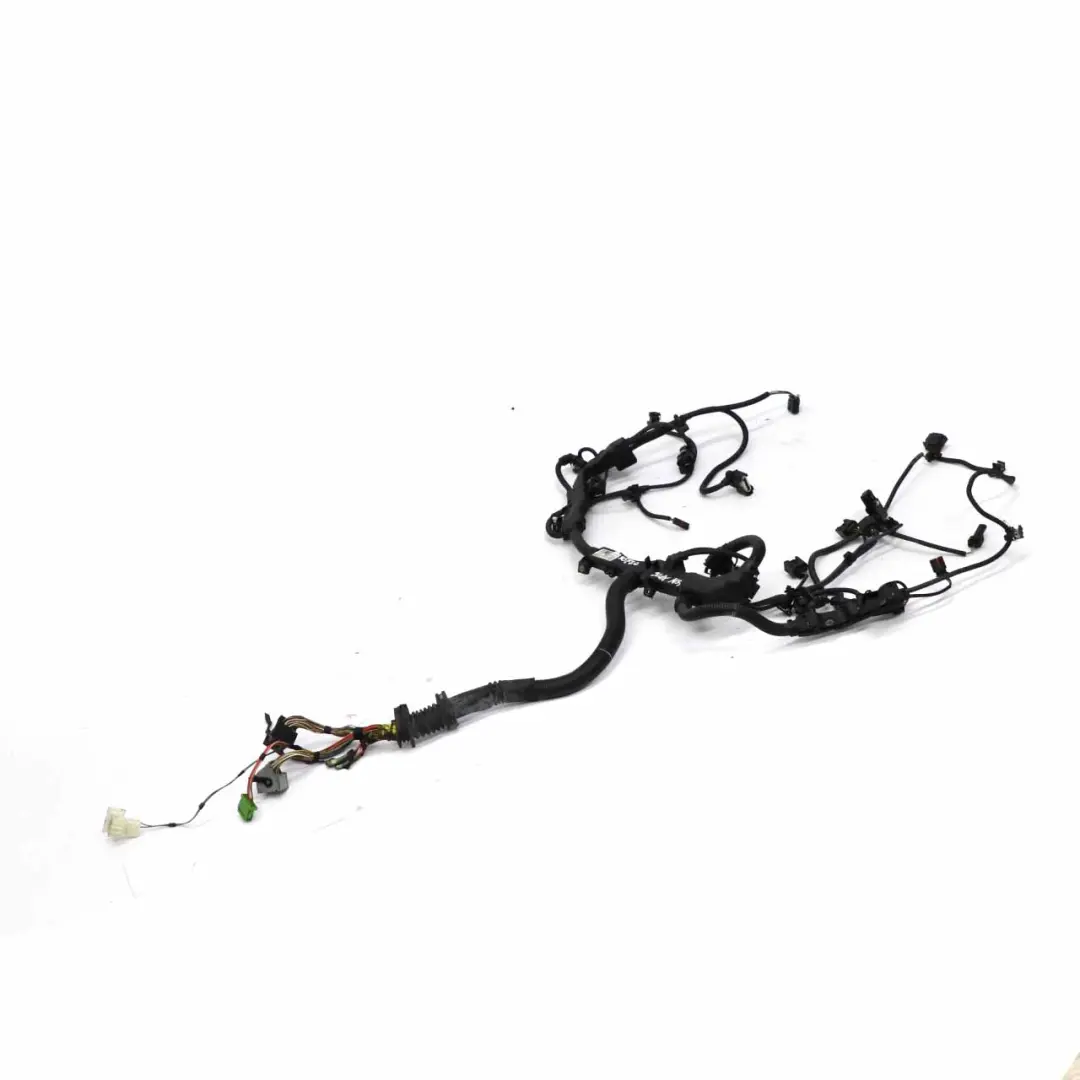

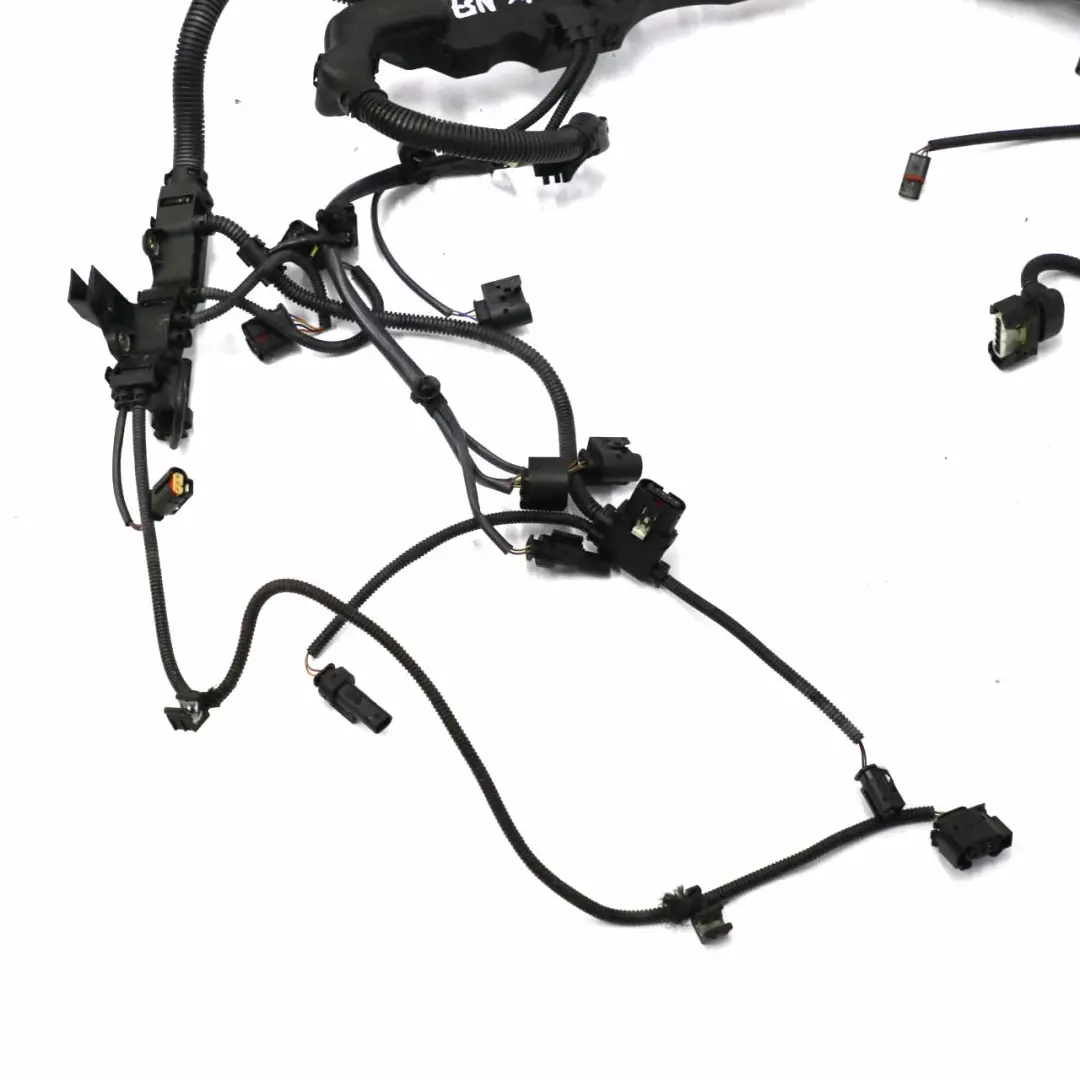

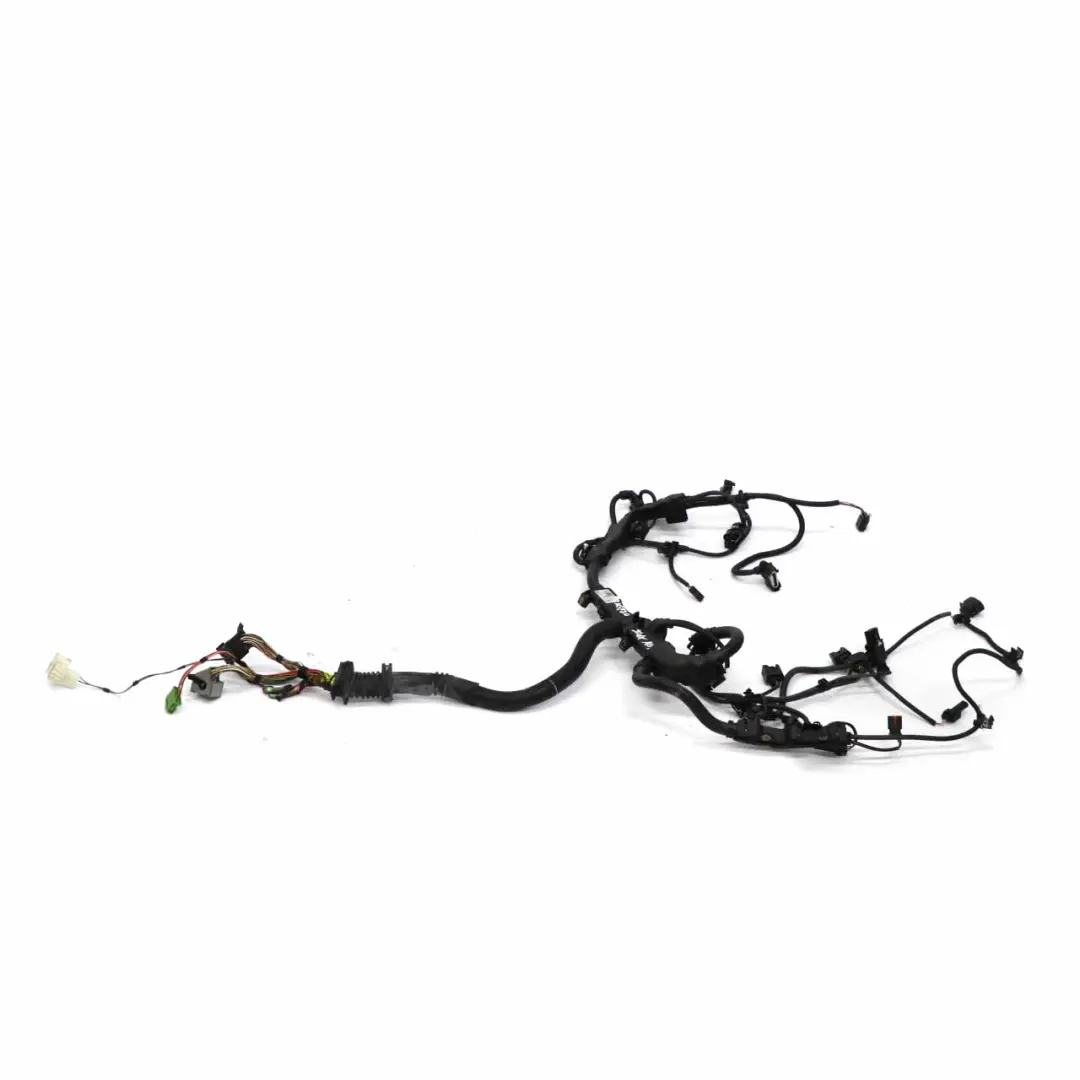

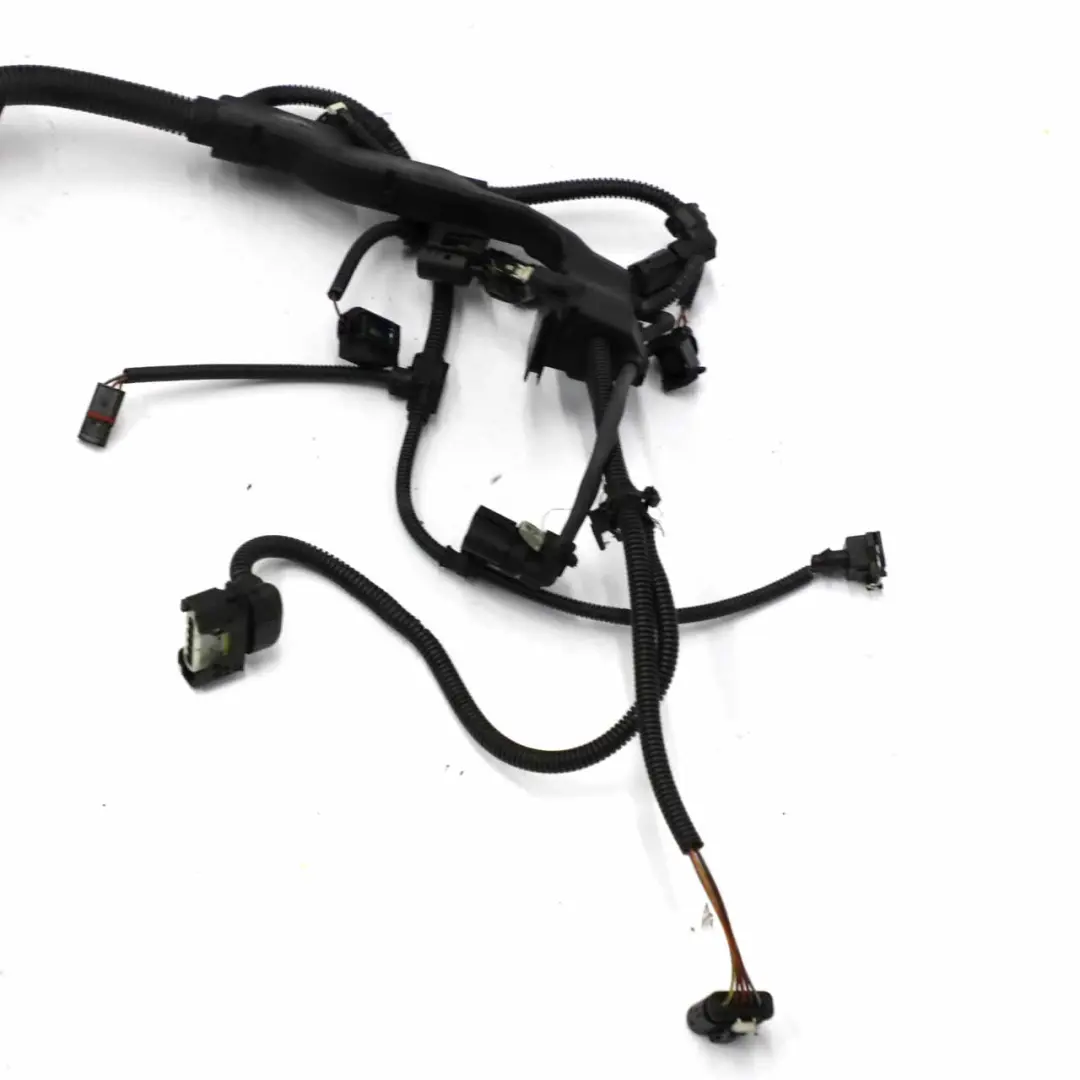

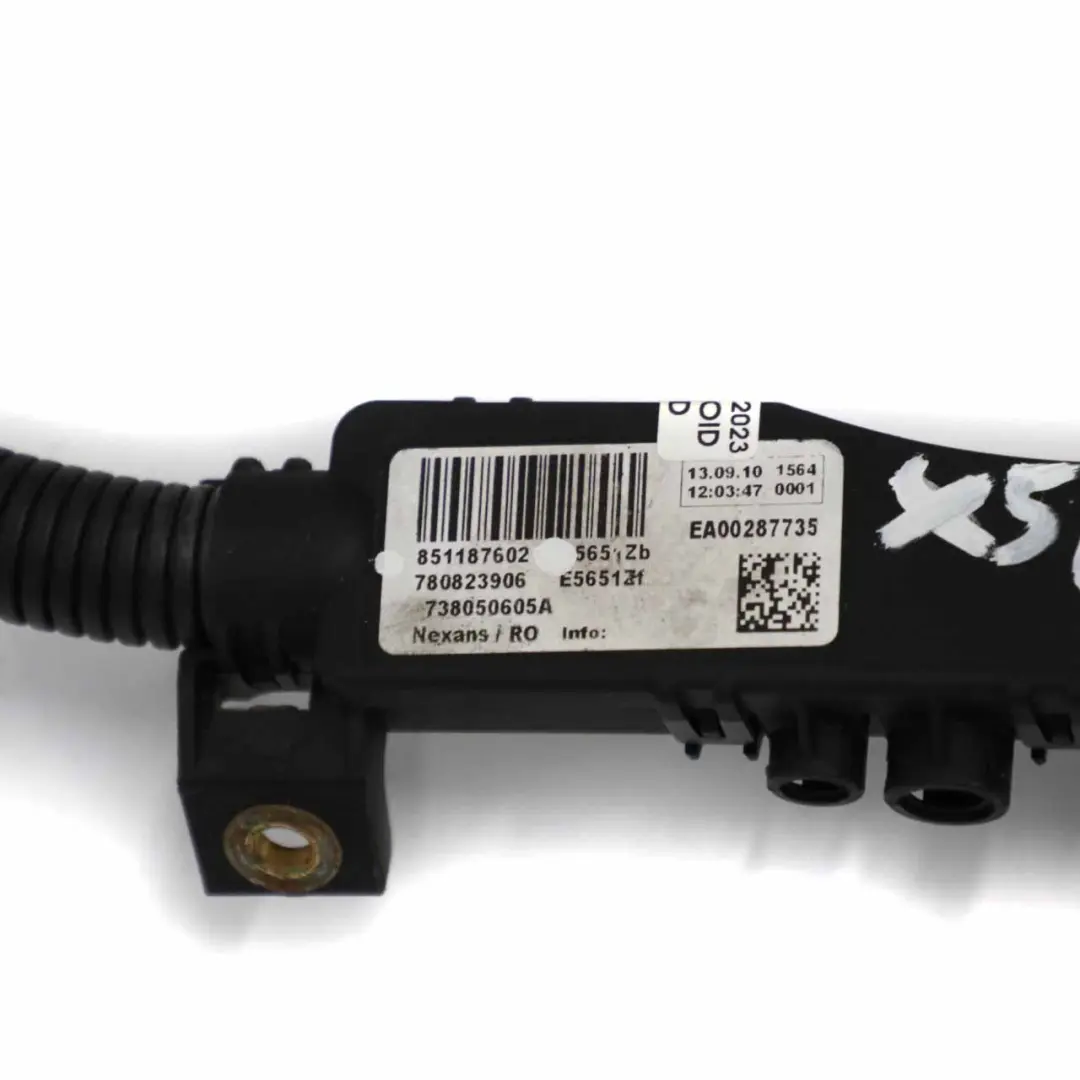

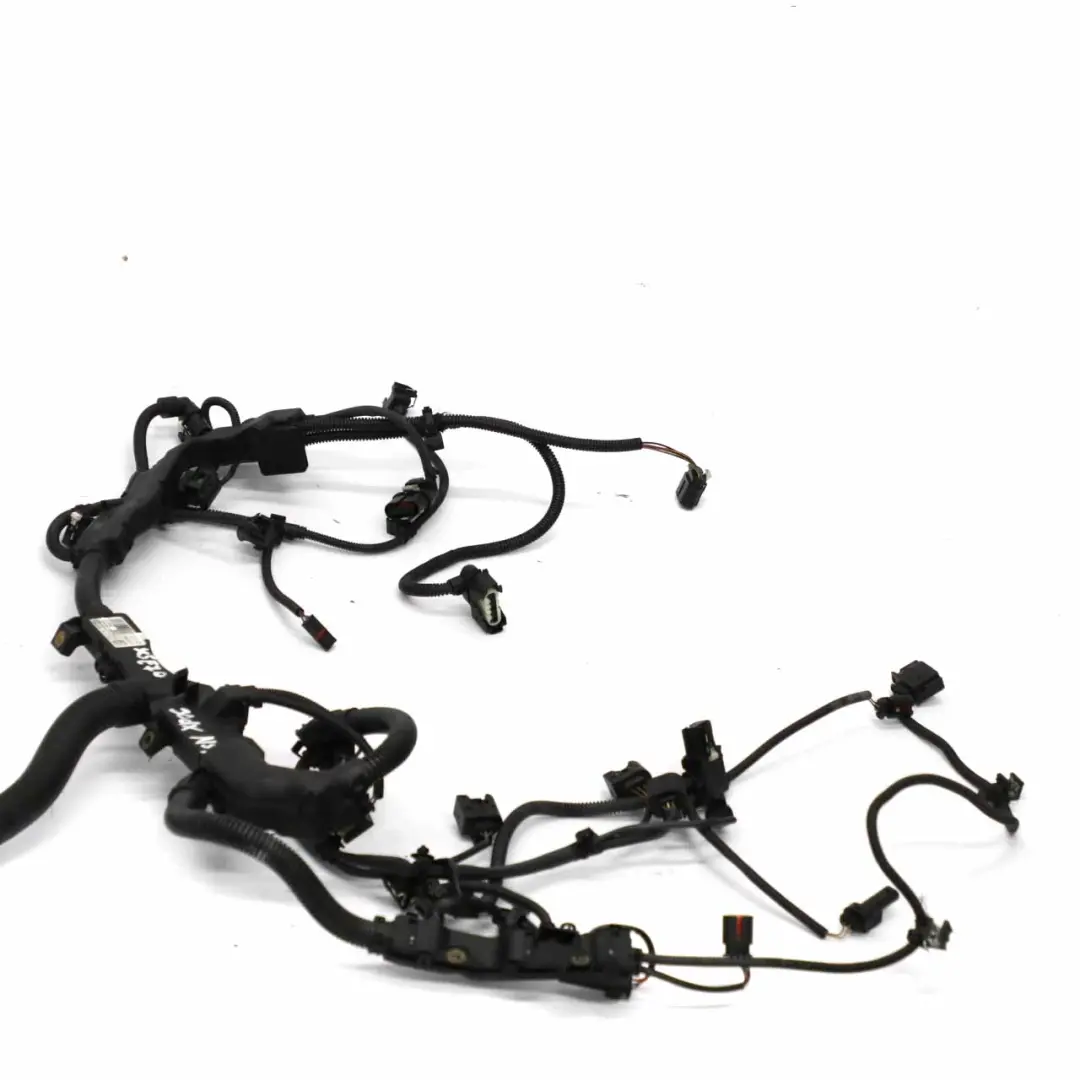

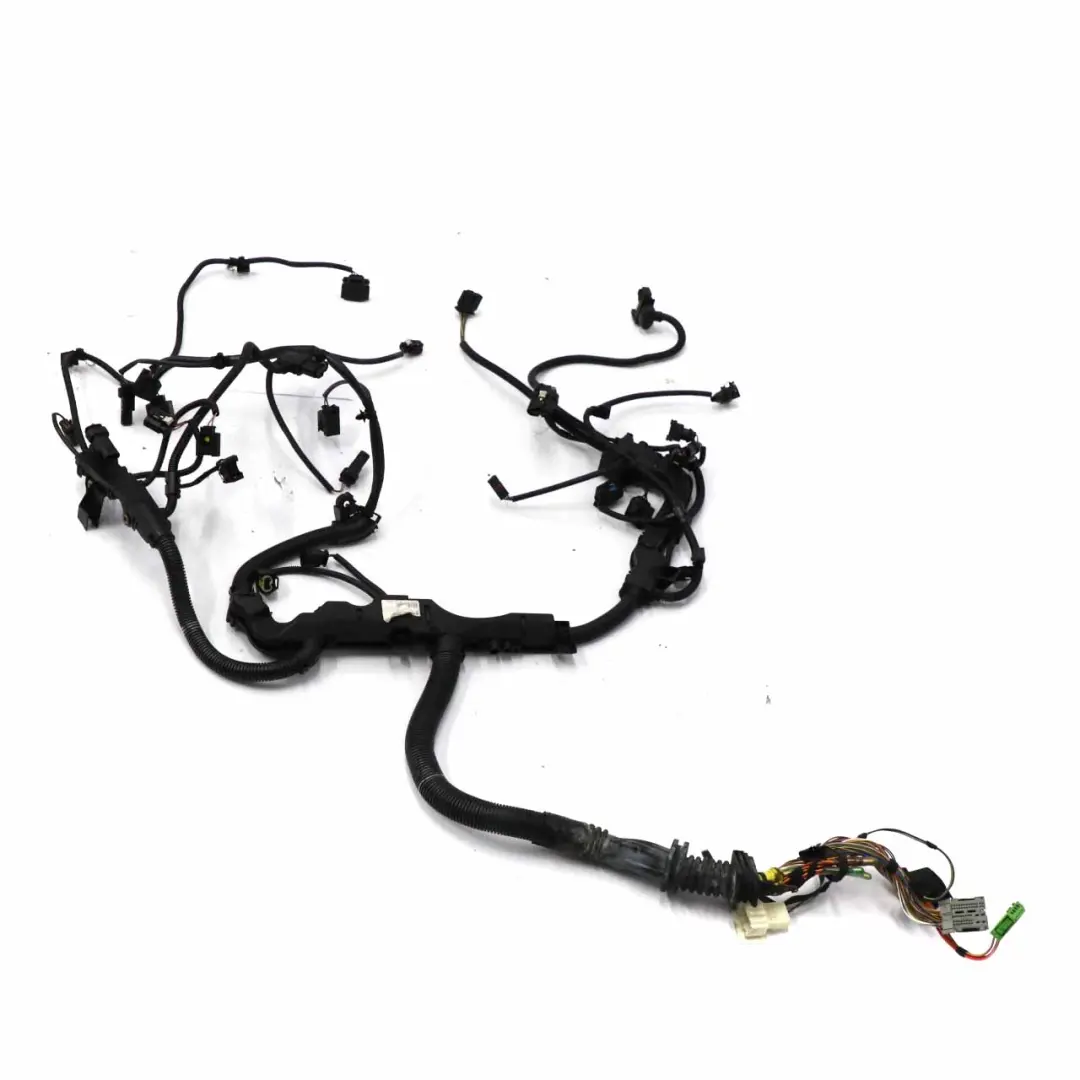

Engine Wiring BMW E70 LCI E71 30dX N57 Module Loom Harness Cables 8511876

BMW E70 LCI / E71 30dX N57 Engine Harness is an original set of wires and connectors designed to service control modules in the engine bay. Thanks to BMW's factory design, it ensures correct signal routing, stable component power supply, and compatibility with the electrical system of a vehicle equipped with an automatic transmission and a gasoline engine. This is a solution for users who want to restore proper drivetrain operation without compromising on fit.

Specifications and technical data

• SKU: rhd-8511876
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8511876
• Substitutable numbers: 8511876, 12518511876
• Fuel type: Petrol
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the Vehicle

This harness belongs to the Wires, Harnesses, and Connectors group and is responsible for connecting control modules with sensors and actuators within the engine. In practice, this includes, among others, servicing:

• sensors monitoring the operation of the power unit,
• electronically controlled actuators and components,
• modules responsible for the engine's cooperation with the automatic transmission,
• power supply and communication within the engine's electrical system.

By maintaining the original wiring architecture, the harness allows for stable engine control system operation and reduces the risk of errors resulting from incorrect connections or unsuitable wire gauges.

Construction and Technical Advantages

The factory BMW engine harness has been designed considering the thermal and mechanical loads present in the engine bay. This includes, among others:

• dedicated connectors matched to the modules and sensors used in the N57 unit,
• wire routing designed to minimize the risk of chafing and damage,
• insulation adapted for operation at elevated temperatures,
• mounting point placement consistent with factory brackets in the E70 LCI / E71 body.

A harness set configured in this way facilitates hassle-free plug-and-play installation, without the need for electrical system modifications, soldering, or adapting universal connectors.

Condition, Fitment, and Service Application

The component comes from a used vehicle and is offered as a used BMW engine harness, allowing for economical repair while maintaining original manufacturing quality. This is a particularly beneficial solution in situations where:

• the existing harness has suffered mechanical or thermal damage,
• difficult-to-diagnose circuit breaks or module communication issues occur,
• a complete section of the wiring needs replacement rather than localized repairs.

Using an original harness dedicated to a specific engine and transmission configuration helps reduce diagnostic time and the risk of subsequent failures resulting from incorrectly selected wires.

Installation and Diagnostic Tips

Before installation, it is recommended to compare the wire routing and connector types with the currently installed system in the vehicle to confirm full configuration compatibility. During service work, pay attention to:

• correct routing of the harness relative to heat shields and moving parts,
• secure connection of all connectors to modules and sensors,
• checking the condition of ground points cooperating with the engine's electrical system.

After installation is complete, computer diagnostics are recommended to verify communication with modules and to clear any previously stored errors related to the electrical system.
