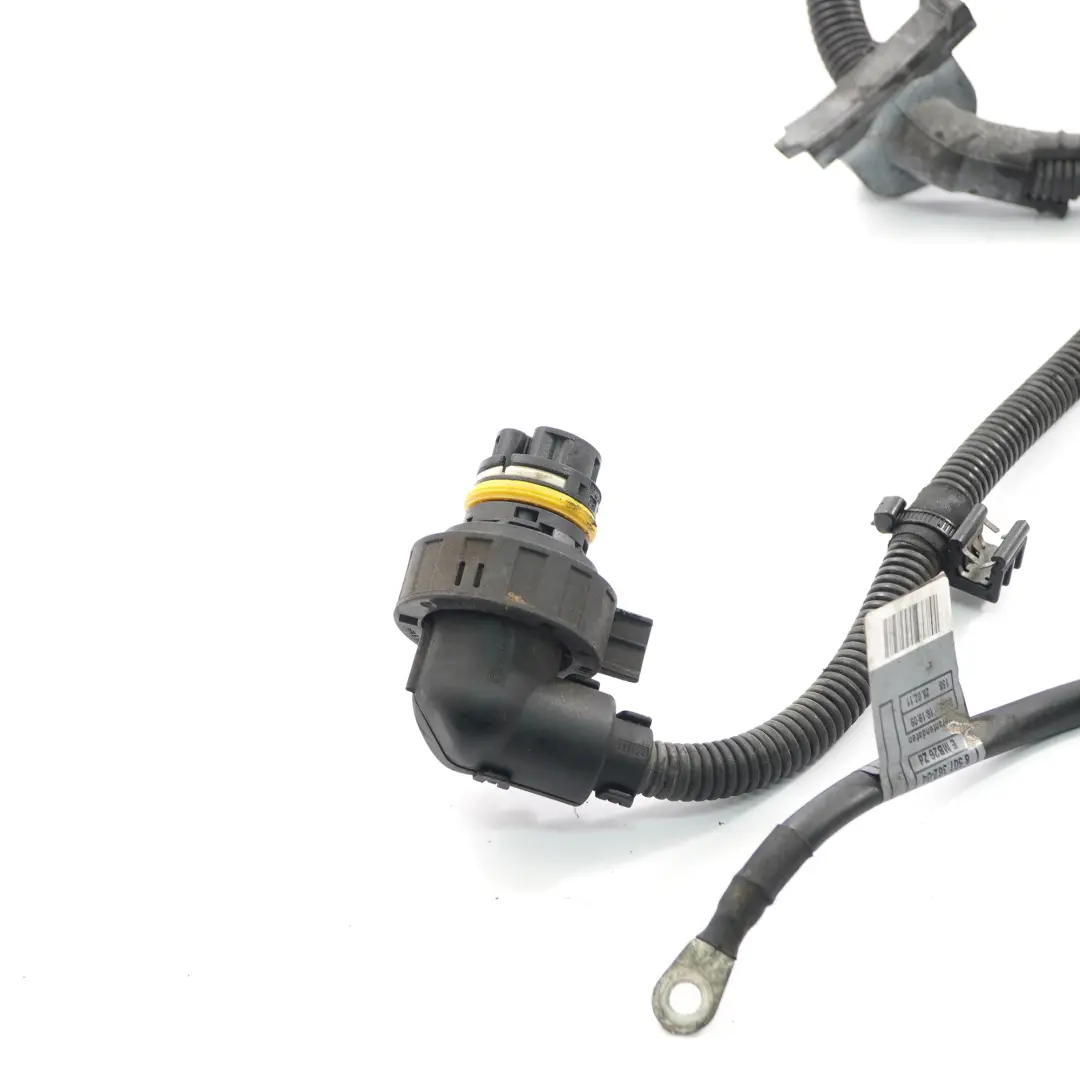

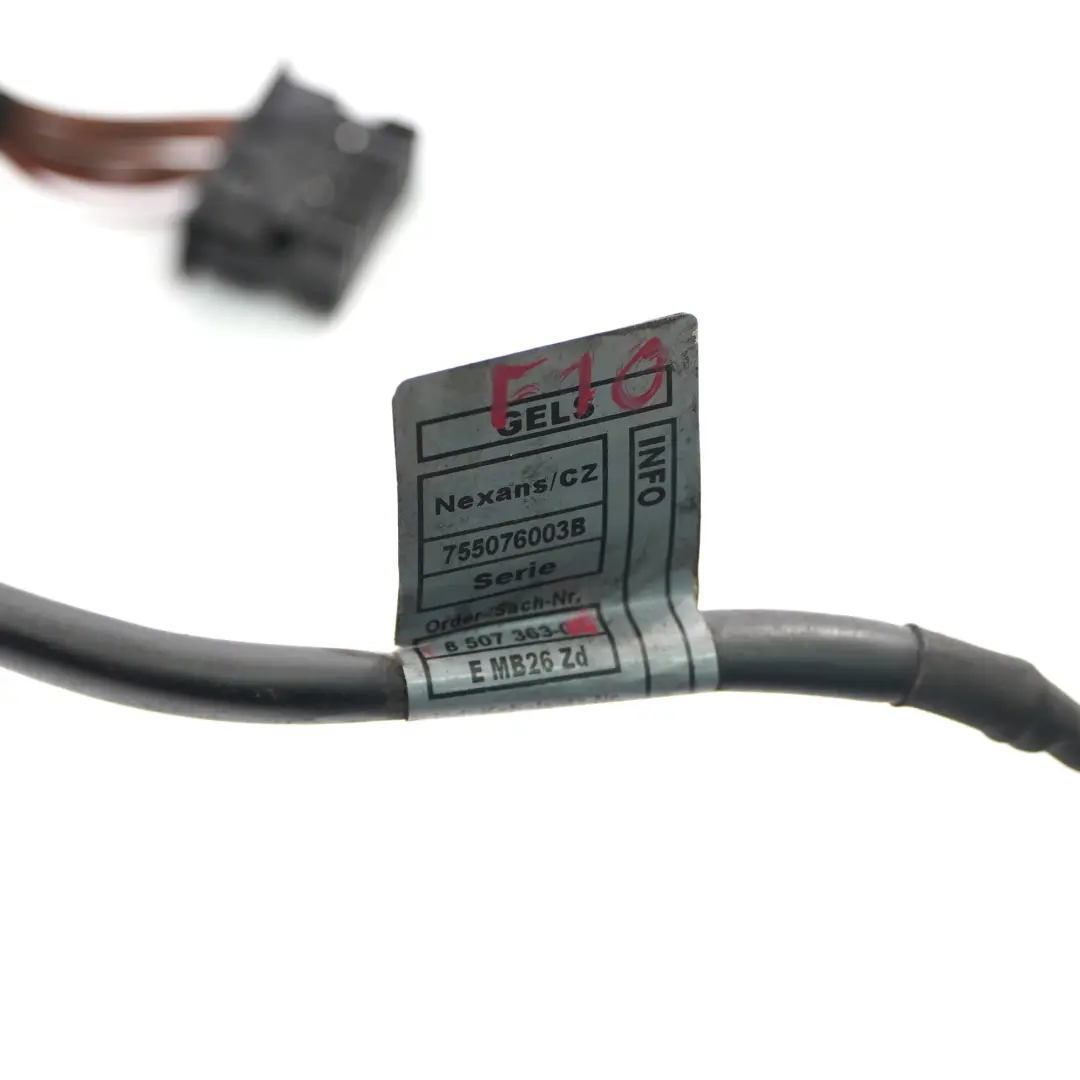

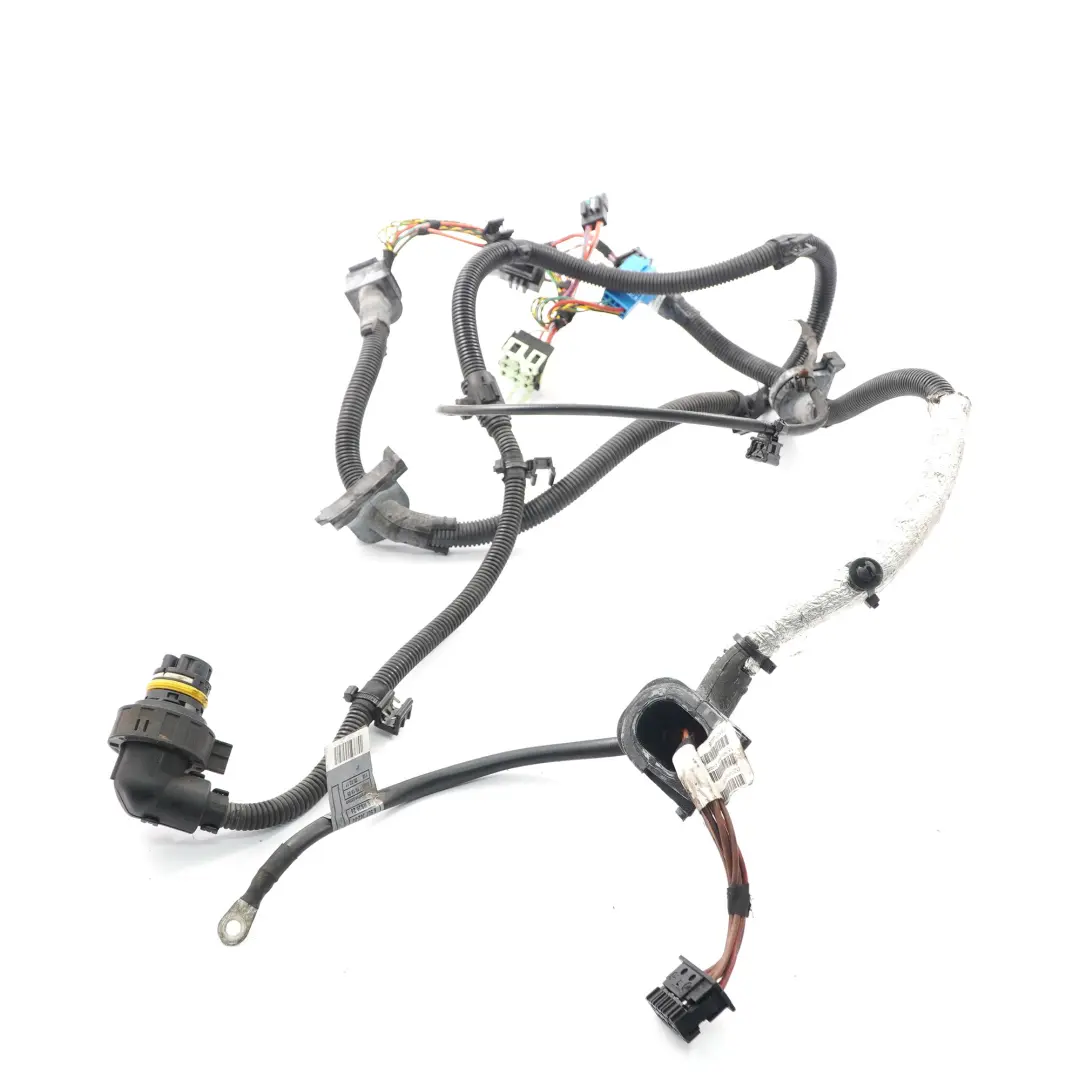

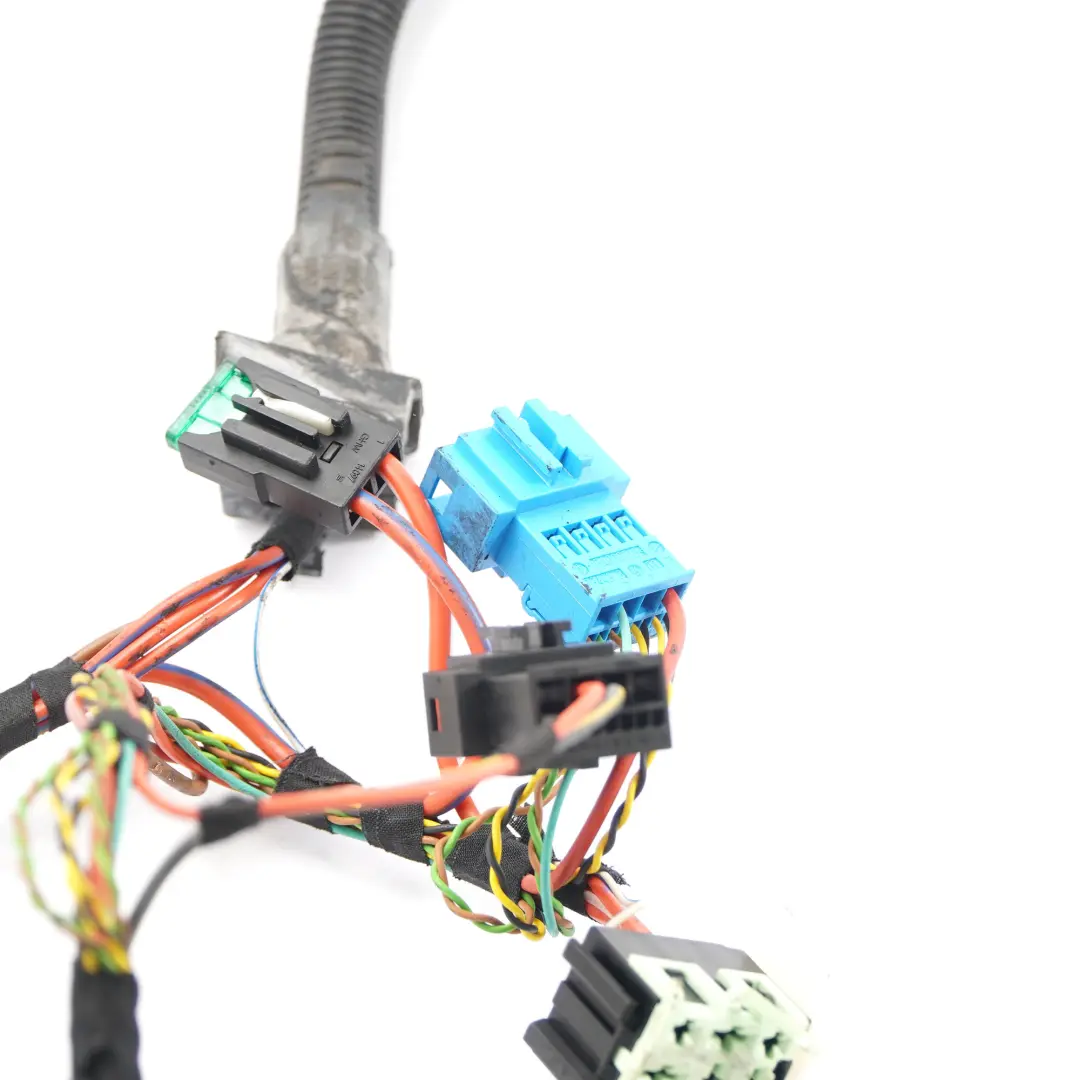

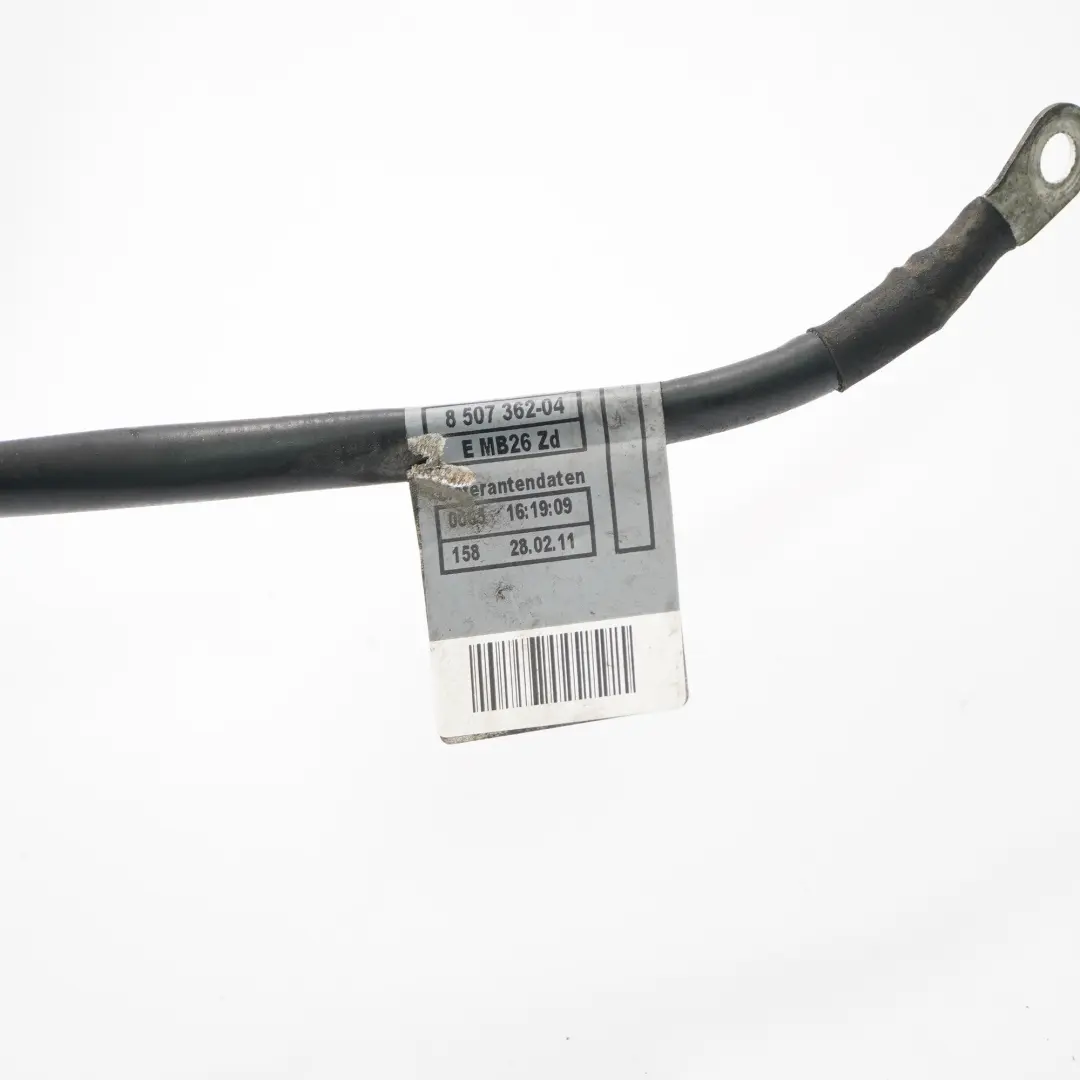

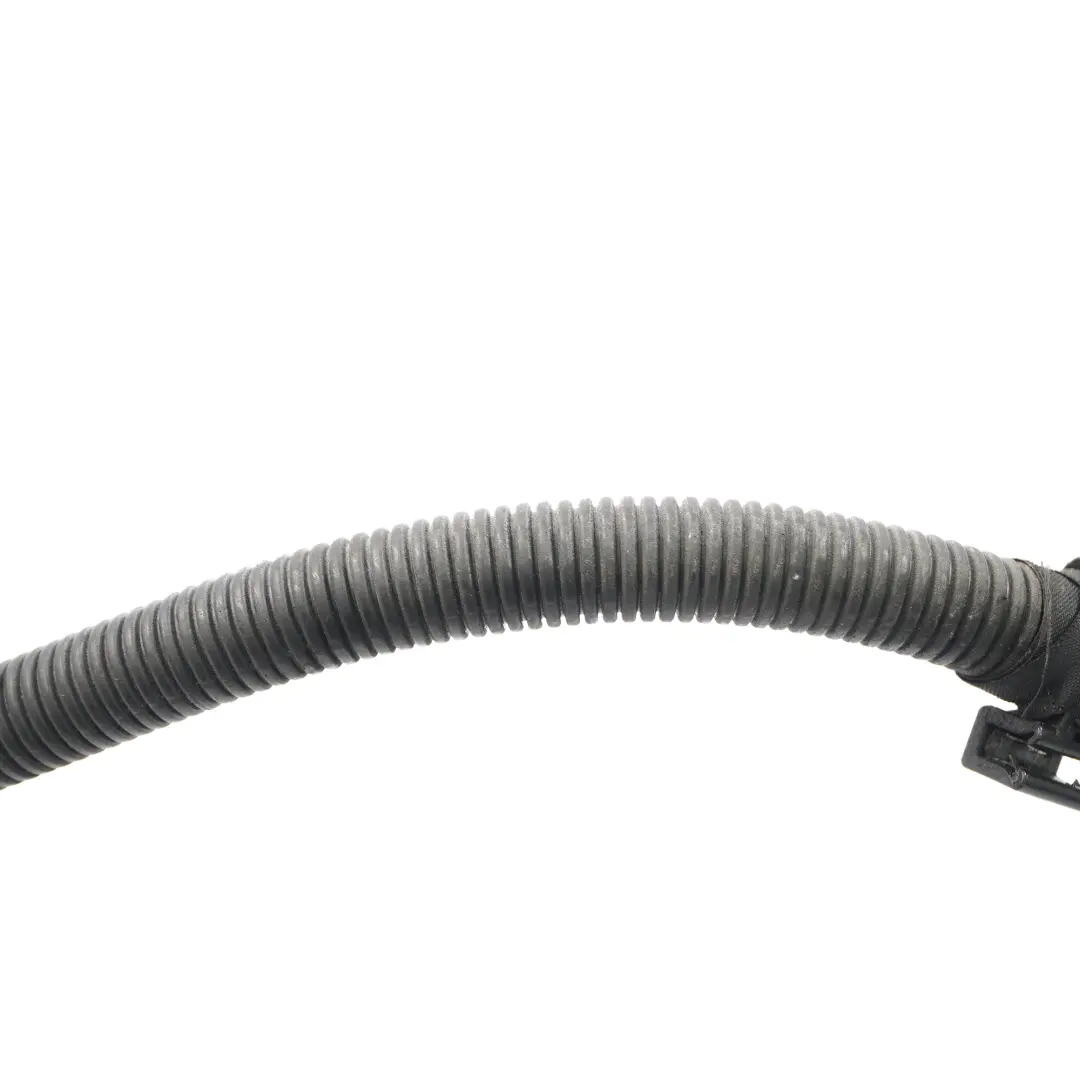

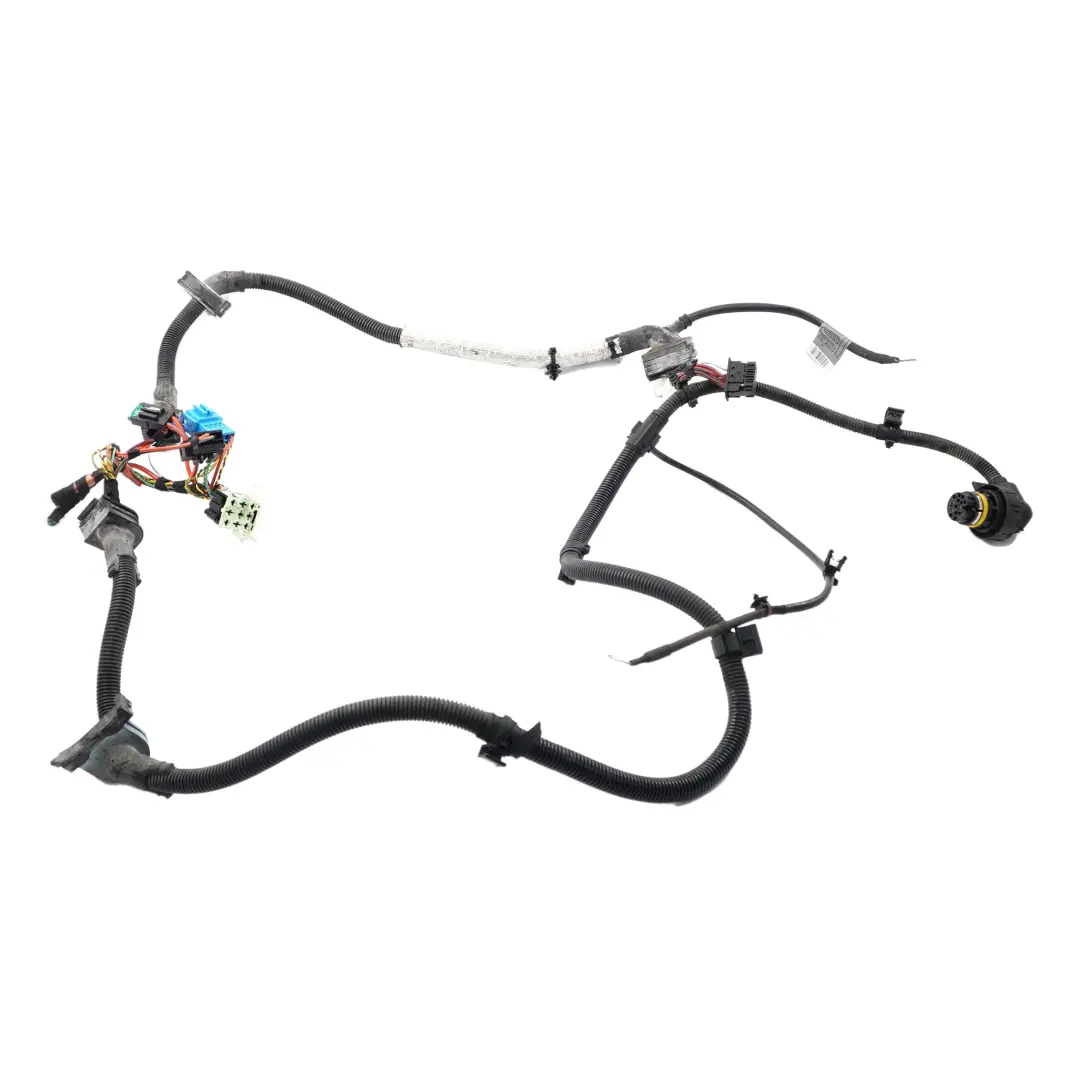

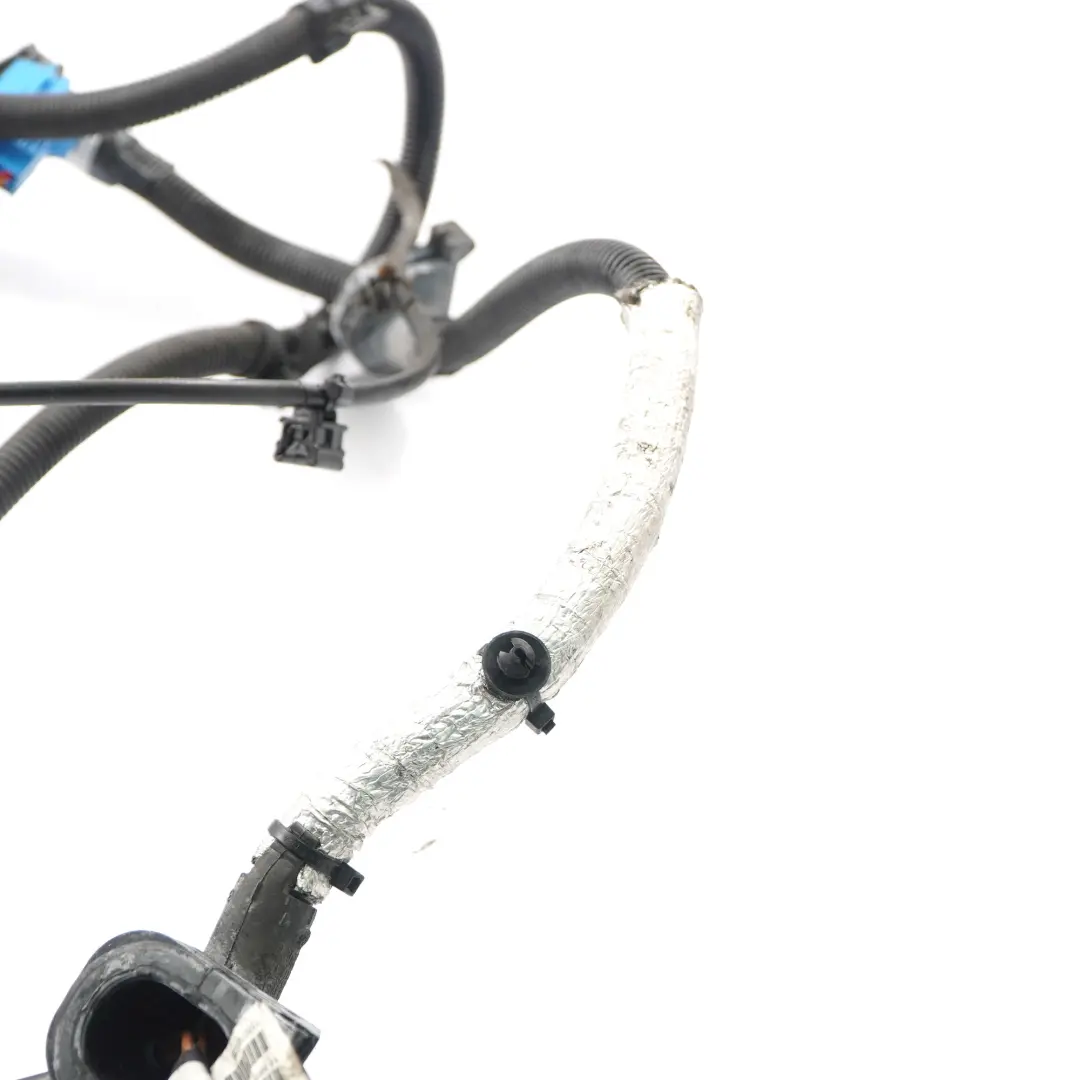

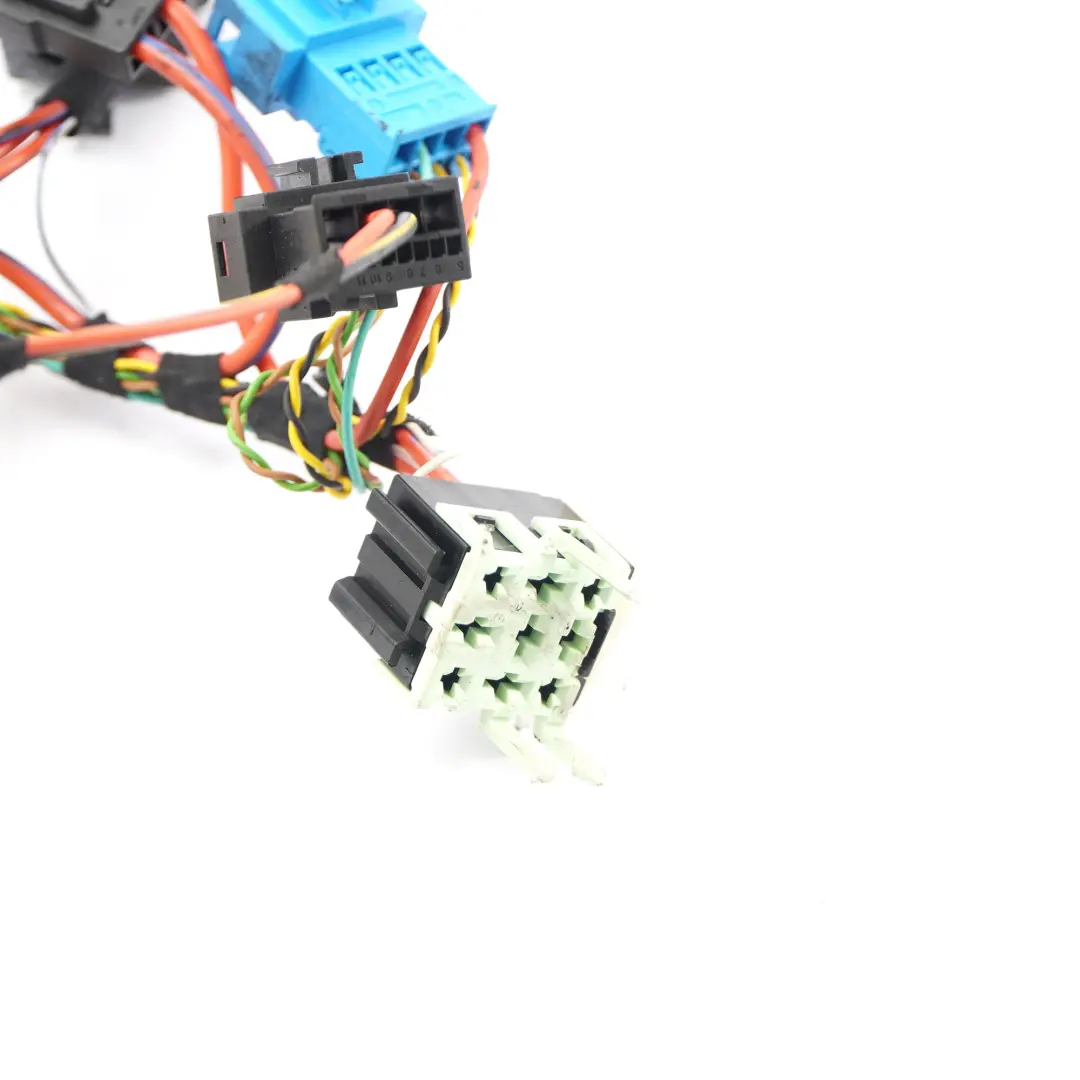

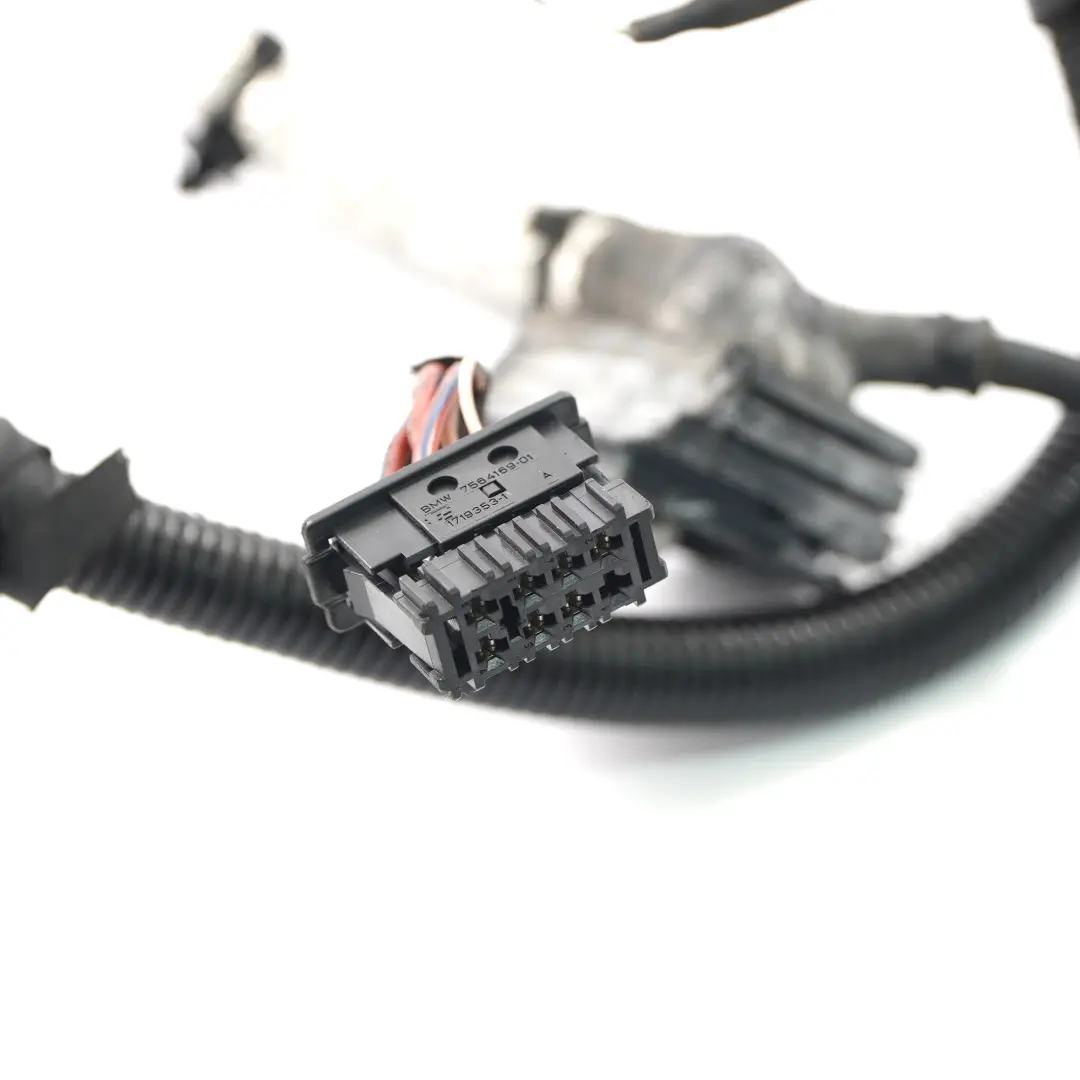

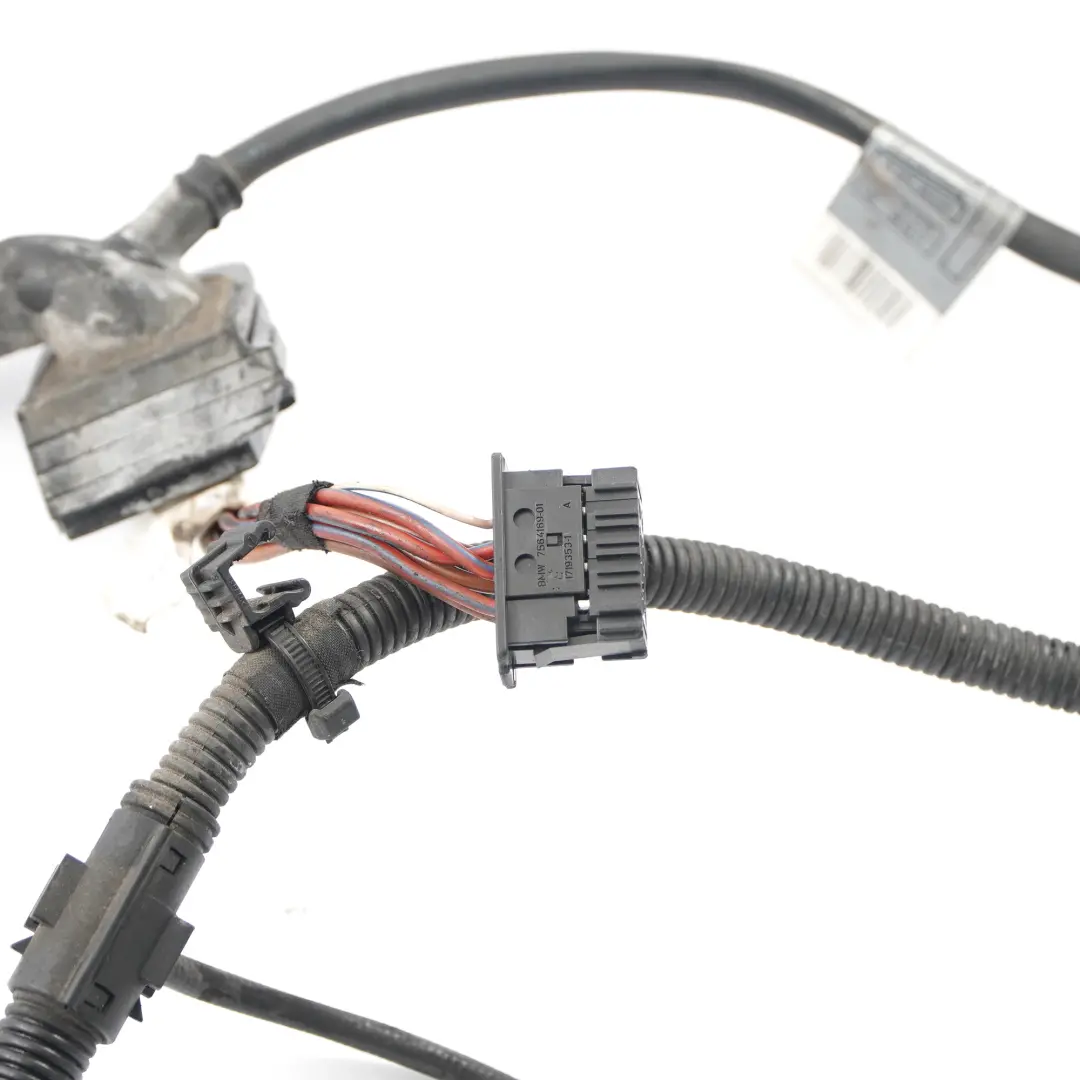

Engine Wiring BMW F10 F11 N57 N57S Diesel Automatic Gearbox Harness 8507363

The BMW F10 F11 N57Z Engine Wiring Harness Transmission is a specialized component from the Cables, Harnesses, and Connectors category, designed for BMW powertrains with diesel engines and automatic transmissions. A properly selected harness ensures stable electrical connections between the engine, transmission, and control units, which translates to predictable engine operation and smooth automatic transmission performance.

Specifications and technical data

• SKU: rhd-8507363
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8507363
• Substitutable numbers: 8507363, 12518507363
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Application and Purpose

The presented harness is dedicated to BMW 5 Series F10/F11 models with the N57Z unit, responsible for transmitting signals and power between sensors, actuators, and control modules for the engine and automatic transmission. Properly selected engine and transmission cables are crucial for repairing installations after mechanical or thermal damage, or after powertrain modifications.

This component is suitable for both standard replacement of a damaged harness and for more advanced service work requiring installation consistency with the original BMW electrical architecture.

Technical and Functional Characteristics

The harness is designed for a specific configuration: a diesel engine paired with an automatic transmission. This means appropriate connector placement, cable lengths, and connector types are matched to the factory mounting points and sockets in the engine bay and at the transmission.

The main advantages of this solution include:

• factory cable routing geometry, facilitating installation in original brackets and guides,
• connectors prepared for compatibility with N57Z engine sensors and actuators,
• compatibility with the automatic transmission control system,
• consistency with the BMW F10/F11 electrical architecture, which reduces the risk of communication errors between modules.

Condition, Selection, and Installation

The harness is from the secondary market, allowing for economical repair while maintaining the original installation design. When selecting, it is recommended to pay attention to compatibility with the engine version and transmission type to ensure full functionality of all sensors and components working with the powertrain.

Due to the complexity of electrical installations in modern BMWs, installation by an experienced service center is recommended. They will ensure proper harness routing, protection against abrasion, and secure connection of all connectors. A correctly installed harness minimizes the risk of starting problems, control unit errors, or disruptions in automatic transmission operation.

Benefits of Using an Original BMW Harness

Choosing an original harness from the Cables, Harnesses, and Connectors category for the BMW F10/F11 allows for adherence to factory electrical diagrams, simplifying future diagnostics and servicing. Using the correct harness reduces the need for modifications, soldering, or connector adaptations, thereby lowering the risk of failures resulting from non-factory modifications.

This solution is particularly beneficial for users who expect stable performance from their diesel engine combined with an automatic transmission and wish to maintain the car in a configuration close to factory specifications, which is important for both reliability and future resale value.
