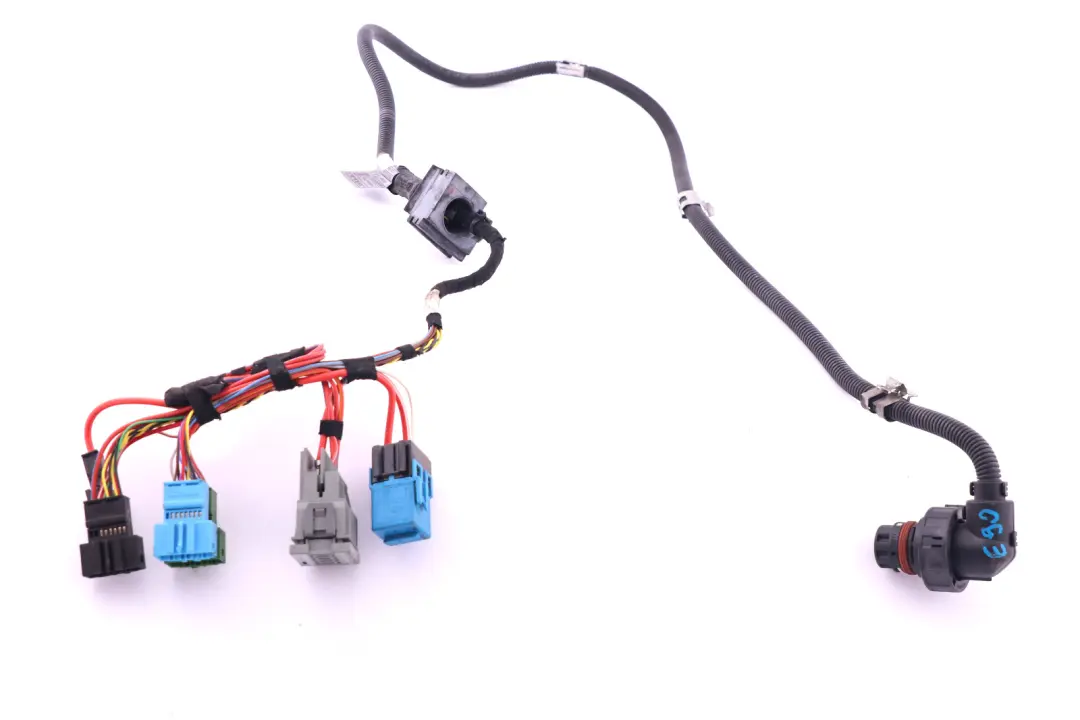

BMW 1 3 Series E81 E90 Diesel N47 Automatic Gearbox Wiring Harness Loom 7802184

The BMW 1 and 3 Series Diesel N47 Automatic Transmission Wiring Harness is an original part from the Cables, Harnesses, and Connectors category, designed for precise integration with the factory automatic gearbox. It ensures a stable connection between sensors, solenoids, and the transmission control unit, contributing to predictable drivetrain performance. This is the solution for users who want to restore correct transmission operation without compromising on fitment.

Specifications and technical data

• SKU: rhd-7802184
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7802184
• Substitutable numbers: 12517802184, 7802184
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Application and Compatibility

The presented wiring harness is intended for BMW 1 Series and 3 Series models equipped with the N47 diesel engine and an automatic transmission. The design developed by the vehicle manufacturer guarantees:

• correct connector placement relative to the gearbox housing,
• compatibility with factory transmission control,
• adaptation to operating conditions typical for diesel engines.

Thanks to this, the harness allows for the preservation of the original electrical system architecture without the need for modifications or adaptations.

Construction and Technical Specifications

This wiring harness belongs to the Cables, Harnesses, and Connectors category, meaning it has been designed with an emphasis on mechanical resistance and electrical stability. The cables used are routed in protective sheaths to prevent abrasion and withstand elevated temperatures in the vicinity of the automatic transmission.

Key construction features:

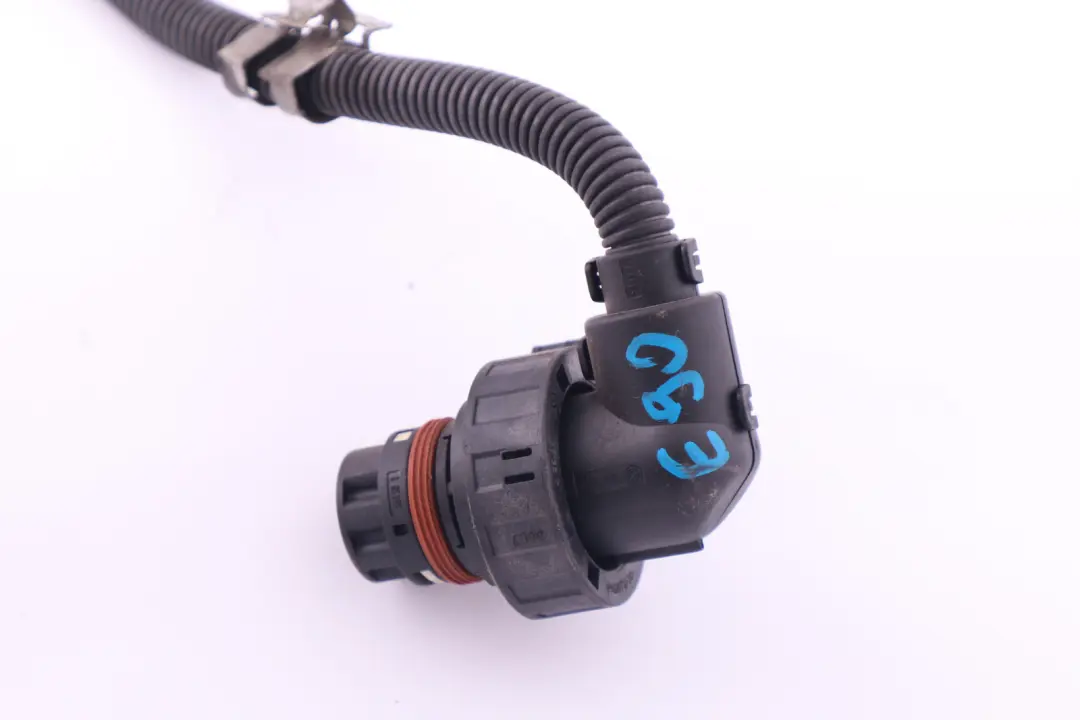

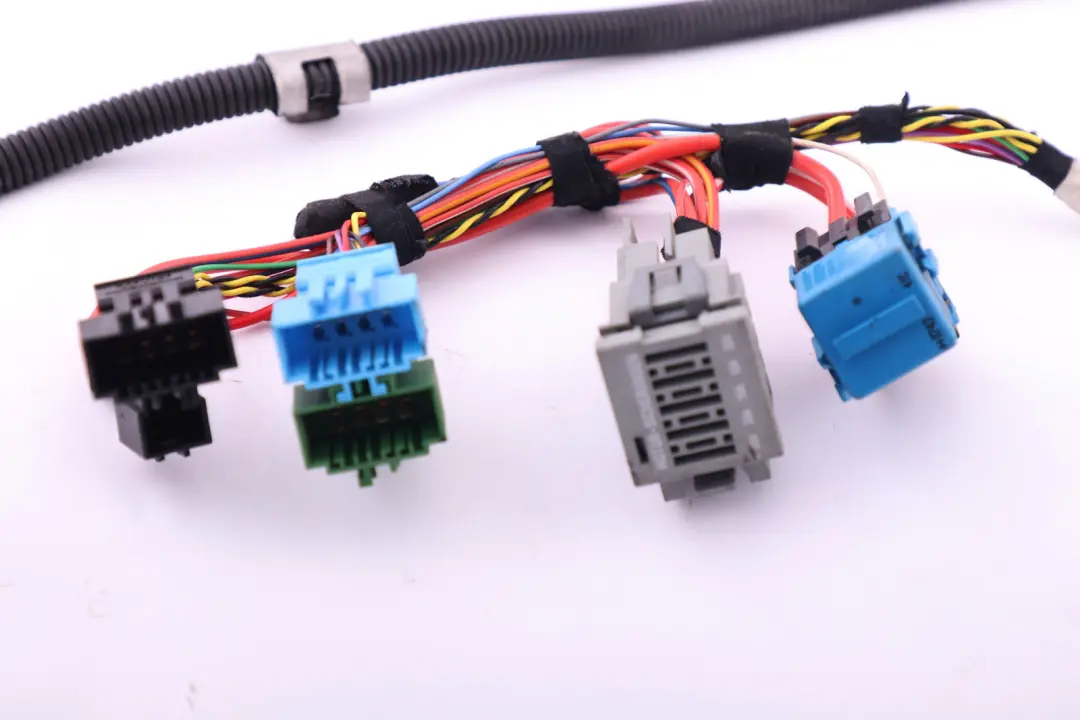

• dedicated connectors that fit the transmission's sensors and solenoids,
• cable layout adapted to the automatic transmission's geometry,
• designed for the operating characteristics of diesel engines, including higher thermal loads.

This configuration promotes stable communication between drivetrain components, which is crucial for smooth gear changes and proper control unit operation.

Service Purpose and Installation

The wiring harness is particularly useful in situations where the existing installation shows signs of damage, such as insulation abrasion, sensor communication issues, or intermittent transmission errors. Using an original part helps to reduce the risk of:

• unstable automatic transmission operation,
• errors related to sensor signals,
• problems arising from unprofessional installation repairs.

The harness is prepared for installation in place of the factory component, which facilitates workshop work and reduces vehicle downtime.

Product Characteristics and Condition

This is a BMW branded part, sourced from disassembly, which means it retains the factory fitment for a specific drivetrain configuration. This type of component is a good choice for users who prefer original solutions over aftermarket alternatives with uncertain specifications.

By maintaining the original geometry and connector placement, the harness allows for the restoration of the automatic transmission's original operating parameters in vehicles with the N47 diesel engine, without the need for modifications to the factory installation.
