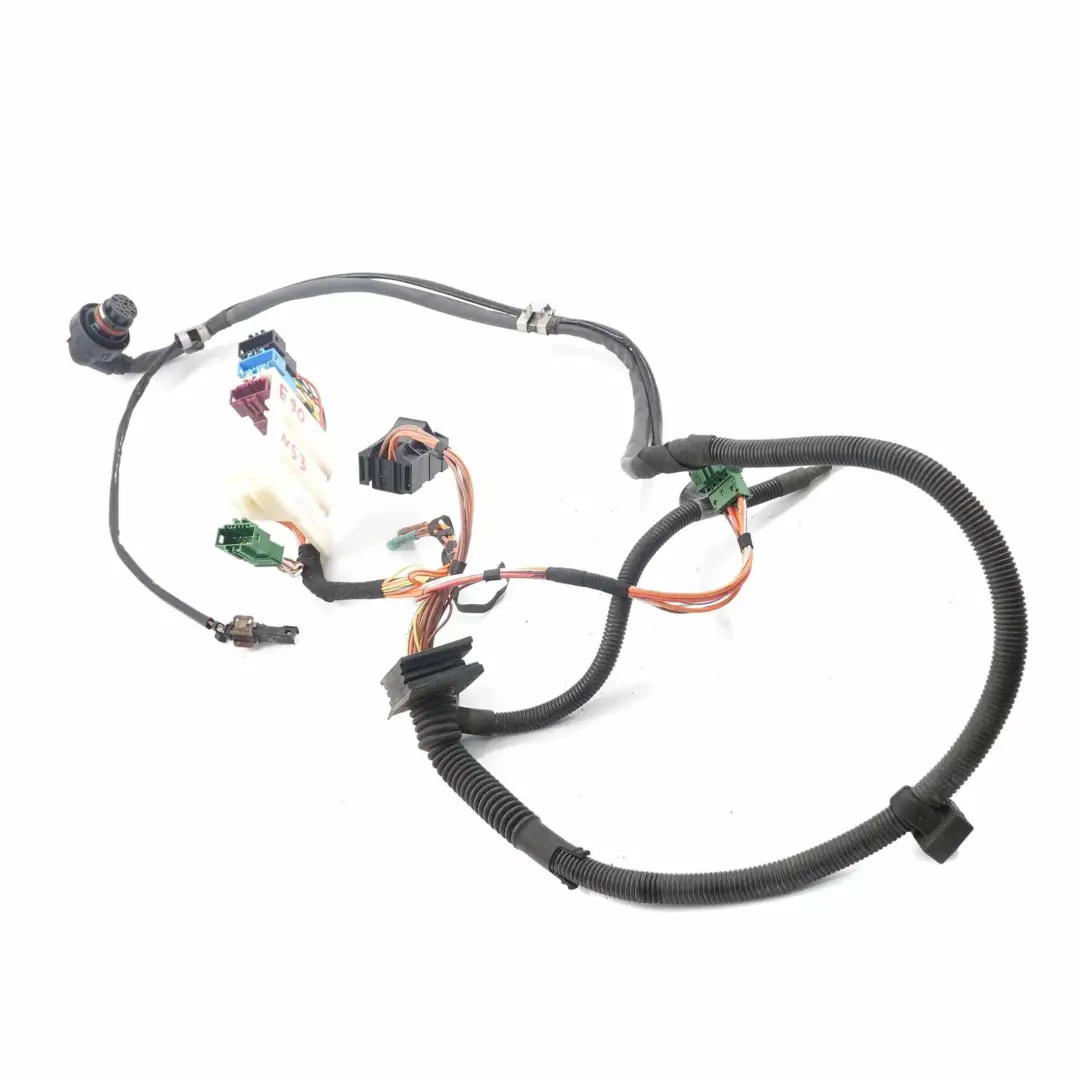

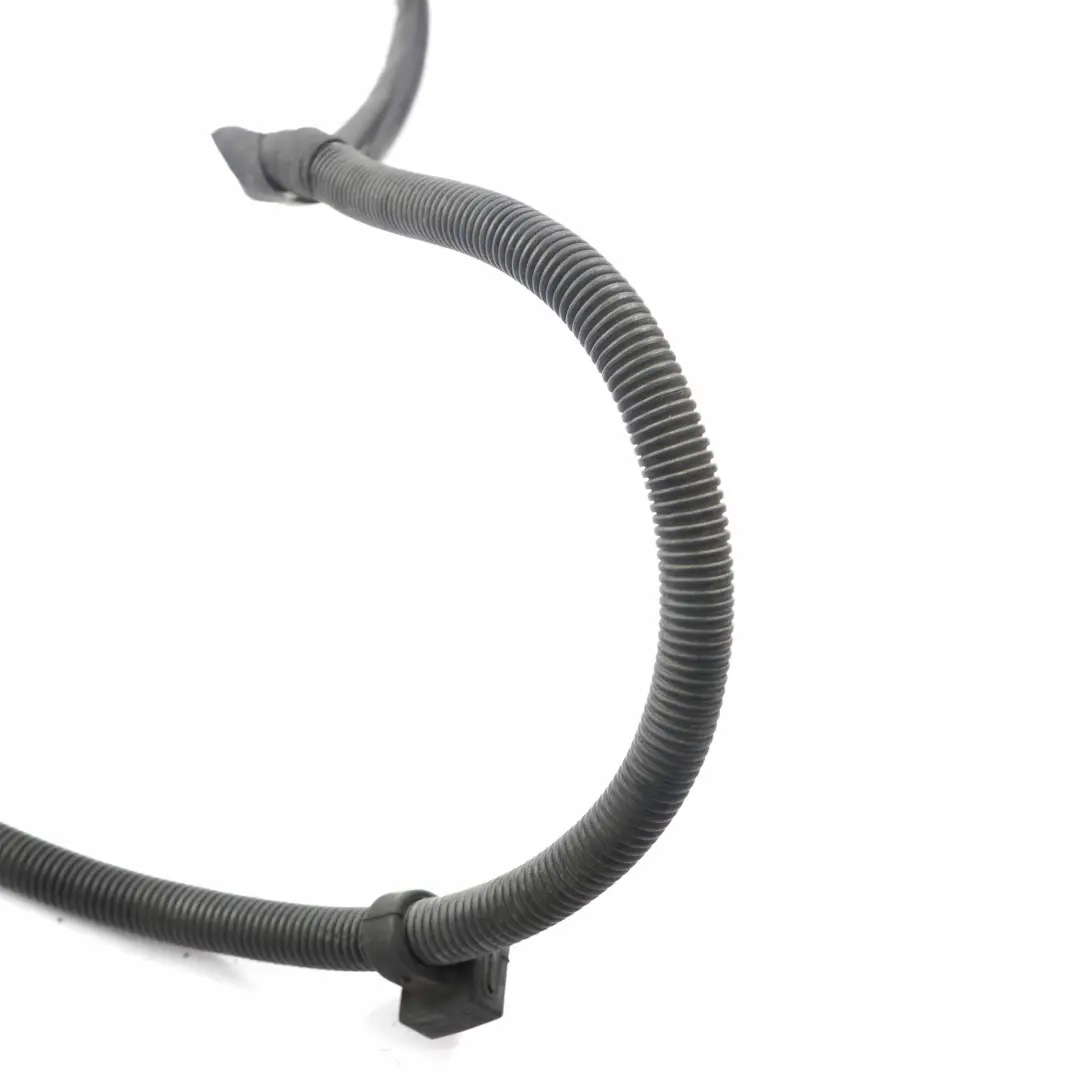

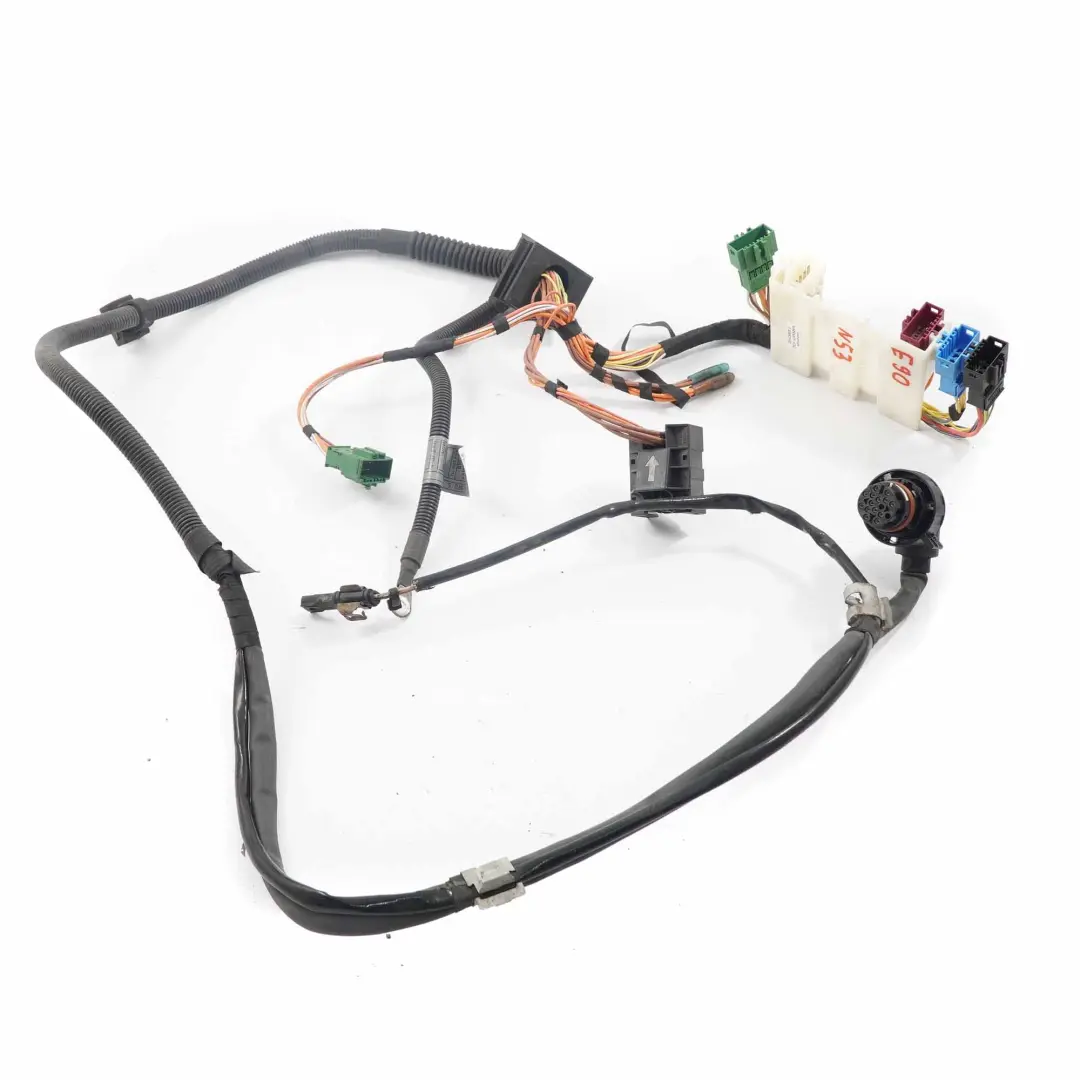

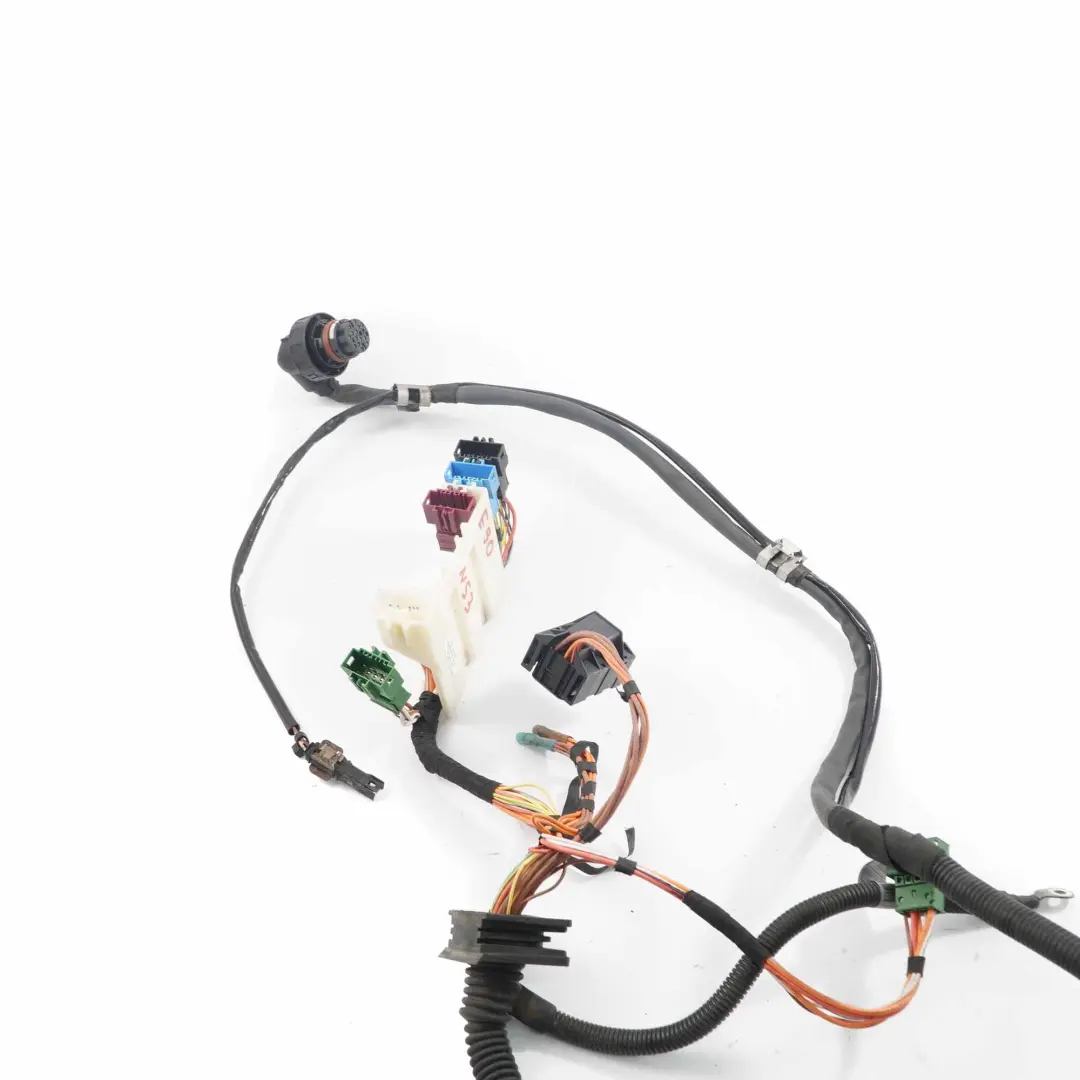

Wiring Cable BMW E90 E91 E92 N53 Engine Gearbox Module Loom Harness 7566549

The BMW E90/E91/E92 N53 Engine and Transmission Wiring Harness is an original installation component designed for gasoline engines, ensuring a stable connection between the control module, engine accessories, and transmission. Thanks to its factory design, it maintains full compatibility with BMW's electrical architecture, facilitating diagnostics and servicing. This is a practical solution for replacing a damaged installation or when swapping powertrains in 3 Series vehicles.

Specifications and technical data

• SKU: rhd-7566549
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7566549
• Substitutable numbers: 12517566549, 7566549, EM
• Fuel type: Petrol
• Category: Wiring Harnesses, Cables & Connectors

Intended Use and Function in the Powertrain System

This harness belongs to the Cables, Harnesses, and Connectors group and is specifically designed to work with the N53 gasoline engine in BMW E90, E91, and E92 models. It is responsible for transmitting signals between sensors, actuators, the engine control module, and the transmission, which directly impacts engine smoothness, throttle response, and the proper functioning of automatic gear shifting.

Using a dedicated, original harness helps avoid issues with unreliable connections, CAN communication errors, and accidental circuit breaks that often occur with makeshift repairs or adaptations of installations from other engine versions.

Construction and Advantages of the Original BMW Harness

The harness is factory-fitted to the geometry of the engine bay and transmission in the 3 Series, which translates to:

• appropriate wire lengths for individual sensors and actuators,
• use of correct connectors for the engine and transmission control modules,
• wire routing designed to minimize the risk of chafing and overheating.

This ensures that installation is orderly and predictable, and technicians have easier access to individual branches of the wiring during diagnostics. Original connectors provide secure electrical contacts, which is crucial for the operation of modern gasoline engine control systems.

Application in the N53 Gasoline Engine

The N53 engine is an advanced BMW gasoline unit where proper operation depends on precise communication between sensors, injectors, ignition coils, and the control module. The presented harness is prepared precisely for this configuration, therefore:

• it supports the N53-specific layout of accessories in the engine bay,
• it is adapted to the requirements of the high-voltage ignition and injection control system,
• it allows for maintaining the factory operating parameters of the powertrain.

Replacing a damaged or improperly modified installation with a complete harness dedicated to the N53 helps reduce hard-to-locate faults, such as intermittent misfires, sensor errors, or starting problems.

Benefits of Using a Used OEM Harness

Choosing a used OEM harness for a BMW 3 Series with an N53 engine is a sensible compromise between cost and quality. You receive a component of BMW factory production that:

• is structurally compatible with the vehicle's original equipment,
• allows for installation without modifications to the electrical system,
• facilitates subsequent computer diagnostics by maintaining the factory wiring layout.

For workshops specializing in the BMW brand, this is a convenient solution that reduces repair time and minimizes the risk of complaints related to unstable engine and transmission electrical system operation.

Compatibility and Selecting the Correct Harness

To correctly select a harness for a specific BMW 3 Series model, it is advisable to verify compatibility with the body type, engine type, and transmission configuration. Manufacturer markings and cross-reference numbers assigned to this reference are helpful. If in doubt, it is a good idea to compare the shape and layout of the connectors with the harness currently installed in the vehicle.

If you are planning a comprehensive repair or upgrade of the engine area in your BMW and need other components from the same group, such as additional wiring sections, control module connectors, or accessory branches, check the available parts in the BMW Cables, Harnesses, and Connectors category.
