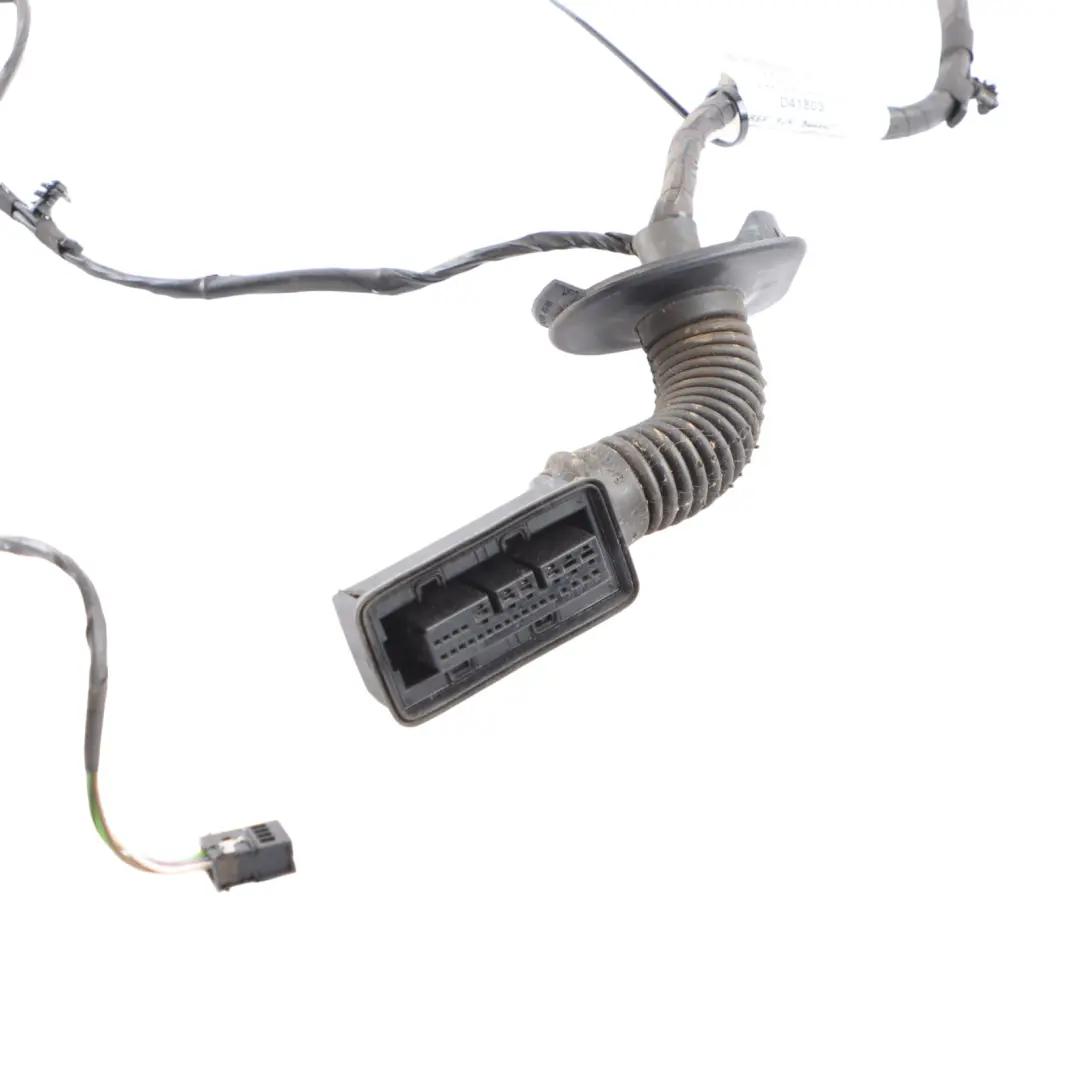

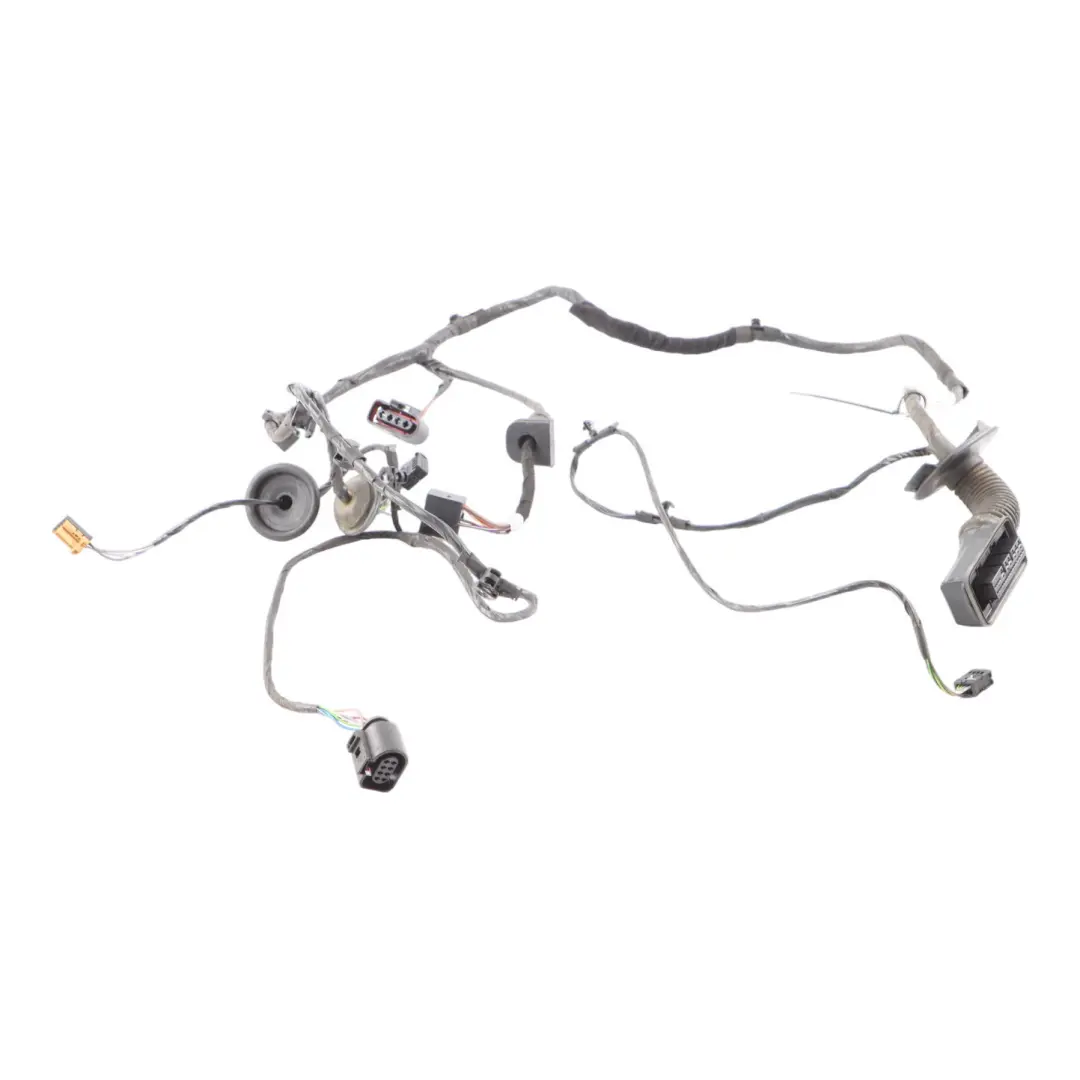

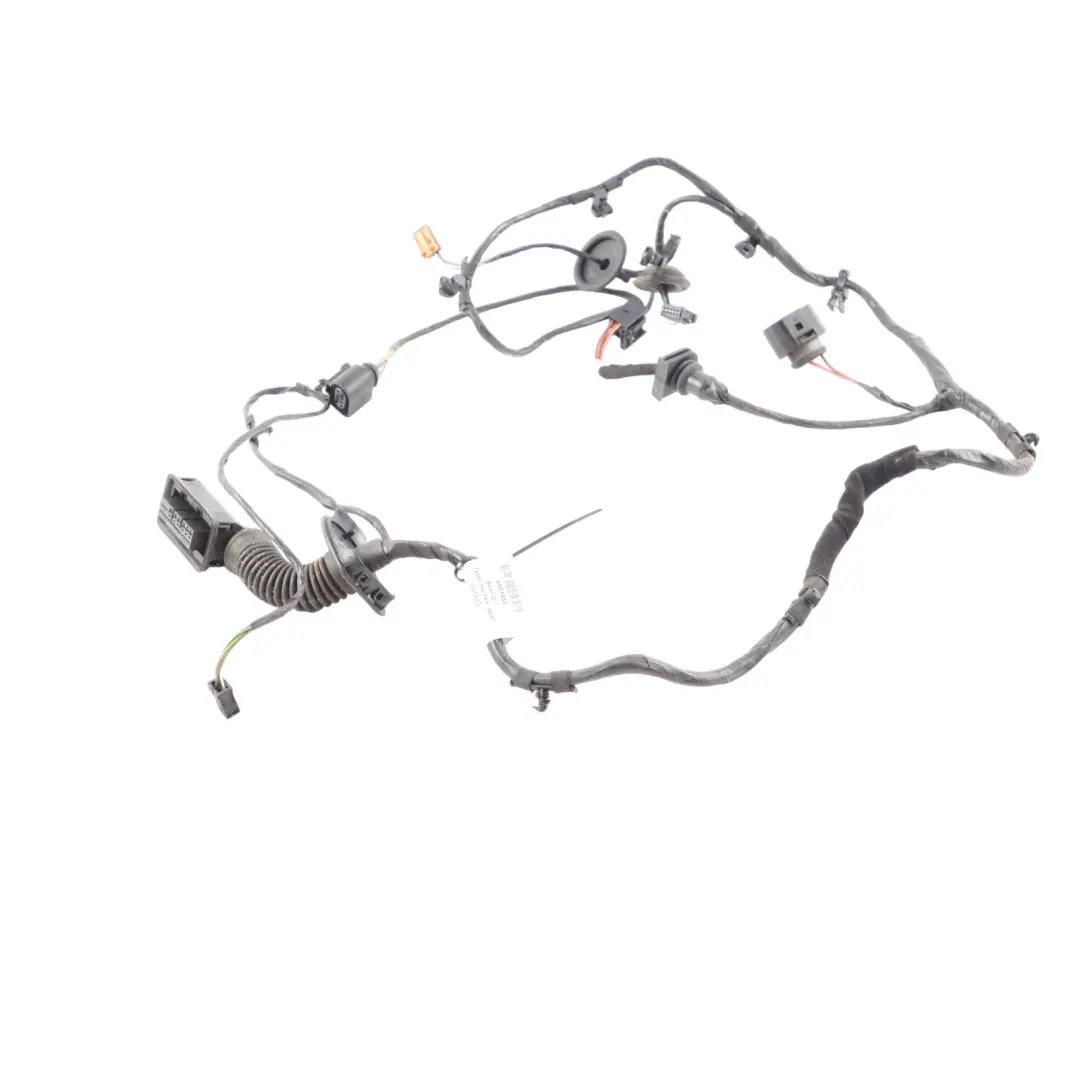

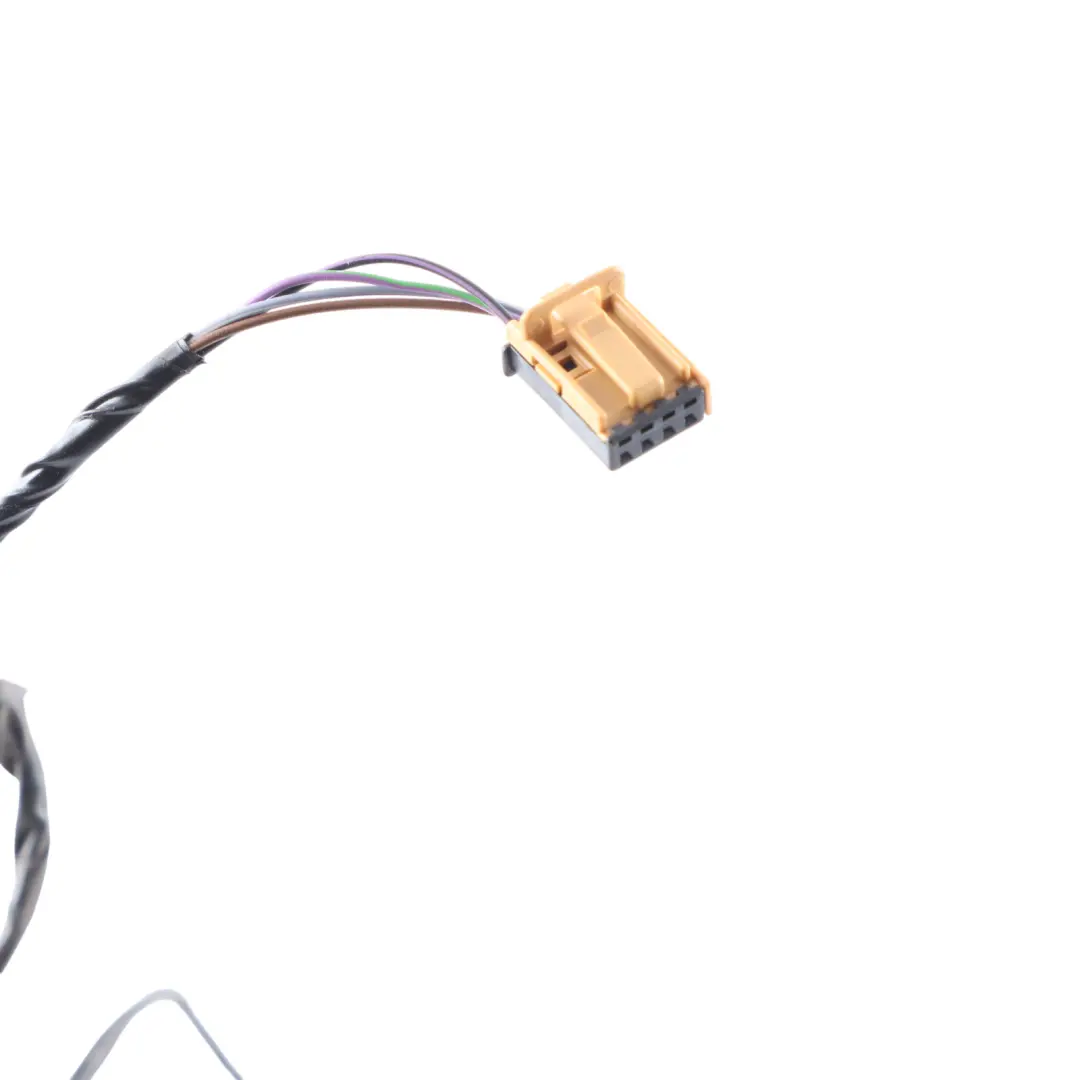

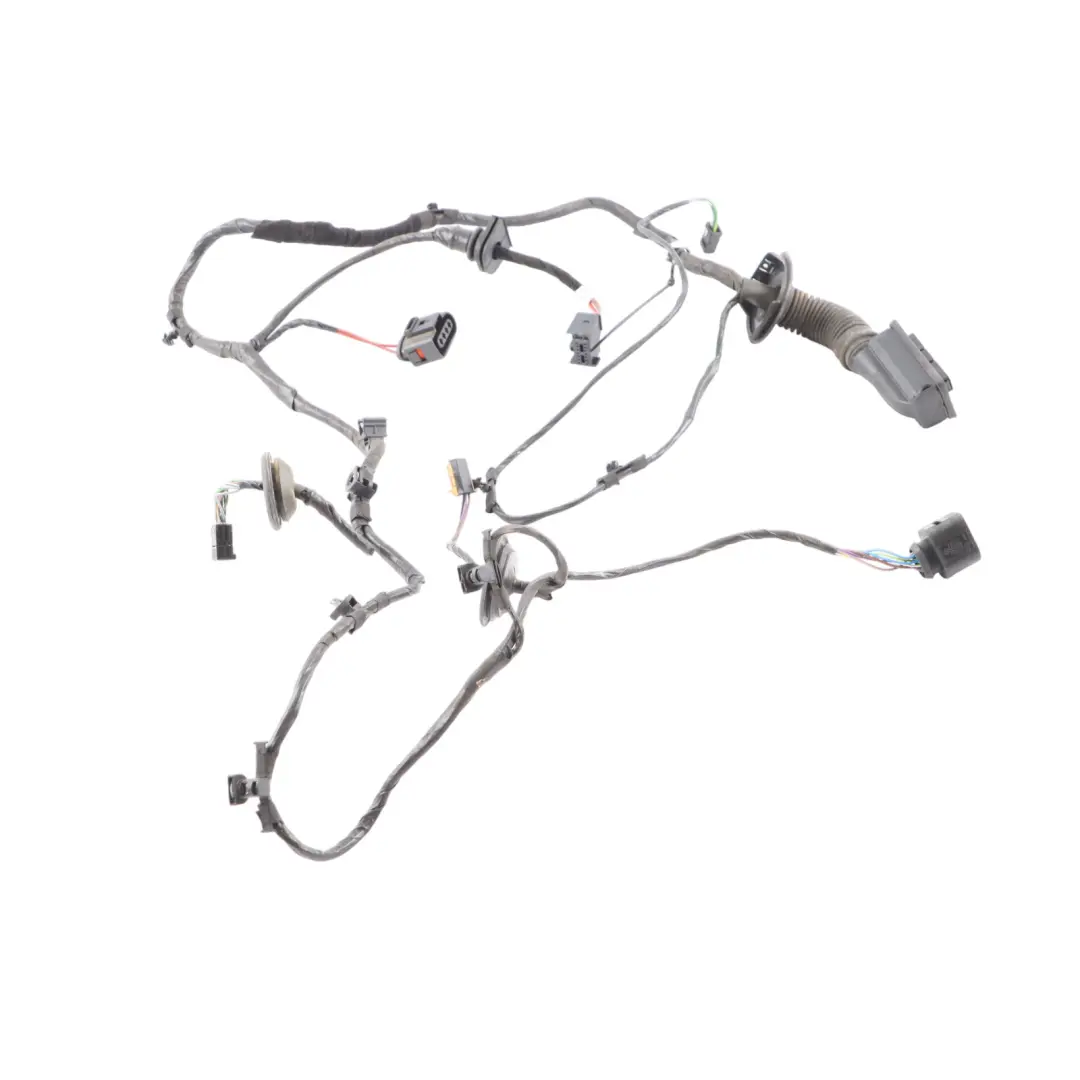

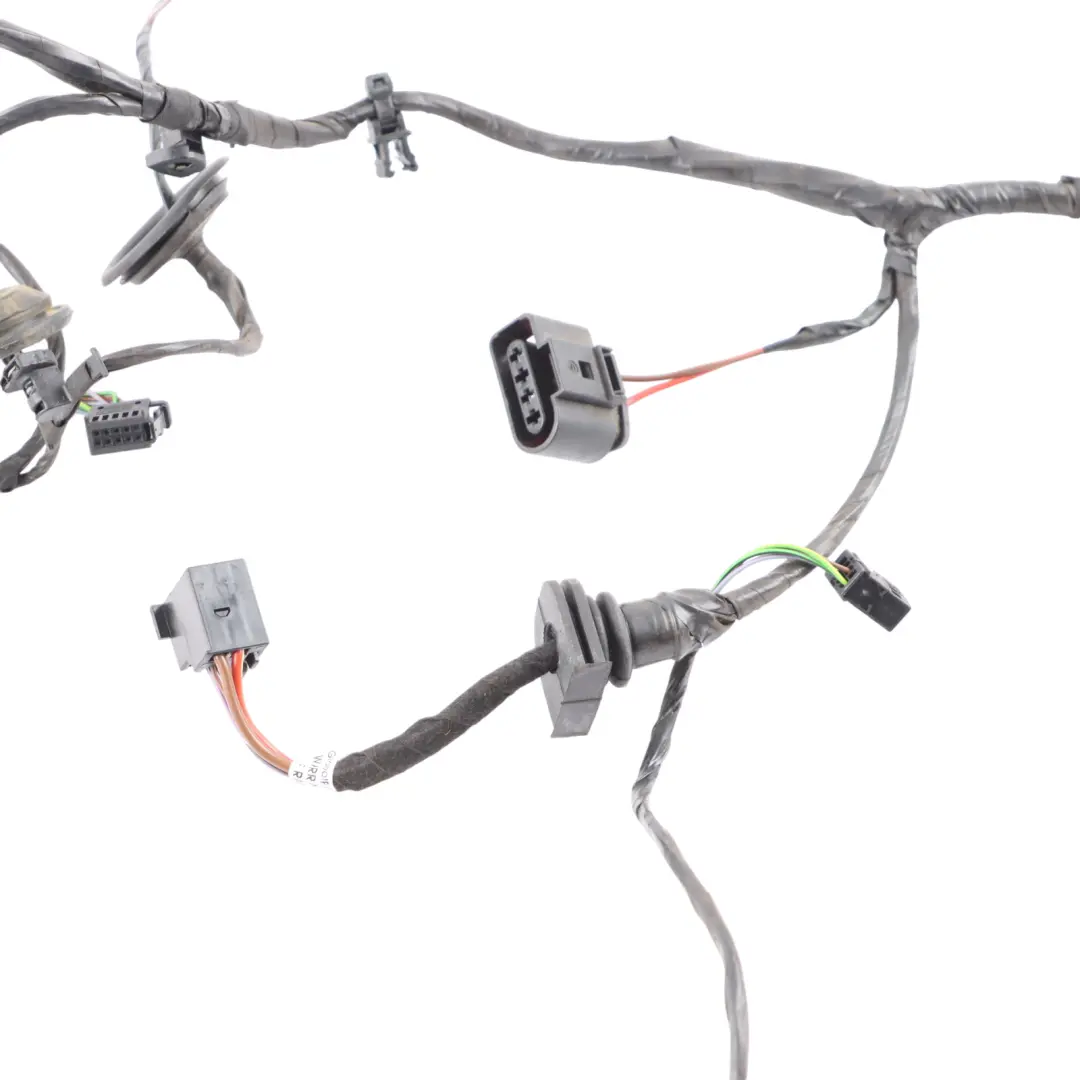

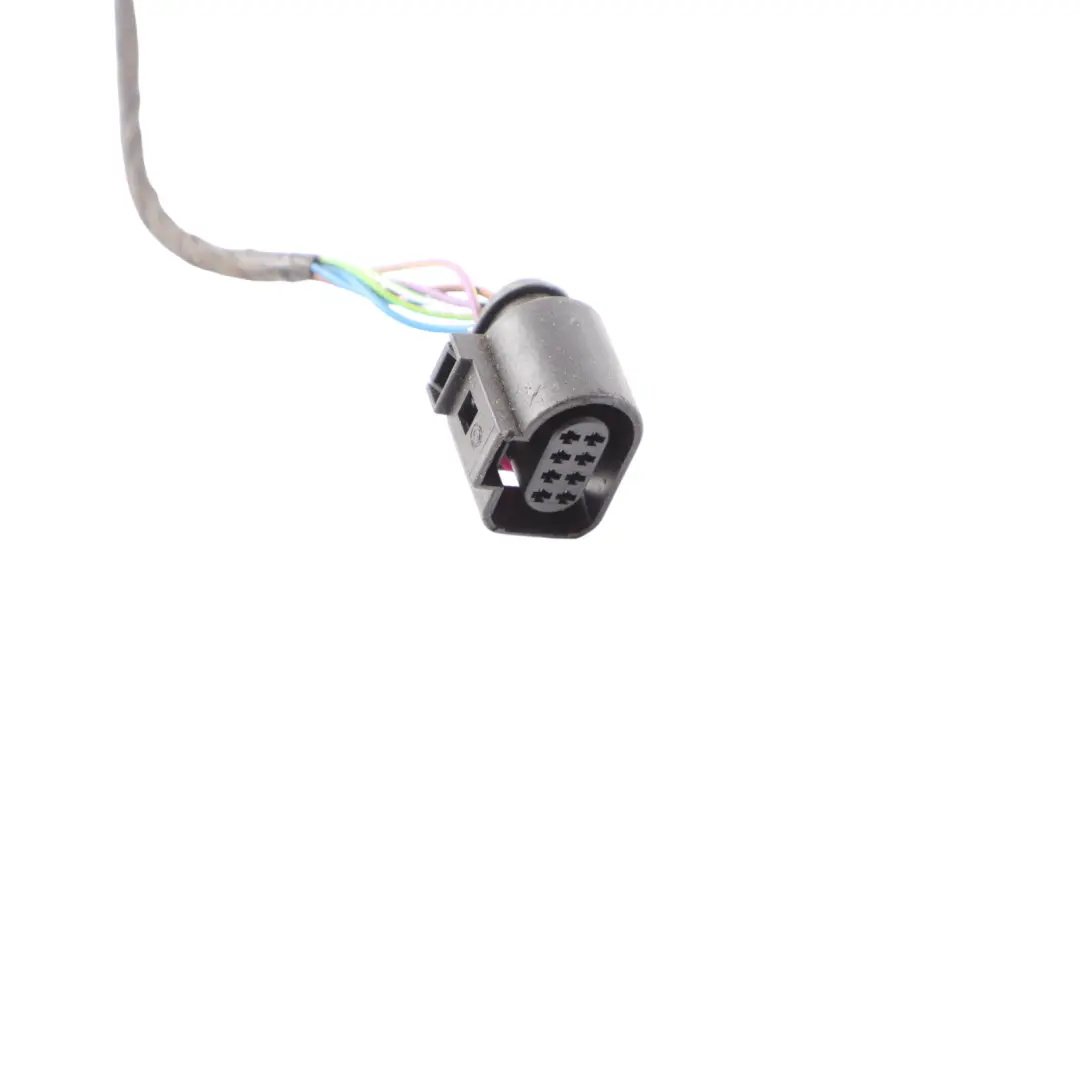

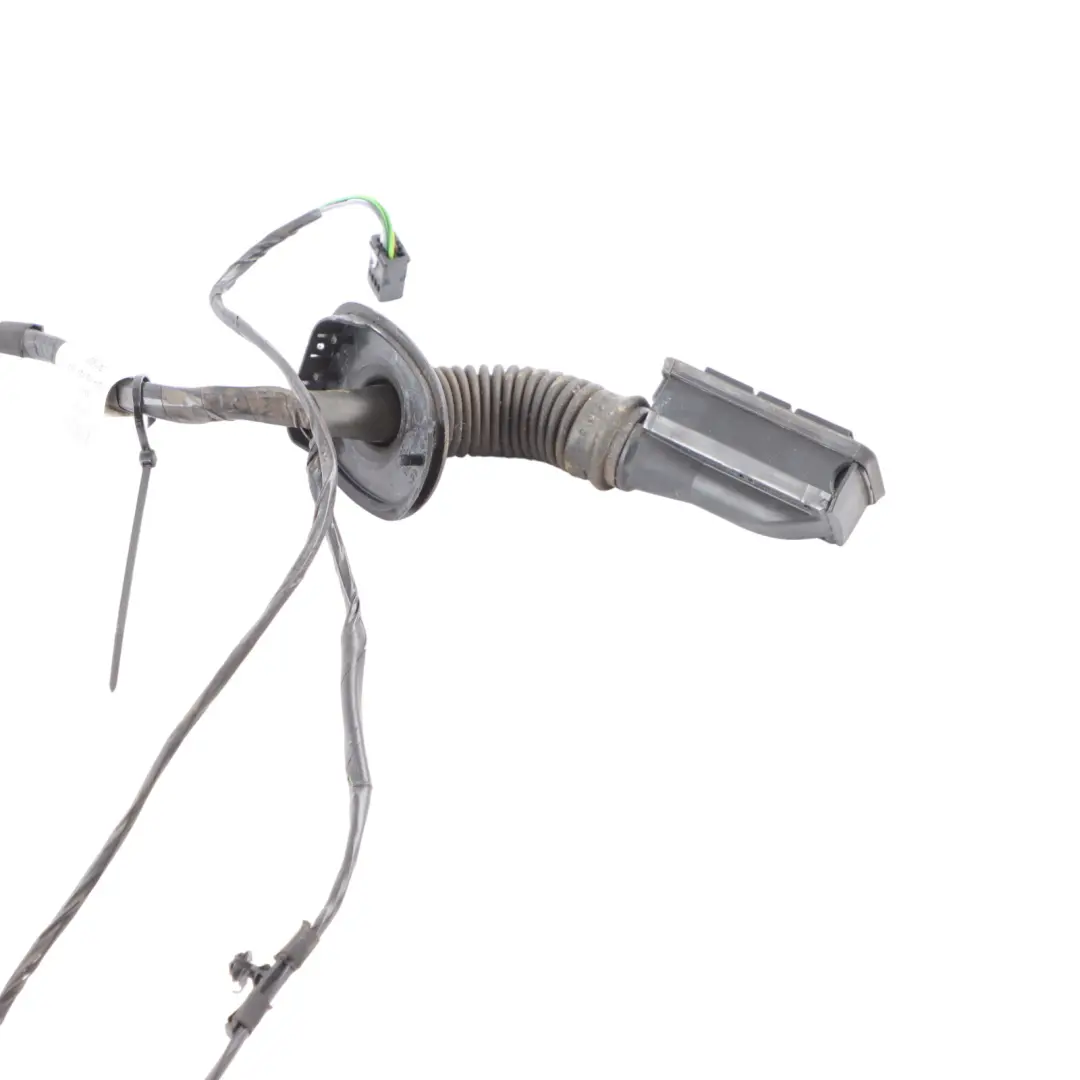

Seat Ibiza 6J Door Wiring Front Right O/S Harness Loom Cable 6J4971120CH

Seat Ibiza 6J Door Wiring Front Right O/S Harness Loom Cable is a factory door wiring harness designed for the right front door of the Seat Ibiza 6J model. This component belongs to the Cables, Harnesses, and Connectors group and is a crucial part of the electrical system, responsible for powering and communicating between the door and the rest of the vehicle. A used OEM component is a practical solution for post-collision repairs, door replacement, or damage to the wiring due to wear and tear.

Specifications and technical data

• SKU: rhd-6J4971120CL
• Mark: Seat
• Condition: Used

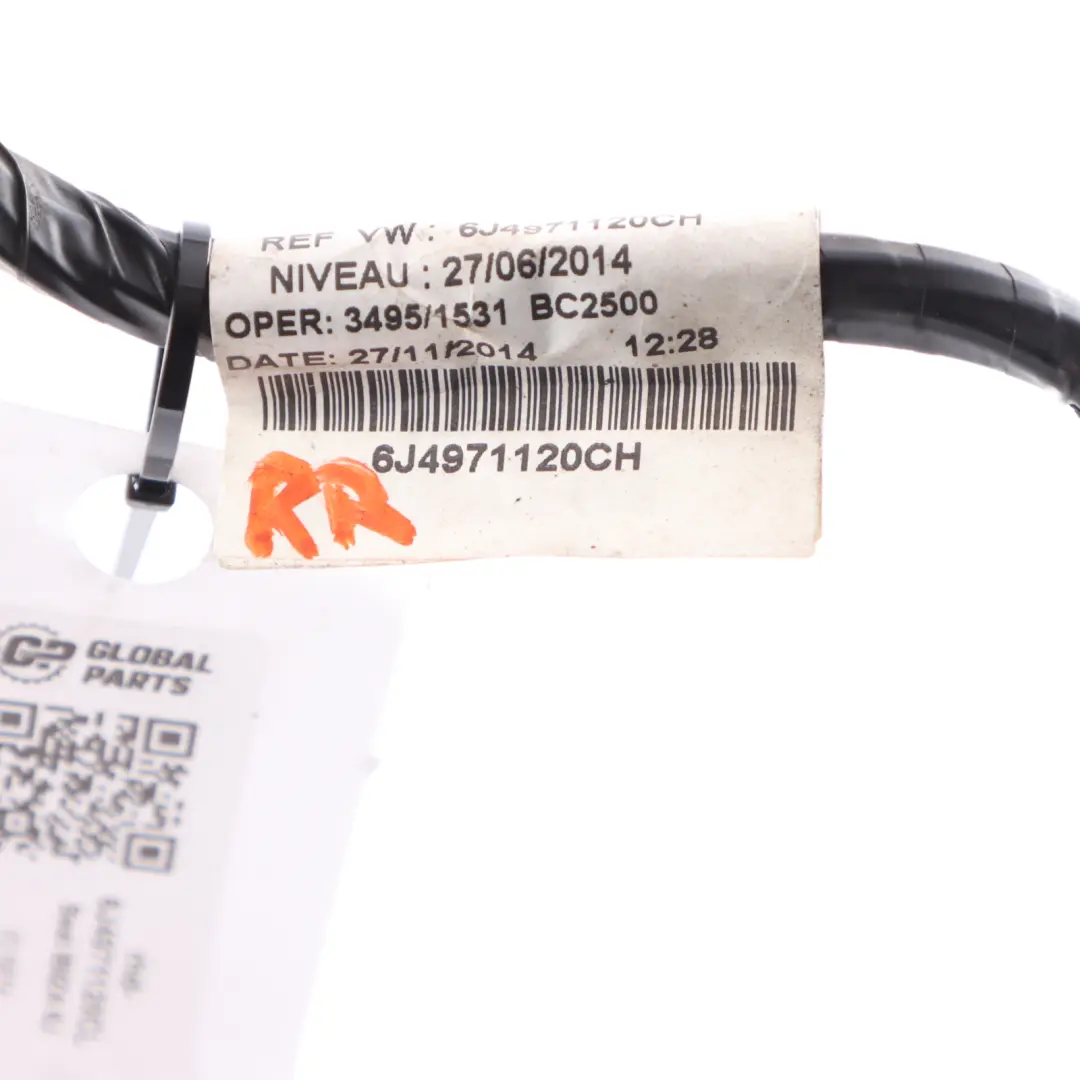

• OEM Part Number: 6J4971120CL
• Substitutable numbers: 6J4971120CL, 6J4 971 120 CL, 6J4971120CH, 6J4 971 120 CH
• Location on the vehicle: Front, Right
• Rim width: 6
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the Door Harness

The presented harness is designed for installation in the front right door of the vehicle, allowing for the correct connection of all electrical components intended by the manufacturer in this area. This includes, among other things, power supply and control signals for elements located in the door, in accordance with the factory wiring configuration for the Ibiza 6J model.

By maintaining the original architecture of wires and connectors, the harness enables the restoration of the correct wiring path without the need for modifications or additional connections. This is particularly important in repairs where compliance with service documentation and stable electrical parameters are crucial.

Construction, Connectors, and Fitment

The harness belongs to the Cables, Harnesses, and Connectors category, meaning it is factory-prepared to work with the original connectors, sockets, and grommets used in the Seat Ibiza 6J doors. The arrangement of wires, lengths of sections, and mounting points are adapted to the specific installation location on the front right side of the body.

Appropriately selected wire gauges and factory-finished connectors contribute to the stable operation of electrical systems in the door, minimizing the risk of voltage drops, overheating, or communication issues between modules. Using an original harness helps maintain the consistency of the wiring with the rest of the vehicle, facilitating future diagnostics and servicing.

Installation Parameters and Service Application

The harness is intended for installation in a specific body area – the front right door – which eliminates uncertainty associated with fitting universal solutions. This simplifies servicing work, both in professional workshops and for DIY repairs by users with the necessary technical knowledge.

The product is particularly suitable for situations such as:

• repairing the wiring after mechanical damage to the door,
• restoring factory wiring after replacing the door panel or the entire door,
• resolving issues with power supply interruptions or communication within the door.

Using the original door harness reduces the need for intervention in the vehicle's main wiring, which positively impacts the durability and reliability of the electrical system.

Component Condition and Benefits of Choosing an OEM Part

The offered harness is a used component, which in practice means a favorable compromise between repair cost and maintaining the factory wiring structure. For many users and workshops, choosing an original part from a dismantled vehicle is preferred over non-original solutions, especially for critical components like door wiring.

By choosing this harness, you gain:

• factory fitment for the specific model and side of the vehicle,
• preservation of the original wire routing geometry,
• consistency with service documentation and electrical schematics.

Expanding the Wiring within the Seat Brand

If you are planning a comprehensive repair or upgrade of the door area in your Seat and need other components from the same group, such as additional harnesses, wire sections, or door connectors, check the available parts in the Seat Cables, Harnesses, and Connectors category.

For users interested in deepening their knowledge of diagnostics and selection of electrical system components and related power supply systems, an article describing the principles of operation and maintenance of the fuel system may be helpful, available at the link: Fuel System – Injectors, Pumps, and Fuel Tank: Maintenance and Repair.
