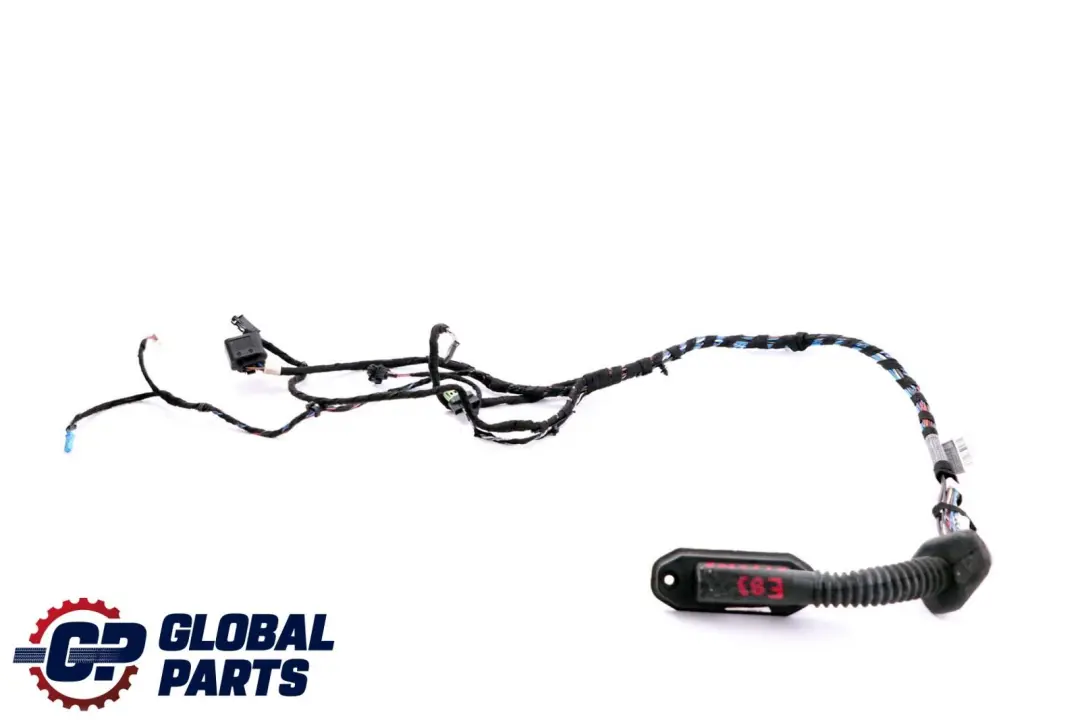

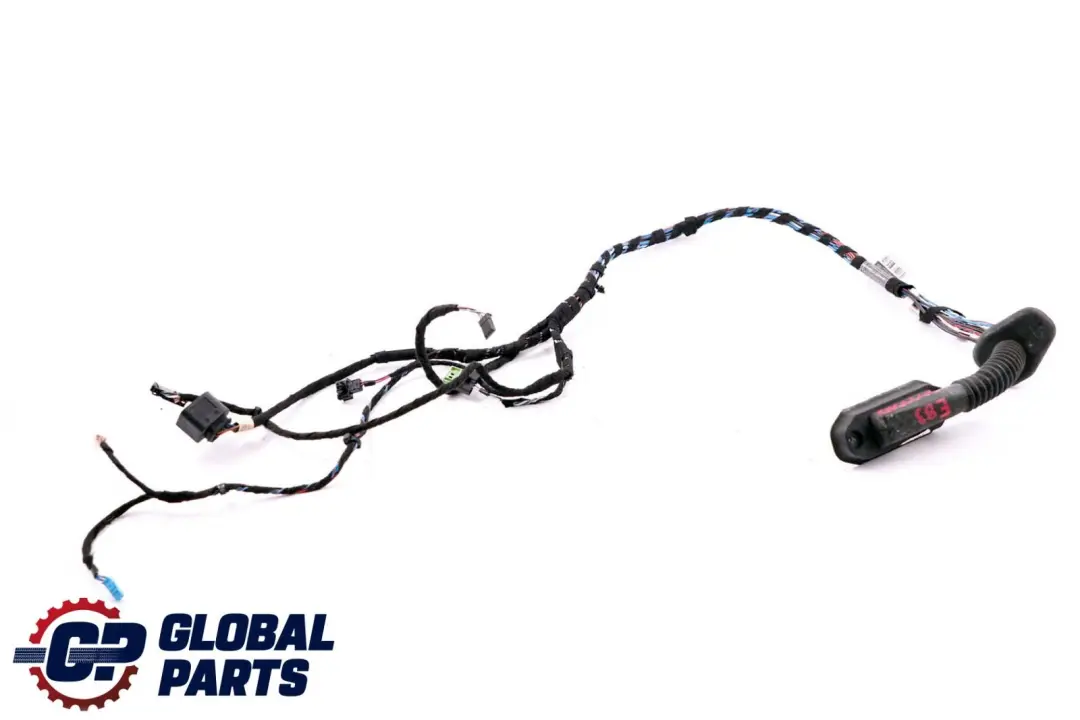

BMW X3 E83 Front Left Door Passenger Side N/S Wiring Loom Harness Cables 3412569

BMW X3 E83 Front Left Door Wiring Harness is an original wiring set designed for the left-side passenger door. This component belongs to the Wires, Harnesses, and Connectors group and is a crucial part of the electrical system responsible for powering and communicating with devices located within the door. A used OEM part helps maintain the factory installation logic and reduces the risk of compatibility issues.

Specifications and technical data

• SKU: rhd-3412569
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 3427749
• Substitutable numbers: 61123427749, 3427749, 3412569, 61123413140, 3413140 KZ
• Location on the vehicle: Front, Left
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in BMW X3 E83

The presented wiring harness is designed for installation in the front left passenger door of the BMW X3 E83. It is responsible for connecting modules and receivers in the door to the vehicle's main electrical system, ensuring stable power supply and control signal transmission.

In practice, this means it supports elements such as:

• window and lock control motors,
• switches and buttons in the door panel,
• speaker installation and any sensors in the door,
• auxiliary door lighting (if present in the specific configuration).

Thanks to its factory fitment for the specific body model and vehicle side, the harness ensures correct wire routing and proper connector placement in grommets and mounts.

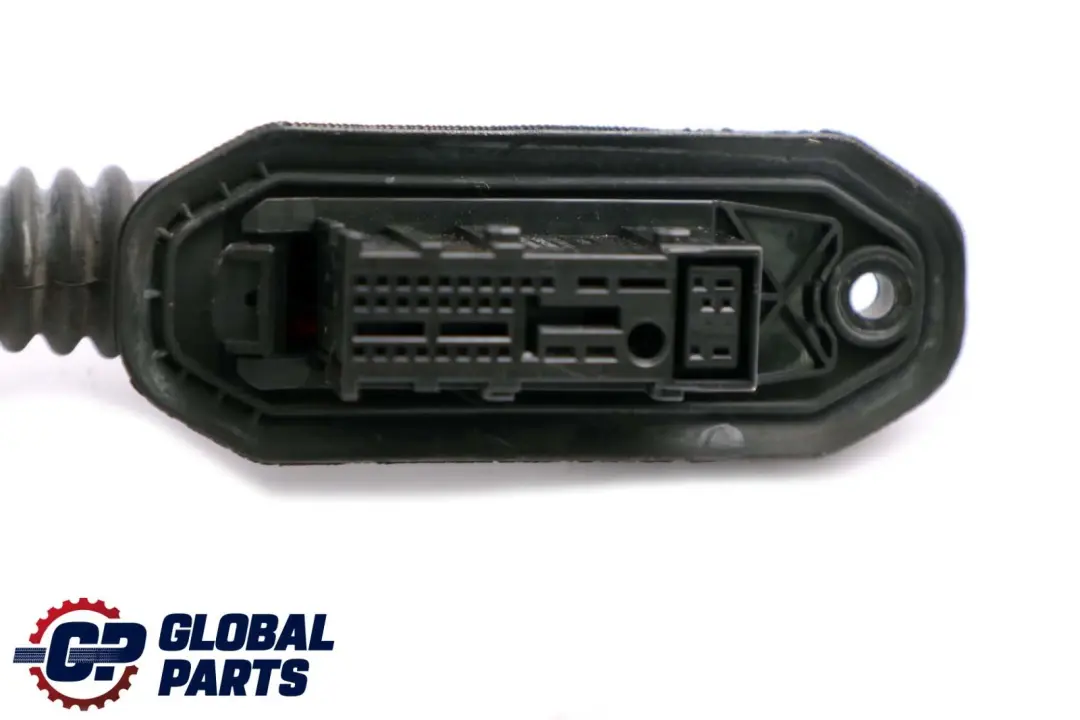

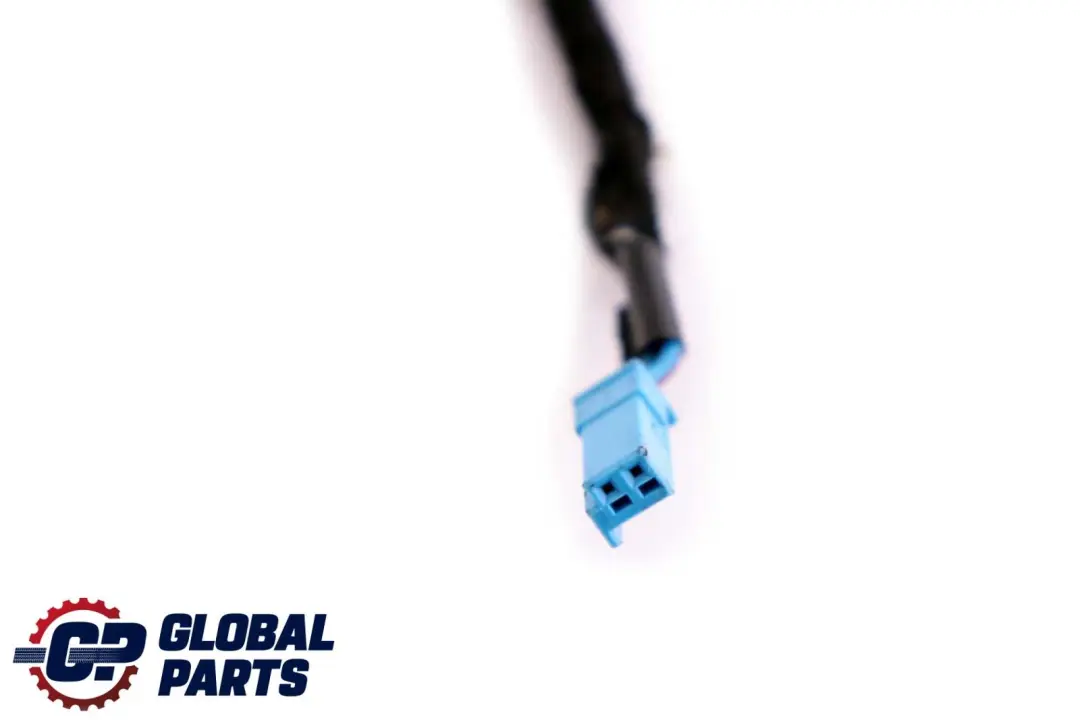

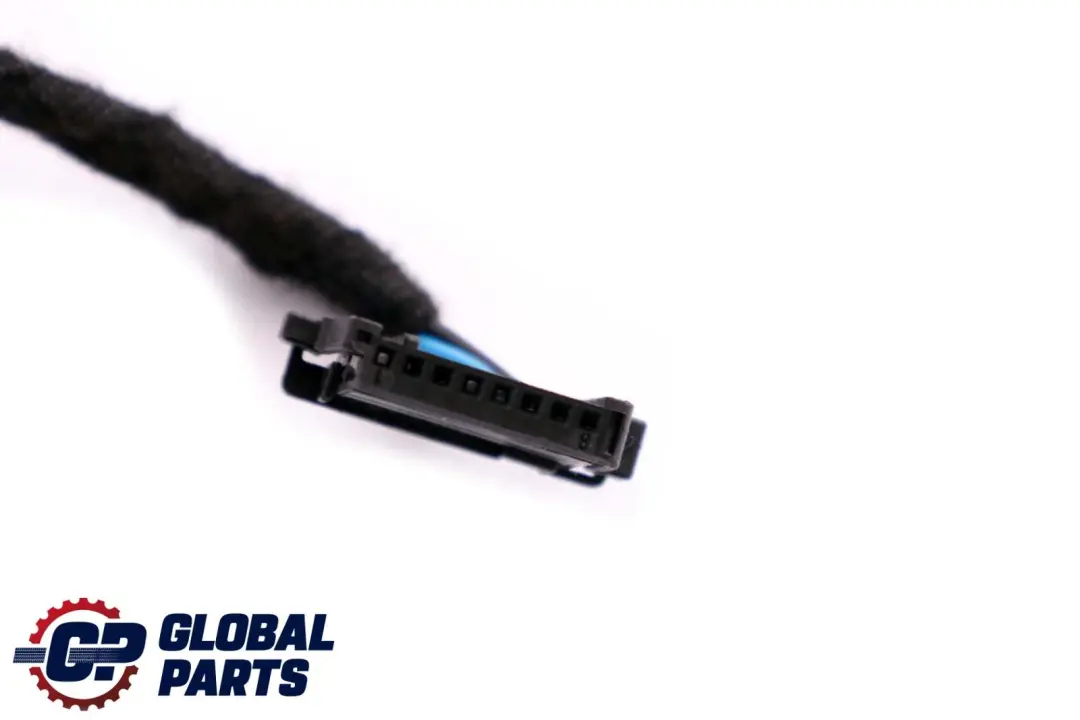

Construction, Connectors, and Fitment

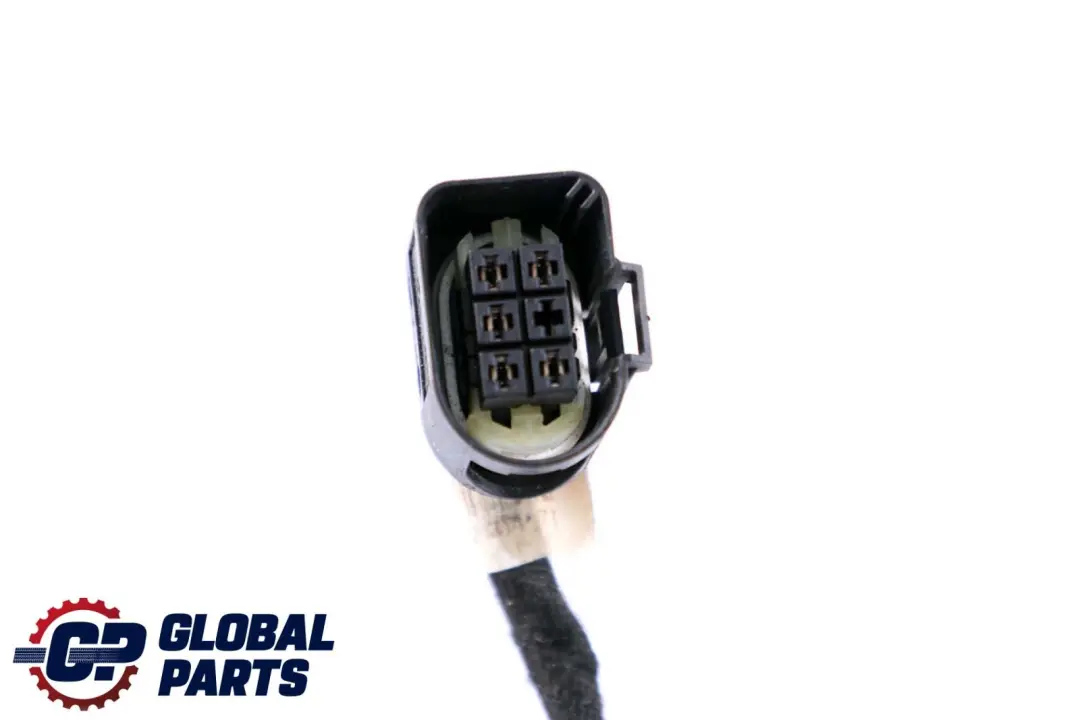

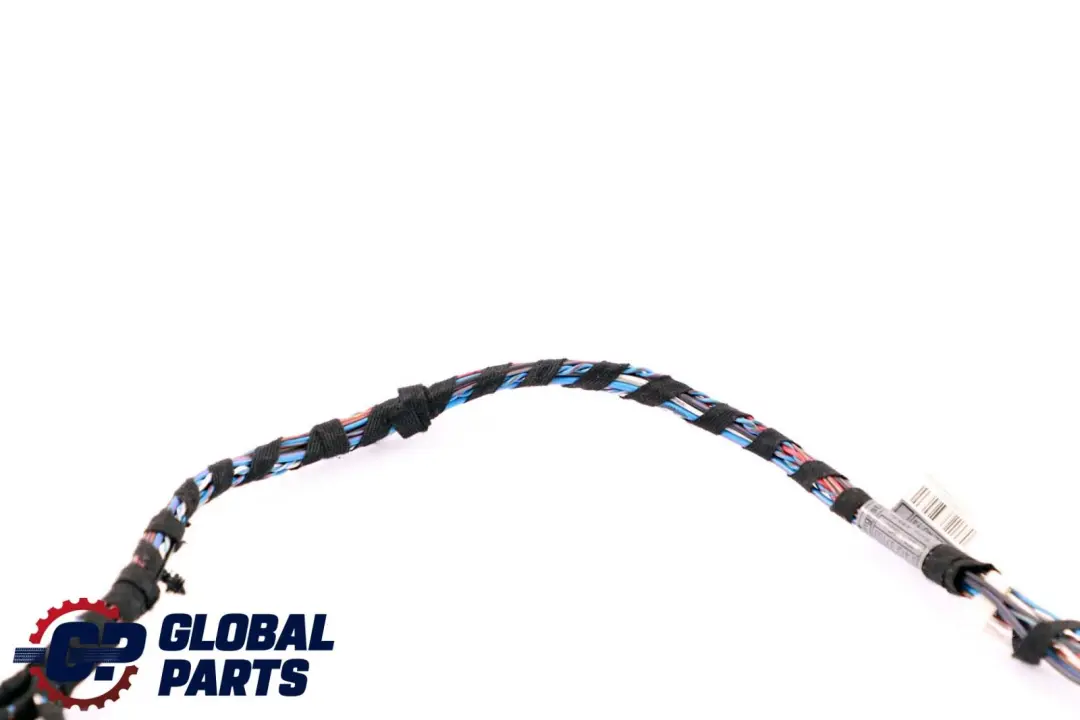

This wiring harness belongs to the Wires, Harnesses, and Connectors group, meaning it consists of a set of wires with appropriately selected cross-sections, insulation, and factory connectors matched to the BMW electrical system. The connectors used are prepared for integration with original door modules, facilitating plug-and-play installation without the need for wiring modifications.

The placement specified as front – left side ensures:

• correct wire lengths relative to mounting points,

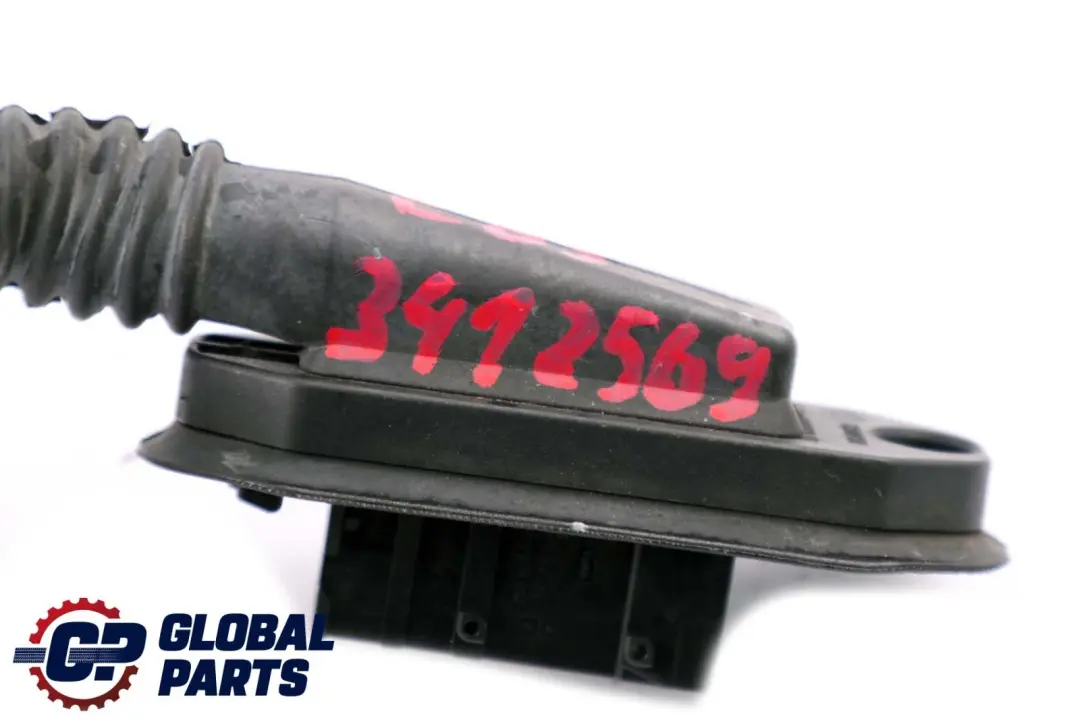

• compatibility with factory grommets between the pillar and the door,
• appropriate connector placement for individual receivers within the door.

Such precise fitment reduces the risk of wire strain, insulation abrasion, and door closing issues resulting from improper harness routing.

Benefits of Using an Original BMW Harness

Using an original door wiring harness in the BMW X3 E83 offers a range of practical technical benefits:

• Factory Electrical Compatibility – maintains conformity with BMW control modules and installation architecture.
• Appropriate Shielding and Wire Gauges – reduces interference and voltage drops in door circuits.
• Correct Connectors and Locks – secure electrical connections, lower risk of loose connections and circuit interruptions.
• Enables restoration of the original wiring path after body repairs or door replacement.

This solution is particularly recommended for collision repairs, complete door replacements, or when the factory wiring is damaged due to abrasion in the pillar-to-door grommet.

Condition, Service Application, and Savings

The offered wiring harness is a used part, which significantly reduces repair costs compared to purchasing a new OEM component, while maintaining factory fitment. This is a particularly beneficial solution for older BMW X3 E83 models, where optimizing the service budget is important.

If you want to better plan your service strategy and understand when choosing used OEM parts is most cost-effective, it's worth reading the guide: Rising Repair Costs vs. the Used Parts Boom – How to Save on Car Service?.

Expanding Door Wiring Harness Repairs for BMW

If you are planning a comprehensive repair or upgrade of the door area in your BMW and need other components from the same group, such as additional harnesses, connectors, or wire sections, check the available parts in the BMW Wires, Harnesses, and Connectors category.
