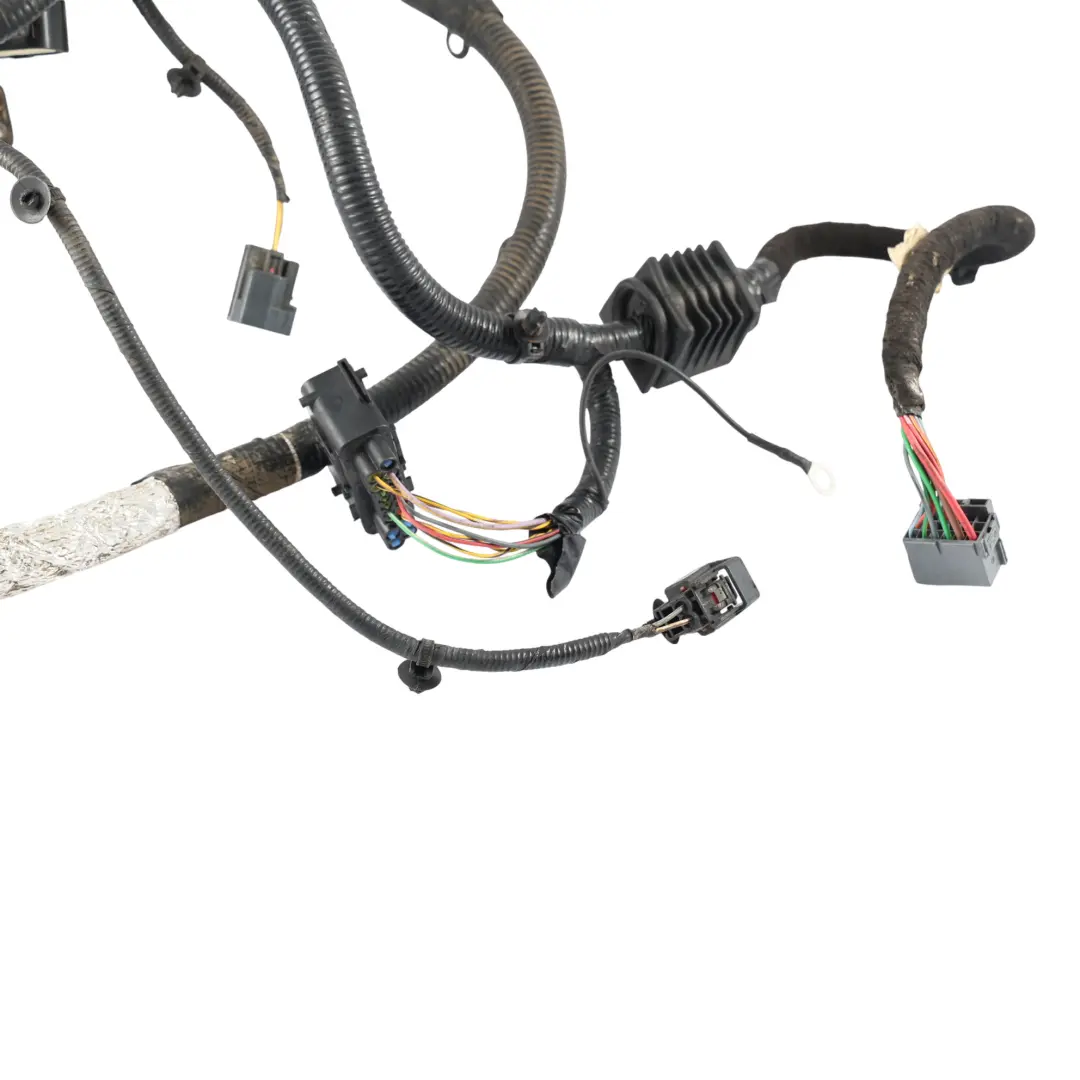

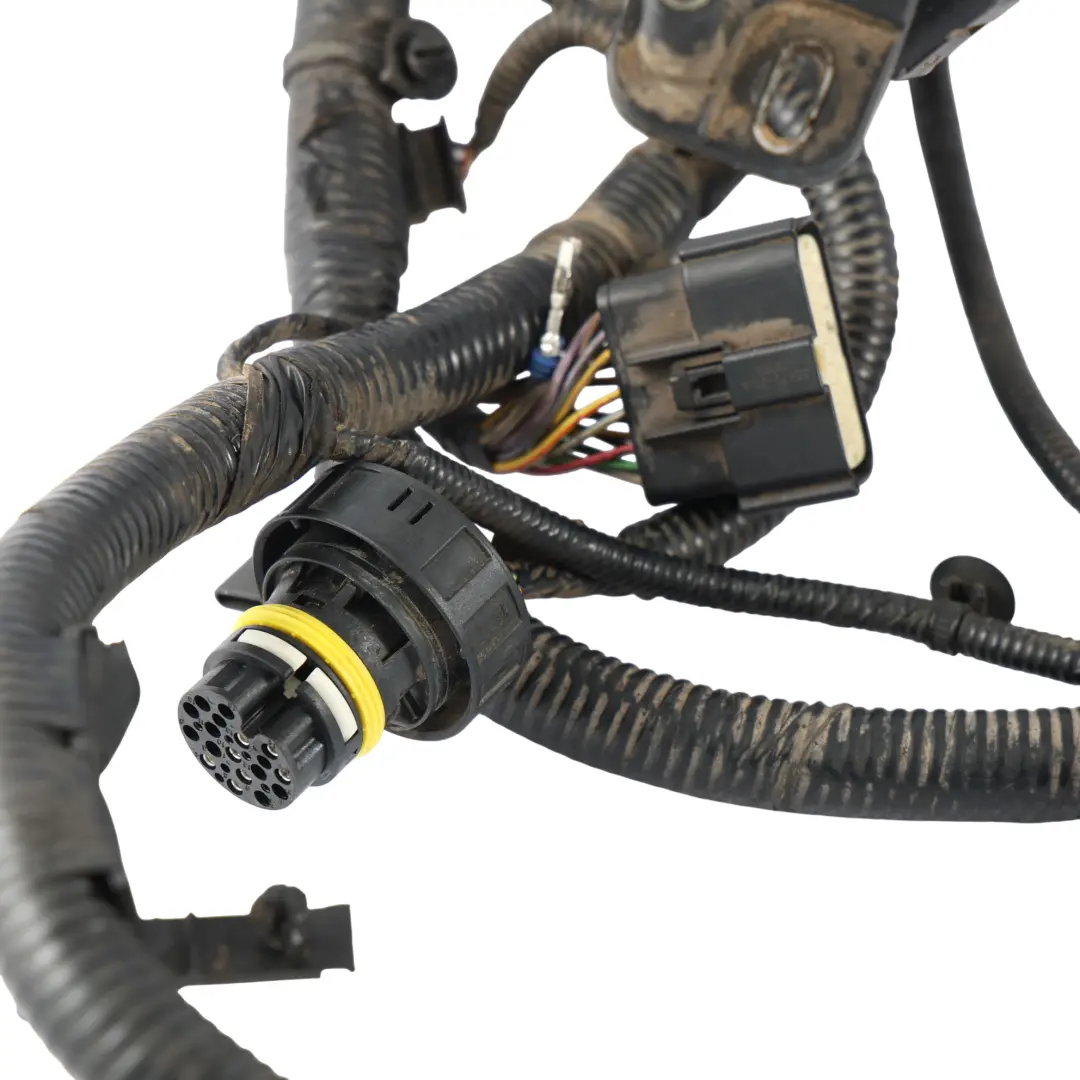

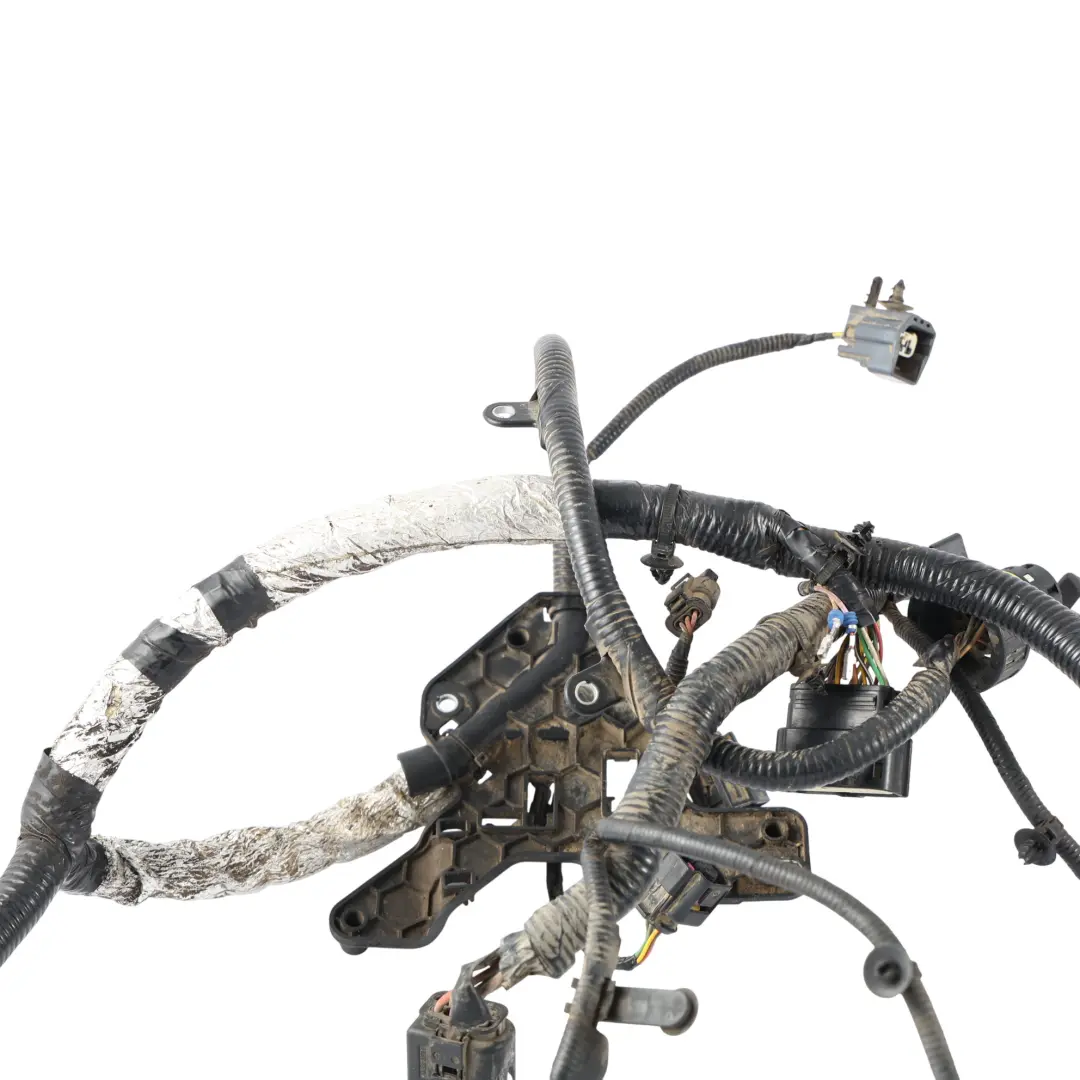

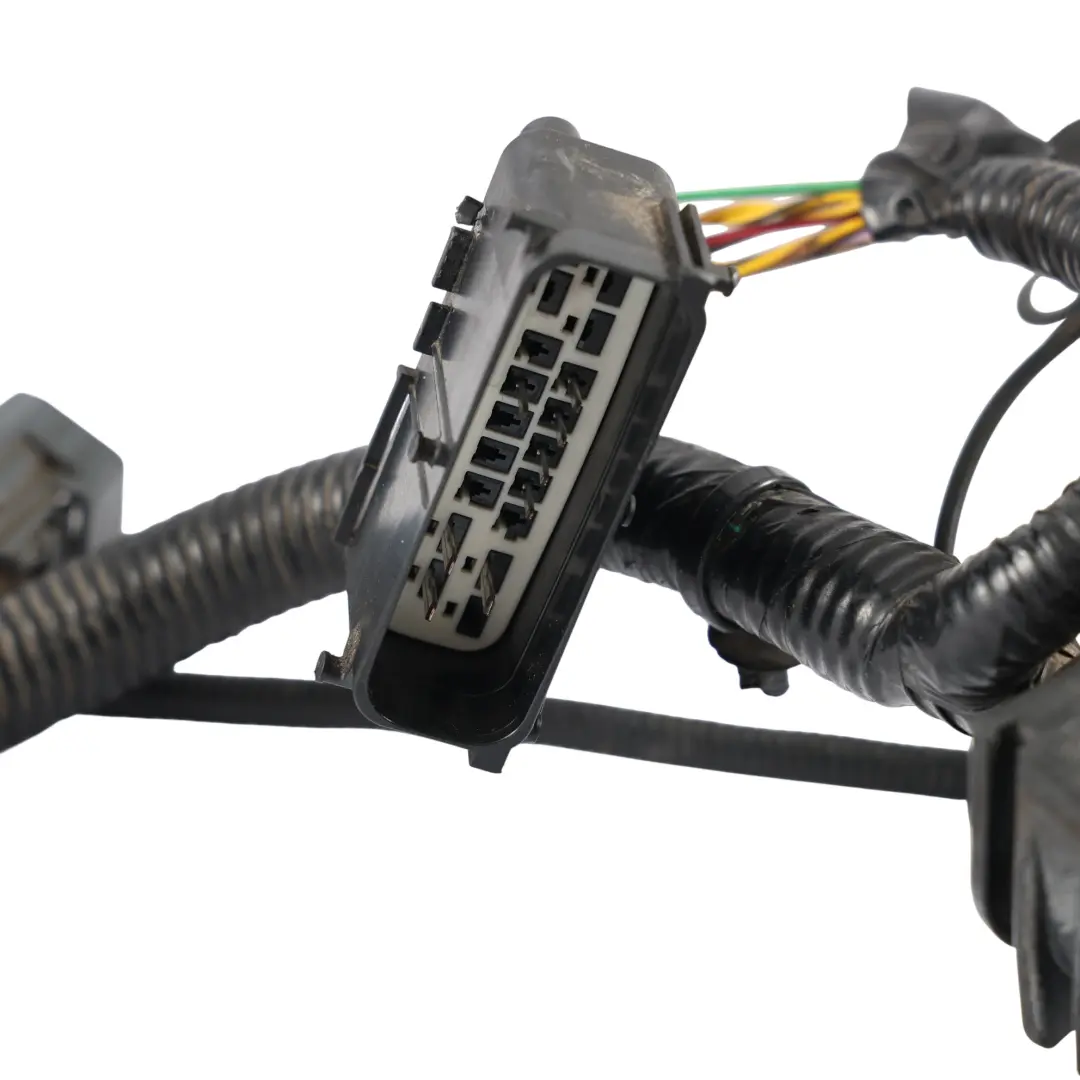

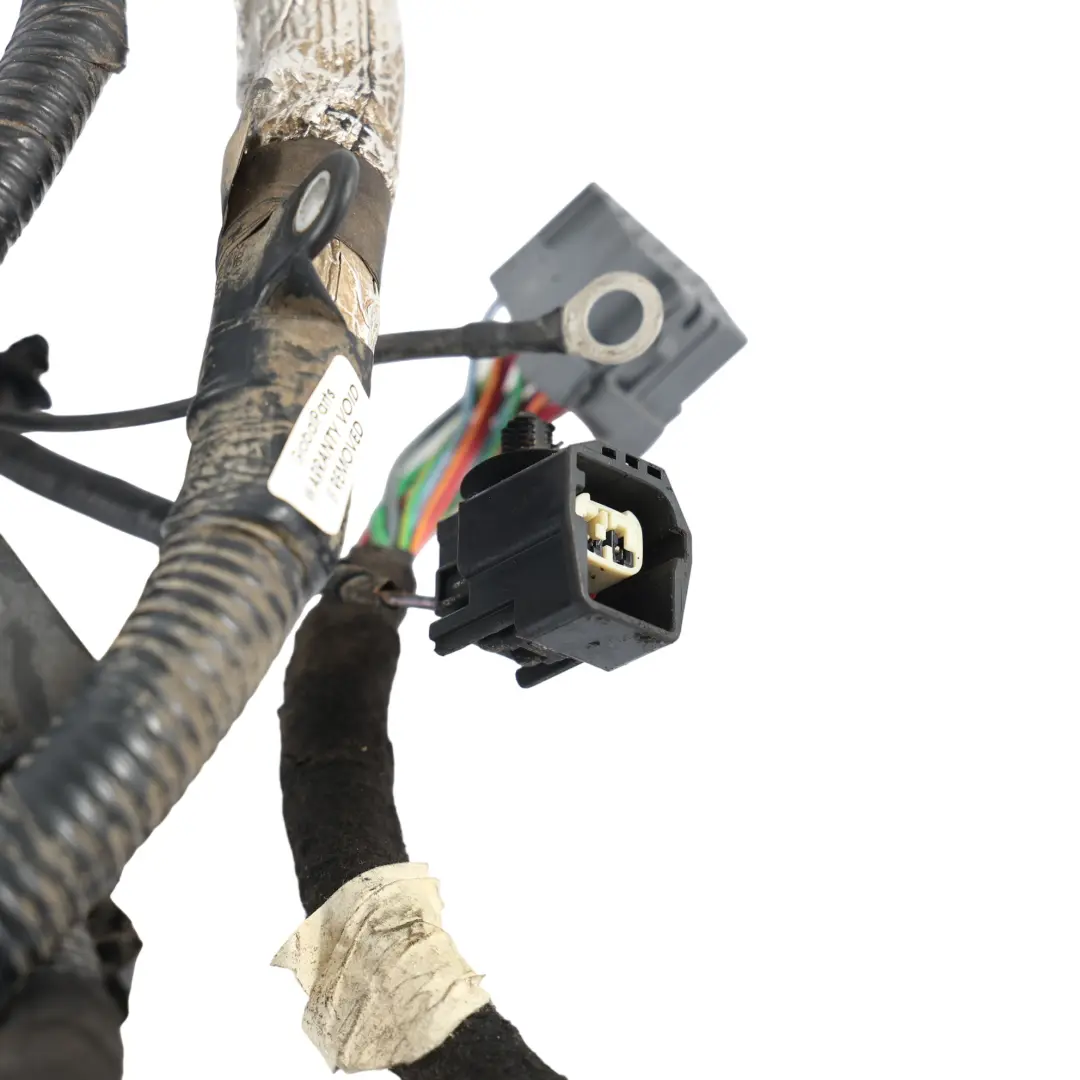

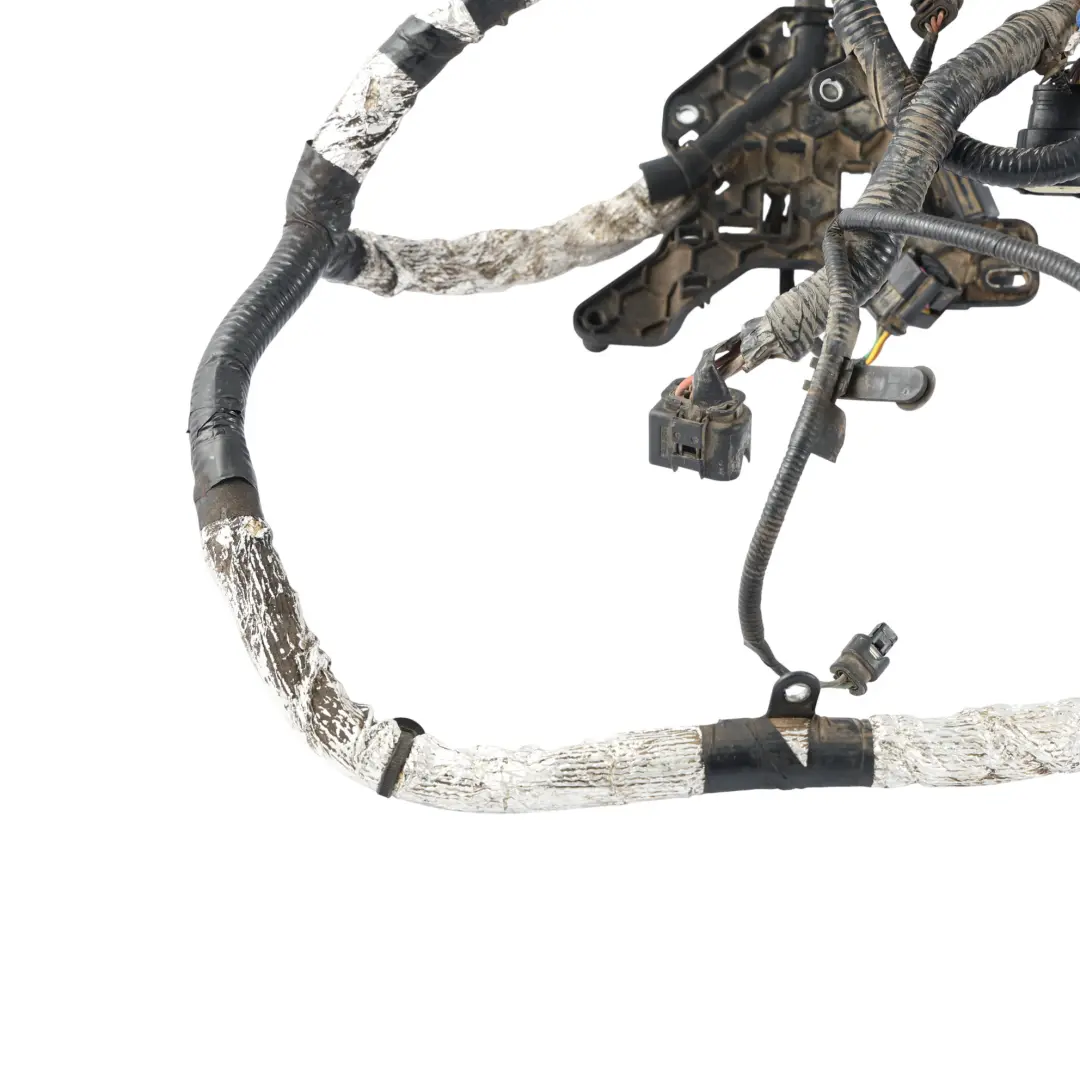

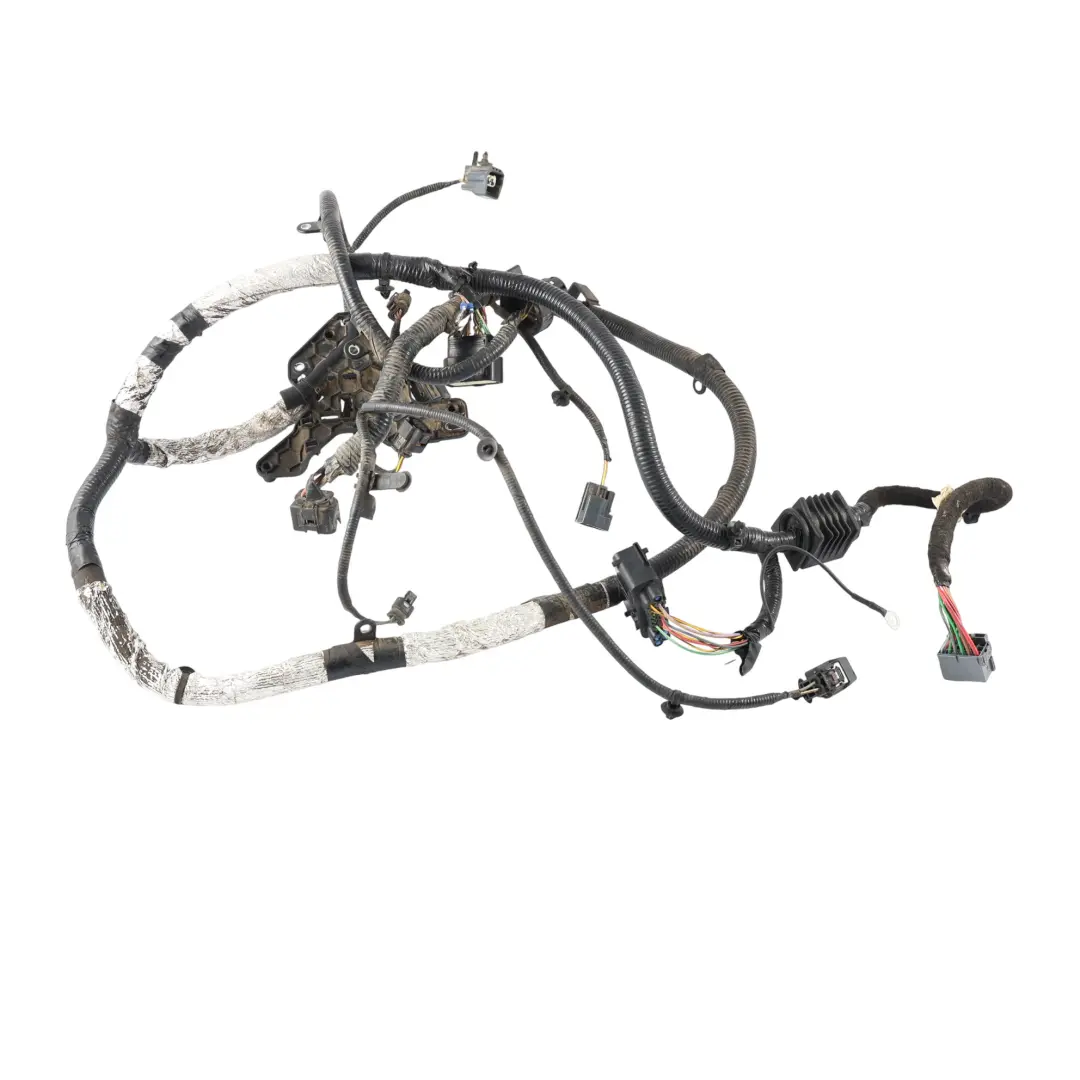

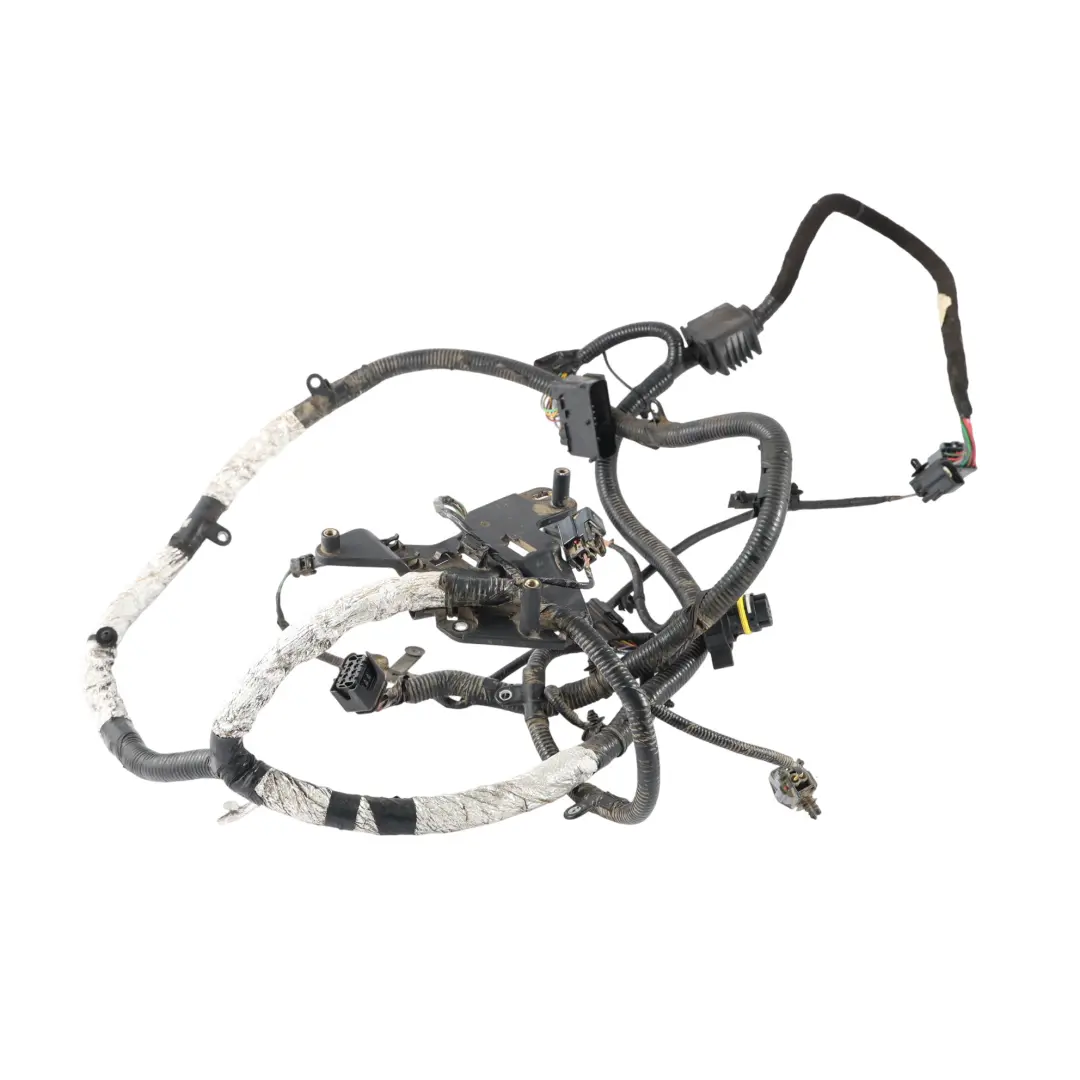

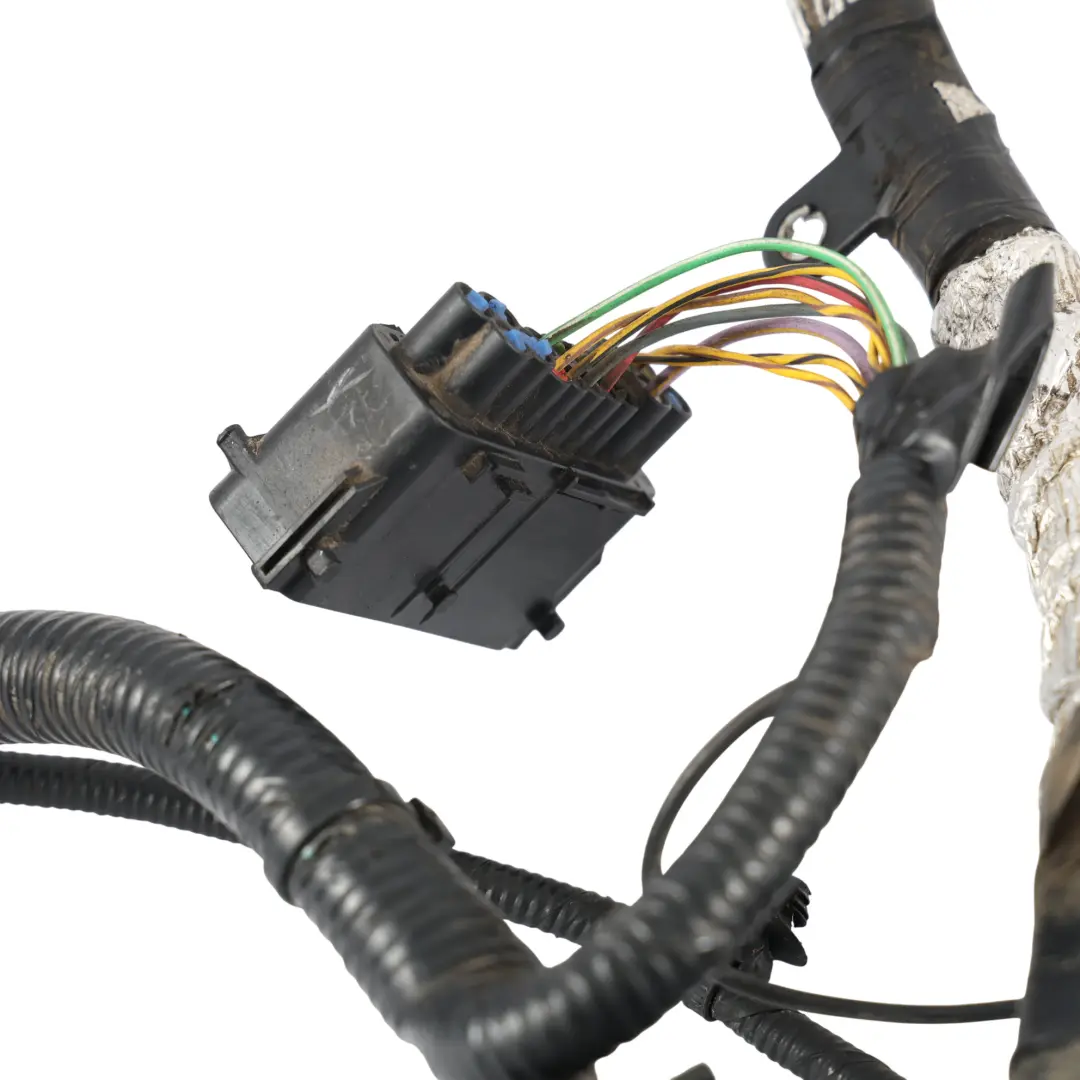

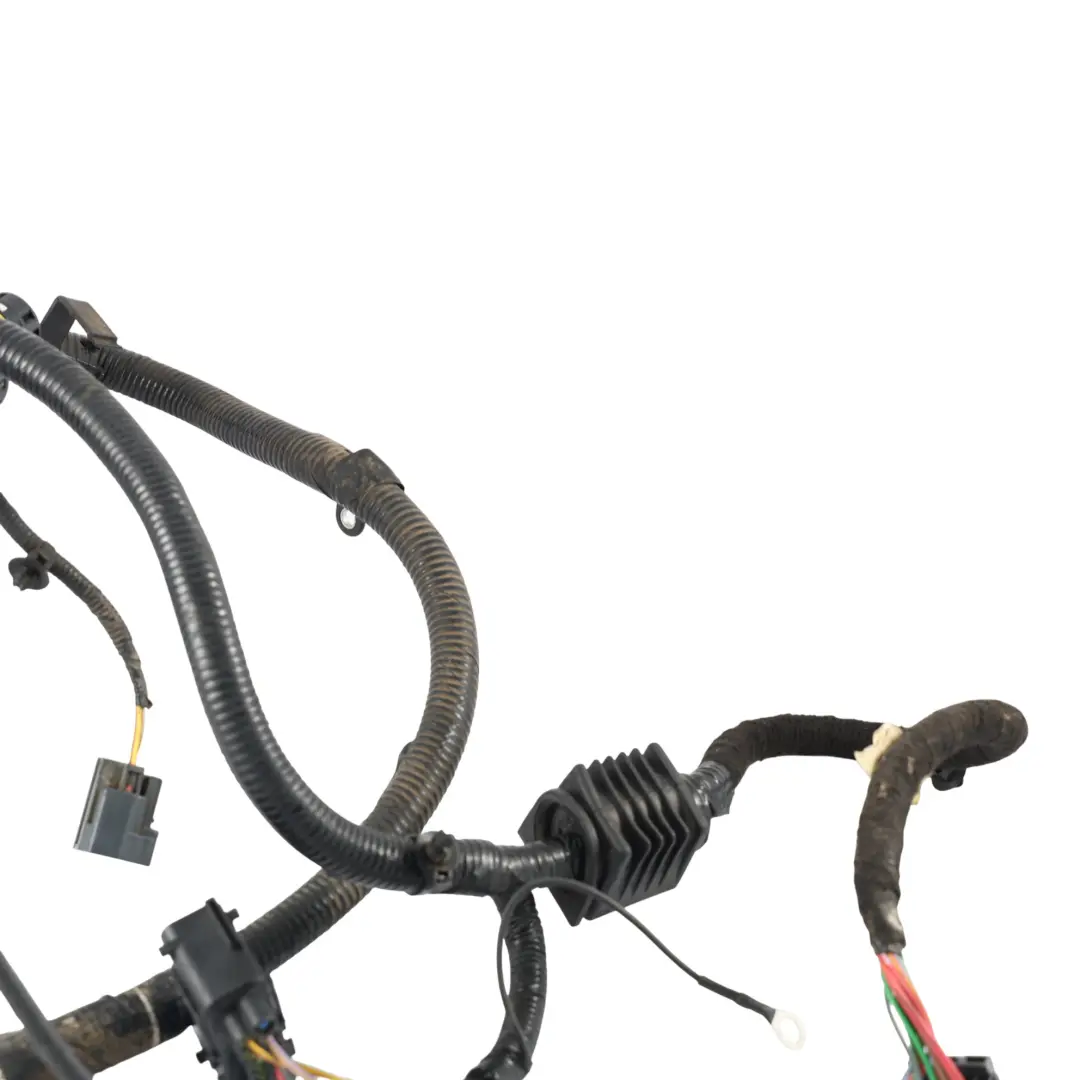

Range Rover L322 8 Speed Automatic Gearbox Wiring Loom 4.4 TDV8 BH42-7C078-DC

Range Rover L322 8 Speed Automatic Gearbox Wiring Loom 4.4 TDV8 is a specialized component from the Cables, looms and connectors group, designed to handle the control and communication of the automatic transmission. A properly selected wiring loom ensures a stable connection between the gearbox and the vehicle's electrical system, which translates into predictable drivetrain performance and correct interaction with the car's electronics.

Specifications and technical data

• SKU: RHD-LR032021
• Mark: Range Rover
• Condition: Used
• OEM Part Number: BH42-7C078-DC
• Substitutable numbers: LR032021, BH42-7C078-DC, BH427C078DC
• Gearbox type: Automatic
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the drivetrain

The presented wiring loom is dedicated to the automatic transmission system in the Range Rover L322 with a 4.4 TDV8 engine and an 8-speed gearbox. It is responsible for transmitting signals between sensors, solenoid valves, and the transmission control unit, as well as for powering key components. A correctly selected element of this type reduces the risk of communication errors, transmission limp mode, and drivetrain operation disturbances. Thanks to a design tailored to the specific model configuration, the wiring loom allows for maintaining the factory routing of cables, which facilitates installation and minimizes the risk of abrasion or mechanical damage during operation.

Benefits of using an original wiring loom

Using a dedicated wiring loom in a Range Rover L322 with an 8-speed automatic transmission brings a number of practical benefits:

• maintaining compatibility with the vehicle's factory electrical system,
• stable operation of the automatic transmission due to correct signal transmission,
• reduced risk of errors related to the transmission's electrical installation,
• easier computer diagnostics thanks to predictable connection points,
• the ability to restore the original cable routing after repairs or drivetrain upgrades. This solution is particularly recommended for repairs following mechanical damage, transmission interventions, or restoring the car to a configuration close to factory specifications.

Installation and operational characteristics

The wiring loom is prepared to work in demanding thermal and mechanical conditions, typical for the gearbox area in four-wheel-drive vehicles. Proper cable routing and appropriate connectors limit the risk of circuit breaks and communication issues between the controller and actuators. Before installation, it is recommended to verify compatibility with the specific vehicle equipment version and check the condition of the connectors in the car. A correctly installed wiring loom allows for restoring the proper operation of the automatic transmission without the need to modify the factory installation.

Application in used vehicles and restoration projects

Elements from the Cables, looms and connectors group are of key importance in the long-term operation of premium class cars, such as the Range Rover L322. In vehicles with higher mileage or after service interventions, replacing the automatic transmission wiring loom can be an effective way to eliminate difficult-to-diagnose faults related to electronic communication. If you are interested in a broader context of using used electrical and mechanical components in cars from the 1998–2012 period, it is worth reading the article The second life of a youngtimer – how used car parts rejuvenate cars from 1998–2012, which discusses practical scenarios for modernization and restoration based on aftermarket parts.

Expanding the scope of service work

If you are planning a comprehensive repair or upgrade of the gearbox installation area in your Range Rover and need other elements from the same group, such as additional looms, signal cables, or service connectors, check the available parts in the Range Rover Cables, looms and connectors category.
