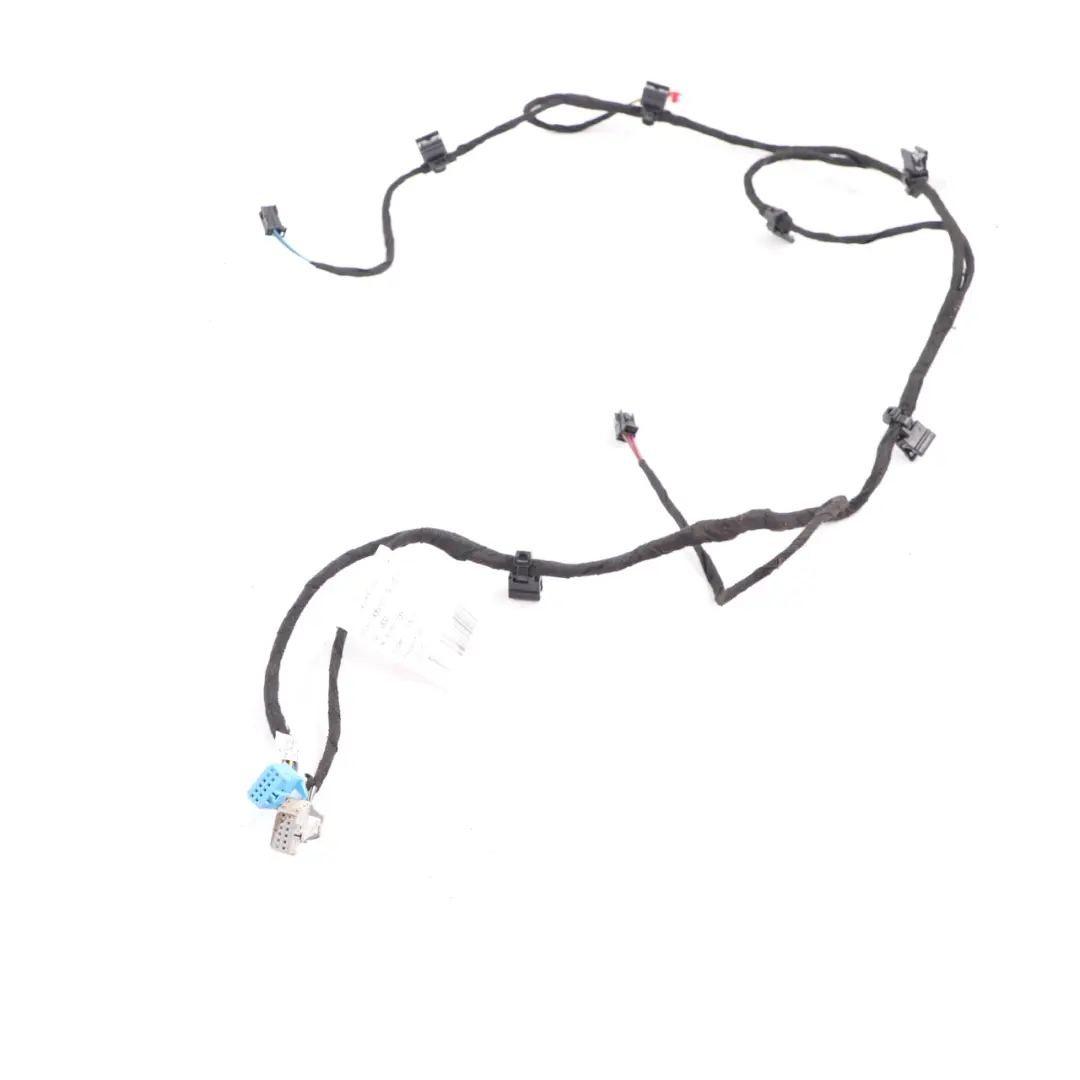

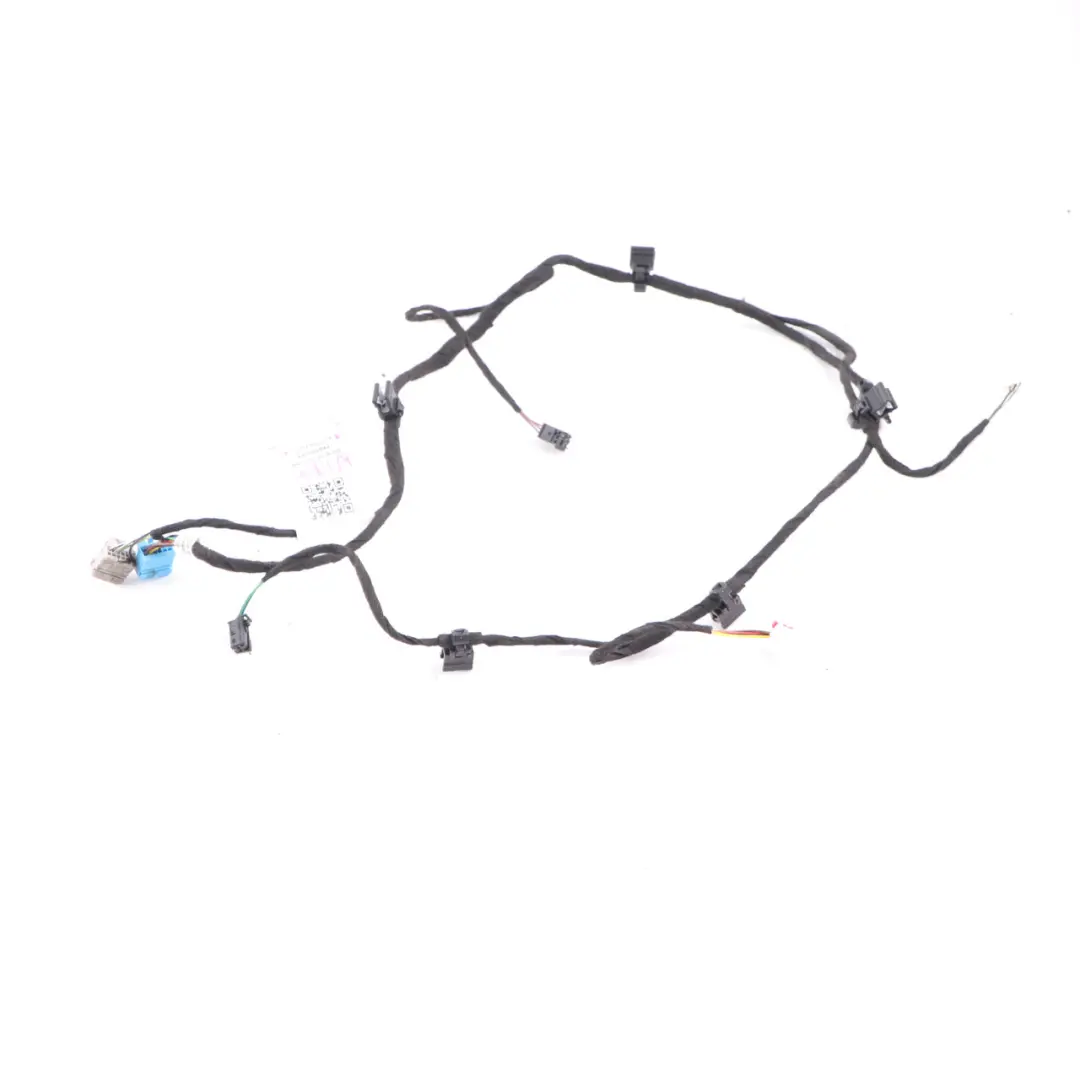

Door Wiring Mercedes W177 W247 Passenger Side Cable Harness Loom A1775406609

Door Wiring Mercedes W177 W247 Passenger Side Cable Harness Loom is an original electrical installation component designed for the front passenger door. As part of the Wires, harnesses and connectors group, it ensures a stable connection between the body modules and door equipment, which translates into the proper operation of the vehicle's electrics and electronics. It is a practical solution for users who want to restore full door functionality after a collision, body repair, or equipment replacement.

Specifications and technical data

• SKU: RHD-A1775406609
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1775406609
• Substitutable numbers: A1775406609, A 177 540 66 09
• Location on the vehicle: Front
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function of the door wiring harness

The presented harness is a component of the front passenger door installation in Mercedes compact class models of the W177 and W247 series. It is responsible for transmitting signals and power between the main vehicle installation and components located in the door, such as window controls, central locking, mirrors, or lighting, if present in the given vehicle configuration. Thanks to the factory fit for a specific body generation, the correct length of wires, placement of connectors, and compatibility with original mounting brackets in the door and pillar are maintained.

Advantages of using an original Mercedes harness

Using an original door wiring harness in the front passenger door area allows you to avoid problems typical of universal replacements, such as mismatched plugs, improper wire routing, or the need for installation modifications. Properly selected connectors minimize the risk of contact looseness and interference in communication between control modules. This is particularly important in modern vehicles, where many door functions are integrated with comfort and safety systems.

An additional benefit is maintaining the consistency of the electrical installation with the manufacturer's service documentation, which facilitates future diagnostics. Factory connectors and wire routing also promote assembly aesthetics and reduce the risk of insulation abrasion in areas where the door operates.

Assembly and operational characteristics

The harness is designed for installation in the front part of the vehicle, within the passenger door area. The design of the wires and connectors is adapted to factory grommets and mounting points, which allows for installation in accordance with the manufacturer's original technology. As a result, it is possible to recreate the original installation path without the need to interfere with the body structure or wire insulation.

The element comes from disassembly, which in practice means that it is a part with parameters consistent with the factory specification, while at the same time representing an economical alternative to a new subassembly. Used OEM harness is a solution often chosen for post-accident repairs, replacing damaged installation after flooding, or for problems with wire abrasion in the door grommet.

Selecting the right harness for your Mercedes

When selecting a door harness, it is crucial to match it to the specific body generation, vehicle side, and placement in the front zone. It is worth paying attention to the door equipment configuration in a given car model so that the number and type of connectors correspond to the modules used. The original harness dedicated to the passenger door in W177 and W247 models allows for maintaining the full functionality of factory comfort and safety systems without the need for installation adaptation.

If you are considering whether a new or used part will work better in a given case, a practical guide comparing both options in terms of costs and durability may be helpful – you can find it in the article New or used? A comparison of costs and quality of car parts.

Expanding the electrical installation repair

When replacing the door harness, it is worth simultaneously checking the condition of other installation elements within the door and pillar, such as other wires, connectors, or rubber grommets. A comprehensive approach to repair allows for reducing the risk of recurring faults related to circuit interruptions, contact corrosion, or mechanical damage to the wires.

If you are planning a comprehensive repair or modernization of the door electrical installation area in your Mercedes and need other elements from the same group, such as additional harnesses, connectors, or wire sections, check the available parts in the Mercedes wires, harnesses and connectors category.
