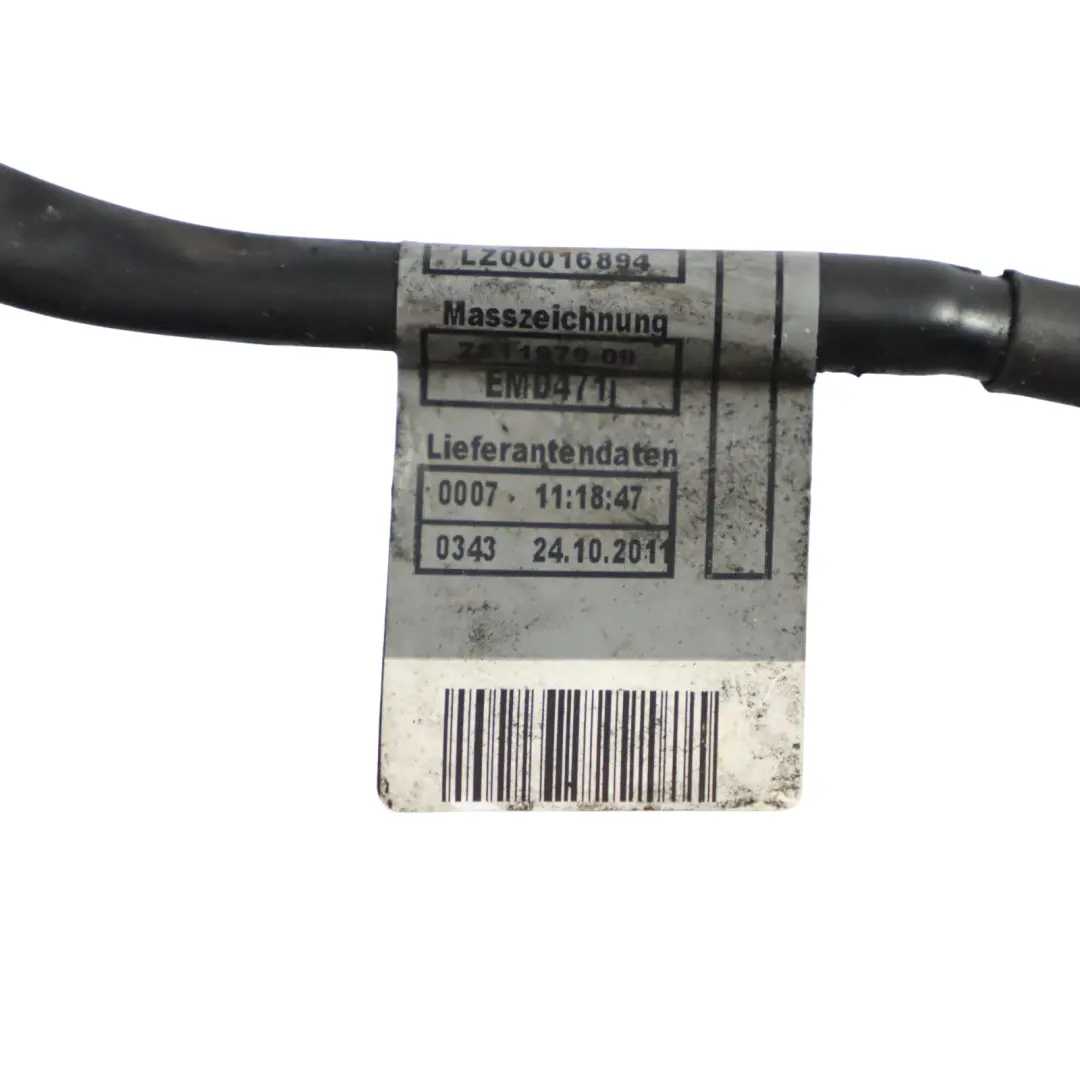

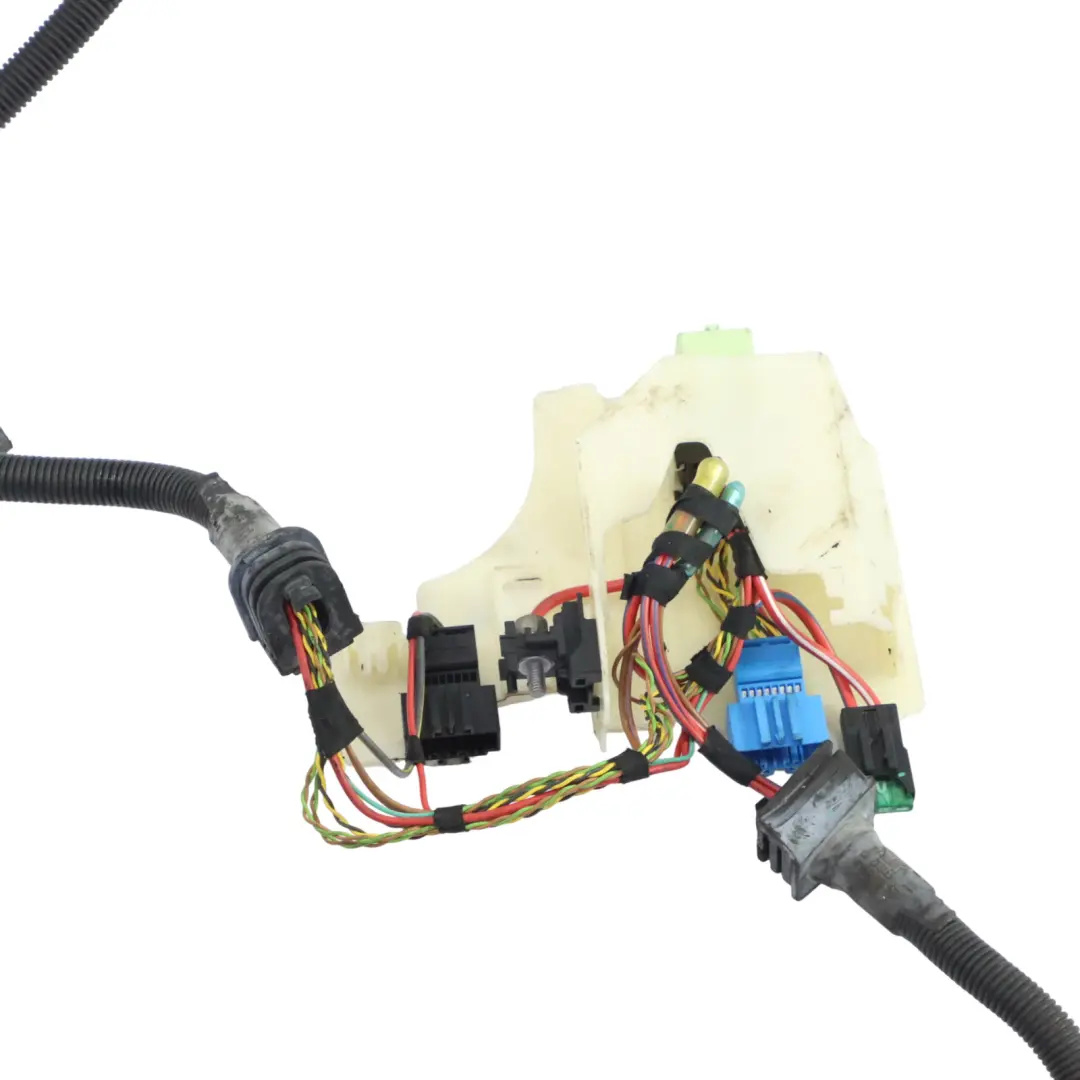

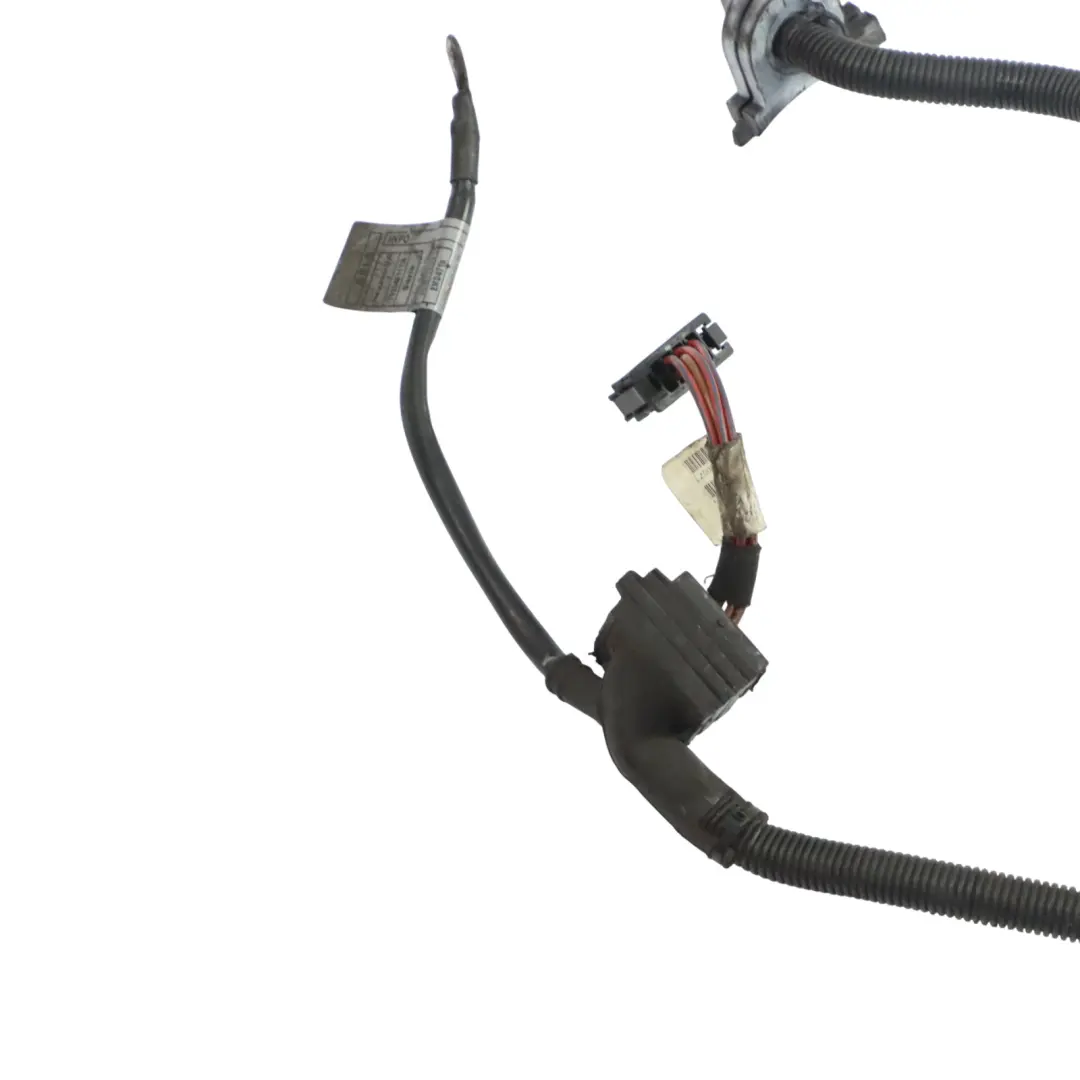

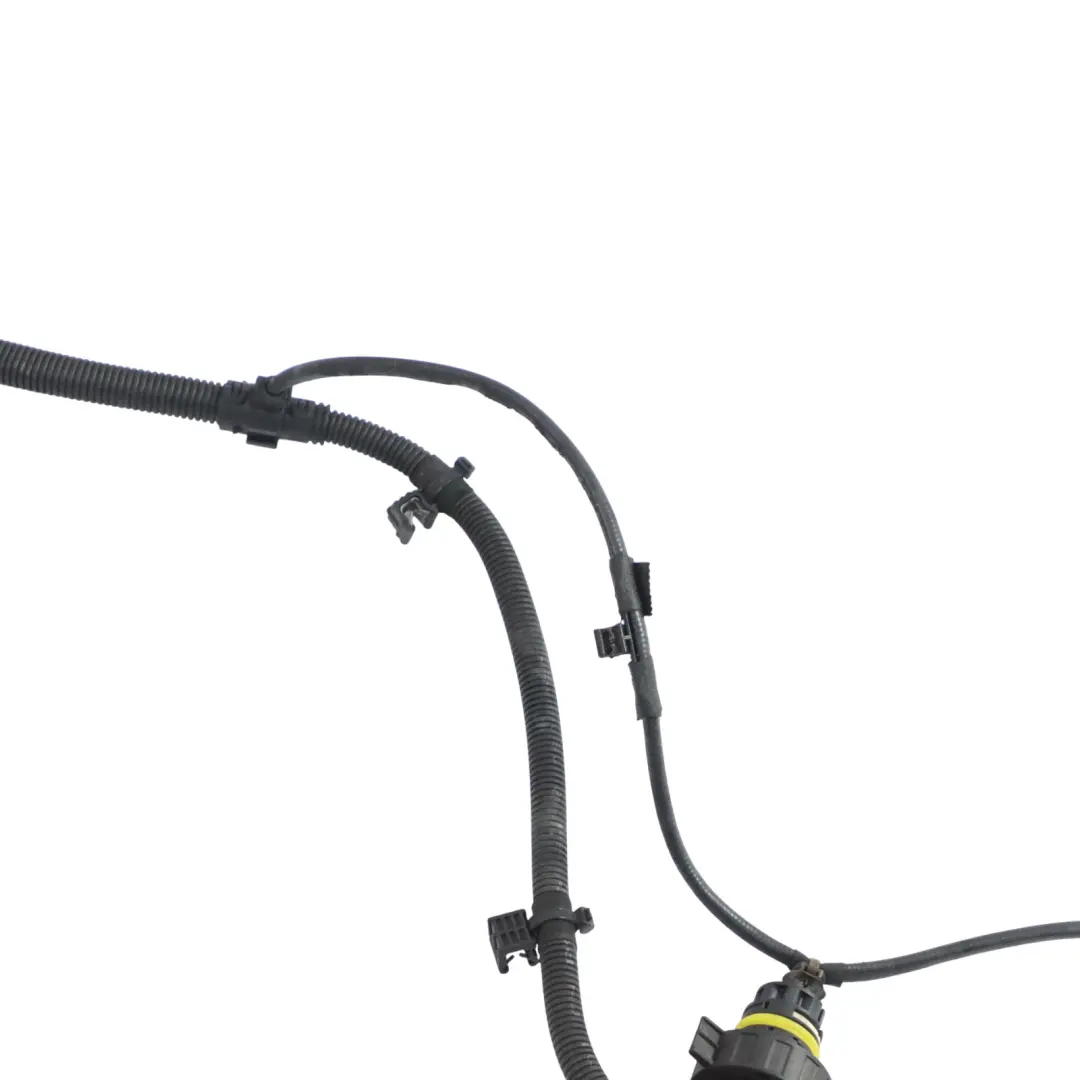

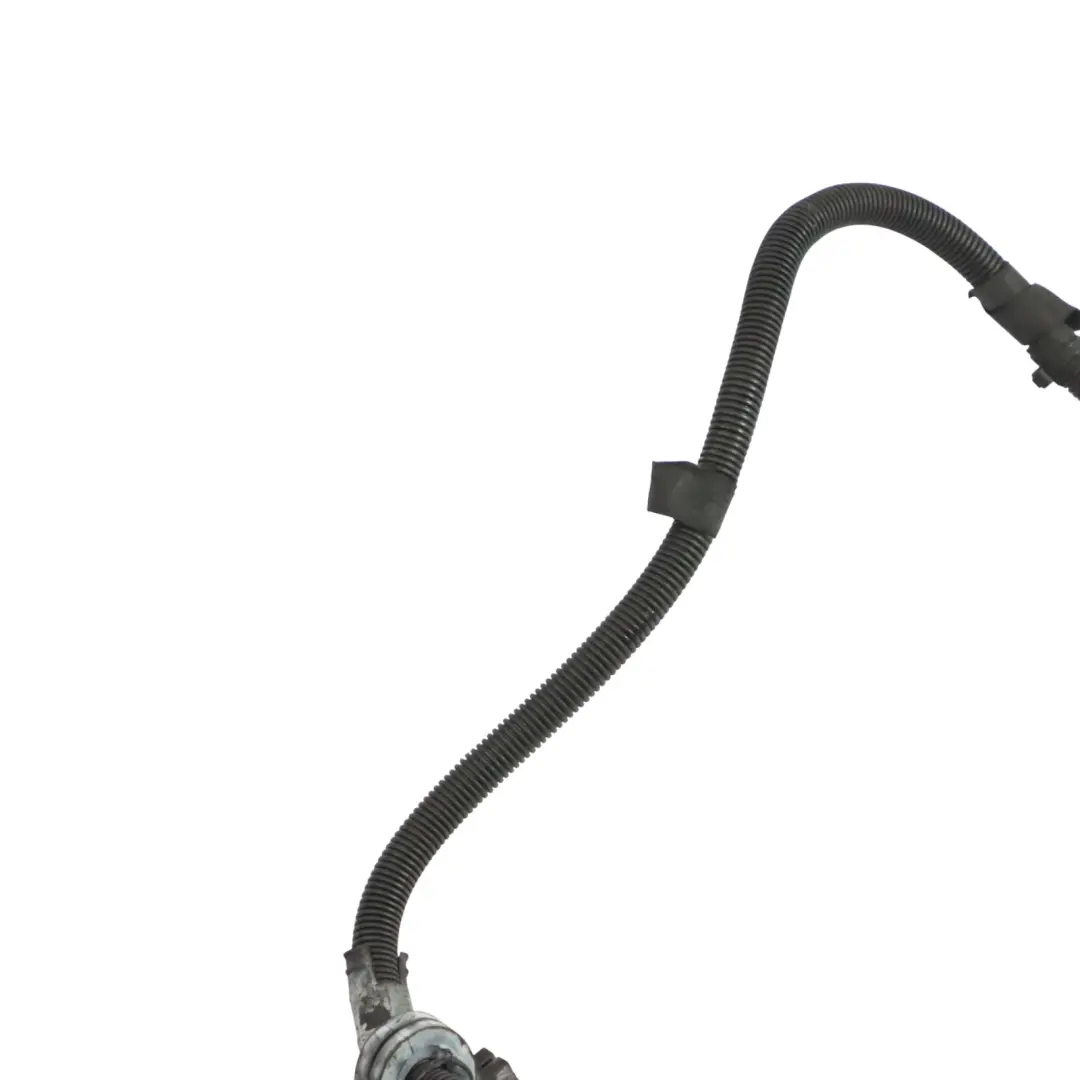

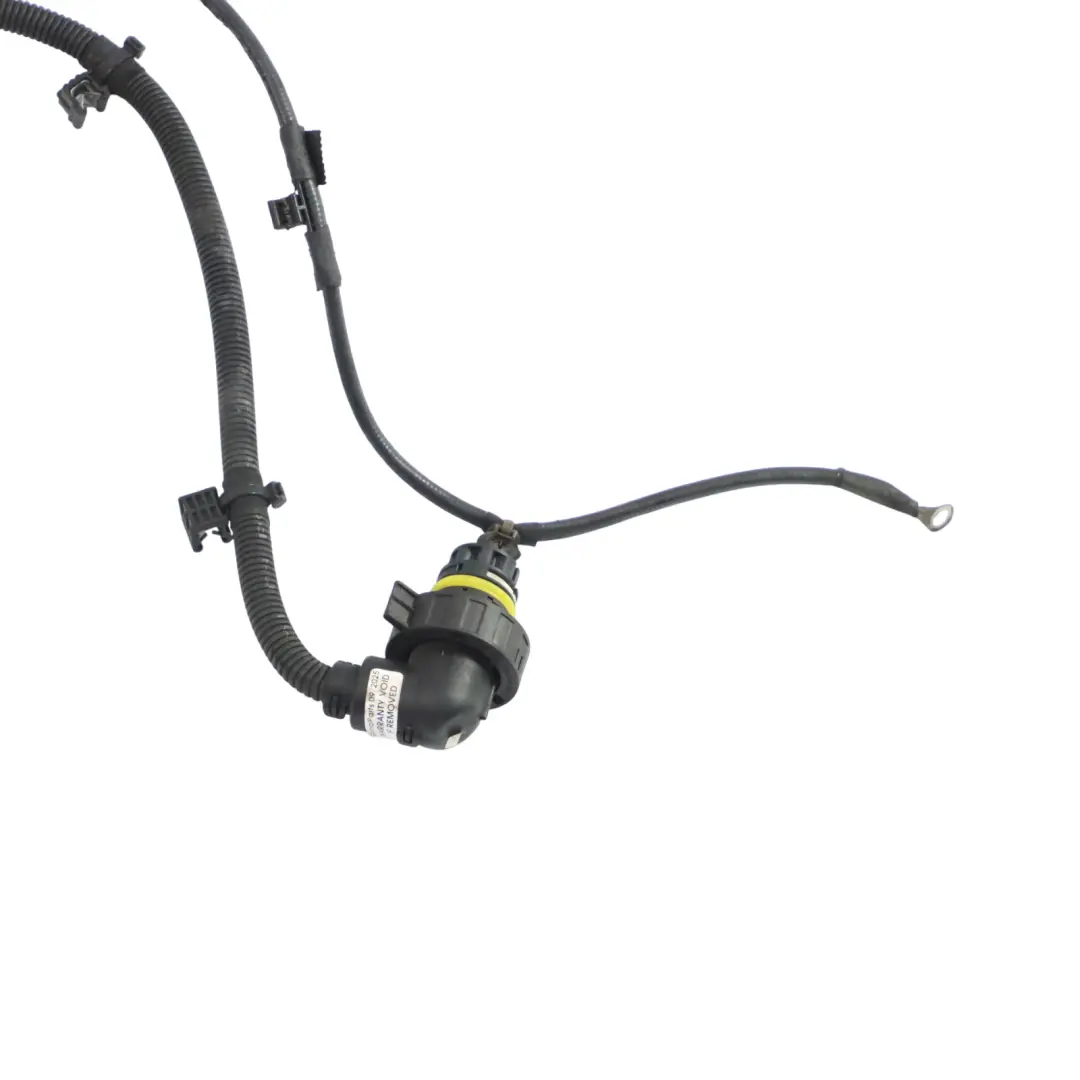

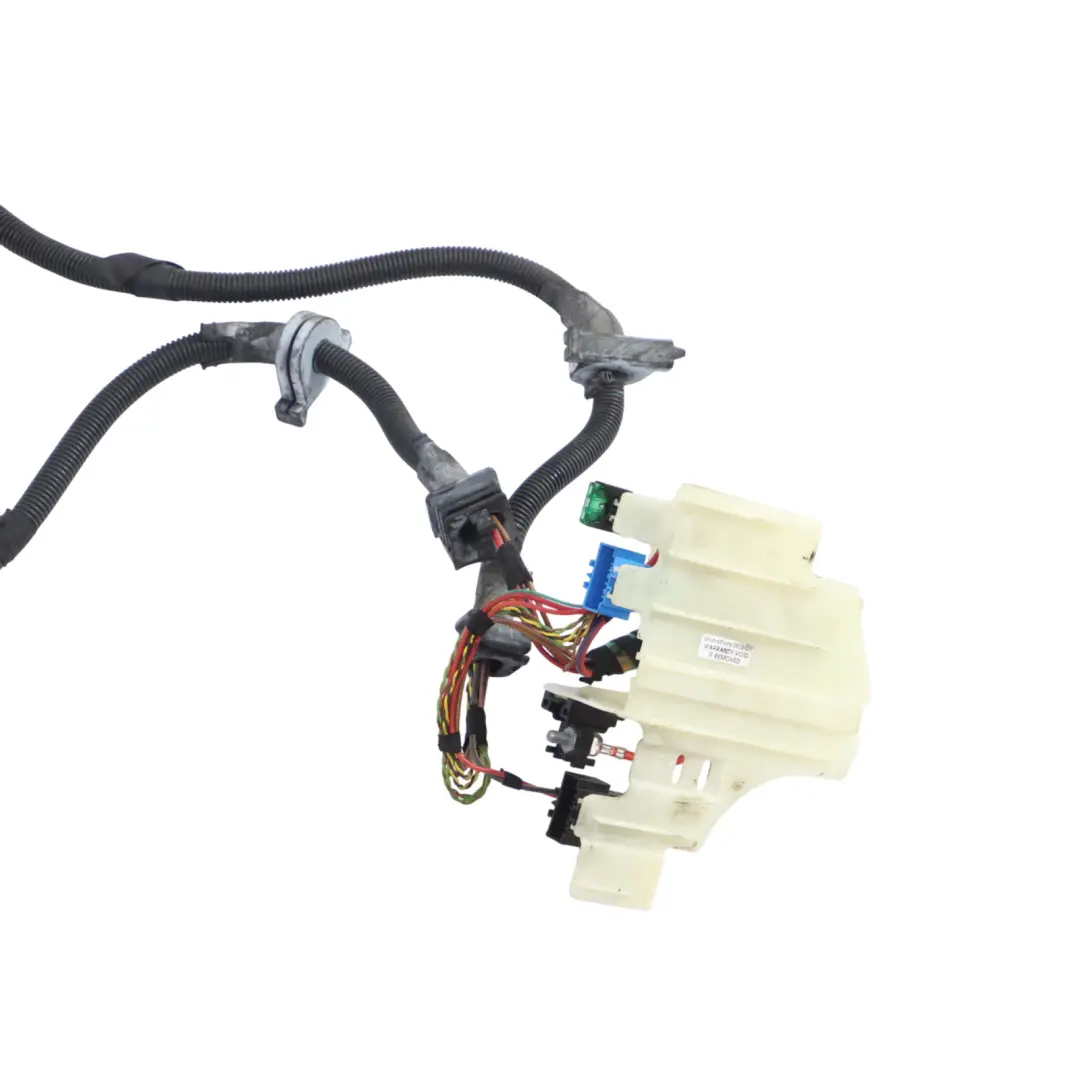

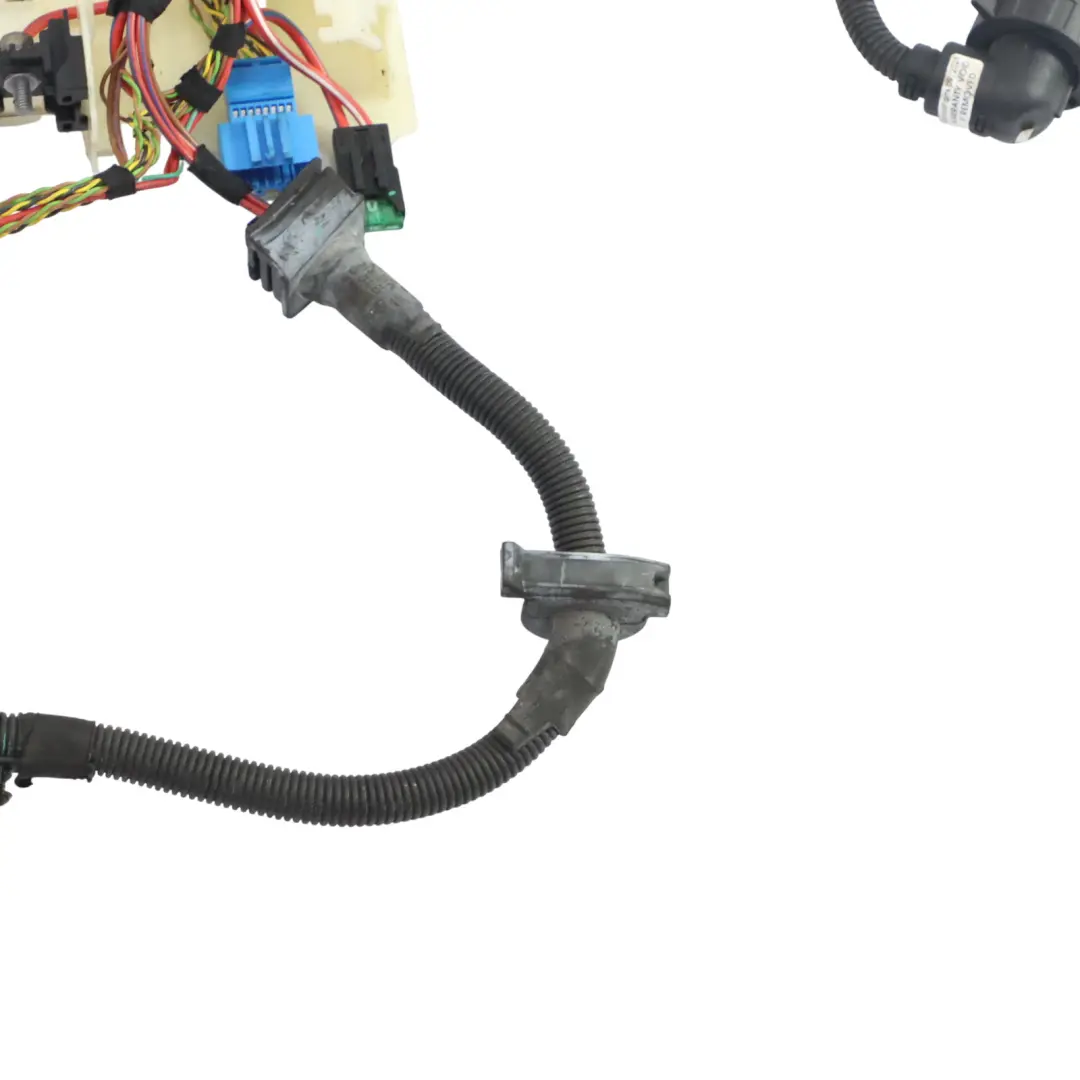

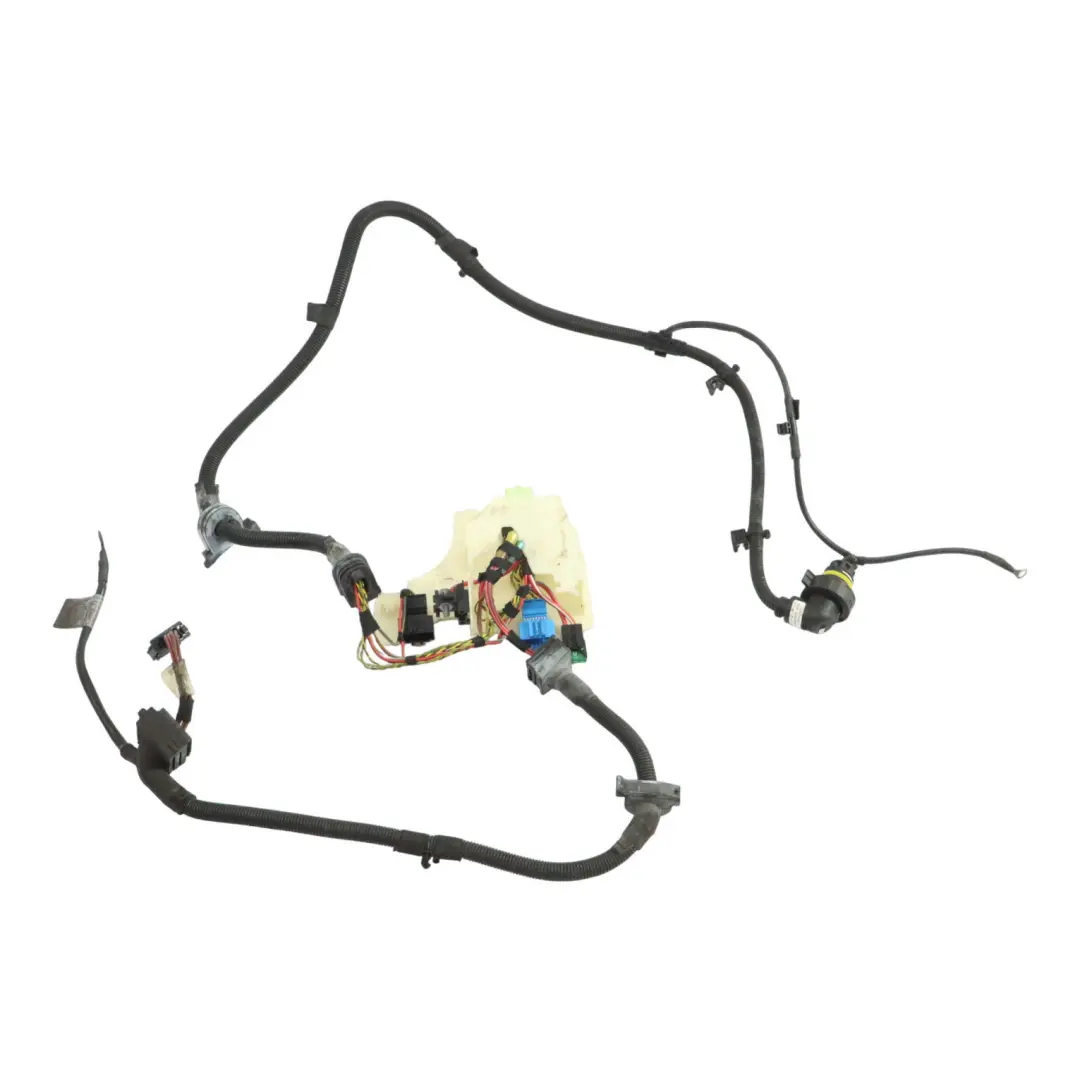

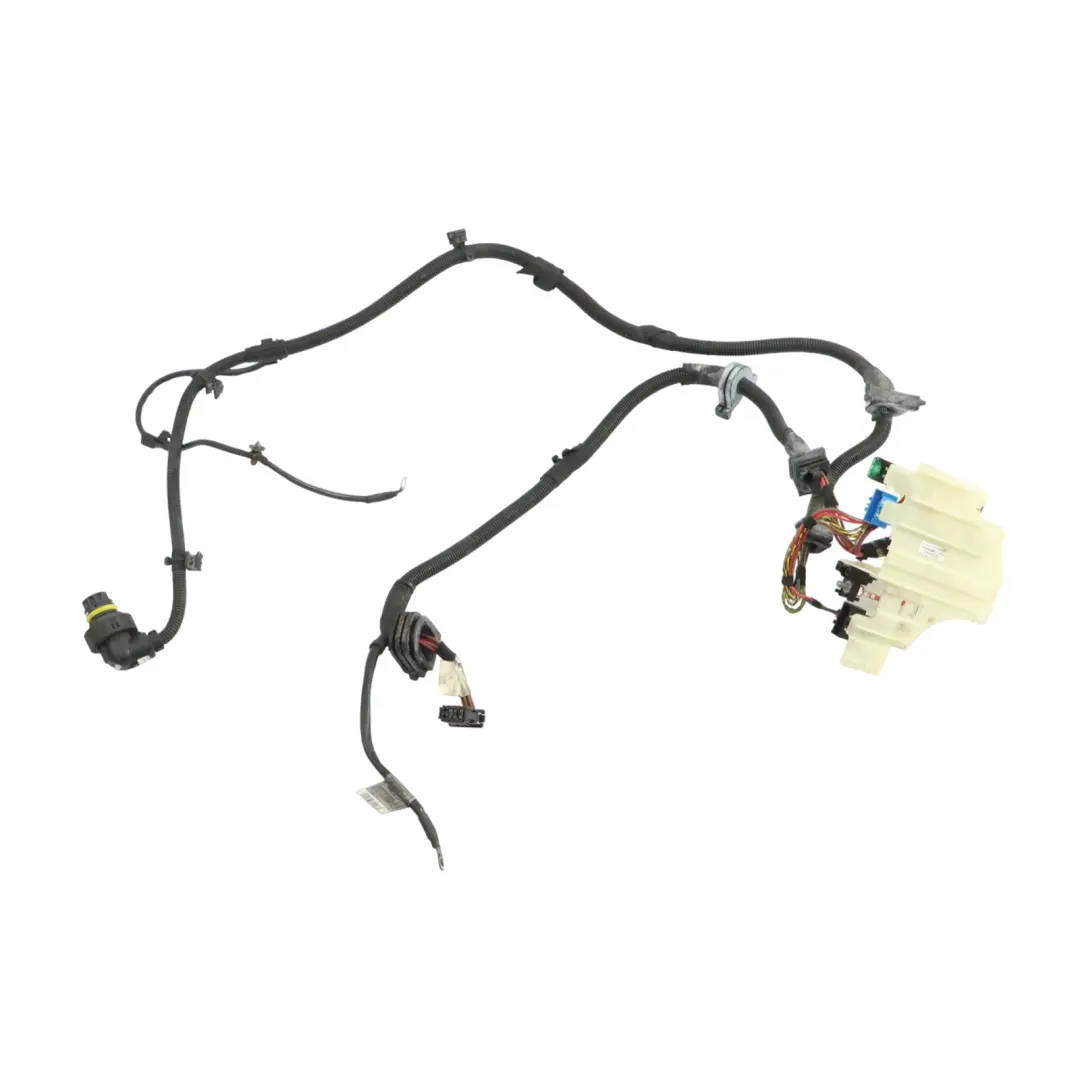

BMW F02 Engine Wiring Automatic Gearbox Harness Loom Cable 730Ld N57 8516715

BMW F02 Engine Wiring Automatic Gearbox Harness Loom Cable is an original electrical installation component designed for the precise connection of engine controls to the automatic transmission. Thanks to the factory BMW design, the harness ensures stable signal transmission, correct module communication, and safe operation of the drivetrain systems. This solution is dedicated to users who expect consistency with the vehicle's factory electrical architecture.

Specifications and technical data

• SKU: RHD-8516715
• Mark: BMW (Genuine OE)
• Condition: Used

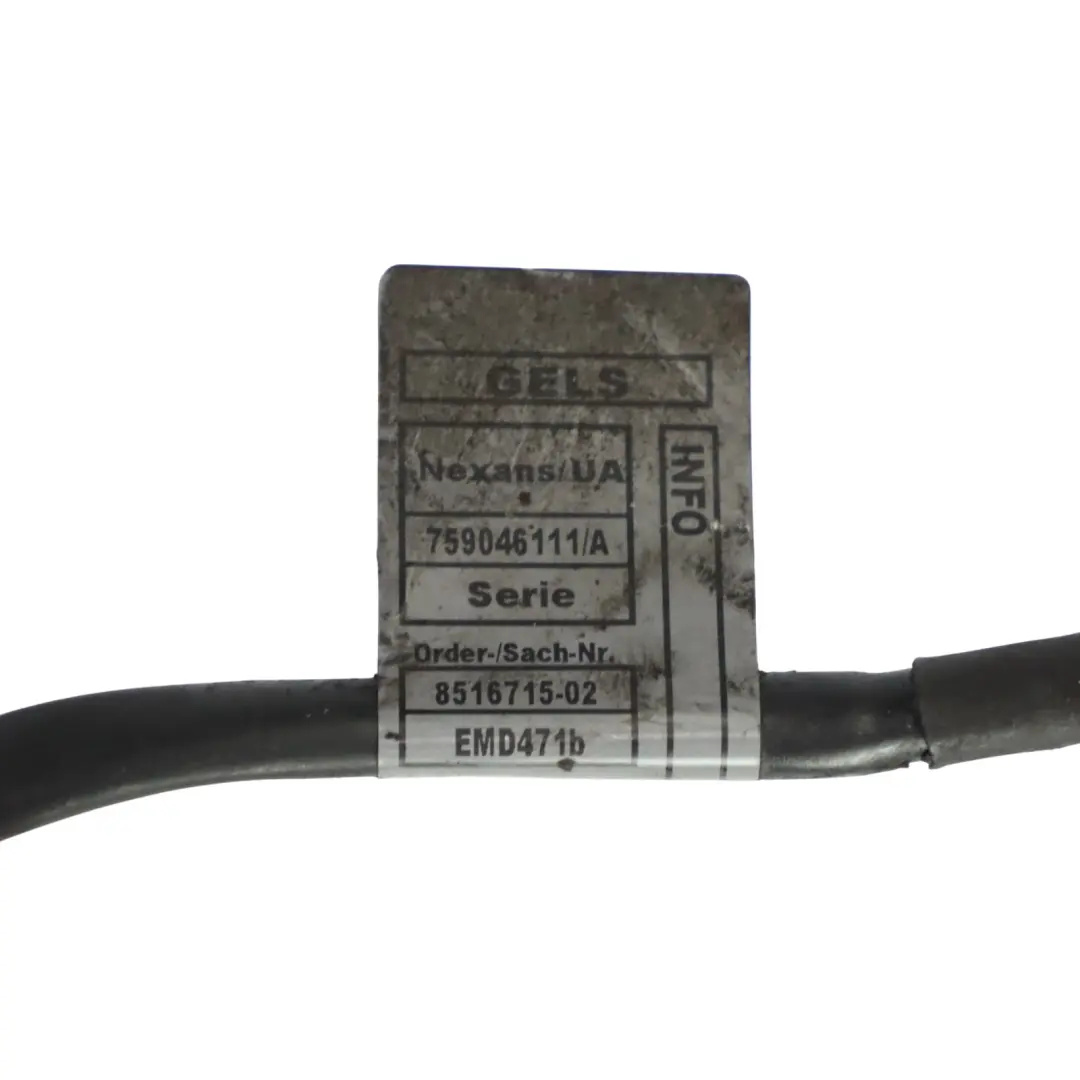

• OEM Part Number: 8516715
• Substitutable numbers: 8516715, 12518516715, 8510898, 12518510898, 7811980, 12517811980
• Gearbox type: Automatic
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented harness belongs to the Wires, harnesses, and connectors category and is used in the BMW 7 Series F02 model with the N57 engine and an automatic transmission. Its task is to integrate sensors, actuators, and controllers related to the operation of the engine and transmission, ensuring that the drivetrain maintains full functionality under various operating conditions.

A properly selected BMW F02 Engine Wiring Automatic Gearbox Harness Loom Cable minimizes the risk of CAN communication errors, signal interference, and gear shifting problems. Using an original BMW solution allows for maintaining compliance with factory electrical diagrams and facilitates service diagnostics.

Construction and technical compatibility

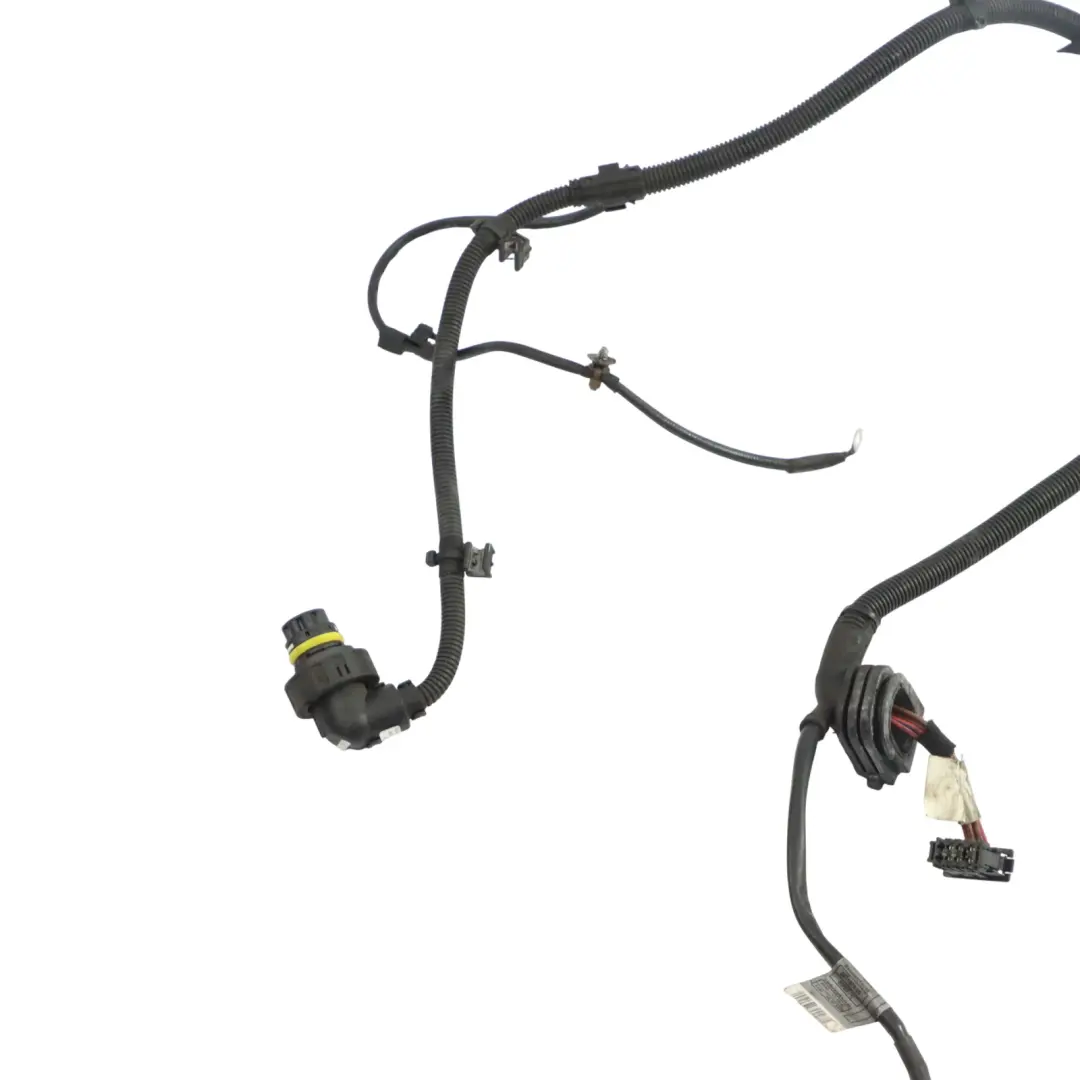

The harness has been specifically designed to work with an automatic transmission, which means appropriate connector placement, wire lengths, and shielding of critical signal lines. The design includes dedicated plugs for engine and transmission accessories, which reduces the possibility of incorrect connection during installation.

Thanks to the use of original BMW architecture, the harness is matched to factory mounting points in the engine bay and around the transmission. This facilitates routing the wires according to the manufacturer's recommendations, which is important for both safety and resistance to vibration and temperature.

Condition, service application, and installation benefits

The item comes from an operated vehicle, making it an attractive service solution for users looking for original components at a reasonable price. Replacing the BMW F02 Engine Wiring Automatic Gearbox Harness Loom Cable is particularly recommended in cases of mechanical wire damage, contact corrosion, unauthorized modifications to the installation, or communication problems between controllers.

The main benefits of using this harness include:

• maintaining factory control logic for the engine and automatic transmission,
• reducing the risk of electrical errors resulting from non-original modifications,
• easier computer diagnostics thanks to compliance with BMW service documentation,
• consistency with the existing vehicle installation without the need for adapting universal solutions.

Installation tips and part selection

Before installation, it is recommended to verify the compatibility of the harness with the specific vehicle configuration, particularly regarding the engine type, body version, and the automatic transmission used. In service practice, it is worth comparing the connector layout and wire routing with the currently installed wiring, which speeds up the replacement process.

Due to the nature of the electrical component, installation should be performed with the vehicle's power disconnected, observing precautions against electrostatic discharge. Careful inspection of the condition of connectors and ground points after installation helps reduce the risk of future malfunctions.

If you are planning a comprehensive repair or upgrade of the engine area in your BMW and need other elements from the same group, such as additional harnesses, signal wires, or installation connectors, check the available parts in the BMW Wires, harnesses, and connectors category.

Additional information and selecting used parts

When choosing a used BMW F02 Engine Wiring Automatic Gearbox Harness Loom Cable, it is worth paying attention to the compatibility of manufacturer markings, transmission type, and accessory configuration. It is also good practice to check the condition of wire insulation and plug sockets before installation in the vehicle.
