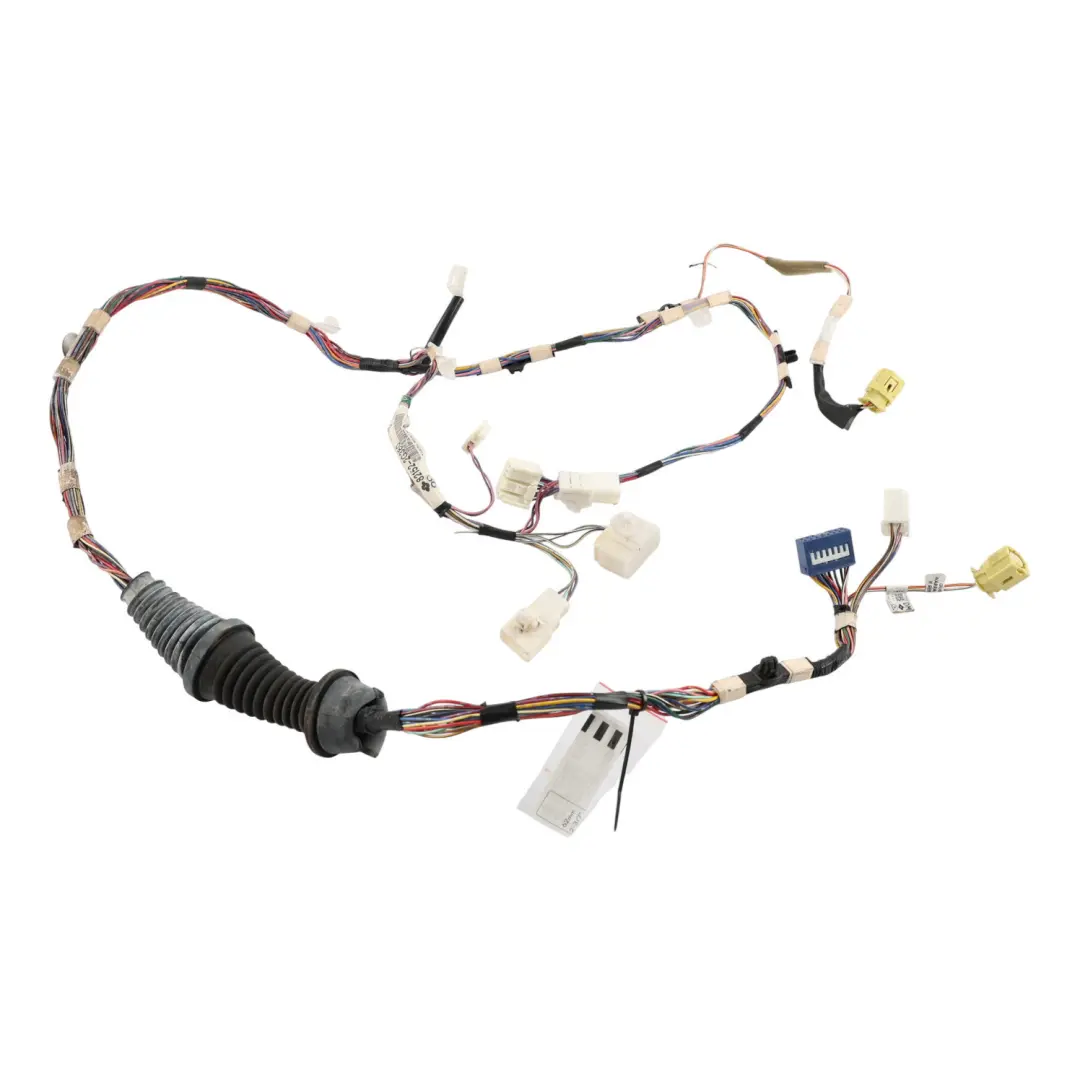

Toyota Celica T23 Front Door Wiring Loom Harness Cable Left N/S Side 821512G570

Toyota Celica T23 Front Door Wiring Loom Harness Cable Left N/S Side is an original, used door wiring harness designed for installation on the driver's side. This component belongs to the Wires, harnesses, and connectors group and is a key part of the electrical system responsible for powering and communicating with devices located in the front left door.

Specifications and technical data

• SKU: RHD-821522G380
• Mark: Toyota
• Condition: Used

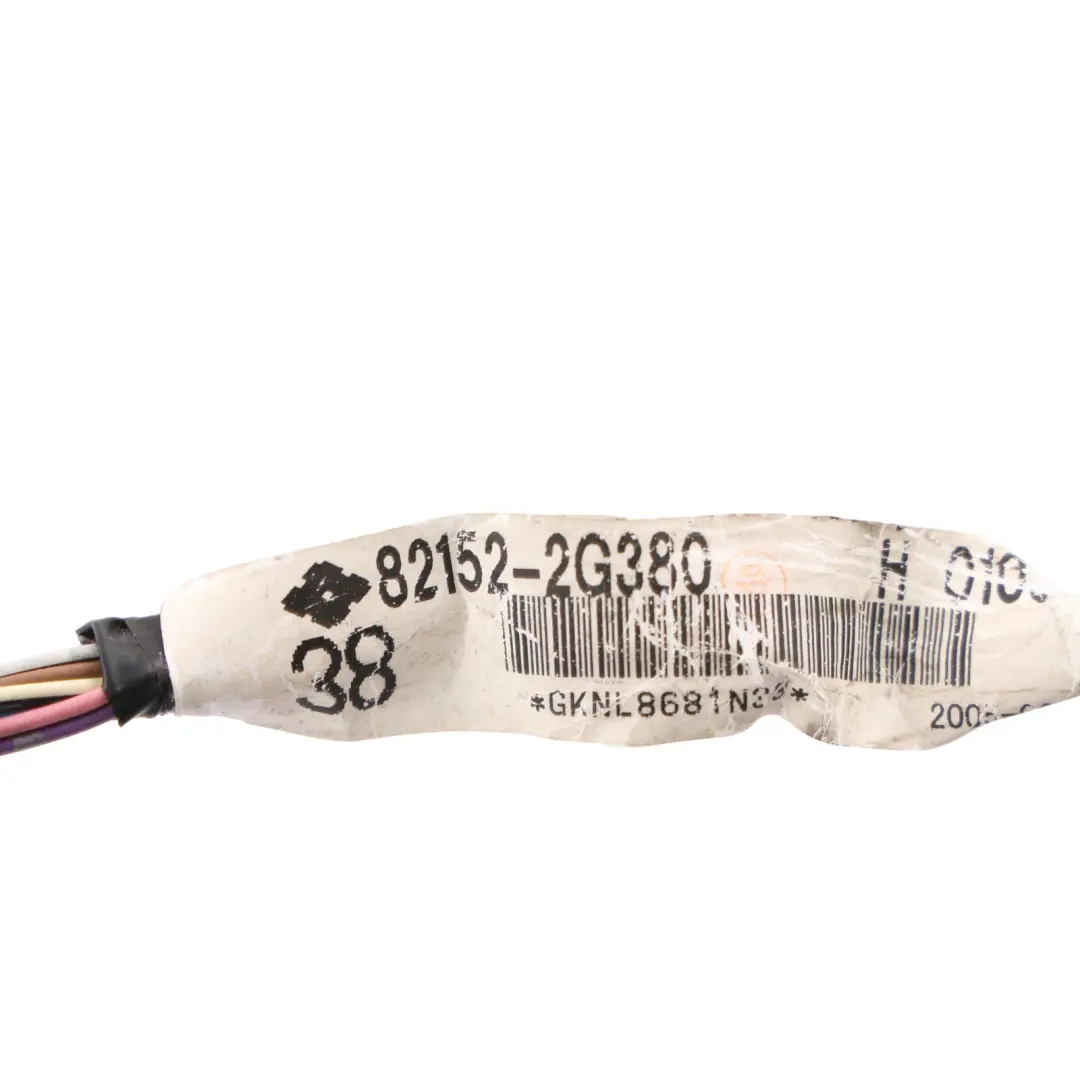

• OEM Part Number: 821522G380
• Substitutable numbers: 821512G570
• Location on the vehicle: Front, Left
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and vehicle placement

The presented wiring harness is designed for operation in the front left side area, i.e., the driver's door zone. It is responsible for connecting the body wiring to electrical components in the door, such as window controls, locks, or mirrors (depending on the factory configuration of the specific Celica T23 unit). Thanks to dedicated cable routing and factory connectors, it ensures a stable electrical connection and proper communication with control modules.

Construction and technical function

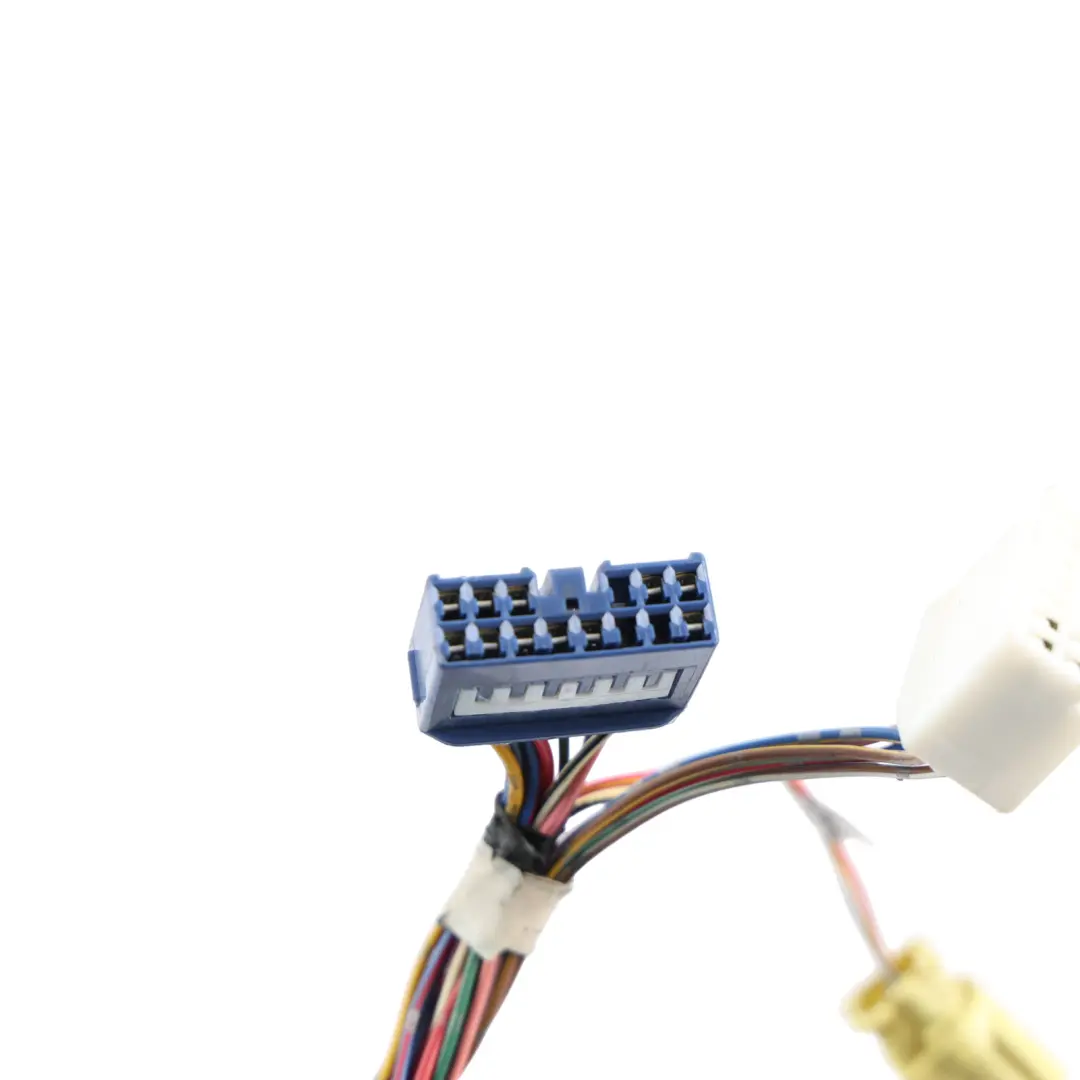

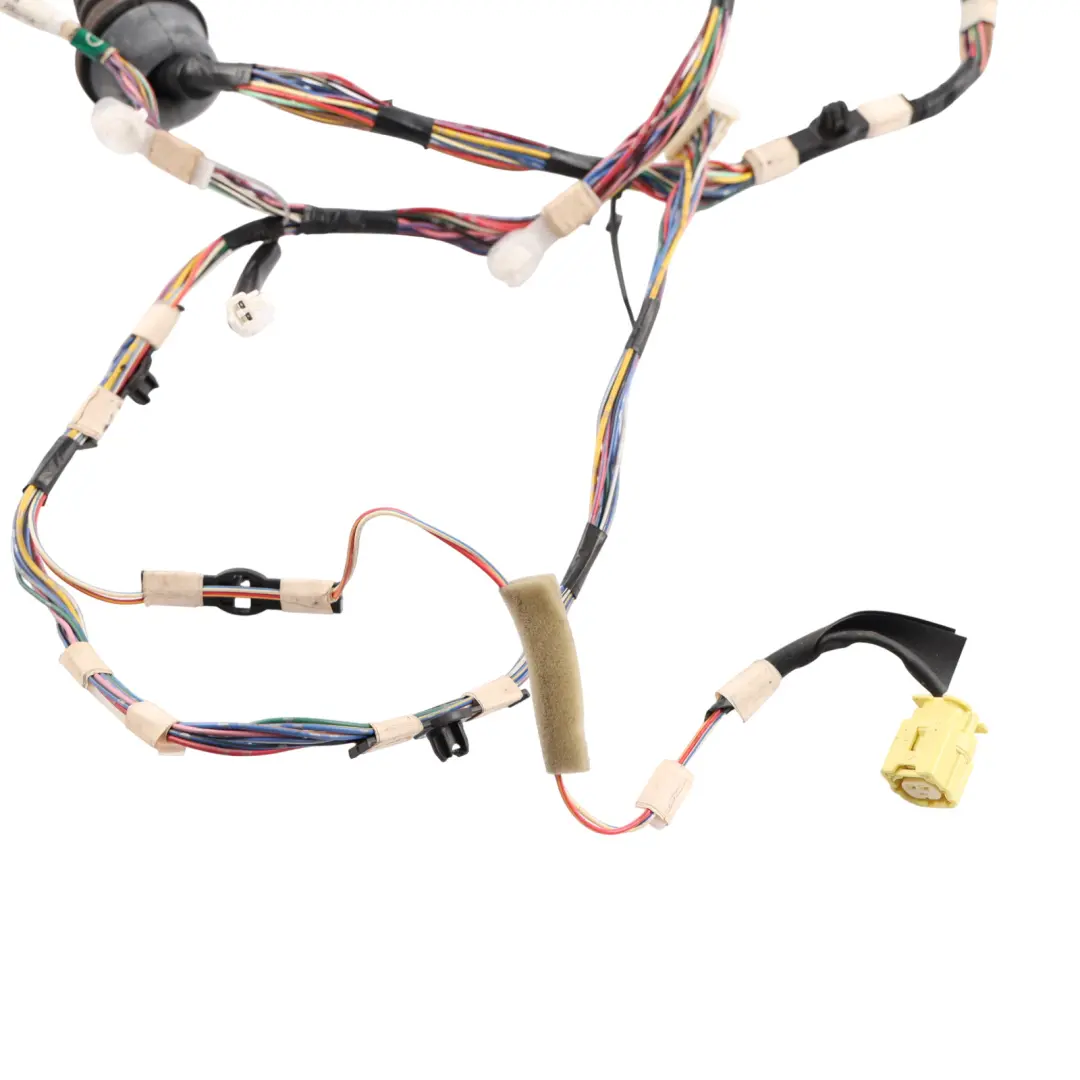

The door wiring harness consists of a set of wires with varying cross-sections, grouped into one organized bundle and terminated with factory connectors. The design is intended for operation in the moving joint between the pillar and the door; therefore, the wires are appropriately flexible and routed to minimize the risk of abrasion during repeated opening and closing of the door. The OEM solution ensures:

• proper fit of the length and geometry of the harness to the front left door,
• compatibility with factory body installation sockets,
• consistency of wire colors with Toyota service documentation.

Benefits of using an original wiring harness

Using an original door wiring harness in the Celica T23 allows you to avoid problems typical of replacements or "shortcut" repairs, such as unreliable connections, differences in pinouts, or the need for installation modifications. Factory connectors and wire layout facilitate installation and diagnostics, and also reduce the risk of electrical faults within the driver's door area. This solution is particularly recommended for:

• repairing damage after wire abrasion in the door grommet,
• restoring full functionality of door electrics after a collision or interference by previous owners,
• renovating the installation in vehicles operated for many years.

Condition and practical application

The item comes from dismantling and is offered as a used door wiring harness, which is a reasonable compromise between cost and maintaining the manufacturer's original specifications. In many cases, such a part allows for quickly solving problems with power loss in the door, incorrect switch operation, or intermittent communication errors. Before installation, it is recommended to perform a standard inspection of the insulation and connector condition, and then install it according to the Toyota service procedure for the front left door of the Celica T23. If you are planning a comprehensive repair or upgrade of the door electrical system area in your Toyota and need other elements from the same group, such as additional door harnesses, connectors, or wire sections, check the available parts in the Toyota wires, harnesses, and connectors category. For owners of cars from the turn of the 90s and 2000s who are thinking about a wider renovation or modernization of their car using components from dismantling, the practical tips contained in the article The second life of a youngtimer – how used car parts rejuvenate cars from the 1998–2012 model years may be useful.
