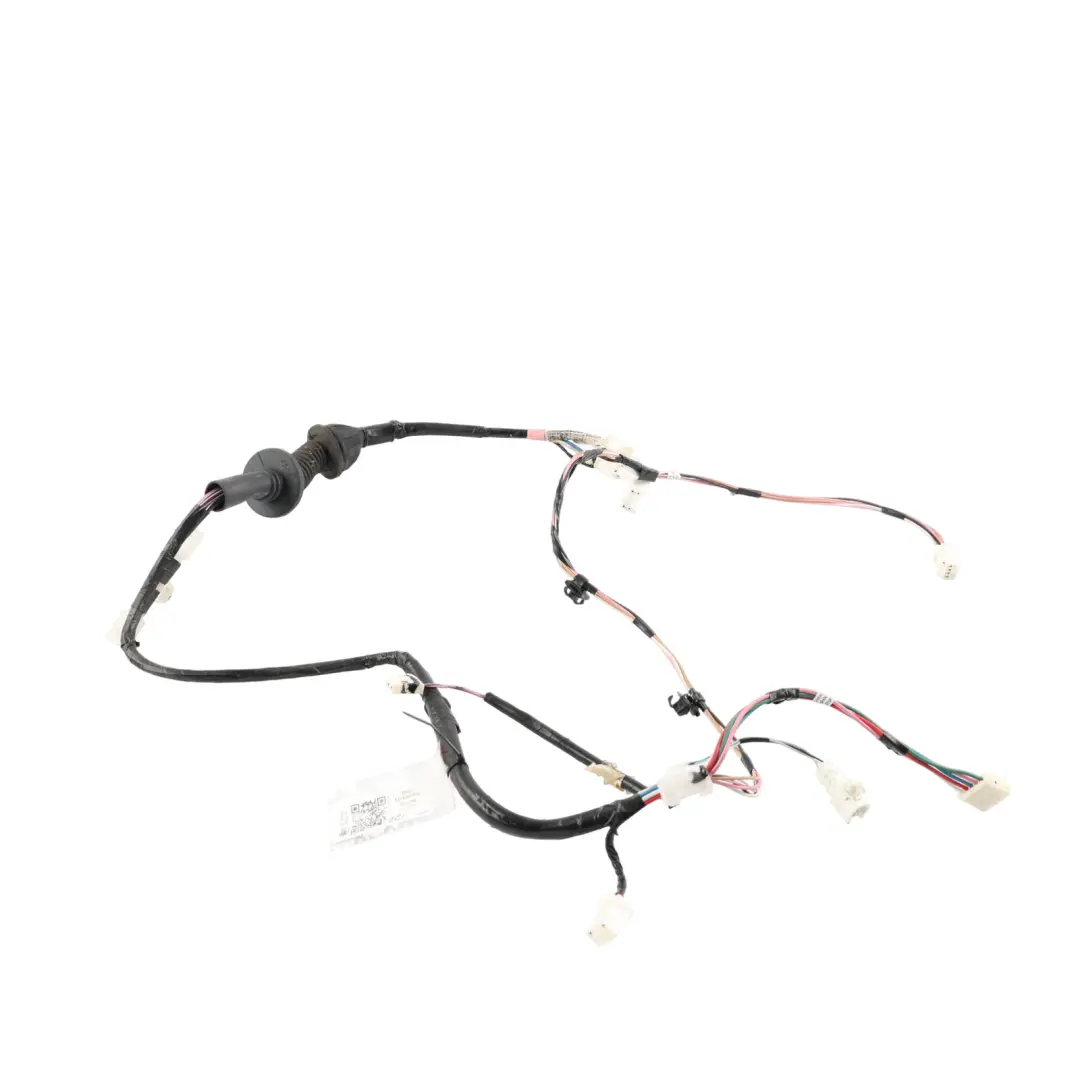

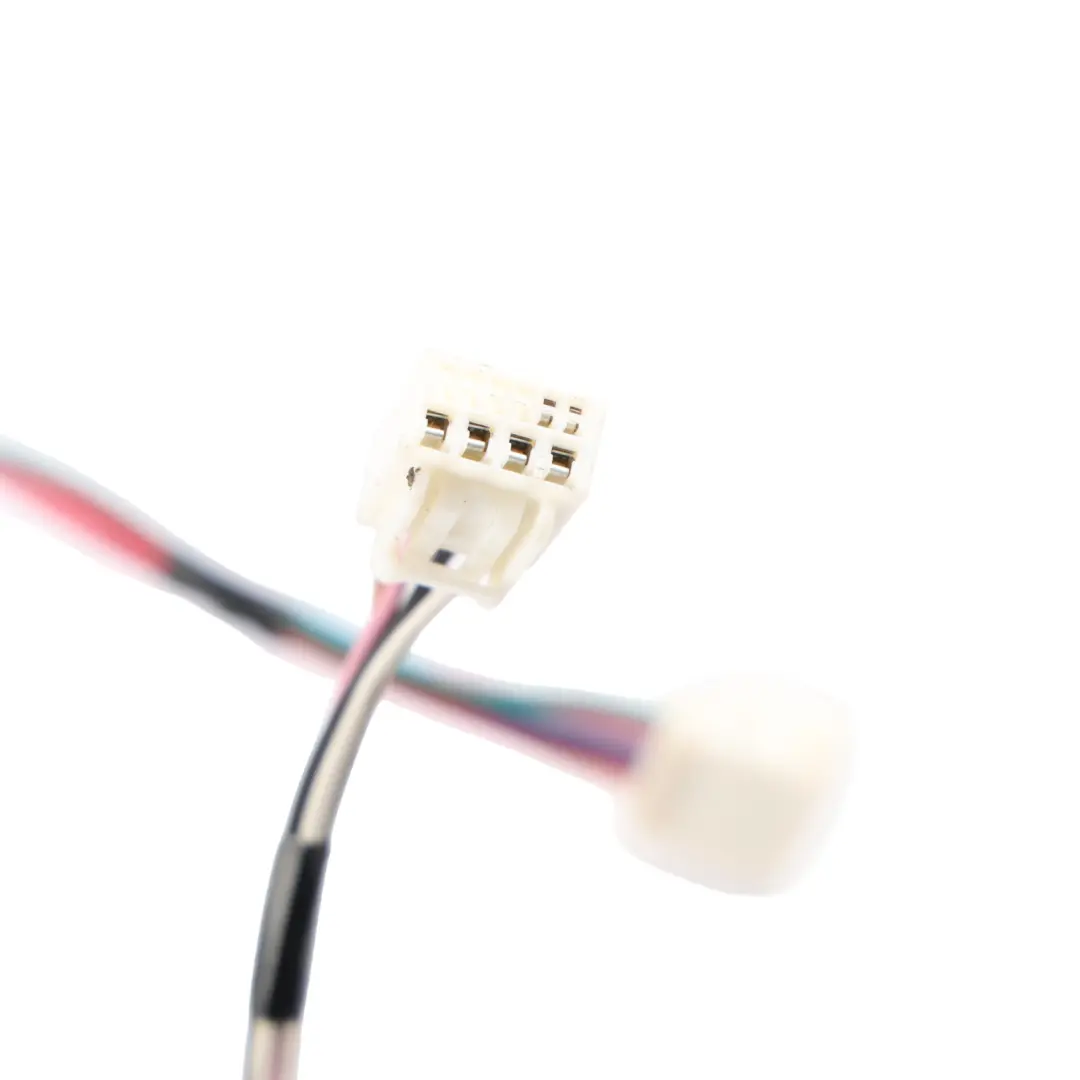

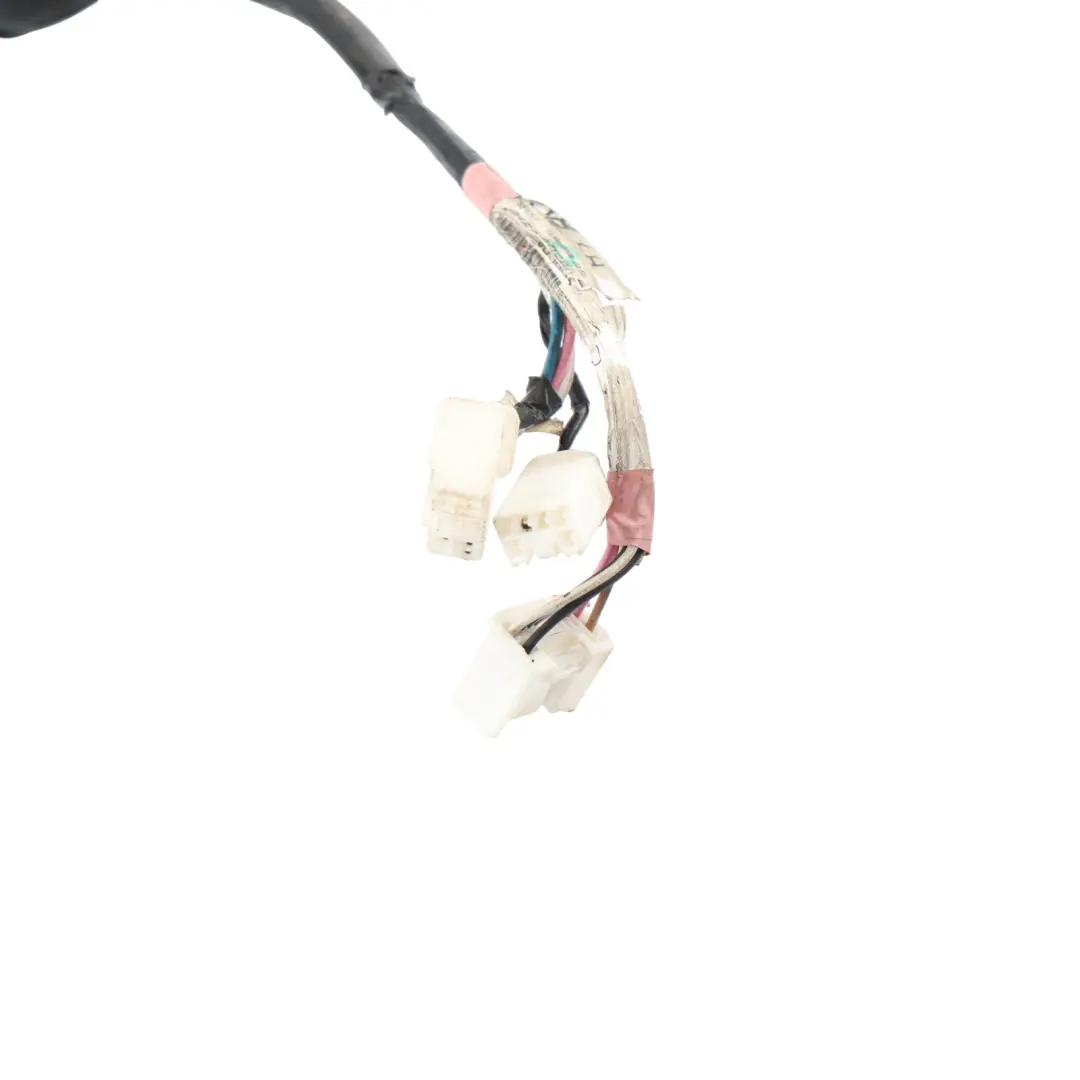

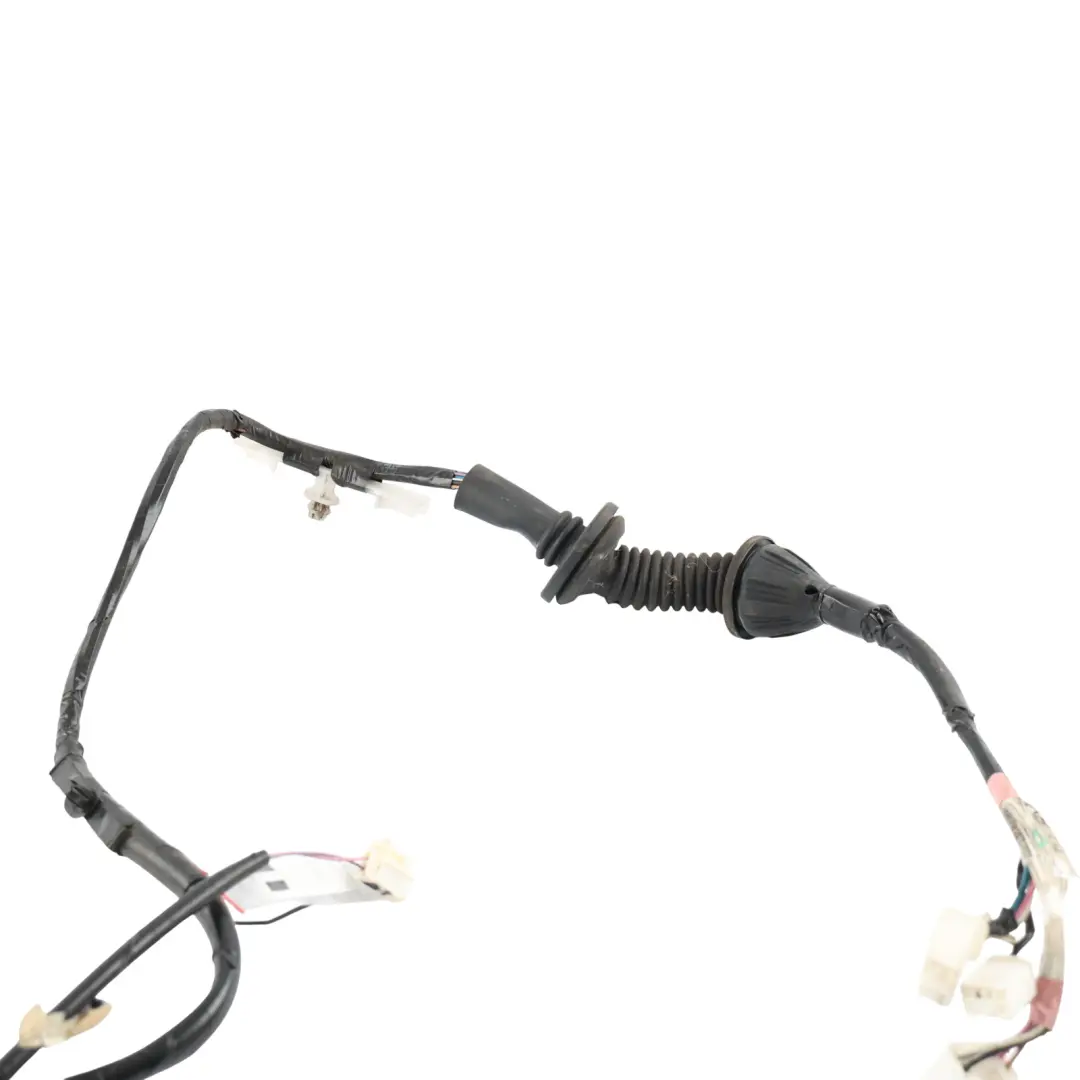

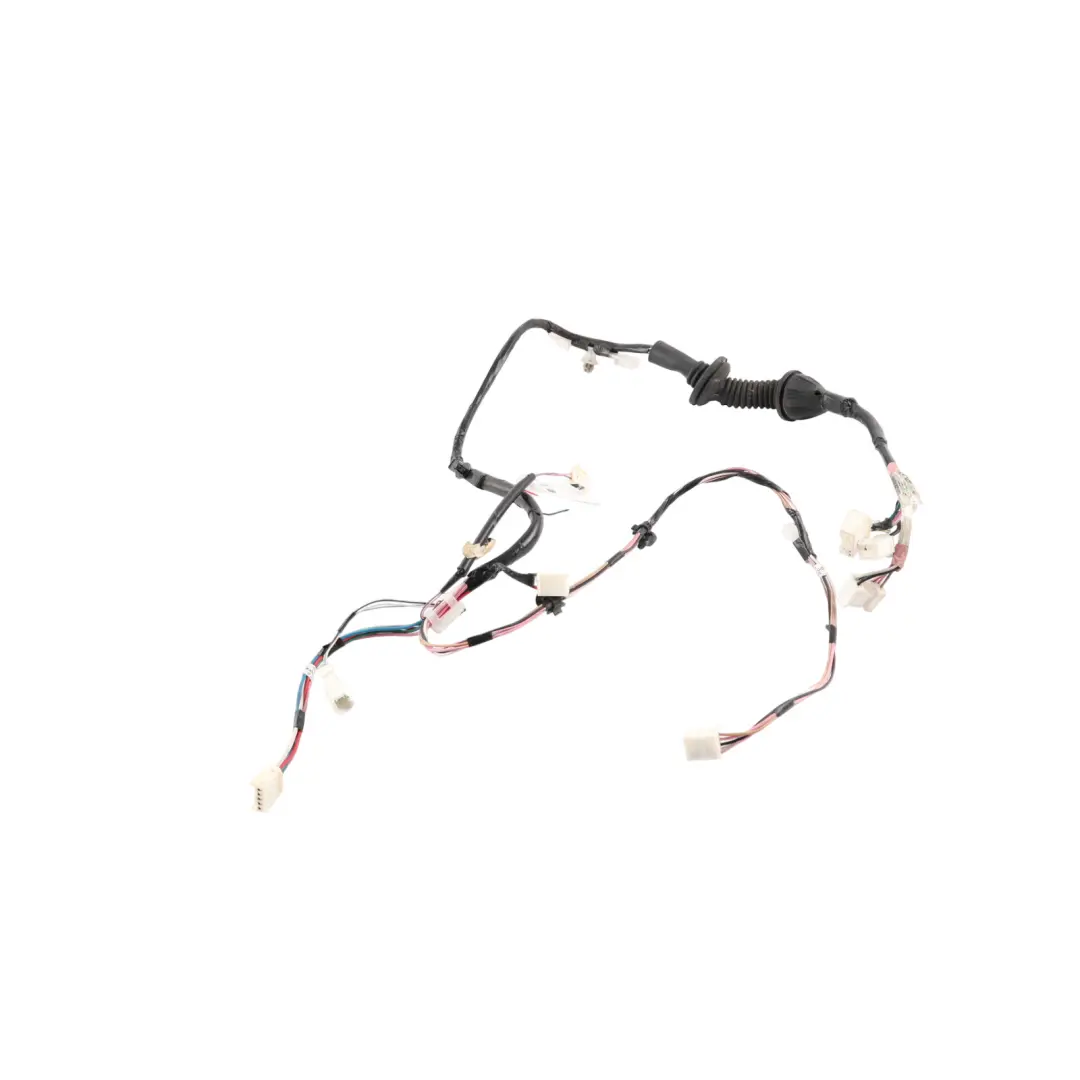

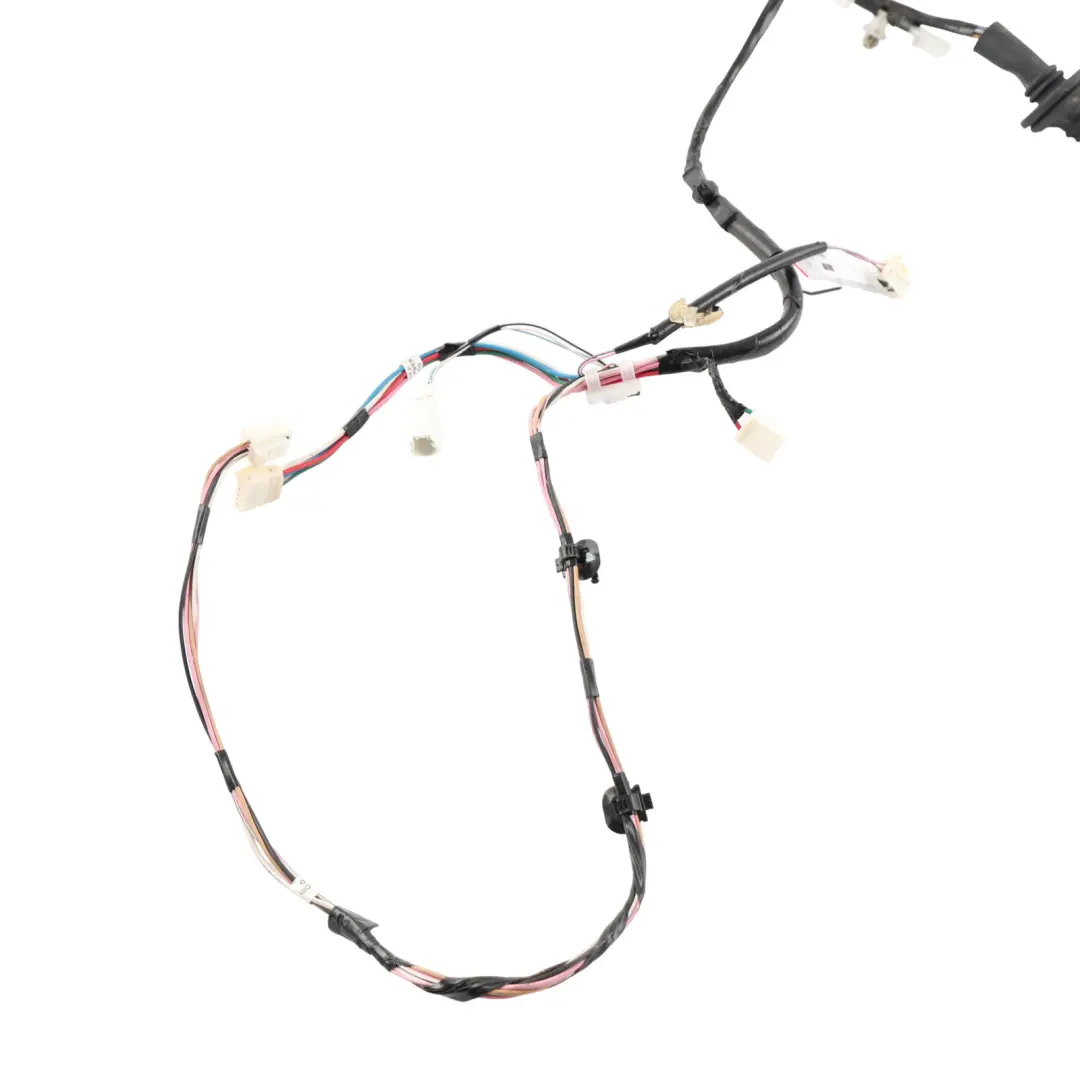

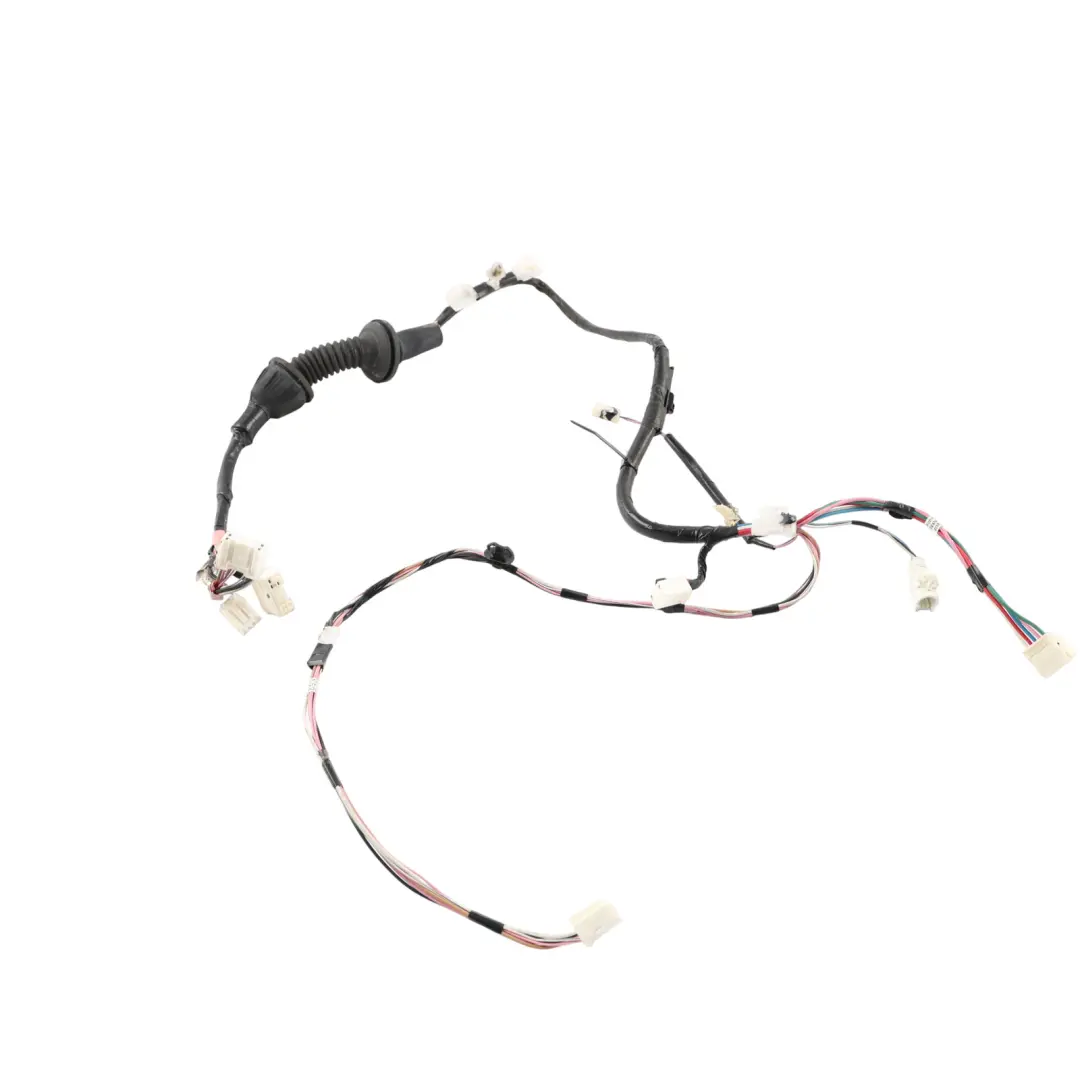

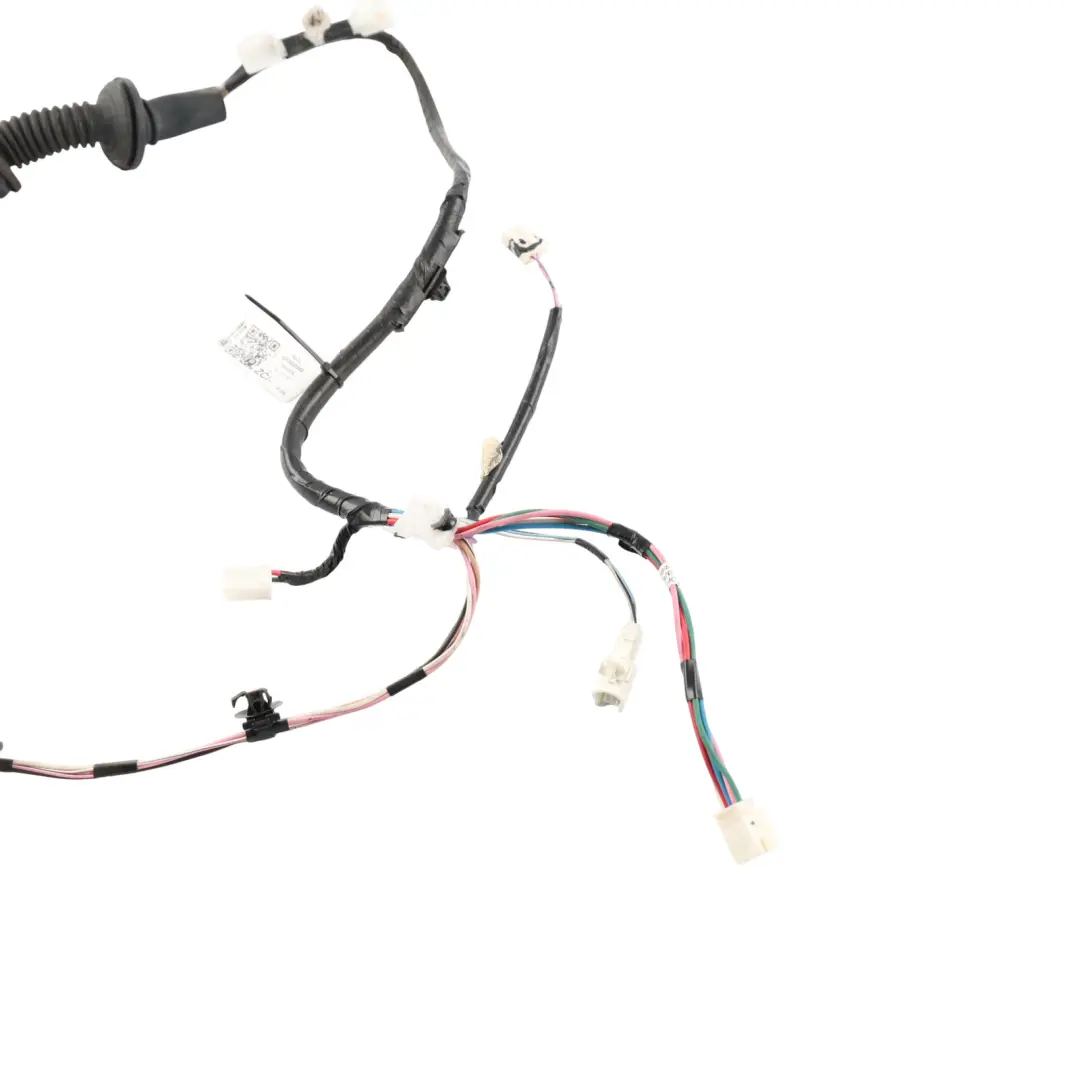

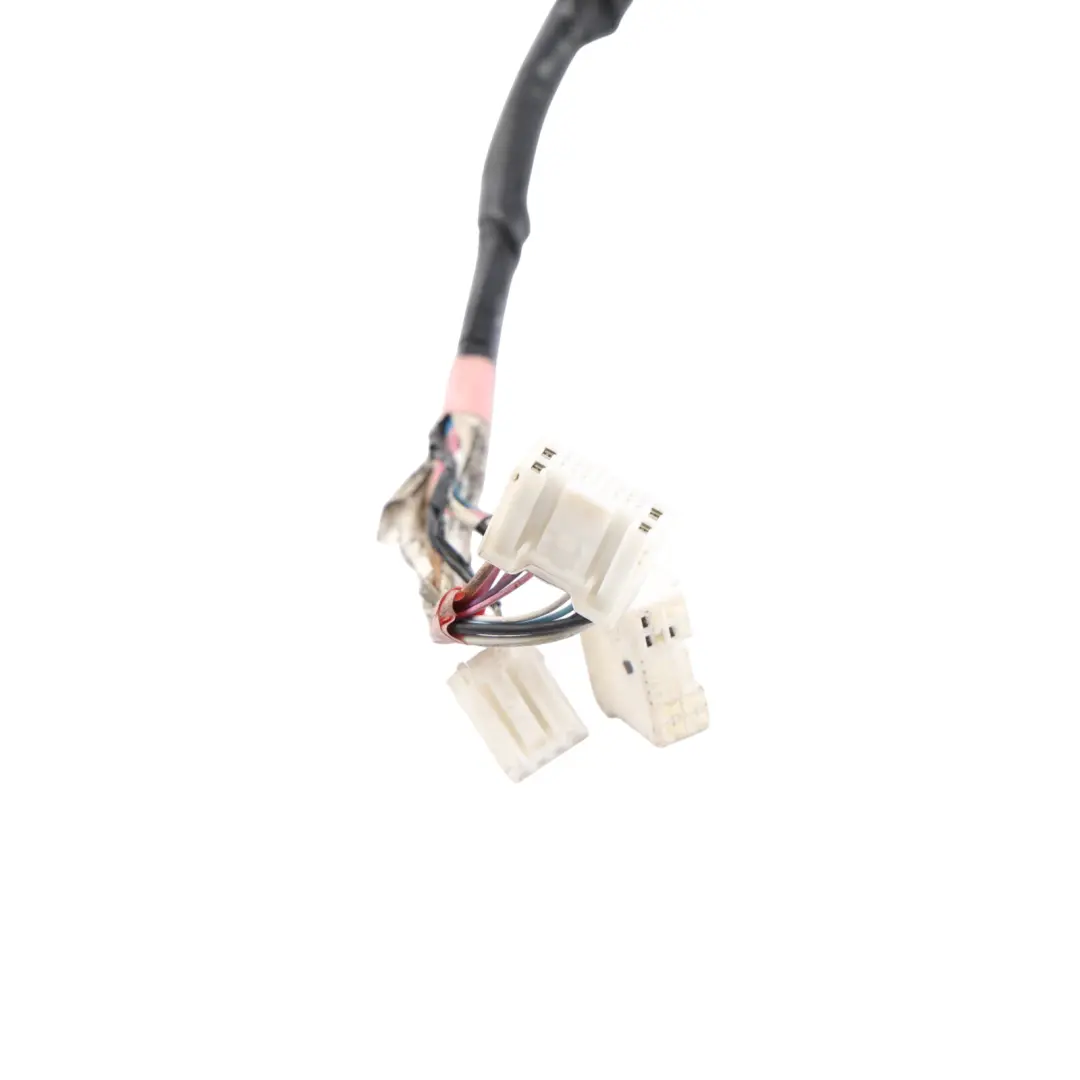

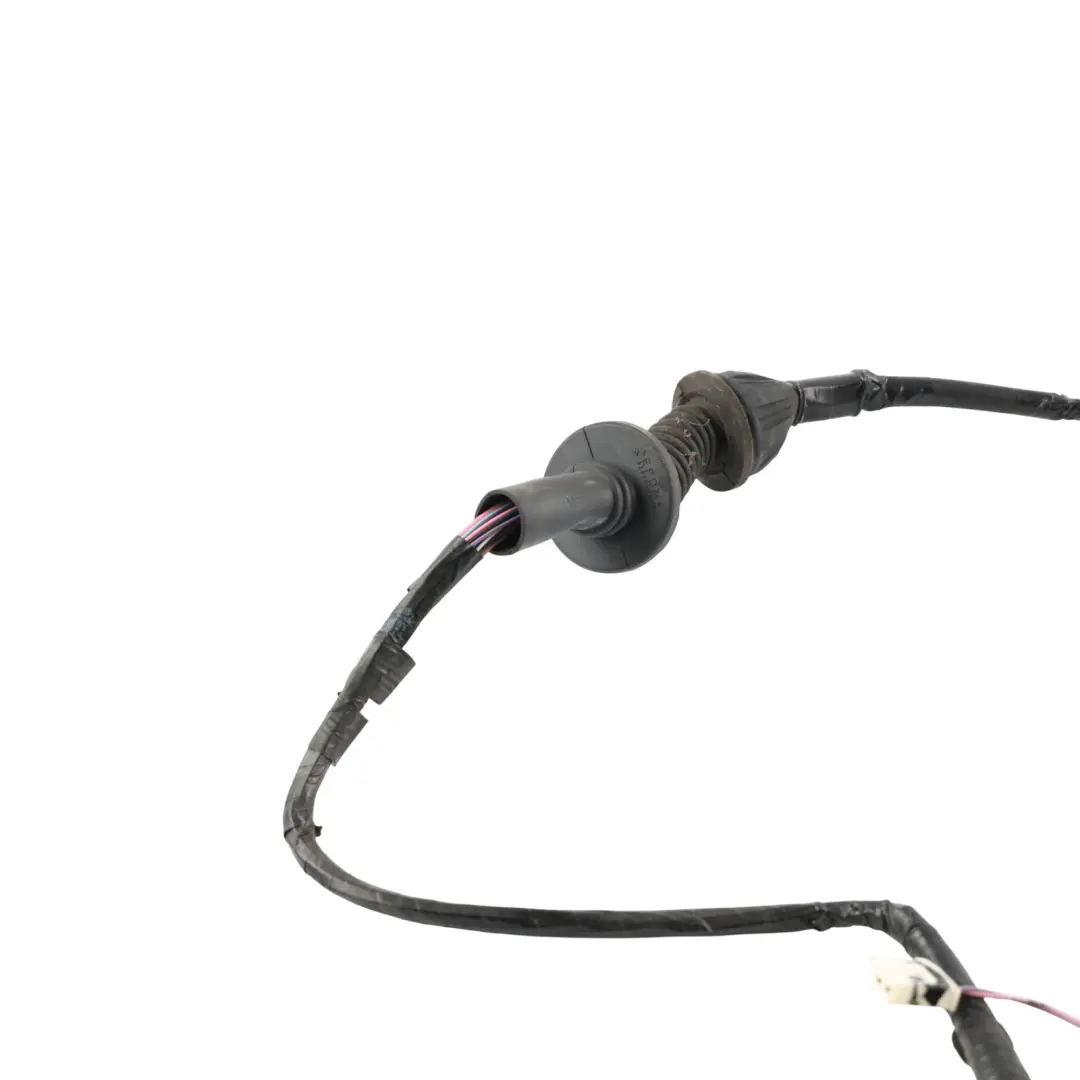

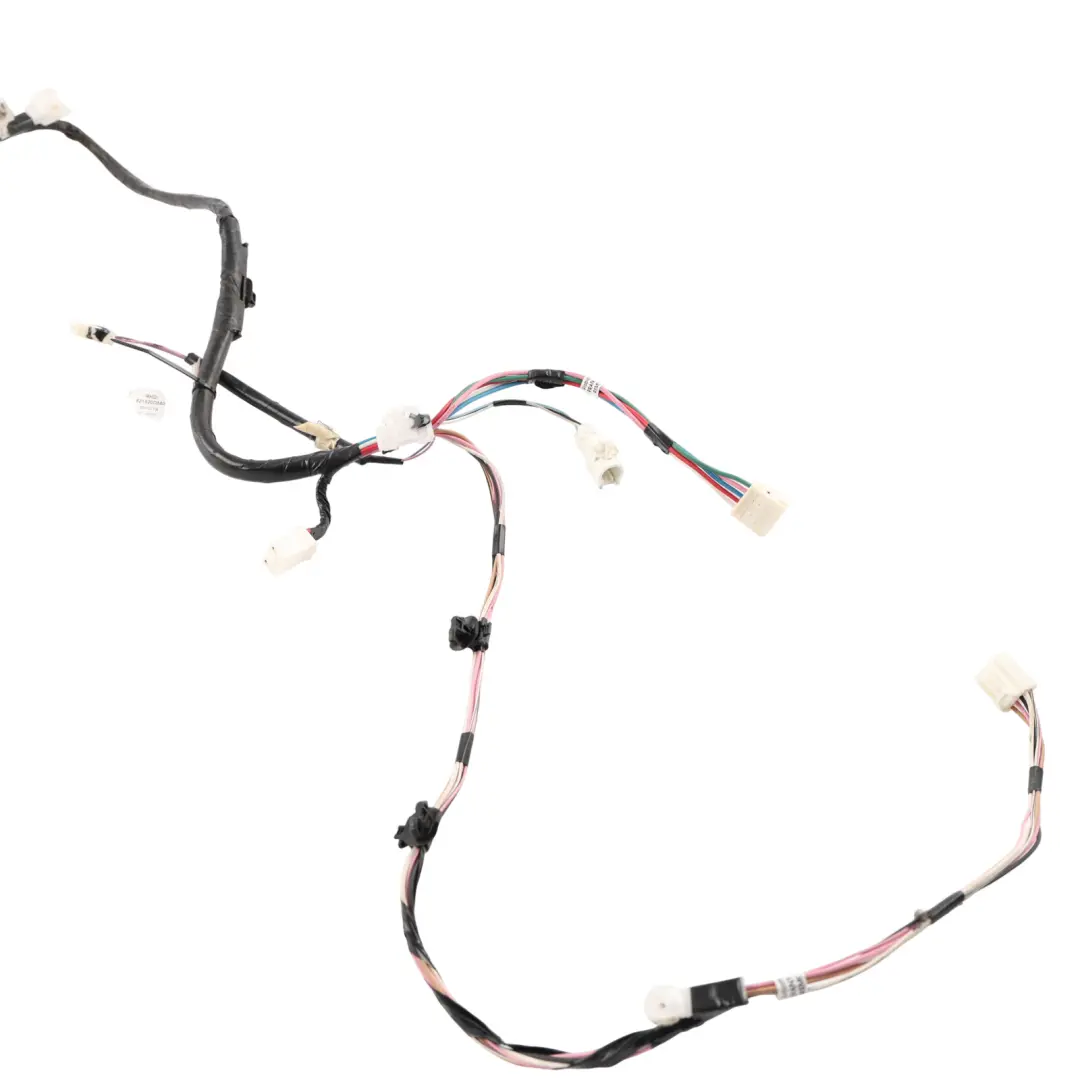

Toyota Yaris Mk2 Front Door Wiring Harness Loom Passenger Side 5 Door 821520D580

Toyota Yaris Mk2 Front Door Wiring Harness Loom Passenger Side is a factory-original electrical wiring harness designed for the passenger side door in a five-door body style. This component from the Wires, harnesses and connectors group ensures a proper electrical connection between the door and the vehicle body wiring, enabling stable operation of the electrical equipment located in the door.

Specifications and technical data

• SKU: RHD-821520D580
• Mark: Toyota
• Condition: Used
• OEM Part Number: 821520D580
• Substitutable numbers: 821520D580, 82152-0D580
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function of the front door wiring harness

The offered harness is dedicated to the front passenger door in the second-generation Toyota Yaris with a five-door body. It is responsible for transmitting signals and power to components located in the door, such as window controls, central locking, or the side mirror, in accordance with the factory configuration of the specific vehicle version. By maintaining the original routing of wires and connectors, installation is performed at existing mounting points, which facilitates service and reduces the risk of assembly errors.

Advantages of using an original Toyota harness

Using an original door harness in a Toyota Yaris Mk2 allows for maintaining the consistency of the electrical system with the rest of the vehicle. Properly selected wire cross-sections, correct insulation, and factory connectors minimize voltage drops and reduce the risk of interference in component operation. This solution is particularly beneficial for post-collision repairs, replacing corroded or damaged wiring, and eliminating issues with intermittent power supply in the door. The harness is a component structurally matched to the specific model and body configuration, which translates into secure wire routing, proper placement in grommets, and a stable connection with the connectors in the pillar and the door. This reduces the risk of insulation abrasion and mechanical damage during vehicle operation.

Condition, fitment, and assembly aspects

The item comes from dismantling, which allows for maintaining the original installation specification used by the manufacturer. Before installation, it is recommended to perform a standard verification of the condition of the connectors, insulation, and grommets, as well as to compare the shape and layout of the connectors with the harness currently installed in the vehicle. Such an approach facilitates trouble-free replacement and reduces the time required for service work. In practice, the installation involves routing the harness through the factory guides, connecting the connectors on the body and door side, and properly positioning the wires in the grommet between the pillar and the door. Maintaining the original geometry of the harness promotes stable operation of the electrical system in the long term of vehicle use.

Technical support and additional information

When selecting a door harness for a Toyota Yaris Mk2, it is worth paying attention to the compatibility of the body generation, the number of doors, and the mounting side. In case of doubt, it is helpful to compare the shape of the connectors and the length of the sections with the component installed in the car. For users who want to deepen their knowledge in the field of vehicle system diagnostics, an article describing the symptoms and consequences of neglecting power supply elements in diesel engines may be useful: diesel injector faults – symptoms, consequences and diagnostics. If you are planning a comprehensive repair or upgrade of the door zone in your Toyota and need other components from the same group, such as additional harnesses, wires, or connectors, check the available parts in the Toyota Wires, harnesses and connectors category.
