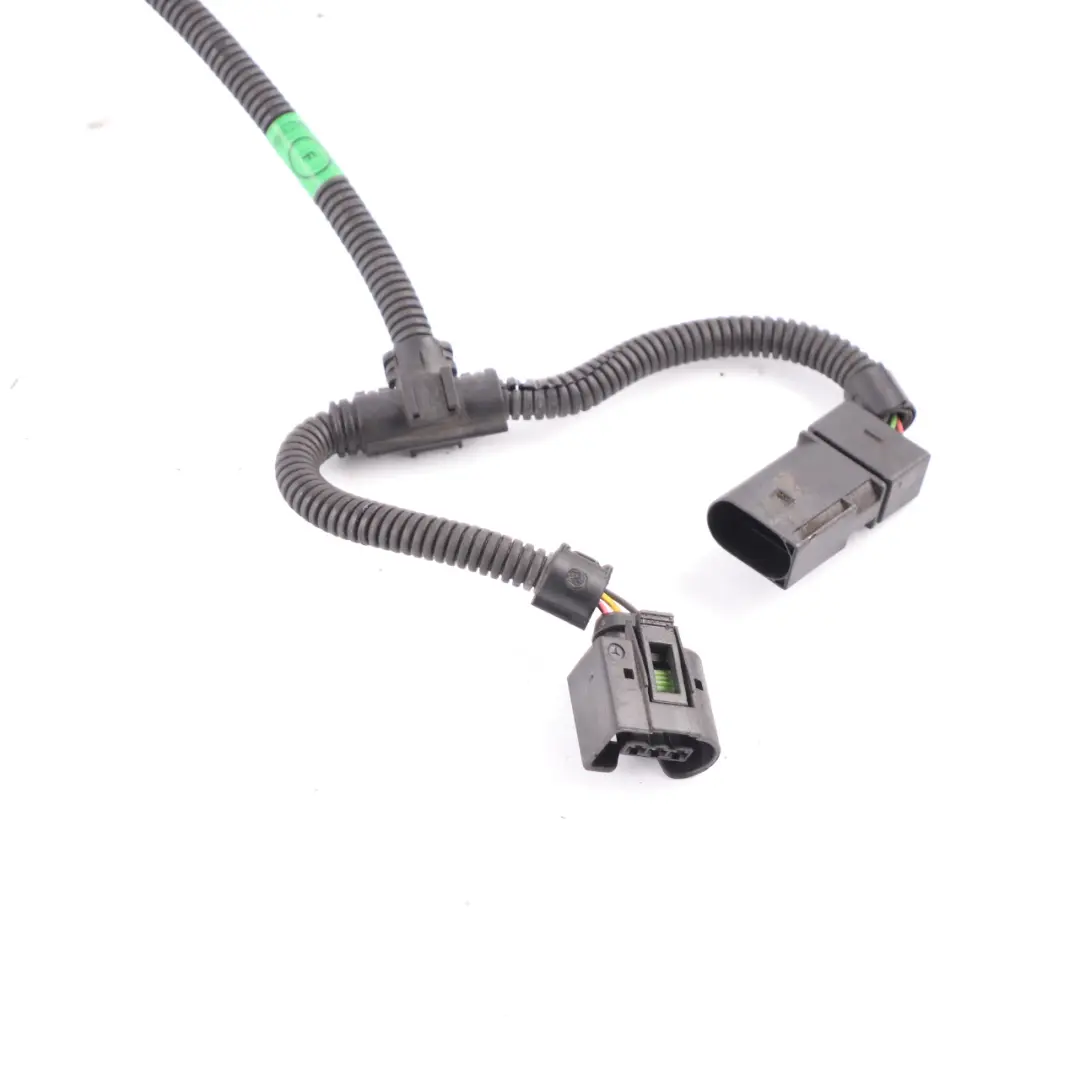

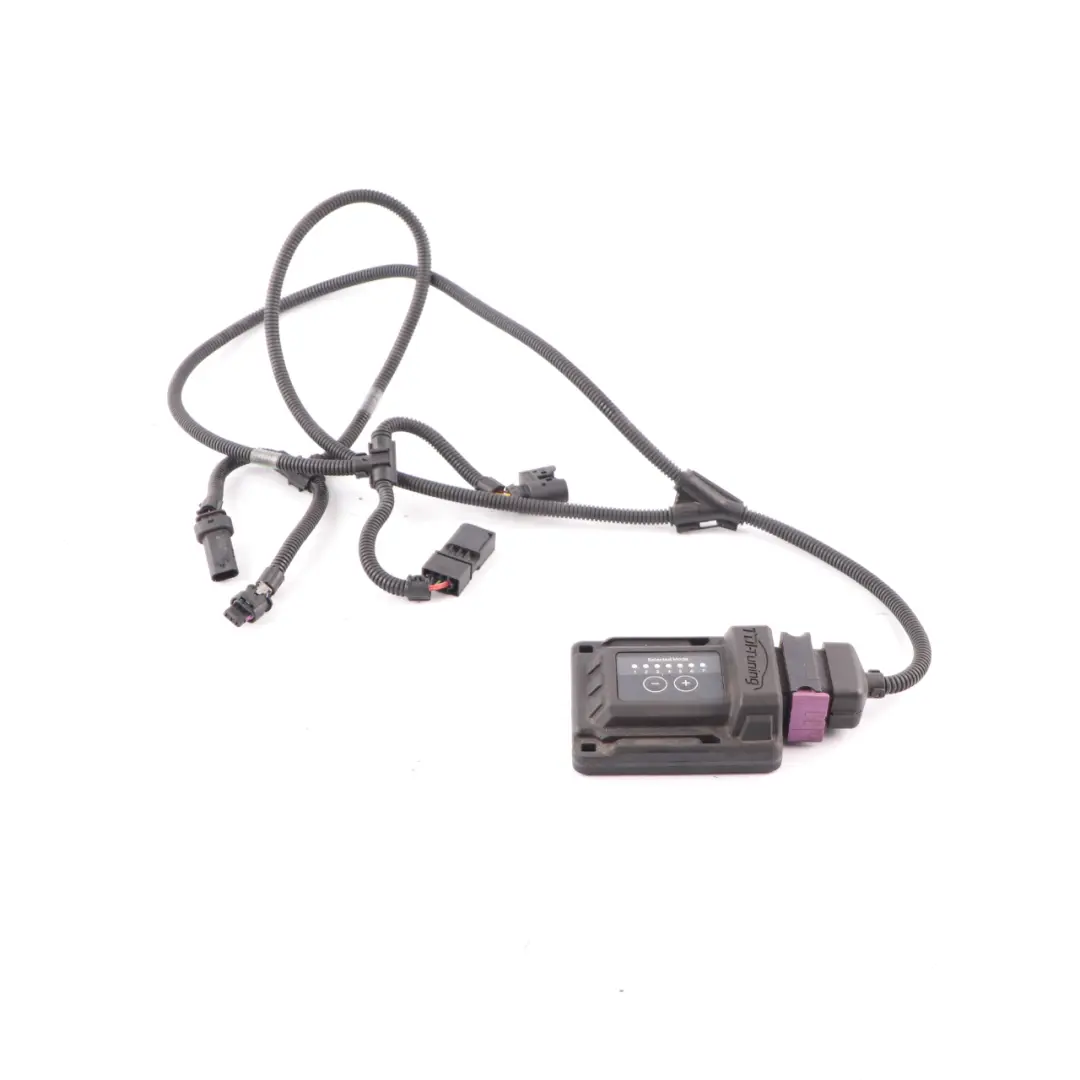

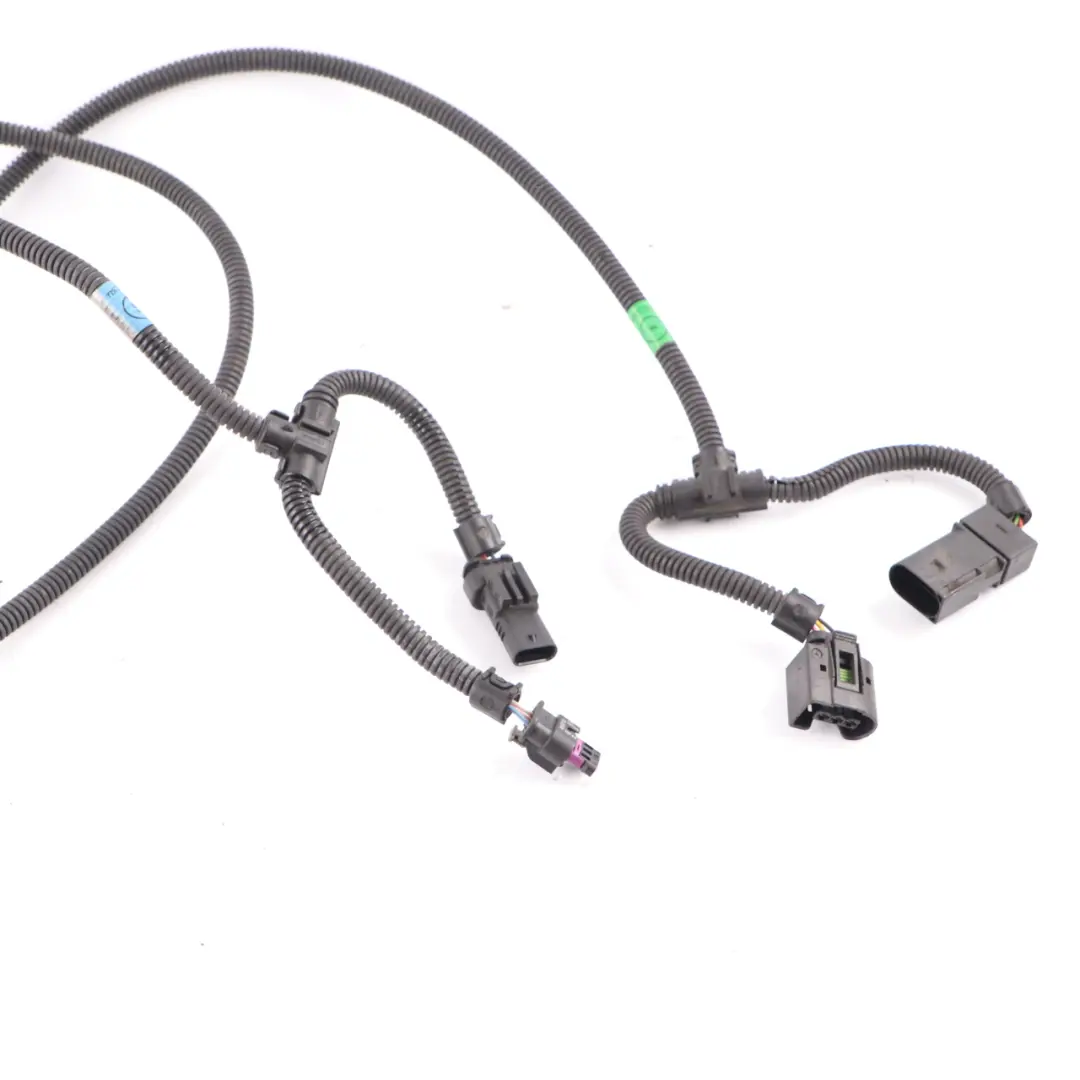

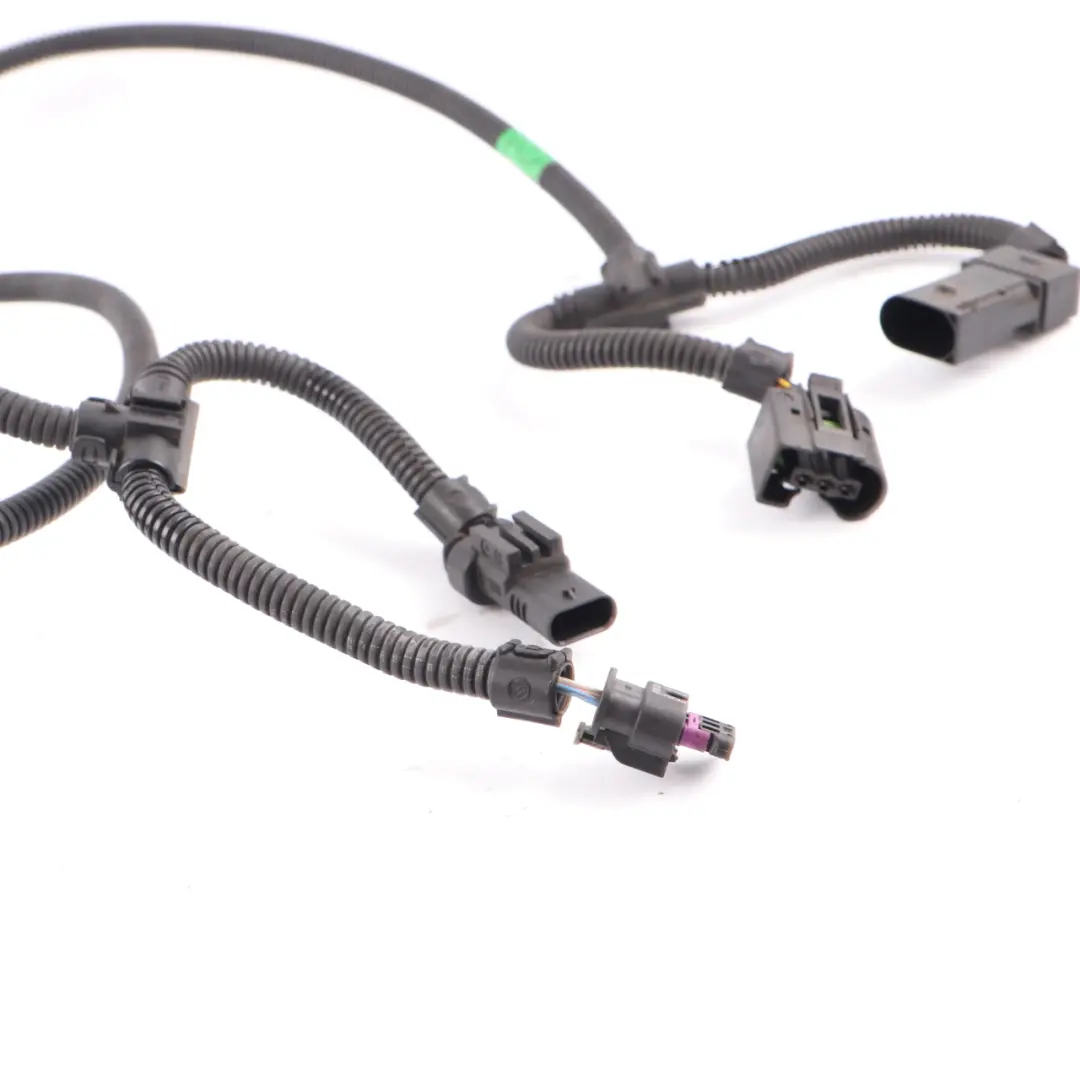

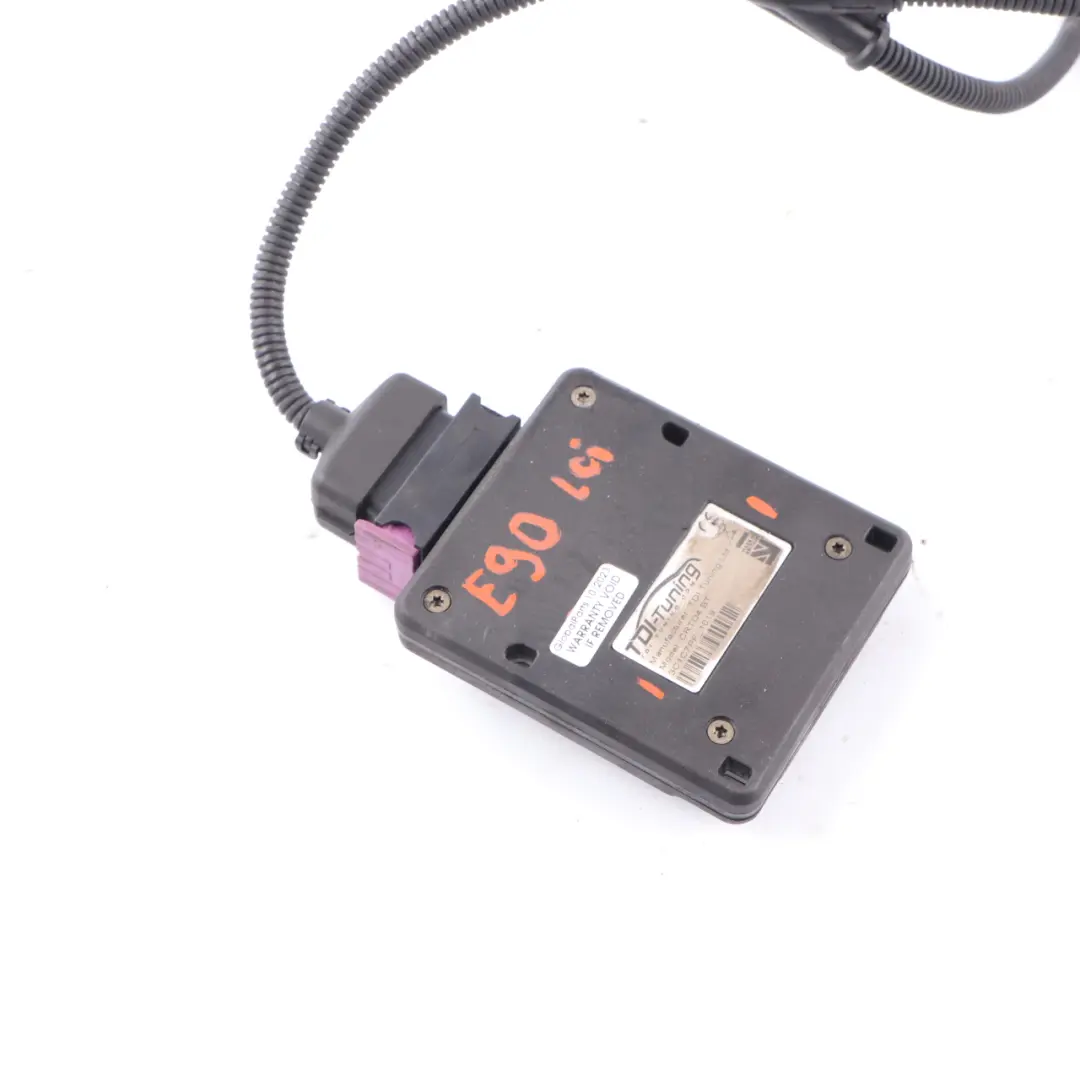

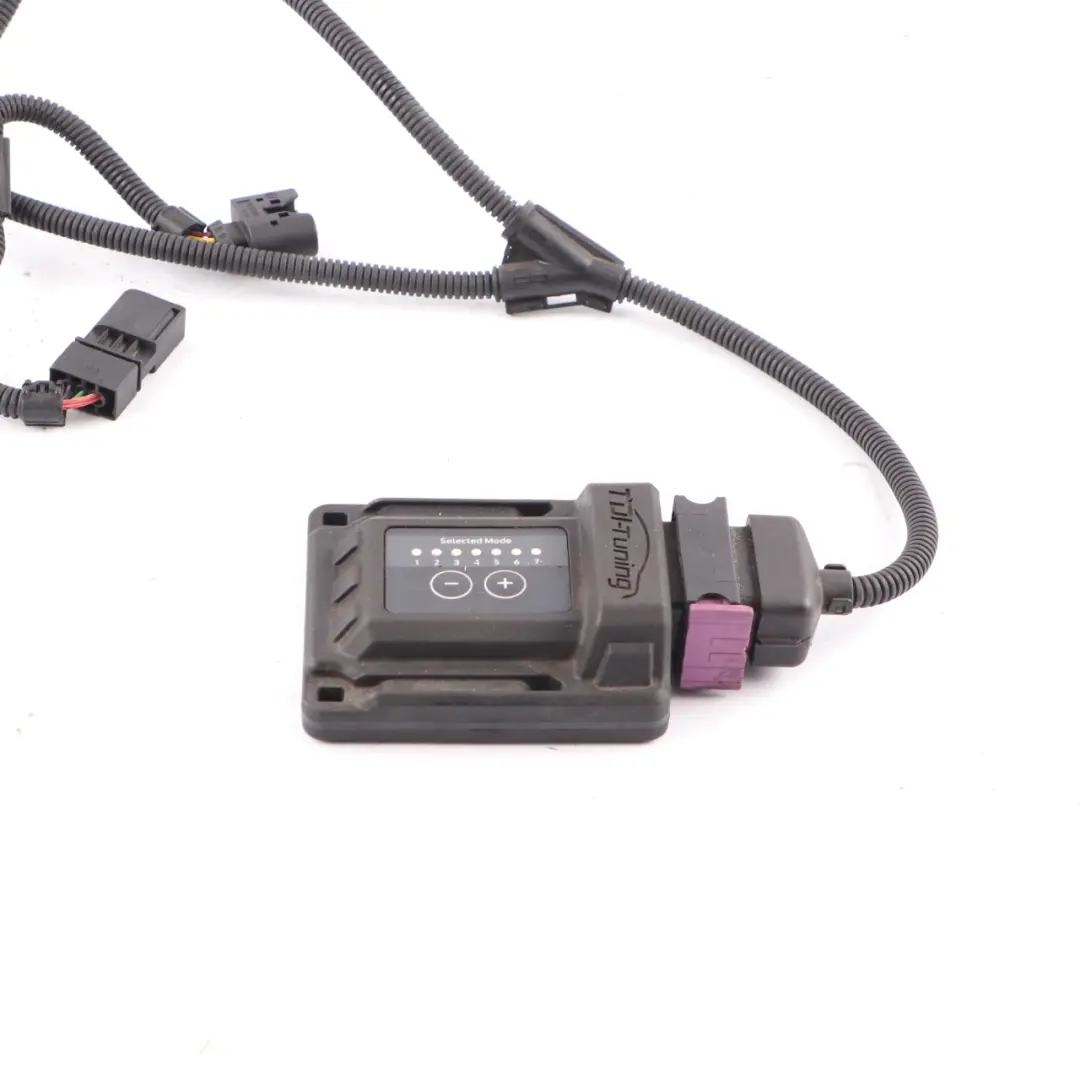

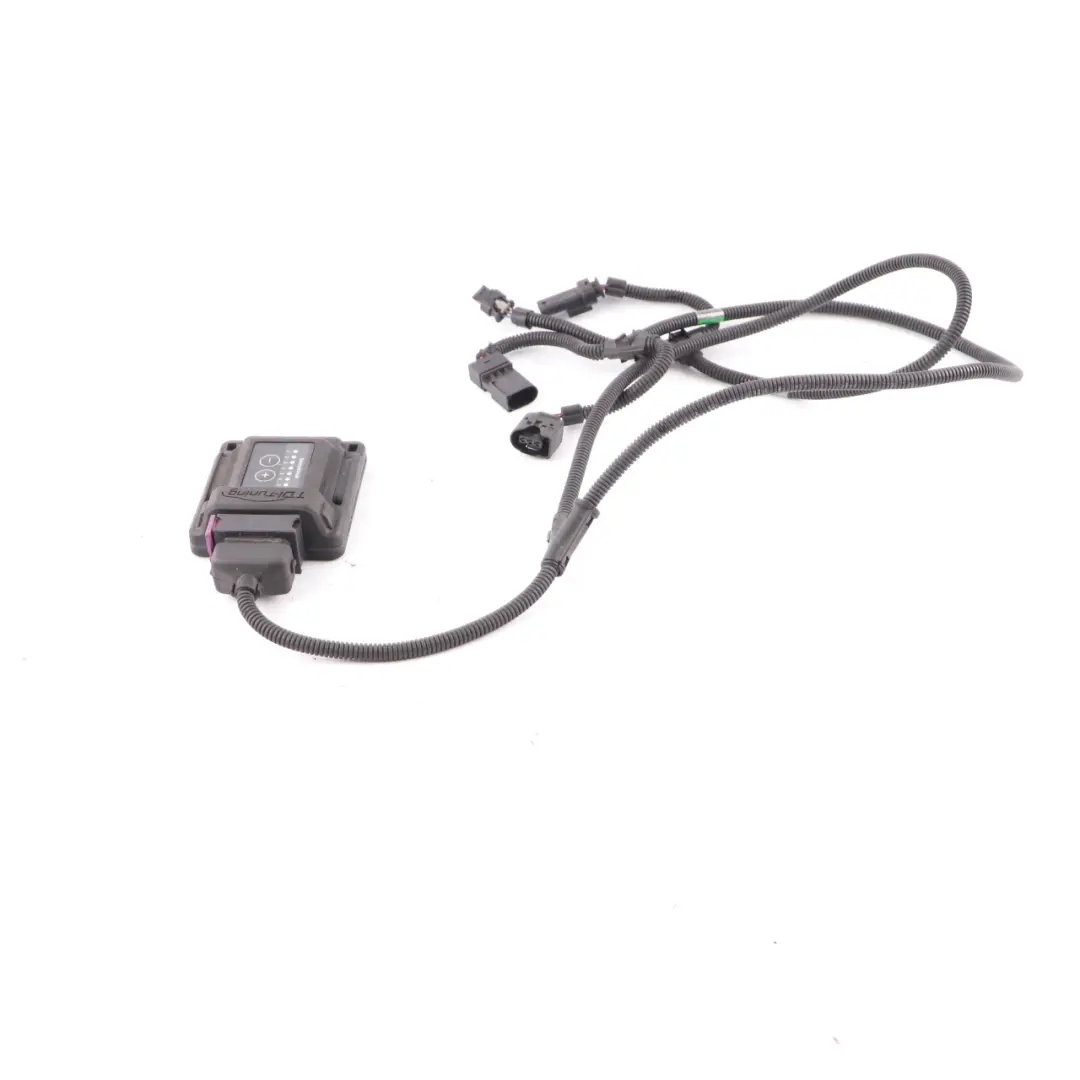

BMW E90 LCI Power Box Module Wiring Cable Harness CRTD4BT

BMW E90 LCI Power Box Module Wiring Cable Harness CRTD4BT is a specialized component from the Cables, harnesses and connectors group, designed for installation in a diesel engine control system. This type of solution allows for precise intervention in engine operating parameters while maintaining the vehicle's factory electrical system architecture.

Specifications and technical data

• SKU: CRTD4BT
• Mark: Unbranded
• Condition: Used
• OEM Part Number: CRTD4BT
• Substitutable numbers: CRTD4BT, CRTD4 BT, 3C1C7PF1019, 3C1C7PF 1019
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

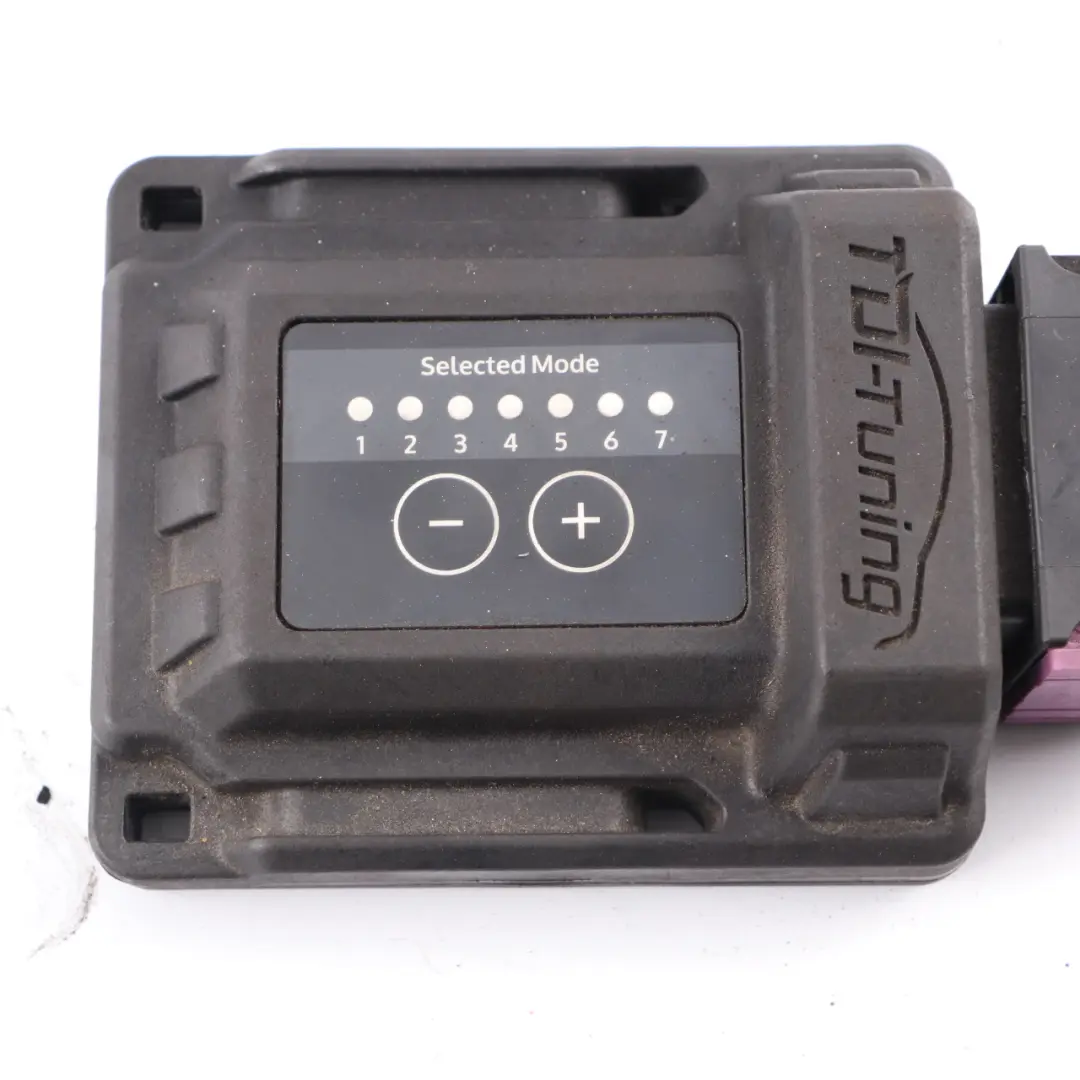

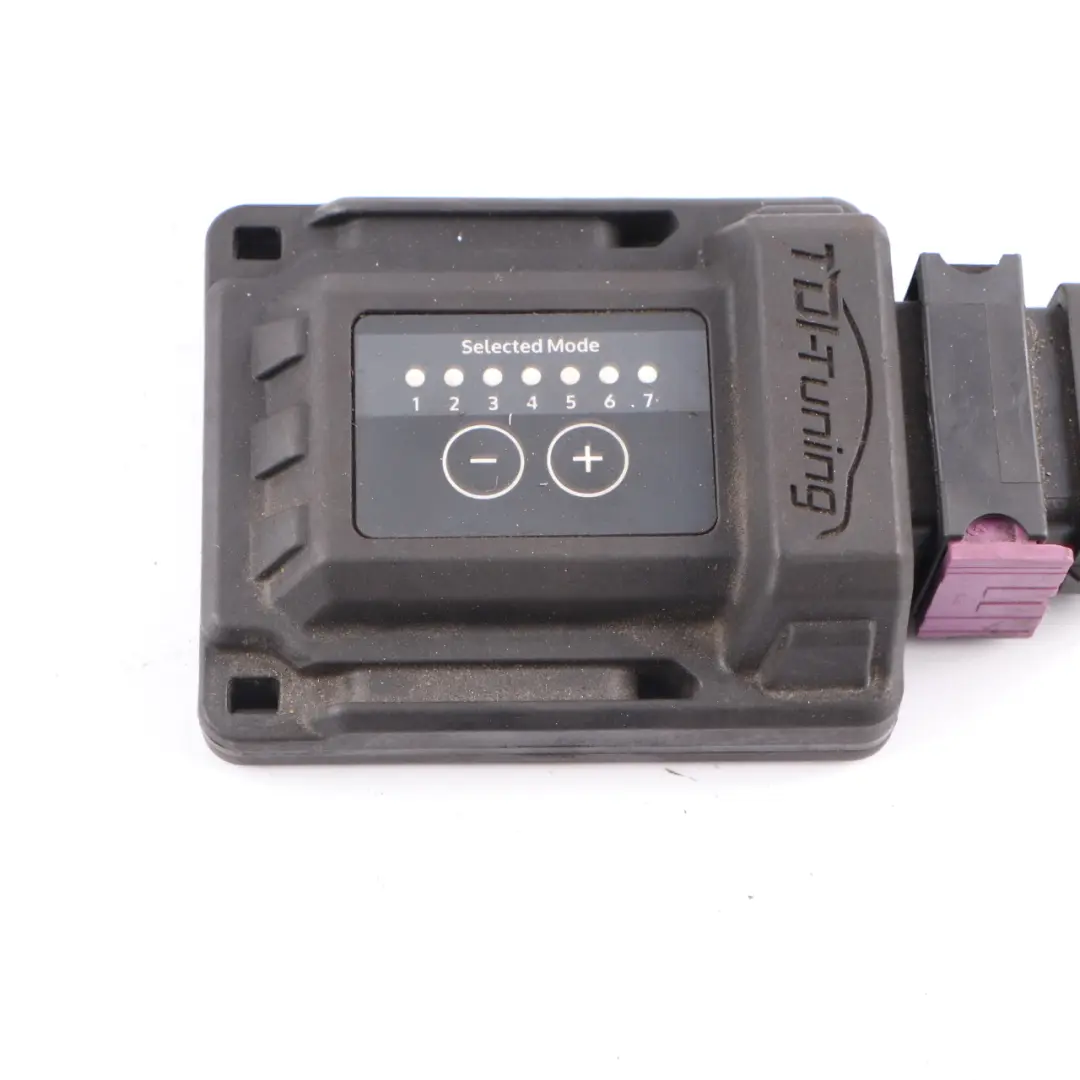

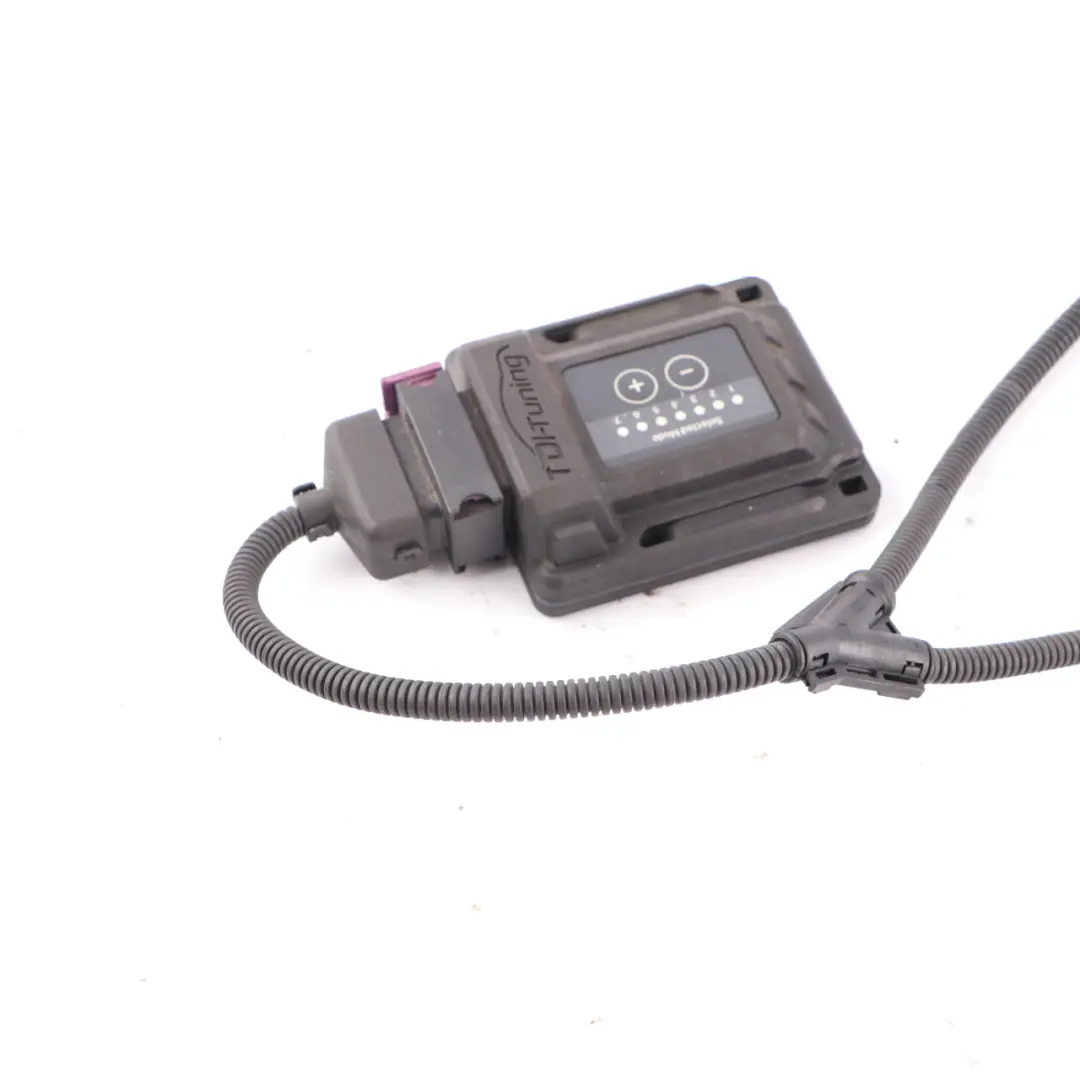

The presented chip tuning module is dedicated to the OM646 unit in the Mercedes C-Class W204 generation, C220 version. As a component from the Cables, harnesses and connectors group, it works with the existing electrical system, utilizing factory connection points without the need to interfere with the original wiring harness.

This type of solution is used to modify control signals, which enables more dynamic engine performance characteristics while retaining stock mechanical components. As a result, the user can achieve a noticeably improved throttle response and flexibility across the operating rev range.

Construction, integration and performance parameters

The BMW E90 LCI Power Box Module Wiring Cable Harness CRTD4BT operates in the signal path between the sensors and the engine control unit, which is why proper integration with the vehicle's electrical system is crucial. The design is intended for use with factory connectors, which facilitates installation and removal and reduces the risk of connection errors.

In practice, this means:

• maintaining the original electrical harness architecture,
• the ability to restore the stock configuration by disconnecting the module,
• stable operation under typical diesel engine operating conditions.

This approach is beneficial from both a service and subsequent computer diagnostics perspective, as it does not require permanent modifications to the factory ECU.

Condition, verification and service application

The item is offered as a used part, which in practice means it has been removed from a vehicle and verified for further serviceability. Such components are frequently chosen by professional workshops specializing in diesel engine modifications, where a favorable cost-to-effect ratio and the ability to flexibly adjust the configuration to the user's needs are prioritized.

In service applications, the module can be used both as a replacement for a damaged unit and as an upgrade for a vehicle that did not previously have an external chip tuning system installed. It is crucial to maintain compatibility with the OM646 engine and ensure proper cable routing in the engine bay.

Benefits of using the BMW E90 LCI Power Box Module Wiring Cable Harness CRTD4BT

Applying this solution in a Mercedes C W204 C220 OM646 allows for a range of practical operational benefits while maintaining the stock engine design:

• more decisive response to load in the typical RPM range,
• better utilization of the diesel unit's potential in road conditions,
• no need for interference with engine mechanics or the stock ECU.

For users expecting a clear yet controlled change in engine performance characteristics, this is a technically consistent solution for electronic tuning, while maintaining the reversibility of the modification.
