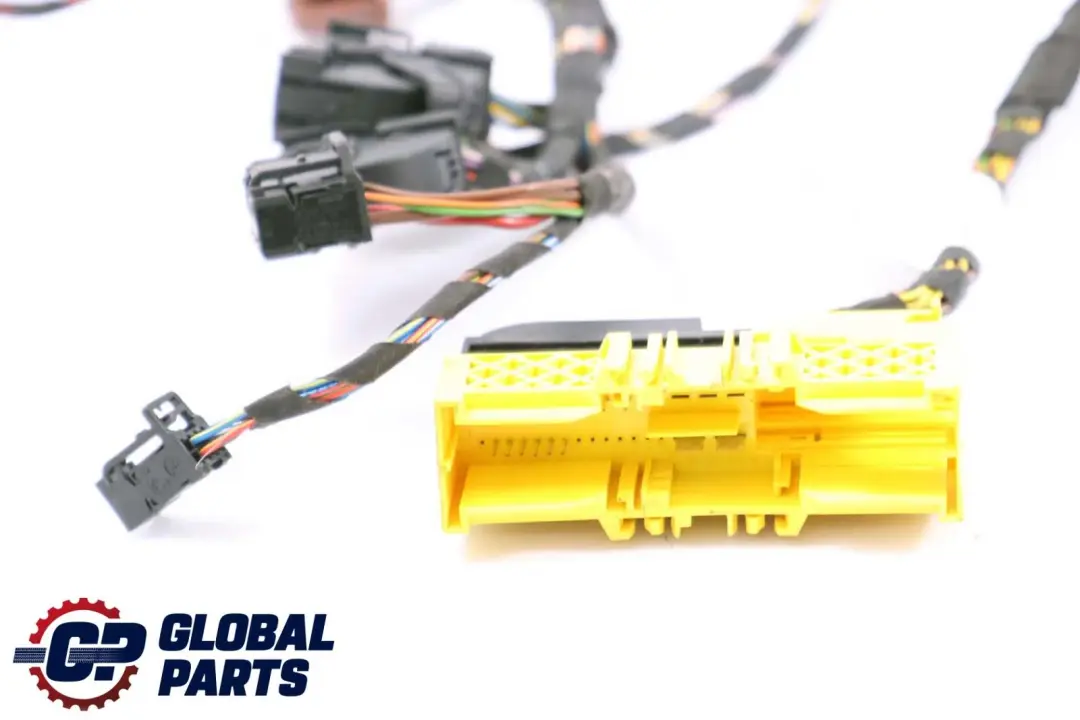

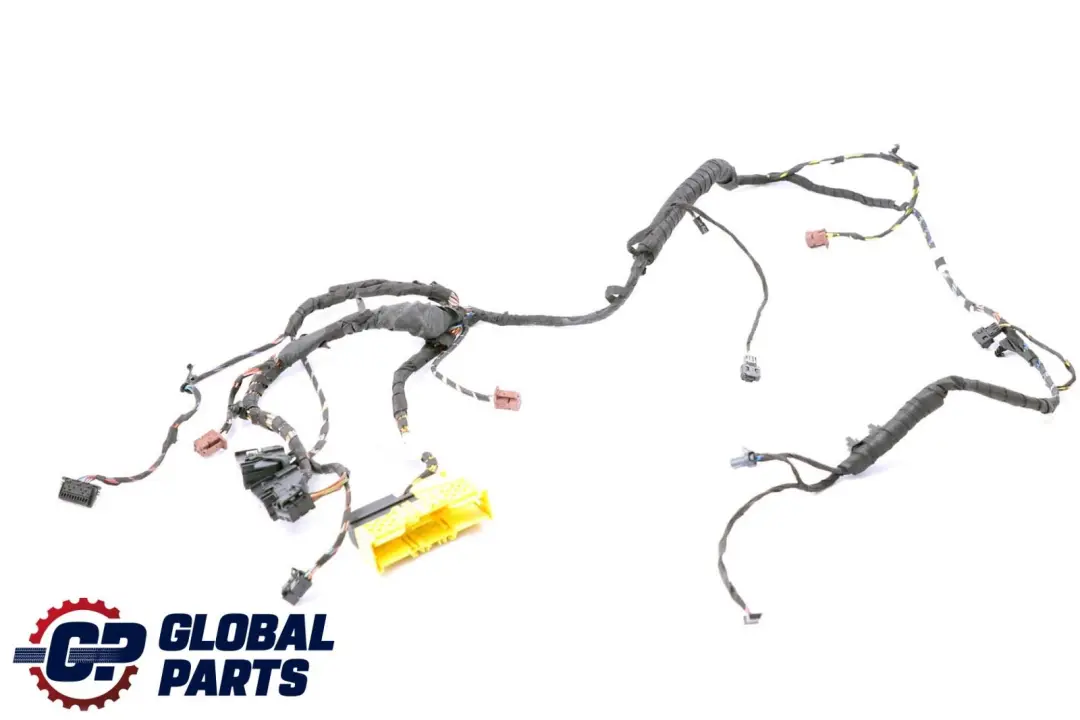

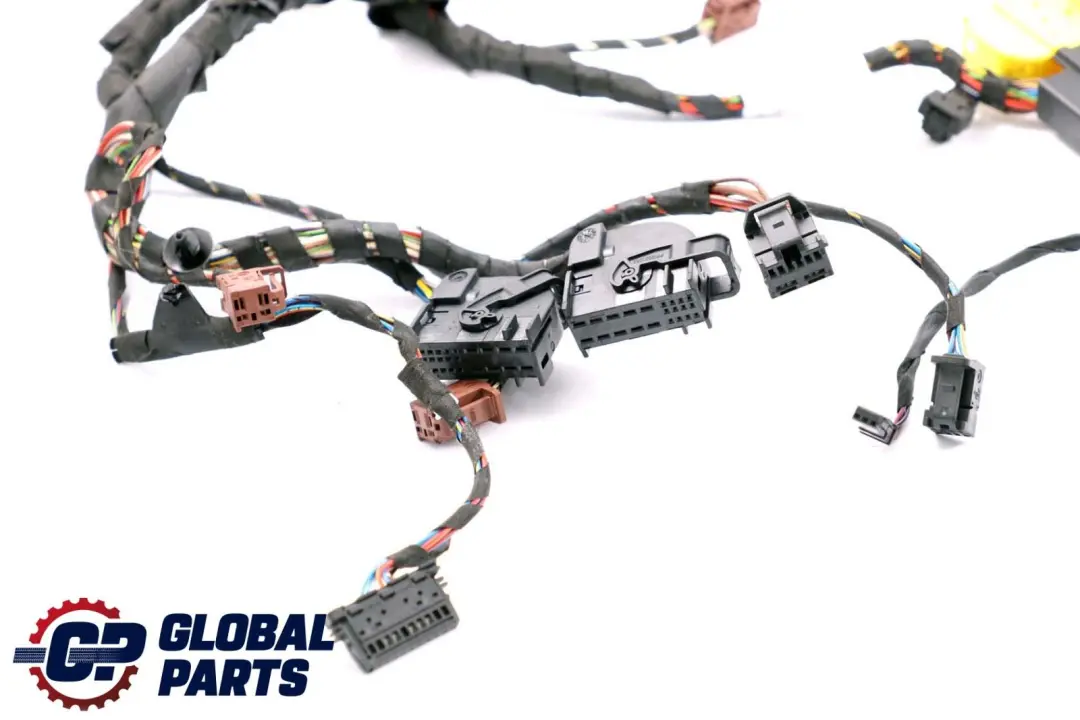

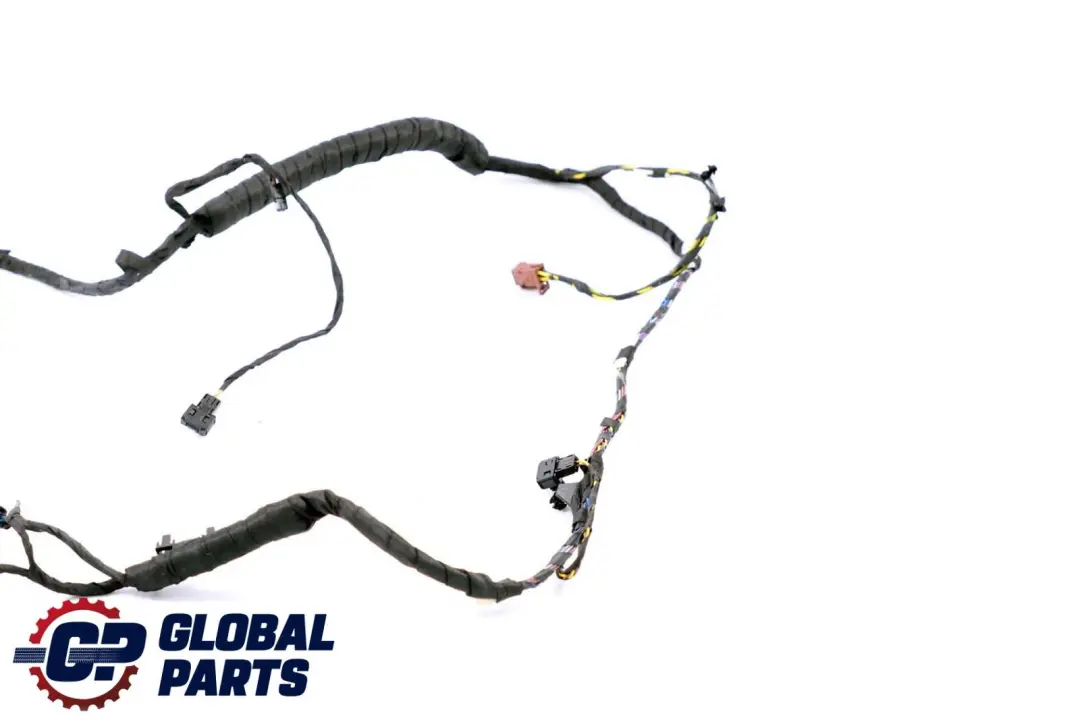

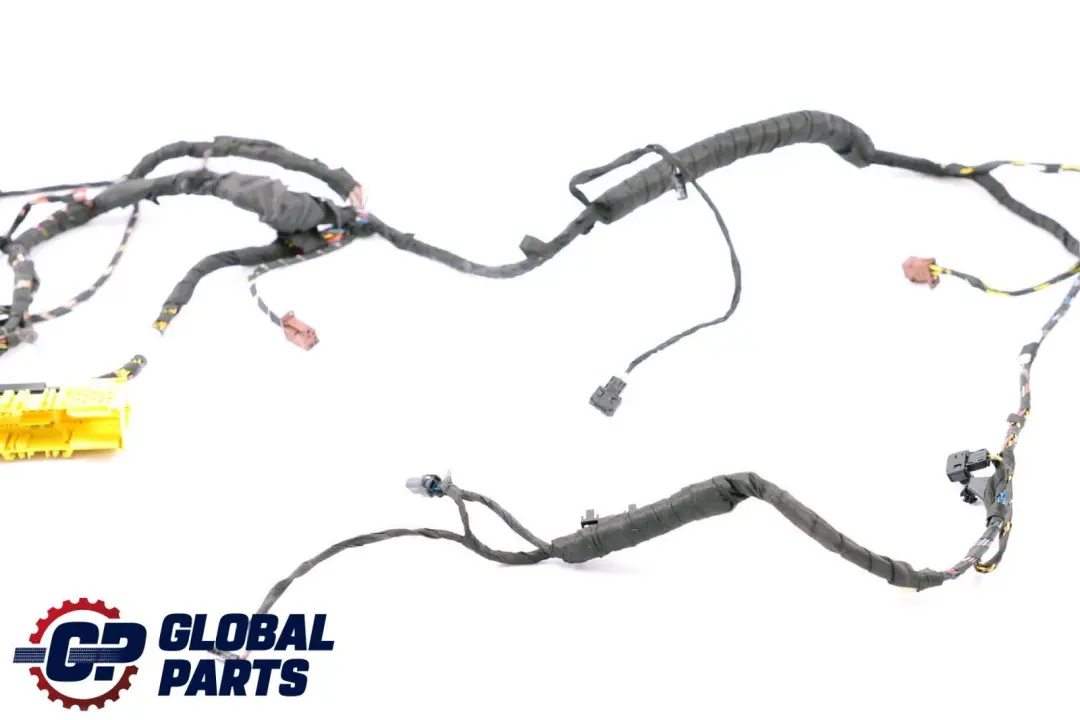

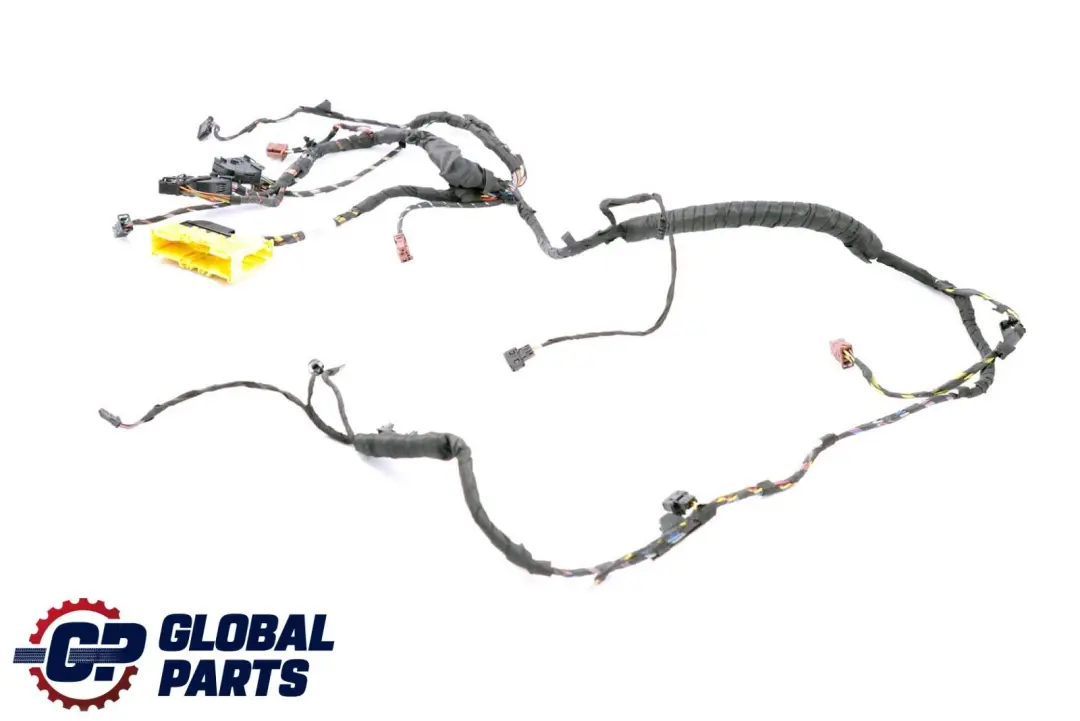

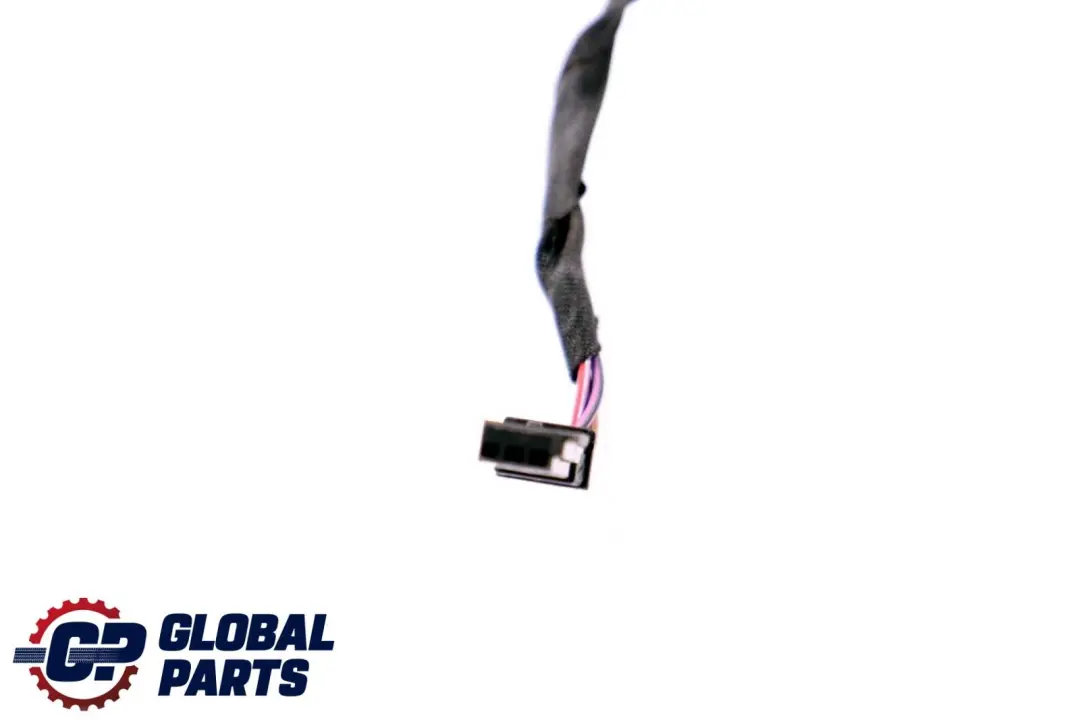

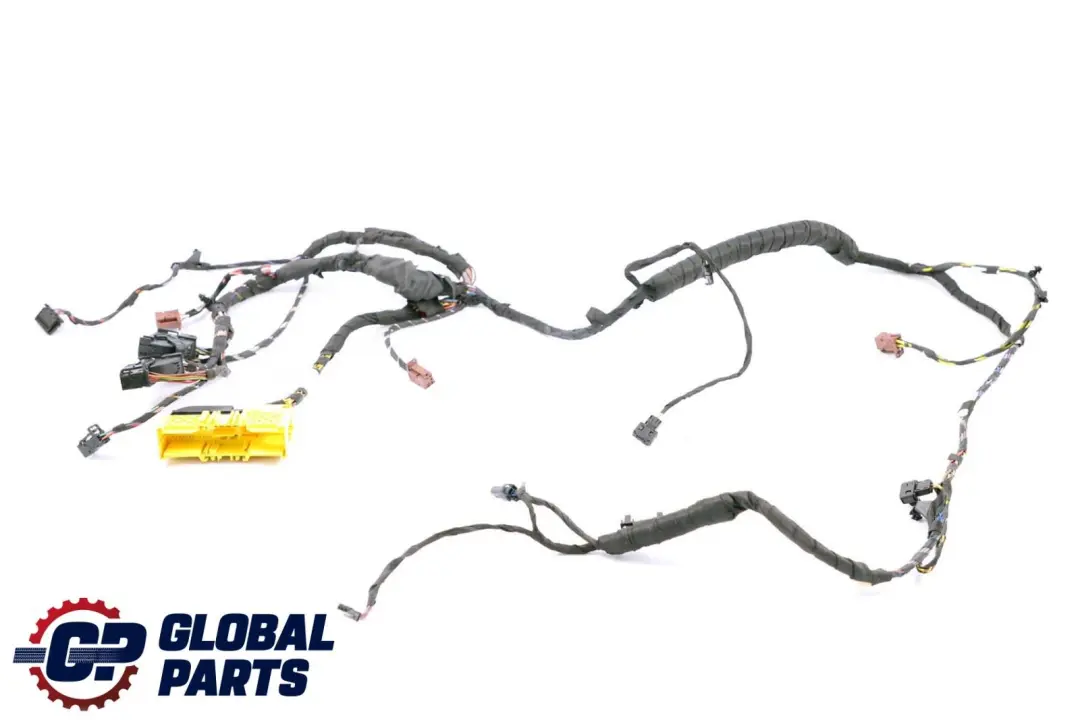

BMW 5 7 Series F01 F02 LCI F10 F11 Wiring Harness Airbag Front Left N/S 9262234

Front Left Airbag Wiring Harness for BMW 5 Series F10/F11 and 7 Series F01/F02 LCI is an original electrical system component designed to service the passenger or driver's side airbag system on the front left side of the body. This component from the Wires, Harnesses, and Connectors group ensures proper connection of safety modules to the airbag, which is crucial for the correct operation of the SRS system. Thanks to BMW's factory design, the harness is tailored to the specific body geometry and mounting points in the front compartment.

Specifications and technical data

• SKU: 9262234
• Mark: BMW (Genuine OE)
• Condition: Used

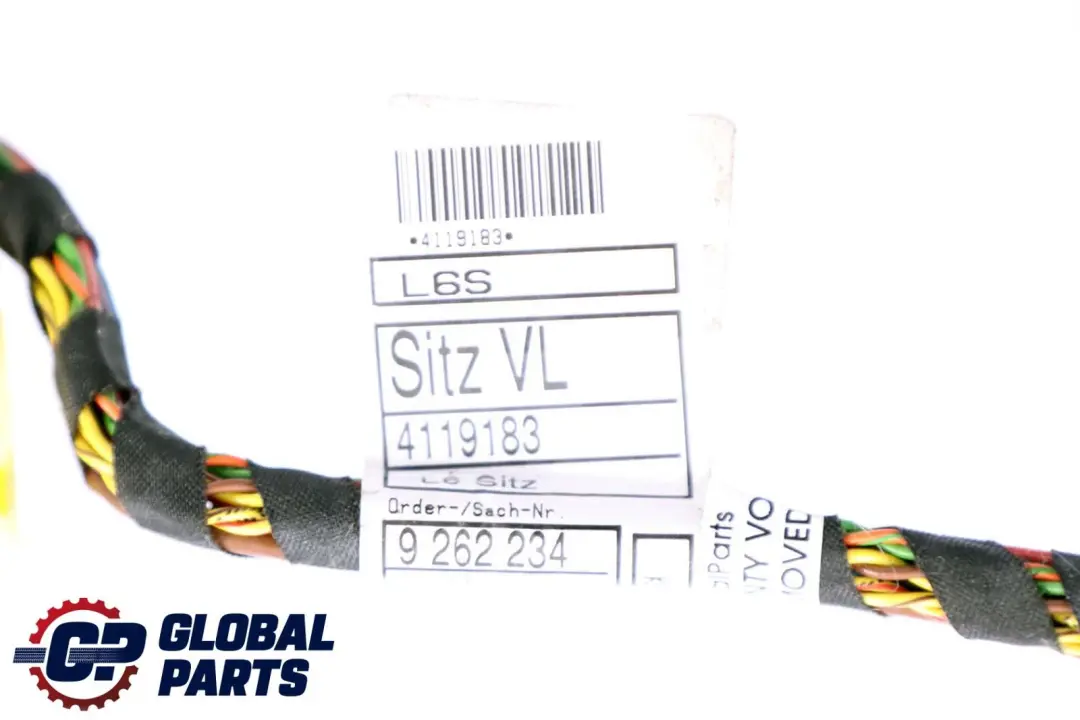

• OEM Part Number: 9262234
• Substitutable numbers: 61129252423, 9252423, 61129262234, 9262234, EM
• Location on the vehicle: Front, Left
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Compatibility

The presented harness has been specifically designed for BMW 5 Series F10/F11 and facelifted 7 Series F01/F02 models, in the front left area of the vehicle. Its placement in the front left zone allows for direct connection to the factory body wiring connectors and modules responsible for airbag control. BMW's original design minimizes the risk of improper wire routing, collisions with other components, and issues with harness length or geometry.

Construction and Technical Function

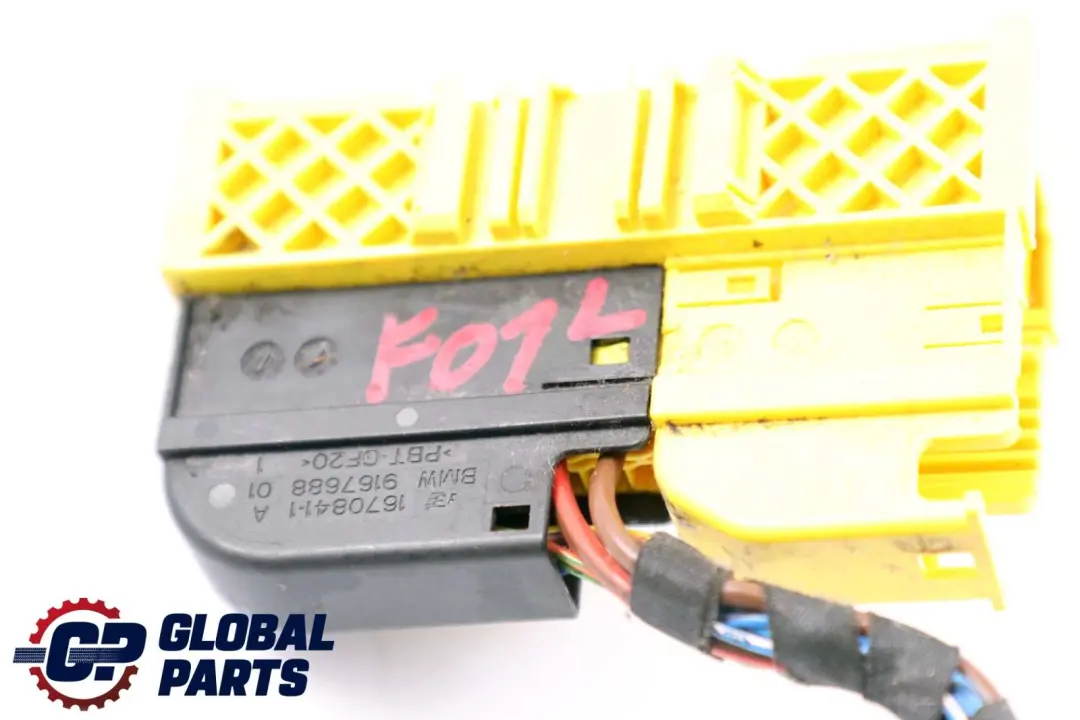

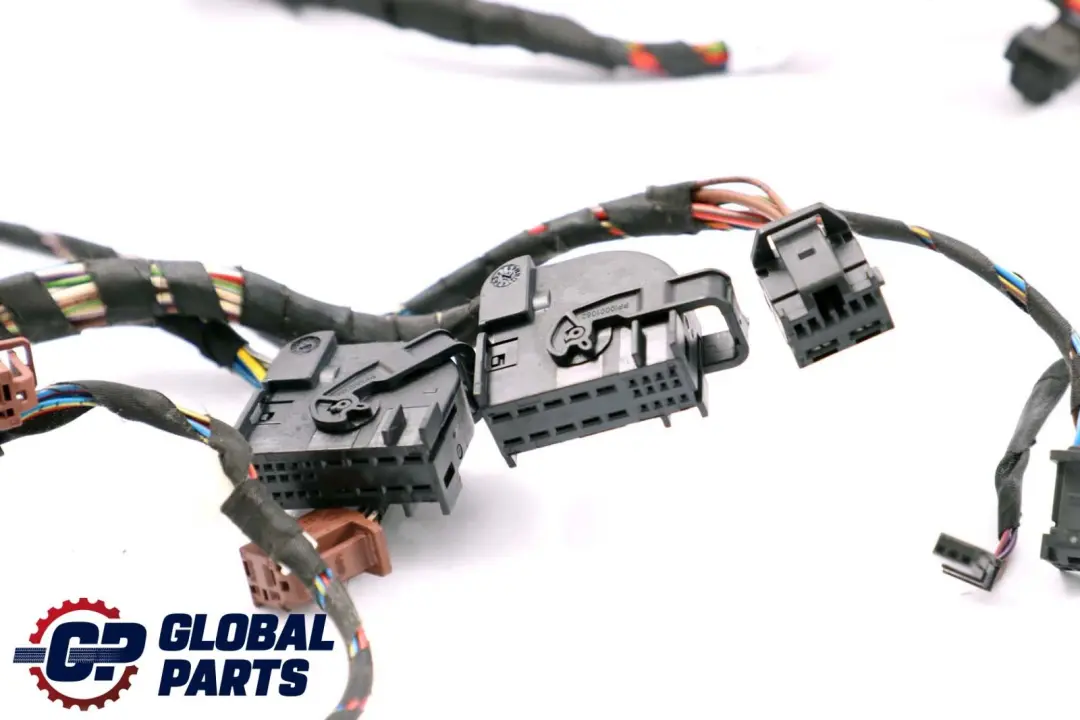

The airbag wiring harness serves as a dedicated signal path between the SRS system control and the airbag in the front left part of the vehicle. The connectors used are factory-matched to BMW sockets, enabling plug-and-play installation without the need for wiring modifications or soldering. The appropriately selected wire diameter and insulation are adapted to the requirements of passive safety systems, ensuring stable electrical parameters under typical car operating conditions.

Thanks to precisely routed branches, the harness allows for correct wire routing along factory assembly routes, maintaining required bending radii and mounting points. This is important for both electrical reliability and safety – wires do not interfere with moving parts or controlled crumple zones.

Benefits of Using an Original BMW Harness

• Factory fit for the body and electrical architecture of BMW 5 Series F10/F11 and 7 Series F01/F02 LCI.
• No need for installation modifications – installation based on original connectors and mounting points.
• Consistency with SRS system parameters, promoting correct airbag operation in the front left zone of the vehicle.
• Reduced risk of installation errors typical for universal or non-factory harnesses.

As a component from the Wires, Harnesses, and Connectors category, this harness is an important link in the vehicle's electrical structure, influencing the reliability of the safety system. Using an original component ensures consistency with BMW's factory service documentation and facilitates diagnostics in case of potential faults.

Condition and Service Application

The offered harness is a used part, which in BMW service practice often represents a sensible compromise between repair cost and maintaining original quality of workmanship. This type of component is particularly useful for post-accident repairs, replacing damaged wiring in the front zone, or restoring full airbag system functionality after airbag deployment. Replacing the entire harness with an original used one is usually faster and more predictable than localized repairs of individual wires.

Technical Support and Additional Information

When selecting electrical system components and safety systems, it is advisable to utilize knowledge of OEM designations, interchangeable numbers, and compatibility between different body versions. Practical tips for choosing used electronic and installation components, including control modules and sensors, can be found in the Global Parts guide: Used Car Electronics Onboard – Why Choose Second-Hand ECUs and Sensors?

If you are planning a comprehensive repair or upgrade of the electrical installation area in your BMW and need other parts from the same group, such as additional harnesses, signal wires, or body system connectors, check the available parts in the BMW Wires, Harnesses, and Connectors category.
