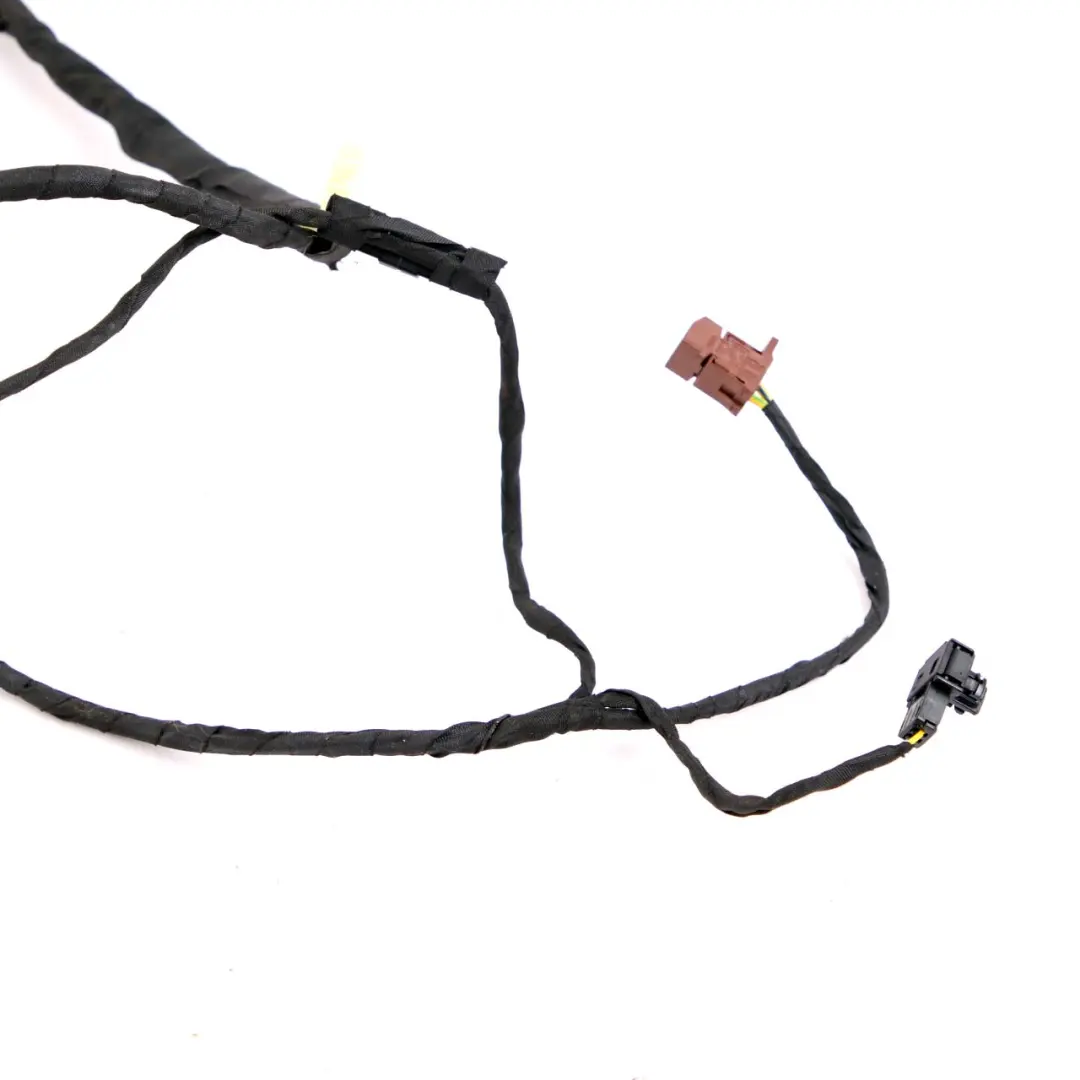

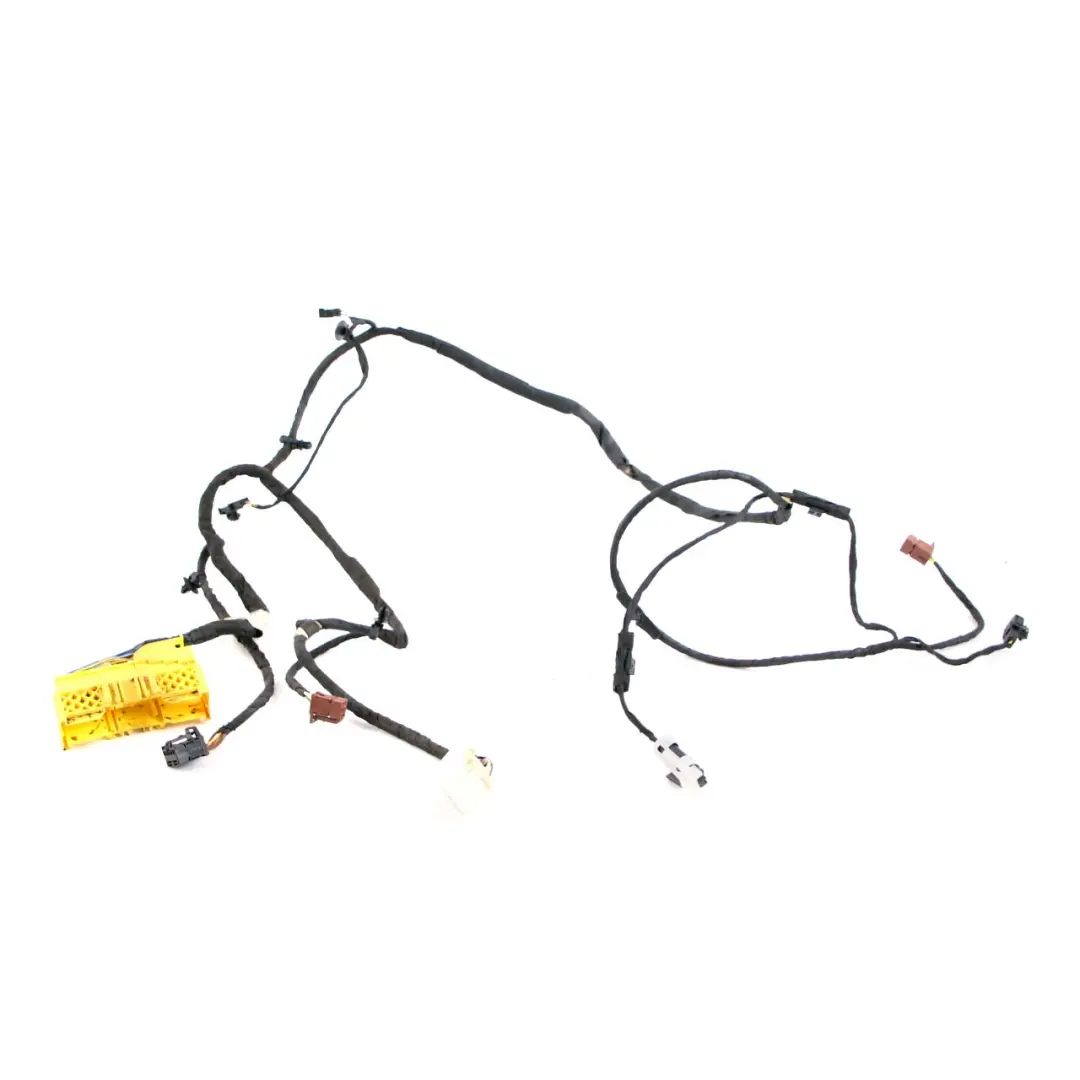

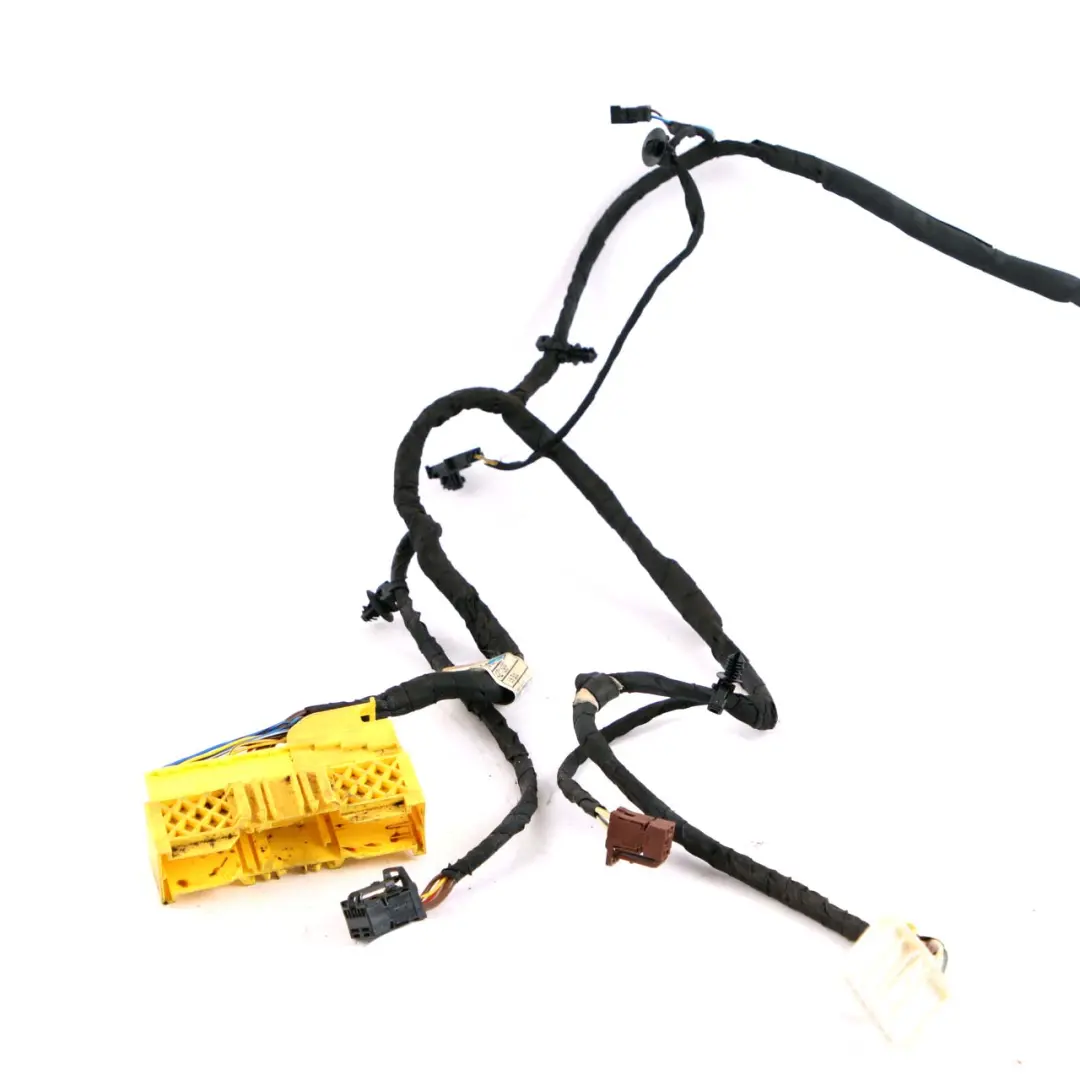

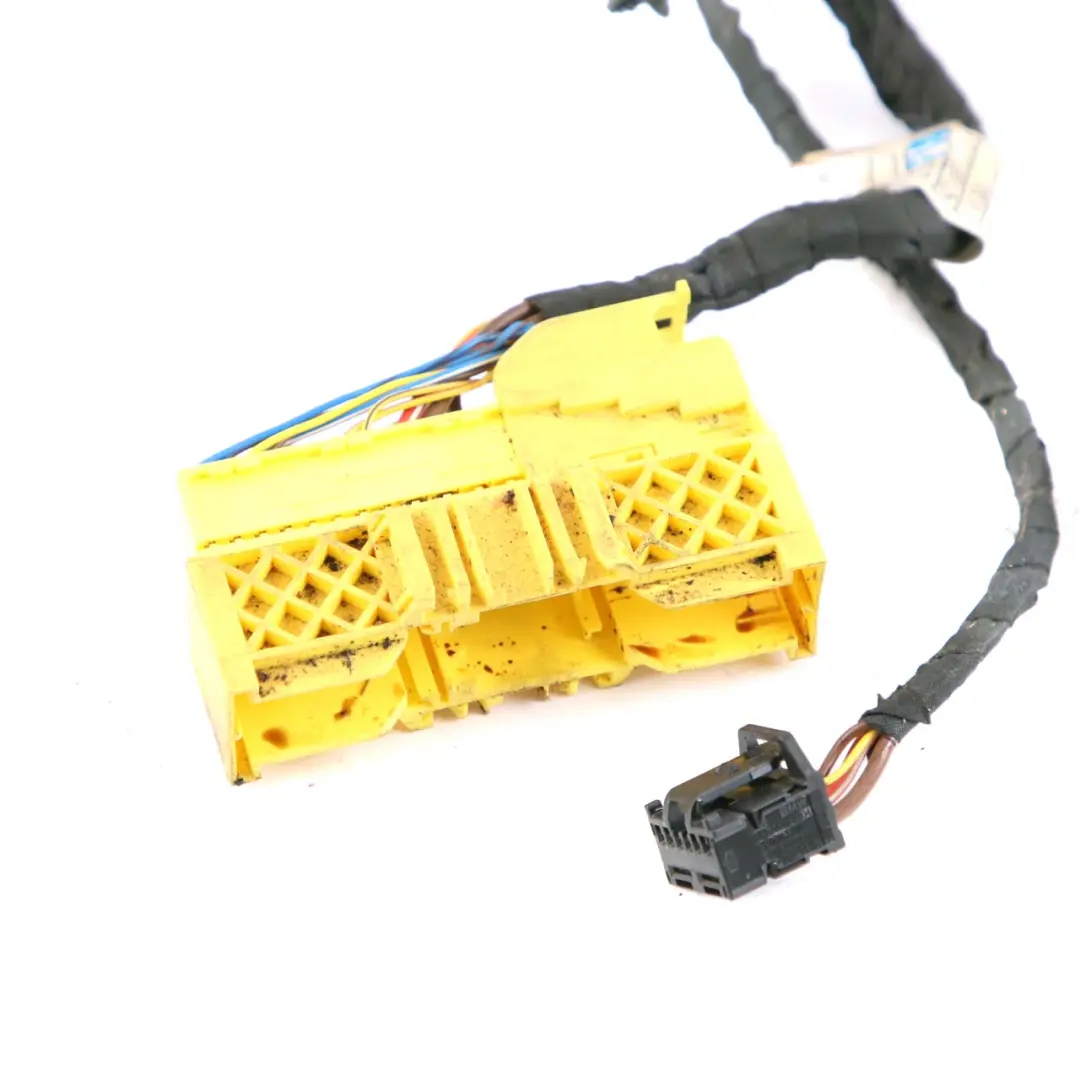

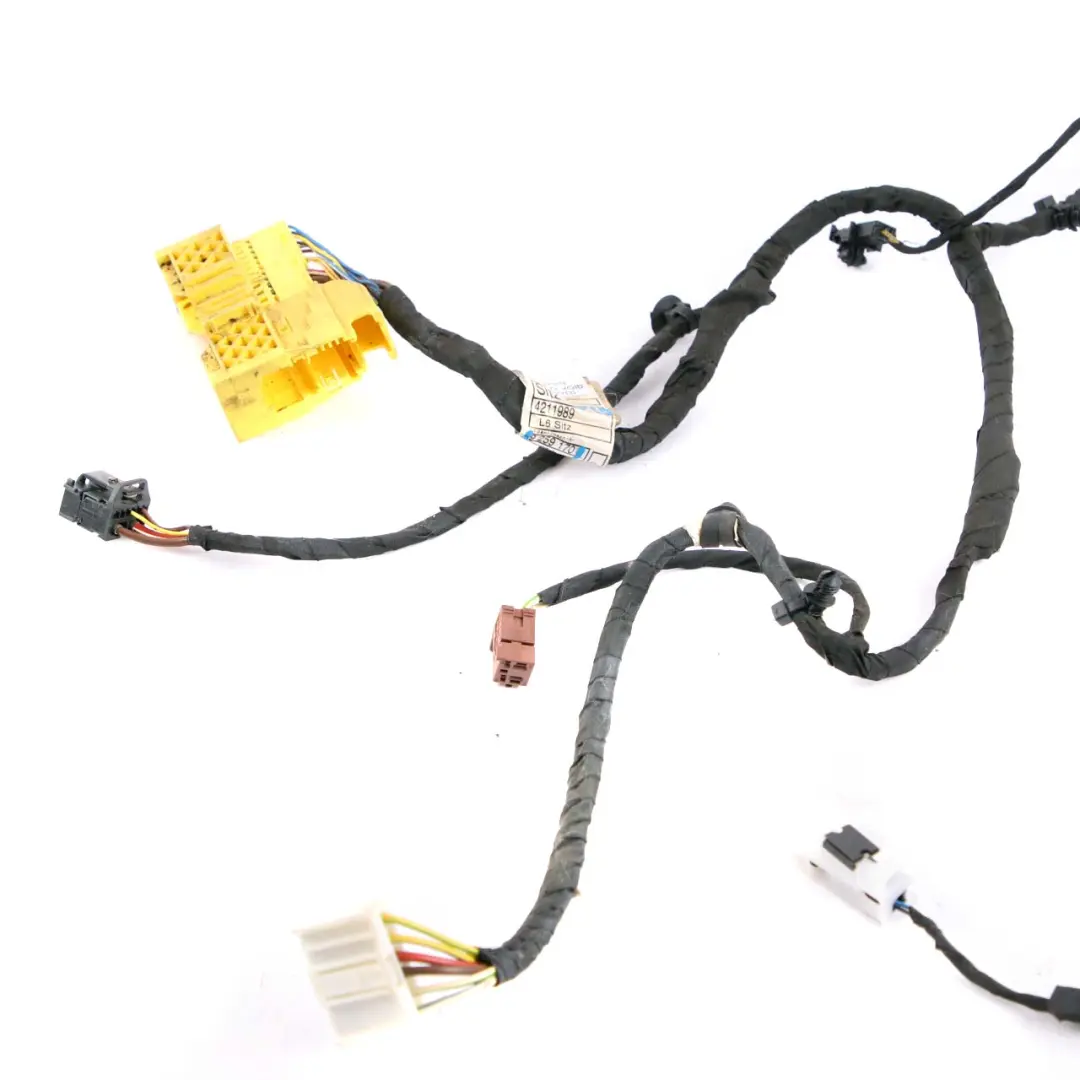

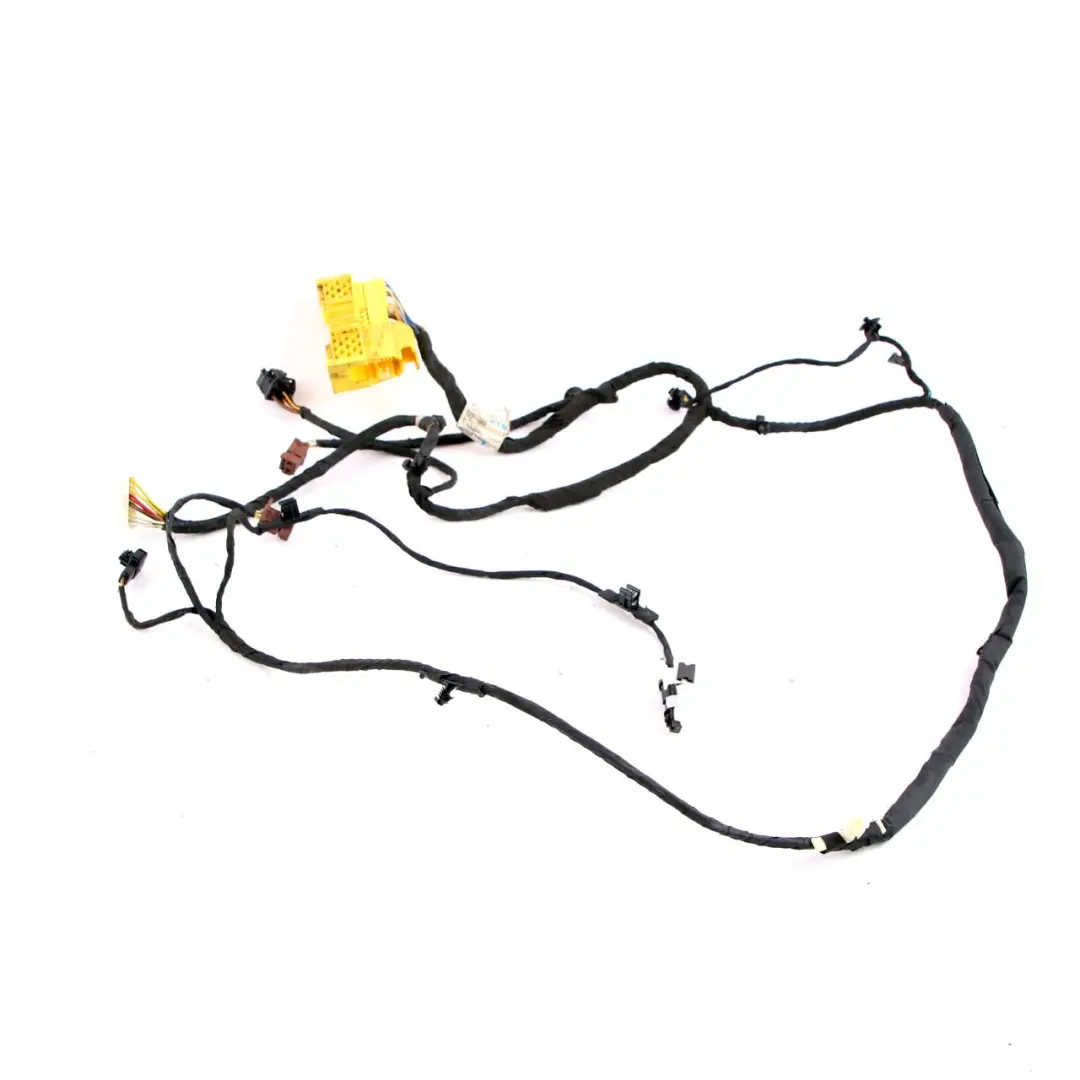

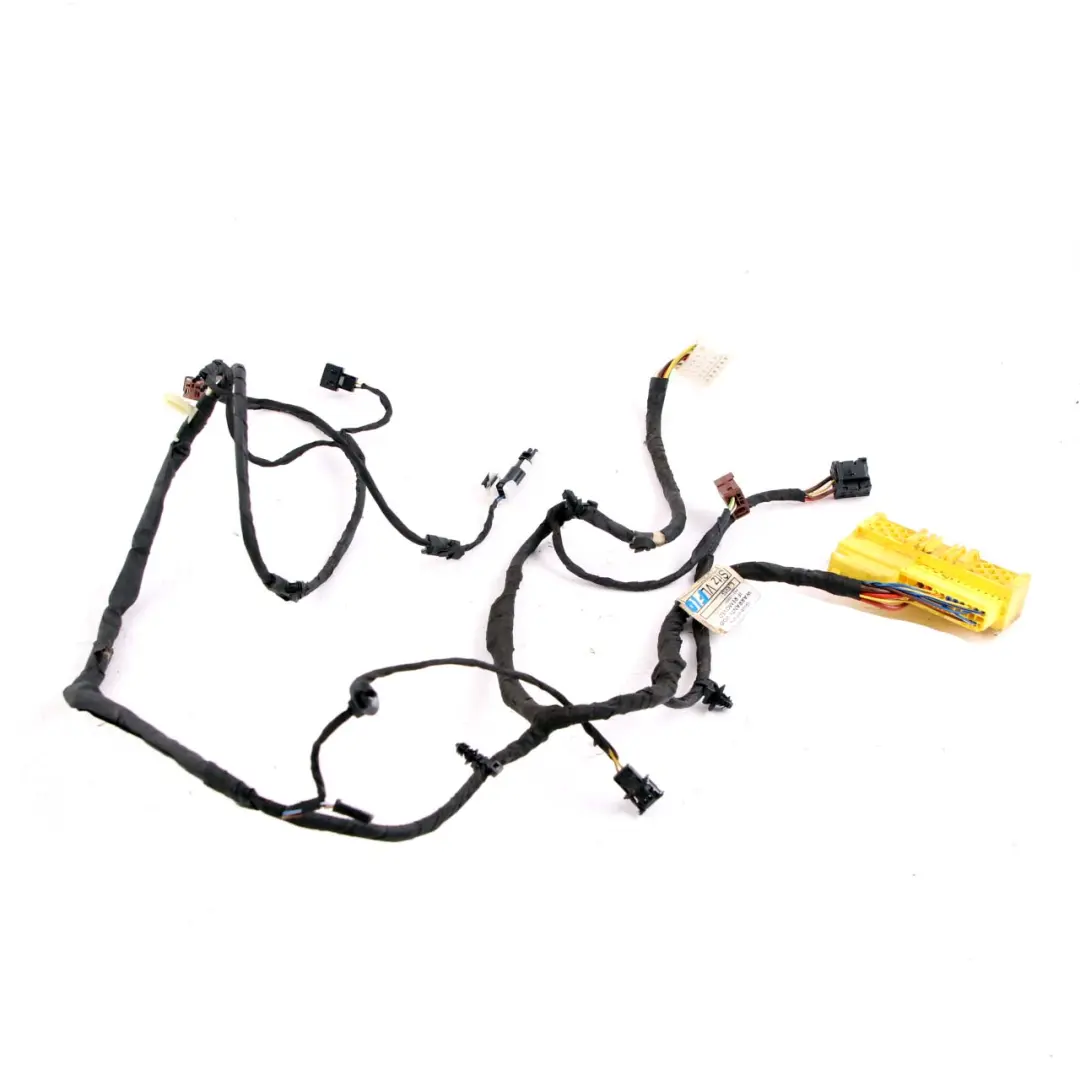

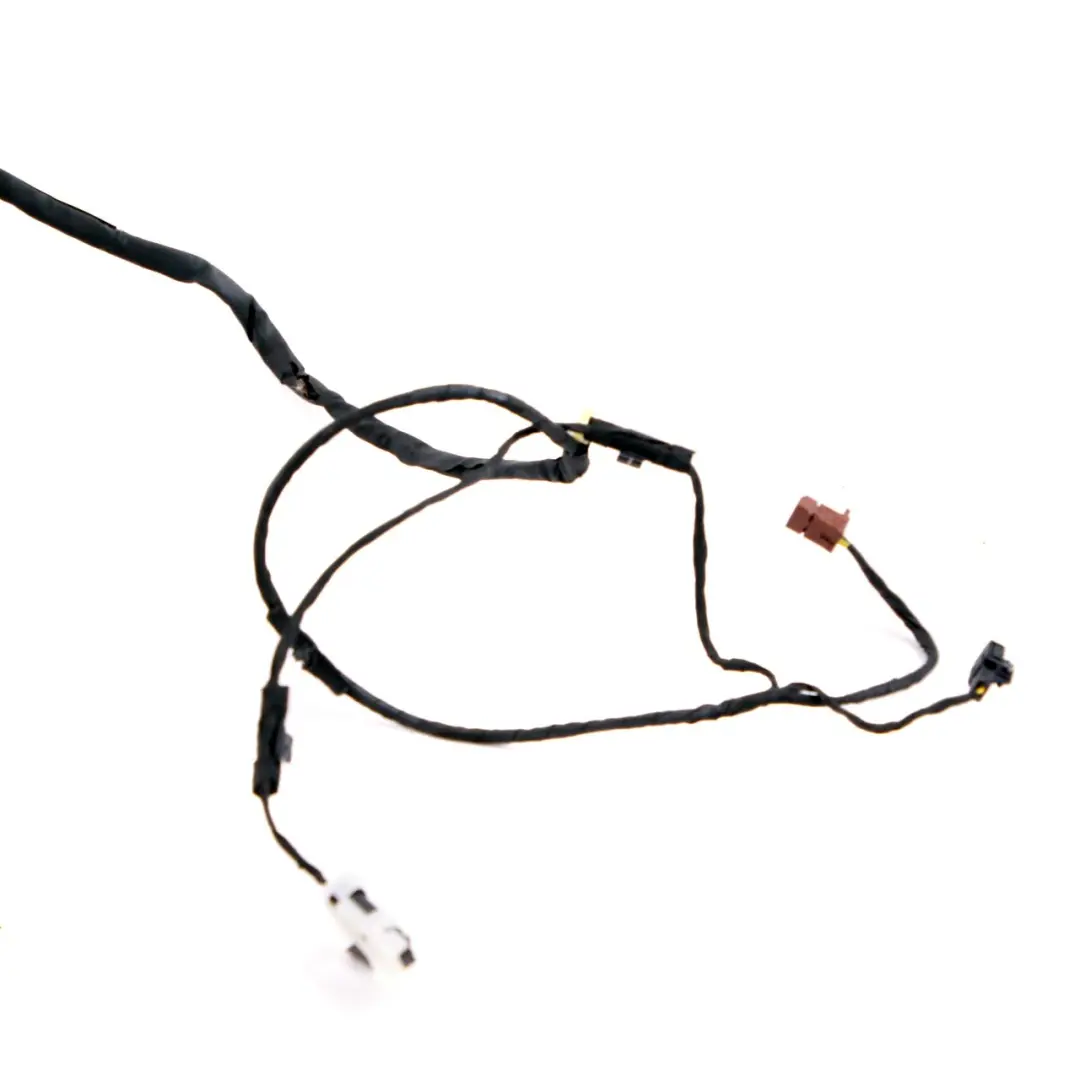

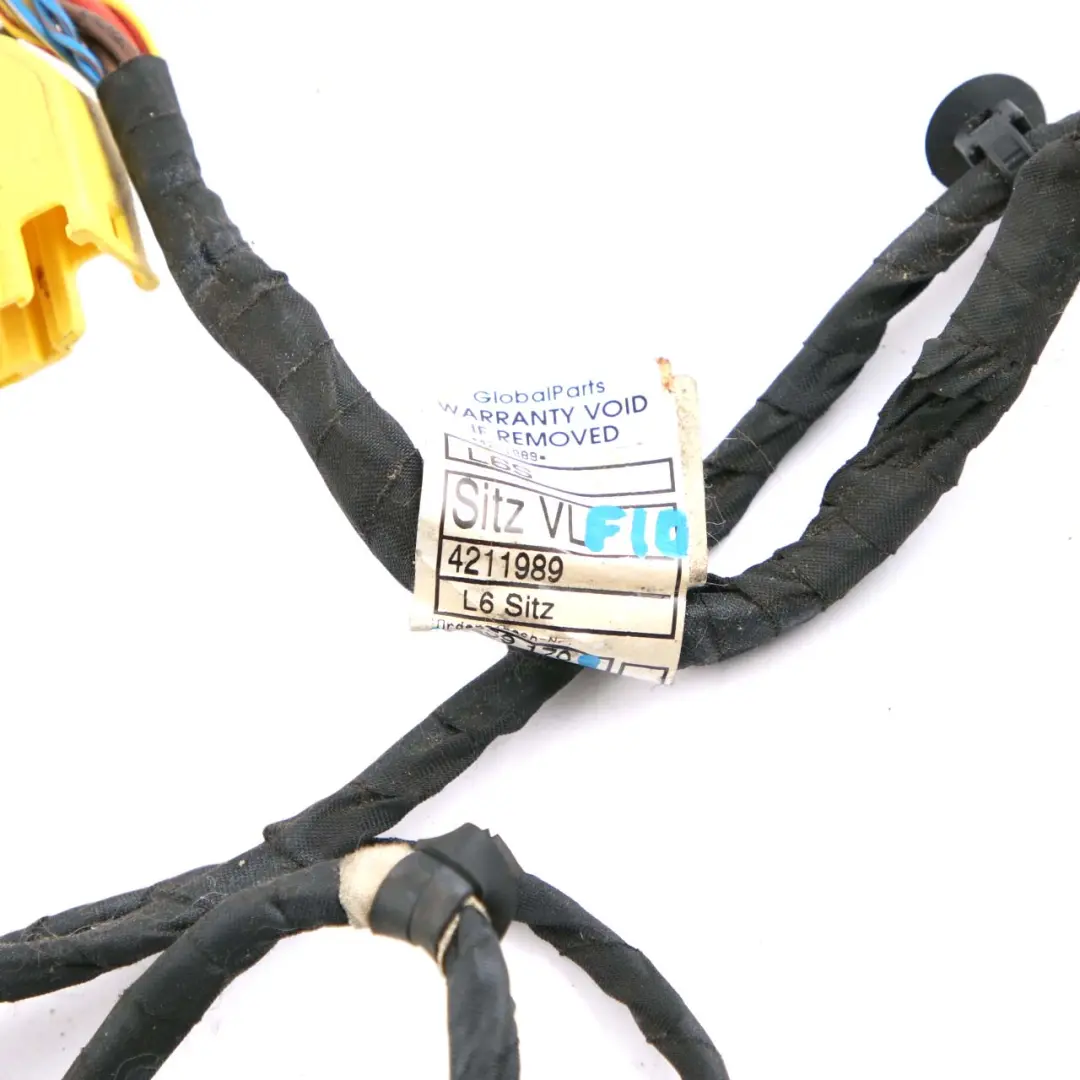

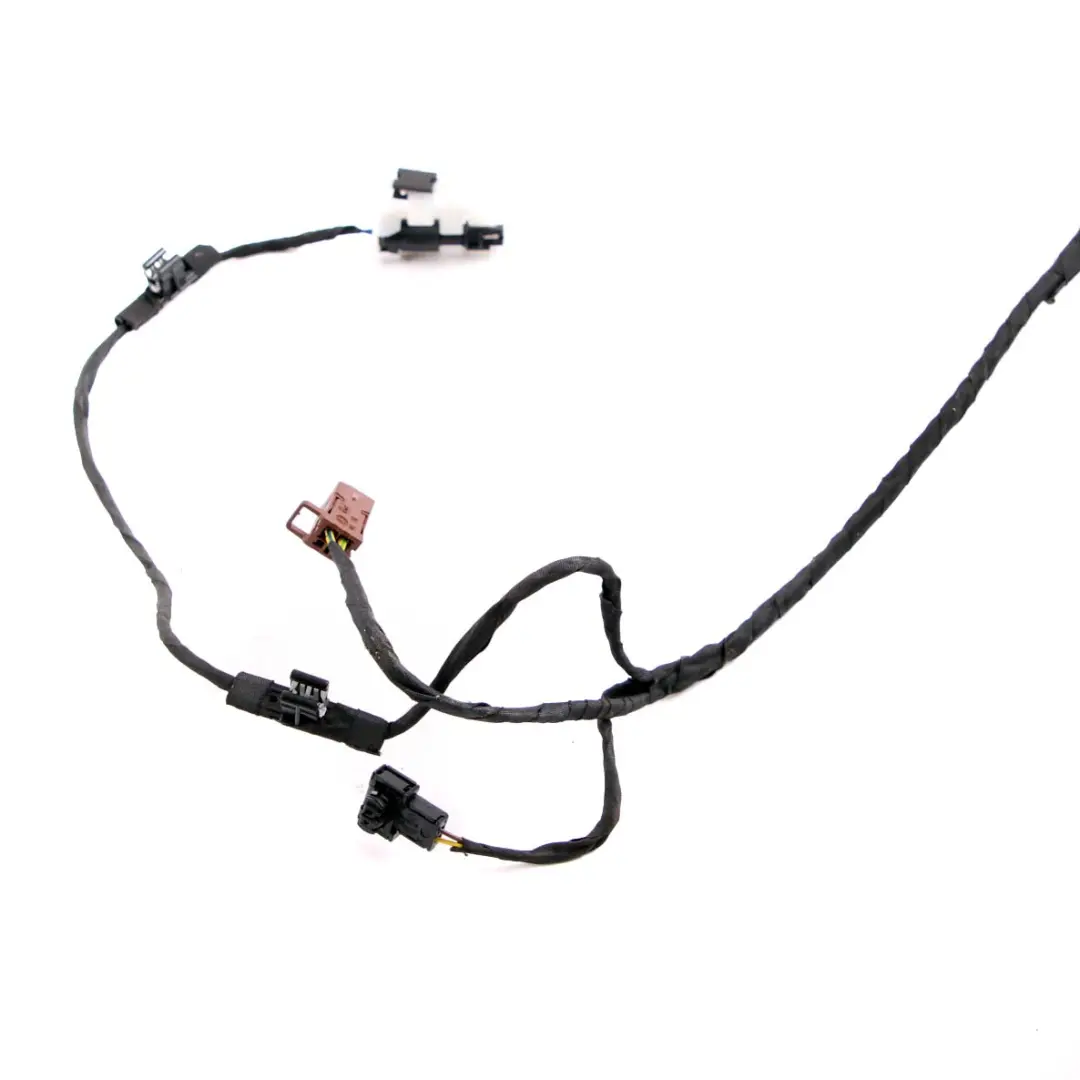

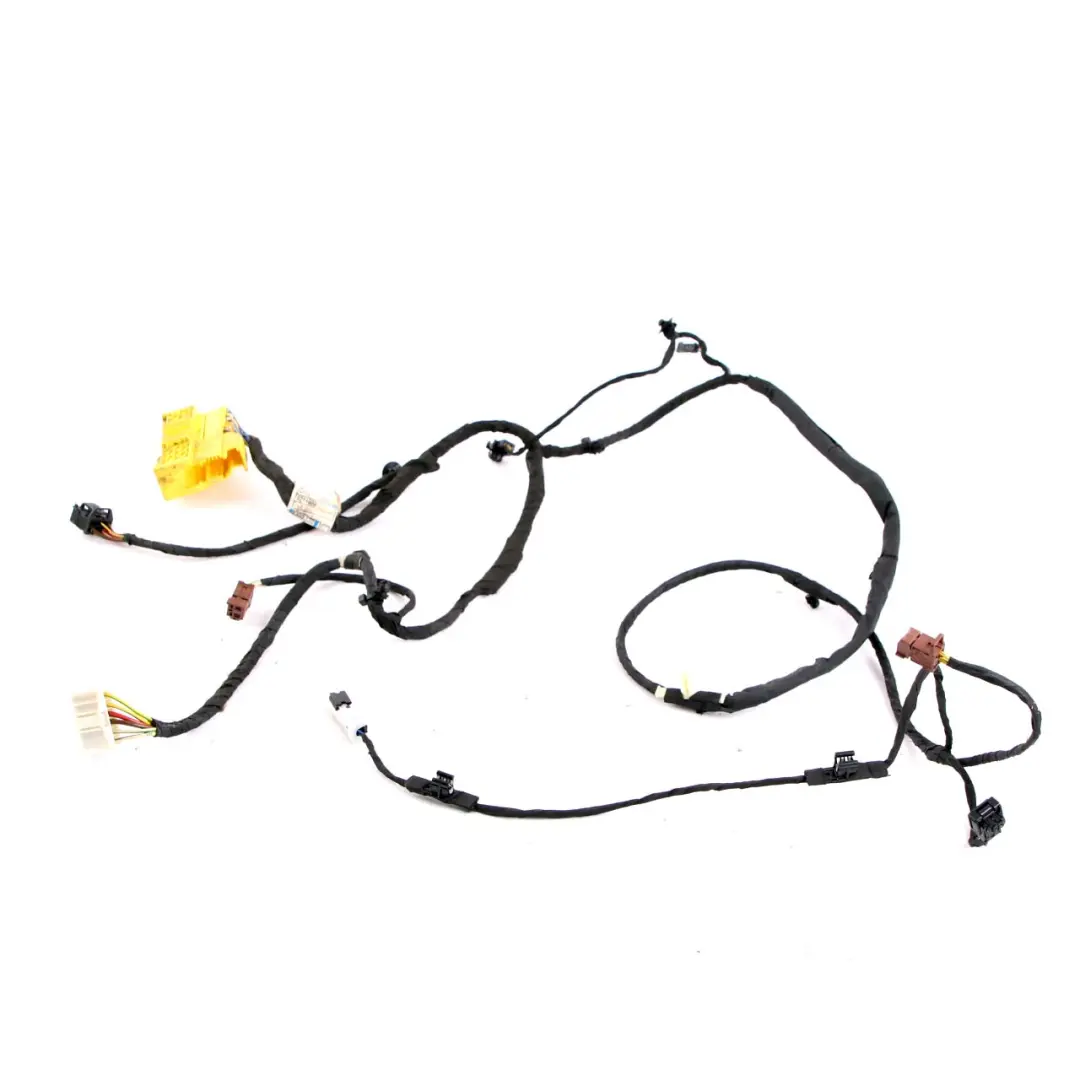

BMW 5 Series F10 Front Left Seat Wiring Loom Cable Harness 9259170

The Left Front Seat Harness for BMW 5 Series F10 is an original electrical component for the driver's seat, designed for BMW 5 Series F10 models. As part of the Cables, Harnesses, and Connectors group, it ensures proper connection of all factory seat functions to the vehicle's electrical system, contributing to stable and safe operation of comfort systems.

Specifications and technical data

• SKU: 9259170
• Mark: BMW (Genuine OE)
• Condition: Used

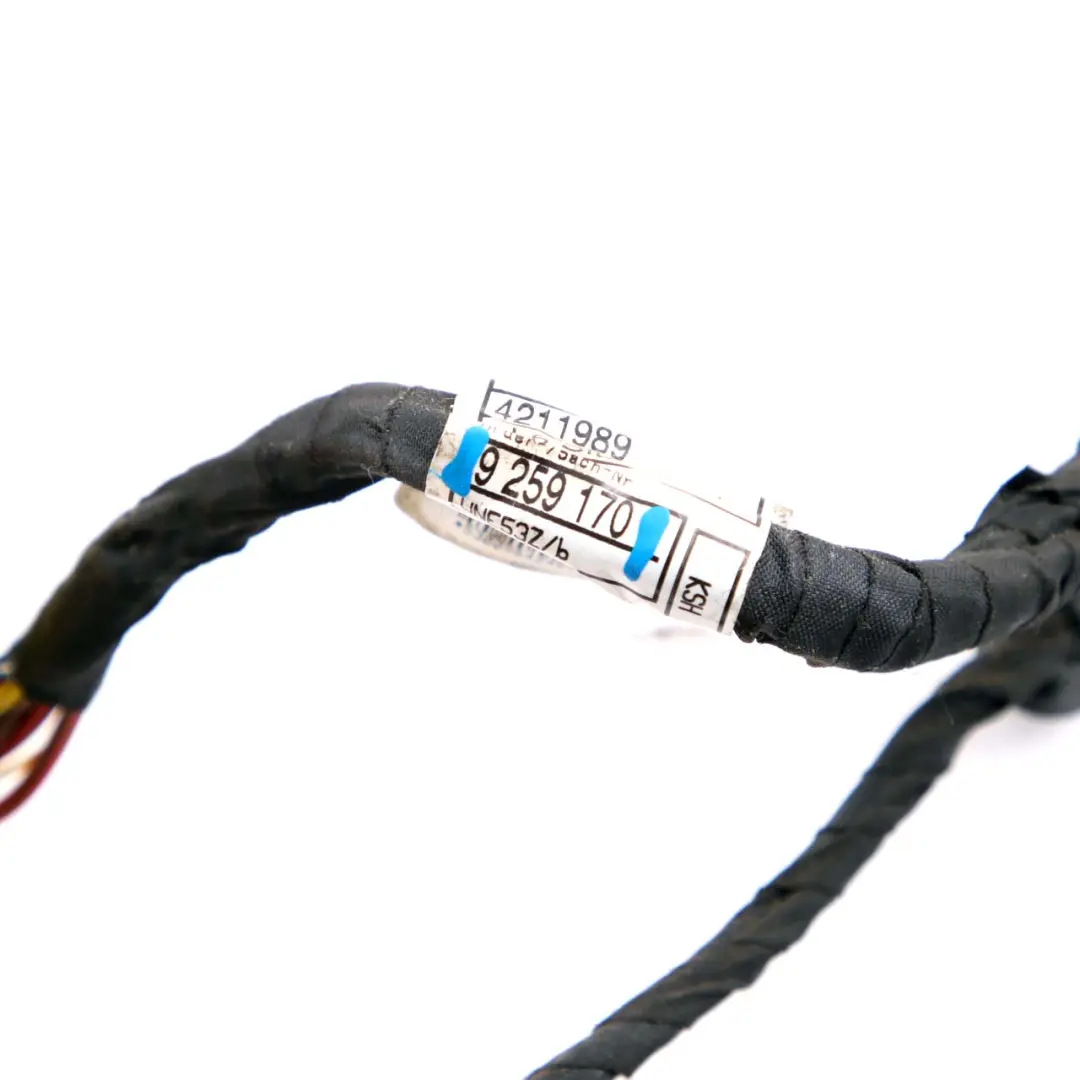

• OEM Part Number: 9259170
• Substitutable numbers: 9259170, KZ
• Location on the vehicle: Front, Left
• Category: Wiring Harnesses, Cables & Connectors

Vehicle Application and Function

This harness is dedicated to the left front seat in the BMW 5 Series F10. It is responsible for routing signals and power between the seat's electrical system and the vehicle's main wiring harness, enabling proper operation of functions such as:

• electric seat adjustment controls,
• powering modules and sensors located in the seat,
• transmitting signals to safety and comfort systems.

By maintaining the original connection architecture, the harness ensures the integrity of the electrical system and minimizes the risk of communication errors between modules.

Construction and Benefits of an Original BMW Harness

The original BMW seat harness is designed for a specific model and vehicle placement, ensuring proper wire routing, appropriate cable lengths, and connector compatibility with factory sockets. The connectors used are compatible with the seat and body wiring, facilitating installation and minimizing the need for modifications to the factory wiring.

Key benefits of using an original harness include:

• precise fit for the BMW 5 Series F10 in the left front seat area,
• preservation of the original wiring topology and mounting points,
• reduced risk of malfunctions due to incorrect connections or modifications.

Item Condition and Service Application

The seat harness is offered as a used original BMW part, allowing for economical repair of the seat's electrical system while maintaining compliance with factory manufacturer standards. It is suitable for replacing a damaged harness after a collision, water damage, or wire abrasion, as well as for restoring full seat functionality after previous electrical modifications.

Using an original harness in good technical condition reduces the need for custom wiring, soldering, or using universal connectors, which is particularly important in vehicles equipped with advanced comfort and safety systems.

Compatibility and Part Identification

To correctly select the seat harness for a specific BMW 5 Series F10, it is recommended to compare the part numbers and connector configurations with the component installed in your vehicle. The product features a factory OEM part number and interchangeable numbers, which facilitate verification of compatibility in service catalogs and parts selection systems.

If in doubt, it is advisable to compare the connector layout, cable lengths, and mounting point locations with the harness currently installed in the car, especially for vehicles that have undergone interior modifications.

BMW F10 Interior Expansion and Tuning

The left front seat harness can also be useful for projects involving the modernization or reconfiguration of seats in the BMW 5 Series F10, such as replacing a seat with one of a different equipment specification. A properly selected harness facilitates the integration of additional seat functions with the existing vehicle wiring, without the need for deep intervention in the main body harness.
