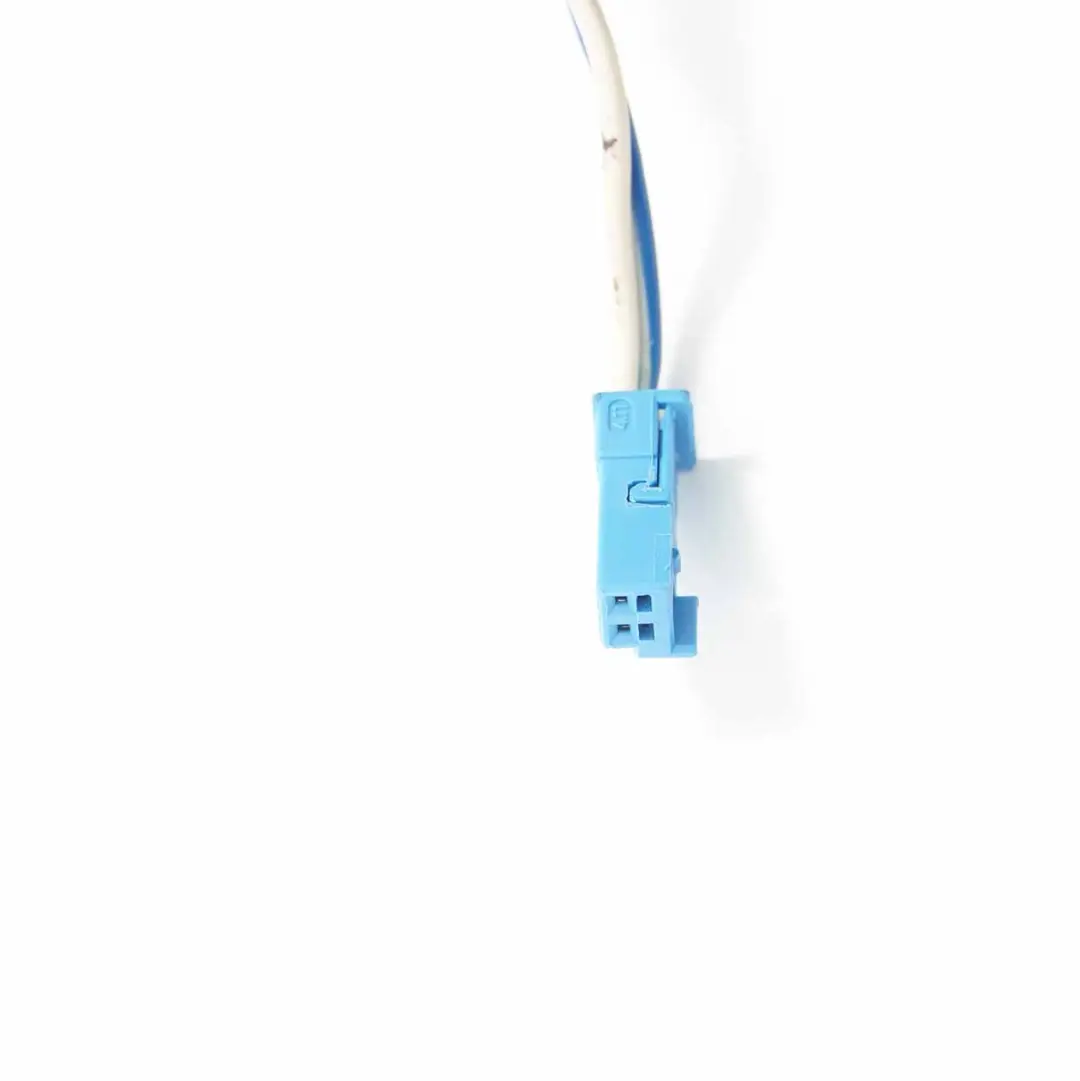

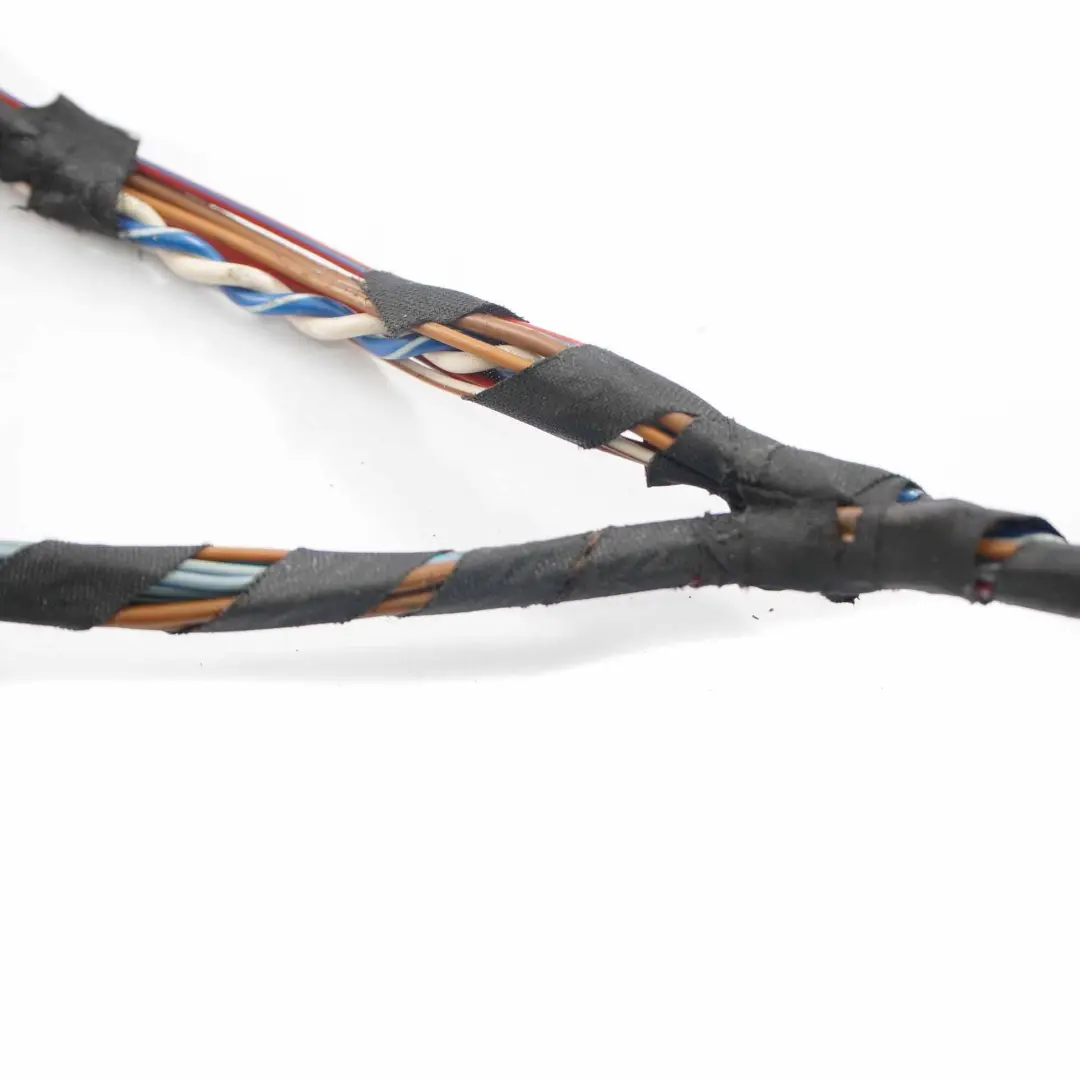

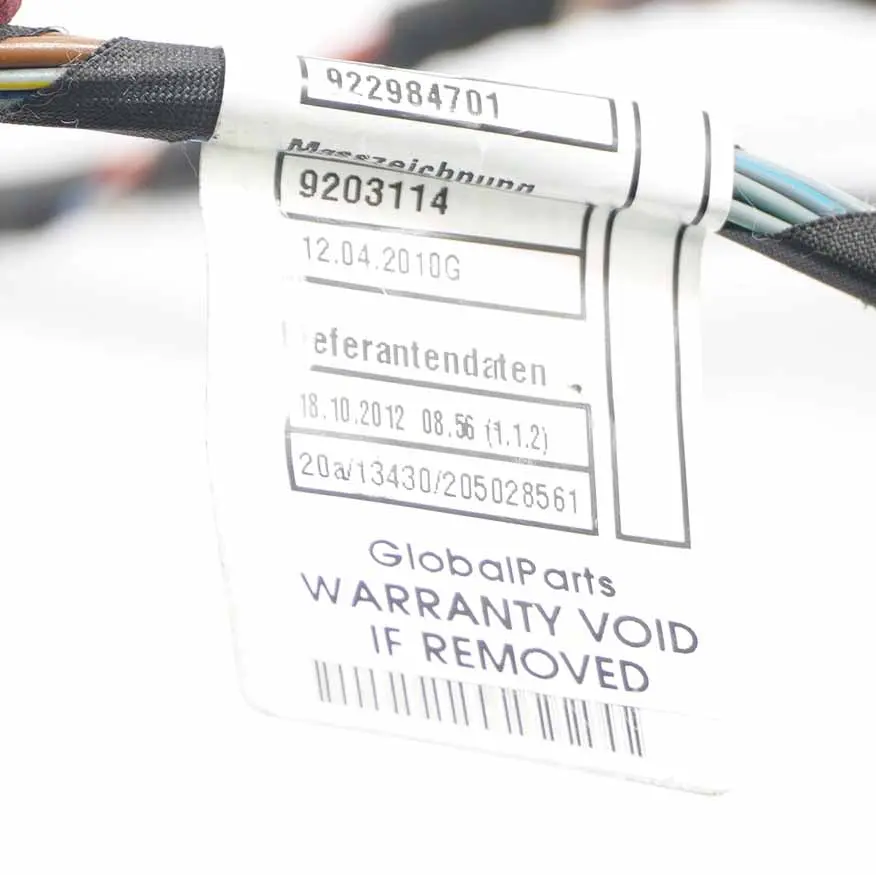

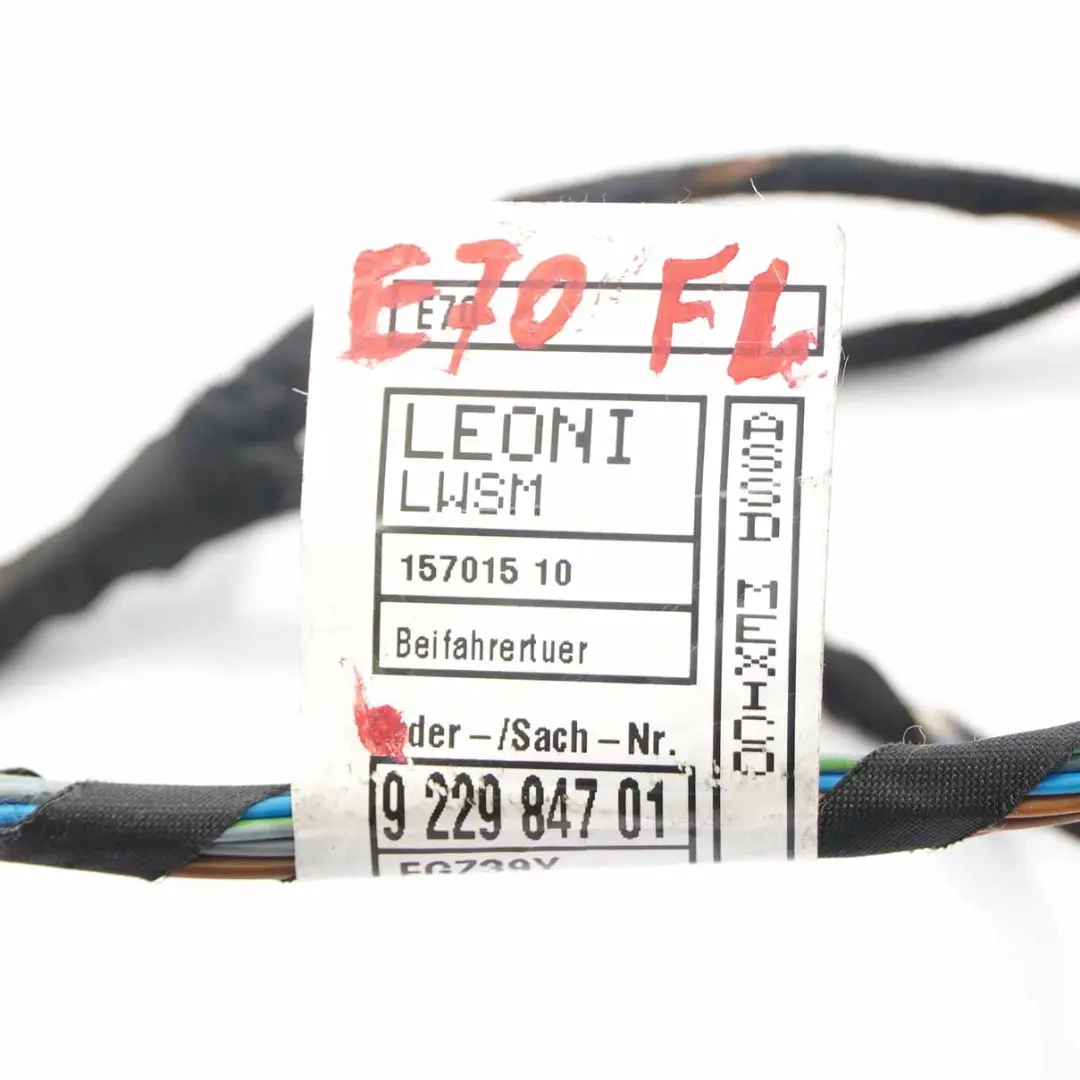

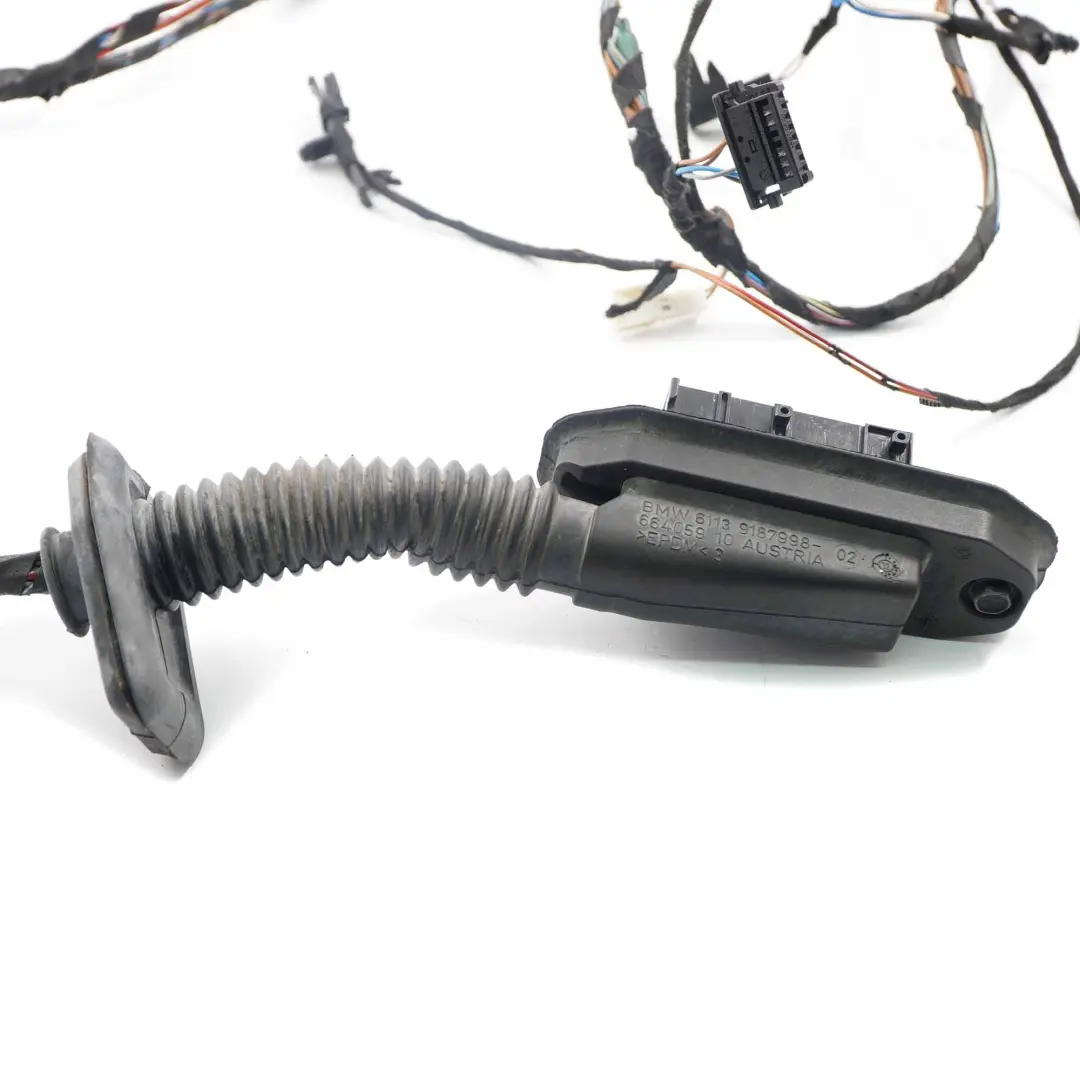

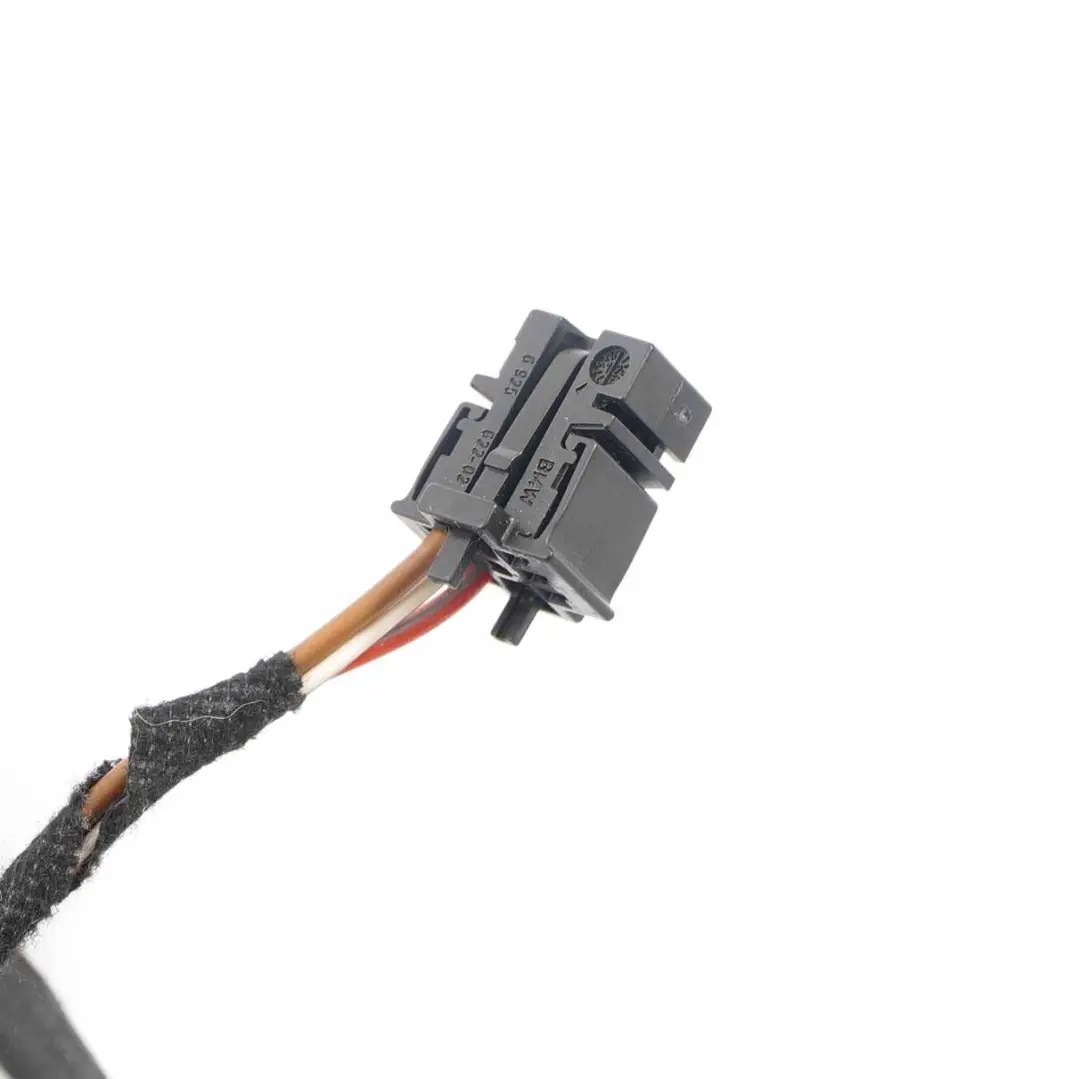

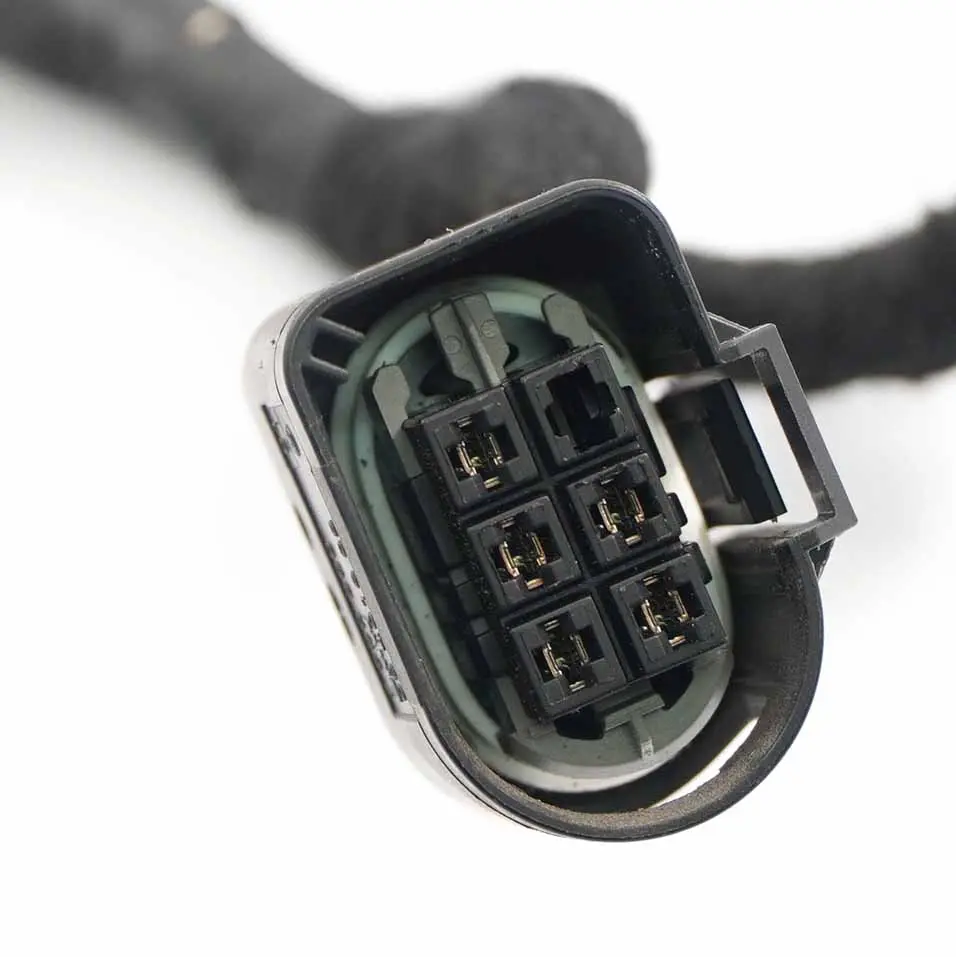

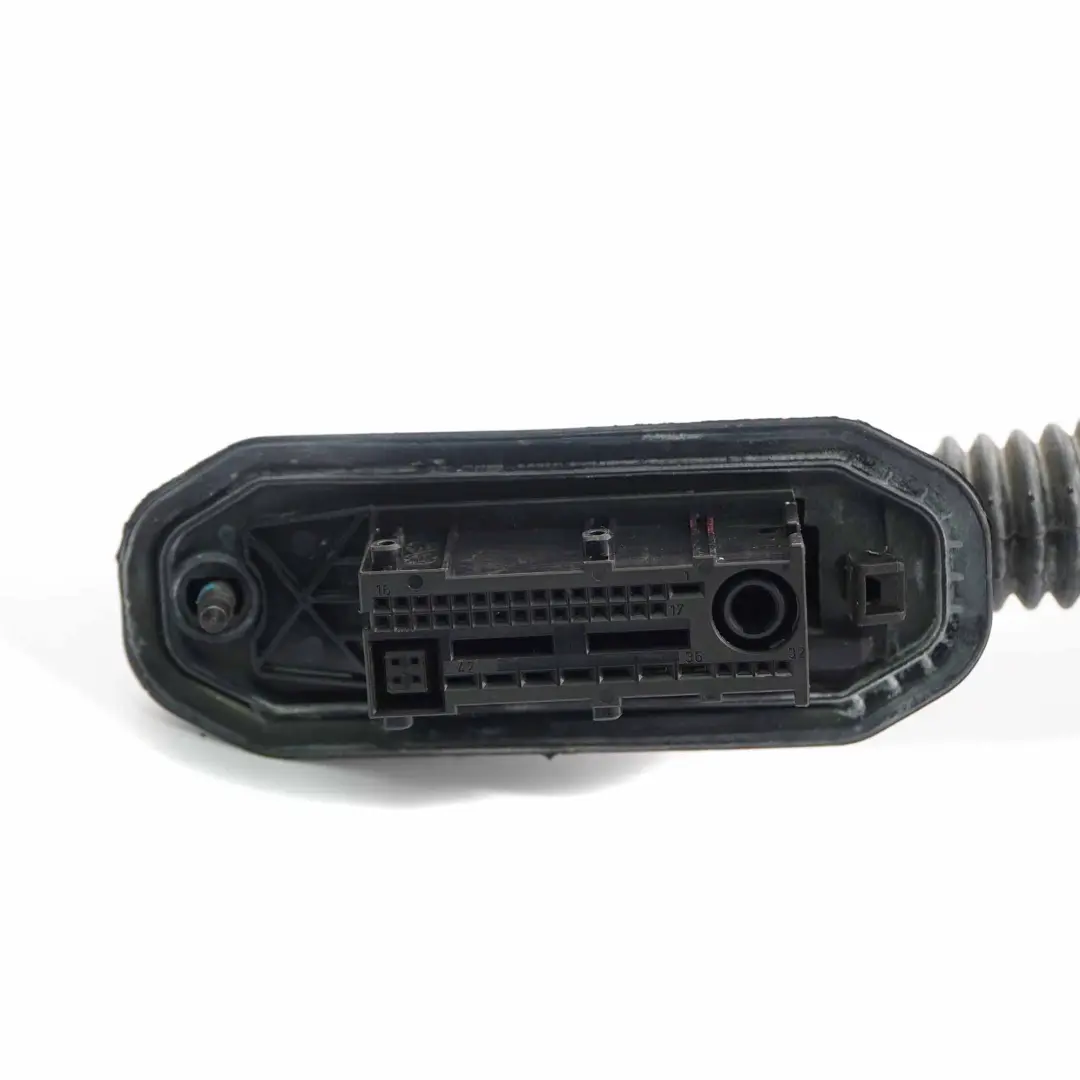

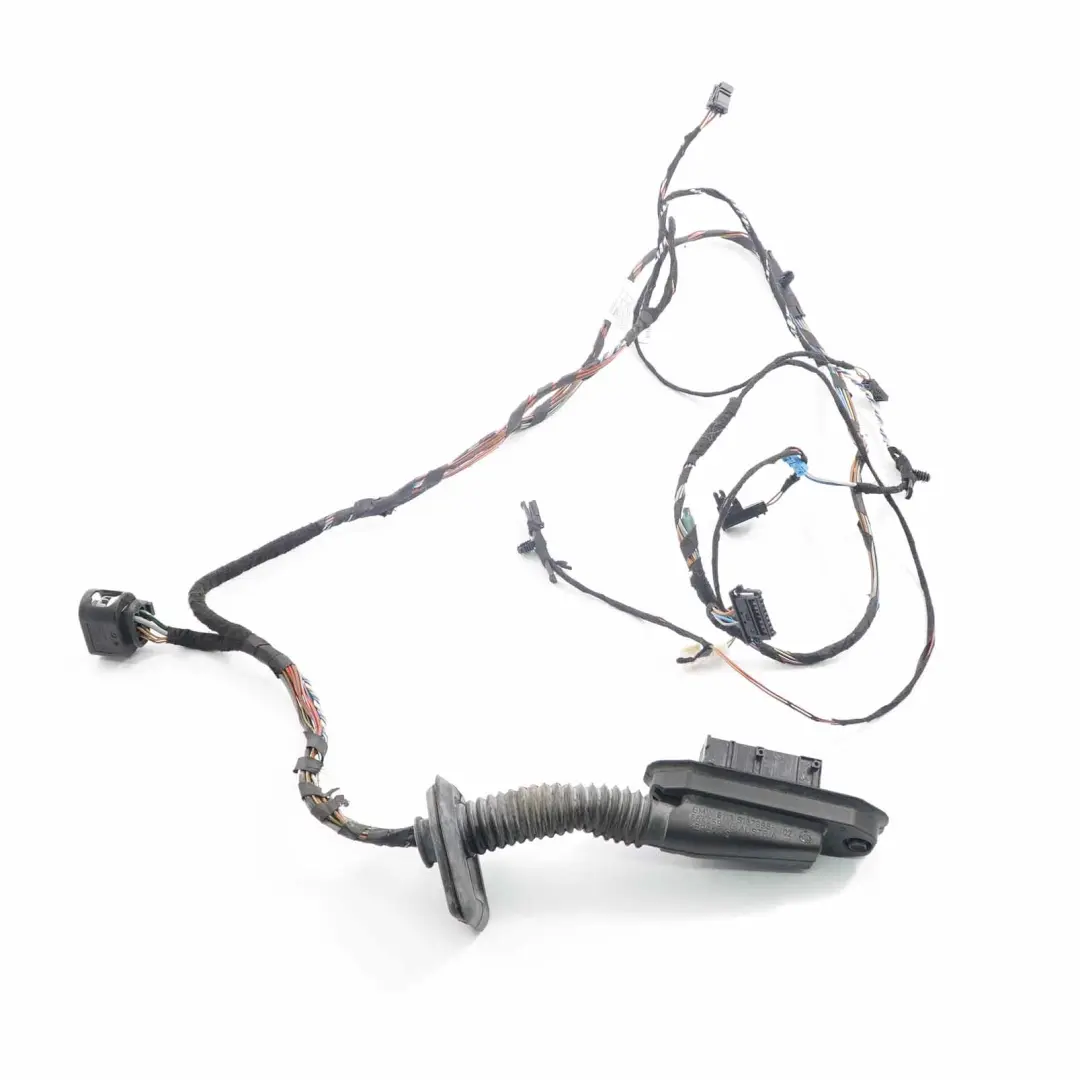

BMW E70 Door Wiring Front Passenger Door Loom Cables Harness 9229847

The BMW E70 Passenger Door Wiring Harness is an original electrical installation component designed for the front body area, responsible for a stable electrical connection within the passenger door. Thanks to its factory design for BMW, it ensures proper signal and power routing to the door-mounted components, leading to seamless operation of comfort and safety systems. This is a practical solution for users seeking a tested, used harness with preserved functionality.

Specifications and technical data

• SKU: 9229847
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9229847
• Substitutable numbers: 9229847, KZ
• Location on the vehicle: Front
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the Passenger Door Harness

The BMW E70 Passenger Door Wiring Harness belongs to the electrical components category of Wires, Harnesses, and Connectors, responsible for distributing power and control signals within the door. Its placement in the front of the vehicle means it collaborates with the body's electrical system in the passenger door area, where proper communication between body modules and door hardware is crucial.

The harness enables, among other things:

• transfer of control signals between the door and the vehicle's electrical system,
• provision of power for electrical components located in the door,

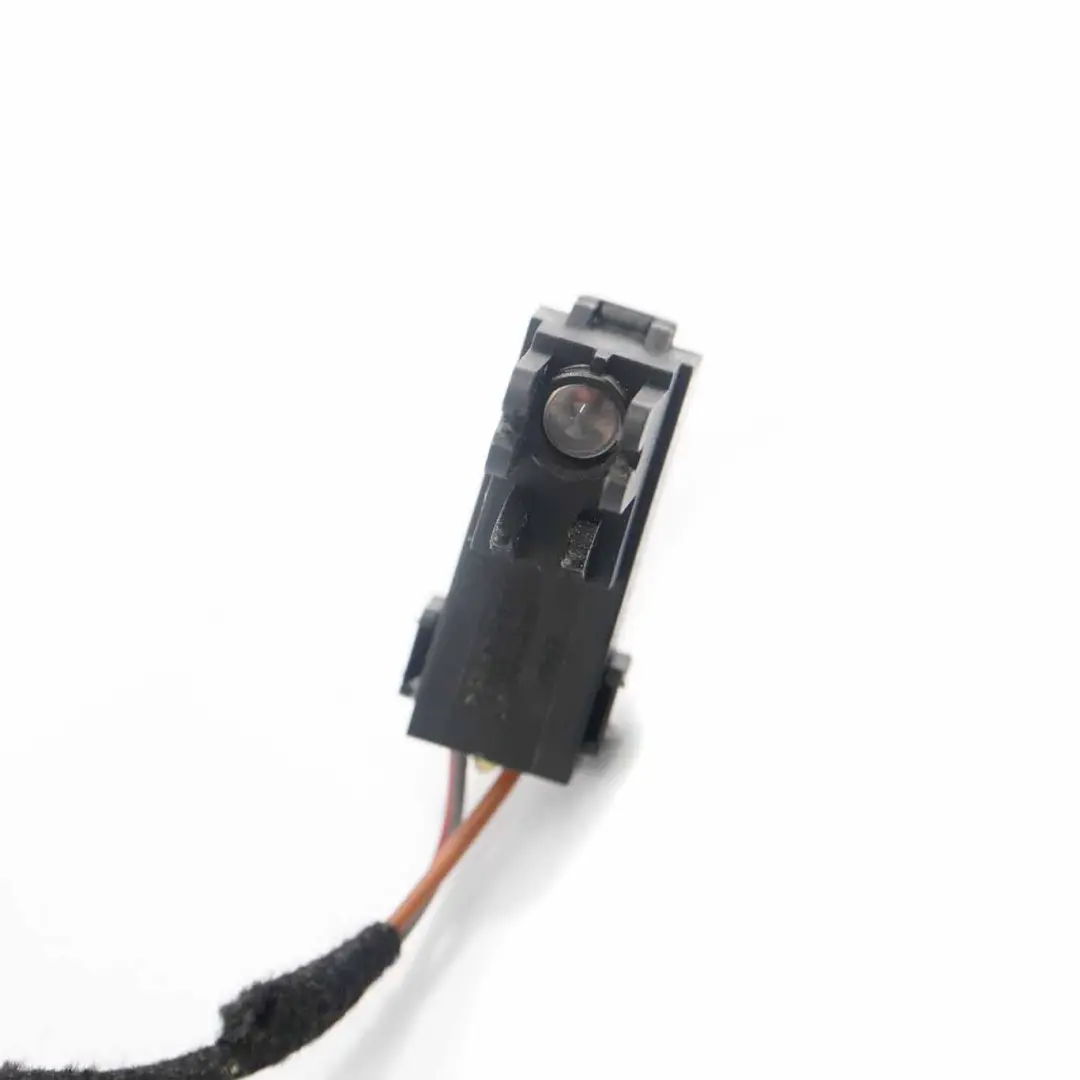

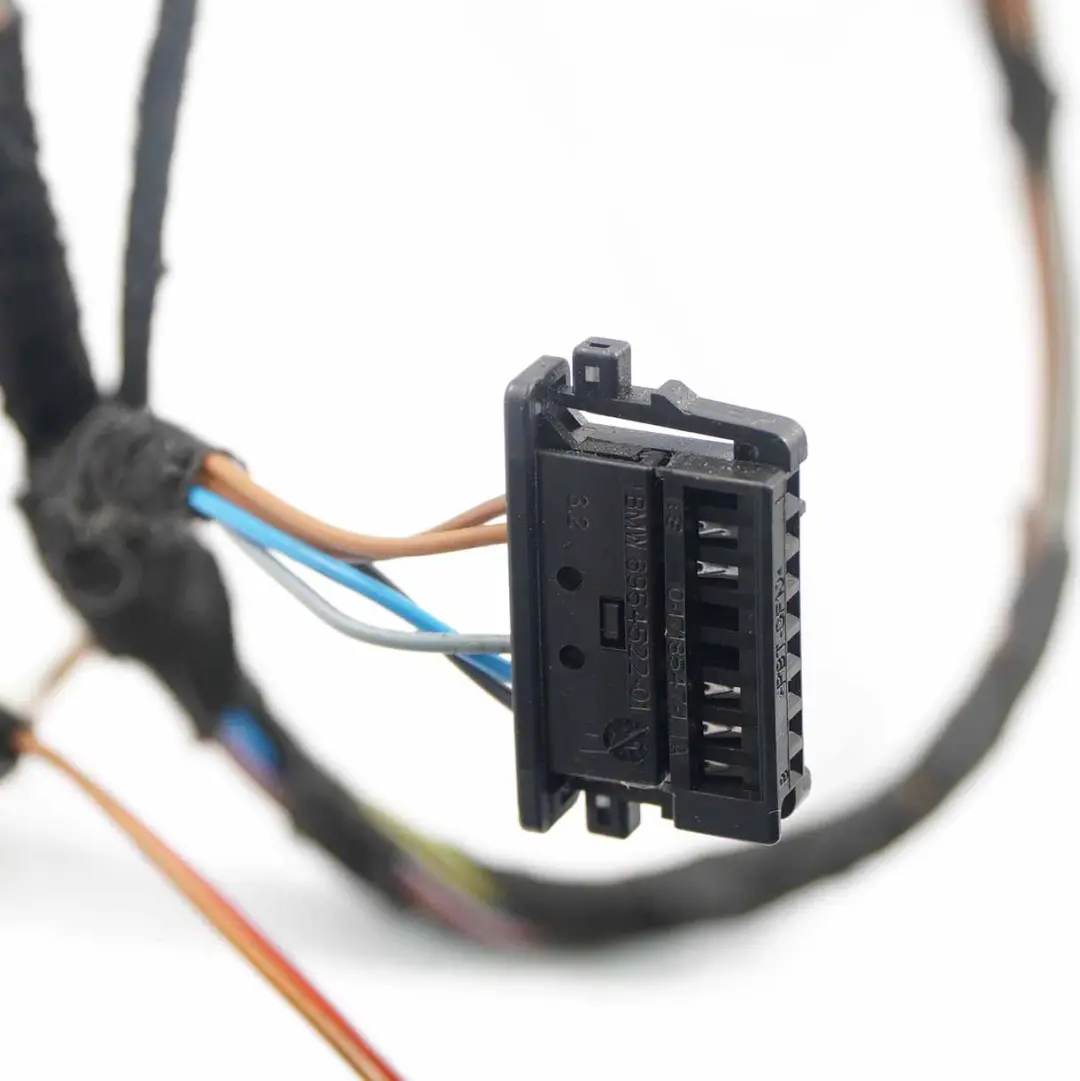

• stable connection through dedicated connectors and wires tailored to BMW's construction.

Benefits of Using an Original BMW Harness

Using a factory harness from the Wires, Harnesses, and Connectors group in the BMW E70 model maintains compatibility with the vehicle's original electrical architecture. Appropriate wire lengths, correct connector layout, and suitability for the front body section minimize the risk of mechanical stress and electrical contact issues.

Key advantages include:

• dedicated design for the passenger door in the BMW E70,
• preservation of the original wire routing path in the front area of the vehicle,
• compatibility with factory modules and door hardware.

Characteristics of a Used Component

The offered harness is a used part, meaning it comes from a vehicle disassembly and may show typical signs of wear, while its electrical functionality is preserved. This type of solution is often chosen for door wiring repairs when the wires or connectors in the existing harness have been damaged.

In practice, this allows for:

• restoring the correct operation of the passenger door's electrical system without needing to interfere with the entire body wiring,
• reducing repair costs while maintaining original BMW specifications,
• using a component with proven geometry and connector placement.

Selection and Integration with the Vehicle's Electrical System

When selecting a passenger door harness for the BMW E70, it is crucial to ensure it matches the specific body configuration and the front area of the vehicle. The original harness from this series is designed to work with factory mounting points and grommets, facilitating installation and minimizing the risk of wire damage during operation.

It is worth paying attention to:

• compatibility with the electrical system in the front body section,
• the condition of connectors and wire insulation,
• proper routing of the harness within the passenger door after installation.
