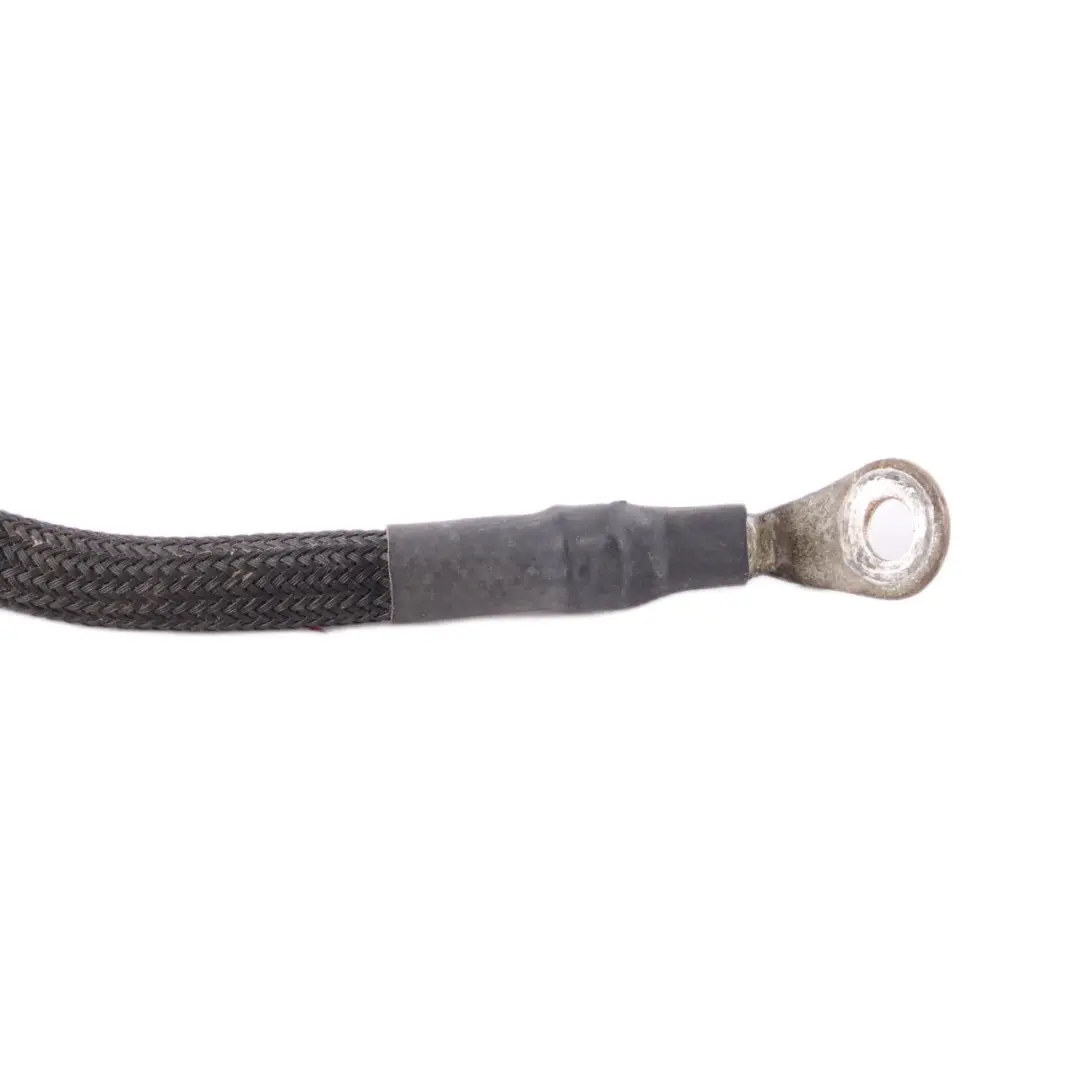

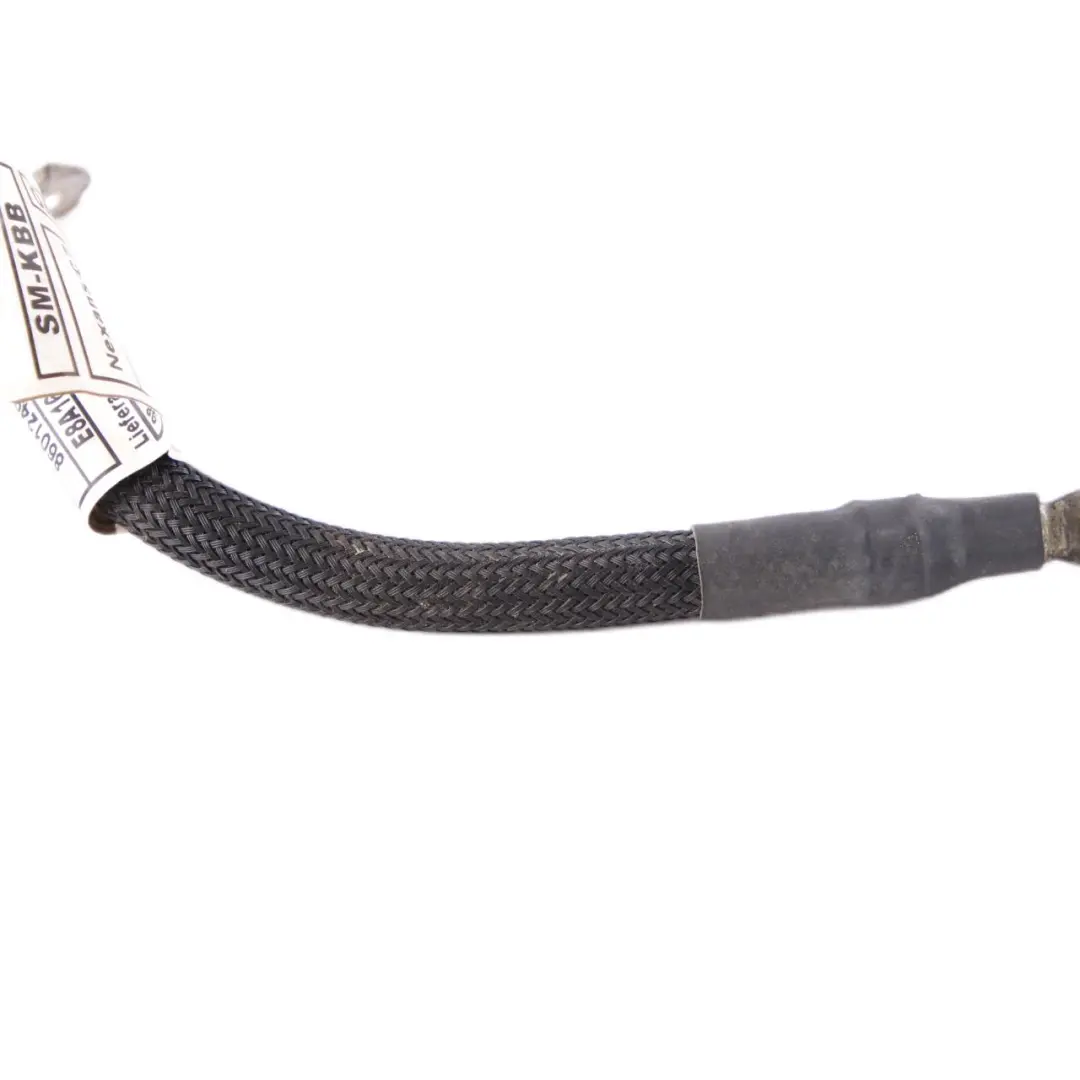

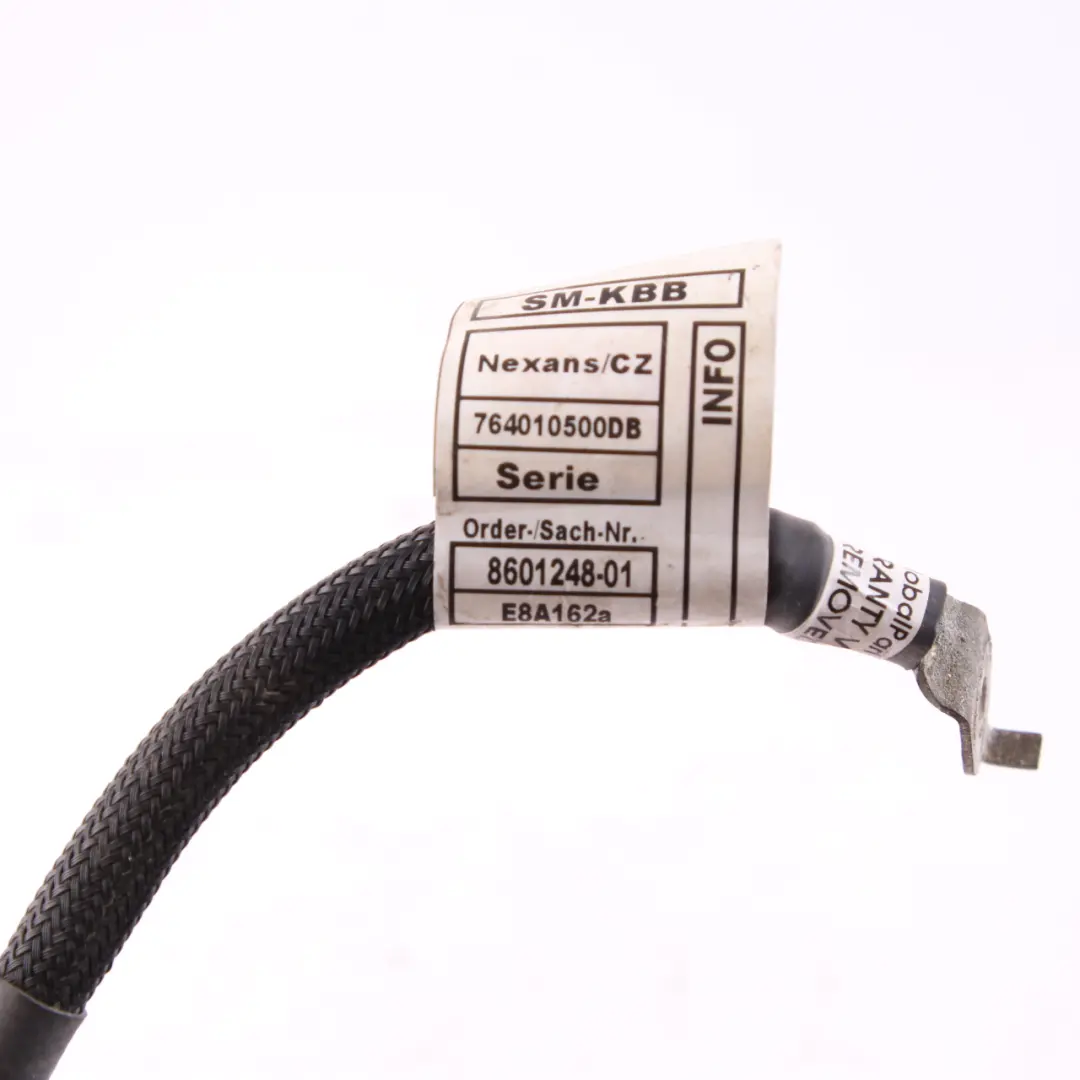

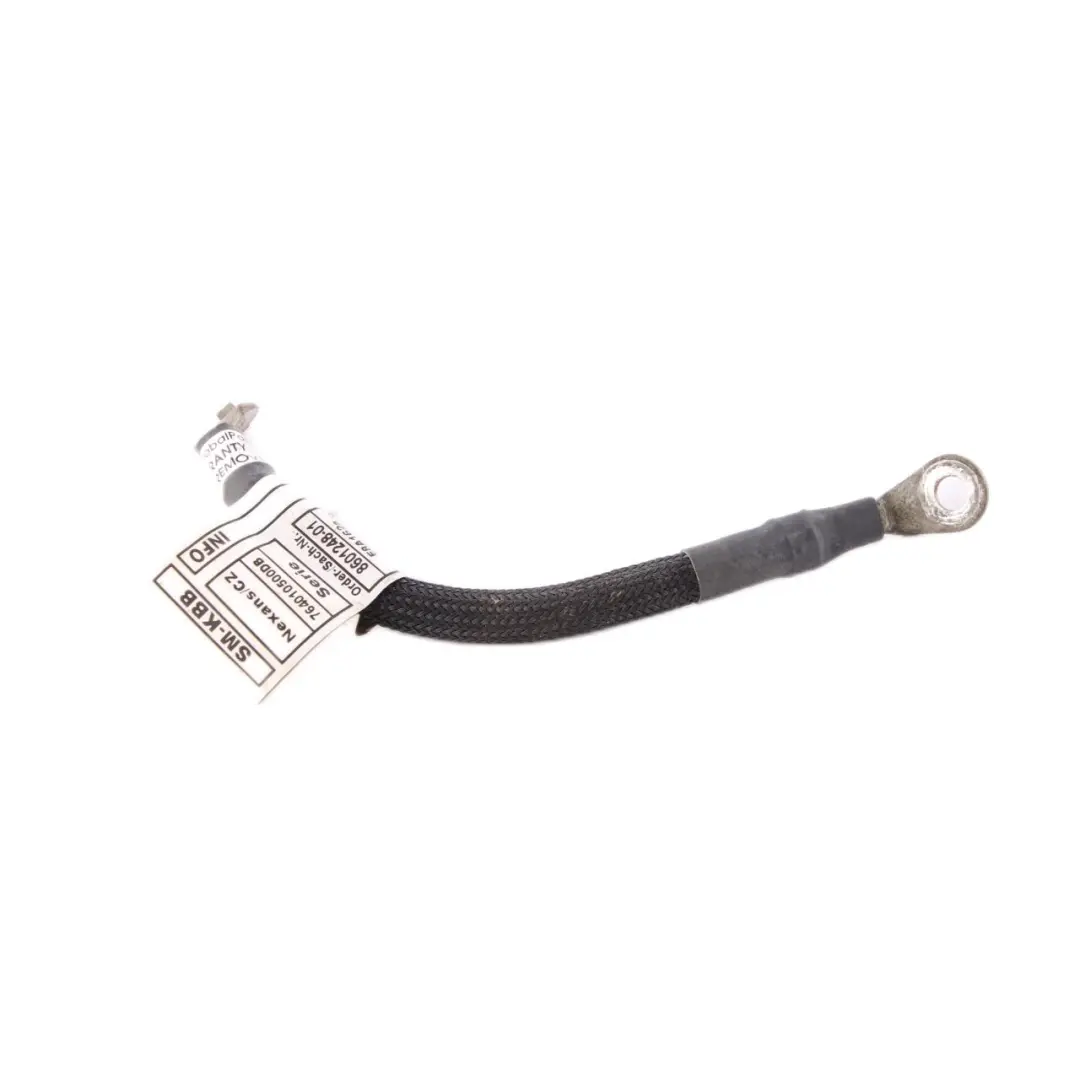

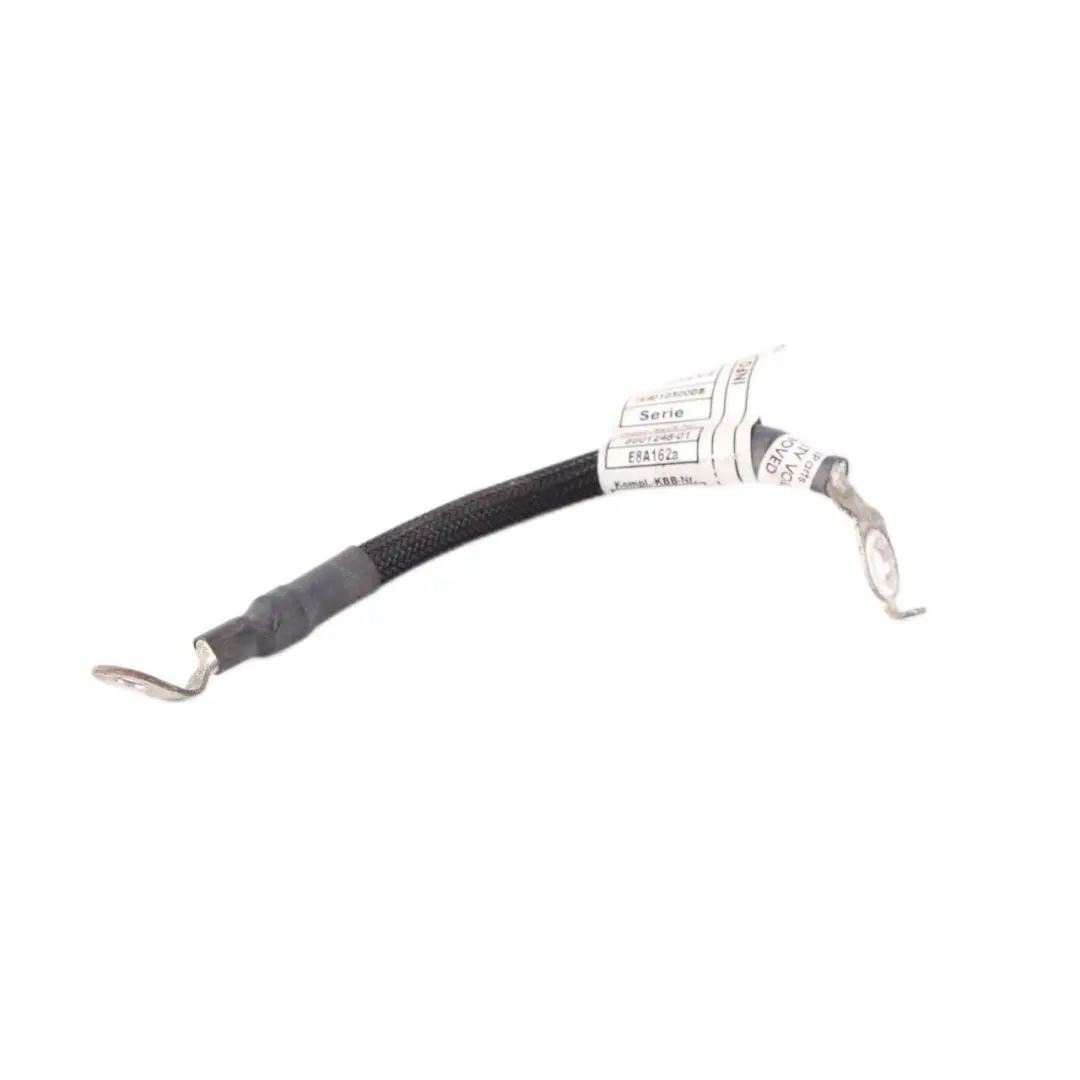

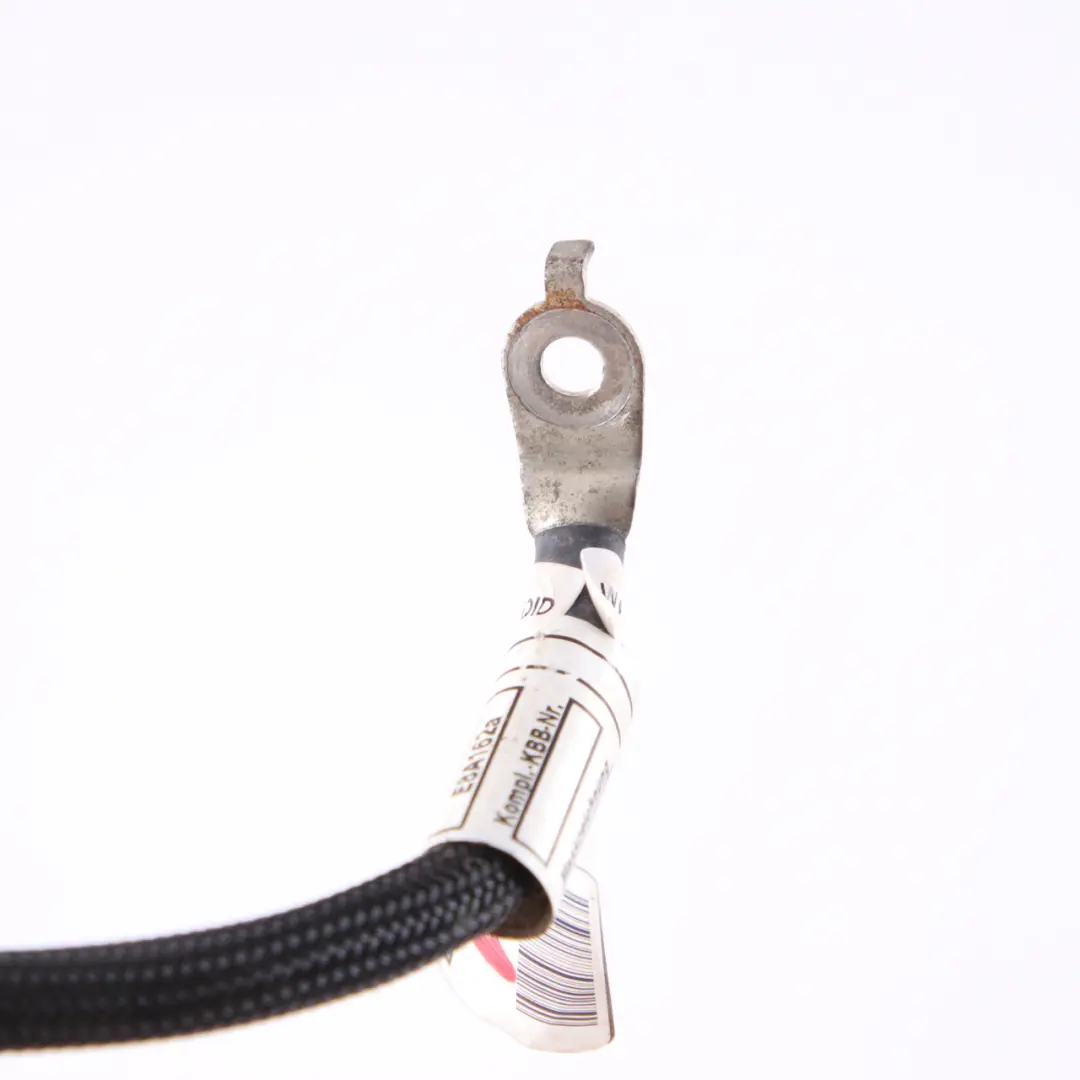

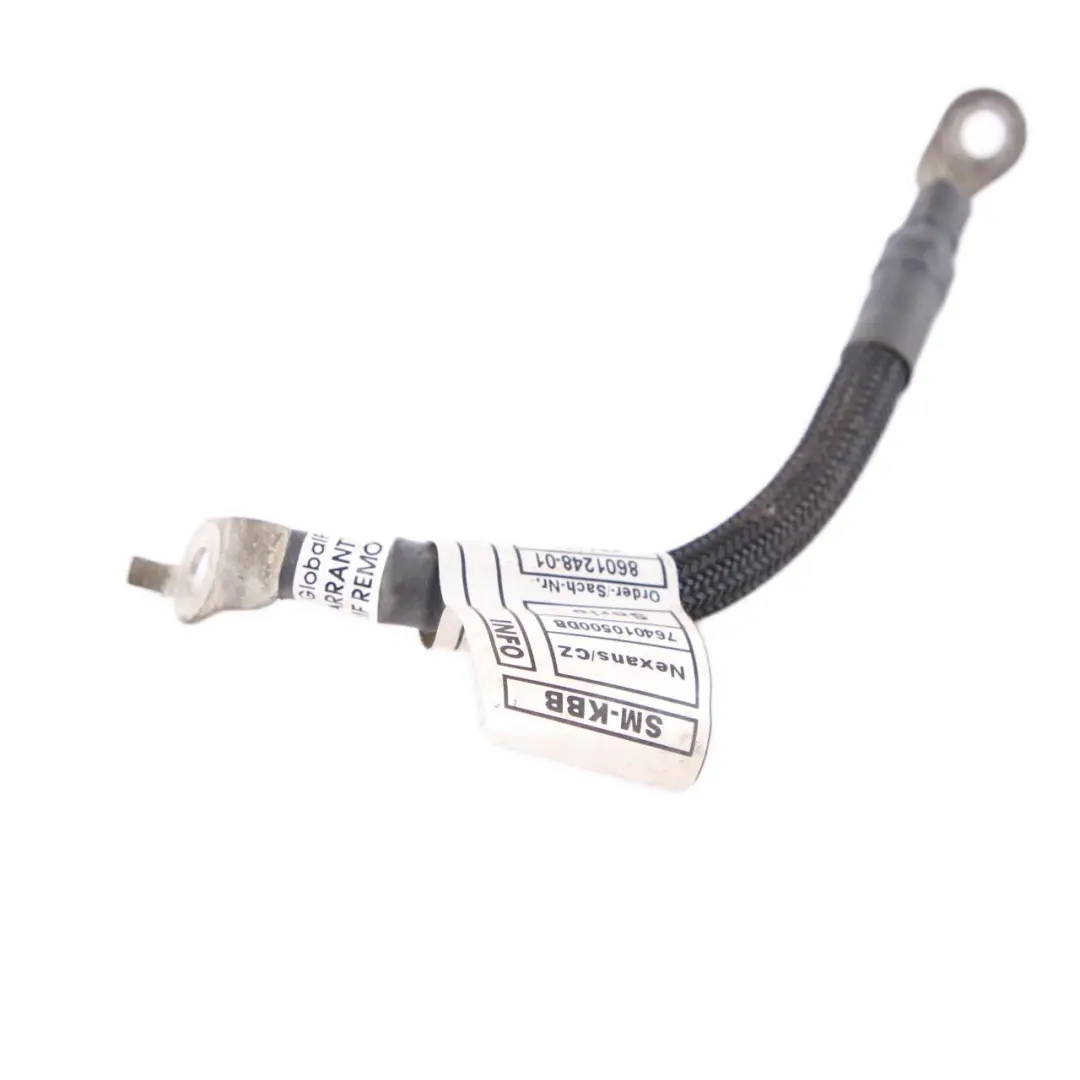

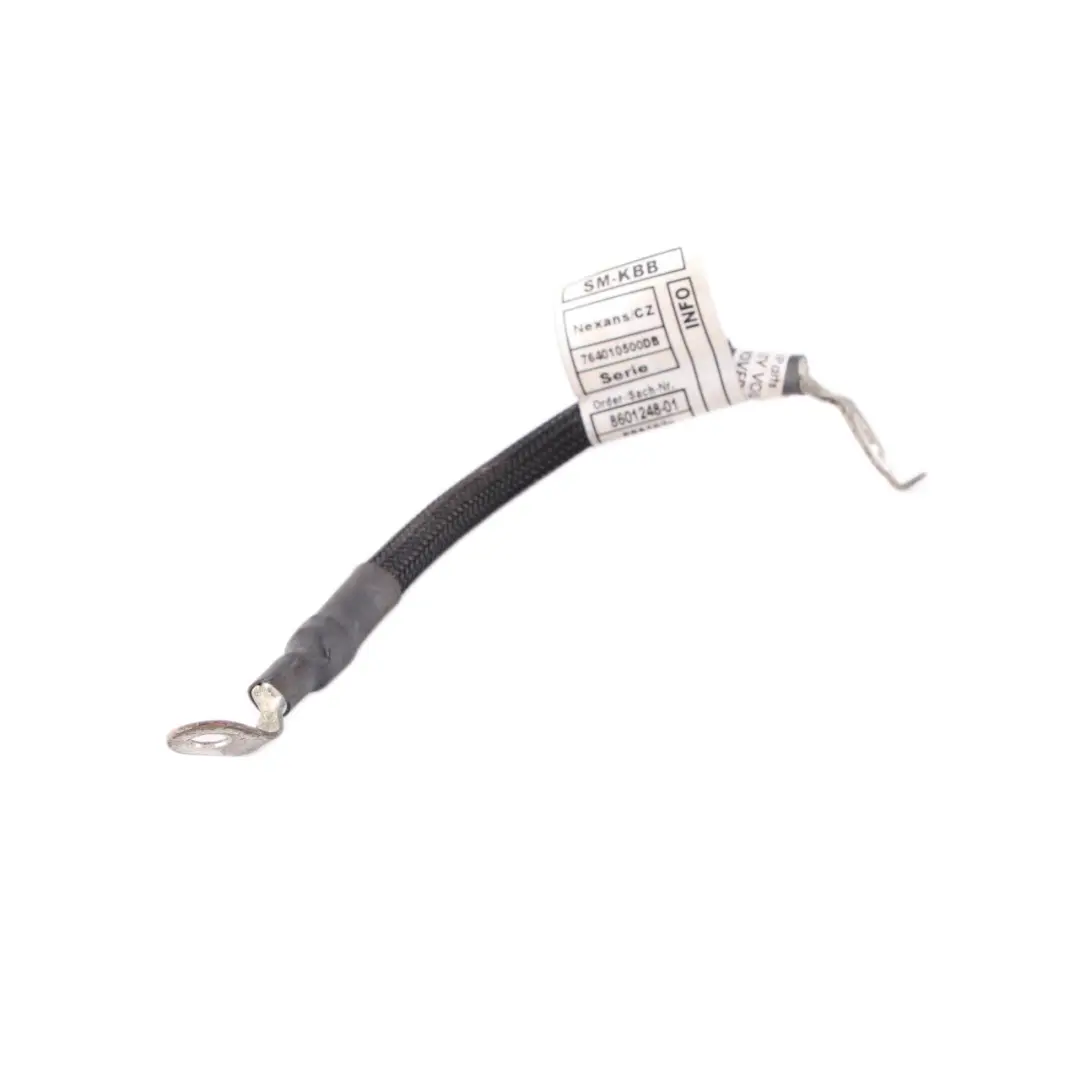

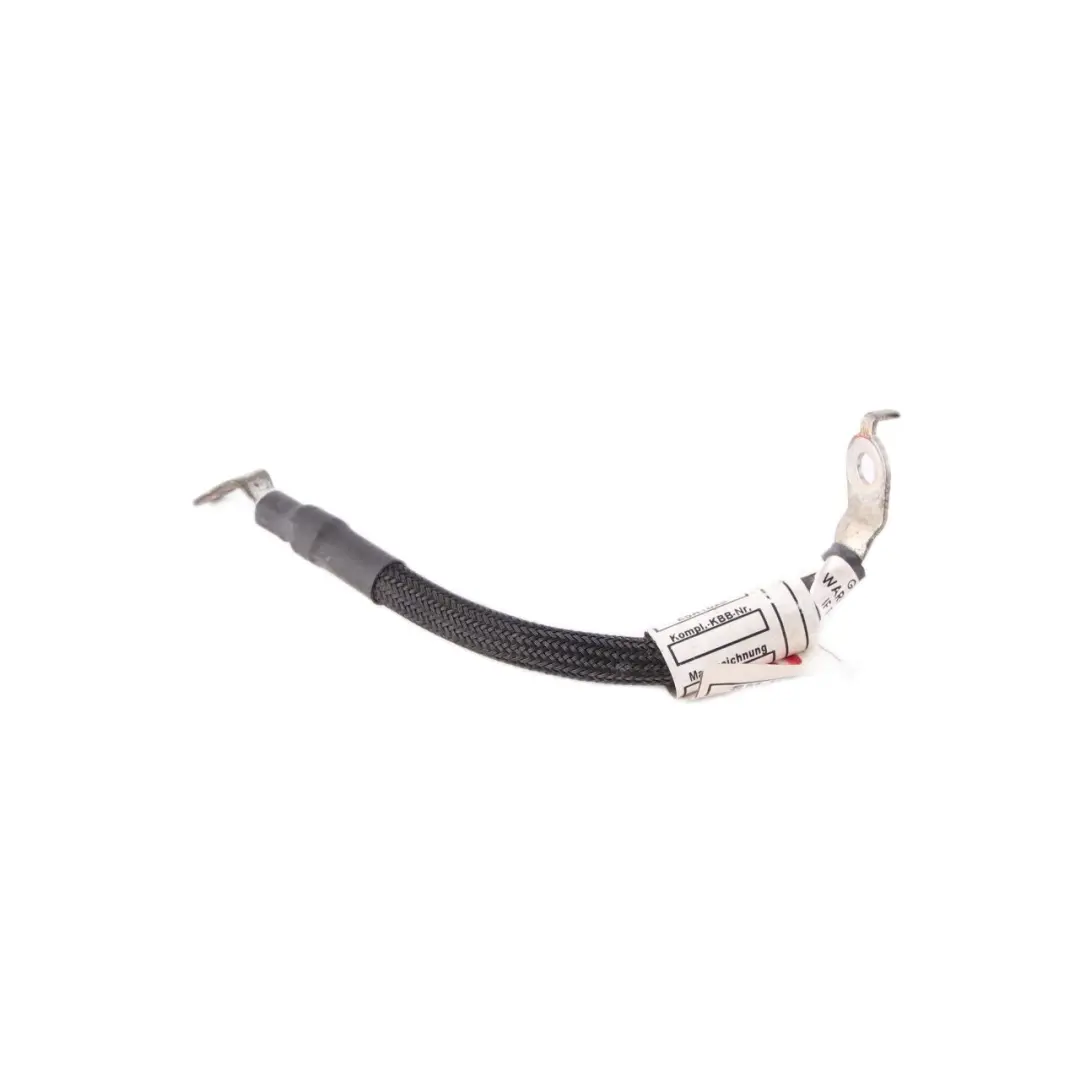

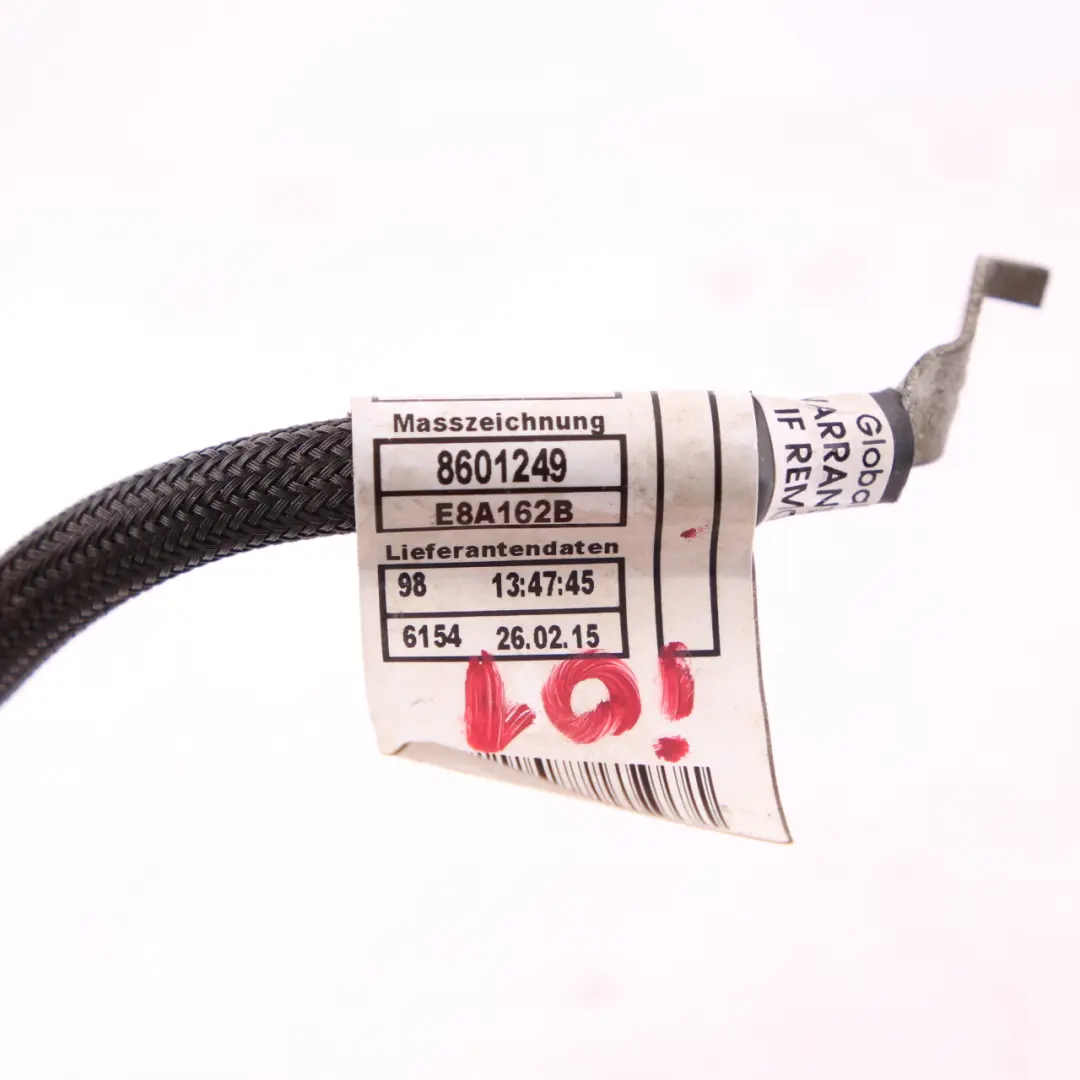

Earth Cable BMW i3 I01 Hybrid Electric Negative High Voltage Battery 8601248

The BMW i3 I01 High-Voltage Ground Strap is a specialized component of the electrical system in the hybrid-electric version, responsible for safely discharging the charge from the negative terminal of the high-voltage battery. The original BMW design from the Cables, Harnesses, and Connectors category ensures proper fitment to the vehicle's architecture and stable HV system operation. This is a practical service solution for users seeking a proven component for professional high-voltage system repairs.

Specifications and technical data

• SKU: 8601248
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8601248
• Substitutable numbers: 12428601248, 8601248, KZ
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function in the High-Voltage System

This ground strap is a dedicated component for the BMW i3 I01 generation with a hybrid-electric drive, operating within the high-voltage battery area on the negative side. Its task is to ensure a controlled ground connection between the HV battery and the rest of the system, which affects the proper operation of the drive system, safety systems, and control electronics.

A properly selected HV ground strap limits the risk of voltage drops, local overheating, and communication interference between control modules, which is important for both the performance and durability of the entire powertrain.

Construction, Fitment, and Installation

As a component from the Cables, Harnesses, and Connectors group, the strap has been designed for specific mounting points and wiring routes in the BMW i3 I01. The appropriately selected length, conductor cross-section, and factory-made terminals allow for installation in original locations without the need for system modifications.

Key design advantages include:

• factory-made terminals adapted for high-voltage circuit connections,
• stable ground connection in the HV battery area,
• compatibility with the factory wiring harness routing in the BMW i3 I01.

Thanks to these features, the strap can be used as a service component for high-voltage system repairs, HV battery replacements, or when troubleshooting ground-related issues in the system.

Product Characteristics and Service Application

The offered strap is an original BMW part, which translates to compliance with the vehicle manufacturer's technical documentation. This facilitates diagnostics, selection of installation parameters, and subsequent service operations in workshops specializing in electric and hybrid powertrains.

The product is from the aftermarket and is intended for users and services that:

• restore the factory HV system configuration after a collision or body repairs,
• resolve faults related to improper high-voltage battery grounding,
• modernize or reconfigure the existing system within the HV battery.

Using an original ground strap helps maintain consistency with other system components, which is crucial when working with high voltage and complex control electronics.

Benefits of Using an Original BMW Strap

Using a dedicated ground strap in the BMW i3 I01 offers a range of practical operational benefits. Primarily, it reduces the risk of electrical integrity issues in the HV system, which can manifest as control unit errors, reduced drive power, or improper operation of safety systems.

Key advantages include:

• reliable ground connection in the high-voltage circuit,
• maintaining compatibility with the factory installation architecture of the BMW i3 I01,
• easier diagnostics based on manufacturer documentation.

For workshops specializing in electromobility, this is a component that allows for repairs to be carried out in accordance with manufacturer guidelines, without the need for substitute solutions with unknown parameters.
