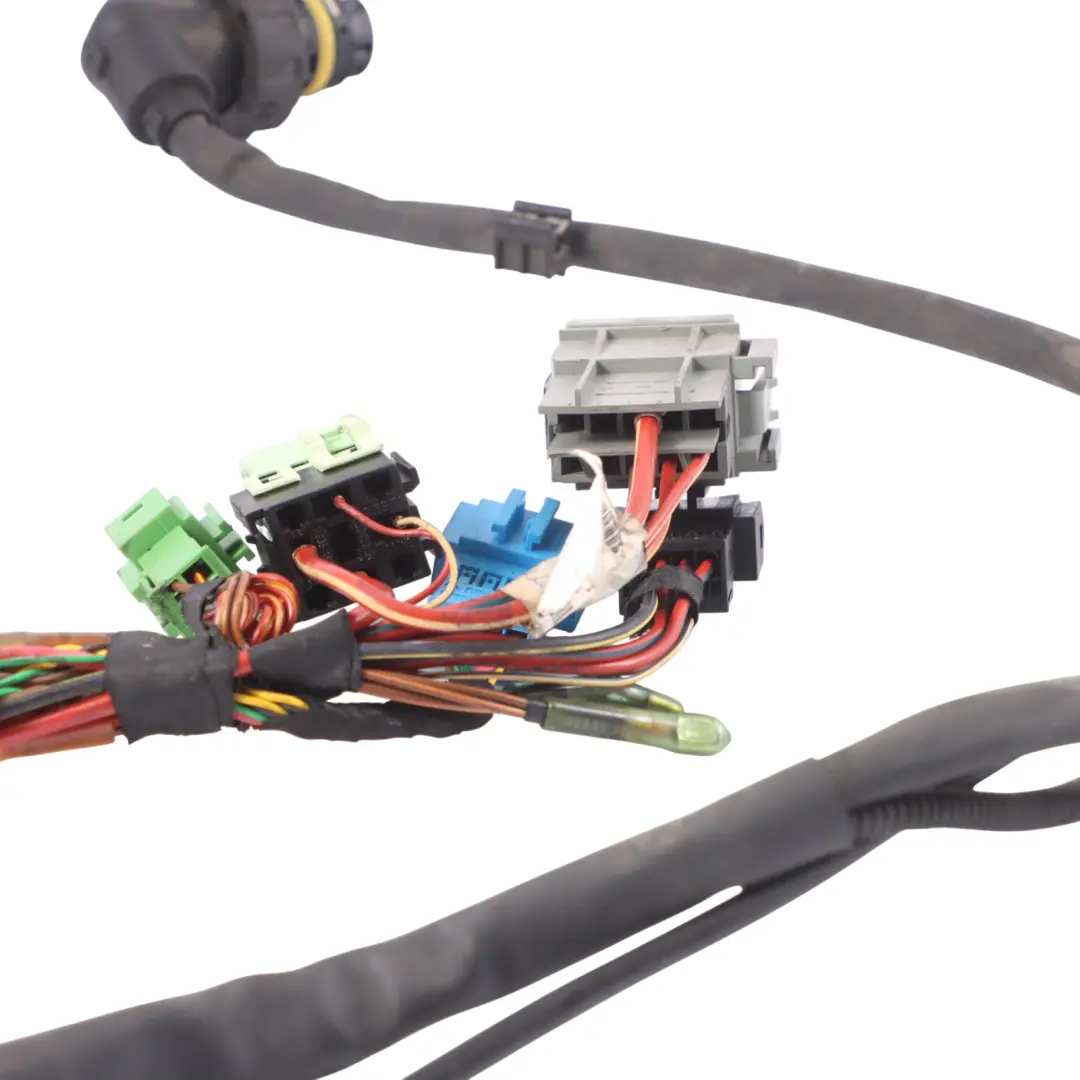

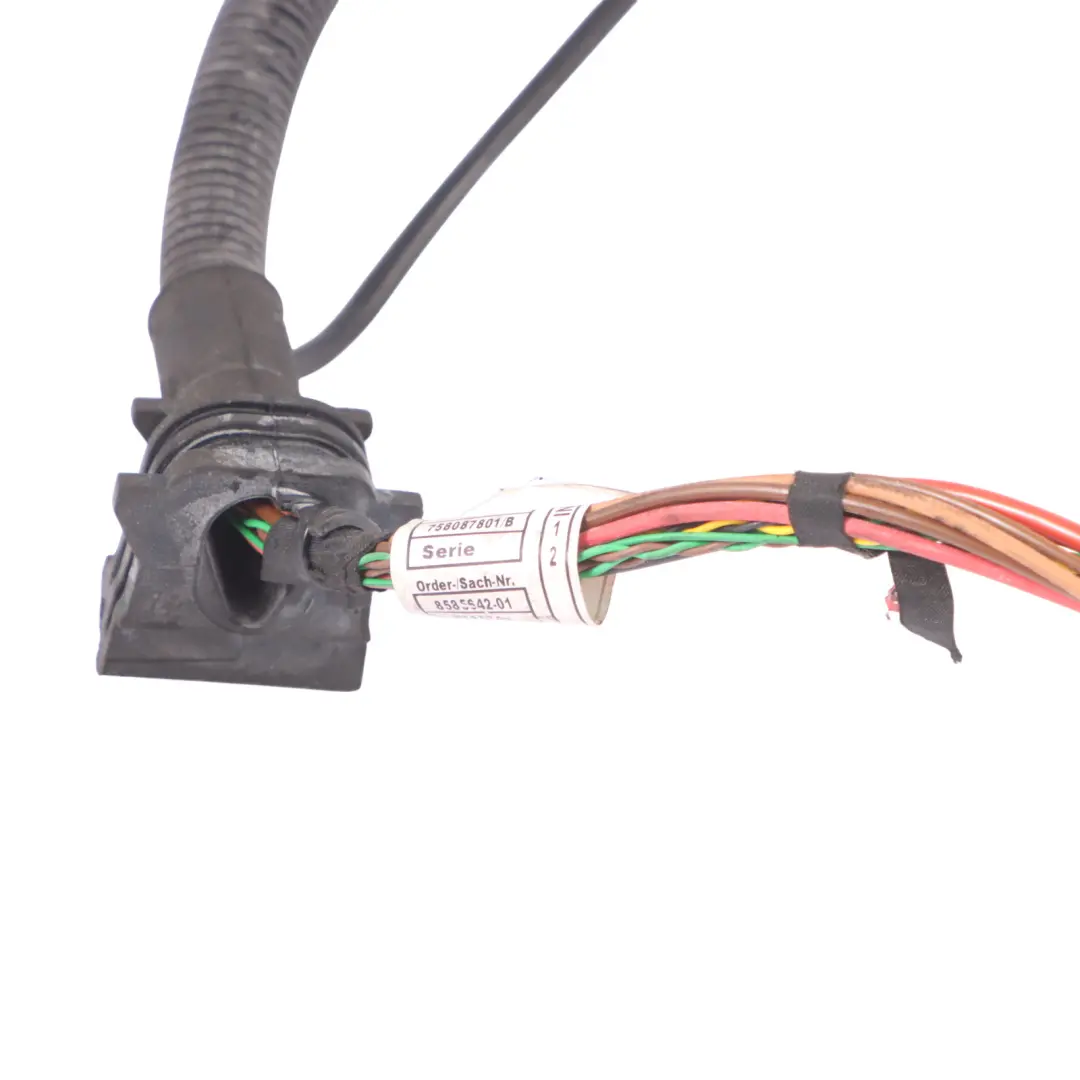

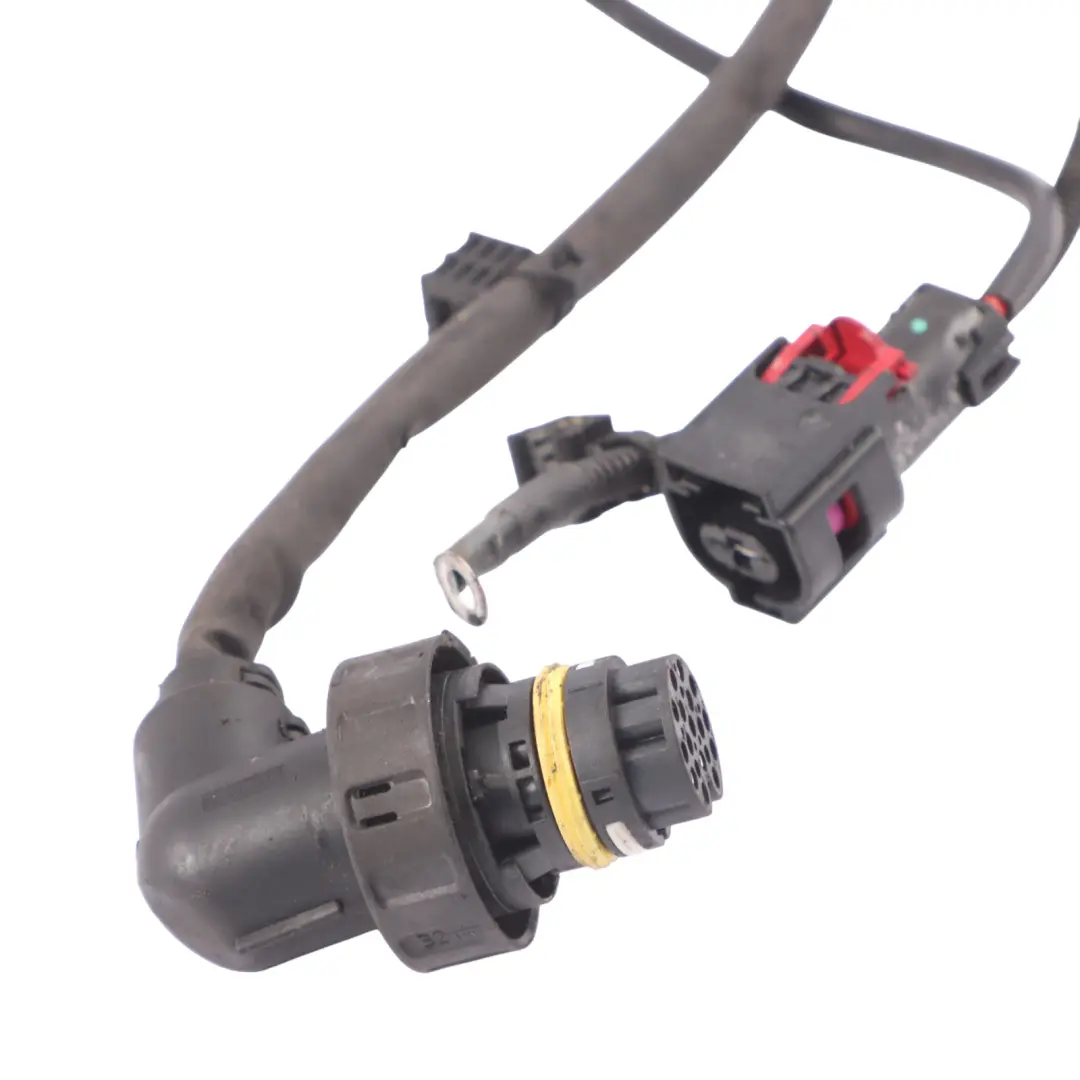

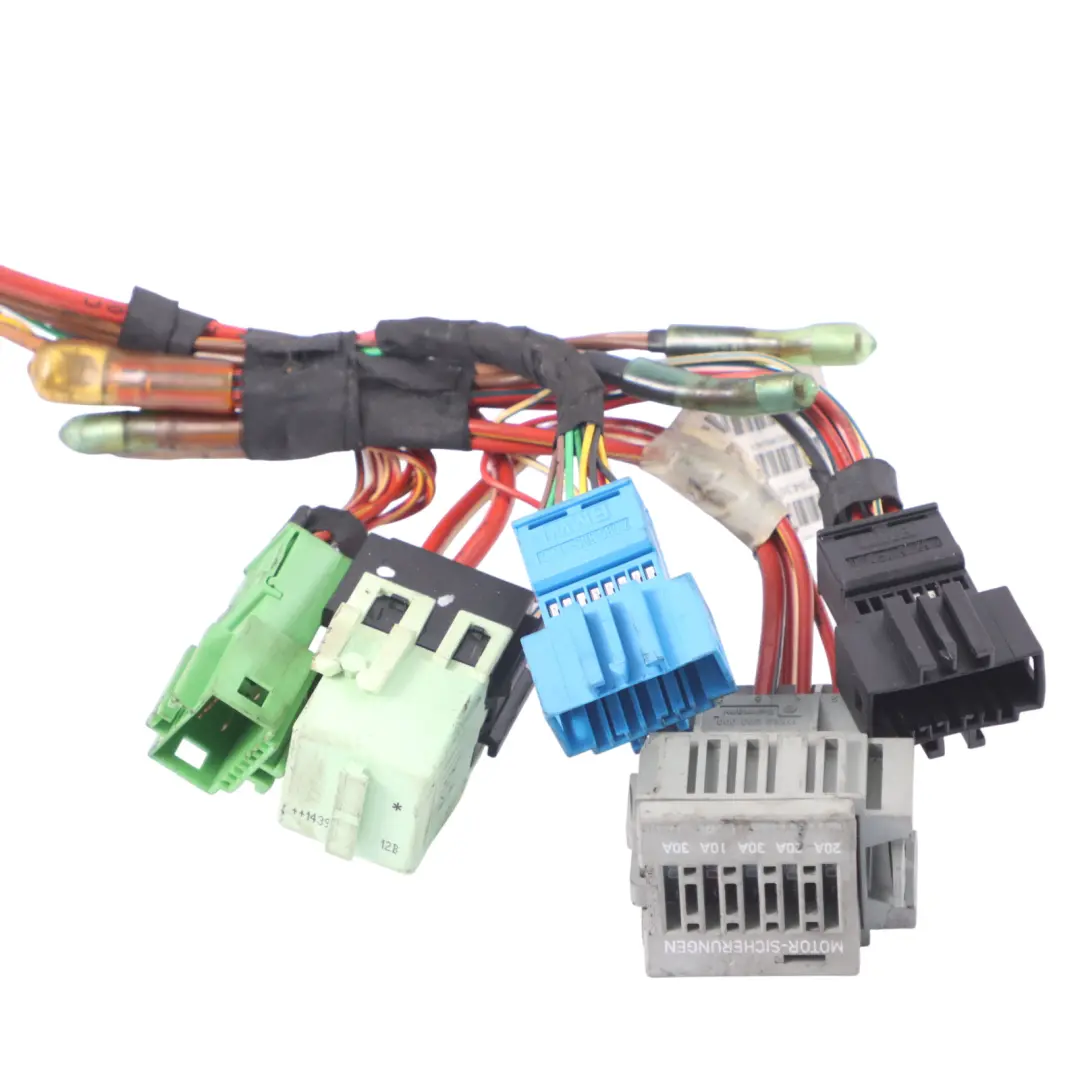

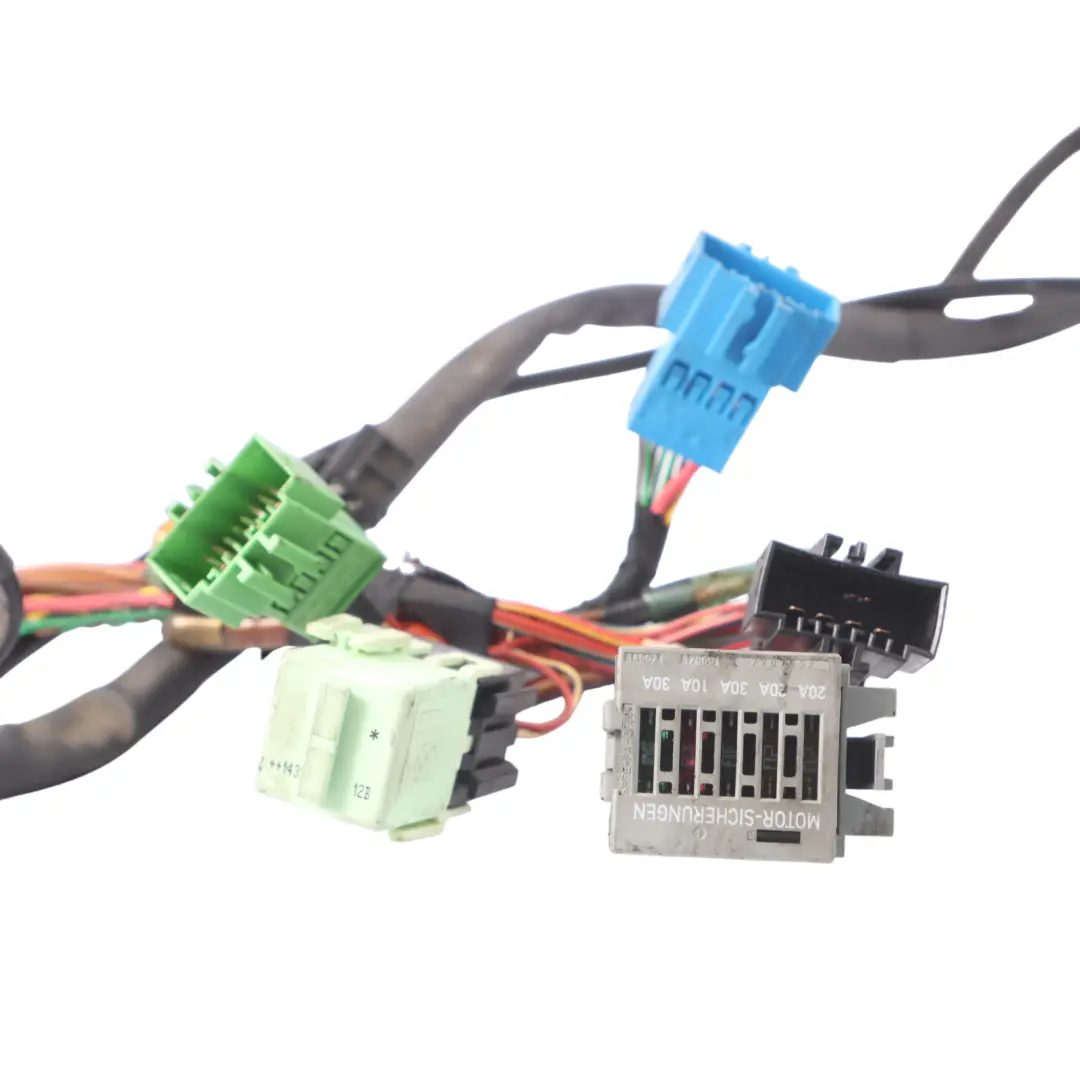

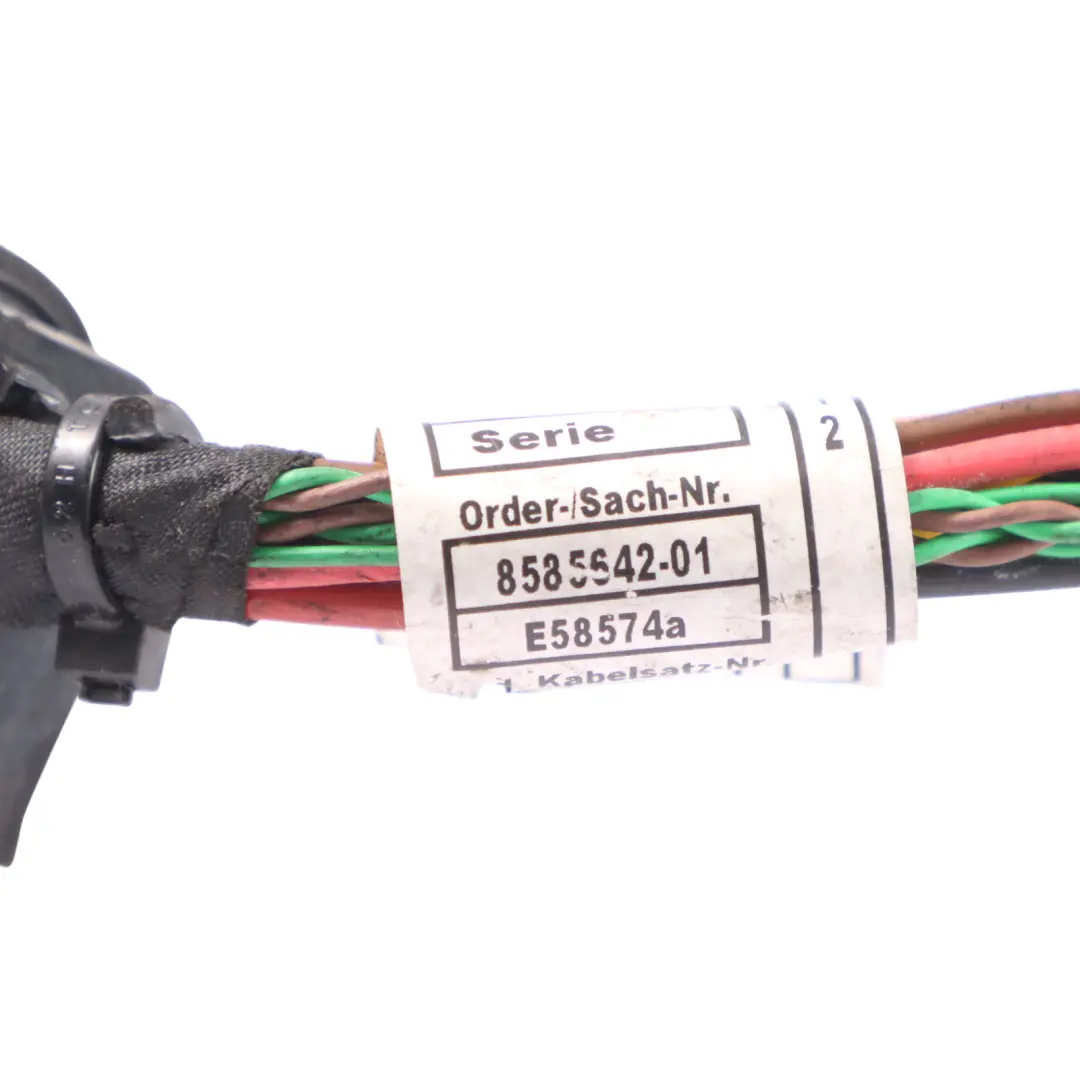

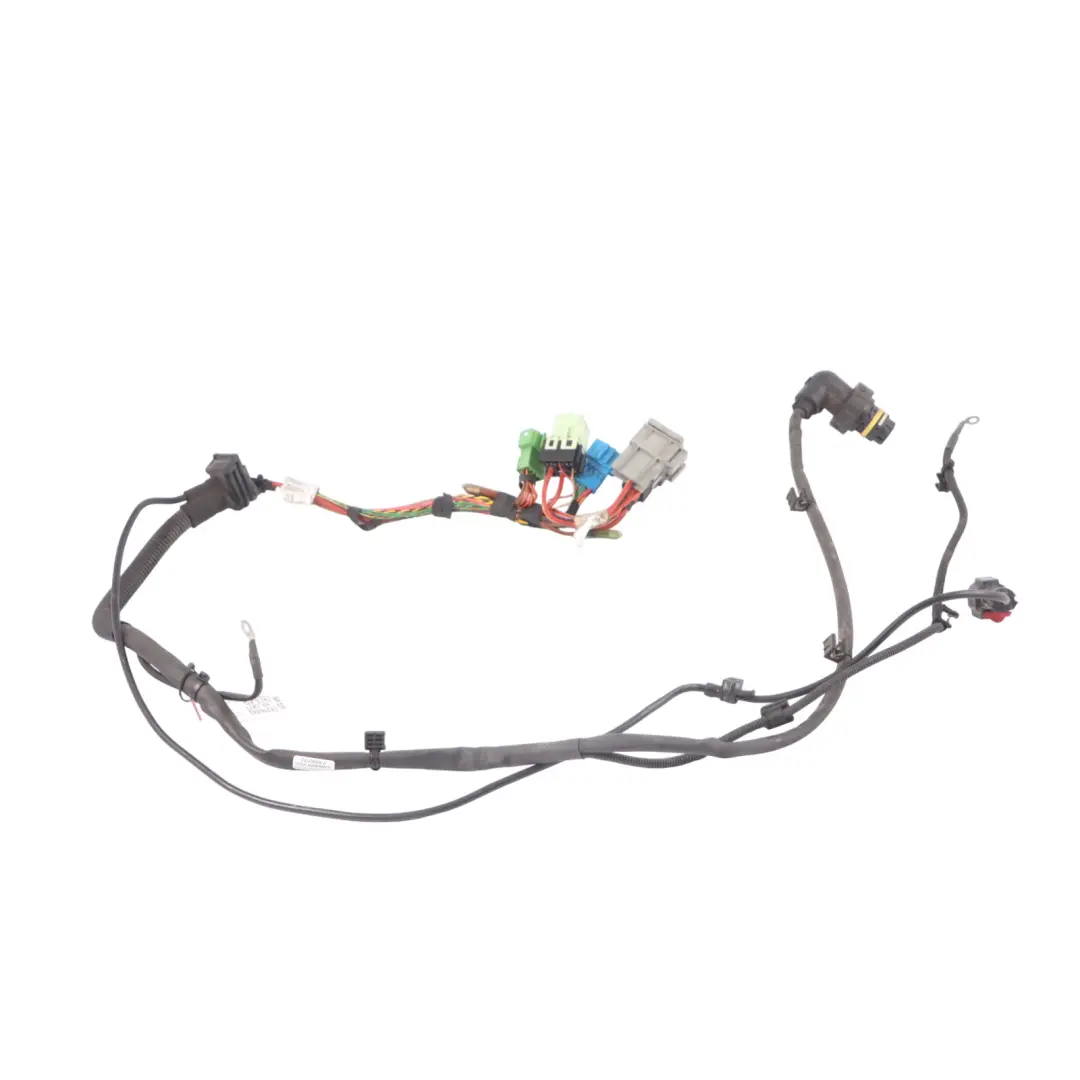

BMW F20 F21 F30 F31 N47N Wiring Loom Harness Engine Gearbox Module 8585642

BMW F20 F21 F30 F31 N47N Engine Gearbox Wiring Harness 8585642 is an original part from the Wires, Harnesses, and Connectors group, designed for use in BMW powertrains with the N47N engine. The used harness allows for an economical yet professional repair of the engine and gearbox electrical system, maintaining the factory connection architecture and compatibility with the vehicle's electronics.

Specifications and technical data

• SKU: 8585642
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8585642
• Substitutable numbers: 12518585642, 8585642, 12518578525, 8578525, AS
• Category: Wiring Harnesses, Cables & Connectors

Harness Purpose and Function

The offered wiring harness is an element of the electrical system responsible for transmitting signals and power between sensors, control units, and components of the engine and gearbox in BMW F-series models. Thanks to factory-standard wire routing and original connectors, it ensures:

• correct communication between the control unit and engine accessories,
• stable power supply to key powertrain components,
• proper shielding and reduction of electrical interference,
• compliance with the vehicle's factory electrical diagram.

This solution is particularly important for error diagnostics, replacing damaged wiring, or restoring full powertrain functionality after a mechanical or electrical failure.

Advantages of Using an Original BMW Harness

Choosing an original BMW wiring harness from the Wires, Harnesses, and Connectors category helps avoid problems typical of aftermarket replacements or modifications. The most significant benefits include:

• Factory Fitment – wire lengths, connector placement, and mounting points match the original installation in the engine bay and at the gearbox.
• Vehicle Electronics Compatibility – the harness works with factory control units, sensors, and modules without requiring installation adaptation.
• Stable Electrical Parameters – appropriately selected wire gauges and insulation limit voltage drops and the risk of signal interference.
• The ability to maintain original cable routing, which facilitates servicing and subsequent diagnostic work.

Product Characteristics and Condition

The presented harness is from a dismantled BMW vehicle and is offered as a used part. This means it shows signs of wear typical for aftermarket parts but retains the functionality necessary for further operation in the vehicle. For many users, this represents a reasonable compromise between repair cost and maintaining original manufacturing quality.

The harness is designed for installation in the factory location, using existing mounting points and brackets on the body and powertrain assembly. When installed correctly, it allows for the recreation of the original wiring path, which is important for both safety and the reliability of the system's operation.

Installation and Service Application Tips

When replacing the wiring harness in the engine and gearbox system, it is recommended to:

• carefully compare the shape and placement of connectors with the dismantled installation,
• check the condition of the insulation and connector sockets before installation,
• route the wires according to factory paths, using original brackets,
• verify the correctness of connections after installation through computer diagnostics.

This approach minimizes the risk of subsequent malfunctions, control unit communication errors, or problems with engine starting and operation.

Expanding Electrical System Repairs in BMW

If you are planning a comprehensive repair or upgrade of the engine area in your BMW and need other parts from the same group, such as additional harnesses, signal wires, or service connectors, check the available parts in the BMW Wires, Harnesses, and Connectors category.

When planning more extensive repair or upgrade work, it is also worth considering the use of used body parts and other dismantled components. More practical information on this topic can be found in the article Replacing Body Panels with Used Ones – Can Dismantled Sheet Metal Parts Look Like New?, which discusses the advantages of consciously selecting aftermarket parts for popular brands, including BMW.
