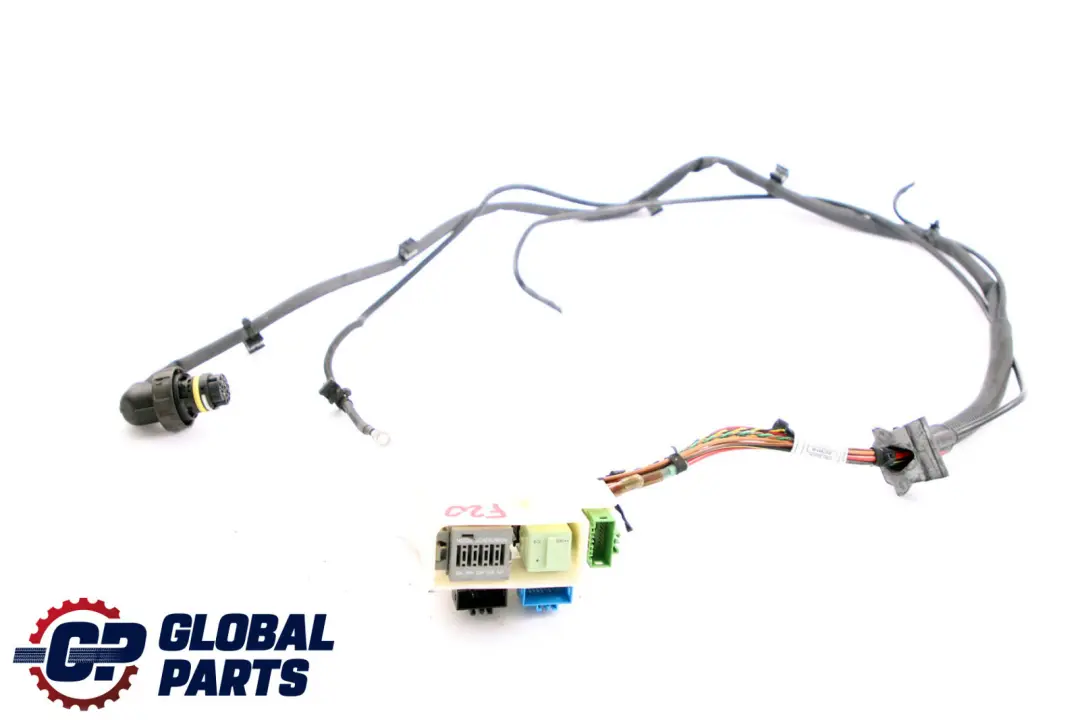

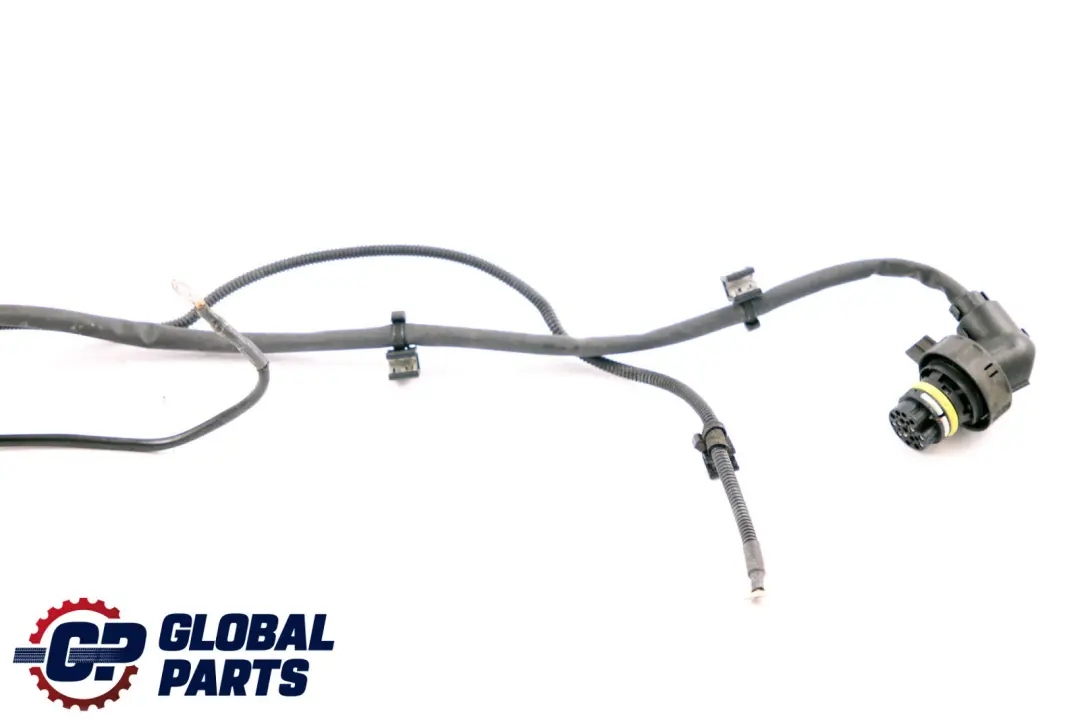

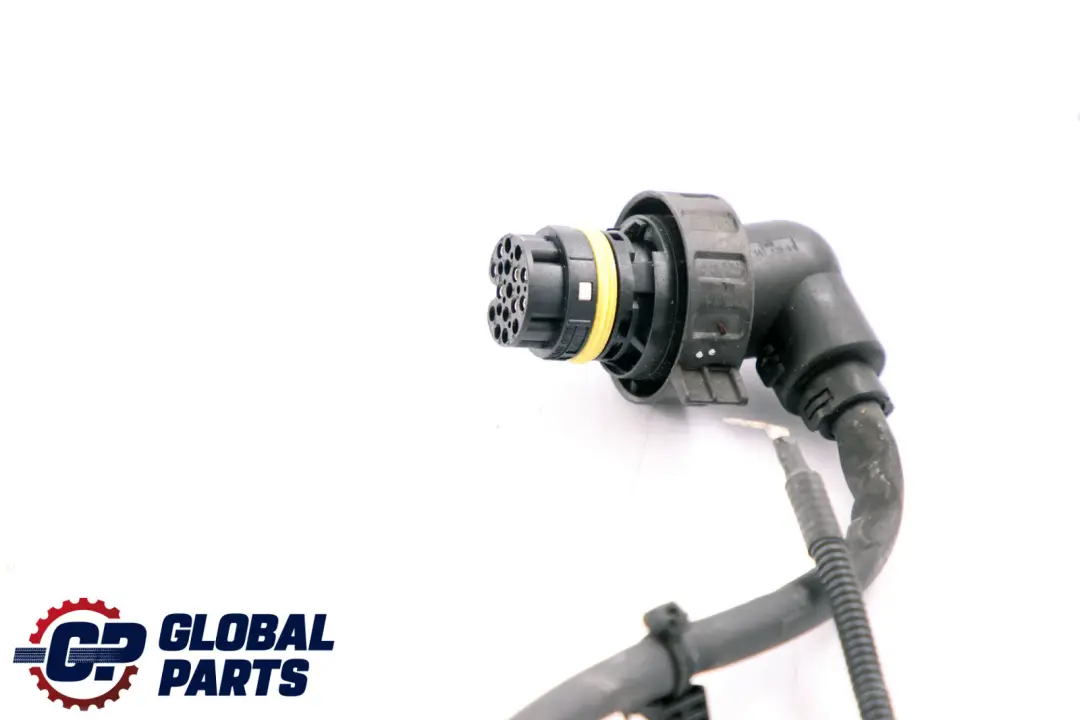

BMW 1 3 Series F20 F30 Diesel N47N Wiring Harness Engine Gearbox Module 8507885

BMW F20 F30 Diesel N47N Engine Wiring Harness is an original part from the Cables, Harnesses, and Connectors category, designed for BMW diesel engines from the N47N family. It ensures stable communication between sensors, accessories, and the engine control unit, leading to predictable powertrain operation. This is a practical solution for users seeking a factory fit for BMW F20 and F30 series diesel cars.

Specifications and technical data

• SKU: 8507885
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8507885
• Substitutable numbers: 12518507885, 8507885
• Fuel type: Diesel
• Category: Wiring Harnesses, Cables & Connectors

Application and Compatibility with N47N Diesel Engine

The presented engine wiring harness has been developed for N47N Diesel units used in BMW F20 and F30. It is responsible for connecting key engine accessory components, such as sensors, valves, and actuators, to the main control unit. This allows the injection system, boost control, and auxiliary systems to operate cohesively and predictably.

The harness is configured for specific BMW design solutions, ensuring proper wire routing within the engine bay, minimizing the risk of chafing, overheating, and signal interference. This is particularly important in modern diesel engines, where the stability of electrical signals directly impacts running smoothness and combustion parameters.

Construction, Connectors, and Electrical Parameters

As a component from the Cables, Harnesses, and Connectors group, the BMW engine harness is designed to meet high requirements for resistance to temperature, vibration, and moisture present in the engine bay. The connectors used are factory-matched to the sockets in the N47N unit's accessories, facilitating installation and reducing the risk of installation errors.

The arrangement of individual harness branches corresponds to the factory wire routing in F20 and F30 models, allowing for the preservation of the original installation geometry. The conductor cross-sections and insulation used are selected to ensure adequate conductivity and resistance to current loads typical for a diesel engine control system.

Benefits of Using an Original BMW Harness

Using a factory engine wiring harness in BMW F20/F30 with the N47N unit offers several practical benefits:

• secure fit to mounting points and brackets in the engine bay,
• compliance with electrical parameters specified by the manufacturer,
• reduced risk of communication errors between the control unit and accessories,
• easier diagnostics during subsequent service inspections.

This solution effectively restores proper engine control system operation after mechanical or thermal damage, or following previous unprofessional installation modifications.

Condition, Purpose, and Installation

The offered BMW engine wiring harness comes from the secondary market, allowing for an economical restoration of the vehicle's electrical system. This is particularly beneficial for repairs involving localized damage to wires, connectors, or insulation, where a complete, factory solution is necessary instead of makeshift repairs to parts of the installation.

Before installation, it is recommended to verify compatibility with the specific vehicle configuration and inspect the condition of connectors and insulation. A correctly selected harness for the N47N Diesel engine allows for near plug-and-play installation, without the need for structural modifications or interference with the vehicle's original electrical architecture.
