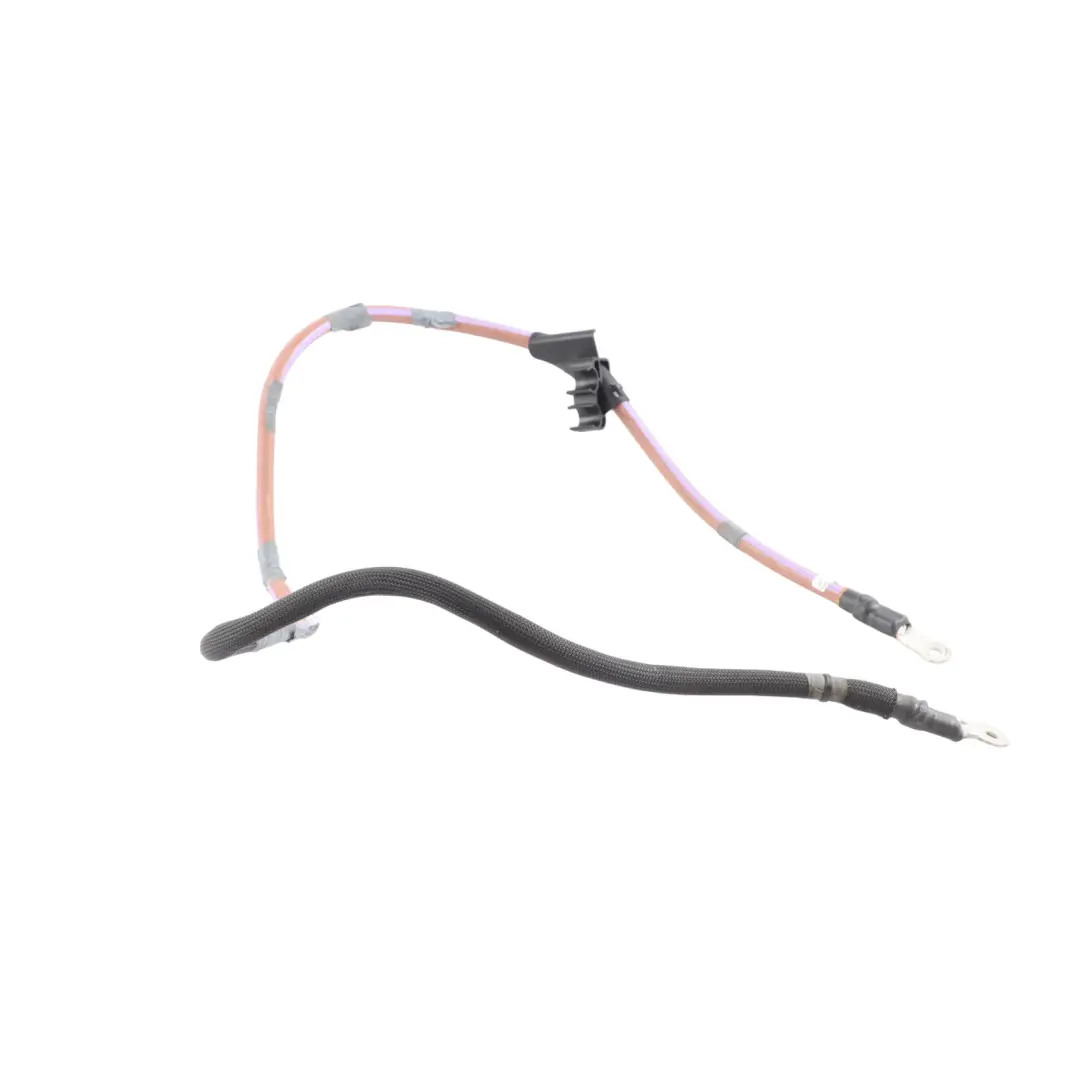

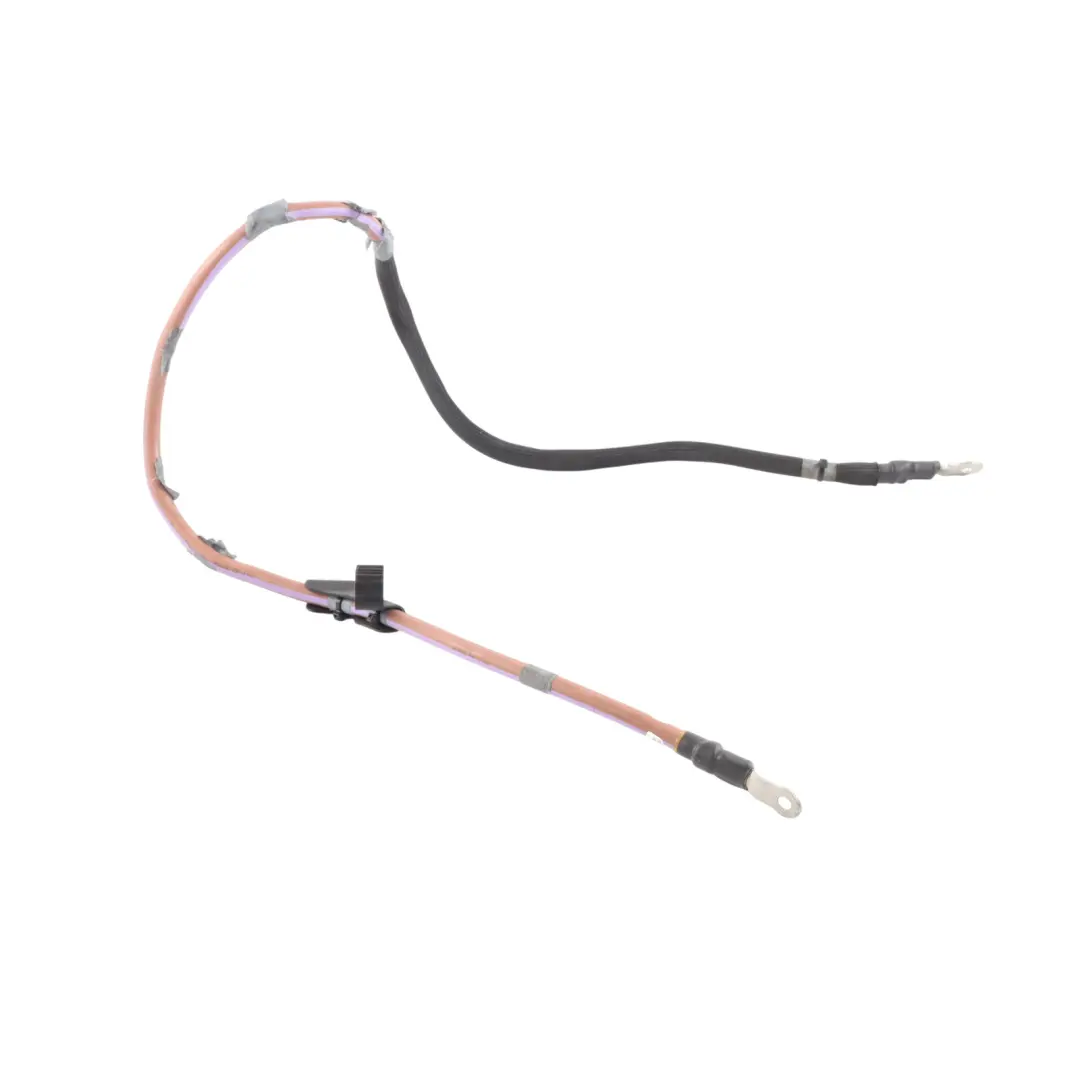

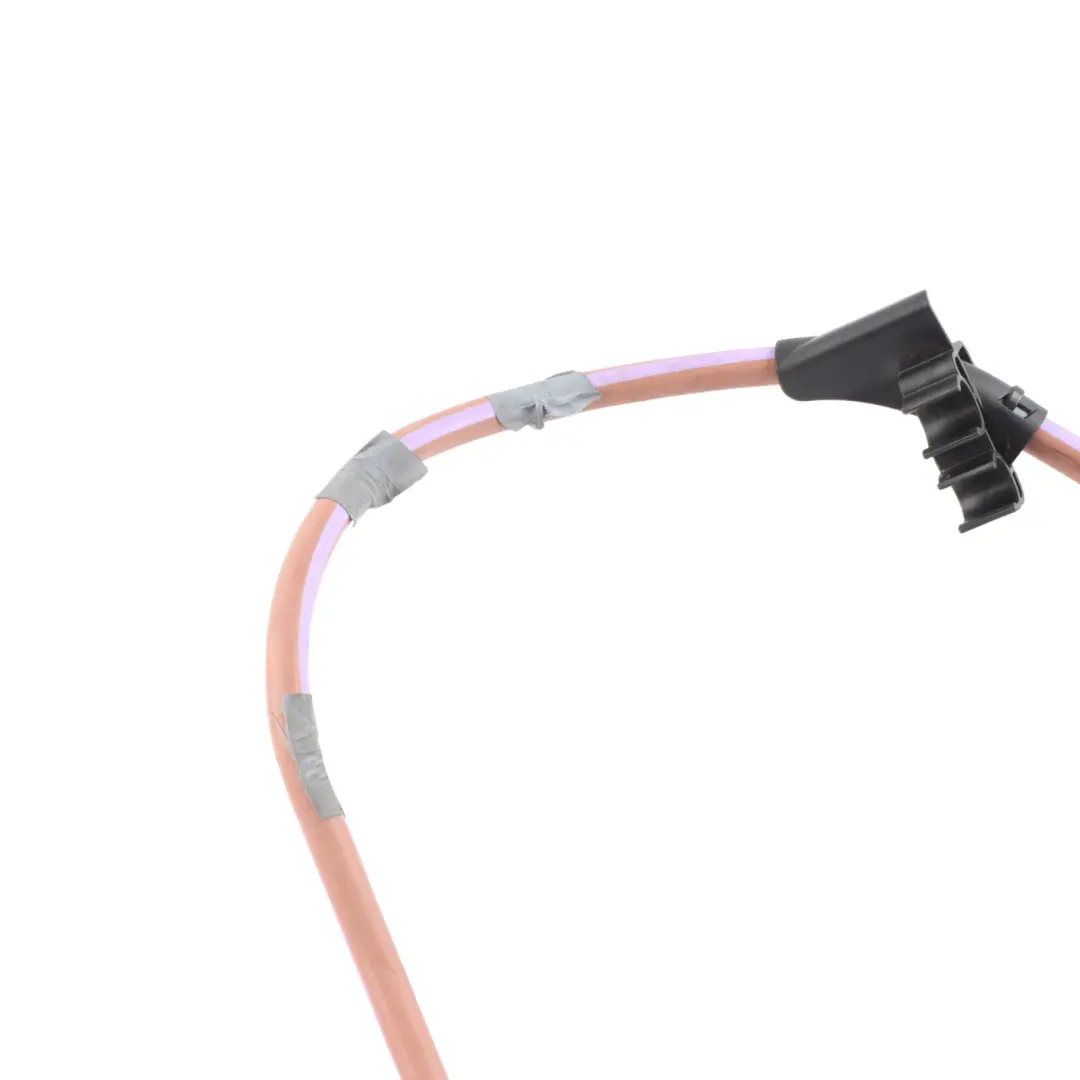

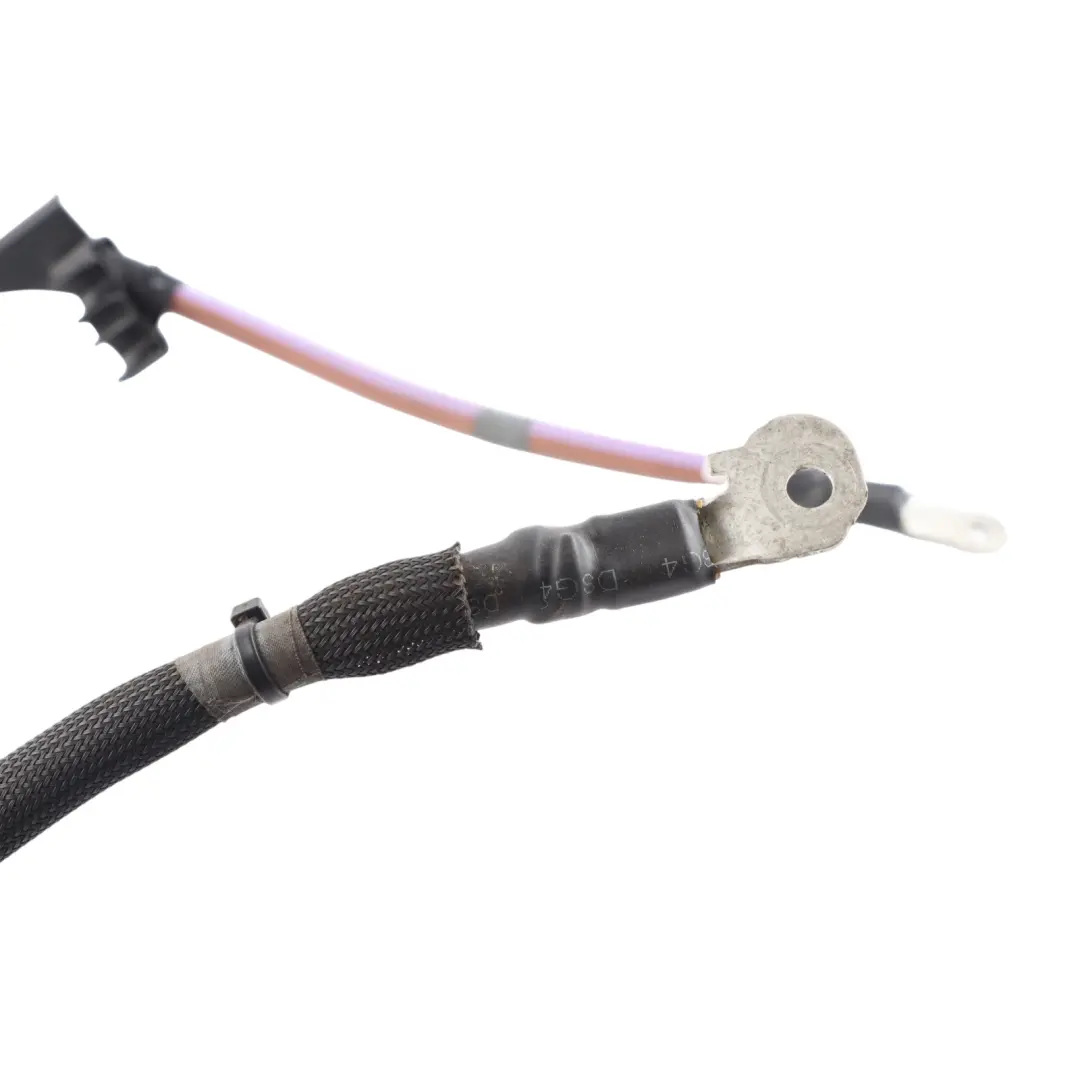

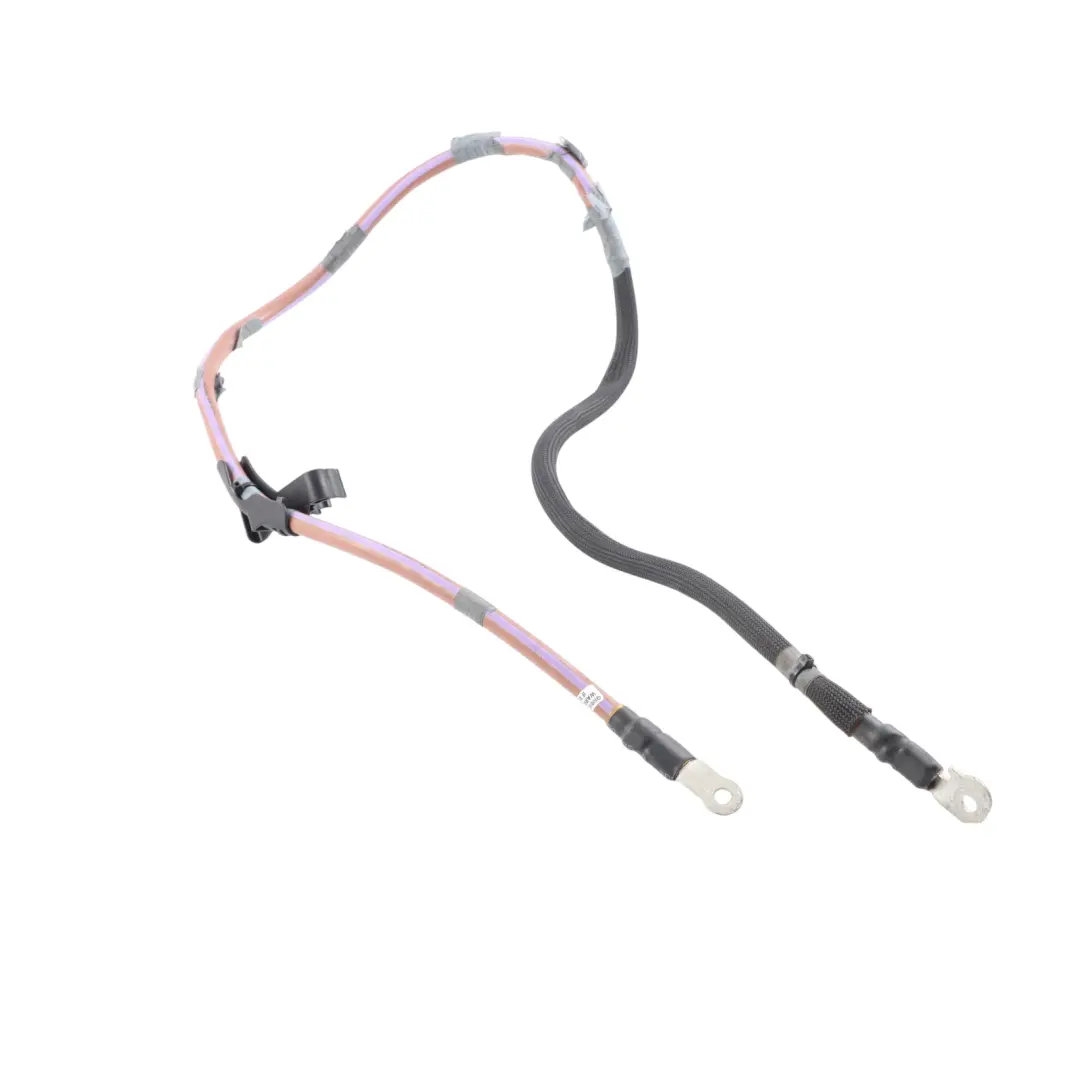

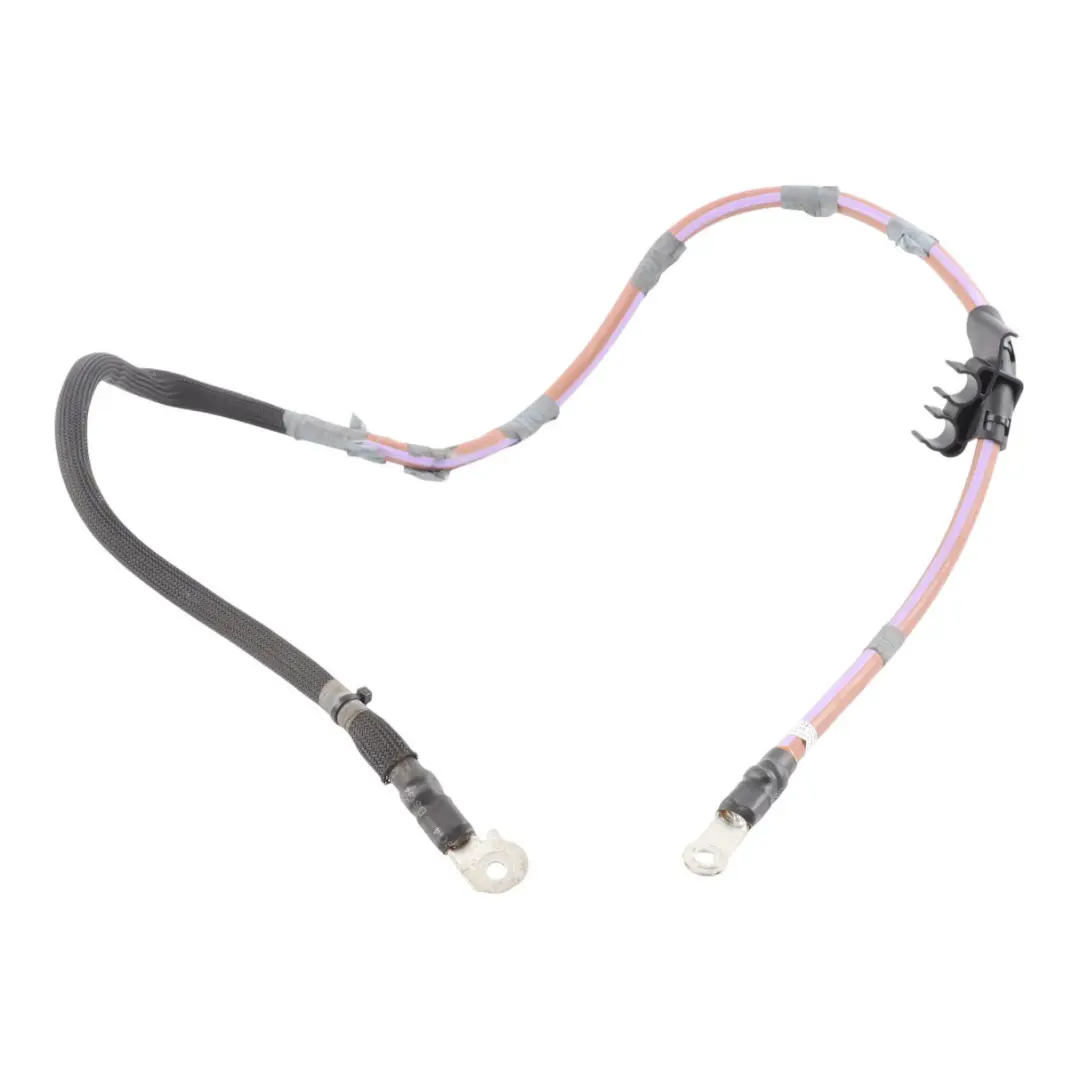

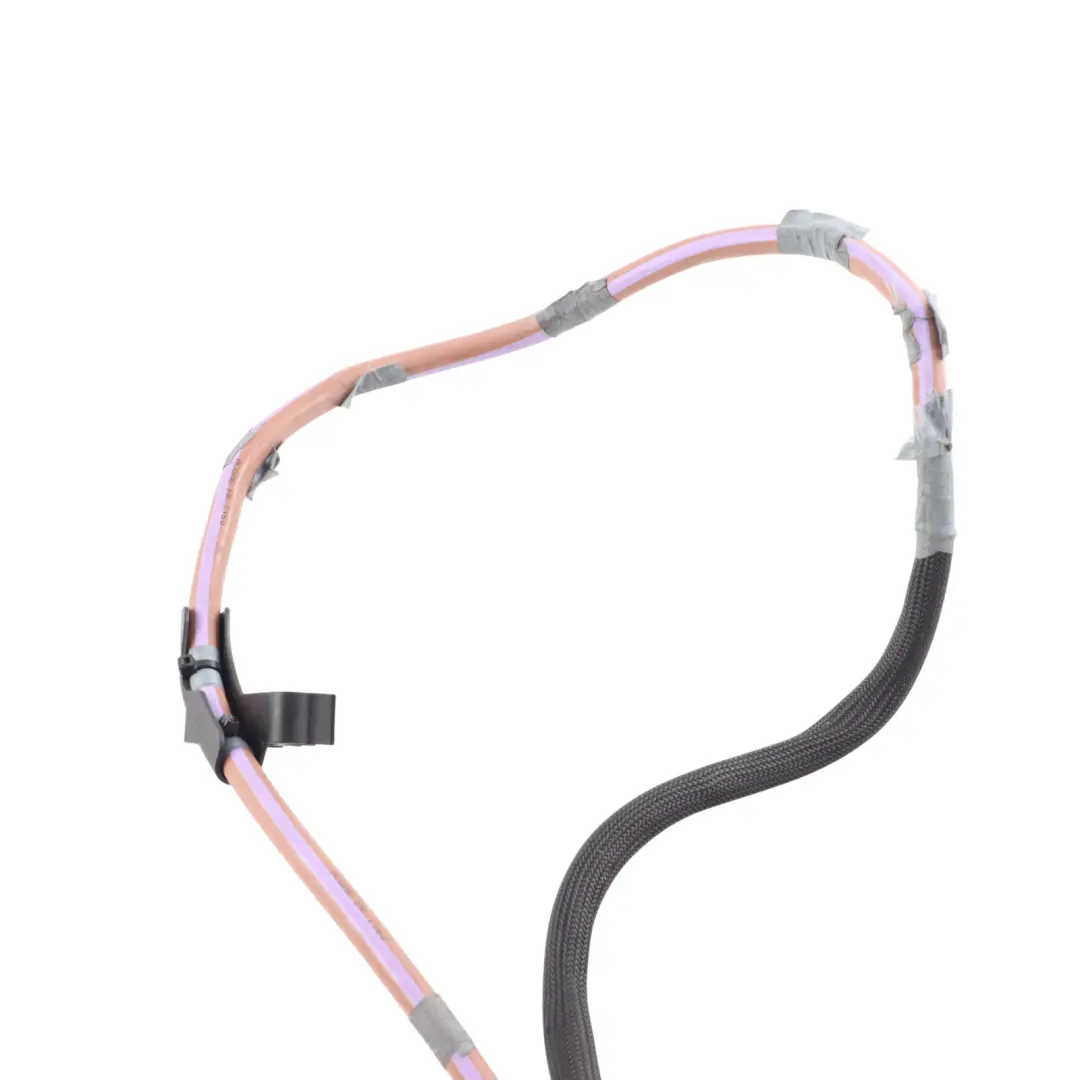

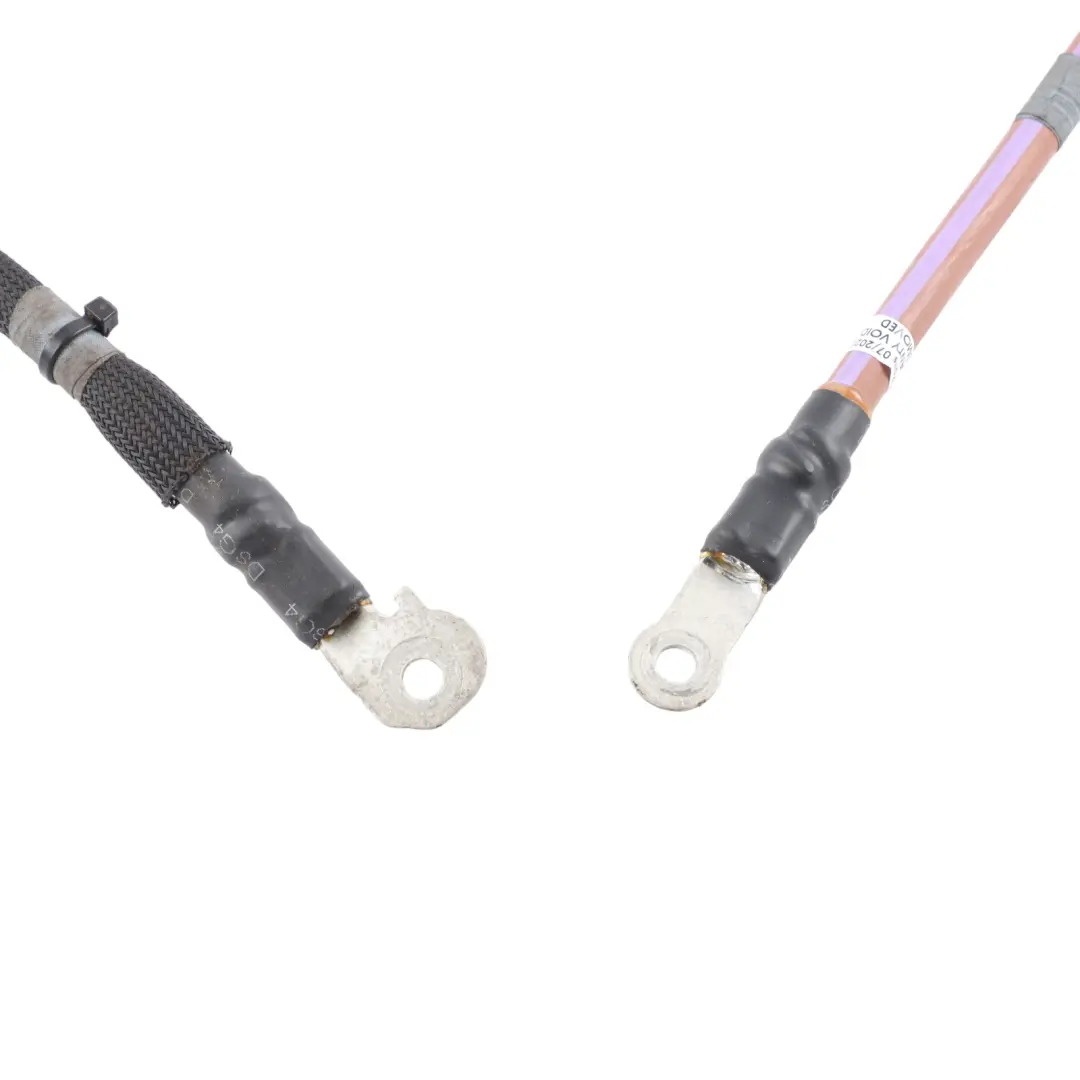

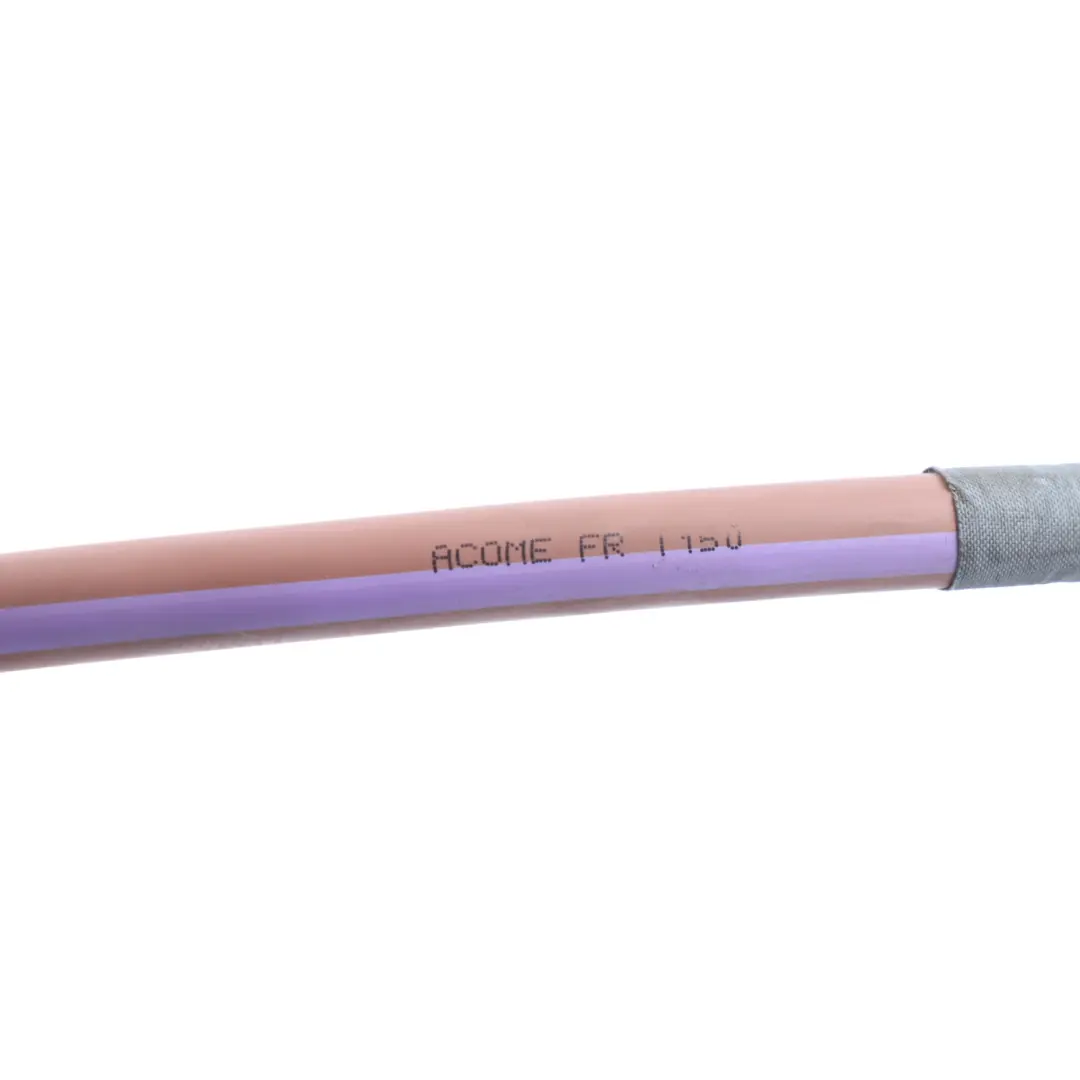

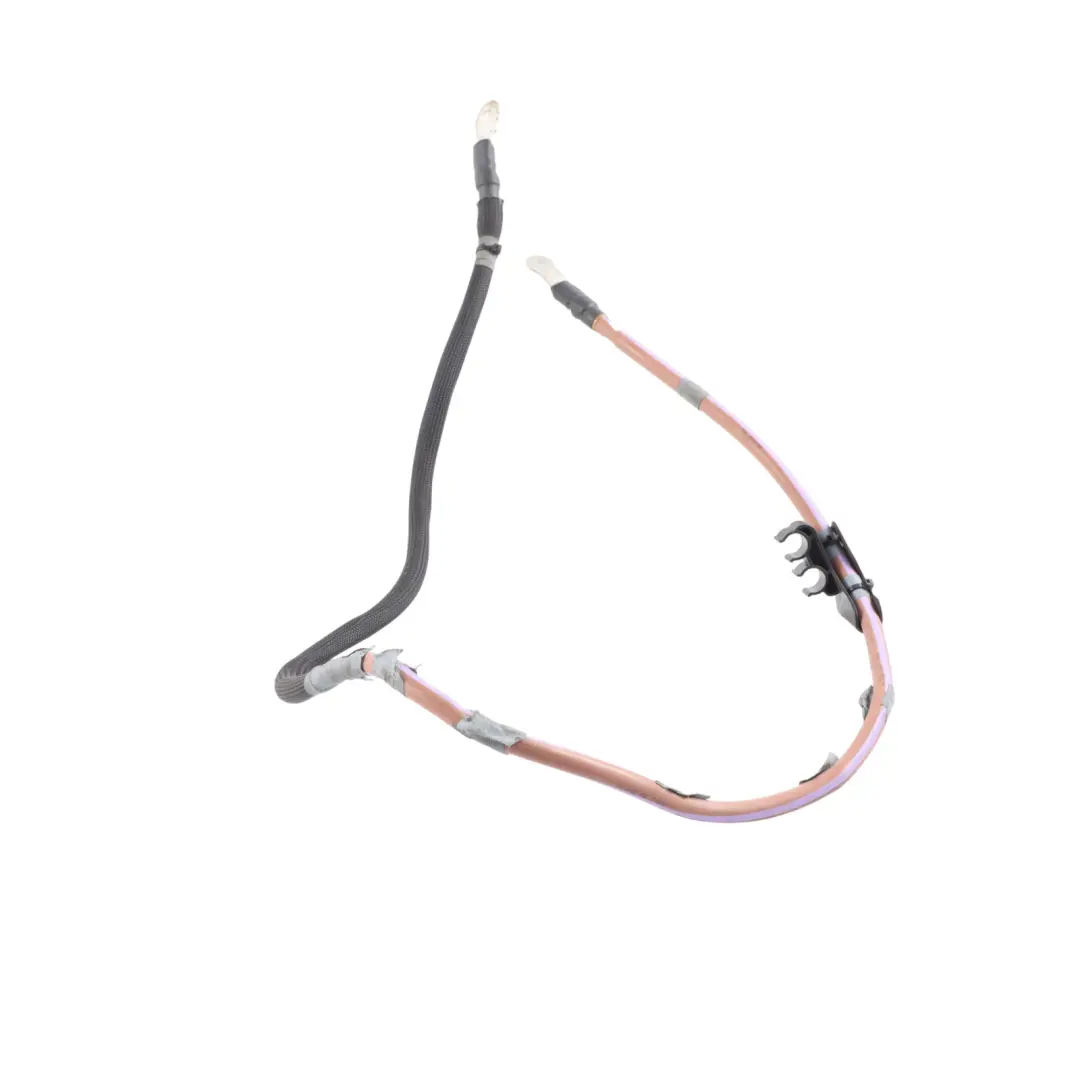

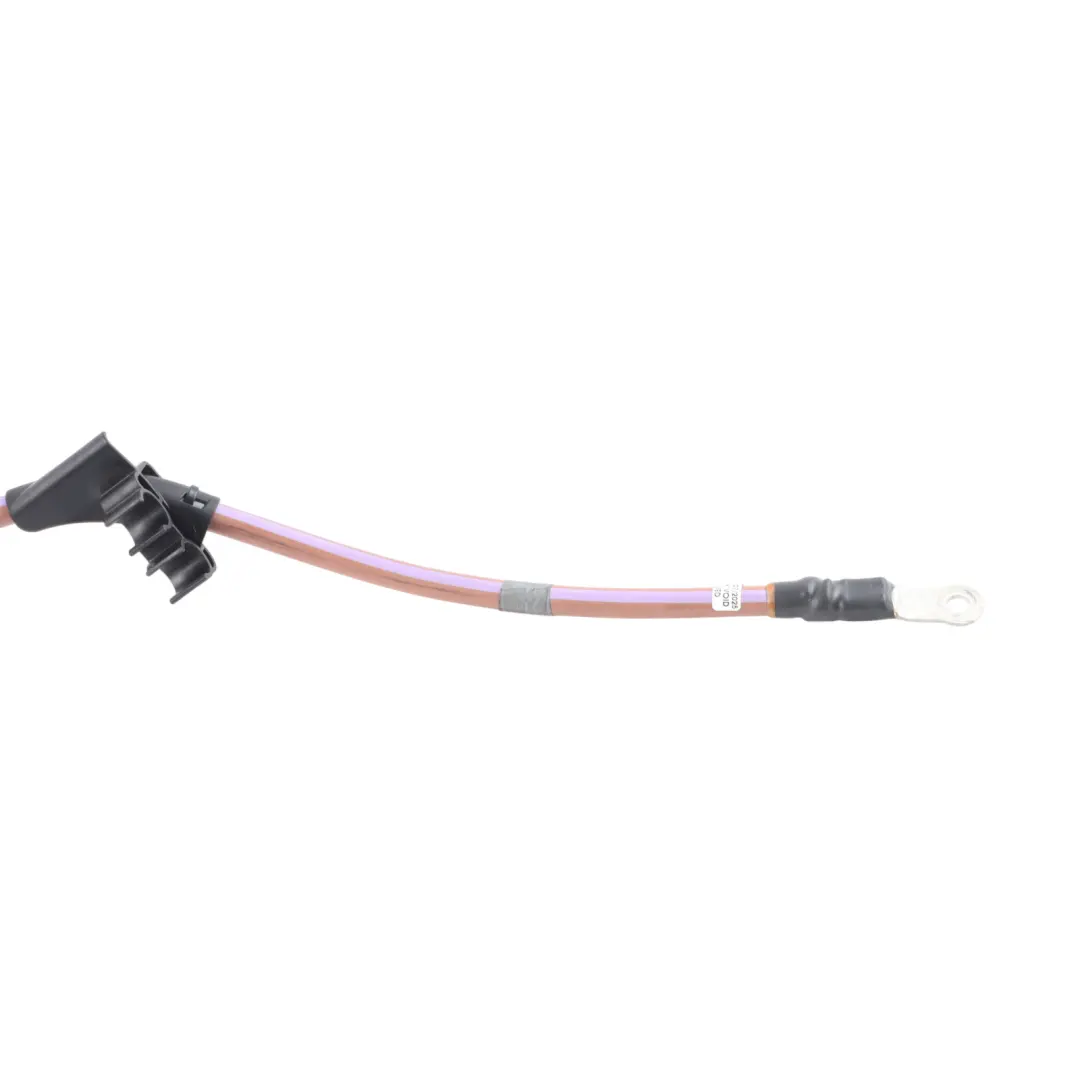

BMW U06 Positive Power Cable Harness Wiring Underfloor Lead 5A90876

BMW U06 Positive Power Cable Harness Wiring Underfloor Lead is an original BMW power harness designed for routing the positive cable in the vehicle's floor area. The component belongs to the Cables, harnesses, and connectors group and provides a solid foundation for professional repair or restoration of the factory electrical installation in BMW U06 series models. By maintaining the original cable routing geometry and factory mounting points, the part allows for precise installation in accordance with the manufacturer's specifications.

Specifications and technical data

• SKU: 5A90876-2
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 5A90876
• Substitutable numbers: 5A90876, 61125A90876
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the BMW electrical system

The presented positive power cable harness is responsible for the safe and stable delivery of voltage along the vehicle's floor. The cable construction is designed to:

• ensure the appropriate cross-section for the electrical load of the onboard system,
• maintain proper routing under the floor, respecting clearances and mounting points,
• minimize the risk of abrasion, mechanical damage, and interference in the operation of electrical systems.

Thanks to its factory fit for the BMW U06 platform, the harness allows for the preservation of the original installation architecture, which is particularly important during post-collision repairs, bodywork interventions, or floor component replacements.

Construction and advantages of the original BMW harness

As an element from the Cables, harnesses, and connectors group, this underfloor harness combines several key design features:

• factory-shaped cable path, facilitating correct routing in floor tunnels and indentations,
• integrated mounting points and clips that stabilize the cable and limit its movement during driving,
• insulation adapted for operation in underfloor conditions, taking into account moisture, temperature changes, and vibrations.

Its original BMW origin promotes compatibility with other installation components, such as power distribution units, fuse boxes, or control modules. This translates into electrical consistency of the entire system and reduces the risk of diagnostic issues after installation.

Condition, service application, and benefits of installation

The item is offered in used condition, making it an attractive service solution while maintaining original BMW quality. In practice, such a harness will prove particularly useful in situations where:

• the factory positive cable has been damaged due to corrosion, abrasion, or mechanical interference,
• it is necessary to restore the floor installation path after bodywork repairs,
• you want to restore the vehicle to a configuration close to the factory state, avoiding universal, non-original solutions.

Using an original harness allows for limiting modifications, soldering, and additional connections, which promotes stability of electrical parameters and facilitates subsequent diagnostics in BMW systems.

Integration with other BMW cables and harnesses

The positive underfloor cable harness works with other segments of the installation, creating a coherent vehicle power system. When planning a repair, it is worth paying attention to the condition of adjacent cable sections, ground points, and connectors to avoid the recurrence of faults in the future. If you are planning a comprehensive repair or upgrade of the electrical installation area in your BMW and need other components from the same group, such as power cables, signal harnesses, or installation connectors, check the available parts in the BMW cables, harnesses, and connectors category.

Technical support and service knowledge

When working with BMW electrical systems, it is crucial to follow correct service procedures, use appropriate tightening torques for connections, and check voltage drops after installation. For users interested in deepening their knowledge of modern vehicle systems, including components affecting exhaust emissions and engine efficiency, the article describing the operation of the exhaust gas recirculation system may be helpful – EGR: what it is and why it is worth considering used EGR valves. It allows for a better understanding of how individual components work together within the entire vehicle system.
